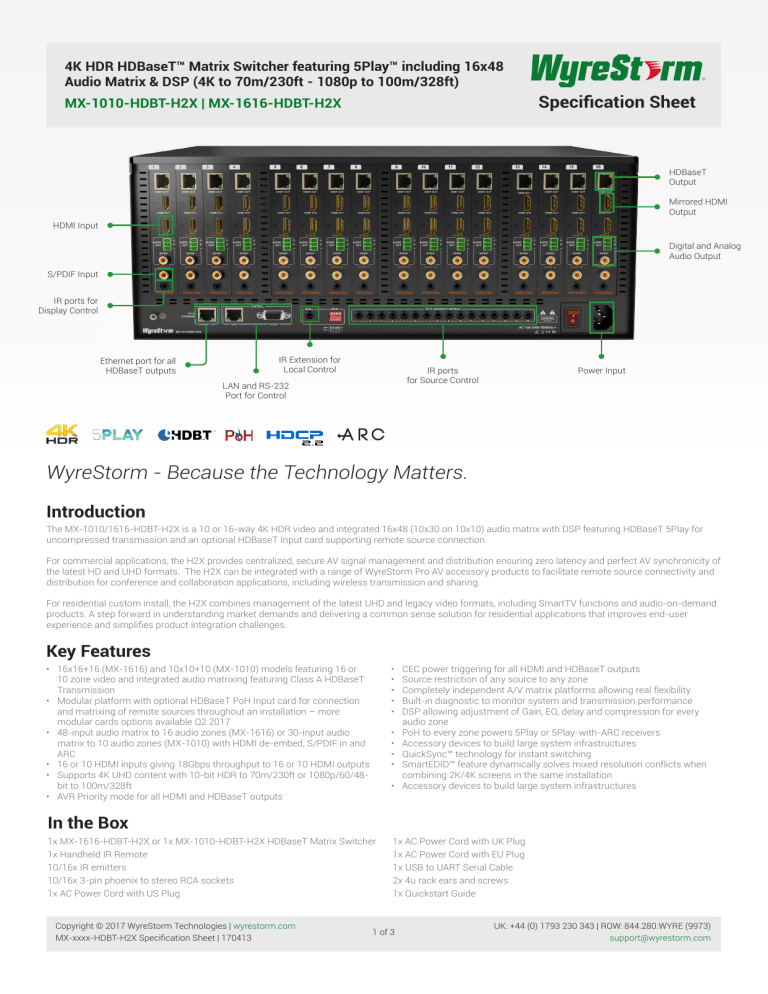

Specification Sheet
4K HDR HDBaseT™ Matrix Switcher featuring 5Play™ including 16x48
Audio Matrix & DSP (4K to 70m/230ft - 1080p to 100m/328ft)
Specification Sheet
MX-1010-HDBT-H2X | MX-1616-HDBT-H2X
HDBaseT
Output
Mirrored HDMI
Output
HDMI Input
Digital and Analog
Audio Output
S/PDIF Input
IR ports for
Display Control
Ethernet port for all
HDBaseT outputs
IR Extension for
Local Control
IR ports
for Source Control
LAN and RS-232
Port for Control
Power Input
WyreStorm - Because the Technology Matters.
Introduction
The MX-1010/1616-HDBT-H2X is a 10 or 16-way 4K HDR video and integrated 16x48 (10x30 on 10x10) audio matrix with DSP featuring HDBaseT 5Play for
uncompressed transmission and an optional HDBaseT Input card supporting remote source connection.
For commercial applications, the H2X provides centralized, secure AV signal management and distribution ensuring zero latency and perfect AV synchronicity of
the latest HD and UHD formats. The H2X can be integrated with a range of WyreStorm Pro AV accessory products to facilitate remote source connectivity and
distribution for conference and collaboration applications, including wireless transmission and sharing.
For residential custom install, the H2X combines management of the latest UHD and legacy video formats, including SmartTV functions and audio-on-demand
products. A step forward in understanding market demands and delivering a common sense solution for residential applications that improves end-user
experience and simplifies product integration challenges.
Key Features
• 16x16+16 (MX-1616) and 10x10+10 (MX-1010) models featuring 16 or
10 zone video and integrated audio matrixing featuring Class A HDBaseT
Transmission
• Modular platform with optional HDBaseT PoH Input card for connection
and matrixing of remote sources throughout an installation – more
modular cards options available Q2 2017
• 48-input audio matrix to 16 audio zones (MX-1616) or 30-input audio
matrix to 10 audio zones (MX-1010) with HDMI de-embed, S/PDIF in and
ARC
• 16 or 10 HDMI inputs giving 18Gbps throughput to 16 or 10 HDMI outputs
• Supports 4K UHD content with 10-bit HDR to 70m/230ft or 1080p/60/48bit to 100m/328ft
• AVR Priority mode for all HDMI and HDBaseT outputs
•
•
•
•
•
•
•
•
•
•
CEC power triggering for all HDMI and HDBaseT outputs
Source restriction of any source to any zone
Completely independent A/V matrix platforms allowing real flexibility
Built-in diagnostic to monitor system and transmission performance
DSP allowing adjustment of Gain, EQ, delay and compression for every
audio zone
PoH to every zone powers 5Play or 5Play-with-ARC receivers
Accessory devices to build large system infrastructures
QuickSync™ technology for instant switching
SmartEDID™ feature dynamically solves mixed resolution conflicts when
combining 2K/4K screens in the same installation
Accessory devices to build large system infrastructures
In the Box
1x MX-1616-HDBT-H2X or 1x MX-1010-HDBT-H2X HDBaseT Matrix Switcher
1x Handheld IR Remote
10/16x IR emitters
10/16x 3-pin phoenix to stereo RCA sockets
1x AC Power Cord with US Plug
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-xxxx-HDBT-H2X Specification Sheet | 170413
1x AC Power Cord with UK Plug
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x 4u rack ears and screws
1x Quickstart Guide
1 of 3
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
Specifications
Audio and Video
Inputs
10/16x HDMI In19-pin type A | 10/16x S/PDIF In Coaxial Digital
Outputs
10/16x HDMI 19-pin type A (Mirrors HDBaseT) | 10/16x HDBaseT 8-pin RJ-45 female
10/16x S/PDIF Out Coaxial Digital | 10/16x Audio Out 3pin Phoenix Connector
Output Video Encoding
HDBaseT Class A 5-Play
Encoding Data Rate
9.2Gbps
End to End Latency
10μs (micro seconds)
Audio Formats
S/PDIF: 2ch PCM | Multichannel: Up to 5.1 DTS and Dolby Digital
HDMI: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
HDMI
1920x1080p @60Hz 12bit (15m/50ft) | 16bit (7m/23ft)
3840x2160p @24/25/30Hz 4:4:4 8bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit (3m/9.8ft)
4096x2160p @60Hz 8bit 4:2:0 (7m/23ft)
Video Resolutions (Max)
Using Cat6
1920x1080p @60Hz 12bit (100m/328ft) | 16bit (100m/328ft)
3840x2160p @30Hz 4:4:4 8bit (70m/230ft) | @24Hz 4:2:0 HDR 10bit (70m/230ft)
4096x2160p @60Hz 4:2:0 8bit (70m/230ft)
Using Cat6a/7
1920x1080p @60Hz 12bit (100m/328ft) | 16bit (100m/328ft)
3840x2160p @30Hz 4:4:4 8bit (100m/328ft) | @24Hz 4:2:0 HDR 10bit (100m/328ft)
4096x2160p @60Hz 4:2:0 8bit (100m/328ft)
Cat6a/7 (Extended Distance Mode):
1920x1080p @60Hz 12bit (140m/460ft)
Color Depth
1080p: 16bit | 4K UHD: 8bit | HDR @24p: 10bit BT.2020
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
HDMI
HDMI | HDCP 2.2 | EDID | | DVI/D supported with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | CEC | ARC | 1-way PoH to Receiver | Bidirectional IR and Ethernet
Ethernet
1x 8-pin RJ-45 female | WebUI | IP Control | Bi-directional over HDBaseT
IR
1x IR Ext - 3.5mm (1/8in) TRS Stereo | Matrix Control
10/16x IR RX - 3.5mm (1/8in) TRS Stereo | 10/16x IR TX - 3.5mm (1/8in) TS Mono | Transmits over HDBaseT
RS-232
Matrix Control | Bidirectional over HDBaseT | Firmware Updates
Audio Return Channel (ARC)
Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT
Power
Power Supply
100~240V AC 50/60Hz
PoH
48V 15.4W (each HDBT output)
Max Power Consumption
Based on 16 (or 10) HDMI in/HDBT out cards
16x16: 290W | 10x10: 200W
Environmental
Operating Temperature
32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%, non-condensing
Storage Temperature
-4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%, non-condensing
Maximum BTU
16x16: 989 BTU/hr | 10x10: 682 BTU/hr
Dimensions and Weight
MX-1010-HDBT-H2X
MX-1616-HDBT-H2X
Rack Units/Wall Box
4U
4U
Height With | Without Feet
183.1mm/7.22in | 176mm/6.93in
183.1mm/7.22in | 176mm/6.93in
Width With | Without Brackets
483mm/19.02in | 440mm/17.33in
483mm/19.02in | 440mm/17.33in
Depth With | Without Handles
420.7mm/16.57in | 382.7mm/15.07in
420.7mm/16.57in | 382.7mm/15.07in
Weight
15.6kg/34.32lbs
16.54kg/36.39lbs
Regulatory
Safety and Emission
CE | FCC | RoHS
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-xxxx-HDBT-H2X Specification Sheet | 170413
2 of 3
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
Right Product for the Right Application.
Residential Wiring Diagram
Multizone Amplifier
RX-70-4K-SCL
RX-70-4K-ARC
Multizone Amplifier
MX-1616-HDBT-H2X
AVR
RX-70-4K-ARC
RX-70-4K-ARC
RX-70-4K-SCL
Key
HDMI/Digital Video
HDBaseT/Ethernet
Digital Audio
Analog Audio
UHD Sattelite Box
4K UHD Blu-ray Player
Sonos Zone Player
Sonos Zone Player
Media Player
Commercial Wiring Diagram
Laptop
Laptop
Multizone Amplifier
SW-0501-HDBT
MX-1616-HDBT-H2X
TX-IW-SW-0201
RX-70-4K-SCL
RX-70-4K-SCL
Local Amplifier
Camera
TX-IW-70-POH
Display 1
Projection Screen
RX-70-4K
RX-70-4K-SCL
Display 2
RX-70-4K-SCL
Projector
CCTV Video Recorder
Microphone
RX-70-4K
Laptop
RX-70-4K-SCL
Company Radio Audio
4K UHD Blu-ray Player
Key
HDMI/Digital Video
Phone System Audio
HDBaseT/Ethernet
Digital Audio
Analog Audio
Media Player
Video Conferencing System
Note: A direct HDBaseT input connection can only be
acheived with the TX-H2X-HDBT input card.
SW-0501-HDBT
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-xxxx-HDBT-H2X Specification Sheet | 170413
3 of 3
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
[email protected]
