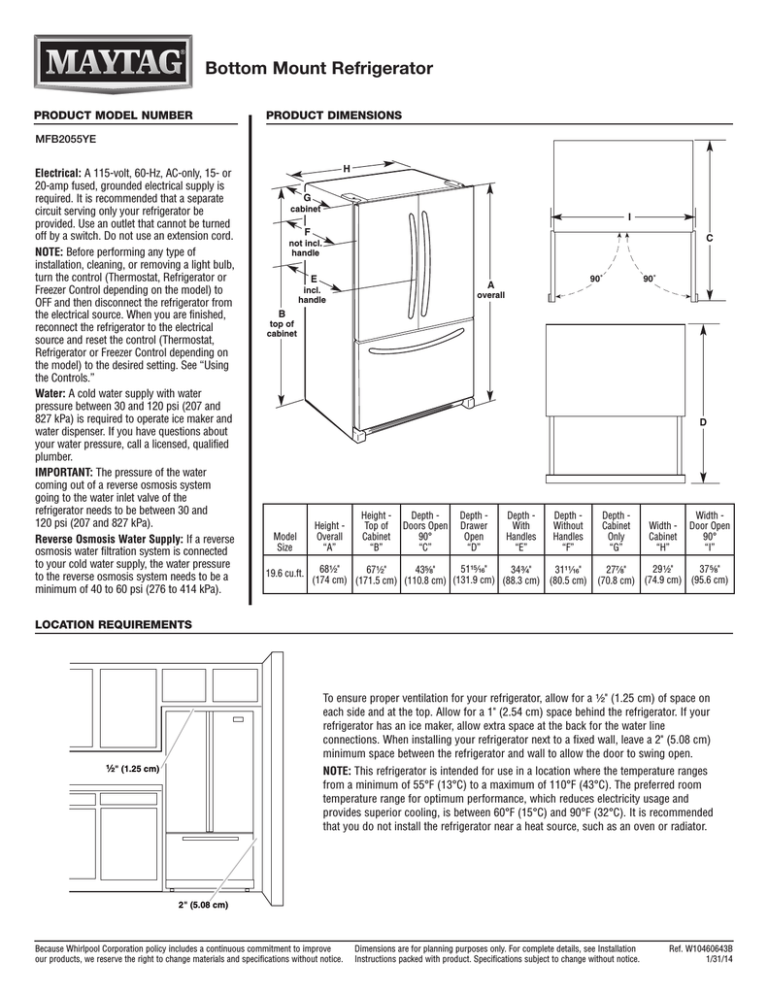

Bottom Mount Refrigerator
PRODUCT MODEL NUMBER
PRODUCT DIMENSIONS
MFB2055YE
Electrical: A 115-volt, 60-Hz, AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate
circuit serving only your refrigerator be
provided. Use an outlet that cannot be turned
off by a switch. Do not use an extension cord.
NOTE: Before performing any type of
installation, cleaning, or removing a light bulb,
turn the control (Thermostat, Refrigerator or
Freezer Control depending on the model) to
OFF and then disconnect the refrigerator from
the electrical source. When you are finished,
reconnect the refrigerator to the electrical
source and reset the control (Thermostat,
Refrigerator or Freezer Control depending on
the model) to the desired setting. See “Using
the Controls.”
Water: A cold water supply with water
pressure between 30 and 120 psi (207 and
827 kPa) is required to operate ice maker and
water dispenser. If you have questions about
your water pressure, call a licensed, qualified
plumber.
IMPORTANT: The pressure of the water
coming out of a reverse osmosis system
going to the water inlet valve of the
refrigerator needs to be between 30 and
120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a reverse
osmosis water filtration system is connected
to your cold water supply, the water pressure
to the reverse osmosis system needs to be a
minimum of 40 to 60 psi (276 to 414 kPa).
H
G
cabinet
I
F
C
not incl.
handle
E
90˚
A
incl.
handle
90˚
overall
B
top of
cabinet
D
Model
Size
19.6 cu.ft.
Height Overall
“A”
Height Top of
Cabinet
“B”
Depth Doors Open
90°
“C”
Depth Drawer
Open
“D”
Depth With
Handles
“E”
Depth Without
Handles
“F”
68¹⁄₂"
51¹⁵⁄₁₆"
67¹⁄₂"
43⁵⁄₈"
34³⁄₄"
31¹¹⁄₁₆"
(174 cm) (171.5 cm) (110.8 cm) (131.9 cm) (88.3 cm) (80.5 cm)
Depth Cabinet
Only
“G”
Width Cabinet
“H”
Width Door Open
90°
“I”
29¹⁄₂"
37⁵⁄₈"
27⁷⁄₈"
(70.8 cm) (74.9 cm) (95.6 cm)
LOCATION REQUIREMENTS
To ensure proper ventilation for your refrigerator, allow for a ¹⁄₂" (1.25 cm) of space on
each side and at the top. Allow for a 1" (2.54 cm) space behind the refrigerator. If your
refrigerator has an ice maker, allow extra space at the back for the water line
connections. When installing your refrigerator next to a fixed wall, leave a 2" (5.08 cm)
minimum space between the refrigerator and wall to allow the door to swing open.
¹⁄₂" (1.25 cm)
NOTE: This refrigerator is intended for use in a location where the temperature ranges
from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred room
temperature range for optimum performance, which reduces electricity usage and
provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is recommended
that you do not install the refrigerator near a heat source, such as an oven or radiator.
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10460643B
1/31/14
