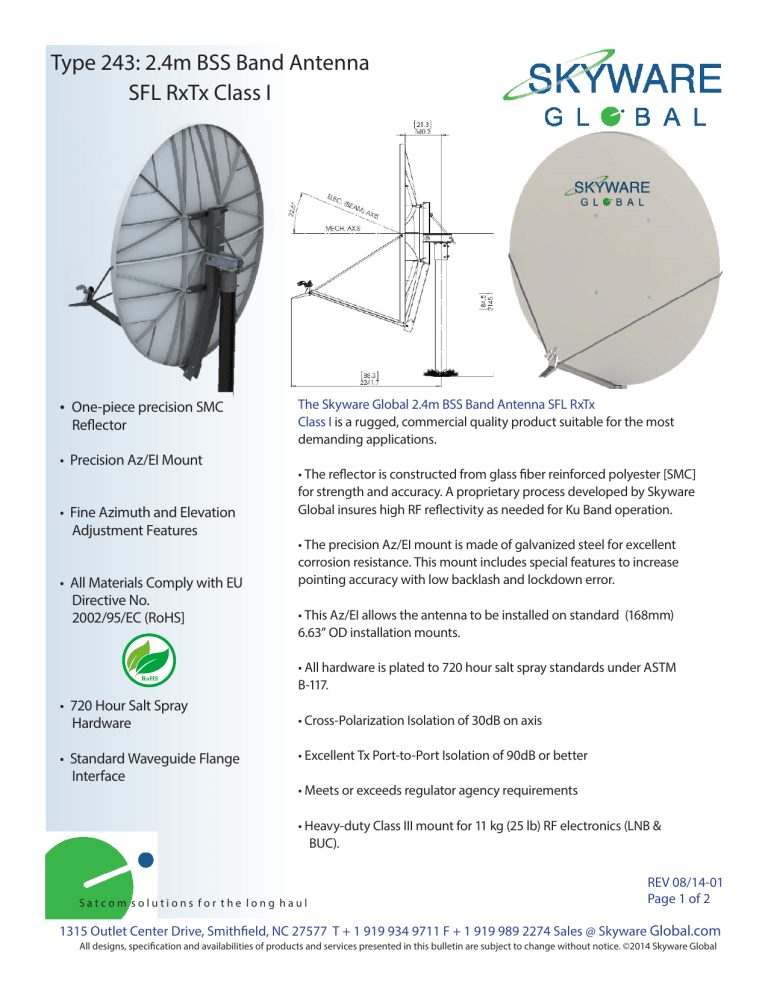

Type 243: 2.4m BSS Band Antenna
SFL RxTx Class I
• One-piece precision SMC
Reflector
• Precision Az/EI Mount
• Fine Azimuth and Elevation
Adjustment Features
• All Materials Comply with EU
Directive No.
2002/95/EC (RoHS]
The Skyware Global 2.4m BSS Band Antenna SFL RxTx
Class I is a rugged, commercial quality product suitable for the most
demanding applications.
• The reflector is constructed from glass fiber reinforced polyester [SMC]
for strength and accuracy. A proprietary process developed by Skyware
Global insures high RF reflectivity as needed for Ku Band operation.
• The precision Az/EI mount is made of galvanized steel for excellent
corrosion resistance. This mount includes special features to increase
pointing accuracy with low backlash and lockdown error.
• This Az/EI allows the antenna to be installed on standard (168mm)
6.63” OD installation mounts.
• All hardware is plated to 720 hour salt spray standards under ASTM
B-117.
• 720 Hour Salt Spray Hardware
• Standard Waveguide Flange
Interface
• Cross-Polarization Isolation of 30dB on axis
• Excellent Tx Port-to-Port Isolation of 90dB or better
• Meets or exceeds regulator agency requirements
• Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB &
BUC).
Satcom solutions for the long haul
REV 08/14-01
Page 1 of 2
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2014 Skyware Global
•P R O D U C T S P E C I F I C AT I O N S
2.4m BSS Band Antenna
SFL RxTx Class 1
RF Performance
Operating Frequency
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17.3 -18.1 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.95 -12.75 GHz
Polarization
Tx. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Linear V-Pol or H-Pol
Rx. . . . . . . . . . . . . . . . . . . . . . . . . . . . .Linear H-Pol or V-Pol
Gain (±0.3 dB)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.4 dBi @ 17.7 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47.4 dBi @ 12.0 GHz
Mechanical Performance
Reflector Material. . . . . .Glass Fiber Reinforced Polyester
(SMC) with Aluminium Screen
Antenna Optics . . . . . . . Two-Piece Offset Feed Prime Focus
Mount Type . . . . . . . . . . . . . . . . . . . . . Elevation Over Azimuth
Elevation Adjustment Range . . . . . 10° - 90° Continuous
Fine Adjustment
Coarse Azimuth Adjustment Range . . . . . 360° Continuous;
3 dB Beamwidth
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5° @ 17.7 GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7° @ 12.0 GHz
Fine Azimuth Adjustment Range. . . . . . . . . . . . . . . . . . . . ± 12°
Sidelobe Envelope (Tx, Co-Pol dBi)
Antenna Weight. . . . . . Approx 110.63Kg (Not Including
Mast)
100 λ/D < q< 20° . . . . . . . . . . . . . . . 29-25 log q dBi
Mast Size . . . . . . . . . . . . . . . . . . . . . . .6.63” (168mm) Diameter
20° < q< 26.3° . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -3.5 dBi
26.3° <q< 48° . . . . . . . . . . . . . . . . . . . . . .32-25 log q dBi
48° < q < 180° . . . . . . . . . . . . . . . . . . . . . -10 dBi (Typical)
Enviromental Performance
Antenna Cross-Polarization (Within 1 dB)
TX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>30dB
RX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .>23dB
Functional Survival Wind Speed. . . . . . . . 128km/h (80 mph)
Antenna Noise Temperature
. . . . . . . . . . . . . . . . . . . .31K° @ 30° Elevation @ 12.0 GHz
Atmosphere. . . . . . . . . . . . .Standard Hardware 720 Hrs SST
Requirements (ASTM B-117)
VSWR
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3:1 Max
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5:1 Max
Marinized Version. . . . . . . . . . . . . . . . . . . . . . . . . . . Also Possible
Isolation
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 dB
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 dB
Feed Interface
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR62 Flat Flange
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
Satcom solutions for the long haul
Operational Wind Speed. . . . . . . . . . . . . . . . 80km/h (50 mph)
Ultimate Survival Wind Speed. . . . . . . . .200km/h (125 mph)
Operational Temperature . . . . . . . . . . . . . . . . . .-40°C to +55°C
Survival Temperature Range . . . . . . . . . . . . . . .-50°C to +80°C
Humidity. . . . . . . . . . . . . . . . . . . . . . . . . 0 to 100% (Condensing)
Solar Radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .360 BTU/h/ ft2
Rain Operational. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” Per Hour
REV 08/14-01
Page 2 of 2
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2014 Skyware Global
