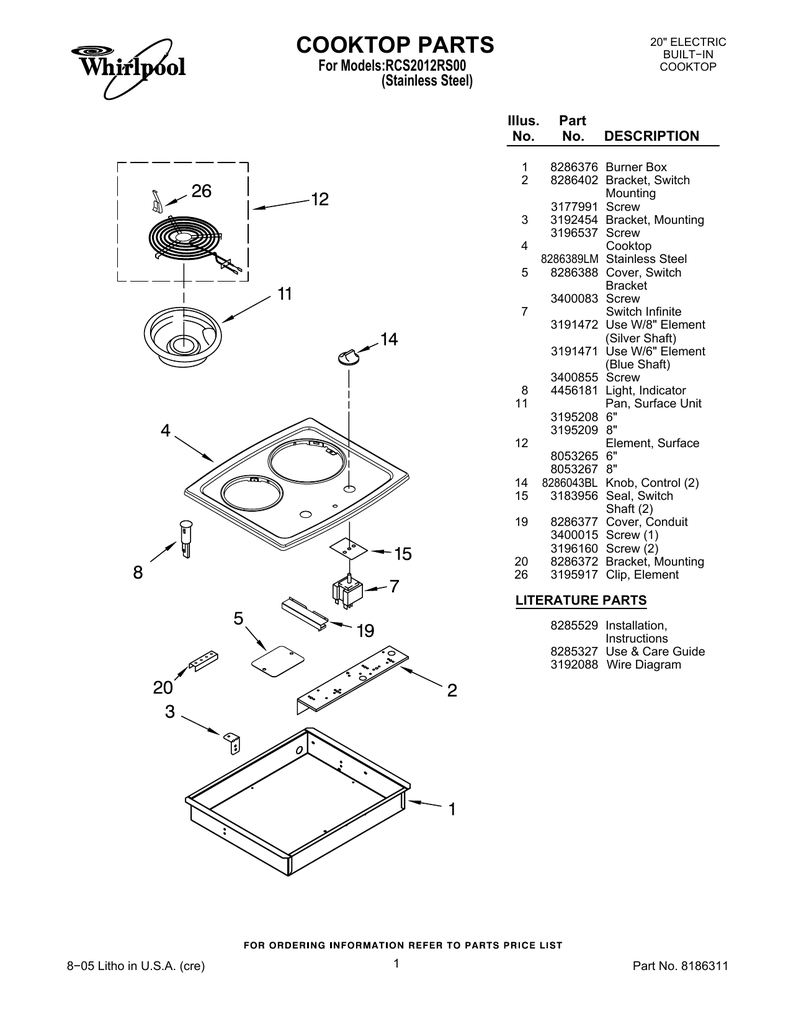

COOKTOP PARTS
20" ELECTRIC
BUILT−IN
COOKTOP
For Models:RCS2012RS00
(Stainless Steel)
Illus.
No.
1
2
3
4
5
7
8
11
12
14
15
19
20
26
Part
No.
DESCRIPTION
8286376 Burner Box
8286402 Bracket, Switch
Mounting
3177991 Screw
3192454 Bracket, Mounting
3196537 Screw
Cooktop
8286389LM Stainless Steel
8286388 Cover, Switch
Bracket
3400083 Screw
Switch Infinite
3191472 Use W/8" Element
(Silver Shaft)
3191471 Use W/6" Element
(Blue Shaft)
3400855 Screw
4456181 Light, Indicator
Pan, Surface Unit
3195208 6"
3195209 8"
Element, Surface
8053265 6"
8053267 8"
8286043BL Knob, Control (2)
3183956 Seal, Switch
Shaft (2)
8286377 Cover, Conduit
3400015 Screw (1)
3196160 Screw (2)
8286372 Bracket, Mounting
3195917 Clip, Element
LITERATURE PARTS
8285529 Installation,
Instructions
8285327 Use & Care Guide
3192088 Wire Diagram
8−05 Litho in U.S.A. (cre)
1
Part No. 8186311
OPTIONAL PARTS
For Models:RCS2012RS00
(Stainless Steel)
Illus.
No.
Part
No.
DESCRIPTION
FOLLOWING PARTS
NOT ILLUSTRATED
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 C
242820 Wire, Black
14 Ga. 150 C
242821 Wire, Blue
14 Ga. 150 C
242822 Wire, Brown
14 Ga. 150 C
242830 Wire, Brown
14 Ga. 200 C
242823 Wire, Green
14 Ga. 150 C
242824 Wire, Orange
14 Ga. 150 C
242829 Wire, Red
12 Ga. 150 C
242825 Wire, Red
14 Ga. 150 C
242831 Wire, Red
14 Ga. 200 C
242826 Wire, White
14 Ga. 150 C
242827 Wire, Yellow
14 Ga. 150 C
242832 Wire, Yellow
14 Ga. 200 C
WIRING HARNESS PARTS
Wiring Harness Parts
8286424 Harness, Wiring
(Main)
8286394 Conduit Assembly
4454384 Ground Wire
3400015 Screw
4455805 Grommet, Harness
2
8186311
