Hager Catalog Pgs 1-29

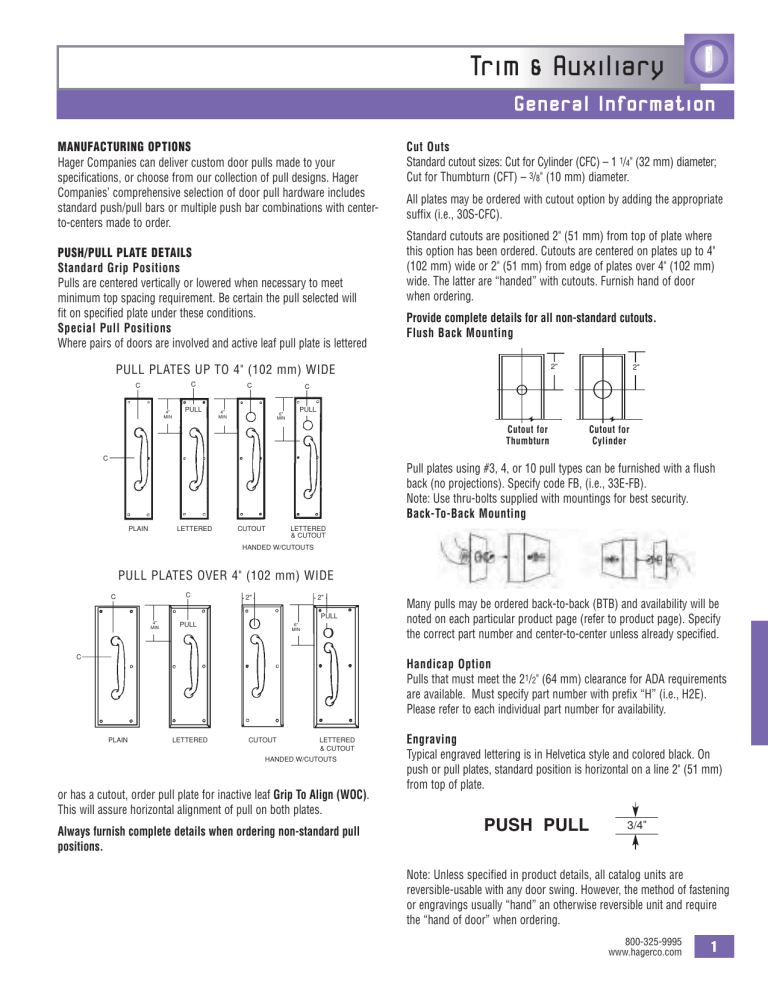

Trim & Auxiliary
General Information
MANUFACTURING OPTIONS
Hager Companies can deliver custom door pulls made to your
specifications, or choose from our collection of pull designs. Hager
Companies’ comprehensive selection of door pull hardware includes
standard push/pull bars or multiple push bar combinations with centerto-centers made to order.
PUSH/PULL PLATE DETAILS
Standard Grip Positions
Pulls are centered vertically or lowered when necessary to meet
minimum top spacing requirement. Be certain the pull selected will
fit on specified plate under these conditions.
Special Pull Positions
Where pairs of doors are involved and active leaf pull plate is lettered
Cut Outs
Standard cutout sizes: Cut for Cylinder (CFC) – 1 1/4" (32 mm) diameter;
Cut for Thumbturn (CFT) – 3/8" (10 mm) diameter.
All plates may be ordered with cutout option by adding the appropriate
suffix (i.e., 30S-CFC).
Standard cutouts are positioned 2" (51 mm) from top of plate where
this option has been ordered. Cutouts are centered on plates up to 4"
(102 mm) wide or 2" (51 mm) from edge of plates over 4" (102 mm)
wide. The latter are “handed” with cutouts. Furnish hand of door
when ordering.
Provide complete details for all non-standard cutouts.
Flush Back Mounting
2"
PULL
PLATES
UP 4"
TO(102
4" WIDE
PULL
PLATES
UP TO
mm) WIDE
C
C
4"
MIN
PULL
C
2"
C
4"
MIN
6"
MIN
PULL
Cutout for
Thumbturn
CFT
Cutout for
Cylinder
CFC
C
Pull plates using #3, 4, or 10 pull types can be furnished with a flush
back (no projections). Specify code FB, (i.e., 33E-FB).
Note: Use thru-bolts supplied with mountings for best security.
Back-To-Back Mounting
PLAIN
LETTERED
CUTOUT
LETTERED
& CUTOUT
HANDED W/CUTOUTS
PULL
PLATES
OVER
4" (102
mm) WIDE
PULL
PLATES
OVER
4" WIDE
C
C
2"
2"
PULL
4"
MIN
PULL
6"
MIN
C
Many pulls may be ordered back-to-back (BTB) and availability will be
noted on each particular product page (refer to product page). Specify
the correct part number and center-to-center unless already specified.
Handicap Option
Pulls that must meet the 21/2" (64 mm) clearance for ADA requirements
are available. Must specify part number with prefix “H” (i.e., H2E).
Please refer to each individual part number for availability.
PLAIN
LETTERED
CUTOUT
LETTERED
& CUTOUT
HANDED W/CUTOUTS
or has a cutout, order pull plate for inactive leaf Grip To Align (WOC).
This will assure horizontal alignment of pull on both plates.
Always furnish complete details when ordering non-standard pull
positions.
Engraving
Typical engraved lettering is in Helvetica style and colored black. On
push or pull plates, standard position is horizontal on a line 2" (51 mm)
from top of plate.
PUSH PULL
3/4"
Note: Unless specified in product details, all catalog units are
reversible-usable with any door swing. However, the method of fastening
or engravings usually “hand” an otherwise reversible unit and require
the “hand of door” when ordering.
800-325-9995
www.hagerco.com
1
Trim & Auxiliary
General Information
Fasteners
Illustrated below are various types of fasteners that can be furnished by
Hager Companies. Please specify type of fastening desired. All types of
fastening cannot be used with all items of hardware. If specified method
is not possible, we reserve the right to furnish whatever type we feel is
best suited for the installation. When used with tempered glass doors
specify thickness of glass and hole diameter.
SEX BOLT and machine screws
Various sizes
LEAD EXPANSION SHIELD
When specified, used with floor stop
CONCEALED CONE WITH BOLT
AND SET SCREW
BACK-TO-BACK MOUNTING
PUSH
PULL
CONE
BUSHING
THRU-BOLT
SET SCREW
TYPE 3
BACK-TO-BACK MOUNTING
FOR FLAT BARS
PUSH
PULL
THRU-BOLT
PLASTIC SHIELD
and full threaded screw
TOGGLE BOLT
TOGGLER furnished with wall bumpers
Supplied with #6-13/4 screw
THRU-BOLT and countersink washer
Flat head; size as required
SPANNER HEAD machine screws
Various sizes furnished at extra charge
TORX HEAD machine screws
Various sizes furnished at extra charge
TYPE 4
CONCEALED CONE, SINGLE MOUNTING
REQUIRES REINFORCING OR
RIVNUTS BY OTHERS
REINFORCING
REQUIRED FOR
DOOR FACE
LESS THAN
1/8" THICK
FOR ALUMINUM
DOORS, RIVNUTS MAY
BE USED WITHOUT
REINFORCING
CONE BUSHING MS
OR WS REQUIRED
TYPE 5
SEX BOLT SETS
BACK-TO-BACK MOUNTING
PUSH
PULL
MS
TYPE 6
THRU-BOLT, FINISH WASHER
SINGLE MOUNTING
SET SCREW
SEXNUT
BLANK OR
SLOTTED
HEAD
CONCEALED SPANNER, COLLAR & STUD
BACK-TO-BACK MOUNTING SETS
WITH ROUND BASES ONLY
WASHER
PULL
PUSH
HARDWARE
THRU-BOLT
TYPE 1
SPANNER
STUD
SPANNER
COLLAR
TYPE 7
SURFACED APPLIED SPECIFY
WS OR MS SINGLE MOUNTING
SPANNER CAP, SINGLE MOUNTING FOR
ROUND BASES ON TEMPERED GLASS DOORS
HARDWARE
HARDWARE
WS OR MS
AS REQUIRED
STUD
TYPE 2
2
800-325-9995
www.hagerco.com
SPANNER
CAP
TYPE 8
Trim & Auxiliary
General Information
METAL FINISH SYMBOLS
HAGER TYPE OF METAL
BASE METAL
ANSI
3
4
5
9
10
10B
15
15A
19
26
26D
28
32
32D
S1
S2
S3
Brass
Brass
Brass
Brass/Bronze
Brass/Bronze
Brass/Bronze
Brass/Bronze
Brass/Bronze
Brass
Brass/Bronze
Brass/Bronze
Aluminum
300 Series
300 Series
Cast Iron
Cast Iron
Cast Iron
605
606
609
611
612
613
619
620
622
625
626
628
629
630
689
696
691
Bright Brass
Satin Brass
Satin Brass Oxidized
Bright Bronze
Satin Bronze
Oxidized & Oil Rubbed Bronze
Satin Nickel
Satin Nickel Oxidized
Flat Black Brass
Bright Chromium
Satin Chromium
Aluminum– Satin, Anodized Clear
Stainless Steel–Bright
Stainless Steel–Satin
Painted Aluminum
Painted Brass
Painted Bronze
ANTIMICROBIAL PROTECTION
Hager Companies’ full line of US32D stainless steel door pulls, push
bars, push plates and pull plates are available with AgION antimicrobial
protection.
Hager Companies uses a powder coat process to apply the antimicrobial
treated coating to guarantee durability and protection. Antimicrobial
resistance on products is affected by moisture in the air. Silver ions
interact with humidity and are released creating a cleaner surface.
The suppression of bacteria, mold and fungi is as easy as adding
antimicrobial treated coating to your Hager Companies’ products.
Antimicrobial Vital Stats
• US32D stainless Steel
• EPA registered
• NSF approved
• FDA listed for food contact
• Designate your product with: MV3 for Trim & Auxiliary
800-325-9995
www.hagerco.com
3
Trim & Auxiliary
Notes
4
800-325-9995
www.hagerco.com
Trim & Auxiliary
Pulls
Cast Pull
Modified Half Round Wrought Door Pull
Meets ANSI A156.6 for J401 Pulls
Meets ANSI A156.6 for J401 Pulls
P8N
Base:
Projection:
Clearance:
CTC Length:
Material:
Finishes:
Fasteners:
Options:
1
1 5⁄ 8" (41 mm) diameter
2 1⁄4" (57 mm)
1 9⁄16" (40 mm)
7 3⁄4" (197 mm)
Bronze
US4, US26D
3
⁄8"-16 x 3⁄4" Flat head machine
screws
Security Torx screws available
Security Pull
Base:
Projection:
Clearance:
Materials:
1
⁄ 2" x 1" (13 mm x 25 mm)
2" (51 mm)
11⁄ 2" (38 mm)
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: 1⁄4"-20 thru-bolts
Handicap: 2 1⁄2" Clearance available on special
orders. Add prefix “H” to number
(i.e., H1E).
Options: • May be combined with a plate to
make a pull plate
• Other centers on special order
Meets ANSI A156.6 for J401 Pulls
CTC Length:
P4E
Base:
Projection:
Clearance:
CTC Length
Material:
Finish:
Fasteners:
1" (25 mm) diameter
2 1⁄4" (57 mm)
1 1⁄4" (32 mm)
6" (152 mm)
Stainless Steel
US32D
3⁄8"-16 x 1 1⁄4" “NYLOC” hex
head cap screws
Note:
• For metal doors
• Requires reinforcing plate
with an access plate and
Torx screws for door edge
inches
mm
IE
IG
IJ
IL
6
152
8
203
10
254
12
305
Rectangular Wrought Door Pull
Meets ANSI A156.6 for J401 Pulls
2
Security Pull
Meets ANSI A156.6 for J401 Pulls
T4E
Base:
Projection:
Clearance:
CTC Length:
Material:
Finish:
Fasteners:
Note:
1" (25 mm) diameter
2 1⁄4" (57 mm)
1 1⁄4" (32 mm)
6" (152 mm)
Stainless Steel
US32D
1⁄4"-20 x 2 1⁄4" Security Torx
thru-bolts
For wood doors
Base:
Projection:
Clearance:
Materials:
3⁄ 8
" x 1 1⁄4" (10 mm x 32 mm)
2" (51 mm)
1 5 ⁄ 8" (41 mm)
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: 1⁄4"-20 thru-bolts
Handicap: 2 1⁄2" Clearance available on
special orders. Add prefix “H” to
number (i.e., H2E).
Options: • May be combined with a plate
to make a pull plate
• Other centers on special order
CTC Length:
2E
2G
2J
2L
inches
mm
6
152
8
203
10
254
12
305
800-325-9995
www.hagerco.com
5
Trim & Auxiliary
Pulls
Round Wrought Door Pulls
Cast Pull
Meets ANSI A156.6 for J401 Pulls
Meets ANSI A156.6 for J401 Pulls
3
Base:
Projection:
Clearance:
Option:
3
4
Base:
Projection:
Clearance:
Option:
1" (25 mm) diameter
2 3⁄4" (70 mm)
1 3⁄ 4" (45 mm)
BTB compatible; specify 14+CTR
5
6N
⁄ 4" (19 mm) diameter
2 1⁄4" (57 mm)
11⁄ 2" (38 mm)
BTB compatible; specify 13+CTR
Finishes:
Fasteners:
Options:
5
Base:
⁄ 8" (16 mm) diameter
Projection: 2 1⁄ 8" (54 mm)
Clearance: 11⁄ 2" (38 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: 1⁄4"-20 thru-bolts
Handicap: 2 1⁄2" Clearance available on
special orders. Add prefix “H” to
number (i.e., H3E)
Options: • May be combined with a plate
to make a pull plate
• Other centers on special order
• If ordered with tempered glass,
specify glass thickness and
hole size
3E
3G
3J
3L
4G
4J
4L
5D
inches
mm
6
152
8
203
10
254
12
305
8
203
10
254
12
305
5 1⁄ 2
140
1" (25 mm) diameter
17⁄ 8" (48 mm)
1 3⁄ 8" (35 mm)
5 1⁄ 2" (140 mm)
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B, US26,
US26D, US28, US32D
1⁄4"-20 thru-bolts
May be combined with a plate
to make a pull plate
Cast Pull
Meets ANSI A156.6 for J401 Pulls
7N
Base:
Projection:
Clearance:
CTC Length:
Materials:
Finishes:
Fasteners:
Options:
8N
CTC Length:
Base:
Projection:
Clearance:
CTC Length:
Materials:
2" (51 mm) diameter
1 7⁄ 8" (48 mm)
1 3⁄ 8" (35 mm)
5 1⁄ 2" (140 mm)
Aluminum, Brass, Bronze
US3, US4, US10, US10B,
US26, US26D, US28
1⁄4"-20 thru-bolts
7N may be combined with a
plate to make a pull plate
Same as 7N except:
Fasteners: #8 Oval head tapping screws
Oval Wrought Door Pull
Meets ANSI A156.6 for J401 Pulls.
Cast Pull
9
Meets ANSI A156.6 for J401 Pulls
5N
6
800-325-9995
www.hagerco.com
5
Base:
⁄ 8" x 13⁄ 16" (16 mm x 30.2 mm)
Projection: 2" (51 mm)
Clearance: 1 1⁄ 2" (38 mm)
CTC Length: 51⁄ 2" (140 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10, US10B, US26,
US26D, US28, US32D
Fasteners: 1⁄4"-20 thru-bolts
Options:
May be combined with a plate
to make a pull plate
Base:
Projection:
Clearance:
Materials:
Finishes:
Fasteners:
Handicap:
Options:
" (19 mm)
2" (51 mm)
1 1⁄ 2" (38 mm)
Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B,
US26, US26D, US32, US32D
1
⁄4"-20 thru-bolts
2 1⁄2" Clearance available on
special orders. Add prefix “H”
to number (i.e., H9E).
• May be combined with a plate
to make a pull plate
• Other centers on special order
3⁄ 4
CTC Length:
9E
9G
9J
9L
inches
mm
6
152
8
203
10
254
12
305
Trim & Auxiliary
Pulls
Round Pull
Flush Cup Pull
Meets ANSI A156.6 for J401 Pulls
Meets ANSI A156.6 for J403 Flush Pulls
10
1 1⁄ 4" (32 mm) diameter
3" (76 mm)
1 3⁄ 4 " (44 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: 1⁄4"-20 thru-bolts
Handicap: 2 1⁄2" Clearance available on
special orders. Add prefix “H” to
number (i.e., H10E).
Options: • May be combined with a plate
to make a pull plate
• Other centers on special order
• If ordered with tempered glass,
specify glass thickness and
hole size
• BTB compatible; specify 20+CTR
Base:
Projection:
Clearance:
Materials:
Finishes:
CTC Length:
10L
10Q
inches
mm
12
305
18
457
Round Offset Pull
15N
Base:
Projection:
Clearance:
Offset:
Handicap:
Options:
12
Base:
Projection:
Clearance:
Offset:
Handicap:
Options:
Same as 15N except:
Concealed mounting by screws within the
recessed cup (similar to 16N or 17N)
15C
Same as 15N except:
Cup welded to face plate
Material: Stainless Steel
Finish:
32D
Option:
BTB compatible; specify 25C
15P
Same as 15N except:
Cup welded to face plate and welded studs
for security torx thru-bolt mounting
Material: Stainless Steel
Finish:
32D
Option:
BTB compatible; specify 25B
" (19 mm) diameter
2 1⁄ 2" (64 mm)
1 3⁄ 4" (45 mm)
2 1⁄ 2" (64 mm); 90° Standard
2 1⁄ 2" (64 mm) clearance available on
special orders. Add prefix “H” to number
(i.e., H11E)
• BTB compatible; specify 21+ CTR
• For 45° offset, add prefix “X” to number
(i.e., X11E)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: 5⁄16"-18 thru-bolts
Notes:
• Other centers available on special orders
• If ordered with tempered glass,
specify glass thickness and hole size
CTC Length:
11E
11G
11J
11L
12G
12J
12L
inches
mm
6
152
8
203
10
254
12
305
8
203
10
254
12
305
3⁄ 4
15S
3⁄ 4
1" (25 mm) diameter
2 3⁄ 4 " (70 mm)
1 3⁄ 4" (45 mm)
3" (76 mm); 90° Standard
2 1⁄ 2" (64 mm) clearance available on
special orders. Add prefix “H” to number
(i.e., H11E)
• BTB compatible; specify 22+ CTR
• For 45° offset, add prefix “X” to
number (i.e., X11E)
3 1⁄ 2" x 5" (89 mm x 127 mm)
" (3.2 mm)
1 3⁄ 4" x 3 1⁄16" (44 mm x 78 mm)
1⁄ 8
" (19 mm)
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32D
Fasteners: #6 Oval head tapping screws
Option:
BTB compatible; specify 25N
Meets ANSI A156.6 for J402 Offset Pulls
11
Face:
Projection:
Opening:
Clearance
in Cup:
Materials:
Flush Cup Pull
Meets ANSI A156.6 for J403 Flush Pulls
16N
Face:
Projection:
Opening:
Clearance
in Cup:
Material:
Finishes:
115 ⁄ 16" x 3" (49 mm x 76 mm)
⁄ 8" (3.2 mm)
1 5⁄ 8" x 2 11⁄ 16" (41 mm x 68 mm)
1
5⁄ 8
" (16 mm)
Brass
US3, US4, US10, US10B,
US26, US26D
Fasteners: #6 Oval head tapping screws with
washers
800-325-9995
www.hagerco.com
7
Trim & Auxiliary
Pulls
Finger Pull Plate
Round Offset Pull
Meets ANSI A156.6 for combination
J301 Pull Plate and J403 Flush Pulls
Meets ANSI A156.6 for J402 Offset Pulls
16R
Face:
Projection:
Opening:
Clearance
in Cup:
Materials:
23
4" x 16" (102 mm x 406 mm)
1 ⁄ 8" (3.2 mm)
1 3⁄ 4" x 3 1⁄ 16" (44 x 78 mm)
" (19 mm)
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: #6 Oval head tapping screws
with washers
3⁄ 4
11⁄4" (32 mm) diameter
3" (76 mm)
1 3⁄ 4" (44 mm)
3 3⁄4" (96 mm); 90° Standard
18" (457 mm)
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
5
⁄16"-18 thru-bolts
2 1⁄2" (64 mm) Clearance avail
able on special orders. Add
prefix “H” to number (i.e., H23Q)
• For 45° offset, substitute “X”
for first digit (i.e., X3E)
• BTB compatible; specify #24
Base:
Projection:
Clearance:
Offset:
CTC Length:
Materials:
Finishes:
Fasteners:
Handicap:
Flush Cup Pull
Options:
Meets ANSI A156.6 for J403 Flush Pulls
17N
Face:
Projection:
Opening:
Clearance
in Cup:
Material:
Finishes:
2 1⁄ 2" x 4" (64 mm x 102 mm)
1 ⁄ 8" (3.2 mm)
21⁄ 4" x 3 3⁄4" (57 mm x 95 mm)
" (19 mm)
Brass
US3, US4, US10, US10B,
US26, US26D
Fasteners: #6 Oval head tapping screws
with washers
Note:
3⁄4
Security Finger Push/Pull Plate Set
Meets ANSI A156.6 for combination J301 Push Plate and
J403 Flush Pull
25P
Cast Pull
Meets ANSI A156.6 for J401 Pulls
19N
Base:
Projection:
CTC Length:
Material:
Finishes:
Fasteners:
20N
11⁄ 2" (38 mm) diameter
3 1⁄4" (83 mm)
5 3⁄16" (132 mm)
Brass
US3, US4, US10, US10B,
US26, US26D
#8 Oval head tapping screws
Face:
Projection:
Opening:
Clearance
in Cup:
Material:
Finish:
Fasteners:
Meets ANSI A156.14 for D2801
Size:
Lever
Extension:
Material:
Finishes:
Fasteners:
8
" (19 mm)
Stainless Steel
US32D
Mounting with Security Torx
bolt and blank head sex nuts
3⁄4
1" x 4 1⁄4" x 7⁄ 16"
(25 mm x 108 mm x 11 mm)
2 3⁄4" (70 mm)
Brass
US3, US26D
#6 x 11⁄4" Wood screws
Security Finger Pull
Meets ANSI A156.6 for J403 Flush Pulls
26N
Face:
Projection:
Opening:
Clearance
in Cup:
Materials:
Finishes:
Fasteners:
Note:
800-325-9995
www.hagerco.com
4" x 16" (102 mm x 406 mm)
⁄ 8" (3.2 mm)
13⁄4" x 3 1⁄16" (44 mm x 78 mm)
1
Same as 19N except:
Fasteners: 1⁄4"-20 thru-bolts
Edge Pull for Sliding Doors
22N
If ordered with tempered glass,
specify glass thickness and
hole size
4" x 5" (102 mm x 127 mm)
" (3.2 mm)
11⁄ 2" x 3" (38 mm x 76 mm)
1⁄ 8
" (21 mm)
Brass, Stainless Steel
US4, US26D, US32D
1⁄4"-20 Security Torx flat head
machine screws
Cup welded to face
13 ⁄ 16
Trim & Auxiliary
Pulls
C-Shaped Pull
Flush Cup Pulls
Meets ANSI A156.6 for J403 Flush Pulls
27N
27P
Face:
Projection:
Opening:
Clearance
in Cup:
Material:
Finish:
Fasteners:
Note:
920P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
920B
Pair of 920P with fasteners for BTB mounting
5" x 5" (127 mm x 127 mm)
⁄16" (7.9 mm)
4 3⁄ 8" x 3 7⁄8" (111 mm x 98 mm)
5
" (33 mm)
Stainless Steel
US32D
10-24 x 5⁄ 8" Security Torx
• ADA Compliant
• Not available for BTB mounting
15 ⁄ 16
Same as 27N except:
Fasteners: 1⁄4"-20 Security Torx flat head
machine screws
C-Shaped Pull
921P
Projection: 1 13 ⁄ 16" (46 mm)
CTC Length: 17 1⁄ 2" (446 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A, US26,
US26D, US28, US32
3⁄8" diameter bolts
Fasteners:
921B
Pair of 921P with fasteners for BTB mounting
Antivandal Pull
Meets ANSI A156.6 for J401 Pulls
Meets ANSI A156.6 for J407 Pull Plates
313S
313L
Height:
Clearance:
Material:
Finish:
Options:
11" (279.4 mm)
13⁄4" (19.5 mm)
0.120 Gauge Stainless Steel
US32D
• Plastisol Coating on grip
• Cylinder cutout available
(11⁄4" or 11⁄2" diameter)
• Left or right hand mounting
Same as 313S except with Latchguard
C-Shaped Pull
922P
922B
Projection:
923P
923B
Projection:
Offset Mounting Vertical Pull
910P
910B
Projection: 3 " (83 mm)
CTC Lengths: 20" (508 mm), 56" (1422 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
3⁄8" diameter bolts
Fasteners:
915B
Projection: 3 1⁄4" (83 mm)
CTC Lengths: 20" (508 mm), 56" (1422 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
3⁄8" diameter bolts
Fasteners:
Same as 915P except: With BTB mounting
2 3⁄4" (70 mm) Flanged
Pair of 923P with fasteners for BTB mounting
CTC Length: 10" (254 mm), 12" (305 mm)
Finishes:
Fasteners:
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
3⁄8" diameter bolts
C-Shaped Pull
924P
Projection: 2 1⁄ 2" (64 mm)
CTC Length: 14" (356 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A, US26,
US26D, US32D
3
Fasteners:
⁄8" diameter bolts
924B
Pair of 924P with fasteners for BTB mounting
Straight Mounting Vertical Pull
915P
2 1⁄ 2" (64 mm) Continuous
Pair of 922P with fasteners for BTB mounting
Materials:
1 ⁄4
Same as 910P except: With BTB mounting
2 1⁄ 4" (57 mm)
8 1⁄ 2" (217 mm)
Brass, Bronze
US3, US4, US10B, 15A, US26D
3
⁄8" diameter bolts
800-325-9995
www.hagerco.com
9
Trim & Auxiliary
Pulls
C-Shaped Pull
Offset Pull
925P
Projection: 4 3 ⁄ 16" (107 mm)
CTC Lengths: 6 1⁄ 2" (165 mm), 8 1⁄ 2" (217 mm),
12 1⁄ 2" (318 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A, US26,
US26D, US32D
Fasteners: 3⁄8" diameter bolts
934P
Projection: 3" (76 mm)
CTC Lengths: 12" (305 mm), 16" (406 mm),
18" (457 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A, US26,
US26D, US28, US32D
Fasteners: 3⁄8" diameter bolts
925B
Pair of 925P with fasteners for BTB mounting
934B
Pair of 934P with fasteners for BTB mounting
Curved Pull
926P
926B
Projection: 3 3 ⁄ 8" (86 mm)
CTC Length: 12" (305 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
Fasteners: 3⁄8" diameter bolts
930B
960P
Pair of 926P with fasteners for BTB mounting
Projection: 3" (76 mm)
CTC Lengths: • 145⁄ 32" (360 mm)
10" x 10" (254 x 254 mm)
• 1631⁄ 32" (431 mm)
12" x 12" (305 x 305 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
Fasteners: 3⁄8" diameter bolts
Pair of 930P with fasteners for BTB mounting
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
960B
Pull
930P
Square Tip Pull
3" (76 mm)
12" (305 mm)
Aluminum, Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D, US28
5
⁄16" -18 bolts
Pair of 960P with fasteners for BTB mounting
Steeple Tip Pull
961P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
961B
2 7⁄ 8" (73 mm)
12" (305 mm)
Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D
3
⁄8" diameter bolts
Pair of 961P with fasteners for BTB mounting
S-Shaped Pull
932P
932P
Right
Acorn Tip Pull
Left
Projection: 3" (76 mm)
CTC Length: 30" (762 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
Fasteners: 3⁄8" diameter bolts
932B
10
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
2 7⁄ 8" (73 mm)
12" (305 mm)
Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D
3
⁄8" diameter bolts
Pair of 932P with fasteners for BTB mounting
Acorn Pull-Offset
Cast Door Pull
933P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
933B
Pair of 933P with fasteners for BTB mounting
800-325-9995
www.hagerco.com
962P
2 3⁄4" (70 mm)
6" (152 mm)
Brass, Bronze
US3, US4, US10B, US26, US26D
3
⁄8" diameter bolts
963P
Projection: 2 3⁄4" (70 mm)
CTC Lengths: 12" (304 mm), 16" (406 mm),
18" (457 mm), 24" (610 mm),
30" (762 mm)
Materials: Cast Brass, Bronze
Finishes:
US3, US4, US10B, US15A,
US26, US26D
Fasteners: 3⁄8" diameter bolts
Trim & Auxiliary
Pulls
Horn Pull
967P
Segment Shape (Straight)
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
5 9 ⁄ 16" (141 mm)
16" (406 mm)
Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D
3
⁄8" diameter bolts
980B
Custom Push/Pull Set
970P
980P
Push/Pull Set
Pull Projection: 2 3⁄4" (70 mm)
CTC Length: 163⁄ 4" (425 mm)
Fasteners:
Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D
Type 3 mounting, concealed
cone with bolt and set screw
981P
974P
974B
981B
Projection: 2 1⁄ 2" (64 mm)
CTC Length: 12" (304 mm), 18" (457 mm),
24" (610 mm), 30" (762 mm),
36" (914 mm), 48" (1219 mm)
Materials: Brass, Bronze, Stainless Steel
Finishes:
US3, US26, US26D, US32, US32D
Fasteners: 3⁄8" diameter bolts
Pair of 974P with fasteners for BTB mounting
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
975B
1 3⁄ 4" (44 mm)
20" (508 mm), 56" (1422 mm)
Brass, Bronze
US3, US4, US10B, US15A,
US26, US26D, US32D
3
⁄8" diameter bolts
Pair of 981P with fasteners for BTB mounting
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
982B
3 1⁄ 8" (79 mm)
20" (508 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10B, US15A,
US26, US26D, US32D
3⁄8" diameter bolts
Pair of 982P with fasteners for BTB mounting
Curved Pull
983P
983P
Vertical Pull
975P
Projection: 2 3⁄ 8" (60 mm)
CTC Length: 9" (229 mm), 12" (305 mm),
18" (457 mm), 24" (610 mm)
Materials: Brass, Bronze, Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US32D
Fasteners: 3⁄8" diameter bolts
Straight Pull
982P
Door Pull
Pair of 980P with fasteners for BTB mounting
Segment Shape (Offset)
Push Projection: 3" (76 mm)
CTC Length: 34" (864 mm) or to match
door widths
Materials:
Finishes:
Projection: 2 3⁄ 8" (60 mm)
CTC Length: 9" (229 mm), 12" (305 mm),
18" (457 mm), 24" (610 mm)
Materials: Brass, Bronze, Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US32D
Fasteners: 3⁄8" diameter bolts
Right
Left
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
983B
3 1⁄ 8" (79 mm)
20" (508 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10B, US15A,
US26, US26D, US32D
3⁄8" diameter bolts
Pair of 983P with fasteners for BTB mounting
Pair of 975P with fasteners for BTB mounting
Curved Pull
984P
Door Pull
976P
976B
Projection:
CTC Length:
Material:
Finish:
Fasteners:
5 3⁄ 8" (137 mm)
19 13 ⁄ 16" (503 mm)
Stainless Steel
US32D
3⁄8" diameter bolts
Pair of 976P with fasteners for BTB mounting
984B
Projection: 3" (76 mm)
CTC Lengths: 12" (305 mm), 20" (508 mm)
Materials: Brass, Bronze, Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US32D
Fasteners: 3⁄8" diameter bolts
Pair of 984P with fasteners for BTB mounting
800-325-9995
www.hagerco.com
11
Trim & Auxiliary
Pulls
Curved Pull
985P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
985B
Fly Rod
3" (76 mm)
12" (305 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10B, US15A,
US26, US26D, US32D
3⁄8" diameter bolts
991P
Pair of 985P with fasteners for BTB mounting
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
5 3⁄4" (146 mm)
28 3⁄4" (730 mm)
2 (51 mm)
Cast Bronze
Patina
3⁄8" diameter bolts
Handed
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
15 9⁄16" (395 mm)
4 3⁄4" (121 mm)
2 3⁄8" (60 mm)
Cast Bronze
Patina
3⁄8" diameter bolts
Handed
Cuda Pull
992P
Curved Pull
986P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
986B
3 7⁄8" (98 mm)
20" (508 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10B, US15A,
US26, US26D
3⁄8" diameter bolts
Pair of 986P with fasteners for BTB mounting
Tarpon Pull
993P
Double Curved Pull
987P
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
987B
3" (76 mm)
20" (508 mm)
Brass, Bronze, Stainless Steel
US3, US4, US10B, US15A,
US26, US26D
3⁄8" diameter bolts
Pair of 987P with fasteners for BTB mounting
988B
Projection:
CTC Length:
Materials:
Finishes:
Fasteners:
3" (76 mm)
24" (610 mm)
Brass, Bronze, Stainless Steel
US3, US26D, US32D
3⁄8" diameter bolts
Pair of 988P with fasteners for BTB mounting
994P
990B
12
800-325-9995
www.hagerco.com
Projection: 3 1⁄ 2" (89 mm)
CTC Length: 24" (610 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10B, US15A,
US26, US26D, US28, US32D
Fasteners: 3⁄8" diameter bolts
Pair of 990P with fasteners for BTB mounting
Note:
Specify handing when ordering
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
12 1⁄8" (308 mm)
5" (127 mm)
NA
Cast Bronze
Patina
3⁄8" diameter bolts
Handed
Gator Hump Back Pull
995P
18 Degree Pull Bar
990P
13 13⁄16" (351 mm)
3 7⁄8" (98 mm)
2 1⁄8" (54 mm)
Cast Bronze
Patina
3⁄8" diameter bolts
Handed
Tarpon Push
Offset Pull
988P
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
15 1⁄2" (394 mm)
4 5⁄8" (117 mm)
1 1⁄2" (38 mm)
Cast Bronze
Patina
3
⁄8" diameter bolts
Handed
Heron Pull
996P
Width:
Height:
Clearance:
Material:
Finish:
Fasteners:
Note:
4 1⁄8" (105 mm)
24 1⁄8" (613 mm)
2 1⁄8" (54 mm)
Cast Bronze
Patina
3⁄8" diameter bolts
Handed
Trim & Auxiliary
Pull Plates
Pull Plate
Pull Plate
Meets ANSI A156.6 for J405 Pull Plate
Meets ANSI A156.6 for J407 Pull Plate
30, 40, 50 Series
60, 70 Series
Gauge:
0.125" (3.2 mm)
Materials: Plastic Laminate
Standard Sizes:
• 3" x 12" (76 mm x 305 mm)
• 3 1⁄ 2" x 15" (89 mm x 381 mm)
• 4" x 16" (102 mm x 406 mm)
• 6" x 16" (152 mm x 406 mm)
• 8" x 16" (203 mm x 406 mm)
Gauge:
0.050" (1.3 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Standard Sizes:
• 3" x 12" (76 mm x 305 mm)
• 3 1⁄ 2" x 15" (89 mm x 381 mm)
• 4" x 16" (102 mm x 406 mm)
• 6" x 16" (152 mm x 406 mm)*
• 8" x 16" (203 mm x 406 mm)*
Square Corner
(30, A30, 80)
Finishes:
*(size not available for 50 series)
Finishes:
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Pull Plate
A30, A40, A50 Series
Square Corner
Rounded Bevel
(100)
80, 90, 100 Series
Gauge:
0.125" (3.2 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Standard Sizes:
• 3" x 12" (76 mm x 305 mm)
• 3 1⁄ 2" x 15" (89 mm x 381 mm)
• 4" x 16" (102 mm x 406 mm)
• 6" x 16" (152 mm x 406 mm)
• 8" x 16" (203 mm x 406 mm
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
*(size not available for A50 series)
Finishes:
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
0.050" Pull Plate Number
SQUARE
RADIUS
ROUNDED
CORNERS
CORNERS
CORNERS
Rounded Corner
(50, A50)
Meets ANSI A156.6 for J407 Pull Plate
Gauge:
0.062" (1.6 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Standard Sizes:
• 3" x 12" (76 mm x 305 mm)
• 3 1⁄ 2" x 15" (89 mm x 381 mm)
• 4" x 16" (102 mm x 406 mm)
• 6" x 16" (152 mm x 406 mm)*
• 8" x 16" (203 mm x 406 mm)*
Radius Corner
(40, A40, 90)
31E
31G
31J
31L
32E
32G
32J
32L
33E
33G
33J
33L
34G
34J
34L
35D
35N
36N
39E
39G
39J
39L
41E
41G
41J
41L
42E
42G
42J
42L
43E
43G
43J
43L
44G
44J
44L
45D
45N
46N
49E
49G
49J
49L
51E
51G
51J
51L
52E
52G
52J
52L
53E
53G
53J
53L
54G
54J
54L
55D
55N
56N
59E
59G
59J
59L
PK = Black, CO = Brown,
PG = Grey, CP = Clear
0.062" Pull Plate Number
SQUARE
RADIUS
ROUNDED
CORNERS
CORNERS
CORNERS
A31E
A31G
A31J
A31L
A32E
A32G
A32J
A32L
A33E
A33G
A33J
A33L
A34G
A34J
A34L
A35D
A35N
A36N
A39E
A39G
A39J
A39L
A41E
A41G
A41J
A41L
A42E
A42G
A42J
A42L
A43E
A43G
A43J
A43L
A44G
A44J
A44L
A45D
A45N
A46N
A49E
A49G
A49J
A49L
A51E
A51G
A51J
A51L
A52E
A52G
A52J
A52L
A53E
A53G
A53J
A53L
A54G
A54J
A54L
A55D
A55N
A56N
A59E
A59G
A59J
A59L
0.125" Pull Plate Number
SQUARE
RADIUS
ROUNDED
CORNERS
CORNERS
BEVEL
81E
81G
81J
81L
82E
82G
82J
82L
83E
83G
83J
83L
84G
84J
84L
85D
85N
86N
89E
89G
89J
89L
91E
91G
91J
91L
92E
92G
92J
92L
93E
93G
93J
93L
94G
94J
94L
95D
95N
96N
99E
99G
99J
99L
101E
101G
101J
101L
102E
102G
102J
102L
103E
103G
103J
103L
104G
104J
104L
105D
105N
106N
109E
109G
109J
109L
800-325-9995
www.hagerco.com
PULL
1E
1G
1J
1L
2E
2G
2J
2L
3E
3G
3J
3L
4G
4J
4L
5D
5N
6N
9E
9G
9J
9L
13
Trim & Auxiliary
Push Plates
When ordering any plate on this page, specify part #, size and finish
(i.e., 30S - 4" x 16" - US4). All push plates are supplied with #6 x 5⁄ 8"
oval undercut head fasteners.
Square Corner – Beveled
Meets ANSI A156.6 for J304 Push Plate
60S
Gauge:
Material:
Finishes:
Option:
0.125" (3.2 mm)
Plastic laminate
PG - Grey, PK - Black, CO - Brown
May be ordered cut for cylinder
(CFC)
70S
Gauge:
Material:
Finish:
Option:
0.125" (3.2 mm)
Clear plastic laminate
PC - Clear
May be ordered cut for cylinder
(CFC)
80S
Gauge: 0.125" (3.2 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Option: May be ordered cut for cylinder
(CFC)
Square Corner – Beveled
Meets ANSI A156.6 for J301 Push Plate
30S
A30S
Gauge:
0.050" (1.3 mm)
Gauge: 0.062" (1.6 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Options: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
Available in sizes:
inches
mm
3 x 12
76 x 305
31⁄ 2 x 15
89 x 38
4 x 16
102 x 4
6 x 16
152 x 406
8 x 16
203 x 406
Available in sizes:
inches
mm
Radius Corner – Not Beveled
3 x 12
76 x 305
31⁄ 2 x 15
89 x 38
4 x 16
102 x 4
6 x 16
152 x 406
8 x 16
203 x 406
Meets ANSI A156.6 for J301 Push Plate
40R
A40R
Gauge:
0.050" (1.3 mm)
Radius Corner – Not Beveled
Meets ANSI A156.6 for J304 Push Plate
Gauge: 0.062" (1.6 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Options: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
90R
Gauge: 0.125" (3.2 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Options: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
Available in sizes:
inches
mm
3 x 12
76 x 305
31⁄ 2 x 15
89 x 38
4 x 16
102 x 4
6 x 16
152 x 406
8 x 16
203 x 406
Available in sizes:
inches
mm
3 x 12
76 x 305
3 1⁄ 2 x 15
89 x 38
4 x 16
102 x 4
6 x 16
152 x 406
8 x 16
203 x 406
Rounded Corner – Not Beveled
Square Corner – Rounded Bevel Top and
Bottom
Meets ANSI A156.6 for J301 Push Plate
50T
A50T
Gauge:
0.050" (1.3 mm)
Gauge:
0.062" (1.6 mm)
Meets ANSI A156.6 for J304 Push Plate
100T
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Options: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
Available in sizes:
inches
mm
14
800-325-9995
www.hagerco.com
3 x 12
76 x 305
Gauge: 0.125" (3.2 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Options: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
Available in sizes:
3 1⁄ 2 x 15
89 x 38
4 x 16
102 x 4
inches
mm
3 x 12
76 x 305
3 1⁄ 2 x 15
89 x 38
4 x 16
102 x 4
6 x 16
152 x 406
8 x 16
203 x 406
Trim & Auxiliary
Push Plates & Bars
Half Circle - Push Plate
Meets ANSI A156.6 for J301 Push Plate
110S
Plate:
8" x 16" (203 mm x 406 mm)
Gauge: 0.050" (1.3 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners: #6 x 5⁄ 8" Oval head tapping screws
Option: May be ordered cut for cylinder
(CFC) or engraved “PUSH”
All push bar units made to order. Specify CTC lengths, fastening
method unless standard and type of door (i.e., WO, HM, AL, etc.).
Bent Push Bar
Meets ANSI A156.6 J501 Push Bar
125S
3
⁄ 8" x 11⁄4" (10 mm x 32 mm)
2 1⁄ 8" (54 mm)
1" x 3" (25 mm x 76 mm)
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B,
US28, US32, US32D
1
⁄ 4"-20 Flat head machine screws
and #8 Flat head tapping screws
May be ordered with thru-bolts
in place of surface screws
Bar Size:
Projection:
Base Plate:
Materials:
Finishes:
Plate with Lip – Not Beveled
Fasteners:
Meets ANSI A156.6 for J303 Plate
120L
Option:
Plate:
3 1⁄ 2" x 16" (89 mm x 406 mm)
Lip Projection: 1 1⁄ 8" (29 mm)
Gauge:
0.125" (3.2 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes:
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Fasteners:
#6 x 5⁄ 8" Oval head tapping screws
Options:
Other sizes available,
please specify
Push Bar
Meets ANSI A156.6 J501 Push Bar
126S
Cylinder Pull – Beveled
121L
Plate:
Lip Projection:
Cylinder Cutout:
Gauge:
Materials:
Finishes:
Fasteners:
Note:
2" x 3 3⁄4" (51 mm x 95 mm)
11⁄ 8" (29 mm)
11⁄4" (32 mm) diameter
0.125" (3.2 mm)
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Attached by lock cylinder
1⁄4"-20 x 3⁄8" stud installed on
reverse side to eliminate twisting
Meets ANSI A156.6 for combination
J304 Push Plate and J303 Flush Pull
122L
Push Plate:
Projection:
Pull Plate:
Lip Projection:
Gauge:
Material:
Finish:
Fasteners:
4" x 16" (102 mm x 406 mm)
⁄ 8" (3.2 mm)
4" x 9 1⁄4" (102 mm x 235 mm)
2 1⁄ 8" (54 mm)
0.125" (3.2 mm)
Stainless Steel
US32D
8-32 Security Flat head
machine screws
1
3⁄ 8
" x 11⁄4" (10 mm x 32 mm)
2 1⁄ 8" (54 mm)
1" x 3" (25 mm x 76 mm)
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: #8 Flat head tapping screws
Option:
May be ordered with 1⁄4"-20
thru-bolts in place of surface
screws
Push Bar
Meets ANSI A156.6 J501 Push Bar
127S
Security Pull/Push Plate Set – Beveled
Bar Size:
Projection:
Base Plate:
Materials:
Bar Size:
Projection:
Base Plate:
Materials:
3
⁄ 8" x 11⁄4" (10 mm x 32 mm)
⁄ 4" (19 mm)
1 1⁄4" x 11⁄4" (32 mm x 32 mm)
3
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: 1⁄ 4"-20 Flat head machine screws
Option:
#14 Flat head wood screws
available on special order
800-325-9995
www.hagerco.com
15
Trim & Auxiliary
Push Bars
All push bar units made to order. Specify CTC lengths, fastening
method unless standard, and type of door (i.e., WO, HM, AL, etc.).
Push Bar
Meets ANSI A156.6 J501 Push Bar
130S
Round
Bar Stock: 1" (25 mm)
Projection: 2 1⁄ 2" (64 mm)
133S
Round
Bar Stock: 3⁄4" (19 mm)
Projection: 2 1⁄ 4" (57 mm)
136S
Round
Bar Stock: 11⁄ 4" (32 mm)
Projection: 3" (76 mm)
Wide Push Bar
Meets ANSI A156.6 J501 Push Bar
128P
128S
Bar Size:
Projection:
Base Plate:
Fasteners:
Option:
" x 3" (10 mm x 76 mm)
2 1⁄ 8" (54 mm)
1 1⁄ 2" x 41⁄ 2" (38 mm x 114 mm)
#8 Flat head tapping screws
May be ordered with 1⁄ 4"-20
thru-bolts in place of surface
screws
3⁄ 8
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: 1⁄ 4"-20 thru-bolts
Option:
May be ordered with Type 5
concealed mountings at extra charge
Same as 128P except without base plates
Bar Size: 3⁄ 8" x 3" (10 mm x 76 mm)
Projection: 2" (51 mm)
Fasteners: 1⁄ 4"-20 thru-bolts
Materials:
Finishes:
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B,
US26, US26D, US28, US32,
US32D
Push Bar
Meets ANSI A156.6 J501 Push Bar
131S
Round
Bar Stock: 1" (25 mm)
Projection: 2 5⁄ 8" (67 mm)
Base:
2" (51 mm) diameter
134S
Round
Bar Stock: 3⁄4" (19 mm)
Projection: 2 3⁄ 8" (60 mm)
Base:
11⁄ 4" (32 mm) diameter
137S
Round
Bar Stock: 11⁄ 4" (32 mm)
Projection: 3 1⁄ 8" (79 mm)
Base:
2" (51 mm) diameter
Wide Push Bar
Meets ANSI A156.6 J501 Push Bar
129P
Bar Size: 3⁄ 8" x 3" (10 mm x 76 mm)
Projection: 3⁄4" (19 mm)
Base Plate: 1" x 3" (25 mm x 76 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: 1⁄ 4"-20 Flat head machine screws
Options:
• May be ordered with thru-bolts
in place of surface screws
• #14 Flat head wood screws
available on special order
16
800-325-9995
www.hagerco.com
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: 1⁄ 4"-20 thru-bolts
Option:
May be ordered with Type 5
concealed mountings at extra charge
Trim & Auxiliary
Push & Pull Sets
All push/pull sets are made to order. Specify CTC length,
fastening method and handing of door on offset pulls.
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
153D/V/B* Round
Bar Stock: 1" (25 mm)
Projection: 2 1⁄ 2 " (64 mm)
Pull CTC: 10" (254 mm)
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
138P
139P
140P
Round
Bar Stock: 1" (25 mm)
Projection: 2 1⁄ 2" (64 mm)
154D/V/B
Same as 153 series except:
Pull CTC: 12" (305 mm)
155D/V/B
Same as 153 series except:
Pull CTC: 18" (457 mm)
Round
Bar Stock: 3 ⁄ 4 " (19 mm)
Projection: 2 1⁄ 4" (60 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Round
Bar Stock: 1 1⁄ 4" (32 mm)
Projection: 3" (76 mm)
Materials:
Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Fasteners: 1⁄ 4"-20 Type 3 concealed cone
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
156D/V/B* Round
Bar Stock:
Projection:
Pull CTC:
Offset:
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
150D/V/B* Round
Bar Stock:
Projection:
Base:
Pull CTC:
" (19 mm)
2 1⁄ 4" (57 mm)
3 ⁄ 4" (19 mm) diameter
8" (203 mm)
3⁄4
151D/V/B
Same as 150 series except:
Pull CTC: 10" (254 mm)
152D/V/B
Same as 150 series except:
Pull CTC: 12" (305 mm)
Materials:
*Notes:
Fasteners:
D=Type 7 & Type 1 (Standard)
V=Type 7 & Type 5 (Fully Concealed)
B=Type 7 & Type 8 (Tempered Glass)
Finishes:
" (19 mm) diameter
2 1⁄ 2" (64 mm)
8" (203 mm)
2 1⁄ 2" (64 mm), 90° Standard
3 ⁄4
157D/V/B
Same as 156 series except:
Pull CTC: 10" (254 mm)
158D/V/B
Same as 156 series except:
Pull CTC: 12" (305 mm)
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Option:
For 45˚ offset pull, add
prefix “X” (i.e., X156D) to
number
Note:
Handed
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B,
US28, US32, US32D
Standard fastening (D, i.e., 150D): One type 7 spanner collar connection
between push bar and pull plus two type 1 connections for other ends of push bar
and pull.
Fully concealed fastening (V, i.e., 150V): One type 7 spanner collar
connection between push bar and pull plus two type 5 connections for ends of push
bar and pull.
Tempered glass fastening (B, i.e., 150B): One type 7 spanner collar
connection between push bar and pull plus two type 8 connections for ends of push
bar and pull plus gaskets that separate metal parts from glass.
800-325-9995
www.hagerco.com
17
Trim & Auxiliary
Push & Pull Sets
All push/pull sets are made to order. Please specify CTC
length, fastening method and handing of door on offset pulls.
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
167D/V/B* Round
Meets ANSI A156.6 J504 Bar Sets
159D/V/B* Round
Bar Stock: 1" (25 mm)
Projection: 2 1⁄ 2" (76 mm)
Pull CTC: 10" (254 mm)
Offset:
3" (76 mm), 90° Standard
160D/V/B
Same as 159 series except:
Pull CTC: 12" (305 mm)
161D/V/B
Same as 159 series except:
Pull CTC: 18" (457 mm)
11⁄4" (32 mm)
3" (76 mm)
18" (457 mm)
3 3⁄4" (96 mm), 90° Standard
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B,
US28, US32, US32D
For 45˚ offset pull, add
prefix “X” to number
(i.e., X167D)
Handed
Bar Stock:
Projection:
Pull CTC:
Offset:
Materials:
Push/Pull Set
Finishes:
Option:
Note:
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
Option:
For 45˚ offset pull, add
prefix “X” to number
(i.e., X159D)
Note:
Handed
Push/Pull Set
Meets ANSI A156.6 J502 Bar Sets
170D
Push/Pull Set
Meets ANSI A156.6 J504 Bar Sets
164D/V/B* Round
Bar Stock: 11⁄4" (32 mm)
Projection: 3" (76 mm)
Pull CTC: 12" (305 mm)
165D/V/B
Bar Stock:
Projection
of Pull Bar:
Projection
of Push Bar:
Base:
Horizontal
Spacing CTC:
Materials:
Finishes:
Same as 164 series except:
Pull CTC: 18" (457 mm)
Note:
Materials: Aluminum, Brass, Bronze,
Stainless Steel
Finishes: US3, US4, US10, US10B,
US28, US32, US32D
⁄ 8" x 11⁄4" (10 mm x 32 mm)
3
2 1⁄ 2" (64 mm)
" (19 mm)
11⁄4" x 11⁄4" (32 x 32 mm)
3 ⁄4
8" (203 mm)
Aluminum, Brass, Bronze,
Stainless Steel
US3, US4, US10, US10B, US26,
US26D, US28, US32, US32D
Bars are mounted BTB with
"-20 thru bolt type 4
mounting
1⁄ 4
*Notes:
Fasteners:
D=Type 7 & Type 1 (Standard)
V=Type 7 & Type 5 (Fully Concealed)
B=Type 7 & Type 8 (Tempered Glass)
Standard fastening (D, i.e., 150D): One type 7 spanner collar connection
between push bar and pull plus two type 1 connections for other ends of push bar
and pull.
Fully concealed fastening (V, i.e., 150V): One type 7 spanner collar
connection between push bar and pull plus two type 5 connections for ends of push
bar and pull.
18
800-325-9995
www.hagerco.com
Tempered glass fastening (B, i.e., 150B): One type 7 spanner collar
connection between push bar and pull plus two type 8 connections for ends of push
bar and pull plus gaskets that separate metal parts from glass.
Trim & Auxiliary
Door Edgings & Corner Guard
Door Edgings
Meets ANSI A156.6 Door Edging Type J201 through J209
180 Series
Mortise
7/8”
180H/K/M/P/Q
Mortise
181H/K/M/P/Q
Overlap
182H/K/M/P/Q
Non-Mortise
181 Series
Overlap
1 1/4”
182 Series
Non-Mortise
7/8”
7/16”
Leg on the
Door Edge:
1 3 ⁄4" minus 1⁄ 32" (44.5 minus 0.8 mm)
90°
Leg on the
Door Edge:
1 3 ⁄4" plus 1⁄ 32" (44.5 minus 0.8 mm)
Leg on the
Door Edge:
1 3 ⁄4" plus 1⁄ 32" (44.5 minus 0.8 mm)
180H
7/8”
93°
Standard Length:
Materials:
Gauge:
Finishes:
Fasteners:
Options:
36" – 42" (914 mm x 1067 mm)
Aluminum, Stainless Steel
0.045" - 0.050" (1.1 mm - 1.3 mm)
US28, US32D
#6 x 3 ⁄4" Flat head tapping screws
• Other lengths by quotation
• Hinge cutout available
• Latch cutout available
• UL rated edging available
Order:
• Provide actual rather than typical door
thickness
• Provide item #, size and
finish (i.e., 180H - 40"-32D)
Cutout will hand edging; specify
handing information
Note:
180K
7/8”
90°
180M
7/8”
93°
180P
90°
181H
1 1/4”
93°
181K
1 1/4”
90°
181M
1 1/4”
93°
181P
90°
182H
7/8”
93°
182K
7/8”
90°
182M
7/8”
93°
182P
7/8”
1 1/4”
7/8”
180Q
181Q
182Q
2.5"
2.5"
Corner Guard
Meets ANSI A156.6 for J210
185G
Size:
3" x 3" x 40"
(76 mm x 76 mm x 1016 mm)
Gauge: 0.050" (1.3 mm)
Materials: Aluminum, Stainless Steel
Finishes: US28, US32D
Fasteners: #6 x 5⁄ 8" truss head screws
Option: Mounting with double-stick tape
instead of screws
800-325-9995
www.hagerco.com
19
Trim & Auxiliary
Door Protection Plates
Kick Plate
Mop Plate
Meets ANSI A156.6 J101 Metal Armor Plate;
J102 Metal Kickplate; J103 Metal Mop Plate
All plates are supplied standard with #6 x 5/8" Truss Head Screws.
Stretcher Plate
Armor Plate
Meets ANSI A156.6 J101 Metal Armor Plate;
J102 Metal Kickplate; J103 Metal Mop Plate
190S
Gauge:
Materials:
Finishes:
Bevel:
0.050" (1.3 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
None
220S
Gauge:
Materials:
Finishes:
Bevel:
0.062" (1.6 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
None
193S
Gauge:
Materials:
Finishes:
Bevel:
0.050" (1.3 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
3 edges
223S
Gauge:
Materials:
Finishes:
Bevel:
0.062" (1.6 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
3 edges
194S
Gauge:
Materials:
Finishes:
Bevel:
0.050" (1.3 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
4 edges
224S
Gauge:
Materials:
Finishes:
Bevel:
0.062" (1.6 mm)
Aluminum, Brass, Bronze, Stainless Steel
US3, US4, US10, US10B, US26, US26D, US28, US32, US32D
4 edges
198S
Gauge: 0.038" (0.8 mm)
Material: Stainless Steel
Finish:
US32D only
199B
Options:
20
Gauge: 0.038" (0.8 mm)
Material: Aluminum
Finish:
Bright Gold Anodized
•
•
•
•
•
•
•
•
Countersunk holes
UL, armor plate stamped
Self-adhesive tape available on all plates
Spanner head screws
Torx head screws
Round Corners
Wrap around side and bottom return
0.125" material
800-325-9995
www.hagerco.com
Meets ANSI A156.6 J105 Plastic Armor Plate;
J106 Plastic Kickplate; J107 Plastic Mop Plate
204S
Gauge: 0.125" (3.2 mm)
Material: Clear Plastic
Bevel:
4 edges
214S
Gauge:
Material:
Bevel:
Colors:
Note:
225S
0.125" (3.2 mm)
Plastic Laminate
4 edges
Black, Brown, Gray
Other colors are available and will be subject to minimum
order quantities, priced on application
Material: Kydex®
Gauge:
0.060" (1.9 mm)
Colors: CBO - Calcutta Black; KGO - Beige; KHO - Chocolate
Note:
Other colors are available and will be subject to minimum
order quantities, priced on application
Trim & Auxiliary
Wall Stops & Holders
Convex Wall Stop
Convex Wall Stop
Meets ANSI A156.16 for L02101
230W
250W
Diameter: 2 7⁄ 16" (62 mm)
Projection: 13⁄16" (30 mm)
Materials: Cast Brass, Bronze
Finishes: US3, US4, US10, US10B, US15,
US15A, US19, US26, US26D
Fasteners: #10 x 11⁄ 4" concealed mounting with
shield and toggle bolt
Note:
Specify 230T for Machine screw
and toggle nut screw pack
Convex Wall Stop
Diameter:
Projection:
Materials:
251W
Finishes:
Fasteners:
Note:
BL232W
2 1⁄ 2" (64 mm)
" (30 mm)
Wrought Brass, Bronze,
Stainless Steel
US3, US4, US5, US9, US10,
US10B, US15, US15A, US19,
US26, US26D, US32, US32D
#10 x 11⁄ 4" concealed mounting with
shield and toggle bolt
13⁄16
Diameter:
Projection:
Material:
Finish:
1 7⁄ 8" (48 mm)
" (19 mm)
Adhesive backed rubber bumper
Grey only
3 ⁄4
Wall Stop and Holder
Meets ANSI A156.16 for L01351
254W
Specify 232T for Machine screw
and toggle nut screw pack
Purchase case quantity 50
Concave Wall Stop
1" (25 mm)
⁄ 2" (13 mm)
Brass
US3, US4, US10, US10B,
US15, US15A, US19, US26,
US26D
Fasteners: #6 x 5⁄ 8" screw with shield
1
Concave Wall Stop
Meets ANSI A156.16 for L02101
232W
Diameter:
Projection:
Material:
Finishes:
Diameter:
Projection:
Keeper:
Fasteners:
Material:
Finishes:
2 3⁄ 8" (60 mm)
3 3⁄ 8" (86 mm)
1" x 2" (25 mm x 51 mm)
5
⁄16" stud and anchor
Cast Brass
US3, US4, US10, US10B,
US15, US26, US26D
Meets ANSI A156.16 for L01341
Meets ANSI A156.16 for L02251
234W
Diameter:
Projection:
Materials:
Finishes:
2 7⁄ 16" (62 mm)
13
⁄16" (30 mm)
Cast Brass, Bronze
US3, US4, US10, US10B, US15,
US15A, US19, US26, US26D
Fasteners: #10 x 11⁄ 4" concealed mounting with
shield and toggle bolt
Note:
Specify 234T for Machine screw
and toggle nut screw pack
254S
Wall Stop
Meets ANSI A156.16 for L02021
255W
Concave Wall Stop
Meets ANSI A156.16 for L02251
236W
Diameter: 2 1⁄ 2" (64 mm)
Projection:
13⁄16
" (30 mm)
Materials: Wrought Brass, Bronze,
Stainless Steel
Same as 254W except:
Fasteners: #10 Oval head tapping screws
Diameter:
Projection:
Fasteners:
Material:
Finishes:
2 7⁄ 16" (62 mm)
3 5⁄ 8" (92 mm)
5⁄16" stud and anchor
Cast Brass
US3, US4, US10, US10B,
US15, US26, US26D
Meets ANSI A156.16 for L02011
255S
Same as 255W except:
Fasteners: #10 Oval head tapping screws
Finishes:
US3, US4, US5, US9, US10,
US10B, US15, US15A, US19,
US26, US26D, US32, US32D
Fasteners: #10 x 11⁄ 4" concealed mounting with
shield and toggle bolt
Note:
BL236W
Specify 236T for Machine screw
and toggle nut screw pack
Purchase case quantity 50
800-325-9995
www.hagerco.com
21
Trim & Auxiliary
Wall Stops & Holders
Manual Wall Stop and Holder
Light Duty Wall Bumper
Meets ANSI A156.16 for L01351
Meets ANSI A156.16 for L0203
256W
2 1⁄ 4" (57 mm)
3 13⁄ 16" (97 mm)
13
⁄ 16" x 1 1⁄ 2 " (21 mm x 38 mm)
Cast Brass
US3, US10, US10B, US15,
US26, US26D
Fasteners: 5⁄16" stud and anchor
Diameter:
Projection:
Keeper:
Material:
Finishes:
324W
Base:
Projection:
Materials:
7
Finishes:
US3, US4, US5, US10, US10B,
US15, US15A, US19, US26,
US26D
3⁄4" x 3⁄16" Wood screw
Replaceable rubber tip available
Fasteners:
Note:
⁄ 8" (22 mm) diameter
3 1⁄4" (83 mm)
Brass, Bronze
Meets ANSI A156.16 for L01341
256S
Same as 256W except:
Fasteners: #10 Oval head tapping screws
Automatic Wall Stop & Holder
Meets ANSI A156.16 for L0129
Angled Wall Stop
Meets ANSI A156.16 for L02201
260W
326W
33⁄ 4" (96 mm)
Cast Brass
US26D
21⁄ 4" x wide x 3" high
(57 mm x 76 mm)
Fasteners: 10 x 11⁄ 2" Machine screws
Projection:
Material:
Finish:
Base:
1
⁄ 4"-20 x 3⁄ 4" Machine screw with
anchors plastic expansion
shields
Holder Base:
Holder
Projection:
Projection
(Wall to Door):
Keeper:
Material:
Finishes:
Fasteners:
Note:
2 3⁄4" x 2 7⁄16" (70 mm x 62 mm)
2 1⁄4" (57 mm)
3 1⁄ 2" (89 mm)
1" x 2" (25 mm x 51 mm)
Cast Brass
US3, US10, US10B, US26, US26D
#10 x 1" Machine screws and
anchors
For use with wood or metal doors
Roller Bumper
Meets ANSI A156.16 for L02201
272W
Base:
Projection:
Materials:
Finishes:
Fasteners:
2" (51 mm) diameter
6 3⁄ 8" (162 mm)
Brass, Bronze
US3, US10, US10B, US26,
US26D
#8 x 1" Flat head wood screws
Automatic Wall Stop & Holder
Meets ANSI A156.16 for L11291
327W
Strike
Diameter:
Holder:
Holder
Projection:
Projection
(Wall to Door):
Material:
Finishes:
Curved Roller Bumper
Meets ANSI A156.16 for L12211
273W
22
800-325-9995
www.hagerco.com
Projection: 2 5⁄ 8" (67 mm)
Material: Brass
Finishes: US3, US4, US10, US10B,
US26, US26D
Fasteners: #10 x 1" Flat head machine
screws
Fasteners:
Note:
23⁄ 8" (61 mm)
3" x 311⁄ 16" (76 mm x 93 mm)
2" (51 mm)
37⁄ 16" (87 mm)
Cast Brass
US3, US4, US10, US10B,
US26, US26D
#12-24 x 1⁄ 2" Machine screws;
#12 x 1" Wood screws;
1⁄ 4"- 20 x 3⁄ 4" Machine screws
with lead expansion shield
anchors;
#14 x 11⁄ 4" Wood screws with
plastic expansion shield
anchors
For use with wood or metal
doors and wood or concrete
floors
Trim & Auxiliary
Floor Stops & Holders
Cast Floor Stop
Dome Stop – Low
Meets ANSI A156.16 for L02141
241F
Diameter:
Base Thickness:
Overall Height:
Material:
Finishes:
Base:
Base Thickness:
Overall Height:
Material:
Finishes:
1 ⁄ 4" (45 mm)
⁄ 8" (3.2 mm)
1" (25 mm)
Cast Brass
US3, US4, US5, US9, US10,
US10B, US15, US15A,
US19, US26, US26D
1
#14 x 11⁄ 2" with shield and
Machine screw with lead
expansion shield
Fasteners:
BL241F
245F
3
Purchase case quantity 50
Fasteners:
Dome Stop Riser Plate
For use with 241F and 243F on carpeted floors
246B
Dome Stop – Universal
Diameter:
Base Thickness:
Material:
Finishes:
Meets ANSI A156.16 for L0216
Note:
242F
Diameter:
Base Thickness:
Overall Height:
Material:
Finishes:
Fasteners:
13⁄ 4" (45 mm)
1⁄ 4" (7 mm)
15⁄ 8 (41 mm)
Forged Brass
US3, US4, US10B, US15,
US26, US26D
#14 x 11⁄ 2" Flat head wood
screw with shield and
machine screw with lead
expansion shield
2" x 4" (51 mm x 102 mm)
⁄ 2" (12.5 mm)
15 ⁄ 16" (33 mm)
Cast Brass
US3, US4, US10, US10B,
US26, US26D
Machine screw and lead
expansion shield
1
1 3⁄ 4" (45 mm)
3⁄ 8" (10 mm)
Non-Anodized Brass
US3, US4, US10, US10B, US15,
US15A, US19, US26, US26D
For use with 241F on
carpeted floors
Modern Style Universal Stop
248F
Base:
Height:
Material:
Finishes:
Fasteners:
1 1⁄ 4" (32 mm)
1 1⁄ 2" (38 mm)
Brass with rubber bumper
US3, US26D
#12 x 1 1⁄ 2" Wood screw,
plastic anchor
12-24 x 1" Flat head machine
screw, lead anchor
Dome Stop – High
Meets ANSI A156.16 for L02161
243F
Diameter:
Base Thickness:
Overall Height:
Material:
Finishes:
Fasteners:
BL243F
13⁄ 4" (45 mm)
1 ⁄ 2 (13 mm)
11⁄ 4" (32 mm)
Cast Brass
US3, US4, US5, US9, US10,
US10B, US15, US15A,
US19, US26, US26D
#14 x 11⁄ 2" with plastic shield
and machine Screw with
lead expansion shield
Purchase case quantity 50
L-Shaped Floor Stop
249F
Base:
Base Thickness:
Overall Height:
Material:
Stop face:
Fasteners:
1" x 2 5⁄ 8" (25 mm x 67 mm)
" (7 mm)
2 3⁄ 4" (70 mm)
Steel
Resilient black rubber
Wood screw with plastic
anchor
1⁄ 4
Floor Stop
Meets ANSI A156.16 for L02131
252F
Cast Floor Stop
244F
Base:
Base Thickness:
Overall Height:
Material:
Finishes:
Fasteners:
111⁄16" x 4" (43 mm x 102 mm)
" (4.8 mm)
1" (25 mm)
Cast Brass
US3, US4, US10, US10B,
US26, US26D
Machine screw and lead
expansion shield
3 ⁄ 16
Base:
Overall Height:
Material:
Finishes:
Fasteners:
11⁄ 2" x 2 1⁄ 2" (38 mm x 64 mm)
2 11⁄ 16" (68 mm)
Cast Brass
US3, US10, US10B, US15,
US15A, US19, US26, US26D
1
⁄ 4"-20 x 3⁄ 4" Machine screw;
1 ⁄ 4"-20 x 2" Lag bolt and anchor
800-325-9995
www.hagerco.com
23
Trim & Auxiliary
Floor Stops & Holders
Floor Stop
Cast Floor Stop
Meets ANSI A156.16 for L02181
Meets ANSI A156.16 for L02131
257F
Base:
Overall Height:
Material:
Finishes:
Fasteners:
11⁄ 2" x 2 7⁄16" (38 mm x 62 mm)
2" (51 mm)
Cast Brass
US3, US10, US10B, US15,
US15A, US19, US26, US26D
1 ⁄ 4"-20 x 3 ⁄ 4" Machine screw;
1 ⁄ 4"-20 x 2" Lag bolt and
anchor
267F
Base Diameter:
Overall Height:
Material:
Finishes:
Fasteners:
2 7⁄ 16" (62 mm)
3" (76 mm)
Brass
US3, US10, US10B, US15,
US15A, US19, US26, US26D
5⁄16" stud and expansion shield
Meets ANSI A156.16 for L02121
267S
Same as 267F except:
Fasteners:
#10 x 1" Oval head wood screws
Floor Stop and Holder
Meets ANSI A156.16 for L01371
258F
Base:
Overall Height:
Keeper:
Material:
Finishes:
Fasteners:
1 9 ⁄16" x 2 5⁄ 8" (40 mm x 67 mm)
2 7⁄ 8" (73 mm)
1" x 2" (25 mm x 51 mm)
Cast Brass
US3, US10, US10B, US15,
US26, US26D
1 ⁄ 4"-20 x 3 ⁄ 4" Machine screw;
1
⁄ 4"-20 x 2" Lag bolt and
anchor
Cast Floor Stop and Holder
Meets ANSI A156.16 for L01371
268F
Base Diameter:
Projection:
Keeper:
Fasteners:
Material:
Finishes:
2 1⁄4" (57 mm)
3 5⁄16" (84 mm)
13
⁄16" x 11⁄ 2" (21 mm x 38 mm)
5⁄16" stud and expansion shield
Brass
US3, US10, US10B, US15,
US15A, US19, US26, US26D
Meets ANSI A156.16 for L01361
268S
Tri Base Floor Stop
259F
Base Width:
Base Depth:
Overall Height:
Material:
Finishes:
Fasteners:
2 9⁄ 16" (65 mm)
1 3⁄ 4" (45 mm)
1 11⁄ 16" (43 mm)
Cast Brass
US3, US4, US10, US10B,
US26, US26D
#10-24 x 3⁄ 4" Flat head
machine screw with
anchors
Heavy Duty Floor Stop
Exceeds the criteria set forth for a 300-pound impact test
(Report #91-04-01646)
269F
Bumper Diameter:
Bumper Height:
Steel Bolt:
Material:
2" (51 mm)
13⁄4" (45 mm)
5 ⁄ 8" – 11 x 4"
Black Rubber
(fire-resistant)
269T
Bumper Diameter:
Bumper Height:
Steel Bolt:
Material:
2" (51 mm)
31⁄2" (89 mm)
5
⁄ 8" – 11 x 4"
Black Rubber
(fire-resistant)
Tri Base Floor Stop - Tall
259H
Base Width:
Base Depth:
Overall Height:
Material:
Finishes:
Fasteners:
24
800-325-9995
www.hagerco.com
2 5⁄ 8" (67 mm)
1 3⁄ 4" (45 mm)
2 1⁄ 4" (57 mm)
Brass
US3, US4, US10, US10B,
US26, US26D
#10-24 x 3⁄ 4" Flat head
machine screw with
anchors
Same as 268F except:
Fasteners:
#10 Oval head wood screws
Kick-Down Door Holder
Meets ANSI A156.16 for L71382
270C
Base:
Arm:
Material:
Finishes:
1 7⁄ 16" x 2 1⁄ 8" (37 mm x 54 mm)
41⁄ 8" (105 mm)
Cast Iron
S1 Sprayed Aluminum
S2 Sprayed Brass
S3 Sprayed Bronze
Fasteners: #8 x 3 ⁄4" Flat head tapping
screws
Trim & Auxiliary
Floor Stops & Holders
Surface Bolts & Flush Bolts
Kick-Down Door Holder
Surface Bolt
Meets ANSI A156.16 for L01381
Meets ANSI A156.16 for L04161 or L84161
270D
1 5⁄ 8" x 1 3⁄ 4" (41 mm x 45 mm)
3 7⁄ 8" (98 mm)
Cast Brass
US3, US10, US10B, US15, US15A
US19, US26, US26D
Fasteners: #6 x 1" Oval head wood screws
Base:
Arm:
Material:
Finishes:
275D
Length:
8" (203 mm)
Height x Width: 1⁄4" x 3⁄4" (6 mm x 19 mm)
Throw:
1" (25 mm)
276D
Length:
12" (305 mm)
Height x Width: 1⁄4" x 3⁄4" (6 mm x 19 mm)
Throw:
1" (25 mm)
Material:
Finish:
Fasteners:
Replacement Rubber Tip
Steel
US26D
#10-24 x 1" Flat head
machine screw;
#10-11⁄ 4" x 1" Flat head
wood screw
Universal and angle
strikes included
Use with Hager 270D and 271D Door Holders
270R
Material: Rubber
Note:
Surface Bolt
Meets ANSI A156.16 for L04151
Kick-Down Door Holder
Meets ANSI A156.16 for L01381
271D
Base:
Arm:
Material:
Finishes:
Fasteners:
278D
1 5⁄ 8" x 1 3⁄ 4" (41 mm x 45 mm)
4 3⁄ 4" (121 mm)
Cast Brass
US3, US10, US10B, US26, US26D
#6 x 1" Oval head wood screws
Automatic Floor Stop & Holder
Bolt Length:
Bolt Width:
Bolt Throw:
Base Width:
Knob:
Surface
Bolt Projection:
Material:
Finishes:
Fasteners:
Note:
6" (152 mm)
1
⁄ 2" (12.5 mm)
15
⁄ 16" (24 mm)
11⁄ 16" (17 mm)
1
⁄ 2" (12.5 mm) diameter
11⁄ 16" (17 mm)
Brass
US3, US26D
Flat head wood screw
Mortise and universal
strikes included
Meets ANSI A156.16 for L01301
326F
327F
328F
329F
Strike Height: 1 1⁄ 4" (32 mm)
Strike Height: 13⁄ 4" (44 mm)
Strike Height: 2 1⁄ 4" (57 mm)
Strike Height: 2 3⁄ 4" (70 mm)
Holder:
Holder
Projection:
Floor Strike:
Material:
Finishes:
Fasteners:
Note:
3" x 3 7⁄ 16" (76 mm x 87 mm)
1 15⁄ 16" (49 mm)
2 3⁄16" x 41⁄ 8" (56 mm x 105 mm)
Brass
US3, US10, US10B, US26,
US26D
• 4 each #12-24 x 1⁄ 2" Machine
screw (combination slotted
and Phillips head)
• 3 each #14 x 11⁄ 2" Flat head
machine screw and anchors
For use on wood or metal doors
and wood or concrete floors
Surface Bolt for Dutch Doors
279D
Length:
Width:
Throw:
Half Round
Bolt Size:
4 3⁄ 8" (111 mm)
15⁄ 8" (41 mm)
9 ⁄ 16" (14 mm)
Material:
Finishes:
Fasteners:
Brass
US3, US10, US10B, US26D
#5 x 3⁄ 4" Wood screw;
#6 x 3⁄ 4" Wood screw
Mortise and universal
strikes included
Note:
" (16 mm)
5⁄ 8
800-325-9995
www.hagerco.com
25
Trim & Auxiliary
Surface Bolts & Flush Bolts
Manual Flush Bolt
Dust Proof Strike
Meets ANSI A156.16 for L04021
280X
Face Plate:
Diameter
Barrel:
Depth:
Material:
Finishes:
13⁄ 8" x 27⁄ 8" (35 mm x 73 mm)
1" (25 mm)
2 3⁄16" (56 mm)
Brass
US3, US4, US9, US10, US10B,
US15, US15A, US19, US26,
US26D
Fasteners: #8 x 1" Flat head wood screw
Notes:
• Packed unassembled with
plate, strike, fasteners, and
spanner wrench
• May be used with carpet or
threshold application by
omitting face plate
Slide Flush Bolt
Meets ANSI A156.16 for L04201
281D
Face Plate:
Bolt Head:
Strike:
Materials:
Finishes:
" x 6" (19 mm x 152 mm)
" (12.5 mm)
7⁄ 8" x 13 ⁄4" (22 mm x 45 mm)
Brass, Bronze
US3, US4, US5, US10,
US10B, US15, US15A, US19,
US26, US26D
Fasteners: #8 combination screws
3 ⁄4
Fits ANSI A115 door and frame prep
Meets ANSI A156.16 for L14251
282D
Face Plate:
1" x 6 3 ⁄4" (25 mm x 172 mm)
Flattened Round
1 ⁄ 2" (12.5 mm)
Bolt Head:
3 ⁄ 4" (19 mm)
Bolt Throw:
Standard
Rod Length:
12" (305 mm)
(center of face to corner of door)
3 ⁄ 4" (19 mm)
Rod Backset:
Guide:
1" x 2" (25 mm x 51 mm)
5 ⁄ 16" x 2 1 ⁄ 4" (24 mm x 57 mm)
Strike:
Material:
Brass
Finishes:
US3, US4, US5, US9, US10,
US10B, US15, US15A, US19,
US26, US26D
Fasteners:
#8 combination screws
Notes:
• Optional Rod Lengths available:
Specify 282R
18" (457 mm); 25" (636 mm);
30" (762 mm)
• For use on hollow metal/fire
rated doors
• May be used on doors 4 ft.
wide and 10 ft. wide
1⁄ 2
Manual Flush Bolt
Meets ANSI A156.16 for L14261
283D
Face Plate:
1" x 6 3⁄ 4 " (25 mm x 172 mm)
Flattened Round
1 ⁄ 2 " (12.5 mm)
Bolt Head:
3 ⁄ 4 " (19 mm)
Bolt Throw:
3 ⁄ 4 " (19 mm)
Rod Backset:
15⁄16" x 21⁄ 4" (24 mm x 57 mm)
Strike:
Material:
Brass
Finishes:
US3, US4, US5, US9, US10,
US10B, US15, US15A, US19,
US26, US26D
Fasteners:
#8 combination screws
Notes:
26
800-325-9995
www.hagerco.com
• For use on wood composite/
fire rated doors
• May be used on doors 4 ft.
wide and 10 ft. wide
Trim & Auxiliary
Surface Bolts & Flush Bolts
Automatic Flush Bolt Set for Wood
Covered Composite Doors
Self Latching Flush Bolt Set for
Inactive Metal Doors
B, C, D and E Label. Type #25 ANSI A156.3
A, B, C, D and E Label. Type #27 ANSI A156.3
291D
Face Plate:
1" x 8 1⁄ 2" (25 mm x 216 mm)
293D
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
Bolt Throw:
Material:
Finishes:
Fasteners:
Notes:
" (19 mm)
Steel
US3, US4, US10, US10B,
US15, US26, US26D
#8 x 3⁄ 4 " tapping screws
3⁄ 4
• Thermal lock automatically
locks inactive door under
high fire/heat conditions
• 280X Dust Proof Strikes
are recommended for use
with these sets
• May be used on doors
4 ft. wide and 9 ft. high
Face Plate:
1" x 63⁄ 4" (25 mm x 172 mm)
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
3 ⁄ 4 " (19 mm)
Bolt Throw:
Material:
Steel
Finishes:
US3, US4, US10, US10B,
US15, US26, US26D
Fasteners:
#8 x 1" tapping screws
Notes:
• One set consists of one
constant latching bolt, one
automatic bolt, one ANSI
lip strike with fasteners
• Thermal lock automatically
locks inactive door under
high fire/heat conditions
• 280X Dust Proof Strikes
are recommended for use
with these sets
• May be used on doors
4 ft. wide and 10 ft. high
Automatic Flush Bolt Set for Metal Doors
A, B, C, D and E Label. Type #25 ANSI A156.3
292D
Face Plate:
Flattened Square
Bolt Head:
Bolt Throw:
Material:
Finishes:
Fasteners:
Notes:
1" x 63⁄ 4" (27 mm x 172 mm)
" (12.5 mm)
" (19 mm)
Steel
US3, US4, US10, US10B,
US15, US26, US26D
#8 x 3⁄ 4 " tapping screws
1⁄ 2
3⁄ 4
• Thermal lock automatically
locks inactive door under
high fire/heat conditions
• 280X Dust Proof Strikes
are recommended for use
with these sets
• May be used on doors
4 ft. wide and 9 ft. high
Self Latching Flush Bolt Set for Inactive
Wood Covered Composite Doors
B, C, D and E Label. Type #27 ANSI A156.3
294D
Face Plate:
1" x 8 1⁄ 2" (25 mm x 216 mm)
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
3 ⁄ 4 " (19 mm)
Bolt Throw:
Material:
Steel
Finishes:
US3, US4, US10, US10B,
US15, US26, US26D
Fasteners:
#8 x 1" tapping screws
Notes:
• One set consists of one
constant latching bolt, one
automatic latching bolt,
one ANSI lip strike with
fasteners
• Thermal lock automatically
locks inactive door under
high fire/heat conditions
• 280X Dust Proof Strikes
are recommended for use
with these sets
• May be used on doors
4 ft. wide and 9 ft. high
800-325-9995
www.hagerco.com
27
Trim & Auxiliary
Flush Bolts & Coordinating Devices
Automatic Flush Bolt Set with Fire Bolt
for Wood Doors
ANSI/BHMA 156.3 Type 25
295W
Face Plate:
Carry Bar
Type #27 ANSI A156.3
297C
1" x 8 ⁄ 2"
(25 mm x 216 mm)
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
3 ⁄ 4 " (19 mm)
Bolt Throw:
Material:
Steel
Finishes:
US3, US4, US10, US10B,
US15, US26, US26D,
US32, US32D
Fasteners:
#8 x 1" combination screws
Notes:
• Fire bolt is activated at
230° F projecting into
active door locking leaves
together
• May be used on doors
4 ft. wide and 9 ft. high
Coordinating Device
Type #21 ANSI A156.3
297D
Automatic Flush Bolt Set with Fire Bolt
for Metal Doors
ANSI/BHMA 156.3 Type 25
295M
Face Plate:
1" x 6 3⁄ 4"
(25 mm x 172 mm)
297F
800-325-9995
www.hagerco.com
Stop
Dimension:
5⁄ 8
" (16 mm)
Size:
18 5 ⁄ 8 " (273 mm)
x 42 5 ⁄ 8 " (1083 mm)
Note:
For use with 297D coordinator
Mounting Brackets
297M
ANSI/BHMA 156.3 type 25
11⁄ 8" x 21⁄ 4"
(29 mm x 57 mm)
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
Bolt Throw: 3⁄ 4 " (19 mm)
Material:
Steel
Finishes:
US3, US4, US10, US10B,
US15, US26, US26D,
US32, US32D
Fasteners:
#8 x 1" combination screws
Notes:
• Non-handed
• ADA compliant
• Required 11⁄ 2 " backset
13⁄4" x 2 1⁄ 4" (45 mm x 57 mm)
Steel
Black Prime Coat
#10 x 11⁄ 2" Oval head
machine screw
• For use with frame openings
60" (152 cm), 72" (183 cm)
or 96" (244 cm)
• Coordinator consists of
operating device with filler
piece to fit opening
Filler Bars
Automatic Flush Bolt Set for Wood Doors
28
Plate:
Material:
Finish:
Fasteners:
Notes:
Flattened Square
1 ⁄ 2 " (12.5 mm)
Bolt Head:
3 ⁄ 4 " (19 mm)
Bolt Throw:
Material:
Steel
Finishes:
US3, US4, US10, US10B,
US15, US26, US26D,
US32, US32D
Fasteners:
#8 x 1" combination screws
Notes:
• Fire bolt is activated at
230° F projecting into
active door locking leaves
together
• May be used on doors
4 ft. wide and 9 ft. high
296W
Plate:
1 3 ⁄ 4" x 2 1⁄ 4" (45 mm x 57 mm)
Material: Steel
Finishes: USP, US3, US10, US10B, US15,
US26, US26D
Fasteners: 1⁄ 4 "-20 thru-bolts
Notes:
• For use on pair of doors with
astragal
• For 297D and 298D
coordinators
1
Jamb Depth: 4 3 ⁄ 4" (121 mm)
Stop Height: 5 ⁄ 8 " (16 mm)
For stop width 7⁄ 8 " to
2 1⁄ 4" (22 to 57 mm)
Finish:
Black Prime Coat
Note:
Face Plate:
297N
For use with 297D coordinator
Jamb Depth: 4 1⁄ 4" (108 mm)
Stop Height: 5 ⁄ 8 " (16 mm)
For stop width greater
than 2 1⁄ 4" (57 mm)
Gravity Coordinator
Type #21 ANSI A156.3
298D
Plate:
Material:
Finishes:
Note:
5 1⁄ 2" x 11⁄ 8" (140 mm x 29 mm)
Brass with rubber roller
US3, US10, US10B, US26D
Fasteners included
Trim & Auxiliary
Latches & Latch Protection Plates
Push/Pull Latch
Roller Latch with Tee Strike
ANSI A156.2 Closest Equivalent
(Bored Latch – Series 4000 – Grade 2)
Meets ANSI A156.16 for E09091
311D
11⁄ 2" x 41⁄ 2" (38 mm x 114 mm)
21⁄ 2" x 5" (64 mm x 127 mm)
2 5⁄ 8" (67 mm)
1⁄ 2" (9.5 mm) - standard
2 3⁄4" (70 mm) - standard
5" (127 mm) - optional
Strike (ANSI A115.1, W7) - standard:
2 3⁄4" x 11⁄ 8" (70 mm x 29 mm)
Strike (ANSI A115.1, W7) - standard:
47⁄8" x 11⁄4" (124 mm x 32 mm)
Material:
Stainless Steel
Finishes:
US3, US4, US10, US10B, US26
Notes:
• Non-handed
• For 13⁄ 4" (45 mm) doors
311L
318D
Push and Pull
Levers:
Escutcheons:
Projection:
Bolt Throw:
Backset:
Latch Face:
Strike:
Strike Gauge:
Material:
Finishes:
Fasteners:
Note:
1" x 3 3⁄ 8" (25 mm x 86 mm)
1 1⁄ 8" x 2 3⁄4" (29 mm x 70 mm)
0.063"
Brass
US3, US4, US10, US10B,
US15, US15A, US19, US26,
US26D
#8 x 1" Flat head wood screws;
#8 Oval head tapping screws
Adjustable spring tension
Roller Latch with Stop
Meets ANSI A156.16 for E0911
318S
Same as 311D except:
For use with lead lined doors
Latch Face:
Angle Stop:
Strike:
Strike Gauge:
Material:
Finishes:
Optional Vertical Mounting
Fasteners:
Note:
11⁄ 2" x 4 1⁄ 2" (38 mm x 114 mm)
" x 4 1⁄ 2" (16 mm x 114 mm)
1
1 ⁄ 8" x 2 1⁄ 4" (29 mm x 57 mm)
0.063"
Brass
US3, US4, US10, US10B,
US15, US26, US26D
#8 x 1" Flat head wood screws;
#8 Oval head tapping screws
Adjustable spring tension
5⁄ 8
Roller Latch with Full Lip Strike
Meets ANSI A156.16 for E09091
1442
Requires 23/4" to 5" (70-127 mm) backset
Optional Horizontal Mounting
Latch Face: 1" x 3 3⁄ 8" (25 mm x 86 mm)
Size:
1 11⁄16" x 21⁄ 4" (43 mm x 57 mm)
Strike Gauge: 0.156"
Material:
Brass
Finishes:
US3, US4, US10, US10B,
US15, US15A, US19, US26,
US26D
Fasteners: #8 x 1" Flat head wood screws;
#8/32 Flat head machine screws
Note:
Adjustable spring tension with
nylon roller
Requires 5" (127 mm) backset
800-325-9995
www.hagerco.com
29
Trim & Auxiliary
Latches & Latch Protection Plates
Roller Latch with ASA Strike
Pocket Door Latch
Meets ANSI A156.16 for E09101
Meets ANSI A156.14 for D0821.1
1443
Latch Face: 1" x 3 3⁄ 8" (25 mm x 86 mm)
Size:
1 1⁄ 4" x 4 7⁄ 8" (32 mm x 124 mm)
Strike Gauge: 0.090"
Material:
Brass
Finishes:
US3, US4, US10, US10B,
US15, US15A, US19, US26,
US26D
Fasteners: #12-24 Flat head wood screws;
#8 Oval head tapping screws
Note:
Adjustable spring tension with
nylon roller
330D
Size:
Extension
of Finger Piece:
Material:
Finishes:
Fasteners:
Note:
2 3 ⁄4" x 2 1 ⁄ 2" (70 mm x 64 mm)
1 3⁄ 8" (35 mm)
Brass
US3, US5, US15, US10B, US15,
US15A, US19, US26, US26D
#6 x 5⁄ 8" Flat head wood screws
For use with 13⁄ 8" to 13⁄ 4"
(35 mm to 45 mm) door
Pocket Door Privacy Latch
Roller Catch with Tee Strike
320R
Latch Face:
Strike:
Strike Gauge:
Material:
Finishes:
Fasteners:
Note:
330L
2 1⁄ 4" x 11⁄ 8" (57 mm x 29 mm)
11⁄ 8" x 2 3⁄4" (29 mm x 70 mm)
0.050" (1.3 mm)
Brass
US3, US4, US10, US10B,
US15, US26, US26D
#8 x 1" Flat head wood screws
Adjustable spring tension
with nylon roller
Size:
2 3 ⁄4" x 2 1⁄ 2" (70 mm x 64 mm)
Extension
of Finger Piece: 1 3⁄ 8" (35 mm)
Strike Size:
Material:
Finishes:
Fasteners:
Note:
1" x 2 1⁄ 4" (25 mm x 57 mm)
Brass
US3, US5, US10B, US15,
US15A, US19, US26, US26D
#6 x 5⁄ 8" Flat head wood screws
For use with 13⁄ 8" door
Pocket Door Privacy Latch
Adjustable Ball Catch with Strike
321R
Latch Face:
Strike:
Strike Gauge:
Material:
Finishes:
Note:
30
800-325-9995
www.hagerco.com
1" x 2 1⁄ 8" (25 mm x 54 mm)
1 3⁄ 8" x 2 1 ⁄ 8" (35 mm x 54 mm)
0.050" (1.3 mm)
Brass with Steel Ball
US3, US4, US10, US10B,
US15, US15A, US19, US26,
US26D
Adjustable spring tension
Meets ANSI A156.14 for D0831
330M
Size:
2 3 ⁄4" x 2 1⁄ 2" (70 mm x 64 mm)
Extension
of Finger Piece: 1 3⁄ 8" (35 mm)
Strike Size:
Material:
Finishes:
Fasteners:
Note:
1" x 2 1⁄ 4" (25 mm x 57 mm)
Brass
US3, US5, US10B, US15,
US15A, US19, US26, US26D
#6 x 5⁄ 8" Flat head wood screws
For use with 13⁄ 4" door
Trim & Auxiliary
Latches & Latch Protection Plates
Latch Protection Plate
340D
Size:
Materials:
Finishes:
Fasteners:
Notes:
Door Guard
Meets ANSI A156.16 for L13041
3" x 11" (76 mm x 279 mm)
Steel, Stainless Steel
US2C, US32D
5
⁄ 16 "-18 x 21 ⁄ 4" carriage
bolts and hex nuts
• Non-handed
• Frame pin prevents
prying of door
274D
• For use with both cylindrical
and mortise lock sets on
hollow metal or wood doors
Arm Length: 4 3⁄4" (121 mm)
Material:
Brass
Finishes: US3, US4, US10, US10B,
US15, US26, US26D
Fasteners: #6 x 3⁄4" Wood screw,
#6 x 3⁄4" Machine screw
Note:
Includes door guard
Door Guard Protective Plate
274B
Latch Protection Plate with Lock Cut Out
341D
Size:
Materials:
Finishes:
Fasteners:
Notes:
3" x 11" (76 mm x 279 mm)
Steel, Stainless Steel
US2C, US32D
5 ⁄ 16 "-18 x 21 ⁄ 4 " carriage
bolts and hex nuts
• Non-handed
• Frame pin prevents
prying of door
Size:
Material:
Finishes:
Notes:
• For use with both cylindrical
and mortise lock sets on
hollow metal or wood doors
11⁄ 8" (28.5 mm) x 1" (25 mm)
x 1⁄ 2" (12.5 mm)
Brass
US3, US4, US10, US10B, US15,
US26, US26D
• Used when additional protective
plate is required for frame
application
• Mounted with double-sided
tape
• To be used with the 274D
Shim for Door Guard Protective Plate
Latch Protection Plate
345D
Size:
Materials:
Finishes:
Fasteners:
Notes:
274C
5
1 ⁄ 8" x 10" (41 mm x 254 mm)
Steel, Stainless Steel
US2C, US32D
5
⁄ 16 "-18 x 21⁄ 4" carriage bolts
and hex nuts
• Non-handed
• Frame pin prevents prying
of door
• For use with both cylindrical
and mortise lock sets on
hollow metal or wood doors
Material:
11⁄ 8" (29 mm) x 11⁄ 16" (27 mm)
x 3⁄ 32" (2.4 mm)
Black Rubber, 3⁄ 16" thick
Note:
To be used with the 274D
Size:
”
)
1 1/16”
800-325-9995
www.hagerco.com
31
Trim & Auxiliary
Filler Plates & Shims
Door Edge Filler Plate - 161 Prep
336A
Size:
1 1⁄ 8" x 2 1⁄ 4" (29 mm x 57 mm)
Thickness: 0.125
Material: Primed Steel
Door Edge Filler Plate - 86 Prep
336B
Size:
1 1 ⁄ 4 " x 8" (32 mm x 203 mm)
Thickness: 0.187
Material: Primed Steel
Door Face Filler Plate - Deadbolt
336C
Size:
1 3⁄ 4" (45 mm)
Thickness: 0.028
Material: Primed Steel
Door Face Filler Plate - 161 Prep
336D
Size:
2 5⁄ 8" (67 mm)
Thickness: 0.055
Material: Primed Steel
Door Edge Filler Plate - Square
336E
Size:
1 3⁄4" x 4 1⁄ 2" (45 mm x 114 mm)
Thickness: 0.125
Material: Primed Steel
Door Edge Filler Plate - Bevel
336F
Size:
Thickness:
Material:
Note:
1 1⁄ 2" x 4 1⁄ 2" (38 mm x 114 mm)
0.134
Primed Steel
For Handed Doors
Hinge Filler Plate - Frame
336L
Size:
1 5⁄ 8" x 4 1⁄ 2" (41 mm x 114 mm)
Thickness: 0.125
Material: Primed Steel
Hinge Filler Plate - Frame
336M
Size:
1 5⁄ 8" x 5" (41 mm x 127 mm)
Thickness: 0.134
Material: Primed Steel
Latch Adapter Filler Plate - 86 to 161 Edge Prep
336N
Size:
1 1 ⁄ 4" x 8" (32 mm x 203 mm)
Thickness: 0.248
Material: Primed Steel
Deadlock Strike Filler Plate - Frame
336P
Size:
1 1⁄ 8" x 2 3⁄ 4" (29 mm x 70 mm)
Thickness: 0.083
Material: Primed Steel
ASA Strike Filler Plate - Frame
336Q
Size:
11 ⁄ 4" x 4 7⁄ 8" (32 mm x 124 mm)
Thickness: 0.093
Material: Primed Steel
Cylindrical Lock Strike Filler Plate - Frame
336R
Size:
1 7⁄ 16" x 2 3⁄ 4" (37 mm x 70 mm)
Thickness: 0.083
Material: Primed Steel
Template Hinge Shim
Door Edge Shim Filler Plate - Square
336G
337A
Size:
1 3⁄4" x 5" (38 mm x 127 mm)
Thickness: 0.134
Material: Primed Steel
Size:
1 7⁄ 16" x 4 1⁄ 2" (37 mm x 114 mm)
Thickness: 0.028
Material: Primed Steel
Template Hinge Shim
Door Edge Shim Filler Plate - Bevel
336H
Size:
Thickness:
Material:
Note:
1 1⁄ 2" x 5" (38 mm x 127 mm)
0.134
Primed Steel
For Handed Doors
Flush Bolt Strike Filler Plate - Frame
336J
15
Size:
⁄16" x 21 ⁄ 4" (24 mm x 57 mm)
Thickness: 0.083
Material: Primed Steel
Flush Bolt Filler Plate - Door
336K
32
800-325-9995
www.hagerco.com
Size:
1" x 6 3⁄4" (25 mm x 172 mm)
Thickness: 0.134
Material: Primed Steel
337B
Size:
1 7⁄ 16" x 4 1⁄ 2" (37 mm x 114 mm)
Thickness: 0.065
Material: Primed Steel
Template Hinge Shim
337C
Size:
1 7⁄ 16" x 5" (37 mm x 127 mm)
Thickness: 0.028
Material: Primed Steel
Template Hinge Shim
337D
Size:
1 7⁄ 16" x 5" (37 mm x 127 mm)
Thickness: 0.065
Material: Primed Steel
Trim & Auxiliary
Miscellaneous
Chain Door Check
Door Silencer
Meets ANSI A156.16 for L02231
Meets ANSI A156.16 for L0302
300D
Base Plate: 11⁄ 2" x 11⁄ 2" (38 mm x 38 mm)
Overall Lengths Available:
• 25 1⁄ 2" (648 mm)
• 30 1⁄ 2" (800 mm)
Material: Zinc base plate, welded steel
chain, cloth backed leatherette
cover
Finish:
US26D
Fasteners: #10 x 11⁄ 2" Oval head wood
screws
Note:
Can be ordered through
door mounting with grommet
nut sets at extra charge
308D
Base:
Length:
Material:
Note:
310C
Filler Plate:
Strike:
Material:
Finishes:
Notes:
Meets ANSI 156.16 for LO2223
Material:
Wrought Steel with rubber
bumpers
US3, US26D
• Works with 1⁄4" (6 mm)
and 5⁄16" (8 mm)
• Adjustable from 70° to
100° opening
Finishes:
Notes:
Meets ANSI A156.16 for L03161
322V
Meets ANSI A156.16 for L03101
Base Diameter:
Base to
Center of Rail:
Material:
Finishes:
Size:
Material:
Finishes:
Fasteners:
Note:
2 3⁄ 4" (70 mm)
Brass
US3, US4, US10, US10B,
US26, US26D
160° Door Viewer
1755
Material:
Finishes:
Notes:
Meets ANSI A156.9 for B02011
Diameter
of Rod:
Projection:
CTC Lengths:
Materials:
Finishes:
Fasteners:
2 3⁄ 16" x 3 1⁄4" (56 mm x 83 mm)
Brass
US3, US4, US10, US26D
#6 x 5⁄ 8" trusshead screws
Requires 1⁄ 2" hole for viewer
3 1⁄ 8" (79 mm)
Wire Pull
305D
1 1⁄ 8" x 33⁄ 8" (29 mm x 86 mm)
1 11⁄16" x 2 1⁄4" (43 mm x 57 mm)
Brass
US10B, US26D
• Packed with filler plate,
strike and fasteners
• Change door from Roller
Latch to Push/Pull Latch
Wrought Door Knocker With Viewer
Handrail Bracket
303W
3 ⁄4
Conversion Kit
Heavy Duty Hinge Pin Stop
301D
" x 3⁄4" (9.5 mm x 19 mm)
" (19 mm)
Rubber
For use with wood frames
3⁄ 8
Brass
US3, US4, US5, US10A,
US15, US15A, US26, US26D
• For doors up to 2 1⁄ 8" (54 mm)
thick, adjustable
• Requires 1⁄ 2" (12.5 mm) hole
5
⁄16" (7.9 mm)
11⁄4" (32 mm)
3", 31⁄2", 4"
Brass
US3, US10, US10B,
US26, US26D
8⁄32" x 1" combination truss
head machine screw
200° Door Viewer
1756
Materials:
Finishes:
Notes:
Brass, Bronze
US3, US4, US5, US10A,
US15, US15A, US26, US26D
• For doors up to 2 1⁄ 8" (54 mm)
thick, adjustable
• Requires 9⁄ 16" (14.3 mm) hole
Door Silencer
Meets ANSI A156.16 for L03011
307D
Base Diameter:
Length:
Material:
Note:
1⁄ 2
" (12.5 mm)
" (12.3 mm)
Rubber
For use with metal frames
31⁄ 64
800-325-9995
www.hagerco.com
33
Trim & Auxiliary
Signage
MEN
WOMEN
Engraved Plastic Sign - Men and Women
Engraved Plastic Sign - Push and Pull
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
350M
Men
350W
Women
Material:
Lettering:
Size:
Fasteners:
0.125" (3.2 mm) Thick Plastic
3⁄ 4" (19 mm) Helvetica
2" x 5" (51 mm x 127 mm)
Double sided pressure
sensitive tape or screws
(specify)
• Brown (W1) w/white lettering
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
• Silver (B1) w/black lettering
• Gold (B2) w/black lettering
Signs are individually packed
in a poly bag
Colors:
Note:
P
U
S
H
P
U
L
L
351H
Push
351L
Pull
Material:
Lettering:
Size:
Fasteners:
Colors:
Note:
0.125" (3.2 mm) Thick Plastic
" (19 mm) Helvetica
1" x 41⁄ 2" (25 mm x 114 mm)
Double sided pressure
sensitive tape or screws
(specify)
• Brown (W1) w/white lettering
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
• Silver (B1) w/black lettering
• Gold (B2) w/black lettering
Signs are individually packed
in a poly bag
3⁄ 4
Engraved Plastic Sign - Men and Women
Engraved Plastic Sign - Push and Pull
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
PUSH
PULL
350H
Push
350L
Pull
Material:
Lettering:
Size:
Fasteners:
Colors:
Note:
352M
Men
352W
Women
Material:
Lettering:
Size:
0.125" (3.2 mm) Thick Plastic
3⁄ 4" (19 mm) Helvetica
2" x 4" (51 mm x 102 mm)
Double sided pressure
sensitive tape or screws
(specify)
• Brown (W1) w/white lettering
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
• Silver (B1) w/black lettering
• Gold (B2) w/black lettering
Signs are individually packed
in a poly bag
Fasteners:
Colors:
Note:
Engraved Plastic Sign - Restroom(s)
Engraved Plastic Sign - Number
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
634
350R
Material:
Lettering:
Size:
Fasteners:
Colors:
34
800-325-9995
www.hagerco.com
Note:
0.125" (3.2 mm) Thick Plastic
3
⁄ 4" (19 mm) Helvetica
2" x 4" (51 mm x 102 mm)
Double sided pressure
sensitive tape or screws
(specify)
• Brown (W1) w/white lettering
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
• Silver (B1) w/black lettering
Signs are individually packed
in a poly bag
0.125" (3.2 mm) Thick Plastic
3⁄ 4" (19 mm) Helvetica
21⁄ 2" x 6" (64 mm x 152 mm)
(352M)
21⁄ 2" x 7" (64 mm x 178 mm)
(352W)
Double sided pressure
sensitive tape or screws
(specify)
• Brown (W1) w/white lettering
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
• Silver (B1) w/black lettering
• Gold (B2) w/black lettering
Signs are individually packed
in a poly bag
Restroom
Restrooms
354A
Restroom
354B
Restrooms
Material:
Lettering:
Size:
Fasteners:
Colors:
Note:
0.125" (3.2 mm) Thick Plastic
3
⁄ 4" (19 mm) Helvetica
2" x 6" (51 mm x 127 mm)
Double sided pressure
sensitive tape or screws
(specify)
• Black (W2) w/white lettering
• Blue (W3) w/white lettering
Signs are individually packed
in a poly bag
Trim & Auxiliary
Signage
Engraved Metal Sign - Men and Women
Engraved International Symbol (No Smoking)
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
360M
Men
360W
Women
Material:
Lettering:
Size:
Fasteners:
Finishes:
Note:
364N
0.050" (1.3 mm) Thick Metal
" (19 mm) Helvetica black filled
2" x 6" (51 mm x 152 mm)
Double sided pressure
sensitive tape or screws
(specify)
Plastic International Handicap Symbol
Meets ANSI A156.16 LO3201
364M
364S
Meets ANSI A156.16 LO3201
Push
361L
Pull
Material:
Lettering:
Size:
Fasteners:
Finishes:
Note:
Material:
0.0625" (1.6 mm) Thick Plastic
Raised HANDICAP symbol
4" x 4" (102 mm x 102 mm) (364M)
3" x 3" (76 mm x 76 mm) (364S)
Double sided pressure
sensitive tape standard or
screws (specify)
Blue (W3) w/raised
white symbol
Signs are individually packed
in a poly bag
Size:
Engraved Metal Sign - Push and Pull
361H
0.125" (3.2 mm) Thick Plastic
6" x 6" (152 mm x 152 mm)
Pressure sensitive tape
standard or screws (specify)
Red (W4) w/raised white symbol
Signs are individually packed
in a poly bag
Color:
Note:
3⁄ 4
US3, US28, US32D
Signs are individually packed
in a poly bag
Material:
Size:
Fasteners:
Fasteners:
Color:
0.050" (1.3 mm) Thick Metal
" (19 mm) Helvetica black filled
2" x 4" (51 mm x 102 mm)
Double sided pressure
sensitive tape or screws
(specify)
US3, US10B, US28, US32D
Signs are individually packed
in a poly bag
Note:
3⁄ 4
Plastic International Handicap Symbol
Meets ANSI A156.16 LO3201
364L
Material:
0.125" (3.2 mm) Thick Plastic
⁄ 32" (0.8 mm) raised
HANDICAP symbol
6" x 6" (152 mm x 152 mm)
Double sided pressure
sensitive tape standard or
screws (specify)
• Brown (W4) w/raised
white symbol
• Black (W2) w/raised
white symbol
• Blue (W3) w/raised
white symbol
Signs are individually packed
in a poly bag
1
Engraved Metal Sign - Push and Pull
Meets ANSI A156.16 LO3201
362H
Push
362L
Pull
Material:
Lettering:
Size:
Fasteners:
Finishes:
Note:
Size:
Fasteners:
Colors:
0.050" (1.3 mm) Thick Metal
" (19 mm) Helvetica black filled
1" x 41⁄ 2" (25 mm x 114 mm)
Double sided pressure
sensitive tape or screws
(specify)
US3, US10B, US28, US32D
Signs are individually packed
in a poly bag
3⁄ 4
Note:
800-325-9995
www.hagerco.com
35
Trim & Auxiliary
Signage
ADA Tactile Signage - Men and Women
ADA Tactile Signage - Stairs
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
365M
Men
365W
Women
Material:
Size:
Fasteners:
Colors:
Notes:
366S
0.125" (3.2 mm) Thick Plastic
6" x 8" (152 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (W1) w/raised
white symbol
• Black (W2) w/raised
white symbol
• Blue (W3) w/raised
white symbol
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
Material:
Size:
Fasteners:
Colors:
Notes:
0.125" (3.2 mm) Thick Plastic
6" x 8" (152 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (1) w/white symbol
and lettering
• Black (2) w/white symbol
and lettering
• Blue (3) w/white symbol
and lettering
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
ADA Tactile Signage - Exit
Meets ANSI A156.16 LO3201
ADA Tactile Signage - Room Number
Meets ANSI A156.16 LO3201
366R
Material:
Size:
Fasteners:
Colors:
Notes:
36
800-325-9995
www.hagerco.com
0.125" (3.2 mm) Thick Plastic
21⁄ 2" x 5" (64 mm x 127 mm)
Double sided pressure
sensitive tape
• Brown (W1) w/raised
white lettering
• Black (W2) w/raised
white lettering
• Blue (W3) w/raised
white lettering
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
368E
Material:
Size:
Fasteners:
Colors:
Notes:
0.125" (3.2 mm) Thick Plastic
6" x 8" (152 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (1) w/white symbol
and lettering
• Black (2) w/white symbol
and lettering
• Blue (3) w/white symbol
and lettering
• Signs are individually
packed in a poly bag
Grade
2 Braille Translation
•
conforming to section
4.30 requirements
Trim & Auxiliary
Signage
ADA Tactile Signage - Men and Women
ADA Tactile Signage - Access Left and
Access Right
Meets ANSI A156.16 LO3201
Meets ANSI A156.16 LO3201
368M
Men
368W
Women
Material:
Size:
Fasteners:
Colors:
Notes:
0.125" (3.2 mm) Thick Plastic
6" x 8" (152 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (1) w/white symbol
and lettering
• Black (2) w/white symbol
and lettering
• Blue (3) w/white symbol
and lettering
Colors:
Notes:
369R
Access Right
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
0.125" (3.2 mm) Thick Plastic
8" x 8" (203 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (1) w/white symbol
and lettering
• Black (2) w/white symbol
and lettering
• Blue (3) w/white symbol
and lettering
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
0.125" (3.2 mm) Thick Plastic
6" x 8" (152 mm x 203 mm)
Double sided pressure
sensitive tape
• Brown (1) w/white symbol
and lettering
• Black (2) w/white symbol
and lettering
• Blue (3) w/white symbol
and lettering
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
Colors:
Notes:
ADA Tactile Signage - Restroom,
Men and Women
Meets ANSI A156.16 LO3201
Material:
Size:
Fasteners:
Access Left
Material:
Size:
Fasteners:
ADA Tactile Signage - Unisex
368U
369L
Meets ANSI A156.16 LO3201
370U
370U
Restroom
370W
Women
370M
Men
Material:
Sizes:
370W
370M
Fasteners:
" (14.3 mm) Plastic
• 12" (305 mm) diameter
(370U)
• 12" (305 mm) diameter
(370U)
• 101⁄ 2" (267 mm) side (370M)
Double sided pressure
sensitive tape
9⁄ 16
Color:
Blue (3) w/white raised
symbol and lettering
Notes:
• Signs are individually
packed in a poly bag
• Grade 2 Braille Translation
conforming to section
4.30 requirements
800-325-9995
www.hagerco.com
37
Trim & Auxiliary
Coat Hooks
Double Coat Hook Surface Mounting
Coat Hook
901P
945P
Short Single
Overall Height:
Projection:
Materials:
Finishes:
Diameter: 1" (25 mm)
Projection: 1 1⁄4" (32 mm)
902P
Long Single
5 1⁄ 2" (140 mm)
3 5⁄16" (84 mm)
Brass, Bronze
US3, US26D
Diameter: 1" (25 mm)
Projection: 2 1⁄ 2" (63 mm)
903P
Long Double
Double Coat Hook Concealed Mounting
Diameter: 1" (25 mm)
Projection: 2 1⁄ 2" (63 mm)
Materials:
Finishes:
Note:
Brass, Bronze
US3, US26D
Drilled and tapped for 1⁄ 4"-20
hanger screw
Coat Hook Single Angled
936P
Diameter:
Projection:
Materials:
Finishes:
Note:
946P
115⁄16" (49 mm)
3 1⁄4" (82 mm)
Brass, Bronze
US3, US26D
Concealed mounting
951P
Double
Overall Height: 2 7⁄ 8" (73 mm)
Projection:
2 1⁄ 8" (54 mm)
952P
Single
Overall Height: 5 3 ⁄ 4" (146 mm)
Projection:
2 1⁄ 4" (57 mm)
Materials:
Finishes:
Note:
Projections:
Materials:
Finishes:
• 3 3⁄ 4" (95 mm) top hook
• 21⁄2" (63 mm) bottom hook
Brass, Bronze
US3, US26D
Brass, Bronze
US3, US26D
Concealed mounting
Double Coat Hook Angled
956P
Coat Hook
940P
5 1⁄ 2" (140 mm)
3 11⁄16" (94 mm)
Brass, Bronze
US3, US26D
Concealed mounting
Coat Hook
Coat Hook
937P
Overall Height:
Projection:
Materials:
Finishes:
Note:
Double
Overall Height:
Projection:
Materials:
Finishes:
Note:
5 11 ⁄ 16" (144 mm)
3 23 ⁄ 32" (95 mm)
Brass, Bronze
US3, US26D
Concealed mounting
Overall Height:
Projection:
Materials:
Finishes:
1" (25 mm)
1 1⁄ 2" (38 mm)
Brass, Bronze
US3, US26D
Overall Height: 41⁄ 2" (114 mm)
Projection:
3 1⁄ 2" (49 mm)
941P
Single
Coat Hook
Overall Height: 2 5⁄16" (59 mm)
Projection:
115⁄16" (49 mm)
Materials:
Finishes:
38
800-325-9995
www.hagerco.com
Brass, Bronze
US3, US26D
957P
Trim & Auxiliary
Pulls - Closet/Pocket/Sliding Door
Knob and Rose
Flush Cup Finger Pull
2610
Diameter:
Material:
Finishes:
Note:
" (19 mm)
Solid Brass
US3, US26
For use on bi-fold, by-pass
or pocket applications
3⁄ 4
Knob
9566
Diameter:
Material:
Finishes:
Note:
Flush Cup Pull
2620
Diameter:
Material:
Finish:
Note:
13⁄ 4" (45 mm)
Solid Brass
US3
For use on bi-fold, by-pass
or pocket applications
Rose
9567
Flush Cup Pull
2630
Diameter:
Material:
Finishes:
Note:
21⁄ 8" (54 mm)
Solid Brass
US3, US5, US10B, US15A,
US19, US26, US26D
For use on bi-fold, by-pass
or pocket applications
Oblong Flush Pull
Diameter:
Material:
Finishes:
Note:
Rose Diameter: 3⁄ 4" (19 mm)
Material:
Die Cast Zinc
Finishes:
US3, US4, US5, US10A,
US10B, US15, US15A,
US26, US26D
Note:
For use on bi-fold
applications on doors
3⁄ 4" (19 mm) to 13⁄ 8" (35 mm)
thick
Flush Cup Pull
9865
2640
13⁄ 8" (35 mm)
Die Cast Zinc
US3, US4, US5, US10A,
US10B, US15, US15A,
US26, US26D
For use on bi-fold
applications on doors
3⁄ 4" (19 mm) to 13⁄ 8" (35 mm)
thick
23⁄4" (70 mm) x 15⁄16" (33 mm)
Solid Brass
US3, US26
For use on bi-fold, by-pass
or pocket applications
Diameter:
Material:
Note:
13⁄4" (44 mm) x 11⁄32" (8.7 mm)
Tan color ABS Plastic
For use on bi-fold, by-pass
or pocket applications
Pocket Door Edge Pulls
9882
Non-Mortise Hinge
2650
Diameter:
Material:
Notes:
3" (76 mm) x 13⁄4" (45 mm)
Steel
• For residential bi-fold doors
• Riveted pin
Face Plate Size: 3⁄ 4" (19 mm) x 37⁄ 8" (98 mm)
Material:
Solid Brass
Finishes:
US3, US4, US10, US10B,
US26, US26D
Fasteners:
#6 x 5⁄ 8" Wood screws
Pocket Door Edge Pulls
9884
Wood Knob
9558
Diameter:
Material:
Notes:
11⁄ 2" (38 mm)
Solid Wood
• For use on bi-fold
applications
• Will accept paint or stain
Size - Finger
Piece Extension: 1" (25 mm)
5⁄ 8" (16 mm) x 37⁄ 16" (87 mm)
Size - Pull:
Material:
Die Cast Zinc
Finishes:
US3, US5
800-325-9995
www.hagerco.com
39
Trim & Auxiliary
Residential
Brass Accessories - Push Plate
29
Plate Size:
Material:
Finish
Notes:
3" (76 mm) x 12"
31⁄2" (89 mm) x 15" (381 mm)
Solid Brass
US3
• Polybag (1 each) with
screws
• Push plate for use on
door to prevent marring
on the door surface
• Bright brass finish with
lacquer protection
Arm length:
Material:
Note:
Projection
From Floor:
Material:
Note:
Stop length:
Material:
Fasteners:
Notes:
23⁄ 4" (70 mm)
Zinc Die-Cast Base
#8 x 3⁄ 4"
• Rubber bumper tip
• Flexible spring
Flexible Door Stop
4" (102 mm)
Aluminum alloy
Polybag (1 each) with
screws
Material:
Fasteners:
Notes:
Zinc Die-Cast Base
#8 x 3⁄ 4"
• Rubber bumper tip
• Flexible spring
Door Bumper
Floor Door Stop
209
211
BL6211
Kick Down Door Stop
208
Flexible Door Stop
212
13⁄ 8" (35 mm)
Zinc Die-Cast Alloy
Non-marking white tip
Material:
Note:
Zinc Die-Cast Alloy
Non-marking white
plastic tip
Floor Door Stop
Door Bumper
BL6209 Projection
From Floor:
Material:
Notes:
13⁄ 8" (35 mm)
Zinc Die-Cast Alloy
• Non-marking white tip
• 150 per case
BL6212 Material:
Notes:
Zinc Die-Cast Alloy
• Non-marking white
plastic tip
• Adjustable 70-100°
Rigid Door Stop
210
Stop length:
Material:
Fasteners:
Note:
23⁄ 4" (70 mm)
Zinc Die-Cast Alloy
#8 x 3⁄ 4" Wood screw
Rubber bumper tip
Rigid Door Stop
BL6210 Stop length:
Material:
Fasteners:
Notes:
40
800-325-9995
www.hagerco.com
23⁄ 4" (70 mm)
Zinc Die-Cast Alloy
#8 x 3⁄ 4" Wood screw
• Rubber bumper tip
• Bulk
Door Guard
1412
Arm Length:
Material:
Fasteners:
Notes:
4" (102 mm)
Zinc Die-Cast Alloy
(7) #6 x 3⁄ 4" Wood screws
• Provides extra security
from inside door
• Limits door opening
when latch is thrown
• Polybag (1 each) with
screws
Trim & Auxiliary
Residential
Magnetic Catch - Light Weight
Flush Bolt
1413
Size:
Bolt:
Material:
Notes:
6" (152 mm)
⁄ 2" (12.5 mm) diameter
Brass faceplate with
steel components
• Polybag (1 each) with
strikeplate and screws
• Square corners
1439
1
Catch Dimension: 23⁄ 64" (52 mm) x 11⁄ 8"
(29 mm) x 1⁄ 2" (13 mm)
Material:
Tan plastic case
Notes:
• Polybag (1 each) with
screws
• Double sided magnet,
self-aligning, 6 lb. pull
BL6439 Builder’s Pack Polybag (1 each) with screws
Flush Bolt
1414
Roller Latch
Size:
Bolt:
Material:
Notes:
6" (152 mm)
" (12.5 mm) diameter
Brass faceplate with
steel components
• Polybag (1 each) with
strikeplate and screws
• Rounded corners
1445
1⁄ 2
Hole Diameter: 13⁄ 16" (21 mm)
1⁄ 16" (27 mm)
Hole Depth:
5⁄ 8" x 5"
Fasteners:
Notes:
• Polybag (1 each) with
screws
• Designed for use on
cabinets and lightweight
doors
• Not intended for heavy
weight applications
Strike Plate
1415
Finishes:
Notes:
US3, US4, US15, US26,
US26D, US10A, AN, ABA
• For use with 1413 and
1414 Flush Bolts
• Packed (1 each) with
Polybag and screws
Light Weight Ball Catches
1446
Face Plate:
1447
Hole Diameter: 1" (25 mm)
Hole Depth:
11⁄ 4" (32 mm)
Notes:
• Polybag (1 each) with
steel screws
• Ball Catch designed for
use on cabinets and light
weight doors
• Not intended for heavy
weight applications
Single Route Flush Bolt
1416
Size:
Bolt:
Material:
Notes:
73⁄ 64" (179 mm)
⁄ 32" (8.7 mm) diameter
Brass faceplate with
steel components
• Polybag (1 each) with
strikeplate and screws
• Rounded corners
11
Flush Bolt with Extension Rod
1418
Size:
Material:
Notes:
7 7⁄ 16" (189 mm)
Brass faceplate with
steel components
• Polybag (1 each) with
strikeplate and screws
• Rounded corners
21⁄ 4" (57 mm) x 1" (25 mm)
x 11⁄ 8" (29 mm)
Hole Diameter: 1" (25 mm)
Hole Depth:
11⁄ 4" (32 mm)
Fasteners:
#6 x 3⁄ 4" Wood screw
Notes:
• Polybag (1 each) with
steel screws
• Ball Catch designed for
use on cabinets and light
weight doors
• Not intended for heavy
weight applications
800-325-9995
www.hagerco.com
41
Trim & Auxiliary
Residential
Pole Sockets
Strike Plate
1448
Finish:
Note:
US3, US4, US15, US26,
US26D, 10A, AN, ABA
For use with 1446 and 1447
Ball Catches
1794
Outside Diameter: 23⁄ 16" (56 mm)
Material:
Steel
Note:
Polybag (2 each)
with screws
BL6794 For poles up to 1 ⁄ " (35 mm)
38
Residential Ball Tip Kit
1710
Material:
Finish:
Notes:
Brass tips
Stainless Steel pin
US3
• Includes 2 ball tips and 1 pin
• For use with 31⁄ 2" (89 mm)
or 4" (102 mm) hinges
Closet Rod
1795
Outside:
Material:
Finish:
Notes:
Residential Steeple Tip Kit
1720
Material:
Finish:
Notes:
Brass (tips)
Stainless Steel (pin)
US3
• Available in US3 finish only
• Includes 2 steeple tips and
1 pin
• For use with 31⁄ 2" (89 mm)
or 4" (102 mm) hinges
Shelf Bracket
1797
Overall Height: 29⁄ 16" (65 mm)
Notes:
• Polybag (1 each) without
screws
• For closet rod
• Bracket testing conforms
to ANSI A156.15
Outside Diameter: 27⁄ 16" (62 mm)
Material:
Steel
Note:
Polybag (2 each)
with screws
BL6793 For poles up to 1 ⁄ " (35 mm)
3
42
800-325-9995
www.hagerco.com
107⁄ 8" (276 mm) x
10 (254 mm)
Steel ANSI B04051
White Enamel
• For shelf and rod support
• Double welded heavy gauge
steel construction
embossed for added
strength
• Holds 13⁄ 8" (35 mm) rod
• Supports 12" (305 mm)
shelf
Shelf Bracket
Pole Sockets
1793
Dimensions:
Material:
Finish:
Notes:
Center Support
1792
1" (25 mm) diameter
Steel
White Zinc
• Polybag (1 each) with
screws
• Steel with Bright Zinc Finish
• Quick mount end
• High strength lock seam
tubing
• Packed with center support
on 72" (1829 mm)
and 92" (2337 mm) sizes
8
1798
Material:
Finish:
Notes:
Steel ANSI B04051
White Enamel
• For shelf and rod support
• Bulk with screws
• Heavy gauge steel
construction embossed for
added strength
• Holds 13⁄ 8" (35 mm) rod
• Supports 12" (305 mm)
shelf
Trim & Auxiliary
Residential
Shelf Bracket - Adjustable
1799
Dimensions:
Material:
Finish:
Notes:
107⁄ 8" (276 mm) x
195⁄ 8" (244 mm)
Steel ANSI B04051
White Enamel
• Adjustable shelf and rod
support
• Bulk with screws
• Steel ANSI B04051
• Heavy gauge steel
construction embossed for
added strength
• Holds 13⁄ 8" (35 mm) rod
• Supports 12" (305 mm)
shelf
Shelf Bracket - Adjustable
1802
Dimensions:
Material:
Finish:
Notes:
101⁄ 4" (260 mm) x
101⁄ 8" (257 mm)
Steel ANSI B04051
White Enamel
• Less rod support
• Bulk with screws
• Steel ANSI B04051
• Heavy gauge steel
construction embossed for
added strength
• Supports 12" (305 mm)
shelf
Handrail Bracket
Shelf Bracket
1800
Dimensions:
Material:
Finish:
Notes:
BL6600 Note:
10 " (267 mm) x
91⁄ 2" (241 mm)
Steel ANSI B04051
White Enamel
• For shelf and rod support
• Bulk with screws
• Steel ANSI B04051
• Heavy gauge steel
construction embossed for
added strength
• Holds 13⁄ 8" (35 mm) rod
• Supports 12" (305 mm)
shelf
Polybag (1 each) with
wood screws and clip
1⁄ 2
Coat and Hat Hook
BL6610 Projection:
Material:
Notes:
215⁄ 16" (75 mm)
Cast Steel
• Polybag (1 each) with
screw
• Builder’s pack
Shelf Bracket
1801
Dimensions:
Material:
Finish:
Notes:
1013⁄ 32" (276 mm) x
91⁄ 32" (229 mm)
Steel ANSI B04051
White Enamel
• Less rod support
• Bulk with steel screws
• Steel ANSI B04051
• Heavy gauge steel
construction embossed for
added strength
• Supports 12" (305 mm)
shelf
800-325-9995
www.hagerco.com
43
Trim & Auxiliary
Notes
44
800-325-9995
www.hagerco.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
