TCP Header

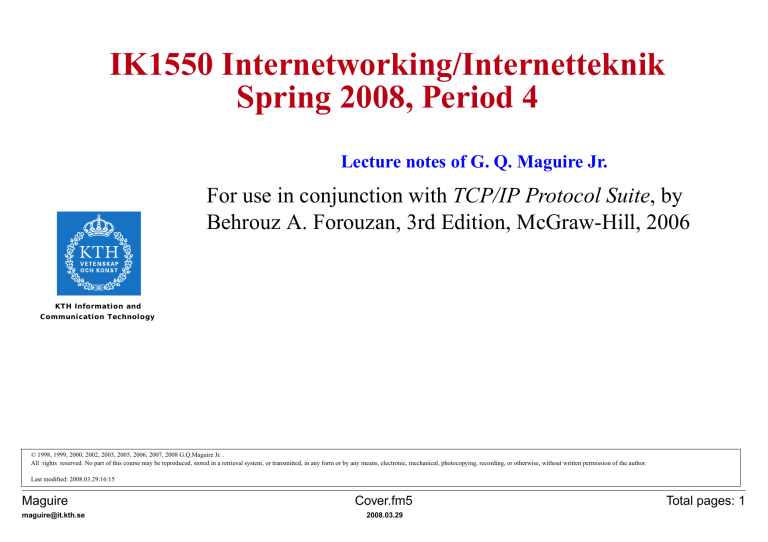

IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006
KTH Information and
Communication Technology
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:16:15
Maguire
[email protected]
Cover.fm5
2008.03.29
Total pages: 1
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 1: Introduction
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapters 1-5
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:17:01
Maguire
[email protected]
Introduction.fm5
2008.03.29
Total pages: 101
Welcome to the Internetworking course!
The course should be fun.
We will dig deeper into the TCP/IP protocols and protocols built upon them.
Information about the course is available from the course web page:
http://www.it.kth.se/courses/IK1550/
The best is to always look at the link from http://web.it.kth.se/~maguire
Maguire
[email protected]
Welcome to the Internetworking course!
2008.03.29
Introduction 3 of 101
Internetworking/Internetteknik
Staff Associated with the Course
Instructor (Kursansvarig)
prof. Gerald Q. Maguire Jr. <maguire at kth.se>
Assistants for Recitation Sessions (Övningar)
none
Administrative Assistant: recording of grades, registration, etc.
Irina Radulescu <irina.radulescu at wireless.kth.se>
Maguire
[email protected]
Staff Associated with the Course
2008.03.29
Introduction 4 of 101
Internetworking/Internetteknik
Goals, Scope and Method
Goals of the Course
• To give deep knowledge and competence (designing, analyzing, and
developing) of Internet protocols and architecture, both practical and
analytical.
• To be able to read and understand the Internet standardization
documents (IETF RFCs and Internet Drafts) and current Internet
literature.
• You should have the knowledge and competence to do exciting Internet
related research and development.
Scope and Method
• Dig deeper into the TCP/IP protocol suite by using diagnostic tools to
examine, observe, and analyze these protocols in action.
Understanding the details!
• Demonstrate this by writing a written report.
Maguire
[email protected]
Goals, Scope and Method
2008.03.29
Introduction 5 of 101
Internetworking/Internetteknik
Aim
This course will give both practical and general knowledge on the protocols that
are the basis of the Internet. After this course you should have a good knowledge
about Internet protocols and internetworking architecture. You should have a
general knowledge aiding you in reading research and standardization documents
in the area.
Maguire
[email protected]
Aim
2008.03.29
Introduction 6 of 101
Internetworking/Internetteknik
Learning Outcomes
Following this course a student should be able to:
• Understand the principles on which internetworking is based - which
define the Internet (both what it is and why it has proven to be so
succesful)
• Understand TCP/IP protocol stack, layering, encapsulation and
multiplexing
• Understand multiplexing, demultiplexing, upward and downward multiplexing
• Encapsulation as used for Mobile IP, Virtual Private Networks (VPNs), IP security, ... and
other tunnelling protocols
• Understand how information is encoded in headers and how the choice of this encoding
and field size may effect the use and evolution of a protocol
• Understand how data is encoded in the body of a packet and how this may effect
internetworking - especially in the presence of firewall and network address translators.
• Understand IP Addressing, subnetting and address resolution including the interaction of protocols across layers
• Understand a number of higher layer protocols including the security
risks and performance limitations of each
Maguire
[email protected]
Learning Outcomes
2008.03.29
Introduction 7 of 101
Internetworking/Internetteknik
• Understand the basic details of routing and routing protocols (RIP, BGP,
OSPF) - with an emphasis on their limitations and behaviors
• Understand autoconfiguration and naming (BOOTP, DHCP, DNS,
DDNS, DNSsec, ENUM, ... ) - with an emphasis on risks, limitations,
scaling, and evolution
• Understand the nature and pressures on the design and operations of
internets - particularily on scaling, performance, delay bounds, due to
new Internet applications (VoIP, streaming, games, peer-to-peer, etc.
• Understand the advantages and disadvantages of IPv6 (in comparison
to IPv4)
• Read the current literature at the level of conference papers in this
area.
• While you may not be able to understand all of the papers in journals, magazines, and
conferences in this area - you should be able to read 90% or more of them and have good
comprehension. In this area it is especially important that develop a habit of reading the
journals, trade papers, etc. In addition, you should also be aware of both standardization
activities, new products/services, and public policy in the area.
• Demonstrate knowledge of this area in writing.
• By writing a paper suitable for submission to a trade paper or national conference in the
area.
Maguire
[email protected]
Learning Outcomes
2008.03.29
Introduction 8 of 101
Internetworking/Internetteknik
Prerequisites
• Datorkommunikation och datornät/Data and computer communication
or
• Equivalent knowledge in Computer Communications (this requires
permission of the instructor)
Maguire
[email protected]
Prerequisites
2008.03.29
Introduction 9 of 101
Internetworking/Internetteknik
Contents
This course will focus on the protocols that are the fundaments of the Internet. We
will explore what internetworking means and what it requires. We will give both
practical and more general knowledge concerning the Internet network
architecture.
The course consists of 14 hours of lectures (combined with 14 hours of recitations
(övningar)), and 40-100 hours of written assignment.
Maguire
[email protected]
Contents
2008.03.29
Introduction 10 of 101
Internetworking/Internetteknik
Topics
• What an internet is and what is required of protocols to allow
internetworking
• details of routing and routing protocols (RIP, BGP, OSPF, …)
• multicasting
• Domain Name System (DNS, Dynamic DNS)
• what happens from the time a machine boots until the applications are
running (RARP, BOOTP, DHCP, TFTP)
• details of the TCP protocols and some performance issues
• details of a number of application protocols (especially with respect to
distributed file systems)
• network security (including firewalls, AAA, IPSec, SOCKs, … )
• differences between IPv6 and IPv4
• network management (SNMP) and
• We will also examine some emerging topics:
• cut-through routing, tag switching, flow switching, QoS, Mobile IP, Voice over IP, SIP, NAT,
VPN, Diffserv, … .
Maguire
Topics
Introduction 11 of 101
[email protected]
2008.03.29
Internetworking/Internetteknik
Examination requirements
• Written assignment (6 ECTS credits)
• based on lectures, recitations, and your references
Maguire
[email protected]
Examination requirements
2008.03.29
Introduction 12 of 101
Internetworking/Internetteknik
Grades: A..F (ECTS grades)
• To get an "A" you need to write an outstanding or excellent paper.
• To get a "B" you need to write a very good paper, i.e., it should be either
a very good review or present a new idea.
• To get a "C" you need to write a paper which shows that you
understand the basic ideas underlying internetworking and that you
understand one (or more) particular aspects at the level of an average
undergraduate student in the area.
• To get a "D" you need to demonstrate that you understand the basic
ideas underlying internetworking, however, your depth of knowledge is
shallow in the topic of your paper.
• If your paper has some errors (including incomplete references) the
grade will be an "E".
• If your paper has serious errors the grade will be an "F".
If your paper is close to passing, but not at the passing level, then you will be offered the opportunity for "komplettering",
i.e., students whose written paper does not pass can submit a revised version of their paper (or a completely new paper) which will be evaluated.
Maguire
[email protected]
Grades: A..F (ECTS grades)
2008.03.29
Introduction 13 of 101
Internetworking/Internetteknik
Ethics, Rights, and Responsibilities
There is a policy of zero tolerance for cheating, plagiarism, etc. - for details see
http://www.kth.se/dokument/student/student_rights.pdf
See also the KTH Ethics Policies at:
http://www.kth.se/info/kth-handboken/I/7/1.html
Maguire
[email protected]
Ethics, Rights, and Responsibilities
2008.03.29
Introduction 14 of 101
Internetworking/Internetteknik
Written Assignment
Goal: to gain analytical or practical experience and to show that you have
mastered some Internetworking knowledge.
• Can be done in a group of 1 to 3 students (formed by yourself). Each
student must contribute to the final report.
• There will be one or more suggested topics, additional topics are
possible (discuss this with one of the teachers before starting).
Maguire
[email protected]
Written Assignment
2008.03.29
Introduction 15 of 101
Internetworking/Internetteknik
Assignment Registration and Report
• Registration: Friday 02-May-08, to <[email protected]>
• "Subject: IK1550 topics"
• Group members, leader.
• Topic selected.
• Final report
• The report should clearly describe: 1) what you have done; 2) if you have done some
implementation and measurements you should describe the methods and tools used, along
with the test or implementation results, and your analysis.
• The length of the final report should be 7-8 pages for each student (detailed measurements,
configuration scripts, etc. can be in additional pages as an appendix or appendices). 1
• Contribution by each member of the group - must be clear
Final Report: written report due before Monday 26-May-08 at 23:59
• Send email with URL link to a PDF file to <[email protected]>
• Late assignments will not be accepted (i.e., there is no guarantee that
they will graded in time for the end of the term)
Note that it is pemissible to start working well in advance of the deadlines!
1. Papers which are longer than 8 pages per student will have a maximum grade of "E".
Maguire
[email protected]
Assignment Registration and Report
2008.03.29
Introduction 16 of 101
Internetworking/Internetteknik
Literature
The course will mainly be based on the book: Behrouz A. Forouzan, TCP/IP
Protocol Suite, 3rd edition, McGraw-Hill, publication date January 2005,
(Copyright 2006) 896 pages, ISBN 0072967722 (hardbound) or 0071115838
(softbound)
Other additional references include:
• TCP/IP Illustrated, Volume 1: The Protocols by W. Richard Stevens, Addison-Wesley,
1994, ISBN 0-201-63346-9 and Internetworking with TCP/IP:
Principles, Protocols, and Architectures, Vol. 1, by Douglas E. Comer,
Prentice Hall, 4th edt. 2000, ISBN 0-13-018380-6.
• the commented source code in TCP/IP Illustrated, Volume 2: The Implementation
by Gary R. Wright and W. Richard Stevens, Addison-Wesley, 1995,
ISBN 0-201-63354-X
• IPv6: The New Internet Protocol, by Christian Huitema, Prentice-Hall,
1996, ISBN 0-13-241936-X.
Maguire
[email protected]
Literature
2008.03.29
Introduction 17 of 101
Internetworking/Internetteknik
• concerning HTTP we will refer to TCP/IP Illustrated, Volume 3: TCP for
Transactions, HTTP, NNTP, and the UNIX Domain Protocols, Addison-Wesley, 1996, ISBN
0-201-63495-3.
With regard to Mobile IP the following two books are useful as additional sources:
• Mobile IP: Design Principles and Practices by Charles E. Perkins,
Addison-Wesley, 1998, ISDN 0-201-63469-4.
• Mobile IP: the Internet Unplugged by James D. Solomon, Prentice Hall,
1998, ISBN 0-13-856246-6.
Internetworking Technologies Handbook by Kevin Downes (Editor), H. Kim Lew,
Steve Spanier, Tim Stevenson (Online:
http://www-fr.cisco.com/univercd/cc/td/doc/cisintwk/ito_doc/index.htm)
We will refer to other books, articles, and RFCs as necessary. In addition, there
will be compulsory written exercises.
Maguire
[email protected]
Literature
2008.03.29
Introduction 18 of 101
Internetworking/Internetteknik
Lecture Plan
Subject to revision!
• Lecture 1: Introduction and IP basics
• Lecture 2: IP and ICMP
• Lecture 3: User Datagram Protocol (UDP) & TCP
• Lecture 4: TCP and SCTP
• Lecture 5: Dynamic Routing
• Lecture 6: IP Multicast and Mobile IP
• Lecture 7: Internet Security, VPNs, Firewalls, and NAT
Future Issues and Summary
Maguire
[email protected]
Lecture Plan
2008.03.29
Introduction 19 of 101
Internetworking/Internetteknik
Context of the course
“The network called the Internet is the single most important
development in the communications industry since the public
switched voice network was constructed…”
-- John Sidgmore
when he was CEO, UUNET Technologies
and COO, WorldCom1
1. http://www.lucent.com/enterprise/sig/exchange/present/slide2.html {this URL no longer functions}
Maguire
[email protected]
Context of the course
2008.03.29
Introduction 20 of 101
Internetworking/Internetteknik
Network Architecture
WLAN
FDDI
MH
AP
R
…
H
H
R
switch
…
R
R
WAN
switch
Ethernet LANs
Token Ring
switch
switch
R
IWU
MSC
BSC
HLR/VLR
…
BTS
…
MH
R
MH
Ad hoc
PAN
MH
Cellular networks
MH
Figure 1: Multiple network technologies - internetworked together
Note that some of the routers act as gateways between different types of networks.
Maguire
[email protected]
Network Architecture
2008.03.29
Introduction 21 of 101
Internetworking/Internetteknik
Power of the Internet (chaos)
‘“Historically, the Internet has been an environment in which to
experiment. There have been a few basic rules. The most important
is the standard for IP and TCP.
The are other important standards for promulgating routing
information and the like, but the real power of the Internet idea is that
there are not mandidated stanards for what can run over the ‘Net.
Anyone who adheres to TCP/IP standards can create applications
and run them without getting anyone’s permission. No ISP even has
to know you are experimenting (or playing, which is also OK). This
freedom produces unpredictable results. New industries can be
created almost overnight and existing industries severely affected.
…”
-- Scott O. Bradner, “The Importance of Being a Dynamist”,
Network World, December 13, 1999, p. 48 (www.nwfusion.com)
Maguire
[email protected]
Power of the Internet (chaos)
2008.03.29
Introduction 22 of 101
Internetworking/Internetteknik
Internet Trends
• Numbers of users and internet devices increases very rapidly
• Network Wizards’ Internet Domain Survey - http://www.isc.org/index.pl?/ops/ds/
– Jan. 2007: 433,193,199, Jan.2006: 394,991,609, Jan. 2005: 317,646,084 hosts
• RIPE’s survey European hosts :
– Estimates are based on DNS information; http://www.ripe.net/hostcount/hostcount++/
• Network Weather Maps - http://www.cybergeography.org/atlas/weather.html
http://www.nordu.net/stat-q/load-map/ndn-map,,traffic,busy
• QoS: Demand for integrating many different types of traffic, such as
video, audio, and data traffic, into one network ⇒ Multicast, IPv6,
RSVP, DiffServ, emphasis on high performance, and TCP
extensions (we will examine a number of these in this course)
• Mobility: both users and devices are mobile
• There is a difference between portable (bärbar) vs. mobile (mobil).
• IP is used in wireless systems (for example 3G cellular).
• Increasing use of wireless in the last hop (WLAN, PAN, Wireless MAN, …)
• Security:
• Wireless mobile Internet - initial concern driven by wireless link
• Fixed Internet - distributed denial of service attacks, increasing telecommuting, …
Maguire
[email protected]
Internet Trends
2008.03.29
Introduction 23 of 101
Internetworking/Internetteknik
IP traffic growing exponentially!
Traffic increasing (but not due to voice)
• IP
traffic between US and Sweden many times the total voice+FAX traffic
• many Gbit/s transatlantic fiber
Fixed Links - arbitrarily fast:
• LANs:
10Mbits/s, 100Mbits/s, 1Gbits/s, 10Gbits/s, …
• Backbones: Gigabits/s
Transoceanic fibers between continents ⇒ Gbit/s ⇒ Tbit/s
• Major sites link to backbones: increasingly 10+Mbit/s to Gbit/s
• Individual users links: 28.8 Kbits/s and ISDN (128Kbits/s)
⇒ ethernet and xDSL (2 Mbits/s .. 100 Mbits/s)
Points of Presence (PoPs) + FIX/CIX/GIX/MAE1 ⇒ GigaPoPs
(George) Guilder’s Law states that network speeds will triple every year for the next 25 years.
This dwarfs Moore’s law that predicts CPU processor speed will double every 18 months.
1. Federal Internet eXchange (FIX), Commercial Internet eXchange (CIX), Global Internet eXchange (GIX), Metropolitan Access Exchange (MAE)
Maguire
[email protected]
IP traffic growing exponentially!
2008.03.29
Introduction 24 of 101
Internetworking/Internetteknik
Speed
“... The Internet world moves fast. The integration of voice and data onto a single network is
not being lead by the International Telecommunications Union or by Bellcore. Rather, its
being lead by entrepreneurs like …. Until now, the voice networks dominated. Data could
ride on top of the phone network -- when it was convenient. The explosion of data networking
and Internet telephony technology is making the opposite true. Now voice can ride on data
networks -- when it is convenient.”1
Because of bandwidth constraints, Internet telephony would not be a
major factor “for a long time -- maybe nine to twelve months.”
-- president of a major ISP2
Internet time - 7x real time
-- Ira Goldstein, HP
1. from http://www.dialogic.com/solution/internet/apps.htm {no longer a valid URL}
2. from http://www.dialogic.com/solution/internet/apps.htm {no longer a valid URL}
Maguire
Speed
Introduction 25 of 101
[email protected]
2008.03.29
Internetworking/Internetteknik
Growth rates
Some people think the Internet bandwidth explosion is relatively recent, but right from the
beginning it’s been a race against an ever-expanding load. It isn’t something you can plan
for. In fact, the notion of long-range planning like the telcos do is almost comical. Just last
month, a local carrier asked us why we didn’t do five-year plans, and we said, “We do-about
once a month!”
-- Mike O’Dell1 VP and Chief Technologist UUNET
Mike points out that the growth rate of the Internet is driven by the increasing
speed of computers, while telcos have traffic which was proportional to the growth
in numbers of people (each of whom could only use a very small amount of
bandwidth).
• by 1997 UUNET was adding at least one T3/day to their backbone
1. from http://www.data.com/25years/mike_odell.html {no longer a valid URL}
Maguire
[email protected]
Growth rates
2008.03.29
Introduction 26 of 101
Internetworking/Internetteknik
¿Question?
“Which would you rather have twice as fast:
your computer’s processor or modem?
After 30 years of semiconductor doublings under Moore’s Law,
processor speed are measured in megahertz. On the other hand,
after 60 years of telco’s snoozing under monopoly law, modem
speeds are measure in kilobits. Modems are way too slow for Internet
access, but you knew that.”1
-- Bob Metcalfe, inventor of Ethernet in 1973
1. “From the Ether: Moving intelligence and Java Packets into the Net will conserve bandwidth”, by Bob Metcalfe, Inforworld, Oct., 6, 1997, pg. 171.
Maguire
[email protected]
¿Question?
2008.03.29
Introduction 27 of 101
Internetworking/Internetteknik
Increasing Data Rates
“Ethernet’
•
•
•
•
•
3 Mbps Ethernet (actually 2.944 Mbits/sec)
10 Mbps Ethernet (which became IEEE 802.3)
100 Mbps Ethernet (100Tx)
Gigabit Ethernet (IEEE 802.3z, IEEE 802.3ab)
10 GbE (IEEE 802.3ae), 40GbE, and 100GbE
Optical
• Dense Wavelength Division Multiplexing (DWDM) - allowing 1000s of
multi-Gbits/s channels to be carried on existing fibers
Wireless
• IEEE 802.11 Wireless LAN (2 .. 100 Mbits/s)
• IEEE 802.15 Wireless Personal Area Network (WPAN)
• IEEE 802.16 Metropolitan Area Networks - Fixed Broadband Wireless
The "Get IEEE 802®" program makes these standards available on-line:
http://standards.ieee.org/getieee802/index.html
Maguire
[email protected]
Increasing Data Rates
2008.03.29
Introduction 28 of 101
Internetworking/Internetteknik
Internetworking
Internetworking is
• based on the interconnection (concatenation) of multiple networks
• accommodates multiple underlying hardware technologies by providing
a way to interconnect heterogeneous networks and makes them
inter-operate.
We will concern ourselves with one of the most common internetworking
protocols IP (there are other internetworking protocols, such as Novell’s
Internetwork Packet Exchange (IPX), Xerox Network Systems (XNS), IBM’s
Systems Network Architecture (SNA), OSI’s ISO-IP).
We will examine both IP:
• version 4 - which is in wide use
• version 6 - which is coming into use
Internet: the worldwide internet
Maguire
[email protected]
Internetworking
2008.03.29
Introduction 29 of 101
Internetworking/Internetteknik
The Internet Today
Local
…
Local
Local
…
Local
Local
…
ISP
Regional
ISP
…
Local
ISP
Regional
ISP
Regional
ISP
National/International
ISP
NAP
National/International
ISP
National/International
ISP
key: Internet Serice Provider (ISP), Network Access Point (NAP)
Maguire
[email protected]
The Internet Today
2008.03.29
Introduction 30 of 101
Internetworking/Internetteknik
Basic concepts
open-architecture
networking [1],[2]
• Each distinct network stands on its own makes its own technology choices, etc. ⇒
The End2End
Argument [4]
Some basic design principle for the Internet:
• Specific application-level functions should not be built into the lower levels
• Functions implemented in the network should be simple and general.
• Most functions are implemented (as software) at the edge
no changes within each of these networks in order to internet
• Based on best-effort delivery of datagrams
• Gateways interconnect the networks
• No global control
⇒ complexity of the core network is reduced
⇒ increases the chances that new applications can be easily added.
See also [5], [6]
Hourglass
(Stuttgart
wineglass) Model
• Anything over IP
• IP over anything
Note the broad (and open) top - enabling lots
and lots of application
WWW e-mail
HTTP
RTP
TCP UDP
IP
Ethernet PPP
Copper Fiber
Radio
Maguire
[email protected]
Basic concepts
2008.03.29
Introduction 31 of 101
Internetworking/Internetteknik
Clean slate re-design of the Internet
Many have questioned one or more of the basic concepts and currently several
groups are attempting to do a clean slate re-design of the Internet.
Consider for example the two research questions that researchers at Stanford
University are asking as part of their Clean Slate program:
• "With what we know today, if we were to start again with a clean slate,
how would we design a global communications infrastructure?", and
• "How should the Internet look in 15 years?"
-- Quoted from http://cleanslate.stanford.edu/
See also: http://cleanslate.stanford.edu/about_cleanslate.php
This is only one of many such projects, see also:
• U. S. National Science Foundation GENI: http://geni.net
• European Union Future Internet Research and Experimentation
(FIRE): http://cordis.europa.eu/fp7/ict/fire/
Maguire
[email protected]
Clean slate re-design of the Internet
2008.03.29
Introduction 32 of 101
Internetworking/Internetteknik
Implicit vs. Explicit Information
Van Jaconson expresses this as:
• "The nice properties of packet switching result from moving source &
destination information implicit in a circuit switch’s time slot
assignments into explicit addresses in the packet header.
(But its easy to do this wrong, e.g., ATM.)
• The nice properties of dissemination result from making the time &
sequence information implicit in a conversation be explicit in a fully
qualied name."
-- slide 26: "Digression on Implicit vs. Explicit Information" of
Van Jacobson, "If a Clean Slate is the solution what was the problem?",
Stanford Clean Slate Seminar, February 27, 2006
http://cleanslate.stanford.edu/seminars/jacobson.pdf
The emphasis (in italic red characters) in the above quotation were added by Maguire.
Maguire
[email protected]
Implicit vs. Explicit Information
2008.03.29
Introduction 33 of 101
Internetworking/Internetteknik
Review of Layering
user process
user process
user process
TCP
user process
UDP
Applications
Transport
ICMP
IP
IGMP
Network
ARP
Hardware
Interface
RARP
Link
media
Figure 2: protocol layers in the TCP/IP protocol suite
(see Stevens, Volume 1, figure 1.4, pg. 6)
Maguire
[email protected]
Review of Layering
2008.03.29
Introduction 34 of 101
Internetworking/Internetteknik
Encapsulation
user data
Applications
Appl
user data
header
TCP
header
20
IP
header
20
Ethernet
header
14
Transport
application data
Network
transport data
network data
46 to 1500 bytes
Ethernet
trailer
4
Link
Ethernet Frame
Figure 3: Encapsulation of data
(see Stevens, Volume 1, figure 1.7, pg. 10)
Maguire
[email protected]
Encapsulation
2008.03.29
Introduction 35 of 101
Internetworking/Internetteknik
Demultiplexing
user process
user process …
TCP
user process
UDP
user process …
IPv4
ARP
Driver
user process …
Demux on
TCP or UDP
port number
…
ICMP
user process …
TCP
UDP
…
IGMP
Demux on
protocol value
in IP header
RARP
IPv6
Demux on
Frame type and/or IP version
incoming frame - accepted by matching
address or multicast address
Figure 4: Demultiplexing
(adapted from Stevens, Volume 1, figure 1.8, pg. 11; with dual IP stacks)
Maguire
[email protected]
Demultiplexing
2008.03.29
Introduction 36 of 101
Internetworking/Internetteknik
Addresses in TCP/IP
• Transport layer
• Port number
• Network layer
• IP address
• Protocol
• Link & Physical layers
• Frame type
• Media Access and Control (MAC) address
Maguire
[email protected]
Addresses in TCP/IP
2008.03.29
Introduction 37 of 101
Internetworking/Internetteknik
Internet Protocol version 4 (IPv4) (RFC 791)
7
4 bit
version
4-bit header
length
8
15 16
8-bit Type of Service
(TOS)
16 bit identification
8-bit Time to Live (TTL)
23 24
31
16 bit total length
3-bit flags
8-bit Protocol
13 bit Fragment Offset
16 bit header checksum
32 bit Source IP address
20 bytes
0
32 bit Destination IP address
options (padded to 32 bit length)
data
Figure 5: IP header (see Stevens, Vol. 1, figure 3.1, pg. 34)
The fields: Version, Protocol, and Source & Destination IP addresses are all used
for demultiplexing the incoming IP packet.
We will first examine version 4, then later in the course version 6.
Maguire
[email protected]
Internet Protocol version 4 (IPv4) (RFC 791)
2008.03.29
Introduction 38 of 101
Internetworking/Internetteknik
IP “Protocol” field (RFC 1700)
In the Internet Protocol (IP), RFC 791 [22], there is a field, called Protocol, to
identify the next level protocol. This is an 8 bit field.
Assigned Internet Protocol Numbers (assigned by Internet Assigned Numbers Authority
(IANA) http://www.iana.org/assignments/protocol-numbers (last updated 2008-02-27)
Decimal
0
1
2
3
4
5
6
7
8
9
10
11
12
Maguire
[email protected]
Keyword
Protocol
References
HOPOPT
ICMP
IGMP
GGP
IP
ST
TCP
CBT
EGP
IGP
IPv6 Hop-by-Hop Option
Internet Control Message
Internet Group Management
Gateway-to-Gateway
IP in IP (encapsulation)
Stream
Transmission Control
CBT
Exterior Gateway Protocol
any private interior
(e.g., used by Cisco for their IGRP)
BBN RCC Monitoring
Network Voice Protocol
PUP
[RFC1883]
[RFC792]
[RFC1112]
[RFC823]
[RFC2003]
[RFC1190,RFC1819]
[RFC793]
[Ballardie]
[RFC888,DLM1]
[IANA]
BBN-RCC-MON
NVP-II
PUP
IP “Protocol” field (RFC 1700)
2008.03.29
[SGC]
[RFC741,SC3]
[PUP,XEROX]
Introduction 39 of 101
Internetworking/Internetteknik
Decimal
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Maguire
[email protected]
Keyword
Protocol
References
ARGUS
EMCON
XNET
CHAOS
UDP
MUX
DCN-MEAS
HMP
PRM
XNS-IDP
TRUNK-1
TRUNK-2
LEAF-1
LEAF-2
RDP
IRTP
ISO-TP4
NETBLT
MFE-NSP
MERIT-INP
SEP
3PC
IDPR
ARGUS
EMCON
Cross Net Debugger
Chaos
User Datagram
Multiplexing
DCN Measurement Subsystems
Host Monitoring
Packet Radio Measurement
XEROX NS IDP
Trunk-1
Trunk-2
Leaf-1
Leaf-2
Reliable Data Protocol
Internet Reliable Transaction
ISO Transport Protocol Class 4
Bulk Data Transfer Protocol
MFE Network Services Protocol
MERIT Internodal Protocol
Sequential Exchange Protocol
Third Party Connect Protocol
Inter-Domain Policy Routing Protocol
[RWS4]
[BN7]
[IEN158,JFH2]
[NC3]
[RFC768,JBP]
[IEN90,JBP]
[DLM1]
[RFC869,RH6]
[ZSU]
[ETHERNET,XEROX]
[BWB6]
[BWB6]
[BWB6]
[BWB6]
[RFC908,RH6]
[RFC938,TXM]
[RFC905,RC77]
[RFC969,DDC1]
[MFENET,BCH2]
[HWB]
[JC120]
[SAF3]
[MXS1]
IP “Protocol” field (RFC 1700)
2008.03.29
Introduction 40 of 101
Internetworking/Internetteknik
Decimal
Keyword
Protocol
References
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
XTP
DDP
IDPR-CMTP
TP++
IL
IPv6
SDRP
IPv6-Route
IPv6-Frag
IDRP
RSVP
GRE
MHRP
BNA
ESP
AH
I-NLSP
SWIPE
NARP
MOBILE
TLSP
[GXC]
[WXC]
[MXS1]
[DXF]
[Presotto]
[Deering]
[DXE1]
[Deering]
[Deering]
[Sue Hares]
[Bob Braden]
[Tony Li]
[David Johnson]
[Gary Salamon]
[RFC1827]
[RFC1826]
[GLENN]
[JI6]
[RFC1735]
[Perkins]
[Oberg]
57
SKIP
XTP
Datagram Delivery Protocol
IDPR Control Message Transport Proto
TP++ Transport Protocol
IL Transport Protocol
Ipv6
Source Demand Routing Protocol
Routing Header for IPv6
Fragment Header for IPv6
Inter-Domain Routing Protocol
Reservation Protocol
General Routing Encapsulation
Mobile Host Routing Protoco
BNA
Encap Security Payload for IPv6
Authentication Header for IPv6
Integrated Net Layer Security TUBA
IP with Encryption
NBMA Address Resolution Protocol
IP Mobility
Transport Layer SecurityProtocol (using
Kryptonet key management)
SKIP
Maguire
[email protected]
IP “Protocol” field (RFC 1700)
2008.03.29
[Markson]
Introduction 41 of 101
Internetworking/Internetteknik
Decimal
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
Maguire
[email protected]
Keyword
Protocol
References
IPv6-ICMP
IPv6-NoNxt
IPv6-Opts
ICMP for IPv6
No Next Header for IPv6
Destination Options for IPv6
any host internal protocol
CFTP
any local network
SATNET and Backroom EXPAK
Kryptolan
MIT Remote Virtual Disk Protocol
Internet Pluribus Packet Core
any distributed file system
SATNET Monitoring
VISA Protocol
Internet Packet Core Utility
Computer Protocol Network Executive
Computer Protocol Heart Beat
Wang Span Network
Packet Video Protocol
Backroom SATNET Monitoring
SUN ND PROTOCOL-Temporary
WIDEBAND Monitoring
WIDEBAND EXPAK
ISO Internet Protocol
[RFC1883]
[RFC1883]
[RFC1883]
[IANA]
[CFTP,HCF2]
[IANA]
[SHB]
[PXL1]
[MBG]
[SHB]
[IANA]
[SHB]
[GXT1]
[SHB]
[DXM2]
[DXM2]
[VXD]
[SC3]
[SHB]
[WM3]
[SHB]
[SHB]
[MTR]
CFTP
SAT-EXPAK
KRYPTOLAN
RVD
IPPC
SAT-MON
VISA
IPCV
CPNX
CPHB
WSN
PVP
BR-SAT-MON
SUN-ND
WB-MON
WB-EXPAK
ISO-IP
IP “Protocol” field (RFC 1700)
2008.03.29
Introduction 42 of 101
Internetworking/Internetteknik
Decimal
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
Maguire
[email protected]
Keyword
Protocol
References
VMTP
SECURE-VMTP
VINES
TTP
NSFNET-IGP
DGP
TCF
EIGRP
OSPFIGP
Sprite-RPC
LARP
MTP
AX.25
IPIP
MICP
SCC-SP
ETHERIP
ENCAP
VMTP
SECURE-VMTP
VINES
TTP
NSFNET-IGP
Dissimilar Gateway Protocol
TCF
EIGRP
OSPFIGP
Sprite RPC Protocol
Locus Address Resolution Protocol
Multicast Transport Protocol
AX.25 Frames
IP-within-IP Encapsulation Protocol
Mobile Internetworking Control Protocol
Semaphore Communications Sec. Pro.
Ethernet-within-IP Encapsulation
Encapsulation Header
any private encryption scheme
GMTP
Ipsilon Flow Management Protocol
PNNI over IP
Protocol Independent Multicast
[DRC3]
[DRC3]
[BXH]
[JXS]
[HWB]
[DGP,ML109]
[GAL5]
[CISCO,GXS]
[RFC1583,JTM4]
[SPRITE,BXW]
[BXH]
[SXA]
[BK29]
[JI6]
[JI6]
[HXH]
[RXH1]
[RFC1241,RXB3]
[IANA]
[RXB5]
[Hinden]
[Callon]
[Farinacci]
GMTP
IFMP
PNNI
PIM
IP “Protocol” field (RFC 1700)
2008.03.29
Introduction 43 of 101
Internetworking/Internetteknik
Decimal
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
Maguire
[email protected]
Keyword
Protocol
References
ARIS
SCPS
QNX
A/N
IPComp
SNP
Compaq-Peer
IPX-in-IP
VRRP
PGM
ARIS
SCPS
QNX
Active Networks
IP Payload Compression Protocol
Sitara Networks Protocol
Compaq Peer Protocol
IPX in IP
Virtual Router Redundancy Protocol
PGM Reliable Transport Protocol
any 0-hop protocol
Layer Two Tunneling Protocol
D-II Data Exchange (DDX)
Interactive Agent Transfer Protocol
Schedule Transfer Protocol
SpectraLink Radio Protocol
UTI
Simple Message Protocol
SM
Performance Transparency Protocol
over IPv4
[Feldman]
[Durst]
[Hunter]
[Braden]
[RFC2393]
[Sridhar]
[Volpe]
[Lee]
[Hinden]
[Speakman]
[IANA]
[Aboba]
[Worley]
[Murphy]
[JMP]
[Hamilton]
[Lothberg]
[Ekblad]
[Crowcroft]
[Welzl]
[Przygienda]
[Partridge]
[Sautter]
L2TP
DDX
IATP
STP
SRP
UTI
SMP
SM
PTP
ISIS
FIRE
CRTP
Combat Radio Transport Protocol
IP “Protocol” field (RFC 1700)
2008.03.29
Introduction 44 of 101
Internetworking/Internetteknik
Decimal
Keyword
Protocol
References
127
128
129
130
131
132
133
134
136
137
CRUDP
SSCOPMCE
IPLT
SPS
PIPE
SCTP
FC
FRSVP-E2E-IGNORE
UDPLite
MPLS-in-IP
Combat Radio User Datagram
138
manet
MANET Protocols
[Sautter]
[Waber]
[Hollbach]
[McIntosh]
[Petri]
[Stewart]
[Rajagopal]
[RFC3175]
[RFC3828]
[RFC-ietf-mpls-in-ip-or-g
re-08.txt]
[RFC-ietf-manet-iana-07.t
xt]
139
140-252
253
254
255
Secure Packet Shield
Private IP Encapsulation within IP
Stream Control Transmission Protocol
Fibre Channel
HIP
Host Identity Protocol
Unassigned
Use for experimentation and testing
Use for experimentation and testing
Reserved
[RFC-ietf-hip-base-10.txt]
[IANA]
[RFC3692]
[RFC3692]
[IANA]
As of Feb. 2008, there were ~43 fewer available protocol numbers than at the time
of the course in 1999.
Maguire
[email protected]
IP “Protocol” field (RFC 1700)
2008.03.29
Introduction 45 of 101
Internetworking/Internetteknik
Basic communication mechanism: datagram
Properties of datagrams:
• Best effort
• Each message handled independently — global addressing.
• IP packets (datagrams) are forwarded according to the network
address (which is in each datagram) by routers.
Maguire
[email protected]
Basic communication mechanism: datagram
2008.03.29
Introduction 46 of 101
Internetworking/Internetteknik
Basic Ethernet + IP Software Architecture
TCP
Transport layer
UDP
icmp
…
ipforward
ipoutput
ipintr
if_output
ARP
ipintrq
arpintrq
ether_output
if_snd
leread
leintr
}
IP
}
Ethernet
Device
Driver
lestart
Figure 6: Basic Ethernet + IP Architecture - based on Stevens, TCP/IP Illustrated, Volume 2
Maguire
[email protected]
Basic Ethernet + IP Software Architecture
2008.03.29
Introduction 47 of 101
Internetworking/Internetteknik
Common Used Simple Services
Name
TCP
port
UDP
port
RFC
Description
echo
7
7
862
server returns what the client sends
discard
9
9
863
server discards what the client sends
daytime
13
13
867
Server returns the time and date in a human readable format
chargen
19
19
864
TCP server sends a continual stream of character, until the connection is
terminated by the client. UDP server sends a datagradm containing a
random number of characters each time the client sends a datagram.
ftp-data
20
File Transfer Protocol (Data)
ftp
21
File Transfer Protocol (Control)
telnet
23
Virtual Terminal Protocol
smtp
25
Simple Mail Transfer Protocol
time
37
Maguire
[email protected]
37
868
Server returns the time as a 32-bit binary number. This number is the
time in seconds since 1 Jan. 1990, UTC
Common Used Simple Services
2008.03.29
Introduction 48 of 101
Internetworking/Internetteknik
Link Layer
Possible link layers include:
• Ethernet and IEEE 802.3 Encapsulation
• with possible Trailer Encapsulation
•
•
•
•
•
•
•
SLIP: Serial Line IP
CSLIP: Compress SLIP
PPP: Point to Point Protocol
Loopback Interface
Virtual Interface
…
carrier pigeons - CPIP (Carrier Pigeon Internet Protocol) April 1st
1990, RFC 1149 was written. A protocol for IP over avian carriers.
Implementation (April 28 2001): http://www.blug.linux.no/rfc1149/
Some of the issues concerning links are:
• MTU and Path MTU
• Serial line throughput
Maguire
[email protected]
Link Layer
2008.03.29
Introduction 49 of 101
Internetworking/Internetteknik
Simple Campus Network
WAN
ISP’s router
WAN or MAN
…
Firewall Router
repeater
layer 1
subnet5
Router
layer3
switch
bridge
Ethernet
switch
hub
…
(wireless) subnet1
Collision domain
Maguire
[email protected]
…
…
…
subnet2
subnet3
layer 2 domain
Simple Campus Network
2008.03.29
…
subnet4
Network domain
Introduction 50 of 101
Internetworking/Internetteknik
Connecting Devices
Connecting
Devices
Networking
Devices
Internetworking
Devices
Repeater
Bridge
Layer 1
Layer 2
Router
Gateway
Layer 3
Layer 4..7
• Ethernet hub = a multiport repeater
• Ethernet switch = a multiport bridge
• Layer 3 switch = combines functions of an ethernet switch and a router
Maguire
[email protected]
Connecting Devices
2008.03.29
Introduction 51 of 101
Internetworking/Internetteknik
How important are switches vs. routers?
There are an enormous number of switches sold per year. Probably more than one
switch port sold per wired Ethernet interface!
July 28,2007
Percentage of net
product sales
Routers
US$ 6,920 M
23.5%
Switches
US$12,473 M
42.3%
Advanced Technologiesa
US$ 8,075 M
27.4%
Otherb
US$ 1,994 M
6.1%
Total
US$29,462 M
a. Video Systems, Unified Communications, Home networking, Security products, WLAN, and
Storage Area networking
b. Optical networking, sales of IP-based solutions to other service providers, and Scientific-Atlanta
For comparison purposes: HP’s Corporate Investments (which includes their
Ethernet switch business) was US$566 M in 2006 - and had grown 8% over the
previous year due to gigabit switch products[10]; while in 2007 it was US$762 M
with a 33% growth attributed to enterprise class gigabit network switches! [11]
Maguire
[email protected]
How important are switches vs. routers?
2008.03.29
Introduction 52 of 101
Internetworking/Internetteknik
LAN Protocols
OSI Layers
IEEE 802.20
(MBWA)
IEEE 802.16
MAN
IEEE 802.15
WPAN
IEEE 802.11
WLAN
Physical Layer
IEEE 802.5
Token Ring
MAC Sublayers
IEEE 802.2
IEEE 802.4
Token Bus
LLC Sublayer
Ethernet
IEEE 802.3
Data link Layer
LAN specifications
Figure 7: Physical and Link layer protocols used for LANs
Maguire
[email protected]
LAN Protocols
2008.03.29
Introduction 53 of 101
Internetworking/Internetteknik
Ethernet Encapsulation (RFC 894)
DST
SRC
6
6
TYPE
data
46-1500
2
TYPE
0800
IP datagram
2
46-1500
CRC
4
TYPE
PAD
0806 ARP request/reply
2
TYPE
0835
2
28
RARP
request/reply
28
18
PAD
18
46-1500 bytes
Figure 8: Ethernet encapsulation
(see Stevens, Volume 1, figure 2.1, pg. 23)
DST = Destination MAC Address, SRC = Source MAC Address (both are 48 bits in length);
TYPE = Frame Type; CRC = Cyclic Redundancy Check, i.e., checksum
Maguire
[email protected]
Ethernet Encapsulation (RFC 894)
2008.03.29
Introduction 54 of 101
Internetworking/Internetteknik
IEEE 802.2/802.3 Encapsulation (RFC 1042)
802.3 MAC
DST
6
SRC LEN DSAPSSAP
6
802.2 SNAP
802.2 LLC
2
1
1
CNTL ORG CODE
TYPE
00
03
1
3
CRC
data
2
4
38-1492
TYPE
IP datagram
0800
2
38-1492
TYPE
PAD
0806 ARP request/reply
2
TYPE
0835
2
10
28
RARP
request/reply
PAD
28
10
46-1500 bytes
Figure 9: IEEE802.2/802.3 (see Stevens, Volume 1, figure 2.1, pg. 23)
DSAP ≡ Destination Service Access Point; SSAP ≡ Source Service Access Point;
SNAP ≡ Sub-Network Access Protocol; for other TYPE values see RFC1700.
Maguire
[email protected]
IEEE 802.2/802.3 Encapsulation (RFC 1042)
2008.03.29
Introduction 55 of 101
Internetworking/Internetteknik
IEEE 802 Numbers of Interest
“… IEEE 802 Networks. These systems may use a Link Service Access Point (LSAP) field in much the same way the
MILNET uses the “link” field. Further, there is an extension of the LSAP header called the Sub-Network Access Protocol
(SNAP).
The IEEE likes to describe numbers in binary in bit transmission order, which is the opposite of the big-endian order used
throughout the Internet protocol documentation.” - see http://www.iana.org/assignments/ieee-802-numbers
Assignments from RFC1700
Link Service Access Point
IEEE binary
Internet binary
decimal
00000000
00000000
0
01000000
00000010
2
11000000
00000011
3
00100000
00000100
4
01100000
00000110
6
01110000
00001110
14
01110010
01001110
78
01111010
01011110
94
01110001
10001110
142
01010101
10101010
170
01111111
11111110
254
11111111
11111111
255
Maguire
[email protected]
Description
References
Null LSAP
Individual LLC Sublayer Mgt
Group LLC Sublayer Mgt
SNA Path Control
Reserved (DOD IP)
PROWAY-LAN
EIA-RS 511
ISI IP
PROWAY-LAN
SNAP
ISO CLNS IS 8473
Global DSAP
[IEEE]
[IEEE]
[IEEE]
[IEEE]
RFC 768 [14]
[IEEE]
[IEEE]
[JBP]
[IEEE]
[IEEE] (see RFC 1042[13])
RFC 926 [15]
[IEEE]
IEEE 802 Numbers of Interest
2008.03.29
Introduction 56 of 101
Internetworking/Internetteknik
SLIP (RFC 1055)
IP datagram
c0
db
1
1
END
END
SLIP encapsulation
c0
db dc
db dd
c0
1
1
1
1
1
1
Figure 10: SLIP Encapsulation (see Stevens, Volume 1, figure 2.2, pg. 25)
RFC 1055: Nonstandard for transmission of IP datagrams over serial lines: SLIP [16]
SLIP uses character stuffing, SLIP ESC character ≡ 0xdb
SLIP END character ≡ 0xc0
• point to point link, ⇒ no IP addresses need to be sent
• there is no TYPE field, ⇒ you can only be sending IP,
i.e., can’t mix protocols
• there is no CHECKSUM,
⇒ error detection has to be done by higher layers
Maguire
[email protected]
SLIP (RFC 1055)
2008.03.29
Introduction 57 of 101
Internetworking/Internetteknik
SLIP Problems ⇒CSLIP ≡ Compressed SLIP
• because many users running SLIP over lines at 19.2 kbits/s or slower
• lots of interactive traffic (telnet, rlogin, …) which uses TCP
•
•
•
•
many small packets
each of which needs a TCP header (20 bytes) + IP header (20 bytes) ⇒ overhead 40 bytes
Send 1 user character requires sending a minimum of: 1 + 40 + END, i.e., 42 bytes
most of the header is predictable
CSLIP (RFC 1144: Compressing TCP/IP headers for low-speed serial links, by
Van Jacobson)[17] reduces the header to 3-5 bytes, by:
• trying to keep response time under 100-200ms
• keeping state about ~16 TCP connections at each end of the link
• the 96-bit tuple <src address, dst address, src port, dst port> reduced to 4 bits
•
•
•
•
many header fields rarely change - so don’t transmit them
some header fields change by a small amount - just send the delta
no compression is attempted for UDP/IP
a 5 byte compressed header on 100-200 bytes ⇒ 95-98% line
efficiency
Maguire
[email protected]
SLIP Problems ⇒CSLIP ≡ Compressed SLIP
2008.03.29
Introduction 58 of 101
Internetworking/Internetteknik
Robust Header Compression (rohc)
Header compression schemes that perform well over links with high error rates
and long roundtrip times.
http://www.ietf.org/html.charters/rohc-charter.html
Maguire
[email protected]
Robust Header Compression (rohc)
2008.03.29
Introduction 59 of 101
Internetworking/Internetteknik
PPP: Point to Point Protocol
PPP (RFCs 1331[18]&1332[19]) corrects the deficiencies in SLIP and consists of:
• encapsulation for either async or synchronous links,
•
•
•
•
HDLC (see RFC 1549)
X.25 (see RFC 1598)
ISDN (see RFC 1618)
SONET/SDH (see RFC 1619)
• Link Control Protocol
• establish, configure, and test data-links [includes option negociation]
• authentication (see RFC 1334)
• Family of Network Control Protocols (NCPs) - specific to different
network protocols, currently:
•
•
•
•
•
IP (see RFC 1332)
DECnet (see RFC 1376)
OSI network layer (see RFC 1377)
AppleTalk (see RFC 1378)
XNS (see RFC 1764)
See: James D. Carlson, “PPP Design, Implementation, and Debugging”, Second
edition, Addison-Wesley,2000, ISBN 0-201-70053-0 [8].
Maguire
[email protected]
PPP: Point to Point Protocol
2008.03.29
Introduction 60 of 101
Internetworking/Internetteknik
PPP frames
FLAG ADDR CNTLprotocol
FF
7E
03
1
1
1
2
protocol
0021
data
upto 1500 bytes
CRC
2
FLAG
7E
1
IP datagram
2
protocol
C021 Link control data
2
protocol
8021
network
control data
2
Figure 11: Format of PPP frame (see Stevens, Volume 1, figure 2.3, pg. 26)
•
•
•
•
The protocol field behaves like the Ethernet TYPE field.
CRC can be used to detect errors in the frame.
Either character or bit stuffing is done depending on the link.
you can negotiate away the CNTL and ADDRESS fields, and reduce
the protocol field to 1 byte ⇒ minimum overhead of 3 bytes
• Van Jacobson header compression for IP and TCP
Maguire
[email protected]
PPP frames
2008.03.29
Introduction 61 of 101
Internetworking/Internetteknik
PPP summary
•
•
•
•
•
support for multiple protocols on a link
CRC check on every frame
dynamic negociation of IP address of each end
header compression (similar to CSLIP)
link control with facilities for negotiating lots of data-link options
All at a price averaging 3 bytes of overhead per frame.
Maguire
[email protected]
PPP summary
2008.03.29
Introduction 62 of 101
Internetworking/Internetteknik
Loopback interface
IP output
function
dispatch
based on
interface
place on IP
input queue
IP input
function
Ethernet driver
destination IP
broadcast or multicast
no
yes
place on IP
input queue
destination IP
equal to interface address
no
yes
ARP
Loopback interface
IP
ARP
demux based
on frame type
receive
send
Ethernet
Figure 12: Processing of IP Datagrams (adapted from Stevens, Volume 1, figure 2.4, pg. 28)
Maguire
[email protected]
Loopback interface
2008.03.29
Introduction 63 of 101
Internetworking/Internetteknik
Loopback interface summary
• loopback address ≡ 127.0.0.1 generally called “localhost”
• all broadcasts and multicasts get sent to the loopback - because the
sender gets a copy too!
• everything sent to the host’s own IP address is sent to the loopback
interface
Maguire
[email protected]
Loopback interface summary
2008.03.29
Introduction 64 of 101
Internetworking/Internetteknik
Virtual Interface (VIF)
IP output
function
yes broadcast or
multicast
place on IP
input queue
process
packet
IP input
function
place on IP
input queue
no
Virtual interface
Loopback interface
yes
destination IP?
IP
no
ARP
ARPdemux
Ethernet driver
send
Ethernet
Figure 13: Processing of network packets via a Virtual Interface
Maguire
[email protected]
Virtual Interface (VIF)
2008.03.29
receive
Introduction 65 of 101
Internetworking/Internetteknik
Using VIF for tunneling
TCP
...
UDP
IPIP
transport layer
vif0
network layer
loopback
tunneling
ec0
wl0
data link layer
from/to home MSR
Figure 14: Using a Virtual Interface for Tunneling (IP in IP) adapted from John Ioannidis’s thesis
Maguire
[email protected]
Using VIF for tunneling
2008.03.29
Introduction 66 of 101
Internetworking/Internetteknik
Wireshark, tcpdump, etc.
Wireshark http://www.wireshark.org/ is a tool for capturing, visualizing, analyzing, …
network traffic
It builds on the earlier tcpdump program and utilizes the ability to promiscuously
listen to a network interface.
Maguire
[email protected]
Wireshark, tcpdump, etc.
2008.03.29
Introduction 67 of 101
Internetworking/Internetteknik
Figure 15: Start the program, then select Capture
Maguire
[email protected]
Wireshark, tcpdump, etc.
2008.03.29
Introduction 68 of 101
Internetworking/Internetteknik
Figure 16: Select the interface
Note that the Microsoft Windows drivers will not allow you to promiscuously
listen on a WLAN interface.
Maguire
[email protected]
Wireshark, tcpdump, etc.
2008.03.29
Introduction 69 of 101
Internetworking/Internetteknik
Figure 17: After capturing some packets
Maguire
[email protected]
Wireshark, tcpdump, etc.
2008.03.29
Introduction 70 of 101
Internetworking/Internetteknik
Exporting data to other tools
By exporting the data we can process it with lots of different tools:
• tcpdump (and similar tools),
• Perl, AWK, … scripts,
• spreadsheets,
• …
• custom programs
Maguire
[email protected]
Exporting data to other tools
2008.03.29
Introduction 71 of 101
Internetworking/Internetteknik
Figure 18: Export the captured traffic
Maguire
[email protected]
Exporting data to other tools
2008.03.29
Introduction 72 of 101
Internetworking/Internetteknik
Comma Separated Values
Example:
"No.","Time","Source","Destination","Protocol","Info"
"1","0.000000","192.168.1.197","192.168.1.255","BROWSER",
"Host Announcement CCSNONAME, Workstation, Server, NT Workstation"
"2","2.208042","Cisco-Li_4d:3d:a2","Broadcast","ARP",
"Who has 192.168.1.219? Tell 192.168.1.1"
"3","3.206115","Cisco-Li_4d:3d:a2","Broadcast","ARP",
"Who has 192.168.1.219? Tell 192.168.1.1"
"4","4.206193","Cisco-Li_4d:3d:a2","Broadcast","ARP",
"Who has 192.168.1.219? Tell 192.168.1.1"
Maguire
[email protected]
Comma Separated Values
2008.03.29
Introduction 73 of 101
Internetworking/Internetteknik
Importing in to a Microsoft
spreadsheet
1
Excel
Figure 19: First step after opening a CSV formatted file
1. Similar mechanims can be used with other spreadsheets
Maguire
[email protected]
Importing in to a Microsoft Excel spreadsheet
2008.03.29
Introduction 74 of 101
Internetworking/Internetteknik
Figure 20: Second step in conversion
Maguire
[email protected]
Introduction 75 of 101
2008.03.29
Internetworking/Internetteknik
Figure 21: Final step -- Note that in this step if you are using the Swedish language version of Microsoft’s
Excel - you need to indicate that the "." in the Time column, should be converted to a ","
- otherwise you can not do arithmetic on these values (since they look like strings!!!)
Maguire
[email protected]
Introduction 76 of 101
2008.03.29
Internetworking/Internetteknik
Example of what can be done
Figure 22: Use spreadsheet operations over the values
Maguire
[email protected]
Example of what can be done
2008.03.29
Introduction 77 of 101
Internetworking/Internetteknik
Using a Perl script
#!/usr/bin/perl -w
# each input line consists of a triple: Time,Source,RSSI
# separate the file based upon making a file for each source containing only the Time and RSSI
#
# 2007.12.27 G. Q. Maguire Jr. and M. E. Noz
#
# Security blankets - Perl authors claim programs are unsafe without this
# This only removes directories that have no files in them
#Use only perl libary
#@INC = $INC[$#INC - 1];
#die "Perl library is writable by the world!\n" if $< && -W $INC[0];
$ENV{’IFS’} = ’’ if $ENV{’IFS’};
umask 002;
# get the main directory paths
$project_dir = ’/home/noz’;
$filename = ’all-time-source-RSSId.csv’;
#$filename = ’all-time.small’;
$sourcename = ’’;
$sourcename1 = ’’;
$time = ’’;
$RRSID = ’’;
$count = 0;
&create_tmp_file;
#open the data file for reading
open(DATA_FILE, $filename) || die "Can’t open data file: $!\n";
while ($varrec = <DATA_FILE>) {
if ($varrec =~ /^#/) {
$count = 1;
next;
}
else {
chop($varrec);
print "count is $count\n";
#
print "varrec is $varrec\n";
($time, $sourcename, $RSSId) = split(/,/, $varrec);
#
print "time is $time, sourcename is $sourcename, RSSId is $RSSId\n";
if ($count == 1) {
$sourcename1=$sourcename;
Maguire
[email protected]
Using a Perl script
2008.03.29
Introduction 78 of 101
Internetworking/Internetteknik
print PTMP "$time $RSSId\n";
$count++;
print "sourcename is $sourcename; sourcename1 is $sourcename1 \n";
}
else {
if ($sourcename =~ $sourcename1) {
print PTMP "$time $RSSId\n";
}
else {
print "sourcename is $sourcename, old sourcename is $sourcename1\n";
close PTMP;
chmod 0664, ’/tmp/ptmp’;
system("mv /tmp/ptmp $sourcename1");
$sourcename1 = $sourcename;
&create_tmp_file;
print PTMP "$time $RSSId\n";
}
}
}
}
close PTMP;
chmod 0664, ’/tmp/ptmp’;
system("mv /tmp/ptmp $sourcename1");
close DATA_FILE;
sub create_tmp_file {
#
open(PTMP, ">/tmp/ptmptmp$$") || die "Can’t create tmp file $!\n";
#
close (PTMP);
#
$locked = link("/tmp/ptmptmp$$", ’/tmp/ptmp’);
#
unlink "/tmp/ptmptmp$$";
#
$locked || die "Can’t lock temporary file.\n";
open(PTMP, ">/tmp/ptmp") || die "Can’t open tmp file $! for writing\n";
}
This script process captured IEEE 802.11 packets to put measurements of the
different sources into their own files, based upon the source MAC address. (In this
case the program assumes that the file has already been sorted based upon the
source MAC address.)
Maguire
[email protected]
Using a Perl script
2008.03.29
Introduction 79 of 101
Internetworking/Internetteknik
Choosing which columns to display
Figure 23: Set your preferences for the User Interface
Maguire
[email protected]
Choosing which columns to display
2008.03.29
Introduction 80 of 101
Internetworking/Internetteknik
Figure 24: Add a column and place it in the desired column position
Maguire
[email protected]
Choosing which columns to display
2008.03.29
Introduction 81 of 101
Internetworking/Internetteknik
Figure 25: Save your parameters and restart the program to use the newly configured user interface
Maguire
[email protected]
Choosing which columns to display
2008.03.29
Introduction 82 of 101
Internetworking/Internetteknik
IP addresses
Address types
• Unicast = one-to-one
• Multicast = one-to-many
• Broadcast = one-to-all
32 bit address divided into two parts:
Host ID
NetID
Figure 26: IP address format
Note that although we refer to it as the Host ID part of the address, it is really the
address of an interface.
Dotted decimal notation: write each byte as a decimal number, separate each of
these with a “.” i.e., 10000010 11101101 00100000 00110011 ⇒ 130.237.32.51
or in hexadecimal as: 0x82ED2033
Maguire
[email protected]
IP addresses
2008.03.29
Introduction 83 of 101
Internetworking/Internetteknik
Classful addressing
Classically the address range was divided into classes:
Class
NetID
Range (dotted decimal notation)
host ID
A
0
+ 7- bit NetID
0.0.0.0
to 127.255.255.255
24 bits of host ID
B
10
+ 14-bit NetID
128.0.0.0 to 191.255.255.255
16 bits of host ID
C
110
+ 21-bit NetID
192.0.0.0 to 223.255.255.255
8 bits of host ID
D
1110
224.0.0.0 to 239.255.255.255
28 bits of Multicast address
E
11110
240.0.0.0 to 247.255.255.255
Reserved for future use
• Globally addressable IP addresses must be unique
• later in the course we will see how NATs affect this
• addresses roughly 27*224 + 214*216 + 221*28 = 3,758,096,384
interfaces (not the number of hosts)
• in 1983 this seemed like a lot of addresses
• problems with the size of the blocks ⇒ lots of wasted addresses
• lead to classless addressing!
Maguire
[email protected]
Classful addressing
2008.03.29
Introduction 84 of 101
Internetworking/Internetteknik
Classless addressing: Subnetting IP
networks
Often we want to “subnet” - i.e., divide the network up into multiple networks:
NetID
SubnetID
Host
Figure 27: IP addresses and subnetting
Although the Subnet field is shown as a field which is separate from the Host field,
it could actually be divided on a bit by bit basis; this is done by a Subnet Mask.
A common practice to avoid wasting large amounts of address space is to use
Classless Interdomain Routing (CIDR) also called “supernetting” {see §10.8 of
Steven’s Vol. 1 and RFCs 1518[20] and 1519[21]}.
Maguire
[email protected]
Classless addressing: Subnetting IP networks
2008.03.29
Introduction 85 of 101
Internetworking/Internetteknik
Special Case IP Addresses
IP Address
net ID
subnet ID
Can appear as
Description
host ID
source?
destination
0
0
OK
never
this host on this net
0
hostid
OK
never
specified host on this net
127
any
OK
OK
loopback address
-1
-1
never
OK
limited broadcast (never forwarded)
netid
-1
never
OK
net-directed broadcast to netid
netid
subnetid
-1
never
OK
subnet-directed broadcast to netid, subnetid
netid
-1
-1
never
OK
all-subnets-directed broadcast to netid
Thus for every subnet - the zero host ID address refers to this net and the all ones
host ID is a subnet broadcast address; this uses up two addresses from every
subnet’s address range.
Maguire
[email protected]
Special Case IP Addresses
2008.03.29
Introduction 86 of 101
Internetworking/Internetteknik
Subnet mask
32 bit value with a 1 for NetID + subnetID, 0 for HostID
16 bits
NetID
1111 1111 1111 1111
8 bits
SubnetID
1111 1111
8 bits
HostID
0000 0000
Figure 28: Class B address with a 8 bit subnet address
2 different class B subnet arrangements
16 bits
NetID
1111 1111 1111 1111
16 bits
NetID
1111 1111 1111 1111
Maguire
[email protected]
8 bits
SubnetID
1111 1111
8 bits
HostID
0000 0000
10 bits
SubnetID
1111 1111
6 bits
HostID
1100 0000
Subnet mask
2008.03.29
0xffffff00
255.255.255.0
/24
0xffffffc0
255.255.255.192
/26
Introduction 87 of 101
Internetworking/Internetteknik
Classless Inter-Domain Routing (CIDR)
Slash notation
Length
(CIDR)
Address mask
Notes
Length
(CIDR)
Address mask
Notes
/0
0.0.0.0
All 0's
≡ no mask
/8
255.0.0.0
≡ Class A
/1
128.0.0.0
/9
255.128.0.0
/2
192.0.0.0
/10
255.192.0.0
/3
224.0.0.0
/11
255.224.0.0
/4
240.0.0.0
/12
255.240.0.0
/5
248.0.0.0
/13
255.248.0.0
/6
252.0.0.0
/14
255.252.0.0
/7
254.0.0.0
/15
255.254.0.0
Maguire
[email protected]
Classless Inter-Domain Routing (CIDR)
2008.03.29
Introduction 88 of 101
Internetworking/Internetteknik
Slash notation continued
Length
(CIDR)
Address mask
Notes
Length
(CIDR)
Address mask
Notes
/16
255.255.0.0
≡ Class B
/24
255.255.255.0
≡ Class C
/17
255.255.128.0
/25
255.255.255.128
/18
255.255.192.0
/26
255.255.255.192
/19
255.255.224.0
/27
255.255.255.224
/20
255.255.240.0
/28
255.255.255.240
/21
255.255.248.0
/29
255.255.255.248
/22
255.255.252.0
/30
255.255.255.252
/23
255.255.254.0
/31
255.255.255.254
/32
255.255.255.255
Maguire
[email protected]
Classless Inter-Domain Routing (CIDR)
2008.03.29
All 1’s
(host specific mask)
Introduction 89 of 101
Internetworking/Internetteknik
IP address assignments
Internet Service Providers (ISPs) should contact their upstream registry or their
appropriate Regional Internet Registries (RIR) at one of the following addresses:
Region
APNIC (Asia-Pacific Network Information Center)
http://www.apnic.net
ARIN (American Registry for Internet Numbers )
http://www.arin.net
RIPE NCC (Réseaux IP Européens)
http://www.ripe.net
LANIC (Latin America and Caribbean Network
Information Centre)
http://www.lacnic.net/en/index.html
AfriNIC (Africa NIC)
http://www.afrinic.net/
Maguire
[email protected]
IP address assignments
2008.03.29
Introduction 90 of 101
Internetworking/Internetteknik
Private addresses - these IP addresses are for strictly private use:
Class
Netids
block
A
10.
1
B
172.16 to 172.31
16
C
192.168.0 to 192.168.255
256
For an exmaple of how these private addresses are used within an organization
see: http://www.lan.kth.se/norm/priv-net-usage.txt
Maguire
[email protected]
IP address assignments
2008.03.29
Introduction 91 of 101
Internetworking/Internetteknik
Problems with the dual functions of IP
addresses
Unfortunatelly an IP address has dual functions:
• Network ID portion indicates a location in the network
• i.e., the network ID binds the address to a location in the network topology
• CIDR and hierarchical address prefixes - allow for recursive subdivision of the topology
• Host ID portion identifies an interface - often used as a node identifier
• Unfortunately network connections are bound to these identifiers
• Specifically TCP/UDP sockets are identified by the endpoint IP address (and port numbers)
• DNS returns one or more addresses for new connections
⇒ This is bad for mobility and multi-homing (see textbook figure 4.12 on pg. 95)
• If a host changes its point of network attachment it must change its identity
– Later we will see how Mobile IP addresses this problem
• Host with multiple interfaces are limited in how they can use them
– Later we will see how SCTP addresses part of this problem
The result has been that multiple and dynamic addresses are difficult to handle and
lead to a number of efforts to rethink how addresses are used.
Maguire
[email protected]
Problems with the dual functions of IP addresses
2008.03.29
Introduction 92 of 101
Internetworking/Internetteknik
ifconfig, route, and netstat Commands
• ifconfig: to configure interface.
• route: to update routing table.
• netstat: to get interface and routing information.
For example: to configure interface, add an network and add a gateway:
root# ifconfig eth0 192.71.20.115 netmask 255.255.255.0 up
root# route add -net 192. 71.20.0 netmask 255.255.255.0 eth0
root# route add default gw 192.71.20.1 eth0
We will discuss these commands in more detail in following lectures and in the
recitations.
Note: These commands being replaced in Linux OSs by the use of the "ip"
command, as it handles both IPv4 and IPv6.
Another useful command on Linux systems is "lsof" - LiSt Open Files - since
network sockets are files; useful to see what process has what sockets open.
Maguire
[email protected]
ifconfig, route, and netstat Commands
2008.03.29
Introduction 93 of 101
Internetworking/Internetteknik
Standardization Organizations
The most relevant to the Internet are:
• Internet Society (ISOC)
• Internet Engineering Task Force (IETF)
• World-wide-web consortium (W3C)
• International Standards Organization (ISO)
• International Telecommunications Union - Telecommunication
Standards Sector (ITU-T)
• Institute of Electrical and Electronics Engineers (IEEE)
• …
Read in the textbook sections 1.4 and 1.5.
Maguire
[email protected]
Standardization Organizations
2008.03.29
Introduction 94 of 101
Internetworking/Internetteknik
Summary
• Course Introduction
• Internet Basics
• Multiplexing and demultiplexing
• Datagrams
• Link Layer Protocols for the Internet
• Ethernet
• SLIP, PPP
• IP: Internet Protocol
• IP addressing
• Subnetting
Maguire
[email protected]
Summary
2008.03.29
Introduction 95 of 101
Internetworking/Internetteknik
W. Richard Stevens
• Born in Luanshya, Northern Rhodesia (now Zambia) in 1951
• Died on September 1, 1999
• He studied Aerospace Engineering, Systems Engineering
(image processing major, physiology minor)
• flight instructor and programmer
• His many books helped many people to understand and use TCP/IP
•
•
•
•
•
UNIX Network Programming, Prentice Hall, 1990.
Advanced Programming in the UNIX Environment, Addison-Wesley, 1992.
TCP/IP Illustrated, Volume 1: The Protocols, Addison-Wesley, 1994.
TCP/IP Illustrated, Volume 2: The Implementation, Addison-Wesley, 1995.
TCP/IP Illustrated, Volume 3: TCP for Transactions, HTTP, NNTP, and the UNIX Domain
Protocols, Addison-Wesley, 1996.
• UNIX Network Programming, Volume 1, Second Edition: Networking APIs: Sockets and XTI,
Prentice Hall, 1998.
• UNIX Network Programming, Volume 2, Second Edition: Interprocess Communications,
Prentice Hall, 1999.
Maguire
[email protected]
W. Richard Stevens
2008.03.29
Introduction 96 of 101
Internetworking/Internetteknik
References
[1] Barry M. Leiner, Vinton G. Cerf, David D. Clark, Robert E. Kahn, Leonard
Kleinrock, Daniel C. Lynch, Jon Postel, Larry G. Roberts, and Stephen
Wolff, “A Brief History of the Internet”, On The Internet, May/June 1997
http://www.isoc.org/oti/articles/0597/leiner.html
[2] R. Kahn, Communications Principles for Operating Systems. Internal BBN
memorandum, Jan. 1972.
[3] V. Cerf and R. Kahn, “A protocol for packet network interconnection”, IEEE
Transactions on Communications Technology, Vol. COM-22, Number 5,
May 1974, pp. 627-641.
http://global.mci.com/us/enterprise/insight/cerfs_up/technical_writings/protocol_paper/
[4] Jerome H. Saltzer, David P. Reed, David D. Clark, “End-To-End Arguments
In System Design” In ACM Transactions on Computer Systems, V2, #4,
Nov. 1984, pages 277-288
http://citeseer.ist.psu.edu/saltzer84endtoend.html
Maguire
[email protected]
References
2008.03.29
Introduction 97 of 101
Internetworking/Internetteknik
[5] David D. Clark and Marjory S. Blumenthal, “Rethinking the Design of the
Internet: The end to end arguments vs. the brave new world”, In ACM
Transactions on Internet Technology, Vol 1, No 1, August 2001, pp 70-109.
http://www.ana.lcs.mit.edu/papers/PDF/Rethinking_2001.pdf
[6] D. Clark, J. Wroclawski, K. Sollins, and R. Braden, “Tussle in Cyberspace:
Defining Tomorrow’s Internet”, Proceedings of Sigcomm 2002.
http://www.acm.org/sigs/sigcomm/sigcomm2002/papers/tussle.pdf
[7] Wendell Odom and Rick McDonald, Routers and Routing Basics CCNA 2
Companion Guide (Cisco Networking Academy Program), 1st edition, Cisco
Press, 2006 ISBN 1-587113-166-8.
[8] James D. Carlson, “PPP Design, Implementation, and Debugging”, Second
edition, Addison-Wesley,2000, ISBN 0-201-70053-0
[9] Gerald Combs, Wireshark web page, http://www.wireshark.org/, last accessed
4 January 2008 15:06:48 PM EST
[10] Hewlett-Packard Company Annual Report, 2006, page 60
Maguire
[email protected]
References
2008.03.29
Introduction 98 of 101
Internetworking/Internetteknik
[11] Hewlett-Packard Company Form 10-K, 2007, page 60
[12] Van Jacobson, "If a Clean Slate is the solution what was the problem?",
Stanford Clean Slate Seminar, slide 26: "Digression on Implicit vs. Explicit
Information", February 27, 2006http://cleanslate.stanford.edu/seminars/jacobson.pdf
[13] J. Reynolds and J. Postel, Assigned Numbers, Request for Comments: 1700
(RFC 1700), USC/Information Sciences Institute, October 1994.
[14] J. Postel, "User Datagram Protocol", RFC 768, USC/Information Sciences
Institute, August 1980.
[15] International Standards Organization, "Protocol for Providing the
Connectionless-Mode Network Services", RFC 926, ISO, December 1984.
[16] J. Romkey, A nonstandard for transmission of IP Datagrams over serial lines:
SLIP, Request for Comments (RFC) 1055, IETF, Network Working Group,
June l988
[17] V. Jacobson, Compressing TCP/IP Headers for Low-Speed Serial Links,
Maguire
[email protected]
References
2008.03.29
Introduction 99 of 101
Internetworking/Internetteknik
RFC 1144, IETF, Network Working Group, February 1990
[18] W. Simpson, The Point-to-Point Protocol (PPP) for the Transmission of
Multi-protocol Datagrams over Point-to-Point Links, RFC 1331,
IETF,Network Working Group, May 1992
[19] G. McGregor, The PPP Internet Protocol Control Protocol (IPCP), RFC
1332, IETF, Network Working Group, May 1992
[20] Y. Rekhter and T. Li (Editors), An Architecture for IP Address Allocation
with CIDR, RFC 1518, IETF, Network Working Group, September 1993
[21] V. Fuller, T. Li, J. Yu, and K. Varadhan, Classless Inter-Domain Routing
(CIDR): an Address Assignment and Aggregation Strategy, RFC1519,
IETF, Network Working Group, September 1993
[22] Jon Postel (Editor), Internet Protocol - DARPA Internet Program - Protocol
Specification, Information Sciences Institute, University of Southern
California, RFC 791, September 1981
Maguire
[email protected]
References
2008.03.29
Introduction 100 of 101
Internetworking/Internetteknik
[23]
Maguire
[email protected]
References
2008.03.29
Introduction 101 of 101
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 2: IP Basics: Routing, ARP,
and RARP
Lecture notes of G. Q. Maguire Jr.
KTH Information and
Communication Technology
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
For this lecture: Chapters 6 - 8
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
IP_basics.fm5
2008.03.29
Total pages: 154
IP Basics Outline
• IP Routing: Delivery and Routing of IP packets
• Address Resolution: ARP and RARP
Maguire
[email protected]
IP Basics Outline
2008.03.29
IP Basics: Routing, ARP, and RARP 103 of 154
Internetworking/Internetteknik
Connection-oriented vs Connectionless
• Connection-Oriented Services
•
•
•
•
Network layer first establishes a connection between a source and a destination
Packets are sent along this connection
Route is decided once at the time the connection is established
Routers/switches in connection-oriented networks are stateful
• Connectionless Services
•
•
•
•
Network layer can process each packet independently
A route lookup is performed for each packet
IP is connectionless
IP routers are stateless
Of course reality is (much) more complex, to gain performance IP routers
dynamically create state (in caches) as there is frequently correlation between
packets (i.e., if you just did a route lookup for destination B, there is a non-zero
probability that another packet which will arrive shortly might also be headed to
destination B).
Maguire
[email protected]
Connection-oriented vs Connectionless IP Basics: Routing, ARP, and RARP 104 of
2008.03.29
Internetworking/Internetteknik
Routing
The internet protocols are based on moving packets from a source to a destination
with each hop making a routing decision.
Two components to routing:
• packet forwarding - Routing Mechanism: search the routing table and decide
which interface to send a packet out.
• A matching host address? If no,
• A matching network address? (using longest match) If no,
• Default entry.
• computing routes - Routing Policy: rules that decide which routes should be
added into the routing table.
Traditionally most of the complexity was in the later (i.e., computing routes) while
packet forwarding was very straight forward -- this is no longer true due to QoS.
Routers vs. hosts -- a node can be both
• Routers forward IP packets
• Hosts generate or sink IP packets
Maguire
[email protected]
Routing
2008.03.29
IP Basics: Routing, ARP, and RARP 105 of 154
Internetworking/Internetteknik
Direct vs. indirect Delivery
• Direct delivery
Host (SRC) direct
• The final destination is (directly) connected to the
same physical network as the sender
• IP destination address and local interface have the
same netmask
• Map destination IP address to destination physical
address via ARP
• Indirect delivery
• From router to router (note: the last delivery is always
direct!)
• Destination address is used for a routing lookup in a
routing table: Routing
delivery
network
Maguire
[email protected]
Direct vs. indirect Delivery
2008.03.29
direct
delivery
Host (SRC)
indirect
delivery
network
network
SRC=Source
DST = Destination
Host (DST)
Host (DST)
network
indirect
delivery
direct
delivery
IP Basics: Routing, ARP, and RARP 106 of 154
Internetworking/Internetteknik
Forwarding
• Next-Hop method - routing table holds only the address of the next hop
R1
Host A
R2
network
Routing table for A
Destination Route
Host B
R1
network
network
Routing table for R1
Destination Route
Host B
R2
Host B
Routing table for R2
Destination Route
Host B
• Network-specific method - routing table entries are for networks
R1
Host A
network1
Routing table for A
Destination Route
network2
R1
network3
R1
R2
network2
network3
Routing table for R1
Destination Route
network3
R2
Host B
Routing table for R2
Destination Route
network1
R2
• Host-specific method - per host routes
• Default method - specifies a default route (normally network address 0.0.0.0)
Routing table for A
Destination
network2
R1
default
R2
R1
network2
network1
Host A
R2
Internet
See textbook sections 6.2 for more examples.
Maguire
[email protected]
Forwarding
2008.03.29
IP Basics: Routing, ARP, and RARP 107 of 154
Internetworking/Internetteknik
Processing
Rouing daemon
route command
netstat command
TCP
UDP
Routing Policy
Yes
routing
table
update
from
adjacent
routers
No
ICMP
our packet
or a broadcast
forward datagram
(if forwarding is enabled)
Routing
Mechanism
ICMP
redirects
Routing
Table
source
routing
IP Output:
calculate next hop router
(if necessary)
process IP options
IP input queue
IP Layer
network interfaces
Maguire
[email protected]
Processing
2008.03.29
IP Basics: Routing, ARP, and RARP 108 of 154
Internetworking/Internetteknik
Forwarding module
A simplified view of forwarding using classful address without subnetting:
Error (slow path)
Forwarding
Module
Extract
destination
address
Find
class
Extract
network
address
Next
hop address
Interface
number
Class B
Network
Address
Next
hop address
Interface
number
Class C
Network
Address
Next
hop address
Interface
number
…
…
…
D or E
A, B, or C
Packet
Class A
Network
Address
…
…
…
Search
table
next hop address
and
interface number
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
…
To ARP
The bulk of the forwarding effort is searching the tables (as most of the rest of the
processing is simple logical bit operations).
Maguire
[email protected]
Forwarding module
2008.03.29
IP Basics: Routing, ARP, and RARP 109 of 154
Internetworking/Internetteknik
Routing Table Search - Classless
• Match destination with longest prefixes first
• Software algorithms: tree, binary trees, tries (different data structures) [29]
• Hardware support: Content Addressable Memory (CAM)
– Ternary CAM (TCAM) - [24],[25] - for searching and pattern matching
– Ternary because each cell has three states: 0, 1, or ? (aka "don’t care")
– Performance an associate search (i.e., in parallel), returns the index (X) of the first match
– 4-8 ns/search (i.e., 125M - 250M lookups per second)
0
1
2
…
X
…
1 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 1 0 1 1 1 0 0 0 ? ? ? ? ? ? ? ?
Match
2N-1
1 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 1 0 1 1 1 0 0 0 0 0 1 0 1 1 1 1
address to search for (130.237.32.51)
index
Note that the entries in the table have to be sorted - to achieve the longest match being at the smallest index.
Maguire
[email protected]
Routing Table Search - Classless IP Basics: Routing, ARP, and RARP 110 of 154
2008.03.29
Internetworking/Internetteknik
Fast forwarding
Mikael Degermark, Andrej Brodnik, Svante Carlsson, Stephen Pink,
“Small Forwarding Tables for Fast Routing Lookups”,
in Proceedings of the ACM SIGCOMM’97. (compressed postscript) {basis for Effnet AB}
• IP routing lookups must find routing entry with longest matching prefix.
Networking community assumed it was impossible to do IP routing lookups in
software fast enough to support gigabit speeds - but they were wrong!
Paper presents a forwarding table data struct. designed for quick routing lookups.
• Such forwarding tables are small enough to fit in the cache of a conventional general
purpose processor.
• The forwarding tables are very small, a large routing table with 40,000 routing entries can be
compacted to a forwarding table of 150-160 Kbytes.
• With the table in cache, a 200 MHz Pentium Pro or 333 MHz Alpha
21164 can perform >2 million lookups per second.
• A lookup typically requires less than 100 instructions on an Alpha, using eight memory
references accessing a total of 14 bytes.
∴Full routing lookup of each IP packet at gigabit speeds without special hardware
Maguire
[email protected]
Fast forwarding
2008.03.29
IP Basics: Routing, ARP, and RARP 111 of 154
Internetworking/Internetteknik
Routing Tables
• Aggregate IP addresses (i.e., exploit CIDR)
• more specific networks (with longer prefixes)
• less specific networks (with shorter prefixes)
• ⇒ smaller routing tables
• If each routing domain exports (i.e., tells others) only a small set of
prefixes, this makes it easier for other routers to send traffic to it
• Unfortunately this requires clever address assignments
• Some mechanisms lead to increased fragmentation
• Due to limited availability of addresses long prefixes (particularily /24) are scattered
geographically
• Increasingly sites are connected to multiple ISPs (for redundancy) i.e., Multihoming
- thus they have addresses from several different subnetworks
• Current routing tables have ~157,975 entries [30] (of which a large
fraction are /24 prefixes) with a growth rate of “18,000 entries per
year”[31].
There are a limited number of prefixes for Class A + B + C networks (2,113,664). If the longest prefixes which a backbone
router had to deal with were /24, then a table with 16,777,216 entries would be sufficient (even without aggregation) - each
entry only needs to store the outgoing port number! This would allow a direct lookup in a memory of ~26Mbytes - with
upto 256 outgoing ports.
Maguire
[email protected]
Routing Tables
2008.03.29
IP Basics: Routing, ARP, and RARP 112 of 154
Internetworking/Internetteknik
Routing table
Flags
Destination IP address
Next-hop Router IP address
point to local
interface to use
UGH
U
UG
UH
140.252.13.65
140.252.13.32
default
127.0.0.1
140.252.13.35
140.252.13.34
140.252.13.33
127.0.0.1
emd0
emd0
emd0
lo0
Refcnt
Use
PMTU …
ddd
ddd
ddd
ddd
ddd
ddd
where ddd is some numeric value.
display the routing table with "netstat -rn"
"r" is for routing table
"n" asks for numeric IP addresses rather than name
Flags:
U
G
H
D
M
Maguire
[email protected]
route is Up
route is to a Gateway
route is to a Host
route was Discovered by a redirect
route was Modified by a redirect
Routing table
2008.03.29
IP Basics: Routing, ARP, and RARP 113 of 154
Internetworking/Internetteknik
Host vs. router - two behaviors
• Hosts generate or sink IP packets
• Routers forward IP packets
Thus it is possible for a device to be both a host and a router.
Unless a host is explicitly configured as a router is not supposed to forward IP
datagrams. The default behavior must be never forward.
In linux the variable which controls this is: /proc/sys/net/ipv4/ip_forward
• If this variable is set to 1, then the node will perform IP forwarding.
• If this variable is set to 0, then the node will not perform IP forwarding.
Maguire
[email protected]
Host vs. router - two behaviors IP Basics: Routing, ARP, and RARP 114 of 154
2008.03.29
Internetworking/Internetteknik
Host routing
A host either:
• knows a route - manually configured [i.e., "Static routes"]
• from the interface (for directly connected networks) or manually via the "route" command
• or learns of a route [i.e., "Dynamic routes"]
• Simplest method of learning a route:
– The host sends a packet via the default route and is told via an ICMP Redirect of a better
route
• or the host hears an ICMP router advertisement (perhaps in response to its ICMP router
solicitation message)
– routers (almost) periodically broadcast or multicast advertisements of their existence and
desire to provide routing service
– format of ICMP router advertisement packet shown in Forouzan figure 9.18 on page 226
– advertisements typically every 450..600 seconds
– advertisements have a stated lifetime (typically 30 minutes)
• or the host learns via a dynamic routing protocol.
• or uses a default route.
On booting hosts send ~3 ICMP router solicitation messages (~3 seconds apart) to
find a default router. This allows for dynamic discovery of the default router.
Maguire
[email protected]
Host routing
2008.03.29
IP Basics: Routing, ARP, and RARP 115 of 154
Internetworking/Internetteknik
Routing
Control
Plane
Data
Plane
Packet
Routing
Table
Access
List
Queuing
Priority
Accounting
Data
Security
Tasks
Queuing
Tasks
Accounting
Tasks
Cache
Switching
Tasks
Figure 29: Basic steps in Routing
The routing table tells us which output port to use based on the destination (and
possibly the source) IP address. The data plane has to run at packet rates (i.e., in
real-time). However, a router also performs a lot of other processing
Maguire
[email protected]
Routing
2008.03.29
IP Basics: Routing, ARP, and RARP 116 of 154
Internetworking/Internetteknik
Combining layers
Many devices now combine processing of several layers:
• Switch/Routers: combine layers 2+3
Devices combining layers 3+4 are appearing - which extract “flows” based on
looking at transport layer port numbers in addition to network addresses.
Maguire
[email protected]
Combining layers
2008.03.29
IP Basics: Routing, ARP, and RARP 117 of 154
Internetworking/Internetteknik
ARP and RARP
Address resolution (logical ⇔ physical addresses):
• Mapping IP addresses ⇒ link layer (MAC) addresses via Address
Resolution Protocol (ARP)
• Mapping link layer (MAC) addresses ⇒ IP addresses via Reverse
Address Resolution Protocol (RARP)
Maguire
[email protected]
ARP and RARP
2008.03.29
IP Basics: Routing, ARP, and RARP 118 of 154
Internetworking/Internetteknik
What to do with a new computer?
We will assume that the computer has an ethernet interface:
oscar.it.kth.se
130.237.212.253
08:00:20:7a:bc:2d
?hostname?
A new computer
32 bit Internet address
48 bit Ethernet address
Figure 30: Name and IP Address needed!
• Direct mapping - requires no I/O, just a computation; hard to maintain;
and requires stable storage (since you have to store the mappings
somewhere) or
• Dynamic Binding - easier to maintain; but has a delay while messages
are exchanged
Maguire
[email protected]
What to do with a new computer?IP Basics: Routing, ARP, and RARP 119 of 154
2008.03.29
Internetworking/Internetteknik
Address Resolution: ARP, RARP
Host name: string
“ccslab1.kth.se”
Name Resolution: DNS, Host File, …
IP address 32
bit 130.237.15.254
ARP
HW address: 48
RARP
Address Resolution
bit Ethernet MAC address
“08:00:2B:00:EE:0B”
Figure 31: mapping between host names, IP address, and MAC address
ARP - Address Resolution Protocol
RARP- Reverse ARP
Maguire
[email protected]
Address Resolution: ARP, RARP IP Basics: Routing, ARP, and RARP 120 of 154
2008.03.29
Internetworking/Internetteknik
ARP ≡ Address Resolution Protocol (RFC826)
Address Resolution Protocol (ARP) - allows a host to find the physical address of
a target host on the same network, given only the target’s internet address.
• Sending host (source) wants to send an IP datagram, but does not
know the corresponding ethernet address
• ARP request - broadcast to every host on the network
(i.e., EtherDST=0xFFFFFFFFFFFF), TYPE=0x0806
• Destination host: “It is my address!” and sends an ARP reply
• Source host - receives the unicast ARP reply, and now uses it to send
the IP datagram
EtherDST EtherSRC
6
6
hardware
protocol
type
type
2
Maguire
[email protected]
TYPE
hardware
length
=6
OP=Request≡1, Reply≡2
2
protocol
length
=4
target target
sender sender
OP ether
ether addr IP
addr
IP
2
1
1
2
6
4
6
4
Figure 32: Format of ARP request/reply packet (see Stevens, Vol. 1, figure 4.3, pg. 56)
ARP ≡ Address Resolution Protocol (RFC826) IP Basics: Routing, ARP, and RARP 121
2008.03.29
Internetworking/Internetteknik
ARP example 1
hostname ftp://B.kth.se/foo.dat
C
B
A
FTPd
FTPd
resolver
(10)
TCP
(1)
hostname
FTP
IP address
(2)
(3)
TCP
TCP
(4)
IP
ARP
IP
(7)
IP
(5)
ARP
(8)
ARP
Ethernet
driver
TCP connections
(6)
send datagram
to IP address
(9)
Ethernet
driver
Ethernet
driver
ARP Request
ARP Reply
Limited broadcast
Figure 33: Using ARP on host C to determine MAC address of the interface on host B
Maguire
[email protected]
ARP example 1
2008.03.29
IP Basics: Routing, ARP, and RARP 122 of 154
Internetworking/Internetteknik
Address Resolution Cache
Since you have just looked up the address, save (cache) it for reuse:
• to limit ARP traffic
• works because of correlations in use of addresses
You can examine the arp cache:
arp -a
machine-name (x.x.x.x) at xx:xx:xx:xx:xx:xx
…
arp -an
(x.x.x.x) at xx:xx:xx:xx:xx:xx
…
Note that the later form (with the “n” option) does not lookup the hostname, this
is very useful when you don’t yet have a name resolution service working!
ARP Refinements
Since the sender’s Internet-to-Physical address binding is in every ARP broadcast;
(all) receivers update their caches before processing an ARP packet
Maguire
[email protected]
Address Resolution Cache
2008.03.29
IP Basics: Routing, ARP, and RARP 123 of 154
Internetworking/Internetteknik
ARP Timeouts
• If there is no reply to an ARP request
• the machine is down or not responding
• request was lost, then retry (but not too often)
• eventually give up (When?)
• ARP cache timeouts
• Berkeley implementations timeout
– completed entry in 20 minutes
– incomplete entry in 3 minutes
• Linux:
– for entries to which there has been no traffic a timeout occurs at gc_stale_time,
set to 60 seconds by default (/proc/sys/net/ipv4/neigh/default/gc_stale_time)
• Microsoft Windows NT and XP
– Using the registry editor, see
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters
enter ArpCacheLife {see http://www.psc.edu/networking/projects/tcptune/OStune/winxp/winxp_stepbystep.html }
default value is set to 2 minutes
• Cisco IOS v10.0 and above
– select interface then “arp timeout xxxx”, default value is set to 240 minutes (14400 sec.)
and can be changed on a per-interface basis
• RFC 1533: DHCP Options and BOOTP Vendor Extensions, defines:
– ARP Cache Timeout Option (code for this option is 35).
• Host Requirements RFC - says entries should be timed out even if in use
Maguire
[email protected]
ARP Timeouts
2008.03.29
IP Basics: Routing, ARP, and RARP 124 of 154
Internetworking/Internetteknik
ARP example 2
hostname ftp://B.kth.se/foo.dat
C
B
resolver
FTPd
(1)
hostname
FTP
IP address
(2)
(3)
TCP connections
TCP
TCP
R
(4)
IP
IP
ARP
ARP
(7)
Ethernet
driver
Ethernet
driver
IP
(5)
ARP
(8)
send datagram
to IP address
(6)
Ethernet
driver
Ethernet
driver
Figure 34: Router (R) doing a Proxy ARP to provide MAC address of B
Maguire
[email protected]
ARP example 2
2008.03.29
IP Basics: Routing, ARP, and RARP 125 of 154
Internetworking/Internetteknik
Proxy ARP (RFC 826)
Lets a router on the network answer for a host which is NOT necessarily on the
local network segment.
But how does this router know?
• It can make an ARP request itself or
• Perhaps it already knows - because it has an entry in it’s ARP cache
For an example of using proxy arp with subnetting see:
• http://www.linuxdoc.org/HOWTO/mini/Proxy-ARP-Subnet/why.html and
•
http://www.linuxdoc.org/HOWTO/mini/Proxy-ARP-Subnet/how.html
Maguire
[email protected]
Proxy ARP (RFC 826)
2008.03.29
IP Basics: Routing, ARP, and RARP 126 of 154
Internetworking/Internetteknik
Gratuitous ARP
Host sends a request for its own address
• generally done at boot time to inform other machines of its address
(possibly a new address) - gives these other hosts a chance to update
their cache entries immediately
• lets hosts check to see if there is another machine claiming the same
address ⇒
“duplicate IP address sent from Ethernet address a:b:c:d:e:f”
As noted before, hosts have paid the price by servicing the broadcast, so they can
cache this information - this is one of the ways the proxy ARP server could know
the mapping.
Note that faking that you are another machine can be used to provide failover for
servers (see for example heartbeat, fake, etc. at http://www.linux-ha.org/download/ for a
send_arp program). [It can also be used very various attacks!]
Maguire
[email protected]
Gratuitous ARP
2008.03.29
IP Basics: Routing, ARP, and RARP 127 of 154
Internetworking/Internetteknik
Additional ARP commands
• publish entries (i.e., mechanically make an entry and answer replies)
Publishing entires is one way that (embedded) devices can learn their IP addres.
# arp -s birkexample 08:00:2B:00:EE:0B pub
# arp -an
(192.168.1.1) at 0:4:5a:de:e8:f9 ether
…
(172.16.32.20) at 8:0:2b:0:ee:b ether permanent published
where birkexample has the IP address: 172.16.32.20
• expliclity delete entries
# arp -d birkexample
birkexample (172.16.32.20) deleted
# arp -an
(192.168.1.1) at 0:4:5a:de:e8:f9 ether
Maguire
[email protected]
Additional ARP commands
2008.03.29
IP Basics: Routing, ARP, and RARP 128 of 154
Internetworking/Internetteknik
ARP - as seen with ethereal
Time
1.995245
Source
172.16.33.3
Destination
Broadcast
Protocol
ARP
Info
Who has 172.16.33.2? Tell 172.16.33.3
Frame 2 (60 bytes on wire, 60 bytes captured)
Arrival Time: Mar 23, 2005 11:32:45.184792000
Time delta from previous packet: 1.995245000 seconds
Time since reference or first frame: 1.995245000 seconds
IEEE 802.3 Ethernet
Destination: ff:ff:ff:ff:ff:ff (Broadcast)
Source: 00:40:8c:30:d4:32 (172.16.33.3)
Length: 36
Trailer: 00000000000000000000
Type: ARP (0x0806)
Address Resolution Protocol (request)
Hardware type: IEEE 802 (0x0006)
Protocol type: IP (0x0800)
Hardware size: 6
Protocol size: 4 Opcode: request (0x0001)
Sender MAC address: 00:40:8c:30:d4:32 (172.16.33.3)
Sender IP address: 172.16.33.3 (172.16.33.3)
Target MAC address: ff:ff:ff:ff:ff:ff (Broadcast)
Target IP address: 172.16.33.2 (172.16.33.2)
0000
ff ff ff ff ff ff 00 40 8c 30 d4 32 00 24 aa aa
[email protected]$..
0010
03 00 00 00 08 06 00 06 08 00 06 04 00 01 00 40
[email protected]
0020
8c 30 d4 32 ac 10 21 03 ff ff ff ff ff ff ac 10
.0.2..!.........
0030
21 02 00 00 00 00 00 00 00 00 00 00
!...........
Maguire
[email protected]
<<< unlike what page 163 says it is not all zeros!
ARP - as seen with ethereal
2008.03.29
IP Basics: Routing, ARP, and RARP 129 of 154
Internetworking/Internetteknik
non ARP example 1
hostname ftp://B.kth.se/foo.dat
B
C
FTPd
resolver
packet demultiplexed (8)
TCP port number (21. then 20.)
control
TCP
data
packet demultiplexed (7)
IP protocol field (6.)
(1)
hostname
FTP
IP address
(2)
(3)
TCP connections
TCP
(4)
IP
IP
packet demultiplexed (6)
PPP protocol field (0x0021)
PPP
driver
(5)
packet received
and deframed
send datagram
to IP address
PPP
driver
Figure 35: On a point-to-point link there is no need for ARP (figure also shows explicitly the demultiplexing)
Note that the PPP protocol field plays a role similar to the ethernet frame type.
Maguire
[email protected]
non ARP example 1
2008.03.29
IP Basics: Routing, ARP, and RARP 130 of 154
Internetworking/Internetteknik
RARP: Reverse Address Resolution Protocol
(RFC 903)
How do you get you own IP address, when all you know is your link address?
• Necessary if you don’t have a disk or other stable store
• RARP request - broadcast to every host on the network
(i.e., EtherDST=0xFFFFFFFFFFFF), TYPE=0x8035
• RARP server: “I know that address!” and sends an RARP reply
• Source host - receives the RARP reply, and now knows its own IP addr
EtherDST EtherSRC
6
TYPE
6
2
hardware
protocol
hardware
protocol
type
type
length
length
2
2
1
OP=Request≡3, Reply≡4
target target
sender sender
OP ether
ether addr IP
addr
IP
1
2
6
4
Figure 36: Format of RARP request/reply packet
6
4
Note: You can now see what the “publish” aspect of the arp command is for.
Maguire
[email protected]
RARP: Reverse Address Resolution Protocol (RFC 903)IP Basics: Routing, ARP, and RARP
2008.03.29
Internetworking/Internetteknik
RARP - as seen with ethereal
Time
0.000000
Source
172.16.33.3
Destination
Broadcast
Protocol Info
RARP
Who is 00:40:8c:30:d4:32? Tell 00:40:8c:30:d4:32
Frame 1 (60 bytes on wire, 60 bytes captured)
Arrival Time: Mar 23, 2005 11:32:43.189547000
Time delta from previous packet: 0.000000000 seconds
Time since reference or first frame: 0.000000000 seconds
Ethernet II, Src: 00:40:8c:30:d4:32, Dst: ff:ff:ff:ff:ff:ff
Destination: ff:ff:ff:ff:ff:ff (Broadcast)
Source: 00:40:8c:30:d4:32 (172.16.33.3)
Type: RARP (0x8035)
Trailer: 00000000000000000000000000000000...
Address Resolution Protocol (reverse request)
Hardware type: Ethernet (0x0001)
Protocol type: IP (0x0800)
Hardware size: 6
Protocol size: 4
Opcode: reverse request (0x0003)
Sender MAC address: 00:40:8c:30:d4:32 (172.16.33.3)
Sender IP address: 0.0.0.0 (0.0.0.0)
Target MAC address: 00:40:8c:30:d4:32 (172.16.33.3)
Target IP address: 0.0.0.0 (0.0.0.0)
0000
ff ff ff ff ff ff 00 40 8c 30 d4 32 80 35 00 01
[email protected]
0010
08 00 06 04 00 03 00 40 8c 30 d4 32 00 00 00 00
[email protected]
<<< as the source does not know its own IP address
0020
00 40 8c 30 d4 32 00 00 00 00 00 00 00 00 00 00
[email protected]
<<< as the source does not know the target’s IP address
0030
00 00 00 00 00 00 00 00 00 00 00 00
............
Maguire
[email protected]
RARP - as seen with ethereal IP Basics: Routing, ARP, and RARP 132 of 154
2008.03.29
Internetworking/Internetteknik
RARP server
Someone has to know the mappings - quite often this is in a file “/etc/ethers”
Since this information is generally in a file, RARP servers are generally
implemented as user processes (because a kernel process should not do file I/O!)
• Unlike ARP responses which are generally part of the TCP/IP
implementation (often part of the kernel).
• How does the process get the packets - since they aren’t IP and won’t
come across a socket?
•
•
•
•
BSD Packet filters
SVR4 Data Link Provider Interface (DLPI)
SUN’s Network Interface Tap (NIT)
Interestingly in the appendix to RFC 903 an alternative to having data link level access was
to have two IOCTLs, one that would "sleep until there is a translation to be done, then pass
the request out to the user process"; the other means: "enter this translation into the kernel
table"
• RARP requests are sent as hardware level broadcasts - therefore are
not forwarded across routers:
• multiple servers per segement - so in case one is down; the first response is used
• having the router answer
Maguire
[email protected]
RARP server
2008.03.29
IP Basics: Routing, ARP, and RARP 133 of 154
Internetworking/Internetteknik
Alternatives to RARP
In a later lecture we will examine:
• BOOTP and DHCP (for both IPv4 and IPv6) and
• autoconfiguration for IPv6.
Maguire
[email protected]
Alternatives to RARP
2008.03.29
IP Basics: Routing, ARP, and RARP 134 of 154
Internetworking/Internetteknik
Novel IPX/SPX Addresses
Another approach to network addresses - which are tied to the MAC address
IPX/SPX == INternetwork Packet Exchange/Sequenced Packet Exchange
IPX address: 32 bits of network ID and 48 bits of host ID (the ethernet address)
Problems:
• There is no central authority for allocating the network IDs
✘ So if you interconnect multiple IPX networks you may have to renumber every network
• If you change ethernet cards, you get a new address!
• Assumes that all machines are attached to a high capacity LAN.
Advantages
• You only have to assign network numbers, then the hosts figure out
their own address. Simpler administration.
Novell NetWare provides: Service Advertising Protocol (SAP), Routing
Information Protocol (RIP), and NetWare Core Protocol (NCP).
Maguire
[email protected]
Novel IPX/SPX Addresses
2008.03.29
IP Basics: Routing, ARP, and RARP 135 of 154
Internetworking/Internetteknik
Useful tools
For looking at and generating packets!
Maguire
[email protected]
Useful tools
2008.03.29
IP Basics: Routing, ARP, and RARP 136 of 154
Internetworking/Internetteknik
tcpdump
Under HP-UX 11.0
# ./tcpdump -i /dev/dlpi0
tcpdump: listening on /dev/dlpi0
22:25:43.217866 birk2.5900 > nucmed35.50251: . ack 3089200293 win 8080 (DF)
22:25:43.290636 birk2.5900 > nucmed35.50251: P 0:4(4) ack 1 win 8080 (DF)
22:25:43.360064 nucmed35.50251 > birk2.5900: . ack 4 win 32768
22:25:43.363786 birk2.5900 > nucmed35.50251: P 4:167(163) ack 1 win 8080 (DF)
22:25:43.364159 nucmed35.50251 > birk2.5900: P 1:11(10) ack 167 win 32768
22:25:43.543867 birk2.5900 > nucmed35.50251: . ack 11 win 8070 (DF)
22:25:43.577483 birk2.5900 > nucmed35.50251: P 167:171(4) ack 11 win 8070 (DF)
22:25:43.640052 nucmed35.50251 > birk2.5900: . ack 171 win 32768
22:25:43.643793 birk2.5900 > nucmed35.50251: P 171:334(163) ack 11 win 8070 (DF)
22:25:43.644132 nucmed35.50251 > birk2.5900: P 11:21(10) ack 334 win 32768
22:25:43.750062 birk2.5900 > nucmed35.50251: . ack 21 win 8060 (DF)
22:25:43.873349 birk2.5900 > nucmed35.50251: P 334:338(4) ack 21 win 8060 (DF)
22:25:43.940073 nucmed35.50251 > birk2.5900: . ack 338 win 32768
13 packets received by filter
0 packets dropped by kernel
Maguire
[email protected]
tcpdump
2008.03.29
IP Basics: Routing, ARP, and RARP 137 of 154
Internetworking/Internetteknik
tcpdump - Linux
nucmed30:/home/maguire # /usr/sbin/tcpdump -i eth1
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth1, link-type EN10MB (Ethernet), capture size 96 bytes
14:21:52.736671 IP nucmed30.local.domain.must-p2p > jackb.ssh: P 1818006646:1818006726(80) ack 307068981 win 591>
14:21:52.737291 IP jackb.ssh > nucmed30.local.domain.must-p2p: P 1:113(112) ack 80 win 32768 <nop,nop,timestamp >
14:21:52.737917 IP nucmed30.local.domain.must-p2p > jackb.ssh: P 80:160(80) ack 113 win 5910 <nop,nop,timestamp >
14:21:52.802719 IP jackb.ssh > nucmed30.local.domain.must-p2p: . ack 160 win 32768 <nop,nop,timestamp 25983516 2>
…
14:21:57.782196 arp who-has jackscan tell nucmed30.local.domain
14:21:57.784218 arp reply jackscan is-at 00:40:8c:30:d4:32
14:21:57.784253 IP nucmed30.local.domain > jackscan: icmp 64: echo request seq 1
14:21:57.784971 IP jackscan > nucmed30.local.domain: icmp 64: echo reply seq 1
14:21:58.782187 IP nucmed30.local.domain > jackscan: icmp 64: echo request seq 2
14:21:58.782912 IP jackscan > nucmed30.local.domain: icmp 64: echo reply seq 2
14:21:59.783036 IP nucmed30.local.domain > jackscan: icmp 64: echo request seq 3
14:21:59.783759 IP jackscan > nucmed30.local.domain: icmp 64: echo reply seq 3
…
14:21:59.802600 IP jackb.ssh > nucmed30.local.domain.must-p2p: . ack 2864 win 32768 <nop,nop,timestamp 25984216 >
14:22:00.739485 IP nucmed30.local.domain.must-p2p > jackb.ssh: P 2864:2944(80) ack 897 win 5910 <nop,nop,timesta>
84 packets captured
84 packets received by filter
0 packets dropped by kernel
Maguire
[email protected]
tcpdump - Linux
2008.03.29
IP Basics: Routing, ARP, and RARP 138 of 154
Internetworking/Internetteknik
Tools Used: tcpdump Program
tcpdump tcpdump
tcpdump
filter
user processes
rarpd
user processes
rarpd
IP, ICMP
IGMP
IP, ICMP
IGMP
kernel
IP, ICMP
IGMP
filter filter filter
rcvd
xmit
kernel
nit_buf
nit_pf
streams module streams module
rcvd
Ethernet
driver
nit_if
streams driver
BPF
BSD Packet Filter
IP, ICMP
IGMP
Ethernet
driver
SunOS Network Interface Tap
Figure 37: Two alternatives to get packets
Note the BSF packet filter gets a copy of both the received and transmitted packets.
Maguire
[email protected]
Tools Used: tcpdump Program IP Basics: Routing, ARP, and RARP 139 of 154
2008.03.29
Internetworking/Internetteknik
Wireshark (formerly Ethereal)
First we start Wireshark capturing packets, then we ping another machine on the
LAN:
Figure 38: Ping another machine on the LAN
Maguire
[email protected]
Wireshark (formerly Ethereal) IP Basics: Routing, ARP, and RARP 140 of 154
2008.03.29
Internetworking/Internetteknik
Maguire
[email protected]
Wireshark (formerly Ethereal) IP Basics: Routing, ARP, and RARP 141 of 154
2008.03.29
Internetworking/Internetteknik
Linux Socket filter
If you want to sniff the network your self (with a program) - try the Linux Socket
Filter [33] and [34].
Maguire
[email protected]
Linux Socket filter
2008.03.29
IP Basics: Routing, ARP, and RARP 142 of 154
Internetworking/Internetteknik
Tools Used: sock Program
• A simple test program to generate TCP, UDP data
• To test and debug TCP, UDP implementations
stdin
stdout
sock
TCP connection
UDP
server
• Interactive client: default
• Interactive server: -s
• Source client: -i
• Sink server: -i -s
• Default TCP, -u for UDP
Source Code Available: (Tcpdump and sock)
For Win95/98/2000/NT: http://netgroup-serv.polito.it/windump/
For BSD alike: ftp://ftp.uu.net/published/books/stevens.tcpipiv1.tar.Z
Maguire
[email protected]
Tools Used: sock Program
2008.03.29
IP Basics: Routing, ARP, and RARP 143 of 154
Internetworking/Internetteknik
Tools Used: sock + tcpdump
sock
tcpdump
sock
tcpdump
filter
IP, ICMP
IGMP
IP, ICMP
IGMP
kernel
IP, ICMP
IGMP
filter filter filter
rcvd
xmit
kernel
nit_buf
nit_pf
streams module streams module
rcvd
Ethernet
driver
nit_if
streams driver
BPF
BSD Packet Filter
IP, ICMP
IGMP
Ethernet
driver
SunOS Network Interface Tap
Figure 39: Two alternatives to generate and dump packets
Maguire
[email protected]
Tools Used: sock + tcpdump
2008.03.29
IP Basics: Routing, ARP, and RARP 144 of 154
Internetworking/Internetteknik
Generating packets
#include
#include
#include
#include
#include
#include
<stdlib.h>
<string.h>
<stdio.h>
<sys/types.h>
<sys/socket.h>
<netinet/in.h>
#define bigBufferSize 8192
#define destination_host "130.237.15.247"
#define Numer_of_Packets_to_Send 10000
main(argc, argv)
int argc;
char **argv;
{
int client_socket_fd;
/* Socket to client, server */
struct sockaddr_in server_addr; /* server’s address */
int i;
char bigBuffer[bigBufferSize];
int sendto_flags=0;
/* create a UDP socket */
if ((client_socket_fd = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP)) == -1) {
perror("Unable to open socket");
exit(1);
};
/* initialize the server address structure */
memset( (char*)&server_addr, 0, sizeof(server_addr));
server_addr.sin_family=AF_INET;
server_addr.sin_port=htons(9); /* 9 is the UDP port number for Discard */
Maguire
[email protected]
Generating packets
2008.03.29
IP Basics: Routing, ARP, and RARP 145 of 154
Internetworking/Internetteknik
if (inet_aton(destination_host, (struct sockaddr*)&server_addr.sin_addr) == 0) {
fprintf(stderr, "could not get an address for: %s", destination_host);
exit(1);
}
sprintf(bigBuffer, "This is a simple test string to be sent to the other party\n");
for (i=0; i < Numer_of_Packets_to_Send; i++) {
if ((sendto(client_socket_fd, bigBuffer, strlen(bigBuffer),
sendto_flags, (struct sockaddr*)&server_addr, sizeof(server_addr))) == -1) {
perror("Unable to send to socket");
close(client_socket_fd);
exit(1);
}
}
fprintf(stderr, "finished sending %d UDP packets\n", Numer_of_Packets_to_Send);
close(client_socket_fd);
exit(0);
/* close the socket */
}
Maguire
[email protected]
Generating packets
2008.03.29
IP Basics: Routing, ARP, and RARP 146 of 154
Internetworking/Internetteknik
Wireshark’s IO Graph functionality
Figure 40: Plot showing number of packets per second
Maguire
[email protected]
Wireshark’s IO Graph functionalityIP Basics: Routing, ARP, and RARP 147 of 154
2008.03.29
Internetworking/Internetteknik
Some statistics on this packet trace
Figure 41: Some simple statistics
Maguire
[email protected]
Some statistics on this packet traceIP Basics: Routing, ARP, and RARP 148 of 154
2008.03.29
Internetworking/Internetteknik
Interarrival delay and variance
Figure 42: Note the packets which have very high delays
Maguire
[email protected]
Interarrival delay and variance IP Basics: Routing, ARP, and RARP 149 of 154
2008.03.29
Internetworking/Internetteknik
Traffic generators
• Distributed Internet Traffic Generator (D-ITG) [35] http://www.grid.unina.it/software/ITG/
• Gensyn generate multiple TCP streams in parallel
http://www.item.ntnu.no/~poulh/GenSyn/gensyn.html
• Iperf http://dast.nlanr.net/Projects/Iperf/
• MGEN: network performance tests and measurements using UDP/IP
traffic http://mgen.pf.itd.nrl.navy.mil/
• RUDE & CRUDE - Real-time UDP Data Emitter (RUDE) and Collector
for RUDE (CRUDE) http://rude.sourceforge.net/
• SUN’s Packet Shell - http://playground.sun.com/psh/
• TG http://www.caip.rutgers.edu/~arni/linux/tg1.html
• UDPgen http://www.fokus.fhg.de/usr/sebastian.zander/private/udpgen
• Netcom’s SmartBits - hardware tester
For additional traffic generators see: http://www.icir.org/models/trafficgenerators.html and
http://www.ip-measurement.org/
Maguire
[email protected]
Traffic generators
2008.03.29
IP Basics: Routing, ARP, and RARP 150 of 154
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• Routing Principles
• Routing Mechanism: Use the most specific route
– IP provides the mechanism to route packets
• Routing Policy: What routes should be put in the routing table?
– Use a routing daemon to provide the routing policy
• Routing table
• ARP and RARP
• IPX/SPX Addresses - we will see something similar when we talk about
IPv6
• tcpdump, ethereal, sock
For further information about routing see:
Bassam Halabi, Internet Routing Architectures, Cisco Press, 1997, ISBN 1-56205-652-2. -- especially
useful for IGRP.
We will examine routing policies and algorithms in a later lecture.
Maguire
[email protected]
Summary
2008.03.29
IP Basics: Routing, ARP, and RARP 151 of 154
Internetworking/Internetteknik
References
[24] Renesas Technology Corp. TCAM description
http://www.renesas.com/fmwk.jsp?cnt=tcam_series_landing.jsp&fp=/applications/network/network_memory/t
cam/
[25] Fany Yu, Randy H. Katz, and T. V. Lakshman, "Gigabit Rate
Multiple-Pattern Matching with TCAM",
http://sahara.cs.berkeley.edu/jan2004-retreat/slides/Fang_retreat.ppt
[26] Geoff Huston, "Analyzing the Internet BGP Routing Table", Cisco Systems
web page,
http://www.cisco.com/en/US/about/ac123/ac147/ac174/ac176/about_cisco_ipj_archive_article09186a00800c8
3cc.html
[27] Tian Bu, Lixin Gao, and Don Towsley, "On Characterizing BGP Routing
Table Growth", Proceedings of Globe Internet 2002, 2002
http://www-unix.ecs.umass.edu/~lgao/globalinternet2002_tian.pdf
[28] H. Narayan, R. Govindan, and G. Varghese, "The Impact of Address
Maguire
[email protected]
References
2008.03.29
IP Basics: Routing, ARP, and RARP 152 of 154
Internetworking/Internetteknik
Allocation and Routing on the Structure and Implementation of Routing
Tables", Proceedings of the 2003 Conference on Applications, technologies,
architectures, and protocols for computer communications, 2003,
pp 125-136, ISBN:1-58113-735-4 and SIGCOMM 03, August 25 29, 2003,
Karlsruhe, Germany http://www.cs.ucsd.edu/~varghese/PAPERS/aram.pdf
[29] Ravikumar V.C Rabi Mahapatra J.C. Liu, "Modified LC-Trie Based
Efficient Routing Lookup",
http://faculty.cs.tamu.edu/rabi/Publications/Mascot-final-proceeding.pdf
[30] APNIC, Routing Table Report 04:00 +10GMT Sat 19 Mar, 2005, North
American Network Operators Group, Weekly Routing Table Report, From:
Routing Table Analysis, Mar 18 13:10:37 2005, "This is an automated
weekly mailing describing the state of the Internet Routing Table as seen
from APNIC’s router in Japan. Daily listings are sent to
[email protected]" http://www.merit.edu/mail.archives/nanog/2005-03/msg00401.html
[31] Geoff Huston, Routing Table Status Report, Policy SIG, APNIC19, Kyoto,
Japan, Feb 24 2005
Maguire
[email protected]
References
2008.03.29
IP Basics: Routing, ARP, and RARP 153 of 154
Internetworking/Internetteknik
http://www.apnic.net/meetings/19/docs/sigs/routing/routing-pres-info-huston-routing-table.pdf
[32] Bassam Halabi, Internet Routing Architectures, Cisco Press, 1997, ISBN
1-56205-652-2.
[33] Gianluca Insolvibile, “The Linux Socket Filter: Sniffing Bytes over the
Network”, Linux Journal, 31 May 2001 http://www.linuxjournal.com/article/4659
[34] Gianluca Insolvibile, “Inside the Linux Packet Filter, Part II”, Linux Journal,
1 March 2002 http://www.linuxjournal.com/article/5617
[35] Stefano Avallone, Antonio Pescapé, and Giorgio Ventre, “Analysis and
experimentation of Internet Traffic Generator”, International Conference on
Next Generation Teletraffic and Wired/Wireless Advanced Networking
(NEW2AN’04), February 02-06, 2004
http://www.grid.unina.it/software/ITG/D-ITGpubblications/New2an-ITG.pdf
Maguire
[email protected]
References
2008.03.29
IP Basics: Routing, ARP, and RARP 154 of 154
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 3: IP, ICMP, and Tools
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapters 8-9
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
IP_and_ICMP.fm5
2008.03.29
Total pages: 185
IP, ICMP, and Tools Outline
• IP
• ICMP
• Useful Diagnostic Tools
•
•
•
•
Ping
Traceroute
tcpdump and ethereal
sock
Maguire
[email protected]
IP, ICMP, and Tools Outline
2008.03.29
IP, ICMP, and Tools 156 of 185
Internetworking/Internetteknik
Internet Protocol version 4 (IPv4) (RFC 791)
7
4 bit
version
8
4-bit header
length
15 16
8-bit DS or
Type of Service (TOS)
16 bit identification
8-bit Time to Live (TTL)
23 24
31
16 bit total length
3-bit flags
8-bit Protocol
13 bit Fragment Offset
16 bit header checksum
32 bit Source IP address
20 bytes
0
32 bit Destination IP address
options (padded to 32 bit length)
data
Figure 43: IP header (see Stevens, Vol. 1, figure 3.1, pg. 34)
Note: We examined the Version, Protocol, and IP address fields in the previous
lecture. Today we will examine the length fields, TOS, identification, flags, offset,
checksum, and options fields.
Maguire
[email protected]
Internet Protocol version 4 (IPv4) (RFC 791)
2008.03.29
IP, ICMP, and Tools 157 of 185
Internetworking/Internetteknik
Length Fields
• Header Length (4 bits)
•
•
•
•
Size of IPv4 header including IP options
Expressed in number of 32-bit words (4-byte words)
Minimum is 5 words (i.e., 20 bytes)
Maximum is 15 words (i.e., 60 bytes)
– limited size ⇒ limited use
• Total Length (16 bits)
• Total length of datagram including header
• If datagram is fragmented: length of this fragment
• Expressed in bytes
• Hosts only have to accept packets up to 576 bytes in size
• Maximum: 65,535 bytes
– Most modern systems accept slightly larger than 8,196 + header bytes
(to provide efficient file service for 8 Kbyte blocks)
– Note: Some systems only accept this much!
Maguire
[email protected]
Length Fields
2008.03.29
IP, ICMP, and Tools 158 of 185
Internetworking/Internetteknik
MTU≡Maximum Transmission Unit
MTU is a characteristic of the link layer
Typical MTUS
MTU
Network
65535
17914
8166
4464
4352
2048
2002
1536
1500
1500
1492
1006
1006
576
544
512
508
296
68
Maguire
[email protected]
Official maximum MTU
16Mbps IBM Token Ring
IEEE 802.4
IEEE 802.5 (4Mbps max)
FDDI (Revised)
Wideband Network
IEEE 802.5 (4Mb recommended)
Experimental Ethernet Nets
Ethernet Networks
Point-to-Point (default)
IEEE 802.3
SLIP
ARPANET
X.25 Networks
DEC IP Portal
NETBIOS
IEEE 802/Source-Route Bridge
Point-to-Point (low delay)
Official minimum MTU
simply a logical limit for interactive response
⇐ we will see this number again!
MTU≡Maximum Transmission Unit
2008.03.29
IP, ICMP, and Tools 159 of 185
Internetworking/Internetteknik
Fragmentation
• If an IP datagram is larger than the MTU of the link layer, it must be
divided into several pieces ⇒ fragmentation
• Fragmentation may occur multiple times
• as a fragment might need to go across a link with an even smaller MTU!
• Both hosts and routers may fragment
• However, only destination host reassemble!
– as fragments only need to come together at the final host - thus the fragments can take
different paths though the network
– also reassembly requires waiting for the other fragments - so doing this earlier in the network could add unnecessary delay
• Each fragment is routed separately (i.e., as independent datagram)
• TCP uses either 576 byte MTU or path MTU discovery
Maguire
[email protected]
Fragmentation
2008.03.29
IP, ICMP, and Tools 160 of 185
Internetworking/Internetteknik
Fields relevant to Fragmentation
• Identification (16 bits)
• Identification + source IP address uniquely identifies each datagram sent by a host
⇒ Identification field is copied to all fragments of a datagram upon fragmentation
(since they are all part of the same original datagram)
• Flags: 3 bits
• Reserved Fragment (RF) - set to 0
• Don’t Fragment (DF)
– Set to 1 if datagram should not be fragmented
– If set and fragmentation needed ⇒ datagram will be discarded and an error message
will be returned to the sender
• More Fragments (MF)
– Set to 1 for all fragments, except the last
• Fragmentation Offset (13 bits)
• 8-byte units: (i.e., the byte offset is ip_frag << 3)
• indicates relative position of a fragment with respect to the whole datagram
Fragments can overlap - the receiver simply assembles what it receives (ignoring
duplicate parts).
If there are gaps - then at some point there will be a re-assembly error.
Maguire
[email protected]
Fields relevant to Fragmentation
2008.03.29
IP, ICMP, and Tools 161 of 185
Internetworking/Internetteknik
Path MTU
• Each link in path from source to destination can have a different MTU
• to avoid fragmentation you have to find the minimum of these
• RFC 1191: Path MTU discovery[37] uses:
• “good” guesses (i.e., likely values)
• By setting Don’t Fragment (DF) bit in IP datagram ⇒ change size while you get ICMP
messages saying “Destination Unreachable” with a code saying fragmentation needed
Maguire
[email protected]
Path MTU
2008.03.29
IP, ICMP, and Tools 162 of 185
Internetworking/Internetteknik
Serial line throughput
At 9,000 bits/sec, 8 bits per byte, plus 1 start and 1 stop bit, i.e., 960 bytes/sec, then
transferring 1024 byte packets would take 1066 ms
• too long for interactive limits; since the average wait would be 533 ms
∴ shorten the MTU to 296 bytes ⇒ 266 ms/frame or ~133 ms average wait
With 5 bytes of CSLIP header and 256 bytes of data (in the 261 byte frame) ⇒
• 98.1% utilization of link for data and
• 1.9% for header
For single bytes of interactive traffic, the round trip-time is 12.5 ms
Caveats:
• assumes that you give interactive traffic priority
• error correcting and compression in the modem can complicate the
calculations - since the modem has to delay traffic to have more to
compress and compression takes time
Maguire
[email protected]
Serial line throughput
2008.03.29
IP, ICMP, and Tools 163 of 185
Internetworking/Internetteknik
Differentiated Services (DS) & Type of Service
Type of Service (TOS): 8 bits
Bits 0-2:
Precedence
Bit 3:
0 = normal Delay
1 = Low Delay
Bit 4:
0 = normal Throughput
1 = High Throughput
Bit 5:
0 = normal Relibility
1 = High Relibility
Bit 6:
0 = normal monetary Cost
1 = minimize monetary Cost.
0
1
Precedence
2
3
4
5
6
7
DELAY
T
R
C
Reserved
• Few applications set the TOS field (in fact most implementations will not let you set these bits!) However,
4.3BSD Reno and later - do support these bits.
• Differentiated Services (diffserv) proposes to use 6 of these bits to provide 64 priority levels - calling it the
Differentiated Service (DS) field [RFC2474] (using bits 0..5 as Differentiated Services CodePoint (DSCP))
• SLIP guesses by looking at the protocol field and then checks the source and destination port numbers.
There has been a lot of experimentation with this field, both for TOS and more
recently for Early Congestion Notification (ECN): RFC 3168 [36] using bits 6 and
7 {ECN Capable Transport (ECT) and Congestion Experienced (CE)}.
Maguire
[email protected]
Differentiated Services (DS) & Type of Service
2008.03.29
IP, ICMP, and Tools 164 of 185
Internetworking/Internetteknik
Recommended Value for TOS Field
Application
Minimum
delay
Maximize
throughput
Maximize
reliability
Minimize
monitary cost
Hex valuea
telnet/rlogin
FTP
control
data
any bulk data
TFTP
SMTP
command phase
data phase
DNS
UDP query
TCP query
zone transfer
ICMP
error
query
any IGP
SNMP
BOOTP
NNTP
1
1
0
0
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
0
0
1
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0x10
0x10
0x08
0x08
0x10
0x10
0x08
0x10
0x00
0x08
0x00
0x00
0x04
0x04
0x00
0x02
a. Note that this is the hex value as see in the TOS/DS byte.
See also Table 8.2 on page 182 of Forouzan.
Maguire
[email protected]
Recommended Value for TOS Field
2008.03.29
IP, ICMP, and Tools 165 of 185
Internetworking/Internetteknik
Precedence
Precedence values are defined but are largely ignored, few applications use them.
111
Network Control
110
Internetwork Control
101
CRITIC/ECP
100
Flash Override
011
Flash
010
Immediate
001
Priority
000
Routine
In the original ARPANET there were two priority levels defined (in order to
support low delay services and regular traffic).
Maguire
[email protected]
Precedence
2008.03.29
IP, ICMP, and Tools 166 of 185
Internetworking/Internetteknik
Problems with precedence
• As soon as people found that high priority meant something
⇒ all traffic was sent with this bit set!
So unless there is a added cost/policy check/… associated with usage of a
precedence level - it is very likely going to be abused.
Maguire
[email protected]
Problems with precedence
2008.03.29
IP, ICMP, and Tools 167 of 185
Internetworking/Internetteknik
Precendence and telephony systems
Similar precedence systems exist in most national telephony systems.
Q: What are the A, B, C and D touch tone keys used for? …
A: These are extensions to the standard touch-tones (0-9, *, #) which
originated with the U.S. military’s Autovon phone network. The
original names of these keys were FO (Flash Override), F (Flash), I
(Immediate), and P (Priority). The various priority levels established
calls with varying degrees of immediacy, terminating other
conversations on the network if necessary. FO was the greatest
priority, normally reserved for the President or very high ranking
officials. P had a lesser priority, but still took precedence over calls
that were placed without any priority established.
-- from TELECOM Digest - Frequently Asked Questions - v.8, 8 February 1997
Maguire
[email protected]
Precendence and telephony systems
2008.03.29
IP, ICMP, and Tools 168 of 185
Internetworking/Internetteknik
Differentiated services
If bits 3, 4, and 5 are all zero (i.e., XXX000) ⇒ treat the bits 1, 2, 3 as the
traditional precedence bits, else the 6 bits define 64 services:
• Category 1: numbers 0, 2, 4, … 62 - defined by IETF
• Category 2: numbers 3, 7, 11, 15, … 63 defined by local authorities
• Category 3: numbers 1, 5, 9, … 61 are for temporary/experimental use
The numbering makes more sense when you see them as bit patterns:
Category
codepoint
Assigning authority
1
XXXXX0
2
XXXX11
3
XXXX01
IETF
local
temporary/experimental
The big problems occur at gateways where the intepretation of local DS values is
different on the incoming and outgoing links!
Maguire
[email protected]
Differentiated services
2008.03.29
IP, ICMP, and Tools 169 of 185
Internetworking/Internetteknik
TTL field
Time To Live (TTL) (8 bits):
• Limits the lifetime of a datagram, to avoid infinite loops
• A router receiving a packet with TTL>1 decrements the TTL field and
forwards the packet
• If TTL <= 1 shall not be o
f rwarded
⇒ an ICMP time exceeded error is returned to the sender {we will
cover ICMP shortly}
• Recommended value is 64
• Should really be called Hop Limit (as in IPv6)
Historically: Every router holding a datagram for more than 1 second was
expected to decrement the TTL by the number of seconds the datagram resided in
the router.
Maguire
[email protected]
TTL field
2008.03.29
IP, ICMP, and Tools 170 of 185
Internetworking/Internetteknik
Header Checksum
• Ensures integrity of header fields
• Hop-by-hop (not end-to-end)
• Header fields must be correct for proper and safe processing of IP!
• Payload is not covered
• Other checksums
• Hop-by-hop: using link-layer CRC
– IP assumes a strong link layer checksum/CRC - as the IP checksum is weak
• End-to-end: Transport layer checksums, e.g., TCP & UDP checksums, cover payload
• Internet Checksum Algorithm, RFC 1071
• Treat headers as sequence of 16-bit integers
• Add them together
• Take the one’s complement of the result
Note that recent work concerning IP over wireless links assume that the payload
can have errors and will still be received (see work concerning selective coverage
of UDP checksum).
Maguire
[email protected]
Header Checksum
2008.03.29
IP, ICMP, and Tools 171 of 185
Internetworking/Internetteknik
IPv4 Options
•
•
•
•
IPv4 options were intended for network testing & debugging
Options are variable sized and follow the fixed header
Contiguous (i.e., no separators)
Not required fields, but all IP implementations must include processing
of options
• Unfortunately, many implementations do not!
• Maxium of 40 bytes available ⇒ very limited use
• Since the maximum header length is 60 bytes and the fixed part is 20 bytes - there is very
little space left!
Maguire
[email protected]
IPv4 Options
2008.03.29
IP, ICMP, and Tools 172 of 185
Internetworking/Internetteknik
IP Options Encoding
Two styles:
• Single byte (only code)
• Multiple byte
Code
Length
Data
Option Code: 1 byte
• Copy (to fragments) (1 bit)
– 0: copy only to the first fragment
– 1: copy the option to all fragements
• Class (2 bits)
– 0 (00): Datagram or network control
– 2 (10): Debugging and measurement
– 1 (01) and 3 (11) reserved
• Option Number (5 bits)
copy
class
option
number
Option Length: 1 byte, defines total length of option
Data: option specific
Maguire
[email protected]
IP Options Encoding
2008.03.29
IP, ICMP, and Tools 173 of 185
Internetworking/Internetteknik
Categories of IP Options
• Single byte (only code)
• No operation (Option Number=0)
• End of operation (Option Number=1)
• Multiple byte
• Loose Source Route (Option Number=3)
– Path includes these router, but there can be multiple hops between the specified
addresses
• Time stamp (Option Number=4)
– Like record route (below), but adds a timestamp at each of the routers (upto the space
available - after this an overflow field is incremented - but it is only 4 bits)
• Record Route (Option Number=7)
• Strict Source Route (Option Number=9)
– The exact path is specified
However, due to the very limited space available for the options - these options are
of little practical value in todays internet. (Consider the diameter of today’s
internet versus the number of IP addresses or timestamps that could be in the
options field; i.e., record route can only store 9 IP addresses!)
Maguire
[email protected]
Categories of IP Options
2008.03.29
IP, ICMP, and Tools 174 of 185
Internetworking/Internetteknik
Internet Control Message Protocol (ICMP)
ICMP [38] is part of the same level as IP, but uses IP for transfers! ICMP is used
by layer 3 entities to communicate with each other.
• ICMP PDU: type (8 bits); code (8 bits); checksum (16 bits); parameters
(n*32 bits); information (variable length)
for errors: the information field always includes the first 64 bits of the
data field of the original datagram which caused the ICMP message
• ICMP messages include:
•
•
•
•
•
•
•
•
•
•
•
•
•
Destination Unreachable (Network/Host/Protocol/Port/…)
Time Exceeded (TTL expired)
Parameter problem - IP header error
Source Quench (requests source to decrease its data rate)
Redirect - tell source to send its messages to a “better address”
Echo Request/ Echo reply - for testing (e.g., “ping” program sends an Echo request)
Timestamp Request/ Timestamp reply
Information Request / Information reply
Address Mask Request / Reply
Traceroute
Datagram conversion error
Mobile Host Redirect/Registration Request/Registration Reply
IPv6 Where-Are-You/I-Am-Here
Maguire
[email protected]
Internet Control Message Protocol (ICMP)
2008.03.29
IP, ICMP, and Tools 175 of 185
Internetworking/Internetteknik
ICMP Port Unreachable Error
Example: (Stevens, Vol. 1, Section 6.5, pp. 77-78)
bsdi% tftp
tftp> connect svr4 888
tftp> get temp.foo
Transfer times out.
tftp> quit
specify host and port number
try to fetch a file
about 25s later
tcpdump output
1
2
3
4
5
6
…
11
12
Maguire
[email protected]
0.0
0.002050
0.002723
0.006399
5.000776
5.004304
(0.0020)
(0.0007)
(0.0037)
(4.9944)
(0.0035)
20.001177
20.004759
(4.9966)
(0.0036)
arp who-has svr4 tell bsdi
arp reply svr4 is-at 0:0:c0:c2:9b:26
bsdi.2924 > svr4.8888 udp 20
svr4 > bsdi: icmp: svr4 udp port 8888 unreachable
bsdi.2924 > svr4.8888 udp 20
svr4 > bsdi: icmp: svr4 udp port 8888 unreachable
repeats every 5 seconds
bsdi.2924 > svr4.8888 udp 20
svr4 > bsdi: icmp: svr4 udp port 8888 unreachable
ICMP Port Unreachable Error
2008.03.29
IP, ICMP, and Tools 176 of 185
Internetworking/Internetteknik
ICMP Redirect
ICMP Redirect message is sent by a router (R1) to the sender of an IP datagram
(host) when the datagram should have been sent to a different router (R2).
host
(1) IP datagram
(4) subsequent IP datagrams
(3) ICMP Redirect
(2) IP datagram
R1
Maguire
[email protected]
R2
ICMP Redirect
2008.03.29
IP, ICMP, and Tools 177 of 185
Internetworking/Internetteknik
PING: Packet InterNet Groper or sonar echo
Ping was written by Mike Muuss1 to test host reach-ability. Uses ICMP,most IP
implementations support Ping server. Sends an ICMP echo request to a host
Format of ICMP message for Echo request/reply (see Stevens, Vol. 1, figure 7.1, pg. 86)
Type (0 or 8)
code (0)
16 bit checksum
16 bit sequence number
16 bit identifier
Optional data
Look at ping across different connections2:
• LAN
• WAN
• Hardwired SLIP
• Dialup SLIP - extra delay due to the modems and the
correction/compression
With IP record route (RR) option tracing the route of the ping datagram.
1. Mike Muuss was killed in an automobile accident on November 20, 2000. http://ftp.arl.mil/~mike/
2. For examples, see Stevens, Vol. 1, Chapter 7, pp. 86-90.
Maguire
[email protected]
PING: Packet InterNet Groper or sonar echo
2008.03.29
IP, ICMP, and Tools 178 of 185
Internetworking/Internetteknik
PING examples
On a Solaris machine:
bash-2.03$ /usr/sbin/ping cyklop.nada.kth.se
from a machine at IMIT
cyklop.nada.kth.se is alive
bash-2.03$ /usr/sbin/ping -s cyklop.nada.kth.se
PING cyklop.nada.kth.se: 56 data bytes
64 bytes from cyklop.nada.kth.se (130.237.222.71): icmp_seq=0. time=3. ms
64 bytes from cyklop.nada.kth.se (130.237.222.71): icmp_seq=1. time=1. ms
64 bytes from cyklop.nada.kth.se (130.237.222.71): icmp_seq=2. time=1. ms
^C
----cyklop.nada.kth.se PING Statistics---3 packets transmitted, 3 packets received, 0% packet loss
round-trip (ms) min/avg/max = 1/1/3
Why did the first ping take longer?
Maguire
[email protected]
PING examples
2008.03.29
IP, ICMP, and Tools 179 of 185
Internetworking/Internetteknik
On a HP-UX 11.0 machine:
ping -ov www.kth.se
from a machine on Telia’s ADSL network
PING www.kth.se: 64 byte packets
64 bytes from 130.237.32.51: icmp_seq=0. time=54. ms
64 bytes from 130.237.32.51: icmp_seq=1. time=38. ms
64 bytes from 130.237.32.51: icmp_seq=2. time=11. ms
64 bytes from 130.237.32.51: icmp_seq=3. time=11. ms
64 bytes from 130.237.32.51: icmp_seq=4. time=11. ms
^C
----www.kth.se PING Statistics---5 packets transmitted, 5 packets received, 0% packet loss
round-trip (ms) min/avg/max = 11/25/54
5 packets sent via:
this is based on the record route information (caused by “-ov”)
217.208.194.247 - fls31o268.telia.com
213.64.62.150 - fre-d4-geth6-0.se.telia.net
213.64.62.154 - fre-c3-geth6-0.se.telia.net
195.67.220.1 - fre-b1-pos0-1.se.telia.net
130.242.94.4 - STK-PR-2-SRP5.sunet.se
130.242.204.130 - STK-BB-2-POS4-3.sunet.se
130.242.204.121 - stockholm-1-FE1-1-0.sunet.se
130.237.32.3 - [ name lookup failed ]
130.237.32.51 - oberon.admin.kth.se
Maguire
[email protected]
PING examples
2008.03.29
IP, ICMP, and Tools 180 of 185
Internetworking/Internetteknik
Ping with record route option
$ ping -R www.kth.se
PING www.kth.se (130.237.32.51) 56(124) bytes of data.
64 bytes from oberon.admin.kth.se (130.237.32.51): icmp_seq=1
ttl=253 time=2.50ms
RR:
ccsser2 (130.237.15.248)
ke4-ea4-p2p.gw.kth.se (130.237.211.50)
kthlan-gw-32-2.admin.kth.se (130.237.32.2)
oberon.admin.kth.se (130.237.32.51)
oberon.admin.kth.se (130.237.32.51)
ea4-ke4-p2p.gw.kth.se (130.237.211.49)
130.237.15.194
ccsser2 (130.237.15.248)
64 bytes from oberon.admin.kth.se (130.237.32.51): icmp_seq=2
ttl=253 time=1.73ms
(same route)
64 bytes from oberon.admin.kth.se (130.237.32.51): icmp_seq=3
ttl=253 time=1.80ms
(same route)
64 bytes from oberon.admin.kth.se (130.237.32.51): icmp_seq=4
ttl=253 time=1.90ms
(same route)
Maguire
[email protected]
Ping with record route option
2008.03.29
IP, ICMP, and Tools 181 of 185
Internetworking/Internetteknik
Useful Tool: Traceroute Programs
Developed by Van Jacobson to see the route that IP datagrams follow from one
host to another. Traceroute uses ICMP, TTL field, and an unreachable UDP port.
svr % traceroute slip
traceroute to slip (140.252.13.65), 30 hops max, 40 byte packets
1 bsdi (140.252.13.35) 20 ms 10 ms 10 ms
20 ms due to ARP
2 slip (140.252.13.65) 120 ms 120 ms 120 ms
tcpdump output
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Maguire
[email protected]
0.0
0.000586
0.003067
0.004325
0.069810
0.071149
0.085162
0.086375
0.118608
0.226464
0.287296
0.395230
0.409504
0.517430
(0.0006)
(0.0025)
(0.0013)
(0.0655)
(0.0013)
(0.0140)
(0.0012)
(0.0322)
(0.1079)
(0.0608)
(0.1079)
(0.0608)
(0.1079)
arp who-has bsdi tell svr4
arp reply bsdi is-at 0:0:c0:6f:2d:40
svr4.42804 > slip.33435 udp 12 [ttl 1]
bsdi > svr4: icmp: time exceeded in-transit
svr4.42804 > slip.33436 udp 12 [ttl 1]
bsdi > svr4: icmp: time exceeded in-transit
svr4.42804 > slip.33437 udp 12 [ttl 1]
bsdi > svr4: icmp: time exceeded in-transit
svr4.42804 > slip.33438 udp 12
ttl=2
slip > svr4: icmp: slip udp port 33438 unreachable
svr4.42804 > slip.33439 udp 12
ttl=2
slip > svr4: icmp: slip udp port 33439 unreachable
svr4.42804 > slip.33440 udp 12
ttl=2
slip > svr4: icmp: slip udp port 33440 unreachable
Useful Tool: Traceroute Programs
2008.03.29
IP, ICMP, and Tools 182 of 185
Internetworking/Internetteknik
ICMP Summary
• Destination (Network/Host/Protocol/Port/...) Unreachable
• Time Exceeded - i.e., TTL expired
• Used to implement traceroute
•
•
•
•
Parameter problem - IP header error
Source Quench- asks source to decrease its sending rate
Redirect - tells the source to send packets to a “better” address
Echo Request/Echo reply - for testing
• ping: sends an Echo Request, then measures the time until the matching reply is received
• Timestamp Request/Reply
• Round Trip Time (RTT) computation
• Clock synchronization
• Address Mask Request/Reply
• Allows diskless systems to learn their subnet mask
• Router Solicitation and Advertisment
• Hosts query routers
• Routers advertise presence and routes
The above is a partial summary of ICMP’s uses.
Maguire
[email protected]
ICMP Summary
2008.03.29
IP, ICMP, and Tools 183 of 185
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• IP
• ICMP
• tools: Ping, Traceroute
Maguire
[email protected]
Summary
2008.03.29
IP, ICMP, and Tools 184 of 185
Internetworking/Internetteknik
References
[36] K. Ramakrishnan, S. Floyd, and D. Black, “The Addition of Explicit
Congestion Notification (ECN) to IP”, IETF RFC 3168, September 2001.
[37] J. Mogul and S. Deering, “Path MTU Discovery”, IETF, RFC 1191,
November 1990.
[38] J. Postel, Internet Control Message Protocol, IETF, RFC 792, September
1981 http://www.ietf.org/rfc/rfc0792.txt
Maguire
[email protected]
References
2008.03.29
IP, ICMP, and Tools 185 of 185
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 4: UDP and friends
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapters 11, 16, 17
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
UDP.fm5
2008.03.29
Total pages: 253
Outline
•
•
•
•
•
UDP
Socket API
BOOTP
DHCP
DNS, DDNS
Maguire
Outline
UDP and friends 187 of 253
[email protected]
2008.03.29
Internetworking/Internetteknik
Transport layer protocols
The transport layer is responsible for end-to-end delivery of entire messages
• uses Protocol Port and/or Port Number to demultiplex the incoming
packet so that it can be delivered to a specific process
• Segmentation and Reassembly
• Divides a message into transmittable segments and reassemble them at the receive
• Connection control - for connection-oriented transport protocols
• End-to-end Flow Control (in contrast to link level flow control)
• End-to-end Error Control (in contrast to link level error control)
Maguire
[email protected]
Transport layer protocols
2008.03.29
UDP and friends 188 of 253
Internetworking/Internetteknik
Main Transport layer protocols
Three main transport layer protocols:
• User Datagram Protcol (UDP) <<< today’s topic
• Connectionless unreliable service
• Transmission Control Protocol (TCP)
• Connection-oriented reliable stream service
• Stream Control Transmission Protocol (STCP)
• a modern transmission protocol with many facilities which the user can chose from
Maguire
[email protected]
Main Transport layer protocols
2008.03.29
UDP and friends 189 of 253
Internetworking/Internetteknik
User Datagram Protocol (UDP)
•
•
•
•
Datagram-oriented transport layer protocol
Provides connectionless unreliable service
No reliability guarantee
Checksum covers both header and data, end-to-end, but optional
• if you care about your data you should be doing end-to-end checksums or using an even
stronger error detection (e.g., MD5).
• An UDP datagram is silently discarded if checksum is in error.
• No error message is generated
• Lots of UDP traffic is only sent locally
• thus the reliability is comparable to the error rate on the local links. (see Stevens, Vol. 1,
figure 11.5, pg. 147 for comparison of Ethernet, IP, UDP, and TCP checksum errors)
• Each output operation results in one UDP datagram, which causes one
IP datagram to be sent
• Applications which use UDP: DNS, TFTP, BOOTP, DHCP, SNMP, NFS,
VoIP, etc.
• An advantage of UDP is that it is a base to build your own protocols on
• Especially if you don’t need reliability and in order delivery of lots of data
Maguire
[email protected]
User Datagram Protocol (UDP)
2008.03.29
UDP and friends 190 of 253
Internetworking/Internetteknik
UDP Header
8 byte header + possible data
0
15
16
31
16 bit source port number
16 bit destination port number
16 bit UDP length
16 bit UDP checksum
data (if any)
IP datagram
Port 1
UDP datagram
IP header
20 bytes
Maguire
[email protected]
UDP header
8 bytes
UDP data
0 .. 216-(20+8+1) = 65,507bytes
UDP Header
2008.03.29
Port 2
Port n
demux
based
on port
number
UDP and friends 191 of 253
Internetworking/Internetteknik
UDP Checksum and Pseudo-Header
• UDP checksum covers more info than is present in the UDP datagram
alone: pseudo-header and pad byte (0) {to even number of 16 bit words}.
• Propose: to verify the UDP datagram reached its correct destination:
right port number at the right IP address.
• Pseudo-header and pad byte are not transmitted with the UDP
datagram, only used for checksum computation.
0
15
16
31
32 bit IP source address
UDP Pseudo
header
32 bit IP destination address
zero
8 bit protocol (UDP = 17)
16 bit UDP length
16 bit source port number
16 bit destination port number
16 bit UDP length
16 bit UDP checksum
UDP header
data
data (if any)
Pad byte (0)
Maguire
[email protected]
UDP Checksum and Pseudo-Header
2008.03.29
UDP and friends 192 of 253
Internetworking/Internetteknik
Reserved and Available UDP Port Numbers
keyword
0
7
9
11
13
15
17
19
37
39
42
43
53
67
68
69
88
111
123
137
138
139
161
162
512
513
514
517
518
520
525
533
750
6000 + display number
7000
Maguire
[email protected]
ECHO
DISCARD
USERS
DAYTIME
QUOTE
CHARGEN
TIME
RLP
NAMESERVER
NICNAME
DOMAIN
BOOTPS
BOOTPC
TFTP
KERBEROS
SUNRPC
NTP
netbios_ns
netbios_dgm
netbios_ssn
netwall
kerberos
UNIX keyword
echo
discard
systat
daytime
netstat
qotd
chargen
time
rlp
name
whois
domain
bootps
bootpc
tftp
kerberos5
sunrpc
ntp
netbios_ns
netbios_dgm
netbios_ssn
snmp
snmp-trap
biff
who
syslog
talk
ntalk
route
timed
netwall
kerberos
Description
reserved
Echo
Discard == sink null
Active users
Daytime
Network status program
Quote of the day
Character generator
Time server
Resource Location Protocol
Host Name Server
Who is
Domain Name Server
Bootstrap Protocol Server
Bootstrap Protocol Client
Trivial File Transfer Protocol
Kerberos v5 kdc
SUN Remote Procedure Call (portmap)
Network Time Protocol
NetBIOS name service
NetBIOS Datagram Service
NetBIOS Session Service
Simple Network Management Protocol Agent
Simple Network Management Protocol Traps
mail notification
remote who and uptime
remote system logging
conversation
new talk, conversation
routing information protocol
remote clock synchronization
Emergency broadcasting
Kerberos (server)
X11 server
X11 font server
Reserved and Available UDP Port Numbers
2008.03.29
UDP and friends 193 of 253
Internetworking/Internetteknik
Port numbers in three groups
Range
0 .. 1023
Purpose
System (Well-Known) Portsa
1024 .. 49151
User (Registered) Ports
49152 .. 65535
Dynamic and/or Private Ports
a. Roughly 300 well know port numbers remain unassigned and 38 reserved
Roughly 26k registered port numbers remain unassigned and 9 reserved
‘For the purpose of providing services to unknown callers, a service
contact port is defined. This list specifies the port used by the server
process as its contact port. The contact port is sometimes called the
"well-known port".’
http://www.iana.org/assignments/port-numbers
Linux chooses the local port to use for TCP and UDP traffic from this range:
$ cat /proc/sys/net/ipv4/ip_local_port_range
1024
29999
Maguire
[email protected]
Port numbers in three groups
2008.03.29
UDP and friends 194 of 253
Internetworking/Internetteknik
MTU and Datagram Fragmentation
If datagram size > MTU, perform fragmentation.
• At sending host or at intermediate router (IPv4).
• Reassembled only at final destination.
Example: 1501 (20 + 8 + 1473 data) on Ethernet (MTU=1500):
IP datagram
IP header
20 bytes
IP header UDP header
20 bytes
UDP header
UDP data (1473 bytes)
8 bytes
UDP data (1473 bytes)
8 bytes
IP header
UDP data
(1 byte)
20 bytes
1 byte
• Note there is no UDP header in the second fragment.
• Therefore, a frequent operation is to compute the path MTU before
sending anything else. (see RFC 1191 for the table of common MTUs)
Maguire
[email protected]
MTU and Datagram Fragmentation
2008.03.29
UDP and friends 195 of 253
Internetworking/Internetteknik
Fragmentation Required
If datagram size > MTU, DF (Don’t Fragment) in IP header is on, then the router
sends ICMP Unreachable Error.
Of course this can be used to find Path MTU.
Maguire
[email protected]
Fragmentation Required
2008.03.29
UDP and friends 196 of 253
Internetworking/Internetteknik
Interaction between UDP and ARP
With ARP cache empty, send a UDP datagram with 8192 bytes onto an Ethernet
• 8192 bytes > ethernet MTU, therefore 6 fragments are created by IP
• if ARP cache is empty, first fragment causes ARP request to be sent
• This leads to two timing questions:
1. Are the remaining fragments sent before the ARP reply is received?
2. What does ARP do with multiple packets to the same destination while waiting for a reply?
Example under BSD
Bsdi% arp -a
ARP cache is empty
Bsdi% sock -u -i -n1 -w8192 svr4 discard
10.0
20.001234
30.001941
40.002775
50.003495
60.004319
70.008772
80.009911
90.011127
100.011255
110.012562
120.013458
130.014526
140.015583
Maguire
[email protected]
(0.0012)
(0.0007)
(0.0008)
(0.0007)
(0.0008)
(0.0045)
(0.0011)
(0.0012)
(0.0001)
(0.0013)
(0.0009)
(0.0011)
(0.0011)
arp who-has svr4 tell bsdi
arp who-has svr4 tell bsdi
arp who-has svr4 tell bsdi
arp who-has svr4 tell bsdi
arp who-has svr4 tell bsdi
arp who-has svr4 tell bsdi
arp reply svr4 is-at 0:0:c0:c2:9b:26
arp reply svr4 is-at 0:0:c0:c2:9b:26
bsdi > svr4: (frag 10863:[email protected])
arp reply svr4 is-at 0:0:c0:c2:9b:26
arp reply svr4 is-at 0:0:c0:c2:9b:26
arp reply svr4 is-at 0:0:c0:c2:9b:26
arp reply svr4 is-at 0:0:c0:c2:9b:26
arp reply svr4 is-at 0:0:c0:c2:9b:26
Interaction between UDP and ARP
2008.03.29
UDP and friends 197 of 253
Internetworking/Internetteknik
• on a BSDI system:
• each of the additional (5) fragments caused an ARP request to be generated
– this violates the Host Requirements RFC - which tries to prevent ARP flooding by limiting
the maximum rate to 1 per second
• when the ARP reply is received the last fragment is sent
– Host Requirements RFC says that ARP should save at least one packet and this should
be the latest packet
• unexplained anomaly: the System Vr4 system sent 7 ARP replies back!
• no ICMP “time exceeded during reassembly” message is sent
– BSD derived systems - never generate this error!
It does set the timer internally and discard the fragments, but never sends an ICMP error.
– fragment 0 (which contains the UDP header) was not received - so there is no way to
know which process sent the fragment; thus unless fragment 0 is received - you are not
required to send an ICMP “time exceeded during reassembly” error.
Not just a fluke (i.e.,
a rare event)
• The same error occurs even if you don’t have fragmentation - simply
sending multiple UDP datagrams rapidly when there is no ARP entry is
sufficient!
• NFS sends UDP datagrams whose length just exceeds 8192 bytes
• NFS will timeout and resend
• however, there will always be this behavior - if the ARP cache has no entry for this
destination!
Maguire
[email protected]
Interaction between UDP and ARP
2008.03.29
UDP and friends 198 of 253
Internetworking/Internetteknik
Still a problem?
A UDP with 8192 payload to echo port as seen on SuSE 9.2 linux 2.6.8-24:
No.
37
38
39
40
41
Time
3.020002
3.021385
3.021422
3.021452
3.021480
Source
172.16.33.16
172.16.33.5
172.16.33.16
172.16.33.16
172.16.33.16
Destination
Broadcast
172.16.33.16
172.16.33.5
172.16.33.5
172.16.33.5
Protocol Info
ARP
Who has 172.16.33.5? Tell 172.16.33.16
ARP
172.16.33.5 is at 00:40:8c:24:37:f4
IP
Fragmented IP protocol (proto=UDP 0x11, off=4440)
IP
Fragmented IP protocol (proto=UDP 0x11, off=5920)
IP
Fragmented IP protocol (proto=UDP 0x11, off=7400)
3.021385-3.020002=.001383 sec. ⇒ 1.383ms for the ARP reply
All but the last 3 fragments are dropped! Including the initial echo request packet -- so in the fragments that do arrive you
don’t know who they are for -- because the first fragment was lost!
Maguire
[email protected]
Still a problem?
2008.03.29
UDP and friends 199 of 253
Internetworking/Internetteknik
With an even larger UDP packet
I removed the arp cache entry with: /sbin/arp -i eth1 -d 172.16.33.5
When sending 65500 bytes of UDP payload -- it looses many packets (in fact all but the last 3 fragments)!!!
No.
36
37
38
39
40
Time
4.342158
4.342875
4.342906
4.342932
4.342986
Source
172.16.33.16
172.16.33.5
172.16.33.16
172.16.33.16
172.16.33.16
Destination
Broadcast
172.16.33.16
172.16.33.5
172.16.33.5
172.16.33.5
Protocol Info
ARP
Who has 172.16.33.5? Tell 172.16.33.16
ARP
172.16.33.5 is at 00:40:8c:24:37:f4
IP
Fragmented IP protocol (proto=UDP 0x11, off=62160)
IP
Fragmented IP protocol (proto=UDP 0x11, off=63640)
IP
Fragmented IP protocol (proto=UDP 0x11, off=65120)
With the entry in the ARP cache get:
No.
35
36
37
38
39
40
41
42
43
72
73
74
75
76
77
78
Time
5.118063
5.118095
5.118115
5.118214
5.118328
5.118450
5.118574
5.118695
5.118819
….
5.122385
5.122508
5.122631
5.122787
5.122877
5.122999
5.123122
Source
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
Destination
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
Protocol Info
IP
Fragmented IP protocol (proto=UDP 0x11, off=1480)
IP
Fragmented IP protocol (proto=UDP 0x11, off=2960)
IP
Fragmented IP protocol (proto=UDP 0x11, off=4440)
IP
Fragmented IP protocol (proto=UDP 0x11, off=5920)
IP
Fragmented IP protocol (proto=UDP 0x11, off=7400)
IP
Fragmented IP protocol (proto=UDP 0x11, off=8880)
IP
Fragmented IP protocol (proto=UDP 0x11, off=10360)
IP
Fragmented IP protocol (proto=UDP 0x11, off=11840)
IP
Fragmented IP protocol (proto=UDP 0x11, off=13320)
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.16
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
172.16.33.5
IP
IP
IP
IP
IP
IP
IP
Fragmented
Fragmented
Fragmented
Fragmented
Fragmented
Fragmented
Fragmented
IP
IP
IP
IP
IP
IP
IP
protocol
protocol
protocol
protocol
protocol
protocol
protocol
(proto=UDP
(proto=UDP
(proto=UDP
(proto=UDP
(proto=UDP
(proto=UDP
(proto=UDP
0x11,
0x11,
0x11,
0x11,
0x11,
0x11,
0x11,
off=56240)
off=57720)
off=59200)
off=60680)
off=62160)
off=63640)
off=65120)
The initial UDP Echo request is still lost! The key parameter is
/proc/sys/net/ipv4/neigh/ethX/unres_qlen where X is the
interface (i.e., eth0, eth1, …) -- the default value is 3.
Maguire
[email protected]
With an even larger UDP packet
2008.03.29
UDP and friends 200 of 253
Internetworking/Internetteknik
Maximum UDP Datagram size
• theoretical limit: 65,535 bytes - due to (IP’s) 16-bit total length field
• with 20 bytes of IP header + 8 bytes of UDP header ⇒ 65,507 bytes of user data
• two limits:
• sockets API limites size of send and receive buffer; generally 8 kbytes, but you can call a
routine to change this
• TCP/IP implementation - Stevens found various limits to the sizes - even with loopback
interface (see Stevens, Vol. 1, pg. 159)
• Hosts are required to handle at least 576 byte IP datagrams, thus lots
of protocols limit themselves to 512 bytes or less of data:
• DNS, TFTP, BOOTP, and SNMP
Maguire
[email protected]
Maximum UDP Datagram size
2008.03.29
UDP and friends 201 of 253
Internetworking/Internetteknik
Datagram truncation
What if the application is not prepared to read the datagram of the size sent?
Implementation dependent:
• traditional Berkeley: silently truncate
• 4.3BSD and Reno: can notify the application that the data was
truncated
• SVR4: excess data returned in subsequent reads - application is not
told that this all comes from one datagram
• TLI: sets a flag that more data is available, subsequent reads return the
rest of the datagram
Maguire
[email protected]
Datagram truncation
2008.03.29
UDP and friends 202 of 253
Internetworking/Internetteknik
Socket API
• int socket(int domain, int type, int protocol);
• creates an endpoint description that you can use to send and receive network traffic
• int bind(int sockfd, struct sockaddr *my_addr, socklen_t addrlen);
• binds a socket to the local address and port: my_address
• int connect(int
sockfd, const struct sockaddr *serv_addr, socklen_t addrlen);
• connect the local socket to a remote socket
• int listen(int s, int backlog);
• indicates that socket is willing to accept connections & limites the queue of pending
connections
• int accept(int s, struct sockaddr *addr, socklen_t *addrlen);
• accepted the first connection request from the queue and connects it to the socket
• connection oriented sending and receiving:
• ssize_t send(int s, const void *buf, size_t len, int flags);
• ssize_t recv(int s, void *buf, size_t len, int flags);
• datagram sending and receiving:
• ssize_t sendto(int s, const void *buf, size_t len, int flags, const struct sockaddr *to, socklen_t tolen);
• ssize_t recvfrom(int s, void *buf, size_t len, int flags, struct sockaddr *from, socklen_t *fromlen);
• int close(int fd) and int shutdown(int s, int how) - end it all!
Maguire
[email protected]
Socket API
2008.03.29
UDP and friends 203 of 253
Internetworking/Internetteknik
Learning about Socket programming
For examples of using the socket API and networking programming see :
• Richard Stevens, UNIX Network Programming, Volume 1, Second
Edition: Networking APIs: Sockets and XTI, Prentice Hall, 1998, ISBN
0-13-490012-X
• source code ftp://ftp.kohala.com/pub/rstevens/unpv12e.tar.gz
• errata list: http://www.kohala.com/~rstevens/typos.unpv12e.txt
• Brian "Beej" Hall, “Beej’s Guide to Network Programming: Using
Internet Sockets”, 04/08/2004 07:22:02 PM
http://www.ecst.csuchico.edu/~beej/guide/net/
Two addition socket functions for controlling various properties of sockets are:
void *optval, socklen_t *optlen);
• int getsockopt(int s, int level, int optname,
• int setsockopt(int s, int level, int optname, const void *optval, socklen_t optlen);
For example, the options SO_SNDBUF and SO_RCVBUF - control the size of the
sending buffer and the receiver buffer.
Maguire
[email protected]
Learning about Socket programming
2008.03.29
UDP and friends 204 of 253
Internetworking/Internetteknik
Simple UDP client
#include
#include
#include
#include
<stdio.h>
<sys/types.h>
<sys/socket.h>
<netinet/in.h>
#define bigBufferSize
8192
#define destination_host "172.16.33.5"
main(argc, argv)
int argc;
char **argv;
{ int client_socket_fd;
/* Socket to client, server */
struct sockaddr_in server_addr; /* server’s address */
char bigBuffer[bigBufferSize]; /* buffer of data to send as payload */
int sendto_flags=0;
/* create a UDP socket */
if ((client_socket_fd = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP)) == -1) {
perror("Unable to open socket"); exit(1); };
/* initialize the server address structure */
memset( (char*)&server_addr, 0, sizeof(server_addr));
server_addr.sin_family=AF_INET;
server_addr.sin_port=htons(9); /* 9 is the UDP port number for Discard */
if (inet_aton(destination_host, (struct sockaddr*)&server_addr.sin_addr) == 0) {
fprintf(stderr, "could not get an address for: %s", destination_host);exit(1);}
if ((sendto(client_socket_fd, bigBuffer, bigBufferSize,
sendto_flags, (struct sockaddr*)&server_addr, sizeof(server_addr))) == -1) {
perror("Unable to send to socket"); close(client_socket_fd); exit(1);}
close(client_socket_fd);
exit(0);
/* close the socket */
}
Maguire
[email protected]
Simple UDP client
2008.03.29
UDP and friends 205 of 253
Internetworking/Internetteknik
UDP server design
Stevens, Vol, 1, pp. 162-167 discusses how to program a UDP server
You can often determine what IP address the request was sent to (i.e., the
destination address):
• for example: thus ignoring datagrams sent to a broadcast address
You can limit a server to a given incoming IP address:
• thus limiting requests to a given interface
You can limit a server to a given foreign IP address and port:
• only accepting requests from a given foreign IP address and port #
Multiple recipients per port (for implementations with multicasting support)
• setting SO_REUSEADDR socket option ⇒ each process gets a copy
of the incoming datagram
Note: limited size input queue to each UDP port, can result in silent discards
without an ICMP message being sent back (since OS discarded, not the network!)
Maguire
[email protected]
Simple UDP client
2008.03.29
UDP and friends 206 of 253
Internetworking/Internetteknik
UDP listener example
#include
#include
#include
#include
<stdio.h>
<sys/types.h>
<sys/socket.h>
<netinet/in.h>
#define bigBufferSize 8192
#define my_port
52000
#define destination_host "127.0.0.1"
main(argc, argv)
int argc;
char **argv;
{
int client_socket_fd;
struct sockaddr_in client_addr;
struct sockaddr_in other_addr;
int other_addr_len;
char bigBuffer[bigBufferSize];
int sendto_flags=0;
/* Socket to client, server */
/* client’s address */
/* other party’s address */
/* create a UDP socket */
if ((client_socket_fd = socket(AF_INET, SOCK_DGRAM, IPPROTO_UDP)) == -1) {
perror("Unable to open socket"); exit(1); };
memset((char*)&client_addr, 0, sizeof(client_addr)); /* initialize address structure */
client_addr.sin_family=AF_INET;
client_addr.sin_port=htons(my_port);
client_addr.sin_addr.s_addr = htonl(INADDR_ANY);
if (bind(client_socket_fd, (struct sockaddr*)&client_addr, sizeof(client_addr))==-1) {
close(client_socket_fd); exit(1); }
if ((recvfrom(client_socket_fd, bigBuffer, bigBufferSize,
sendto_flags, (struct sockaddr*)&other_addr, &other_addr_len)) == -1) {
perror("Unable to receive from socket"); close(client_socket_fd); exit(1); }
printf("Received packet from %s:%d\nData: %s\nString length=%d\n",
inet_ntoa(other_addr.sin_addr), ntohs(other_addr.sin_port), bigBuffer, strlen(bigBuffer));
close(client_socket_fd); exit(0);}
Maguire
[email protected]
Simple UDP client
2008.03.29
UDP and friends 207 of 253
Internetworking/Internetteknik
Changed the client
Changing the following:
#define destination_host "127.0.0.1"
#define my_port
52000
server_addr.sin_port=htons(my_port);
Adding some content to the bigBuffer:
sprintf(bigBuffer, "This is a simple test string to be sent to the
other party\n");
Sending only as much of the buffer as necessary:
if ((sendto(client_socket_fd, bigBuffer, strlen(bigBuffer),
sendto_flags, (struct sockaddr*)&server_addr,
sizeof(server_addr))) == -1) {…}
Results in the listener outputting:
Received packet from 127.0.0.1:1260
Data: This is a simple test string to be sent to the other party
String length=59
Maguire
[email protected]
Simple UDP client
2008.03.29
UDP and friends 208 of 253
Internetworking/Internetteknik
Building a UDP packet from scratch
/*
simple example of building a UDP packet from scratch, based on the program:
PingPong - 970621 by Willy TARREAU <[email protected]>
http://www.insecure.org/sploits/inetd.internal_udp_ports.DOS.attack.html
As this program uses RAW sockets, you must be root to run it
*/
#include
#include
#include
#include
#include
#include
#include
#include
#include
<netinet/in.h>
<netinet/ip.h>
<netinet/udp.h>
<netdb.h>
<stdlib.h>
<string.h>
<stdio.h>
<ctype.h>
<errno.h>
struct
struct
int s;
u_char
struct
struct
sockaddr addrfrom;
sockaddr addrto;
outpack[65536];
iphdr *ip;
udphdr *udp;
main(int argc, char **argv) {
struct sockaddr_in *from;
struct sockaddr_in *to;
struct protoent *proto;
int i;
char *src,*dest;
int srcp, destp;
int packetsize,datasize;
if (argc!=5) {fprintf(stderr,"Usage: %s src_addr src_port dst_addr dst_port\n", argv[0]);
fprintf(stderr,"src_addr and dst_addr must be given as IP addresses (xxx.xxx.xxx.xxx)\n");
exit(2);}
src=argv[1]; srcp=atoi(argv[2]); dest=argv[3]; destp=atoi(argv[4]);
Maguire
[email protected]
Building a UDP packet from scratch
2008.03.29
UDP and friends 209 of 253
Internetworking/Internetteknik
if (!(proto = getprotobyname("raw")))
{perror("getprotobyname(raw)");exit(2);}
if ((s = socket(AF_INET, SOCK_RAW, proto->p_proto)) < 0)
memset(&addrfrom, 0, sizeof(struct sockaddr));
from = (struct sockaddr_in *)&addrfrom;
from->sin_family = AF_INET;
from->sin_port=htons(srcp);
if (!inet_aton(src, &from->sin_addr)) {fprintf(stderr,"Incorrect
memset(&addrto, 0, sizeof(struct sockaddr));
to = (struct sockaddr_in *)&addrto;
to->sin_family = AF_INET;
to->sin_port=htons(destp);
if (!inet_aton(dest, &to->sin_addr)) {fprintf(stderr,"Incorrect
{perror("socket");exit(2);}
address for ’from’: %s\n",src);exit(2); }
address for ’to’: %s\n",dest);exit(2); }
packetsize=0;
/* build a UDP packet from scratch */
ip=(struct iphdr *)outpack;
ip->version=4;
/* IPv4 */
ip->ihl=5;
/* IP header length: 5 words */
ip->tos=0;
/* no special type of service */
ip->id=0;
/* no ID */
ip->frag_off=0;
/* not a fragment - so there is no offset */
ip->ttl=0x40;
/* TTL = 64 */
if (!(proto = getprotobyname("udp")))
{perror("getprotobyname(udp)"); exit(2);}
ip->protocol=proto->p_proto;
ip->check=0;
/* null checksum, will be automatically computed by the kernel */
ip->saddr=from->sin_addr.s_addr; /* set source and destination addresses */
ip->daddr=to->sin_addr.s_addr;
/* end of ip header */
Maguire
[email protected]
Building a UDP packet from scratch
2008.03.29
UDP and friends 210 of 253
Internetworking/Internetteknik
packetsize+=ip->ihl<<2;
/* udp header */
udp=(struct udphdr *)((int)outpack + (int)(ip->ihl<<2));
udp->source=htons(srcp);
udp->dest=htons(destp);
udp->check=0;
/* ignore UDP checksum */
packetsize+=sizeof(struct udphdr);
/* end of udp header */
/* add data to UDP payload if you want: */
for (datasize=0;datasize<8;datasize++) {
outpack[packetsize+datasize]=’A’+datasize;
}
packetsize+=datasize;
udp->len=htons(sizeof(struct udphdr)+datasize);
ip->tot_len=htons(packetsize);
if (sendto(s, (char *)outpack, packetsize, 0, &addrto, sizeof(struct sockaddr))==-1)
{perror("sendto"); exit(2);}
printf("packet sent !\n");
close(s);
exit(0);
}
Maguire
[email protected]
Building a UDP packet from scratch
2008.03.29
UDP and friends 211 of 253
Internetworking/Internetteknik
ICMP Source Quench Error
Since UDP has no flow control, a node could receive datagrams faster than it can
process them. In this situation the host may send an ICMP source quench.
Note: “may be generated” - it is not required to generate this error
Stevens (Vol. 1, pp. 160-161) gives the example of sending 100 1024-byte
datagrams from a machine on an ethernet via a router and SLIP line to another
machine:
destination
SLIP
link
source
Figure 44: simplified from Stevens, Vol. 1, inside cover
• SLIP link is ~1000 times slower than the ethernet
• 26 datagrams are transmitted, then a source quench is sent for each
successive datagram
Maguire
[email protected]
Building a UDP packet from scratch
2008.03.29
UDP and friends 212 of 253
Internetworking/Internetteknik
• the router gets all 100 packets, before the first has been sent across
the link!
• the new Router Requirements RFC - says that routers should not generate source quench
errors, since it just consumes network bandwidth and it is an ineffective and unfair fix for
congestion
• In any case, the sending program never responded to the source
quench errors!
• BSD implementations ignore received source quenchs if the protocol is UDP
• the program finished before the source quench was received!
Thus if you want reliability you have to build it in and do end-to-end flow control,
error checking, and use (and thus wait for) acknowledgements.
Maguire
[email protected]
Building a UDP packet from scratch
2008.03.29
UDP and friends 213 of 253
Internetworking/Internetteknik
No error control
Since UDP has no error control, the sender has to take responsibility for sending
the datagram again if this datagram must be delivered.
But how does the send know if a datagram was successfully delivered?
• Unless the receiver sends a reply (or does some action due to
receiving a given datagram) the sender will not know! [loss]
• Note that without some additional mechanism - the sender doesn’t
know if the datagram was delivered multiple times! [duplicates]
If you want reliability you have to build your own protocol on top of UDP to
achieve it. This includes deciding on your own retransmission scheme, timeouts,
etc.
Maguire
[email protected]
No error control
2008.03.29
UDP and friends 214 of 253
Internetworking/Internetteknik
BOOTP: Bootstrap Protocol (RFC 951)
Although you can figure out who you are, i.e., your IP address, via RARP - many
machines want more information.
BOOTP requests and answer are sent via UDP (port 67 server; port 68 client)
• so it is easy to make a user space server
• the client (who wants the answer) need not have a full TCP/IP, it can simply send what looks
like a UDP datagram with a BOOTP request1.
Opcode (1=request,
2=reply)
hardware type
(1=ethernet)
hardware address length
(6 for ethernet)
transaction ID
number of seconds
hop count
unused
client IP address
your IP address
server IP address
gateway IP address
client hardware address (16 bytes of space)
server hostname (64 bytes)
Boot file name (128 bytes)
Vendor specific information (64 bytes)
1. see Stevens, Vol. 1, figure 16.2, pg. 216
Maguire
[email protected]
BOOTP: Bootstrap Protocol (RFC 951)
2008.03.29
UDP and friends 215 of 253
Internetworking/Internetteknik
BOOTP continued
When a request is sent as an IP datagram:
• if client does not know its IP address it uses 0.0.0.0
• if it does not know the server’s address it uses 255.255.255.255
• if the client does not get a reply, it tries again in about 2 sec.
Maguire
[email protected]
BOOTP continued
2008.03.29
UDP and friends 216 of 253
Internetworking/Internetteknik
Vendor specific information
(RFC 1497 and RFC1533)
• if this area is used the first 4 bytes are: IP address 99.130.83.99
this is called the “magic cookie”
• the rest of the area is a list of items, possibly including:
•
•
•
•
•
•
•
•
•
•
•
•
•
Pad (tag=0);
Subnet mask (tag=1);
Time offset (tag=2);
List of IP addresses of Gateways (tag=3);
Time server’s IP address (tag=4);
Name Server (tag=5);
Domain Name Server (tag=6);
LOG server (tag=7); …
LPR server (tag=9); …
this Host’s name (tag=12);
Boot file size (tag=13); …
Domain name (tag=15); …
End (tag=255)
Maguire
[email protected]
Vendor specific information (RFC 1497 and RFC1533)
2008.03.29
UDP and friends 217 of 253
Internetworking/Internetteknik
DHCP: Dynamic Host Configuration Protocol
(RFC 1531)
Extends the Vendor specific options area by 312 bytes.
This protocol is designed to make it easier to allocate (and reallocate) addresses
for clients. DHCP defines:
• Requested IP Address - used in client request (DHCPDISCOVER) to
request that a particular IP address (tag=50)
• IP Address Lease Time - used in a client request (DHCPDISCOVER or
DHCPREQUEST) to request a lease time for the IP address. In a
server reply (DHCPOFFER), specific lease time offered. (tag=51)
• Option Overload - used to indicate that the DHCP “sname” or “file”
fields are being overloaded by using them to carry DHCP options. A
DHCP server inserts this option if the returned parameters will exceed
the usual space allotted for options, i.e., it uses the sname and file
fields for another purpose! (tag=52)
Maguire
[email protected]
DHCP: Dynamic Host Configuration Protocol (RFC 1531)
2008.03.29
UDP and friends 218 of 253
Internetworking/Internetteknik
• DHCP Message Type - the type of the DHCP message (tag=53)
Message Type
1
2
3
4
5
6
7
purpose
DHCPDISCOVER
DHCPOFFER
DHCPREQUEST
DHCPDECLINE
DHCPACK
DHCPNAK
DHCPRELEASE
• Server Identifier - used in DHCPOFFER and DHCPREQUEST (
optionally in DHCPACK and DHCPNAK) messages. Servers include
this in the DHCPOFFER to allow the client to distinguish between lease
offers. DHCP clients indicate which of several lease offers is being
accepted by including this in a DHCPREQUEST message. (tag=54)
• Parameter Request List - used by a DHCP client to request values for
specified configuration parameters. The client may list options in order
of preference. The DHCP server must try to insert the requested
options in the order requested by the client. (tag=55)
Maguire
[email protected]
DHCP: Dynamic Host Configuration Protocol (RFC 1531)
2008.03.29
UDP and friends 219 of 253
Internetworking/Internetteknik
• Message - used by a server to provide an error message to client in a
DHCPNAK message in the event of a failure. A client may use this in a
DHCPDECLINE message to indicate the reason why the client
declined the offered parameters.(tag=56)
• Maximum DHCP Message Size - specifies the maximum length DHCP
message that it is willing to accept. A client may use the maximum
DHCP message size option in DHCPDISCOVER or DHCPREQUEST
messages, but should not use the option in DHCPDECLINE messages.
(tag=57)
• Renewal (T1) Time Value - specifies the time interval from address
assignment until the client transitions to the RENEWING state.
(tag=58)
• Rebinding (T2) Time Value - specifies the time interval from address
assignment until the client transitions to the REBINDING state.(tag=59)
• Class-identifier - used by DHCP clients to optionally identify the type
and configuration of a DHCP client. Vendors and sites may choose to
define specific class identifiers to convey particular configuration or
Maguire
[email protected]
DHCP: Dynamic Host Configuration Protocol (RFC 1531)
2008.03.29
UDP and friends 220 of 253
Internetworking/Internetteknik
other identification information about a client. Servers not equipped to
interpret the class-specific information sent by a client must ignore it
(although it may be reported). (tag=60)
• Client-identifier - used by DHCP clients to specify their unique
identifier. DHCP servers use this value to index their database of
address bindings. This value is expected to be unique for all clients in
an administrative domain. (tag=61)
Maguire
[email protected]
DHCP: Dynamic Host Configuration Protocol (RFC 1531)
2008.03.29
UDP and friends 221 of 253
Internetworking/Internetteknik
DHCP’s importance
• allows reuse of address, which avoids having to tie up addresses for
systems which are not currently connected to the Internet
• avoids user configuration of IP address (avoids mistakes and effort)
• allows recycling of an IP address when devices are scrapped
• …
How big a problem is manual configuration?
A large site (such as DuPont Co. - a large chemical company) has over 65,000 IP
addressable devices; or consider what happens if each of the 815,000 Wal-Mart
employees has an IP device
Address management software
Product
Vendor
URL
Network Registrar
Cisco
http://www.cisco.com
NetID
Nortel Networks
http://www.nortelnetworks.com
Meta IP 4.1
CheckPoint
http://www.metaip.checkpoint.com
QIP Enterprise 5.0
Lucent Technologies
http://qip.lucent.com
Maguire
[email protected]
DHCP’s importance
2008.03.29
UDP and friends 222 of 253
Internetworking/Internetteknik
DHCP performance problems
Most implementations of DHCP do a duplicate address detection (DAAD) test
after they have picked an address to assign.
An alternative approach to speed up the DHCP process does the duplicate address
detection process in the background (in advance) so that you will have a set of
recently tested addresses to hand out:
Jon-Olov Vatn and Gerald Q. Maguire Jr., "The effect of using co-located care-of addresses
on macro handover latency", Fourteenth Nordic Tele-traffic Seminar (NTS 14), August 18 20, 1998, Lyngby, Denmark.
http://www.it.kth.se/~vatn/research/nts14-coloc.pdf
The result is that a DHCP request can be answered in less than 100ms.
Maguire
[email protected]
DHCP performance problems
2008.03.29
UDP and friends 223 of 253
Internetworking/Internetteknik
Example of dhcpd.conf
### Managed by Linuxconf, you may edit by hand.
### Comments may not be fully preserved by linuxconf.
server-identifier dhcptest1;
default-lease-time 1000;
max-lease-time 2000;
option domain-name
"3ctechnologies.se";
option domain-name-servers 130.237.12.2;
option host-name
"s1.3ctechnologies.se";
option routers
130.237.12.2;
option subnet-mask
255.255.255.0;
subnet 130.237.12.0 netmask 255.255.255.0 {
range 130.237.12.3 130.237.12.200;
default-lease-time 1000;
max-lease-time 2000;
}
subnet 130.237.11.0 netmask 255.255.255.0 {
range 130.237.11.3 130.237.11.254;
default-lease-time 1000;
max-lease-time 2000;
}
Maguire
[email protected]
Example of dhcpd.conf
2008.03.29
UDP and friends 224 of 253
Internetworking/Internetteknik
DHCP and DNS
• There is no dynamic host name assignment yet.
• Interaction between DHCP and DNS is needed.
For example: once a host is assigned an IP address the DNS should be updated
dynamically:
• If the host hasn’t got a name: it should assign a name along the IP address assignment (no
DNS update is needed).
• If the host has already a name: the DNS should be dynamically updated once the host has
gotten a new IP address from DHCP.
The IETF’s Dynamic Host Configuration (dhc) Working group
http://www.ietf.org/html.charters/dhc-charter.html is working on addressing the issues
concerning interaction between DHCP and DNS.
Maguire
[email protected]
DHCP and DNS
2008.03.29
UDP and friends 225 of 253
Internetworking/Internetteknik
Trivial File Transfer Procotol (TFTP)
TFTP uses UDP (unlike FTP which uses TCP)
• simple and small
• requires only UDP, IP, and a device driver - easily fits in ROM
• a stop-and-wait protocol
• lost packets detected by timeout and retransmission
• Two operations:
• Read Request (RRQ)
• Write Request (RRQ) - for security reasons the file must already exist
• The TFTP server (“tftpd”) is generally run setrooted (i.e., it only has
access to is own directory) and with a special user and group ID since there is no password or other protection of the access to files via
TFTP!
• TFTP request is sent to the well know port number (69/udp)
• TFTP server uses an unused ephemeral port for its replies
• since a TFTP transfer can last for quite some time - it uses another port; thus freeing up the
well known port for other requests
Maguire
[email protected]
Trivial File Transfer Procotol (TFTP)
2008.03.29
UDP and friends 226 of 253
Internetworking/Internetteknik
IP header
20 bytes
UDP
header
8 bytes
IP datagram
UDP datagram
TFTP message
opcode
Filename
0 Mode
1=RRQ
0
2=WRQ
opcode block
3=data number
2 bytes 2 bytes
opcode block
4=ACK number
data
0-512 bytes
opcode block
5=error number error message 0
Figure 45: TFTP messages (see Stevens, Vol. 1, figure 15.1, pg. 210)
Filename and Mode (“netascii” or “octet”) are both N bytes sequences terminated
by a null byte.
Widely used for bootstrapping diskless systems (such as X terminals) and for
dumping the configuration of routers (this is where the write request is used)
Maguire
[email protected]
Trivial File Transfer Procotol (TFTP)
2008.03.29
UDP and friends 227 of 253
Internetworking/Internetteknik
Mapping names to IP addresses
Host name: string
“ccslab1.kth.se”
Name Resolution: DNS
IP address 32
bit 130.237.15.254
ARP
RARP
HW address: 48
Addr. Resolution
bit Ethernet MAC address
“08:00:2B:00:EE:0B”
Figure 46: mapping between host names and IP address(es)
Maguire
[email protected]
Mapping names to IP addresses
2008.03.29
UDP and friends 228 of 253
Internetworking/Internetteknik
DNS: Domain Name Service
(RFC 1034, RFC 1035)
• To make the network more user friendly
• Distributed database (with caching) providing:
• hostname ⇒ IP address, IP address⇒ hostname
• mailbox ⇒ mail server
• …
• applications call a “resolver”
• gethostbyname: hostname ⇒ IP address
• gethostbyaddr: IP address⇒ hostname
• Resolver’s contact name servers (see “/etc/resolv.conf”)
• DNS names:
• domain name: list of labels from a root, i.e., www.imit.kth.se
• Fully Qualified Name (FQDN): a domain name ending in “.” - there are no further labels
• leaves are managed locally through delegation of authority (to a zone) not centrally;
this allows scaling
• if a name server does not know the answer it asks other name servers
– every name server must know how to contact a root server
• Uses UDP (for query) and TCP (zone transfer and large record query)
Maguire
[email protected]
DNS: Domain Name Service (RFC 1034, RFC 1035)
2008.03.29
UDP and friends 229 of 253
Internetworking/Internetteknik
Zones
A zone is a subtree of the DNS tree which is managed separately.
Each zone must have multiple name servers:
• a primary name server for the zone
• gets its data from disk files (or other stable store)
• must know the IP address of one or more root servers
• one or more secondary name servers for the zone
• get their data by doing a zone transfer from a primary
• generally query their primary server every ~3 hours
To find a server you may have to walk the tree up to the root or possibly from the
root down (but the later is not friendly).
Maguire
Zones
UDP and friends 230 of 253
[email protected]
2008.03.29
Internetworking/Internetteknik
DNS Message format
0
16
Identification
Number of Questions
Numer of authority
31
Parameters
Number of Answers
Number of Additional
Question section
…
Answer section
…
Additional Information section
…
Bit or Parameter field
Meaning
0
1-4
5
6
7
8
9-11
12-15
Operation: 0=Query, 1=Response
Query type: 0=standard, 1=Inverse
Set if answer is authoritative
Set if answer is truncate
Set if answer is desired
Set if answer is available
reserved
Response Type: 0=No error, 1=Format error in query, 2=Server failure,
3=Name does not exist
Maguire
[email protected]
DNS Message format
2008.03.29
UDP and friends 231 of 253
Internetworking/Internetteknik
Internet’s top level domains
(see Stevens, Vol. 1, figure 14.2, pg. 189)
Domain
Description
com
edu
gov
int
mil
net
org
arpa
ae
…
se
zw
commercial organizations
educational organizations
other U.S. government organizations (see RFC 1811 for policies)
international organizations
U.S. Military
networks
other organizations
special domain for address to name mappings, e.g., 5.215.237.130.in-addr.arpa
United Arab Emerates
Sweden
Zimbabwe
Lots of interest in having subdomains of “com”
♦ companies registering product names, etc. - in some cases asking for 10s of addresses
♦ who gets to use a given name? problems with registered trade marks, who registered the name first,
… [How much is a name worth?]
Maguire
[email protected]
Internet’s top level domains
2008.03.29
UDP and friends 232 of 253
Internetworking/Internetteknik
New top level domains
There is a proposed new set of top level domains and an increase in the number of
entities which can assign domain names.
Generic Top Level Domains (gTLDs), November 16, 2000:
.aero
.biz
.coop
.info
.museum
.name
.pro
for the entire aviation community
for business purpose
for cooperatives
unrestricted
for museums
for personal names
for professionals
(Council of Registrars) - operational organization composed of authorized
Registrars for managing allocations under gTLDs.
CORE
WIPO provides arbitration concerning names:
http://arbiter.wipo.int/domains/gtld/newgtld.html
Maguire
[email protected]
New top level domains
2008.03.29
UDP and friends 233 of 253
Internetworking/Internetteknik
Domain registrars
Internet Corporation for Assigned Names and Numbers (ICANN) Accredited
Registrars, the full list is at http://www.icann.org/registrars/accredited-list.html
Even more registrars are on their way to being accredited and operating!
Maguire
[email protected]
Domain registrars
2008.03.29
UDP and friends 234 of 253
Internetworking/Internetteknik
Country Code Top-Level Domains (CCTLDs)
http://www.iana.org/cctld/cctld-whois.htm
For Sweden (SE)
SE-DOM, the NIC is:
http://www.nic-se.se/
Administrative contact
Technical contact
Address
II-Stiftelsen
Sehlstedtsgatan 7
SE-115 28 Stockholm
Sweden
Network Information Centre Sweden
NIC-SE
Box 5774
SE-114 87 Stockholm
Sweden
e-mail
[email protected]
[email protected]
phone
+46 8 56849050
+46 8 54585700
fax
+46 8 50618470
+46 8 54585729
The above is from http://www.iana.org/root-whois/se.htm
URL for registration services: http://www.iis.se/
Maguire
[email protected]
Country Code Top-Level Domains (CCTLDs)
2008.03.29
UDP and friends 235 of 253
Internetworking/Internetteknik
Resource Records (RR)
See Stevens, Vol. 1, figure 14.2, pg. 201 (augmented with additional entires)
Record type
Description
A
AAAA
PTR
CNAME
HINFO
MX
NS
TXT
AFSDB
ISDN
KEY
KX
LOC
MG
MINFO
MR
NULL
NS
an IP address. Defined in RFC 1035
an IPv6 address. Defined in RFC 1886
pointer record in the in-addr.arpa format. Defined in RFC 1035.
canonical name≡ alias (in the format of a domain name). Defined in RFC 1035.
Host information. Defined in RFC 1035.
Mail eXchange record. Defined in RFC 1035.
authoritative Name Server (gives authoritative name server for this domain).Defined in RFC 1035.
other attributes. Defined in RFC 1035.
AFS Data Base location. Defined in RFC 1183.
ISDN. Defined in RFC 1183.
Public key. Defined in RFC 2065.
Key Exchanger. Defined in RFC 2230.
Location. Defined in RFC 1876.
mail group member. Defined in RFC 1035.
mailbox or mail list information. Defined in RFC 1035.
mail rename domain name. Defined in RFC 1035.
null RR. Defined in RFC 1035.
Name Server. Defined in RFC 1035.
Maguire
[email protected]
Resource Records (RR)
2008.03.29
UDP and friends 236 of 253
Internetworking/Internetteknik
See Stevens, Vol. 1, figure 14.2, pg. 201 (augmented with additional entires)
Record type
Description
NSAP
Network service access point address. Defined in RFC 1348. Redefined in RFC 1637. Redefined
in RFC 1706.
Next. Defined in RFC 2065.
Pointer to X.400/RFC822 information. Defined in RFC 1664.
Responsible Person. Defined in RFC 1183.
Route Through. Defined in RFC 1183.
Cryptographic signature. Defined in RFC 2065.
Start Of Authority. Defined in RFC 1035.
Server. DNS Server resource record -- RFC 2052, for use with DDNS.
Text. Defined in RFC 1035.
Well-Known Service. Defined in RFC 1035.
X25. Defined in RFC 1183.
NXT
PX
RP
RT
SIG
SOA
SRV
TXT
WKS
X25
Note that an number of the RR types above are for experimental use.
Name of an organization:
ISI.EDU.
Maguire
[email protected]
PTR
0.0.9.128.IN-ADDR.ARPA.
Resource Records (RR)
2008.03.29
UDP and friends 237 of 253
Internetworking/Internetteknik
Network names
Conventions:
• it.kth.se includes all the computers in the KTH/SU IT-University
• kth.se includes all the computers at KTH
• …
As resource records:
> set querytype=any
> kth.se
…
Non-authoritative answer:
kth.se
kth.se
internet address = 130.237.72.201
origin = kth.se
mail addr = hostmaster.kth.se
serial = 2002011500
refresh = 3600 (1H)
retry = 600 (10M)
expire = 604800 (1W)
minimum ttl = 86400 (1D)
Maguire
[email protected]
Network names
2008.03.29
UDP and friends 238 of 253
Internetworking/Internetteknik
kth.se
kth.se
kth.se
nameserver = kth.se
nameserver = nic.lth.se
nameserver = ns.kth.se
Authoritative answers can be found from:
kth.se
kth.se
kth.se
kth.se
nic.lth.se
ns.kth.se
nameserver = kth.se
nameserver = nic.lth.se
nameserver = ns.kth.se
internet address = 130.237.x.y
internet address = 130.235.z.w
internet address = 130.237.m.n
ARPANET.ARPA.
isi-net.isi.edu.
Maguire
[email protected]
PTR
PTR
0.0.0.10.IN-ADDR.ARPA.
0.0.9.128.IN-ADDR.ARPA.
Network names
2008.03.29
UDP and friends 239 of 253
Internetworking/Internetteknik
Example:
$ORIGIN it.kth.se.
@
1D IN SOA
bbbb hostmaster (
2002012001
8H
2H
2W
8H )
1D
1D
1D
1D
1D
1D
1D
Maguire
[email protected]
IN NS
IN NS
IN MX
IN A
IN AFSDB
IN AFSDB
IN AFSDB
; serial
; refresh
; retry
; expiry
; minimum
ns.ele.kth.se.
ns.kth.se.
0 mail
130.237.x.y
1 xxxx
1 yyyy
1 zzzz
Example:
2008.03.29
UDP and friends 240 of 253
Internetworking/Internetteknik
MX information
> set querytype=MX
> kth.se
…
kth.se
kth.se
kth.se
kth.se
mail1.kth.se
kth.se
nic.lth.se
ns.kth.se
preference = 0, mail exchanger = mail1.kth.se
nameserver = kth.se
nameserver = nic.lth.se
nameserver = ns.kth.se
internet address = 130.237.32.62
internet address = 130.237.72.201
internet address = 130.235.20.3
internet address = 130.237.72.200
Another examine in MX RR format:
1D
1D
Maguire
[email protected]
IN MX
IN MX
MX information
2008.03.29
10 xxx.e.kth.se.
20 yyy.e.kth.se.
UDP and friends 241 of 253
Internetworking/Internetteknik
Host names and info
How to give your host a name?
see RFC 1178: Choosing a Name for Your Computer
Internet Addresses: A second address for your host?
• to have multiple addresses for you computer, see section on “ifconfig”
Hostinfo (HINFO)
> set querytype=HINFO
> kth.se
…
kth.se
Entry
owner clas
xxxx
Maguire
[email protected]
CPU = sun-4/60
TTL
RR type
1D
IN HINFO
1D
IN A
Host names and info
2008.03.29
OS = unix
value
"PC" "FLINUX"
130.237.x.y
comment
; “CPU” “OS”
UDP and friends 242 of 253
Internetworking/Internetteknik
Storing other attributes - TXT records
The general syntax is:
<owner> <class> <ttl> TXT “<attribute name>=<attribute value>”
Examples:
host.widgets.com IN TXT “printer=lpr5”
sam.widgets.com
IN TXT “favorite drink=orange juice”
For more information see:
RFC 1464: Using the Domain Name System To Store Arbitrary String Attributes
Maguire
[email protected]
Storing other attributes - TXT records
2008.03.29
UDP and friends 243 of 253
Internetworking/Internetteknik
Configuring DNS
• Configuring the BIND resolver
• /etc/resolv.config
• Configuring the BIND nameserver (named)
• /etc/named.boot or /etc/named.config
• Configuring the nameserver database files (zone files)
• named.hosts
• named.rev
Maguire
[email protected]
the zone file that maps hostnames to IP addresses
the zone file that maps IP addresses to hostnames
Configuring DNS
2008.03.29
UDP and friends 244 of 253
Internetworking/Internetteknik
Root servers
ROOT-SERVERS.NET
A
Verisign Global Registry Services
B
EP.Net
IP address(es)
Home ASN Location(s)
198.41.0.4
192.228.79.201
2001:478:65::53
192.33.4.12
19836
Herndon, VA, US
Marina del Rey, CA, US
2149
Herndon VA; Los Angeles;
New York City; Chicago
College Park, MD, US
Mountain View, CA, US
C
Cogent Communications
D
E
F
University of Maryland
128.8.10.90
NASA Ames Research Centre
192.203.230.10
Internet Systems Consortium (ISC) 192.5.5.241
2001:500::1035
27
297
3557
G
H
US Department of Defence
US Army Research Lab
568
13
Vienna, VA, US
Aberdeen, MD, US
I
Autonomica/NORDUnet
192.112.36.4
128.63.2.53
2001:500:1::803f:235
192.36.148.17
29216
Stockholm; Helsinki; Milan;London; Geneva; Amsterdam;Oslo;
Bangkok; Hong Kong;Brussels; Frankfurt; Ankara;
Bucharest;Chicago; Washington DC;Tokyo; Kuala Lumpur;Palo
Alto; Wellington
J
K
Verisign Global Registry Services
26415
25152
Herndon, VA, US
Reseaux IP Europeens (RIPE)
L
M
IANA
WIDE Project
192.58.128.30
193.0.14.129
2001:7fd::1
198.32.64.12
202.12.27.33
2001:dc3::35
20144
7500
Ottawa; Palo Alto; San Jose CA;New York City; San
Francisco;Madrid; Hong Kong; Los Angeles;Rome; Auckland;
Sao Paulo;Beijing; Seoul; Moscow; Taipei;Dubai; Paris;
Singapore; Brisbane;Toronto; Monterrey; Lisbon;Johannesburg;
Tel Aviv; Jakarta;Munich; Osaka; Prague
London (UK); Amsterdam (NL);Frankfurt (DE); Athens
(GR);Doha (QA); Milan (IT);Reykjavik (IS); Helsinki
(FI);Geneva (CH); Poznan (PL);Budapest (HU)
Los Angeles, CA, US
Tokyo; Seoul (KR); Paris (FR)
see http://www.root-servers.org/
Maguire
[email protected]
Root servers
2008.03.29
UDP and friends 245 of 253
Internetworking/Internetteknik
Load leveling [39]
For example, f.root-servers.net has a single IP address (192.5.5.241), but requests
sent to 192.5.5.241 are routed to different nameservers
This routing can depend on:
• where the request is made from
• what the load on each of these names servers is
Note: this is transparent to the host which sent the request to F
ISC uses Hierarchical Anycast routing to do this, with some of the servers being:
• large, redundant, … installations serving the global internet
• small installations serving a local region
• 28 nodes as of Feb. 2005
Maguire
[email protected]
Load leveling [39]
2008.03.29
UDP and friends 246 of 253
Internetworking/Internetteknik
F root nameserver nodes
Asia Pacific
Americas
Rest of World
Maguire
[email protected]
Site Code
Location
IPv4/IPv6
Node Type
AKL1
BNE1
CGK1
HKG1
KIX1
PEK1
SEL1
TPE1
AKL1
LAX1
LGA1
MTY1
PAO1
SFO2
SQL1
SJC1
YOW1
YYZ1
CDG1
DXB1
JNB1
LIS1
MAD1
MUC1
PRG1
ROM1
SVO1
TLV1
Auckland
Brisbane
Jakarta
Hong Kong
Osaka
Beijing
Seoul
Taipei
São Paulo
Los Angeles
New York
Monterrey
Palo Alto
San Francisco
Redwood City
San Jose
Ottawa
Toronto
Paris
Dubai
Johannesburg
Lisbon
Madrid
Munich
Prague
Rome
Moscow
Tel Aviv
IPv4
IPv4
IPv4
IPv4
IPv4 and IPv6
IPv4
IPv4 and IPv6
IPv4
IPv4
IPv4 and IPv6
IPv4 and IPv6
IPv4
IPv4 and IPv6
IPv4 and IPv6
IPv4 and IPv6
IPv4
IPv4 and IPv6
IPv4
IPv4 and IPv6
IPv4
IPv4
IPv4 and IPv6
IPv4
IPv4 and IPv6
IPv4
IPv4
IPv4
IPv4
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Global Node
Global Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
Local Node
F root nameserver nodes
2008.03.29
UDP and friends 247 of 253
Internetworking/Internetteknik
Where is f.root-servers.net ?
traceroute to f.root-servers.net (192.5.5.241), 30 hops max, 40 byte packets
1
net212a.imit.kth.se (130.237.212.2)
1 ms
1 ms
0 ms
2
cn4-kf4-p2p.gw.kth.se (130.237.211.205)
1 ms
1 ms
1 ms
3
ea4-cn4-p2p.gw.kth.se (130.237.211.102)
1 ms
1 ms
1 ms
4
kth2-ea4-b.gw.kth.se (130.237.211.241)
1 ms
1 ms
1 ms
5
stockholm4-SRP2.sunet.se (130.242.85.66)
1 ms
1 ms
1 ms
6
130.242.82.49 (130.242.82.49)
1 ms
1 ms
1 ms
7
se-kth.nordu.net (193.10.252.177)
1 ms
2 ms
4 ms
8
so-1-0.hsa2.Stockholm1.Level3.net (213.242.69.21)
4 ms
5 ms
4 ms
9
so-4-1-0.mp2.Stockholm1.Level3.net (213.242.68.205)
14 ms
8 ms
8 ms
10
as-1-0.bbr2.London1.Level3.net (212.187.128.25)
36 ms
36 ms
36 ms
11
as-0-0.bbr1.NewYork1.Level3.net (4.68.128.106)
106 ms
104 ms
104 ms
12
ae-0-0.bbr2.SanJose1.Level3.net (64.159.1.130)
180 ms
247 ms
180 ms
13
so-14-0.hsa4.SanJose1.Level3.net (4.68.114.158)
*
178 ms
178 ms
14
ISC-Level3-fe.SanJose1.Level3.net (209.245.146.219)
178 ms
180 ms
178 ms
15
f.root-servers.net (192.5.5.241)
180 ms
178 ms
180 ms
Maguire
[email protected]
Where is f.root-servers.net ?
2008.03.29
UDP and friends 248 of 253
Internetworking/Internetteknik
Where is i.root-servers.net ?
traceroute to i.root-servers.net (192.36.148.17), 30 hops max, 40 byte packets
1
net212a.imit.kth.se (130.237.212.2)
1 ms
0 ms
0 ms
2
cn4-kf4-p2p.gw.kth.se (130.237.211.205)
1 ms
1 ms
4 ms
3
cn5-cn4-p2p.gw.kth.se (130.237.211.201)
4 ms
4 ms
4 ms
4
kth1-cn5-p2p.gw.kth.se (130.237.211.41)
4 ms
4 ms
4 ms
5
stockholm3-SRP2.sunet.se (130.242.85.65)
4 ms
4 ms
4 ms
6
ge-2-2.cyb-gw.sth.netnod.se (194.68.123.73)
2 ms
1 ms
1 ms
7
ge-2-1.icyb-gw.sth.netnod.se (192.36.144.190)
1 ms
1 ms
2 ms
8
srp-1-1.ibyb-gw.sth.netnod.se (192.36.144.235)
1 ms
1 ms
1 ms
9
ge-0-0.r1.sth.dnsnode.net (194.146.105.187)
1 ms
2 ms
2 ms
i.root-servers.net (192.36.148.17)
3 ms
3 ms
2 ms
10
Maguire
[email protected]
Where is i.root-servers.net ?
2008.03.29
UDP and friends 249 of 253
Internetworking/Internetteknik
Dynamic Domain Name System (DDNS)
Root
Server
Server for
.se
Server for
.com
Server for
.edu
…
Server for
.xx
Server for
kth.se
Maguire
[email protected]
Host Name
IP-address
host_a
130.237.x.1
host_b
130.237.x.2
host_c
130.237.x.3
host_d
130.237.x.4
mobile1
c/o address <<< we can update this dynamically
Dynamic Domain Name System (DDNS)
2008.03.29
UDP and friends 250 of 253
Internetworking/Internetteknik
DDNS
RFC 2136: Dynamic Updates in the Domain Name System (DNS UPDATE)
• add or delete resource records
RFC 2052: A DNS RR for specifying the location of services (DNS SRV)
• When a SRV-cognizant web-browser wants to retrieve
http://www.asdf.com/
it does a lookup of
http.tcp.www.asdf.com
RFC 2535: Domain Name System Security Extensions (DNSSec)
Maguire
DDNS
UDP and friends 251 of 253
[email protected]
2008.03.29
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• UDP
• BOOTP
• DHCP
• DNS, DDNS
Maguire
[email protected]
Summary
2008.03.29
UDP and friends 252 of 253
Internetworking/Internetteknik
References
[39] Joe Abley, f.root-servers.net, NZNOG 2005, February 2005, Hamilton, NZ
http://www.isc.org/pubs/pres/NZNOG/2005/F%20Root%20Server.pdf
Maguire
[email protected]
References
2008.03.29
UDP and friends 253 of 253
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 5: TCP, HTTP, RPC, NFS, X
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapter 12
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
TCP.fm5
2008.03.29
Total pages: 330
Lecture 4: Outline
•
•
•
•
•
•
TCP
HTTP
Web enabled devices
RPC, XDR, and NFS
X Window System, and
some tools for looking at these protocols
Maguire
[email protected]
Lecture 4: Outline
2008.03.29
TCP, HTTP, RPC, NFS, X 255 of 330
Internetworking/Internetteknik
Transport layer protocols
• User Datagram Protcol (UDP)
• Connectionless unreliable service
• Transmission Control Protocol (TCP) <<< today’s topic
• Connection-oriented reliable stream service
• Stream Control Transmission Protocol (SCTP)
• a modern transmission protocol with many facilities which the user can chose from
Maguire
[email protected]
Transport layer protocols
2008.03.29
TCP, HTTP, RPC, NFS, X 256 of 330
Internetworking/Internetteknik
Transmission Control Protocol (TCP)
TCP provides a connection oriented, reliable, byte stream service[40].
• TCP utilizes full-duplex connections
• Note: There are just two endpoints
• TCP applications write 8-bit bytes to a stream and read bytes from a
stream
• TCP decides how much data to send (not the application) - each unit is a segment
• There are no records (or record makers) - just a stream of bytes ⇒ the receiver can’t tell
how much the sender wrote into the stream at any given time
• TCP provides reliability
• Acknowledgements, timeouts, retransmission, …
• TCP provides flow control
• TCP trys to avoid causing congestion
Maguire
[email protected]
Transmission Control Protocol (TCP)
2008.03.29
TCP, HTTP, RPC, NFS, X 257 of 330
Internetworking/Internetteknik
Applications which use TCP
Lots of applications have been implemented on top of the TCP, such as:
• TELNET — provides a virtual terminal {emulation}
• FTP — used for file transfers
• SMTP — forwarding e-mail
• HTTP — transport data in the World Wide Web
Here we will focus on some features not covered in the courses: Telesys, gk and
Data and computer communication.
Maguire
[email protected]
Transmission Control Protocol (TCP)
2008.03.29
TCP, HTTP, RPC, NFS, X 258 of 330
Internetworking/Internetteknik
TCP Header
0
7
8
15 16
16 bit source port
23 24
31
16 bit destination port
32 bit sequence number
4 bit header
length
reserved
(6 bits)
20 bytes
32 bit acknowledgement number
16 bit window size
U A P R S F
R C S S Y I
G K H T N N
16 bit TCP checksum
16 bit urgent pointer
options (if any)
data (if any - padded to a multiple of 16 bits)
Figure 47: IP header (see Stevens, Vol. 1. inside cover or Forouzan figure 12.5 pg. 282)
Just as with UDP, TCP provides de/multiplexing via the 16 bit source and
destination ports.
The 4 bit header length indicates the number of 4-byte words in the TCP header
Maguire
[email protected]
TCP Header
2008.03.29
TCP, HTTP, RPC, NFS, X 259 of 330
Internetworking/Internetteknik
TCP header continued
Reliability is provided by the 32 bit sequence number which indicates the byte
offset in a stream of the first byte in this segment and a 32 bit acknowledgement
number which indicates the next byte which is expected.
• The initial sequence number (ISN) is a random 32 bit number.
• Note that the acknowledgement is piggybacked in each TCP segment
• TCP maintains a timer for each segment. If an acknowledgement is not received before the
timeout, then TCP retransmits the segment
• When TCP receives data it sends an acknowledgement back to sender
• TCP applies an end-to-end checksum on its header and data
• The checksum is mandatory - but otherwise similar to the UDP checksum
• TCP resequences data at the receiving side ⇒ all the bytes are
delivered in order to the receiving application
• TCP discards duplicate data at the receiving side
Urgent pointer - specifies that the stream data is offset and that the data field
begins with "urgent data" which is to bypass the normal stream - for example ^C
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 260 of 330
Internetworking/Internetteknik
Control field - indicates the purpose & contents of this segment:
Flag
URG
ACK
PSH
RST
SYN
FIN
Description
The urgent pointer is valid
The acknowledgement number is valid
Push the data, i.e., the receiver should immediately pass all the data to the application ⇒
emptying the receiver’s buffer
Connection must be rest
Synchronize the sequence numbers
Terminate the connection (from the sender’s point of view)
We will see how these bits are used as we examine each of them later.
The window size (or more exactly the receive window size (rwnd)) - indicates how
many bytes the receiver is prepared to receive (this number is relative to the
acknowledgement number).
Options - as with UDP there can be up to 40 bytes of options (we will cover these
later)
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 261 of 330
Internetworking/Internetteknik
Connection establishment
3-way handshake:
client
server • Guarantees both sides are
SYN, seq=x
ready to transfer data
time
• Allows both sides to agree on
SYN, seq=y, ACK=x+1
initial sequence numbers
ACK=y+1
See Forouzan figure 12.9 page 286
Initial sequence number (ISN) must be chosen so that each instance of a specific
TCP connection between two end-points has a different ISN.
The entity initiating the connection is (normally) called the "client".
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 262 of 330
Internetworking/Internetteknik
SYN Flooding Attack
It is clear that if a malacioous user simply sends a lot of SYN sgements to a target
machine (with faked source IP addresses) ⇒ this machine will spend a lot of
resources to set up TCP connections which subsequently never occur.
As the number of TCP control blocks and other resources are finite
• legitimate connection requests can’t be answered
• the target machine might even crash
The result is to deny service, this is one of many Denial of Services (DoS) Attacks
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 263 of 330
Internetworking/Internetteknik
Connection teardown
client
FIN, seq=x
active
close
server
ACK, seq: x+1
}
EOF sent to application
half-close
data from
server
ACKs from
client
FIN, seq: z
passive
close
ACK, seq: z+1
See Forouzan figure 12.12 page 291
• Note: it takes 4 segments to complete the close.
• Normally, the client performs an active close and the server performs
passive close.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 264 of 330
Internetworking/Internetteknik
TCP options
These options are used to convey additional information to the destination or to
align another options
• Single-byte Options
• No operation
• End of option
• Multiple-byte Options
• Maximum segment size
• Window scale factor
• Timestamp
A TCP header can have up to 40 bytes of optional information.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 265 of 330
Internetworking/Internetteknik
•
•
•
•
Maximum Segment Size
The Maximum Segment Size (MSS) is the largest amount of data TCP
will send to the other side
MSS can be announced in the options field of the TCP header during
connection establishment
If a MSS is not announced ⇒ a default value of 536 is assumed
In general, the larger MSS is the better -- until fragmentation occurs
• As when fragmentation occurs the overhead increases!
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 266 of 330
Internetworking/Internetteknik
Sliding window Flow control
• receiver: offered window - acknowledges data sent and what it is
prepared to receive
• thus the sender can send an ACK, but with a offered window of 0
• later the sender sends a window update with a non-zero offered window size
• the receiver can increase or decrease this window size as it wants
• sender: usable window - how much data it is prepared to send
immediately
receiver’s
offered window
Usable Window
segment
number
1
2
3
4
5
6
6
7
8
9 10 11 12 13 14
can’t send until
can send
window advances
this much more
sent and
acknowledged
sent but
unacknowledged
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 267 of 330
Internetworking/Internetteknik
Window size
Increasing window size can improve performance - more recent systems have
increased buffer size ranging from 4096 ... 16,384 bytes. The later produces ~40%
increase in file transfer performance on an ethernet.
Socket API allows user to change the size of the send and receive buffers.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 268 of 330
Internetworking/Internetteknik
Flow for an rlogin session
client
keystroke
server
seq=x; one data byte
ACK, seq: x+1
display
the character
seq=y; one data byte
echo of keystroke
sent by server
ACK, seq=y+1
See Forouzan figure 12.12 page 291
Thus each keystroke not only generates a byte of data for the remote application
which has to be sent in a segments, but this will trigger an ACK along with an echo
& its ACK ⇒ generates 3 more segments! All to send a single byte of user data!!!
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 269 of 330
Internetworking/Internetteknik
Silly Window Syndrome
If receiver advertises a small window, then sender will send a small amount of
data, which fills receivers window, … .
To prevent this behavior:
• sender does not transmit unless:
• full-size segment can be sent OR
• it can send at least 1/2 maximum sized window that the other has ever advertised
• we can send everything we have and are not expecting an ACK or Nagle algorithm is
disabled
• receiver must not advertise small segments
• advertise min(a full-size segment, 1/2 the receive buffers space)
• delayed ACKs
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 270 of 330
Internetworking/Internetteknik
Nagle Algorithm
telnet/rlogin/... generate a packet (41 bytes) for each 1 byte of user data
• these small packets are called “tinygrams”
• not a problem on LANs
• adds to the congestion on WANs
Nagle Algorithm
• each TCP connection can have only one outstanding (i.e.,
unacknowledged) small segment (i.e., a tinygram)
• while waiting - additional data is accumulated and sent as one segment
when the ACK arrives
• self-clock: the faster ACKs come, the more often data is sent
• thus automatically on slow WANs fewer segments are sent
Round trip time on a typical ethernet is ~16ms (for a single byte to be sent,
acknowledged, and echoed) - thus to generate data faster than this would require
typing faster than 60 characters per second! Thus rarely will Nagle be invoked on
a LAN.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 271 of 330
Internetworking/Internetteknik
Disabling the Nagle Algorithm
But sometimes we need to send a small message - without waiting (for example,
handling a mouse event in the X Window System) - therefore we set:
• TCP_NODELAY on the socket
• Host Requirements RFC says that hosts must implement the Nagle
algorithm, but there must be a way to disable it on individual
connections.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 272 of 330
Internetworking/Internetteknik
Delayed acknowledgements
Rather than sending an ACK immediately, TCP waits ~200ms hoping that there
will be data in the reverse direction - thus enabling a piggybacked ACK.
• Host Requirements RFC states the delays must be less than 500ms
• Implementations often use a periodic 200ms timer - rather than setting
a timer specifically for computing this delay
• similar to the periodic 500ms timer used for detecting timeouts
A complex protocol with several timers leads to complex behavior!
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 273 of 330
Internetworking/Internetteknik
Resulting bulk data flow
Every segment cares a full MSS worth of data.
Typically an ACK every other segment.
client
server
data
ACK
ACK
…
ACK
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 274 of 330
Internetworking/Internetteknik
Bandwidth-Delay Product
How large should the window be for optimal throughput?
Calculate the capacity of the pipe as:
• capacity(bits) = bandwidth(bits/sec) * RTT(sec)
• This is the size the receiver advertised window should have for optimal
throughput.
Example:
T1 connection across the US:
capacity = 1.544Mbit/s * 60ms = 11,580 bytes
Gigabit connection across the US:
capacity = 1Gbit/s * 60ms = 7,500,000 bytes!
However, the window size field is only 16 bits ⇒ maximum value of 65535 bytes
For Long Fat Pipes we can use the window scale option to allow much larger
window sizes.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 275 of 330
Internetworking/Internetteknik
Congestion Avoidance
So far we have assumed that the sender is only limited by the receiver’s available
buffer space. But if we inject lots of segments into a network - upto window size
advertised by receiver
• works well if the hosts are on the same LAN
• if there are routers (i.e., queues) between them and if the traffic arrives
faster than it can be forwarded, then either the packets have to be
– buffered or
– thrown away - we refer to this condition as congestion
Lost packets lead to retransmission by the sender
This adds even more packets to the network ⇒ network collapse
Therefore we need to be able to reduce the window size to avoid congestion.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 276 of 330
Internetworking/Internetteknik
Congestion Control
We introduce a Congestion Window
• Thus the sender’s window size will be determined both by the receiver
and in reaction to congestion in the network
Sender maintains 2 window sizes:
• Receiver-advertised window (rwnd)
• advertised window is flow control imposed by receiver
• Congestion window (CWND)
• congestion window is flow control imposed by sender
Actual window size = min(rwnd, CWND)
To deal with congestion, sender uses several strategies:
• Slow start
• Additive increase of CWND
• Multiplicative decrease of CWND
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 277 of 330
Internetworking/Internetteknik
Slow start
In 1989, Van Jacobson introduced slow start based on his analysis of actual traffic
and the application of control theory. All TCP implementations are now required
to support slow start.
• the rate at which new packets should be injected into the network is the rate at which
acknowledgements are returned
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 278 of 330
Internetworking/Internetteknik
• cwnd starts at number of bytes in one segment (as announced by other end) and increases
exponentially with successfully received cwnd worth of data
Figure 48: Graphical plot of congestion window (cwnd) as the connection goes from slow start to congestion
avoidance behavior (figure from Mattias Ronquist, “TCP Reaction to Rapid Changes of the Link Characteristics due to Handover in a Mobile Environment”, MS Thesis, Royal Institute of Technology, Teleinformatics,
August 4, 1999.)
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 279 of 330
Internetworking/Internetteknik
Round-Trip Time Measurement
Fundamental to TCP’s timeout and retransmission is the measurement (M) of the
round-trip time (RTT). As the RTT changes TCP should modify its timeouts.
Originally TCP specificed:
R ← αR + ( 1 – α )M
αa smoothing factor, with a recommended value of 0.9
RTO = Rβ
βa delay variance factor, with a recommended value of 2
RTO == retransmission timout time
Van Jacobson found that this could not keep up with wide fluctuations in RTT,
which leads to more retransmissions, when the network is already loaded! So he
proposed tracking the variance in RTT and gave formulas which compute the RTO
based on the mean and variance in RTT and can be easily calculated using integer
arithmetic (see Stevens, Vol. 1, pg. 300 for details).
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 280 of 330
Internetworking/Internetteknik
Karn’s algorithm
When a retransmisson occurs, RTO is backed off, the packet retransmitted with
the new longer RTO, and an ACK is received.
But is it the original ACK or the new ACK?
• we don’t know, thus we don’t recalculate a new RTO until an ACK is
received for a segment which is not retransmitted
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 281 of 330
Internetworking/Internetteknik
Congestion Avoidance Algorithm
Slow start keeps increasing cwnd, but at some point we hit a limit due to
intervening routers and packets start to be dropped.
The algorithm assumes that packet loss means congestion1. Signs of packet loss:
• timeout occuring
• receipt of duplicate ACKs
Introduce another variable for each connection: ssthresh == slow start threshold
when data is acknowledged we increase cwnd:
• if cwnd < ssthreshold we are doing slow start; increases continue until
we are half way to where we hit congestion before
• else we are doing congestion avoidance; then increase by
1/cwnd + 1/8 of segment size each time an ACK is received
(See Stevens, Vol. 1, figure 21.8, pg. 311 for a plot of this behavior)
1. Note: if your losses come from other causes (such as bit errors on the link) it will still think it is due to congestion!
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 282 of 330
Internetworking/Internetteknik
Van Jacobson’s Fast retransmit and Fast Recovery Algorithm
TCP is required to generate an immediate ACK (a duplicate ACK) when an
out-of-order segment is received. This duplicate ACK should not be delayed. The
purpose is to tell the sender that the segment arrived out of order and what segment
number the receiver expects.
Cause:
• segments arriving out of order OR
• lost segment
If more than a small number (3) of duplicate ACKs are detected, assume that a
segment has been lost; then retransmit the missing segment immediately (without
waiting for a retransmission timeout) and perform congestion avoidance - but not
slow start.
Why not slow start? Because the only way you could have gotten duplicate ACKs
is if subsequent segments did arrive - which means that data is getting through.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 283 of 330
Internetworking/Internetteknik
Per-Route Metrics
Newer TCPs keeps smoothed RTT, smoothed mean deviation, and slow start
threshold in the routing table.
When a connection is closed, if there was enough data exchanged (defined as 16
windows full) - then record the parameters
• i.e., 16 RTT samples ⇒ smoothed RTT is accurate to ~5%
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 284 of 330
Internetworking/Internetteknik
TCP Persist Timer
If the window size is 0 and an ACK is lost, then receiver is waiting for data and
sender is waiting for a non-zero window!
To prevent deadlock, introduce a persist timer that causes sender to query the
receiver periodically with window probes to find out if window size has
increased.
Window probes sent every 60 seconds - TCP never gives up sending them.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 285 of 330
Internetworking/Internetteknik
TCP Keepalive Timer
No data flows across an idle TCP connection - connections can persist for days,
months, etc. Even if intermediate routers and links go down the connection
persists!
However, some implementations have a keepalive timer.
Host Requirements RFC gives 3 reasons not to use keepalive messages:
• can cause perfectly good connections to be dropped during transient
failures
• they consume unnecessary bandwidth
• they produce additional packet charges (if you are on a net that
charges per packet)
Host Requirements RFC says you can have a keepalive time but:
• it must not be enabled unless an application specifically asks
• the interval must be configurable, with a default of no less than 2 hrs.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 286 of 330
Internetworking/Internetteknik
TCP Performance
TCP’s path MTU discovery:
• use min(MTU of outgoing interface, MSS announced by other end)
• use per-route saved MTU
• once an initial segment size is chosen - all packets have don’t fragment
bit set
• if you get an ICMP “Can’t fragment” message - recompute Path MTU.
• periodically check for possibility of using a larger MTU (RFC 1191
recommends 10 minute intervals)
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 287 of 330
Internetworking/Internetteknik
Long Fat Pipes
Networks with large bandwidth-delay products are called Long Fat Networks
(LFNs) - pronounced “elefants”.
TCP running over a LFN is a Long Fat Pipe.
• Window Scale option - to avoid 16 bit window size limit
• Timestamp option - putting a time stamp in each segment allows better
computation of RTT
• Protection Against Wrapped Sequence Numbers (PAWS) - with large
windows you could have sequence number wrap around and not know
which instance of a given sequence number is the correct one;
solved by using timestamps (which must simply be monotonic)
• T/TCP - TCP extension for Transactions; to avoid the three way
handshake on connection setup and shorten the TIME_WAIT state.
(for details of T/TCP see Stevens, Vol.3)
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 288 of 330
Internetworking/Internetteknik
Measuring TCP Performance
Measured performance:
• Performance on Ethernets at ~90% of theoretical value (using
workstations)
• TCP over FDDI at 80-98% of theoretical value
• TCP (between two Crays) at 781 Mbits/sec over a 800Mbit/sec HIPPI
channel
• TCP at 907Mbits/sec on a loopback interface of a Cray Y-MP.
Practical limits:
• can’t run faster than the slowest link
• can’t go faster than the memory bandwidth of the slowest machine
(since you have to touch the data at least once)
• you can’t go faster than the window size offered by the receiver divided
by the round trip time (comes from the calculation of the bandwidth
delay product)
• thus with the maximum window scale factor (14) ⇒ window size of 1.073 Gbits; just divide
by RTT to find the maximum bandwidth
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 289 of 330
Internetworking/Internetteknik
Example of TCP behavior 1
1. Figure 7-3, from Mattias Ronquist, “TCP Reaction to Rapid Changes of the Link Characteristics due to Handover in a Mobile Environment”, MS Thesis, Royal Institute of Technology,
Teleinformatics, August 4, 1999, p.38.
Maguire
[email protected]
TCP header continued
2008.03.29
TCP, HTTP, RPC, NFS, X 290 of 330
Internetworking/Internetteknik
TCP servers
Stevens, Vol. 1, pp. 254-260 discusses how to design a TCP server, which is
similar to list of features discussed for UDP server, but now it is incoming
connection requests which are queued rather than UDP datagrams
• note that incoming requests for connections which exceed the queue are silently ignored - it is up to the sender to time out it active open
• this limited queuing has been one of the targets of denial of service
attacks
• TCP SYN Attack - see http://cio.cisco.com/warp/public/707/4.html
• Increase size of the SYN_RCVD queue (kernel variable somaxconn limits the maximum
backlog on a listen socket - backlog is the sum of both the SYN_RCVD and accept queues)
and decrease the time you will wait for an ACK in response to your SYN_ACK
• for a nice HTTP server example, see
http://www.cs.rice.edu/CS/Systems/Web-measurement/paper/node3.html
Maguire
[email protected]
TCP servers
2008.03.29
TCP, HTTP, RPC, NFS, X 291 of 330
Internetworking/Internetteknik
Hypertext Transfer Protocol (HTTP)
This protocol is the basis for the World Wide Web (WWW).
Uses TCP connections. HTTP traffic growing at a very high rate - partly due to
popularity and partly due to the fact that it can easily include text, pictures,
movies, … .
Web server
TCP port 80
hypertext
link
hypertext
link
TCP port 80
Web server
Web server
TCP port 80
Web client (browser)
Figure 49: Organization of a Web client-server
(see Stevens, Vol. 3, figure 15.1, pg. 210)
HTTP described by an Internet Draft in 1993; replaced with RFC 1945, “Hypertext
Transfer Protocol -- HTTP/1.0”, May 1996; RFC 2068, “Hypertext Transfer
Protocol -- HTTP/1.1”, January 1997; replaced by RFC 2616, June 1999,
RFC 2817 “Upgrading to TLS Within HTTP/1.1”, May 2000.
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 292 of 330
Internetworking/Internetteknik
HTTP Prococol
2 message types:
• request
HTTP 1.0 request
request line
headers (0 or more)
<blank_line>
body (only for a POST request)
• response
HTTP/1.0 response
status line
headers (0 or more)
<blank_line>
body
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 293 of 330
Internetworking/Internetteknik
HTTP Requests
request-line == request request-URI HTTP-version
Three requests:
• GET - returns information identified by request URI
• HEAD - similar to GET but only returns header information
• POST - sends a body with a request; used for posting e-mail, news,
sending a fillin form, etc.
Universal Resource Idendifiers (URIs) - described in RFC 1630, URLs in RFC
1738 and RFC 1808.
status-line == HTTP-version response-code response-phrase
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 294 of 330
Internetworking/Internetteknik
HTTP Header fields
HTTP Header names (See Stevens, figure 13.3, Vol. 3, pg. 166)
Header name
Request?
Response?
Body?
Allow
Authorization
Content-Encoding
Content-Length
Content-Type
Date
Expires
From
If-Modified-Since
Last-Modified
Location
MIME-Version
Pragma
Referer
Server
User-Agent
WWW-Authenticate
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 295 of 330
Internetworking/Internetteknik
HTTP Response Codes
HTTP 3-digit response code (See Stevens, figure 13.4, Vol. 3, pg. 167)
Response
Description
1yz
Informational. Not currently used
Success
OK, request succeeded.
OK, new resource created (POST command)
Request accepted but processing not completed
OK, but no content to return
Redirection; further action needs to be taken by user agent
Requested resource has been assigned a new permanent URL
Requested resource resides temporarily under a different URL
Document has not been modified (conditional GET)
Client error
Bad request
Unauthorized; request requires user authentication
Forbidden for unspecified reason
Not found
Server error
Internal server error
Not implemented
Bad gateway; invalid response from gateway or upstream server
Service temporarily unavailable
200
201
202
204
301
302
304
400
401
403
404
500
501
502
503
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 296 of 330
Internetworking/Internetteknik
Client Caching
Client can cache HTTP documents along with the date and time the document was
fetched.
If the document is cached, then the If-Modified-Since header can be sent to check
if the document has changed since the copy was cached - thus saving a transfer but costing a round trip time and some processing time. This is called a conditional
GET.
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 297 of 330
Internetworking/Internetteknik
Server Redirect
Response code 302, along with a new location of the request-URI.
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 298 of 330
Internetworking/Internetteknik
Multiple simultaneous connections to server
GET of a page with multiple objects on it (such as GIF images) - one new
connection for each object, all but the first can occur in parallel!
00
port 1114
port 1118
port 1115
port 1121
port 1119
port 1116
port 1117
port 1120
in seconds
Figure 50: Timeline of eight TCP connection for a home page and seven GIF images
(see Stevens, Vol. 3, figure 113.5, pg. 171)
Note that the port 1115, 1116, and 1117 requests start before 1114 terminates,
Netscape can initiate 3 non-blocking connects after reading the end-of-file but
before closing the first connection.
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 299 of 330
Internetworking/Internetteknik
Decrease in total time to produce a response:
(from Stevens, figure 13.6, Vol. 3, pg. 171)
Simultaneous
connections
Total time
(seconds)
1
2
3
4
5
6
7
14.5
11.4
10.5
10.2
10.2
10.2
10.2
Why no improvement beyond 4?
• program has an implementation limit of 4, even if you specify more!
• gains beyond 4 are probably small (given the small difference between
3 and 4) - but Steven’s has not checked!
Maguire
[email protected]
Hypertext Transfer Protocol (HTTP)
2008.03.29
TCP, HTTP, RPC, NFS, X 300 of 330
Internetworking/Internetteknik
Problems with multiple connections
Such multiple connection have problems:
• Unfair to other protocols (such as FTP) which are using one connection
at a time to fetch multiple files
• Congestion information is not passed to the other connections
• can more easily overflow the server’s incomplete connection queue
which can lead to large delays as the host retransmits SYNs.
♦ In fact it looks like a denial of service attack -- which is trying to flood the host!
Maguire
[email protected]
Problems with multiple connections
2008.03.29
TCP, HTTP, RPC, NFS, X 301 of 330
Internetworking/Internetteknik
HTTP Statistics
Statistics for individual HTTP connections (see Stevens, figure 13.7, Vol. 3, pg. 172)
Median
Mean
client bytes/connection
224
266
server bytes/connection
3,093
7,900
connection duration (seconds)
3.4
22.3
Mean is often skewed by very large transfers.
Maguire
[email protected]
Problems with multiple connections
2008.03.29
TCP, HTTP, RPC, NFS, X 302 of 330
Internetworking/Internetteknik
What happens when you make an HTTP request
makeup UDP packet for
DNS lookup
connect to www.it.kth.se
choose name server
Reality!
choose LAN adapter
send ARP for
name server or gateway MAC
Logically
request
reply
request
send DNS query
*
reply
send ARP for
HTTP server’s MAC or
send via gateway MAC
send TCP SYN to IT’s IP
address, via local router’s MAC
address
Maguire
[email protected]
Adopted from “TCP/IP from the wire up” by Joe R. Doupnik,
Novell’s BrainShare’99. http://netlab1.usu.edu/pub/bsuk99/
Problems with multiple connections
2008.03.29
TCP, HTTP, RPC, NFS, X 303 of 330
Internetworking/Internetteknik
HTTP Performance Problems
HTTP opens one connection for each document.
• Each such connection involves slow start - which adds to the delay
• Each connection is normally closed by the HTTP server - which has to
wait TIME_WAIT, thus lots of control blocks are waiting in the server.
Proposed changes:
• have client and server keep a TCP connection open {this requires that
the size of the response (Content-Length) be generated}
• requires a change in client and server
• new header Pragma: hold-connection
• GETALL - causes server to return document and all in-lined images in
a single response
• GETLIST - similar to a client issuing a series of GETs
• HTTP-NG (aka HTTP/1.1) - a single TCP connection with multiple
sessions {it is perhaps the first TCP/IP session protocol}
• HTTP/1.1 also has another feature - the server knows what hostname was in the request,
thus a single server at a single IP address can be the HTTP server under many “names” hence providing “Web hotel” services for many firms _but_ only using a single IP address.
Maguire
[email protected]
Problems with multiple connections
2008.03.29
TCP, HTTP, RPC, NFS, X 304 of 330
Internetworking/Internetteknik
HTTP performance
Joe Touch, John Heidemann, and Katia Obraczka, “Analysis of HTTP
Performance”,USC/Information Sciences Institute, August 16, 1996, Initial
Release, V1.2 -- http://www.isi.edu/lsam/publications/http-perf/
John Heidemann, Katia Obraczka, and Joe Touch, “Modeling the Performance of
HTTP Over Several Transport Protocols”, IEEE/ACM Transactions on
Networking 5(5), October 1997. November, 1996.
http://www.isi.edu/~johnh/PAPERS/Heidemann96a.html
Simon E Spero, “Analysis of HTTP Performance problems”
http://sunsite.unc.edu/mdma-release/http-prob.html This is a nice introduction to HTTP
performance.
John Heidemann, “Performance Interactions Between P-HTTP and TCP
Implementations”. ACM Computer Communication Review, 27 2, 65-73, April,
1997. http://www.isi.edu/~johnh/PAPERS/Heidemann97a.html
Maguire
[email protected]
HTTP performance
2008.03.29
TCP, HTTP, RPC, NFS, X 305 of 330
Internetworking/Internetteknik
Web Enabled Devices
emWare - thin client (30 bytes of RAM, 750 bytes of ROM) - for a very thin client
URL: http://www.emware.com/
Splits the web server into a very tiny server on the device and more processing (via
applets) in the desktop system (where the WEB browser is running).
Axis Communications AB - http://www.axis.com - produces many web enabled devices
- from thin clients to “cameras” running an embedded Linux
Maguire
[email protected]
Web Enabled Devices
2008.03.29
TCP, HTTP, RPC, NFS, X 306 of 330
Internetworking/Internetteknik
Network File System (NFS)
NFS is based on Sun’s Remote Procedure Call (RPC) - RFC 1831
• from the caller’s point of view it looks much like a local procedure call
• from the callee’s point of view it seems much like a local procedure call
• Request-reply protocol
• UDP or TCP transport
• Standardized data representation - RPC encodes its data using the
eXternal Data Representation (XDR) protocol, RFC 1832
• Authentication {for example, for NFS operations, authentication usually
based on relaying UNIX user and group IDs to the file server for
permission checking}
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 307 of 330
Internetworking/Internetteknik
Remote Procedure Call (RPC)
Two versions:
• using Sockets API and works with TCP and UDP
• using TLI API TI-RPC (Transport Independent) and works with any
transport layer provided by the kernel
Format of an RPC call message as a UDP datagram
IP Header
UDP Header
transaction ID (XID)
call (0)
RPC version (2)
program number
version number
procedure number
credentials
verifier
procedure parameters
20 bytes
8
4
4
4
4
4
4
upto 400 bytes
upto 400 bytes
N
• XID set by client and returned by server (client uses it to match
requests and replies)
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 308 of 330
Internetworking/Internetteknik
• program number, program version, procedure number identifies the
procedue to be called
• credentials identify the client - sometimes the user ID and group ID
• verifier - used with secure RPC (to identify the server); uses DES
encryption
l
Format of an RPC reply message as a UDP datagram
IP Header
UDP Header
transaction ID (XID)
call (1)
status (0=accepted)
verifier
procedure results
Maguire
[email protected]
20 bytes
8
4
4
4
upto 400 bytes
N
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 309 of 330
Internetworking/Internetteknik
External Data Representation (XDR)
used to encode value in RPC messages - see RFC 1014
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 310 of 330
Internetworking/Internetteknik
Port Mapper
RPC server programs use ephemeral ports - thus we need a well known port to be
able to find them
Servers register themselves with a registrar - the port mapper
(called rpcbind in SVR4 and other systems using TI-RPC)
Port mapper is at well know port: 111/UDP and 111/TCP
The port mapper is an RPC server with program number 100000, version 2, a TCP
port of 111, a UDP port of 111.
Servers register themselves with RPC calls and clients query with RPC calls:
• PMAPPROC_SET - register an entry
• PMAPPROC_UNSET - unregister an entry
• PMAPPROC_GETPORT - get the port number of a given instance
• PMAPPROC_DUMP - returns all entries (used by “rpcinfo -p”)
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 311 of 330
Internetworking/Internetteknik
NFSspy
Insert a new pointer in place of the RPC we want to snoop
Embed this earlier code in our code:
routine
routine
prolog
epilog
After
Before
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 312 of 330
Internetworking/Internetteknik
NFSspy problem
Imagine several students each insert a new pointer in place of the RPC they want
to snoop:
What happens if this one dies?
routine
prolog
prolog
prolog
epilog
epilog
epilog
The routine is no longer callable by anyone!
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 313 of 330
Internetworking/Internetteknik
nfsspy
Initial implementations were written by Seth Robertson, Jon Helfman, Larry
Ruedisueli, Don Shugard, and other students for a project assignment in my course
on Computer Networks at Columbia Univ. in 1989. There is a report about one
implementation by Jon Helfman, Larry Ruedisueli, and Don Shugard, "Nfspy: A
System for Exploring the Network File System", AT&T Bell Laboratories,
11229-890517-07TM.
See also “NFS Tracing By Passive Network Monitoring” by Matt Blaze, ~1992,
http://www.funet.fi/pub/unix/security/docs/papers/nfsspy.ps.gz
Matt’s program builds upon an rpcspy program and this feeds packets to his nfstrace program and other
scripts.
Seth Robertson’s version even inverted the file handles to show the actual file
names.
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 314 of 330
Internetworking/Internetteknik
NFS protocol, version 2 (RFC 1094)
• provides transparent file access
• client server application built on RPC
Generally, NFS server at 2049/UDP - but it can be at different ports
User process
local file access
client kernel
local file access
NFS client
NFS server
TCP/UDP
IP
UDP port 2049
TCP/UDP
IP
server kernel
local
disk
local
disk
Figure 51: NFS client and NFS server (see Stevens, Vol. 1, figure 29.3, pg. 468)
Most NFS servers are multithreaded - so that multiple requests can be in process
at one time. If the server kernel does not support mutlithreading then multiple
server processes (“nfsd”) are used.
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 315 of 330
Internetworking/Internetteknik
Often there are multiple NFS clients (“biod”) running on the client machine - each
processes one call and waits inside the kernel for the reply.
NFS consists of more than just the NFS protocol
Various RPC programs used with NFS (see Stevens, Vol. 1, pg. 469)
Application
program number
version numbers
Number of
procedures
port mapper
100000
2
4
NFS
100003
2
15
mount
100005
1
5
lock manager
100021
1,2,3
19
status monitor
100024
1
6
lock manager and status monitor allow locking of portions of files
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 316 of 330
Internetworking/Internetteknik
NFS File Handles
To reference a file via NFS we need a file handle, an opaque object used to
reference a file or directory on the server.
File handle is created by the server - upon an lookup; subsequent client requests
just simply pass this file handle to the appropriate procedure (they never look at
the contents of this object - hence it is opaque).
• in version 2, a file handle is 32 bytes
• in version 2, a file handle is 64 bytes
UNIX systems generally encode the filesystem ID (major and minor dev
numbers), the i-node number, and an i-node generation number into the file
handle.
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 317 of 330
Internetworking/Internetteknik
NFS Mount protocol
Server can check IP address of client, when it gets a mount command from a client
to see if this client is allowed to mount the given filesystem; Mount daemon
returns the file handle of the given filesystem.
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 318 of 330
Internetworking/Internetteknik
NFS Procedures
Procedure
Description
NFSPROC_GETATTR
NFSPROC_SETATTR
NFSPROC_STATFS
NFSPROC_LOOKUP
NFSPROC_READ
NFSPROC_WRITE
return the attributes of a file
set the attributes of a file
return the status of a filesystem
lookup a file - returns a file handle
read from a file, starting at specified offset for n bytes (upto 8192 bytes)
Write to a file, starting at specified offset for n bytes (upto 8192 bytes)
Writes are synchronous - i.e., server responds OK when file is actually written to disk
(this can often be changed as an option at mount time - but you can get into trouble)
Create a file
Delete a file
Rename a file
make a hard link to a file
make a symbolic link to a file
return the name of the file to which the symbolic link points
create a directory
delete a directory
read a directory
NFSPROC_CREATE
NFSPROC_REMOVE
NFSPROC_RENAME
NFSPROC_LINK
NFSPROC_SYMLINK
NFSPROC_READLINK
NFSPROC_MKDIR
NFSPROC_RMDIR
NFSPROC_READDIR
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 319 of 330
Internetworking/Internetteknik
NFS over TCP
Provided by some vendors for use over WANs.
• All applications on a given client share the same TCP connection.
• Both client and server set TCP keepalive timers
• If client detects that server has crashed or been rebooted, it tries to
reconnect to the server
• if the client crashes,the client gets a new connection, the keepalive
timer will terminate the half-open former connection
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 320 of 330
Internetworking/Internetteknik
NFS Statelessness
NFS is designed to be stateless
• the server does not keep track of what clients are accessing which files
• there are no open or close procedures; just LOOKUP
• being stateless simplifies server crash recovery
• clients don’t know if the server crashes
• only the client maintains state
Most procedures (GETATTR, STATFS, LOOKUP, READ, WRITE, READIR)
are idempotent (i.e., can be executed more than once by the server with the same
result).
Some (CREATE, REMOVE, RENAME, SYMLINK, MKDIR, RMDIR) are not.
SETATTR is idempotent unless it is truncating a file.
To handle non-idempotent requests - most servers use recent-reply cache,
checking their cache to see if they have already performed the operation and
simply return the same value (as before).
Maguire
[email protected]
Network File System (NFS)
2008.03.29
TCP, HTTP, RPC, NFS, X 321 of 330
Internetworking/Internetteknik
X Window System
• Client-server application that lets multiple clients share a bit-mapped
display.
• One server manages the display, keyboard, mouse, …
• X requires a reliable bidirectional bitstream protocol (such as TCP).
• The server does a passive open on port 6000+n, where n is the display
number (usually 0)
• X can also use UNIX domain sockets
(with the name /tmp/.X11-unix/Xn, where n is the display number)
• > 150 different messages in the X protocol (for details see Nye, 1992)
Display
window
Client process
Client process
TC
P
UNIX domain
protocol
Figure 52: Clients using a X server to access one display
Client process
Maguire
[email protected]
TCP
X server process
X Window System
2008.03.29
TCP, HTTP, RPC, NFS, X 322 of 330
Internetworking/Internetteknik
• All clients (even those on different hosts) communicate with the same
server.
• Lots of data can be exchanged between client and server
• xclock - send date and time once per second
• Xterm - send each key stroke (a 32 byte X message ⇒ 72 bytes with IP and TCP headers)
• some applications read and write entire 32 bit per pixel images in cine mode from/to a
window!
Maguire
[email protected]
X Window System
2008.03.29
TCP, HTTP, RPC, NFS, X 323 of 330
Internetworking/Internetteknik
Low Bandwidth X
X was optimized for use across LANs.
For use across low speed links - various techniques are used:
• caching
• sending differences from previous packets
• compression, …
Maguire
[email protected]
X Window System
2008.03.29
TCP, HTTP, RPC, NFS, X 324 of 330
Internetworking/Internetteknik
Xscope
Interpose a process between the X server and X client to watch traffic.
For example, xscope could be run as if it were display “1”, while passing traffic to
and from display “0”. See Stevens, Vol.1, pp. 488-489 for more details (or try
running it!)
J.L. Peterson. XSCOPE: A Debugging and Performance Tool for X11. Proceedings of the IFIP 11th World
Computer Congress, September, 1989, pp. 49-54.
See also XMON - An interactive X protocol monitor
Both are available from: ftp://ftp.x.org/pub/R5/
Maguire
[email protected]
X Window System
2008.03.29
TCP, HTTP, RPC, NFS, X 325 of 330
Internetworking/Internetteknik
Additional tools for watching TCP
Program
Description
IPerf
Measure bandwidth availabity using a client and server. Determines total bandwidth, delay jitter, loss,
determine MTU, support TCP window size, …
Pathchar
Determine per hop network path characteristics (bandwidth, propagation delay, queue time and drop
rate. It utilizes a series of packets with random payload sizes over a defined period of time to each hop in
a path.
Pchar
Updated version of Pathchar -- by Bruce Mah
Netlogger
NetLogger includes tools for generating precision event logs that can be used fpr detailed end-to-end
application & system level monitoring, and tools for visualizing log data to view the state of a
distributed system in real time.
Treno
Measure single stream bulk transfer capacity. TReno doesn’t actually use TCP slow start, but instead
emulates it. It actually sends UDP packets to unused ports and uses the returned error meassages to
determine the packet timing.
Mping
Measure queuing properties during heavy congestion
tdg
produce graphs of TCP connections from tcpdump files, suitable for use with xgraph. A perl script
which produces time-sequence plots from tcpdump files.
Maguire
[email protected]
Additional tools for watching TCP
2008.03.29
TCP, HTTP, RPC, NFS, X 326 of 330
Internetworking/Internetteknik
Program
Description
tcptrace
parses raw tcpdump files to extract information and xplot files.
xplot
generate graphs from plot data in X Windows.
testrig
automated connection diagnosis tool; generates a test flow & display a time sequence plot based on that
flow.
aspath
determine traffic usage by AS path.
Maguire
[email protected]
Additional tools for watching TCP
2008.03.29
TCP, HTTP, RPC, NFS, X 327 of 330
Internetworking/Internetteknik
Transaction TCP (T/TCP)
Piggyback a query in the TCP open - so that you don’t have to wait a long time for
sending a query / response
Maguire
[email protected]
Transaction TCP (T/TCP)
2008.03.29
TCP, HTTP, RPC, NFS, X 328 of 330
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• TCP
• HTTP
• Web enabled devices
• RPC, XDR, and NFS
• X Window System, and
• some tools for looking at these protocols
Maguire
[email protected]
Summary
2008.03.29
TCP, HTTP, RPC, NFS, X 329 of 330
Internetworking/Internetteknik
References
[40] Information Sciences Institute, University of Southern California,
Transmission Control Protocol, IETF, RFC 793, September 1981
Maguire
[email protected]
References
2008.03.29
TCP, HTTP, RPC, NFS, X 330 of 330
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 6: SCTP
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapter 13
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
SCTP.fm5
2008.03.29
Total pages: 375
Transport layer protocols
• User Datagram Protcol (UDP)
• Connectionless unreliable service
• Transmission Control Protocol (TCP)
• Connection-oriented reliable stream service
• Stream Control Transmission Protocol (SCTP) <<< today’s topic
• Reliable message oriented service - a modern transmission protocol
Maguire
[email protected]
Transport layer protocols
2008.03.29
SCTP 332 of 375
Internetworking/Internetteknik
Stream Control Transmission Protocol
(SCTP) [43]
Provides a reliable message-oriented service; combining best of TCP & UDP.
• SCTP utilizes full-duplex associations
• SCTP applications write messages to one of several streams and read
messages from these streams
• each unit is a chunk
• here are record makers ⇒ the receiver can tell how much the sender wrote into the stream
at any given time
• multiple streams prevents a loss on one stream from affecting other streams
• SCTP supports multihoming
• the sender and receiver can utilize multiple interfaces with multiple IP addresses ⇒
increased fault tolerance
• current implementations do not support load balancing (i.e., only supports failover)
• SCTP provides reliability
• via acknowledgements, timeouts, retransmission, …
• SCTP provides flow control
• SCTP tries to avoid causing congestion
Maguire
[email protected]
Stream Control Transmission Protocol (SCTP) [43]
2008.03.29
SCTP 333 of 375
Internetworking/Internetteknik
SCTP Applications
• Initial goal of IETF Sigtran WG was to support SS7 applications over IP
• For example, SMS transfer!
• For an example see [41], [45]
• new applications being developed to use SCTP
• SIP over SCTP
• HTTP over SCTP
• recommended transport protocol for DIAMETER
• Strong security can be provided via TLS [52]
Maguire
[email protected]
Stream Control Transmission Protocol (SCTP) [43]
2008.03.29
SCTP 334 of 375
Internetworking/Internetteknik
SCTP Header
7
8
15 16
16 bit source port
23 24
16 bit destination port
32 bit verification tag
32 bit Checksum
31
12 bytes
0
Control chunk(s) {If any}
Data chunk(s) {If any}
Figure 53: SCTP packet (see Forouzan figure 13.4 pg. 350)
IP protocol x84 = SCTP
• General Header
• As with UDP & TCP, SCTP provides de/multiplexing via the 16 bit source and destination
ports.
• Associations between end points are defined by a unique verification tag
– A separate verification tag is used in each direction
• SCTP applies a CRC-32 end-to-end checksum to its general header and all the chunks
– Previously it used Adler-32 checksum [51]
• Chunks
• Control information is contained in Control Chunks (these always precede any data chunks)
• Multiple data chunks can be present - each containing data for different streams
Maguire
[email protected]
SCTP Header
2008.03.29
SCTP 335 of 375
Internetworking/Internetteknik
SCTP Chunk
0
7
Type
8
15 16
23 24
31
Flag
Length
Chunk information padded to a multiple of 4 bytes
Figure 54: SCTP packet (see Forouzan figure 13.8 pg. 354)
• Type
Type Chunk
Description
Type Chunk
0
1
DATA
INIT
User data
Setup an association
7
8
2
INIT-ACK
Acknowledge an INIT chunk 9
3
SACK
Selective Acknowledgement 10
4
HEARTBEAT
Probe to see if peer is alive
11
5
HEARTBEAT-ACK
14
6
ABORT
Acknowledgement of a
HEARTBEAT chunk
Abort an association
192
Description
SHUTDOWN
Terminate an association
SHUTDOWN-ACK Acknowledge SHUTDOWN
chunk
ERROR
Reports errors without
shutting down
COOKIE ECHO
Third packet in establishment
of an association
COOKIE ACK
Acknowledges COOKIE
ECHO chunk
SHUTDOWN
Third packet in an association
COMPLETE
terminations
FORWARD TSN
To adjust the cumulative TSN
• Flag - 8 bit field defined per chunk type
• Length - 16 bit length of chunk including chunk header (i.e., smallest value is 4) - does not
include any padding bytes (hence you know just how much padding there is)
Maguire
[email protected]
SCTP Chunk
2008.03.29
SCTP 336 of 375
Internetworking/Internetteknik
Association establishment - 4-way handshake
server
client
time
INIT, VT:0
tag: 1200 rwnd:1000
TSN:100
INIT-ACK, VT:1200
tag: 5000 rwnd:2000
TSN:1700 + Cookie
TCB
allocated
COOKIE, VT:5000
Cookie
COOKIE-ACK, VT:1200
See Forouzan figure 13.19 page 363
The entity initiating the connection is (normally) called the "client" and does an
active open, where as the server needed to previous do a passive open.
Maguire
[email protected]
Association establishment - 4-way handshake
2008.03.29
SCTP 337 of 375
Internetworking/Internetteknik
INIT Chunk
0
7
8
Type = 1
15 16
Flag = 0
23 24
31
Length
Initiation tag
Advertised receiver window credit (rwnd)
Outbound streams
Maximum inbound streams
Initial Transmission sequence number (TSN)
variable-length parameters (optional)
Figure 55: SCTP INIT chunk (see Forouzan figure 13.10 pg. 357)
• Initiation tag
• defines the tags for this association to be used by the other party
• reduce the risk due to a blind attacker (since there is only a 1 in 232 chance of guessing the
right tag)
• can reject delayed packets - thus avoiding the need for TCP’s TIME-WAIT timer
• Advertised receiver window credit
• defines rwnd (i.e., how much the receiver can send to this party)
• Outbound streams
• suggested upper number of streams from this sender (can be reduced by receiver)
• Maximum inbound streams
• upper limit of streams to this sender
Maguire
[email protected]
INIT Chunk
2008.03.29
SCTP 338 of 375
Internetworking/Internetteknik
• Transmission sequence number (TSN)
• Initializes the TSN in the outbound direction, initialized to a random value
• Variable-length parameters
• IP address(es) of endpoint
– Multiple addresses are used to support multihoming
– The receiver selects the primary address for the other endpoint
• Type of addresses
• Support for Explicit Congestion Notification (ECN)
• …
Maguire
[email protected]
INIT Chunk
2008.03.29
SCTP 339 of 375
Internetworking/Internetteknik
INIT ACK Chunk
0
7
Type = 2
8
15 16
Flag = 0
23 24
31
Length
Initiation tag
Advertised receiver window credit (rwnd)
Outbound streams
Maximum inbound streams
Initial Transmission sequence number (TSN)
Parameter type: 7
Parameter length
State Cookie
variable-length parameters (optional)
Figure 56: SCTP INIT ACK chunk (see Forouzan figure 13.11 pg. 358)
The same fields as in the INIT chunk (with Initiation tag value set to that of the
INIT) - but with the addition of a required parameter with a state cookie.
• Parameter type: 7 = State Cookie
• Parameter length = size of State Cookie + 4 (the parameter type and
length fields)
A packet carrying this INIT ACK chunk can not contain any other control or data
chunks.
Maguire
[email protected]
INIT ACK Chunk
2008.03.29
SCTP 340 of 375
Internetworking/Internetteknik
State Cookie
Use of the COOKIE prevents a SYN flood like attack - since resources are not
allocated until the COOKIE ECHO chuck is received.
However, state has to be saved from the initial INIT chunk - therefore it is placed
in the cookie in a way that only the server can access it (hence the cookie is sealed
with an HMAC {aka digest} after being created {aka “baked”}). This requires that
the server has a secret key which it uses to compute this digest.
If the sender of the INIT is an attacker located on another machine, they won’t be
able to receive the cookie if they faked the source address in the INIT - since the
INIT ACK is sent to the address and contains the cookie!
• Without a cookie ⇒ no association is created and no resources (such as TCB) are tied up!
Maguire
[email protected]
INIT ACK Chunk
2008.03.29
SCTP 341 of 375
Internetworking/Internetteknik
COOKIE ECHO Chunk
0
7
Type = 10
8
15 16
Flag = 0
23 24
31
Length
State Cookie
Figure 57: SCTP COOKIE ECHO chunk (see Forouzan figure 13.12 pg. 359)
• (chunk) Type: 10 = COOKIE ECHO
• (chunk) length = size of State Cookie + 4 (the parameter type and
length fields)
• State Cookie
• simply a copy of the COOKIE data from the INIT ACK chunk
• The COOKIE data is opaque (i.e., only the sender can read the cookie)
A packet carrying this COOKIE ECHO chunk can contain other control or data
chunks -- in particular it can care the first user (client) data!
Maguire
[email protected]
COOKIE ECHO Chunk
2008.03.29
SCTP 342 of 375
Internetworking/Internetteknik
COOKIE ACK Chunk
0
7
Type = 11
8
15 16
Flag = 0
23 24
31
Length = 4
Figure 58: SCTP COOKIE ACK chunk (see Forouzan figure 13.13 pg. 359)
Completes the 4 way handshake.
A packet with this chunk can also carry control and data chunks (in particular the
first of the user (server) data.
Maguire
[email protected]
COOKIE ACK Chunk
2008.03.29
SCTP 343 of 375
Internetworking/Internetteknik
Data Chunk
0
7
8
15 16
23 24
31
Type = 0
Reserved
U B E
Length
Transmission sequence number (TSN)
Stream identifier (SI)
Stream Sequence number (SSN)
Protocol Identifier
User data
Figure 59: SCTP Data Chunk (see Forouzan figure 13.9 pg. 356)
• Flags:
• U - Unordered - for delivery to the application right away
• B - Beginning (chunk position - for use with fragmentation)
• E - End chunk
•
•
•
•
•
Transmission sequence number (TSN)- only data chunks consume TSNs
Stream identifier (SI)
Stream Sequence number (SSN)
Protocol Identifier
User data
• at least 1 byte of user data; padded to 32 bit boundaries
• although a message can be spread over multiple chunks, each chunk contains data from
only a single message (like UDP, each message results in one or more data SCTP chunks)
Maguire
[email protected]
Data Chunk
2008.03.29
SCTP 344 of 375
Internetworking/Internetteknik
Multiple-Streams
Receiving Process
Sending Process
Stream of data chunks
…
Stream of data chunks
SCTP
SCTP
Figure 60: Multiple-streams (see Forouzan figure 13.2 pg. 347)
The figure above shows a single association.
Each stream has a unique stream identifier (SI) and maintains its own stream
sequence number (SSN).
Unordered data chunks (i.e., with U = 0) - do not consume a SSN and are delivered
when they arrive at the destination.
Multiple streams and unordered data avoid TCP’s head of line blocking.
Maguire
[email protected]
Multiple-Streams
2008.03.29
SCTP 345 of 375
Internetworking/Internetteknik
Selective Acknowledgement (SACK) Chunk
0
7
8
15 16
23 24
31
Type = 3
Flag = 0
Length
cumulative TSN acknowledgement
Advertised receiver window credit
Number of gap ACK blocks: N
Number of duplicates: M
Gap ACK block #1 start TSN offset
Gap ACK block #1 end TSN offset
…
…
Gap ACK block #N start TSN offset
Gap ACK block #N end TSN offset
Duplicate TSN 1
…
Duplicate TSN M
Figure 61: SCTP Data Chunk (see Forouzan figure 13.9 pg. 356)
• Cumulative Transmission sequence number (TSN) acknowledgement the last data chunk received in sequence
• Gap = received sequence of chunks (indicated with start .. end TSNs)
• Duplicate TSN - indicating duplicate chunks (if any)
• SACK always sent to the IP address where the corresponding packet
originated
Maguire
[email protected]
Selective Acknowledgement (SACK) Chunk
2008.03.29
SCTP 346 of 375
Internetworking/Internetteknik
ERROR chunk
Sent when an endpoint finds some error in a packet
0
7
Type = 9
8
15 16
Flag
23 24
31
Length
One or more causes (optional)
Figure 62: SCTP ERROR chunk (see Forouzan figure 13.17 pg. 361)
Error code
1
2
3
4
5
6
7
8
9
10
Maguire
[email protected]
Description
Invalid Stream identifier
Missing mandatory parameter
State cookie error
Out of resource
Unresolvable address
Unrecognized chunk type
Invalid mandatory parameters
Unrecognized parameter
No user data
Cookie received while shutting down
ERROR chunk
2008.03.29
SCTP 347 of 375
Internetworking/Internetteknik
Association Termination
Two forms of termination
• Association Abort
• Used in the event of a fatal error
• uses same error codes as the ERROR Chunk
• Chunk format
0
7
Type = 6
8
15 16
Flag = 6
23 24
31
Length
One or more causes (optional)
Figure 63: SCTP ABORT chunk (see Forouzan figure 13.18 pg. 362)
• Association Shutdown - graceful termination
Maguire
magui[email protected]
Association Termination
2008.03.29
SCTP 348 of 375
Internetworking/Internetteknik
Association Shutdown
Flush Queues
client
Active
close
server
Passive
close
SHUTDOWN, VT:x
Cumulative TSN
time
SHUTDOWN-ACK, VT:y
SHUTDOWN COMPLETE, VT:x
Figure 64: Adapted from Forouzan figure 13.21 page 368 and slide 15 of [42]
0
7
8
Type = 7
15 16
23 24
Flag
cumulative TSN acknowledgement
Length = 8
31
Figure 65: SCTP SHUTDOWN chunk (see Forouzan figure 13.16 pg. 361)
0
7
Type = 8
8
15 16
Flag
23 24
31
Length = 4
Figure 66: SCTP SHUTDOWN ACK chunk (see Forouzan figure 13.16 pg. 361)
Maguire
[email protected]
Association Termination
2008.03.29
SCTP 349 of 375
Internetworking/Internetteknik
0
7
Type = 14
8
15 16
Flag
T
23 24
31
Length = 4
Figure 67: SCTP SHUTDOWN COMPLETE chunk (see Forouzan figure 13.16 pg. 361)
• T bit indicates the sender did not have a Transmission Control Block (TCB)
Maguire
[email protected]
Association Termination
2008.03.29
SCTP 350 of 375
Internetworking/Internetteknik
SCTP Example - Daytime [46]
server#
1
1
1
./daytime_server -s 192.168.1.2 -vv
: Communication up (1 paths)
: Network status change: path 0 is now REACHABLE
: Shutdown complete
client#
1
1
Wed Apr
1
./terminal -vv -r 13 -d 192.168.1.2 -s 192.168.1.1
: Communication up (1 paths, 1 In-Streams, 1 Out-Streams)
: Network status change: path 0 (towards 192.168.1.2) is now REACHABLE
27 11:52:04 2005
: Shutdown received
Figure 68: SCTP Daytime example - output from Ethereal
Maguire
[email protected]
SCTP Example - Daytime [46]
2008.03.29
SCTP 351 of 375
Internetworking/Internetteknik
ethereal capture - daytime - INIT
Frame 11 …
Stream Control Transmission Protocol
Source port: 10777
Destination port: 13
Verification tag: 0x00000000
Checksum: 0x2b84fdb01
INIT chunk (Outbound streams: 10, inbound streams: 10)
Chunk type: INIT (1)
Chunk flags: 0x00
Chunk length: 32
Initiate tag: 0x43d82c5d
Advertised receiver window credit (a_rwnd): 131071
Number of outbound streams: 10
Number of inbound streams: 10
Initial TSN: 771212194
Forward TSN supported parameter
Parameter type: Forward TSN supported (0xc000)
…
Parameter length: 4
Supported address types parameter (Supported types: IPv4)
Parameter type: Supported address types (0x000c)
Parameter length: 6
Supported address type: IPv4 address (5)
1. Ethereal complains about this checksum saying “(incorrect Adler32, should be 0x973b078d)”, but this is in error see [51].
Maguire
[email protected]
ethereal capture - daytime - INIT
2008.03.29
SCTP 352 of 375
Internetworking/Internetteknik
ethereal capture - daytime - INIT-ACK
Frame 12 … Stream Control Transmission Protocol
Source port: 13
Destination port: 10777
Verification tag: 0x43d82c5d
Checksum: 0x7f61f237
INIT_ACK chunk (Outbound streams: 1, inbound streams: 1)
Chunk type: INIT_ACK (2)
Chunk flags: 0x00
Chunk length: 128
Initiate tag: 0x5d581d9a
Advertised receiver window credit (a_rwnd): 131071
Number of outbound streams: 1
Number of inbound streams: 1
Initial TSN: 1514529259
State cookie parameter (Cookie length: 100 bytes)
Parameter type: State cookie (0x0007)
Parameter length: 104
State cookie: 5D581D9A0001FFFF000100015A45E1EB...
Forward TSN supported parameter
Parameter type: Forward TSN supported (0xc000)
1... .... .... .... = Bit: Skip parameter and continue prosessing of the chunk
.1.. .... .... .... = Bit: Do report
Parameter length: 4
Maguire
[email protected]
ethereal capture - daytime - INIT-ACK
2008.03.29
SCTP 353 of 375
Internetworking/Internetteknik
ethereal capture - daytime - COOKIE-ECHO
Frame 13 …
Source port: 10777
Destination port: 13
Verification tag: 0x5d581d9a
Checksum: 0x3af3f579
COOKIE_ECHO chunk (Cookie length: 100 bytes)
Chunk type: COOKIE_ECHO (10)
0... .... = Bit: Stop processing of the packet
.0.. .... = Bit: Do not report
Chunk flags: 0x00
Chunk length: 104
Cookie: 5D581D9A0001FFFF000100015A45E1EB...
Maguire
[email protected]
ethereal capture - daytime - COOKIE-ECHO
2008.03.29
SCTP 354 of 375
Internetworking/Internetteknik
ethereal capture - daytime - COOKIE-ACK
Frame 14 …
Source port: 13
Destination port: 10777
Verification tag: 0x43d82c5d
Checksum: 0x762d80d7
COOKIE_ACK chunk
Chunk type: COOKIE_ACK (11)
Chunk flags: 0x00
Chunk length: 4
Maguire
[email protected]
ethereal capture - daytime - COOKIE-ACK
2008.03.29
SCTP 355 of 375
Internetworking/Internetteknik
ethereal capture - daytime - DATA
Frame 15 …
Source port: 13
Destination port: 10777
Verification tag: 0x43d82c5d
Checksum: 0xf8fb1754
DATA chunk(ordered, complete segment, TSN: 1514529259, SID: 0,
SSN: 0, PPID: 0, payload length: 25 bytes)
Chunk type: DATA (0)
Chunk flags: 0x03
.... ...1 = E-Bit: Last segment
.... ..1. = B-Bit: First segment
.... .0.. = U-Bit: Ordered deliviery
Chunk length: 41
TSN: 1514529259
Stream Identifier: 0x0000
Stream sequence number: 0
Payload protocol identifier: not specified (0)
Chunk padding: 000000
Data (25 bytes)
0000
0010
Maguire
[email protected]
57 65 64 20 41 70 72 20 32 37 20 31 31 3a 34 33
3a 32 32 20 32 30 30 35 0a
ethereal capture - daytime - DATA
2008.03.29
Wed Apr 27 11:43
:22 2005.
SCTP 356 of 375
Internetworking/Internetteknik
ethereal capture - daytime - SACK
Frame 16 …
Source port: 10777
Destination port: 13
Verification tag: 0x5d581d9a
Checksum: 0xfa994e35
SACK chunk (Cumulative TSN: 1514529259, a_rwnd: 131071, gaps: 0,
duplicate TSNs: 0)
Chunk type: SACK (3)
Chunk flags: 0x00
Chunk length: 16
Cumulative TSN ACK: 1514529259
Advertised receiver window credit (a_rwnd): 131071
Number of gap acknowldgement blocks : 0
Number of duplicated TSNs: 0
Maguire
[email protected]
ethereal capture - daytime - SACK
2008.03.29
SCTP 357 of 375
Internetworking/Internetteknik
ethereal capture - daytime - SHUTDOWN
Frame 17 …
Source port: 13
Destination port: 10777
Verification tag: 0x43d82c5d
Checksum: 0xf447d00f
SHUTDOWN chunk (Cumulative TSN ack: 771212193)
Chunk type: SHUTDOWN (7)
Chunk flags: 0x00
Chunk length: 8
Cumulative TSN Ack: 771212193
Maguire
[email protected]
ethereal capture - daytime - SHUTDOWN
2008.03.29
SCTP 358 of 375
Internetworking/Internetteknik
ethereal capture - daytime - SHUTDOWN_ACK
Frame 18
Source port: 10777
Destination port: 13
Verification tag: 0x5d581d9a
Checksum: 0x9f44d056
SHUTDOWN_ACK chunk
Chunk type: SHUTDOWN_ACK (8)
Chunk flags: 0x00
Chunk length: 4
Maguire
[email protected]
ethereal capture - daytime - SHUTDOWN_ACK
2008.03.29
SCTP 359 of 375
Internetworking/Internetteknik
ethereal capture - daytime SHUTDOWN_COMPLETE
Frame 19…
Source port: 13
Destination port: 10777
Verification tag: 0x43d82c5d
Checksum: 0x3db6e771
SHUTDOWN_COMPLETE chunk
Chunk type: SHUTDOWN_COMPLETE (14)
Chunk flags: 0x00
.... ...0 = T-Bit: TCB destroyed
Chunk length: 4
Maguire
[email protected]
ethereal capture - daytime - SHUTDOWN_COMPLETE
2008.03.29
SCTP 360 of 375
Internetworking/Internetteknik
Fault Management
• Endpoint Failure Detection
• Endpoint keeps a counter of the total number of consecutive retransmissions to its peer
(including retransmissions to all the destination transport addresses [= port + IP address] of
the peer if it is multi-homed). When this counter exceeds ’Association.Max.Retrans’, the
endpoint will consider the peer endpoint unreachable and shall stop transmitting any more
data to it (the association enters the CLOSED state).
• Counter is reset each time:
– a DATA chunk sent to that peer is acknowledged (by the reception of a SACK) or
– a HEARTBEAT-ACK is received from the peer
• Path Failure Detection
• Each time (1) T3-rtx timer expires on any address or (2) a HEARTBEAT sent to an idle
address is not acknowledged within a RTO, then the error counter of that destination will be
incremented. When this error counter exceeds ’Path.Max.Retrans’ for that destination
address, then the endpoint marks the destination transport address as inactive and notifies
the upper layer.
• the endpoint clears the error counter of this destination transport address when:
– an outstanding TSN is acknowledged or
– a HEARTBEAT address is acknowledged
• When the primary path is marked inactive, then the sender may automatically transmit new
packets to an alternate destination address if one exists and is active
– If more than one alternate address is active ⇒ only one transport address is chosen as
the new destination transport address.
Maguire
[email protected]
Fault Management
2008.03.29
SCTP 361 of 375
Internetworking/Internetteknik
HEARTBEAT and HEARTBEAT ACK Chunks
0
7
8
15 16
Type = 4 or 5
Flag = 0
Parameter type: 1
Sender specific information
23 24
31
Length
Parameter length
Figure 69: SCTP HEARTBEAT and HEARTBEAK ACK chunks (see Forouzan figure 13.15 pg. 360)
• (chunk) Type: 4 = HEARTBEAT
• (chunk) Type: 5 = HEARTBEAT ACK
• (chunk) length = size of sender specific information + 4 (the parameter
type and length fields)
• Sender specific information
• The sender puts its Local time and transport address in (note that the sctplib implementation
1.0.2 puts the time in as an unsigned 32 bit integer and puts the path index in (also as an
unsigned 32 bit integer) and add a HMAC computed over these values [46]
• The acknowledgement simply contains a copy of this information
Heartbeats every ~30 seconds.
Maguire
[email protected]
HEARTBEAT and HEARTBEAT ACK Chunks
2008.03.29
SCTP 362 of 375
Internetworking/Internetteknik
Heartbeat and ACK
Frame x …
Source port: 9
Destination port: 38763
Verification tag: 0x36fab554
HEARTBEAT chunk (Information: 28 bytes)
Chunk type: HEARTBEAT (4)
Chunk flags: 0x00
Chunk length: 32
Heartbeat info parameter (Information: 24 bytes)
Parameter type: Heartbeat info (0x0001)
Parameter length: 28
Heartbeat information: 0280351E00000000E1A06CFBC1C6933F...
Source port: 38763
Destination port: 9
Verification tag: 0x57c3a50c
Checksum: 0x0e6c8d88 (incorrect Adler32, should be 0xf5340ec5)
Checksum: 0xaa2fba80 (incorrect Adler32, should be 0xe7450e58)
HEARTBEAT_ACK chunk (Information: 28 bytes)
Chunk type: HEARTBEAT_ACK (5)
Chunk flags: 0x00
Chunk length: 32
Heartbeat info parameter (Information: 24 bytes)
Parameter type: Heartbeat info (0x0001)
Parameter length: 28
Heartbeat information: 0280351E00000000E1A06CFBC1C6933F...
Maguire
[email protected]
Heartbeat and ACK
2008.03.29
SCTP 363 of 375
Internetworking/Internetteknik
Differences from TCP Congestion Control
• Any DATA chunk that has been acknowledged by SACK, including
DATA that arrived out of order, are only considered fully delivered when
the Cumulative TSN Ack Point passes the TSN of the DATA chunk
⇒ cwnd controls the amount of outstanding data, rather than (as in the case of
non-SACK TCP) the upper bound between the highest acknowledged sequence
number and the latest DATA chunk that can be sent within the congestion window
⇒ different fast-retransmit & fast-recovery than non-SACK TCP
• Retransmission based on both retransmission timer (with an RTO per path)
• Three SACKS (i.e., 4 consecutive duplicate SACKs indicating missing chunks) fi immediate
retransmission of these missing chunks
Sender
• uses the same destination address until instructed by the upper layer (however, SCTP may
change to an alternate destination in the event an address is marked inactive) ⇒
retransmission can be to a different transport address than the original transmission.
• keeps separate congestion control parameters (cwnd, ssthresh, and partial_bytes_acked)
for each of the destination addresses it can send to (i.e., not each source-destination pair)
– these parameters should decay if the address is not used
– does slow-start upon the first transmission to each of destination addresses
Maguire
[email protected]
Differences from TCP Congestion Control
2008.03.29
SCTP 364 of 375
Internetworking/Internetteknik
Path MTU Discovery
• IPv4
• Based on RFC 1191 [48] each endpoint maintains an estimate of the maximum transmission
unit (MTU) along a each path and refrains from sending packets along that path which
exceed the MTU, other than occasional attempts to probe for a change in the Path MTU
(PMTU).
• IPv6
• Based on RFC1981 [49] an SCTP sender using IPv6 must use Path MTU Discovery, unless
all packets are less than the minimum IPv6 MTU (see RFC 2460 [50]).
SCTP differs in several ways from the description in RFC 1191 of applying MTU
discovery to TCP:
1 SCTP associations can span multiple addresses ⇒ an endpoint does
PMTU discovery on a per-destination-address basis
• The term “MTU” always refers to the MTU associated with the destination address
2
Since SCTP does not have a notion of “Maximum Segment Size”, for
each destination MTUinitial ≤ MTUlink for the local interface to which
packets for that remote destination address will be routed
Maguire
[email protected]
Path MTU Discovery
2008.03.29
SCTP 365 of 375
Internetworking/Internetteknik
3
4
When retransmitting to a remote address for which the IP datagram
appears too large for the path MTU to that address, the IP datagram
should be retransmitted without the DF bit set, enabling it to be
fragmented. While initial transmissions of IP datagrams must have
DF set.
Sender maintains an association PMTU (= smallest PMTU discovered
for all of the peer’s destination addresses); when fragmenting
messages this association PMTU is used to calculate the size of each
fragment ⇒ retransmissions can sent to an alternate address without
encountering IP fragmentation
Maguire
[email protected]
Path MTU Discovery
2008.03.29
SCTP 366 of 375
Internetworking/Internetteknik
SCTP header continued
• Reliability is provided by a 32 bit SCTP sequence numbers (TSN)
• The initial sequence number is a random 32 bit number
• These sequence numbers are in the header of individual chunks
• This cumulative number is used to provide both flow control and error control
• SCTP resequences data at the receiving side
• SCTP discards duplicate data at the receiving side
The window size (or more exactly the receive window size (rwnd)) - indicates how
many bytes the receiver is prepared to receive (this number is relative to the
acknowledgement number).
Maguire
[email protected]
SCTP header continued
2008.03.29
SCTP 367 of 375
Internetworking/Internetteknik
Forward Cumulative TSN
Allows an endpoint to signal to its peer that it should move the cumulative
acknowledgement forward [47]. This protocol extension adds a new parameter
(Forward-TSN-Supported) to INIT and INIT ACK, and a new FORWARD TSN
chunk type. It provides an example of a partially reliable service.
0
7
8
Type = 192
15 16
Flag = 0
New cumulative TSN
Stream #1
…
Stream #N
23 24
31
Length
Stream Sequence #1
…
Stream Sequence #N
Figure 70: SCTP FORWARD TSN Chunk (see [47])
• Streami a stream number that was skipped by this FWD-TSN.
• Stream Sequencei = the largest stream sequence number in streami
being skipped
Maguire
[email protected]
Forward Cumulative TSN
2008.03.29
SCTP 368 of 375
Internetworking/Internetteknik
• Receiver can use the Streami and Stream Sequencei fields to enable
delivery of (stranded) TSN’s that remain in the stream re-ordering
queues.
Maguire
[email protected]
Forward Cumulative TSN
2008.03.29
SCTP 369 of 375
Internetworking/Internetteknik
SCTP Performance
See the upcoming exjobb report by Mia Immonen.
Maguire
[email protected]
Forward Cumulative TSN
2008.03.29
SCTP 370 of 375
Internetworking/Internetteknik
Transport Protocol Functional Overview
From table 1-1 of [44] on page 12; also appears in [53]
Protocol Feature
SCTP
TCP
UDP
State required at each endpoint
Yes
Yes
No
Reliable data transfer
Yes
Yes
No
Congest control and avoidance
Yes
Yes
No
Message boundary conservation
Yes
No
Yes
Path MTU discovery and message fragmentation
Yes
Yes
No
Message bundling
Yes
Yes
No
Multi-homed hosts support
Yes
No
No
Multi-stream support
Yes
No
No
Unordered data delivery
Yes
No
Yes
Security cookie against SYN flood attack
Yes
No
No
Built-in heartbeat (readability check)
Yes
No
No
Maguire
[email protected]
Transport Protocol Functional Overview
2008.03.29
SCTP 371 of 375
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• SCTP
• Message framing
• Multi-homing
• Multi-streaming
• How SCTP differs from TCP
• Measurements of an implementation (there are other implementations
such as that included with [44]):
•
http://www.sctp.de
http://www.sctp.org
•
• Linux Kernel SCTP http://sourceforge.net/projects/lksctp
Maguire
[email protected]
Summary
2008.03.29
SCTP 372 of 375
Internetworking/Internetteknik
References
[41] G. Sidebottom, K. Morneault, and J. Pastor-Balbas, “Signaling System 7
(SS7) Message Transfer Part 3 (MTP3) - User Adaptation Layer (M3UA)”,
IETF RFC 3332, September 2002 http://www.ietf.org/rfc/rfc3332.txt
[42] Andreas Jungmaier, “A Gentle Introduction to SCTP”, 19th Chaos
Communications Congress, Berlin, 2002
http://tdrwww.exp-math.uni-essen.de/inhalt/forschung/19ccc2002/html/slide_1.html
[43] R. Stewart, Q. Xie, K. Morneault, C. Sharp, H. Schwarzbauer, T. Taylor, I.
Rytina, M. Kalla, L. Zhang, and V. Paxson, “Stream Control Transmission
Protocol”, IETF RFC 2960, October 2000 http://www.ietf.org/rfc/rfc2960.txt
[44] Randall R. Stewart and Qiaobing Xie, “Stream Control Transmission
Protocol: A Reference Guide”, Addison-Wesley, 2002, ISBN
0-201-72186-4.
[45] K. Morneault, S. Rengasami, M. Kalla, and G. Sidebottom, “ISDN
Maguire
[email protected]
References
2008.03.29
SCTP 373 of 375
Internetworking/Internetteknik
Q.921-User Adaptation Layer”, IETF RFC 3057, February 2001
http://www.ietf.org/rfc/rfc3057.txt
[46] Andreas Jungmaier , Herbert Hölzlwimmer, Michael Tüxen , and Thomas
Dreibholz, "sctplib-1.0.2", Siemens AG and the Institute of Computer
Networking Technology, University of Essen, Germany, August 2004
http://www.sctp.de/sctp-download.html {Note that a later version 1.0.3 was released
March 4th, 2005}
[47] R. Stewart, M. Ramalho, Q. Xie, M. Tuexen, and P. Conrad, “Stream Control
Transmission Protocol (SCTP) Partial Reliability Extension”, IETF RFC
3758, May 2004 http://www.ietf.org/rfc/rfc3758.txt
[48] J. Mogul and S. Deering, “Path MTU Discovery”, IETF RFC 1191,
November 1990 http://www.ietf.org/rfc/rfc1191.txt
[49] J. McCann, S. Deering, and J. Mogul, “Path MTU Discovery for IP
version 6”, IETF RFC 1981, August 1996 http://www.ietf.org/rfc/rfc1981.txt
[50] S. Deering and R. Hinden, “Internet Protocol, Version 6 (IPv6)
Maguire
[email protected]
References
2008.03.29
SCTP 374 of 375
Internetworking/Internetteknik
Specification”, IETF RFC 2460, December 1998 http://www.ietf.org/rfc/rfc2460.txt
[51] J. Stone, R. Stewart, and D. Otis, “Stream Control Transmission Protocol
(SCTP) Checksum Change”, IETF RFC 3309, September 2002
http://www.ietf.org/rfc/rfc3309.txt
[52] A. Jungmaier, E. Rescorla, and M. Tuexen, “Transport Layer Security over
Stream Control Transmission Protocol”, IETF RFC 3436, December 2002
http://www.ietf.org/rfc/rfc3436.txt
[53] “SCTP Primer”, Mon, Mar 1, 2004 03:35:54 PM
http://datatag.web.cern.ch/datatag/WP3/sctp/primer.htm
[54] Mia Immonen, “SIGTRAN: Signaling over IP a step closer to an all-IP
network”, Masters thesis, Royal Institute of Technology (KTH), Dept. of
Communication Systems, June 2005
ftp://ftp.it.kth.se/Reports/DEGREE-PROJECT-REPORTS/050619-Mia-Immonen-with-cover.pdf
Maguire
[email protected]
References
2008.03.29
SCTP 375 of 375
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 7: Dynamic Routing
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapter 14
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Dynamic_Routing.fm5
2008.03.29
Total pages: 448
Outline
• Dynamic Routing Protocols
Maguire
Outline
Dynamic Routing 377 of 448
[email protected]
2008.03.29
Internetworking/Internetteknik
Routing
Control
Plane
Data
Plane
Packet
Routing
Table
Access
List
Queuing
Priority
Accounting
Data
Security
Tasks
Queuing
Tasks
Accounting
Tasks
Cache
Switching
Tasks
Figure 71: Basic steps in Routing
The routing table tells us which output port to use based on the destination (and
possibly the source) IP address. The data plane has to run at packet rates (i.e., in
real-time). However, a router also performs a lot of other processing
Maguire
[email protected]
Routing
2008.03.29
Dynamic Routing 378 of 448
Internetworking/Internetteknik
Routing Principles
• Routing Mechanism: Use the most specific route
• IP provides the mechanism to route packets
• Routing Policy: What routes should be put in the routing table? <<<
today’s topic!
• Use a routing daemon to provide the routing policy
For further information see:
Bassam Halabi, Internet Routing Architectures, Cisco Press, 1997, ISBN 1-56205-652-2. -- especially
useful for IGRP.
Maguire
[email protected]
Routing Principles
2008.03.29
Dynamic Routing 379 of 448
Internetworking/Internetteknik
Basic Router Software Architecture
UDP
icmp
ipforward
ipoutput
routing happens here
ipintr
ARP
ipintrq
arpintrq
if_output
ether_output
radio_output
if_snd
if_snd
lestart
radiostart
leread
radioread
leintr
radiointr
Figure 72: Basic Router Architecture (assuming a radio and an ethernet interface)
Maguire
[email protected]
Basic Router Software Architecture
2008.03.29
Dynamic Routing 380 of 448
Internetworking/Internetteknik
Processing
Rouing daemon
route command
netstat command
TCP
UDP
Routing Policy
Yes
routing
table
update
from
adjacent
routers
No
ICMP
our packet
or a broadcast
forward datagram
(if forwarding is enabled)
Routing
Mechanism
ICMP
redirects
Routing
Table
source
IP Output:
calculate next hop router
(if necessary)
routing
process IP options
IP input queue
IP Layer
network interfaces
Maguire
[email protected]
Processing
2008.03.29
Dynamic Routing 381 of 448
Internetworking/Internetteknik
Routing packets in the Internet
Router needs to know where to route packets, to do this they need routing
information. Such information can be provided by manually entered routes or
ICMP Redirect or learning of routes via a routing protocol.
Dynamic routing protocols are based on routers talking to each other.
• Intradomain - within an AS (aka Interior Gateway protocols)
• Interdomain - between ASs (aka Exterior Gateway protocols)
The most popular dynamic routing protocols are:
• RIP-1 - Routing Information Protocol (version 1)
• RIP-2 - Routing Information Protocol (version 2)
• OSPF - Open Shortest Path First
• BGP - Border Gateway Protocol
Maguire
[email protected]
Routing packets in the Internet
2008.03.29
Dynamic Routing 382 of 448
Internetworking/Internetteknik
Autonomous systems (ASs) - RFC1930 [55]
Each of which is generally administered by a single entity.
Each autonomous system selects the routing protocol to be used within the AS.
Network
AS number
Swedish University Network (SUNET)
AS1653 and AS2859
SUNET-KI
AS2837
Stockholm University - SU
AS2838
SUNET-KTH
AS2839
KTHNOC KTHNOC-SE
AS3224
For statistics about the number of AS, etc.: http://www.cidr-report.org/
For a list of AS number to name mappings: http://www.cidr-report.org/autnums.html
To find out who is responsible for a given autonomous system, use a query of the
form: http://www.ripe.net/perl/whois?AS2839
Maguire
[email protected]
Autonomous systems (ASs) - RFC1930 [55]
2008.03.29
Dynamic Routing 383 of 448
Internetworking/Internetteknik
Routing Metrics
A measure of which route is better than another:
• Number of hops
• Bandwidth
• Delay
• Cost
• Load
• …
It is possible that the metric uses some weighted combination of the above.
Maguire
[email protected]
Routing Metrics
2008.03.29
Dynamic Routing 384 of 448
Internetworking/Internetteknik
Routing Algorithms
•
•
•
•
•
•
Static vs. Dynamic
Single path vs. Multi-path
Flat vs. Hierarchical
Host-intelligent vs. Router-intelligent
Intradomain (interior) vs. Interdomain (exterior)
Link state vs. Distance vector
Issues:
• Initialization (how to get started)
• Sharing
• Updating
• When to share & Who to share with
Maguire
[email protected]
Routing Algorithms
2008.03.29
Dynamic Routing 385 of 448
Internetworking/Internetteknik
Intradomain routing protocols
also called “Interior Gateway protocols”
Examples:
• HELLO - an old IGP protocol
• RIP - widely used
• OSPF - increasingly used
Routers that speak any dynamic routing protocol must speak RIP and OSPF.
Maguire
[email protected]
Intradomain routing protocols
2008.03.29
Dynamic Routing 386 of 448
Internetworking/Internetteknik
Routing Information Protocol (RIP) version 1
RFC 1058 [56] {Note it was written years after the protocol was in wide use!}
RIP is a distance-vector protocol - RIP messages contain a vector of hop counts.
RIP messages are carried via UDP datagrams which are broadcast.
0
7
8
Command
15 16
Version = 1
23 24
31
Reserved
All 0s
Family
Network Address
All 0s
All 0s
Distance
Figure 73: RIP message format (see Forouzan figure 14.9 pg. 394)
• a command: request or reply
• a version number (in this case 1)
• up to 25 instances (entries) containing:
• address family (2 = IP addresses)
• Network Address (allocated 14 bytes, for an IP address we only need 4 bytes - and they are
aligned to a 4 byte boundary - hence the leading and trailing zeros)
• metric [hop count]
Maguire
[email protected]
Routing Information Protocol (RIP) version 1
2008.03.29
Dynamic Routing 387 of 448
Internetworking/Internetteknik
RIP v1 operation
As carried out by UNIX daemon “routed” using UDP port 520
Initialization:
for all interface which are up
{
send a request packet out each interface asking for the other
router’s complete routing table
[command=1, address family=0 {== unspecified}1, metric=16
}
Request received:
if whole table requested, then send it all 25 at a time
else if a specific set of routes
then fill in the metric
else set metric to 16
[16 == “infinity” == we don’t know a route to this address]
Response received:
if valid (i.e., not 16),then update/add/delete/modify routing table
1. Page 24 of RFC 1058 says “If there is exactly one entry in the request, with an address family identifier of 0 (meaning unspecified), and a metric of infinity
(i.e., 16 for current implementations), this is a request to send the entire routing table.”[56] - this is different than implied in Forouzan figure 14.10 pg. 395
Maguire
[email protected]
RIP v1 operation
2008.03.29
Dynamic Routing 388 of 448
Internetworking/Internetteknik
When are routes sent?
Solicited response: Send a response when a request is received
Unsolicited response:
• If a metric for a route changes, then (trigger) send update,
else send all or part of the table every 30 seconds.
• If a route has not been updated for 180 seconds (3 minutes = 6 update
cycles), then set metric to 16 and then after 60 seconds (1 minute)
delete route.
Metrics are in units of hops, thus this protocol leads to selection between routes
based on the minimum number of hops.
Summary of RIPv1 Timers:
• Periodic timer - regular updates random value [25..35] mean 30 s.
• Expiration timer - routes not updated within (180 s) expire
• Garbage collection timer - 120 s after expiring entries are GC’d
Maguire
[email protected]
RIP v1 operation
2008.03.29
Dynamic Routing 389 of 448
Internetworking/Internetteknik
Problems with RIP v1
• RIPv1 does not know about subnets (or assumes all interfaces on the
network have the same netmask)
• after a router or link failure RIP takes minutes to stabilize (since each
neighbor only speaks ~every 30 seconds; so the time for the
information to propagate several hops is minutes) ⇒ while it is unstable
it is possible to have routing loops, etc.
• Hops count may not be the best indication for which is the best route
• Since the maximum useful metric value is 15, the network diameter
must be less than or equal to 15.
• RIP will accept updates from anyone - so one misconfigured device
can disrupt the entire network.
• RIP uses more bandwidth than other protocols, since it sends the
whole routing table in updates.
Maguire
[email protected]
Problems with RIP v1
2008.03.29
Dynamic Routing 390 of 448
Internetworking/Internetteknik
Count to Infinity
network1
Router A
C
network3
network2
Router B
D
TTL expires
• Router A advertises it knows about routes to networks 1 and 2
• Router B advertises it knows about routes to networks 2 and 3
• After one update cycles A and B know about all 3 routes.
If A’s interface to Network1 goes down, then A learns from B - that B knows a
route to Network1; so A now thinks it can reach Network1 via B. So if D sends a
packet for C, it will simply loop back and forth between routers A and B, until the
TTL counts down to 0.
Maguire
[email protected]
Count to Infinity
2008.03.29
Dynamic Routing 391 of 448
Internetworking/Internetteknik
Split Horizon
To counter the count to infinity, the split horizon algorithm - never sends
information on an interface that it learned from this interface.
RIPv1 implements: Split Horizon with Poison Reverse Update - rather that not
advertise routes to the source, we advertise them with a metric of 16 (i.e.,
unreachable) - hence the source simply ignores them.
Unfortunately split horizon only prevents loops between adjacent routers (so if
there are three or more routers involved the previous problem re-appears)
Maguire
[email protected]
Split Horizon
2008.03.29
Dynamic Routing 392 of 448
Internetworking/Internetteknik
Triggered updates and Hold-Downs
To decrease convergence time - when the topology changes send out an update
immediately.
However, if a node can learn about connectivity from more than one source, then
if a delete happens before the add, then the existence of the route is asserted;
therefore the hold-down rules says:
When a route is removed, no update of this route is accepted for
some period of time - to give everyone a chance to remove the route.
This period of time is the Hold-down time.
The result is to decrease the rate of convergence; but the combined effect of
triggered updates + hold-downs leads to faster convergence than not using
triggered updates.
Maguire
[email protected]
Triggered updates and Hold-Downs
2008.03.29
Dynamic Routing 393 of 448
Internetworking/Internetteknik
RIP extensions (aka RIP-2)
Defined in RFC 1388 [57] and revised in RFC 2453[58]. Version number is 2.
• for each of up to 25 entries we add the fields:
• Route tag - carries the AS number
• Subnetmask - subnetmask to be used with this address (to support classless addressing)
• Next-hop IP address, either the IP address of where packets to this destination should be
sent or zero [which means send them to the system which sent the RIP message]
• One entry can be replaced by Authentication data
RIP-2 supports multicast to address 224.0.0.9, to reduce load on hosts not interested in RIP-2 messages
0
7
8
Command
15 16
Version = 2
23 24
31
Reserved
Authentication type
0xFFFF
Authentication data (16 bytes)
if Authentication type = 2, this is a clear text password to be used to authenticate this message
Family
Route tag
Network Address
Subnet mask
Next-hop address
Distance
Figure 74: RIPv2 message format (see Forouzan figures 14.13 pg. 397 and 14.14 pg. 398)
Maguire
[email protected]
RIP extensions (aka RIP-2)
2008.03.29
Dynamic Routing 394 of 448
Internetworking/Internetteknik
Why would anyone use RIP?
After all these problems you might ask this question.
Answer
• Because RIP is generally the only routing protocol which all UNIX
machines understand!
• Relatively easy to configure
• It it widely available, since it must exist if the device is capable of
routing!
Maguire
[email protected]
Why would anyone use RIP?
2008.03.29
Dynamic Routing 395 of 448
Internetworking/Internetteknik
Interior Gateway Routing Protocol (IGRP)
Cisco’s IGRP [59] - a proprietary protocol with the following goals:
• stable, optimal routing for large networks - with no routing loops
• fast response to changes in net topology
• low overhead in both bandwidth and processor utilization
• ability to split traffic across several parallel routes if they are (or nearly
are) equal.
It is a distance-vector protocol based on many of the ideas from RIP.
Maguire
[email protected]
Interior Gateway Routing Protocol (IGRP)
2008.03.29
Dynamic Routing 396 of 448
Internetworking/Internetteknik
IGRP Metrics
• a vector of metrics each with a 24 bit value
K2
K1
• composite metric is  ------- +  ------- ⋅ R , where K1 and K2 are constants,
 B  D
B the unloaded path bandwidth, D a topological delay, and R is
reliability
• also we pass the hop count and Maximum Transmission Unit values
K1 is the weight assigned to bandwidth (by default 10,000,000)
K2 is the weight assigned to delay (by default 100,000)
If up to 4 paths are with in a defined variance of each other, Cisco’s IOS
(Internetwork Operating System) will split the traffic across them in inverse
proportion to their metric.
Maguire
[email protected]
IGRP Metrics
2008.03.29
Dynamic Routing 397 of 448
Internetworking/Internetteknik
IGRP Route Poisoning
IGRP poisons routes which increase by a factor of 10% or more after an update
[they are thought to be: “too good to be true”].
While this rule may temporarily delete valid routes (which will get reinstated after
the next regular update) - it allows use of a zero hold-down time, which leads to
faster convergence.
Maguire
[email protected]
IGRP Route Poisoning
2008.03.29
Dynamic Routing 398 of 448
Internetworking/Internetteknik
IGRP Default Gateway
Rather than using the fake network 0.0.0.0 to indicate the default network, IGRP
allows a real network to be flagged as the default network.
Periodically, IGRP scans the routes offering a path to this flagged network and
selects the path with the lowest metric.
Note: Default gateways help to keep the size of local routing tables smaller.
Maguire
[email protected]
IGRP Default Gateway
2008.03.29
Dynamic Routing 399 of 448
Internetworking/Internetteknik
Enhanced IGRP (EGRP) [60]
Uses the distance-vector technology of IGRP, but changes the way routes are
advertised and the calculation of entries for the routing table.
EGRP uses:
• a neighbor discover/recovery process of hello packets to learn its
neighbors
• a Reliable Transport Protocol to ensure guaranteed, ordered delivery of
routing updates
• a Diffusing Update Algorithm (DUAL) - which selects both the best
route for insertion into the table and a feasible successor (for if the
primary route fails)
• Variable length subnet masks (VLSM)
EGRP is a Cisco proprietary technology.
Maguire
[email protected]
Enhanced IGRP (EGRP) [60]
2008.03.29
Dynamic Routing 400 of 448
Internetworking/Internetteknik
Open Shortest Path First (OSPF)
OSPF defined in RFC2328 (see also http://rtg.ietf.org/wg/ospf/ )
OSPF is a link-state protocol. OSPF messages (Link State Advertisements (LSAs))
tell the status of links of each of its neighbors and propagates this info to its
neighbors. Each router uses this link-state information to build a complete routing
table. Uses IP directly (protocol field = OSPF (89)) ⇒ does not use UDP or TCP.
Advantages
•
•
•
•
•
•
•
•
link-state protocols converge faster than distance-vector protocols
can calculate a route per IP service type (i.e., TOS)
each interface can have a per TOS cost
if there are several equally good routes ⇒ can do load balancing
supports variable length subnet masks
enable point to point links to be unnumbered (i.e., don’t need an IP address)
uses clear text passwords
uses multicasting
Maguire
[email protected]
Open Shortest Path First (OSPF)
2008.03.29
Dynamic Routing 401 of 448
Internetworking/Internetteknik
OSPF uses the Shortest Path First algorithm (also know as Dijkstra’s algorithm).
OSPF networks generally divided into areas such that cross-area communication
is minimal.
Some routers with multiple interfaces become border area routers (with one
interface in one area and another interface in another area).
The only way to get from one area to another area is via the backbone - which is
area 0. Note: The backbone need not be continuous.
• Note that Forouzan refers to “transient” links -- I think that this should be “transit” links.
(Since transient implies that the link would be short lived!)
Link state advertisements are sent to all routers in a given area (via flooding),
rather than just neighbors (as in the distance-vector approach) - thus periodic
updates are infrequent (every 1 to 2 hours).
A key feature of OSPF is route aggregation - which minimizes the size of routing
tables and the size of the topological database; in addition, it keeps protocol
traffic to a minimum.
Maguire
[email protected]
Open Shortest Path First (OSPF)
2008.03.29
Dynamic Routing 402 of 448
Internetworking/Internetteknik
OSPF building blocks
1. Hello protocol
• Check for & with neighbors and learn designated routers
2. Synchronization of Databases
• Exchange of Link State Database between neighbors
– Get LSA headers
– Request the transfer of necessary LSAs
3. Flooding protocol
• When links change or when your knowledge is old
– Send Link State updates to neighbors and flood recursively
– If not seen before, propagate updates to all adjacent routers, except the router you
received it from
Maguire
[email protected]
OSPF building blocks
2008.03.29
Dynamic Routing 403 of 448
Internetworking/Internetteknik
OSPF Packets
Common header
0
7
8
Version
15 16
Type
Source Router IP Address
Area Identification
Checksum
23 24
31
Message length
Authentication type
Authentication (64 bits)a
Figure 75: OSPF Common Header (see Forouzan figure 14.26 pg. 408)
a. Note that the Authentication field is 64 bits, Forouzan figure 14.26 pg. 408 incorrectly shows it as 32 bits.
The 5 types of OSPF packets:
Type
Description
1
Hello
2
Database Description
3
Link State Request
4
Link State Update
5
Link State Acknowledgment
Maguire
[email protected]
OSPF Packets
2008.03.29
Dynamic Routing 404 of 448
Internetworking/Internetteknik
Hello packet
0
7
8
Version
15 16
Type = 1
Source Router IP Address
Area Identification
Checksum
23 24
31
Message length
Authentication type
Authentication (64 bits)
Network Mask
Hello interval (seconds)
All zeros
Dead interval (seconds)
Designated router IP address
Backup designated router IP address
Neighbor IP address
…
Neighbor IP address
E T
Priority
Figure 76: OSPF Link state update packet (see Forouzan figure 14.44 pg. 419)
• E = 1 indicates a stub area
• T = 1 indicates router supports multiple metrics
• priority = 0 indicates that this router should not be considered as a designated or backup
designated router
• Dead interval is the time before a silent neighbor is assumed to be dead
• list of neighboring routers (of the router which sent the hello packet)
Maguire
[email protected]
Hello packet
2008.03.29
Dynamic Routing 405 of 448
Internetworking/Internetteknik
Database Description packet
0
7
8
Version
15 16
23 24
Type = 2
Source Router IP Address
Area Identification
Checksum
Interface MTU
31
Message length
Authentication type
Authentication (64 bits)
All zeros
E B
All zeros
I
M M
S
Database Description sequence number
LSA header (20 bytes)
…
LSA header
Figure 77: OSPF Database Description packet (see Forouzan figure 14.45 pg. 420)
• Rather than send the entire database - send an outline of it
•
•
•
•
•
•
•
E = 1 indicates the advertising router is an autonomous boundary router (i.e., E ≡ external)
B = 1 indicates the advertising router is an autonomous border router
I = 1 initialization flag
M = 1 ≡ More flag
M/S flag: 0=slave, 1=Master
Database Description sequence number
LSA header(s) - gives information about the link - but without details; if details are desired
they can be requested
Maguire
[email protected]
Database Description packet
2008.03.29
Dynamic Routing 406 of 448
Internetworking/Internetteknik
Link State Announcement (LSA) header
Each different LSA has the same general header:
0
7
8
15 16
Link state age (seconds)
Reserved
Link state ID
Advertising router
Link state sequence number
Link state checksum
23 24
E T
31
Link State type
Length
Figure 78: OSPF Link State Advertisement general header format (see Forouzan figure 14.28 pg. 410)
• E = 1 indicates a stub area
• T = 1 indicates router supports multiple metrics
Link state type
Link state ID
Description
1
IP address of the router
Router-LSAs
2
IP address of the designated router
Network-LSAs
3
IP address of the network
Summary-LSAs (IP network)
4
IP address of the border router
Summary to AS border router (BR)
5
IP address of the external network
AS-external-LSAs
• Advertising router - IP address of the router advertising this message
• Link state checksum - a Fletcher’s checksum of all but age field
Maguire
[email protected]
Link State Announcement (LSA) header
2008.03.29
Dynamic Routing 407 of 448
Internetworking/Internetteknik
• Length of the whole packet in bytes
Maguire
[email protected]
Link State Announcement (LSA) header
2008.03.29
Dynamic Routing 408 of 448
Internetworking/Internetteknik
Link state update packet
0
7
8
Version
15 16
Type = 4
Source Router IP Address
Area Identification
Checksum
23 24
31
Message length
Authentication type
Authentication (64 bits)
Number of link state advertisements
Link state advertisement (LSA)
…
Link state advertisement (LSA)
Figure 79: OSPF Link state update packet (see Forouzan figure 14.27 pg. 409)
Maguire
[email protected]
Link state update packet
2008.03.29
Dynamic Routing 409 of 448
Internetworking/Internetteknik
Link state request packet
7
8
Version
15 16
Type = 3
Source Router IP Address
Area Identification
Checksum
23 24
31
Message length
Authentication type
Authentication (64 bits)
Link state type
Link state ID
Advertising router
repeat
0
Figure 80: OSPF Link state request packet (see Forouzan figure 14.46 pg. 420)
To ask for information about a specific route (or routes); reply is an update packet.
Maguire
[email protected]
Link state request packet
2008.03.29
Dynamic Routing 410 of 448
Internetworking/Internetteknik
Link state acknowledgement packet
0
7
8
Version
15 16
Type = 5
Source Router IP Address
Area Identification
Checksum
23 24
31
Message length
Authentication type
Authentication (64 bits)
LSA header
Figure 81: OSPF Link state acknowledgement packet (see Forouzan figure 14.47 pg. 421)
To acknowledge receipt of an update packet.
Maguire
[email protected]
Link state acknowledgement packet
2008.03.29
Dynamic Routing 411 of 448
Internetworking/Internetteknik
Interdomain routing protocols
also called “Exterior Gateway Protocols (EGPs)” - used between ASs
Examples:
• EGP - an old EGP protocol
• BGP - Border Gateway Protocol
Intradomain routing protocols:
• don’t scale up to the large numbers of routers involved in interdomain
routing (due to the huge computational resources required)
• distance vector routing becomes unstable beyond a few hops
Maguire
[email protected]
Interdomain routing protocols
2008.03.29
Dynamic Routing 412 of 448
Internetworking/Internetteknik
Exterior Gateway Protocol (EGP)
an exterior gateway protocol with three components:
• neighbor acquisition
• neighbor reach ability, and
• routing information
EGP was designed to provide more automation in configuring routers.
EGP is similar to the distance-vector protocols, but omits the metrics, since EGP
was designed for the internet where typically routers are connected to a backbone
(with its own routing domain) via a single router.
• But since there are no metrics, if there is more than one path, then
there can be a loop!
Maguire
[email protected]
Exterior Gateway Protocol (EGP)
2008.03.29
Dynamic Routing 413 of 448
Internetworking/Internetteknik
BGP - Border Gateway Protocol
An exterior gateway protocol to exchange routing information between routers in
different ASs.
BGP version 3 defined in RFC 1267[63], while version 4 defined in RFC1654[64]
and RFC 1771[65].
BGP routers exchange routing information with other BGP routers.
For further information see:
John W. Stewart III, BGP4: Inter-Domain Routing in the Internet, Addison-Wesley, 1999,
ISBN: 0-201-37951-1 [66]
See also [74] and [75].
Maguire
[email protected]
BGP - Border Gateway Protocol
2008.03.29
Dynamic Routing 414 of 448
Internetworking/Internetteknik
Local vs. Transit traffic
Local traffic: originates or terminates in an AS
Transit traffic: is all other traffic
==> 3 types of ASs
stub AS
connected to only on other AS, carries only local traffic
multihomed AS
connected to multiple AS, but refuses transit traffic
transit AS
connected to multiple ASs, carries both local and transit traffic
multihomed AS
stub AS
Maguire
[email protected]
transit AS
Local vs. Transit traffic
2008.03.29
Dynamic Routing 415 of 448
Internetworking/Internetteknik
BGP operation
BGP routers exchange information based on traffic which transits the AS, derives
a graph of AS connectivity; with loop pruning.
Routing policy decisions can be enforced as to what is allowed to transit whom
⇒ policy-based routing
• based on economic/security/political/… considerations.
• BGP does not implement the policy decisions, but allows the
information on which such decisions can be made to propagate as
necessary
Uses TCP (port 179) to create a session between BGP routers:
• initially two systems exchange their entire BGP routing table,
• then they simply send updates as necessary.
BGP is a path-vector protocol - which enumerates the route to each destination
(i.e., the sequence of AS numbers which a packet would have to pass through from
a source to its destination) = a path vector
Maguire
[email protected]
BGP operation
2008.03.29
Dynamic Routing 416 of 448
Internetworking/Internetteknik
BGP does not transmit metrics.
However, each path is a list of attributes:
• well-known attributes (which every router must understand)
• well-known mandatory attribute - must appear in the description of a route
• well-known discretionary attribute - may appear, but must be recognized, in the description
of a route
• optional attributes
• optional transitive attribute - must be passed to the next router
• optional nontransitive attribute - the receiving router must discarded it if does not recognize it
For examples of the use of an attribute see [72] and [73]
BGP detects failures (either links or hosts) by sending keepalive messages to its
neighbors. Generally sent every 30 seconds and as they are only 19 bytes each ⇒
only ~5 bits/second of bandwidth, but with very long lived TCP connections
(semi-permanent connections)
A major feature of BGP version 4 is its ability to do aggregation - to handle CIDR
and supernetting. For more information on aggregation see chapter 5 of [67].
Maguire
[email protected]
BGP operation
2008.03.29
Dynamic Routing 417 of 448
Internetworking/Internetteknik
Classless Inter-Domain Routing (CIDR)
A standard for both classless addressing and classless interdomain routing scheme
(RFCs 1517 [68] .. 1520 [71]).
• Basic concept: to allocate/collapse a block of contiguous IP addresses
into a single routing table entry: (network address, count). e.g.,
192.5.48.0, 192.5.49.0, 192.5.50.0 = (192.5.48.0, 3)
• Hierarchical Routing Aggregation minimizes routing table entries;
enables "route aggregation" in which a single high-level route entry can
represent many lower-level routes in the global routing tables.
• Reduces the growth of routing table.
• Allows the addresses assigned to a single organization to span multiple
classed prefixes.
• Envisioned a hierarchical Internet.
CIDR addressing scheme and route aggregation has two major user impacts:
• you have to justifying IP Address Assignments
• get address from your ISP, i.e., renting them vs. being assigned them
Maguire
[email protected]
Classless Inter-Domain Routing (CIDR)
2008.03.29
Dynamic Routing 418 of 448
Internetworking/Internetteknik
Redistribution of Route Information
between protocols
Redistribution: allows a router running more than one routing protocol to
distribute information from one protocol to another.
Thus at the border, a router will translate the information obtained from one
routing domain and pass it to the other routing domain in the appropriate manner.
• Advertize (aggregated) interior routes to the Internet
• Inject (some) exterior routes into the interior network
Usually the redistributed routes are filtered (as not all the information needs to
cross the border).
Maguire
[email protected]
Redistribution of Route Information between protocols
2008.03.29
Dynamic Routing 419 of 448
Internetworking/Internetteknik
Resulting BGP Architecture
AS1
AS3
E-BGP
E-BGP
AS2
I-BGP
AS4
E-BGP
AS5
Figure 82: BGP architecture
Two kinds of BGP sessions:
• External (E-BGP) coordinates between border routers between ASs
• Internal BGP (I-BGP) coordinates between BGP peers within an AS
• Note it must be a full mesh, but this does not scale ⇒ organization into subASs, … .
Maguire
[email protected]
Resulting BGP Architecture
2008.03.29
Dynamic Routing 420 of 448
Internetworking/Internetteknik
BGP Messages
•
•
•
•
Open
Update
Keepalive
Notification
Maguire
[email protected]
BGP Messages
2008.03.29
Dynamic Routing 421 of 448
Internetworking/Internetteknik
BGP Open Message
0
7
8
15 16
23 24
31
Marker (16 bytes)
Length
My autonomous system
Type = 1
Version
Hold time
BGP identifier
Option length
Option
(variable length)
Figure 83: BGP Open messages (see Forouzan figures 14.53 pg. 427 and 14.52 pg. 426)
Maker (for authentication), Length, and Type are common to all BGP messages.
• Version = 4
• My autonomous system - the AS number
• Hold time - maximum time to wait for a keepalive or update, otherwise the other party is
considered to be dead
• BGP identifier - identifies the router sending this message (typically its IP address)
• Option length - zero if none
• Option - options in the form (length of parameter, parameter value)
Maguire
[email protected]
BGP Open Message
2008.03.29
Dynamic Routing 422 of 448
Internetworking/Internetteknik
BGP Update Message
0
7
8
15 16
23 24
31
Marker (16 bytes)
Length
Unfeasible routes length
Type = 2
Unfeasible routes length
Withdraw routes
(variable length)
Path attributes length
Path attributes
(variable length)
Network layer reachability information
(variable length)
Figure 84: BGP Update message (see Forouzan figures 14.54 pg. 428 and 14.52 pg. 426)
•
•
•
•
•
Unfeasible routes length (2 bytes) - length of next field
Withdraw routes - list of all routes that must be deleted
Path attributes length(2 bytes) - length of next field
Path attributes - specifies the attributes of the path being announced
Network layer reachability information - prefix length and IP address (to support CIDR)
Maguire
[email protected]
BGP Update Message
2008.03.29
Dynamic Routing 423 of 448
Internetworking/Internetteknik
BGP Keepalive Message
0
7
8
15 16
23 24
31
Marker (16 bytes)
Length
Type = 3
Figure 85: BGP Keepalive message (see Forouzan figures 14.55 pg. 429 and 14.52 pg. 426)
• Sent to reassure your peer that you are still alive
Maguire
[email protected]
BGP Keepalive Message
2008.03.29
Dynamic Routing 424 of 448
Internetworking/Internetteknik
BGP Notification Message
0
7
8
15 16
23 24
31
Marker (16 bytes)
Length
Type = 4
Error code
Error subcode
Error Data
(variable length)
Figure 86: BGP Notification message (see Forouzan figures 14.56 pg. 429 and 14.52 pg. 426)
• Error code (1 bytes) - category of error
– 1 = Message header error
– 2 = Open Message error
– 3 = Update Message error
– 4 = Hold time expired
– 5 = Finite state machine error
– 6 = Cease
• Error subcode (1 bytes) - the particular error in this category
• Error Data - information about this error
Maguire
[email protected]
BGP Notification Message
2008.03.29
Dynamic Routing 425 of 448
Internetworking/Internetteknik
Interconnections of networks
Since different networks have different users, policies, cost structure, etc.
But, the value of a network is proportional to the (number users)2 [Metcalf’s Law]
Therefore, network operators want to connect their networks to other networks.
⇒ Internet eXchange Points (IXs or IXPs)
List of public internet exchange points: http://www.ep.net/ep-main.html
For a discussion of why IXPs are important see [76]
• No internet exchange points ⇒ no internetworking!
• Cost advantages in peering
• QoS advantages
Maguire
[email protected]
Interconnections of networks
2008.03.29
Dynamic Routing 426 of 448
Internetworking/Internetteknik
Federal Internet eXchange (FIX)
A top-level routing domain - i.e., it does not use default routes.
Each was built around an FDDI ring which interconnected routers from each of
the operators.
Each of these routers was in turn connected to the rest of the operator’s network
via a high speed link (often at speeds up to 45Mbps).
R
FDDI ring
R
R
R
Note that it need not be a physical ring, but was often an FDDI switch (such as the
DEC Gigaswitch/FDDI).
Maguire
[email protected]
Federal Internet eXchange (FIX)
2008.03.29
Dynamic Routing 427 of 448
Internetworking/Internetteknik
Commercial Internet eXchange (CIX)
A nonprofit trade association of Public Data Internetwork Service Providers.
• a neutral forum - for forming consensus on legislation and policies
• fundamental agree for all CIX members to interconnect with on another
• no restriction on traffic between member networks
• no “settlements” or traffic charges
Maguire
[email protected]
Commercial Internet eXchange (CIX)
2008.03.29
Dynamic Routing 428 of 448
Internetworking/Internetteknik
Global Internet eXchange (GIX)
Global Internet eXchange (GIX), Guy Almes, Peter Ford, Peter Lothberg.
proposed in June 1992 - Stockholm D-GIX became Netnod-IX
Maguire
[email protected]
Global Internet eXchange (GIX)
2008.03.29
Dynamic Routing 429 of 448
Internetworking/Internetteknik
Some of Sweden’s Internet exchange points
•
•
•
•
•
Luleå Internet Exchange ⇒ Polarix http://www.polarix.se/
NorrNod http://www.norrnod.se/
NETNOD Internet eXchange http://www.netnod.se/
RIX -GH Gävleborg Regional Internet Exchange http://www.rix-gh.se/
SOL-IX - Stockholm http://www.sol-ix.net/
Other useful contacts:
SNUS
(Swedish Network Users Society)
“... its goal, from the users perspective, to force the evolution and development of the
networks and interconnections between networks, to arrange seminars, to exchange
information between the members, and to write agreements with companies.”
• SOF (Swedish Operators Forum)
• North American Network Operators’ Group (NANOG) http://www.nanog.org/
• …
Maguire
[email protected]
Some of Sweden’s Internet exchange points
2008.03.29
Dynamic Routing 430 of 448
Internetworking/Internetteknik
Network Access Points (NAPs)
At the NAP a high-speed network or switch is used to interconnect a number of
routers for the purpose of exchanging traffic.
Started with several NSF sponsored NAPs:
• Sprint NAP - in Pennsauken NJ
• PacBell NAP - in San Francisco
• Ameritech Advanced Data Services (AADS) {now SBC} NAP - in
Chicago (ATM exchange point) http://www.aads.net/main.html
• MAE-East (part of MCI) - in Washington DC http://www.mae.net/
• MAE-West (part of MCI) - in San Jose CA
In addition to handling IP packets, NAPs were required to support InterDomain
Routing Protocol (IDRP) {the ISO OSI Exterior Gateway Protocol} and route
CLNP (ConnectionLess Networking Protocol) packets.
Maguire
[email protected]
Network Access Points (NAPs)
2008.03.29
Dynamic Routing 431 of 448
Internetworking/Internetteknik
NAPs today
Using GigE, switch fabrics, resilient packet ring (Spatial Reuse Protocol (SRP))
technology, e.g., Cisco’s Dynamic Packet Transport (DPT), … with dedicated
fiber connections to/from members.
NAP managers are increasingly concerned about security, reliability, and
accounting & statistics.
Various NAP have different policies, methods of dividing costs, fees, co-location
of operators equipment at the NAP, etc.
Maguire
[email protected]
NAPs today
2008.03.29
Dynamic Routing 432 of 448
Internetworking/Internetteknik
Router Arbiter Project
Router Arbiter (RA) -http://www.ra.net (July 1994 through March 1998)
• provide a common database of route information (network topology
and policies) [Routing Arbiter Database (RADB) became Routing
Assets Database (RADb) http://www.merit.edu/nrd/services/radb.html ]
• promote stability and manageability of networks
Instead of a full mesh connection between providers, all the providers peer with a
central router server. A Router server (RS):
• maintains a database of all information operators need to set their
routing policy (written in RIPE 181, see RFC 1786 ⇒ Routing Policy
Specification Language (RPSL))
http://www.merit.edu/internet/documents/internet-drafts/draft-blunk-rpslng-08.txt )
• does not forward packets or perform any switching function
• a distributed rover runs at each RS and collects information which the
central network management system later queries.
Maguire
[email protected]
Router Arbiter Project
2008.03.29
Dynamic Routing 433 of 448
Internetworking/Internetteknik
Internet Routing Registry (IRR)
• a neutral Routing Registry
• set of routing DBs which includes
•
•
•
•
•
•
RIPE Routing Registry (European ISPs) - http://www.ripe.net/db/irr.html
MCI Routing Registry (MCI customers)
CA*net Routing Registry (CA*net customers)
ANS Routing Registry (ANS customers)
JPRR Routing Registry (Japanese ISPs)
Routing Arbiter Database (RADB) (all others)
• entries are maintained by each service provider
Internet Performance and Analysis Project (IPMA) IRR Java Interface
http://salamander.merit.edu/ipma/java/IRR.html
Maguire
[email protected]
Internet Routing Registry (IRR)
2008.03.29
Dynamic Routing 434 of 448
Internetworking/Internetteknik
Euro6IX
The European IPv6 Internet Exchanges (Euro6IX) project [77] examined how to
build an IPv6 exchange. It contains good examples of how to combine both
switching and routing mechanisms to build a high performance internet exchange.
They also describe additional services which such an exchange might provide.
These range from DNS to content distribution.
Maguire
[email protected]
Euro6IX
2008.03.29
Dynamic Routing 435 of 448
Internetworking/Internetteknik
Cisco’s NetFlow Switching
1st Packet
Routing
Table
Access
List
Queuing
Prioity
Switching
Tasks
Security
Tasks
Queuing
Tasks
Accounting
Data
Accounting
Tasks
NetFlow
Cache
2nd, 3rd, …
Packets
NetFlow
Switching
Tasks
NetFlow
Statistics
NetFlow
Data Export
Figure 87: Cisco’s NetFlow Switching
Maguire
[email protected]
Cisco’s NetFlow Switching
2008.03.29
Dynamic Routing 436 of 448
Internetworking/Internetteknik
Flows
A flow is defined as a “uni-directional stream of packets between a given source
network-layer address and port number and a specific destination network-layer
address and port number”.
Since many application use well known transport-layer port numbers, it is possible
to identify flows per user per application basis.
There is a well defined Netflow Switching Developer’s Interface which allows
you to get the statistics concerning the NetFlow cache and the per flow data (the
later gives you essentially billing records).
A general introduction to NetFlow Switching is available at
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/12cgcr/switch_c/xcprt3/xcovntfl.htm
Maguire
Flows
Dynamic Routing 437 of 448
[email protected]
2008.03.29
Internetworking/Internetteknik
Cisco’s Tag Switching
Combine routing with the performance of switching, based on the concept of
“label swapping”, in which units of data (e.g., a packet or a cell) carry a short,
fixed length label that tells switching nodes how to process the data.
Tag Edge
Routers
Tag
Switches
Figure 88: Tag Switching
Maguire
[email protected]
Cisco’s Tag Switching
2008.03.29
Dynamic Routing 438 of 448
Internetworking/Internetteknik
A Tag Edge router labels a packet based on its destination, then the Tag Switches
make their switching decision based on this tag, without having to look at the
contents of the packet.
The Tag Edge routers and Tag Switch exchange tag data using Tag Distribution
Protocol (TDP).
Basics of Tag switching:
1. Tag edge routers and tag switches use standard routing protocols to identify routes through the internetwork.
2. Using the tables generated by the routing protocols the tag edge routers and switches assign and distribute tag
information via the tag distribution protocol (TDP). When the Tag routers receive this TDP information they build a
forwarding database.
3. When a tag edge router receives a packet it analyzes the network layer header, performs applicable network layer
services, selects a route for the packet from its routing tables, applies a tag, and forwards the packet to the next hop tag
switch.
4. The tag switch receives the tagged packet and switches the packet based solely on the tag.
5. The packet reaches the tag edge router at the egress point of the network, the tag is stripped off and the packet delivered
as usual.
Maguire
[email protected]
Cisco’s Tag Switching
2008.03.29
Dynamic Routing 439 of 448
Internetworking/Internetteknik
Tag Locations
• in the Layer 2 header (e.g., in the VCI field for ATM cells)
• in the Layer 3 header (e.g., in the flow label field in IPv6) or
• in between the Layer 2 and Layer 3 headers
Maguire
[email protected]
Tag Locations
2008.03.29
Dynamic Routing 440 of 448
Internetworking/Internetteknik
Creating tags
Since tag switching decouples the tag distribution mechanisms from the data flows
- the tags can be created:
• when the first traffic is seen to a destination or
• in advance - so that even the first packet can immediately be labelled.
See also: Multiprotocol Label Switching (MPLS) and Generalized Multi-Protocol
Label Switching (GMPLS)
Maguire
[email protected]
Creating tags
2008.03.29
Dynamic Routing 441 of 448
Internetworking/Internetteknik
Routers do more than routing
Routing
Table
Access
List
Queuing
Prioity
Accounting
Data
Security
Tasks
Queuing
Tasks
Accounting
Tasks
Cache
Packet
Switching
Tasks
Figure 89: Basic steps in Routing
Earlier we have looked at the routing step, but today much of the excitement is in
the details of the other functions. For example, in order to support various QoS
features you might want to use more sophisticated queue management: Weighted
Round Robin, Fair Queuing, Weighted Fair Queuing, Random Early Detection
(RED), Weighted RED, … .
Maguire
[email protected]
Routers do more than routing
2008.03.29
Dynamic Routing 442 of 448
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• IP routing
• Dynamic routing protocols
– RIP, OSPF, BGP, CIDR
• Cisco’s NetFlow Switching and Tag Switching
• NAPs and other interconnect points
Maguire
[email protected]
Summary
2008.03.29
Dynamic Routing 443 of 448
Internetworking/Internetteknik
References
[55] J. Hawkinson and T. Bates, “Guidelines for creation, selection, and
registration of an Autonomous System (AS)”, IETF RFC 1930,
March 1996 http://www.ietf.org/rfc/rfc1930.txt
[56] C. Hedrick, “Routing Information Protocol”, IETF RFC 1058, June 1988
http://www.ietf.org/rfc/rfc1058
[57] G. Malkin, “RIP Version 2: Carrying Additional Information”, IETF
RFC 1388, January 1993 http://www.ietf.org/rfc/rfc1388
[58] G. Malkin, “RIP Version 2”, IETF RFC 2453, November 1998
http://www.ietf.org/rfc/rfc2453
[59] Charles L. Hedrick, “An Introduction to IGRP”, Cisco,
Document ID: 26825, Technology White Paper, August 1991
http://www.cisco.com/warp/public/103/5.html
[60] “Enhanced Interior Gateway Routing Protocol”, Cisco, Technology White
Maguire
[email protected]
References
2008.03.29
Dynamic Routing 444 of 448
Internetworking/Internetteknik
Paper, Document ID: 16406, April 19, 2005
http://www.cisco.com/warp/public/103/eigrp-toc.html
[61] J. Moy, “OSPF Version 2”, IETF RFC 2328, April 1998
http://www.ietf.org/rfc/rfc2328.txt
[62] “OSPF Design Guide”, Cisco, Technology White Paper,
Document ID: 7039,August 26, 2004 http://www.cisco.com/warp/public/104/1.html
[63] K. Lougheed and Y. Rekhter, “A Border Gateway Protocol 3 (BGP-3)”,
IETF RFC 1267, October 1991 http://www.ietf.org/rfc/rfc1267.txt
[64] Y. Rekhter and T. Li (editors), “A Border Gateway Protocol 4 (BGP-4)”,
IETF RFC 1654, July 1994 http://www.ietf.org/rfc/rfc1654.txt
[65] Y. Rekhter and T. Li (editors), “A Border Gateway Protocol 4 (BGP-4)”,
IETF RFC 1771, March1995 http://www.ietf.org/rfc/rfc1771.txt
[66] John W. Stewart III, BGP4: Inter-Domain Routing in the Internet,
Addison-Wesley, 1999, ISBN: 0-201-37951-1
Maguire
[email protected]
References
2008.03.29
Dynamic Routing 445 of 448
Internetworking/Internetteknik
[67] Bassam Halabi, Internet Routing Architectures, Cisco Press,
ISBN 1-56205-652-2
[68] R. Hinden (Editor), “Applicability Statement for the Implementation of
Classless Inter-Domain Routing (CIDR)”, IETF RFC 1517, September 1993
http://www.ietf.org/rfc/rfc1517.txt
[69] Y. Rekhter and T. Li (Editors), “An Architecture for IP Address Allocation
with CIDR”, IETF RFC 1518. September 1993 http://www.ietf.org/rfc/rfc1518.txt
[70] V. Fuller, T. Li, J. Yu, and K. Varadhan, “Classless Inter-Domain Routing
(CIDR): an Address Assignment and Aggregation Strategy”, IETF
RFC 1519, September 1993 http://www.ietf.org/rfc/rfc1519.txt
[71] Y. Rekhter and C. Topolcic, “Exchanging Routing Information Across
Provider Boundaries in the CIDR Environment”, IETF RFC 1520,
September 1993 http://www.ietf.org/rfc/rfc1520.txt
[72] R. Chandra, P. Traina, and T. Li, “BGP Communities Attribute”, IETF
RFC 1997, August 1996 http://www.ietf.org/rfc/rfc1997.txt
Maguire
[email protected]
References
2008.03.29
Dynamic Routing 446 of 448
Internetworking/Internetteknik
[73] E. Chen and T. Bates, “An Application of the BGP Community Attribute in
Multi-home Routing”, IETF RFC 1998, August 1996
http://www.ietf.org/rfc/rfc1998.txt
[74] Iljitsch van Beijnum, web site http://www.bgpexpert.com/, last modified April 28,
2005 12:00:00 PM
[75] Iljitsch van Beijnum, BGP, O’Reilly, 1st Edition September 2002,
ISBN 0-596-00254-8
[76] “Internet Exchange Points: Their Importance to Development of the Internet
and Strategies for their Deployment: The African Example”, Global Internet
Policy Iniative (GIPI), 6 June 2002 (revised 3 May 2004),
http://www.internetpolicy.net/practices/ixp.pdf
[77] Cesar Olvera Morales, Jordi Palet Martinez, Alvaro Vives, Alain Baudot,
Carlos Parada, Raffaele D’Albenzio, Mario Morelli, David Fernandez, and
Tomás de Miguel, Specification of the Internal Network Architecture of each
IX Point, Deliverable D2.1, Euro6IX: European IPv6 Internet Exchanges
Maguire
[email protected]
References
2008.03.29
Dynamic Routing 447 of 448
Internetworking/Internetteknik
Backbone Project, IST-2001-32161, version 4.4, 30 July 2002
http://www.euro6ix.org/Reports/public/euro6ix_pu_d2_1_v4_4.pdf
Maguire
[email protected]
References
2008.03.29
Dynamic Routing 448 of 448
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 8: Multicasting and RSVP
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapters 10, 15
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
IP_Multicast_and_RSVP.fm5
2008.03.29
Total pages: 528
Outline
• Multicast
• IGMP
• RSVP
Maguire
Outline
Multicasting and RSVP 450 of 528
[email protected]
2008.03.29
Internetworking/Internetteknik
Multicast and IGMP
Maguire
[email protected]
Multicast and IGMP
2008.03.29
Multicasting and RSVP 451 of 528
Internetworking/Internetteknik
Broadcast and Multicast
Traditionally the Internet was designed for unicast communication (one sender
and one receiver) communication.
Increasing use of multimedia (video and audio) on the Internet
• One-to-many and many-to-many communication is increasing
• In order to support these in a scalable fashion we use multicasting.
• Replicating UDP packets where paths diverge (i.e., split)
MBONE was an experimental multicast network which operated for a number of
years. (see for example http://www-mice.cs.ucl.ac.uk/multimedia/software/ and
http://www.ripe.net/ripe/wg/mbone/home.html )
Multicasting is useful for:
• Delivery to multiple recipients
• reduces traffic, otherwise each would have to be sent its own copy (“internet radio/TV”)
• Solicitation of service (service/server discovery)
• Not doing a broadcast saves interrupting many clients
Maguire
[email protected]
Broadcast and Multicast
2008.03.29
Multicasting and RSVP 452 of 528
Internetworking/Internetteknik
Filtering up the protocol stack
UDP
discard
IP
discard
discard
Device driver
Interface
discard
Figure 90: Filtering which takes place as you go up the TCP/IP stack
(see Stevens, Volume 1, figure 12.1, pg. 170)
We would like to filter as soon as possible to avoid load on the machine.
Maguire
[email protected]
Filtering up the protocol stack
2008.03.29
Multicasting and RSVP 453 of 528
Internetworking/Internetteknik
Broadcasting
• Limited Broadcast
• IP address: 255.255.255.255
• never forwarded by routers
• What if you are multihomed? (i.e., attached to several networks)
– Most BSD systems just send on first configured interface
– routed and rwhod - determine all interfaces on host and send a copy on each (which is
capable of broadcasting)
• Net-directed Broadcast
• IP address: netid.255.255.255 or net.id.255.255 or net.i.d.255 (depending on the class of
the network)
• routers must forward
• Subnet-Directed Broadcast
• IP address: netid | subnetid | hostID, where hostID = all ones
• All-subnets-directed Broadcast
• IP address: netid | subnetid | hostID, where hostID = all ones and subnetID = all ones
• generally regarded as obsolete!
To send a UDP datagram to a broadcast address set SO_BROADCAST
Maguire
[email protected]
Broadcasting
2008.03.29
Multicasting and RSVP 454 of 528
Internetworking/Internetteknik
Other approaches to One-to-Many and
Many-to-Many communication
Connection oriented approaches have problems:
• large user burden
• have to know other participants
• have to order links in advance
• poor scaling, worst case O(N2)
Maguire
[email protected]
Other approaches to One-to-Many and Many-to-Many communication Multicasting and RSVP 455
2008.03.29
Internetworking/Internetteknik
Alternative centralized model
CU-SeeME uses another model - a Reflector (a centralized model)
node
node
node
reflector
node
node
node
Figure 91: Reflector
• All sites send to one site (the reflector) overcomes the N2 problems
• The reflector sends copies to all sites
Problems:
• Does not scale well
• Multiple copies sent over the same link
• Central site must know all who participate
Behavior could be changed by explicitly building a tree of reflectors - but then you
are moving over to Steve Deering’s model.
Maguire
[email protected]
Alternative centralized model
2008.03.29
Multicasting and RSVP 456 of 528
Internetworking/Internetteknik
Multicast Backbone (MBONE)
Expanding multicasting across WANs
World-wide, IP-based, real-time conferencing over the Internet (via the MBONE)
in daily use for several years with more than 20,000 users in more than 1,500
networks in events carrier to 30 countries.
For a nice paper examining multicast traffic see: “Measurements and Observations
of IP Multicast Traffic” by Bruce A. Mah <[email protected]eley.EDU>, The
Tenet Group, University of California at Berkeley, and International Computer
Science Institute, CSD-94-858, 1994,12 pages:
http://www.kitchenlab.org/www/bmah/Papers/Ipmcast-TechReport.pdf/
Maguire
[email protected]
Multicast Backbone (MBONE)
2008.03.29
Multicasting and RSVP 457 of 528
Internetworking/Internetteknik
IP Multicast scales well
• End-nodes know nothing about topology
• Dynamically changes of topology possible, hosts join and leave as they wish
• Routers know nothing about “conversations”
• changes can be done without global coordination
• no end-to-end state to move around
Participants view of Multicast
Multicast Server
Figure 92: MBONE behaves as if there were a multicast server,
but this functionality is distributed not centralized.
Maguire
[email protected]
IP Multicast scales well
2008.03.29
Multicasting and RSVP 458 of 528
Internetworking/Internetteknik
Core Problem
How to do efficient multipoint distribution (i.e., at most one copy of a packet
crossing any particular link) without exposing topology to end-nodes
N copies
1 copy
Applications
• Conference calls (without sending N copies sent for N recipients)
• Dissemination of information (stock prices, "radio stations", …)
• Dissemination of one result for many similar requests (boot information,
video)
• Unix tools:
•
•
•
•
•
nv - network video
vat - visual audio tool
wb - whiteboard
sd - session directory
…
Maguire
[email protected]
Core Problem
2008.03.29
Multicasting and RSVP 459 of 528
Internetworking/Internetteknik
Steve Deering’s Multicast
Dynamically constructs efficient delivery trees from sender(s) to receiver(s)
• Key is to compute a spanning tree of multicast routers
Simple service model:
• receivers announce interest in some multicast address
• senders just send to that address
• routers conspire to deliver sender’s data to all interested receivers
• so the real work falls once again to the routers, not the end nodes
• Note that the assumption here is that it is worth loading the routers with this extra work,
because it reduces the traffic which has to be carried.
IGMP v1, v2, v3
Multicast Routing Protocols
PIM, CBT, DVMRP, MOSPF, MBGP, …
Link-level Multicast (Ethernet)
Figure 93: IP Multicast Service Model
Maguire
[email protected]
Steve Deering’s Multicast
2008.03.29
Multicasting and RSVP 460 of 528
Internetworking/Internetteknik
IP WAN Multicast Requirements
•
•
•
•
•
•
Convention for recognizing IP multicast
Convention for mapping IP to LAN address
Protocol for end nodes to inform their adjacent routers,
Protocol for routers to inform neighbor routers
Algorithm to calculate a spanning tree for message flow
Transmit data packets along this tree
Maguire
[email protected]
IP WAN Multicast Requirements
2008.03.29
Multicasting and RSVP 461 of 528
Internetworking/Internetteknik
Multicasting IP addresses
Multicast Group Addresses - “Class D” IP address
• High 4 bits are 0x1110; which corresponds to the range 224.0.0.0
through 239.255.255.255
• host group ≡ set of hosts listening to a given address
•
•
•
•
membership is dynamic - hosts can enter and leave at will
no restriction on the number of hosts in a host group
a host need not belong in order to send to a given host group
permanent host groups - assigned well know addresses by IANA
– 224.0.0.1 - all systems on this subnet
– 224.0.0.2 - all routers on this subnet
– 224.0.0.4 - DVMRP routers
– 224.0.0.9 - RIP-2 routers
– 224.0.1.1 - Network Time Protocol (NTP) - see RFC 1305 and RFC 1769 (SNTP)
– 224.0.1.2 - SGI’s dogfight application
Maguire
[email protected]
Multicasting IP addresses
2008.03.29
Multicasting and RSVP 462 of 528
Internetworking/Internetteknik
Internet Multicast Addresses
http://www.iana.org/assignments/multicast-addresses
listed in DNS under MCAST.NET and
224.IN-ADDR.ARPA.
• 224.0.0.0 - 224.0.0.255 (224.0.0/24) Local Network Control Block
• 224.0.1.0 - 224.0.1.255 (224.0.1/24) Internetwork Control Block
• 224.0.2.0 - 224.0.255.0 AD-HOC Block
• 224.1.0.0 - 224.1.255.255 (224.1/16) ST Multicast Groups
• 224.2.0.0 - 224.2.255.255 (224.2/16) SDP/SAP Block
• 224.3.0.0 - 224.251.255.255 Reserved
• 239.0.0.0/8 Administratively Scoped
•
•
•
•
•
•
•
•
•
239.000.000.000-239.063.255.255 Reserved
239.064.000.000-239.127.255.255 Reserved
239.128.000.000-239.191.255.255 Reserved
239.192.000.000-239.251.255.255 Organization-Local Scope
239.252.0.0/16 Site-Local Scope (reserved)
239.253.0.0/16 Site-Local Scope (reserved)
239.254.0.0/16 Site-Local Scope (reserved)
239.255.0.0/16 Site-Local Scope
239.255.002.002 rasadv
Maguire
[email protected]
Internet Multicast Addresses
2008.03.29
Multicasting and RSVP 463 of 528
Internetworking/Internetteknik
Converting Multicast Group to Ethernet
Address
Could have been a simple mapping of the 28 bits of multicast group to 28 bits of
Ethernet multicast space (which is 227 in size), but this would have meant that
IEEE would have to allocate multiple blocks of MAC addresses to this purpose,
but:
• they didn’t want to allocate multiple blocks to one organization
• a block of 224 addresses costs $1,000 ==> $16K for 227 addresses
Maguire
[email protected]
Converting Multicast Group to Ethernet Address
2008.03.29
Multicasting and RSVP 464 of 528
Internetworking/Internetteknik
Mapping Multicast (Class D) address to
Ethernet MAC Address
Solution IANA has one block of ethernet addresses 00:00:5e as the high 24 bits
• they decided to give 1/2 this address space to multicast -- thus
multicast has the address range: 00:00:5e:00:00:00 to 00:00:5e:7f:ff:ff
• since the first bit of an ethernet multicast has a low order 1 bit (which is
the first bit transmitted in link layer order), the addresses are
01:00:5e:00:00:00 to 01:00:5e:7f:ff:ff
• thus there are 23 bits available for use by the 28 bits of the multicast
group ID; we just use the bottom 23 bits
• therefore 32 different multicast group addresses map to the same ethernet address
• the IP layer will have to sort these 32 out
• thus although the filtering is not complete, it is very significant
The multicast datagrams are delivered to all processes that belong to the same
multicast group.
To extend beyond a single subnet we use IGMP.
Maguire
[email protected]
Mapping Multicast (Class D) address to Ethernet MAC Address
2008.03.29
Multicasting and RSVP 465 of
Internetworking/Internetteknik
Problems
Unfortunately many links do not support link layer multicasts at all!
For example:
• ATM
• Frame relay
• many cellular wireless standards
• …
Maguire
[email protected]
Problems
2008.03.29
Multicasting and RSVP 466 of 528
Internetworking/Internetteknik
IGMP: Internet Group Management Protocol
IGMP: Internet Group Management Protocol (RFC 1112) [79]:
• Used by hosts and routers to know which hosts currently belong to
which multicast groups.
• multicast routers have to know which interface to forward datagrams to
• IGMP like ICMP is part of the IP layer and is transmitted using IP
datagrams (protocol = 2) l
IP header
IGMP message
20 bytes
8 bytes
Figure 94: Encapsulation of IGMP message in IP datagram (see Stevens, Vol. 1, figure 13.1, pg. 179)
4 bit
4-bit
IGMP
IGMP
version
(1)
type
Unused
16 bit checksum
(1-2)
32 bit group address (class D IP address)
• type =1 ⇒ query sent by a router, type =2 ⇒ response sent by a host
Maguire
[email protected]
IGMP: Internet Group Management Protocol
2008.03.29
Multicasting and RSVP 467 of 528
Internetworking/Internetteknik
How does IGMP fit into the protocol stack
ICMP
IPv4
ARP
Driver
IGMP
Demux on
protocol value
in IP header
RARP
Demux on
Frame type and/or IP version
incoming frame - accepted by matching
address or multicast address
Figure 95: IGMP - adapted from earlier figure (See “Demultiplexing” on page 36.)
So it used IP packets with a protocol value of 2.
Maguire
[email protected]
How does IGMP fit into the protocol stack
2008.03.29
Multicasting and RSVP 468 of 528
Internetworking/Internetteknik
Joining a Multicast Group
• a process joins a multicast group on a given interface
• host keeps a table of all groups which have a reference count ≥ 1
IGMP Reports and Queries
• Hosts sends a report when first process joins a given group
• Nothing is sent when processes leave (not even when the last leaves),
but the host will no longer send a report for this group
• IGMP router sends queries (to address 224.0.0.1) periodically (one out
each interface), the group address in the query is 0.0.0.0
In response to a query, a host sends a IGMP report for every group with at
least one process
Routers
• Note that routers have to listen to all 223 link layer multicast addresses!
• Hence they listen promiscuously to all LAN multicast traffic
Maguire
[email protected]
Joining a Multicast Group
2008.03.29
Multicasting and RSVP 469 of 528
Internetworking/Internetteknik
IGMP Implementation Details
In order to improve its efficiency there are several clever features:
• Since initial reports could be lost, they are resent after a random time [0, 10 sec]
• Response to queries are also delayed randomly - but if a node hears someone else report
membership in a group it is interested in, its response is cancelled
Note: multicast routers don’t care which host is a member of which group; only that someone attached to
the subnet on a given interface is!
Time to Live
• TTL generally set to 1, but you can perform an expanding ring search for
a server by increasing the value
• Addresses in the special range 224.0.0.0 through 224.0.0.255 - should
never be forwarded by routers - regardless of the TTL value
All-Hosts Group
• all-hosts group address 224.0.0.1 - consists of all multicast capable
hosts and routers on a given physical network; membership is never
reported (sometimes this is called the “all-systems multicast address”)
All-Routers Group
• all-routers group address 224.0.0.2
Maguire
[email protected]
IGMP Implementation Details
2008.03.29
Multicasting and RSVP 470 of 528
Internetworking/Internetteknik
Group membership State Transitions
adapted from Comer figure 17.4 pg. 330
another host responds/cancel timer
join group/start timer
NonMember
timer expires/send response
Delaying
Member
Member
leave group/cancel timer query arrives/start timer
reference count becomes zero/leave group
Maguire
[email protected]
Group membership State Transitions
2008.03.29
Multicasting and RSVP 471 of 528
Internetworking/Internetteknik
IGMP Version 2 [80]
Allows a host to send a message (to address 224.0.0.2) when they want to
explicitly leave a group -- after this message the router sends a group-specific
query to ask if there is anyone still interested in listening to this group.
• however, the router may have to ask multiple times because this query
could be lost
• hence the leave is not immediate -- even if there had been only one
member (since the router can’t know this)
Maguire
[email protected]
IGMP Version 2 [80]
2008.03.29
Multicasting and RSVP 472 of 528
Internetworking/Internetteknik
IGMP Version 3 [81]
• Joining a multicast group, but with a specified set of sender(s) -- so that
a client can limit the set of senders which it is interested in hearing from
(i.e., source filtering)
• all IGMP replies are now set to a single layer 2 multicast address (e.g.,
224.0.0.22) which all IGMPv3-capable multicast routers listen to:
• because most LANs are now switched rather than shared media -- it uses less bandwidth to
not forward all IGMP replies to all ports
• most switches now support IGMP snooping -- i.e., the switch is IGMP aware and knows
which ports are part of which multicast group (this requires the switch to know which ports
other switches and routers are on -- so it can forward IGMP replies to them)
– switches can listen to this specific layer 2 multicast address - rather than having to listen
to all multicast addresses
• it is thought that rather than have end nodes figure out if all the multicast senders which it is
interested in have been replied to - simply make the switch do this work.
Maguire
[email protected]
IGMP Version 3 [81]
2008.03.29
Multicasting and RSVP 473 of 528
Internetworking/Internetteknik
IGMP - ethereal
Figure 96: IGMP packets as seen with Ethereal
Maguire
[email protected]
IGMP - ethereal
2008.03.29
Multicasting and RSVP 474 of 528
Internetworking/Internetteknik
Frame 1: IGMP Membership Query
Ethernet II, Src: 00:02:4b:de:ea:d8, Dst: 01:00:5e:00:00:01
Destination: 01:00:5e:00:00:01 (01:00:5e:00:00:01)
Source: 00:02:4b:de:ea:d8 (Cisco_de:ea:d8)
Type: IP (0x0800)
Internet Protocol, Src Addr: 130.237.15.194 (130.237.15.194), Dst
Addr: 224.0.0.1 (224.0.0.1)
Header length: 20 bytes
Differentiated Services Field: 0xc0 (DSCP 0x30: Class Selector
6; ECN: 0x00)
Total Length: 28
Identification: 0x6fa3 (28579)
Flags: 0x00
Fragment offset: 0
Time to live: 1
Protocol: IGMP (0x02)
Header checksum: 0xd6cc (correct)
Source: 130.237.15.194 (130.237.15.194)
Destination: 224.0.0.1 (224.0.0.1)
Internet Group Management Protocol
IGMP Version: 2
Type: Membership Query (0x11)
Max Response Time: 10.0 sec (0x64)
Header checksum: 0xee9b (correct)
Multicast Address: 0.0.0.0 (0.0.0.0)
Version: 4
Maguire
[email protected]
Frame 1: IGMP Membership Query
2008.03.29
Multicasting and RSVP 475 of 528
Internetworking/Internetteknik
Frame 2: IGMP v2 Membership Report
Ethernet II, Src: 00:06:1b:d0:98:c6, Dst: 01:00:5e:7f:ff:fa
Destination: 01:00:5e:7f:ff:fa (01:00:5e:7f:ff:fa)
Source: 00:06:1b:d0:98:c6 (Portable_d0:98:c6)
Type: IP (0x0800)
Internet Protocol, Src Addr: 130.237.15.225 (130.237.15.225), Dst
Addr: 239.255.255.250 (239.255.255.250)
Version: 4
Header length: 24 bytes
Differentiated Services Field: 0x00 (DSCP 0x00: Default; ECN: 0x00)
Total Length: 32
Identification: 0x1f8b (8075)
Flags: 0x00
Time to live: 1
Protocol: IGMP (0x02)
Header checksum: 0x8284 (correct)
Source: 130.237.15.225 (130.237.15.225)
Destination: 239.255.255.250 (239.255.255.250)
Options: (4 bytes)
Router Alert: Every router examines packet
Internet Group Management Protocol
IGMP Version: 2
Type: Membership Report (0x16)
Max Response Time: 0.0 sec (0x00)
Header checksum: 0xfa04 (correct)
Multicast Address: 239.255.255.250 (239.255.255.250)
Maguire
[email protected]
Frame 2: IGMP v2 Membership Report
2008.03.29
Multicasting and RSVP 476 of 528
Internetworking/Internetteknik
Frame 12: IGMP v1 Membership Report
Ethernet II, Src: 00:01:e6:a7:d3:b9, Dst: 01:00:5e:00:01:3c
Destination: 01:00:5e:00:01:3c (01:00:5e:00:01:3c)
Source: 00:01:e6:a7:d3:b9 (Hewlett-_a7:d3:b9)
Type: IP (0x0800)
Internet Protocol, Src Addr: 130.237.15.229 (130.237.15.229), Dst
Addr: 224.0.1.60 (224.0.1.60)
Version: 4
Header length: 20 bytes
Differentiated Services Field: 0x00 (DSCP 0x00: Default; ECN:
0x00)
Total Length: 28
Identification: 0x01f6 (502)
Flags: 0x00
Fragment offset: 0
Time to live: 1
Protocol: IGMP (0x02)
Header checksum: 0x43dc (correct)
Source: 130.237.15.229 (130.237.15.229)
Destination: 224.0.1.60 (224.0.1.60)
Internet Group Management Protocol
IGMP Version: 1
Type: Membership Report (0x12)
Header checksum: 0x0cc3 (correct)
Multicast Address: 224.0.1.60 (224.0.1.60)
Maguire
[email protected]
Frame 12: IGMP v1 Membership Report
2008.03.29
Multicasting and RSVP 477 of 528
Internetworking/Internetteknik
Frame 15: IGMP v2 Leave Group
Ethernet II, Src: 00:02:8a:78:91:8f, Dst: 01:00:5e:00:00:02
Destination: 01:00:5e:00:00:02 (01:00:5e:00:00:02)
Source: 00:02:8a:78:91:8f (AmbitMic_78:91:8f)
Type: IP (0x0800)
Internet Protocol, Src Addr: 211.105.145.186 (211.105.145.186), Dst
Addr: 224.0.0.2 (224.0.0.2)
Version: 4
Header length: 24 bytes
Differentiated Services Field: 0x00 (DSCP 0x00: Default; ECN: 0x00)
Total Length: 32
Identification: 0x9391 (37777)
Flags: 0x00
Fragment offset: 0
Time to live: 1
Protocol: IGMP (0x02)
Header checksum: 0x4c20 (correct)
Source: 211.105.145.186 (211.105.145.186)
Destination: 224.0.0.2 (224.0.0.2)
Options: (4 bytes)
Router Alert: Every router examines packet
Internet Group Management Protocol
IGMP Version: 2
Type: Leave Group (0x17)
Max Response Time: 0.0 sec (0x00)
Header checksum: 0xff71 (correct)
Multicast Address: 239.192.249.204 (239.192.249.204)
Maguire
[email protected]
Frame 15: IGMP v2 Leave Group
2008.03.29
Multicasting and RSVP 478 of 528
Internetworking/Internetteknik
Multicast routing
AS1
AS3
AS4
AS2
AS5
Figure 97: Multicast routing: packet replicated by the routers -- not the hosts
• packet forwarded one or more interfaces
• router replicates the packet as necessary
• need to build a delivery tree - to decide on which paths to forward
Maguire
[email protected]
Multicast routing
2008.03.29
Multicasting and RSVP 479 of 528
Internetworking/Internetteknik
Therefore a Multicast Router
• Listens to all multicast traffic and forwards if necessary
• Listens promiscuously to all LAN multicast traffic
• Listens to all multicast addresses
•
For an ethernet this means all 223 link layer multicast addresses
• Communicates with:
• directly connected hosts via IGMP
• other multicast routers with multicast routing protocols
Maguire
[email protected]
Multicast routing
2008.03.29
Multicasting and RSVP 480 of 528
Internetworking/Internetteknik
Multicasting
Example: Transmitting a file from C to A, B, and D.
✘Using point-to-point transfer, some links will be used more than once to
send the same file
1
A
B
3
2
C
4
6
D
5
E
✔ Using Multicast
Link
1
2
5
6
A
1
1
[email protected]
1
1
2
Maguire
B
Point-to-point
E
D
1
1
1
1
2
Multicast routing
2008.03.29
Total
1
2
2
1
Multicast
1
1
1
1
4
Multicasting and RSVP 481 of 528
Internetworking/Internetteknik
Multicast Routing - Flooding
• maintaining a list of recently seen packets (last 2 minutes), if it has
been seen before, then delete it, otherwise copy to a cache/database
and send a copy on all (except the incoming) interface.
✘Disadvantages:
◆ Maintaining a list of “last-seen” packets. This list can be fairly long in high speed networks
◆ The “last-seen” lists guarantee that a router will not forward the same packet twice, but it certainly does not
guarantee that the router will receive a packet only once.
✔ Advantages
◆ Robustness
◆ It does not depend on any routing tables.
Maguire
[email protected]
Multicast Routing - Flooding
2008.03.29
Multicasting and RSVP 482 of 528
Internetworking/Internetteknik
Delivery Trees: different methods
• Source-based Trees
• Notation: (S, G) ⇒ only specific sender(s) [S= source, G=Group]
• Uses memory proportional to O(S*G), can find optimal paths ⇒ minimizes delay
• Group Shared Trees
• Notation: (*, G) ⇒ All senders
• Uses less memory (O(G)), but uses suboptimal paths ⇒ higher delay
• Data-driven
• Build only when data packets are sent
• Demand-driven
• Build the tree as members join
Multicast Protocols
Source-based
Tree
Group-shared
Tree
PIM
MOSPF
DVMRP
PIM-DM
PIM-SM
CBT
Figure 98: Taxonomy of Multicast Routing Protocols (see Forouzan figure 15.7 pg. 444)
Maguire
[email protected]
Delivery Trees: different methods
2008.03.29
Multicasting and RSVP 483 of 528
Internetworking/Internetteknik
Multicast Routing - Spanning Trees
The “spanning tree” technique is used by “media-access-control (MAC) bridges”.
• Simply build up an “overlay” network by marking some links as “part of the tree” and other links
as “unused” (produces a loopless graph).
1
A
3
D
B
2
C
4
6
E
5
Drawbacks
✘ It does not take into account group membership
✘ It concentrates all traffic into a small subset of the network links.
Maguire
[email protected]
Multicast Routing - Spanning Trees
2008.03.29
Multicasting and RSVP 484 of 528
Internetworking/Internetteknik
Link-State Multicast: MOSPF [82]
Just add multicast to a link-state routing protocol thus OSPF ⇒ MOSPF
• Use the multiprotocol facility in OSPF to carry multicast information
• Extended with a group-membership LSA
•
This LSA lists only members of a given group
• Use the resulting link-state database to build delivery trees
• Compute least-cost source-based trees considering metrics using Dijkstra’s algorithm
• A tree is computed for each (S,G) pair with a given source (S), this is done for all S
• Remember that as a link-state routing protocol that every router will know the topology of the
complete network
• However, it is expensive to keep store all this information (and most is
unnecessary)
• Cache only the active (S,G) pairs
• Use a data-driven approach, i.e., only computes a new tree when a multicast datagram
arrives for this group
Maguire
[email protected]
Link-State Multicast: MOSPF [82]
2008.03.29
Multicasting and RSVP 485 of 528
Internetworking/Internetteknik
Reverse -Path Forwarding (RPF)
RPF algorithm takes advantage of a routing table to “orientate” the network and
to compute an implicit tree per network source.
Procedure
1.When a multicast packet is received, note source (S) and interface (I)
2.If I belongs to the shortest path toward S, forward to all interfaces except I.
• Compute shortest path from the source to the node rather than from
the node to the source.
• Check whether the local router is on the shortest path between a
neighbor and the source before forwarding a packet to that neighbor.
If this is not the case, then there is no point in forwarding a packet that
will be immediately dropped by the next router.
Maguire
[email protected]
Reverse -Path Forwarding (RPF)
2008.03.29
Multicasting and RSVP 486 of 528
Internetworking/Internetteknik
• RPF results in a different spanning tree for each source.
1
A
3
D
B
A
2
C
4
6
RPF tree from E
E
1
5
B
3
D
A
2
C
4
6
E
1
5
RPF tree from C
3
D
B
2
C
4
6
E
5
RPF tree from A
These trees have two interesting properties:
• They guarantee the fastest possible delivery, as multicasting follows the
shortest path from source to destination
• Better network utilization, since the packets are spread over multiple
links.
Drawback
✘Group membership is not taken into account when building the tree
⇒ a network can receive two or more copies of a multicast packet
Maguire
[email protected]
Reverse -Path Forwarding (RPF)
2008.03.29
Multicasting and RSVP 487 of 528
Internetworking/Internetteknik
Reverse Path Broadcast (RPB)
• We define a parent router for each network
• For each source, a router will forward a multicast packet only if it is the
designated parent
⇒ each network gets only one copy of each multicast packet
Maguire
[email protected]
Reverse Path Broadcast (RPB)
2008.03.29
Multicasting and RSVP 488 of 528
Internetworking/Internetteknik
RPB + Prunes ⇒ Reverse Path Multicast
(RPM)
When source S starts a multicast transmission the first packet is propagated to all
the network nodes (i.e., flooding). Therefore all leaf nodes receive the first
multicast packet. However, if there is a leaf node that does not want to receive
further packets, it will send back a “prune” message to the router that sent it this
packet - saying effectively “don’t send further packets from source S to group G
on this interface I.”
There are two obvious drawback in the flood and prune algorithm:
• The first packet is flooded to the whole network
• The routers must keep states per group and source
When a listener joins at a leaf that was pruned, we add this leaf back by grafting.
Flood and prune was acceptable in the experimental MBONE which had only a few tens of thousands of
nodes, but for the Internet where both the number of sources and the number of groups becomes very large,
there is a risk of exhausting the memory resources in network routers.
Maguire
[email protected]
RPB + Prunes ⇒ Reverse Path Multicast (RPM)
2008.03.29
Multicasting and RSVP 489 of 528
Internetworking/Internetteknik
Distance-Vector Multicast Routing Protocol
(DVMRP) [83]
• Start with a unicast distance-vector routing protocol (e.g., RIP), then
extend (Destination, Cost, Nexthop) ⇒ (Group, Cost, Nexthops)
• Routers only know their next hop (i.e., which neighbor)
• Reverse Path Multicasting (RPM)
• DVMRP is data-driven and uses source-based trees
Maguire
[email protected]
Distance-Vector Multicast Routing Protocol (DVMRP) [83] Multicasting and RSVP 490 of 528
2008.03.29
Internetworking/Internetteknik
Multicast Routing - Steiner Tree’s
Assume source C and the recipients are A and D.
1
A
3
D
B
2
A
C
4
6
5
E
1
3
D
B
2
C
4
6
RPF Tree (4 links)
E
5
Seiner Tree (3 links)
Figure 99: RPF vs. Steiner Tree
• Steiner tree uses less resources (links), but are very hard to compute
(N-P complete)
• In Steiner trees the routing changes widely if a new member joins the
group, this leads to instability. Thus the Steiner tree is more a
mathematical construct that a practical tool.
Maguire
[email protected]
Multicast Routing - Steiner Tree’s
2008.03.29
Multicasting and RSVP 491 of 528
Internetworking/Internetteknik
Core-Based Trees (CBT)
A fixed point in the network chosen to be the center of the multicast group, i.e., “core”. Nodes desiring to be
recipients send “join” commands toward this core. These commands will be processed by all intermediate
routers, which will mark the interface on which they received the command as belonging to the group’s tree.
The routers need to keep one piece of state information per group, listing all the interface that belong to the
tree. If the router that receives a join command is already a member of the tree, it will mark only one more
interface as belong to the group. If this is the first join command that the router receives, it will forward the
command one step further toward the core.
Advantages
• CBT limits the expansion of multicast transmissions to precisely the set of all recipients (so it is
demand-driven). This is in contrast with RPF where the first packet is sent to the whole network.
• The amount of state is less; it depends only on the number of the groups, not the number of pairs
of sources and groups ⇒ Group-shared multicast trees (*, G)
• Routing is based on a spanning tree, thus CBT does not depend on multicast or unicast routing
tables
Disadvantages
• The
path between some sources and some receivers may be suboptimal.
• Senders sends multicast datagrams to the core router encapsulated in unicast datagrams
Maguire
[email protected]
Core-Based Trees (CBT)
2008.03.29
Multicasting and RSVP 492 of 528
Internetworking/Internetteknik
Protocol-Independent Multicast (PIM)
Two modes:
• PIM-dense mode (PIM-DM) [85]
• Dense mode is an implementation of RPF and prune/graft strategy
• Relies on unicast routing tables providing an optimal path
• However, it is independent of the underlying unicast protocol
• PIM-sparse mode (PIM-SM) [84]
•
•
•
•
Sparse mode is an implementation of CBT where join points are called “rendezvous points”
A given router may know of more than one rendezvous point
Simpler than CBT as there is no need for acknowledgement of a join message
Can switch from group-shared tree to source-based tree if there is a dense cluster far from
the nearest rendezvous point
The adjectives “dense” and “sparse: refer to the density of group members in the
Internet. Where a group is send to be dense if the probability is high that the area
contains at least one group member. It is send to be sparse if that probability is
low.
Maguire
[email protected]
Protocol-Independent Multicast (PIM)
2008.03.29
Multicasting and RSVP 493 of 528
Internetworking/Internetteknik
Multiprotocol BGP (MBGP) [87]
Extends BGP to enable multicast routing policy, thus it connects multicast
topologies within and between BGP autonomous systems
Add two new (optional and non-transitive) attributes:
• Multiprotocol Reachable NLRI (MP_REACH_NLRI)
• Multiprotocol Unreachable NLRI (MP_UNREACH_NLRI)
As these are optional and non-transitive attributes - routers which do not support
these attributes ignore then and don’t pass them on.
Thus MBGP allows the exchange of multicast routing information, but one must
still use PIM to build the distribution tree to actually forward the traffic!
Maguire
[email protected]
Multiprotocol BGP (MBGP) [87]
2008.03.29
Multicasting and RSVP 494 of 528
Internetworking/Internetteknik
Multicast backbone (MBONE) [79]
Why can you do when all router’s and networks don’t support multicasting:
Tunnel!
AS1
AS3
tunnel
AS4
AS2
AS5
Figure 100: Multicast routing via tunnels - the basis of MBONE (see Forouzan figure 15.14 pg. 453)
See the IETF MBONE Deployment Working Group (MBONED)
http://antc.uoregon.edu/MBONED/ and their charter http://www.ietf.org/html.charters/mboned-charter.html
Maguire
[email protected]
Multicast backbone (MBONE) [79]
2008.03.29
Multicasting and RSVP 495 of 528
Internetworking/Internetteknik
Telesys class was multicast over MBONE
Already in Period 2, 1994/1995 "Telesys, gk" was multicast over the internet and
to several sites in and near Stockholm.
Established ports for each of the data streams:
• electronic whiteboard
• video stream
• audio stream
The technology works - but it is very important to get the audio packets delivered
with modest delay and loss rate. Poor audio quality is perceived a major problem.
NASA and several other organizations regularly multicast their audio and video
“programs”.
Maguire
[email protected]
Telesys class was multicast over MBONE
2008.03.29
Multicasting and RSVP 496 of 528
Internetworking/Internetteknik
Benefits for Conferencing
• IP Multicast is efficient, simple, robust
• Users can join a conference without enumerating (or even knowing)
other participants
• User can join and leave at any time
• Dynamic membership
Maguire
[email protected]
Benefits for Conferencing
2008.03.29
Multicasting and RSVP 497 of 528
Internetworking/Internetteknik
MBONE Chronology
Nov. 1988
Nov. 1990
Feb. 1991
Apr. 1991
Sept. 1991
Mar. 1992
Dec. 1992
Jan. 1993
1994/1995
July 1995
...
today
Small group proposes testbed net to DARPA. This becomes DARTNET
Routers and T1 lines start to work
First packet audio conference (using ISI’s vt)
First multicast audio conference
First audio+video conference (hardware codec)
Deering & Casner broadcast San Diego IETF to 32 sites in 4 countries
Washington DC IETF - four channels of audio and video to 195 watchers in 12 countries
MBONE events go from one every 4 months to several a day
Telesys gk -- multicast from KTH/IT in Stockholm
KTH/IT uses MBONE to multicast two parallel sessions from IETF meeting in Stockholm
lots of users and "multicasters"
IETF meetings are now regularily multicast - so the number of participants that
can attend is not limited by physical space or travel budgets.
Maguire
[email protected]
MBONE Chronology
2008.03.29
Multicasting and RSVP 498 of 528
Internetworking/Internetteknik
MBONE growth
1600
1400
1200
1000
Nodes
800
600
400
200
0
1992
1993
1994
1995
Figure 101: MBONE Growth - Doubling time ~8 months
Maguire
[email protected]
MBONE growth
2008.03.29
Multicasting and RSVP 499 of 528
Internetworking/Internetteknik
For the some statistics see:
Multicast
http://www.caida.org/tools/measurement/mantra/
2003
2002
02/06/2003,15:25:38
PST
01/21/2002,11:30 PST
(Pacific Standard Time)
Entity
Value
#Groups
4473
1002
#Participants
6059
average 4
#Unique Participants
1446
#ASes
137
#RPs
197
Old state 2000
330
But we are still waiting for multicast to “take off”.
Maguire
[email protected]
MBONE growth
2008.03.29
Multicasting and RSVP 500 of 528
Internetworking/Internetteknik
MBONE connections
MBONE is an “overlay” on the Internet
• multicast routers were distinct from normal, unicast routers - but
increasingly routers support multicasting
• it is not trivial to get hooked up
• requires cooperation from local and regional people
MBONE is changing:
• Most router vendors now support IP multicast
• MBONE will go away as a distinct entity once ubiquitous multicast is
supported throughout the Internet.
• Anyone hooked up to the Internet can participate in conferences
Maguire
[email protected]
MBONE connections
2008.03.29
Multicasting and RSVP 501 of 528
Internetworking/Internetteknik
mrouted
mrouted UNIX deamon
tunneling to other MBONE routers
See: “Linux-Mrouted-MiniHOWTO: How to set up Linux for multicast routing”
by Bart Trojanowski <[email protected]>, v0.1, 30 October 1999
http://jukie.net/~bart/multicast/Linux-Mrouted-MiniHOWTO.html
and http://www.linuxdoc.org/HOWTO/Multicast-HOWTO-5.html
Maguire
[email protected]
mrouted
2008.03.29
Multicasting and RSVP 502 of 528
Internetworking/Internetteknik
Multicast Source Discovery Protocol
(MSDP)[90]
As the routing protocols deployed in the multicast networks operating in sparse
mode do not support flooding information, a mechanism was needed to propagate
information about sources (i.e., hosts sourcing data to a multicast group) and the
associated multicast groups to all the multicast networks.
Sends Source Active (SA) messages containing (S,G,RP):
• Source Address,
• Group Address,
• and RP Address
these are propagated by Rendezvous Points over TCP
MSDP connects multiple PIM-SM domains together. Each domain uses its own
independent Rendezvous Point (RP) and does not depend on RPs in other
domains.
Maguire
[email protected]
Multicast Source Discovery Protocol (MSDP)[90]
2008.03.29
Multicasting and RSVP 503 of 528
Internetworking/Internetteknik
GLOP addressing
Traditionally multicast address allocation has been dynamic and done with the
help of applications like SDR that use Session Announcement Protocol (SAP).
GLOP is an example of a policy for allocating multicast addresses (it is still
experimental in nature). It allocated the 233/8 range of multicast addresses
amongst different ASes such that each AS is statically allocated a /24 block of
multicast addresses. See [86]
0
78
23
31
233
Maguire
[email protected]
16 bits AS
GLOP addressing
2008.03.29
local bits
Multicasting and RSVP 504 of 528
Internetworking/Internetteknik
Single Source Multicast (SSM) [92]
• A single source multicast-address space was allocated to 232/8
• Each AS is allocated a unique 232/24 address block that it can use for
multicasting.
Maguire
[email protected]
Single Source Multicast (SSM) [92]
2008.03.29
Multicasting and RSVP 505 of 528
Internetworking/Internetteknik
Other multicast efforts
PGM: Pragmatic General Multicast Protocol [91]
Administratively Scoped IP Multicast [93]
…
Maguire
[email protected]
Other multicast efforts
2008.03.29
Multicasting and RSVP 506 of 528
Internetworking/Internetteknik
Tools for managing multicast
“Managing IP Multicast Traffic” A White Paper from the IP Multicast Initiative (IPMI) and Stardust Forums for the
benefit of attendees of the 3rd Annual IP Multicast Summit, February 7-9, 1999
http://techsup.vcon.com/whtpprs/Managing%20IP%20Multicast%20Traffic.pdf
Mrinfo
shows the multicast tunnels and routes for a
router/mrouted.
Mtrace
traces the multicast path between two hosts.
RTPmon
displays receiver loss collected from RTCP messages.
Mhealth
monitors tree topology and loss statistics.
Multimon
monitors multicast traffic on a local area network.
Mlisten
captures multicast group membership information.
Dr. Watson
collects information about protocol operation.
Mantra (Monitor and Analysis of Traffic in Multicast Routers)
http://www.caida.org/tools/measurement/mantra/
Maguire
[email protected]
Tools for managing multicast
2008.03.29
Multicasting and RSVP 507 of 528
Internetworking/Internetteknik
SNMP-based tools and multicast related MIBs
Management Information Bases (MIBs) for multicast:
RTP MIB
designed to be used by either host running RTP applications or intermediate
systems acting as RTP monitors; has tables for each type of user; collect
statistical data about RTP sessions.
Basic Multicast Routing MIB
includes only general data about multicast routing. such as multicast group
and source pairs; next hop routing state, forwarding state for each of a
router’s interfaces, and information about multicast routing boundaries.
Maguire
[email protected]
SNMP-based tools and multicast related MIBs
2008.03.29
Multicasting and RSVP 508 of 528
Internetworking/Internetteknik
Protocol-Specific Multicast Routing MIBs
Provide information specific to a particular routing protocol
PIM MIB
list of PIM interfaces that are configured; the router’s PIM neighbors; the set of rendezvous
points and an association for the multicast address prefixes; the list of groups for which this
particular router should advertise itself as the candidate rendezvous point; the reverse path
table for active multicast groups; and component table with an entry per domain that the
router is connected to.
CBT MIB:
configuration of the router including interface configuration; router statistics for multicast
groups; state about the set of group cores, either generated by automatic bootstrapping or by
static mappings; and configuration information for border routers.
DVMRP MIB
interface configuration and statistics; peer router configuration states and statistics; the state
of the DVMRP (Distance-Vector Multicast Routing Protocol) routing table; and information
about key management for DVMRP routes.
Tunnel MIB
lists tunnels that might be supported by a router or host. The table supports tunnel types
including Generic Routing Encapsulation (GRE) tunnels, IP-in-IP tunnels, minimal
encapsulation tunnels, layer two tunnels (LTTP), and point-to-point tunnels (PPTP).
IGMP MIB
only deals with determining if packets should be forwarded over a particular leaf router
interface; contains information about the set of router interfaces that are listening for IGMP
messages, and a table with information about which interfaces currently have members
listening to particular multicast groups.
Maguire
[email protected]
Protocol-Specific Multicast Routing MIBs
2008.03.29
Multicasting and RSVP 509 of 528
Internetworking/Internetteknik
SNMP tools for working with multicast MIBs
Merit SNMP-Based Management Project has release two freeware tools which
work with multicast MIBs:
Mstat
queries a router or SNMP-capable mrouted to generate various tables of information including
routing tables, interface configurations, cache contents, etc.
Mview
"application for visualizing and managing the MBone",allows user to display and interact with the
topology, collect and monitor performance statistics on routers and links
HP Laboratories researchers investigating IP multicast network management are
building a prototype integrated with HP OpenView -- intended for use by the
network operators who are not experts in IP multicast; provides discovery,
monitoring and fault detection capabilities.
Maguire
[email protected]
SNMP tools for working with multicast MIBs
2008.03.29
Multicasting and RSVP 510 of 528
Internetworking/Internetteknik
QoS & Scheduling algorithms
Predictable delay is thought to be required for interactive real-time applications:
Alternatives:
1.use a network which guarantees fixed delays
2.use a packet scheduling algorithm
3.retime traffic at destination
Since queueing at routers, hosts, etc. has traditionally been simply FIFO; which
does not provide guaranteed end-to-end delay both the 2nd and 3rd method use
alternative algorithms to maintain a predictable delay.
Algorithms such as: Weighted Fair Queueing (WFQ)
These algorithms normally emulate a fluid flow model.
As it is very hard to provide fixed delays in a network, hence we will examine the
2nd and 3rd methods.
Maguire
[email protected]
QoS & Scheduling algorithms
2008.03.29
Multicasting and RSVP 511 of 528
Internetworking/Internetteknik
RSVP: Resource Reservation Setup Protocol
[96]
• RSVP is a network control protocol that will deal with resource
reservations for certain Internet applications.
• RSVP is a component of “Integrated services” Internet, and can
provide both best-effort and QoS.
• Applications request a specific quality of service for a data stream
• RSVP delivers QoS requests to each router along the path.
• Maintains router and host state along the data stream during the requested service.
• Hosts and routers deliver these request along the path(s) of the data stream
• At each node along the path RSVP passes a new resource reservation request to an
admission control routine
RSVP is a signalling protocol carrying no application data
• First a host sends IGMP messages to join a group
• Second a host invokes RSVP to reserve QoS
Maguire
[email protected]
RSVP: Resource Reservation Setup Protocol [96]
2008.03.29
Multicasting and RSVP 512 of 528
Internetworking/Internetteknik
Functionality
• RSVP is receiver oriented protocol.
The receiver is responsible for requesting reservations.
• RSVP handles heterogeneous receivers.
Hosts in the same multicast tree may have different capabilities and
hence need different QoS.
• RSVP adapts to changing group membership and changing routes.
RSVP maintains “Soft state” in routers. The only permanent state is in
the end systems. Each end system sends their RSVP control
messages to refresh the router state.
In the absence of refresh message, RSVP state in the routers will
time-out and be deleted.
• RSVP is not a routing protocol.
A host sends IGMP messages to join a multicast group, but it uses
RSVP to reserve resources along the delivery path(s) from that group.
Maguire
[email protected]
Functionality
2008.03.29
Multicasting and RSVP 513 of 528
Internetworking/Internetteknik
Resource Reservation
• Interarrival variance reduction / jitter
• Capacity assignment / admission control
• Resource allocation (who gets the bandwidth?)
Maguire
[email protected]
Resource Reservation
2008.03.29
Multicasting and RSVP 514 of 528
Internetworking/Internetteknik
Jitter Control
• if network has enough capacity
average departure rate = receiver arrival rate
• Then jitter is caused by queue waits due to competing traffic
• Queue waits should be at most the amount of competing traffic in
transit, total amount of in transit data should be at most round trip
propagation time
(100 ms for transcontinental path)
(64 kbit/sec => buffer = 8 kb/s*0.1 sec = 800 bytes)
See: Jonathan Rosenberg, Lili Qiu, and Henning Schulzrinne, “Integrating Packet
FEC into Adaptive Voice Playout Buffer Algorithms on the Internet”,INFOCOM,
(3), 2000, pp. 1705-1714.
See also http://citeseer.nj.nec.com/rosenberg00integrating.html
Maguire
[email protected]
Jitter Control
2008.03.29
Multicasting and RSVP 515 of 528
Internetworking/Internetteknik
Capacity Assignment
• end-nodes ask network for bandwidth.
• Can get “yes” or “no” (busy signal)
• Used to control available transmission capacity
Maguire
[email protected]
Capacity Assignment
2008.03.29
Multicasting and RSVP 516 of 528
Internetworking/Internetteknik
RSVP Protocol Mechanism
• Sender sends RSVP PATH message which records path
• Receiver sends RSVP RESV message backwards along the path
indicating desired QoS
• In case of failure a RSVP error message is returned
Sender
Receiver
Path
Path
Resv
Multicast Distribution
Resv
Figure 102:
Maguire
[email protected]
RSVP Protocol Mechanism
2008.03.29
Multicasting and RSVP 517 of 528
Internetworking/Internetteknik
RSVP Soft State
•
•
•
•
•
“soft state” in hosts and routers
create by PATH and RESV messages
refreshed by PATH and RESV messages
Time-outs clean up reservations
Removed by explicit “tear-down” messages
Maguire
[email protected]
RSVP Soft State
2008.03.29
Multicasting and RSVP 518 of 528
Internetworking/Internetteknik
RSVP operation
S1
R1
S2
R2
Figure 103:
Router
Host
RSVP
RSVP
Routing
Q
App
Q
Figure 104:
Maguire
[email protected]
RSVP operation
2008.03.29
Multicasting and RSVP 519 of 528
Internetworking/Internetteknik
RSVP operations (continued)
• At each node, RSVP applies a local decision procedure “admission
control” to the QoS request. If the admission control succeeds, it set
the parameters to the classifies and the packet schedule to obtain the
desired QoS. If admission control fails at any node, RSVP returns an
error indication to the application.
• Each router in the path capable of resource reservation will pass
incoming data packets to a packet classifier and then queue these
packet in the packet scheduler. The packet classifier determines the
route and the QoS class for each packet. The schedule allocates a
particular outgoing link for packet transmission.
• The packet schedule is responsible for negotiation with the link layer to
obtain the QoS requested by RSVP. The scheduler may also negotiate
a “CPU time”.
Maguire
[email protected]
RSVP operations (continued)
2008.03.29
Multicasting and RSVP 520 of 528
Internetworking/Internetteknik
RSVP Summary
•
•
•
•
RSVP supports multicast and unicast data delivery
RSVP adapts to changing group membership and routes
RSVP reserves resources for simplex data streams
RSVP is receiver oriented, i.e., the receiver is responsible for the
initiation and maintenance of a flow
• RSVP maintains a “soft-state” in routers, enabling them to support
gracefully dynamic memberships and automatically adapt to routing
changes
• RSVP provides several reservation models
• RSVP is transparent for routers that do not provide it
Maguire
[email protected]
RSVP Summary
2008.03.29
Multicasting and RSVP 521 of 528
Internetworking/Internetteknik
Argument against Reservation
Given, the US has 126 million phones:
• Each conversation uses 64 kbit/sec per phone
• Therefore the total demand is: 8 x 1012 b/s (1 Tbyte/s)
One optical fiber has a bandwidth of ~25 x 1012 b /s
There are well over 1000 transcontinental fibers!
Why should bandwidth be a problem?
Maguire
[email protected]
Argument against Reservation
2008.03.29
Multicasting and RSVP 522 of 528
Internetworking/Internetteknik
Further reading
IETF Routing Area, especially:
• Inter-Domain Multicast Routing (idmr)
• Multicast Extensions to OSPF (mospf)
IETF Transport Area especially:
• Differentiated Services (diffserv)
• RSVP Admission Policy (rap)
• Multicast-Address Allocation (malloc)
With lots of traditional broadcasters and others discovering multicast -- it is going
to be an exciting area for the next few years.
Maguire
[email protected]
Further reading
2008.03.29
Multicasting and RSVP 523 of 528
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• Multicast, IGMP, RSVP
Maguire
[email protected]
Summary
2008.03.29
Multicasting and RSVP 524 of 528
Internetworking/Internetteknik
References
[78] Joe Abley, f.root-servers.net, NZNOG 2005, February 2005, Hamilton, NZ
http://www.isc.org/pubs/pres/NZNOG/2005/F%20Root%20Server.pdf
[79] S. Deering, “Host Extensions for IP Multicasting”, IETF RFC 1112, August
1989 http://www.ietf.org/rfc/rfc1112.txt
[80] W. Fenner, “Internet Group Management Protocol, Version 2”, IETF
RFC 2236 , November 1997 http://www.ietf.org/rfc/rfc2236.txt
[81] B. Cain, S. Deering, I. Kouvelas, B. Fenner, and A. Thyagarajan, “Internet
Group Management Protocol, Version 3”, IETF RFC 3376, October 2002
http://www.ietf.org/rfc/rfc3376.txt
[82] J. Moy, “Multicast Extensions to OSPF”, IETF RFC 1584, March 1994
http://www.ietf.org/rfc/rfc1584.txt
[83] D. Waitzman, C. Partridge, and S. Deering, “Distance Vector Multicast
Routing Protocol”, IETF RFC 1075 , November 1988
Maguire
[email protected]
References
2008.03.29
Multicasting and RSVP 525 of 528
Internetworking/Internetteknik
http://www.ietf.org/rfc/rfc1075.txt
[84] D. Estrin, D. Farinacci, A. Helmy, D. Thaler, S. Deering, M. Handley, V.
Jacobson, C. Liu, P. Sharma, and L. Wei, “Protocol Independent
Multicast-Sparse Mode (PIM-SM): Protocol Specification”, IETF
RFC 2362, June 1998 http://www.ietf.org/rfc/rfc2362.txt
[85] A. Adams, J. Nicholas, and W. Siadak, “Protocol Independent Multicast Dense Mode (PIM-DM): Protocol Specification (Revised)”, IETF
RFC 3973, January 2005 http://www.ietf.org/rfc/rfc3973.txt
[86] D. Meyer and P. Lothberg, “GLOP Addressing in 233/8”, IETF RFC 3180
September 2001 http://www.ietf.org/rfc/rfc3180.txt
[87] T. Bates, Y. Rekhter, R. Chandra, and D. Katz, “Multiprotocol Extensions
for BGP-4”, IETF RFC 2858, June 2000 http://www.ietf.org/rfc/rfc2858.txt
[88] Beau Williamson, Developing IP Multicast Networks, Cisco Press, 2000
[89] Internet Protocol Multicast, Cisco, Wed Feb 20 21:50:09 PST 2002
Maguire
[email protected]
References
2008.03.29
Multicasting and RSVP 526 of 528
Internetworking/Internetteknik
http://www.cisco.com/univercd/cc/td/doc/cisintwk/ito_doc/ipmulti.htm
[90] B. Fenner and D. Meyer (Editors), “‘Multicast Source Discovery Protocol
(MSDP)”, IETF RFC 3618, October 2003 http://www.ietf.org/rfc/rfc3618.txt
[91] T. Speakman, J. Crowcroft, J. Gemmell, D. Farinacci, S. Lin, D. Leshchiner,
M. Luby, T. Montgomery, L. Rizzo, A. Tweedly, N. Bhaskar, R.
Edmonstone, R. Sumanasekera and L. Vicisano, “PGM Reliable Transport
Protocol Specification”, IETF RFC 3208 , December 2001
[92] S. Bhattacharyya (Ed.), “An Overview of Source-Specific Multicast (SSM)”,
IETF RFC 3569, July 2003 http://www.ietf.org/rfc/rfc3569.txt
[93] D. Meyer, “Administratively Scoped IP Multicast”, IETF RFC 2365, July
1998 http://www.ietf.org/rfc/rfc2365.txt
[94] B. Quinn and K. Almeroth, “IP Multicast Applications: Challenges and
Solutions”, IETF RFC 3170,September 2001 http://www.ietf.org/rfc/rfc3170.txt
[95] R. Braden (Ed.), L. Zhang, S. Berson, S. Herzog, and S. Jamin, “Resource
Maguire
[email protected]
References
2008.03.29
Multicasting and RSVP 527 of 528
Internetworking/Internetteknik
ReSerVation Protocol (RSVP) -- Version 1 Functional Specification”, IETF
RFC 2205, September 1997 http://www.ietf.org/rfc/rfc2205.txt
[96] Y. Snir, Y. Ramberg, J. Strassner, R. Cohen, and B. Moore, “Policy Quality
of Service (QoS) Information Model”, IETF RFC 3644, November 2003
http://www.ietf.org/rfc/rfc3644.txt
Maguire
[email protected]
References
2008.03.29
Multicasting and RSVP 528 of 528
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 9: Applications: Network
Management and VoIP
Lecture notes of G. Q. Maguire Jr.
KTH Information and
Communication Technology
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
For this lecture: Chapters
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Applications.fm5
2008.03.29
Total pages: 596
Lecture 5: Outline
• Network Management
• SNMP
• VoIP
Maguire
[email protected]
Lecture 5: Outline
2008.03.29
Applications: Network Management and VoIP 530 of
Internetworking/Internetteknik
•
•
•
•
•
ISO FCAPS Network Management Model
Fault management
Configuration management
Accounting management
Performance management
Security management
Maguire
[email protected]
ISO FCAPS Network Management Model
2008.03.29
Applications: Network Management and
Internetworking/Internetteknik
Network Management Process
Network Management System (NMS)
Decision
Reporting
Management
entity
Control
network
Agent
Agent
Agent
Information Collecting
Management DB
proxy
Management DB
Management DB
device
device
device
Managed devices
Maguire
[email protected]
Network Management Process
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
Network Management Process
Simple Network Management Protocol (SNMP), Management Information Base
(MIB), Sturecture of Management Information (SMI)
Network Management System (NMS)
Management
entity
network management protocol
network
Agent
Agent
Agent
MIB
Management DB
proxy
Management DB
Management DB
device
device
device
SMI
Maguire
[email protected]
Network Management Process
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
SNMP
Version 1
Version 2 - in 1992-1993, the SNMPv2 Working Group developed a security
model based on parties to an SNMP transaction - this was known as SNMPv2p.
But the working group decided that a user-based security model was much simpler
- and hence more likely to be deployed.
December 1995, the SNMPv2 Working Group was deactivated, but two
prominent approaches emerged from independent groups:
SNMPv2u
early standardization of the security features and a minimal specification - to encourage rapid
deployment of simple agents;
deferred standardization of features for managing large networks
SNMPv2*
concurrent standardization of security and scalability features to ensure that the security
design addressed issues of: proxy, trap destinations, discovery, and remote configuration of
security
Focus was effective management of medium and large networks.
August 1996 a team was formed to recommend a single approach.
Maguire
SNMP
Applications: Network Management and VoIP 534 of 596
[email protected]
2008.03.29
Internetworking/Internetteknik
SNMPv3
March 1997, the SNMPv3 Working group was chartered to define a standard for SNMP
security and administration. Target: April 1998 - all SNMPv3 specifications
submitted to IESG for consideration as Proposed Standards.
Based on “An Architecture for Describing SNMP Management Frameworks” (RFC
2271)
Composed of multiple subsystems:
1. a message processing and control subsystem - Message Processing and Dispatching for SNMP (RFC 2272)
2. a security subsystem - based on a User-based Security Model (USM) (RFC 2274), provides SNMP message level
security (Keyed-MD5 as the authentication protocol and the use of CBC-DES as the privacy protocol - but with support
for others) defines a MIB for remotely monitoring/managing the configuration parameters for this Security model
3. a local processing subsystem - responsibile for processing the SNMP PDUs that operate on local instrumentation,
applies access control [View-based Access Control Model (VACM) (RFC 2275)] and invokes method routines to
access management information, and prepares a response to the received SNMP request.
4. SNMPv3 Applications (RFC 2273) - includes Proxy Forwarder Applications, which can forward SNMP requests to
other SNMP entities, to translate SNMP requests of one version into SNMP requests of another version or into
operations of some non-SNMP management protocol; and support aggregated managed objects where the value of one
managed object depends upon the values of multiple (remote) items.
Maguire
[email protected]
SNMPv3
2008.03.29
Applications: Network Management and VoIP 535 of 596
Internetworking/Internetteknik
SNMP
• SNMPv1
• only 5 commands: get-request, get-next request, set-request, response
• Clear-text password
• SNMPv2: 1992-1996
•
•
•
•
•
get-bulk-request
inform-request (for proxy)
trap
v2 MIB and M2M MIB
Authentication
• SNMPv3: 1997• more security enhancement
• View-based access control - so different managers can see different subset of the
information
• remote configuration
Maguire
SNMP
Applications: Network Management and VoIP 536 of 596
[email protected]
2008.03.29
Internetworking/Internetteknik
Management Information Base: MIB
MIB is the database of information maintained by the agent that the manager can
query or set.
It specifies the data items a managed device must keep, the operations allowed on
each item.
See RFC 1213 “Management Information Base for Network Management of
TCP/IP-based internets: MIB-II” http://www.ietf.org/rfc/rfc1213.txt
See also:
• RFC 2011: SNMPv2 Management Information Base for the Internet
Protocol using SMIv2.
• RFC 2012: SNMPv2 Management Information Base for the
Transmission Control Protocol using SMIv2.
• RFC 2013: SNMPv2 Management Information Base for the User
Datagram Protocol using SMIv2.
Maguire
[email protected]
Management Information Base: MIB Applications: Network Management and VoIP
2008.03.29
Internetworking/Internetteknik
Case Diagram
To understand the relationship between counters and to make sure that all the data
paths for a packet are accounted for.
Application Layer
udpInDatagrams
udpNoPorts
udpOutDatagrams
udpInErrors
IP Layer
Figure 105: Case diagram of UDP group (W. R. Stevens, TCP/IP Illustrated, V.1, pg. 367)
Maguire
[email protected]
Case Diagram Applications: Network Management and VoIP 538 of 596
2008.03.29
Internetworking/Internetteknik
SNMP Traps
Agent sends a trap to manager to indicate that something has happened.
Following trap types are defined:
0: coldStart
1: warmStart
2: linkDown
3: linkUP
4: authenticationFailure
5: egpNeighborLoss
6: enterpriseSpecific
SNMP
agent
trap
sun
bsdi
.35
.33
140.252.13.32
Example: start the SNMP agent on sun and send traps to bsdi; tcpdump output:
trap type
Port 162
Port 161
sun.snmp > bsdi.snmp-trap: C=traps Trap(28)
E:unix.1.2.5 [140.252.13.33] coldstart 20
1 0.0
2 18.86
(18.86)
[email protected]
timestamp
sun.snmp > bsdi.snmp-trap: C=traps Trap(29)
E:unix.1.2.5 [140.252.13.33] authenticationFailure 1907
Enterprise: sysObjectID
Maguire
PDU type (length)
IP address of agent
SNMP Traps Applications: Network Management and VoIP 539 of 596
2008.03.29
Internetworking/Internetteknik
Remote MONitoring (RMON)
[ RMON
,
,
,
]
MIB 1 (RFC1757) RMON MIB 2 (RFC 2021) RMON MIB Protocol Identifiers (RFC 2074) MIB II (RFC1213)
Standard way for users to proactively manage multiple LANs from a central site.
RMON 1
•
•
•
•
Notify manager of errors
provide alerts for network problems
collects statistical baseline data (i.e., what is “normal” on this LAN), and
acts as a remote network analyser.
RMON 2
•
•
•
•
access higher level protocol information,
Point-to-point traffic statistics broken down by higher layer protocols,
eases trouble-shooting, and
enables network capacity planning [and to solve problems before they
become problems].
Maguire
[email protected]
Remote MONitoring (RMON)Applications: Network Management and VoIP 540
2008.03.29
Internetworking/Internetteknik
RMON Probes or Monitors
Network monitoring devices (monitor or probes) are instruments that exist for the
purpose of managing a network. Essentially a LAN analyzer - which is always
connected to the segment.
• A physical device which is attached to a segment of the network (it will
promisciously listen to traffic - to collect statistics and if requested
packets)
• Generally a microprocessor based system with 8+MBytes of memory.
• Fairly powerful processors so that events and alarms are not missed.
• In-band or out-of-band communication
• In-band - you communicate via the probe via the segment it is monitoring
• Out-of-band - you communicate with it via another path, e.g., a PPP/SLIP/serial connection
• Probes can operate off-line, i.e., they operate even though they may
not be in contact with the network managment system.
Probes are sold by lots of vendors.
Maguire
[email protected]
RMON Probes or Monitors Applications: Network Management and VoIP 541
2008.03.29
Internetworking/Internetteknik
RMON1 Statistics
Information collected by examing MAC layer
Tables
Packet
Capture
SNMP traps
Group
Description
1
Statistics
Statistics for the segment to which the RMON probe is attached
2
History
History (Baselines) of the segment
4
Host
Per host statistics for each individual transmitting and receiving device.
5
Host Top N
Top N reports on base statistics.
6
Matrix
Statistics on all conversations (i.e., who talks to whom)
7
Filter
Match on any part of a frame, including errors (CRC, overruns, etc.)
8
Capture
Collect packets, based on filters, for later retrieval (as if you were a network analyzer
3
Alarm
Alarms to monitor for user-defined events.
9
Event
Log file for use in conjunction with the Alarm or Filter Group.
Token Ring
Ring Station Order, Ring Configuration and Source Routing Information.
Token rings
Defined by RFC
Maguire
[email protected]
1757.
RMON1 Statistics
2008.03.29
Applications: Network Management and VoIP 542 of
Internetworking/Internetteknik
Ethernet Statistics Group
“These statistics take the form of free running counters that start from zero
when a valid entry is created. Each etherStatsEntry contains statistics for one
Ethernet interface. The probe must create one etherStats entry for each monitored
Ethernet interface on the device.” - from RFC1757
etherStatsTable OBJECT-TYPE
SYNTAX SEQUENCE OF EtherStatsEntry ...
::= { statistics 1 }
etherStatsEntry OBJECT-TYPE
DESCRIPTION
"A collection of statistics kept for a particular Ethernet interface. As
an example, an instance of the etherStatsPkts object might be named
etherStatsPkts.1"
INDEX { etherStatsIndex } ::= { etherStatsTable 1 }
Maguire
[email protected]
Ethernet Statistics GroupApplications: Network Management and VoIP 543 of
2008.03.29
Internetworking/Internetteknik
EtherStatsEntry
EtherStatsEntry ::= SEQUENCE {
etherStatsIndex
INTEGER (1..65535),
etherStatsDataSource
OBJECT IDENTIFIER,
etherStatsDropEvents
Counter,
etherStatsOctets
Counter,
etherStatsPkts
Counter,
etherStatsBroadcastPkts
Counter,
etherStatsMulticastPkts
Counter,
etherStatsCRCAlignErrors
Counter,
etherStatsUndersizePkts
Counter,
etherStatsOversizePkts
Counter,
etherStatsFragments
Counter,
etherStatsJabbers
Counter,
etherStatsCollisions
Counter,
etherStatsPkts64Octets
Counter,
etherStatsPkts65to127Octets
Counter,
etherStatsPkts128to255Octets Counter,
etherStatsPkts256to511Octets Counter,
etherStatsPkts512to1023Octets Counter,
etherStatsPkts1024to1518Octets Counter,
etherStatsOwner
OwnerString,
etherStatsStatus
EntryStatus
}
Maguire
[email protected]
EtherStatsEntryApplications: Network Management and VoIP 544 of 596
2008.03.29
Internetworking/Internetteknik
EtherHistoryEntry
EtherHistoryEntry::= SEQUENCE {
etherHistoryIndex
INTEGER (1..65535),
etherHistorySampleIndex
INTEGER (1..2147483647),
etherHistoryIntervalStart
TimeTicks,
etherHistoryDropEvents
Counter,
etherHistoryOctets
Counter,
etherHistoryPkts
Counter,
etherHistoryBroadcastPkts
Counter,
etherHistoryMulticastPkts
Counter,
etherHistoryCRCAlignErrors
Counter,
etherHistoryUndersizePkts
Counter,
etherHistoryOversizePkts
Counter,
etherHistoryFragments
Counter,
etherHistoryJabbers
Counter,
etherHistoryCollisions
Counter,
etherHistoryUtilization
INTEGER (0..10000)
}
Maguire
[email protected]
EtherHistoryEntry
2008.03.29
Applications: Network Management and VoIP 545 of
Internetworking/Internetteknik
HostEntry
HostEntry ::= SEQUENCE {
hostAddress
OCTET STRING,
hostCreationOrder
INTEGER (1..65535),
hostIndex
INTEGER (1..65535),
hostInPkts
Counter,
hostOutPkts
Counter,
hostInOctets
Counter,
hostOutOctets
Counter,
hostOutErrors
Counter,
hostOutBroadcastPkts
Counter,
hostOutMulticastPkts
Counter
}
Maguire
[email protected]
HostEntry
2008.03.29
Applications: Network Management and VoIP 546 of 596
Internetworking/Internetteknik
Host Top N group
Used to prepare reports that describe the hosts that top a list ordered by one of
their statistics.
hostTopNControlTable is used to initiate the generation of such a report, the
management station selects the parameters, such as:
• which interface,
• which statistic,
• how many hosts, and
• the start and stop times of the sampling.
Maguire
[email protected]
Host Top N group
2008.03.29
Applications: Network Management and VoIP 547 of
Internetworking/Internetteknik
The Matrix Group
Matrix group consists of the matrixControlTable, matrixSDTable and the
matrixDSTable.
These tables store statistics for a particular conversation between two addresses.
The maxtrixSDTable - contains a entries indexed by source and destination.
MatrixSDEntry ::= SEQUENCE {
matrixSDSourceAddress
matrixSDDestAddress
matrixSDIndex
matrixSDPkts
OCTET STRING,
OCTET STRING,
INTEGER (1..65535),
Counter,
matrixSDOctets
Counter,
matrixSDErrors
Counter
}
The maxtrixSDTable - a similar set of statistics (MatrixDSEntry) indexed by
destination and source.
Maguire
[email protected]
The Matrix Group
2008.03.29
Applications: Network Management and VoIP 548 of
Internetworking/Internetteknik
RMON2
Information collected from network and higher layer (“application”) headers
(defined by RFC2021)
Protocols
Network
layer
Higher
layers
Maguire
[email protected]
Group
Description
11
Protocol Directory
List of protocol types the probe is capable of monitoring
12
Protocol Distribution
Number of packets and octets by protocols on a network segment
13
Address Mapping
MAC addresses and corresponding network addresses
14
Network Layer Host
Amount of traffic sent to and from each network address
15
Network Layer Matrix
Amount of traffic between each pair of network addresses
Network Layer Matrix
Top N
Top N conversations over a user-defined period (packet or octet
counts)
16
Application Layer Host
Amount of traffic, by protocol
17
Application Layer
Matrix
Amount of traffic, by Protocol, between each pair of network
addresses.
Application Layer
Matrix Top N
Top N conversations over a user-defined period (packet or octet
counts)
RMON2
2008.03.29
Applications: Network Management and VoIP 549 of 596
Internetworking/Internetteknik
Information collected from network and higher layer (“application”) headers
(defined by RFC2021)
Probe
itself
Maguire
[email protected]
Group
Description
18
User History
Users created custom History Tables based on supported OID’s.
19
Probe Configuration
Configuration of various operating parameters of the probe
20
RMON Conformance
Lists which groups and instances of a group a probe supports
RMON2
2008.03.29
Applications: Network Management and VoIP 550 of 596
Internetworking/Internetteknik
Proprietary MIBs to extend RMON functions
ION Network, Inc. adds:
Group
Description
FDDI
FDDI MAC level and User Data Statistics for FDDI networks
Protocol
Bandwidth utilization by protocols
SolCom Host
Tracks MAC to IP address mappings; including when a host was first and last seen, when a
new host appears on the segment
Traffic Generation
Generate traffic using user-defined packets (including packet with errors)
Response Time
Monitoring
Works out response times and helps to pin-point WAN failures using ICMP echo-requests
initiated from the central site.
Maguire
[email protected]
Proprietary MIBs to extend RMON functions Applications: Network Management and
2008.03.29
Internetworking/Internetteknik
Network Management Systems
• HP OpenView -- http://www.managementsoftware.hp.com/marketsegments/enterprises/index.asp
• Derived from OpenView: IBM NetView, Digital Polycenter NetView, and NCR OneVision
• SunSoft Solstice: Site Manager, Solstice Domain Manager, and
Enterprise Manager -- http://www.sun.com/solstice/index.html
• Aprisma Management Technologies’ Spectrum http://www.aprisma.com/
Maguire
[email protected]
Network Management Systems
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
WEB based Management
Using the Web as an interface
• Web based Reporting/Statistics
• Netscount http://www.netscout.com/
• HPNetmetrix WebReporter
• Network Statistics Collection And Reporting Faclility (Netscarf
http://www.merit.edu/internet/net-research/netscarf/index.html), their Scion package consists of
five components:
– scollect - collects network data from a set of routers
– scook - preprocesses network data into a more convenient (condensed) form
– scserver - delivers the network data in response to client requests
– sclient - requests network data from the scserver on behalf of a reporting or graphing
application
– Real-Time Data (rtdata) tree - a flat-file database: stores the data collected by scollect
• Merit Internet Performance and Analysis Project (IPMA), tools: NetNow, AS Explorer, Route
Flap, Routing Table Statistics Generator, …
– See also pointers to tools developed by others.
• Web based Interfaced Management Platforms
•
•
•
OpenView World Wide Web Interface
DR-Web Manager and Agent
SiteScope
Maguire
[email protected]
v2.2 - a Java-based Web Site Monitoring and Administration Software
WEB based Management Applications: Network Management and VoIP 553
2008.03.29
Internetworking/Internetteknik
• Web based Interfaced Management Tools
• Cisco ClickStart - for configuring a Router with a Web Browser
• Axis Communications AB’s Thin Server
• Management of Web Services
• Harrie Hazewinkel, Carl W. Kalbfleisch, Juergen Schoenwaelder, “Definitions of Managed
Objects for WWW Services”, November 11, 1997 http://ietf.org/ids.by.wg/applmib.html
– Service Information Group
– Protocol Statistics Group
– Document Statistics Group
Maguire
[email protected]
WEB based Management Applications: Network Management and VoIP 554
2008.03.29
Internetworking/Internetteknik
Web Based Enterprise Management Initiative
(WBEM)
see http://www.dmtf.org/wbem
Goal: to consolidate and unify the data provided by existing management technologies - in order to solve
enterprise problems; i.e., from the application layer problem report down to the interface card - even if the
card is in a remote branch office.
Builds on:Intel’s Wired for Management (WfM) effort ==> Distributed Management Task
Force (formerly Desktop Management Task Force) and Desktop Management
Interface (now DMI 2.0)
The DMI was designed to be:
•
•
•
•
•
•
•
“independent of a specific computer or operating system
independent of a specific management protocol
easy for vendors to adopt
usable locally -- no network required
usable remotely using DCE/RPC, ONC/RPC, or TI/RPC
mappable to existing management protocols (e.g., CMIP, SNMP)
The DMI procedural interfaces are specifically designed to be remotely accessible through
the use of Remote Procedure Calls. The RPCs supported by the DMI include: DCE/RPC,
ONC/RPC, and TI/RPC.”
-- DMI 2.0 Introduction
Maguire
[email protected]
Web Based Enterprise Management Initiative (WBEM) Applications: Network Management
2008.03.29
Internetworking/Internetteknik
DMI 2.0 has three groups:
• ComponentID group - required for all DMI components, includes information such as the six
named attributes: "Manufacturer", "Product", “Version”, "Serial Number", "Installation", and
"Verify" [asking for this last group causes the device to check itself].
• Event Groups
– includes a template group used to describe the format of event data for standard events
– Event State group is defined to hold the current state of state-based events
– Events can be of different severity levels: Monitor, Information, OK, Non-Critical, Critical,
and Non-Recoverable.
• DMI Service Provider Groups - provides the means for those interested in specific events to
subscript to just the events that they want; subscribers can say how they want to be notified
(DCE RPC, TI RPC, ONC RPC), what transport protocol should be used (TCP/IP, IPX, …),
when the no longer want to be notified (Subscription Expiration DateStamp), …
Maguire
[email protected]
Web Based Enterprise Management Initiative (WBEM) Applications: Network Management
2008.03.29
Internetworking/Internetteknik
Four Elements of DMI
• a format for describing management information - Management
Information Format (MIF)
• a language for describing each component;
• each component has a MIF file to describe its manageable characteristics; and
• When a component is initially installed into the system, the MIF is added to the
(implementation-dependent) MIF database.
• a service provider entity
• two sets of APIs, one set for service providers and management
applications to interact (Service Provider API for Components), and the other
for service providers and components to interact (Component Provider
API), and
• set of services for facilitating remote communication.
Maguire
[email protected]
Four Elements of DMI Applications: Network Management and VoIP 557 of
2008.03.29
Internetworking/Internetteknik
Common Information Model (CIM)
• DMTF Common Information Model (CIM)
http://www.dmtf.org/standards/standard_wbem.php based on object-oriented technologies
for use in Web-based management
• XML Mapping Specification v2.0.0
• XML Document Type Definition v2.0.0
• CIM Operations over HTTP, V1.0
Maguire
[email protected]
Common Information Model (CIM) Applications: Network Management and VoIP
2008.03.29
Internetworking/Internetteknik
Java and Management
- Set of extensible objects and methods, defines an application
programming interfaces (API) which includes:
• JavaManagement API User Interface Style Guide
• Admin View Module (AVM)
• Base Object Interfaces
• Managed Container Interfaces
• Managed Notification Interfaces
• Managed Data Interfaces
• Managed Protocol Interfaces
• SNMP Interfaces
• Applet Integration Interfaces
Java Management API (JMAPI)
Java Dynamic Management Kit - A Java agent toolkit for rapid development of
autonomous Java agents for system, application, or network devices.
Maguire
[email protected]
Java and Management Applications: Network Management and VoIP 559 of
2008.03.29
Internetworking/Internetteknik
Inter-domain Management task force
(XoJIDM)
Sponsored by X/Open and the Network Management Forum (NMF), see
, Open Group Technical Standard, C802 ISBN 1-85912-256-6
January 2000 524 pages.
Inter-Domain Management
They have specificed such things as SNMP MIBS to CORBA-IDL conversion,
CORBA-IDL to GDMO/ASN.1 conversion, CORBA/SNMP Gateway, … .
Maguire
[email protected]
Inter-domain Management task force (XoJIDM) Applications: Network Management and
2008.03.29
Internetworking/Internetteknik
Policy Based Management
See the recent exjobb report “Implementing policy-based network management”
by Yavor Adel Al-Shaikhly
Check Point’s
framework
http://www.checkpoint.com/products/management/index.html
policy management
“Policy Agents: Licensed to Manage/Policy Based Management of Distributed Systems” by Morris Sloman.
Department of Computing, Imperial College, London, U.K.
Cisco’s “CiscoAssure
Maguire
[email protected]
”
Policy Networking: Enabling Business Applications through Intelligent Networking
Policy Based Management Applications: Network Management and VoIP 561
2008.03.29
Internetworking/Internetteknik
Applications
• E-mail
• E-mail was invented by Ray Tomlinson of BBN in 1972.
• His e-mail utility program permits listing, forwarding, and responding to e-mails
• It was demonstrated at International Computer Communication Conference (ICCC) that
year.
• It become the first “killer application” of the Internet.
•
•
•
•
Telnet and FTP
Networked File systems (such as NFS)
X windowing system
Web browsers
• The first graphical Web browser (called Mosaic) is introduced in 1993
• It was developed at the National Center for Supercomputing at the University of Illinois.
Maguire
[email protected]
Applications Applications: Network Management and VoIP 562 of 596
2008.03.29
Internetworking/Internetteknik
Voice over IP (VoIP)
First we will set the context and then we will examine the technical details.
VoIP End-to-End Architecture
IP end-to-end
Cellular IP terminal
codec
IP
radio
VoIP server
call/sessionrouting
Fixed IP terminal
Trancoding
Multiparty
conference Units
codec
IP
ethernet
IP cloud
Maguire
[email protected]
Voice over IP (VoIP) Applications: Network Management and VoIP 563 of
2008.03.29
Internetworking/Internetteknik
Deregulation ⇒ New regulations
• US Telecommunications Act of 19961
• “The goal of this new law is to let anyone enter any communications business -- to let any
communications business compete in any market against any other.”2
• updated the Communications Act of 1934
• New interconnection points
• perhaps there is something that LECs can do with all the empty space in their central
exchanges [which appeared due to the shrinking size of their own switching equipment]
• Number portability - even local numbers
• every call results in ~10 DB lookups
• “Universal Service”
• from a myth to a legal requirement
• an evolving service level - not a fixed service or service level!
• special subsidies for schools, health care, libraries, etc.
• February 1997 World Trade Organization (WTO) agreement3
1. The official citation for the new Act is: Telecommunications Act of 1996, Pub. LA. No. 104-104, 110 Stat. 56 (1996).
2. http://www.fcc.gov:80/telecom.html
3. For informal background see “WTO negotiations on basic Telecommunications” - http://www.wto.org/wto/services/tel.htm
Maguire
[email protected]
Deregulation ⇒ New regulations
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
Deregulation continued
⇒ New operators
Lots of new actors as operators
⇒ New Suppliers
Lots of new actors as equipment suppliers
Traditional telecom equipment vendors buying datacom vendors:
Lots of mergers and acquisitions among datacom vendors.
Maguire
[email protected]
Deregulation continued Applications: Network Management and VoIP 565 of
2008.03.29
Internetworking/Internetteknik
Latency
1
FAX relay/broadcast
Usability
Toll quality Satellite
CB Radio
Internet telephony
(past)
(now!)
0
100
200
300
400
500
600
700
800
900 ms
Figure 106: Usability of a voice circuit as a function of end-to-end delay (adapted from a drawing by Cisco)a
a. http://www.packeteer.com/solutions/voip/sld006.htm
However:
Round-trip
Local LAN
to northern Sweden (basil.cdt.luth.se)
to Austria (freebee.tu-graz.ac.at)
To server in US network
To my machine in the US (~30 ms is the ISDN link)
To KTH’s subnet at Stanford University in the US
(ssvl.stanford.edu)
Maguire
[email protected]
min (ms)
1
21
73
131
175
166
avg (ms)
1
25
109
306
328
170
max (ms)
3
41
353
526
600
217
hops
0
8
18
19
21
20
Deregulation continued Applications: Network Management and VoIP 566 of
2008.03.29
Internetworking/Internetteknik
Increasingly IP based data+voice infrastructure
Public cells
Handset
DECT
exchange
GSM
Voice
gateway
ISDN-PRI
E-1 to PSTN
KTH/Monaco GSM system
Handset
Workstation
Home
Voice
Gateway
Workstation
Handset
Basestation
Router
Mobile
Internet
Office
Maguire
[email protected]
Deregulation continued Applications: Network Management and VoIP 567 of
2008.03.29
Internetworking/Internetteknik
Voice Gateway
LAN
2B+D or 30B+D or …
ISDN interface
digital path
CPU
D/A converter
LAN
adaptor
A/D converter
Modem chip
Digitized voice or data
Use access servers such as Ascend Communications MAX, filled with digital modems (currently used for
current analog modem pools) as voice gateways [see Ascend’s MultiVoice Application for the MAX]
Maguire
[email protected]
Deregulation continued Applications: Network Management and VoIP 568 of
2008.03.29
Internetworking/Internetteknik
Voice over IP (VOIP)
Gateways not only provide basic telephony and fax services but can also will enable lots of
value-added services, e.g., call-centers, integrated messaging, least-cost routing, … .
Such gateways provide three basic functions:
• Interface
between the PSTN network and the Internet
Terminate incoming synchronous voice calls, compress the voice, encapsulate it into packets, and send it as IP packets.
Incoming IP voice packets are unpacked, decompressed, buffered, and then sent out as synchronous voice to the PSTN
connection.
• Global
directory mapping
Translate between the names and IP addresses of the Internet world and the E.164 telephone numbering scheme of the
PSTN network.
• Authentication
and billing
Voice representation
ITU G.723.1 algorithm for voice encoding/decoding or G.729 (CS-ACELP voice compression).
Signaling
Based on the H.323 standard on the LAN and conventional signaling will be used on telephone
networks.
Maguire
[email protected]
Voice over IP (VOIP) Applications: Network Management and VoIP 569 of
2008.03.29
Internetworking/Internetteknik
Fax Support
Both store-and-forward and real-time fax modes - with store-and-forward the system records the
entire FAX before transmission.
Management
Full SNMP management capabilities via MIBs (Management Information Base) will be provided
to control all functions of the Gateway. Extensive statistical data will be collected on dropped calls,
lost/resent packets, and network delays.
Compatibility
De jure standards:
• ITU G 723.1/G.729 and H.323
• VoIP Forum IA 1.0
De facto standards:
• Netscape’s Cooltalk
• Microsoft’s NetMeeting
A protocol to keep you eyes on: Session Initiation Protocol (SIP) [RFC 2543], much simpler than
H.323
Maguire
[email protected]
Voice over IP (VOIP) Applications: Network Management and VoIP 570 of
2008.03.29
Internetworking/Internetteknik
VOIP Modes of Operation
•
•
•
•
•
PC to PC
PC-to-Telephone calls
Telephone-to-PC calls
Telephone-to-Telephone calls via the Internet
Premises to Premises
• use IP to tunnel from one PBX/Exchange to another
• Premises to Network
• use IP to tunnel from one PBX/Exchange to a gateway of an operator
Maguire
[email protected]
Voice over IP (VOIP) Applications: Network Management and VoIP 571 of
2008.03.29
Internetworking/Internetteknik
Cisco Voice Over IP
Enables Cisco 3600 series routers to carry live voice traffic (e.g., telephone calls
and faxes) over an IP network.
They state that this could be used for:
• “Toll bypass
• Remote PBX presence over WANs
• Unified voice/data trunking
• POTS-Internet telephony gateways”
Uses Real-Time Transport Protocol (RTP) for carrying packetized audio and
video traffic over an IP network.
Cisco 3600 supports a selection of CODECs:
• G.711 A-Law 64,000 bits per second (bps)
• G.711 u-Law 64,000 bps
• G.729 8000 bps
Maguire
[email protected]
Cisco Voice Over IP Applications: Network Management and VoIP 572 of
2008.03.29
Internetworking/Internetteknik
Cisco 3800 supports even more CODECs:
• ITU G.726 standard, 32k rate
• ITU G.726 standard, 24k rate
• ITU G.726 standard, 16k rate
• ITU G.728 standard, 16k rate (default)
• ITU G.729 standard, 8k rate
By using Voice Activity Detection (VAD) - you only need to send traffic if there
is something to send.
An interesting aspect is that user’s worry when they hear absolute silence, so to
help make them comfortable it is useful to play noise when there is nothing to
output. Cisco provide a “comfort-noise command to generate background noise
to fill silent gaps during calls if VAD is activated”.
Cisco 3600 series router can be used as the voice gateway with software such as
Microsoft NetMeeting.
Cisco 3800 also supports “fax-relay” - at various rates either current voice rate or
Maguire
[email protected]
Cisco Voice Over IP Applications: Network Management and VoIP 573 of
2008.03.29
Internetworking/Internetteknik
2,400/4,800/7,200/9,600/14,400 bps bps fax rates.
For futher information see
http://www.cisco.com/univercd/cc/td/doc/product/software/ios113ed/113t/113t_1/voip/config.htm
Maguire
[email protected]
Cisco Voice Over IP Applications: Network Management and VoIP 574 of
2008.03.29
Internetworking/Internetteknik
Intranet Telephone System
On January 19, 1998, Symbol Technologies and Cisco Systems announced that they had
combined the Symbol Technologies’ NetVision™ wireless LAN handset and
Cisco 3600 to provide a complete wireless local area network telephone system
based on Voice-Over-IP technology. (White Paper)
The handset use wireless LAN (IEEE 802.11) infrastructure and a voice gateway
via Cisco 3600 voice/ fax modules. The system conforms to H.323.
"I believe that this is the first wireless local area network telephone
based on this technology" -- Jeff Pulver
Seamless roaming via Symbol’s pre-emptive roaming algorithm with load
balancing.
Claim each cell can accommodate ~25 simultaneous, full-duplex phone calls.
Current Ericsson is a partner with Symbol, using Ericsson’s WebSwitch2000
Maguire
[email protected]
Intranet Telephone System Applications: Network Management and VoIP 575
2008.03.29
Internetworking/Internetteknik
Wireless LANs
“The wireless workplace will soon be upon us1
Telia has strengthened its position within the area of radio-based data solutions through the
acquisition of Global Cast Internetworking. The company will primarily enhance Telia
Mobile’s offering in wireless LANs and develop solutions that will lead to the introduction of
the wireless office. A number of different alternatives to fixed data connections are currently
under development and, later wireless IP telephony will also be introduced.
…
The acquisition means that Telia Mobile has secured the resources it needs to maintain its
continued expansion and product development within the field of radio-based LAN solutions.
Radio LANs are particularly suitable for use by small and medium-sized companies as well as by
operators of public buildings such as airports and railway stations.
Today’s radio-LAN technology is based on inexpensive products that do not require frequency
certification. They are easy to install and are often used to replace cabled data networks in,
for example, large buildings.
…”
[emphasis added by Maguire]
1. Telia press annoucement: 1999-01-25
Maguire
[email protected]
Intranet Telephone System Applications: Network Management and VoIP 576
2008.03.29
Internetworking/Internetteknik
Telia’s HomeRun
http://www.homerun.telia.com/
A subscription based service to link you to your corporate network from airports,
train stations, ferry terminals, hotels, conference centers, etc.
Look for Telia’s HomeRun logo:
Maguire
[email protected]
Telia’s HomeRunApplications: Network Management and VoIP 577 of 596
2008.03.29
Internetworking/Internetteknik
Carriers offering VOIP
“Equant, a network services provider, will announce tomorrow that it is introducing
voice-over-frame relay service in 40 countries, ...
The company says customers can save 20% to 40% or more by sending voice traffic over
its frame relay network. "This is the nearest you’re going to get to free voice," says Laurence
Huntley, executive VP of marketing for Equant Network Service.
The Equant service uses the Cisco Systems 3810 router, which takes the customer’s voice
and data traffic and integrates them before putting the traffic on the Equant network. Equant
is also working with Cisco to introduce a voice-over-IP service. …
Equant isn’t alone in its pursuit to send voice traffic over data networks. Most of the major
carriers are testing services that would send voice over data networks. ... .”1
AT&T VoIP phone: http://www.telephones.att.com/new_prod.html
Deutsche Telekom running a pilot Internet telephony service using networking products from
Ascend Communications and VocalTec.
1. Mary E. Thyfault, Equant To Roll Out Voice-Over-Frame Relay Service, InformationWeek Daily, 10/21/98.
Maguire
[email protected]
Telia’s HomeRunApplications: Network Management and VoIP 578 of 596
2008.03.29
Internetworking/Internetteknik
VOIP vs. traditional telephony
In “Telcos Hear New Voices” by Margrit Sessions, Phillips Tarifica Ltd., she predicts that by
2001, Internet telephony could squeeze nearly US$1.2 billion in revenue out of 16
international service providers, while losses due to e-mail (US$463 million) and
Internet fax (US$170 million) will be much less.
Expected loss of international call revenue due to: Internet phone, fax, and e-mail,
by operator:
Company
Expected Losses
(millions of US Dollars)
Loss as a percentage of
revenue
AT&T
~350
3.6%
Kokusai Denshin Denwa (KDD) Co. Ltd. (Japan)
~307
10.4%
Deutsche Telekom
~175
4.2%
Telstra Corp. (Australia)
~168
9%
Embratel (Brazil)
~28
11.5%
Bezeq (Israel)
~30
10.7%
Maguire
[email protected]
VOIP vs. traditional telephonyApplications: Network Management and VoIP 579
2008.03.29
Internetworking/Internetteknik
Economics
"Can Carriers Make Money On IP Telephony? by Bart Stuck and Michael
Weingarten, Business Communication Review, Volume 28, Number 8,August
1998, pp. 39-44 - http://www.bcr.com/bcrmag/08/98p39.htm
"What is the reality in the battle over packet-versus-circuit telephony, and what is hype?
Looking at the potential savings by cost element, it is clear that in 1998, access arbitrage is
the major economic driver behind VOIP. By 2003, we anticipate that switched-access
arbitrage will diminish in importance, as the ESP exemption disappears and/or access rates
drop to true underlying cost.
However, we believe that the convergence between voice and data via packetized networks
will offset the disappearance of a gap in switched access costs. As a result, VOIP will
continue to enjoy a substantial advantage over circuit-switched voice. Indeed, as voice/data
convergence occurs, we see standalone circuit-switched voice becoming economically
nonviable."
Maguire
[email protected]
Economics Applications: Network Management and VoIP 580 of 596
2008.03.29
Internetworking/Internetteknik
Conferences
VON
(Voice on the Net)
Maguire
[email protected]
Conferences Applications: Network Management and VoIP 581 of 596
2008.03.29
Internetworking/Internetteknik
Patents
Mixing voice and data in the LAN goes back to at least this patent:
4581735 : Local area network packet protocol for combined voice and data
transmission
INVENTORS:
Flamm; Lois E., Chatham Township, Morris County, NJ
Limb; John O., Berkeley Heights, NJ
ASSIGNEES: AT&T Bell Laboratories, Murray Hill, NJ
ISSUED: Apr. 8 , 1986
FILED: May 31, 1983
ABSTRACT: In order to control the transfer of packets of information among a plurality of
stations, the instant communications system, station and protocol contemplate first and
second oppositely directed signal paths. At least two stations are coupled to both the first
and the second signal paths. A station reads one signal from a path and writes another signal
Maguire
[email protected]
Patents
2008.03.29
Applications: Network Management and VoIP 582 of 596
Internetworking/Internetteknik
on the path. The one signal is read by an arrangement which electrically precedes the
arrangement for writing the other signal. Packets are transmitted in a regular, cyclic
sequence. A head station on a forward path writes a start cycle code for enabling each
station to transmit one or more packets. If a station has a packet to transmit, it can read the
bus field of a packet on the forward path. Responsive thereto, a logical interpretation may
be made as to whether the forward path is busy or is not busy. If the path is not busy, the
packet may be written on the path by overwriting any signal thereon including the busy field.
If the path is busy, the station may defer the writing until the path is detected as not busy. In
order to accommodate different types of traffic, the head station may write different start
cycle codes. For example, a start-of-voice code may enable stations to transmit voice
packets; a start-of-data code may enable stations to transmit data packets, etc. for the
different types of traffic. Further, the start cycle codes may be written in a regular, e.g.,
periodic, fashion to mitigate deleterious effects, such as speech clipping. Still further, the last
station on the forward path may write end cycle codes in packets on a reverse path for
communicating control information to the head station. Responsive to the control
information, the head station may modify the cycle to permit the respective stations to, for
example, transmit more than one packet per cycle or to vary the number of packet time slots,
which are allocated to each of the different types of traffic.
Maguire
[email protected]
Patents
2008.03.29
Applications: Network Management and VoIP 583 of 596
Internetworking/Internetteknik
Deregulation ⇒ Trends
•
•
•
•
replacing multiplexors with Routers/Switches/… << 1/10 circuit swi. cost
Standard telco interfaces being replaced by datacom interfaces
New Alliances
future developments building on VOIP
♦ Fax broadcast, Improved quality of service, Multipoint audio bridging, Text-to-speech conversion
and Speech-to-Text conversion, Voice response systems, …
♦ Replacing the wireless voice network’s infrastructure with IP
See the Univ. of California at Berkeley ICEBERG project report:
http://iceberg.cs.berkeley.edu/release/
⇒Telecom (only) operators have no future
⇒Telecom (only) companies have no future
Maguire
[email protected]
Deregulation ⇒ Trends Applications: Network Management and VoIP 584 of
2008.03.29
Internetworking/Internetteknik
VoIP details
Carry the speech frame inside an RTP packet
IPv4/6
20/40 octets
UDP RTP CODEC info
8 octets 12 octets
40/60 octets
~33 octets
Typical packetisation time of 10-20ms per audio frame.
See http://www.ietf.org/ids.by.wg/avt.html
Maguire
[email protected]
VoIP details Applications: Network Management and VoIP 585 of 596
2008.03.29
Internetworking/Internetteknik
RTP: Real-Time Transport Protocol
Designed to carry out variety of real-time data: audio and video.
Provides two key facilities:
• Sequence number for order of delivery
• Timestamp for control playback
Provides no mechanisms to ensure timely delivery.
01
VER
•
•
•
•
2
P
3
X
4
CC
8 9
16
M
PTYPE
Sequence number
Timestamp
Synchronization source identifier
Contributing source ID
…
P - whether zero padding follows the payload.
X - whether extension or not.
M - marker for beginning of each frame.
PTYPE - Type of payload.
Maguire
[email protected]
RTP: Real-Time Transport Protocol Applications: Network Management and VoIP
2008.03.29
Internetworking/Internetteknik
RTP and H.323 for IP Telephony
audio/video applications
video
code
signaling and control
audio
codec
RTCP
H.225
registration
H.225
Signaling
data applications
H.245
Control
T.120
RTP
UDP
TCP
IP
•
•
•
•
•
•
H.323 is the framework of a group protocols for IP telephony (from ITU)
H.225 - Signaling used to establish a call
H.245 - Control and feedback during the call
T.120 - Exchange of data associated with a call
RTP - Real-time data transfer
RTCP - Real-time Control Protocol
Maguire
[email protected]
RTP and H.323 for IP Telephony
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
SIP: Session Initiation Protocol
SIP is an alternative to H.323 proposed by IETF. Only covers signaling (parts of
H.323). Does not use RTP (but sessions can use RTP)
Several types of servers defined:
• User agent server runs on a SIP terminal = a client element, User
Agent Client (UAC) + server element, User Agent Server (UAS)
• SIP proxy - interprets, and, if necessary, rewrites specific parts of a
request message before forwarding it to a server closer to the
destination:
• SIP stateful proxy server - remembers its queries and answer; can also forward several
queries in parallel.
• SIP stateless proxy server
• SIP redirect server - directes the client to contact an alternate URI
• Location server - knows the current binding (from REGISTER msgs)
SIP uses SDP (Session Description Protocol) to get information about a call, such
as, the media encoding, protocol port number, multicast addresses, etc.
Maguire
[email protected]
SIP: Session Initiation Protocol
2008.03.29
Applications: Network Management and VoIP
Internetworking/Internetteknik
SIP timeline
Alice invites Bob to a SIP session:
Alice
Invite
Bob
OK,200
ACK
session
Bye
Maguire
[email protected]
SIP timeline Applications: Network Management and VoIP 589 of 596
2008.03.29
Internetworking/Internetteknik
SIP
1
Invite
INVITE sip:[email protected] SIP/2.0
Via: SIP/2.0/UDP pc33.atlanta.com;branch=z9hG4bK776asdhds
To: Bob <sip:[email protected]>
From: Alice <sip:[email protected]>;tag=1928301774
Call-ID: a84b4c76e66710
CSeq: 314159 INVITE
Contact: <sip:[email protected]>
Content-Type: application/sdp
Content-Length: 142
(Alices SDP not shown)
SIP is a text-based protocol and uses ISO 10646 character set in UTF-8 encoding
(RFC 2279). The message body uses MIME and can use S/MIME for security.
The generic form of a message is:
generic-message = start-line
message-header*
CRLF
[ message-body ]
1. Example from draft-ietf-sip-rfc2543bis-06.ps
Maguire
[email protected]
SIP Invite
2008.03.29
Applications: Network Management and VoIP 590 of 596
Internetworking/Internetteknik
Bob’s
1
response
SIP/2.0 200 OK Via: SIP/2.0/UDP
pc33.atlanta.com;branch=z9hG4bK776asdhds
Via: SIP/2.0/UDP
bigbox3.site3.atlanta.com;branch=z9hG4bK77ef4c2312983.1
Via: SIP/2.0/UDP pc33.atlanta.com;branch=z9hG4bKnashds8
To: Bob <sip:[email protected]>;tag=a6c85cf
From: Alice <sip:[email protected]>;tag=1928301774
Call-ID: a84b4c76e66710
CSeq: 314159 INVITE
Contact: <sip:[email protected]>
Content-Type: application/sdp
Content-Length: 131
(Bobs SDP not shown)
1. Example from draft-ietf-sip-rfc2543bis-06.ps
Maguire
[email protected]
Bob’s responseApplications: Network Management and VoIP 591 of 596
2008.03.29
Internetworking/Internetteknik
SIP Methods
Method
Purpose
Invite
Invites a user to join a call.
Bye
Terminates the call between two of the users on a call.
Options
Requests information on the capabilities of a server.
Ack
Confirms that a client has received a final response to an INVITE.
Register
Provides the map for address resolution, this lets a server know the location of a user.
Cancel
Ends a pending request, but does not end the call.
Maguire
[email protected]
SIP Methods Applications: Network Management and VoIP 592 of 596
2008.03.29
Internetworking/Internetteknik
SIP Status codes
SIP status codes are patterned on and simular to HTTP’s status codes:
1xx
Provisional request received, continuing to process the request
2xx
Success - the action was successfully received, understood, and accepted
3xx
Redirection - further action needs to be taken in order to complete the request
4xx
Client Error - the request contains bad syntax or cannot be fulfilled at this server
5xx
Server Error - the server failed to fulfill an apparently valid request
6xx
Global Failure - the request cannot be fulfilled at any server
Maguire
[email protected]
SIP Status codes
2008.03.29
Applications: Network Management and VoIP 593 of
Internetworking/Internetteknik
ENUM
IETF’s E.164 Number Mapping standard uses Domain Name Server (DNS) to
map standard International Telecommunication Union (ITU-T) international
public telecommunications numbering plan (E.164) telephone numbers to a list of
Universal Resource Locators (URL). SIP then uses those URL’s to initiate
sessions.
For example, ENUM DNS converts a telephone number in E.164 format, e.g.
+46812345, and returns e.g., a Universal Resource Identifier (URI)
SIP:[email protected]
Then a SIP client can make a connection to the SIP gateway telia.se passing the
local part olle.svenson.
ENUM can return a wide variety of URI types.
Maguire
ENUM
Applications: Network Management and VoIP 594 of 596
[email protected]
2008.03.29
Internetworking/Internetteknik
Further Reading
IP Telephony (iptel)
PSTN and Internet Internetworking (pint)
Also important are the measures of delay, delay jitter, throughput, packet loss, etc.
IP Performance Metrics (ippm) is attempting to specify how to measure and
exchange information about measurements of these quantities.
A great set of references compiled by prof. Raj Jain is available at:
http://www.cis.ohio-state.edu/~jain/refs/ref_voip.htm
Maguire
[email protected]
Further ReadingApplications: Network Management and VoIP 595 of 596
2008.03.29
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• Network Management
• SNMP
• VoIP (including RTP)
Maguire
[email protected]
Summary
2008.03.29
Applications: Network Management and VoIP 596 of 596
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 10: IPv6
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapter 27
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
IPv6.fm5
2008.03.29
Total pages: 649
Lecture 6: Outline
• IPv6
Maguire
[email protected]
Lecture 6: Outline
2008.03.29
IPv6 598 of 649
Internetworking/Internetteknik
Internet Protocol Version 6 (IPv6)
• Successor of current IPv4
• Internet needs to change IP in order to continue growth
• Defines a transition from IPv4 to IPv6
Specified by RFC 2460: Internet Protocol, Version 6 (IPv6) Specification,
December 1998[97].
Maguire
[email protected]
Internet Protocol Version 6 (IPv6)
2008.03.29
IPv6 599 of 649
Internetworking/Internetteknik
Growth
• Currently IPv4 serves a market doubling every ~12 months
• In addition, new and very large markets are developing rapidly:
• Nomadic Computing
• Networked Entertainment
• Device Control
Maguire
[email protected]
Growth
2008.03.29
IPv6 600 of 649
Internetworking/Internetteknik
Nomadic Computing
• Wireless computers
• supporting multimedia
• replacing pagers, cellular telephones, …
• IPv6 includes support for mobility
• low overhead (?)
• auto configuration
• mobility
Maguire
[email protected]
Nomadic Computing
2008.03.29
IPv6 601 of 649
Internetworking/Internetteknik
Networked Entertainment
Your TV will be an Internet Host!
[consider the network attached Personal Video Recorders (PVR), such as
TiVo’s DVR, SONICblue’s ReplayTV, Sony’s SVR-2000, Philips’ PTR, …)]
• 500 channels of television
• large scale routing and addressing
• auto-configuration
• requires support for real-time data
SonicBlues’s ReplayTV 4000 a networked Digital Video Recorder (DVR) {i.e.,
coder/decoder + very big disk) that takes advantage of your broadband Internet
connection - enables you to capture and transfer videos.
Providing “narrowcast” content via broadband ⇒ all the time is “primetime”.
Maguire
[email protected]
Networked Entertainment
2008.03.29
IPv6 602 of 649
Internetworking/Internetteknik
Device Control
• Control everyday devices for
•
•
•
•
lightning, heating and cooling, motors, ...
new street light controllers already have IP addresses!
electrical outlets with addresses
networked vehicles (within the vehicle1, between vehicles, and vehicles to infrastructure)2
• Market size is enormous
• Solution must be
• simple, robust, easy to use
• very low cost
• potential power savings by (remote) network management based control may be quite large
There is already a networked: Toaster, a Coke machine, … .
1. On-Board Diagnostic systems (OBD-II), see slide 8 [98]
2. See InternetCAR, slide 4 (showing a Yokohama City bus) [98]
Maguire
[email protected]
Device Control
2008.03.29
IPv6 603 of 649
Internetworking/Internetteknik
IPv6 features
• Expanded Addressing Capabilities
•
•
•
•
128 bit address length
supports more levels of hierarchy
improved multicast routing by using a scope field
new cluster addresses to identify topological regions
• Header Format Simplification
• some IPv4 fields have been dropped, some made optional
• header is easier to compute
• Improved Support for Extensions and Options
• more efficient for forwarding of packets
• less stringent limits to length of options
• greater flexibility for introduction of future options
• Flow Labeling Capability
• labeling of packets belonging to a particular “flow”
• allows special handling of, e.g., real-time, packets
• Authentication and Privacy Capabilities
• Extensions to support authentication, data integrity, and (optional) data confidentiality
Maguire
[email protected]
IPv6 features
2008.03.29
IPv6 604 of 649
Internetworking/Internetteknik
IPv6 header format
version
4 bits
Class
8 bits
flow label
20-bits
"payload" length (in octets)
16 bit
next header
8 bits
hop limit
8 bits
Source Address
128 bits
Destination Address
128 bits
IPv6 header (total length = 40 bytes)
IPv6: 6 fields + 2 addresses
versus
IPv4: 10 fixed fields + 2 addresses + options
Maguire
[email protected]
IPv6 header format
2008.03.29
IPv6 605 of 649
Internetworking/Internetteknik
Demultiplexing
Initially, it was assumed that by keeping the version field the same that IPv4 and
IPv6 could be mixed over the same links with the same link drivers.
However, now IPv6 will be demultiplexed at the link layer:
hence, IPv6 been assigned the Ethernet type 0x86DD (instead of IPv4’s 0x8000)
Maguire
[email protected]
Demultiplexing
2008.03.29
IPv6 606 of 649
Internetworking/Internetteknik
Simplifications
IPv6 builds on 20 years of internetworking experience - which lead to the
following simplifications and benefits:
Simplification
Benefits
Use fixed format headers
Use extension headers instead, thus no need for a header length
field, simpler to process
Eliminate header checksum
Eliminate need for recomputation of checksum at each hop
(relies on link layer or higher layers to check the integrity of
what is delivered)
Avoid hop-by-hop segmentation
No segmentation, thus you must do Path MTU discovery or
only send small packets (1996: 536 octets, 1997: proposed 1500
octets) (for observed PMTUs see [100])
• This is because we should have units of control based on the
units of transmitted data.
Eliminate Type of Service (ToS) field
Instead use (labeled) flows
Maguire
[email protected]
Simplifications
2008.03.29
IPv6 607 of 649
Internetworking/Internetteknik
Quality-of-Service Capabilities
• for packet streams
• Flow characterized by flow id + source address + destination address
• unique random flow id for each source
CLASS (8 bits)
FLOW ID (20 bits)
• Class field
D (1 bit)
Delay
sensitive
Network-wide priority (3 bits)
Encodes the priority of traffic,
can be used to provide
“Differentiated services”
Reserved (4 bits)
Researchers would like to use two of these bits
for congestion avoidance control:
♦ one bit which could be set by routers to indicate that
congestion was experienced;
♦ the other bit could be used by the source to mark that it is
“ready to adapt”.
• Flow ID - indicates packets which should all be handled the same way.
The original specified in RFC 1809: Using the Flow Label Field in IPv6 Subsequently updated - see
Chapter 6 of Huitema, 2nd edition; this change occurred because of Steve
McCanne’s SigComm’96 paper [102]. Note that chapter 27 in Forouzan is
incorrect!
Maguire
[email protected]
Quality-of-Service Capabilities
2008.03.29
IPv6 608 of 649
Internetworking/Internetteknik
Payload length
Payload length is the length of the data carried after the header.
As the length field is 16 bits ⇒ maximum packet size of 64 kilobytes; but there is
a provision for "jumbograms" [via the Hop-by-Hop option header with option type
194]. See RFC 2675 [103].
Maguire
[email protected]
Payload length
2008.03.29
IPv6 609 of 649
Internetworking/Internetteknik
IPv4 Protocol type ⇒ IPv6 Next Header type
Tells how to interpret the next header which follows, it is either the payload type
or the type of the next header. [Payload types use the IPv4 protocol type values]
Decimal
Keyword
Header type
0
2
3
5
6
17
43
44
45
51
52
59
60
88
89
255
HBH
ICMP
GGP
ST
TCP
UDP
RH
FH
IDRP
AH
ESP
Null
Hop-by-hop options
IPv6 ICMP
Gateway-to-Gateway Protocol
Stream
Transmission Control Protocol
User Datagram Protocol
IPv6 Routing Header
IPv6 Fragmentation Header
Inter-domain Routing Protocol
Authentication Header
Encrypted Security Payload
No next Header (IPv6)
IPv6 Destination Options Header
IGRP
Open Shortest Path First
Reserved
Maguire
[email protected]
IGRP
OSPF
IPv4 Protocol type ⇒ IPv6 Next Header type
2008.03.29
IPv6 610 of 649
Internetworking/Internetteknik
Extension headers
• Each header is a multiple of 8 octets long
• order (after IPv6 header):
•
•
•
•
•
•
•
•
Hop-by-hop option,
Destination options header (1)
Routing header,
Fragment header,
Authentication header,
Encapsulating security payload header,
Destination options header (2)
Followed by the upper layer header (e.g., TCP, UDP, …)
So a TCP packet looks like:
IPv6 header
TCP header + data
Next Header = TCP
If we wanted to explicitly route the above packet, we simply add a routing header:
IPv6 header
Routing header
Next Header = Routing
Next Header = TCP
Maguire
[email protected]
Extension headers
2008.03.29
TCP header + data
IPv6 611 of 649
Internetworking/Internetteknik
Addressing
• 128 bits long
• three types: unicast, multicast, anycast
Unicast
identifies exactly one interface
Multicast
identifies a group of interfaces; a packet sent to a multicast address will be delivered to all
members of the group
Anycast
delivered to the nearest member of the group
• 296 times more addresses than IPv4 are available !!!
IPv6 addresses per m2
Earth: 511,263,971,197,990 m2
⇒ 665,570,793,348,866,943,898,599 / m2
• pessimistic estimate with hierarchies: ~1,564 addresses / m2
• optimistic: 3,911,873,538,269,506,102 /m2
Maguire
[email protected]
Addressing
2008.03.29
IPv6 612 of 649
Internetworking/Internetteknik
Writing an IPv6 address
The 128 bit IPv6 address is written as eight 16 bit integers using hexadecimal
digits.
The integers are separated by colons, for example:
2001:0DB8:7654:3210:FEDC:BA98:7654:3210
A number of abbreviations are allowed:
• leading zeros in integers can be suppressed
• a single set of consecutive 16 bit integers with the value null, can be
replaced by double colon, i.e.,
2001:DB8:0:0:0:0:7654:3210 becomes 2001:DB8::7654:3210
• When an IPv4 address is turned into an IPv6 address we prepend 96
bits of zero; but we can write it as:
::10.0.0.1 - hence combining dotted-decimal and IPv6 forms
• Prefixes can be denoted in the same manner as for IPv4, i.e., CIDR:
2001:DB8::/32 - for a 32 bit long prefix
Maguire
[email protected]
Writing an IPv6 address
2008.03.29
IPv6 613 of 649
Internetworking/Internetteknik
Address Allocation [113] and [118]
Binary prefix
Hex. prefix
Fraction of address
space
Assignment
0000 0000
0000 0001
0000 001
0000 01
0000 1
0001
001
010
011
100
101
110
1110
1111 0
1111 10
1111 110
1111 1110 0
1111 1110 10
::/8
100::/8
200::/7
400::/6
800::/5
1000::/4
2000::/3
4000::/3
6000::/3
8000::/3
A000::/3
C000::/3
E000::/4
F000::/5
F800::/6
FC00::/7
FE00::/9
FE80::/10
1/256
1/256
1/128
1/64
1/32
1/16
1/8
1/8
1/8
1/8
1/8
1/8
1/16
1/32
1/64
1/128
1/512
1/1024
Reserved
Unassigned
Network Service Access Point (NSAP) Allocation-RFC 1888
Unassigned (first half was formerly Novell’s IPX)
Unassigned
Unassigned
Global Unicast - RFC 2374 see RFC 3587
Unassigned (formerly provider based unicast addresses)
Unassigned
Unassigned (formerly Geographic-based Unicast Addresses)
Unassigned
Unassigned
Unassigned
Unassigned
Unassigned
Unassigned
Unassigned
Link Local Use Addresses
Maguire
[email protected]
Address Allocation [113] and [118]
2008.03.29
IPv6 614 of 649
Internetworking/Internetteknik
Binary prefix
Hex. prefix
Fraction of address
space
Assignment
1111 1110 11
1111 1111
FEC0::/10
FF00::/8
1/1024
1/256
Reserved for IANA (was Site Local Use Addresses)
Multicast Addresses
Global Unicast Addresses
RFC 2374 defined an IPv6 address allocation structure that which featured Top
Level Aggregator (TLAs) and Next Level Aggregator (NLAs) - this has been
replaced (see RFC 3587[114]) by a coordinated allocation policy defined by the
Regional Internet Registries (RIRs) [115]
The Subnet Local Aggregator (SLAs) of RFC 2374 ⇒ now called the “subnet ID”
001
(3 bits)
global routing prefix (45 bits)
subnet ID
(16 bits)
Interface ID
(64 bits)
Thus the Regional Internet Registries are allocating addresses from 2000:/3
For a table of IPv6 unicast assignment see
http://www.iana.org/assignments/ipv6-unicast-address-assignments
Maguire
[email protected]
Global Unicast Addresses
2008.03.29
IPv6 615 of 649
Internetworking/Internetteknik
For an analysis of use from the point of view of RIPE see [120]
Maguire
[email protected]
Global Unicast Addresses
2008.03.29
IPv6 616 of 649
Internetworking/Internetteknik
Interface ID
Must be unique to the link, but there are some advantages of making it more
globally unique.
Hence, most will be based on the IEEE EUI-64 format, but with the “u” (unique)
bit inverted.
• The “u” bit is the 7th most significant bit of a 64 bit EUI.
• The inversion was necessary because 0:0:0:0 is a valid EUI, but this
would collide with one of the IPv6 special addresses.
• u=1, when the address comes from a valid EUI, and is 0 otherwise.
To go from a 48 bit IEEE 802, you insert 0xFFFE in between the 3rd and 4th octets
of an IEEE 802 address, i.e., 123456789abc becomes 123456FFFE789abc.
Maguire
[email protected]
Interface ID
2008.03.29
IPv6 617 of 649
Internetworking/Internetteknik
Special Address Formats
Unspecified address
“::” == “0:0:0:0:0:0:0:0 - can only be used as a source address by a station which
does not yet have an address
Loop-back address
0:0:0:0:0:0:0:1 - used to send an IPv6 datagram to yourself
IPv4-based address
prefix the 32 bit IPv4 address with 96 zero bits
Site local addresses
Site local address can not be routed on the global internet, but they can be used by
sites that are not connected to the internet or for communication within the site.
1111111011
(10 bits)
Maguire
[email protected]
0
(38 bits)
Subnet
(16 bits)
Special Address Formats
2008.03.29
Interface ID
(64 bits)
IPv6 618 of 649
Internetworking/Internetteknik
Link local addresses
Link local address are simply unique to a given link - they can be used by stations
that have not yet been assigned a provider-based address.
1111111010
(10 bits)
Maguire
[email protected]
0
(54 bits)
Special Address Formats
2008.03.29
Interface ID
(64 bits)
IPv6 619 of 649
Internetworking/Internetteknik
Multicast Addresses
4 bit
1111 1111
4 bit
Flags
Scope
112 bit - group id
xxxT
T == Transient
T=0
well-known permanent - assigned by the IANA
T=1
non-permanent
Scope
0
1
2
3, 4
5
6, 7
8
9, A, B, C, D
E
F
Maguire
[email protected]
reserved
node local scope
link local scope
unassigned
site local scope
unassigned
organization local scope
unassigned
global scope
reserved
Multicast Addresses
2008.03.29
IPv6 620 of 649
Internetworking/Internetteknik
Permanently assigned groups
For example, group 0x43 has been assigned to the Network Time Protocol (NTP),
hence:
FF01::43
represents all NTP servers on the same node as the sender
FF02::43
represents all NTP servers on the same link as the sender
FF05::43
represents all NTP servers on the same site as the sender
FF08::43
represents all NTP servers within the same organization as the sender
FF0E::43
represents all NTP servers in the Internet
IANA has assigned a whole series of group identifiers, including:
FF0X:0:0:0:0:0:0
Reserved multicast address - this can not be used within any scope
FF01:0:0:0:0:0:1
All Nodes on this node address
FF02:0:0:0:0:0:1
All Nodes on this link address
FF01:0:0:0:0:0:2
All Routers on this node address
FF02:0:0:0:0:0:2
All Router address on this link
Maguire
[email protected]
Permanently assigned groups
2008.03.29
IPv6 621 of 649
Internetworking/Internetteknik
FF02:0:0:0:0:0:3
unassigned
FF02:0:0:0:0:1:1
Link Name
FF02:0:0:0:0:1:2
All DHCP agents on this link
FF02:0:0:0:0:1:3
All DHCP servers on this link
FF02:0:0:0:0:1:4
All DHCP relays on this link
FF05:0:0:0:0:1:2
All DHCP agents at this site
FF05:0:0:0:0:1:3
All DHCP servers at this site
FF05:0:0:0:0:1:4
All DHCP relays at this site
FF0X:0:0:0:0:2:7FFE
Session Announcement Protocol (SAP) v1 Announcements
Multimedia conferences:
FF0X:0:0:0:0:2:8000 ..
FF0X:0:0:0:0:2:FFFF
multimedia conferences
X=2 -- this link; X=5 -- this site
Use SAP to announce the conference - repeatedly until the end of the conference.
Maguire
[email protected]
Permanently assigned groups
2008.03.29
IPv6 622 of 649
Internetworking/Internetteknik
Prefix for IPv6 documentation
The IPv6 unicast address prefix 2001:DB8::/32 is reserved for use in
examples for books, RFCs, … [104].
Note that this is a non-routable range - to help avoid problems!
Maguire
[email protected]
Prefix for IPv6 documentation
2008.03.29
IPv6 623 of 649
Internetworking/Internetteknik
Anycast
Sending a packet to a generic address to get a specific service from the “nearest”
instance. This puts the burden of determining which instance to deliver it to on the
routing system.
Requires defining a router entry for each anycast address.
Subnet Anycast Address:
Subnet prefix
(n bits)
0
(128-n bits)
Thus the host ID of zero is treated as the subnet.
Maguire
[email protected]
Anycast
2008.03.29
IPv6 624 of 649
Internetworking/Internetteknik
IPv6 Routing
• all standard routing protocols
• routing extensions
• Provider Selection
• Host Mobility (route to current location)
• Auto-Readdressing (route to new address)
P1
DEST
SRC
PR
Figure 107: IPv6 Routing Option: provider specifies: SRC, PR, P1, Dest
reply: Dest, PR, P1, SRC
Maguire
[email protected]
IPv6 Routing
2008.03.29
IPv6 625 of 649
Internetworking/Internetteknik
Routing header
Next Header
(8 bits)
Header Ext Length
(8 bits)
Routing Type=0
(8 bits)
Segments Left
(8 bits)
reserved
(32 bits)
address[1]
(128 bits)
address[2]
...
address[n]
Next Header identifies the next header in the chain of headers.
Header Ext. Length. - number of 64 bit words (not including the first 64 bits).
Routing type=0, is the generic routing header which all IPv6 implementations
must support.
Number of Segments is the number of segments left in the list (between 0 and 23).
Maguire
[email protected]
Routing header
2008.03.29
IPv6 626 of 649
Internetworking/Internetteknik
Fragment header
Next Header
(8 bits)
Reserved
(8 bits)
Fragment offset
(13 bits)
RESERVED
(2 bits)
M
(1 bit)
Identification
Fragment offset - in units of 64 bit words, the field is the most significant 13 bits
of a 16 bit words.
M == More fragment bit, set in all but the last fragment
Identification - a 32 bit number
Maguire
[email protected]
Fragment header
2008.03.29
IPv6 627 of 649
Internetworking/Internetteknik
Destination Options header
Next Header
(8 bits)
Header Ext. Length
(8 bits)
Options
Each options field is encoded as:
Option Type (8 bits)
Option Data Length (8 bits)
Option Data (n octets)
The option type:
Action (2 bits)
C (1 bit)
Number (6 bits)
Action tells what action must be taken if the processing nodes does not recognize
the option.
Bits
Action
00
01
10
11
Skip over this option
Discard packet silently (i.e., without sending an ICMP report)
Discard packet and send an ICMP report - even if destination is multicast
Discard packet and send an ICMP report - only if destination is not multicast
C == change en route bit -- indicates that this option may be changed by
Maguire
[email protected]
Destination Options header
2008.03.29
IPv6 628 of 649
Internetworking/Internetteknik
intermediate relays on the way to the destination
Currently only two options are defined:
Pad1 == a null byte - for use in padding to a 64-bit boundary; note it does not have
a null option length field after it - as it is the whole field
PadN - the length field says how many null bytes are needed to file to a 64-bit
boundary.
Maguire
[email protected]
Destination Options header
2008.03.29
IPv6 629 of 649
Internetworking/Internetteknik
Hop-by-Hop Options header
Same basic format as Destination option header, but the hop-by-hop header will
be processed at each hop along the way.
Next Header
(8 bits)
Header Ext. Length
(8 bits)
Options
Each options field is encoded as:
Option Type
(8 bits)
Option Data Length
(8 bits)
Option Data
(n octets)
Currently three options are defined: Pad1, PadN, and
• Jumbo payload option (option type =194) - the option Data Length is 4
and is followed by a 32 bit Jumbo Payload Length value.
See RFC 2113: Router Alert Option [105].
Maguire
[email protected]
Hop-by-Hop Options header
2008.03.29
IPv6 630 of 649
Internetworking/Internetteknik
Security
• Header Authentication with signatures
• Must have support for Message Digest 5 (MD5) algorithm [107]
• RFC 1810 [108] examines MD5 performance
• Packet Encapsulation with e.g., DES
For more information see Chapter 5 of IPv6, 2nd edition, by Christian Huitema.
Maguire
[email protected]
Security
2008.03.29
IPv6 631 of 649
Internetworking/Internetteknik
IPSEC IPv6 implementation
The US Naval Research Lab (NRL) IPv6/IPsec Software Distribution
• a reference implementation of IPv6 and IP Security for the 4.4BSD-Lite
networking software.
• Freely distributable (subject to U.S. export controls) and usable for
commercial and non-commercial purposes (you must adhere to the
NRL and UC Berkeley license terms) see also:
http://web.mit.edu/network/isakmp
•
•
•
•
DOD ISAKMP Distribution
Cisco’s ISAKMP Distribution
NRL’s IPv6 + IPSEC Alpha 7.1 Distribution (Dec ’98)
Portland State University’s Mobile IP with IPSEC for FreeBSD 2.2.1.
See also the list of IPv6 implementations at:
http://playground.sun.com/pub/ipng/html/ipng-implementations.html
Maguire
[email protected]
IPSEC IPv6 implementation
2008.03.29
IPv6 632 of 649
Internetworking/Internetteknik
IPv6 ICMP [109]
Type
(8 bits)
Code
(8 bits)
Checksum
(16 bits)
Message Body
Currently defined ICMP Types
Type
1
2
3
4
128
129
130
131
132
133
134
135
136
137
Maguire
[email protected]
Purpose
Destination Unreachable
Packet too big
Time exceeded
Parameter problem
Echo Request
Echo Reply
Group Membership Query
Group Membership Report
Group Membership Reduction
Router Solicitation
Router Advertisement
Neighbor Solicitation
Neighbor Advertisement
Redirect
IPv6 ICMP [109]
2008.03.29
IPv6 633 of 649
Internetworking/Internetteknik
IPv6 ICMP Error Messages
Type: 1, 2, 3, or 4:
Type
Code
Checksum
Parameter
As much of invoking packet as will fit - without the overall ICMP packet exceeding 576 octets
For type 1 the code reveals the reason for discarding the datagram
Maguire
[email protected]
IPv6 ICMP Error Messages
2008.03.29
IPv6 634 of 649
Internetworking/Internetteknik
IPv6 ICMP Echo Request/Reply (PING)
Type: Echo Request = 128, Echo Reply = 129
Type
Code
Checksum
Identifier
Sequence number
Data
Maguire
[email protected]
IPv6 ICMP Echo Request/Reply (PING)
2008.03.29
IPv6 635 of 649
Internetworking/Internetteknik
IPv6 ICMP and groups
Three group membership messages (type 130, 131, and 132):
Type
Code
Checksum
Maximum Response Delay
Unused
Multicast Address
The Group Membership Reduction is used when a node leaves group.
Reports are always sent to the same group address that is reported.
Maximum response delay is the time in milliseconds that the responding report
messages can be delayed. Responding stations are supposed to spread their
responses uniformly over this range of delays (to prevent everyone from
responding at once).
Maguire
[email protected]
IPv6 ICMP and groups
2008.03.29
IPv6 636 of 649
Internetworking/Internetteknik
Summary of IPv6 ICMP
• incorporates IPv4’s ARP (via neighbor solicitation and advertisement)
and IGMP (via group membership messages)
• RARP is dropped since BOOTP provides the same functionality
• dropped IPv4’s Source Quench
• added Packet Too Big message to simplify learning MTU size
For more information about ICMP see: RFC 2463 [109]
Maguire
[email protected]
Summary of IPv6 ICMP
2008.03.29
IPv6 637 of 649
Internetworking/Internetteknik
DNS and IPv6
A new record type “AAAA” which contains a 128 bit address.
Just as for the “in-addr.arpa” domain used for converting Ipv4 addresses into
names, IPv6 defines an “ipv6.int” domain:
thus the address 2001:0DB8:1:2:3:4:567:89ab is represented as:
b.a.9.8.7.6.5.0.4.0.0.0.3.0.0.0.2.0.0.0.1.0.0.0.8.b.d.0.1.0.0.2.IP6.INT
For further information see RFC 3596 [110].
Maguire
[email protected]
DNS and IPv6
2008.03.29
IPv6 638 of 649
Internetworking/Internetteknik
IPv6 Transition Mechanisms
• Incremental update and deployment
• first step: dual stack hosts and routers
• Encapsulation of IPv6 in IPv4 packets ⇒ tunnels
• Minimal upgrade dependencies (must first upgrade DNS)
• Easy addressing (upgraded routers can use IPv4 address)
• FreeBit Co., Ltd.’s Feel6 - secure IPv6 over IPv4[101], see slide 12 [79]
and http://start.feel6.jp/
• See also [111]
Maguire
[email protected]
IPv6 Transition Mechanisms
2008.03.29
IPv6 639 of 649
Internetworking/Internetteknik
Why IPv6?
• solves Internet scaling problem
• “eliminates” the problem of running out of addresses
• allows route aggregation - which allows the size of the routing tables in the backbone routers
to decrease
•
•
•
•
•
•
•
•
flexible transition (interworks with IPv4)
meets the needs of new markets
new functionality
real-time flows
provider selection
host mobility
end-to-end security
auto-configuration - chapter 4, “Plug and Play” in IPv6, 2nd edition, by
Christian Huitema - this a very major advantage of IPv6. See also [117]
Maguire
[email protected]
Why IPv6?
2008.03.29
IPv6 640 of 649
Internetworking/Internetteknik
IPv6 networks
6Bone - http://www.6bone.net/ a testbed for deployment of IPv6
• Note the phase out of the 3FFE::/16 prefix
• prefix will be returned to the unassigned address pool on 6 June 2006
[112].
vBNS - http://www.vbns.net
6NET http://www.6net.org/ - project co-funded by European Commission
Euro6IX: European IPv6 Internet Exchanges Backbone
http://www.euro6ix.org/main/index.php - project co-funded by European Commission
For some issues concerning IPv6 deployment see [119]
Maguire
[email protected]
IPv6 networks
2008.03.29
IPv6 641 of 649
Internetworking/Internetteknik
RIR assignments of IPv6 addresses
Total number of allocated IPv6 prefixes per RIR on 13/05/2005 [121]
RIR
APNIC
Size in /48s
Count
416,579,590
376
ARIN
9,699,375
195
LACNIC
1,048,577
17
RIPE NCC
1,091,723,264
635
Total:
1,519,050,806
1,223
Maguire
[email protected]
RIR assignments of IPv6 addresses
2008.03.29
IPv6 642 of 649
Internetworking/Internetteknik
Further information
See:
http://www.ipv6.org/
http://www.ipv6forum.com/
Measurements of dual stack IPv6 implementations: http://mawi.wide.ad.jp/mawi/dualstack/
See also: [99] and [100].
Maguire
[email protected]
Further information
2008.03.29
IPv6 643 of 649
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• IPv6
Maguire
[email protected]
Summary
2008.03.29
IPv6 644 of 649
Internetworking/Internetteknik
References
[97] S. Deering and R. Hinden, “Internet Protocol, Version 6 (IPv6)
Specification”, IETF RFC 2460, December 1998 http://www.ietf.org/rfc/rfc2460.txt
[98] Jun Murai, “WIDE report”, 5th CAIDA-WIDE Workshop, Information
Sciences Institute, Marina del Rey, CA, 15 March 2005
http://www.caida.org/projects/wide/0503/slides/murai.pdf
[99] Kenjiro Cho, “Measuring IPv6 Network Quality” (part 1), 5th
CAIDA-WIDE Workshop, Information Sciences Institute, Marina del Rey,
CA, 15 March 2005 http://www.caida.org/projects/wide/0503/slides/kenjiro-1.pdf
[100]Kenjiro Cho, “Measuting IPv6 Network Quality” (part 2), Internet Iniative Japan
(IIJ) / WIDE, 5th CAIDA-WIDE Workshop, Information Sciences Institute,
Marina del Rey, CA, 15 March 2005
http://www.caida.org/projects/wide/0503/slides/kenjiro-2.pdf
[101]“Trying Out for Yourself: Smooth use of IPv6 from IPv4 by Feel6 Farm”,
Maguire
[email protected]
References
2008.03.29
IPv6 645 of 649
Internetworking/Internetteknik
IPv6Style, NTT Communications, 7 March 2003
http://www.ipv6style.jp/en/tryout/20030307/index.shtml
[102]S. McCanne, V. Jacobson, M. and Vetterli, “Receiver-driven Layered
Multicast”, ACM SIGCOMM, August 1996, Stanford, CA, pp. 117-130.
ftp://ftp.ee.lbl.gov/papers/mccanne-sigcomm96.ps.gz
[103]D. Borman, S. Deering, and R. Hinden, “IPv6 Jumbograms”, IETF
RFC 2675 August 1999 http://www.ietf.org/rfc/rfc2675.txt
[104]G. Huston, A. Lord, and P. Smith, “IPv6 Address Prefix Reserved for
Documentation”, IETF RFC 3849, July 2004 http://www.ietf.org/rfc/rfc3849.txt
[105]Dave Katz, “IPv6 Router Alert Option”, IETF RFC 2113, February 1997
http://www.ietf.org/rfc/rfc2113.txt
[106]R. Gilligan,S. Thomson, J. Bound, and W. Stevens, “Basic Socket Interface
Extensions for IPv6”, IETF RFC 2133, April 1997
http://www.ietf.org/rfc/rfc2133.txt
Maguire
[email protected]
References
2008.03.29
IPv6 646 of 649
Internetworking/Internetteknik
[107]R. Rivest, “The MD5 Message-Digest Algorithm”, IETF RFC 1321,
April 1992 http://www.ietf.org/rfc/rfc1321.txt
[108]J. Touch, “Report on MD5 Performance”, IETF RFC 1810, June 1995
http://www.ietf.org/rfc/rfc1810.txt
[109]A. Conta and S. Deering, “Internet Control Message Protocol (ICMPv6) for
the Internet Protocol Version 6 (IPv6) Specification”, IETF RFC 2463,
December 1998 http://www.ietf.org/rfc/rfc2463.txt
[110]S. Thomson, C. Huitema, V. Ksinant, and M. Souissi, “DNS Extensions to
Support IP Version 6”, IETF RFC 3596, October 2003
[111]C. Huitema, R. Austein, S. Satapati, and R. van der Pol, “Unmanaged
Networks IPv6 Transition Scenarios”, IETF RFC 3750 , April 2004
http://www.ietf.org/rfc/rfc3750.txt
[112]R. Fink and R. Hinden, “6bone (IPv6 Testing Address Allocation)
Phaseout”, IETF RFC 3701, March 2004 http://www.ietf.org/rfc/rfc3701.txt
Maguire
[email protected]
References
2008.03.29
IPv6 647 of 649
Internetworking/Internetteknik
[113]R. Hinden and S. Deering, “Internet Protocol Version 6 (IPv6) Addressing
Architecture”, IETF RFC 3513, April 2003 http://www.ietf.org/rfc/rfc3513.txt
[114]R. Hinden, S. Deering, and E. Nordmark, “IPv6 Global Unicast Address
Format”, IETF RFC 3587, August 2003 http://www.ietf.org/rfc/rfc3587.txt
[115]APNIC, ARIN, and RIPE NCC, "IPv6 Address Allocation and
Assignment Policy", Document ID: ripe-267, January 22, 2003
http://www.ripe.net/ripe/docs/ipv6policy.html
[116]IAB, “IAB/IESG Recommendations on IPv6 Address Allocations to Sites”,
IETF RFC 3177, September 2001 http://www.ietf.org/rfc/rfc3177.txt
[117]S. Thomson and T. Narten, “IPv6 Stateless Address Autoconfiguration”,
IETF RFC 2462, December 1998
[118]Toshiyuki Hosaka, “IPv6 Address Allocation and Policy: PART1 IPv6
Address Basics”, Tech Tutorials, IPv6Style, NTT Communications, 18
November 2004 http://www.ipv6style.jp/en/tech/20041117/index.shtml
Maguire
[email protected]
References
2008.03.29
IPv6 648 of 649
Internetworking/Internetteknik
[119]Cisco, “IPv6 Deployment Strategies”, 23 December 2002 ,
http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/ipv6_sol/ipv6dswp.htm
[120]Gert Döring, “Impressions:An overview of the global IPv6 routing table”,
RIPE 50, Stockholm, SE, 3 May 2005, http://www.space.net/~gert/RIPE/R50-v6-table.pdf
[121] RIPE, “Total number of allocated IPv6 prefixes per RIR on 13/05/2005”,
web page accessed 2005.05.14 http://www.ripe.net/rs/ipv6/stats/index.html
[122]J. Rajahalme, A. Conta, B. Carpenter, and S. Deering. “IPv6 Flow Label
Specification”, IETF RFC 3697, March 2004 http://www.ietf.org/rfc/rfc3697.txt
Maguire
[email protected]
References
2008.03.29
IPv6 649 of 649
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 11: Mobile IP
Lecture notes of G. Q. Maguire Jr.
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
KTH Information and
Communication Technology
For this lecture: Chapter 24
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Mobile_IP.fm5
2008.03.29
Total pages: 699
Outline
• Mobile IP
Maguire
Outline
Mobile IP 651 of 699
[email protected]
2008.03.29
Internetworking/Internetteknik
Emerging Network Architecture
WLAN
FDDI
MH
AP
R
…
H
H
R
switch
…
R
R
WAN
switch
Ethernet LANs
Token Ring
switch
switch
R
IWU
BSC
…
BTS
…
MH
R
MSC
HLR/VLR
MH
Ad hoc
PAN
MH
Cellular networks
MH
Figure 108: Mobility (WWAN, WLAN, PAN, …) driving us towards Mobile Internet
Maguire
[email protected]
Emerging Network Architecture
2008.03.29
Mobile IP 652 of 699
Internetworking/Internetteknik
Mobility
Z
γ
X
A1
C
R
δ
Y
B
Z
γ
α
C
⇒
β
Y
B
α
R
δ
X
A2
β
Figure 109. X disconnects from location A1 and reconnects at location A2
What is “X”? X represents the identity (ID) of the node1
• in an Ethernet it might be the MAC address, thus a node has a constant identity
While A1, A2, … represent the network addresses of node X.
• IP network address consists of {Network, Host}, i.e., A1={α | n}, where n is unique on network α.
1. Of course this really mixes the interface ID with the node ID - solution is a Network Access Identifier[123].
Maguire
[email protected]
Emerging Network Architecture
2008.03.29
Mobile IP 653 of 699
Internetworking/Internetteknik
Updating after a move
Host name:
“ccslab1.kth.se”
Name Resolution: DNS, Host File, … ⇐ DNS, Host File, …
IP address
130.237.15.254 ⇐ 130.237.216.25
HW address: Ethernet MAC address 08:00:2B:00:EE:0B
Figure 110: Must update IP address related mappings after a move ⇒ administrative nightmare
Maguire
[email protected]
Updating after a move
2008.03.29
Mobile IP 654 of 699
Internetworking/Internetteknik
Objectives of Mobile IP
•
•
•
•
To provide mobility support for the Internet
To enable node mobility: across changes in IP subnet
Allow change in location without change of IP address
Communication should be possible (even) while moving (if the
interface/link supports it)
• TCP/IP connections should survive movement
• Active TCP and UDP port bindings should be maintained
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 655 of 699
Internetworking/Internetteknik
Communication from Z to X
Z
γ
X
A1
C
R
δ
Y
B
Z
γ
α
C
⇒
α
R
δ
β
Y
B
X
A2
β
Figure 111. Z is communicating with X at A1 and wants to continue when X reconnects at location
A2
• This would require that router R send packets from Z to X over a new path (route).
✘ But X now has a new network address, since it is on a different network (β).
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 656 of 699
Internetworking/Internetteknik
How can Z continue to communication to X?
1. Just use bridging and change the forwarding table in the bridge (since the bridge uses MAC addresses)
✘ But bridging does not scale well
2. The application could stop, then restart with the new address for X
✘ This is unpleasant for the user - since they might have to do this very frequently and/or the programs may not
tolerate this change - since they have too much state.
3. We could hide this change with a new layer of software
a.We could change the socket library
✘ for example: we could do source routing - but, it turns out that this is not well supported by existing code in the
OS1 and in router (in addition, many the firewall routers at many sites filter out source routed packets!)
✘ Would require changes in all systems (even the non-mobile systems - since both ends of the communication
would have to change)
b.We could remap the addresses in the router
✘ This would means doing host specific routing, which does not scale well
c.We could define a new Mobile-IP address
✔ The implications of this will be described in the following material.
1. An informal experiment conduced by John Ioannidis as part of this Mobile*IP research (and documented in an appendix of his thesis) indicted that almost all
operating systems, of the time, did not correctly support source routing!
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 657 of 699
Internetworking/Internetteknik
Identification
Z
γ
Y
B
C
Z
γ
α
R
δ
Y
B
C
α
R
X
A2
β
δ
X
A2
β
Figure 112. How do we know it is the same X?
When X moves to its new location (A2)
• Why should it get service?
• How do we know it is the same X? (Or even that it is X?)
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 658 of 699
Internetworking/Internetteknik
Establishing Identity
When a node arrives on a network it must identify itself
• mechanism: typically via a challenge response protocol
• Who should it identify itself to? Answer: The MSR ≡ Mobility Support Router
Z
γ
X
A1
C
R
δ
Y
B
Z
γ
α
⇒
β
Y
B
C
α
R
δ
X
MSR-β
A2
Mβ
β
I am X
Figure 113. How do we know it is the same X?
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 659 of 699
Internetworking/Internetteknik
How did it know to send the “I am” message to the MSR?
• When a node arrives on a network it listens for broadcasts from MSRs
Z
γ
Y
B
C
Z
γ
α
R
δ
Y
B
C
α
R
X
MSR-β
A2
Mβ
β
δ
Welcome to β
X
MSR-β
A2
Mβ
β
I am X
Figure 114. “Welcome (Greeting)” messages answered by “I am” messages
These broadcast “Welcome” messages advertise:
• the presence of an MSR (and its MAC address)
• advertise one or more networks it provides connectivity to
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 660 of 699
Internetworking/Internetteknik
Could the MSR functionality be collocated with the router?
• When a node arrives on a network it listens for broadcasts from MSRs
Z
γ
Y
B
C
Z
γ
α
R
C
α
R
MSR-β
MSR-β
δ
Y
B
X
A2
Welcome to β
β
δ
X
A2
β
I am X
Figure 115. “Welcome (Greeting)” messages from router answered by “I am” messages
✘ Requires updating all of the routers on network segments which are going to support mobility to be updated.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 661 of 699
Internetworking/Internetteknik
Getting Service
Once it’s identity is know, the policy question must be ask: Should X get service?
The policy question and its answer may involve:
•
•
•
•
•
roaming agreements (generally reciprocal agreements),
current traffic loads,
anticipated traffic loads,
mobile user’s priority/class/… ,
….
The question of authentication, authorization, and accounting (AAA) for mobile
users is addressed in [126].
See also IEEE 802.1x Port Based Network Access Control
http://www.ieee802.org/1/pages/802.1x.html
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 662 of 699
Internetworking/Internetteknik
Back to the original problem: Z wants to send a message to X
Initially X is located at A1 then it moves to A2.
X
A1
Z
γ
C
Z
γ
α
R
δ
C
⇒
β
α
R
δ
X
A2
β
Figure 116. X moves from A1 to A2, Z not aware of Mobility
There are several alternatives.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 663 of 699
Internetworking/Internetteknik
Alternative 1
Initially X is located at A1 then it moves to A2.
X
A1
Z
C
γ
Z
γ
α
R
C
⇒
R
WAN
WAN
R
R
δ
α
β
δ
Redirect
X
A2
β
Figure 117. X must send a redirect message to Z, to tell it it’s new address A2.
✘ Z must be aware of where X currently is.
✘ X must get a new local address A2 (How? perhaps DHCP)
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 664 of 699
Internetworking/Internetteknik
Alternative 2
Initially X is located at A1 then it moves to A2.
X
A1
Z
γ
C
γ
α
R
δ
Z
C
⇒
α
R
X
A2
δ
β
Redirect
β
Figure 118. X must send a redirect message to the Router, to tell it it’s new address A2 (rather than A1).
✘ Router must now perform host specific routing.
✘ X must get a new local address A2 (How? perhaps DHCP)
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 665 of 699
Internetworking/Internetteknik
Alternative 3
Initially X is located at A1 then it moves to A2.
MSR-α
Mα
Z
γ C
R
δ
X
A1
γ C
α
⇒
β
MSR-α
Mα
Z
α
R
δ
X
A2
β
Figure 119. X must send a redirect message to a Mobility Support Router (MSR-α), to tell it it’s new
address A2 (rather than A1).
✘ MSR-α must now perform host specific routing.
✘ X must get a new local address A2 (How? perhaps DHCP)
✔ Z is now completely unaware of the move.
✔ Router R is now completely unaware of the move (except for twice the traffic over the link to/from α).
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 666 of 699
Internetworking/Internetteknik
Alternative 4
Initially X is located at A1 then it moves to A2.
MSR-α
Mα
Z
γ C
MSR-β
Mβ
γ C
α
β
MSR-α
Mα
Z
⇒
R
δ
X
A1
α
R
δ
MSR-β
Mβ
X
A2
β
Figure 120. X sends a message to MSR-β, to get it’s new address A2 and says it’s old MSR was MSR-α.
✘ MSR-α must now perform host specific routing to MSR-β (which can provide the local address A2)
✔ Z is now completely unaware of the move - it always sends traffic to MSR-α.
✔ If X moves again, Z does not change where it sends traffic to & traffic need not go via MSR-β - it will go directly
from MSR-α to the MSR responsible for the new segment.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 667 of 699
Internetworking/Internetteknik
Alternative 4 continued
Initially X is located at A1 then it moves to A2 and then moves to A3.
MSR-α
Mα
Z
γ C
MSR-β
Mβ
MSR-α
Mα
Z
γ C
α
⇒
R
δ
X
A1
α
R
δ
β
R
MSR-ε
Mε
X
A3
ε
Figure 121. X sends a message to MSR-ε, to get it’s new address A3 and says it’s old MSR was MSR-α.
✔ The traffic from MSR-α to MSR-β or MSR-α to MSR-ε can be encapsulated, using for example IP in IP
(written IP-IP) encapsulation. Thus none of the intervening routers needs know about mobility.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 668 of 699
Internetworking/Internetteknik
How does Z know to send things to MSR-α?
It does not know to do this! ⇒ Z simply sends the packet to the network address
of X.
But what is the (real) network address of X?.
MSR-α
Mα
Z
γ C
MSR-β
Mβ
MSR-α
Mα
Z
γ C
α
⇒
R
δ
X
A1
X
A1
α
Or
R
• X’s address is {Mobile-Network,X}
• A1 is a temporary address on network α
• MSA-α routes {Mobile-Network,X} packets
to A1when X is local and to another MSR
when it is non-local
β
Figure 122. X’s address - either on either an actual network or on a virtual network
✔ In the first case (“actual” network addresses), either the hosts and routers have to be changed, or MSRs are
necessary to intercept and reroute the packets.
✔ In the virtual network case, we use the MSRs to implement mobility for nodes on a virtual mobile network.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 669 of 699
Internetworking/Internetteknik
What happens in the case of wireless networks?
cell a
MSR-α
Mα
Z
γ
C
cell a
α
mx
γ C
⇒
R
MSR-β
Mβ
MSR-α
Mα
Z
X
R
cell b
MSR-β
Mβ
β
α
X
mx
β
Figure 123. X moves from the cell a to the cell b
• The wireless cells are implemented by a basestation co-located with the MSR.
• Note that X retains it’s mobile network address “mx”.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 670 of 699
Internetworking/Internetteknik
Wireless Local Area Networks
cell a
MSR-α
Mα
Z
γ
C
cell a
α
mx
γ C
⇒
R
MSR-β
Mβ
MSR-α
Mα
Z
X
R
cell b
MSR-β
Mβ
β
α
X
mx
β
Figure 124. X moves from the cell a to the cell b, but is still reachable by cell a!
• Mobile network address “mx” is reachable from both MSR-α and MSR-β.
• This could not occur in the wired case (unless there were multiple interfaces), since X would have to
disconnect from network α to connect to network β.
• If the cell size is small the movement between cells could be frequent (and caused by other events, such as
a new user, a door moving, …).
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 671 of 699
Internetworking/Internetteknik
Wireless WANs
cell a
cell a
BS-a
BS-a
MSR-α
Mα
Z
γ C
X
MSR-α
Mα
Z
α mx γ C
R
α
R
BS-b
cell b
X
BS-b
β
mx
cell b
β
Figure 125. X moves from the cell a to the cell b, but may still reachable by cell a - but both cells are
part of the same network
• Basestation-a, basestation-b, … are all part of the same network and it is up to this network to select which cell a mobile
is in and which basestation will be used to communicate with it.
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 672 of 699
Internetworking/Internetteknik
Simulcasting in Wireless Local Area Networks (WLANs)
cell a
MSR-α
Mα
Z
C
γ
cell a
α
mx
γ C
⇒
R
MSR-β
Mβ
MSR-α
Mα
Z
X
R
cell b
MSR-β
Mβ
β
α
X
mx
β
Figure 126. X is moving from the cell a to the cell b
• Mobile network address “mx” is partially reachable from both MSR-α and MSR-β - thus we will send
packets via both MSR-α and MSR-β. This insures:
✔ Lower probability of packet loss (important if we must provide low latency and high reliability - such as is needed
for voice and some other services)
✘ increases traffic in both cells
Maguire
[email protected]
Objectives of Mobile IP
2008.03.29
Mobile IP 673 of 699
Internetworking/Internetteknik
Mobile IP Standardization Effort
• Originally proposed by Columbia University, IBM, etc.
• Internet Engineering Task Force (IETF) Mobile-IP working group
•
http://www.ietf.org/html.charters/mobileip-charter.html
Mobile-IP standard status:
• RFCs:
• Mobile-IPv4 (RFC 2002) IP Mobility Support; RFC 2003: IP Encapsulation within IP;
RFC 2004, RFC 2005, RFC 2006, etc.
• Mobile-IPv6
• Many Drafts related to v4 & v6:
• Mobile IP NAI Extension, AAA Registration Keys for MIP, Registration Keys for Route
Optimization, Mobile IP Challenge/Response Extensions, CDMA2000 Extension to MIP,
Cellular IP, Regional Tunnel Management, Hierarchical MIP Handoffs, etc.
Maguire
[email protected]
Mobile IP Standardization Effort
2008.03.29
Mobile IP 674 of 699
Internetworking/Internetteknik
A Mobile-IP(V4) Scenario
IP in IP tunnel
Internet
Home Agent
HA
Foreign Agent
FA
Home network
MN
Mobile Node
Foreign network
CN
Correspondent Node
CN sends packet to MN’s home network (because that is where its IP address is
logically located), HA intercepts them and forwards them inside an IP-in-IP tunnel
to the Care of Address (CoA) where the FA forwards them to the MN.
Traffic from the MN can go directly to the CN (unless there is ingress filtering)
⇒ triangle routing
Maguire
[email protected]
A Mobile-IP(V4) Scenario
2008.03.29
Mobile IP 675 of 699
Internetworking/Internetteknik
A Mobile-IP(V6) Scenario
Internet
IP in IP tunnel
Home Agent
MN
HA
binding
list
Mobile Node
Home network
Foreign network
CN
cache
Correspondent Node
CN sends packet to MN’s home network (because that is where its IP address is
logically located), HA intercepts them and forwards them inside an IP-in-IP tunnel
to the Care of Address (CoA) which is the MN’s address in the foreign network.
However, the MN can tell the CNabout its current address via a binding update
(BU), now traffic can flow both ways directly between the CN and MN.
Maguire
[email protected]
A Mobile-IP(V6) Scenario
2008.03.29
Mobile IP 676 of 699
Internetworking/Internetteknik
IP-in-IP Encapsulation
In-in-IP vs. Minimal encapsulation - the major difference is the first puts the whole
IP packet inside another, while the later tries to only put a minimal header inside
along with the original data portion of the IP packet.
For details see
• IP Encapsulation within IP, RFC 2003 [124]
• Minimal Encapsulation within, IP RFC 2004 [125]
Maguire
[email protected]
IP-in-IP Encapsulation
2008.03.29
Mobile IP 677 of 699
Internetworking/Internetteknik
Tunneling IP Datagrams
Both home agents and foreign agents (v4) must support tunneling datagrams using
IP-in-IP encapsulation and decapsulation.
MNs that use a co-located COA must also support decapsulation (v6).
IP in IP tunnel
HA
Home Agent
FA
Foreign Agent
V4
MN
Mobile Node
IP in IP tunnel
V4,V6
MN
Mobile Node
HA
Home Agent
Maguire
[email protected]
Tunneling IP Datagrams
2008.03.29
Mobile IP 678 of 699
Internetworking/Internetteknik
Temporary Address Assignment
Two types of temporary Care-Of-Address:
• Foreign agent care-of address (V4)
• a care-of address provided by a foreign agent through its Agent Advertisement messages.
• Co-located care-of address (V4, V6)
• a care-of address acquired by the mobile node as a local IP address through some external
means, eg. dynamically acquired as a temporary address through dynamic host
configuration protocol (DHCP) RFC 1541, or the address may be owned by the MN as a
long-term address for its use while visiting this foreign network.
Maguire
[email protected]
Temporary Address Assignment
2008.03.29
Mobile IP 679 of 699
Internetworking/Internetteknik
Agent Discovery
Why Agent Discovery?
Methods an MN can use to determine whether it is currently at its home network
or a foreign network. By:
• Agent Advertisement
• periodic transmissions (beacons) sent by a mobility agent (rate limited to max. 1/s).
• Agent Solicitation
• Send by an MN to discover agents.
node moves
MN
Solicitation
beacons
FA1
Maguire
[email protected]
FA2
Agent Discovery
2008.03.29
HA
Mobile IP 680 of 699
Internetworking/Internetteknik
Agent Advertisement Message Format
Extension of an ICMP router advertisement
0
8
TYPE (16)
16
24
Length
Lifetime
31
Sequence Number
CODE
Reserved
Care of Address* {the number is determined by the length field; must be at least 1 of F bit set}
Bit
Name
Meaning
0
R
1
2
3
4
5
6
7
B
H
F
M
G
V
Registration with this foreign agent (or another foreign agent on this link) is required; using a
co-located care-of address is not permitted.
Busy. Foreign agent not accepting registrations from additional mobile nodes.
Agent offers service as a home agent.
Agent offers service as a foreign agent.
Agent implements receiving tunneled datagrams that use minimal encapsulation
Agent implements receiving tunneled datagrams that use GRE encapsulation
Agent supports Van Jacobson header compression over the link with any registered mobile node.
reserved (must be zero)
Maguire
[email protected]
Agent Advertisement Message Format
2008.03.29
Mobile IP 681 of 699
Internetworking/Internetteknik
Registration Message Format
0
8
TYPE (1 or 3)
16
24
FLAGS
31
Lifetime
Home Address
Home Agent
Care of Address* {the number is determined by the length field; must be at least 1 of F bit set}
Identification
Extensions
Bit
Name
Meaning
0
1
2
3
4
5
6-7
S
B
D
M
G
V
Simultaneous bindings, this is an additional address for the mobile
Broadcast datagrams. Home agent to tunnel any broadcast packets it receives to the mobile.
Mobile using co-located care-of address and will decapsulation itself
Mobile requests home agent to use Minimal encapsulation.
Mobile requests home agent to use GRE encapsulation.
Mobile node requests that agent use Van Jacobson header compression.
reserved (must be zero)
Maguire
[email protected]
Registration Message Format
2008.03.29
Mobile IP 682 of 699
Internetworking/Internetteknik
MN Requirements
An MN must have:
• home address, netmask,
• mobility security association for each HA.
For each pending registration, MN maintains the following information:
• link-layer address of the FA to which the Registration Request was
sent
• IP destination address of the Registration Request
• Care-of address used in the registration
• remaining lifetime of the registration
Maguire
[email protected]
MN Requirements
2008.03.29
Mobile IP 683 of 699
Internetworking/Internetteknik
FA Requirements (v4)
• Each FA must be configured with a care-of-address.
• Must maintain a visitor list with following information:
•
•
•
•
•
•
Link-layer source address of the mobile node
IP Source Address (the MN’s Home Address)
UDP Source Port
Home Agent address
Requested registration Lifetime
Identification field
This visitor list acts much like a Visitor Location Register (VLR) in a cellular
system.
Maguire
[email protected]
FA Requirements (v4)
2008.03.29
Mobile IP 684 of 699
Internetworking/Internetteknik
HA Requirements
Each HA must have:
• the home address and mobility security association of each authorized
MN that it is serving as a home agent.
Must create or modify its mobility binding list entry containing:
• Mobile node’s CoA (or CoAs in the case of simultaneous bindings)
• Identification field from the Registration Request
• Remaining Lifetime of the registration
The mobility binding list acts much like a Home Location Register (HLR) in a
cellular system.
Maguire
[email protected]
HA Requirements
2008.03.29
Mobile IP 685 of 699
Internetworking/Internetteknik
Optimization Problem
Internet
Home site
R2
Foreign site
R3
shortest path
R2
CN
HA
R4
Home
Agent
Home network
MN
FA
Foreign
Agent
node moves
MN
We can not follow the shortest path in Mobile IPv4 because the CN will always
send it via our home network. However, we may be able to use the shortest path
from the MN to the CN.
Maguire
[email protected]
Optimization Problem
2008.03.29
Mobile IP 686 of 699
Internetworking/Internetteknik
Problems of Mobile IP (RFC2002)
Only provides basic “macro mobility” support
⇒ Cellular
•
• Not developed for cellular systems
• No interface defined between cellular systems
•
(e.g. between Mobile-IP/HLR/VLR)
• No handover support
}
Micro Mobility
• Weak in security
• No key distribution mechanism
• Route optimization problems
}
Security
⇒
⇒
Optimization
• No QoS, real-time support, (DiffServ, RSVP)
QoS and Real-time
• …
Maguire
[email protected]
Problems of Mobile IP (RFC2002)
2008.03.29
Mobile IP 687 of 699
Internetworking/Internetteknik
Mobile IP Problems and Development
• Cellular Micro Mobility:
•
•
•
•
•
CDMA2000 Extension to MIP
Cellular IP
Regional Tunnel Management
Hierarchical MIPv6 Handoffs
MIP based Micro Mobility Mgt
• Security:
•
•
•
•
Mobile IP NAI Extension
AAA Registration Keys for MIP
Registration Keys for Route
Optimization
Mobile IP Challenge/Response Extensions
• Route Optimization:
• Route optimization for MIPv4, v6
• Real-time QoS:
• No solution yet
Maguire
[email protected]
Mobile IP Problems and Development
2008.03.29
Mobile IP 688 of 699
Internetworking/Internetteknik
CDMA2000 Extension to Mobile IP
A draft entitled: Mobile IP Based Micro Mobility Management Protocol in the
Third Generation Wireless Network, by 3Com, Alcatel, Cisco, Ericsson, Lucent,
Nortel, Motorola, Samsung, etc.
RFC2002
Mobile IP
Internet
PDSN
HA
FA
CN
Maguire
[email protected]
RNN
RNN
RNN
RNN
RNN
GRE Encapsulation
and reverse
tunneling during
Registration
CDMA2000 Extension to Mobile IP
2008.03.29
MN
Radio Network Node
Mobile IP 689 of 699
Internetworking/Internetteknik
Wireless IP Network Architecture
Visited network
Home network
HLR
SS7
Home AAA
VLR
FAAA
Internet
Maguire
[email protected]
MS
HA
FA
**
*
PDGN
PDSN
Radio
Net
Radio
RadioNet
Net
Wireless IP Network Architecture
2008.03.29
Mobile IP 690 of 699
Internetworking/Internetteknik
Cellular IP (CIP)
HAWAII extension is similar to Cellular IP.
CIP node
Cellular IP network
CIP node
Paging Cache
Paging Cache
Route Cache
RFC2002
Mobile IP
Internet
Paging Area
CIP node
GW
HA
Maguire
[email protected]
MN
Paging Cache
Route Cache
FA
CN
Route Cache
Paging Cache
CIP node
CIP node
Route Cache
Paging Cache
Paging Cache
Route Cache
Route Cache
Cellular IP (CIP)
2008.03.29
Mobile IP 691 of 699
Internetworking/Internetteknik
Cellular IP (CIP): Handover
HAWAII extension is similar to Cellular IP.
CIP node
Cellular IP network
CIP node
Paging Cache
Paging Cache
Route Cache
Route Cache
RFC2002
Mobile IP
Internet
Paging Area
CIP node
GW
HA
[email protected]
MN
Route Cache
FA
CN
Maguire
Paging Cache
Paging Cache
CIP node
CIP node
Route Cache
Paging Cache
Paging Cache
Route Cache
Route Cache
Cellular IP (CIP): Handover
2008.03.29
Mobile IP 692 of 699
Internetworking/Internetteknik
Cellular IP (CIP): Location Update
HAWAII extension is similar to Cellular IP.
CIP node
Cellular IP network
CIP node
Paging Cache
Paging Cache
Route Cache
RFC2002
Mobile IP
Internet
CIP node
GW
HA
Maguire
[email protected]
Paging Area
Paging Cache
Route Cache
FA
CN
Route Cache
Paging Cache
CIP node
CIP node
Route Cache
Paging Cache
Paging Cache
Route Cache
Route Cache
Cellular IP (CIP): Location Update
2008.03.29
MN
Mobile IP 693 of 699
Internetworking/Internetteknik
Hierarchical FA and Regional Tunneling
Hierarchical Mobile IP
FA
MN
FA
RFC2002
Mobile IP
Internet
FA
GFA
HA
FA
FA
FA
FA
CN
Maguire
[email protected]
Hierarchical FA and Regional Tunneling
2008.03.29
Mobile IP 694 of 699
Internetworking/Internetteknik
Hierarchical FA and Regional Tunneling
Hierarchical Mobile IP
FA
FA
RFC2002
Mobile IP
Internet
FA
MN
GFA
HA
FA
FA
FA
FA
CN
Maguire
[email protected]
Hierarchical FA and Regional Tunneling
2008.03.29
Mobile IP 695 of 699
Internetworking/Internetteknik
Hierarchical FA and Regional Tunneling
Hierarchical Mobile IP
FA
FA
RFC2002
Mobile IP
Internet
FA
GFA
HA
FA
FA
MN
FA
FA
CN
Maguire
[email protected]
Hierarchical FA and Regional Tunneling
2008.03.29
Mobile IP 696 of 699
Internetworking/Internetteknik
Why not simply use Dynamic DNS (DDNS)?
Problems of Dynamic DNS Mobility
• Only support inter-session mobility.
• TCP has to be disconnected when changing net.
• No inter-networking handover.
• Performance limitation problems.
• Security, Intranet firewall, etc.
Mobile IP
Dynamic DNS
TCP survive the movement
Yes
No
Intra-session mobility
Yes
No
Handover Support
(Working on)
No
Performance Limitation
No
Yes
Thus DDNS does not really provide mobility, just connecting at different places.
Maguire
[email protected]
Why not simply use Dynamic DNS (DDNS)?
2008.03.29
Mobile IP 697 of 699
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• Mobile IP
Maguire
[email protected]
Summary
2008.03.29
Mobile IP 698 of 699
Internetworking/Internetteknik
References
[123]. B. Aboba and M. Beadles, “The Network Access Identifier”, IETF
RFC 2486, January 1999 http://www.ietf.org/rfc/rfc2486.txt
[124]C. Perkins, “IP Encapsulation within IP”, IETF RFC 2003, October 1996
http://www.ietf.org/rfc/rfc2003.txt
[125]C. Perkins, “‘Minimal Encapsulation within IP”, IETF RFC 2004, October
1996 http://www.ietf.org/rfc/rfc2004.txt
[126]Juan Caballero Bayerri and Daniel Malmkvist, Experimental Study of a
Network Access Server for a public WLAN access network, M.S. Thesis,
KTH/IMIT, Jan. 2002
Maguire
[email protected]
References
2008.03.29
Mobile IP 699 of 699
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 12: IPSec, VPNs, Firewalls,
and NAT
Lecture notes of G. Q. Maguire Jr.
KTH Information and
Communication Technology
For use in conjunction with TCP/IP Protocol Suite, by
Behrouz A. Forouzan, 3rd Edition, McGraw-Hill, 2006.
For this lecture: Chapters 26 and 28
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Internet_Security_VPNs_NAT.fm5
2008.03.29
Total pages: 731
Outline
• IPSec, VPN, …
• Firewalls & NAT
• Private networks
Maguire
Outline
IPSec, VPNs, Firewalls, and NAT 701 of 731
[email protected]
2008.03.29
Internetworking/Internetteknik
Private networks
Private Networks are designed to be used by a limited set of users (generally those
inside an organization)
Intranet
a private network - access limited to those in an organization
Extranet
intranet + limited access to some resource by additional users from outside the
organization
Addresses for Private IP networks
• these should never be routed to outside the private network
• they should never be advertised (outside the private network)
• allocated (reserved) addresses:
Range
Total addresses
10.0.0.0 to 10.255.255.255
224
172.16.0.0 to 172.31.255.255
220
192.168.0.0 to 192.168.255.255
216
Maguire
[email protected]
Private networks
2008.03.29
IPSec, VPNs, Firewalls, and NAT 702 of 731
Internetworking/Internetteknik
Virtual Private networks (VPNs)
leased line
SiteB
SiteA
Figure 127: Private network
Internet
leased line
SiteB
SiteA
Figure 128: Hybrid network
Internet
SiteA
SiteB
tunnel
Figure 129: Virtual Private network
Maguire
[email protected]
Virtual Private networks (VPNs)
2008.03.29
IPSec, VPNs, Firewalls, and NAT 703 of 731
Internetworking/Internetteknik
Security Protocols, APIs, etc.
• Generic Security Services App. Programming Interface (GSS-API)
• Network layer security
• Internet Protocol Security Protocol (IPSEC)
• Secured Socket Layer (SSL)/Transport Layer Security
• transport layer security
• Secured HyperText Transport Protocol (S-HTTP)
• Application layer security
• Pretty Good Privacy (PGP) [148]
• Privacy-Enhanced Electronic Mail (PEM), S/MIME (signed MIME), PGP/MIME, and
OpenPGP, … [149]
• MasterCard and Visa’s Secured Electronic Transaction (SET)
• Authentication
• Remote Authentication Dial-In User Services (RADIUS)
http://www.gnu.org/software/radius/radius.html, FreeRADIUS http://www.freeradius.org/
• DIAMETER http://www.diameter.org/
• …
Maguire
[email protected]
Security Protocols, APIs, etc.
2008.03.29
IPSec, VPNs, Firewalls, and NAT 704 of 731
Internetworking/Internetteknik
GSS-API
Generic Security Services Application Programming Interface (GSS-API)
• provides an abstract interface which provides security services for use
in distributed applications
• but isolates callers from specific security mechanisms and
implementations.
GSS-API peers establish a common security mechanism for security context
establishment either through administrative action, or through negotiation.
GSS-API is specified in:
• J. Linn, "Generic Security Service API v2", RFC 2078 [134]
• J. Wray, "Generic Security Service API v2: C-bindings", RFC 2744
[135].
Maguire
[email protected]
GSS-API
2008.03.29
IPSec, VPNs, Firewalls, and NAT 705 of 731
Internetworking/Internetteknik
IPSec
IPSec in three parts:
• encapsulating security payload (ESP) defines encryption or IP
payloads,
• authentication header (AH) defines authentication method, and
• the IP security association key management protocol (ISAKMP)
manages the exchange of secret keys between senders and recipients
of ESP or AH packets.
Maguire
IPSec
IPSec, VPNs, Firewalls, and NAT 706 of 731
[email protected]
2008.03.29
Internetworking/Internetteknik
ESP packet
Consists of:
• a control header - contains a Security Parameters Index (SPI) and a
sequence number field (the SPI + destination IP address unqiuely
identifies the Security Association (SA)).
• a data payload - encrypted version of the user’s original packet. It may
also contain control information needed by the cryptographic
algorithms (for example DES needs an initialization vector (IV)).
• an optional authentication trailer - contains an Integrity Check Value
(ICV) - which is used to validate the authenticity of the packet.
ESP could use any one of several algorithms: DES, Triple DES, …
See: RFC 2406: IP Encapsulating Security Payload (ESP)[128]
Maguire
[email protected]
ESP packet
2008.03.29
IPSec, VPNs, Firewalls, and NAT 707 of 731
Internetworking/Internetteknik
AH header
For authentication purposes only contains:
• an SPI,
• a sequence number, and
• an authentication value.
AH uses either:
• Message Digest 5 (MD5) algorithm,
• Secure Hash Algorithm 1 (SHA-1),
• truncated HMAC (hashed message authentication code), or
• …
For further information see:
• IP Authentication Header - RFC 2402 [129]
Maguire
[email protected]
AH header
2008.03.29
IPSec, VPNs, Firewalls, and NAT 708 of 731
Internetworking/Internetteknik
ISAKMP
ISAKMP is based on the Diffie-Hellman key exchange protocol; it assumes the
identities of the two parties are known.
Using ISAKMP you can:
• control the level of trust in the keys,
• force SPIs to be changed at an appropriate frequency,
• identify keyholders via digital certificates
[requires using a certificate authority (CA)]
For further information see:
• Internet Security Association and Key Management Protocol (ISAKMP)
- RFC 2408 [130]
• The Internet IP Security Domain of Interpretation for ISAKMP RFC 2407 [131]
• The OAKLEY Key Determination Protocol - RFC 2412 [132]
• The Internet Key Exchange (IKE) - RFC 2409 [133]
Maguire
[email protected]
ISAKMP
2008.03.29
IPSec, VPNs, Firewalls, and NAT 709 of 731
Internetworking/Internetteknik
Where can you run IPSec?
Mode
Where it runs
Payload
Transport
end-systems
payload data follows the normal IP header
Tunnelling
internetworking
device: e.g., router,
firewall, or VPN
gateway
• end-user’s entire packet-IP headers and all-placed within another packet
with ESP or AH fields
[thus it is encapsulated in another packet]
• can hide the original source and destination address information
AS1
tunnel
AS3
AS4
AS2
AS5
Figure 130: IPSec usage
red = secure, black = unsecure
Maguire
[email protected]
Where can you run IPSec?
2008.03.29
IPSec, VPNs, Firewalls, and NAT 710 of 731
Internetworking/Internetteknik
Firewalls
exterior
interior (often an Intranet)
Figure 131: Firewall an internet gateway
The firewall can provide packet by packet filtering of packets coming into the
intranet or leaving the intranet. The firewall can decide which packets should be
forwarded based on source, destination addresses, and port (or even deeper
examination) using an explicitly defined policy.
Maguire
[email protected]
Firewalls
2008.03.29
IPSec, VPNs, Firewalls, and NAT 711 of 731
Internetworking/Internetteknik
Linux firewall
For example, for the software firewall used in Linux systems called “ipfwadm”:
• all ports are typically closed for inbound traffic,
• all outbound traffic is “IP masqueraded”, i.e., appears to come from the
gateway machine; and
• For bi-directional services required by the users, “holes” may be
punched through the firewall - these holes can reroute traffic to/from
particular ports:
• to specific users or
• the most recent workstation to request a service.
Maguire
[email protected]
Linux firewall
2008.03.29
IPSec, VPNs, Firewalls, and NAT 712 of 731
Internetworking/Internetteknik
Firewall Design
apply basics of security:
• least privilege:
• don’t make hosts do more than they have to (implies: specialize servers)
• use minimum privileges for the task in hand
• fail safe
• even if things break it should not leave anything open
• defence in depth
• use several discrete barriers - don’t depend on a single firewall for all security
• weakest links
• know the limitations of your defences - understand your weakest link
Firewalls should have sufficient performance to keep the pipes full - i.e., a firewall
should not limit the amount of traffic flowing across the connection to the external
network, only what flows across it!
Maguire
[email protected]
Firewall Design
2008.03.29
IPSec, VPNs, Firewalls, and NAT 713 of 731
Internetworking/Internetteknik
Proxy Access Through A Firewall
Bastion host
exterior
Internet
interior
Intranet
Proxy Server
manually enabled bypass
Figure 132: Firewall and internet gateway
Often you need application level proxies (i.e., they undertand details of the
application protocol) -- an example is to proxy RealAudio’s streaming audio.
Maguire
[email protected]
Proxy Access Through A Firewall
2008.03.29
IPSec, VPNs, Firewalls, and NAT 714 of 731
Internetworking/Internetteknik
SOCKs
Permeo Technologies, Inc.’s SOCKS
http://www.socks.nec.com/
In order to bridge a firewall we can use a proxy:
• the proxy will appear to be all external hosts to those within the
firewall
• for example, If a user attached to the intranet requests a webpage, the request is sent to the
proxy host where the same request is duplicated and sent to the real destination. When data
is returned the proxy readdresses (with the user’s intranet address) the returned data and
sends it to the user.
• widely used to provide proxies for commonly used external services
(such as Telnet, FTP, and HTTP).
See: [142] and [143]
hole
Internet
exterior
Intranet
interior
Socks (Proxy) Server
Figure 133: Firewall and internet gateway
Maguire
[email protected]
SOCKs
2008.03.29
IPSec, VPNs, Firewalls, and NAT 715 of 731
Internetworking/Internetteknik
Newping
http://ftp.cerias.purdue.edu/pub/tools/dos/socks.cstc/util/newping.c
• a “ping” for SOCKS
• it depends on the target host not blocking the service on the
appropriate port (in this case “time”). This version is primarily for
checking “Is it alive?” rather than gathering statistics on the average
response time of several echo requests.
• Uses the “time” TCP port to verify that a host is up, rather than using
ICMP ⇒ usable through a firewall that blocks ICMP.
Maguire
[email protected]
Newping
2008.03.29
IPSec, VPNs, Firewalls, and NAT 716 of 731
Internetworking/Internetteknik
MBONE through firewalls
http://www.cs.virginia.edu/~mngroup/projects/firewalls/
Their firewall features:
• Source host checking (allowing only certain hosts to transmit through
the firewall, or denying specific hosts)
• Destination port checking
• Packet contents (unwrapping encapsulated IP)
• Regulating bandwidth allocated to a specific multicast group’s traffic
Their Mbone gateway is based on a modified multicast routing daemon.
hole
MBONE
Intranet
join
join
join
SOCKS+Mrouted-gw
Figure 134: Firewall and internet gateway
Maguire
[email protected]
MBONE through firewalls
2008.03.29
IPSec, VPNs, Firewalls, and NAT 717 of 731
Internetworking/Internetteknik
Secure Mailer (aka Postfix)
Wietse Venema’s attempt to provide an alternative to the widely-used Sendmail
program
70% of all mail sent via the Internet is sent via Sendmail
“Security. Postfix uses multiple layers of defense to protect the local
system against intruders. Almost every Postfix daemon can run in a
chroot jail with fixed low privileges. There is no direct path from the
network to the security-sensitive local delivery programs - an intruder
has to break through several other programs first. Postfix does not
even trust the contents of its own queue files, or the contents of its
own IPC messages. Postfix avoids placing sender-provided
information into shell environment variables. Last but not least, no
Postfix program is set-uid.” [144]
Maguire
[email protected]
Secure Mailer (aka Postfix)
2008.03.29
IPSec, VPNs, Firewalls, and NAT 718 of 731
Internetworking/Internetteknik
U.S. DOE CIAC’s Network Security Tools [145]
• System Administrator Tool for Analyzing Networks (SATAN), network
security analyzer designed by Dan Farmer and Wietse Venema; scans
systems connected to the network noting the existence of well known,
often exploited vulnerabilities. (see also Security Auditor’s Research
Assistant (SARA))
• ipacl - forces all TCP and UDP packets to pass through an access
control list facility
• logdaemon - modified versions of rshd, rlogind, ftpd, rexecd,login, and
telnetd that log significantly more information -- enabling better auditing
of problems via the logfiles
• improved versions of: portmap, rpcbind,
• screend - a daemon and kernel modifications to allow all packets to be
filtered based on source address, destination address, or any other
byte or set of bytes in the packet
• securelib - new versions of the accept, recvfrom, and recvmsg
networking system calls
Maguire
[email protected]
U.S. DOE CIAC’s Network Security Tools [145] IPSec, VPNs, Firewalls, and NAT 719 of
2008.03.29
Internetworking/Internetteknik
• TCP Wrappers - allows monitoring and control over who connects to a
host’s TFTP, EXEC, FTP, RSH, TELNET, RLOGIN, FINGER, and
SYSTAT ports + a library so that other programs can be controlled and
monitored in the same fashion
• xinetd - a replacement for inetd which supports access control based
on the address of the remote host and the time of access + provides
extensive logging capabilities
Maguire
[email protected]
U.S. DOE CIAC’s Network Security Tools [145] IPSec, VPNs, Firewalls, and NAT 720 of
2008.03.29
Internetworking/Internetteknik
The Network Mapper (NMAP)
Network Mapper (NMAP)
http://www.insecure.org/nmap/
•
•
•
•
•
•
(cleverly) uses raw IP packets
determine what hosts are available on the network,
what services (application name and version) are offered,
what operating systems (and OS versions) they are running,
what type of packet filters/firewalls are in use,
…
also has a link to “Remote OS detection via TCP/IP
Stack FingerPrinting” by Fyodor <[email protected]> (www.insecure.org), October 18,
1998 - a means of identifying which OS the host is running by noting its TCP/IP
behavior.
http://www.insecure.org/nmap/nmap_documentation.html
Maguire
[email protected]
The Network Mapper (NMAP)
2008.03.29
IPSec, VPNs, Firewalls, and NAT 721 of 731
Internetworking/Internetteknik
Network Address Translation
exterior
interior
Proxy Server
Internet
Intranet
manually enabled bypass
192.168.0.x
y.y.y.y (.. z.z.z.z)
(provided by the ISP)
192.168.0.1
NAT
Figure 135: Example of a Firewall with NAT
NAT maps IP addresses on the inside to one or more addresses on the outside and
vice versa. See RFC 3022 [155] and RFC2766 [156]
Advantages:
Disadvantage
✔ save IPv4 addresses
✘ Unfortunately this breaks many
services because they use an IP
address inside the their data.
✔ hides internal node structure from outside
nodes
✔ the intranet does not have to be renumbered
when you connect to another ISP
Maguire
[email protected]
Network Address Translation
2008.03.29
IPSec, VPNs, Firewalls, and NAT 722 of 731
Internetworking/Internetteknik
Demilitarized zone (DMZ)
exterior
interior
Intranet
Internet
DMZ
web
DNS
e-mail ftp
server server server server
Figure 136: Example of a Firewall with a DMZ
Note that the various services may also be in different DMZ (see for example
fogure 4 page 90 of [146]
Maguire
[email protected]
Demilitarized zone (DMZ)
2008.03.29
IPSec, VPNs, Firewalls, and NAT 723 of 731
Internetworking/Internetteknik
Network Security Exercises
You will find a nice set of exercises by Ramesh Govindan at USC’s ISI for
Kerberos, S/Key, and firewalls at: http://www.isi.edu/~govindan/cs558/netsec/index.html
Note that you should not use their machines for these exercises, but I think you
will find this useful reading.
Maguire
[email protected]
Network Security Exercises
2008.03.29
IPSec, VPNs, Firewalls, and NAT 724 of 731
Internetworking/Internetteknik
Security Organizations and Companies
Computer Emergency Response Team (CERT ®) Coordination Center [136]
• 1988 - Computer Emergency Response Team
• 2003 - Computer Emergency Readiness Team [140]
Addionally, there are numerous other CERTs:
• CanCERT™, GOVCERT.NL, Sveriges IT-incidentcentrum (SITIC)
http://www.sitic.se/, Centre d’Expertise Gouvernemental de Réponse et de
Traitement des Attaques informatiques (CERTA), CNCERT/CC [140],
…
• The European Computer Security Incident Response Team Network
http://www.ecsirt.net/
Forum of Incident Response and Security Teams (FIRST), now: 170 members[137]
NIST Computer Security Resource Center [138], Swedish Defense Material
Administration, Electronics Systems Directorate [139], …
Maguire
[email protected]
Security Organizations and CompaniesIPSec, VPNs, Firewalls, and NAT 725 of 731
2008.03.29
Internetworking/Internetteknik
Summary
This lecture we have discussed:
• Private networks
• IPSec
• Firewalls
Maguire
[email protected]
Summary
2008.03.29
IPSec, VPNs, Firewalls, and NAT 726 of 731
Internetworking/Internetteknik
Further information
[127]IETF Security Area http://sec.ietf.org/
[128]S. Kent and R. Atkinson, “IP Encapsulating Security Payload (ESP)”, IETF
RFC 2406, November 1998 http://www.ietf.org/rfc/rfc2406.txt
[129]S. Kent and R. Atkinson, “IP Authentication Header”, IETF RFC 2402,
November 1998 http://www.ietf.org/rfc/rfc2402.txt
[130]D. Maughan, M. Schertler, M. Schneider, and J. Turner, “Internet Security
Association and Key Management Protocol (ISAKMP)”, IETF RFC 2408,
November 1998 http://www.ietf.org/rfc/rfc2408.txt
[131] D. Piper, “The Internet IP Security Domain of Interpretation for ISAKMP”,
IETF RFC 2407, November 1998 http://www.ietf.org/rfc/rfc2407.txt
[132] H. Orman, “The OAKLEY Key Determination Protocol”, IETF RFC 2412,
November 1998 http://www.ietf.org/rfc/rfc2412.txt
[133]D. Harkins and D. Carrel, “The Internet Key Exchange (IKE)”, IETF
Maguire
[email protected]
Further information
2008.03.29
IPSec, VPNs, Firewalls, and NAT 727 of 731
Internetworking/Internetteknik
RFC 2409,November 1998 http://www.ietf.org/rfc/rfc2409.txt
[134]J. Linn, “Generic Security Service Application Program Interface, Version
2”, IETF RFC 2078, January 1997, http://www.ietf.org/rfc/rfc2078.txt
[135]J. Wray, “Generic Security Service API Version 2 : C-bindings”, IETF
RFC 2744, January 2000 http://www.ietf.org/rfc/rfc2744.txt
[136] Computer Emergency Response Team http://www.cert.org/
[137]Forum of Incident Response and Security Teams http://www.first.org/
[138]U. S. National Institute of Standards and Technology (NIST), Computer
Security Division, Computer Security Resource Center http://csrc.nist.gov/
[139]Swedish Defense Material Administration http://www.fmv.se/
[140]David Crochemore, “Response/Readiness: What R the new CERTS?”,
National Computer network Emergency Response technical
Team/Coordination Center of China (CNCERT/CC) 2005 Annual
Conference, Guilin, P.R.China, 30 March 2005
Maguire
[email protected]
Further information
2008.03.29
IPSec, VPNs, Firewalls, and NAT 728 of 731
Internetworking/Internetteknik
http://www.cert.org.cn/upload/2005AnnualConferenceCNCERT/1MainConference/10.DavidCrochemore-NGCERTOI.
pdf
[141]Centre d’Expertise Gouvernemental de Réponse et de Traitement des
Attaques informatiques (CERTA) http://www.certa.ssi.gouv.fr/
[142]M. Leech, M. Ganis, Y. Lee, R. Kuris, D. Koblas, and L. Jones, “SOCKS
Protocol Version 5”, IETF RFC 1928, March 1996
http://www.ietf.org/rfc/rfc1928.txt
[143]P. McMahon, “GSS-API Authentication Method for SOCKS Version 5”,
IETF RFC 1961, June 1996 http://www.ietf.org/rfc/rfc1961.txt
[144] Postfix http://www.postfix.org
[145]U.S. DOE’s Computer Incident Advisory Capability
http://ciac.llnl.gov/ciac/ToolsUnixNetSec.html
[146]Robert Malmgren, Praktisk nätsäkerhet, Internet Academy Press,
Stockholm, Sweden, 2003, ISBN 91-85035-02-5
Maguire
[email protected]
Further information
2008.03.29
IPSec, VPNs, Firewalls, and NAT 729 of 731
Internetworking/Internetteknik
[147]Charlier Kaufman, Radia Perlman, and Mike Speciner, Network Security:
Private Communication in a PUBLIC World, Prentice-Hall, 1995, ISBN
0-13-061466-1
[148]Simson Garfinkel, PGP: Pretty Good Privacy, O’Reilly & Associates, 1995
ISBN 1-56592-098-8
[149]Internet Mail Consortium, “S/MIME and OpenPGP”, Oct 15, 2004
http://www.imc.org/smime-pgpmime.html
Firewalls
[150]Bill Cheswick and Steve Bellovin, Firewalls and Internet Security:
Repelling the Wily Hacker, Addison Wesley, 1994,ISBN: 0-201-63357-4
[151]D. Brent Chapman and Elizabeth Zwicky, Building Internet Firewalls,
O’Reilly, 1995,ISBN: 1-56592-124-0
[152]Tony Mancill, Linux Routers: A Primer for Network Administrators
Prentice-Hall, 2001, ISBN 0-13-086113-8.
Maguire
[email protected]
Further information
2008.03.29
IPSec, VPNs, Firewalls, and NAT 730 of 731
Internetworking/Internetteknik
[153]Firewalls mailing list http://www.isc.org/index.pl?/ops/lists/firewalls/
[154]Computer Security Institute (CSI) at http://www.gocsi.com/
NAT
[155] P. Srisuresh and K. Egevang, “Traditional IP Network Address Translator
(Traditional NAT)”, IETF RFC 3022, January 2001
http://www.ietf.org/rfc/rfc3022.txt
[156]G. Tsirtsis and P. Srisuresh, “Network Address Translation - Protocol
Translation (NAT-PT)”, IETF RFC 2766, February 2000
http://www.ietf.org/rfc/rfc2766.txt
Maguire
[email protected]
Further information
2008.03.29
IPSec, VPNs, Firewalls, and NAT 731 of 731
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 13: Future and Summary
Lecture notes of G. Q. Maguire Jr.
KTH Information and
Communication Technology
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Future_and_Summary.fm5
2008.03.29
Total pages: 778
Outline
•
•
•
•
•
Third generation of networking
QoS
Interface trends
IP SANs (Storage Area Networks): iSCSI, …
A glimpse into the future.
Maguire
Outline
Future and Summary 733 of 778
[email protected]
2008.03.29
Internetworking/Internetteknik
Third generation of networking
Van Jaconson describes the three generations as:
• "Generation 1: the phone system - focus on the wires.
• Generation 2: the Internet - focus on the machines connected to the
wires.
• Generation 3? dissemination - focus on the data flowing between the
machines connected to the wires."
-- slide 2: "A Brief History of Networking" of
Van Jacobson, "If a Clean Slate is the solution what was the problem?",
Stanford Clean Slate Seminar, February 27, 2006
http://cleanslate.stanford.edu/seminars/jacobson.pdf
Maguire
[email protected]
Third generation of networking
2008.03.29
Future and Summary 734 of 778
Internetworking/Internetteknik
Dissemination not conversation
On slide 17 of the same talk, Van Jaconson states:
• "The raison d’être of today’s networking, both circuit switched and
TCP/IP, is to allow two entities to have a conversation.
• The overwhelming use (>99% according to most measurements) of
todays networks is for an entity to acquire or distribute named chunks
of data (like web pages or email messages).
Acquiring named chunks of data is not a conversation, its a dissemination (the
computer equivalent of ‘‘Does anybody have the time?’’)"
-- slide 17 of
Van Jacobson, "If a Clean Slate is the solution what was the problem?",
Stanford Clean Slate Seminar, February 27, 2006
http://cleanslate.stanford.edu/seminars/jacobson.pdf
Maguire
[email protected]
Dissemination not conversation
2008.03.29
Future and Summary 735 of 778
Internetworking/Internetteknik
Quality of Service (QoS)
QoS refers to statistical performance guarantees that a network can make
regarding packet loss, delay, throughput, and jitter.
Best effort delivery means no QoS guarantee.
QoS is thought to be more and more important this days.
Many proposals, implementations and studies.
Does Internet need QoS? How can IP network provide it?
Maguire
[email protected]
Quality of Service (QoS)
2008.03.29
Future and Summary 736 of 778
Internetworking/Internetteknik
Service Differentiation
Integrated Services (InteServ):
• RSVP: connection request
• All nodes IntServ-capable
• Scalability
• Complicated network management
Differentiated Service (DiffServ): end of one-size-fits-all
• Classes of Service
• QoS based Routing
• Classes of Service at Gigabit rates
• New Pricing and Billing Policies
• New Resource Allocation Methods
See: [157]
Maguire
[email protected]
Service Differentiation
2008.03.29
Future and Summary 737 of 778
Internetworking/Internetteknik
Constraint-based Routing
QoS routing: selects network routes with sufficient resources for the requested
QoS parameters
• to satisfy the QoS requirements for every admitted connection;
• to achieve network efficiency in resource ultilization.
Policy-based Routing: e.g. Virtual Private Networks (VPN)
How can we combine this with IP mobility?
Maguire
[email protected]
Constraint-based Routing
2008.03.29
Future and Summary 738 of 778
Internetworking/Internetteknik
Performance
Routers:
1/2 to 1 Million packets per second (pps) for every gigabit per second of aggregate
bandwidth
more than 250,000 routes
Maguire
[email protected]
Performance
2008.03.29
Future and Summary 739 of 778
Internetworking/Internetteknik
PC interfaces
Standard I/O ports of PCs:
• Accelerated Graphics Port (AGP)
• PCI
• Version 2.1 PCI bus - 64 bit, 66MHz, can burst to 528 Mbps
• PCI-X 2.0: “High Performance, Backward Compatible PCI for the Future” [158]
• PCI-X 533, offering up to 4.3 gigabytes per second of bandwidt
• Universal Serial Bus (USB)
• USB: 12Mbps - with plug and play
• USB 2.0 [159]
• Apple Computers’ Firewire™ ⇒ IEEE 1394
• supporting more than 400 Mbps
• P1394B (Gigabit 1394) defined in IEEE Std 1394b-2002
• 10/100/1000 Ethernet
Maguire
[email protected]
PC interfaces
2008.03.29
Future and Summary 740 of 778
Internetworking/Internetteknik
Fibre Channel
From the X2T11 standards activity
Topologies: Point-to-Point, Fabric, and Arbitrated loop
Addresses: Loops, LANs, and worldwide addresses
Fibre Channel Profiles
Fibre Channel products
• Disk drives
• Network interfaces
Maguire
[email protected]
Fibre Channel
2008.03.29
Future and Summary 741 of 778
Internetworking/Internetteknik
IP Storage Area Networks (SANs)
Using IP in conjunction with storage:
• Fibre Channel Over IP (FCIP)
JBOD == Just a Bunch of Disks
tape library
Fibre Channel
Server
Fibre Channel
Switch
Fibre Channel
Server
FCIP
Internet
IP Tunnel
tape library
FCIP
Fibre Channel
Server
Fibre Channel
Switch
FC
JBOD
Fibre Channel
Server
FC
JBOD
Note that this approach simply interconnects the two Fibre Channel
switches. The connection between the two switches is TCP and it
simply encapsulates a FCIP header and a Fibre Channel Frame.
Maguire
[email protected]
IP Storage Area Networks (SANs)
2008.03.29
Future and Summary 742 of 778
Internetworking/Internetteknik
• Internet Fibre Channel Protocol (iFCP)
JBOD == Just a Bunch of Disks
iFCP
tape library
iFCP
Server
Internet
router
iFCP Frames
tape library
iFCP
Gateway
Fibre Channel
Server
Fibre Channel
Switch
FC
JBOD
Fibre Channel
Server
iFCP
JBOD
Note that this approach interconnects Fibre Channel devices. The
connection between the two switches is TCP and it encapsulates a
iFCP header and a Fibre Channel Frame; note that iFCP devices can
simply be attached to the internet or an intranet. This means that there
has to be a mapping between Fibre Channel addresses an IP
addresses.
Maguire
[email protected]
IP Storage Area Networks (SANs)
2008.03.29
Future and Summary 743 of 778
Internetworking/Internetteknik
• Internet SCSI (iSCSI)
JBOD == Just a Bunch of Disks
iSCSI
tape library
iSCSI
Server
iSCSI
Server
Internet
iFCP Frames
router
iSCSI
tape library
router
iSCSI
JBOD
iSCSI
JBOD
One a SCSI initiator has logged-in to a SCSI target, it can simply issue
SCSI commands, just as if the device were on a local SCSI chain!
For more information see [160]
Maguire
[email protected]
IP Storage Area Networks (SANs)
2008.03.29
Future and Summary 744 of 778
Internetworking/Internetteknik
Clustering
Myricom, Inc. http://www.myri.com/
American National Standards Institute (ANSI) Standard -- ANSI/VITA 26-1998
• Started by
• Prof. Charles L. Seitz - Caltech, now President and CEO
• Dr. Robert Felderman - Director of Software Development
• Mr. Glenn Brown - Engineer and programmer
Clusters used to form high performance servers, using commodity networks and
hosts. For performance numbers see: http://www.myri.com/myrinet/overview/
Maguire
[email protected]
Clustering
2008.03.29
Future and Summary 745 of 778
Internetworking/Internetteknik
“Beowulf-class” machines
Using large numbers of commodity machines to make high performance
computational systems by interconnecting them with a network.
• LANL’s Loki http://loki-www.lanl.gov
• LANL’s Avalon http://cnls.lanl.gov/avalon/
• JPL’s Hyglac http://hpc.jpl.nasa.gov/PS/HYGLAC/hyglac.html
• INRIA’s PopC (Pile of PCs)
• …
Maguire
[email protected]
“Beowulf-class” machines
2008.03.29
Future and Summary 746 of 778
Internetworking/Internetteknik
Very high-speed Backbone Network Service
(vBNS)
vBNS project (http://www.vbns.net/) created to provide a backbone for the US
high-performance computing users and their SuperComputer Centers.
• mostly OC12C, but now adding OC48C links (2.4Gbps)
• connections to all NAPs
• provide for multimedia services (provides multicast)
• participate in developing advanced routing technologies
• supports IPv4 and IPv6
vBNS backbone network (http://www.stanford.edu/group/itss-cns/i2/vbns.html)
There is some interest in using vBNS for inter-gigapop interconnections.
Maguire
[email protected]
Very high-speed Backbone Network Service (vBNS)
2008.03.29
Future and Summary 747 of 778
Internetworking/Internetteknik
Internet2
http://www.internet2.org/
• World class research
Driven by computational physics, biology, chemistry, … and scientific
visualization, virtual “experiments”, and remote control of real
experiments.
• Networking R&D - focused on exploiting the capabilities of broadband
networks media integration, interactivity, real time collaboration, …
• Improve production Internet services and applications for all members
of the academic community, both nationally and internationally.
Purpose: support national research objectives, distance education,
lifelong learning, and related efforts.
http://www.hpcc.gov/white-house/internet/background.html
Maguire
[email protected]
Internet2
2008.03.29
Future and Summary 748 of 778
Internetworking/Internetteknik
Gigapops
Who will be operating them?
Where will they be?
How many will there be?
What is the aggregate throughput that they will require?
What is the maximum per port throughput?
How many ports will they need to support?
Will they support "mixing"? (mixing is used to defeat traffic analysis)
Whose hardware and software will they use? What is the required functionality?
Maguire
[email protected]
Gigapops
2008.03.29
Future and Summary 749 of 778
Internetworking/Internetteknik
Speed through Silicon
FPGAs used in many routers - for flexibility and to allow near hardware speed
implementations of protocols.
ASICs: Vertex Networks, Inc. , MMC Networks, Inc, Galileo Technology, TI, …
Maguire
[email protected]
Speed through Silicon
2008.03.29
Future and Summary 750 of 778
Internetworking/Internetteknik
Future networks
Terabit per second == 1012
Readily achievable via combining multiple Gigabit per second streams using
Wavelength Division Multiplexing (WDM).
Petabit per second== 1015
Differentiated Services: Classes of Service, Multimedia
Constraint-based Routing (QoS Routing)
Ad Hoc Networking
Auto-configuration (Plug and Play Internet)
Active Networking
Smart Networking
Knowledge-based Networking
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 751 of 778
Internetworking/Internetteknik
Active Networks
• Network nodes can perform customized computations on the
messages flowing through them.
• Can change, modify the contents of the messages.
• Potentially Mobility Enabling Routing using active network concept
Client
Maguire
[email protected]
Server
Active
Node
Node
Future networks
2008.03.29
Active
Node
Future and Summary 752 of 778
Internetworking/Internetteknik
Smart Networks with Sensors
(Ren and Maguire, KTH)
• Context/situation-aware Systems
• Smart services: active + user-awareness networking
• Knowledge-based Networking
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 753 of 778
Internetworking/Internetteknik
Bottlenecks
• Server
and Network Bandwidth and latency
Server1
…
Femtocell
Picocell
Server1
Microcell
Macrocell
High speed networks
• User
Low ⇒ high speed wireless networks
Bandwidth and latency
Gateway to Wireless network
Server
BackboneNetwork
Wireless link
personal device
kbit/s .. Mbit/s
Gbit/s
?
User
and Energy ⇒ need a computational theory of O(energy)
• Imagination!
• Power
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 754 of 778
Internetworking/Internetteknik
Near Future systems
Personal Portal
GPS source
Camera(s)
Heads-up display
Audio I/O
Input device
MINT with GPS
Figure 137: Vision-2, 2000 - high level of integration
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 755 of 778
Internetworking/Internetteknik
Evolution of new varieties of networks
Already we have: WANs (Wide Area), MANs (Metropolitan Area), LANs (Local Area Networks)
VANs
Vehicle Area Networks
Very local networks
DANs
Desk Area Networks
The computer/printer/telephone/… will all be part of a very local area network on your desk.
♦ wireless links ⇒ No longer will you have to plug your printer into your computer (PDA/…) into your computer
♦ active badges⇒ No longer will you have to sign in/out of areas, write down peoples names at meetings, … the
system can provide this data based on the active badges
Olivetti and Xerox are exploring “Teleporting” your windows environment to the workstation nearest you, on
command, if there are multiple choices probe each one (currently a “beep” is emitted to tell the user which).
BANs
Body Area Networks
Users will be carrying multiple devices which wish to communicate:
♦ thus there will be a need for a network between these devices which you carry around; and
♦ personal devices will wish to interact with fixed devices (such as Bankomat machines, vehicle control systems,
diagnostic consoles (for a “mechanic” or repairman), …) and other peripherals.
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 756 of 778
Internetworking/Internetteknik
Situational awareness and Adaptability
Movement
Figure 138: Where am I? What am I? Who am I?
Where am I going? When will I be there? What should I become? Who should I become?
• Location
dependent services
• Predicting location to reduce latency, reduce power, hide position, …
• Adapting the radio to the available mode(s), purposely changing mode, …
• Reconfigure the electronics to adapt, for upgrades, for fault tolerance, …; Reconfiguration vs.
powering up and down fixed modules (what are the “right” modules, what is the “right” means
of interconnect, what is the “right” packaging/connectors/…, needed speed of adaptation)
• “right” level of independence; spectrum from Highly Independent ⇒ Very Dumb
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 757 of 778
Internetworking/Internetteknik
Location Dependent service(s)
How do I know where I am?
• Outdoors:
GPS or from the network operators knowledge [resolution: 100m to sub-centimeter]
• Indoor: IR and RF beacons, triangulation, knowing what you can see or hear
What can I do with this knowledge?
KTH students built a JAVA Applet which gets data from GPS unit and dynamically displays a list
of the information available - as a function of where you are:
♦ if near bus, subway, train stop - you get transit information - potentially with real-time schedule since the system knows current location of vehicles
♦ list of restaurants, shops, etc. where you are and in the direction you are headed
◆ the scope is based on your velocity vector - so if you move quickly it reduces detail, but increases the scope
♦ map information with updated position
How do I know who I’m with or what I’m near?
• Olivetti,
Xerox, and MIT - using IR emitters as “ID” tags
♦ Olivetti put them on people, equipment, …
♦ Xerox put them on electronic notepads, rooms, …
♦ MIT Media Lab is putting them on people + lots of inanimate objects (clock, fish tank, …)
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 758 of 778
Internetworking/Internetteknik
Human centered
• Computer
- human interaction is currently focused on the computer (computer-centric)
♦ Currently computers know little about their environment
◆ Where are we?
◆ Who is using me?
◆ Is the user still there?
• Evolving
Environment awareness
♦ Give computers senses via sensors
◆ Environment
◆ User identity and presence
• Badge
as a smart card replacement
◆ biometric signature of the person currently using the badge
◆ the badge ensures that only you can use it
• You
wear your own personal user interface
♦ interface can be consistent across all appliances
◆ not because each appliance supports the interface, but because the user’s own interface provides consistency
• Make
Maguire
[email protected]
the human the focus of the computer’s interaction (⇒ human-centric)
Future networks
2008.03.29
Future and Summary 759 of 778
Internetworking/Internetteknik
Requirements
• Systems
with which humans wish to interact:
♦ traditional computers, desktop workspaces, domestic appliances, building and automotive systems,
doors, elevators (lifts), environmental control, seats and mirrors, etc.
• Systems
to provide sensor data:
◆ location, orientation, light, heat, humidity, temperature, gas analysis, biomedical, …
• Systems
to correlate the sensor information and provide it in a useful way to the computer
systems:
♦ Spatial and temporal sensor fusion,
♦ 3D and 4D databases,
♦ Machine Learning, and
♦ Prediction (based on pattern extraction)
• Agents
and actuators to provide intelligent control of the environment
• wireless/wired/mobile communications infrastructures to link it all together
♦ must assure privacy and security
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 760 of 778
Internetworking/Internetteknik
Dumb Badge, Smart Badge, and Intelligent Badge
• Dumb
Badge just emits its ID periodically
• Smart Badge - [an IP device] Location and Context Aware (i.e., a sensor platform)
• Intelligent Badge - add local processing for local interaction by the user
Acknowledgment:
All of the badge work is done in cooperation with:
• Dr.
Mark T. Smith - Hewlett-Packard Research Laboratories, Palo Alto, California, USA
• Dr. H. W. Peter Beadle
♦ Formerly: University of Wollongong, Wollongong, Australia
♦ Currently: Director, Motorola Australian Research Centre, Botany, NSW, Australia
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 761 of 778
Internetworking/Internetteknik
Badge Communications Model
Badges are IP devices (or should be), they communicate via network attached access points.
Badge Transceiver
Badge
Location
Server
Badge
Server
Internet
Application
Application
⇒ Banks as intermediaries (if they have any future role)
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 762 of 778
Internetworking/Internetteknik
Smart Badge 3
Analog Sensors
Microphone
& Speaker
UCB1200
Memory
StrongARM
Flash: 1MB
SA-1100
Digital Sensors
PCMCIA
Buffers
28F8000
SRAM: 1MB
TC554161
(2 chips)
DC to DC
Power
Supply
IR XCVR
TFDU6100
PCMCIA
Connector
Battery
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 763 of 778
Internetworking/Internetteknik
Smart Badge Sensors
Details of the 3rd version:
http://www.it.kth.se/edu/gru/Fingerinfo/telesys.finger/Mobile.VT98/badge3.html
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 764 of 778
Internetworking/Internetteknik
Badge 3
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 765 of 778
Internetworking/Internetteknik
A view of the packaged badge
As shown by HP at Comdex’98, November 16-20, 1998
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 766 of 778
Internetworking/Internetteknik
MEDIA
High integration (goal of MEDIA project)
Before
radio
µP
LAN
Chips
5
1
1
After
radio
+
LAN
µP
Chips
1+1
MR
Partners:
• Kungl
Tekniska Högskolan (KTH/ELE/ESDlab and KTH/IT/CCSlab)
• Tampere University of Technology (TUT)
• GMD FOKUS (GMD)
• Technische Universität Braunschweig (UBR)
• Interuniversity Microelectronics Centre (IMEC)
• Ericsson Radio Systems AB (ERA)
See http://www.ele.kth.se/ESD/MEDIA for more information
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 767 of 778
Internetworking/Internetteknik
Split the functions between access point and access point server
radio
Radio MAC
cpu
LAN MAC
ISDN/xDSL/LAN
to infrastructure
Analog
Digital
Access Point Server
radio
ISDN/xDSL/LAN
Maguire
[email protected]
State Machine
Rado MAC_2
Agents
Radio MAC_1
SNMP -- ??
“LAN” MAC
“LAN” MAC
ISDN/xDST/LAN
Future networks
2008.03.29
Future and Summary 768 of 778
Internetworking/Internetteknik
Future home/office/… network accesspoints
Toaster
…
Radio
Handset
}
Radio
Fiber
TP
Coax
…
Maguire
[email protected]
Gateway
PC
TV
Softradio
Softradio
Future networks
2008.03.29
Future and Summary 769 of 778
Internetworking/Internetteknik
Personal Computing and Communication (PCC)
Upper limit of bandwidth: saturate the senses: sight, sound, touch, smell, taste
⇒ ~1 Gbit/sec/user
Current workstations shipping with 1 Gbit/sec interfaces for LAN!
Telepresense for work is the long-term “killer” application
-- Gordon Bell and James N. Gray1
1. “The Revolution Yet to Happen” in Beyond Calculation: The Next Fifty Years of Computing, Eds. Denning and Metcalfe, Copernicus, 1997.
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 770 of 778
Internetworking/Internetteknik
Uploading ourselves to the net
In Bob Metcalf’s speech at MIT: http://web.mit.edu/alum/president/speech.html
One of great insights of this talk is that the internet is the way to immortality1:
Now, for the next 50 years, the web will drive electronic
commerce into the information age, ubiquitous computers
will disappear into the woodwork, and we’ll start uploading
ourselves into the Internet to become at last immortal.
-- Robert M. Metcalfe
June 26, 1997
1. Robert M. Metcalfe, “Internet Futures”, MIT Enterprise Forum, June 26, 1997.
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 771 of 778
Internetworking/Internetteknik
Future Systems
GPS source
…/femto/pico/micro/macro/…
cellular infrastructure
Audio I/O
via combined mic./earphone or
neural connection
Neural interconnection to visual cortex
External antenna and IR pod
Input devices and/or
neural connections
Implantable computer & radio
Figure 139: Vision-3, 2005-2015 - very high level of integration
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 772 of 778
Internetworking/Internetteknik
Bionic Technologies, Inc.’s Intracortical Electrode Array
Acute microelectrode assembly (10x10 array, 100 active electrodes) . . . . . . . . . . . $1,250.00
Figure 140: 10 x 10 silicon electrode array (each electrode: 1.5mm long, 0.08mm wide at base, 0.001mm tip),
Built at the Univ. of Utah, by Richard A. Normann, et al.; from Scientific American, March 1994, pg. 108.
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 773 of 778
Internetworking/Internetteknik
Non-metalic bi-directional neural interfaces
Neurochip: Neuron silicon circuits http://mnphys.biochem.mpg.de/ :
(a) Silicon-Neuron Junction (input to the nerve)
1µm
10nm
(b) Neuron transistor (output from the nerve)
nerve cell
nerve cell
p-Si
n-Si
Source
Drain
Figure 141: (a) Capacitive coupling of data into nerve and
(b) using the charge in the nerve to control a transistor’s gate for getting data out of the nerve
(a) Peter Fromherz and Alfred Stett, “Silicon-Neuron Junction: Capacitive Stimulation of an
Individual Neuron on a Silicon Chip” Phys.Rev.Lett. 75 (1995) 1670-1673
(b) P.Fromherz, A.Offenhäusser, T.Vetter, J.Weis, “A Neuron-Silicon Junction: A Retzius-Cell of
the Leech on an Insulated-Gate Field-Effect Transistor” Science 252 (1991) 1290-1293.
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 774 of 778
Internetworking/Internetteknik
What is your time line?
• What
is going to be your planning horizon?
• What will be the depreciation time for your equipment/software/infrastructure/… ?
• How fast:
♦ can you change?
♦ should you change?
♦ will you change?
Maguire
[email protected]
Future networks
2008.03.29
Future and Summary 775 of 778
Internetworking/Internetteknik
Summary
• Telecom operators are reinventing themselves and their infrastructures
• Things to watch IPv6, IPsec, Mobile-IP, DHCP, the new domain name
registries, appliances, …
• Low cost access points which exploit existing or easily installed
infrastructure are key to creating a ubiquitous mobile infrastructure with
effectively infinite bandwidth.
• Smart Badge is a vehicle for exploring our ideas:
• Exploits hardware and software complexity by hiding it.
• Explores allowing devices and services to use each other in an extemporaneous way.
• Enables a large number of location and environment aware applications,
most of which are service consuming.
• Keep you eyes open for the increasing numbers of senors which will be on the network.
• Service is where the money is!
• Personal Communication and Computation in the early 21st century:
“Just Wear IT!”
• Coming in 20-30 years: “Just implant IT!”
• Remember: The internet will be what you make it.
Maguire
[email protected]
Summary
2008.03.29
Future and Summary 776 of 778
Internetworking/Internetteknik
Further Reading
[157]Kalevi Kilkki, Differentiated Services for the Internet, Macmillan Technical
Publishing, 384 pages, June 1999, ISBN: 1578701325.
[158] PCI-SIG, PCI-X 2.0: High Performance, Backward Compatible PCI for the
Future, May 19, 2005 http://www.pcisig.com/specifications/pcix_20
[159] USB.org, Universal Serial Bus Revision 2.0 specification, May 19, 2005
http://www.usb.org/developers/docs/usb_20_02212005.zip
[160]Tom Clark, IP SANS: A Guide to iSCSI, iFCP, and TCIP Protocols for
Storage Area Networks, Addison-Wesley, 288 pages, 2002, ISBN:
0-201-75277-8
General: http://www.ietf.org/
Maguire
[email protected]
Further Reading
2008.03.29
Future and Summary 777 of 778
Internetworking/Internetteknik
Thanks
Best wishes on your written assignments (or projects).
Maguire
[email protected]
Thanks
2008.03.29
Future and Summary 778 of 778
Internetworking/Internetteknik
IK1550 Internetworking/Internetteknik
Spring 2008, Period 4
Module 14: Some exercises
Lecture notes of G. Q. Maguire Jr.
KTH Information and
Communication Technology
© 1998, 1999, 2000, 2002, 2003, 2005, 2006, 2007, 2008 G.Q.Maguire Jr. .
All rights reserved. No part of this course may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without written permission of the author.
Last modified: 2008.03.29:19:31
Maguire
[email protected]
Some-exercises-20060929.fm5
2008.03.29
Total pages: 786
Internets - configuration 1
Figure 142: Simple configuration 1
What protocols are likely to be used and where?
Maguire
[email protected]
Internets - configuration 1
2008.03.29
Some exercises 780 of 786
Internetworking/Internetteknik
Internets - configuration 2
Figure 143: Simple configuration 2
Maguire
[email protected]
Internets - configuration 2
2008.03.29
Some exercises 781 of 786
Internetworking/Internetteknik
Internets - configuration 3
Adding a firewall and router
Firewall +
Router
Firewall +
Router
Figure 144: Simple configuration 3
Maguire
[email protected]
Internets - configuration 3
2008.03.29
Some exercises 782 of 786
Internetworking/Internetteknik
Internets - configuration 4
Adding a satellite link
Firewall +
Router
Firewall +
Router
Figure 145: Simple configuration 4
Maguire
[email protected]
Internets - configuration 4
2008.03.29
Some exercises 783 of 786
Internetworking/Internetteknik
Internets - configuration 5
Adding a WiMAX link
Firewall +
Router
Firewall +
Router
Figure 146: Simple configuration 5
Maguire
[email protected]
Internets - configuration 5
2008.03.29
Some exercises 784 of 786
Internetworking/Internetteknik
Configuration 6
Adding multimedia
Firewall +
Router
Firewall +
Router
Figure 147: Simple configuration 6
Maguire
[email protected]
Configuration 6
2008.03.29
Some exercises 785 of 786
Internetworking/Internetteknik
Configuration 7
Adding two-way multimedia
Firewall +
Router
Firewall +
Router
Figure 148: Simple configuration 7
Maguire
[email protected]
Configuration 7
2008.03.29
Some exercises 786 of 786
Internetworking/Internetteknik
