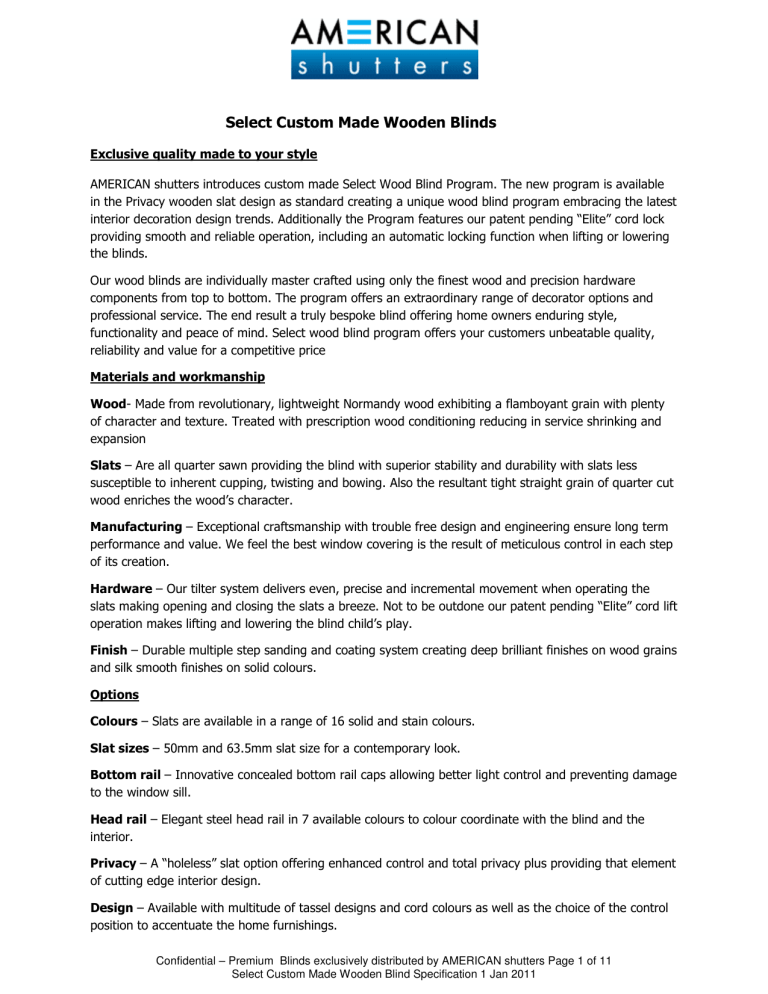

Select Custom Made Wooden Blinds
Select Custom Made Wooden Blinds
Exclusive quality made to your style
AMERICAN shutters introduces custom made Select Wood Blind Program. The new program is available
in the Privacy wooden slat design as standard creating a unique wood blind program embracing the latest
interior decoration design trends. Additionally the Program features our patent pending “Elite” cord lock
providing smooth and reliable operation, including an automatic locking function when lifting or lowering
the blinds.
Our wood blinds are individually master crafted using only the finest wood and precision hardware
components from top to bottom. The program offers an extraordinary range of decorator options and
professional service. The end result a truly bespoke blind offering home owners enduring style,
functionality and peace of mind. Select wood blind program offers your customers unbeatable quality,
reliability and value for a competitive price
Materials and workmanship
Wood- Made from revolutionary, lightweight Normandy wood exhibiting a flamboyant grain with plenty
of character and texture. Treated with prescription wood conditioning reducing in service shrinking and
expansion
Slats – Are all quarter sawn providing the blind with superior stability and durability with slats less
susceptible to inherent cupping, twisting and bowing. Also the resultant tight straight grain of quarter cut
wood enriches the wood’s character.
Manufacturing – Exceptional craftsmanship with trouble free design and engineering ensure long term
performance and value. We feel the best window covering is the result of meticulous control in each step
of its creation.
Hardware – Our tilter system delivers even, precise and incremental movement when operating the
slats making opening and closing the slats a breeze. Not to be outdone our patent pending “Elite” cord lift
operation makes lifting and lowering the blind child’s play.
Finish – Durable multiple step sanding and coating system creating deep brilliant finishes on wood grains
and silk smooth finishes on solid colours.
Options
Colours – Slats are available in a range of 16 solid and stain colours.
Slat sizes – 50mm and 63.5mm slat size for a contemporary look.
Bottom rail – Innovative concealed bottom rail caps allowing better light control and preventing damage
to the window sill.
Head rail – Elegant steel head rail in 7 available colours to colour coordinate with the blind and the
interior.
Privacy – A “holeless” slat option offering enhanced control and total privacy plus providing that element
of cutting edge interior design.
Design – Available with multitude of tassel designs and cord colours as well as the choice of the control
position to accentuate the home furnishings.
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 1 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Making Select wood blinds simple
Installation – Quick and easy installation with steel head rail, simple universal or swivel mounting
brackets and an adjustable clip on pre-mitred valance.
Component co-ordination – Default component selection is colour coordinated to perfectly match the
colour of the slat and head rail.
Use and maintenance – Easy to operate and maintain.
Living environment – American shutters Select original wood blinds create a naturally healthy living
environment and help to control room humidity. They are easy to keep clean and do not provide hiding
place for dust mites or other allergens.
Terminology
Clip Plug
Valance return connector
Valance
Valance clip
Valance return
Supporting bracket
Cord lock
Installation bracket
Cord tilter
Cord consolidator tassel
Cord cleat
Pull cord
Slat
Tassel
Ladder cord
Bottom rail
Hold down bracket
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 2 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Components & Accessories
Valance: 63.5mm Ramp Valance
76mm Chamfer Valance
Headrail: steel in 7 colours, colour coordinate with blind colours
40mm
58mm
Slat: 50.8mm & 63.5mm
3.5mm
3mm
50.8mm
Bottom rail: Incorporate a flush bottom rail cap to minimize gap at the bottom of the blind for recess
mount and dent free for window casement
For ladder cord
for Cloth Tape
Tassel: Made of wood and finished in the same color as blind slats
Taper
Courbe
Olive
(48mm)
(37mm)
(33mm)
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 3 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Cord Consolidator Tassel:
Safety Tassel
Cylinder Tassel
*Please specify the type of cord consolidator tassel you want on order form.
*Safety tassel is a safeguard for children, made of plastic and colour coordinate with slats.
*Cylinder tassel is a non-breakaway cord consolidator, made of wood and finished in the same
color as the blind to act as a consolidator of the cords but do not have the breakaway feature.
Installation & Supporting Brackets:
Installation bracket:
Default
Optional
Supporting bracket:
Default
Optional
Same colour as headrail.
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 4 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Valance Installation Parts:
Valance Clip (plug)
Valance Clip (Receptor)
Cord Cleat: supply with each blind.
Valance Return Connector
Valance Connector: supply for connecting spliced valances.
Hold Down Bracket: supply with each blind
For 50.8mm slat
For 63.5mm slat
Optional Parts: Supply upon request (Nickel plated finish)
For 50.8mm slat
For 63.5mm slat For 50.8mm&63.5mm slat
Swivel bracket (OM)
Swivel bracket (IM)
Extension bracket
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 5 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
General Specification
Mounting type & Size Definition:
Mounting Position
Order Size
Finished Blind
Size
Inside Mount (IM)
Outside Mount (OM)
Blind fits within window opening
Blind overlaps window opening
Window opening size:
Net size:
Provide the smallest measurement
among top, middle and bottom
measurement. Top measurement is
critical because the headrail must
fit. Measure the height among left,
center and right and provide the
biggest height.
Measure the desired width and height.
To minimize light leakage, the blind
should overlap the window opening at
least 50mm on each side and at the
bottom.
Width = Order width - 9.5mm
Drop = Order Height
Width = Order Width
Drop = Order Height
Finished blind width is equal to slat length; finished blind drop is measured from top edge of
headrail to bottom edge of bottom rail with slats in closed position when blind is fully released.
Tolerance on Width: ±2mm; Tolerance on Drop: 0~6.4mm.
Size Limitations:
Maximum
Minimum
Painted
Stained
Width
203mm
3048mm
2438mm
Height
254mm
3048mm
3048mm
The maximum area: 7.52m2, refer to the following chart for easier calculation.
Stained finish option cannot have width exceeding 2438mm.
Width (mm)
Max Drop (mm)
2467
3048
2500
3008
2600
2892
2700
2785
2800
2686
2900
2593
3048
2467
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 6 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
End Cap
End Cap
Head rail length = Blind Width - 4mm
Headrail
Blind Width (Slat length)
Blind Width (Bottom rail length)
Stacking Depths
Standard & Privacy
Height
(mm)
Stacking Depth
for 50.8mm slat
(mm)
Stacking Depth
for 63.5mm slat
(mm)
500
93.5
94.5
700
111
112.5
1000
132
135
1300
156.5
162
1500
174
180
1800
198.5
202.5
2000
212.5
220.5
2300
237
247.5
Valance & Return Size:
No valance return for inside mount, valance will be butt cut.
Short returns, if request for return during Inside Mount.
Outside mount blind comes with valance returns
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 7 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
IM without valance return
Window Width
Blind Width = Window Width - 9.5mm
0.8mm
0.8mm
Valance length = Window width - 1.6mm
IM with valance return
12.7mm
Window Width
Blind Width = Window Width - 9.5mm
Valance length (inner) = Window width + 6.4mm
OM with valance return
76mm
Window Width
12.7mm
Valance length (inner) = Blind width + 25.4mm
12.7mm
Outside mount valance return length: for 50.8mm & 63.5mm blind = 76mm for 50.8 bracket &
87mm for 63.6 bracket.
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 8 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Common Valance:
Common valance is used for side by side blinds sharing one valance.
Alignment of slats is not guaranteed for the side by side blinds.
Valance will be spliced if length exceeds 3100mm (paint) & 2500mm (stain). Will supply
valance connector for joining.
Control Option:
Default
Optional
Cord tilt right (R), pull cord left (L)
Cord tilt left (L), pull cord
right (R)
Cord tilt right (R), pull cord right (R)
Cord tilt left (L), pull cord left (L)
Tilter will be at the outer end when both controls are at the same side.
For Blinds with width < 457mm, must have split control, one on left and one on right.
*Privacy option not available for smaller blinds in width 203~305mm
Ladder Cord Schedule
For 50.8mm Slat
For 63.5mm Slat
Width (mm)
Ladder
Cords
Width (mm)
Ladder
Cords
203 < W ≤ 305
2
203 < W ≤ 305
2
305 < W ≤ 813
2
305 < W ≤ 927
2
813 < W ≤ 1372
3
927 < W ≤ 1372
3
1372 < W ≤ 1981
4
1372 < W ≤ 1905
4
1981 < W ≤ 2438
5
1905 < W ≤ 2438
5
2438 < W ≤ 3048
6
2438 < W ≤ 3048
6
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 9 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Colours & Colour Coordinate:
4 Painted Colours:
Ladder / Cord Colour
Blind Colour
Privacy
Standard
T001 White
T001 White
Safety Tassel
Colour
Headrail
2037 Snow White
3058
White
001 Pure White
003 Silk White
Installation
bracket
3058 Pure
White
006 Pearl
5020 Alabaster
T002 Ivory
2012 Cameo
012 Crisp Linen
H002
Vanilla
12 Stained Colours:
Ladder / Cord Colour
Blind Colour
Safety Tassel
Headrail
Installation
Bracket
Privacy
Standard
108 Rustic Gray
T168 Gray
T003 Bone
P101 Gray
3105 Gray
3107
Silver
110 Limed White
5020 Alabaster
T002 Ivory
2012 Cameo
H002
Vanilla
3058 Pure
White
5413 Walnut
T401 Cherry
P401 Cherry
3436
Coffee
3310
Chrome
221 Black Walnut
T201 Black
T201 Black
P201 Black
3208 Black
3208 Black
224 Mellow Beech
5565 Maple
T501 Wheat
2522 Teak
H501
Natural
211 Cherry
229 Rich Walnut
3310
Chrome
T402 Light Cocoa
5413 Walnut
230 Old Teak
2413 Walnut
T401 Cherry
233 Dark Mahogany
3436
Coffee
5430 Mahogany
T303 Dark
Mulberry
2437 Mahogany
T201 Black
T201 Black
P201 Black
3208 Black
P501 Wheat
3523
Sugar
Maple
237 Wenge
3208 Black
246 Matte Black
862 French Oak
5526 Cottage Pine
T501 Wheat
942 Amber Oak
*Surcharge applies for Matte Black colour.
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 10 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
3310
Chrome
Colour 110 is finished with a limed lacquer which will feature differences in the colour and grain
pattern found in the natural wood.
Colour 224 is finished with a semi-transparent coating which will feature differences in the colour
and grain pattern found in the natural wood.
Headrail/cord/ladder colour will coordinate with the slat colour unless otherwise specified.
Cloth tape colours for Standard option only: Face width 25.4mm.
T001 White
T302 Bordeaux
T501 Wheat
T002 Ivory
T303 Dark Mulberry
T601 Cumin
T003 Bone
T401 Cherry
T701 Sea Foam
T169 Grey Beige
T402 Light Cocoa
T702 Navy Blue
T201 Black
T403 Ecru
Warranty:
The Colour Fastness of Custom Blinds is warranted for 1 year.
The Structure of Custom Blinds is warranted for 1 year.
The Hardware of Custom Blinds is warranted for 1 year.
Confidential – Premium Blinds exclusively distributed by AMERICAN shutters Page 11 of 11
Select Custom Made Wooden Blind Specification 1 Jan 2011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
