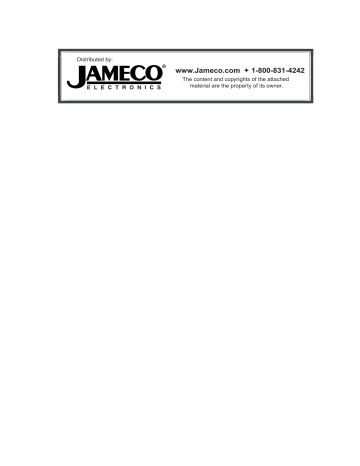

Distributed by:

www.Jameco.com

1-800-831-4242

The content and copyrights of the attached

material are the property of its owner.

Robotics!

Student Workbook

Version 1.5

Note regarding the accuracy of this text:

Accurate content is of the utmost importance to the authors and editors of the Stamps in Class texts. If you find any error or subject that needs clarification, please report it to [email protected]

Warranty

Parallax warrants its products against defects in materials and workmanship for a period of 90 days from receipt of product. If you discover a defect, Parallax will, at its option, repair or replace the merchandise, or refund the purchase price. Before returning the product to Parallax, call for a Return Merchandise Authorization (RMA) number. Write the RMA number on the outside of the box used to return the merchandise to Parallax. Please enclose the following along with the returned merchandise: your name, telephone number, shipping address, and a description of the problem. We will return your product or its replacement using the same shipping method used to ship the product to Parallax.

14-Day Money Back Guarantee

If, within 14 days of having received your product, you find that it does not suit your needs, you may return it for a full refund. Parallax will refund the purchase price of the product, excluding shipping/handling costs. This guarantee is void if the product has been altered or damaged.

Copyrights and Trademarks

This documentation is copyright 2001 by Parallax, Inc. BASIC Stamp is a registered trademark of Parallax, Inc. If you decide to use the name BASIC Stamp on your web page or in printed material, you must state: "BASIC Stamp is a registered trademark of Parallax, Inc."

Other brand and product names are trademarks or registered trademarks of their respective holders.

Disclaimer of Liability

Parallax, Inc. is not responsible for special, incidental, or consequential damages resulting from any breach of warranty, or under any legal theory, including lost profits, downtime, goodwill, damage to, or replacement of equipment or property, or any costs of recovering, reprogramming, or reproducing any data stored in or used with Parallax products. Parallax is also not responsible for any personal damage, including that to life and health, resulting from use of any of our products. You take full responsibility for your

BASIC Stamp application, no matter how life threatening it may be.

Internet Access

We maintain Internet systems for your use. They can be used to obtain free Parallax software and documentation and also to purchase Parallax products. These systems may also be used to communicate with members of Parallax and other customers. Access information is shown below:

E-mail:

Web: [email protected]

http://www.parallaxinc.com

an d http://www.stampsinclass.com

Internet BASIC Stamp Discussion Lists

We maintain two e-mail discussion lists for people interested in BASIC Stamps (subscrib e at http://www.parallaxinc.com under the technical support section). The BASIC Stamp list server includes engineers, hobbyists, and enthusiasts. The list works like this: lots of people subscribe to the list, and then all questions and answers sent to the list are distributed to all subscribers. It’s a fun, fast, and free way to discuss BASIC Stamp issues and get answers to technical questions. This list generates about 40 messages per day.

The Stamps in Class list is for students and educators who wish to share educational ideas (subscribe at http://www.stampsinclass.com under the discuss/e-mail section). This list works the same way the BASIC Stamp list server does, and it currently generates about five messages per day.

Contents

Table of Contents

Preface .......................................................................................................................................... v

Audience and Teacher’s Guides ................................................................................................................................. vi

Copyright and Reproduction ..................................................................................................................................... vi

Typographical Conventions....................................................................................................................................... vii

Robotics! Contributors............................................................................................................................................. viii

Read this First - Before You Start ...................................................................................................1

Check Your Servo Labels ............................................................................................................................................. 1

Use the Right Power Supply........................................................................................................................................ 2

The New Stamps in Class Robotics! Web Page ........................................................................................................ 2

Chapter #1: Assembling and Testing Your Boe-Bot ...........................................................................5

About Robotics Competitions and Robot Development......................................................................................... 5

Activity #1: Boe-Bot Parts and Tools......................................................................................................................... 6

Activity #2: Boe-Bot Mechanical Assembly............................................................................................................... 9

Activity #3: Programming The Boe-Bot’s BASIC Stamp 2 On-Board Computer ..............................................19

Activity #4: Testing the Servos Individually.............................................................................................................26

Activity #5: Running Both Servos .............................................................................................................................33

Activity #6: Tuning the Servos – Calibration in Software.....................................................................................35

Summary and Applications........................................................................................................................................38

Questions and Projects..............................................................................................................................................40

Chapter #2: Programming the Boe-Bot to Go Places ......................................................................43

Converting Instructions to Motion ..........................................................................................................................43

Activity #1: Low Battery Indicator............................................................................................................................44

Activity #2: Controlling Distance ..............................................................................................................................48

Activity #3: Maneuvers – Making Turns ...................................................................................................................53

Activity #4: Maneuvers – Ramping ...........................................................................................................................55

Activity #5: Remembering Long Lists Using EEPROM ............................................................................................57

Activity #6: Simplify Navigation with Subroutines.................................................................................................62

Activity #7: All Together Now ....................................................................................................................................64

Summary and Applications........................................................................................................................................70

Questions and Projects..............................................................................................................................................71

Chapter #3: Tactile Navigation with Whiskers................................................................................. 75

Tactile Navigation .......................................................................................................................................................75

Page i

Contents

Activity #1: Building and Testing the Whiskers.......................................................................................................75

Activity #2: Navigation With Whiskers.....................................................................................................................82

Activity #3: Looking at Multiple Inputs as Binary Numbers..................................................................................86

Activity #4: Artificial Intelligence and Deciding When You’re Stuck...................................................................90

Summary and Applications .......................................................................................................................................95

Questions and Projects..............................................................................................................................................96

Chapter #4: Light Sensitive Navigation with Photoresistors ............................................................99

Is Your Boe-Bot a Photophile or a Photophobe?..................................................................................................99

Activity #1: Building and Testing Photosensitive Eyes.........................................................................................100

Activity #2: A Light Compass ...................................................................................................................................104

Activity #3: Follow the Light!...................................................................................................................................107

Activity #4: Line Following .......................................................................................................................................110

Summary and Applications .....................................................................................................................................114

Questions and Projects............................................................................................................................................115

Chapter #5: Object Detection Using Infrared ............................................................................... 117

Using Infrared Headlights to See the Road..........................................................................................................117

Infrared Headlights ..................................................................................................................................................117

The Freqout Trick......................................................................................................................................................118

Activity #1: Building and Testing the New IR Transmitter/Detector .................................................................119

Activity #2: Object Detection and Avoidance .......................................................................................................123

Activity #3: Navigating by the Numbers in Real-Time .........................................................................................126

Summary and Applications .....................................................................................................................................130

Questions and Projects............................................................................................................................................131

Chapter #6: Determining Distance Using Frequency Sweep .......................................................... 133

What’s a Frequency Sweep? ...................................................................................................................................133

Activity #1: Testing the Frequency Sweep ............................................................................................................133

Activity #2: The Drop-off Detector........................................................................................................................140

Activity #3: Boe-Bot Shadow Vehicle ....................................................................................................................145

Summary and Applications .....................................................................................................................................151

Questions and Projects............................................................................................................................................153

Appendix A: Boe-Bot Parts Lists and Sources............................................................................... 155

Appendix B: PC to Stamp Communication Trouble-Shooting......................................................... 159

Appendix C: PBASIC Quick Reference .......................................................................................... 161

Page ii

Contents

Appendix D: Building Servo Ports on the Rev A Board of Education............................................... 169

Appendix E: Board of Education Rev A Voltage Regulator Upgrade Kit........................................... 173

Appendix F: Breadboarding Rules ................................................................................................ 175

Appendix G: Resistor Color Codes ................................................................................................177

Appendix H: Tuning IR Distance Detection.................................................................................... 179

Appendix I: Boe-Bot Competition Maze Rules............................................................................... 185

Page iii

Preface

Preface

Robots are used in the auto, medical, and manufacturing industries, and of course, in many science fiction films. Building and programming a robot is a combination of mechanics, electronics, and problem solving. What you're about to experience with the Boe-Bot will be relevant to realistic applications using robotic control, the only difference being the size and sophistication. The electronic control principles, example program listings, and circuits you will use are very similar (and sometimes identical) to industrial applications developed by engineers.

The word "robot" first appeared in a Czechoslovakian satirical play Rossum's Universal Robots by

Karel Capek in 1920. Robots in this play tended to be human-like. From this point it onward, it seemed that many science fiction stories involved these robots revolting against human authority. This changed when

General Motors installed the first robots in its manufacturing plant in 1961. These automated machines presented an entirely different image from the “human form” robots of science fiction.

This series of experiments will introduce you to basic robotic concepts using the Board of Education

Robot (hereafter the "Boe-Bot"). The experiments will begin with construction of the Boe-Bot. After that, we'll program the Boe-Bot for basic maneuvers, and proceed to add sensors that will allow it to react to its surroundings. The goal of this text is to show students how easy it is to become interested in and excited about the fields of engineering, mechatronics, and software development as they design, construct and program an autonomous robot. The Boe-Bot provides students with a project area to build and customize their own mechanical, electrical, and programming projects. The use of a Boe-Bot to introduce microcontroller circuits and interfacing is ideal since the outputs are almost entirely visible and easy to customize.

The Board of Education Rev B, which serves as the Boe-Bot’s prototyping platform, was designed for use with all five Stamps in Class series of experiments, including Robotics! The Board of Education, Rev B has four servo ports, and this makes it possible to use four servos without taking up any space on the breadboard prototyping area. Each port has a dedicated I/O line (P12, P13, P14, or P15 depending on the port), and each can be used for controlling a servo. Each servo port supply is tied to Vin, the unregulated 6 V supply from the battery pack, so use of a higher voltage supply is discouraged due to its tendency to overwork the servos. The

Board of Education Rev B also has two large capacitors that stabilize the BASIC Stamp’s power supply. They ensure that the BASIC Stamp operates continuously, even when the servos are performing direction changes, which could otherwise cause brownout conditions.

Robotics! Version 1.5

Page

v

Preface

The Robotics curriculum is periodically revised and updated based on feedback from students and educators. If you would like to author an addition to this curriculum, or have ideas for improvements, please send them to [email protected] We'll do our best to integrate your ideas and assist you with whatever technical support, sales support, or on-site training you need. If we accept your Boe-Bot project, we'll send you a free Boe-Bot.

Audience and Teacher’s Guide

The Robotics curriculum was created for ages 15+ as a subsequent text to the “What’s a

Microcontroller?” guide. Like all Stamps in Class curriculum, this series of experiments teaches new techniques and circuits with minimal overlap between the other texts. The general topics introduced in this series are: basic Boe-Bot navigation under program control, navigation based on a variety of sensor inputs, navigation using feedback and various control techniques, and navigation using programmed artificial intelligence. Each topic is addressed in an introductory format designed to impart a conceptual understanding along with some hands-on experience. Those who intend to delve further into industrial technology, electronics or robotics are likely to benefit significantly from initial experiences with these topics.

Experts in their field independently author each set of Stamps in Class experiments, and they are provided leeway in terms of format. As a result, the depth and availability of teachers’ guides varies. Please contact Parallax, Inc. if you have any questions. If you are interested in contributing material to the Stamps in

Class series, please submit your proposal to [email protected]

Copyright and Reproduction

Stamps in Class curriculum is copyright

Parallax 2001. Parallax grants every person conditional rights to download, duplicate, and distribute this text without our permission. The condition is that this text or any portion thereof, should not be duplicated for commercial use resulting in expenses to the user beyond the marginal cost of printing. Preferably, duplication would have no expense to the student. Any educational institution wishing to produce duplicates for its students may do so without our permission. This text is available in printed format from Parallax. Because we print the text in volume, the consumer price is often less than typical xerographic duplication charges. This text is also available for free download from the www.stampsinclass.com

-> Downloads -> Educational Curriculum page in PDF format. Documents in this format can be viewed and printed using Adobe Systems’ Acrobat

Reader software available from www.adobe.com

. This software can also be installed directly from the Parallax CD.

This text may be translated to any other language with prior permission of Parallax, Inc.

Page vi

Robotics! Version 1.5

Preface

Typographical Conventions

q

Checklist instruction. The square box indicates a “how to” instruction. These instructions should be followed sequentially, like a checklist, through each activity in this text.

ü

TIP

Pay attention to and follow these instructions. They will make the activities easier and save time.

FYI

This box contains useful information.

!

Caution: follow these instructions, or you may end up damaging your hardware.

' PBASIC Program Listings.

' PBASIC excerpt from a program listing. This kind of excerpt

' always follows a paragraph of text explaining what it does

' and how it works.

PBASIC code in a paragraph of text takes the form of:

command argument1, argument2, etc

. Note that the command is not italicized, but its arguments are.

Robotics! Version 1.5

Page

vii

Preface

Robotics! Contributors

Chuck Schoeffler, Ph.D., authored portions of the v1.2 text in conjunction with Parallax, Inc. At that time, Dr Schoeffler was a professor at

University of Idaho's Industrial Technology

Education department. He designed the original

Board of Education Robot (Boe-Bot) shown here along with many similar robot derivatives with many unique functions. After several revisions,

Chuck's design was adopted as the basis of the

Parallax Boe-Bot that is used in this Text. Russ

Miller of Parallax designed the Boe-Bot based on this prototype.

Andrew Lindsay, Parallax Chief Roboticist, wrote the majority of the v1.3 text with three goals in mind. First, support all activities in the text with carefully written “how to” instructions. Second, expose the reader and student to new circuit, programming, engineering and robotic concepts in each chapter. Third, ensure that the experiments can be performed with a high degree of success using either the Rev A or Rev B

Board of Education. Parallax 2000 summer intern, Branden Gunn, assisted in the illustration of this revision.

Thanks to Dale Kretzer for editorial review, which was incorporated into v1.4. Thanks also to the following Stamps in Class e-group participants for their input: Richard Breen, Robert Ang, Dwayne Tunnell,

Marc Pierloz, and Nagi Babu. These participants submitted one or more of the following: error corrections, useful editorial suggestions, or new material for v1.4. Thanks to student Laura Wong and to Rob Gerber for their respective contributions to v1.5. A special thanks to the Parallax, Inc. staff. Each and every member of the Parallax team has in some way contributed to making the Stamps in Class program a success.

If you have suggestions, think you found a mistake, or would like to contribute an activity or chapter to forthcoming Robotics! v1.6 or More Robotics! texts, contact us at [email protected]

Subscribe and stay tuned to the Stamps in Class e-group for the latest in free hardware offers for Robotics! contributions. See the Internet BASIC Stamp Discussion Lists section just before the Table of Contents for information on how to subscribe.

Page viii

Robotics! Version 1.5

Read This First – Before You Start

Read this First -

Before You Start

This Robotics! update contains three important messages:

1. Check your Servo Labels

2. Use the Right Power Supply

3. New Robotics! Web Site

Check Your Servo Labels

Starting in June, 2001, Parallax will ship all Robotics! kits with pre-modified servos. The Robotics! v1.5 student workbook is written exclusively for use with Boe-Bots that have pre-modified servos. Pre-modified servos are labeled “PM”. If you have a Boe-Bot purchased before June, 2001, it most likely has standard servos, which are labeled “STD”. If you have Standard servos, use the Robotics! v1.4 text. Both versions of the

Robotics! Student Workbook (v1.4 and v1.5) are available for free download from the www.stampsinclass.com

-> Robotics page.

If you have questions about whether your servos are pre-modified or standard, check the label on the front of each servo against those shown in the Servo Identification Table below.

Parallax

Servo

Servo Identification Table

Check the labeling on the servos in your Robotics! kit.

Examples of the labeling for pre-modified (PM) and standard (STD) servos

Use Robotics! v1.5 (this text)

Use this student workbook only if the letters PM are shaded on the label on the front of your servos.

Use Robotics! v1.4

If the letters PM are not shaded or do not appear on your servo’s labeling, use the Robotics v.1.4

Student Workbook available for free download from the www.stampsinclass.com

- > Robotics page.

Robotics! Version 1.5

Page

1

Read this First – Before You Start

Use the Right Power Supply

The Boe-Bot is designed for use with the battery pack that comes with the Robotics! kits. When selecting batteries for the Boe-Bot:

Use only AA 1.5 V batteries with this battery pack.

Do not use 1.2 V rechargeable AA batteries.

!

Do not use a 9 V battery or AC adaptor; it could damage your

Boe-Bot’s servo motors.

If you want to use a wall mount AC adaptor and save batteries for autonomous navigation, make sure your AC adaptor has these output specifications (preferred values are

bold):

Output:

Voltage rating should be 6 V DC or 7.5 V DC

Current rating from 600 mA to

1000mA (1 A)

2.1 mm center positive barrel plug

Make sure the AC adaptor’s label has the center positive symbol

The New Stamps in Class Robotics! Web Page

Visit www.stampsininclass.com

-> Robotics (see facing page). This page contains:

Student project examples using the Boe-Bot

More Boe-Bot activities for students after they have completed the Robotics! Student Workbook

Boe-Bot application kits

Boe-Bot application modules

Students and instructors are encouraged to submit projects to [email protected]

for posting to this resource site. Hobbyists and hardware developers are also encouraged to submit proposals, proofs of concept, or completed and documented Boe-Bot application kits/add-on modules.

Page

Robotics! Version 1.5

Read This First – Before You Start

From the www.stampsininclass.com

-> Robotics Web Page

Robotics! is our most popular series. With over 10,000 Parallax Boe-

Bots in use around the world, it's clearly the light, sound and movement that immediately captures the interest of the student. This is not a toy; the concepts are directly applicable to microcontroller interfacing and code development.

Follow these links to see:

Student Project Examples More Boe-Bot Activities

Boe-Bot Application Kits Boe-Bot Application Modules

Student Projects:

Title

Author

Overview

Maze

Runners

9 th

Grader,

Laura Wong

Includes introductions to the mechanical problems associated with maze navigation, state machine design for maze navigation, and PBASIC program examples used with the Boe-Bot.

Parallax grade: A+, Great work Laura!

Boe-Bot Applications Notes:

Coming Soon - Boe-Bot

Application Kits and

Modules:

Kit - IR Wheel Encoder

Title Concepts Introduced/Covered

Includes introduction to pulse width modulation for

Controlling Your

Boe-Bot with a

Universal Remote

communication, examples (with PBASIC programming examples for the Boe-Bot) of reading

IR remote control codes, sending codes to your

Boe-Bot and controlling your Boe-Bot using the

Channel and Volume keys.

Module – Line Follower

Module - Compass

On/Off with Reset

Use the Reset button on the Boe-Bot to toggle

Program Execution on/ff.

Robotics! Version 1.5

Page

3

Chapter #1: Assembling and Testing Your Boe-Bot

Chapter #1:

Assembling and Testing

Your Boe-Bot

About Robotics Competitions and Robot Development

Students in high schools and colleges preparing their entries for various robotics competitions get first-hand exposure to the engineering occupation. They start by working in teams developing a

Robot’s subsystems. A robot’s subsystems include its motors, sensor arrays, microprocessor, and mechanical linkages. Next they test and trouble-shoot the subsystems. Then comes system integration, the process of making all the Robot’s subsystems work together.

Once the testing and trouble-shooting is finished at the subsystem level, a robot’s subsystems have to be connected to and controlled by a microprocessor. The process of getting all the subsystems (including the microprocessor) to work together to make the robot perform its assigned task list is called system integration. System integration can be tricky to begin with, but robotics teams who skipped any of the testing and troubleshooting at the subsystem level often have much larger problems with their system integration.

Many a late night can be spent trying to get the robot to work the way it’s supposed to. If bugs are hiding in the subsystems when you’re trying to do system integration, it only compounds the problems.

Even when testing and trouble shooting is performed for each subsystem, it can still be the most difficult part of robot development. For example, a group at a recent robotics competition spent five hours trying to get a

Sumo wrestling robot to work right with no luck. Later, by utilizing the BASIC Stamp’s Debug Terminal, the testing and troubleshooting took less than 5 minutes.

FYI

The term BASIC Stamp will be used throughout this text to refer to the

BASIC Stamp 2.

Testing and troubleshooting at each phase of robot development is a skill that one gets better at with practice. By following the instructions in the activities in this student workbook, you’ll get a taste of testing and trouble shooting while putting your Boe-Bot together and getting it up and running. With practice, you’ll enjoy more five-minute troubleshooting times and less of the five-hour variety.

Robotics! Version 1.5

Page

5

Chapter #1: Assembling and Testing Your Boe-Bot

This chapter is separated into six activities:

1. Boe-Bot Parts and Tools

2. Boe-Bot Mechanical Assembly

3. Programming the Boe-Bot’s BASIC Stamp 2 On-Board Computer

4. Testing the Servos Individually

5. Running Both Servos

6. Tuning the Servos – Calibration in Software

Each of these activities involves discrete steps to get the Boe-Bot up and running. First, check to make sure you have all your parts. Next, put the mechanical parts together. After that, test the microprocessor subsystem. Then test each servo motor individually. Then, make the servo motors work in unison. Last, but certainly not least, calibrate the pre-modified servos. By carefully following the instructions in these first six activities, you ensure that your microprocessor and motor subsystems are working reliably. The task in later chapters will be to develop and test a variety of sensors and integrate them with the rest of the Boe-Bot’s subsystems. In Chapters 3-6, you’ll isolate and test the sensors before writing PBASIC programs that integrate the sensor subsystems. For example, in chapter 3, you’ll first construct and test whiskers, sensors that tell the Boe-Bot when it’s bumped into something. Once the testing and trouble-shooting is complete, you’ll move on to writing PBASIC programs that make use of the whisker input signals for directing the Boe-

Bot’s motion.

Activity #1: Boe-Bot Parts and Tools

Let’s get started by taking an inventory of the tools and parts we’ll need to get though the activities in this student workbook. For starters,

all activities in this student workbook require a personal computer (PC)

with the Windows 95/98/... operating system. You’ll also need a few simple hand tools, all of which are common and can be found in most households, and school shops. They can also be purchased at local hardware stores. The parts for the Boe-Bot are either included in the Boe-Bot full kit or in a combination of the BOE Full Kit and the Robotics! parts kit. See Appendix A: Boe-Bot Parts Lists and Sources for more information.

Page

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

The Simple Hand Tools

Recommended Tools

The top row of tools in Figure 1.1 are recommended for the Activities in Chapter #1.

(1) Phillips #1 point screwdriver

(1) ¼” Combination wrench

The tools shown on the bottom row will come in handy for the activities from Chapter #2 onward.

(1) Small needle nose pliers

(1) Wire cutter/stripper

Figure 1.1: Recommended tools.

Boe-Bot Parts Inventory

q

Before getting started, take an inventory of the parts in your kit. Appendix A: Boe-Bot Parts Lists and

Sources will tell you how many of each part should be in your kit. For help with identifying each part, use the back cover of this text; it has labeled pictures of all of the Boe-Bot parts. q

Gather the parts shown in Figure 1.2 and set them aside for use as you go through the rest of the activities in this chapter.

Robotics! Version 1.5

Page

7

Chapter #1: Assembling and Testing Your Boe-Bot

Chapter #1 Parts List:

(1)

(1)

(2)

(1)

(10)

(2)

(2)

(1)

(2)

(1)

(1)

(2)

(8)

(8)

(4)

(1)

(4)

(1)

I

J

K

L

G

H

F

D

E

A

B

C

M

N

O

P

Q

R

Boe-Bot chassis

Battery pack

Parallax Pre-Modified

Servos (labeled PM)

Plastic wheels

Polyethylene ball

9/32” Rubber

Grommets

13/32” Rubber

Grommet

Board of Education and

BASIC Stamp 2

O-ring tires

Cotter pin

4-40 locknuts

4-40 flathead screws

3/8” 4-40 screws

1/4” 4-40 screws

1/2" Standoffs

Serial cable

AA alkaline batteries

Parallax CD

I

A

D

P

B

E

F

K

G

J

L

M N

Q R

Figure 1.2: Chapter #1 parts.

O

H

C

Page

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Activity #2: Boe-Bot Mechanical Assembly

This section breaks assembling the Boe-Bot into steps. In each step, you gather a few of the parts, and then assemble them so that they match the pictures. Each picture has instructions that go with it; make sure to follow them carefully.

Mounting the Topside Hardware

Figure 1.3 shows the Boe-Bot chassis, topside hardware and mounting screws.

Parts List:

(1) Boe-Bot Chassis

(4) Standoffs

(4) 1/4” 4-40 Screws

(2) 9/32” Rubber grommets

(1) 13/32” Rubber grommet

Figure 1.3: Chassis and topside hardware.

Assembly:

Figure 1.4 shows the topside hardware attached to the Boe-Bot chassis. Each rubber grommet has a groove in its outer edge that holds it in place in a hole on the top of the Boe-Bot chassis.

Robotics! Version 1.5

Page

9

Chapter #1: Assembling and Testing Your Boe-Bot

q

Insert the 13/32” rubber grommet into the hole in the center of the Boe-Bot chassis. q

Insert the two 9/32” rubber grommets into the two corner holes as shown. q

Use the four 1/4” 4-40 screws to attach the four standoffs to the chassis as shown.

Removing the Servo Horns

Get the two Parallax pre-modified servos from your parts kit, shown in Figure 1.5.

Each servo has a horn attached to its output shaft by a Phillips screw.

Parts List

(2) Pre-modified servos

Figure 1.6 shows the dehorned servos. q

Unscrew each of the Phillips screws, then pull each servo horn upwards and off of the servo output shaft. q

Save the screws for attaching the Boe-

Bot wheels.

Horn

Figure 1.4: Topside hardware assembled.

Figure 1.5: Parallax pre-modified servos.

Phillips

Screw

Figure 1.6: Pre-modified servos dehorned.

Page 10

Robotics! Version 1.5

Mounting The Servos

Parts List:

Figure 1.7 shows the pre-modified servos and servo mounting hardware.

(1) Partially assembled Boe-Bot chassis

(2) Servos

(8) 3/8” 4-40 screws

(8) 4-40 locknuts

!

Stop

If you have not already checked the labeling on your servos, do that now. Turn to page 1 and follow the instructions.

Assembly:

Figure 1.8 shows the servos mounted on the chassis. q

Use the eight 3/8” 4-40 screws and locknuts to attach each servo to the Boe-Bot chassis as shown.

Chapter #1: Assembling and Testing Your Boe-Bot

Figure 1.7: Servos and mounting hardware.

Figure 1.8: Servos mounted on chassis.

Robotics! Version 1.5

Page

11

Chapter #1: Assembling and Testing Your Boe-Bot

Mounting the Battery Pack

Figure 1.9 shows the battery pack and mounting hardware to be added next.

Parts List:

(1) Partially assembled Boe-Bot chassis.

(1) Empty battery pack

(2) Flathead 4-40 screws

(2) 4-40 locknuts

Figure 1.9: Battery pack and mounting hardware.

Assembly

Figure 1.10 shows the Boe-Bot chassis with the battery pack mounted (a) from the underside and (b) from the topside. q

Use the flathead screws and locknuts to attach the battery pack to underside of the Boe-Bot chassis as shown in Figure 1.10 (a). Make sure to insert the screws through the battery pack then tighten down the locknuts on the topside of the chassis. q

Pull the battery pack’s power cord through the hole with the largest rubber grommet in the center of the chassis. q

Pull the servo lines through the same hole. q

Arrange the servo lines and supply cable as shown in Figure 1.10 (b).

Page 12

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Figure 1.10: (a) Battery pack installed (b) wires pulled through.

Socketing the BASIC Stamp 2.

Figure 1.11 shows the BASIC Stamp 2 to the left of the Board of Education Rev B.

Parts List:

(1) Basic Stamp 2

(1) Board of Education Rev B.

FYI

Figure 1.11: BASIC Stamp 2 and Board of Education Rev B.

Board of Education is abbreviated BOE, and Rev B stands for revision-B.

Robotics! Version 1.5

Page

13

Chapter #1: Assembling and Testing Your Boe-Bot

Figure 1.12 shows the BASIC Stamp 2 mounted in its socket on the BOE. The BASIC Stamp has a half-circle printed in the center of its top edge. This is meant to serve as the reference notch common on many integrated circuits. When placing the BASIC Stamp in its socket on the BOE, make sure this half-circle is closest to the Sout and Vin labels. As a second check, make sure the largest black chip with the label PIC16C57C is at the bottom, between the P7 and P8 labels. q

If your BASIC Stamp and BOE were packaged separately, plug the BASIC Stamp into its socket on the BOE as shown in Figure 1.12. Make sure the pins on the BASIC Stamp line up with the holes in the socket, then press down firmly on the BASIC Stamp with your thumb. The BASIC Stamp’s pins should sink into socket holes by about a quarter-inch.

Attaching the Board of Education to the Boe-

Bot Chassis

Figure 1.13 shows the Board of Education, BASIC

Stamp and mounting hardware.

Parts List:

(1) Partially assembled Boe-Bot (not shown)

(1) Board of Education with BASIC Stamp 2

(4) 1/4” 4-40 screws

Figure 1.12: BASIC Stamp 2 inserted into its socket on the BOE.

Figure 1.13: BOE with BASIC Stamp and mounting screws.

Page 14

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Assembly:

Figure 1.14

shows the Board of education attached to the Boe-Bot chassis with the servos plugged into the servo ports. q

Make sure the white breadboard on the Board of

Education is above where the servos are mounted on the chassis. q

Use the four 1/4” machine screws to attach the

Board of Education to the standoffs.

Figure 1.15 (a) shows a close-up of the servo ports on the BOE Rev B. The numbers along the top indicate the servo port number. If you connect a servo to servo port

12, it means the servo’s control line is connected to I/O line P12. I/O line P12 is a metal trace on the BOE that connects the top servo port pin to the BASIC Stamp’s I/O pin P12.

Figure 1.14: BOE attached to chassis.

The labels to the right of the servo port are for making sure your servo gets plugged in properly. Figure 1.15

(b) shows a servo plugged into servo port 12 so that the black wire lines up with the “Black” label, and the red wire lines up with the “Red” label. Although the topmost wire is labeled “White” in Figure 1.15 (b), it could either be white or yellow.

White

Red

15 14 13 12

Black

15 14 13 12

Red

Black

Vdd

X4 X5

Vin

Rev B

Vss

Red

Black

Vdd

X4 X5

Vin

Rev B

Vss

X3

X3

(a)

Figure 1.15: Servo ports on the BOE Rev B (a) before, and (b) after plugging in servo port 12.

(b)

Robotics! Version 1.5

Page

15

Chapter #1: Assembling and Testing Your Boe-Bot

!

Make sure the “Black” and “Red” labels to the right of the servo port line up with the servo connector’s black and red wires before plugging in a servo.

q

Plug the servo that you can see in Figure 1.14 into servo port 12, and plug the other servo into servo port

13.

ü

TIP

The BOE Rev A does not have built-in servo ports. If you can not find the servo ports shown in Figure 1.15, go to Appendix D: Building Servo Ports on the Rev A

Board of Education.

The Wheels

Figure 1.16 shows the Boe-Bot’s wheel parts and mounting hardware.

Parts List:

(1) Partially assembled Boe-Bot (not shown)

(1) 1/16” Cotter pin

(2) O-ring tires

(1) 1” Polyethylene ball

(2) Plastic machined wheels

(2) Screws that attached the servo horns, which were set aside in the Removing the Servo Horns step.

Figure 1.16: Wheel parts.

Assembly:

Figure 1.17 (a) shows the tail wheel attached to the Boe-Bot chassis with a cotter pin, and Figure 1.17 (b) shows one of the front wheels attached to a servo’s output shaft. q

The plastic ball is used as the Boe-Bot’s rear or tail wheel, and the cotter pin is its axle. Run the cotter pin through the holes in the tail of the Boe-Bot chassis so that it holds the one-inch plastic ball in place as shown in Figure 1.17 (a).

Page 16

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

q q q

Seat each o-ring tire in the groove on the outer edge of each plastic wheel.

Each plastic wheel has a recess that fits on a servo output shaft. Press each plastic wheel onto a servo output shaft making sure the shaft lines up with and sinks into the recess.

Use the machine screws that you saved when you removed the servo horns to attach the wheels to the servo output shafts.

(a) (b)

Figure 1.17: (a), Tail wheel mounted on Boe-Bot chassis, and (b), front wheel mounted on servo output shaft.

Getting Connected

Figure 1.18 shows the parts you’ll need to make your PC communicate with your BASIC Stamp 2.

Parts List:

(4) 1.5 V AA batteries

(1) Serial Cable

(1) Parallax CD

Figure 1.18: parts you’ll need before your first program.

Robotics! Version 1.5

Page

17

Chapter #1: Assembling and Testing Your Boe-Bot

Assembly:

Figure 1.19 shows the battery pack before and after the batteries are loaded. q

Load the batteries into the battery pack so that the polarity symbols on each battery match those printed on the inside of the battery pack.

!

Always use AA 1.5 V batteries.

Do not use 1.2 V (typically rechargeable) batteries.

If you are considering using an

AC adaptor that you can plug into the wall to power your Boe-

Bot, see page 2 for details on which ones are compatible with your servos.

Figure 1.19: Battery pack without/with batteries.

Figure 1.20 shows (a), the serial cable connected to a COM port on the back of a PC, and (b) the serial cable and battery pack connected to the BOE. q

Plug the female end of the serial cable into one of your computer’s unused serial ports. q

Plug the male end of the serial cable into the DB9 socket on the BOE.

Page 18

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Figure 1.20: (a), Serial cable connected to com port,

(b) BOE connected to serial cable and battery pack. q

Plug the battery pack back into the BOE while watching the green light on the BOE for problems. Unplug the battery pack immediately if you see any of the warning signs listed below.

!

Warning Signs:

If the green light doesn’t come on, looks unusually dim, or flickers, disconnect the battery pack immediately and check your wiring. Any of these warning signs could indicate a wiring problem that could be dangerous to your servo and/or your BASIC Stamp.

q

To extend the life of your batteries, unplug the battery pack’s barrel plug from the BOE’s barrel jack. This will disconnect power from the Board of Education and the servo motors. You will need to plug the power back in when you are ready to run your first PBASIC program in Activity #3.

Activity #3: Programming the Boe-Bot’s BASIC Stamp 2 On-Board Computer

The Stamp Editor is the software you’ll be using to program the Boe-Bot’s BASIC Stamp 2 on-board computer. The Stamp Editor has a feature called the Debug Terminal. You can use the Debug Terminal to display messages received from the BASIC Stamp and also to send messages to the BASIC Stamp. The Debug

Terminal will be one of your best and most used assistants for circuit testing and troubleshooting.

Programming the BASIC Stamp to communicate with the Debug Terminal is very easy to do using the PBASIC programming language. We’ll see shortly that the Debug command is very easy to use for displaying messages from the BASIC Stamp.

Robotics! Version 1.5

Page

19

Chapter #1: Assembling and Testing Your Boe-Bot

Software and First Program

This section covers the steps for:

Installing the Stamp Editor

Using the Stamp Editor to establish PC – BASIC Stamp communication

Running a sample PBASIC program that uses the

debug

command

Note: These instructions are for installing the Stamp Editor from the Parallax CD. A copy of the Parallax CD can be requested from [email protected] You can also get the latest version of the Stamp Editor (It’s free!) from the from Downloads page of www.parallaxinc.com.

Software

q

If you have not already done so, load the Parallax CD into your computer’s CDROM drive.

The Parallax CD has a browsing program called the Welcome application that runs automatically after the CD is placed in your computer’s CDROM drive. Figure 1.21 (a) shows the browser as it appears the first time the

CD is placed in the computer’s drive. Figure 1.21 (b) shows the browser as it normally appears when you run the Welcome application.

Figure 1.21: Welcome application (a) Kits page, and

Page 20

Robotics! Version 1.5

(b) Parallax page.

Chapter #1: Assembling and Testing Your Boe-Bot

ü

TIP

If the Welcome application did not run automatically, here’s how to run it manually:

Click the Start button on your Windows taskbar and select Run. When the Run window appears, enter the CDROM drive letter, followed by a colon, a backslash, and the name

“Welcome.exe.” For example, if the drive letter for your computer’s CDROM drive is D, type in “D:\Welcome.exe.” Click the OK button, and the Welcome application will run. q

If this is not your first time running the Welcome application, the Parallax page shown in Figure 1.21 (b) will display instead of the Kits page. Skip the next checklist instruction. q

If this is your first time running the Welcome application, a text document about the Parallax CD will automatically display. When you’re finished reading the text document, minimize it or drag it out of the way so that you can see the Kits page. Click the “Back” button on the bottom right of the kits page to get to the Parallax page. q

Click the Software link. q

Click the + next to the BASIC Stamps folder, then click the + next to the Windows 95/98... folder, then click the diskette labeled Stamp 2/2e/2SX/2p (Stampw.exe). q

Click the Install button, and select “Yes” when the Confirm window asks you if you want to “Install selected files to C:\Parallax\Stamp?” q

If additional prompts appear, answer them as directed.

After installing the software, run it by following these steps: q

Click the Start button on your Windows taskbar and select Run. q

Enter “C:\Parallax\Stamp\Stampw.exe”, and click OK. q

If this is your first time running the software, the Edit

Port List similar to Figure 1.22 will appear. If you know the number of the COM port you’re using and it doesn’t appear in the list, enter the number in the

Com # field, then click the Add button. If you know that a certain COM port listed in the Known Ports list is connected to a modem, click its entry in the list, then select Delete. Otherwise, just click OK.

Figure 1.22: Edit Port List window.

Robotics! Version 1.5

Page

21

Chapter #1: Assembling and Testing Your Boe-Bot

TIP

The Stamp Editor window, similar to Figure 1.23 (a), will appear next. It will help to know the version number of the software you are using before you check to see if the Stamp Editor is communicating with the BASIC

Stamp. q

ü

You can always modify this list later by going to the Preferences window. Just Click

Edit, then select Preferences. Com port settings are under the Editor Operation tab.

Click the Help menu and select About… q

When the About window appears, make a note of the Version number.

Before attempting to run your first program, it’s important to check and make sure the Stamp Editor can communicate with the BASIC Stamp. q

Plug the battery pack’s barrel plug back into the barrel jack on the BOE. Verify the green light on the

Board of Education lights up. q

Click the Run menu, and select Identify as shown in Figure 1.23 (b).

Figure 1.23: (a) Stamp Editor,

Page 22

Robotics! Version 1.5

(b) Stamp Editor with Run | Identify selected.

Chapter #1: Assembling and Testing Your Boe-Bot

Responses to Run -> Identify

When you click run and select Identify, the Stamp editor tries to find any BASIC Stamps connected to your

PC’s COM ports. If your Stamp Editor is Version 1.1 or lower, follow along in the left column below. If your

Stamp Editor is Version 1.2 or higher, follow along in the right column.

Basic Stamp Editor, Version 1.1 or Lower BASIC Stamp Editor Version 1.2 or Higher

When everything is connected and working properly:

A window appears with the message that reads

• “Information: Found BS2-IC (firmware v1.0.).”

This message means the BASIC Stamp and PC are communicating. Continue to the next section, entitled “First Program.”

Some of the other messages that might appear are:

• “Error: Basic Stamp II detected but not

Responding…Check power supply.”

• “Error: BASIC Stamp II not responding…Check serial cable connection. Check power supply.”

If you get one of these error messages, follow the suggestions in the error message first. If that doesn’t fix the problem, or if the error message you get doesn’t offer any suggestions, go to Appendix B:

An Identification window appears listing all the known COM ports and their status. One of the listed ports should read:

• “...BASIC Stamp 2 v1.0...”

This message means the BASIC Stamp and PC are communicating. Continue to the next section, entitled “First Program.”

If the “Device Type” column is blank for every COM port listed, go to Appendix B: PC to Stamp

Communication Trouble-Shooting.

PC to Stamp Communication Troubleshooting.

First Program

Your first program will demonstrate the BASIC Stamp’s ability to communicate with the outside world using the Debug Terminal. This handy terminal can be used for two-way communication between your PC and the

BASIC Stamp. For now, we’ll focus on programming the BASIC Stamp to send messages to the PC.

' Robotics! v1.5, Program Listing 1.1: Hello world!

' {$Stamp bs2} debug "hello world"

Robotics! Version 1.5

Page

23

Chapter #1: Assembling and Testing Your Boe-Bot

q q

Type Program Listing 1.1 into the Stamp Editor as shown in Figure 1.24 (a).

Click Run and select Run. Debug Terminal #1 should appear in a second window, as shown in Figure 1.24

(b).

Figure 1.24: (a) Stamp Editor (b) Debug Terminal.

How “Hello world!” Works

The apostrophe character was used in two ways in this program. The first line used the apostrophe to include a comment in the program. A comment is text that the programmer adds to help document the program and make it more understandable. So the line of code that reads:

' Robotics! v1.5, Program Listing 1.1: Hello world! is a comment. The special thing about the comment is that you can type just about anything to the right of the apostrophe. In this case, we typed the name of the book this program is in, the number of the program in the book and a very brief description.

There is one special directive that has meaning to the Stamp Editor even though it gets placed in a commented line in your program. It’s called the Stamp Directive, and it tells the Stamp Editor what kind of

BASIC Stamp you are writing programs for. The Stamp Directive is in the second line of the program, and it reads:

Page 24

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

'{$Stamp bs2}

This special directive tells the Stamp Editor that the program should be downloaded to a BASIC Stamp 2.

There are several different Stamp Directives that are used with the different BASIC Stamps manufactured by

Parallax, Inc. The Boe-Bot always comes with the BASIC Stamp 2, so you will see that every Program Listing in this workbook uses the Stamp Directive for the Basic Stamp 2.

The third line in the program is the only PBASIC command in the program, the

debug

command. This command caused the Debug Terminal window to appear and display the “hello world” message. When a program containing a

debug

command is run, the Stamp Editor opens a Debug Terminal. When the BASIC

Stamp executes the command: debug "hello world" it sends the “hello world” message to your PC by way of the serial cable. The “hello world” message is a text string, which is one of several types of output data the BASIC Stamp can be programmed to send using the

debug

command.

Your Turn

The best way to get a better feel for what you can do with the

debug

command is to try the examples in the

BASIC Stamp Manual. When you turn to the

debug

command section in the BASIC Stamp Manual, you’ll see lots of program examples. The next few paragraphs are excerpts from the BASIC Stamp Manual, v2.0c with a couple of

debug

examples you can try. Note that there are Stamp™ icons next to the section heading that reads “BASIC Stamp 2, 2e, 2sx, and 2p Formatting”. Each of these icons has a number in it, and the ones with the “2” inside mean the section/example applies to the BASIC Stamp 2. Make sure that the examples you try are from sections that apply to the BASIC Stamp 2; otherwise, you might get some confusing error messages. q

Try the

debug

command examples in this excerpt. Make sure to include the Stamp Directive somewhere in the Stamp Editor along with the code segment before you click the Run menu and select Run.

Robotics! Version 1.5

Page

25

Chapter #1: Assembling and Testing Your Boe-Bot

q

Look up the

debug

command in the BASIC Stamp Manual’s table of contents, and continue through the

debug

command examples in the BASIC Stamp Manual’s

debug

command section. Remember to only try examples in sections that discuss the BASIC Stamp 2. Remember also to add the Stamp Directive:

' {$Stamp bs2}

.

Activity #4: Testing the Servos Individually

In this activity, you will program the BASIC Stamp to control the rotation of each of the Parallax pre-modified servos on the Boe-Bot.

How Servos Work

Normal (un-modified) hobby servos are very popular for controlling the steering systems in radio-controlled cars, boats, and planes. These servos are designed to control the position of something such as a steering flap on a radio-controlled airplane. Their range of motion is typically 90

°

or 180

°

, and they are great for applications where inexpensive, accurate high-torque positioning motion is required. The position of these servos is controlled by an electronic signal called a pulse train, which you’ll get some first hand experience with shortly. An un-modified hobby servo has built-in mechanical stoppers to prevent it from turning beyond its 90

°

or 180

°

range of motion. It also has internal mechanical linkages for position feedback so that the electronic circuit that controls the DC motor inside the servo knows where to turn to in response to a pulse train.

FYI

For experiments with unmodified servos, try What’s A Microcontroller? Experiments 3 and 4, available for free download from the www.stampsinclass.com

-> Downloads ->

Educational Curriculum page. You will need an unmodified hobby servo and a few additional parts for these experiments.

Page 26

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

A Parallax pre-modified servo does not have the position feedback and mechanical stoppers you find in normal hobby servos. You can send the same electronic signals

(a pulse train) to a Parallax pre-modified servo as you would normally send to a hobby servo. In a hobby servo, a given pulse train makes it turn to a certain position and stay there. The same pulse train causes a Parallax premodified servo to turn continuously. The pulse train also

Vin

P12

White

Red

Black

Servo sets the pre-modified servo’s speed and direction. So, instead of controlling airplane flaps, the Parallax premodified servos are used as BASIC Stamp controlled motors that make the Boe-Bot’s wheels turn.

Vss

Figure 1.25: Servo connection schematic.

Figure 1.25 shows the circuit that is established when a servo is plugged into the servo port labeled 12 on the

BOE Rev B’s top right corner. The red and black wires connect to the servo’s power source, and the white (or sometimes yellow) wire is connected to a signal source. When a servo is plugged into servo port 12, the servo’s signal source is BASIC Stamp I/O pin P12.

About Time Measurements and Voltage levels

Throughout this student workbook, amounts of time will be referred to in units of seconds (s), milliseconds (ms), and

Milliseconds and

Microseconds

microseconds (

µ s). Seconds are abbreviated with the lower-case letter s. So, one second is written as 1 s. Milliseconds are abbreviated as ms, and it means one one-thousandth of a second. One microsecond is one one-millionth of a second. The

Milliseconds and Microseconds box to the right shows these equalities in terms of both fractions and scientific notation.

A voltage level is measured in volts, which is abbreviated with an upper case V. The BOE has sockets labeled Vss, Vdd, and Vin. Vss is called the system ground or reference voltage. When the battery pack is plugged in, Vss is connected to its negative terminal. As far as the BOE, BASIC Stamp and serial connections to the computer are concerned, Vss is always 0 V. Vin is unregulated 6 V, and it’s connected to the positive terminal of the battery pack. Vdd is regulated to 5 V by the BOE’s onboard voltage regulator, and it will be used with Vss to supply power to circuits built on the BOE’s breadboard.

1

1 ms

µ

s

=

=

Vss

Vdd

Vin

=

=

=

1

1000

0

5

6

1

V

V

V s

=

1,000,000

1

Labels

× s

10

=

1

Voltages and BOE

(ground)

3

×

(regulated

(unregulat

)

s

10 ed)

6

s

Robotics! Version 1.5

Page

27

Chapter #1: Assembling and Testing Your Boe-Bot

!

Only use the Vdd sockets above the BOE’s breadboard for the Activities in this workbook. Do not use the Vdd on the 20-pin app-mod header.

The control signal the BASIC Stamp sends to the servo’s control line is called a “pulse train,” and an example of one is shown in Figure 1.26. The BASIC Stamp can be programmed to produce this waveform using any of its I/O pins. In this activity, we’ll start with I/O pin P12, which is already connected to servo port 12 by a metal trace built into the Board of Education. First, the BASIC Stamp sets the voltage at P12 to 0 V (low) for 20 ms.

Then, it sets the voltage at P12 to 5 V (high) for 1.0 ms. Then, it starts over with a low output for another 20 ms, and a high output for another 1.0 ms, and so on.

1.0 ms 1.0 ms

Vdd (5 V)

Vss (0 V)

20 ms

Figure 1.26: Pulse train.

This pulse train has a 1.0 ms high time and a 20 ms low time. The high time is the main ingredient for controlling a servo’s motion, and it is most commonly referred to as the pulse width. In this example, we are working with 1 ms wide pulses. Since these pulses go from low to high (0 V to 5 V) for a certain amount of time, they are called positive pulses. Negative pulses would involve a resting state that’s high with pulses that drop low. Pulse trains have some other technical descriptions such as duty and duty cycle. These are described in BASIC Analog and Digital, Experiment #6.

Remember

Pulse width is what controls the servo’s motion. The low time between pulses can range between 10 and 40 ms without adversely affecting the servo’s performance.

A pre-modified servo can be pulsed to make its output shaft turn continuously. The pulse widths for premodified servos range between 1.0 and 2.0 ms for full speed clockwise and counterclockwise respectively. If you give a pre-modified servo 1.25 ms pulses, it will turn clockwise at roughly half of full speed. If you give a pre-modified servo 1.90 ms pulses, the servo will turn at almost full speed counterclockwise. The “center

Page 28

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

pulse width” is 1.5 ms, and that makes the servo stay still. If the servo turns very slowly in response to 1.5 ms pulses, you will learn how to adjust the servo to stay still using a PBASIC program in Activity #6.

Figure 1.27 shows the Boe-Bot’s front, back, left and right. Use this diagram as your guide when you see instructions about making the Boe-Bot move forward/backward, examining the right or left wheels, etc.

Front

Forward

Backward

Left Right

Back

Figure 1.27: Boe-Bot from the driver’s seat.

Let’s start by programming the Boe-Bot’s right wheel to turn full speed ahead. For the right side of the Boe-

Bot, this means the wheel has to turn clockwise, which means it needs to receive 1 ms pulses every 20 ms or so. q

You may want to set the Boe-Bot on something to keep it’s wheels from touching the ground during these tests. Otherwise, you will see the Boe-Bot spin around in circles since only one wheel is turning. q

Enter Program Listing 1.2 into the Stamp Editor.

Robotics! Version 1.5

Page

29

Chapter #1: Assembling and Testing Your Boe-Bot

' Robotics! v1.5, Program Listing 1.2: Right Wheel Full Speed Ahead.

' {$Stamp bs2} ' Stamp Directive. low 12 loop:

pulsout 12, 500

pause 20

' Set P12 to output-low.

' Target label for last command - “goto loop”.

' Send 1.0 ms pulses to P12

' every 20 ms. goto loop ' Send program to “loop:” label. q

Save the program using a descriptive name, such as “Boe-Bot 1.2”. You can do this by clicking the File

Manu and selecting Save (or Save As... if you are renaming the file). Then enter the “Boe-Bot 1.2” into the

File name: field, and make sure that the Save as type: field is set to “BASIC Stamp 2 files (*.bs2)”. q

Run the program by clicking Run and selecting Run. q

Verify that, as you’re looking at the wheel from the Boe-Bot’s right side that it is turning clockwise fairly rapidly (about 37 RPM).

How the Right Wheel Full Speed Ahead Program Works

q

Look up each of the following new commands in Appendix C: PBASIC Quick Reference or in the BASIC

Stamp Manual before continuing:

low, pulsout, pause, goto.

As with the previous program example, the first line of the program is a descriptive comment and the Stamp

Directive is on the second line. In this program there are also comments (that begin with apostrophes) to the right of each PBASIC command. With the exception of the Stamp Directive, when entering the commands into the Stamp Editor, you don’t need to include the comments. Aside from the Stamp Directive, comments and other ways of documenting your programs become important later on if you start writing code that’s more complex or that somebody else needs to work with. For the time being, just enter the commands (and the

Stamp Directive) into the Stamp Editor unless otherwise directed by your instructor.

The command

low 12

does two things. It sets BASIC Stamp I/O pin P12 to output, then it sets its output value low. As an output, P12 can send voltage signals, as opposed to being set to

input

, which means P12 would listen for signals instead. Setting the output value low means that the voltage P12 sends is the same as

Vss, 0 volts. If the command

high 12

were used instead, P12 would send a high signal, which would be Vdd,

5 volts.

Page 30

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

When a word that’s not a PBASIC command is followed by a colon, it’s a called a “label”. As you get more and more familiar with PBASIC, you’ll start to recognize which words are commands and which words are labels automatically. The

loop:

label works together with the command

goto loop

at the end of the program.

The

loop:

label is a place holder, and whenever the program gets to the command

goto loop

, it causes the program to start executing commands at the

loop:

label again. The result is that the

pulsout

and

pause

commands get executed over and over, which causes a continuous pulse train to be sent to the servo.

The

loop:...goto loop

program structure is called an infinite loop. An infinite loop means that part of the code in the program is executed over and over again with no code that allows it to stop repeating the same set of instructions. Often with normal computer programs, this is a problem. However, infinite loops are commonly used in microcontroller programming. In fact, most microcontroller programs, including the ones in this text, are written within the framework of an infinite loop. With the BASIC Stamp, you can always end an infinite loop by disconnecting the power or using the Stamp Editor to run a different program.

The command

pulsout 12, 500

sends a 1.0 ms pulse to P12. The

pulsout

command has two arguments,

pin

and

period

. The

pin

argument refers to the I/O pin the BASIC Stamp sends the voltage pulse to, and

period

refers to how long the voltage pulse lasts. The I/O pin number makes sense; the number 12 refers to

I/O pin P12. What about the

period

argument of

500

? How does that correspond to a 1.0 ms pulse? The answer is that the

period

argument for the

pulsout

command has to be specified in 2

µ s increments. So, if you want the pulse to last for 1.0 ms, you have to use a number that gives you 1.0 ms when it’s multiplied by

2

µ s increments. Here is proof that a

pulsout period

of

500

fits the bill.

500

×

2

ìs

=

500

×

(

2

×

10

6

)s

=

1000

×

10

6

s

=

1

.

0

×

10

3

s

=

1

.

0

ms

The command

pause 20

is much more obvious. That’s because the

period

argument for the

pause

command is specified in 1 ms increments. So, if you want a 20 ms pause,

pause 20

does the job.

Robotics! Version 1.5

Page

31

Chapter #1: Assembling and Testing Your Boe-Bot

Your Turn

Program Listing 1.3 is really Program Listing 1.2 with one small change. Instead of

pulsout 12, 500

,

Program Listing 1.3 uses the command

pulsout 12, 1000

. This should make the right wheel turn full speed counterclockwise. q

Run Program Listing 1.3 as shown.

' Robotics! v1.5, Program Listing 1.3: Right Wheel Full Speed Reverse.

' Stamp Directive. ' {$Stamp bs2} low 12 ' Set P12 to output-low. loop:

pulsout 12, 1000

pause 20 goto loop

' Label for "goto loop to return to"

' Send 2.0 ms pulses to P12

' every 20 ms.

' Send program to "loop: " label. q

To make the right wheel stay still, modify the

pulsout

command so that it reads

pulsout 12, 750

, and run the modified program.

Program Listing 1.4 is Program Listing 1.3 with two small changes:

low 12

was changed to

low 13 pulsout 12, 1000

was changed to

pulsout 13, 1000

q

Run Program Listing 1.4 as shown to make the left wheel turn full speed counterclockwise.

' Robotics! v1.5, Program Listing 1.4: Left Wheel Full Speed Ahead.

' Stamp Directive. ' {$Stamp bs2} low 13 ' Set P12 to output-low. loop:

pulsout 13, 1000

pause 20 goto loop

' Label for "goto loop to return to"

' Send 2.0 ms pulses to P13

' every 20 ms.

' Send program to "loop: " label.

Page 32

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

q

To make the left wheel turn full speed clockwise, modify the command

pulsout 13, 1000

so that it reads

pulsout 13, 500

, and run the modified program. q

Now, change the

period

argument of the

pulsout

command from

500

to

750

, and the wheel should stay still.

Activity #5: Running Both Servos

When you assembled the Boe-Bot in Activity #2, you plugged the servo on the right side of the Boe-Bot into

P12 and the servo on the left side of the Boe-Bot into P13. Figure 1.28 shows a schematic of the circuit you created by doing this. The servo on the Boe-Bot’s right side is connected to I/O line P12 and the servo on the

Boe-Bot’s left is connected to P13. Each servo is also connected to Vin (the battery pack’s positive terminal) and Vss (the battery pack’s negative terminal).

The easy part about making the Boe-Bot roll forward is that you include two

pulsout

commands, one for each servo. The difficult part can be figuring out what the

period

arguments should be.

Vin

P12

White

Red

Black

Servo

Take a look at the right side of the Boe-Bot. To make this wheel turn forward, the servo has to turn clockwise. This means a

period

argument less than center. A

period

of 500 will work well for full speed ahead. Now look at the left side of the Boe-Bot. To make this wheel turn forward, the servo has to turn counterclockwise. Now instead of 500, a

period

of

1000 is needed. q

Enter and run Program Listing 1.5 and observe the results.

If the Boe-Bot rolled backward instead of forward, the servo lines were swapped. It means that the servo plugged into servo port 12 should be plugged into servo port 13 and visa-versa.

Vss

Vin

Vss

P13

White

Red

Black

Servo

Figure 1.28: Servo connection schematic.

Robotics! Version 1.5

Page

33

Chapter #1: Assembling and Testing Your Boe-Bot

' Robotics! v1.5, Program Listing 1.5: Full Speed Ahead – both servos.

' {$Stamp bs2} ' Stamp Directive. low 12 low 13 loop:

pulsout 12, 500

pulsout 13, 1000

pause 20 goto loop

' Set P12 to output-low.

' Set P13 to output-low.

' Label for "goto loop to return to"

' Send 1.0 ms pulses to P12

' Send 2.0 ms pulses to P13

' every 20 ms.

' Send program to "loop: " label.

How Program Listing 1.6 Pulses Both Servos

Program Listing 1.6 pulses the left servo, then the right servo, then pauses. It does this in an infinite loop, so the Boe-Bot just keeps going. Among other things, in Chapter 2, we’ll work on setting the distance traveled.

Your Turn

q

After you make each change listed below, make sure to run the modified version of the program and observe what the Boe-Bot does differently. q

Swap the

pulsout

period

arguments to make the Boe-Bot to roll backward. In other words, instead of using the commands

pulsout, 12, 500

and

pulsout 13, 1000

, use the commands

pulsout 12,

1000

, and

pulsout 13, 500

. This should make the Boe-Bot travel backward instead of forward. q

Try setting both

pulsout period

arguments to the center value of 750 to make the Boe-Bot stay still. q

Try setting both

pulsout

period

arguments to 500 and run the modified program. It will make the Boe-

Bot rotate counterclockwise in place. q

Try setting both

pulsout

period

arguments to 1000 and run the modified program. It will make the

Boe-Bot rotate clockwise in place.

Page 34

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Activity #6: Tuning the Servos – Calibration in Software

Chances are that you noticed your Boe-Bot didn’t go perfectly straight forward when you ran Program Listing

1.5. For that matter, it probably didn’t go perfectly straight backward in response to the modifications you made to Program Listing 1.5 in the Your Turn section of Activity #5. You can adjust a

pulsout

command’s

period

argument to straighten out the Boe-Bot’s travel. This practice is called “calibration in software”.

If the Boe-Bot veers to the right when it is programmed to go straight forward, either the left wheel needs to slow down, or the right wheel needs to speed up. Since the servos are pretty close to top speed as it is, slowing the left wheel down will work better. You can do this by making the pulse period to the left servo, which is connected to P13, smaller. For example, instead of using the command

pulsout 13, 1000

, you might try

pulsout 13, 940

. Keep in mind that the adjustment is different if you need to slow the right wheel’s rotation. In that case, use a

pulsout period

argument larger than 500, such as 560 for starters. By trying different values, you can home in on the value that will get your Boe-Bot wheels turning forward at the same speed, then your Boe-Bot will move forward in a straight line. q

The paragraph that comes just before this checkbox instruction describes how to modify Program Listing

1.5 to make the Boe-Bot travel forward in a straight line. Test your Boe-Bot and try these modifications.

Keep in mind that you may have to try many different

pulsout period

values to fine tune the Boe-Bot’s motion.

You can also make the same corrections to get the Boe-Bot travel in a straight line backward. You will first need to modify Program Listing 1.5 to make the Boe-Bot travel full speed backward. Then, test to figure out which wheel needs to slow down. Since the

pulsout period

values have to be swapped to make the Boe-

Bot travel full speed reverse, you will also need to adjust the

pulsout period

argument differently. For a given wheel, slowing it down involves taking the full speed

pulsout period

argument, and adjusting it so that it is slightly closer to the center

pulsout period

of 750. q

Make the necessary changes in Program Listing 1.5 so that it makes the Boe-Bot go full speed backward. q

Make the additional adjustments to one of the two

pulsout

commands to slow down the wheel that’s turning too fast to cause the Boe-Bot to travel backwards in a straight line.

IMPORTANT: You can re-use the

pulsout period

values you just determined in later activities. There will be many example programs in this workbook where the values of 1000 and 500 are used for full speed ahead and full speed reverse. You can substitute your “calibration in software” values for better results when you try the rest of the example program listings in this workbook.

Robotics! Version 1.5

Page

35

Chapter #1: Assembling and Testing Your Boe-Bot

q

Make notes of the fine-tuned

pulsout period

values you came up with for full speed straight forward and full speed straight backward.

You can skip the rest of this activity if your servos remained still when you modified Program Listings 1.3 and

1.4 to send pulse widths of 1.5 ms. This calibration involves testing each servo at pulse periods around the predicted center

pulsout period

value of 750 (1.5 ms). What you’ll be looking for is the best

period

value to really make the servo stay still. q

First, run Program Listing 1.6. If the servos don’t move, they are calibrated. If the servos rotate slowly, follow the instructions below. If the servos turn rapidly, check your program for clerical errors.

' Robotics! v1.5, Program Listing 1.6: Stay still (centered) – both servos.

' {$Stamp bs2} ' Stamp Directive. low 12 low 13 loop:

pulsout 12, 750

pulsout 13, 750

pause 20 goto loop

' Set P12 to output-low.

' Set P13 to output-low.

' Label for "goto loop to return to"

' Send 1.5 ms pulses to P12

' Send 1.5 ms pulses to P13

' every 20 ms.

' Send program to "loop: " label.

By viewing the slowly turning Boe-Bot wheel from the side, you can decide whether to search for the true center

pulsout period

using values above or below 750.

If the wheel is turning clockwise, that means that its true center

pulsout period

is somewhere above 750.

If the wheel is turning counterclockwise, it means the true center

pulsout period

is somewhere below 750.

The test for finding the correct center pulse width for each servo involves finding the range of values that make the servo stay still. If the servo is turning slowly clockwise, try

pulsout period

values of 751, 752,

753,... To figure out where the true center is, you will need to keep on increasing the

pulsout

period

argument. Make a note of the first value that causes the servo to stay still. Then, keep increasing the

pulsout period

until the servo starts turning the opposite direction. Make a note of that value as well.

Keep in mind that this process works almost the same for a servo that is turning counterclockwise, simply look for the true center pulse width somewhere below 750. Your search will begin at 749, then continue downwards until the servo stops turning, then starts turning the opposite direction.

Page 36

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

After finding the upper and lower

pulsout period

values that make your servo stay still, you can take the average of those two values to calculate the true center

pulsout period

argument. This calculated value is the one you should use in place of 750 in Program Listings. q

For each servo that does not stay still when you run Program Listing 1.6, perform the procedure just described for finding the

pulsout period

value that makes the servo stop turning, and the value that makes the servo start turning again in the opposite direction.

The true value of the

period

argument to center the servo is somewhere between when the servo stops and when the servo starts again. For example, if the servo stops turning at 753 and starts turning again at 755, it’s easy. Just take 754 as the center

period

for that servo.

Here’s an example that’s a little more difficult. What if the servo doesn’t stop turning until it gets a

period

argument of 752? Then, what if it doesn’t start turning again until it gets a

period

argument of 757? The true

period

to center this modified servo is would be somewhere between 752 and 757, but where? By taking the average of the two numbers, the

period

would be:

752

+

757

754.5

average pulsout period

= =

2

The

pulsout

command’s

period

argument can only be specified by an integer value between 0 and 65535.

Some examples of valid

period

arguments are: 0, 1, 2,...,754, 755,.… So, 754.5 can not be used as a valid

period

argument. The average

pulsout period

needs to be rounded, but which way? Although the standard practice is to round up if the decimal value is 0.5 or above, the servo might not really behave according to that practice. You could experimentally determine which way to round by trying periods of

758

and

751

in your program. Continuing the example, if 751 makes the servo to turn faster, round upward, and take 755 as the center

period

. On the other hand, if 758 makes the servo turn faster, round downward, and take 754 as the center

period

. q

Use the calculations just described to figure the true center

pulsout period

argument for each servo that did not stay still when you ran Program Listing 1.6.

FYI

If all attempts to calibrate your servo in software fail, you can download instructions for how to disassemble and adjust it from the www.stampsinclass.com

-> Robotics! page. q

Add the

pulsout period

arguments for the center

period

values to your notes on the

period

values for the straight forward and backward values you’ve already gathered.

Robotics! Version 1.5

Page

37

Chapter #1: Assembling and Testing Your Boe-Bot

Summary and

Applications

Congratulations on the construction and operation of your Boe-Bot!

Through following the procedures in this chapter, you may have had your first taste of testing and troubleshooting at the system and subsystem levels. Lots of other essential topics were covered that will get used and re-used throughout this text. For example, the Debug

Terminal will be your best and most used tool for testing and troubleshooting each circuit as well as many upcoming programs.

The PBASIC programming language was introduced along with some example programs to get you started with the Debug Terminal and with the Boe-Bot. Comments and labels were introduced, as were the commands

low, pulsout, pause

, and

goto

. Software calibration also was introduced.

Real World Example

From the space shuttle all the way down to the Boe-Bot, isolating and testing subsystems during each phase of development is critical to make sure the whole thing runs when it’s put together. More importantly, isolating and testing each subsystem minimizes the time spent on, and difficulty level of, troubleshooting. At the beginning of the chapter, the problems associated with not iteratively developing and testing were discussed. Imagine if nobody tested the Space Shuttle’s subsystems before putting it together. It would take hundreds of years for NASA to get all their problems sorted out!

Whether it’s robotics competitions, product development, or space programs, subsystem and system level development and testing is the way to avoid unnecessary delays when working from the beginning to the end of a project. Especially in product development, groups of engineers develop systems and subsystems. Often, it’s not until late in the design cycle that the system level testing and system integration occurs. Sometimes, all a design team knows are the input and output (I/O) requirements of their particular module in the project.

Regardless, engineering design teams still have to iteratively develop, simulate (which we did not do here), and test the subsystems within the project module they are working on.

Software calibration also was introduced. This is currently a hot topic because many appliance makers are working on incorporating microcontrollers that can communicate across the Internet into their products.

Remote diagnostic programs can then enhance the ability of the microcontrolled devices to self calibrate.

Also, technicians can perform software calibration, diagnosis, and in some cases repair, all remotely. Imagine your TV picture going bad a few years from now. Getting it fixed might involve the pressing of a few buttons on your TV remote. Then the microcontroller in your TV will log onto the Internet and report the problem to the company that makes the TV. Before sending out a TV repair person, your TV’s problem will be diagnosed, perhaps by a computer program. It might even be fixed by the program sending special control instructions back to the microcontroller. Otherwise the TV repair person will show up with the right parts to fix it.

Page 38

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

Boe-Bot Application

One item you’ll investigate in the Questions and Projects section is what happens when the wiring of the servos gets changed. How does this get handled? It involves more changes than you might think. For example, if you were to unplug a servo from servo port 12 and then plug it into servo port 15, you can’t just change the drawing that shows what port to plug it into. The schematic, which is the preferred method of communicating wiring information, has to be changed, but so do all the program listings. At some point you might want to add more servos to function as grippers. Although a gripper design is not included in this text,

Questions and Projects has exercises that will prepare you for connecting servos to different ports.

So far, the Boe-Bot can be programmed to roll forward or backward or to rotate in place. During some of your testing, small variations in servo performance were discovered and corrected in software. The advantage of calibration in software is that, instead of mechanically adjusting the Boe-Bot, the PBASIC program is modified to make the correction. This software calibration was all done at only two or three speeds: full speed ahead, full speed reverse, and full stop. In the projects section you’ll get a chance to further research and generalize the software calibration for a variety of speeds.

Robotics! Version 1.5

Page

39

Chapter #1: Assembling and Testing Your Boe-Bot

Questions and Projects

Questions

1. Explain the two things the

debug

command does.

2. What are the different types of output data that can be used with the

debug

command? Hint: Use the BASIC Stamp Manual to answer this question.

3. Assuming the circuit inside the servo that controls the DC motor updates what it’s doing every 20 ms, how many times per second does the DC motor get updated? Hint: This is a division problem.

4. Discuss how you would modify Figure 1.25 and Program Listing 1.2 if you wanted to test each of your servos using I/O line P15. How would it change Figure 1.15 (b)?

5. Assume in Activity #5 that you want to use I/O lines P14 and P15 to drive both servos. Make sketches of your recommended modifications to the relevant diagrams, pictures, and code samples in this activity to accommodate this change.

6. What would you do if you wanted to drive the servos using I/O lines P10 and P11. Repeat the activities in Question 5. Hint: One of the Appendix sections in the back of the book will be useful.

Exercises

1.

What would happen if you used

pause 30

instead of

pause 20

in the Chapter #1 program listings? How would this effect the servos’ operation? Draw a diagram similar to Figure 1.26 based on a pulse train using

pause 30

and

pulsout 12, 1000

.

2.

The How the Right Wheel Full Speed Ahead Program Works section in Activity #4 has a math example that shows how the

pulsout period

argument 100 equates to 1.0 ms pulses. Repeat this exercise for

pulsout 12, 750

and

pulsout 12, 1000

.

3.

What is the necessary

pulsout period

argument to make a 1.626 ms pulse?

Page 40

Robotics! Version 1.5

Chapter #1: Assembling and Testing Your Boe-Bot

4.

What are the maximum and minimum pulse widths that can be generated using the

pulsout

command?

5.

Projects

Challenge: Since the low time in the pulse train is not overly important, the

pause period

was not adjusted when a second

pulsout

command was added. However, each

pulsout

command causes an additional delay on top of the 20 ms pause. How would you adjust the

pause period

in

Program Listing 1.5 to ensure that the pulse to a given servo begins every 20 ms?

1. In Question 5, you modified the relevant figures and programs in Activity #5 so that you could use I/O lines P14 and P15 to drive the servos instead of I/O lines P12 and P13. Use your Boe-Bot to test these modifications. Make sure to save your programs under different file names, because, in the next chapter, we’ll start over again with I/O lines 12 and 13.

Record the Boe-Bot’s behavior on the first run of your test. Was this the expected behavior? If not, account for it, then record the additional changes you had to make to get your Boe-Bot working as intended. There may be multiple iterations of troubleshooting here; make sure to record each step taken to get the Boe-Bot to function as intended.

2. Program the Boe-Bot to move in several different patterns. Try the following:

(a) Identify a pair of

pulsout

values that make the Boe-Bot move slowly straight forward. Shoot for wheel speeds of 4 revolutions per minute (RPM). Some trial and error will be necessary to find the

pulsout period

value to make each servo turn at this rate.

(b) Identify a pair of

pulsout period

values that make the Boe-Bot move very slowly straight backward at the same speed. How do these values compare (or not compare) to those identified in 2 (a.)?

3. Make a graph of wheel speed as a function of pulse width for each servo. Use several pulse widths between 0.8 and 2.2 ms (

pulsout

values between 400 and 1100). Either count how many revolutions the wheel completes in a specified time (20 seconds or a minute), or see how much time it takes to complete 10 revolutions.

Your graph might look similar to Figure 1.29. This graph was generated by a Microsoft Excel spreadsheet using eight data points and the “Best Fit” option. Collect data points and make your own graphs, one for each servo. In general, when you plot more data points, you can expect your graph to be more reliable. However, there are lots of techniques for reducing the number of measurements.

One example would be to take a few measurements to find the curved areas of the graph, then focus

Robotics! Version 1.5

Page

41

Chapter #1: Assembling and Testing Your Boe-Bot

on taking many measurement in those areas while taking only a few measurements in the areas that are linear.

Note: Expect your graphs to look different from Figure 1.29 because it’s for a different kind of servo from the one in your kit.

Use your graphs to predict the pulse widths required to make your Boe-Bot go straight forward or straight backward with less trial and error. Try this at a variety of speeds. The rotational speed of one servo will correspond with a certain

pulsout

value. Remember that the values you select will come from opposite sides of the 750 center

pulsout period

.

Servo #1

50.0

40.0

30.0

20.0

10.0

0.0

400 500 600 800 900 1000 1100

-20.0

-30.0

-40.0

-50.0

Pulsout Period (2-microsecond increments)

Figure 1.29: pulsout period

vs. rotational speed for servo.

Test the accuracy of the graphically determined predictions by programming them into your Boe-Bot and testing to see how straight it goes. By focusing on one servo for your corrections, you can calculate the percent error of your initial guess. So that error from the other servo is not a factor, fine tune it using trial and error so that it rotates at the exact speed predicted by your graphs. Then, you can figure the percent error on the servo that you have not fine tuned using this equation:

% error

= exact duration

− exact predicted duration duration

×

100%

The exact

period

is what you will arrive at by adjusting a single servo using trial and error. The predicted

period

is the value from the graph for that servo. You can expect percent errors of between 5 and 25% depending on the resolution of your graph and other factors such as imperfections in wheel alignment and slight differences in wheel size.

Page 42

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Chapter #2:

Programming the

Boe-Bot to Go

Places

Chapter #2: Boe-Bot Navigation under Program Control

Chapter #2 is all about instructing the Boe-Bot where to go and how to get there. You’ll write programs to make the Boe-Bot perform a variety of maneuvers. Some programs can be used for navigating tight spaces, others for drawing shapes. Whatever the maneuver, this chapter presents the tools for programming the

Boe-Bot to perform it. Here’s what you’ll learn how to do in

Chapter #2:

Build a low battery indicator.

Program your Boe-Bot to go a variety of directions, all in the same program.

Write programs that fine tune the Boe-Bot’s maneuvering skills.

Write programs that remember long lists of movement instructions.

Write programs that make the Boe-Bot accelerate and decelerate during maneuvers.

Along the way, Chapter #2 introduces a variety of PBASIC programming techniques, such as

for...next

loops and

if...then

statements. The exercises in this chapter also offer lots of practice in using variables and flow control to accomplish a variety of tasks. Some essential math for converting program commands into distance and speed are also introduced. For some, this will be a first glimpse into elementary Dynamics.

Converting Instructions to Motion

In the previous chapter, you programmed the Boe-Bot to move forward, backward, and turn in place.

Additionally, software calibration settings were determined for programming the Boe-Bot to move straight forward, straight backward, and to stop and stay still.

Each Boe-Bot navigation program in Chapter #1, Activity #6 focused on one direction. If the Boe-Bot was programmed to go forward, it had to be reprogrammed to go backward and reprogrammed again to turn in place. In this chapter, all the directions will be incorporated into a single program. By determining how many pulses it takes to make the Boe-Bot rotate a certain amount during a turn, you can program the Boe-Bot to perform a variety of more precise maneuvers. For example, the Boe-Bot can be programmed to draw a square, or a cross, or a triangle.

This level of programmed maneuverability is well and good, but programming long and involved lists can become a complicated problem. PBASIC also features a simple and efficient method of recording and accessing long lists of directions in the program memory. You’ll notice that while the Boe-Bot is performing its programmed maneuvers that it comes to abrupt stops when it changes direction. Commands can also be

Robotics! Version 1.5

Page

43

Chapter #2: Programming the Boe-Bot to Go Places

added to make the Boe-Bot decelerate into and accelerate out of direction changes. This will solve the abrupt stops and extend the life of the Boe-Bot’s servos.

The Boe-Bot’s behavior when the batteries go low can be mystifying. Low batteries are also not good for the servos or the BASIC Stamp. The first activity will guide you through the construction and testing of a low battery indicator.

Activity #1: Low Battery Indicator

When the voltage supply drops below the level a device needs to function properly, it’s called brownout. The

BASIC Stamp protects itself from brownouts by making its processor and program memory chips go dormant until the power supply voltage returns to normal levels. A drop below 5.2 V at Vin results in a drop below 4.3

V at the BASIC Stamp’s internal voltage regulator output. A circuit called a brownout detector on the BASIC

Stamp waits for this condition. When the voltage comes back, the BASIC Stamp has been “reset.” In response to a reset, the BASIC Stamp behaves essentially the same as if you had unplugged the power and then plugged it back in. In either case, what happens is that the program the BASIC Stamp was running before the reset starts over again at its beginning.

One way to indicate resets is to include an unmistakable signal at the beginning of all the Boe-Bot’s programs.

The signal then occurs every time the power gets plugged in, but it also occurs every time a reset due to brownout conditions occurs. The most effective signal for this is a speaker that emits a tone each time the

BASIC Stamp program runs from the beginning or resets. The schematic symbol and top view of the piezoelectric speaker is used for emitting the tones in this activity are shown in Figure 2.1.

Parts List

(1) Assembled and tested Boe-Bot

(1) Piezospeaker

(misc.) Wires

Piezo

1

2

1 q

Figure 2.1: Piezo

Build It!

Figure 2.2 shows the piezospeaker and servo schematics along with a wiring diagram.

Build the circuit as shown in Figure 2.2 (b).

2

Page 44

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

P2

Piezo

Vss

Vdd

P12

White

Red

Black

Vss

Vdd

P13

White

Red

Black

Vss

Figure 2.2 (a) Schematic

Servo

Servo

X3

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

P5

P4

P3

P2

P1

P0

X2

To

Servos

15 14 13 12

Red

Black

Vdd

X4 X5

Vin Vss

Rev B

(b) Wiring diagram

ü

TIPS

New to building circuits from schematics? Check out Appendix F: Breadboarding

Rules.

The instructions in all activities from this point forward will assume your servos are plugged in as shown in Figure 2.2 (a) and (b).

Robotics! Version 1.5

Page

45

Chapter #2: Programming the Boe-Bot to Go Places

In Chapter 1, the millisecond and microsecond quantities were introduced. In this chapter, the hertz and kilohertz quantities are introduced. One hertz is simply one time-per-second, and it’s abbreviated 1

Hz. One kilohertz is one-thousand-times-persecond, and it’s abbreviated 1 kHz.

Programming the Low Battery Indicator

1

kHz

H

=

z

=

1000 s

=

s

1000 s

At the beginning of the program, a command that makes the speaker sound a tone will send the low battery signal. Then, the program listing should stay busy with an infinite loop until a reset occurs. If the circuit is correctly wired and the program is working, the tone should sound every time the power is unplugged then plugged back in. It should also sound every time the reset button is pressed. This guarantees that the tone will sound when a reset occurs due to low batteries. q

Connect the battery pack’s barrel plug into the BOE’s barrel jack. q q q q

Connect the computer’s serial cable to the BOE’s DB9 connector.

Enter Program Listing 2.1 into the Stamp Editor

Run it by clicking Run then selecting Run.

1

Hz and kHz

1 s

=

1

1

1

This program makes use of the Debug Terminal, so leave the serial cable connected to the BOE while

Program Listing 2.1 is running.

' Robotics! v1.5, Program Listing 2.1, The Battery Indicator.

' {$Stamp bs2} debug cls, "Beep!!!" output 2 freqout 2, 2000, 3000 loop:

' Stamp Directive.

' Display while speaker beeps.

' Send a 3 kHz signal for 2 s.

' Loop label.

debug "Waiting for reset…", cr goto loop:

' Display while the BS2 is waiting.

' Go to the loop label (infinite loop). q

Verify that the low battery indicator works by pressing and releasing the reset button on the BOE.

Page 46

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Just as when the program first ran, the speaker should play a high pitched tone for 2 s. At the same time, the

Debug Terminal should display the “Beep!!!” message. Then, all should go silent while the Debug Terminal displays line after line of the “Waiting for reset…” message. q

If the speaker did not play a tone, check your wiring and code, then try running the program again.

Debug display problems are typically caused by typing mistakes. q

If the Debug display does not behave as expected, check your program and make sure the code matches the example code shown in Program Listing 2.1 above.

How the Low Battery Indicator Program Works

q

Use Appendix B or the BASIC Stamp Manual to look up the

freqout

and

output

commands introduced in program listing 2.1.

Program listing 2.1 starts by displaying the message “Beep!!!” Then, immediately after printing the message, the

freqout

command plays a 3 kHz tone on the piezoelectric speaker for 2 s. Playing the tone actually takes two steps. First, P2 must be set to output using the

output 2

command. The audible tone is then played when the

freqout 2, 2000, 3000

command is executed. It sends pulses out P2 that make the piezoelectric speaker vibrate at 3 kHz for 2 s. When the tone is done, the program enters an infinite loop, displaying the same “Waiting for reset…” message over and over again. Each time the reset button on the BOE is pressed or the power is disconnected and reconnected, the Program starts over again.

The lines of code in the battery indicator program that generates the tone will be used at the beginning of every example program from here onward. You could consider it part of the “initialization routine” or “boot routine” for every Boe-Bot program.

Your Turn

q

Copy the

freqout

command from Program Listing 2.1 to the beginning of Program Listing 1.5 from

Chapter #1, Activity #6. q

Run the modified version of Program Listing 1.5. The Boe-Bot should remain still and beep for two seconds before starting to move forward.

Robotics! Version 1.5

Page

47

Chapter #2: Programming the Boe-Bot to Go Places

Activity #2: Controlling Distance

Up to now, Boe-Bot programs have featured infinite loops. For example, Program Listing 1.5 made the Boe-

Bot move forward, but that’s all it did. The Boe-Bot just kept going forward. This activity introduces a technique for controlling the distance the Boe-Bot travels.

Programming for Distance Control

An infinite loop can do a job, but it doesn’t know when to stop. The best way to fix the problem is to replace the infinite loop with another kind of loop called a

for…next

loop. You can use a

for...next

loop to specify how many times the commands inside the loop are executed.

A

for…next

loop uses a variable to keep track of how many times the commands inside it are executed. A for...next loop makes use of a variable to store a number that gets changed each time through the loop. In

PBASIC, a variable has to be declared before it can be used. Program Listing 2.2 shows an example of a variable declaration and an example of a

for…next

loop. The

for…next

loop is used instead of the infinite loop used in Program Listing 1.5. The

for...next

loop makes the Boe-Bot go forward and then stop by controlling the number of pulses sent to the servos. q

Connect the battery pack’s barrel plug into the BOE’s barrel jack. q

Connect the computer’s serial cable to the BOE’s DB9 connector. q

Enter Program Listing 2.2 into the Stamp Editor. q

Run it by clicking Run then selecting Run in the Stamp Editor. q

When the Boe-Bot speaker starts to beep indicating that the program is starting, press and hold the

Reset button on the BOE. q

Unplug the serial cable from Boe-Bot. q

Place the Boe-Bot in the area you want it to navigate. q

Release the Reset button. q

Observe the Boe-Bot’s behavior.

Page 48

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

FYI

From this point forward, the procedure just described should be repeated for each program listing.

' Robotics! v1.5, Program Listing 2.2: Controlling Distance

' Stamp Directive. ' {$Stamp bs2}

'-----Declarations-------

pulse_count var word

'-----Initialization-----

output 2

freqout 2, 2000, 3000

low 12

low 13

' Declare a variable for counting.

' Set P2 to output.

' Signal program is starting/restarting.

' Set P12 and 13 to output-low.

'-----Main Routine------- main:

forward:

' Forward routine.

for pulse_count = 1 to 100 ' Loop that sends 100 forward pulses.

pulsout 12, 500

pulsout 13, 1000

pause 20

' 1.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

' Pause for 20 ms.

next

stop ' Stop until reset. q

Remember to unplug the battery pack from the BOE when you’re not using it.

How the Controlling Distance Program Works

q

Look up the

for…next

and

stop

commands in Appendix C: PBASIC Quick Reference or in the BASIC

Stamp Manual before continuing

.

PBASIC example programs in this text will be organized by section. Three of the five sections commonly used in a program are featured here: declarations, initialization, and main routine. As the PBASIC programs get longer and more involved, using comments to denote sections such as

'-----Declarations-------

and

'-----Initialization----- makes the program considerably easier to read. The sections and their contents will be discussed in more detail after Program Listing 2.6.

Robotics! Version 1.5

Page

49

Chapter #2: Programming the Boe-Bot to Go Places

A variable named

pulse_count

is declared to be a word’s worth of variable storage space using the command

pulse_count var word

. A word variable can store numbers between 0 and 65535. The handy thing about a variable is that there are a variety of PBASIC commands that can be used to change the variable’s value. Other PBASIC commands can use a variable’s value to make decisions. Variables can also be used instead of numbers as arguments to certain PBASIC commands. You’ll see examples of all these uses of variables in this chapter.

Table 2.1 shows the other options for variable declarations and the number ranges they can store. The size of the number a variable can store depends on how many bits it contains. A bit is a single, binary memory location that can either store a “1” or a “0.” The more bits the larger the binary number you can store.

Table 2.1: Variable Declaration Sizes

Size

Declaration

Number of

Bits

Can Store Numbers Ranging from-to

bit nib byte word

1

4

8

16

0 to 1

0 to 15

0 to 255

0 to 65535 (or –32768 to +32767)

The four commands in the initialization routine should all be pretty familiar by now. The first two are the

output

and

freqout

commands used to signal when the program starts running. The initialization routine also includes the

low

commands that are used to set the initial output values of the I/O lines used to control the servos.

Remember:

If the tone plays for no apparent reason when the Boe-Bot is in the middle of a maneuver, it indicates a brownout condition caused by low batteries.

The

main

routine uses a

for...next

loop followed by a

stop

command. The

for...next

loop replaces the infinite

goto

loop used in previous examples. The commands nested in the

for...next

loop should be familiar by now. They are the commands that send the pulses to the Boe-Bot servos. The values of the

period

arguments used in the

pulsout

commands are the values for making the Boe-Bot roll forward.

The first time through the for next loop, the value of

pulse_count

is set to “1.” Then the two

pulsout

commands and one

pause

command are executed. When the program gets to the

next

statement, it jumps back up to the

for

statement. The second time through the loop, the

for

statement adds one to the value of

pulse_count

. Now the value of the

pulse_count

variable is “2,” and the

for

statement checks to see if

pulse_count

is equal to 100 yet. Since

pulse_count

is not yet 100, the program continues to the next line.

The three commands to pulse the servos and pause for 20 ms are executed again, and the

next

statement

Page 50

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

sends program control back to the for statement again. The value of

pulse_count

is incremented again and compared to the upper limit, and so on.

The 100 th

time the program gets to the

next

statement in the

for...next

loop, it sends the program up to the

for

statement again. This time, the value of

pulse_count

is incremented to 101. Now, when

pulse_count

is compared to the value of the

end

argument, it is greater than the upper limit of 100. So instead of continuing to the commands that send another pulse, the

for

statement sends program control to the command immediately after the

next

statement.

The

stop

command is executed immediately after the

for...next

loop, and it makes the program

stop

.

The only thing that can get the BASIC Stamp out of a

stop

command is a hardware reset. In other words, if you want to run the program again, press the Reset (Rst) button on the BOE.

Your Turn

q

Modify the main routine of Program Listing 2.2 as shown below.

'-----Main Routine------- main: ' Main routine.

forward:

for pulse_count = 1 to 75

pulsout 12, 500

pulsout 13, 1000

pause 20

next

pause 500

' Forward routine.

' Send 75 forward pulses.

' 1.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

' Pause for 20 ms.

' Pause for 0.5 s.

backward:

for pulse_count = 1 to 75

pulsout 12, 1000

pulsout 13, 500

pause 20

next

pause 500

' Send 75 backward pulses.

' 2.0 ms pulse to right servo.

' 1.0 ms pulse to left servo.

' Pause for 20 ms.

' Pause for 0.5 s.

stop ' Stop until reset.

Robotics! Version 1.5

Page

51

Chapter #2: Programming the Boe-Bot to Go Places

q

Run the second modified version of Program Listing 2.2 again. The modified version of Program Listing

2.2 should make your Boe-Bot move forward, then backward, then stop.

When programming the Boe-Bot, the goal is often to make it move a specific distance or to execute a particular turn. It is helpful to know how to figure out how far the Boe-Bot will travel or turn when it is given a specific command. Circumference is equal to pi (p) multiplied by the wheel diameter: circumference = p x wheel diameter circumference = 3.14159 x 6.67 cm

21 cm

So, now we know that with one complete turn of the wheels, the Boe-Bot

Circumference

Figure 2.3: Wheel Diameter and

travels about 21 cm.

If we send pulses to the servo for the correct amount of time, the Boe-Bot can be made to travel a specific distance. This is because we can measure the speed that the Boe-Bot wheels turn. Once the speed is known, speed multiplied by time gives you distance. For example, with a

pulsout

command of 1000 delivered every

20 ms, the servo will turn at about 37.5 revolutions per minute (RPM), or 0.625 revolutions/sec. So the speed will be about:

21 cm/revolution x 0.625 revolutions/sec = 13.125 cm/s

The time it takes to make the Boe-Bot travel 50 cm is: t travel

= 50 cm

÷

13.125 cm/s

about 3.81 seconds

Since the pulse and pause periods are known, the time it takes for a single loop can be calculated: t

Calculating the number of loops (the

end

argument for the

for...next

loop) is simply a matter of dividing loop

into t t loop travel

= 1.0 ms + 2.0 ms + 20 ms = 23 ms

.

Number of loops = 3.81 sec

÷

23 ms/loop

= 3.81 s

÷

0.023 s/loop

166 loops

Page 52

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

q

Modify Program Listing 2.2 for 166 forward loops (50 cm), then run it.

How far did the Boe-Bot go? Several factors can affect how far it moves, including differences between servos and battery voltage. However, the estimate of 166 is a good initial value to try. The

for...next

loop’s

end

argument can then be fine tuned.

Activity #3: Maneuvers – Making Turns

If the same value is added to the center pulse width of one servo and subtracted from the center pulse width of the other, the Boe-Bot will travel in a straight line, either forward or backward. When the right servo gets a

pulsout

period

of 500 (1.0 ms) and the left servo gets a

pulsout

period

of 1000 (2.0 ms), the Boe-Bot goes forward. When the pulse periods for each servo are swapped, the Boe-Bot goes backward.

If both servos receive 1.0 ms pulses, they turn in the same direction and cause the Boe-Bot to rotate counterclockwise. If many pulses are applied, the Boe-Bot will keep rotating. If 35 or so pulses are applied, the net effect is in the neighborhood of a 90

°

left turn. The same principles apply if both servos receive 2.0 ms pulses, except that the Boe-Bot will rotate clockwise instead of counterclockwise.

Programming Left and Right Turns

Program Listing 2.3 illustrates how the

forward

and

backward

routines from Program Listing 2.2 can be modified to make the Boe-Bot execute turns. q

Enter and run Program Listing 2.3.

' Robotics! v1.5, Program Listing 2.3: Turning in place.

' Stamp Directive. ' {$Stamp bs2}

'-----Declarations-------

pulse_count var word

'-----Initialization-----

output 2

freqout 2, 2000, 3000

low 12

low 13

'-----Main Routine------- main:

' Declare a word size loop counter.

' Set P2 to output.

' Send a 3 kHz signal for 2 s.

' Set P12 and 13 to output-low.

' Main routine

Robotics! Version 1.5

Page

53

Chapter #2: Programming the Boe-Bot to Go Places

left_turn:

for pulse_count = 1 to 35

pulsout 12, 500

pulsout 13, 500

pause 20

next

pause 500

pulsout 13, 1000

pause 20

next

right_turn:

for pulse_count = 1 to 35

pulsout 12, 1000

pause 500

stop

' Left turn routine.

' Send 35 left rotate pulses.

' 1.0 ms pulse to right servo.

' 1.0 ms pulse to left servo.

' Pause for 20 ms.

' Pause for 0.5 s.

' right turn routine.

' Send 35 left rotate pulses.

' 2.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

' Pause for 20 ms.

' Pause for 0.5 ms.

' Stop until reset.

How the Turning in Place Program Works

Only three changes were made to Program Listing 2.2 in order to make Program Listing 2.3. First, the

forward:

and

backward:

labels were changed to

left_turn:

and

right_turn:

respectively. Then, the

left_turn

routine had both

pulsout

period

arguments set to 500. The

pulsout

arguments in the

right_turn

routine were both set to 1000.

Your Turn

q

Add the forward and backward routines from Program Listing 2.2 to Program Listing 2.3. To make the

Boe-Bot go forward and backward before turning left and right, insert the

forward

and

backward

routines between the

main:

label and the

left_turn:

label. Run the program and observe the results. q

Instead of using an

end

argument of 35 for each turn

for...next

loop, try

end

arguments of 30, 31,

32,..., 39, 40. Record the value that makes the Boe-Bot do the most precise quarter turn. The values may or may not be the same for both

left_turn

and

right_turn

routines.

Page 54

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Activity #4: Maneuvers – Ramping

Ramping is a way to gradually increase the speed of the servos instead of suddenly making them go the opposite direction. This technique can increase the life expectancies both of your Boe-Bot’s batteries and servos.

Programming for Ramping

The key to ramping is to use variables along with constants for servo pulse period. A

for…next

loop increments a variable each time the code nested between the

for

and

next

statements are executed. Since the value of this variable increases incrementally, it can be used to gradually increase the pulse widths.

Program Listing 2.4 shows how this technique can be used to make the Boe-Bot ramp up to and back down from the speed used in the forward routine.

' Robotics! v1.5, Program Listing 2.4: Ramping for Start and Stop

' Stamp Directive. ' {$Stamp bs2}

'-----Declarations-------

pulse_count var word

right_width var word

left_width var word

'-----Initialization-----

output 2

freqout 2, 2000, 3000

low 12

low 13

'-----Main Routine-------

' For...next loop counter.

' Variable stores right pulse width.

' Variable stores left pulse width.

' Set P2 to output.

' Signal program is starting/restarting.

' Set P12 and 13 to output-low. main:

ramp_up_forward:

' Main routine.

' Routine ramps into forward motion.

for pulse_count = 0 to 250 step 2 ' For loop counts up in steps of 2.

pulsout 12, 750 - pulse_count

pulsout 13, 750 + pulse_count

pause 20

' Pulse sent is 1.5 ms – pulse_count value.

' Pulse sent is 1.5 ms + pulse_count value.

' Pause for 20 ms.

next

forward:

for pulse_count = 1 to 100

pulsout 12, 500

pulsout 13, 1000

' Forward routine.

' Loop that sends 100 forward pulses.

' 1.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

Robotics! Version 1.5

Page

55

Chapter #2: Programming the Boe-Bot to Go Places

pause 20

next

pulsout 13,750 + pulse_count

pause 20

next

' Pause for 20 ms.

ramp_down_forward: ' Routine ramps out of forward motion.

for pulse_count = 250 to 0 step 2 ' For loop counts down in steps of 2.

pulsout 12, 750 - pulse_count ' Pulse sent is 1.5 ms – pulse_count value.

' Pulse sent is 1.5 ms + pulse_count value.

' Pause for 20 ms.

stop ' Stop until reset.

How the Ramping Program Works

The pulses in the

ramp_up_forward

routine are nested in a

for…next

loop. Note the

step 2

argument added to the

for

statement. None of the previous

for...next

loop examples used this argument, so the value of

pulse_count

was incremented in steps of 1. The

step 2

argument in the

for

statement makes the value of

pulse_count

increment in steps of 2.

ramp_up_forward:

for pulse_count = 0 to 250 step 2

pulsout 12, 750 - pulse_count

pulsout 13, 750 + pulse_count

pause 20

next

The first time though the

for...next

loop, the value of

pulse_count

is “0.” The second time through,

pulse_count

is incremented to “2,” and the third time through it’s “4,” and so on, up to 250. The key to ramping is to modify the pulse period a little each time a pulse is sent to the servo until it’s up to the desired period. Incorporating the value of

pulse_count

into the

period

argument of each

pulsout

command can be used to incrementally increase the pulse period in this way.

Let’s take a look at the pulses sent to the right servo. The command for sending the pulse is

pulsout 12,

750 – pulse_count

. Each time through the

for...next

loop, the value of

pulse_count

increases by two. This means that each time through the loop, the value of the

pulsout

command’s

period

argument is decreased by two, since

pulse_count

is subtracted from 750. By the last pass through the loop, the value of

pulse_count

is up to 250, which is subtracted from 750 to give a value of 500. For the left servo, the value of

pulse_count

is added to 750, and the last time through the loop gives a

period

of 1000. When these target values are reached, the servos are up to full speed forward, and the program can move on to the familiar

forward

routine.

Page 56

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

When the

forward

routine is finished, the challenge is to ramp the pulse widths back down to the resting value of 750. A useful feature of PBASIC is that

for...next

loops count down instead of up if the

start

argument is larger than the

end

argument. This method was used for counting back down in the

ramp_down_forward

routine. The

for…next

loop started

pulse_count

at a value of 250, then counted down to 0 in steps of 2. This is because the command

for pulse_count = 100 to 0 step 2

was used.

Your Turn

q

Develop routines that ramp into and back out of the

backward

,

right_turn

and

left_turn

routines developed in Activity #2 and #3.

It will take some fine tuning to get the Boe-Bot to do 90

°

and 180

°

turns. Adjusting

for

statement’s

step

,

start

and

end

arguments will help make the turns more accurate. For the 90

°

turns, it’s also possible to ramp into and back out of the turns without ever reaching full speed (pulse width).

Activity #5: Remembering Long Lists Using EEPROM

The BASIC Stamp stores its tokenized version of the PBASIC program in electrically erasable programmable read only memory (EEPROM). Physically, the EEPROM is the small black chip on the BASIC Stamp II module labeled "24LC16B.” This part is made by Microchip Inc. The BASIC Stamp’s EEPROM can hold 2048 bytes (2 kB) of information. What’s not used for program storage (which builds from address 2047 toward address 0) can be used for data storage (which builds from address 0 toward address 2047).

FYI

If the data collides with your program, the PBASIC program won't execute properly.

EEPROM memory is different from RAM variable storage in several aspects:

EEPROM takes more time to store a value, sometimes up to several milliseconds.

EEPROM can accept a finite number of write cycles, around 10 million writes. RAM has unlimited read/write capabilities.

The primary function of the EEPROM is to store programs; data is stored in leftover space.

You can view the contents of the BASIC Stamp’s EEPROM by clicking Run and selecting Memory Map. Figure

2.4 shows the memory map for Program Listing 2.3. Note the Condensed EEPROM Map in the lower middle of the figure. The narrow stripe across the bottom represents the small portion of EEPROM that Program

Listing 2.3 occupies.

Robotics! Version 1.5

Page

57

Chapter #2: Programming the Boe-Bot to Go Places

This program might have seemed large while you were typing it in, but it only takes up 128 of the available 2048 bytes of available program memory.

There currently is enough room for quite a long list of instructions. One of the simpler approaches is to store characters indicating which way to go.

Since a character occupies a byte in memory, there is currently room for 1920 one-character direction instructions.

EEPROM Navigation

The

data

directive is usually placed in the

declarations

section of a PBASIC program, and it’s the best way to store long lists. Program Listing

2.5 shows an example of how the

data

directive can be used to store lists of Boe-Bot navigation instructions.

Figure 2.4: BASIC Stamp memory map.

' Robotics! v1.5, Program Listing 2.5: EEPROM Navigation

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations --------------

' Label for the declarations routine.

pulse_count var word

EE_address var byte

instruction var byte

data "FFFBBLFFRFFQ"

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine -------------- main:

' Declare a variable named pulse_count.

' Stores & increments EEPROM address.

' Stores instruction retrieved from EEPROM.

' List of Boe-Bot navigation instructions.

' Main routine label.

' Set piezoelectric speaker line to output.

' Send the program start/low battery tone.

' Set P12 to output-low.

' Set P13 to output-low.

Page 58

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

read EE_address, instruction

EE_address = EE_address + 1

' Read at EE_address & store in instruction

' Increment EE_address for next read

if instruction = "F" then forward ' Check for forward command.

if instruction = "B" then backward ' Check for backward command.

if instruction = "R" then right_turn ' Check for right turn command.

if instruction = "L" then left_turn ' Check for left turn command.

stop ' Stop executing commands until reset

'----- Navigation Routines -------

forward: ' Forward routine.

for pulse_count = 1 to 75

pulsout 12, 500

pulsout 13, 1000

pause 20

next

goto main

' Send 75 forward pulses.

' 1.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

' Pause for 20 ms.

' Send program back to the main.

backward:

for pulse_count = 1 to 75

pulsout 12, 1000

pulsout 13, 500

pause 20

next

goto main

left_turn:

for pulse_count = 1 to 35

pulsout 12, 500

pulsout 13, 500

pause 20

next

goto main

right_turn:

for pulse_count = 1 to 35

pulsout 12, 1000

pulsout 13, 1000

pause 20

' Send 75 backward pulses.

' 2.0 ms pulse to right servo.

' 1.0 ms pulse to left servo.

' Pause for 20 ms.

' Send program back to the main.

' Left turn routine.

' Send 35 left rotate pulses.

' 1.0 ms pulse to right servo.

' 1.0 ms pulse to left servo.

' Pause for 20 ms.

' Send program back to the main label.

' right turn routine.

' Send 35 left rotate pulses.

' 2.0 ms pulse to right servo.

' 2.0 ms pulse to left servo.

' Pause for 20 ms.

next

goto main ' Send program back to the main .

Robotics! Version 1.5

Page

59

Chapter #2: Programming the Boe-Bot to Go Places

How the EEPROM Navigation Program Works

q

Look up the

data

,

read

and

if...then

commands in Appendix C: PBASIC Quick Reference or in the

BASIC Stamp Manual before continuing

.

Program Listing 2.5 introduces two new variables. Instead of being words, both of them are bytes, which means they can store numbers between zero and 255. The first new variable is

EE_address

, which is used for specifying the EEPROM address to

read

a direction instruction from EEPROM. The second new variable is named

instruction

. This variable is used to store the instruction character read from EEPROM. declarations:

pulse_count var word

EE_address var byte

instruction var byte

The next declaration is the actual data to be stored in EEPROM. This data is stored as a string of characters.

When these characters are stored, they are stored as numbers that correspond to the letters you see in the

data

directive. In the Your Turn section of this activity, you’ll view the memory map and look at both the characters and their numeric representations in EEPROM.

data "FFFBBLFFRFFQ" ' Movement data

Although the initialization routine is the same one used in Program Listing 2.3, the main routine is not. The main routine first reads EEPROM address 0, and stores it in the

instruction

variable. Then,

EE_address

is incremented so that the next read cycle will look at address 1. A series of

if...then

statements is used to decide what to do based on the character retrieved from EEPROM and stored in the

instruction

variable.

The

if...then

statements check to see if it’s one of four known instruction characters: “F,” “B,” “R,” and “L.”

For example, if the character is an “R,” the first two

if...then

statements are skipped because neither of them is true. Since the third

if...then

statement is true, the program skips to the

right_turn

routine. main:

read EE_address, instruction

EE_address = EE_address + 1

if instruction = "F" then forward

if instruction = "B" then backward

if instruction = "R" then right_turn

if instruction = "L" then left_turn

stop

Page 60

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

When the program gets to the

right_turn

routine, it executes 35 right turn pulses. Then the

goto main

command sends the program back to the

main

routine.

right_turn:

for pulse_count = 1 to 35

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

When the program gets back to the

main

routine, the next EEPROM instruction is fetched, and the instruction is checked by the four

if...then

statements again. The process is repeated until the quit character “Q” is read from EEPROM. When “Q” is loaded into the

instruction

variable, it fails all four

if...then

tests. So, the program does not go to any of the navigation routines. Instead, the program goes to the command that follows the series of

if...then

statements, which is the

stop

command.

Your Turn

q

With Program Listing 2.5 active in the Stamp

Editor, click Run and select Memory Map.

Your stored instructions will appear highlighted in blue at the beginning of the Detailed EEPROM Map as shown in Figure 2.5. The numbers shown are the hexadecimal ASCII (American Standard Code for

Information Interchange) codes that correspond to the letters you entered in your data statement. q

Click the Display ASCII checkbox near the lower-right corner of the Memory Map window.

Figure 2.5: Memory Map with stored instructions visible in

Detailed EEPROM Map.

Robotics! Version 1.5

Page

61

Chapter #2: Programming the Boe-Bot to Go Places

Now the direction instructions will appear in a more familiar format shown in Figure 2.6. Instead of ASCII codes, they appear as the actual characters you recorded using the

data

directive.

In its current form, Program Listing 2.5 can only access up to 256 characters. If the

EE_address

variable is re-declared to be a word variable, you can address more locations than the EEPROM actually contains. Keep in mind that if your program gets larger, the number of available

EEPROM addresses for holding data gets smaller. q

Figure 2.6: Close-up of the detailed EEPROM Map after Display

ASCII box is checked.

You can modify the existing data string to a new set of directions. You can also add additional

data

statements. The data is stored sequentially, so the first character in the second data string will get stored immediately after the last character in the first data string.

Try changing, adding, and deleting characters in the

data

directive. Remember that the last character in the

data

directive should always be a “Q.” q

Try adding a second

data

directive. Remember to remove the “Q” from the end of the first

data

directive and add it to the end of the second. Otherwise, the program will execute only the commands in the first data directive.

Activity #6: Simplify Navigation with Subroutines

All the navigation routines in Activity #5 ended with

goto

commands. Each

goto

command sent program control to the

main:

label. A similar technique involves the use of subroutines, and several example programs in this text will make use of them. Since the example program in Activity #7 makes use of subroutines, let’s take a look at how one works before moving on.

Programming Navigation with Subroutines

A subroutine is a segment of code that does a particular job. To make the subroutine do its job, a command is used in the main routine that “calls” the subroutine. The command for calling a subroutine is the

gosub

command, and it’s similar to the

goto

command. A

goto

command tells the program to go to a label, and then start executing instructions. The

gosub

command tells the program to go to a label, and start executing instructions, but come back when finished. A subroutine is finished when the

return

command is encountered.

Page 62

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Program Listing 2.6 uses a different technique for navigation. It sets variable values for number of pulses delivered and servo pulse widths. After the variable values have been set, the main program calls a subroutine that makes use of the information stored in the variables to pulse the servos.

' Robotics! v1.5, Program Listing 2.6: Subroutine Navigation.

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations -------------- loop_count var word right_width var word left_width var word pulse_count var byte

'----- Initialization ------------ output 2 freqout 2, 2000, 3000 low 12 low 13

'----- Main Routine -------------- main:

forward:

pulse_count = 75

right_width = 500

left_width = 1000

gosub pulses

pause 500

backward:

pulse_count = 75

right_width = 1000

left_width = 500

gosub pulses

pause 500 goto main

'----- Subroutines --------------- pulses:

for loop_count = 1 to pulse_count

pulsout 12, right_width

' For...next loop counter.

' Variable stores right pulse width.

' Variable stores left pulse width.

' Used to set number of pulses delivered.

' Set P2 to output.

' Signal program is starting/restarting.

' Set P12 and 13 to output-low.

' Main routine.

' Forward routine.

' Set pulse count for 75 pulses.

' Set right pulse width to 1.0 ms.

' Set left pulse width to 2.0 ms.

' Call the pulses subroutine.

' Pause for 0.5 s.

' Backward routine.

' Set pulse count for 75 pulses.

' Set right pulse width to 2.0 ms.

' Set left pulse width to 1.0 ms.

' Call the pulses subroutine.

' Pause for 0.5 s.

' Go to main label (infinite loop).

' Pulses subroutine.

' Use pulse_count for number of pulses.

' Use right_width for right pulse width.

Robotics! Version 1.5

Page

63

Chapter #2: Programming the Boe-Bot to Go Places

pulsout 13, left_width

pause 20

next

' Use left_width for left pulse width.

' Pause 20 ms. return ' Return from subroutine.

How the Subroutine Navigation Program Works

q

Look up the

gosub

and

return

commands in Appendix C: PBASIC Quick Reference or in the BASIC Stamp

Manual before continuing

.

Figure 2.7 shows how the

backward

routine calls the

pulses

subroutine. The commands in the

pulses

subroutine are executed until the program gets to the

return

command. The

return

command sends the program back to the command just after

gosub pulses

command, which is

pause 500

in this case. This same process occurred in the

forward

routine, which was executed before the

backward

routine shown.

Your Turn

backward:

pulse_count = 75

right_width = 1000

left_width = 500

gosub pulses

pause 500 goto main

Subroutines:

pulses:

for loop_count = 1 to pulse_count

pulsout 12, right_width

pulsout 13, left_width

pause 20 q

Add routines to the main routine that set the values for

right_turn

and

left_turn

.

Activity #7: All Together Now

next

return

Figure 2.7: Program flow for subroutines.

This chapter has introduced a variety of navigation techniques:

• navigation routines that control distance and turning speed ramping remembering long lists calling subroutines using variables to set values used by subroutines

All these elements now can be tied together to make a more robust navigational program.

Page 64

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Programming EEPROM Navigation with Ramping

The

data

directive in Program Listing 2.7 records two different things in EEPROM for each maneuver: a direction and a number of pulses to deliver. Both values are stored in variables. The subroutine that delivers the pulses to the servos does automatic ramping into and out of each maneuver.

' Robotics! v1.5, Program Listing 2.7: EEPROM Navigation with Ramping

' of navigational instructions.

' {$Stamp bs2}

'----- Declarations --------------

pulse_count var byte

loop_count var byte

' Stamp Directive.

right_width var word

left_width var word

old_right var word

old_left var word

right_gap var word

left_gap var word

EE_address var byte

' Used to set number of pulses delivered.

' For...next loop counter.

' Variable stores right pulse width.

' Variable stores left pulse width.

' Stores previous right pulse width.

' Stores previous left pulse width.

' Difference btwn target and actual width.

' Difference btwn target and actual width.

' Stores & increments EEPROM address.

instruction var byte

direction var byte

' Stores instruction retrieved from EEPROM.

' Stores number from data table for branch.

data "F", 125, "B", 125, "R", 75, "L", 100, "F", 150, "Q"

'----- Initialization ------------

right_width = 750

left_width = 750

old_right = 750

' Set initial values for variables.

old_left = 750

pulse_count = 0

output 2

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine -------------- main:

gosub pulses

read EE_address, instruction

read EE_address + 1, pulse_count

' Set P2 to output.

' Signal program is starting/restarting.

' Set P12 and 13 to output-low.

' Main routine.

' Call the pulses subroutine.

' Read the first EEPROM instruction.

' Read the second EEPROM instruction.

Robotics! Version 1.5

Page

65

Chapter #2: Programming the Boe-Bot to Go Places

EE_address = EE_address + 2 ' Increment EE_address by 2.

' The lookdown instruction is used together with the branch instruction

' to direct the program to the appropriate routine for setting pulse widths.

' After the variable values are set, program control is returned to main.

' The first command in the main routine calls the pulses subroutine.

lookdown instruction, = ["B","L","R","F","Q"], direction

branch direction,[backward,left_turn,right_turn,forward,quit]

backward: right_width = 1000: left_width = 500: goto main

left_turn: right_width = 500: left_width = 500: goto main

right_turn: right_width = 1000: left_width = 1000: goto main

forward: right_width = 500: left_width = 1000: goto main

quit: stop

'----- Subroutines ---------------

' The target pulse values of left_width and right_width are compared to

' their previous values. The right_gap and left_gap variables are used to

' determine the pulse widths. See the How EEPROM Navigation with Ramping

' Works section for further explanation.

pulses:

right_gap = right_width - old_right

left_gap = left_width - old_left

for loop_count = 1 to pulse_count

right_gap = right_gap - 5 + (10*right_gap.bit15)

left_gap = left_gap - 5 + (10*left_gap.bit15)

pulsout 12, right_width - right_gap

pulsout 13, left_width - left_gap

pause 20

next

old_right = right_width - right_gap

old_left = left_width - left_gap

return

Page 66

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Advanced Topic: How EEPROM Navigation with Ramping Works

q

Look up each of the following new commands in Appendix C: PBASIC Quick Reference or in the BASIC

Stamp Manual before continuing:

lookdown, branch.

Six word-size variables are added to the declarations section of Program Listing 2.5. The variables

old_left

and

old_right

are for remembering the previous pulse period for each servo. The variables

right_gap

and

left_gap

are variables that change slightly each time a pulse is applied. When the gap is large, the pulse width is closer to the old pulse values. When the gap is small, the pulses are closer to the new pulse periods.

The

data

directive has been restructured so that it stores a direction, followed by a number of pulses. This way, the Boe-Bot can be given directions like: go forward 125 pulses, then backward 125 pulses, then right 75 pulses, and so on.

Initial values are set for the variables that keep track of pulse widths. They all start with the center value of

750. The first command in the

main

routine is

gosub pulses

. Since the initial number of pulses to deliver is a value of “0,” and the initial values of the old and current servo instructions are at center, the pulses routine will do nothing the first time through. Every time through the

main

routine after that, the

gosub

command calls the

pulses

subroutine, which pulses the servos with values determined from the previous pass through the

main

routine.

There are now two

read

commands in the

main

routine instead of just one. This is so that both the direction and number of pulses can be read. The first

read

command still accesses a letter that denotes a Boe-Bot direction. The second

read

command looks up

EE_address + 1

, which is the location of the number that follows the direction in the

data

statement. This is a handy way to access the pulse count value in a single command. Then

EE_address

is incremented by two instead of one. This way, the next time the first

read

command looks for a letter, it will skip over the number (of pulses) and find the next letter in the sequence.

Now that a letter indicating direction has been stored in the

instruction

variable and the number of pulses have been stored in the

pulse_count

variable, it’s time for the BASIC Stamp to figure out what that letter stored in

instruction

means. Instead of using a series of

if...then

statements, two commands are used.

The first is the

lookdown

command. The

lookdown

command will take the value “B” from

instruction

and find that it’s the first in the list. Actually, as far as the

lookdown

command is concerned, it’s really the zero entry in the list since the

lookup

command starts counting from zero. So, it stores the number 0 in the

direction

variable. If

instruction

is an “L,” the number 1 will be stored in

direction

. If

instruction

is “R,” the number 2 will be stored in

direction

, and so on.

The

branch

command skips to a label based on the variable’s value. If

direction

is “0,”

branch

will skip to the

backward

routine. If

direction

is “1,”

branch

will skip to the

left_turn

label. If

direction

is “2,” branch will skip to the

right_turn

label, and so on.

Robotics! Version 1.5

Page

67

Chapter #2: Programming the Boe-Bot to Go Places

You may not have been aware that you could place more than one command separated by colons on a line.

The

backward

,

left_turn

,

right_turn

,

forward

, and

quit

routines each occupy a single line. The only problem that can occur when multiple PBASIC commands are on a single line is that a label cannot be found in the middle of a line, only at the beginning. Each of the

direction

routines sets the value of

right_width

and

left_width

period

values, just as in previous programs. Instead of calling the pulses routine, each of the four direction routines ends with a

goto main

command. Note that as soon as the program gets to

main,

it calls the

pulses

subroutine.

The

pulses

subroutine first determines the difference between the previous value sent to it for each servo and the current value. Taking the right servo as an example, the variable that stores this value is

right_gap

, because it stores the current

right_width

minus the

old_right

width. The process is the same for the left servo, except the sign is reversed. Next, the

for...next

loop applying

pulse_count

pulses is started.

Assuming that

right_width

is different from

old_right

, the

right_gap

value will start large. Since

right_gap

is subtracted from

right_width

when the

pulsout

command is executed, it stands to reason that the

right_gap

value should initially be large. Then, with each pulse, the

right_gap

value should get smaller and smaller as the pulse width ramps up to its target value. A single command takes care of decrementing

right_gap

if it’s positive and incrementing it if it’s negative. right_gap = right_gap - 5 + (10*right_gap.bit15)

How does this expression work? If

right_gap

is a positive number, right_gap.bit15 will be zero. So, if

right_gap

is positive, it still gets 5 subtracted from it. However, if

right_gap

is negative, right_gap.bit15 is

“1,” not “0.” This is because of how the two’s complement binary system works in the BASIC Stamp. This means that

right_gap

also gets 10 added to it for a net gain of 5. The same principle applies for the

left_gap

.

Next the pulses are delivered. Note that each

period

argument is an expression. For the

pulsout

command to P12, the

period

is

right_width – right_gap

, and for the

period

delivered to P13, it’s

left_width

– left_gap

.

It’s important to keep track of what very last pulse values delivered to the servos were before fetching the next navigation instruction from EEPROM. The two commands after the

for...next

loop that delivers pulses save the pulse widths.

old_right = right_width - right_gap

old_left = left_width - left_gap

The next time the program returns to the

pulses

subroutine, the first two commands set the initial values:

Page 68

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

pulses:

right_gap = right_width-old_right

left_gap = left_width - old_left

The

for...next

loop works in the pulses subroutine gradually adjusts the pulse values from where they started to the target value.

Your Turn

q

Modify the

data

statement to make the Boe-Bot draw a square with one-meter sides. You can add a second

data

statement right below the first if you need more instructions. Just remember that there should only be one “Q” at the very end of the last

data

statement.

Robotics! Version 1.5

Page

69

Chapter #2: Programming the Boe-Bot to Go Places

Summary and

Applications

A low battery indicator circuit was built and tested using a BASIC

Stamp program. This chapter also introduced a variety of PBASIC programs to make the Boe-Bot execute different maneuvers.

Examples include controlling the Boe-Bot’s distance and turns, along with methods for programming the Boe-Bot to travel measured distances. Examples of speed ramping, EEPROM navigation as well as an example of integrating the navigation algorithms introduced in this chapter also were provided.

Real World Example

When the Boe-Bot’s batteries go below a certain level, the Boe-Bot sends a signal indicating that something went wrong by sending electronic pulses to a piezoelectric speaker. These speakers are common. Think of the number of appliances that beep when you press a key or do something. Your microwave oven, grocery store cash registers, and alarm system keypads all have this feature. It should come as no surprise that each has a microcontroller monitoring the keys on a keypad. Level sensors are also common in industry, where voltage, pressure, temperature and a variety of other conditions have to be controlled. Microcontrollers are often used to monitor these conditions and make an alarm speaker sound when the process goes outside acceptable levels.

Micro-controlled motion is also all around us. Although there may not be that many autonomous rolling robots in your household yet, there are many other gizmos with micro-controlled moving parts. Printer heads and computer disk drives are two examples that use stepper motors. Servos controlled by microcontrollers are also used in a variety of places. Many automobile systems rely on servos to control small moving parts in various engine and emission systems. Industrial servos maintain many factory processes, often in conjunction with the level sensors discussed earlier.

Boe-Bot Applications

Programmed navigation is the foundation for a variety of other Boe-Bot activities. In the Projects section, you’ll work on programming the Boe-Bot to navigate a variety of shapes and on fine tuning some of the navigational algorithms developed in this chapter. In Chapter #3, we’ll use some of these routines to respond to sensor inputs. The navigation routines developed in this chapter will be especially helpful in getting around obstacles that are detected. One of the most popular occupations for autonomous robots is solving mazes, which are full of obstacles. Appendix I has the Boe-Bot competition rules, which feature a variety of obstacles that need to be navigated. Responding automatically to certain situations can increase the Boe-Bot’s ability to navigate features within the maze. For example, when a corner is detected, instead of trying to navigate the corner based solely on sensor input, the Boe-Bot can rely on preprogrammed routines, stored in EEPROM.

Page 70

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

Questions and Projects

Questions

1. How does the Boe-Bot’s low battery indicator work?

2. Name and describe the three arguments needed to make a

freqout

command work.

3. Which argument in Program Listing 2.2 controls the distance of the

forward

routine?

4. What is the

period

of the

pause

before the

stop

in Program Listing 2.2?

5. What are the left and right servo pulse widths, in ms, for forward, backward, left turn and right turn?

6. What PBASIC

for...next

loop feature makes ramping back down as easy as ramping up in Program

Listing 2.4?

7. What is the difference between a routine and a subroutine? What command is used to call a subroutine? What happens when a subroutine is finished? What command signifies that a subroutine is finished, and what does it do?

8. How many memory locations does the BASIC Stamp’s EEPROM have? Where does program memory start in the EEPROM, and which way does it build as the program gets larger? Where does data storage start in the EEPROM, and which way does it build as more data is added? What command is used to retrieve data from the EEPROM?

9. What argument comes after the

if

in an

if...then

statement? What argument comes after the then?

10. How does the

lookdown

command in Program Listing 2.7 make the transition from the letters read from EEPROM to the numbers used in the

branch

command?

Robotics! Version 1.5

Page

71

Chapter #2: Programming the Boe-Bot to Go Places

Exercises

1. Adjust the tone generated in Program Listing 2.1 so the frequency of the tone played by the piezoelectric speaker is 1.5 kHz with a

period

of three seconds.

2. Assume that your program has become quite large, and you need to conserve RAM. Change the

pulse_count

variable declaration in Program Listing 2.2 so that it requires half the RAM currently used (8-bits instead of 16).

3. Increase the

pause

period

between left turn and right turn in Program Listing 2.3 to two seconds.

4. Modify Program Listing 2.4 so that it’s ramping rate doubles.

5. Program Listing 2.5 currently accepts any letter other than “F,” “B,” “R,” and “L” to end the program.

Modify it so that it only accepts the letter “Q.”

6. Modify Program Listing 2.6 so that it can travel up to 65534 pulses in a single subroutine execution?

7. Modify Program Listing 2.7 so that the

lookdown

command is no longer necessary. Hint: Store digits

Projects

instead of letters for direction control.

One aspect of Boe-Bot navigation that was not covered in this chapter is drawing curves. A curve occurs any time the left wheel is not turning the same speed as the right wheel. Curves also occur when the left wheel is accelerating/decelerating at a different rate than the right wheel. Keep in mind that the number of pulses delivered is a way of controlling distance for a given pulse width (speed).

1. The Boe-Bot is being used to transport reactive material, in particular solid sodium and water. If the two react, they explode, leaving your Boe-Bot as a pile of components. In order to carefully transport the chemicals, you will need to start movements with gradually increasing velocity. Create a program that drives the Boe-Bot in a one-meter square with smooth turning transitions.

2. Create a simple movement pattern with several directions, for example F,B,R,R,F,F,L, and lastly F.

These patterns would be stored and read from the EEPROM. When you are done executing the pattern, trace the same pattern backwards.

Page 72

Robotics! Version 1.5

Chapter #2: Programming the Boe-Bot to Go Places

3. Create source code for the following movement patterns:

Figure 2.8: Boe-Bot paths to program.

Robotics! Version 1.5

Page

73

Chapter #2: Programming the Boe-Bot to Go Places

Page 74

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

Chapter #3: Tactile

Navigation with

Whiskers

Tactile Navigation

The Whiskers kit is so named because the kit’s bumper switches look like whiskers, though some argue they look more like antennae. At any rate, whiskers give the Boe-Bot the ability to sense the world around it with tactile inputs. The Boe-Bot can use these whiskers to navigate only by touch. Although the activities in this chapter focus on using just the whiskers, they can also be used with other sensors to increase the Boe-Bot’s functionality.

Activity #1: Building and Testing the Whiskers

Parts

(2) 10 k

resistors

(2) 3-pin headers

(2) 3/8” 4/40 male/female standoffs

(2) ¼” 4/40 machine screws

(2) Boe-Bot bumper wires

(2) Nylon washers size #4

Figure 3.1 Whiskers parts

Build It!

Your #1 point Phillips screwdriver and quarter-inch combination wrench will come in handy here. Before getting started on whisker construction, take a close look at Figure 3.2. Use these pictures as a guide while constructing the mechanical part of the Whiskers kit. Figure 3.3 shows the whiskers wiring diagram. Follow it for making the necessary electrical connections.

Robotics! Version 1.5

Page

75

Chapter #3: Tactile Navigation with Whiskers

Figure 3.2: Pictures of Boe-Bot with Whiskers

q q

Remove the two front screws that hold your

Board of Education to the front standoffs.

Screw in the male/female standoffs included in the Whiskers kit in place of the screws that were just removed.

To

Servos

15 14 13 12

Red

Black

Vdd

X4 X5

Vin

Vss

Rev B

Left

Whisker

X3

ü

TIP

Hold the male/female standoff by the servo port while turning the standoff between the BOE and

Boe-Bot chassis to tighten it. The standoff between the BOE and chassis won’t turn until you loosen the screw that holds it to the chassis. Make sure to retighten it when you’re done.

P7

P6

P5

P4

P3

P2

P15

P14

P13

P12

P11

P10

P9

P8

P1

P0

X2

Board of Education www.stampsinclass.com

(c) 2000

(916) 624-8333

Right

Whisker

q

Place a nylon washer on top of each standoff.

Figure 3.3: Whiskers wiring diagram.

q

Thread each screw removed in the first step through the open loop of a whisker. q

Screw each screw into a standoff sandwiching the loop of the whisker between the screw head and the nylon washer. Make sure the whiskers are oriented as shown in Figure 3.2 and 3.3.

Page 76

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

Whisker Inputs

Figure 3.4 is a schematic representation of the circuit you’ve just built. Each whisker is both the mechanical extension and the ground electrical connection of a normally open, single-pole, singlethrow switch. The BASIC Stamp can be programmed to detect when a whisker is pressed. I/O pins connected to each switch circuit monitor the voltage at the 10 k

pull-up resistor. When a given whisker is not pressed, the voltage at the I/O pin connected to that whisker is 5 V (logic 1). When a whisker is pressed, the I/O line is shorted to ground, so the I/O line sees 0 V (logic 0).

P6

P4

P2

Piezo

Vdd

10 k

Right

Whisker

Vdd

10 k

Left

Whisker

Testing the Whiskers

Testing each whisker can be done with the Debug

Terminal. This time, instead of displaying a printed message, the Debug Terminal is used to display the input voltage seen by the I/O pins connected to the whiskers.

Vss

Vss

Figure 3.4: Whiskers Schematic.

Vss

Each BASIC Stamp I/O pin is connected to a memory location in RAM. You can see these memory locations by viewing the Memory Map. This is the same window used to view the BASIC Stamp’s EEPROM in Chapter 2,

Activity #5. q

Open the Memory Map by selecting Memory Map from the Stamp Editor’s Run menu.

Robotics! Version 1.5

Page

77

Chapter #3: Tactile Navigation with Whiskers

The top three rows in the RAM Map are memory locations connected directly to the I/O pins. The row of numbers across the top indicates the bit address for each location in a given row. The

ins

,

outs

, and

dirs

rows all refer to

I/O registers.

The first row corresponds to the

ins

register, and it refers to a memory location that holds 16 bit values, each of which is either a 1 or a 0. Each bit in the

ins

register monitors the input value for an I/O pin. Bit-0 corresponds to I/O pin P0, bit-1 to P1, and so on all the way up to bit-

15, which corresponds to I/O pin P15.

Each bit in the

outs

register, can be used to set the output value for a given I/O pin to either 5 V or 0 V. When a bit value in the

outs

register is a 1, the output for the corresponding I/O pin is 5 V. When the bit value is 0, the output is 0 V.

Figure 3.5: Ram Map from Memory Map Window.

Since a BASIC Stamp I/O pin can’t be an input and an output at the same time, the direction of each I/O pin is set by the

dirs

register. An I/O pin is set to be either input or output, depending on the value in the

dirs

register.

Program Listing 3.1 is designed to test the whiskers to make sure they are functioning properly. It checks and displays the state of the BASIC Stamp I/O pins connected to the whiskers. All I/O pins default to input every time a PBASIC program starts. This means that the I/O pins connected to the whiskers will function as inputs automatically. As an input, an I/O pin connected to a whisker will cause its bit in the

ins

register to display 1 if the voltage is 5 V (whisker not pressed) and 0 if the voltage is 0 V (whisker pressed). The Debug Terminal can be used to display these values. q

Enter and run Program Listing 3.1 q

This program makes use of the Debug Terminal, so leave the serial cable connected to the BOE while

Program Listing 3.1 is running.

Page 78

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

' Robotics! v1.5, Program Listing 3.1: Testing the Whiskers.

' {$Stamp bs2} ' Stamp Directive. loop:

debug home, "P6 = ", bin1 in6, " P4 = ", bin1 in4

pause 50 goto loop q

Note the values displayed in the Debug Terminal; it should display that both P6 and P4 are equal to 1. q

Check Figure 3.3 so you know which whisker is the “left whisker” and which whisker is the “right whisker”. q

Press the right whisker so that it touches the three-pin header on the right, and note the values displayed in the Debug Terminal again. It should now read: P6 = 1 P4 = 0. q

Press the left whisker into the left three-pin header, and note the value displayed in the Debug Terminal again. This time it should read: P6 = 0 P4 = 1. q

Press both whiskers against both three-pin headers. Now it should read P6 = 0 P4 = 0.

If the whiskers passed all these tests, you’re ready to move on; otherwise, check your program and circuit for errors.

How the Testing the Whiskers Program Works

The only new elements in Program Listing 3.2 are

in6

and

in4

. Instead of word or byte variables, these are bit variables. These bit variables are special because each stores the input value of a particular I/O pin. The variable

in4

refers to bit-4 in the

ins

register and

in6

refers to bit-6. When I/O pin P4 on the BASIC Stamp detects 0 V, the value of

in4

is 0. When I/O pin P4 detects 5 V, the value of

in4

is 1. The

in6

variable works the same way, except that it is monitoring P6 instead of P4.

Robotics! Version 1.5

Page

79

Chapter #3: Tactile Navigation with Whiskers

Your Turn

Assume that you may have to test the whiskers at some later time away from a computer. Since the debug terminal won’t be available, what can you do? One solution would be to program the BASIC Stamp so that it sends an output signal that corresponds to the input signal it’s receiving. One way of doing this would be with a pair of LED circuits and a program that turns the LEDs on and off based on the whisker inputs. Figure 3.6 shows the parts of an LED circuit along with their schematic symbols.

1

2

470

2

1

Extra Parts

(2) Red LEDs

(2) 470

resistors

2

LED

Flat spot

Short

2

1

1 leg

Figure 3.6 Extra parts for testing the whiskers.

FYI

LED stands for light emitting diode. The terminal labeled 1 in figure 3.6 is the LED’s cathode, and the terminal labeled 2 is the LED’s anode. You can usually figure out which of the LED’s two wire leads is connected to the cathode because it’s shorter.

ü

TIP

Just above where the wire leads come out of LED’s plastic case, the outer rim looks round, but if you look carefully, there’s a small area that’s been milled flat. The lead that comes out of the plastic case closest to the milled flat spot is the cathode. If the

LED’s leads have been cut to the same length, look for the flat spot to figure out which lead connects to the LED’s cathode. q

Construct the circuit shown in Figure 3.7.

Page 80

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

P10

P9

Vdd

LED

Vdd

LED

470

470

To

Servos

15 14 13 12

Red

Black

Vdd

X4 X5

Vin

Vss

Rev B

X3

P15

P14

P13

P12

P11

P4

P3

P2

P1

P0

P10

P9

P8

P7

P6

P5

X2

Board of Education www.stampsinclass.com

(916) 624-8333

(c) 2000

Left

Whisker

Right

Whisker

Figure 3.7 (a): add this LED circuit, (b) so the Whiskers circuit looks like this when you’re done.

q

Add these commands to the beginning of Program Listing 3.1: output 9 output 10

These commands change the direction of P9 and P10 from input to output. Now instead of listening for signals, they will be ready to send signals. q

Add these two commands immediately after the

debug

command in Program Listing 3.1: out9 = in4 out10 = in6

Robotics! Version 1.5

Page

81

Chapter #3: Tactile Navigation with Whiskers

These statements set the output values of P9 and P10 equal to the input values at

in4

and

in6

respectively. If

in4 = 1

,

out9

is set to 1. This means that when

in4

sees 5 V,

out9

sends 5 V. If

in4

is 0, which means it detects 0 V, then

out9

will also be 0, sending 0 V. q

Run your modified version of Program Listing 3.1, and test the whiskers using the LEDs to indicate that the BASIC Stamp has detected a whisker being pressed.

Activity #2: Navigation With Whiskers

In Activity #1, the BASIC Stamp was programmed to detect whether or not a given whisker was pressed. In this activity, the BASIC stamp will be programmed to use this information to guide the Boe-Bot. When the

Boe-Bot is rolling along and a whisker is pressed, it means the Boe-Bot bumped into something. A navigation program needs to take this input, decide what it means, and call a navigational routine to back up from the obstacle and go in a different direction.

Programming the Boe-Bot to Navigate Based on Whisker Inputs

Program Listing 3.2 is called a roaming program. The program makes the Boe-Bot go forward until it encounters an obstacle. In this case, the Boe-Bot knows when it encounters an obstacle by bumping into it with one or both of its whiskers. As soon as the obstacle is detected by the whiskers, navigational routines and subroutines developed in Chapter 2 are used to make the Boe-Bot back up and turn. Then, the Boe-Bot resumes forward motion until it bumps into another obstacle.

When a whisker is pressed, due to an obstacle, the normally open switch closes. I/O pins P6 and P4 are set to input and used to monitor the states of the whiskers. The two whiskers may be in one of four states:

(1) Both high – no objects detected

(2) Left low, right high – object detected on the left

(3) Right low, left high – object detected on the right

(4) Both low – indicates a head-on collision with a wide object such as a wall

Program Listing 3.2 shows an example of how the states of the whiskers can be used to select the appropriate

Boe-Bot navigation routine. For example, state 1 means the Boe-Bot can continue forward. State 2 means that the Boe-Bot should back up, then turn right. State 3 means the Boe-Bot should back up and turn left, and state 4 would be a good time to back up and make a U-turn. q

Run Program Listing 3.2, and see how the Boe-Bot behaves when it bumps into a wall.

Page 82

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

' Robotics! v1.5, Program Listing 3.2: Roaming with Whiskers.

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

pulse_count var byte ' For...next loop counter.

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

low 12

low 13

' Set P2 to output.

' Start/restart signal.

' Set P12 and 13 to output-low.

'----- Main Routine -------------- main:

check_whiskers:

if in6 = 0 and in4 = 0 then u_turn

if in6 = 0 then right_turn

if in4 = 0 then left_turn

forward:

pulsout 12,500

pulsout 13,1000

' Check each whisker.

' Backwards if both switches close.

' Right if left switch closes.

' Left if right switch closes.

' If no detect, one forward pulse.

pause 20 goto main

left_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 500

'----- Navigation Routines -------

pulsout 13, 500

pause 20

next

goto main

right_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 1000

pulsout 13, 1000

' Check again.

' Left turn routine.

' Call Backward: before turning.

' Right turn routine.

' Call Backward: before turning.

Robotics! Version 1.5

Page

83

Chapter #3: Tactile Navigation with Whiskers

pause 20

next

goto main

u_turn:

gosub backward

for pulse_count = 0 to 70

pulsout 12, 500

pulsout 13, 500

pause 20

next

goto main

'----- Navigation Subroutine -----

backward:

for pulse_count = 0 to 70

pulsout 12, 1000

pulsout 13, 500

pause 20

' U-turn routine.

' Call Backward: before turning.

next

return

The mechanical design of the whiskers is by no means foolproof. Table 3.1 lists common problems you may encounter with some suggested solutions.

Problem

Boe-Bot backs up too far/not far enough.

Boe-Bot drives up side of wall because whiskers didn’t catch hold of an object.

Dead-center object isn’t detected by whiskers.

Switches don’t appear to work properly.

Table 3.1: Whisker Troubleshooting

Try This

Adjust the

for. . . next

arguments in the program listing. They may be increased or decreased to increase or decrease how far the Boe-Bot rotates when it turns/backs up.

Increase the resistance of a whisker against the surface of an object by bending whiskers in a different angle. Alternatively, try dipping the whiskers in a coating material such as rubber cement.

Bend whiskers inward.

Repeat Activity #1.

Page 84

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

How Roaming with Whiskers Works

The

if...then

statements in the

main

routine first check the whiskers for any states that require attention.

If both whiskers are pressed, the

u_turn

routine is called. If just the left whisker is pressed, it contacts the post connected to P6, and the

right_turn

routine is called. If the right whisker is pressed, it contacts the post connected to P4, and the

left_turn

routine is called. main:

check_whiskers:

if in6 = 0 and in4 = 0 then u_turn

if in6 = 0 then right_turn

if in4 = 0 then left_turn

If none of the whiskers are pressed, the default action is to execute a modified version of the

forward

routine. The

forward

routine has been modified so that it only delivers a single pulse before looping back to check the whiskers. The key to understanding how the

main

routine is structured is that it checks the whiskers between every pulse sent to the servos when the Boe-Bot is moving forward. Notice that the

pulsout

and

pause

statements in the forward routine are not nested in a

for...next

loop. Just a single pulse is sent to the servos. After the pulse, the program goes to the

main:

label, and checks the whiskers again. This process happens quickly enough that it’s not even important to reduce the

pause

period

in the forward routine.

forward:

pulsout 12,500

pulsout 13,1000

pause 20

goto main

When the whiskers detect an object, the Boe-Bot is already too close to the object. To get around the object, the Boe-Bot has to back up first. This is easy to fix with a subroutine. For example, the

left_turn

routine shown below calls the

backward

subroutine using the command

gosub backward

. The great thing about subroutines is that they return program control to the line immediately following the subroutine call. So, after

backward

is done, the

for...next

loop in the

left_turn

routine begins. Another useful feature of having a

backward

subroutine is that it returns program control to the right place. If

right_turn

instead of

left_turn

calls a subroutine labeled

backward:

, program control is returned to the

right_turn

routine.

Robotics! Version 1.5

Page

85

Chapter #3: Tactile Navigation with Whiskers

left_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 500

pulsout 13, 500

pause 20

next

goto main

The

backward:

subroutine is just a modified version of the

backward:

routine developed in Chapter #2,

Activity #2. Instead of ending with the

goto main

command, it ends with the

return

command. The

return

command works well in this situation because it returns program control to whichever of the three navigation routines called it.

backward:

for pulse_count = 0 to 70

pulsout 12, 1000

pulsout 13, 500

pause 20

next

return

Your Turn

The

for...next

loop

end

arguments in the

right_turn

and

left_turn

routines can be adjusted for more or less turn, and the backward routine can have its

end

value adjusted to back up less for navigation in tighter spaces. q

Experiment with the

for...next

loop

end

argument values in navigation routines in Program Listing 3.2.

Activity #3: Looking at Multiple Inputs as Binary Numbers

Here is another way to look at States 1 through 4 discussed in Activity #2. Instead of viewing them as states, view them as 2-bit binary numbers. For those of you unfamiliar with binary counting numbers, the binary numbers 00, 01, 10, and 11 are equal to 0, 1, 2, and 3 in decimal. Table 3.2 shows how the whiskers can create these four binary numbers.

Page 86

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

Binary Value of state

0000

0001

Decimal Value of State

Table 3.2: Whisker States in Binary

Branch Action Based on Value of State

0

1

in6 = 0

and

in4 = 0

Both whiskers detect object, execute

u_turn in6 = 0

and

in4 = 1

Left whisker detects object, execute

right_turn

0010

0011

2

3

in6 = 1

and

in4 = 0

Right whisker detects object, execute

left_turn in6 = 1

and

in4 = 1

Neither whisker detects object, execute

forward

Reprogramming for Roaming with Whiskers

Program Listing 3.3 does the same thing as Program Listing 3.2. However, it processes the whisker inputs by placing them in the lower two bits of a variable. This variable now stores a binary number that is then used by a branch command to call the appropriate navigation routine.

' Robotics! v1.5, Program Listing 3.3: Roaming with Whiskers Again.

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

pulse_count var byte

state var nib

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine -------------- main:

check_whiskers:

state.bit1 = in6

state.bit0 = in4

' For...next loop counter.

' Set P2 to output.

' Signal program start/restart.

' Set P12 and 13 to output-low.

' Create binary number by saving in6

' in state.bit1 & in4 in state.bit0.

Robotics! Version 1.5

Page

87

Chapter #3: Tactile Navigation with Whiskers

' Branch to a navigation routine based on the value of the state variable.

branch state, [u_turn, right_turn, left_turn, forward]

' Deliver a single forward pulse. forward:

pulsout 12,500

pulsout 13,1000

pause 20

goto main

'----- Navigation Routines -------

left_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 500

pulsout 13, 500

' Left turn routine.

' Call backward: before turning.

pause 20

next

goto main

right_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

u_turn:

gosub backward

for pulse_count = 0 to 70

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

' Right turn routine.

' Call backward: before turning.

' U-turn routine.

' Call backward: before turning.

Page 88

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

'----- Navigation Subroutine -----

backward:

for pulse_count = 0 to 70

pulsout 12, 1000

pulsout 13, 500

' Used by all navigation routines.

pause 20

next

return

How Roaming with Whiskers Again Works

q

Look up the

branch

command in Appendix C: PBASIC Quick Reference or in the BASIC Stamp Manual before continuing

.

A nibble (

nib

) variable named

state

is added to the declarations section of Program Listing 3.3. A nibble is

4-bits, and can store a number between 0 (binary 0000) and 15 (binary 1111). The lowest two bits of the nibble are used to store the state of each whisker. Two bits can be used to count from 0 to 3 (four values). declarations:

pulse_count var byte

state var nib

The

main

routine consists of two statements followed by a

branch

command. The first statement sets the binary value of bit-1 in the

state

variable equal to the binary value from

in6

. The second sets the value of bit-0 of the

state

variable equal to the value of

in4

. main:

check_whiskers:

state.bit1 = in6

state.bit0 = in4

' check each whisker

branch state, [u_turn, right_turn, left_turn, forward]

Your Turn

q

Insert this

debug

command just before the

branch

command in Program Listing 3.3. debug home, “binary “, bin4 state, “ = decimal “, dec1 state

Robotics! Version 1.5

Page

89

Chapter #3: Tactile Navigation with Whiskers

q

Set the Boe-Bot on something so that when the program runs, the wheels don’t touch the ground. This is so you can leave the Boe-Bot plugged into the serial cable while the program runs. q

Run the program and observe the Debug Terminal output as you test the whiskers.

Activity #4: Artificial Intelligence and Deciding When You’re Stuck

You may have noticed that the Boe-Bot gets stuck in corners. As the Boe-Bot enters the corner, its whisker touches the wall on the left, so it turns right. When the Boe-Bot moves forward again, its right whisker bumps the wall on the right, so it turns left. Then it turns and bumps the left wall again, and the right wall again, and so on, until somebody rescues it from its predicament.

Programming to Escape Corners

The corner problem can be fixed by adding a counter that tracks the transitions between states 1 and 2 in

Program Listing 3.3. Program Listing 3.4 below is a modified version of Program Listing 3.3 that detects and counts the number of instances of one whisker detecting an obstacle immediately after the other.

' Robotics! v1.5, Program Listing 3.4: Escaping Corners.

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations -------

pulse_count var byte

state var nib

old_state var nib

counter var nib

'----- Initialization -----

output 2

freqout 2, 2000, 3000

low 12

low 13

old_state = %0001

'----- Main Routine ------- main:

check_whiskers:

state.bit1 = in6

state.bit0 = in4

' For...next loop counter.

' Stores whisker inputs as binary numbers.

' Stores state from previous pulse.

' Counting variable for tracking events.

' Set P2 to output.

' Signal program is starting/restarting.

' Set P12 and 13 to output-low.

' Initialize old_state.

' Store whisker outputs in state.

Page 90

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

' Later in the program, a counter increments each time alternate whiskers are

' pressed. The if...then statement below tests to see if the same whisker was

' pressed twice in a row. If yes, then reset counter variable.

if old_state <> state then no_reset ' If same whisker twice then reset.

' Reset counter. counter = 0

no_reset: ' Label for if...then to skip to.

' If old_state exclusive-or state is not binary-0011, then skip to

' the continue: label. Otherwise increment counter and decide if it's time

' to do a u-turn.

if old_state ^ state <> %0011 then continue

counter = counter +1

' Save copy of state before update. old_state = state

if counter = 4 then u_turn

' Reset counter & branch based on value of state.

continue:

branch state, [u_turn, right_turn, left_turn, forward]

forward:

pulsout 12,500

pulsout 13,1000

pause 20

goto main

'----- Navigation Routines -------

left_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 500

pulsout 13, 500

pause 20

next

goto main

right_turn:

gosub backward

for pulse_count = 0 to 35

' Left turn routine.

' Call backward: before turning.

' Right turn routine.

' Call backward: before turning.

Robotics! Version 1.5

Page

91

Chapter #3: Tactile Navigation with Whiskers

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

u_turn:

gosub backward

for pulse_count = 0 to 70

pulsout 12, 500

pulsout 13, 500

pause 20

next

counter = 0

goto main

'----- Navigation Subroutine -----

backward:

for pulse_count = 0 to 70

pulsout 12, 1000

pulsout 13, 500

pause 20

' U-turn routine.

' Call backward: before turning.

next

return

How Escaping Corners Works

Nibble variables named

old_state

and

counter

are added to the

declarations

section for keeping a running history on turns.

Old_state

tracks the previous state after the

state

variable is updated with the current whisker values.

Counter

keeps track of how many times in a row

state

transitions between one and two and back to one again. declarations:

pulse_count var byte

state var nib

old_state var nib

counter var nib

The

check_whiskers

routine is to designed check the whiskers as before, but code also has been added that detects the “stuck in a corner” condition. This condition is indicated by four right-left-right (or left-right-left) transitions. Before updating the

state

variable with new whisker values, the statement

old_state = state

saves a copy of the previous state for comparison. Then the

state

variable is updated with the current whisker readings, just as in Program Listing 3.3.

Page 92

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

Exclusive-or

The term exclusive-or

(XOR) refers to one of the operations in Boolean

Algebra, which is used on binary numbers and expressions. Here’s how

XOR works:

0 XOR 0 = 0

0 XOR 1 = 1

1 XOR 0 = 1

1 XOR 1 = 0

The PBASIC operator for

XOR is the ^ character.

When you have an expression such as variable_1 ^ variable 2, it means that each bit in variable_1 gets exclusiveorred with the corresponding bit in variable_2. In other words, bit-0 of variable_1 gets exclusive-orred with bit_0 of vriable_2. Bit-1 of variable_1 gets exclusiveorred with bit-1 of variable_2 and so on.

The NOT operator is another Boolean operator introduced in this chapter’s

Questions and Projects section. The BASIC Stamp

Manual introduces more

Boolean operators in the

Binary Operators section.

Boolean operators are further discussed in the section that explains the

if...then

command.

check_whiskers:

old_state = state

state.bit1 = in6

state.bit0 = in4

The stuck in a corner condition rests on the assumption that alternate whiskers are pressed several consecutive times. However, if the Boe-Bot encounters an obstacle with the same whisker twice in a row, it must not be stuck in a corner. If this happens, the program should start counting from zero again. The command if

old_state <> state then no_reset

tests for the same whisker being pressed twice in a row. If a whisker has not been pressed twice in a row, the program skips to the

no_reset:

label; otherwise, it resets the counter.

if old_state <> state then no_reset

counter = 0

no_reset:

Next, the program tests for whether or not an alternate whisker has been pressed by making use of the exclusive-or (

^

) operator. If the

old_state

exclusive-or the new

state

is not equal to binary 0011, it means that the opposite sensor was not touched. In this case, the

if...then

statement makes the program skip to the

continue:

label.

if old_state ^ state <> %0011 then continue

On the other hand, if the statement is not true (if

old_state

XOR

state

is equal to binary 0011), then the

counter

variable is incremented. Another

if...then

tests to see if

counter

has reached 4. If it has, the

u_turn

routine is executed.

If not the program simply branches to the appropriate maneuver based on the value of

state

. check_counter:

counter = counter +1

if counter = 4 then u_turn continue:

branch state, [u_turn, right_turn, left_turn, forward]

Robotics! Version 1.5

Page

93

Chapter #3: Tactile Navigation with Whiskers

When the count of successive whisker detections on opposite whiskers reaches 4, the

u_turn

routine is called. The

u_turn

routine has been modified so that it resets the counter any time it gets called. That way, the Boe-Bot can start counting from 0 each time it encounters a corner.

u_turn:

gosub backward ' Call backward: before turning.

for pulse_count = 0 to 75

pulsout 12, 500

pulsout 13, 500

pause 20

next

counter = 0

goto main

Your Turn

One of the

if...then

statements in Program Listing 3.4 checks to see if counter has reached 4. Try reducing and increasing the

condition

argument of this

if...then

statement and note the effect. Also note if reducing the value has any effect on normal roaming. Reducing it to 0, 1, or 2 could cause interesting problems.

Page 94

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

Summary and

Applications

In this chapter, instead of navigating from a pre-programmed list, the

Boe-Bot was programmed to navigate based on sensory inputs. In this case, the sensory inputs were whiskers. The BASIC Stamp was programmed to test these whisker sensors and display the test results using two different media, the Debug Terminal and LEDs.

When properly wired, these switches can show one voltage (5 V) at the switch’s contact point when it’s open, and a different voltage (0 V) when it’s closed. Voltages of 5 and 0 V are transistor-transistor logic (TTL) levels, and the BASIC Stamp’s input registers interpret these levels as “1” and “0,” respectively.

PBASIC programs were developed to make the BASIC Stamp check the whiskers between each servo pulse.

Based on the state of the whiskers, the programs’

main:

routines either made the Boe-Bot continue forward, or called navigational routines developed in the previous chapter to guide the Boe-Bot away from obstacles.

As an example of artificial intelligence, a program was developed that enabled the Boe-Bot to detect when it got stuck in a corner. In this case, XOR Boolean logic expression and a counter simplified the task.

Real World Example

Automated sensors are all around you. When you go to a grocery or convenience store, sensors are often responsible for opening the door for you. Microcontrollers scan keypads in a fashion similar to the way the

BASIC Stamp scans the whiskers to detect whether or not they have been pressed. The information is processed and results as an output. In the case of a door opener, the result is a servo- or motor-controlled door being opened.

Robotic machinery of many shapes and sizes also relies on a variety of tactile switches wired similarly to the whiskers. Robotic arms sometimes use these switches to detect when they’ve encountered the object they are programmed to pick up and place elsewhere. Factories use these switches to count objects on a production line, and also for aligning objects for industrial processes. In all these instances, the switches provide inputs that dictate some other form of programmed output. Be it a calculator, robot or a production line, the switch input is electronically monitored. Based on the state of the switches, the calculator display updates, the robot arm grabs the object, or the factory production line reacts with motors or servos to guide the product in a pre-programmed fashion.

Boe-Bot Application

This chapter introduced input-based Boe-Bot navigation. The next three chapters will focus on using different types of sensors to give the Boe-Bot vision. Both vision and touch open up a lots of opportunities for the Boe-Bot to navigate in increasingly complex environments.

Robotics! Version 1.5

Page

95

Chapter #3: Tactile Navigation with Whiskers

Questions and Projects

Questions

1. What kind of electrical connection is a whisker?

2. What are the three types of BASIC Stamp I/O registers?

3. If an I/O pin is set to output, what register does this effect?

4. When a whisker is pressed, what voltage occurs at the I/O pin monitoring it? What binary value will occur in the input register? If I/O pin P8 is used to monitor the input pin, what value does

in8

have when a whisker is pressed, and what value does it have when a whisker is not pressed?

5. What direction does an I/O pin have to be set to make an LED circuit function?

6. Which whisker is

in6

connected to? How about

in4

?

7. What command can you use to replace multiple

if...then

statements?

8. What are the three PBASIC programming elements that were used in this chapter to track events and make decisions based on those events?

Exercises

1. Assume that Program Listing 3.1 takes 1 ms to display each character and another ms to execute the loop. What is the sampling rate at which the BASIC Stamp checks each whisker?

2. In Program Listing 3.2, determine the sampling rate when the Boe-Bot rolls forward. Also determine the sampling rate while the Boe-Bot is executing maneuvers. Hint: the second portion of this exercise is a “trick question.”

3. Assume that the label of the

left_turn

routine was changed to

turn_left

. Write down any necessary changes to the relevant commands in Program Listings 3.2, 3.3, and 3.4.

Page 96

Robotics! Version 1.5

Chapter #3: Tactile Navigation with Whiskers

4. Describe the

debug

display after making the modification in the Your Turn section of Activity #3.

Projects

1. The XOR operator was introduced as a Boolean operator in this chapter. The PBASIC NOT operator is another Boolean operator denoted by the tilde character (~). You can type it on most computer keyboards by pressing Shift and the key just below the Esc key. Here’s how NOT works:

NOT 0 = 1

NOT 1 = 0

In the Your Turn section of Activity #1, you used LEDs to display the states of the whiskers. When you did so, the LEDs turned on when the whiskers were pressed. Use the PBASIC NOT operator (~) to make it so that each LED is on when a whisker is not pressed. The LED should then turn off when the whisker is pressed.

Modify the program further so that the LED flashes at 2 Hz when the whisker is pressed. Hint, you will need to use a loop and

pause

statements. Try three more modifications to Program Listing 3.1, and run the program between each modification. Make it so that the LED flashes at 4 Hz, 10 Hz, and

100 Hz when the whisker is pressed.

2. Modify Program Listing 3.2 so that the Boe-Bot moves backward slowly while both whiskers are pressed. Otherwise, it stays still. Modify the program further so that the Boe-Bot rotates counterclockwise when the left whisker is pressed and clockwise then the right whisker is pressed.

When the program is finished, fine tune the speed response so that it appears that you are pushing the Boe-Bot around by its whiskers.

3. Challenge: Modify Program Listing 3.4 so that the Boe-Bot travels in a circular path. Modify it so that if you tap the inside whisker, the circular path will become 5 cm. narrower in diameter. Also make it so that if you tap the whisker on the outside of the Boe-Bot’s circular path, the diameter will increase by 5 cm.

When you’ve got whisker control over the diameter of the Boe-Bot’s circle, program the Boe-Bot to remember this diameter, even after the power is reset. The

write

command can be used to save data to EEPROM. EEPROM data is called non-volatile. Whereas the BASIC stamp’s RAM is erased with each reset (volatile), the EEPROM can save the data for use the next time the BASIC Stamp gets power (non-volatile). From the PBASIC quick reference, the format for the

write

command is:

Robotics! Version 1.5

Page

97

Chapter #3: Tactile Navigation with Whiskers write address, data

Since we aren’t using any

data

statements in this program, EEPROM address 0 can be used to record the value of the PBASIC parameter that determined the circle’s diameter.

Page 98

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

Is Your Boe-Bot a Photophile or a Photophobe?

Chapter #4: Light

Sensitive

Navigation with

Photoresistors

The photoresistors in your kit can be used to make your Boe-

Bot detect variations in light level. With some programming, your Boe-Bot can be transformed into a photophile (a creature attracted to light), or a photophobe (a creature that tries to avoid light).

To sense the presence and intensity of light you’ll build a couple of photoresistor circuits on your Boe-Bot. A photoresistor is a light-dependent resistor (LDR) that covers the spectral sensitivity similar to that of the human eye. The active elements of these photoresistors are made of Cadmium Sulfide (CdS). Light enters into the semiconductor layer applied to a ceramic substrate and produces free charge carriers. A defined electrical resistance is produced that is inversely proportional to the illumination intensity. In other words, darkness produces high resistance, and high illumination produces very small amounts of resistance.

The specific photoresistors included in the Boe-Bot kit are EG&G Vactec (#VT935G). If you need additional photoresistors they are available from Parallax as well as from many electronic component suppliers. See

Appendix A: Boe-Bot Parts Lists and Sources. The specifications of these photoresistors are shown in Figure

4.1:

Figure 4.1: EG&G Vactec

Photoresistor Specifications

Illuminance is a scientific name for the measurement of incident light. The unit of measurement of illuminance is commonly the "foot-candle" in the English system and the "lux" in the metric system. While using the photoresistors we won't be concerned about lux levels, just whether or not illuminance is higher or lower in certain directions. The Boe-Bot can be programmed to use the relative light intensity information to make navigation decisions. For more information about light measurement with a microcontroller, take a look at Earth Measurements Experiment #4, Light on Earth and Data Logging.

Robotics! Version 1.5

Page

99

Chapter# 4: Light Sensitive Navigation with Photoresistors

Activity #1: Building and Testing Photosensitive Eyes

Parts

Figure 4.2 shows the new parts introduced in this experiment along with their schematic symbols. Below is a list of the parts you’ll need. Both parts types of parts are nonpolar, meaning that terminals 1 and

2 as shown may be swapped without affecting the circuit.

(1) Piezoelectric speaker

(2) Photoresistors

(2) 0.1

µ

F capacitors

(2) 0.01

µ

F capacitors

(2) 220

resistors

(misc.) jumper wires

1

2

1

2

1

2

.1 µF

.01 µF

1

1

1

2

2

2

Figure 4.2: Photoresistor and capacitor circuit symbols and parts.

Build It!

Figure 4.3 shows (a) the resistor/capacitor (RC) circuit for each photoresistor and (b) a breadboard example of the circuit. A photoresistor is an analog device. Its value varies continuously as illuminance, another analog value, varies. The photoresistor’s resistance is very low when it’s light-sensitive surface is placed in direct sunlight. As the light level decreases, the photoresistor’s resistance increases. In complete darkness, the photoresistor’s value can increase to more than 1 M

. Even through the photoresistor is analog, its response to light is nonlinear. This means if the input source (illuminance) varies at a constant rate, the photoresistor’s value does not necessarily vary at a constant rate.

Page 100

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

P5

P3

P2

220

220

Piezo

Vdd

.01 µF

Vdd

.01 µF

To

Servos

15 14 13 12

X3

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

P7

P6

X2

Red

Black

Vdd

X4 X5

Vin Vss

Rev B

Vss

Vss Vss

(a) (b)

Figure 4.3: (a) Two photoresistor RC circuits for measurement of resistance that varies with light, and (b) breadboard

example of the circuit.

ü

TIP

Remember: The servo circuits are not shown in the schematics any more, but they are still shown in the breadboard diagrams. All activities from Chapter #2 onward are designed so that the servos’ headers can remain plugged into servo ports 12 and 13 at all times.

Programming to Measure the Resistance

The circuit in Figure 4.3 (a) was designed for use with the PBASIC

rctime

command. This command can be used with an RC circuit where one value, either R or C, varies while the other remains constant. The

rctime

command lends itself to measuring the variable values because it takes advantage of a time varying property of RC circuits. The time it takes for the voltage on an RC circuit to change voltage depends on R

×

C, the RC time constant. The RC time constant is often denoted by the Greek letter Tau (

τ

).

Robotics! Version 1.5

Page

101

Chapter# 4: Light Sensitive Navigation with Photoresistors

For one of the RC circuits shown in Figure 4.3 (a), the first step in setting up the

rctime

measurement is charging the lower plate of the capacitor to 5 V. Setting the I/O pin connected to the lower capacitor plate by the 220

resistor high for a few ms takes care of this. Next, the

rctime

command can be used to take the measurement of the time it takes the lower plate to discharge from 5 to 1.4 V. Why 1.4 V? Because that’s the

BASIC Stamp I/O pin’s threshold voltage. When the voltage at an I/O pin set to input is above 1.4 V, the value in the input register bit connected to that I/O pin is “1.” When the voltage is below 1.4 V, the value in the input register bit is “0.”

The

rctime

command for the circuit shown in Figure 4.3 measures how long it takes for the voltage at the lower plate of the capacitor to fall from 5 to 1.4 V. This time varies according to the formula:

R t

×

C

= ln(

V initial

V final

)

R t

×

0 .

01

×

10

6

=

5 V ln(

1.4

V

) s t

= ln(3.57)

×

R

×

0 .

01

×

10

6 s t

=

1 .

27

×

10

8

×

R s ( 4 .

1 )

Equation 4.1 indicates that the time it takes the voltage at the lower plate of the capacitor in one of the

Figure 4.3 (a) RC circuits to drop from 5 to 1.4 V is directly proportional to the photoresistor’s resistance.

Since this resistance varies with illuminance (exposure to varying levels of light), so does the time. By measuring this time, relative light exposure can be inferred.

The

rctime

command changes the I/O pin from output to input. As soon as the I/O pin becomes an input, the voltage at the lower plate of the capacitor starts to fall according to the time equation just discussed. The

BASIC Stamp starts counting in 2

µ s increments until the voltage at the capacitor’s lower plate drops below

1.4 V.

ü

TIP

For Best Results: Eliminate direct sunlight; it’s too bright for the photoresistor circuits.

Page 102

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

q q

Run Program Listing 4.1. It demonstrates how to use the

rctime

command to read the photoresistors.

This program makes use of the Debug Terminal, so leave the serial cable connected to the BOE while

Program Listing 4.1 is running.

' Robotics! v1.5, Program Listing 4.1: Photoresistor rctime Display

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

left_photo var word

right_photo var word

'----- Initialization ------------

debug cls

'----- Main Routine -------------- main:

' For storing measured RC times of

' the left & right photoresistors.

' Open and clear a Debug Terminal.

' Measure RC time for right photoresistor.

high 3

pause 3

rctime 3,1,right_photo

' Measure RC time for left photoresistor.

' Set P3 to output-high.

' Pause for 3 ms.

' Measure RC time on P3.

high 5

pause 3

rctime 5,1,left_photo

' Set P5 to output-high.

' Pause for 3 ms.

' Measure RC time on P5.

' Display RC time measurements using Debug Terminal.

debug home, "L ", dec5 left_photo, " R ", dec5 right_photo goto main

How Photoresistor Display Works

Two word variables,

left_photo

and

right_photo

are declared for storing the RC time values of the left and right photoresistors. The

main

routine then measures and displays the RC times for each RC circuit. The

Robotics! Version 1.5

Page

103

Chapter# 4: Light Sensitive Navigation with Photoresistors

code for reading the right RC circuit is shown below. First, the I/O pin P3 is set to output-high. Next, a 3 ms pause allows enough time for the capacitor to discharge. After 3 ms, the lower plate of the capacitor is close enough to 5 V and is ready for the

rctime

measurement. The

rctime

command measures the RC time on I/O pin P3, with a beginning state of “1” (5 V), and stores the result in the

right_photo

variable. Remember, the value stored in

right_photo

is a number. This number tells how many 2

µ s increments passed before the voltage at the lower plate of the capacitor passed below the I/O pin’s 1.4 V threshold.

high 3

pause 3

rctime 3,1,right_photo

Your Turn

q

Try replacing one of the 0.01

µ

F capacitors with a 0.1

µ

F capacitor. Which circuit fares better in bright light, the one with the larger (0.1

µ

F) or the one with the smaller (0.01

µ

F) capacitor? What is the effect as the surroundings get darker and darker? Do you notice any symptoms that would indicate that one or the other capacitor would work better in a darker environment? q

Make sure to restore your circuit to its original state before moving on to the next activity.

Activity #2: A Light Compass

If you focus a flashlight beam in front of the Boe-Bot, the circuit and programming techniques just discussed can be used to make the Boe-Bot turn so that it’s pointing at the flashlight beam. Make sure the photoresistors are pointed so that they can make a light comparison. Aside from each being pointed 45

° outward from the center-line of the Boe-Bot, they also should be oriented so they are pointing 45

° downward from horizontal. In other words, point the faces of the photoresistors down toward the table top.

Then, use a bright flashlight to make the Boe-Bot track the direction of the light.

Programming the Boe-Bot to Point at the Light

Getting the Boe-Bot to track a light source is a matter of programming it to compare the value measured at each photoresistor. Remember that as the light gets dimmer, the photoresistor’s value increases. So, if the photoresistor value on the right is larger than that of the photoresistor on the left, it means it’s brighter on the left. Given this situation, the Boe-Bot should turn left. On the other hand, if the

rctime

of the photoresistor on the left is larger than that of the photoresistor on the right, the right side is brighter and the

Boe-Bot should turn right.

Page 104

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

To keep the Boe-Bot from changing directions too often, a parameter for deadband is introduced. Deadband is a range of values wherein the system makes no attempt at correction. If the numbers go above or below the deadband, then the system corrects accordingly. The most convenient way to measure for deadband is to subtract the left

rctime

from the right

rctime

, or visa versa, then take the absolute value. If this absolute value is within the deadband limits, then do nothing; if otherwise, program an appropriate adjustment. q

Enter and run Program Listing 4.2. q

Shine a bright flashlight in front of the Boe-Bot. When you move the flashlight, the Boe-Bot should rotate so that it’s pointing at the flashlight beam. q

Instead of using a flashlight, use your hand to cast a shadow over one of the photoresistors. The Boe-Bot should rotate away from the shadow.

' Robotics! v1.5, Program Listing 4.2: Light Compass

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

left_photo var word

right_photo var word

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine -------------- main:

' Measure RC time for right photoresistor.

high 3

pause 3

rctime 3,1,right_photo

' Measure RC time for left photoresistor.

high 5

pause 3

rctime 5,1,left_photo

' For storing measured RC times of

' the left & right photoresistors.

' Set P2 to output.

' Declare a variable for counting.

' Set P12 and 13 to output-low.

' Set P3 to output-high.

' Pause for 3 ms.

' Measure RC time on P3.

' Set P5 to output-high.

' Pause for 3 ms.

' Measure RC time on P5.

Robotics! Version 1.5

Page

105

Chapter# 4: Light Sensitive Navigation with Photoresistors

' Take the difference between right_photo and left_photo, then decide what to do.

if abs(left_photo-right_photo) < 2 then main

if left_photo > right_photo then right_pulse

if left_photo < right_photo then left_pulse

'----- Navigation Routines ------- left_pulse:

pulsout 13, 500

pause 20

pulsout 12, 500

' Apply one pulse to left then

' go back to main routine. goto main right_pulse:

pulsout 12, 1000

pulsout 13, 1000

pause 20

' Apply one pulse to right then goto main ' go back to main routine.

How the Light Compass Works

Program Listing 4.2 takes RC time measurements and first checks to see if the difference between the values returned by the

rctime

commands fall in the deadband using the command: if abs(left_photo - right_photo) < 2 then main

If the difference between RC times is within the deadband, the program jumps to the

main:

label. If the measured difference in RC times is not within the deadband, two

if...then

statements decide which routine to call,

left_pulse

or

right_pulse

.

if left_photo > right_photo then right_pulse

if left_photo < right_photo then left_pulse

The

left_pulse

routine is shown below. Note that the

pulsout

commands and the

pause

command are not nested within a

for...next

loop. Instead, just one single pulse with a slightly smaller than usual

pause

is delivered, then control is returned to the

main

routine. This allows the program to check and update the photoresistor values between each servo pulse. Note that the pause value is not 20 ms. This is because each

rctime

command takes a certain amount of time, which can be subtracted from the necessary

pause

Page 106

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

period

. The average of the combined pauses and RC times was 10 ms for the lighting conditions used in this example. Your lighting conditions are likely to be different.

left_pulse:

pulsout 12, 500

pulsout 13, 500

pause 10

goto main

Your Turn

In a darker area, not only will the photoresistor values be larger, so will the difference between them. You may have to increase the deadband in low ambient light to detune the Boe-Bot to small and changing variations in light. The lower the light levels, the less you need the

pause

statements. If the Boe-Bot’s performance starts to decrease, it’s probably because the time between pulses has exceeded 40 ms. The first line of defense for this problem is to reduce the

pause period

in each subroutine to zero. The second line of defense is to check photoresistors during alternate pulses. That way, after the first pulse, the right photoresistor could be checked. Then, after the second pulse, the left photoresistor could be checked. You can try your hand at developing code that does this in this chapter’s Projects section.

The deadband value is currently set to “2” in the expression:

if abs(left_photo-right_photo) < 2 then main q

Experiment with different ambient light levels and their effect on deadband by trying this experiment in lighter and darker areas. In lighter areas, the deadband value can be made smaller, even zero. In darker areas, the deadband value should be increased. q

Swap the conditions in the second and third

if...then

statement in Program Listing 4.2. Then re-run the program. Now your Boe-Bot points away from the light.

Activity #3: Follow the Light!

Simply by adding some forward motion to your Boe-Bot, you can turn it into a light-seeking robot, a photophile. An interesting experiment to try is to program the Boe-Bot to move forward and seek out light.

Then, take it into a dark room with the door open to a brighter room. Assuming there are no obstacles in its way, the Boe-Bot will make its way to the door and exit the dark room.

Robotics! Version 1.5

Page

107

Chapter# 4: Light Sensitive Navigation with Photoresistors

Programming for Light Following

Programming the Boe-Bot to follow light requires that only a few modifications to Program Listing 4.2 be made. The main change is that measurements within the deadband resulted in no motion in Program Listing

4.2. In Program Listing 4.3, when the difference between RC times falls within the deadband, it results in forward motion. Let’s see how it works.

' Robotics! v1.5, Program Listing 4.3: Light Follower

' {$Stamp bs2}

'----- Declarations --------------

left_photo var word

right_photo var word

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

low 12

low 13

' Stamp Directive.

' For storing measured RC times of

' the left & right photoresistors.

' Set P2 to output.

' Program start/restart signal.

' Set P12 and 13 to output-low.

'----- Main Routine -------------- main:

' Measure RC time for right photoresistor.

high 3

pause 3

rctime 3,1,right_photo

' Set P3 to output-high.

' Pause for 3 ms.

' Measure RC time on P3.

' Measure RC time for left photoresistor.

high 5

pause 3

' Set P5 to output-high.

' Pause for 3 ms.

rctime 5,1,left_photo ' Measure RC time on P5.

' Check if difference between RC times is within the deadband, 2 in this case.

' If yes, then forward. If no then skip to check_dir subroutine.

if abs(left_photo-right_photo) > 2 then check_dir

forward_pulse:

pulsout 12, 500

Page 108

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

pulsout 13, 1000

pause 20

goto main

' Jump to either right_turn or left_turn depending on which RC time is larger.

check_dir:

if left_photo > right_photo then right_pulse

if left_photo < right_photo then left_pulse

'----- Navigation Routines ------- left_pulse:

pulsout 12, 500

pulsout 13, 500

pause 20 goto main

' Apply one pulse to left then

' go back to main routine. right_pulse:

pulsout 12, 1000

pulsout 13, 1000

pause 20

' Apply one pulse to right then goto main ' go back to main routine.

How the Light Follower Program Works

As in the previous program, the first

if...then

statement tests for a difference in RC time measurements within the deadband. This statement has been modified so that it skips the

forward_pulse

routine if the difference between RC times falls outside the deadband. On the other hand, if the difference in RC times is within the deadband, the forward pulse is executed. After the forward pulse, the program is directed back to

main

and the RC times are checked again.

if abs(left_photo-right_photo) > 2 then check_dir

forward_pulse:

pulsout 12, 500

pulsout 13, 1000

pause 20

goto main

If the difference between RC times is not within the deadband, the program skips to the

check_dir

label.

The

if...then

statements following the

check_dir

label are used to decide whether to apply a pulse to the left or a pulse to the right depending on the inequality of the

right_photo

and

left_photo

values. In this

Robotics! Version 1.5

Page

109

Chapter# 4: Light Sensitive Navigation with Photoresistors

way, the program either applies a single forward pulse or a single turn pulse each time the photoresistors are checked.

check_dir:

if left_photo > right_photo then right_pulse

if left_photo < right_photo then left_pulse

Your Turn

q

Repeat the previous Your Turn exercise. You can now lead your Boe-Bot around with a flashlight. q

Instead of pointing the photoresistors at the surface directly in front of the Boe-Bot, point them upward and outward as shown in Figure 4.3 on Page 108. With the photoresistors adjusted this way, the Boe-Bot will roam on the floor and try to always find the brightest place.

Depending on the luminance gradient, you may have to increase the deadband to smooth out the Boe-Bot’s light roaming. Alternatively, the deadband may need to be decreased to make it more responsive to seeking out the brighter areas.

Activity #4: Line Following

If the Boe-Bot can be programmed to follow a flashlight beam focused in front of it, why can’t it follow a white stripe on a black background? The answer is, there’s no good reason. The Boe-Bot can follow a white stripe on a black background, and it’s a project in this chapter’s Projects section. By the same token, the Boe-

Bot should be able to follow a black stripe on a white background. Regardless of the color of the stripe, this activity is generically referred to as “line following.”

The recommended width for the black stripe is about 5 cm. Either construction paper or electrical tape works fine. With some calibration along with controlled lighting conditions, the Boe-Bot is a very faithful stripe follower. q

Shadows and bright lights can be misleading, so try to keep the lighting as uniform as possible. For example, overhead fluorescent lights with no light from windows will work well. q

Also, make sure to bend the photoresistors as far over the front of the Boe-Bot as possible. In other words, readjust the photoresistors from flashlight beam following.

Programming for Line Following

By changing one value and three parameters from the previous example program, the Boe-Bot can now follow bold, black stripes on a white background. Program Listing 4.4 demonstrates this. In the comments at

Page 110

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

the beginning of the program, data from tests performed using Program Listing 4.1 are shown. The white

rctime

readings were taken while the photoresistors were looking at a white surface in front of the Boe-Bot.

The black

rctime

readings were taken while the photoresistors were looking at a black surface. The average difference between the black and white readings is 77 in this example. The average can go as low as 45, and the example should still work without a hitch. When the difference is smaller, the deadband value will have to be decreased. When the difference is larger, the deadband will have to be increased for better performance. q

Test the photoresistors using Program Listing 4.1. Use the information gathered to guess at a deadband value for stripe following. q

Adjust the deadband value to your predictions, then run your modified version of Program Listing 4.4. Try different deadband values until you find one that makes your Boe-Bot perform well when it follows the stripe.

ü

TIPS

If your measurements are significantly larger than those shown in the comments section of Program Listing 4.4, you may need to increase your deadband. If your measurements are significantly smaller, decreasing the deadband will be helpful.

In brightly lit rooms, decreasing the deadband value may not be enough. The 0.1

µ

F capacitors can be substituted for the 0.01

µ

F capacitors in the Boe-Bot’s RC circuits. This will increase the RC times by a factor of 10. Keep this in mind when adjusting the deadband.

' Robotics! v1.5, Program Listing 4.4: Black Stripe Follower

' {$Stamp bs2} ' Stamp Directive.

' Program Listing 4.1 readings with Boe-Bot looking at white/black surfaces.

' color

' white

' black left

58

127 right

67

152

'----- Declarations --------------

left_photo var word

right_photo var word

'----- Initialization ------------

output 2

freqout 2, 2000, 3000

' For storing measured RC times of

' the left & right photoresistors.

' Set P2 to output.

' Program start/restart signal.

Robotics! Version 1.5

Page

111

Chapter# 4: Light Sensitive Navigation with Photoresistors

low 12

low 13

'----- Main Routine -------------- main:

' Measure RC time for right photoresistor.

high 3

pause 3

rctime 3,1,right_photo

' Set P12 and 13 to output-low.

' Set P3 to output-high.

' Pause for 3 ms.

' Measure RC time on P3.

' Measure RC time for left photoresistor.

high 5

pause 3

' Set P5 to output-high.

' Pause for 3 ms.

rctime 5,1,left_photo ' Measure RC time on P5.

' Check if difference between RC times is within the deadband, 7 in this case.

' If yes, then forward. If no then skip to check_dir subroutine.

' IMPORTANT: The deadband value (currently 7) should be made smaller in

' brighter rooms and larger in darker rooms. Otherwise, the Boe-Bot will not

' detect the black stripe. It will take some fine tuning to optimize the

' Boe-Bot’s ability to follow stripes.

if abs(left_photo-right_photo) > 7 then check_dir

forward_pulse:

pulsout 12, 500

pulsout 13, 1000

pause 20

goto main

' Jump to either right_turn or left_turn depending on which RC time is larger.

check_dir:

if left_photo < right_photo then right_pulse

if left_photo > right_photo then left_pulse

'----- Navigation Routines ------- left_pulse:

pulsout 12, 500

pulsout 13, 500

pause 20

' Apply one pulse to left then

Page 112

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

goto main right_pulse:

pulsout 12, 1000

pulsout 13, 1000

' go back to main routine.

' Apply one pulse to right then

pause 20 goto main

How the Black Stripe Follower Program Works

' go back to main routine.

The three lines below are the only ones changed between Program Listing 4.3 and Program Listing 4.4. The deadband was increased from “2” to “7,” and the inequality signs ( < and > ) of the lower two

if...then

statements were swapped. As noted earlier, that’s all it takes to change a robotic light seeker (photophile) into a light avoider (photophobe). Light avoidance is key to this program.

if abs(left_photo-right_photo) > 7 then check_dir

.

.

.

if left_photo < right_photo then right_turn

if left_photo > right_photo then left_turn

Your Turn

Try a black stripe with a 45

°

turn in the middle of it.

Try a black strip with a 90

°

turn in it, and see if you can pick a deadband that will navigate it.

Remember, you may need to adjust your deadband to succeed in these maneuvers.

For either or both of the maneuvers above, find the upper and lower limits of deadband values with which the

Boe-Bot still can successfully navigate.

Robotics! Version 1.5

Page

113

Chapter# 4: Light Sensitive Navigation with Photoresistors

Summary and

Applications

This chapter focused on measuring the difference in light intensity and using it as a guide for the Boe-Bot. The PBASIC command

rctime

was used in conjunction with an RC circuit to measure each photoresistor.

The exact resistance value of each photoresistor was disregarded in favor of the relative difference between the two values. This difference is a simple subtraction problem, but it can be used to gage which direction has a higher illuminance.

Real World Example

Light has many applications in robotics and industrial control. Some examples include sensing the edge of a roll of fabric in the textile industry, determining when to activate streetlights at different times of the year, when to take a picture, or when to deliver water to a crop of plants.

Deadband is often a problem in navigation control systems. In terms of tracking and controlling machinery, deadband can result from the uncertainty in measurements due to mechanical connections. The result is that deadband is the area you don’t know about and try to develop creative ways of dealing with it. On the other hand, deadband is also the way a thermostat works. In the context of maintaining temperature, differential gap control uses a built-in deadband region where no correction is made to the temperature.

Boe-Bot Application

As you can see, the Boe-Bot can do an interesting variety of tricks with a pair of photoresistors as its guide. It can point at light, move itself from a dark place into a light place, follow a guiding flashlight beam and follow a black stripe with turns in it on a white piece of paper. That’s not bad for some inexpensive photoresistors, capacitors and resistors.

Page 114

Robotics! Version 1.5

Chapter #4: Light Sensitive Navigation with Photoresistors

Questions and Projects

Questions

1. Name and describe the element in the photoresistors that changes resistance in response to illuminance.

2. What does the BASIC Stamp measure to infer the resistance in an RC circuit? What value must remain fixed in an RC circuit to infer a variable resistance? Why?

3. What are the increments of the

rctime

measurement?

4. When the value of a photoresistor increases, what does that indicate?

5. How does the program for a light following Boe-Bot differ from that of a dark following Boe-Bot?

6. What role does deadband play in the Boe-Bot’s tendency to move forward? What role does it play in the Boe-Bot’s tendency to change direction?

Exercises

1. If you have a 10

µ

F capacitor and your

rctime

value is 150, what is the resistance of the photoresistor? Hint: Use equation 4.1.

2. Take a look at the

if...then

statement setting deadband in Program Listing 4.2. If you want a deadband that spans differences in RC time measurements of –6 to +6, what argument will you have to use in what statement?

3. Re-derive Equation 4.1 using a 0.1

µ

F capacitor. What kinds of problems arise if the 0.1

µ

F capacitors replace the 0.01

µ

F capacitors? What effect does the increased RC value have on the measurement time? What effect does the measurement time have on servo performance?

Robotics! Version 1.5

Page

115

Chapter# 4: Light Sensitive Navigation with Photoresistors

4. Given the range of

rctime

values shown in Program Listing 4.4, adjust the

pause

period

so the servos send pulses 20 ms apart. Assume 1 ms of processing time on top of the known pauses and delays. Use an average RC time value for your corrections.

5. Challenge: Write some code that checks the RC time measurements and sets the

pause

period

accordingly.

Projects

1. Develop a program that relies on just one photoresistor for line following. Hint: Instead of taking the difference between the values of two photoresistors, you will have to set a standard for black and white RC time measurements and make decisions based on the standard.

2. Add Whiskers to the Boe-Bot. Develop a line following track with obstacles placed in the way.

Program the Boe-Bot to follow the line and also to check the whiskers to monitor for obstacles.

Develop routines that guide the Boe-Bot around obstacles and back to the line.

!

Make sure to wrap each whisker with electrical tape around any part that might contact other circuits. The only things a whisker should be allowed to touch are obstacles and its own three-pin header post.

3. One of the interesting facets of relying on deadband for line following is that it can be adjusted purely in software. This project explores the relationship between deadband settings and stripe width.

Repeat the Your Turn exercises in Activity #4 with a 3.75 cm. wide black stripe. Do not adjust the width of your photoresistors; just the deadband settings. Repeat this activity again for a 2.5 cm. wide stripe. Make notes on the upper and lower deadband limits for each stripe width. In other words, find the highest and lowest deadband settings that work for successful stripe following.

Graph your results. Is there any apparent mathematical relationship between deadband and stripe width? Use the graph to approximate a linear relationship, and develop a deadband equation. Test the equation on a 4.4 cm. wide stripe.

Page 116

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

Chapter #5:

Object Detection

Using Infrared

Using Infrared Headlights to See the Road

Today's hottest products seem to have one thing in common: wireless communication. Personal organizers beam data into desktop computers, and wireless remotes let us channel surf.

With a few inexpensive and widely available parts, the BASIC

Stamp can also use an infrared LED and detector to detect objects to the front and side of your traveling Boe-Bot.

Infrared

Infra means below, so Infra-red is light

(or electromagnetic radiation) that has lower frequency, or longer wavelength than red light. Our IR LED and detector work at 980 nm. (nanometers) which is considered near infrared.

Night-vision goggles and IR temperature sensing use far infrared wavelengths of 2000-10,000 nm., depending on the application.

Color

Violet

Blue

Green

Yellow

Orange

Approximate

Wavelength

400 nm

470

565

590

630

780 Red

Near infra-red 800-1000

Infra-red 1000-2000

Far infra-red 2000-10,000nm

Detecting obstacles doesn’t require anything as sophisticated as machine vision. A much simpler system will suffice. Some robots use RADAR or

SONAR (sometimes called SODAR when used in air instead of water). An even simpler system is to use infrared light to illuminate the robot’s path and determine when the light reflects off an object. Thanks to the proliferation of infrared (IR) remote controls, IR illuminators and detectors are easily available and inexpensive.

The Boe-Bot infrared object detection scheme has a variety of uses. The

Boe-Bot can use infrared to detect objects without bumping into them.

As with the photoresistors, infrared can be used to detect the difference between black and white for line following. Infrared can also be used to determine the distance of an object from the Boe-Bot. The Boe-Bot can use this information to follow objects at a fixed distance, or detect and avoid high ledges.

Infrared Headlights

The infrared object detection system we’ll build on the Boe-Bot is like a car’s headlights in several respects. When the light from a car’s headlights reflects off obstacles, your eyes detect the obstacles and your brain processes them and makes your body guide the car accordingly.

The Boe-Bot uses infrared LEDs for headlights as shown in Figure 5.1.

They emit infrared, and in some cases, the infrared reflects off objects, and bounces back in the direction of the Boe-Bot. The eyes of the Boe-

Bot are the infrared detectors. The infrared detectors send signals to the BASIC Stamp indicating whether or not they detect infrared reflected off an object. The brain of the Boe-Bot, the BASIC Stamp, makes decisions and operates the servo motors based on this input.

Robotics! Version 1.5

Page

117

Chapter #5: Object Detection Using Infrared

The IR detectors have built-in optical filters that allow very little light except the 980 nm. infrared that we want to detect onto its internal photodiode sensor. The infrared detector also has an electronic filter that only allows signals around 38.5 kHz to pass through. In other words, the detector is only looking for infrared flashed on and off at 38,500 times per second. This prevents interference from common IR interference sources such as sunlight and indoor lighting. Sunlight is DC interference (0 Hz), and house lighting tends to flash on and off at either 100 or 120 Hz, depending on the main power source in the country where you reside. Since

120 Hz is way outside the electronic filter’s 38.5 kHz band pass frequency, it is, for all practical purposes, completely ignored by the

IR detectors.

The Freqout Trick

Object

IR

Detector

IR LED

Since the IR detectors only see IR signals in the neighborhood of

38.5 kHz, the IR LEDs have to be flashed on and off at that frequency. A 555 timer can be used for this purpose, but the 555 timer circuit is more complex and less functional than the circuit we will use in this and the next chapter. For example, the method of IR detection introduced here can be used for distance detection; whereas, the 555 timer would need additional hardware to do distance detection.

Figure 5.1: Object detection with IR

Headlights.

A pair of Boe-Bot enthusiasts found an interesting trick that made the 555 timer scheme unnecessary. This scheme uses the

freqout

command without the RC filter that’s normally used to smooth the signal into a sine-wave. Even though the highest frequency

freqout

is designed to transmit is 32768 Hz, the unfiltered

freqout

output contains a harmonic with useful properties for a 38.5 kHz IR detector. More useful still is the fact that you can use a command such as

freqout pin, period, 38500

to send a 38.5 kHz harmonic that the IR detector will detect.

Figure 5.2 shows (a) the signal sent by the command

freqout pin, period, 27036

. Tuned electronic receivers, such as the IR detectors we’ll be using, can detect components of this signal that are called harmonics. The

freqout

signal’s two dominant low frequency harmonics are shown in Figures 5.2 (b) and

(c). Figure 5.2 (b) shows the fundamental harmonic, and Figure 5.2 (c) shows the third harmonic. These harmonics are actually components of the unfiltered

freqout

pulses shown in Figure 5.2 (a). The third harmonic shown in Figure 5.2 (c) can be controlled directly by entering commands such as

freqout pin,

period, 38500

(instead of

27036

) for 38.5 kHz, or

freqout pin, period, 40000

for 40 kHz, etc.

Page 118

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

Volts, V

+ 5

Volts, V

+ 1.25

0

- 1.25

0 Time, us

(b) 27036 Hz fundamental harmonic.

+ 1.25

37

(b)

0

0

0 Time, us 37

- 1.25

0 Time, us

(c) 38500 Hz third harmonic.

37

Figure 5.2: (a) Unfiltered freqout pulses sent by freqout pin, period, 27036

Even though the freqout trick works, there is an additional problem. The BASIC Stamp does not multitask. The reason this is a problem is because the IR detector only sends the low signal indicating that it has detected an object while it is receiving the 38.5 kHz IR. Otherwise, it sends a high signal. Fortunately, it takes the detector long enough to rebound from its low output state that the BASIC Stamp can capture the value. The reason that the detector’s output takes so long to rebound is related to its tendency toward slower responses when it receives a signal with unequal high and low times, of which the signal in Figure 5.2 (a) has many.

Activity #1: Building and Testing the New IR Transmitter/Detector

1

2

3

Parts

(1) Piezoelectric speaker

(2) Shrink wrapped IR LEDs

(2) IR detectors

(2) 220

resistors

(misc) wires

IR

LED

1

1

1

2

3

2

2

Short

Leg

Figure 5.3: IR detector schematic symbol and part on top row and IR LED schematic symbol and part on bottom row.

Robotics! Version 1.5

Page

119

Chapter #5: Object Detection Using Infrared

Build It!

Vdd

P8

Vss

P7

220

P2

P1

Piezo

IR

LED

Vss

Vss

220

Vdd

IR

LED

Vss

P0

Vss

Figure 5.4: IR headlights (a) Schematic

Page 120

Robotics! Version 1.5

To

Servos

15 14 13 12

Red

Black

Vdd

X4 X5

Vin Vss

Rev B

X3

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X2

Board of Education www.stampsinclass.com

(916) 624-8333

(c) 2000

Longer leads

(b) wiring diagram.

Chapter #5: Object Detection Using Infrared

One IR pair (IR LED and detector) is mounted on each corner of the breadboard. Figure 5.4 shows the IR headlights circuit as both a schematic and wiring diagram. Build the circuit as shown.

Testing the IR Pairs

The key to making each IR pair work is to send 1 ms of unfiltered 38.5 kHz

freqout

harmonic followed immediately by testing the signal sent by the IR detector and saving its output value. The IR detector’s normal output state when it sees no IR signal is high. When the IR detector sees the 38500 Hz harmonic sent by the IR

LED, it’s output will drop from high to low. Of course, if the IR does not reflect off an object, the IR detector’s output simply stays high. Program Listing 5.1 shows an example of this method of reading the detectors. q

Enter and run Program Listing 5.1. q

This program makes use of the Debug Terminal, so leave the serial cable connected to the BOE while

Program Listing 5.1 is running.

' Robotics! v1.5, Program Listing 5.1: IR Pairs Display.

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations --------------

left_IR_det var bit

right_IR_det var bit

'----- Initialization ------------

output 2

output 7

output 1

'----- Main Routine -------------- main:

freqout 7, 1, 38500

left_IR_det = in8

freqout 1, 1, 38500

right_IR_det = in0

debug home, "Left= ", bin1 left_IR_det

pause 20

' Two bit variables for saving IR

' detector output values.

' Set all I/O lines sending freqout

' signals to function as outputs

' Detect object on the left.

' Send freqout signal - left IRLED.

' Store IR detector output in RAM.

' Detect object on the right.

' Repeat for the right IR pair.

Robotics! Version 1.5

Page

121

Chapter #5: Object Detection Using Infrared

debug " Right= ", bin1 right_IR_det

pause 20 goto main q

While program Listing 5.1 is running, point the IR detectors so nothing nearby could possibly reflect infrared back at the detectors. The best way to do this is to point the Boe-Bot up at the ceiling. The

Debug output should display both left and right values as equal to “1.” q

By placing your hand in front of an IR pair, it should cause the Debug Terminal display for that detector to change from “1” to “0.” Removing your hand should cause the output for that detector to return to a “1” state. This should work for each individual detector, and you also should be able to place your hand in front of both detectors and make both their outputs change from “1” to “0.” q

If the IR Pairs passed all these tests, you’re ready to move on; otherwise, check your program and circuit for errors.

How the IR Pairs Display Program Works

Two bit variables are declared to store the value of each IR detector output. The first

freqout

command in the

main

routine is different. The command

freqout 7, 1, 38500

sends the on-off pattern shown in

Figure 5.2 via left IR LED circuit by causing it to flash on and off rapidly. The harmonic contained in this signal either bounces off an object, or not. If it bounces off an object and is seen by the IR detector, the IR detector sends a low signal to IO pin P8. Otherwise, the IR detector sends a high signal to P8. So long as the next command after the

freqout

command is the one testing the state of the IR detector’s output, it can be saved as a variable value in RAM. The statement

left_IR_det = in8

checks P8, and saves the value (“1” for high or “0” for low) in the

left_IR_det

bit variable. This process is repeated for the other IR pair, and the IR detector’s output is saved in the

right_IR_det

variable. The

debug

command then displays the values in the debug window.

Your Turn

q

Experiment with detuning your IR pairs by using frequencies above 38.5 kHz. For example, try 39.0, 39.5,

40.0, 40.5 and 41 kHz. Note the maximum distance that each will detect by bringing an object progressively closer to the IR pairs and noting what distance began to cause the IR detector output to switch from “1” to “0.”

Page 122

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

Activity #2: Object Detection and Avoidance

An interesting thing about the IR detectors is that their outputs are just like the whiskers. When no object is detected, the output is high; when an object is detected, the output is low. In this activity, Program Listing 3.2:

Roaming with Whiskers is modified so that it works with the IR detectors.

Converting the Whiskers Program For IR Object Detection/Avoidance

Roaming with Whiskers can be modified so that each IR LED circuit receives the

freqout

signal. Immediately after sending the freqout signal the output state of the IR detector in the pair needs to be checked and recorded. After the information is recorded, it can be compared using the same

if...then

statements and navigation routines used in the original whiskers navigation program (Program Listing 3.2).

' Robotics! v1.5, Program Listing 5.2: Roaming with Whiskers Adjusted for IR Pairs.

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations --------------

pulse_count var byte

left_IR_det var bit

right_IR_det var bit

'----- Initialization ------------

output 2

output 7

output 1

freqout 2, 2000, 3000

low 12

low 13

' For...next loop counter.

' Two bit variables for saving IR

' detector output values.

' Set all I/O lines sending freqout

' signals to function as outputs

' Program start/restart signal.

' Set P12 and 13 to output-low.

'----- Main Routine -------------- main:

freqout 7, 1, 38500

left_IR_det = in8

freqout 1, 1, 38500

right_IR_det = in0

' Detect object on the left.

' Send freqout signal - left IRLED.

' Store IR detector output in RAM.

' Detect object on the right.

' Repeat for the right IR pair.

' With the exception that values stored in RAM are used instead of

' input register values, the decision making process is the same as

' the one used in Program Listing 3.2.

Robotics! Version 1.5

Page

123

Chapter #5: Object Detection Using Infrared

if left_IR_det = 0 and right_IR_det = 0 then u_turn

if left_IR_det = 0 then right_turn

if right_IR_det = 0 then left_turn

' The commands from this point onward are identical to

' Program Listing 3.2: Roaming with Whiskers.

forward: ' If no detect, one forward pulse.

pulsout 12,500

pulsout 13,1000

pause 20

' Check again. goto main

'----- Navigation Routines -------

left_turn:

gosub backward

for pulse_count = 0 to 35

' Left turn routine.

' Call Backward: before turning.

pulsout 12, 500

pulsout 13, 500

pause 20

next

goto main

right_turn:

gosub backward

for pulse_count = 0 to 35

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

u_turn:

gosub backward

for pulse_count = 0 to 75

pulsout 12, 1000

pulsout 13, 1000

pause 20

next

goto main

'----- Navigation Subroutine -----

backward:

' Right turn routine.

' Call Backward: before turning.

' U-turn routine.

' Call Backward: before turning.

Page 124

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

for pulse_count = 0 to 75

pulsout 12, 1000

pulsout 13, 500

pause 20

next

return

How the Roaming with Whiskers Adjusted for IR Pairs Program Works

Two bit variables,

left_IR_det

and

right_IR_det

, are added for capturing and holding the IR detectors’ output states. declarations:

pulse_count var byte

left_IR_det var bit

right_IR_det var bit

The

main

routine has four additional commands, two for checking the output of each IR detector. Each

freqout

command sends a 1 ms unfiltered freqout signal to the IR LED circuit in the pair. The value at the input connected to the IR detector’s output is saved as a bit variable in the BASIC Stamp’s RAM. For example, the command

freqout 7, 1, 38500

is followed immediately by the statement

left_IR_det = in8

. This command sets the value of

left_IR_det

equal to the input at P8, the I/O pin connected to the left IR detector’s output. main:

check_IR_pairs:

freqout 7, 1, 38500

left_IR_det = in8

freqout 1, 1, 38500

right_IR_det = in0

The saved bit values for each IR detector output can be used in the exact same way the whiskers navigation program used them. With one exception, the navigation routines that are executed according to

if...then

statements are identical to those originally used in Program Listing 3.2: Roaming with Whiskers. The

if...then

statements themselves are changed to accommodate the need to capture and store the output from each IR detector; whereas, the

if...then

statements in the whiskers program used the input values directly.

if left_IR_det = 0 and right_IR_det = 0 then u_turn

Robotics! Version 1.5

Page

125

Chapter #5: Object Detection Using Infrared

if left_IR_det = 0 then right_pulse

if right_IR_det = 0 then left_pulse

Your Turn

As with Program Listing 3.2, you can fine tune the end arguments in the

for...next

loops to fine tune the

Boe-Bot’s turning and backing up behaviors.

Activity #3: Navigating by the Numbers in Real-Time

In Program Listing 5.2, the Boe-Bot checked between each

forward

pulse to see if it was still okay to move forward. When the Boe-Bot performed maneuvers, they were essentially pre-recorded motions. Another approach to IR navigation is to check the sensors, apply a single pulse based on the sensor input, then check the sensors again. The Boe-Bot behaves very differently using this technique.

Real-Time IR Navigation

Program Listing 5.3 checks the IR pairs and delivers one of four different pulses based on the sensors. Each of the navigational routines is just a single pulse in either the

forward

,

left_turn

,

right_turn

or

backward

directions. After the pulse is applied, the sensors are checked again, then another pulse is applied, etc. This program also makes use of some programming techniques you will find very useful.

' Robotics! v1.5, Program Listing 5.3: IR Roaming by Numbers in Real Time

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

sensors var nib

'----- Initialization ------------

output 2

output 7

output 1

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine -------------- main:

freqout 7,1,38500

' The lower 2 bits of the

' sensors variable are used to store

' IR detector values.

' Set all I/O lines sending freqout

' signals to function as outputs

' Program start/restart signal.

' Set P12 and 13 to output-low.

' Detect object on the left.

' Send freqout signal - left IRLED.

Page 126

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

sensors.bit0 = in8

freqout 1,1,38500

sensors.bit1 = in0

pause 18

' Store IR detector output in RAM.

' Detect object on the right.

' Repeat for the right IR pair.

' 18 ms pause(2 ms lost on freqout).

' By loading the IR detector output values into the lower 2 bits of the sensors

' variable, a number btwn 0 and 3 that the branch command can use is generated.

branch sensors,[backward,left_turn,right_turn,forward]

'----- Navigation Routines -------

forward: pulsout 13,1000: pulsout 12,500: goto main

left_turn: pulsout 13,500: pulsout 12,500: goto main

right_turn: pulsout 13,1000: pulsout 12,1000: goto main

backward: pulsout 13,500: pulsout 12,1000: goto main

How IR Roaming by Numbers in Real-Time Works

q

Look up the

branch

command in Appendix C: PBASIC Quick Reference or in the BASIC Stamp Manual.

This Program listing declares the

sensors

variable, which is one nibble of RAM. Of the four bits in the sensors variable, only the lowest two bits are used. Bit-0 is used to store the left detector’s output, and bit-1 is used to store the right detector’s output. declarations:

sensors var nib

I/O pins P7, P1, and P2 are declared outputs. P2 is declared an output so that freqout can send signals to the speaker. P7 and P1 are declared outputs because these lines drive the left and right IR LED circuits. initialization:

output 7

output 1

output 2

freqout 2,2000,3000

The main routine starts with the

freqout

commands used to send the IR signals, but the commands following each freqout command are slightly different from those used in the previous program. Instead of saving the bit value at the input pin to a bit variable, each bit value is stored as a bit in the

sensors

variable. Bit-0 of

Robotics! Version 1.5

Page

127

Chapter #5: Object Detection Using Infrared sensors

is set to the binary value of

in8

, and bit-1 of the sensors variable is set to the binary value of

in0

.

After setting the values of the lower two bits of the sensors variable, it will have a decimal value between “0” and “3.” The

branch

command uses these numbers to determine to which label it sends the program. main:

freqout 7,1,38500

sensors.bit0 = in8

freqout 1,1,38500

sensors.bit1 = in0

pause 18

branch sensors,[backward,left_turn,right_turn,forward]

The four possible binary numbers that result are shown in Table 5.1. Also shown is the branch action that occurs based on the value of the state argument.

Table 5.1: IR Detector States as Binary Numbers

Binary Value of state

0000

Decimal Value of State

0

What the Value Indicates,

Branch Action Based on State in8 = 0

and

in0 = 0

,

Both IR detectors detect object, pulse servos

backward

.

0001

0010

1

2

in8 = 0

and

in0 = 1

,

Left IR detector detects object, pulse

right_turn in8 = 1

and

in0 = 0

,

Right IR detector detects object, pulse for

left_turn

0011 3

in8 = 1

and

in0 = 1

,

Neither IR detector detects object, pulse

forward

.

Depending on the value of the

sensors

variable, the

branch

command sends the program to one of four routines:

forward

,

left_turn

,

right_turn

,

or backward

. Whichever routine the program ends up in gives the servos a single pulse in the appropriate direction, after which, the routine sends the program back to the

main

routine for another check of the sensors. routines:

forward: pulsout 13,1000: pulsout 12,500: goto main

Page 128

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

left_turn: pulsout 13,500: pulsout 12,500: goto main

right_turn: pulsout 13,1000: pulsout 12,1000: goto main

backward: pulsout 13,500: pulsout 12,1000: goto main

ü

TIP

Each routine is a label followed by three commands, all on the same line. When you put more than one command on the same line, each must be separated by a colon. If a label appears on a line with more than one PBASIC command, it must be the first item on that line.

Your Turn

You can rearrange the address labels in the branch command so that the Boe-Bot does different things in response to obstacles. One interesting activity is to try replacing the

backward

address with the

forward

address. There will be two instances of

forward

in the

branch

address list, but this is not a problem. Also, swap the

left_turn

and

right_turn

addresses. q

Try making the changes just discussed. q

Run the modified version of Program Listing 5.3, and have the Boe-Bot follow your hand as you lead it places.

If you stop your hand, the Boe-Bot will run into it. Because of this, one Boe-Bot cannot be programmed to follow another without some way of distance detection. If the one in front stops, the one in back will crash into it. This problem will be fixed as an example in the next chapter.

Robotics! Version 1.5

Page

129

Chapter #5: Object Detection Using Infrared

Summary and

Applications

This chapter covered a unique technique for infrared object detection.

By shining infrared into the Boe-Bot’s path and looking for its reflection, object detection can be accomplished. Infrared LED circuits are used to send a 38.5 kHz signal by using a unique and little-known property of

freqout

. This property allows you to control a harmonic of the

freqout

PWM wave-shaping signal via IR LED circuits.

PBASIC programming techniques also were covered for minimizing the time spent on capturing the IR detector’s output signal. The detector’s output signal has a delay that makes it possible for the BASIC Stamp to read the IR detector’s output even after the

freqout

signal no longer is transmitting.

Navigation techniques for checking sensors between each servo pulse and binary processing of the sensor outputs also was introduced. Used together, these two techniques allow for very responsive Boe-Bot performance.

Real World Example

Infrared is one of the more popular amenities on electronic products. TV remotes, palmtop computers, and fancy calculators all use infrared for communication. A variety of communication schemes exist for transmitting data. A TV remote control, for example, sends a high signal by flashing its IR transmitter at 38.5 kHz. A low signal is no IR. The detectors in some TVs, VCRs, etc. are identical to the receiver used in the Boe-

Bot.

The detection scheme in the automatic door openers common in convenience and grocery stores relies on the same theory of operation for object detection used by the Boe-Bot. Whenever you trigger one of these door openers, it’s because you walked into and broke the IR beam being reflected back at the receiver.

Infrared detectors also are mounted on many different conveyer belts. Factories use them to count products as they fly by, and grocery stores use them to detect when the groceries have reached the end of the conveyer belt. In grocery stores, these belts automatically move the groceries forward so the checker can reach them. To prevent the conveyer belt from piling groceries on the scanner, an IR detector is mounted at the end of the conveyer belt. When the Twix candy bar interrupts the IR beam shining across the conveyer belt, the IR detector’s output changes. When this change is detected by a microcontroller, it stops the motor that runs the conveyer belt.

Boe-Bot Application

The unique thing about IR detectors is that they allow the Boe-Bot to detect objects without actually touching them. In maze competitions where you lose points by touching the walls, this is a real plus.

Page 130

Robotics! Version 1.5

Chapter #5: Object Detection Using Infrared

Questions and Projects

Questions

1. What does infrared mean? How does infrared differ from near infrared?

2. What are the two kinds of filters built into the IR detectors in the Robotics! Kit? What does each do?

3. Describe what each of the two IR detector outputs mean.

4. Why is it important to check and save the output state of the IR detector immediately after sending the 38.5 kHz signal?

5. What happens if you send a 39.5 kHz signal instead of a 38.5 kHz signal?

6. How does Program Listing 5.2 resemble Program Listing 3.2? How do the two programs differ?

7. What values would you expect to see the

sensors

variable in Program Listing 5.3 storing?

8. What character is required to separate more than one PBASIC command on the same line? What convention must always be followed with program labels when multiple commands are put on the same line?

Exercises

1. If you wanted to send a 35 kHz infrared harmonic out the Boe-Bot’s IR LED circuit, what command would you use?

2. Modify Program Listing 5.2 so that the right IR pair is checked before the left pair.

3. Modify Program Listing 5.2 so that it makes the Boe-Bot follow objects instead of avoiding them.

Describe the problems you encounter, if any.

Robotics! Version 1.5

Page

131

Chapter #5: Object Detection Using Infrared

Projects

1. There are two ways to make the IR pair circuit less sensitive to objects. In other words, the circuit can be made near-sighted, so that it only sees objects that are closer. The first involves a physical change: the replacement of the 220

resistors with 470

resistors. The second involves detuning by sending a harmonic that’s not at the IR detector’s center frequency of 38.5 kHz. q

Test for the maximum detection distance for each IR pair by holding an object in front of the pair while Program Listing 5.1 is running. As you pull the object slowly away from the IR pair, make a note of the distance when the debug window started to flicker between “0” and “1.” q

Replace both 220

resistors with 470

resistors. q

Repeat the first two steps and note any change in the maximum detection distance for each IR pair. q

Remove the 470

resistors and put the 220

resistors back in. q

Place the object used for testing detection at the maximum detection distances determined using the 470

resistor for the first IR pair. q

Modify the

freqout

frequency

arguments by iteratively adding 25 at a time to the

freqout

command’s

frequency

argument. After each time the frequency argument is changed, re-run

Program Listing 5.1. When you start to observe the flickering 0/1 in the Debug Terminal display, it indicates the object is falling out of range.

2.

One of the shortcomings of IR object detection is that the Boe-Bot’s IR detectors do not detect black. That’s because black absorbs IR instead of reflecting it. The Boe-Bot tends to run into black objects when roaming with IR because it doesn’t see them. Add whiskers to your breadboard and modify Program Listing 5.2 so that it checks the whisker inputs before checking the IR detectors. In this way the Boe-Bot can check to see if it has run into a black object.

!

Remember: Wrap the portions of the whiskers with electrical tape that could come into contact with circuits other than the whisker contact posts.

Page 132

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

Chapter #6:

Determining Distance

Using Frequency

Sweep

What’s a Frequency Sweep?

In general, a frequency sweep is what you do when checking your favorite radio stations. Set the station for one frequency, and check the output. If you don’t like the song that’s playing, change the frequency and check the output again.

Activity #1: Testing the Frequency Sweep

The Boe-Bot can be programmed to send different IR frequencies, and to check for object detection at each frequency. By keeping track of the frequencies for which the IR detector reported an object, its distance can be determined. The left axis of the graph in Figure 6.1 shows how the sensitivity of the IR detector’s electronic filter decreases as it receives frequencies greater than 38.5 kHz. The filter essentially causes the IR detector to become less able to detect IR at these frequencies. Another way to think about it is that you have to move an object closer if you want it to be detected at a less sensitive frequency. Since the detector is less sensitive, it will take brighter IR (or a closer object) to make the detector see the signal.

Figure 6.1: The left axis of the graph compares IR frequency to the relative sensitivity of the IR detector. The right side of the graph shows how the relative sensitivity of the IR detector relates to distance detection. As detector sensitivity decreases with the increase in frequency, the object must be closer for the IR signal to be detected. Why closer?

When the detectors are made less sensitive by sending higher frequencies, it’s like giving them darker and darker lenses to look through. Just as a flashlight beam appears brighter when reflected off an object that’s closer to you,

IR reflected off a closer object appears brighter to the IR detectors.

Robotics! Version 1.5

Page

133

Chapter #6: Determining Distance Using Frequency Sweep

The right axis of Figure 6.1 shows how different frequencies can be used to indicate in which zone a detected object is located. By starting with a frequency of 38.5 kHz, whether or not an object is in Zone 1-5 can be determined. If an object is not yet detected, it must be beyond the detector limit (Zone 0). If an object is detected, by testing again at 39.25 kHz, the first datum about distance is collected. If 38.5 kHz is detected the object but 39.25 kHz did not, the object must be in Zone 1. If the object was detected at both frequencies, but not at 40.5 kHz, we know it’s in Zone 2. If all three frequencies detected the object, but it was not detected at

41.75 kHz, we know it is in Zone 3. If all four frequencies detected the object, but not 42.5 kHz, we know it’s in

Zone 4. If all the frequencies detected the object, we know it’s in Zone 5.

F Y I

Build It!

The frequency sweep technique used in this chapter works fairly well for the Boe-Bot, and the components are only a fraction of the cost of common IR distance sensors. The trade off is that the accuracy of this method is also only a fraction of the accuracy of common IR distance sensors. For basic

Boe-Bot tasks that require some distance perception, such as following another Boe-Bot, this interesting technique does the trick. Along with adding low-resolution distance perception to the Boe-Bot’s senses, it also provides an introduction to the concepts of filters and frequency response. q

Use the same IR detection circuit from Chapter 5, shown in Figure 5.4, for this activity.

Programming the IR Distance Gage

Programming the BASIC Stamp to send different frequencies involves a

for...next

loop. The

counter

variable can be used to give the

freqout

command different frequencies to check. This program introduces the use of arrays. Arrays are used in Program Listing 6.1 to store the IR detector outputs at the different frequencies. For the

l_values

variable, the Zone 0 output is stored in bit-0 of

l_values

. The Zone 1 output is stored in bit-1

l_values.bit1

, and so on, all the way through Zone 5, which is stored in bit-5 of

l_values

. The same measurements are taken for

r_values

. q

Enter and run Program Listing 6.1. q

This program makes use of the Debug Terminal, so leave the serial cable connected to the BOE while

Program Listing 6.1 is running.

' Robotics! v1.5, Program Listing 6.1: IR Distance Gage.

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

counter var

l_values var nib byte

' Multipurpose counting variable.

' Two vars for storing left & right

Page 134

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

r_values

IR_freq var var byte word

'----- Initialization ------------

output 7

output 1

'----- Main Routine --------------

' freq sweep IR detector outputs.

' Stores frequency arg for freqout.

' Set all I/O lines sending freqout

' signals to function as outputs.

main:

l_values = 0 ' Reset l_values and r_values to 0.

r_values = 0

' Load sensor outputs into l_values and r_values using a for...next loop,

' and a lookup table, and bit addressing.

for counter = 0 to 4

lookup counter,[37500,38250,39500,40500,41500], IR_freq

freqout 7,1, IR_freq

l_values.lowbit(counter) = ~in8

freqout 1,1, IR_freq

r_values.lowbit(counter) = ~in0

next

' Display l_values and r_values in binary and ncd format.

debug home, cr, cr, "Left readings Right Readings", cr

debug " ",bin8 l_values, " ", bin8 r_values, cr

debug " ",dec5 ncd(l_values), " ", dec5 ncd(r_values), cr, cr

goto main

Robotics! Version 1.5

Page

135

Chapter #6: Determining Distance Using Frequency Sweep

When the Boe-Bot is placed facing a nearby wall (3 to 5 cm.), the Debug Terminal should display something similar to Figure 6.2. As the Boe-Bot is moved closer to and further from the wall, the numbers displayed by the Debug Terminal should change increase and decrease. q

Place the Boe-Bot so that it faces the wall with its

IR LEDs about 1 cm. away from the wall. The left and right readings should both be at “4” or “5.” If not, make sure each IR detector is facing in the same direction as its IR LED. Also check to make sure you are using 220

resistors. q

Gradually back the Boe-Bot away from the wall. As the Boe-Bot is backed away from the wall, the left and right readings should gradually decrease to “0.” q

FYI

Figure 6.2: Frequency sweep data in binary and ncd format.

If either or both sides stay at all zeros or all ones, it indicates a possible mistake in either your wiring or in the program. If this is the case, unplug your battery pack from the BOE. Then, check your wiring and

PBASIC code for errors.

The maximum detection distance is 20 to 30 cm., depending on the reflectivity of the wall. Some tinkering with how far left/right each IR pair is pointing may be required to get the numbers to be the same at a given distance. A high level of precision IS

NOT necessary for these activities. Appendix H: Fine Tuning IR Distance Detection presents a method for calibrating the Boe-Bot’s distance detectors. This method can be time consuming, and it’s not required for Activity #2 or #3.

ü

TIP

Use a wire stripper to unsheathe about 1 cm. of insulation from a jumper wire. Slide the insulation up one of the IR LED leads. This will protect the leads from touching each other during adjustment.

Page 136

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

How the Distance Gage Program Works

q

Look up the

lookup

command in Appendix C: PBASIC Quick Reference or in the BASIC Stamp Manual before continuing

.

Counter

is a nibble variable that is used to index a

for...next

loop. The

for...next

loop is used for checking the IR detectors at various frequencies. The

l_values

and

r_values

variables store the outputs for the left and right IR detectors at the various frequencies used. Each variable stores five binary measurements. Since the IR detector outputs are tested at a variety of frequencies,

IR_freq

is a variable that can store the value of the frequency that gets sent each time through the frequency testing loop. declarations:

counter var

l_values var

r_values var nib byte byte

IR_freq var word

The main routine contains two routines, one for frequency sweep and another for displaying the data collected. The first step in the frequency sweep is setting

l_values

and

r_values

to zero. This is important since individual bits in each variable are modified. Clearing

l_values

and

r_values

starts each variable with a clean slate. Then individual bits can be set to “1” or “0,” depending on what the IR detectors report. main:

l_values = 0

r_values = 0

The

for…next

loop is where the frequency sweep occurs. The

lookup

command checks the

counter

value to determine which frequency to copy to the

IR_freq

variable. When

counter

is “0,” 37500 gets copied to

IR_freq

. When

counter

is “1,” 38250 is copied to

IR_freq

. As the value of

counter

is incremented from

“0” to “4” by the

for...next

loop, each successive value in the

lookup

table is copied to

IR_freq

.

for counter = 0 to 4

lookup counter,[37500,38250,39500,40500,41500],IR_freq

Robotics! Version 1.5

Page

137

Chapter #6: Determining Distance Using Frequency Sweep

Note that the lookup table begins the frequency sweep at 37500 (most sensitive) and ends at 41500 (least sensitive). You might be wondering why the numbers in the lookup table don’t match the frequency values from Figure 6.1. It’s true that if the BASIC Stamp could transmit a 50% duty cycle pulse train (pulses with the same high time and low time) at these frequencies, they would have to match the frequencies specified for the IR detector’s filter. However, the

freqout

command introduces other factors that affect the amplitude of the harmonics transmitted by the IR LEDs. The math involved in predicting the optimum

frequency

arguments to use is very advanced and is well outside the scope of this text. Even so, the best frequencies for a given distance can be determined experimentally. You can consult Appendix H: Tuning IR Distance Detection for details, but try the remaining activities in this book first because the list of values we are using are known to be reliable.

The left sensor is checked by using

freqout

to send the current value of

IR_freq

. Next, the

.lowbit()

argument is used to address each successive bit in

l_values

. When

counter

is “0,” the

.lowbit(counter)

argument addresses bit-0 of

l_values

. When

counter

is “1,” the

.lowbit(counter)

argument addresses bit-1 of

l_values

, and so on. Before writing the value of

in8

to

l_values.lowbit(counter)

, the NOT operator (~) is used to invert the bit’s value before it is stored to its bit array location in

l_values

. The same process is then repeated for

r_values

. After the fifth time through the

for...next

loop, the IR data bits have all been loaded into

l_values

and

r_values

.

freqout 7,1,IR_freq

l_values.lowbit(counter) = ~in8

freqout 1,1,IR_freq

r_values.lowbit(counter) = ~in0

next

The

display

subroutine uses a variety of formatters and text strings to display the

l_values

and

r_values

variables. The first row of the display is the text heading indicating which readings correspond the right IR detector and which readings correspond to the left IR detector. Remember that left and right are treated as though you are sitting in the Boe-Bot driver’s seat. display:

debug home, cr, cr, "Left readings Right Readings", cr

The second row displays

l_values

and

r_values

in binary format. This allows for observation of how the bit values in

l_values

and

r_values

change as the apparent distance of an object changes.

debug " ",bin8 l_values, " ", bin8 r_values, cr

Page 138

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

The third row displays the

ncd

value of each variable. The

NCD

operator returns a value that corresponds to the location of the most significant bit in a variable. If the variable is all zeros,

ncd

returns a zero. If the least significant bit contains a “1,” and all the rest of the digits are “0,”

NCD

returns a “1.” If bit-1 contains a “1,” but all the numbers to the left of bit-1 are zeros,

ncd

returns a “2,” and so on. The

NCD

operator is a handy way of indicating how many ones have been loaded into the lower bits of

l_values

and

r_values

. What’s really handy is that

ncd

directly tells you in which zone the object has been detected.

debug " ",dec5 ncd(l_values), " ", dec5 ncd(r_values), cr, cr

When the display routine is finished sending data to the Debug Terminal, program control is returned to the

main

label. goto main

Your Turn

q q

With Program Listing 6.1 running, place the Boe-Bot facing the wall so that the IR LEDs are about 1.5 cm. from the wall. For best results, tape a white sheet of paper to the wall.

Make a note of the left and right readings. q

Start pulling the Boe-Bot away from the wall. q

Each time the value of one or the other sensors decreases, make a note of the distance. In this way you can determine the zones for each of your Boe-Bot’s IR pairs. q

If the readings on one side are consistently larger than the other, you can point the IR LED on the side reporting the larger readings outward a little further. For example, if the left IR pair continually reports higher readings than the right IR pair, try pointing the left IR LED and detector a little further to the left.

Robotics! Version 1.5

Page

139

Chapter #6: Determining Distance Using Frequency Sweep

Activity #2: The Drop-off Detector

One application for distance detection is checking for a drop-off. For example, if the Boe-Bot is navigating on a table, it can change direction if it sees the edge of the table. All you have to do is point the IR pairs downward so that they are both pointing at the table right in front of the Boe-Bot. A distance detection program can then be used to detect that the table is close-up. When the Boe-Bot nears the edge of a table, one or both of the distance detectors will start reporting that they no longer see something close-up. That means it’s time to turn away from the abyss. q

Point your IR pairs at the surface directly in front of the Boe-Bot as shown in Figure 6.3. The IR pairs should be pointed downward 45

° from horizontal and outward 45

°

from the Boe-Bot’s center line. q

Perform the tests below using Program Listing 6.1 before trying program Listing 6.2.

Figure 6.3: IR LED adjustment for edge detection.

q

Record the IR pair outputs when the Boe-Bot is looking straight at the table. If the values of the IR pairs when they are looking at your tabletop are “3” or more, it indicates your detectors are seeing what they are supposed to see. q q

ü

TIP

Go through the Chapter #6 activities first using the numbers given in the program listings. If you used

Appendix H to calibrate your Boe-Bot’s distance detectors, try the values you determined only after first trying the values given in the example programs.

Record the IR pair outputs when the Boe-Bot is looking off the edge of the table. If these values remain less than “3,” the Boe-Bot is ready to try Program Listing 6.2.

If the Boe-Bot does not give you steady and consistent readings of “3” or more when the Boe-Bot is looking at the table, try first adjusting the direction the IR pairs are pointing. Also, if the Boe-Bot does not consistently register less than “3” when it’s looking off the edge of the table, some additional adjustment of the IR pairs also is in order.

Page 140

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

q

If the sensors report “3” or more while looking at the table and “2” or less when looking off the edge, the

Boe-Bot is ready for Program Listing 6.2. q

If no physical adjusting works, try the instructions in Appendix H, then repeat the tests above.

!

Make sure to be the spotter for your Boe-Bot when running Program Listing 6.2.

Always be ready to pick your Boe-Bot up as it approaches the edge of the table it’s navigating. If the Boe-Bot tries to drive off the edge, pick it up before it takes the plunge. Otherwise, your Boe-Bot might become a Not-Bot!

When spotting your Boe-Bot while it’s avoiding drop-offs, be ready to pick it up from above. Otherwise, the Boe-Bot will see your hands instead of the drop-off and not perform as expected..

Programming for Drop-Off Detection

Program Listing 6.2 uses modified versions of the forward, right_turn, left_turn and backward routines that have been used and reused in every chapter since Chapter #2. The number of pulses in each routine have been adjusted for better performance along a table edge. The

check_sensors

subroutine takes distance measurements by recycling code from Program Listing 6.1: IR Distance Gage. q

Run and test Program Listing 6.2. Remember, always be ready to pick your Boe-Bot up if it tries to run off the table.

' Robotics! v1.5, Program Listing 6.2: Drop-off Detection

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations --------------

counter var nib

l_values var word

r_values var word

l_IR_freq var word

r_IR_freq var word

'----- Initialization ------------

low 13

low 12

output 2

output 7

' For...next loop index variable.

' Store R sensor vals for processing.

' Store L sensor vals for processing.

' Stores L IR freqs from lookup table.

' Stores R IR freqs from lookup table.

' Initialize servo line startup values.

' Declare freqout lines to be outputs.

Robotics! Version 1.5

Page

141

Chapter #6: Determining Distance Using Frequency Sweep

output 1

freqout 2,500,3000

'----- Main Routine -------------- main:

' Signal program is starting/restarting.

' Main routine

' The command “gosub check_sensors” sends the program to a subroutine that

' loads distance values into l_values and r_values. So, when the program returns

' from the check_sensors subroutine, the values are updated and ready for

' distance based decisions.

gosub check_sensors

' The distances are checked for four different inequalities. Depending on the

' inequality that turns out to be true, the program either branches to the

' forward, left_turn, right_turn or backward navigation routine.

if l_values >= 3 and r_values >= 3 then forward

if l_values >= 3 and r_values < 3 then left_turn

if l_values < 3 and r_values >= 3 then right_turn

if l_values < 3 and r_values < 3 then backward

' Repeat the process. goto main

'----- Navigation Routines -------

' Deliver a single forward pulse, then forward:

pulsout 13,1000

pulsout 12,500

pause 10

goto main ' go back to the main: label.

' Deliver eight left pulses, then left_turn:

for counter = 0 to 8

pulsout 13,500

pulsout 12,500

pause 20

next

goto main

right_turn:

for counter = 0 to 8

pulsout 13,1000

pulsout 12,1000

pause 20

next

' go back to the main: label.

' Deliver eight right pulses, then

Page 142

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

goto main

backward:

for counter = 0 to 8

pulsout 13,500

pulsout 12,1000

' go back to the main: label.

' Deliver eight backward pulses, then

pause 20

next

goto main ' go back to the main: label.

'----- Subroutines ---------------

' The check sensors subroutine is a modified version of Program Listing 6.1

' without the Debug Terminal display. Instead of displaying l_values and

' r_values, the main routine uses these values to decide which way to go.

check_sensors:

l_values = 0

r_values = 0

' Reset l_values and r_values to 0.

' Load sensor outputs into l_values and r_values using a for...next loop,

' a lookup table, and bit addressing.

for counter = 0 to 4

check_left_sensors:

lookup counter,[37500,38250,39500,40500,41500],l_IR_freq

freqout 7, 1, l_IR_freq

l_values.lowbit(counter) = ~ in8

check_right_sensors:

lookup counter,[37500,38250,39500,40500,41500],r_IR_freq

freqout 1, 1, r_IR_freq

r_values.lowbit(counter) = ~ in0

next

' Convert l_values and r_values from binary to ncd format.

l_values = ncd l_values

r_values = ncd r_values

Robotics! Version 1.5

Page

143

Chapter #6: Determining Distance Using Frequency Sweep

' Now l_values and r_values each store a number between 0 and 5 corresponding

' to the zone the object is detected in. The program can now return to the

' part of the main routine that makes decisions based on these distance

' measurements.

return

How the Drop-off Avoidance Program Works

The first thing the

main

routine does is call the

check_sensors

subroutine. Note that

check_sensors

is simply Program Listing 6.1 with no Debug Terminal display placed in a subroutine. Instead of debugging the

NCD

values of

l_detect

and

r_detect

, the values of these two variables are simply converted to

ncd

values using the statements:

l_values = ncd l_values and

r_values = ncd r_values

After calling the

check_sensors

subroutine,

l_values

and

r_values

are numbers between “0” and “5.”

These values are used instead of the “1” and “0” values used in the whiskers program. After the program returns from the

check_sensors

subroutine,

l_values

and

r_values

are checked against the benchmarks distance indicating the edge of the table has been detected.

if l_values >= 3 and r_values >= 3 then forward

if l_values >= 3 and r_values < 3 then left_turn

if l_values < 3 and r_values >= 3 then right_turn

if l_values < 3 and r_values < 3 then backward

The

start

and

end

arguments in the

for...next

loops that deliver the pulses in the four navigation routines have been modified slightly. They have also been relocated to a

Navigation Routines

section.

This makes adjustment of the routines’ behavior easier because they are all in one place.

Your Turn

q

By further adjusting the

start

and

end

arguments of the

for...next

loops in the navigation routines, you can program a variety of drop-off avoidance behaviors.

Page 144

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

Activity #3: Boe-Bot Shadow Vehicle

For one Boe-Bot to follow another, the Boe-Bot that follows, a.k.a. the shadow vehicle, has to know how far the lead vehicle is ahead. If the shadow vehicle is lagging behind, it has to detect this and speed up. If the shadow vehicle is too close to the lead vehicle, it has to detect this as well and slow down. If it’s the right distance, it can wait until the measurements indicate it’s too far or too close again.

Proportional control can be used to accomplish this by taking the difference between the desired distance and the measured distance and then adjusting the pulse widths sent to the servos accordingly. Figure 6.4 shows how proportional control works. The measured distance is subtracted

+

-

Error = -2

Kp X error

125 X -2

Center pulse width

Output adjust

-250

+

750

+

from the desired distance, which is called the set point. By subtracting the measured distance from the set point distance, you get the distance error. Adjusting the distance to make the measured distance equal to the set point distance involves

Measured left distance = 5

System

Left servo output

500

multiplying the error by a number, called the proportionality

.

Figure 6.4: Boe-Bot proportional control block diagram.

constant, K p

Figure 6.4 also illustrates a specific example for the left servo and IR pair. The set point is “3;” the distance is

“5,” and the proportionality constant is K p

= 125. Starting with the circle at the left of the block diagram, which is called a summing junction, the measured distance is subtracted from the set point distance. Since the set point distance is “3” and the measured distance is “5,” the error value is –2. An error signal of –2 means the Boe-Bot shadow vehicle has to back away from the lead vehicle because the lead vehicle is just too darn close! The block the error value feeds into multiplies the error by K p

= 125. So the block performs the following operation: 125

×

(-2) = –250. The summing junction on the right adds –250 to the left servo’s center pulse width. The result is that 100 is subtracted from the left servo’s center value. The net effect is a pulse width of 500 to the left servo, which is full-speed backward. The math for this proportional control operation is fairly straightforward.

Robotics! Version 1.5

Page

145

Chapter #6: Determining Distance Using Frequency Sweep

left_width = center + (K p

×

error)

= 750 + (125

×

(-2))

= 500

The right servo and IR pair have a similar algorithm, except that the value of the output adjust is subtracted instead of added to the center pulse width

period

of 750 (1.5 ms). Assuming the same measured value at the right IR pair, the output adjust results in a pulse width of 1000. The end result is that the Boe-Bot applies a full speed reverse pulse. This reverse pulse is part of a complex system that depends on unknown factors relating to the lead vehicle’s motion. The idea of feedback is that the system’s output is resampled, by the shadow Boe-Bot taking another distance measurement. Then the control loop repeats itself again and again and again…

Programming the Boe-Bot Shadow Vehicle

Program Listing 6.3 repeats the proportional control loop just discussed with every servo pulse. In other words, before each pulse, the distance is measured and the error signal is determined. Then the error is multiplied by K q p

, and the resulting value is added/subtracted to/from the pulse widths to the left/right servos.

Run Program Listing 6.3. q

Point the Boe-Bot at an 8 ½

×

11” sheet of paper held in front of it as though it’s a wall-obstacle. The

Boe-Bot should maintain a fixed distance between itself and the sheet of paper. q

Try rotating the sheet of paper slightly. The Boe-Bot should rotate with it. q

Try using the sheet of paper to lead the Boe-Bot around. The Boe-Bot should follow it.

' Robotics! v1.5, Program Listing 6.3: Shadow Vehicle

' {$Stamp bs2} ' Stamp Directive.

'----- Declarations --------------

' Constants

Kp_r

Kp_l con con

set_point con

125

125

3

' Right servo proportional constant.

' Left servo proportional constant.

' Set distance to a value between 0 & 5.

counter var nib

l_values var word

r_values var word

l_IR_freq var word

r_IR_freq var word

' Variables

' For...next loop index variable.

' Store L sensor vals for processing.

' Store R sensor vals for processing.

' Stores L IR freqs from lookup table.

' Stores R IR freqs from lookup table.

Page 146

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

'----- Initialization ------------

' Declare outputs. output 13

output 12

output 2

output 7

output 1

freqout 2,500,3000 ' Beep at startup.

'----- Main Routine --------------

' Main routine main:

gosub check_sensors ' Get distance values for each sensor

l_values = kp_l * (set_point - l_values)

r_values = kp_r * (set_point - r_values)

' Left proportional control.

' Right proportional control.

' Pulse servos pulsout 13,750 + l_values

pulsout 12,750 - r_values goto main ' Infinite loop.

'----- Subroutine(s) ------------- check_sensors:

l_values = 0 ' Set distances to 0.

r_values = 0

' Take 5 measurements for distance at each IR pair. If you fine tuned your

' frequencies in Activity #2, insert them in the lookup tables.

for counter = 0 to 4

check_left_sensors:

lookup counter,[37500,38250,39500,40500,41000],l_IR_freq

freqout 7,1,l_IR_freq

l_values.lowbit(counter) = ~in8

check_right_sensors:

lookup counter,[37500,38250,39500,40500,41000],r_IR_freq

freqout 1,1,r_IR_freq

r_values.lowbit(counter) = ~in0

next

Robotics! Version 1.5

Page

147

Chapter #6: Determining Distance Using Frequency Sweep

l_values = ncd l_values

r_values = ncd r_values

' Value (0 to 5) for distance depending on MSB. return

How the Shadow Vehicle Program Works

Program Listing 6.3 declares three constant aliases,

Kp_r

,

Kp_l

, and

set_point

using the

con

directive.

Everywhere you see

set_point

, it’s actually the number “3” (a constant). Likewise, everywhere you see either

Kp_r

or

Kp_l

in the program, the value is actually the number 125. The convenient thing about declaring aliases for these constants is that when the alias declaration is changed, all instances of the alias are changed throughout the entire program. For example, by changing the

Kp_l con

directive from 125 to 100, every instance of

Kp_l

in the entire program changes from 125 to 100. This is exceedingly useful for experimenting with and tuning the right and left proportional control loops. declarations:

Kp_r

Kp_l

set_point con con con

125

125

3

The first thing the

main

routine does is call the

check_sensors

subroutine. After the

check_sensors

subroutine is finished,

l_values

and

r_values

each contain a number corresponding to the zone in which an object was detected for both the left and right IR pairs. main:

gosub check_sensors

The next two lines of code implement both error and proportional calculations for each servo. The error calculation for each side is the subtraction within the parenthesis and the proportional is the multiplication of

Kp_l

and

Kp_r

by the terms in parenthesis.

l_values = kp_l * (set_point - l_values)

r_values = kp_r * (set_point – r_values)

The output adjust or drive calculations are nested in the

pulsout

period

arguments. No

pause period

was included because it takes 10 ms (plus some processing time) just to run the 10 frequency sweep values.

pulsout 13,750 + l_values

pulsout 12,750 - r_values

Page 148

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

Then program control is returned to the

main:

label, and the proportional feedback loop repeats itself. goto main

Your Turn

Figure 6.5 shows a lead Boe-Bot followed by a shadow Boe-Bot. The lead Boe-Bot is running a modified version of Program Listing 5.3: IR

Roaming, and the shadow Boe-Bot is running

Program Listing 6.3: Shadow Vehicle.

Proportional control makes the shadow Boe-

Bot a very faithful follower. One lead Boe-Bot can string along a chain of 6 or 7 Boe-Bots. Just add the lead Boe-Bot’s side panels and tailgate to the rest of the shadow Boe-Bots in the chain. q

If you are part of a class, mount paper panels on the tail and both sides of the lead

Boe-Bot as shown in Figure 6.5. q

If you are not part of a class (and only have one Boe-Bot) the shadow vehicle will follow a piece of paper or your hand just as well as it follows a lead Boe-bot. q

Lead

Boe-Bot

Shadow

Boe-Bot

Figure 6.5: Lead and shadow Boe-Bots.

Program the lead Boe-Bot for object avoidance using Program Listing 5.3 with these modifications to the four

Navigation Routines

: q q

Increase all pulse width

period

arguments that are 500 to 650.

Reduce all pulse width

period

arguments that are 1000 to 850. q

The Shadow Boe-Bot should be running Program Listing 6.3 without any modifications. q

With both Boe-Bots running their respective programs, place the shadow Boe-Bot behind the lead Boe-

Bot. The shadow Boe-Bot follows at a fixed distance, so long as it is not distracted by another object such as a hand or a nearby wall.

Robotics! Version 1.5

Page

149

Chapter #6: Determining Distance Using Frequency Sweep

You can adjust the set points and proportionality constants to change the shadow Boe-Bot’s behavior. Use your hand or a piece of paper to lead the shadow Boe-Bot while doing these exercises: q

Try running Program Listing 6.3 using values of

kp_r

and

kp_l

constants, ranging from 50 to 150. Note the difference in how responsive the Boe-Bot is when following an object. q

Try making adjustments to the value of the

set_point

constant. Try values between from 1 to 4. This will have a significant effect on the Boe-Bot’s tendency to correct forward or backward. When set_point is 1 or 4,

kp_r

and

kp_l

should be about 60. When

set_point

is 2 or 3,

set_point

can be 125.

Page 150

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

Summary and

Applications

A technique frequently used in electronics called frequency sweep was introduced. The Boe-Bot was programmed to run a frequency sweep on the IR detectors, which have built-in bandpass filters. Each bandpass filter has a center frequency of 38.5 kHz. The frequency response of each bandpass filter was used to indicate the distance of objects detected by the filter.

Closed-loop feedback and proportional control also were introduced. Proportional control in a closed-loop system is an algorithm where the error is multiplied by a proportionality constant to determine the system’s output. The error is the measured system output subtracted from the set point. For the Boe-Bot, both system output and set point were in terms of distance. The BASIC stamp was programmed in PBASIC to perform this operation in discrete time by taking repeated samples and recalculating the output adjust. Every

20 ms, the Boe-Bot re-sampled the distance and calculated a servo output proportional to the error signal, which was the desired distance subtracted from the measured distance.

Real World Examples

Filters are used in a variety of applications from radio, television, cell phone communication, and high-fi audio to, of all things, IR communication. A wide variety of filters are available with many different frequency response characteristics. Mechatronics, analog and digital electronics, and even mechanics feature many electronic filter applications and design techniques. One mechatronics example of where a filter would come in handy is a vibration detector. Assuming certain frequencies of vibration could harm the moving parts of a machine, a sensor feeding electronic sensor output to a filter could be used to always look for vibration at this frequency. When the vibration is detected, the filter passes the signal through to a subsystem that applies automatic correction.

Speaking of automatic correction, proportional control is the beginning of an entire class of closed-loop feedback control applied to a variety of industrial, electronic, and mechatronic systems. On-off control is the first line of defense in keeping a system such as a fluid tank, a pressure system or a temperature system at a preset level. Proportional control is the second line of defense. Then comes various mixtures of proportional, integral and derivative control introduced in the Stamps in Class Industrial Control text, available from www.stampsinclass.com.

Boe-Bot Application

IR object detection can now be used to determine distance as well as presence of an object. Add this feature to detection of light intensity, and tactile detection of objects, and the Boe-Bot’s ability to perceive its world is significantly increased. This text also introduced a variety of navigation techniques for following various things such as lines, lights, and other Boe-Bots. Navigation techniques for making the Boe-Bot flee from

Robotics! Version 1.5

Page

151

Chapter #6: Determining Distance Using Frequency Sweep

other things, such as obstacles and drop-offs, also were introduced. Most importantly, this text demonstrated ways of reusing navigation and sensory programming techniques introduced. The way these techniques were used and incorporated into PBASIC programs depended on the situation at hand. The important feature is that you are now ready to try mixing and matching sensor and navigation techniques in a

Boe-Bot competition. See Appendix I: Boe-Bot Competition Maze Rules.

A variety of other sensor, electronic and control system techniques are introduced in other Stamps in Class texts. If you’re interested in adding to your bag of Boe-Bot tricks or have plans to compete in the

Micromouse, Sumo Robot, or Firefighting Robot competitions, you’ll be pleased with the additional techniques and skills introduced in these texts, all available for free download from www.stampsinclass.com

:

What’s a Microcontroller: The basics of microcontrolled electronic projects with the BASIC Stamp.

PBASIC programming is used to interface the BASIC Stamp with elementary sensors and peripheral devices.

Basic Analog and Digital: The BASIC Stamp is becoming increasingly popular as the brain of many intelligent electronic designs. This text introduces a variety of analog-to-digital and digital-toanalog conversion techniques that lend themselves to use with the BASIC Stamp. Also introduced are some of the fundamental communication protocols for use with peripheral converters.

Earth Measurements: The BASIC Stamp can also be used at the heart of many environmental and data logging devices. This text delves further into the world of intelligent electronic sensors and the physics of accurate environmental measurements. Along the way, a variety of useful and clever

BASIC Stamp sensor interfaces are introduced. These concepts then are applied to microcontrolled environments. The examples included lend themselves to further exploration into weather, hydroponics, and a variety of other scientific endeavors.

Industrial Control: This text uses a variety of BASIC Stamp projects as a launching pad into fundamental principles and concepts in industrial process control. Free downloadable StampPlot

Lite software adds a unique oscilloscope type of data collection to the projects, and is particularly useful for illustrating system response to BASIC Stamp control using the following techniques: open loop, differential gap, proportional, integral and derivative.

Page 152

Robotics! Version 1.5

Chapter #6: Determining Distance Using Frequency Sweep

Questions and Projects

Questions

1. What effect does the IR detector’s electronic filter have on its ability to detect IR reflected off objects?

2. How does the IR detector’s electronic filter make it possible to detect an object’s distance?

3. What kind of data is necessary to fine tune the frequency sweep? What is the input variable that’s varied? What is the output data that’s examined? What decisions are made based on the output data?

4. What variable declaration and looping considerations would be involved in setting up a 16-value frequency sweep for each IR pair?

5. How can distance detection be used to detect the edge of a table?

6. How can the Boe-Bot use distance detection to maintain a constant distance from a stationary object? Is any different programming necessary for the Boe-Bot to maintain a constant distance from a moving object?

7. Describe the proportional control feedback loop. How does this loop apply to the Boe-Bot for the shadow vehicle exercise?

Exercises

1. If seven zones are needed, determine how many test frequencies will be required.

2. How many test frequencies would be required for 16 zones?

3. Modify Program Listing 6.3 so that the Boe-Bot can test for 16 zones per IR pair. Adjust this code so that it maintains a 20 ms pause between servo pulses.

Robotics! Version 1.5

Page

153

Chapter #6: Determining Distance Using Frequency Sweep

4. Write a segment of code that will allow the Boe-Bot to lock onto and follow a table edge. Hint: proportional control will help in this exercise.

Projects

1.

Program the Boe-Bot to follow a black stripe on a white background. Hint: A black stripe looks the same to the IR sensors as a far away object does. This will involve modifying Program Listing 6.2 so that it’s attracted to far-away objects.

2.

Add ramping algorithms to the Program Listings 6.2 and 6.3, and test them.

3.

Program the Boe-Bot to follow the edge of a black stripe. This is different from following a black stripe with both detectors. The Boe-Bot should be looking for a transition from black to white.

When you’re done, the Boe-Bot should be able to lock onto and follow a black stripe on either its left or right side.

4.

If you succeeded in Project #3, try making a maze that’s delimited by black stripes. Hint: EEPROM navigation will help in certain maneuvers like navigating corners. The cheese in the maze is a flashlight pointed at the white surface. When the Boe-Bot detects the cheese, it should stop and flash an LED on and off 10 times. A good cheese detector would be a single photoresistor circuit.

5.

Challenge: Whiskers can be mounted on the Boe-Bot, and you can train it to better navigate the black and white delimited maze in this chapter’s Project #4. The foundation for this training is introduced in Chapter #3, Project #3.

Page 154

Robotics! Version 1.5

Appendix A: Boe-Bot Parts Lists and Sources

Appendix A: Boe-

Bot Parts Lists and

Sources

Robotics! - Full Kit

Aside from a PC and the simple tools listed on Page 7, the

Robotics! Full Kit contains all the parts and documentation you’ll need to complete the experiments in this text.

Robotics! – Full Kit (#28132)

Parallax Code# Description

BS2-IC

27919

BASIC Stamp II module

BASIC Stamp Manual Version 1.9

28124

28125

550-00010

800-00003

Robotics! - Parts Kit

Robotics! Parts Kit

Robotics! v1.5 text

Board of Education Rev B

Serial cable

Quantity

1

1

1

1

1

1

If you already have a BOE and BASIC Stamp, the Robotics! Parts Kit can also be purchased separately. As with all Stamps in Class curriculum, the Robotics! experiments are designed for use with the Board of Education with BASIC Stamp and the parts kit with the same name as the text. The contents of the Robotics! Parts Kit is listed below. Replacement parts in the kit may also be ordered from http://www.stampsinclass.com.

Robotics! Parts Kit (#28124)

Parallax Code# Description Quantity

150-01030

150-02210

150-04710

200-01031

200-01040

201-03080

350-00006

350-00009

350-00014

350-00017

10K

resistors

220

resistors

470

resistors

0.01

µ

F capacitors

0.1

µ

F capacitors

3300

µ

F capacitor red LEDs

Photoresistors (EG&G Vactec VT935G group B) infrared receiver (Panasonic PNA4602M or eq.) infrared LEDs covered with heat shrink tubing (QT QEC113)

2

6

4

2

2

1

2

2

2

2

Robotics! Version 1.5

Page

155

Appendix A: Boe-Bot Parts Lists and Sources

Robotics! Parts Kit (#28124 continued)

Parallax Code# Description

451-00303

700-00010

700-00015

700-00049

3-Pin Header

Whisker

#4 screw-size nylon washer

3/8” Male-female standoff

800-00016

900-00001

28133

700-00002

700-00009

700-00011

700-00013

700-00016

700-00022

700-00023

700-00024

700-00025

700-00026

700-00027

700-00028

700-00038

900-00008 jumper wires (bag of 10)

Piezospeaker

Boe-Bot Hardware Pack

4-40 x 3/8”machine screws

1" polyethylene ball, pre-drilled o-ring tires

Boe-Bot plastic machined wheels

4-40 x 3/8” flathead machine screws

Boe-Bot aluminum chassis

1/16" x 1.5” long cotter pin

4-40 locknuts

13/32" rubber grommet (fits ½” hole)

9/32" rubber grommet (fits 3/8” hole)

1/2" double-female standoffs

4-40 x 1/ 4” machine screw

Battery holder with cable and barrel plug

Parallax pre-modified servos

Quantity

4

2

2

2

2

1

4

8

1

2

10

1

2

8

1

2

2

2

1

1

Board of Education Kits

The Stamps in Class curricula features different modules that depend on the BASIC Stamp and Board of

Education as a core. This core can be purchased separately.

Board of Education – Full Kit (#28102)

Parallax Code# Description

550-00008 Board of Education Rev A

800-00016

BS2-IC

750-00008

800-00003

Pluggable wires

BASIC Stamp II module

300 mA 9 VDC power supply

Serial cable

Quantity

1

10

1

1

1

Page 156

Robotics! Version 1.5

Appendix A: Boe-Bot Parts Lists and Sources

Parallax Code# Description

Board of Education Kit (#28150)

550-00008

800-00016

Board of Education Rev A

Pluggable wires

Robotics! and BASIC Stamp Documentation

The documentation included with the Robotics! Full Kit is also available separately.

Robotics! Documentation

Parallax Code# Description

27919 BASIC Stamp Manual Version 1.9

Quantity

1

6

Internet Availability?

http://www.stampsinclass.com

28125 Robotics! v1.5 http://www.stampsinclass.com

Parallax Distributors

The Parallax distributor network serves approximately 40 countries worldwide. A portion of these distributors are also Parallax-authorized “Stamps in Class” distributors – qualified educational suppliers.

Stamps in Class distributors normally stock the BASIC Stamp and Board of Education (#28102 and #28150).

Several electronic component companies are also listed for customers who wish to assemble their own

Robotics Parts Kit.

Country

United States

United States

Company

Parallax, Inc.

3805 Atherton Road, Suite 102

Rocklin, CA 95765 USA

(916) 624-8333, fax (916) 624-8003 http://www.stampsinclass.com http://www.parallaxinc.com

Digi-Key Corporation

701 Brooks Avenue South

Thief River Falls, MN 66701

(800) 344-4539, fax (218) 681-3380 http://www.digi-key.com

Notes

Parallax and Stamps in Class source.

Manufacturer of the BASIC Stamp.

Source for electronic components. Parallax distributor. May stock Board of Education.

Excellent source for components.

Australia

Microzed Computers

PO Box 634

Armidale 2350

Australia

Phone +612-67-722-777, fax +61-67-728-987 http://www.microzed.com.au

Parallax distributor. Stamps in Class distributor.

Excellent technical support.

Robotics! Version 1.5

Page

157

Appendix A: Boe-Bot Parts Lists and Sources

Australia

Canada

Germany

New Zealand

United Kingdom

RTN

35 Woolart Street

Strathmore 3041

Australia

Phone / fax +613 9338-3306 http://people.enternet.com.au/~nollet

HVW Technologies

300-8120 Beddington Blvd NW, #473

Calgary, AB T3K 2A8

Canada

(403) 730-8603, fax (403) 730-8903 http://www.hvwtech.com

Elektronikladen

W. Mellies Str. 88

32758 Detmold

Germany

49-5232-8171, fax 49-5232-86197 http://www.elektronikladen.de

Trade Tech

Auckland Head Office, P.O. Box 31-041

Milford, Auckland 9

New Zealand

+64-9-4782323, fax 64-9-4784811 http://www.tradetech.com

Milford Instruments

Milford House

120 High St., S. Milford

Leeds YKS LS25 5AQ

United Kingdom

+44-1-977-683-665

Fax +44-1-977-681-465 http://www.milinst.demon.co.uk

Parallax and Stamps in Class distributor.

Parallax distributor and Stamps in Class distributor.

Parallax distributor and Stamps in Class distributor.

Parallax distributor and Stamps in Class distributor.

Parallax distributor and Stamps in Class distributor.

Page 158

Robotics! Version 1.5

Appendix B: PC to Stamp Communication Troubleshooting

Appendix B: PC to

Stamp

Communication

Trouble-shooting

When Identify is selected from the Stamp Editor’s Run menu, the expected response is:

“Information: Found BS2-IC (firmware v1.0.).”

When you get an error message instead, it can sometimes be mystifying. Here are descriptions of the most common error messages along with some suggestions for remedying the problems associated with them. If none of these remedies work, go back and make sure all the other instructions in Chapter #1 were followed correctly. Still no luck? Parallax Technical Support contact information is printed on the BOE.

“Error: Basic Stamp II detected but not responding…Check power supply.” The software thinks it found a BASIC Stamp on one of the com. ports, but when it tries to communicate with the BASIC Stamp, it gets no response. “Check power supply” means check your battery pack and batteries. q

For troubleshooting, make sure you are using new AA Alkaline 1.5 V batteries and that they are loaded properly into the battery pack. q

Also, make sure the barrel plug is seated into the barrel jack on the BOE.

Is the BASIC Stamp connected to the com. port the software thinks it sees it on? q

To check and adjust your com. port settings, click Edit, and select Preferences. q

Next, click the Editor Operation tab. q

The Default Com. port can be set to different values depending on which com port you think the BASIC

Stamp is connected.

There is also an AUTO setting that causes the software to search for a BASIC Stamp on all known com ports. q

After each adjustment in the Default com port settings, click OK, then try Run | Identify again.

“Error: BASIC Stamp II not responding…Check serial cable connection. Check power supply.” This message means that the software can’t find the BASIC Stamp. The message might state that the BASIC Stamp was not found on a particular com port, or it might say it can’t find the BASIC Stamp on any com port. q

Check to see if your serial cable is properly connected.

Robotics! Version 1.5

Page

159

Appendix B: PC to Stamp Communication Troubleshooting

q

Try adjusting the com port settings as outlined for the previous error message.

“Error: BASIC Stamp IISX not responding…Check serial cable connection. Check power supply.”

Alternatively, this message might specify the BASIC Stamp II E, or P. This message means that the software is set to look for a BASIC Stamp 2SX (or 2E or 2P) instead of a BASIC Stamp 2. This is easy to fix. q

Click Edit and select Preferences. q

Click the Editor Operation Tab. q

Change the Default Stamp Mode field so that it reads BS2 instead of BS2SX or BS2E or BS2P.

Page 160

Robotics! Version 1.5

Appendix C: PBASIC Quick Reference

Appendix C: PBASIC

Quick Reference

The Parallax BASIC Stamp Manual Version 1.9 consists of approximately 450 pages of PBASIC command descriptions, application notes, and schematics. The entire document is available for download from http://www.parallaxinc.com and http://www.stampsinclass.com in Adobe’s PDF format, but also may be purchased by students and educational institutions.

This PBASIC Quick Reference Guide is a reduced version of BASIC Stamp II commands.

BRANCH

BRANCH offset, [address0, address1,…,address N]

Go to the address specified by offset (if in range).

Offset is a variable / constant that specifies which of the listed address to go to (0-N).

Addresses are labels that specify where to go.

BUTTON

BUTTON pin, downstate, delay, rate, workspace, targetstate, label

Debounce button, perform auto-repeat, and branch to address if button is in target state.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

downstate is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

delay is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

rate is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

workspace is a byte or word variable.

targetstate is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

label is a valid label to jump to in the event of a button press.

COUNT

COUNT pin, period, result

Count cycles on a pin for a given amount of time (0 - 125 kHz, assuming a 50/50 duty cycle).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

period is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

result is a bit, nibble, byte or word variable.

DATA

DATA {pointer} DATA {@location,} {WORD} {data}{(size)} {, { WORD} {data}{(size)}...}

Store data in EEPROM before downloading PBASIC program.

Robotics! Version 1.5

Page

161

Appendix C: PBASIC Quick Reference

pointer is an optional undefined constant name or a bit, nibble, byte or word variable which is assigned the value of the first memory location in which data is written.

location is an optional constant, expression or a bit, nibble, byte or word variable which designates the first memory location in which data is to be written.

word is an optional switch which causes DATA to be stored as two separate bytes in memory.

data is an optional constant or expression to be written to memory.

DEBUG

DEBUG outputdata{,outputdata...}

Send variables to PC for viewing.

outputdata is a text string, constant or a bit, nibble, byte or word variable. If no formatters are specified

DEBUG defaults to ascii character display without spaces or carriage returns following the value.

DTMFOUT

DTMFOUT pin, {ontime, offtime,}[key{,key...}]

Generate DTMF telephone tones.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

ontime and offtime are constants, expressions or bit, nibble, byte or word variables in the range 0..65535.

key is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

END

END

Sleep until the power cycles or the PC connects. Power consumption is reduced to approximately 50 µA.

FOR...NEXT

FOR variable = start to end {stepVal} …NEXT

Create a repeating loop that executes the program lines between FOR and NEXT, incrementing or decrementing variable according to stepVal until the value of the variable passes the end value.

Variable is a bit, nib, byte, or word variable used as a counter.

Start is a variable or constant that specifies the initial value of the variable.

End is a variable or constant that specifies the end value of the variable. When the value of the variable passes end, the FOR . . . NEXT loop stops executing and the program goes on to the instruction after NEXT.

StepVal is an optional variable or constant by which the variable increases or decreases with each iteration through the FOR / NEXT loop. If start is larger than end, PBASIC2 understands stepVal to be negative, even though no minus sign is used.

Page 162

Robotics! Version 1.5

Appendix C: PBASIC Quick Reference

FREQOUT

FREQOUT pin, milliseconds, freq1 {,freq2}

Generate one or two sine waves of specified frequencies (each from 0 - 32767 Hz).

pin is a constant, expression or a bit, nibble, byte or word variable in the range of 0..15.

milliseconds is a constant, expression or a bit, nibble, byte or word variable.

freq1 and freq2 are constant, expression or bit, nibble, byte or word variables in the range 0..32767 representing the corresponding frequencies.

GOSUB

GOSUB addressLabel

Store the address of the next instruction after GOSUB, then go to the point in the program specified by

addressLabel.

AddressLabel is a label that specifies where to go.

GOTO

GOTO addressLabel

Go to the point in the program specified by addressLabel.

AddressLabel is a label that specifies where to go.

HIGH

HIGH pin

Make the specified pin output high (write 1s to the corresponding bits of both DIRS and OUTS).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

IF...THEN

IF condition THEN addressLabel

Evaluate condition and, if true, go to the point in the program marked by addressLabel.

Condition is a statement, such as “x=7” that can be evaluated as true of false.

AddressLabel is a label that specifies where to go in the event that the condition is true.

INPUT

INPUT pin

Make the specified pin an input (write a 0 to the corresponding bit of DIRS).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

LOOKDOWN

LOOKDOWN value, {??,} [value0, value1,... valueN], variable

value is a constant, expression or a bit, nibble, byte or word variable.

Robotics! Version 1.5

Page

163

Appendix C: PBASIC Quick Reference

?? is =, <>, >, <, <=, =>. (= is the default).

value0, value1, etc. are constants, expressions or bit, nibble, byte or word variables.

variable is a bit, nibble, byte or word variable.

LOOKUP

LOOKUP index, [value0, value1,... valueN], variable

Look up the value specified by the index and store it in a variable. If the index exceeds the highest index value of the items in the list, variable is unaffected. A maximum of 256 values can be included in the list.

index is a constant, expression or a bit, nibble, byte or word variable.

value0, value1, etc. are constants, expressions or bit, nibble, byte or word variables.

variable is a bit, nibble, byte or word variable.

LOW

LOW pin

Make pin output low (write 1 to the corresponding bit of DIRS and 0 to the corresponding bit of OUTS).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

NAP

NAP period

Nap for a short period. Power consumption is reduced to 50

µ

A (assuming no loads).

period is a constant, expression or a bit, nibble, byte or word variable in the range 0..7 representing 18ms intervals.

OUTPUT

OUTPUT pin

Make the specified pin an output (write a 1 to the corresponding bit of DIRS).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

PAUSE

PAUSE period

Pause execution for 0–65535 milliseconds.

period is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

PULSIN

PULSIN pin, state, variable

Measure an input pulse (resolution of 2 µs).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

state is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

Page 164

Robotics! Version 1.5

Appendix C: PBASIC Quick Reference

variable is a bit, nibble, byte or word variable.

Measurements are in 2uS intervals and the instruction will time out in 0.13107 seconds.

PULSOUT

PULSOUT pin, period

Output a timed pulse by inverting a pin for some time (resolution of 2 µs).

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

period is a constant, expression or a bit, nibble, byte or word

variable in the range 0..65535 representing the pulse width in 2uS units.

PWM

PWM pin, duty, cycles

Output PWM, then return pin to input. This can be used to output analog voltages (0-5V.) using a capacitor and resistor.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

duty is a constant, expression or a bit, nibble, byte or word variable in the range 0..255.

cycles is a constant, expression or a bit, nibble, byte or word variable in the range 0..255 representing the number of 1 ms cycles to output.

RANDOM

RANDOM variable

Generate a pseudo-random number.

variable is a byte or word variable in the range 0..65535.

RCTIME

RCTIME pin, state, variable

Measure an RC charge/discharge time. Can be used to measure potentiometers.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

state is a constant, expression or a bit, nibble, byte or word variable in the range 0..1.

variable is a bit, nibble, byte or word variable.

READ

READ location, variable

Read EEPROM byte into variable.

location is a constant, expression or a bit, nibble, byte or word variable in the range 0..2047.

variable is a bit, nibble, byte or word variable.

RETURN

Robotics! Version 1.5

Page

165

Appendix C: PBASIC Quick Reference

Return from subroutine – sends the program back to the address (instruction) immediately following the most recent GOSUB.

REVERSE

REVERSE pin

If pin is an output, make it an input. If pin is an input, make it an output.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

SERIN

SERIN rpin{\fpin}, baudmode, {plabel,} {timeout, tlabel,} [inputdata]

Serial input with optional qualifiers, time-out, and flow control. If qualifiers are given, then the instruction will wait until they are received before filling variables or continuing to the next instruction. If a time-out value is given, then the instruction will abort after receiving nothing for a given amount of time. Baud rates of 300 -

50,000 are possible (0 - 19,200 with flow control). Data received must be N81 (no parity, 8 data bits, 1 stop bit) or E71 (even parity, 7 data bits, 1 stop bit).

rpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..16.

fpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

baudmode is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535.

plabel is a label to jump to in case of a parity error.

timeout is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 representing the number of milliseconds to wait for an incoming message.

tlabel is a label to jump to in case of a timeout.

inputdata is a set of constants, expressions and variable names separated by commas and optionally proceeded by the formatters available in the DEBUG command, except the ASC and REP formatters.

Additionally, the following formatters are available:

1. STR bytearray\L{\E} input a string into bytearray of length L with optional end-character of E. (0’s will fill remaining bytes).

2. SKIP L input and ignore L bytes.

3. WAITSTR bytearray{\L} Wait for bytearray string (ofL length, or terminated by 0 if parameter is not specified and is 6 bytes maximum).

4. WAIT (value {,value...}) Wait for up to a six-byte sequence.

SEROUT

SEROUT tpin{\fpin}, baudmode, {pace,} {timeout, tlabel,} [outputdata]

Send data serially with optional byte pacing and flow control. If a pace value is given, then the instruction will insert a specified delay between each byte sent (pacing is not available with flow control). Baud rates of 300 -

50,000 are possible (0 - 19,200 with flow control). Data is sent as N81 (no parity, 8 data bits, 1 stop bit) or E71

(even parity, 7 data bits, 1 stop bit).

tpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..16.

fpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

baudmode is a constant, expression or a bit, nibble, byte or word variable in the range 0..60657.

Page 166

Robotics! Version 1.5

Appendix C: PBASIC Quick Reference

pace is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 specifying a time (in milliseconds) to delay between transmitted bytes. This value can only be specified if the fpin is not specified.

timeout is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 representing the number of milliseconds to wait for the signal to transmit the message. This value can only be specified if the fpin is specified.

tlabel is a label to jump to in case of a timeout. This can only be specified if the fpin is specified.

outputdata is a set of constants, expressions and variable names separated by commas and optionally proceeded by the formatters available in the DEBUG command.

SHIFTIN

SHIFTIN dpin, cpin, mode, [result{\bits} { ,result{\bits}... }]

Shift bits in from parallel-to-serial shift register.

dpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the data pin.

cpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the clock pin.

mode is a constant, symbol, expression or a bit, nibble, byte or word variable in the range 0..4 specifying the bit order and clock mode. 0 or MSBPRE = msb first, pre-clock, 1 or LSBPRE = lsb first, pre-clock, 2 or

MSBPOST = msb first, post-clock, 3 or LSBPOST = lsb first, post-clock.

result is a bit, nibble, byte or word variable where the received data is stored.

bits is a constant, expression or a bit, nibble, byte or word variable in the range 1..16 specifying the number of bits to receive in result. The default is 8.

SHIFTOUT

SHIFTOUT dpin, cpin, mode, [data{\bits} {, data{\bits}... }]

Shift bits out to serial-to-parallel shift register.

dpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the data pin.

cpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the clock pin.

mode is a constant, symbol, expression or a bit, nibble, byte or word variable in the range 0..1 specifying the bit order. 0 or LSBFIRST = lsb first, 1 or MSBFIRST = msb first.

data is a constant, expression or a bit, nibble, byte or word variable containing the data to send out.

bits is a constant, expression or a bit, nibble, byte or word variable in the range 1..16 specifying the number of bits of data to send. The default is 8.

Robotics! Version 1.5

Page

167

Appendix C: PBASIC Quick Reference

SLEEP

SLEEP seconds

Sleep for 1-65535 seconds. Power consumption is reduced to approximately 50 µA.

seconds is a constant, expression or a bit, nibble, byte or word variable in the range 0..65535 specifying the number of seconds to sleep.

STOP

STOP

Stop the program execution until the power is reset. This command differs from SLEEP in two respects. First, the BASIC Stamp 2 does not enter low power mode when the stop command is executed. Second, outputs are not interrupted every 2.3 seconds.

TOGGLE

TOGGLE pin

Invert the state of a pin.

pin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15.

WRITE

WRITE location, data

Write byte into EEPROM.

location is a constant, expression or a bit, nibble, byte or word variable in the range 0..2047.

data is a constant, expression or a bit, nibble, byte or word variable.

XOUT

XOUT mpin, zpin, [house\keyorcommand{\cycles} {, house\keyorcommand{\cycles}... }]

Generate X-10 powerline control codes. For use with TW523 or TW513 powerline interface module.

mpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the modulation pin.

zpin is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the zerocrossing pin.

house is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying the house code A..P respectively.

keycommand is a constant, expression or a bit, nibble, byte or word variable in the range 0..15 specifying keys 1..16 respectively or is one of the commands shown for X-10 light control in the BASIC Stamp

Manual Version 1.9. These commands include lights on, off, dim and bright.

cycles is a constant, expression or a bit, nibble, byte or word variable in the range 2..65535 specifying the number of cycles to send. (Default is 2).

Page 168

Robotics! Version 1.5

Appendix D: Building Servo Ports on the Rev. A Board of Education

Appendix D:

Building Servo

Ports on the Rev A

Board of Education

Previous to July 2000, Parallax sold the Board of Education Rev

A along with Boe-Bot Kits, instead of the Board of Education

Rev B. The Board of Education Rev B has four servo ports built into the top of it that makes connecting servos quick and easy.

If you have a Board of Education Rev A, building your own servo ports is pretty easy. All the projects in this text were designed so that there would be no conflict with the Rev A servo ports introduced in this appendix. So, if you build the servo ports as instructed here, the experiments in this text should go without a hitch.

The servo ports we are going to make will function as replacements for servo Ports 12 and 13 on the Board of

Education Rev B. Once these servo ports are built and tested, you can leave them plugged in every activity from Chapter #1, Activity #6 through the end of the text (Chapter #6, Activity #3). With this in mind, leaving the servo ports on your BOE Rev A connected and not disassembling them between activities is recommended. Any activity that features a schematic with servos connected to I/O pins P12/P13 will work fine with this servo port design shown in Figure D.2. Likewise, whenever a picture shows servos plugged into the BOE Rev B’s servo ports 12 and 13, Figure D.2 is the BOE Rev A substitute for the servo port wiring.

Here's how to build the servo ports onto your BOE Rev A:

Parts List:

(1) Board of Education Rev A

(1) 3300

µ

F capacitor

(2) 3-pin headers

(2) Servos

(Misc.) Jumper Wires

The three-pin headers in the Rev A Robotics! Kits are shown in Figure D.1 (a). Modify this three-pin header so that the plastic holding the three pins together is in the middle of the pins as shown in Figure D.1 (b).

Robotics! Version 1.5

Page

169

Appendix D: Building Servo Ports on the Rev. A Board of Education

Figure D.1 (a) Unmodified header, and (b) modified header.

Next connect the ports to the Board of Education as shown in Figure D.2. q

Connect the 3300

µ

F capacitor from Vdd to Vss. Make sure the shorter leg of the capacitor is plugged into one of the two sockets labeled Vss on the 20-socket app-mod header. Also make sure that the capacitor’s longer pin is plugged into the socket labeled Vdd on the app-mod header. q

Insert the three-pin headers into the breadboard and use jumper wires to connect Vin, Vss, P12 and P13 to the sockets on the white breadboard EXACTLY AS SHOWN in Figure D.2.

Rev A

CLAS

S

VR1

X3

Vdd nc

Vss

3300 µF cap.

- +

X2

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

P8

X1

2

1

V s s

V s s

P1 P5 P11 P15

V i n

20

19

P0 P4 P10 P14 V d d

Figure D.2: Servo Port Wiring.

Page 170

Robotics! Version 1.5

Appendix D: Building Servo Ports on the Rev. A Board of Education

Next, the servos can be connected to the servo ports. The upper three-pin header is equivalent to servo port

13 and the lower three-pin header is equivalent to servo port 12.

!

Make sure to follow the servo wiring color codes shown in Figure D.3. Failure to do so could result in damaged servos, a damaged BASIC Stamp, or both.

White

Red

Black

Rev A

CLA

PS

SS

VR1

X3

Vdd nc

Vss

3300 µF cap.

- +

X2

P4

P3

P2

P1

P0

P8

P7

P6

P5

P15

P14

P13

P12

P11

P10

P9

X1

2

1

V s s

V s s

P1 P5 P11 P15

V i n

P0 P4 P10 P14

V d d

20

19

Black

Red

White

Figure D.3: Color codes for plugging the servos into the servo ports.

Robotics! Version 1.5

Page

171

Appendix E: Board of Education Rev. A Voltage Regulator Upgrade Kit

Appendix E: Board of Education Rev A

Voltage Regulator

Upgrade Kit

Prior to June 1999, Parallax produced the Board of Education with a LM7805CV voltage regulator. This voltage regulator is fine for general use, but will cause the BASIC Stamp to reset when used with 6-volt power supplies and higher current devices like servos or stepper motors. If your Board of

Education has the LM7805CV voltage regulator, contact Parallax and ask for a free BOE Voltage Regulator Upgrade Kit (stock code #28151). This Appendix includes instructions to remove the LM7805CV voltage regulator and replace it with the low-drop LM2940. Parallax will send it out for free by U.S. Mail.

The voltage regulator is the only component that has a machine screw and nut sticking up on the circuit board located right next to the “Stamps in Class” logo. To put in the new LM2940 regulator, all you need is a small soldering iron, wire cutters, screwdriver and a little solder. Replacing the 7805CV with an LM2940 only takes a few minutes and is well worth the time. Here’s how to do it.

Step 1: Remove the 7805 Voltage Regulator

Using your small wire cutter, cut the leads of the existing 7805 regulator off flush with the case of the regulator as shown in Figure E.1. When you're done with this step you should have leads still attached to your circuit board. You don't have to unsolder anything.

Figure E.1: Remove the 7805 regulator by cutting the leads close to the regulator case and unscrewing the small nut.

Robotics! Version 1.5

Page

173

Appendix E: Board of Education Rev. A Voltage Regulator Upgrade Kit

Step 2: Install LM2940 Regulator

Put the LM2940 regulator where the old one was, trim the leads off a little and put the screw back in and tighten the nut. Line it up just like the old one was so the leads from the new regulator are laying on top of the ones you left when you cut out the old 7805 regulator. Figure E.2 shows what things should look like at this point.

Figure E.2: Put the LM2940 in place of the 7805. The leads will line up with the old leads of the 7805.

Step 3: Solder Regulator on Board of Education

Heat up the soldering iron if you haven’t done so yet and get ready to solder the new leads from the LM 2940 onto the old leads underneath them. Before you solder, trim the leads of the LM 2940-5 so they don’t extend beyond the old leads. Solder the leads together and you are finished. Be sure you tighten the 4-40 screw and nut that mount the regulator to the Board of Education.

Page 174

Robotics! Version 1.5

Appendix F:

Breadboarding

Rules

Appendix F: Breadboarding Rules

Figure F.1 shows the circuit symbols used in the experiments along with where to find them on the Board of Education Rev A.

The symbol for Vdd is the positive 5-volt supply for the BASIC

Stamp and the Board of Education. There are four sockets along the top side of the breadboard to the left for making connections to Vdd.

Vdd

P15

Figure F.1: Board of

Education Circuit Symbols

and where to find them on the Board of Education.

Also shown is how each row of 5 sockets on the breadboard is electrically connected underneath.

P2

P1

P0

Vss

Rows of 5 sockets are connected underneath the breadboard.

Next, the ground symbol is used for Vss. This is the reference terminal for taking measurements, and it's considered to be 0 volts compared to all other voltages on the Board of Education. The four sockets for connecting jumper wires to Vss are along the top of the breadboard to the right.

Robotics! Version 1.5

Page

175

Appendix F: Breadboarding Rules

There is a row of 15 sockets along the left side of the breadboard for connecting to the BASIC Stamp I/O pins.

Each I/O pin has a label. I/O pin P0 is connected to the bottom left socket. Pin P1 is the next socket up, and above that socket is the connection to pin P2, and so on through pin P15 at the top left.

Figure F.1 also shows some samples of five-socket-wide rows that are electrically connected underneath the breadboard. There are 34 of these rows arranged in the two columns on the breadboard. If you want to connect two jumper wires to each other, you can just plug them both into the same row of five. Then the wires are electrically connected. Likewise, if you want to connect one or more wires to the terminal of a part, just plug them into the same row on the breadboard and they'll be connected. Four sockets at a time can be added for Vdd, Vin, or Vss by just running a jumper wire from a socket, such as Vdd, to an empty row on the breadboard.

Figure F.2 shows the BOE Rev B breadboard. Along with Vdd and Vss, three sockets are also added for accessing Vin, the BOE’s unregulated power source. Whatever voltage is plugged into the BOE is what appears at the Vin sockets. If the power supply is the four 1.5 V AA batteries in the Boe-Bot battery pack, Vin will be at

6 V. If the power supply is a 9 V battery connected to the battery clips on the BOE, Vin will be 9 V. If a wall mount 7.5 V power supply is connected to the BOE’s power plug, Vin should be 7.5 V. However, be careful of wall mount power supplies. Their voltage output varies with the current draw placed on the supply.

Vdd Vin Vss Vdd Vin Vss

X3 X3

P8

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

X2

P8

P7

P6

P5

P4

P3

P2

P1

P0

P15

P14

P13

P12

P11

P10

P9

X2

Figure F.2: Another look at the connections underneath the breadboard, this time on the BOE Rev B.

Page 176

Robotics! Version 1.5

Appendix H: Resistor Color Codes

Appendix G:

Resistor Color

Codes

Figure G.2 shows a drawing of a resistor below its circuit symbol. The circuit symbol typically has the

resistance value written below or next to it. The colored stripes on the part drawn below the symbol indicate its value, which is measured in

Ohms. The omega symbol ( Ω

) is used to denote the Ohm.

Most common types of resistors have colored bands that indicate their value. The resistors that we’re using in this series of experiments are typically “1/4 watt, carbon film, with a 5% tolerance.” If you look closely at the sequence of bands you’ll notice that one of the bands (on an end) is gold. This is band #4, and the gold color designates that it has a 5% tolerance.

Figure G.2: Resistor Circuit Symbol

and Corresponding Component

470

The resistor color code is an industry standard in designating the resistance of a resistor. Each color band represents a number and the order of the color band will represent a number value. The first two color bands indicate a number. The third color band indicates the multiplier (the number of trailing zeros). The fourth band indicates the tolerance of the resistor +/- 5, 10 or 20%.

Color 1 st

Digit

Table G.1: Variable Declaration Sizes

2 nd

Digit Multiplier Tolerance

black brown red orange yellow green blue violet gray white gold silver no color

4

5

6

7

0

1

2

3

8

9

4

5

6

7

0

1

2

3

8

9

1

10

100

1,000

10,000

100,000

1,000,000

10,000,000

100,000.000

1,000,000,000

5%

10%

20%

Robotics! Version 1.5

Page

177

Appendix H: Resistor Color Codes

A resistor has the following color bands:

Band #1. = Red

Band #2. = Violet

Band #3. = Yellow

Band #4. = Gold

Looking at our chart above, we see that red has a value of 2.

So we write: “2.”

Violet has a value of 7.

So we write: “27”

Yellow has a value of 4.

So we write: “27 and four zeros” or “270000.”

This resistor has a value of 270,000 ohms (or 270 k

) and a tolerance of 5%.

Page 178

Robotics! Version 1.5

Appendix H: Tuning IR Distance Detection

Note

Appendix H: Tuning

IR Distance

Detection

Finding the Right Frequency Sweep Values

Fine tuning the Boe-Bot’s distance detection involves determining which frequency is most reliable for each zone for each IR pair.

This appendix features a method of determining the best frequencies for determining given distances using spreadsheets. This activity is takes time and patience, and is only recommended if your distance sensing is severely out of calibration. It involves collecting frequency sweep data and using it to determine the most reliable values for detecting particular distances. q

Point both the IR LEDs and detectors straight forward. q

Place the Boe-Bot in front of a wall with a white sheet of paper as the IR target. q

Place the Boe-Bot so that its IR LEDs are 1 cm. away from the paper target. Make sure the front of the

Boe-Bot is facing the paper target. Both IR LEDs and detectors should be pointed directly at the paper.

IR Fine Tuning Program

Program Listing H.2 performs a frequency sweep on the IR detector and displays the Data. Although the techniques used are similar to other programs, it has one unique feature. The Basic Stamp is programmed to wait for you to press the enter key. q

Enter and run Program Listing H.2, but do not disconnect the Boe-Bot from the serial cable.

' Robotics! v1.5, Program Listing H.2: IR Frequency Sweep

' Stamp Directive. ' {$Stamp bs2}

'----- Declarations --------------

l_values var bit

r_values bit

IR_freq var word

'----- Initialization ------------

output 2

output 7

output 1

' Store R sensor vals for processing.

' Store L sensor vals for processing.

' Stores L IR freqs from lookup table.

' Set all I/O lines sending freqout

' signals to function as outputs

Robotics! Version 1.5

Page

179

Appendix H: Tuning IR Distance Detection

freqout 2, 2000, 3000

low 12

low 13

'----- Main Routine --------------

' Declare a variable for counting.

' Set P12 and 13 to output-low. main:

' Display message to press enter when ready and wait for carriage return.

debug cr,"Press enter when ready. ", cr

serin 16,16468,[wait(cr)]

' After carriage return, display table headings.

debug "IR left Right ", cr

debug "Freq Sensor Sensor ", cr

debug "--------------------------", cr

' Take multiple frequency measurements.

for ir_freq = 30500 to 46500 step 1000

check_sensors:

l_values = 0

r_values = 0

check_left_sensors:

freqout 7,1,IR_freq

l_values = ~in8 pause 10

' Check Sensors

check_right_sensors:

freqout 1,1,IR_freq

r_values = ~in0

pause 10

' Display each frequency measurement before continuing to the next loop.

debug dec5 IR_freq, " ",bin1 l_values, " ", bin1 r_values, cr

next

' Back to main & repeat the process. goto main

Page 180

Robotics! Version 1.5

Appendix H: Tuning IR Distance Detection

q

Click the upper of the two window panes shown in

Figure H.3. q

Press the Enter key. The frequency response data will appear as shown in the figure.

The BASIC Stamp has been programmed to make the

Debug Terminal display a “1” if an object was detected and a “0” if an object was not detected. Figure H.3 shows that the left sensor’s region of good signal response is between 36500 and 40500. For the left sensor, the frequency response is strong between 37500 and 41500. q

Modify the

for...next

loop in Program Listing H.2 so that it steps in increments of 250 and includes the upper and lower limits of both detectors. In the example shown in Figure H.3, the

start

,

end

and

step

values of the

for...next

loop would be modified as follows: for ir_freq = 36500 to 41500 step 250 q q

Figure H.3 Debug of Frequency Data.

Re-run your modified Program Listing H.2, and press enter again.

Record the data for left and right sides in separate spreadsheets.

Upper

Pane

Lower

Pane

q q

Press the Enter key again and record the next set of data points.

Repeat this process three more times. When finished, you will have five sets of data points for each sensor in separate spreadsheets for this one frequency. q q

Back the Boe-Bot up 2.5 cm. Now your Boe-Bot’s IR detectors will be 5 cm. from the paper target.

Record five more data sets at this distance. q

Keep on backing up the Boe-Bot by 2.5 cm. at a time and recording the five frequency sweep data sets between each distance adjustment.

Robotics! Version 1.5

Page

181

Appendix H: Tuning IR Distance Detection

q

When the Boe-Bot has been backed up by 20 cm., the frequency sweep will display mostly, if not all zeros. When the frequency sweep is all zeros, it means no object is detected at any frequency within the sweep.

By careful scrutiny of the spreadsheets and process of elimination, you can determine the optimum frequency for each IR pair for each zone. Customizing for up to eight zones can be done without any restructuring of the Boe-Bot navigational routines. If you were to customize for 15 zones, this would entail 30 one millisecond freqout commands. That won’t gracefully fit between servo pulses. One solution would be to take 15 measurements every other pulse.

How to determine the best frequencies for the left sensor is discussed here.

Keep in mind you’ll have to

repeat this process for the right sensor. This example assumes you are looking for six zones (zero through five). q

Start by examining the data points taken when the Boe-Bot was furthest from the paper target.

There probably won’t be any sets of data points that are all ones at the same frequency. Check the data points for the next 2.5 cm. towards the paper target. Presumably, you will see a set of four or five ones at a particular frequency. Note this frequency as a reliable measurement for the dividing line between Zone 0 and Zone 1. q

At each of the remaining five distances, find a frequency for which the output values have just become stable.

For example, at 15 cm., three different frequencies might show five ones. If you look back to the 17.5 cm. mark, two of these frequencies were stable, but the other was not. Take the frequency that was not stable at

17.5 cm. but was stable at 15 cm. as your most reliable frequency for this distance. Now, this example has determined the frequencies that can be used to separate Zones 5 and 4 and Zones 4 and 3. Repeat this process for the remaining zone partitions.

How the Frequency Sweep Program Works

Two bit variables,

l_values

and

r_values

, are declared to temporarily store each IR detector output. A variable named

IR_freq

is declared for indexing a

for…next

loop.

l_values var bit

r_values var bit

IR_freq var word

Page 182

Robotics! Version 1.5

Appendix H: Tuning IR Distance Detection

Serial Communication

Serial communication is one of the most common ways for electronic devices to exchange data. Serial communication comes in two flavors, synchronous and asynchronous.

The most common form of synchronous serial communication features a clock line and a data line. When the device sending the data has made a new binary value available at its data output, it sends a pulse via the clock output signaling that the data is ready.

Asynchronous serial communication can be accomplished with just one line for data transmission. Both the device sending and the device receiving the information know at what speed the data will be transmitted. Commonly referred to as the baud rate, this speed is measured in bits per second or bps.

Asynchronous serial messages also have a start bit, a fixed number of data bits, a stop bit, and sometimes a parity bit. The stop bit is a binary value that signifies the resting state between data packets. When the binary value on the data line changes from the resting state, it signifies a start bit. Since both the transmitting device and the receiving device know the baud rate, the transmitter knows exactly how long to send the start bit for before sending the first data bit. Likewise, the receiving device knows exactly how long to wait after the start bit before recording the first data bit.

The BASIC Stamp Manual does a great job of explaining the finer points of both synchronous and asynchronous serial communication. For more information about how synchronous serial communication works, consult the

shiftin

and shiftout commands. For more information about how asynchronous serial communication works, consult the

serin

and serout commands.

The first debug command in the main routine is nothing new. It displays a message for the user to press the enter key when ready

(to run a frequency sweep). The three debug statements that follow are nothing new either. However, the command,

serin

16,16468,[wait(cr)]

is new.

Serin

is a multipurpose command designed to receive asynchronous serial messages from other electronic devices.

debug cr,"Press enter when ready. ", cr

serin 16,16468,[wait(cr)]

debug "IR left Right ", cr

debug "Freq Sensor Sensor ", cr

debug "--------------------------", cr

The BASIC Stamp uses this particular

serin

command to listen for a serial message from the PC on I/O pin P16, which is the Sin line connected to the computer’s data transmit (DTR) line via the serial cable. The

baudmode

argument is 16468, which was selected from a table in the

Serin

command section of the BASIC

Stamp Manual. The value 16468 tells the BASIC Stamp to communicate with the Debug Terminal. The specification for the

Debug Terminal is 9600 bits per second (bps), 8-bits, no parity, one stop bit. These arguments are explained in detail in the BASIC

Stamp Manual.

It’s most common for

serin

to feature a variable between the square brackets. This way, data sent from the PC to the BASIC

Stamp can be saved and used by the application. In this case, the argument

wait(cr)

does not save any data. All it does is tell the

serin

command to wait for a carriage return. The

serin

command does nothing until the carriage return is received.

When the

serin

command receives the carriage return, the program moves on to the next command. In other words,

serin

allows the program to continue running after it receives the carriage return. The result of this command is that you can take your time positioning the Boe-Bot in front of its paper target, then hit the carriage return when you’re ready for more frequency sweep data.

Robotics! Version 1.5

Page

183

Appendix H: Tuning IR Distance Detection

Before it’s modified, the

for...next

loop sweeps the value of

IR_freq

from 30500 to 46500 in steps of

1000. The

freqout

commands within the

for...next

loop use the value of

IR_freq

to set their

frequency

arguments.

As with the previous program examples, the value of the IR detector’s output is inverted using the NOT operator (~), then stored in a bit variable, such as

l_values

for the left IR pair. for ir_freq = 30500 to 46500 step 1000

check_left_sensors:

freqout 7,1,IR_freq

l_values = ~in8 pause 10

check_right_sensors:

freqout 1,1,IR_freq

r_values = ~in0

pause 10

Next, the

debug

output values are printed in a format that displays as a table in the Debug Terminal. To make it display properly, blank spaces are inserted between each value using the

“ “

message. The width of each number is also controlled by formatters such as

bin5

and

dec1

.

debug dec5 IR_freq, " ",bin1 l_values, " ", bin1 r_values, cr

next

Your Turn

q

If you succeeded in fine tuning five measurements and time permits, try increasing the resolution to eight measurements. Save your data for both methods.

Page 184

Robotics! Version 1.5

Appendix I: Boe-Bot Maze Competition Rules

Appendix I: Boe-

Bot Competition

Maze Rules

If you're planning a competition for autonomous robots, these rules are provided courtesy of Seattle Robotics Society.

Contest #1: Robot Floor Exercise

Purpose

The floor exercise competition is intended to give robot inventors an opportunity to show off their robots or other technical contraptions.

Rules

The rules for this competition are quite simple. A 10-foot-by-10-foot flat area is identified, preferably with some physical boundary. Each contestant will be given a maximum of five minutes in this area to show off what it can do. The robot's controller can talk through the various capabilities and features of the robot. As always, any robot that could damage the area or pose a danger to the public will not be allowed. Robots need not be autonomous, but it is encouraged. Judging will be determined by the audience, either indicated by clapping (the loudest determined by the judge), or some other voting mechanism.

Contest #2: Line Following Rules

Objective:

To build an autonomous robot that begins in Area "A" (at position "S"), travels to Area "B" (completely via the line), then travels to the Area "C" (completely via the line), then returns to the Area "A" (at position "F"). The robot that does this in the least amount of time (including bonuses) wins. The robot must enter areas "B" and

"C" to qualify. The exact layout of the course will not be known until contest day, but it will have the three areas previously described.

Skills Tested:

The ability to recognize a navigational aid (the line) and use it to reach the goal.

Robotics! Version 1.5

Page

185

Appendix I: Boe-Bot Maze Competition Rules

Maximum Time to Complete Course

Four minutes.

Example Course

All measurements in the example course are approximate. There is a solid line dividing Area "A" from Area "T" at position "F.” This indicates where the course ends. The line is black, approximately 3/4 inches wide and spaced approximately two feet from the walls. All curves have a radius of at least one foot and at most three feet. The walls are 3 1/2 inches high and surround the course. The floor is white and made of either paper or

Tyvec. Tyvec is a strong plastic used in mailing envelopes and house construction.

Positions "S" and "F" are merely for illustration and are not precise locations. A Competitor may place the robot anywhere in Area "A,” facing in any direction when starting. The robot must be completely within Area

"A.” Areas "A,” "B" and "C" are not colored red on the actual course.

Page 186

Robotics! Version 1.5

Appendix I: Boe-Bot Maze Competition Rules

Scoring

Each contestant’s score is calculated by taking the time needed to complete the course (in seconds) minus

10% for each "accomplishment." The contestant with the lowest score wins.

Accomplishments

Stops in area A after reaching B and C

Reduction

10%

Does not touch any walls 10%

Starts on command 10%

("Starts on command" means the robot starts with an external, non-tactile command. This could, for example, be a sound or light command.)

Contest #3: Maze Following

Purpose

The grand maze is intended to present a test of navigational skills by an autonomous robot. The scoring is done in such a way as to favor robots which are either brutally fast or which can learn the maze after one pass. The object is for a robot, which is set down at the entrance of the maze, to find its way through the maze and reach the exit in the least amount of time.

Physical Characteristics

The maze is constructed of 3/4" shop-grade plywood. The walls are approximately 24 inches high, and are painted in primary colors with glossy paint. The walls are set on a grid with 24-inch spacing. Due to the thickness of the plywood and limitations in accuracy, the hallways may be as narrow as 22 inches. The maze can be up to 20-feet square, but may be smaller, depending on the space available for the event.

The maze will be set up on either industrial-type carpet or hard floor (depending on where the event is held).

The maze will be under cover, so your robot does not have to be rain proof; however, it may be exposed to various temperatures, wind, and lighting conditions. The maze is a classical two-dimensional proper maze: there is a single path from the start to the finish and there are no islands in the maze. Both the entrance and exit are located on outside walls. Proper mazes can be solved by following either the left wall or the right wall. The maze is carefully designed so that there is no advantage if you follow the left wall or the right wall.

Robotics! Version 1.5

Page

187

Appendix I: Boe-Bot Maze Competition Rules

Robot Limitations

The main limit on the robot is that it be autonomous: once started by the owner or handler, no interaction is allowed until the robot emerges from the exit, or it becomes hopelessly stuck. Obviously the robot needs to be small enough to fit within the walls of the maze. It may touch the walls, but may not move the walls to its advantage -no bulldozers. The judges may disqualify a robot which appears to be moving the walls excessively.

The robot must not damage either the walls of the maze, nor the floor. Any form of power is allowed as long as local laws do not require hearing protection in its presence or place any other limitations on it.

Scoring

Each robot is to be run through the maze three times. The robot with the lowest single time is the winner. The maximum time allowed per run is 10 minutes. If a robot cannot finish in that amount of time, the run is stopped and the robot receives a time of 10 minutes. If no robot succeeds in finding the exit of the maze, the one that made it the farthest will be declared the winner, as determined by the contest's judge.

Logistics

Each robot will make one run, proceeding until all robots have attempted the maze. Each robot then does a second run through the maze, then the robots all do the third run. The judge will allow some discretion if a contestant must delay their run due to technical difficulties. A robot may remember what it found on a previous run to try to improve its time (mapping the maze on the first run), and can use this information in subsequent runs-as long as the robot does this itself. It is not allowed to manually "configure" the robot through hardware or software as to the layout of the maze.

Page 188

Robotics! Version 1.5

Was this manual useful for you? yes no
Thank you for your participation!
