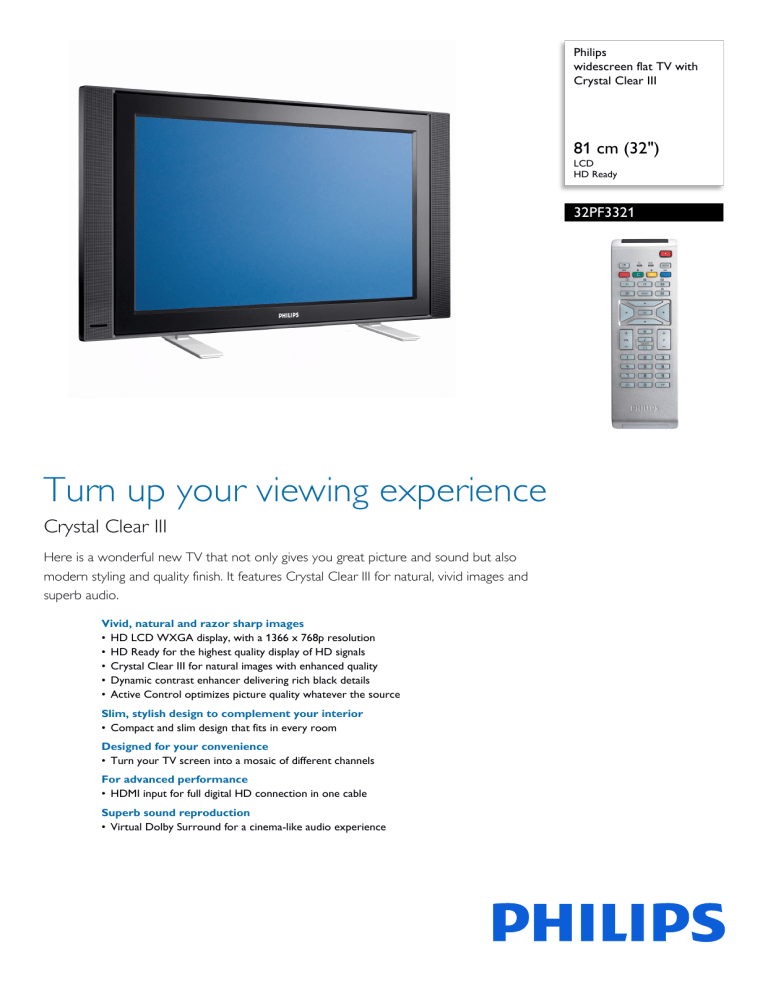

32PF3321/10 Philips widescreen flat TV with Crystal Clear III

32PF3321/10 Philips widescreen flat TV with Crystal Clear III
Philips
widescreen flat TV with
Crystal Clear III
81 cm (32")
LCD
HD Ready
32PF3321
Turn up your viewing experience
Crystal Clear III
Here is a wonderful new TV that not only gives you great picture and sound but also
modern styling and quality finish. It features Crystal Clear III for natural, vivid images and
superb audio.
Vivid, natural and razor sharp images
• HD LCD WXGA display, with a 1366 x 768p resolution
• HD Ready for the highest quality display of HD signals
• Crystal Clear III for natural images with enhanced quality
• Dynamic contrast enhancer delivering rich black details
• Active Control optimizes picture quality whatever the source
Slim, stylish design to complement your interior
• Compact and slim design that fits in every room
Designed for your convenience
• Turn your TV screen into a mosaic of different channels
For advanced performance
• HDMI input for full digital HD connection in one cable
Superb sound reproduction
• Virtual Dolby Surround for a cinema-like audio experience
32PF3321/10
Widescreen flat TV with Crystal Clear III
81 cm (32") LCD, HD Ready
Highlights
LCD WXGA display, 1366 x 768p
This WXGA display with state-of-the-art LCD
screen technology gives you widescreen HD
resolution of 1366 x 768p pixels. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
HD Ready
Enjoy the exceptional picture quality of High
Definition pictures and be fully prepared for
HD sources like HDTV settop box or Blu-ray
disc. HD Ready is a protected label that offers
picture quality beyond that of progressive scan.
It conforms to strict standards laid out by
EICTA to offer a HD screen that displays the
benefits of resolution and picture quality of a
High Definition signal. It has a universal
connection for both analog YPbPr and
uncompressed Digital connection of DVI or
HDMI, supporting HDCP. It can display 720p,
and 1080i signals at 50 and 60Hz.
Crystal Clear III
Crystal Clear III combines a whole range of
enhancements to provide a better picture.
They include a 2D Comb filter, Dynamic
contrast, Blue stretch and Green enhancement
so that you always get the most natural looking
colors.
Multiple PiP Modes
Multiple Picture-in-Picture modes allow you to
simultaneously watch two video sources either
picture-in-picture, side by side, or in a mosaicview with still images.
Dynamic contrast enhancer
You want the LCD flat display with the highest
contrast and most vibrant images even at wide
viewing angle. The Philips dynamic contrast
enhancer uses video processing and unique
dimming backlight technology. This delivers
deep rich black levels with increased detail.
The dimming backlight increases the contrast
up to 5 times*, and at the same time improves
the viewing angle. It gives a bright, lifelike
picture with high contrast and vibrant colors,
(* factor between 2 and 5, screen type and
picture content dependant).
HDMI input
HDMI makes an uncompressed digital RGB
connection from the source to the screen. By
eliminating conversion to an analog signal, it
delivers an unblemished image. The nondegraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.
Active Control
Active Control ensure that noise and
sharpness improvements are continuously
made at a rate of 60 times per second. By
continually adjusting picture setting over 3,000
times per minute, Active Control Plus ensures
that the viewing experience is optimized.
Virtual Dolby Surround
Virtual Dolby Surround is a processing
technology for enhancing surround sound
effects. It will create the sensation of Dolby
Pro Logic without the necessity of additional
rear speakers. You become totally immersed
in your television experience.
32PF3321/10
Widescreen flat TV with Crystal Clear III
81 cm (32") LCD, HD Ready
Specifications
Picture/Display
•
•
•
•
•
•
•
•
•
•
•
•
Aspect ratio: 16:9, Widescreen
Brightness: 500 cd/m²
Diagonal screen size: 32 inch / 80 cm
Display screen type: LCD WXGA Active Matrix
TFT
Picture enhancement: Progressive scan, 3/2 - 2/2
motion pull down, Digital Noise Reduction, Jagged
Line Suppression, Active Control, Contrast Plus,
2D Combfilter, Crystal Clear III
Color cabinet: Black
Screen enhancement: Anti-Reflection coated
screen
Viewing angle (H / V): 178 / 178 degree
Panel resolution: 1366 x 768p
Response time (typical): 8 ms
Dynamic screen contrast: 1600:1
Contrast ratio (typical): 800:1
Supported Display Resolution
• Computer formats
Refresh rate
Resolution
640 x 480
60, 67, 72, 75Hz
800 x 600
56, 60, 72, 75Hz
1024 x 768
60, 70, 75Hz
• Video Formats
Resolution
Refresh rate
640 x 480p
2Fh
720 x 576p
2Fh
1280 x 720p
3Fh
1920 x 1080i
2Fh
Sound
• Sound Enhancement: Dynamic Bass Enhancement,
Auto Volume Leveller
• Sound System: Virtual Dolby Surround
• Output power (RMS): 2 x 15 W
• Equalizer: 5-bands
Convenience
• Ease of Installation: Auto Program Naming,
Automatic Channel Install(ACI), Automatic Tuning
System (ATS), Autostore, Fine Tuning, Plug & Play,
Program Name, Sorting
• Ease of Use: Auto Volume Leveller (AVL), Program
List, Smart Picture, Smart Sound, Side Control
• Remote control type: RCFE06SPS00
• Teletext enhancements: Program information Line,
4 favourite pages
• Picture in Picture: Twin page text
• Remote Control: DVD, TV, Multi-functional
• Screen Format Adjustments: 4:3, Movie expand
14:9, Movie expand 16:9, Subtitle Zoom, Super
Zoom, Widescreen
• Clock: Sleep Timer, Wake up Clock
• VESA Mount: 200 x 100 mm
• Teletext: 10 page Smart Text
Accessories
• Included accessories: Power cord, Registration
card, Remote Control, User Manual, Batteries for
remote control, Table top stand, Warranty
certificate
• Optional accessories: Floor stand
Loudspeakers
• Built-in speakers: 2
•
Tuner/Reception/Transmission
• Tuner bands: Hyperband, S-Channel, UHF, VHF
• TV system: PAL B/G, PAL D/K, SECAM B/G,
SECAM D/K, SECAM L/L'
• Video Playback: NTSC, PAL, SECAM
• Aerial Input: 75 ohm coaxial (IEC75)
• Tuner Display: PLL
• Number of Preset Channels: 100
Connectivity
• Ext 1 Scart: Audio L/R, CVBS in/out, RGB
• Ext 2 Scart: CVBS in/out, S-video in, Audio L/R
• Front / Side connections: CVBS in, Headphone
Out, S-video in, Audio L/R in
• Number of Scarts: 2
• Ext 4: YPbPr
• Ext 5: HDMI
Power
•
•
•
•
Power consumption: 120 W Normal Operation W
Standby power consumption: 1 W <
Ambient temperature: 5 °C to 40 °C
Mains power: 110 - 240V, 50/60Hz
Dimensions
• Product weight: 18.9 kg
• Weight incl. Packaging: 22 kg
• Dimensions (with base) (W x H x D):
924 x 550 x 222 mm
• Box dimensions (W x H x D):
Issue date 2015-04-14
© 2015 Koninklijke Philips N.V.
All Rights reserved.
Version: 9.0.20
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 23916
EAN: 87 10895 94284 3
1000 x 690 x 240 mm
• Dimensions (without base) (W x H x D):
924 x 507 x 119 mm
www.philips.com
