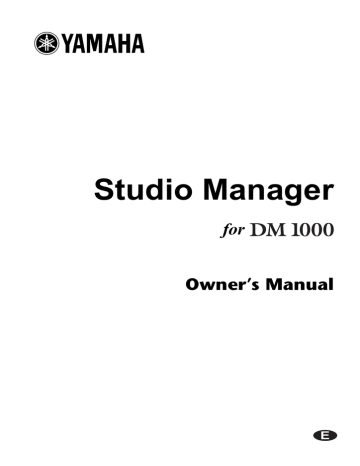

Studio Manager

for

Owner’s Manual

E

2

Important Information

Special Notices

• The software and this owner’s manual are the exclusive copyrights of Yamaha Corporation.

• Copying of the software or reproduction of this manual in whole or in part by any means is expressly forbidden without the written consent of the manufacturer.

• Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the use of this manual and the software.

• This disc is a CD-ROM. Do not attempt to play the disc on an audio CD player. Doing so may result in irreparable damage to your audio CD player.

• Copying of the commercially available music sequence data and/or digital audio files is strictly prohibited except for your personal use.

• The screen displays as illustrated in this owner’s manual are for instructional purposes, and may appear somewhat different from the screens which appear on your computer.

• Future upgrades of application and system software and any changes in specifications and functions will be announced separately.

Trademarks

Adobe, Acrobat, and Reader are registered trademarks of Adobe Systems Incorporated.

Apple, AppleTalk, and Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation. OMS is a registered trademark of Opcode Systems, Inc. PowerPC is a registered trademark of International Business Machines Corporation. All other trademarks are the property of their respective holders and are hereby acknowledged.

Copyright

No part of the Studio Manager software or its documentation may be reproduced or distributed in any form or by any means without the prior written authorization of Yamaha

Corporation.

© 2003 Yamaha Corporation. All rights reserved.

Yamaha Web Site

Information about Studio Manager, related products, and other Yamaha professional audio equipment is available on the Yamaha Professional Audio Web site at: http://www.yamahaproaudio.com/

Specifications and external appearance subject to change without notice.

Studio Manager for DM1000—Owner’s Manual

Contents

1 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Starting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Quitting Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Specifying the MIDI Port (Windows only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Configuring Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Synchronizing Studio Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Working with Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Console Window . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Input Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Master Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Output Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Remote Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Selected Channel Window . . . . . . . . . . . . . . . . . . 14

Input Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Bus Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Aux Sends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Stereo Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Remote Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4 Library Window . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5 Patch Editor Window . . . . . . . . . . . . . . . . . . . . . . 23

INPUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

OUTPUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

INSERT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

EFFECT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

DIRECT OUT PATCH Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6 Surround Editor Window . . . . . . . . . . . . . . . . . . . 28

7 Timecode Counter Window . . . . . . . . . . . . . . . . . 29

8 Effect Editor Window . . . . . . . . . . . . . . . . . . . . . . 30

9 Keyboard Shortcuts . . . . . . . . . . . . . . . . . . . . . . . . 31

File Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Windows Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

3

Studio Manager for DM1000—Owner’s Manual

Chapter 1—Getting Started

4

1 Getting Started

Starting Studio Manager

Windows: Click the Start button and then click Programs–>YAMAHA OPT

Tools–>YAMAHA Studio Manager for DM1000–>Studio Manager for DM1000.

Macintosh: Open the Studio Manager for DM1000 folder and double-click “SM_DM1K.”

If a DM1000 is detected while Studio Manager starts up, the Synchronization dialog box appears, from which you can choose to transfer the settings of the DM1000 to Studio Man-

ager or vice versa. See “Synchronizing Studio Manager” on page 7 for more information. If

no DM1000 is detected, a new Console window opens.

The ONLINE indicator is displayed while Studio Manager is connected to a

DM1000. When no DM1000 is detected, the OFFLINE indicator is displayed.

Quitting Studio Manager

Choose Exit (Quit on the Macintosh) from the File menu.

If there are no unsaved changes, all windows close and Studio Manager quits. If there are unsaved changes, a message asking whether or not you want to save the changes appears.

Click Yes to save the changes and quit, click No to quit, or click Cancel to cancel the operation. Studio Manager can also be quit by clicking the Console window’s Close button.

Specifying the MIDI Port (Windows only)

1

Before selecting a MIDI port in Studio Manager (page 5), you must specify which MIDI

port is connected to your DM1000.

Start Studio Manager.

2 Click the MIDI Setup button on the MIDI SETUP toolbar, as shown below.

3

MIDI Setup

The MIDI Setup dialog box appears.

Select the MIDI port to which your DM1000 is connected (e.g., MIDI In, Out, or Thru).

Note: To use a MIDI port with Studio Manager, you must select it on the MIDI Setup dialog

box (as explained above) and on the System Setup dialog box, as explained on page 5.

Warning: Studio Manager does not yet support OPT (Open Plug-in Technology), so even if it appears in the menu of an OPT compatible program, do not start it in this way.

Studio Manager for DM1000—Owner’s Manual

Configuring Studio Manager

5

Configuring Studio Manager

Selecting Ports

In order to use Studio Manager, you must specify the input and output ports that Studio

Manager should use to communicate with the DM1000.

Windows: Choose System Setup from the File menu, and specify the input and output ports on the Setup dialog box, as shown below.

Macintosh: Choose Select OMS Ports from the File menu, and specify the input and output ports (device names set in OMS Studio Setup) on the Setup dialog box, as shown below.

Note: Choose OMS MIDI Setup from the File menu, and make sure that the “Run MIDI in

Background” option is on.

OMS Studio Setup can be opened directly from Studio Manager by selecting OMS Studio

Setup from the File menu.

System Setup

To open the Setup window, choose System Setup from the File menu.

This is the Windows Setup window.

Studio Manager for DM1000—Owner’s Manual

6

Chapter 1—Getting Started

This is the Macintosh Setup window

Input Port/Output Port: (Windows only) These pop-up menus are used to select the ports with which Studio Manager communicates with the DM1000.

Console Device ID: Studio Manager can control any one of up to eight DM1000s, each with its own exclusive ID. Select the ID of the DM1000 that you want to control.

Channel Select: These options determine whether or not channel selection is linked.

When the PC–>Console option is on, selecting a channel on Studio Manager selects the same channel on the DM1000. When the Console–>PC option is on, selecting a channel on the DM1000 selects the same channel on Studio Manager.

Confirmation: These options determine whether or not a confirmation dialog box appears when storing, recalling, or patching.

Layer Select: These options determine whether or not Layer selection is linked. When the

PC–>Console option is on, selecting a Layer on Studio Manager selects the same Layer on the DM1000. When the Console–>PC option is on, selecting a Layer on the DM1000 selects the same Layer on Studio Manager.

Studio Manager for DM1000—Owner’s Manual

Synchronizing Studio Manager

7

Synchronizing Studio Manager

If a DM1000 is detected while Studio Manager starts up, or while Studio Manager is up and running, the Synchronization dialog box shown below appears.

All Lib: This option determines whether or not Scene and Library data is synchronized.

Console–>PC: Click this button to transfer the settings of the DM1000 to the current Studio Manager Session.

PC–>Console: Click this button to transfer the settings of current Studio Manager Session to the DM1000.

Cancel: Click this button to leave the DM1000 and current Studio Manager Session unsynchronized.

Note: Do not operate the DM1000 while synchronization is in progress.

You can resynchronize the system at any time by choosing Re-synchronize from the Synchronization menu.

Working with Sessions

A Studio Manager Session consists of all DM1000 mix settings, including Scene and library data.

• To create a new Session, choose New Session from the File menu.

• To open a previously saved Session, choose Open Session from the File menu.

• To save the current Session, choose Save Session from the File menu.

• To save the current Session with a new name, choose Save Session as from the File menu.

Note: In order to save the current Automix, or the settings of an optional Y56K card, in a Session, you must resynchronize Studio Manager beforehand (Console–>PC).

Note: In order to protect the communication port used by Studio Manager, DM1000 communication settings (e.g., MIDI, Remote Layer, Machine Control) are not affected by PC–>Console synchronization operations.

Only one Session can be open at a time, so when you create a new Session, or open a previously saved Session, the message “This operation will purge current session” appears. If there are no unsaved changes, or you do not want to save, click OK. If Studio Manager is offline, the Session is loaded. If Studio Manager is online, the Session is loaded and the synchronization dialog box appears.

Studio Manager for DM1000—Owner’s Manual

8

Chapter 2—Console Window

2 Console Window

Studio Manager’s Console window displays 16 channel strips and a master section. When an Input Channel Layer is selected, 16 Input Channels are displayed. When the Master Layer is selected, the Bus Out and Aux Send channels are displayed. And when the Remote layer is selected, Remote Channels are displayed.

Many functions can be operated from here by clicking and dragging the various controls and parameters. This is explained in the following sections.

Channels can be viewed in more detail on the Selected Channel window. See page 14 for

more information.

Studio Manager for DM1000—Owner’s Manual

Input Channels

9

Input Channels

R

S

T

V U

W

X

Y

Z

1

B

L

M

N

C

D

5

6

7

8

9

J

K

O

P

Q a b

A SOURCE parameter

This parameter is used to select an Input source. To select an

Input source, click the parameter and choose from the list that appears.

B Routing buttons

These buttons are used to route the Input Channel to the Bus

Outs.

C STEREO button

This button is used to route the Input Channel’s signal to the

Stereo Out.

D DIRECT button

This button turns on and off the Input Channel’s routing to its

Direct Out.

E Direct Out parameter

This parameter is used to select the Direct Out destination. To select a destination, click the parameter and choose from the list that appears.

F PHASE button

This button is used to reverse the signal phase of the channel.

G INSERT button

This button is used to turn on and off the Input Channel’s

Insert.

H GATE button

This button is used to turn on and off the Input Channel’s Gate.

I Gate open/close indicators

These indicators display whether the Gate is open (green) or closed (red).

J Gate threshold

This displays the Gate Threshold, which can be set by dragging.

K COMP button

This button is used to turn on and off the Input Channel’s Compressor.

L Compressor curve

This display shows the Compressor’s curve.

M EQ button

This button is used to turn on and off the Input Channel’s EQ.

N EQ curve

This display shows the Equalizer’s curve, which can be set by dragging.

O DELAY button

This button is used to turn on and off the Input Channel’s Delay function.

Studio Manager for DM1000—Owner’s Manual

10

Chapter 2—Console Window

P Delay parameter

This parameter is used to set the delay time of the Delay function. Delay times can be set by dragging.

Q Channel number

This is the channel number.

R AUX section

These controls are used to set the levels of the Aux Sends. To set an Aux Send level, drag its bar or click a point along the length of the bar. To turn an Aux Send on or off, click its number.

The following table shows how the Aux Send controls appear depending on the

Aux Send On/Off and Pre/Post settings. Aux Sends can be set to pre-fader or

post-fader on the Selected Channel window (see “AUX SEND section” on page 15).

Aux Send status Appearance

On or off but no level set

Off, pre-fader

On, pre-fader

Off, post-fader

On, post-fader

Dark blue bar

Green bar outline displays level

Green bar displays level

Orange bar outline displays level

Orange bar displays level

S Pan/Aux Send display

This display shows the stereo or surround pan position or, while setting an Aux Send, the

Aux Send level in dB.

T PAN control

This control is used to set the Input Channel’s stereo or surround pan position. When the

PAN CONTROL in the Master Section is set to “STEREO,” the Pan control appears as a rotary control, and when set to “SURR,” the control appears as dot on a pan graph. The surround pan position can be set by dragging the dot. If you click on the pan graph while holding down the Shift key, the pan immediately jumps to the new position.

U LFE control

When 5.1 or 6.1 Surround mode is selected, this control is used to set the surround LFE Channel level. It appears when the PAN CONTROL in the Master

Section is set to “SURR.” To set the LFE level, drag the end of its bar or click a point along the length of the bar.

V AUTO button

This button displays the Automix status of the Input Channel.

W SELECT button

This button is used to select the Input Channel.

X SOLO button

This button solos the Input Channel. It appears orange while the channel is soloed.

Y ON button

This button turns the Input Channel on and off. It appears orange while the channel is on.

Z Short channel name

This is the channel’s short name. To edit the name, click it and type.

a

Channel fader

This is the Input Channel’s fader.

b

Channel meter

This meter displays the signal level of the Input Channel.

Studio Manager for DM1000—Owner’s Manual

Master Section

11

Master Section

1

2

A ONLINE/OFFLINE status indicator

This indicator shows whether Studio Manager is online or offline.

B Meters

These meters display the output level of the Stereo Out when

PAN CONTROL is set to “STEREO,” or the Bus Outs used for surround processing when PAN CONTROL is set to “SURR.”

The Meters in 3-1, 5.1 and 6.1 Surround modes are shown below.

3

4

5

6

7

8

3-1 5.1

6.1

C LAYER buttons

These buttons are used to select the Layers.

D PAN CONTROL

These buttons are used to select either “STEREO” (Stereo mode) or “SURR” (Surround mode). The Pan control on the Input

Channels is a rotary control when “STEREO” is selected, and a dot on a pan graph when “SURR” is selected.

E AUTO button

This button displays the Automix status of the Stereo Out.

F SELECT button

This button is used to select the Stereo Out. If it’s clicked while the Remote Layer is selected, it will light up, but the Stereo Out will not appear in the Selected Channel window.

G ON button

This button turns the Stereo Out on and off. It appears orange while the Stereo Out is on.

H Channel fader

This is the Stereo Out fader.

Studio Manager for DM1000—Owner’s Manual

12

Chapter 2—Console Window

Output Channels

When the Master Layer is selected, the Bus Out and Aux Send channels are displayed. A Bus

Out channel is shown here. Aux Send channels appear the same except that they do not have a STEREO button.

1

2

C

D

5

6

7

8

I

J

K

L

M

N

O

P

A STEREO button (Bus Out only)

This button is used to route the Bus Out to the Stereo Out.

B INSERT button

This button is used to turn on and off the Bus Out’s Insert.

C COMP button

This button is used to turn on and off the Bus Out’s Compressor.

D Compressor curve

This display shows the Compressor’s curve.

E EQ button

This button is used to turn on and off the Bus Out’s EQ.

F EQ curve

This display shows the Equalizer’s curve, which can be set by dragging.

G DELAY button

This button is used to turn on and off the Bus Out’s Delay function.

H Delay parameter

This parameter is used to set the delay time of the Delay function. Delay times can be set by dragging.

I Channel number

This is the channel number.

J AUTO button

This button displays the Automix status of the Bus Out.

K SELECT button

This button is used to select the Bus Out.

L SOLO button

This button solos the Bus Out. It appears orange while the Bus

Out is soloed.

M ON button

This button turns the Bus Out on and off. It appears orange while the Bus Out is on.

N Short channel name

This is the channel’s short name. To edit the name, click it and type.

O Channel fader

This is the Bus Out’s fader.

P Channel meter

This meter displays the signal level of the Bus Out.

Studio Manager for DM1000—Owner’s Manual

Remote Channels

13

Remote Channels

When the Remote Layer is selected, Remote Channels are displayed.

A Channel number

This is the channel number.

B SELECT button

This button is used to select the Remote Channel.

C ON button

This button turns the Remote Channel on and off. It appears orange while the channel is on.

D Short channel name

This is the Remote Channel’s short name. To edit the name, click it and type.

E Channel fader

This is the Remote Channel’s fader.

1

Note: When the remote target setting on the DM1000 is set to

User Defined, you can use the ON buttons and channel faders to control the functions specified on the Remote pages. When the remote target is set to anything other than User Defined, the ON buttons and channel faders have no effect, and the name of the specified target is displayed in the channel’s short name.

2

C

D

5

Studio Manager for DM1000—Owner’s Manual

14

Chapter 3—Selected Channel Window

3 Selected Channel Window

The Selected Channel window allows detailed editing of the currently selected channel. To open the Selected Channel window, choose Selected Channel from the Windows menu.

The layout of the Selected Channel window depends on the currently selected channel.

There are five variations, as follows:

• Input Channels (see below)

Bus Outs (see page 16)

Aux Sends (see page 18)

Stereo Outs (see page 19)

Remote Channels (see page 20)

Input Channels

This is the Selected Channel window for Input Channels.

1 2 3 4 5 6

7 8 9

A CHANNEL SELECT, INPUT PATCH & LIBRARY section

Channels can be selected by clicking the Channel ID and selecting from the list that appears, or by clicking the left and right Channel Select buttons. The long channel name is displayed below the Channel ID. To edit the name, click it and type. The INPUT PATCH parameter is used to select an input source. To select an input, click the parameter and choose from the list that appears. The LIBRARY button opens the Channel Library window.

Studio Manager for DM1000—Owner’s Manual

Input Channels

15

B GATE section

This section contains the Gate controls and display graph for the currently selected Input

Channel. The rotary controls are used to set the threshold, range, attack, decay, and hold.

The GR meter indicates the amount of gain reduction being applied by the Gate. The ON button turns the Gate on and off. The LINK button links the Gate of the currently selected

Input Channel with the Gate of its partner channel. The KEY IN parameter is used to select a Gate trigger source. The LIBRARY button opens the Gate Library window.

C EQUALIZER section

This section contains the EQ controls and display graph for the currently selected Input

Channel. The rotary controls are used to set the gain, center frequency, and Q of each band, and the pre-EQ attenuation level. EQ can also be set by dragging the EQ curve on the

EQUALIZER graph. The ON button turns the EQ on and off. The TYPE buttons select the

EQ type. The LIBRARY button opens the EQ Library window.

D DELAY & PHASE section

This section contains the delay and phase controls for the currently selected Input Channel.

The rotary controls are used to set the delay time, feedback gain, and feedback mix. The ON button turns the Delay on and off. The PHASE button reverses the channel’s signal phase.

E ROUTING, PAN & level section

This section contains the routing, pan, and level controls and the AUTO, SOLO, and ON buttons for the currently selected Input Channel. ROUTING buttons 1–8 are used to route the channel to the Bus Outs. The STEREO button routes the channel to the Stereo Out. The

DIRECT button routes the channel to its Direct Out, and the Direct Out parameter below it selects a Direct Out destination. The F.PAN button turns on and off the Bus Out Follow

Pan function. The PAN control is used to pan the channel. The AUTO button displays the

Automix status. The SOLO button is used to solo the channel, the ON button, to turn on and off the channel, and the channel fader, to set the channel level.

F AUX SEND section

This section contains the Aux Send controls for the currently selected Input Channel. Use the rotary controls to set the Aux Send levels, and click them to turn Aux Sends on and off.

Use the button below each Aux Send control to select pre-fader or post-fader. In Fixed mode, this button is used to turn Aux Sends on and off (the level is fixed at nominal).

When Aux Sends are paired, a heart icon is displayed between them, and the odd-numbered

Aux Send control sets the level, while the even-numbered control works as a pan control.

G COMPRESSOR section

This section contains the Compressor controls and display graph for the currently selected

Input Channel. The rotary controls are used to set the threshold, ratio, attack, release, gain, and knee. The GR meter indicates the amount of gain reduction being applied by the Compressor. The OUT meter indicates its output level. The ON button turns the Compressor on and off. The LINK button links the Compressor of the currently selected Input Channel with the Compressor of its partner channel. The POSITION parameter is used to specify the position of the Compressor in the signal path. The ORDER parameter is used to specify the order of the Compressor and Insert when both are inserted at the same position. The

LIBRARY button opens the Compressor Library window.

H INSERT section

This section contains the Insert parameters for the currently selected Input Channel. The

INSERT button turns the Insert on and off. The OUT and IN parameters are used to specify the insert out destination and insert in source respectively. The POSITION parameter is used to specify the position of the Insert in the signal path.

Studio Manager for DM1000—Owner’s Manual

16

Chapter 3—Selected Channel Window

I PAIR, FADER GROUP & MUTE GROUP section

This section contains the Pair, Fader and Mute group functions for the currently selected Input Channel. Click the heart icon to pair and unpair the channel with its partner channel. Use the FADER GROUP buttons to add the channel to Fader groups, and use the MUTE GROUP buttons to add it to Mute groups.

Bus Outs

This is the Selected Channel window for Bus Outs.

1 2 3 4

5 6 7

A CHANNEL SELECT section

Channels can be selected by clicking the Channel ID and selecting from the list that appears, or by clicking the left and right Channel Select buttons. The long channel name is displayed below the Channel ID. The LIBRARY button opens the Channel Library window.

B EQUALIZER section

This section contains the EQ controls and display graph for the currently selected Bus Out.

It’s layout is identical to the EQUALIZER section for Input Channels. See “EQUALIZER section” on page 15 for more information.

C DELAY section

This section contains the delay controls for the currently selected Bus Out. The rotary control is used to set the delay time, and the ON button turns the Delay function on and off.

Studio Manager for DM1000—Owner’s Manual

Bus Outs

17

D TO STEREO & level section

This section contains the TO STEREO and level controls and the AUTO, SOLO, and ON buttons for the currently selected Bus Out. The TO STEREO button routes the Bus Out to the Stereo Out, and the rotary controls are used to set the Bus to Stereo level and pan. The

AUTO button displays the Automix status. The SOLO button is used to solo the Bus Out, the ON button, to turn the Bus Out on and off, and the channel fader, to set the Bus Out level.

E COMPRESSOR section

This section contains the Compressor controls and display graph for the currently selected

Bus Out. Its layout is identical to the COMPRESSOR section for Input Channels. See

“COMPRESSOR section” on page 15 for more information.

F INSERT section

This section contains the Insert parameters for the currently selected Bus Out. The INSERT button turns the Insert on and off. The OUT and IN parameters are used to select the insert out destination and insert in source respectively. The POSITION parameter is used to specify the position of the Insert in the signal path.

G PAIR, FADER GROUP & MUTE GROUP section

This section contains the Pair, Fader and Mute group functions for the currently selected

Bus Out. Click the heart icon to pair and unpair the channel with its partner channel. Use the FADER GROUP buttons to add the channel to Fader groups, and use the MUTE

GROUP buttons to add it to Mute groups.

Studio Manager for DM1000—Owner’s Manual

18

Chapter 3—Selected Channel Window

Aux Sends

This is the Selected Channel window for Aux Sends.

1 2 3 4

5 6 7

A CHANNEL SELECT section

Channels can be selected by clicking the Channel ID and choosing from the list that appears, or by clicking the left and right Channel Select buttons. The long channel name is displayed below the Channel ID. The LIBRARY button opens the Channel Library window.

B EQUALIZER section

This section contains the EQ controls and display graph for the currently selected Aux Send.

It’s layout is identical to the EQUALIZER section for Input Channels. See “EQUALIZER section” on page 15 for more information.

C DELAY section

This section contains the delay controls for the currently selected Aux Send. The rotary control is used to set the delay time, and the ON button turns the Delay function on and off.

D Aux Send level section

This section contains the AUTO, SOLO, and ON buttons and the channel fader for the currently selected Aux Send.

E COMPRESSOR section

This section contains the Compressor controls and display graph for the currently selected

Aux Send. Its layout is identical to the COMPRESSOR section for Input Channels. See

“COMPRESSOR section” on page 15 for more information.

Studio Manager for DM1000—Owner’s Manual

Stereo Out

19

F INSERT section

This section contains the Insert parameters for the currently selected Aux Send. The

INSERT button turns the Insert on and off. The OUT and IN parameters are used to specify the insert out destination and insert in source respectively. The POSITION parameter is used to specify the position of the Insert in the signal path.

G PAIR, FADER GROUP & MUTE GROUP section

This section contains the Pair, Fader and Mute group functions for the currently selected

Aux Send. Click the heart icon to pair and unpair the channel with its partner channel. Use the FADER GROUP buttons to add the channel to Fader groups, and use the MUTE

GROUP buttons to add it to Mute groups.

Stereo Out

This is the Selected Channel window for the Stereo Out.

1 2 3 4

5 6 7

A CHANNEL SELECT section

Channels can be selected by clicking the Channel ID and choosing from the list that appears, or by clicking the left and right Channel Select buttons. The long channel name is displayed below the Channel ID. The LIBRARY button opens the Channel Library window.

B EQUALIZER section

This section contains the EQ controls and display graph for the Stereo Out. It’s layout is

identical to the EQUALIZER section for Input Channels. See “EQUALIZER section” on page 15 for more information.

Studio Manager for DM1000—Owner’s Manual

20

Chapter 3—Selected Channel Window

C DELAY section

This section contains the delay controls for the Stereo Out. The rotary control is used to set the delay time, and the ON button turns the Delay function on and off.

D Balance & level section

This section contains the balance control, AUTO and ON buttons, and channel fader for the

Stereo Out.

E COMPRESSOR section

This section contains the Compressor controls and display graph for the currently selected

Stereo Out. Its layout is identical to the COMPRESSOR section for Input Channels except

there is no LINK button. See “COMPRESSOR section” on page 15 for more information.

F INSERT section

This section contains the Insert parameters for the Stereo Out. The INSERT button turns the Insert on and off. The OUT and IN parameters are used to specify the insert out destination and insert in source respectively. The POSITION parameter is used to specify the position of the Insert in the signal path.

G FADER GROUP & MUTE GROUP section

This section contains the Fader and Mute group functions for the Stereo Out. Use the

FADER GROUP buttons to add the Stereo Out to Fader groups, and use the MUTE

GROUP buttons to add it to Mute groups.

Remote Channels

This is the Selected Channel window for the

Remote Channels.

A CHANNEL SELECT section

Channels can be selected by clicking the

Channel ID and choosing from the list that appears, or by clicking the left and right

Channel Select buttons. The long channel name is displayed below the Channel ID.

B Remote Channel Level section

This section contains the ON button and the channel fader for the currently selected

Remote Channel.

1

Note: When the remote target setting on the

DM1000 is set to anything other than User

Defined, the ON buttons and channel faders have no effect, and the name of the specified target is displayed below the channel ID.

2

Studio Manager for DM1000—Owner’s Manual

Library Window

21

4 Library Window

The Library window allows you to control and manage DM1000 Scenes and libraries. In addition, Scenes and libraries can be saved to disk on your computer.

The Library window provides access to the following libraries:

Library

Scene

Channel

Equalizer

Gate

Compressor

Effects

Input Patch

Output Patch

How to Open

Choose Library from the Windows menu

LIBRARY buttons on the Selected Channel window

LIBRARY button on the Effects Editor window

LIBRARY buttons on the Patch Editor window

The layout of the Library window is the same regardless of which library is selected (the

Scene Library is shown below). The Library window consists of two panes. The pane on the left displays a list of memories in the currently open Library file. The pane on the right displays a list of memories in the DM1000.

Memories can be copied between the DM1000 and Library file by dragging them between the panes. Memories can be copied or sorted within the DM1000 or Library file by dragging them within the same pane. When a memory is dropped on top of another memory, it’s copied. When a memory is dropped between two memories, it’s moved (i.e., sorted). Memory contents can be swapped by holding down the Shift key while dragging. In all cases, the contents of the destination memory are overwritten. To edit a memory title, click and then type.

12 3 4 5 K J

6 L 7 8 9 M

A File name

This is the file name of the currently open Library file.

B OPEN button

This button is used to open Library files.

C CLOSE button

This button is used to close the currently open Library file.

N O P

Studio Manager for DM1000—Owner’s Manual

22

Chapter 4—Library Window

D SAVE button

This button is used to save the currently open Library file.

E SAVE AS button

This button is used to save the currently open Library file with a different name.

F TITLE pane

This pane displays the memory list.

G PROTECT pane

This pane displays a padlock icon for protected memories.

H INPUT PATCH LINK pane

This pane displays the number of the linked input patch memory.

I OUTPUT PATCH LINK pane

This pane displays the number of the linked output patch memory.

J STORE button

This button is used to store to the selected memory.

K RECALL button

This button is used to recall the selected memory.

L FILE pane

This pane displays the memories in the currently open Library file.

M DM1000 INTERNAL DATA pane

This pane displays the DM1000 memories in the currently selected Library.

N CLEAR button

This button clears the contents of the selected memory.

O UNDO button

This button undoes the last recall, store, copy, clear, swap, or titling operation.

P PROTECT button

This button is used to protect or unprotect the selected memory.

Studio Manager for DM1000—Owner’s Manual

Patch Editor Window

23

5 Patch Editor Window

The Patch Editor window is used to patch Inputs, Outputs, Inserts, Effects, and Direct Outs.

It consists of five pages, which are selected by clicking the tabs along the top of the window.

To open the Patch Editor window, choose Patch Editor from the Windows menu.

INPUT PATCH Page

1 2 3 4 5

6

A Channel IDs

These are the Channel IDs.

B Long channel names

These are the Channel long names. To edit a name, click it and type.

C AUTO SETUP button

Clicking this button sets the patches on this page to their initial values.

D ALL CLEAR button

This button clears all patches on this page.

E LIBRARY button

This button opens the Input Patch Library window.

F Patchbay

The patchbay is used to patch input ports to Input Channels. Active patches are indicated by a blue dot. To make a patch, click a square. To unpatch, click a blue dot.

Studio Manager for DM1000—Owner’s Manual

24

Chapter 5—Patch Editor Window

OUTPUT PATCH Page

1 2 3 4 5

6

A Channel IDs

These are the Channel IDs.

B Long channel names

These are the Channel long names. To edit a name, click it and type.

C AUTO SETUP button

Clicking this button sets the patches on this page to their initial values.

D ALL CLEAR button

This button clears all patches on this page.

E LIBRARY button

This button opens the Output Patch Library window.

F Patchbay

The patchbay is used to patch output ports to Output Channels. Active patches are indicated by a red dot. To make a patch, click a square. To unpatch, click a red dot.

Studio Manager for DM1000—Owner’s Manual

INSERT PATCH Page

1 2

INSERT PATCH Page

25

3

4 5

A Channel IDs

These are the Channel IDs.

B Long channel names

These are the Channel long names. To edit a name, click it and type.

C LIBRARY buttons

These buttons open the Input and Output Patch Library windows.

D Insert Out Patchbay

This patchbay is used to patch output ports to the Insert Outs of Input Channels, Bus Outs,

Aux Sends, and the Stereo Out. Active patches are indicated by a red dot. To make a patch, click a square. To unpatch, click a red dot.

E Insert In Patchbay

This patchbay is used to patch input ports to the Insert Ins of Input Channels, Bus Outs,

Aux Sends, and the Stereo Out. Active patches are indicated by a blue dot. To make a patch, click a square. To unpatch, click a blue dot.

Studio Manager for DM1000—Owner’s Manual

26

Chapter 5—Patch Editor Window

EFFECT PATCH Page

1 2

3

A Effects processor #1 inputs

These parameters are used to select input sources for internal effects processors #1.

B LIBRARY button

This button opens the Input Patch Library window.

C Effects processors 2–4 inputs

These parameters are used to select input sources for internal effects processors 2–4.

Studio Manager for DM1000—Owner’s Manual

DIRECT OUT PATCH Page

1 2

DIRECT OUT PATCH Page

27

3

4

A Channel IDs

These are the Channel IDs.

B Long channel names

These are the Channel long names. To edit a name, click it and type.

C LIBRARY button

This button opens the Output Patch Library window.

D Patchbay

The patchbay is used to patch output ports to the Direct Outs. Active patches are indicated by a red dot. To make a patch, click a square. To unpatch, click a red dot.

Studio Manager for DM1000—Owner’s Manual

28

Chapter 6—Surround Editor Window

6 Surround Editor Window

The Surround Editor window allows you to edit the surround pan position of the currently selected Input Channel. To open the Surround Editor window, choose Surround Editor from the Windows menu.

1 2 3

5

4 6 8 7

A CHANNEL SELECT section

Channels can be selected by clicking the Channel ID and selecting from the list that appears, or by clicking the left and right Channel Select buttons. The long channel name is displayed below the Channel ID. To edit the name, click it and type.

B Surround pan graph

The green dot on this graph indicates the surround pan position for the currently selected

Input Channel. The surround pan can be set by dragging the dot.

C SURROUND MODE indicator

This indicates the currently selected Surround mode: STEREO, 3-1, 5.1 or 6.1.

D Surround pan position

This is the current surround pan position.

E LFE control

This rotary control sets the level of the LFE channel.

F DIV.F control (6.1)/DIV control (3-1, 5.1)

This rotary control sets the amount of divergence (i.e., how the Center signal is fed to the

Left, Right, and Center channels). With 6.1 surround, you can set the divergence for both the front and rear. The DIV.F control sets the amount of divergence for the front signal.

G DIV.R control (6.1 only)

This rotary control sets the amount of divergence for the rear signal.

H LINK button (6.1 only)

This button is used to link the DIV.F and DIV.R controls.

Studio Manager for DM1000—Owner’s Manual

Timecode Counter Window

29

7 Timecode Counter Window

The Timecode Counter window displays the current timecode position in hours, minutes, seconds, and frames, or measures, beats, and MIDI clocks, depending on the specified timecode source. It works in unison with the timecode counters on the DM1000 Automix Main page.

Studio Manager for DM1000—Owner’s Manual

30

Chapter 8—Effect Editor Window

8 Effect Editor Window

The Effect Editor window allows you to edit the internal effects processors. To open the

Effect Editor window, choose Effect Editor from the Windows menu.

1 2 C 4 5

6 7 8

A Effects processor select

These buttons are used to select the internal effects processors.

B Effect select section

The EFFECT NAME, TYPE, and IN/OUT are the name, type and I/O configuration of the effect recalled to the currently selected effects processor. To edit the EFFECT NAME, click it and type. The LIBRARY button opens the Effects Library window.

C Meters

These are output meters for the currently selected effects processor.

D IN button

This button is used to set the metering position to the effects processor’s inputs.

E OUT button

This button is used to set the metering position to the effects processor’s outputs.

F Effect parameter section

This section contains the various effects controls, buttons, and displays. Its layout depends on the selected effect type.

G MIX BALANCE control

This control is used to adjust the balance between the wet and dry signals. When set to 0, only the dry signal is heard. When set to 100, only the wet signal is heard.

H BYPASS button

This button is used to bypass the currently selected effects processor.

Studio Manager for DM1000—Owner’s Manual

Keyboard Shortcuts

31

9 Keyboard Shortcuts

File Menu

Windows

CTRL+N

CTRL+O

CTRL+S

Windows Menu

Windows

CTRL+W

CTRL+ALT+W

CTRL+1

CTRL+2

CTRL+3

CTRL+4

CTRL+5

CTRL+6

Macintosh

N

O

-S

Action

Creates a new Session

Opens a previously saved Session

Saves the current Session

Macintosh

W

4

5

6

-Option-W

1

2

3

Action

Closes the foremost window except the Console window

Closes all windows except the Console window

Opens the Selected Channel window

Opens the Library window

Opens the Patch Editor window

Opens the Surround Editor window

Opens the Timecode Counter window

Opens the Effect Editor window

Studio Manager for DM1000—Owner’s Manual

32

Index

A

ALL CLEAR button 23, 24

All Lib, synchronization 7

AUTO button 10, 11, 12, 15, 17

AUTO SETUP button 23, 24

Aux Section 10

Aux Send masters

console window 12

selected channel window 18

AUX SEND section 15

B

Bus Outs

console window 12

selected channel window 16

BYPASS button 30

C

Cancel 7

Channel fader 10, 11, 12, 13, 15, 17

Channel IDs 23, 24, 25, 27

Channel library 21

Channel meter 10, 12

Channel number 10, 12, 13

CHANNEL SELECT section 14, 16, 18, 19, 20, 28

Channel Select, preference 6

CLEAR button 22

CLOSE button 21

COMP button 9, 12

Compressor curve 9, 12

Compressor library 21

COMPRESSOR section 15, 17, 18, 20

Configuring Studio Manager 5

Confirmation, preference 6

Console Device ID, preference 6

Console window 8

Console–>PC, channel select 6

Console–>PC, layer select 6

Console–>PC, synchronization 7

Creating new sessions 7

D

DELAY button 9, 12

Delay parameter 10, 12

DELAY section 15, 16, 18, 20

DIRECT button 9, 15

Direct Out parameter 9, 15

Direct out patch page 27

DIV.F control/DIV control 28

DIV.R control (6.1 only) 28

DM1000 INTERNAL DATA pane 22

E

Effect editor window 30

EFFECT NAME 30

Effect parameter section 30

Effect patch page 26

EFFECT TYPE 30

Effects library 21

Effects processor #1 inputs 26

Effects processors 2–4 inputs 26

EQ button 9, 12

EQ curve 9, 12, 15

EQ library 21

EQUALIZER section 15, 16, 18, 19

Exiting Studio Manager 4

F

F.PAN button 15

FADER GROUP buttons 16, 17, 19, 20

FADER GROUP section 16, 17, 19, 20

File name 21

FILE pane 22

G

GATE button 9

Gate library 21

Gate open/close indicators 9

GATE section 15

Gate threshold 9

I

IN button 30

Input Channels

console window 9

selected channel window 14

Input Patch library 21

INPUT PATCH LINK pane 22

Input patch page 23

INPUT PATCH section 14

Input port 5

Input/Output Port 6

INSERT button 9, 12, 15, 17, 19, 20

Insert In Patchbay 25

Insert Out Patchbay 25

Insert patch page 25

INSERT section 15, 17, 19, 20

K

Keyboard shortcuts 31

Studio Manager for DM1000—Owner’s Manual

33

L

Launching Studio Manager 4

LAYER buttons 11

Layer Select, preference 6

LFE control 10, 28

LIBRARY button 14, 15, 16, 18, 19, 23, 24, 25, 26, 27, 30

Library window 21

LINK button (6.1 only) 28

Long channel names 23, 24, 25, 27

M

Master section 11

Meters 11, 30

MIX BALANCE control 30

MUTE GROUP buttons 16, 17, 19, 20

MUTE GROUP section 16, 17, 19, 20

Q

Quitting Studio Manager 4

R

RECALL button 22

Recall confirmation 6

Remote Channels

console window 13

selected channel window 20

Resynchronizing Studio Manager 7

ROUTING buttons 9, 15

Run MIDI in background 5

O

Offline indicator 4

OMS MIDI Setup 5

OMS Studio Setup 5

ON button 10, 11, 12, 13, 15, 16, 17, 18, 20

Online indicator 4

ONLINE/OFFLINE status indicator 11

OPEN button 21

Opening sessions 7

OUT button 30

Output channels 12

Output Patch library 21

OUTPUT PATCH LINK pane 22

Output patch page 24

Output port 5

P

Pair icon 16, 17, 19

PAN CONTROL 11

PAN control 10, 15

Pan/Aux Send display 10

Patch confirmation 6

Patch editor window 23

Patchbay 23, 24, 25, 27

Patching 23

PC–>Console, channel select 6

PC–>Console, layer select 6

PC–>Console, synchronization 7

PHASE button 9, 15

Ports, selecting 5

Pre/post buttons 15

PROTECT button 22

Protect pane 22

S

SAVE AS button 22

SAVE button 22

Saving sessions 7

Scene library 21

SELECT button 10, 11, 12, 13

Setup window 5

Short channel name 10, 12, 13

Shortcuts, keyboard 31

SOLO button 10, 12, 15, 17

SOURCE parameter 9

Specifying the MIDI Port 4

Starting Studio Manager 4

STEREO button 9, 11, 12, 15, 17

Stereo Out

console window 11

selected channel window 19

STORE button 22

Store confirmation 6

SURR button 11

Surround editor window 28

SURROUND MODE indicator 28

Surround pan graph 28

Surround pan position 28

Synchronizing Studio Manager 7

T

Timecode counter window 29

Title pane 22

TO STEREO section 17

TYPE I button 15

TYPE II button 15

U

UNDO button 22

Y

Yamaha Web Site 2

Studio Manager for DM1000—Owner’s Manual

Yamaha Manual Library http://www2.yamaha.co.jp/manual/english/

M.D.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

© 2003 Yamaha Corporation

IP01A0

advertisement

Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Related manuals
