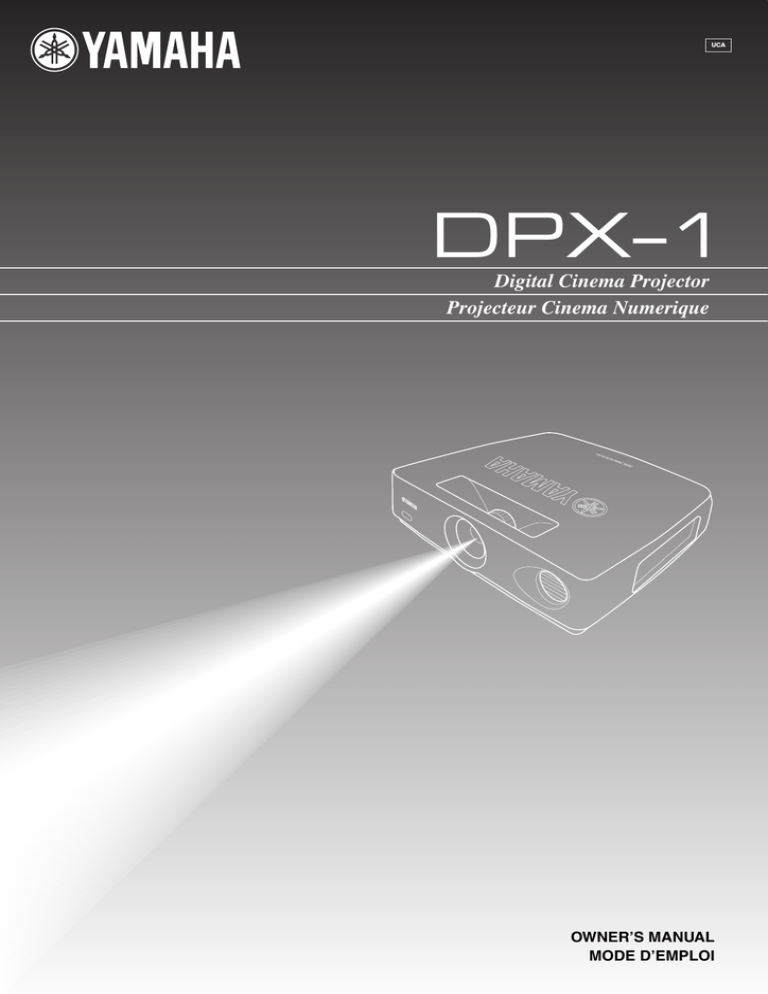

Yamaha DPX-1 Owner's Manual

UCA
DPX–1
Digital Cinema Projector
Projecteur Cinema Numerique
OWNER’S MANUAL
MODE D’EMPLOI
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
• Explanation of Graphical Symbols
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to alert
you to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufficient magnitude to constitute a risk of
electric shock to persons.
9 Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than
the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the
obsolete outlet.
The exclamation point within an equilateral
triangle is intended to alert you to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
IMPORTANT!
Please record the serial number of this unit in the space below.
Model:
Serial No.:
The serial number is located on the bottom of the unit.
Retain this Owner’s Manual in a safe place for future reference.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms
or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
FCC INFORMATION (for US customers only)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product, when installed as indicated in the instructions
contained in this manual, meets FCC requirements.
Modifications not expressly approved by Yamaha may void
your authority, granted by the FCC, to use the product.
2. IMPORTANT: When connecting this product to accessories
and/or another product use only high quality shielded
cables. Cable/s supplied with this product MUST be used.
Follow all installation instructions. Failure to follow
instructions could void your FCC authorization to use this
product in the USA.
3. NOTE: This product has been tested and found to comply
with the requirements listed in FCC Regulations, Part 15 for
Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use
of this product in a residential environment will not result in
harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not
installed and used according to the instructions found in the
users manual, may cause interference harmful to the
operation of other electronic devices.
Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product is
found to be the source of interference, which can be determined
by turning the unit “OFF” and “ON”, please try to eliminate the
problem by using one of the following measures:
Relocate either this product or the device that is being affected
by the interference.
Utilize power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the
antenna. If the antenna lead-in is 300 ohm ribbon lead, change
the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results,
please contact the local retailer authorized to distribute this type
of product. If you can not locate the appropriate retailer, please
contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe
Ave, Buena Park, CA 90620.
The above statements apply ONLY to those products distributed
by Yamaha Corporation of America or its subsidiaries.
We Want You Listening For A Lifetime
YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or
distortion – and, most importantly, without affecting your sensitive hearing. Since hearing damage from loud sounds is often
undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend
you to avoid prolonged exposure from excessive volume levels.
Caution: Read this before operating this unit.
• To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
• When not planning to use this unit for a long period of time
(i.e. vacation), disconnect the AC power plug from the wall
outlet.
Installation
• When disconnecting the power cord from the wall outlet, grasp
the plug; do not pull the cord.
• Install this unit in a well-ventilated, cool, dry, clean place with
at least 10 cm clearance on the top, right and left, and at the
back of this unit — away from direct sunlight, heat sources,
vibration, dust, moisture, and/or cold.
• Locate this unit away from other electrical appliances, motors,
or transformers to avoid humming sounds. To prevent fire or
electrical shock, do not place this unit where it may get
exposed to rain, water, and/or any type of liquid.
• Do not expose this unit to sudden temperature changes from
cold to hot, and do not locate this unit in an environment with
high humidity (i.e. a room with a humidifier) to prevent
condensation inside this unit, which may cause an electrical
shock, fire, damage to this unit, and/or personal injury.
• On the top of this unit, do not place:
– Other components, as they may cause damage and/or
discoloration on the surface of this unit.
• Be sure to read the “TROUBLESHOOTING” section on
common operating errors before concluding that this unit is
faulty.
Others
• Clean the lens carefully so as not to create any scratches by
using a blower or lens paper.
• Replace the lamp when the LAMP/COVER indicator flashes in
red after the lamp usage has exceeded 1000 hours. Follow the
lamp replacement procedure described in this manual.
IMPORTANT
THE WIRES IN THIS MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
GREEN-AND-YELLOW:
BLUE:
BROWN:
– Burning objects (i.e. candles), as they may cause fire,
damage to this unit, and/or personal injury.
– Containers with liquid in them, as they may cause electrical
shock to the user and/or damage to this unit.
• Do not cover this unit with a newspaper, tablecloth, curtain, etc.
in order not to restrict heat dissipation. If the temperature inside
this unit rises too much, it may cause fire, damage to this unit,
and/or personal injury.
• When installing this unit on the ceiling, make sure the ceiling
has sufficient strength to support this unit and the ceiling
mounts for an extended period of time. Installation must be
performed only by qualified service personnel.
Operation
• Remove the lens cap before starting any operation of this unit
to prevent the heat from staying around the lens. Operation
with the cap on may cause damage to this unit.
• Do not plug in this unit to a wall outlet until all connections are
complete.
• Only the voltage specified on this unit must be used. Using this
unit with a higher voltage than specified is dangerous and may
cause fire, damage to this unit, and/or personal injury.
YAMAHA will not be held responsible for any damage
resulting from use of this unit with a voltage other than that
specified.
• Do not use force on switches, knobs and/or cords.
• Do not operate this unit upside-down. It may overheat, possibly
causing damage.
• Take care of this unit so that no foreign objects and/or liquid
drop inside this unit.
• To prevent damage by lightning, disconnect the power cord
from the wall outlet during an electrical storm.
• Do not look into the lens while this unit is turned on. It may
cause serious damage to your eyesight.
• Before moving this unit, press STANDBY/ON to set this unit
in the standby mode, and disconnect the AC power plug from
the wall outlet.
• Do not attempt to modify or fix this unit. Contact qualified
YAMAHA service personnel when any service is needed. The
cabinet should never be opened for any reason.
I
EARTH
NEUTRAL
LIVE
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-AND-YELLOW must be
connected to the terminal in the plug which is marked by the letter
E or by the safety earth symbol or coloured GREEN or GREENand-YELLOW.
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
For U.K. customers
If the socket outlets in the home are not suitable for the plug
supplied with this appliance, it should be cut off and an appropriate
3 pin plug fitted. For details, refer to the instructions described
below.
Note
•
The plug severed from the mains lead must be destroyed, as a plug with
bared flexible cord is hazardous if engaged in a live socket outlet.
For Canadian Customers
To prevent electric shock, match wide blade of plug to
wide slot and fully insert.
This Class B digital apparatus complies with Canadian ICES003.
Inappropriate places for installation
If this unit is not correctly installed in an appropriate place, it may cause fire or failure, or damage to this unit may result. Carefully choose
the place to install this unit by avoiding the places listed below.
1. Places where the temperature and humidity vary greatly
• Do not install this unit in a place where the temperature and humidity become extremely high or the temperature becomes extremely
low.
• This unit must be used within a temperature range of 5—35°C.
2. Places without adequate ventilation
• Install this unit with at least 10 cm (4 inch) of ventilation space on the top, right and left, and at the back of this unit.
• Do not cover the ventilation slots of this unit not to obstruct the heat dissipation.
• Install this unit on the firm surface.
• Do not cover this unit with a tablecloth, etc.
• Make sure there is nothing to get sucked into the ventilation slots so that the temperature of this unit does not become too high.
3. Places where it gets dusty
• If the air filters are blocked with dust, the temperature of this unit may become too high.
4. Places with too much vibration or impact
• Vibration and impact can damage parts of this unit.
5. Places where this unit gets exposed to water or high humidity
• If this unit is exposed to water or high humidity, it may cause a fire or electrical shock.
6. Unstable places
• If this unit is installed on an unstable or an inclined tabletop, it may fall and cause damage to this unit or personal injury.
Important
•
Make sure no light other than the projecting light directly falls on the screen to ensure vivid high-contrast images.
English
II
Memo
III
PRECAUTIONS
ENGLISH
Thank you for purchasing this YAMAHA product. We hope it will give you many years of trouble-free enjoyment. For the best performance,
read this manual carefully. It will guide you in operating your YAMAHA product.
Features
• Wide variety of input terminals to support the latest video
formats
• 0.9-inch large DMD™ chips to ensure superior image quality
• Superior image quality achieved by high-performance 3-2 pulldown detection
• Rich gray-scale tones achieved by the tri-segment color wheel
• Six memory settings
• Quiet operation with a noise as low as 30dB by Yamaha sound
effect technology
(DLP™ and DMD™ are trademarks of Texas Instruments.)
INSTALLATION
• High-brightness and high-contrast images achieved by DLP™
technology
INTRODUCTION
Introduction
Contents
MENU
Features ............................................. 1
Controls and functions
Menu structure
Front panel and terminal panel .............................................
Control panel ........................................................................
Remote control .....................................................................
Loading the batteries in the remote control ..........................
2
3
4
4
INSTALLATION
Screen and projection distance .............................................
Screen setting .......................................................................
Setting “SCREEN ASPECT” ...............................................
Adjusting with “DIGITAL LENS SHIFT” ...........................
Installation methods .............................................................
5
6
6
6
7
Menu operation
Menu screen and operating buttons ....................................
Basic menu operation .........................................................
Submenu .............................................................................
Basic submenu operation ....................................................
One-touch image menu ......................................................
Changing the menu location ...............................................
Selecting the memory setting number ................................ 25
Resetting to the factory setting ........................................... 26
ADDITIONAL INFORMATION
How to connect
Additional information
27
28
29
30
Maintenance
Using this unit
10
10
11
11
11
12
14
14
Regular care ........................................................................ 31
Cleaning the filter ............................................................... 31
Replacing the lamp cartridge .............................................. 32
Troubleshooting .................................. 33
Specifications
Specifications ..................................................................... 34
Accessories ......................................................................... 34
Dimensional drawing ......................................................... 35
ADDITIONAL
INFORMATION
Turning on the power .........................................................
Focusing .............................................................................
Selecting the input source ...................................................
STILL—freezing the image ...............................................
HIDE—turning off the image temporarily .........................
Selecting “ASPECT” ..........................................................
Turning off this unit ............................................................
Indicators ............................................................................
Glossary ..............................................................................
Projectable signals ..............................................................
Menu items and input signals .............................................
Message display .................................................................
MENU
BASIC OPERATION
18
19
20
21
24
24
Memory function
CONNECTIONS
Connecting a video component ............................................ 8
Connecting a computer ......................................................... 9
15
16
17
17
BASIC OPERATION
How to install
IMAGE ...............................................................................
SIGNAL .............................................................................
INITIAL .............................................................................
SETUP ................................................................................
CONNECTIONS
INTRODUCTION
English
E-1
Controls and functions
■ Front panel and terminal panel
Focus ring, zoom ring
Focuses and zooms the lens
Remote sensor
Lens cap
Lens
Ventilation (exhaust) slot
Terminal panel <side>
8
9
0
q
w
RGB/YPBPR/YCBCR
S VIDEO
VIDEO
INPUT B
TRIGGER OUT
INPUT A
G/Y
B/PB/CB
1
R/PR/CR
2
4
1—5 INPUT A (BNC jacks)
These jacks receive component video and RGB signals.
Component video signals from an A/V component are sent to
the 1—3 jacks. RGB signals from a computer are sent to the
1—5 jacks. Use a BNC cable when connecting this unit to
another component.
1 G/Y (G or luminance signal)
2 B/PB/CB (B or color-difference signal)
3 R/PR/CR (R or color-difference signal)
4 HD/SYNC (horizontal sync signal, composite sync signal)
5 VD (vertical synchronous signal)
6 D4 VIDEO (D connector)
This connector receives video signals from the D connector of
an A/V component and is compatible with the D1—D4 format.
* This connector is designed for the Japanese D format only.
7 RS-232C (D-Sub 9-pin)
This connector is used for an examination in the factory.
E-2
RS-232C
VD
HD/SYNC
3
DVI
D4 VIDEO
5
6
7
8 S VIDEO (mini DIN jack)
This jack receives S video signals from the S video jack on an
A/V component. Use an S video cable when connecting this
unit to another component.
9 VIDEO (pin jack)
This terminal is for the composite signal from the video
terminal of the A/V component. Use a video pin cable.
0 INPUT B (D-Sub 15-pin)
This connector receives component video and RGB signals
(RGB/YPBPR/YCBCR) from an A/V component or a computer.
Use a D-Sub monitor cable when connecting this unit to
another component.
q TRIGGER OUT (mini jack)
This jack outputs signals to control external components. A
potential of +12V will be provided while this unit is projecting.
w DVI (DVI connector)
This connector receives DVI signals (digital RGB) from a
computer.
■ Control panel
Power switch
C
IN
E
M
A
P
R
O
J
E
C
T
O
R
D
P
X
–1
Primary power switch.
“ ” turns on and sets this unit in the
standby mode.
“ ” turns off this unit.
INTRODUCTION
Controls and functions
D
IG
IT
A
L
AC inlet
To plug in the supplied power cord.
STANBY/ON
ESCAPE
INPUT
LAMP
/COVER
TEMP
/FAN
PATTERN
24P
SELECT
MENU
Rear remote control
sensor
Ventilation (intake) slots / filter
covers
Adjusters
To fine-adjust the projection angle
Control panel <on the rear>
SELECT
STANDBY/ON
ESCAPE
INPUT
LAMP
/COVER
1
1
TEMP
/FAN
24P
PATTERN
2 3 4 5 6 7
indicator (P.14)
2 STANDBY/ON button (P.10)
Secondary power button
Turns on and sets this unit in the standby mode. This button is
effective only when the primary power switch is turned on.
Standby mode
In this mode, this unit consumes a small amount of power to
receive infrared siganls from the remote control.
3 LAMP/COVER indicator (P.14)
4 TEMP/FAN indicator (P.14)
5 24P indicator (P.14)
MENU
8 9
0
q
7 PATTERN button (P.10)
Turns on and off the stored test patterns on the screen.
8 MENU button (P.18)
Turns on and off the menu to set or adjust the parameters
necessary for projection.
9 ESCAPE button (P.18)
Closes the submenu.
0 Cursor buttons (P.18)
Used for the operation of h, g, –, and +.
q SELECT button (P.18)
Confirms the new setting entry, or opens the submenu.
6 INPUT button (P.11)
English
Turns on and off the menu to select the input terminal and the
input signal.
E-3
Controls and functions
■ Remote control
0 INPUT button (P.11)
The corresponding buttons on the control panel and the remote
control perform same functions. Use the remote control by aiming
at the remote control sensor located on the front or back of this
unit. The operation range is 50 degrees horizontally and 30 degrees
vertically within a distance of 6 m (20 feet).
1
2
5
6
q RESET button (P.18)
Resets the parameter to its factory setting when pressed while
adjusting the parameter on the menu.
w STILL button (P.11)
STANDBY/ON
AUTO
Turns on and off the menu display to select the input terminal
and the input signal.
3
PATTERN
Stops a moving image to display a still image of the desired
frame. Press again to cancel this function.
PATT
MENU
ESCAPE
4
e HIDE button (P.11)
8
Temporarily turns off the image being projected. Press again to
cancel this function.
SELECT
7
9
q
w
ASPECT
RESET
STILL
INPUT
0
HIDE
e
r INPUT area
Directly selects the input terminal.
t MEMORY area (P.25)
Directly calls up the stored memory setting information.
INPUT
r
S VIDEO
A
DVI
VIDEO
B
D4
MEMORY
t
1
2
3
4
5
6
■ Loading the batteries in the remote
control
1
3
1 AUTO button
2
Readjusts the most appropriate setting for the signal type when
RGB signals are received.
2 PATTERN button (P.10)
Turns on and off the stored test patterns on the screen.
3 STANDBY/ON button (P.10)
Turns on and sets this unit in the standby mode. This button is
effective only when the primary power switch is turned on.
4 MENU button (P.18)
1. Remove the battery compartment cover from the
back of the remote control.
2. Insert two batteries (AA, UM-3 or R6 type) according
to the polarity markings on the inside of the battery
compartment.
Turns on and off the menu display to set and adjust the
parameters necessary for projection.
5 ESCAPE button (P.18)
3. Close the cover until it snaps into place.
Closes the submenu.
6 Light switch
Lights the operation buttons on the remote control for approximately 10 seconds when pushed upward or downward.
7 Cursor buttons (P.18)
Used for the operation of h, g, –, and +.
8 SELECT button (P.18)
Confirms the new setting entry, or opens the submenu. Press
the center of the button for this function.
9 ASPECT button (P.12)
Selects the display aspect ratio for the images to be projected.
When pressed, the current display aspect ratio is displayed.
When pressed again within 2 seconds, the next display aspect
ratio is displayed.
E-4
Important
•
If you find that the remote control must be used closer to
this unit than usual, the batteries are weak. Replace the
batteries with new ones.
•
Do not mix new and old, or different types of battery.
•
Remove the batteries from the remote control when planning
not to use for a long period of time.
•
If the batteries have leaked, wipe the inside of the battery
compartment before loading new ones.
INSTALLATION
How to install
There are four ways this unit can be installed:
installing on a tabletop in front of the screen,
mounting on the ceiling in front of the screen,
installing on a tabletop behind a semi-translucent screen,
mounting on the ceiling behind a semi-translucent screen.
It is necessary to set the installation method for “INSTALLATION” in the menu group 4<SETUP> on the menu described later. (See page
17.)
■ Screen and projection distance
4:3 Screen
Screen size
(inch)
60
80
100
120
150
200
Projection distance [L] Wide/Tele.
(m)
(feet, inch)
2.4—2.9
7’ 10”— 9’ 6”
3.2—3.9
10’ 6”— 12’ 10”
4.0—4.9
13’ 1”— 16’
4.8—5.8
15’ 9”— 19’
6.1—7.3
20’— 23’ 11”
8.1—9.8
26’ 7”— 32’ 2”
on
cti
om
Zo
Wid
e
fun
INSTALLATION
The ideal position (projection distance [L]) to install this unit is determined by the screen aspect ratio (4:3 or 16:9) and the size (length of the
diagonal line across the screen). It is possible to adjust the projection distance within the range from Wide to Tele. by using the zoom
function. Use the following information as illustrated in the figure below to determine the best position for installation.
Tele
.
ce
an
n
tio
c
oje
Pr
t
dis
Wid
e
Tele
.
Wid
e
er
Small
Tele
.
n size
Scree
r
Large
16:9 Screen
Screen size
(inch)
60
80
100
120
150
200
Projection distance [L] Wide/Tele.
(m)
(feet, inch)
2.6—3.2
8’ 6”— 10’ 6”
3.5—4.2
11’ 6”— 13’ 9”
4.4—5.3
14’ 5”— 17’ 5”
5.3—6.4
17’ 5”— 21’
6.6—8.0
21’ 8”— 26’ 3”
8.8—10.6
28’ 10”— 34’ 9”
n
tio
nc
om
Zo
Wid
e
Tele
.
ce
an
n
tio
c
oje
Pr
Wid
e
fu
t
dis
Tele
.
Wid
e
Tele
.
ller
ize
en s
Scre
er
Larg
Sma
Important
•
Projection distance is the horizontal distance from the lens surface of this unit to the screen. The lens is recessed for 4 cm (1-1/2
inch) from this unit’s exterior.
English
E-5
How to install
■ Screen setting
4:3 screen
The screen height depends on your screen size. This unit projects
facing slightly upward, although projecting symmetrically about
the lens center on the horizontal axis. The following charts show
the height [H] from the lens center to the screen bottom. Consider
dimension [H] when determining the position to set your screen.
er
ent
mag
of i
Screen size
(diagonal)
e
16:9 screen
*
C
12°—15°
This unit
Screen size
(diagonal)
Center of lens
Projection distance [L]
Height to the screen [H]
*
*See “DIGITAL LENS SHIFT”
described in the next section on
page 18.
4:3 Screen
16:9 Screen
(When “DIGITAL LENS SHIFT” is set to 0)
Screen size
(inch)
60
80
100
120
150
200
Height to the screen bottom [H]
(inch)
(cm)
18
7- 1/16
24
9- 7/16
30
11- 13/16
36
14- 3/16
45
17- 3/4
59
23- 1/4
Screen size
(inch)
60
80
100
120
150
200
Height to the screen bottom [H]
(cm)
(inch)
32
12- 5/8
42
16- 1/2
53
20- 7/8
64
25- 3/16
80
31- 1/2
106
41- 3/4
■ Setting “SCREEN ASPECT”
It is necessary to set the screen aspect ratio (4:3 or 16:9) depending on your screen in order to properly project images on the entire area of
the screen. When the 16:9 screen is used and “SCREEN ASPECT” is set to “16:9”, it is possible to project 4:3 video signals on the entire
screen without losing any part of the image off screen. It is also possible to adjust the projected image vertically as described in the next
section. See “SCREEN ASPECT” in the menu group 4<SETUP> described on page 17.
■ Adjusting with “DIGITAL LENS SHIFT”
When “SCREEN ASPECT” in the menu group 4<SETUP> on
the menu is set to “16:9”, the projected image can be vertically
adjusted within the range shown on the right by digitally changing
[H] (the height from the lens center to the screen bottom). See page
17.
E-6
Screen size
(inch)
60
80
100
120
150
200
Height to the screen bottom [H]
(cm)
(inch)
19—44
7-1/2— 17-5/16
26—59
10-1/4— 23-1/4
32—74
12-5/8— 29-1/8
39—89
15-3/8— 35
49—111
19-3/8— 43-3/4
65—145
25-5/8— 57
How to install
■ Installation methods
1. Installing on a tabletop
Projection distance [L]
See page 5.
Screen
[H] See page 6.
INSTALLATION
This unit projects images when set on a tabletop with a certain
height in front of the screen. The table height and [H] described on
page 6 must be determined first to decide on how high the screen
should be set for the best result. The height from this unit’s bottom
to the lens center is 8 cm (3-1/8 inch). The position of the screen
(the height from the floor to the screen bottom) can be easily
determined by adding these three figures.
For example, if you are setting this unit on a tabletop with a height
of 50 cm (20 inch), you need to set your screen at a height of <50
cm + 8 cm + [H] cm (20 inch + 3-1/8 inch + [H] inch)> from the
floor.
8 cm (3-1/8 inch) to the lens center
Table height
Floor
Adjusting with the adjusters
When this unit is installed on a tabletop, the position of the image
can be adjusted by using the adjusters located at the bottom front of
this unit.
Adjust the height by rotating the movable part of the two screwtype adjusters at the front bottom of this unit. The adjustment range
of these adjusters is 2.5 cm (1 inch). If loosened completely, they
will come off.
Adjusters
2. Mounting on the ceiling
A ceiling mount bracket (optional) is needed for mounting this unit on the ceiling. Consult with your local authorized dealer or any reliable
contractor to mount this unit on the ceiling.
The vertically reversed illustration of the screen installation position shown page 6 helps determine how far the screen should be set from the
ceiling. The height can be determined by adding [H] described on page 6 and the height of the ceiling mount bracket [C] as shown in the
following illustration. When this unit is installed on the ceiling, “FRONT/CEILING” in the menu group 4<SETUP> must be selected on
the menu. (See page 17.) The projected image can be vertically adjusted within a certain range by changing the value in “DIGITAL LENS
SHIFT” on the menu when “SCREEN ASPECT” on the menu is set to “16:9”. See page 6 for details.
Low ceiling
S: 20 cm (8 inch)
Ceiling
[C]
High ceiling
L: 90 to 147 cm (3 to 5 feet)
(adjustable every 3 cm (1-3/16 inch))
[H] See page 6.
Screen
Projection distance [L]
See page 5.
3. Rear projection
You can watch images projected on the back of a semi-translucent screen while sitting on the other side of the screen. The screen position can
be determined by simply following the front setting procedures described above. For this setting, “REAR/TABLE” or “REAR/CEILING”
must be selected for “INSTALLATION” in the menu group 4<SETUP> on the menu. (See page 17.)
English
E-7
CONNECTION
How to connect
• Before making connections, make sure that the power of this unit and other components is turned off.
• Some components require different connection methods and have different jack names. Refer to the operation instructions for each
component to be connected to this unit.
• Plug in this unit correctly to prevent from creating noise or troubles.
■ Connecting a video component
There are five types of video connections available on this unit for A/V components as shown in the illustration below. Connect video output
signals from A/V components to this unit by following the illustration below with the correct cables and adapters.
Input
Type of signal
Composite video
S video
Component video/RGB video
Component video/RGB video
Component video
VIDEO
S VIDEO
INPUT A
INPUT B
D4 *
Type of jack
Pin jack
Mini DIN jack
BNC jack x 3—5
D-Sub 15-pin connector
D4 connector
* This connector is designed for the Japanese D format only.
Video pin cable
S video cable
RGB/YPBPR/YCBCR
S VIDEO
VIDEO
INPUT B
TRIGGER OUT
INPUT A
G/Y
B/PB/CB
Converting plug
R/PR/CR
HD/SYNC
DVI
D4 VIDEO
RS-232C
VD
BNC cable for
component
D connector cable
Pin cable
D-Sub monitor cable
G/Y
Video
output jack
S video
output jack
Pin jacks
B/PB/CB
R/PR/CR
BNC jacks
D-Sub
D1—D4 output
connector
Component/RGB video output
jack/connector
Video outputs of various A/V components
◆ Note ◆
•
When connecting A/V component to INPUT A component jacks, make sure to match the Y/PB/PR or Y/CB/CR of the A/V component and this unit to be
connected. Also refer to the operation instructions for the A/V component. HD/SYNC and VD need to be connected for RGB video signals in some cases.
E-8
How to connect
■ Connecting a computer
There are three types of terminals to connect this unit to a computer as listed below. Use the correct cables for the terminals to be connected.
Input
INPUT A
INPUT B
DVI
Type of signal
RGB analog
RGB analog
RGB digital
Type of jack
BNC jack x 5
D-Sub 15-pin connector
DVI connector
DVI cable (digital only)
D-Sub monitor cable
RGB/YPBPR/YCBCR
S VIDEO
VIDEO
INPUT B
TRIGGER OUT
INPUT A
DVI output
terminal
B/PB/CB
R/PR/CR
HD/SYNC
DVI
D4 VIDEO
RS-232C
CONNECTIONS
G/Y
VD
Monitor output
terminal
BNC monitor cable
Computer
◆ Note ◆
•
See 2 <SIGNAL> on the menu described on page 16 for setting the type of image input signal.
English
E-9
BASIC OPERATION
Using this unit
This section describes the basic projecting operation after installation and connection have been completed.
Detailed settings must be made for installation, screen, input signal
and so on, by following the menu setting procedure described in
the section starting on page 15.
■ Focusing
Press the PATTERN button to project the stored test pattern.
Adjust the lens so that it comes into focus by rotating the focus
ring. The image size can be also adjusted with the zoom ring.
PATTERN
■ Turning on the power
ESCAPE
INPUT
Remove the lens cap before starting any operation of this unit.
R
TEMP
/FAN
PATTERN
24P
MENU
1. Plug the supplied power cord into the AC inlet on the
rear of this unit. Then plug the cord into the wall
outlet.
indicator
Zoom ring
STANBY/ON
ESCAPE
INPUT
LAMP
/COVER
TEMP
/FAN
PATTERN
24P
SELECT
MENU
Focus ring
Power switch
AC inlet
Lens
2. Turn on the power switch of this unit. The
indicator lights up in red in a few seconds.
3. Press the STANDBY/ON button, the
indicator
flashes in green and the lamp inside this unit lights
up.
indicator stops flashing and lights steadily after about
The
15 seconds and this unit is ready for projection.
indicator
(Flashing in green → lights steadily in green)
STANDBY/ON
STANDBY/ON
INPUT
LAMP
/COVER
TEMP
/FAN
24P
PATTERN
AUTO
PATTERN
PATT
MENU
ESCAPE
SELECT
STANDBY/ON
INPUT
ASPECT
RESET
STILL
HIDE
Important
• Never turn off the power switch or unplug this unit
indicator is lit or flashing in green.
while the
This causes significant damage to the lamp and
may result in its shorter life or failure.
E-10
There are two test patterns. Choose whichever is desired by
pressing the + or – button.
Press the PATTERN button again to close the test pattern.
Using this unit
■ Selecting the input source
◆ Notes ◆
Press the INPUT button to display the menu for input signals on
the screen. Select the input terminal and the input signal to be
projected by pressing the h or g button, and confirm the selection
by pressing the SELECT button.
•
When an ordinary video signal or an interlaced video signal of a 24frame/second film is input, the interlace/progressive (i/p) conversion
circuit built into this unit automatically identifies the type of signals. If
the signals of a film is input, the 24P indicator lights up in blue. Some
contents cannot be correctly detected.
•
When the interlaced video signals of a film is input, this unit detects it
and the 24P indicator lights up in blue.
•
When the signal from an A/V component or computer is input, it does
not go through i/p conversion, and the 24P indicator does not light up in
this case.
•
This unit is compatible with VGA, SVGA, XGA, and SXGA for the
RGB signal from a computer. It is recommended to set to XGA to enjoy
clearer images when the screen aspect ratio is set to “4:3”.
•
When this unit is set to display the output signals on both the LCD of a
notebook computer and on an external monitor, the image may not be
correctly displayed on the external monitor. In this case, set this unit to
display on only the external monitor. Refer to the operation instructions
of the computer for details.
Input Source
VIDEO
Signal to be projected
Composite video signals input from an A/V component to
the VIDEO jack
S VIDEO
S video signals input from an A/V component to the S
VIDEO jack
INPUT A <COMPONENT>
Component signals input to INPUT A (BNC jacks)
INPUT A <RGB PC>
RGB signals input from a computer to INPUT A (BNC
jacks)
INPUT A <RGB TV>
RGB signals input from an A/V component to INPUT A
(BNC jacks)
INPUT B <COMPONENT>
Component signals input to INPUT B (D-Sub15-pin
connector)
INPUT B <RGB PC>
RGB signals input from a computer to INPUT B (DSub15-pin connector)
INPUT B <RGB TV>
RGB signals input from an A/V component to INPUT B
(D-Sub15-pin connector)
DVI
Digital RGB signals input from a computer to the DVI
connector
D4 VIDEO
Component signal input from an A/V component to the
D4 VIDEO connector
■ STILL—freezing the image
Press the STILL button on the remote control to capture the desired
frame of a moving image. This function can be effectively used to
adjust the image quality. Press the STILL button again to resume
normal projection.
■ HIDE—turning off the image temporarily
Press the HIDE button on the remote control to turn off the image
temporarily. Press the HIDE button again to bring back the image
that has been turned off.
BASIC OPERATION
SELECT
ESCAPE
INPUT
LAMP
/COVER
TEMP
/FAN
24P
PATTERN
MENU
STANDBY/ON
AUTO
PATTERN
PATT
ESCAPE
MENU
SELECT
SELECT
INPUT
ASPECT
ASPECT
RESET
INPUT
STILL
HIDE
STILL
HIDE
• SVGA is a trademark of Video Electronics Standards Association.
E-11
English
• VGA, XGA, and SXGA are trademarks of International
Business Machines Corporation.
Using this unit
■ Selecting “ASPECT”
“ASPECT” selects the most appropriate way of displaying the image on the screen for the six common types of signals listed below.
Available parameters for “ASPECT” change depending on the “SCREEN ASPECT” setting. This unit has the “AUTO” mode which automatically detects the type of signals and changes the display aspect. This mode is effective when information about the signal type is
included in the signal.
Press the ASPECT button for the desired display aspect.
1 Video signal of the 4:3 screen aspect from ordinary TV or video
2 Letterbox video signal
3 Squeezed video signal (Vista size)
4 Squeezed video signal (Cinema scope size)
5 Hi vision (HDTV) 16:9 video signal
6 RGB signal
● Available aspect modes when “SCREEN ASPECT” is set to “4:3”
1 AUTO
[Examples]
When the input signal is letterbox or squeeze, this mode detects
it and automatically switches to the most appropriate mode.
This mode is effective only when the signal is sent with
information about its type.
2 NORMAL
This mode projects the image horizontally in full on the screen
without cutting any input signal.
3 SQUEEZE
This mode desqueezes the video which has been recorded as
horizontally squeezed. The image is projected in the original
format after having passed through this circuit.
4 ZOOM
The central part of the image is scaled up. Both sides of the
input image lie offscreen.
5 THROUGH
The signal is projected as it is input without scaling up or
down.
6 THROUGH -SQUEEZEThis mode scales up only the width of the image without
changing the height.
Input signal
Input image
Aspect
Normal 4:3 image
NORMAL
Letter box
ZOOM
NORMAL
Squeeze
(Vista size)
SQUEEZE
THROUGH
-SQUEEZE-
Squeeze
(Cinema scope
size)
SQUEEZE
HDTV
NORMAL
ZOOM
RGB PC
THROUGH
NORMAL
E-12
Projected
Using this unit
● Available aspect modes when “SCREEN ASPECT” is set to “16:9”
1 AUTO
[Examples]
When the input signal is in letterbox or squeeze, this mode
detects it and automatically switches to the most appropriate
mode. This mode is effective only when the signal is sent with
information about its type.
2 NORMAL
This mode projects the image vertically in full on the screen
without cutting any input signal.
3 SQUEEZE
This mode desqueezes the video which has been recorded as
horizontally squeezed. The image is projected in the original
format after having passed through this circuit.
4 ZOOM
This mode projects the signal input as letterbox on the entire
screen of 16:9 aspect ratio.
5 ZOOM -SUBTITLEThis mode projects the video in letterbox with subtitles on the
screen most appropriately.
“ZOOM -SUBTITLE-” in “ASPECT” in the menu group 2
<SIGNAL> has the following two items. See -Exception- on
page 20 for the adjustment procedure.
• SUBTITLE AREA
adjusts the subtitle area.
Input signal
Input image
Aspect
Normal 4:3 image
NORMAL
Letter box
ZOOM
ZOOM
-SUBTITLE-
Squeeze
(Vista size)
Projected
SUBTITLE
SQUEEZE
THROUGH
-SQUEEZE-
Squeeze
(Cinema scope
size)
SQUEEZE
HDTV
NORMAL
RGB PC
NORMAL
• V SCROLL
adjusts the subtitle position by vertically scrolling the
projected image.
BASIC OPERATION
6 THROUGH
The signal is projected as it is input without scaling up or
down.
7 THROUGH -SQUEEZEThis mode scales up only the width of the image without
changing the height.
English
E-13
Using this unit
■ Turning off this unit
■ Indicators
1. When you have finished using this unit, press the
There are four indicators on this unit to display the operating status
of this unit.
STANDBY/ON button.
There will be a message to confirm turning off this unit. Press
the STANDBY/ON button again to turn off this unit. The lamp
turns off and the
indicator flashes in orange while the fan
is rotating to cool the lamp for approximately two minutes.
This unit cannot be turned back on by pressing the STANDBY/
ON button in this state.
STANDBY/ON
INPUT
LAMP
/COVER
indicator
(flashes)
1
INPUT
TEMP
/FAN
24P
24P
PATTERN
MENU
2 3 4
STANDBY/ON
STANDBY/ON
LAMP
/COVER
TEMP
/FAN
PATTERN
AUTO
1
PATTERN
PATT
MENU
ESCAPE
SELECT
STANDBY/ON
INPUT
ASPECT
RESET
2. When the lamp has cooled down, the
STILL
HIDE
indicator
stops flashing and steadily lights in red.
3. Turn off the power switch after making sure that the
fan has completely stopped and that the
indicator is lit in red.
Important
• While the fan is rotating and the
indicator is
flashing in orange, never turn off the power switch
or unplug this unit. This will cause significant
damage to the lamp and may result in its shorter
life or failure.
Off
Lights in red
Flashes in green
Lights in green
Flashes in orange
2 LAMP/COVER
Off
Lights in red
Normal
The lamp cover is not correctly attached.
The air filter cover is not correctly
attached.
Flashes in red (1-second intervals)
The lamp usage has exceeded 1000
hours.
Flashes in red (0.5-second intervals)
The lamp usage has exceeded 1100
hours.
The lamp has burnt out.
3 TEMP/FAN
Off
Lights in red
Flashes in red
Normal
The temperature inside this unit is
abnormally high.
The cooling fan is out of order.
4 24P
Lights in blue
Off
E-14
The power is turned off.
In the standby mode
Getting ready to start operation
Operating
Cooling the lamp
This unit has detected the interlaced
signal (480i) of 24-frame/second film
and is converting it to progressive
images.
Video signals other than the interlaced
signal (480i) of 24-frame/second film are
being input.
MENU
Menu structure
It is necessary to make various settings on the menu so that this unit can achieve the best performance. The menu has a three-level hierarchy;
menu group, menu item, and submenu for some menu items. Listed below are the four menu groups.
1 <IMAGE>
To adjust the image quality. Available items depend on the type of input signal.
2 <SIGNAL>
To make settings for the connected input signal. Available items depend on the type of input signal.
3 <INITIAL>
To make your own initial setting for several menu items.
4 <SETUP>
To make settings for installation, screen aspect, key stone effect correction and so on.
Each menu group described above consists of the following items. The parameters for these items can be adjusted as you wish by following
the menu operation procedures described from page 18.
S means that the item has a submenu.
■ 1 <IMAGE> ........... Adjustment cannot be made without any input signal.
Input signal
Video/Component/
RGB TV
Video/Component/
RGB
Video/Component/
RGB
Menu item
BLACK LEVEL
Adjusts the level of blackness while maintaining the peak white brightness.
CONTRAST
The ratio of light versus dark. If increased too high, the whole image becomes light and the
white portion of the image tends to be saturated. If decreased too low, the whole image becomes
dark and flat.
BRIGHTNESS
Controls the total brightness of an image. When adjusted too high, the black portion of the
image becomes grayish and the white portion of the image tends to be saturated. When adjusted
too low, the entire image becomes darker.
Adjustment range
–64 to 32
–128 to 127
–128 to 127
The three menu items described above are to adjust the input and output characteristics for the image brightness of the luminance
signal. The graphs below show how these items can be adjusted.
BLACK LEVEL
White
CONTRAST
White
BRIGHTNESS
White
Output image
Black
Video/Component/
RGB
Video/Component/
RGB
Video
Component
Video/Component/
RGB
Video/Component/
RGB
Video/Component/
RGB
Black
White
Input signal
Black
GAMMA TRIM
Adjusts the response of the color gradation and gray-scale of the image. There are five patterns
available. Select the appropriate pattern depending on the content to be projected.
SHARPNESS
Adjusts the clearness of the image edges. The higher value creates clearer edges. The lower
value creates a softer image with the less noise element.
HUE
Adjusts the hue. When adjusted to the negative direction, red increases. When adjusted to the
positive direction, blue increases.
SATURATION
Adjusts the depth of a color. When adjusted to the negative direction, the color becomes lighter.
When adjusted to the positive direction, the color becomes deeper.
COLOR BOOST
Boosts the color saturation. The higher value makes the color tends to be saturated and becomes
deeper.
COLOR TEMP
Adjusts the color of the image to be projected. The higher setting adds more blue and the lower
setting adds more red. Select the appropriate setting depending on the content to be projected.
WHITE BALANCE S
Fine-adjusts the balance of each color (R, G, B).
CONTRAST (R, G, B)
BRIGHTNESS (R, G, B)
WHITE BOOST
Optically adjusts the luster of the white part of the projected image.
White
Input signal
A/B/C/D/E
1 to 5
–128 to 127
MENU
Video
White
Input signal
–128 to 127
0 to 127
LOW/MID-L/MID/HIGH
50% to 124%
–12.4% to 12.4%
0 to 10
English
E-15
Menu structure
■ 2 <SIGNAL> ......... Adjustment cannot be made without any input signal.
Input signal
Video/Component/RGB
Video/Component
Video/Component
Video
Video/Component
Video
Video/Component
Menu item
ASPECT S
Sets the aspect ratio of displaying the image on the screen. “AUTO” automatically switches
to the most appropriate mode. “NORMAL” (THROUGH) projects the image as the input
signal is sent. “SQUEEZE” desqueezes the squeezed image. “ZOOM” projects the image
scaled up with a certain ratio. “ZOOM -SUBTITLE-” displays the subtitle. “THROUGH
-SQUEEZE-” displays the image with its width scaled up. Available items depend on the
“SCREEN ASPECT” setting and the type of input signals.
“ZOOM -SUBTITLE-” has further items to be adjusted
SUBTITLE AREA: adjusts the subtitle area.
V SCROLL: adjusts the subtitle position by vertically scrolling the projected image.
SUBTITLE MASK
Darkens the brightness of the characters in the subtitles when playing the film in letterbox
with subtitles (except for HDTV).
MASK POSITION
Changes the effective height for the “SUBTITLE MASK” adjustment (except for HDTV).
3D Y/C SEPARATION
Suppresses the rainbow-like color crossing the image of fine vertical stripes or annoying dot
interference on the image edge when the video signal is input. This adjustment is available
only for the composite signal in NTSC mode.
NOISE REDUCTION
Effectively reduces the noise included in the luminance signal and color signal by digital
processing when playing the source with a relatively large amount of noise in order to
create a more vivid image (interlaced signal only, except for HDTV).
VIDEO TYPE
Selects VCR when playing video tapes in order to ensure synchronization, and selects DVD
when playing other sources.
SETUP LEVEL
Adjusts the black level difference of the image signal. Select 0% for a signal with no
difference from the pedestal level, and 7.5% for a signal with higher black level.
Choice/adjustment range
AUTO/NORMAL/
SQUEEZE/ZOOM/ZOOM
-SUBTITLE- S
(SUBTITLE AREA, V
SCROLL)/THROUGH/
THROUGH -SQUEEZE-
0 to 99
0 to 99
OFF/ON
–10 to 10
ON/OFF
OFF/1/2/3
DVD/VCR
0%/7.5%
Image signal
%
100
Pedestal level 0
Black level
RGB
RGB
RGB
RGB
RGB
E-16
DOT PHASE
Fine-adjusts the phase of the RGB signal input from the computer for clearest display of the
characters and lines of the image (except for DVI).
SIZE H
Adjusts the horizontal size of the projected image (except for DVI).
SHIFT H
Adjusts the horizontal position of the projected image (except for DVI).
SHIFT V
Adjusts the vertical position of the projected image (except for DVI).
SIGNAL STATUS
Displays the resolution and sync. frequency of the input signal.
0 to 31
–2047 to 2048
0 to 100
0 to 100
—
Menu structure
■ 3 <INITIAL>
Menu item
COLOR SYSTEM S
Selects the color system when the video signal is input among NTSC, NTSC4.43, PAL, PAL-M, PAL-N,
PAL60, SECAM. AUTO should normally be selected so that the appropriate color system can be
automatically selected depending on the input signal.
INPUT A SIGNAL S
Selects the type of input signal sent to the INPUT A jacks.
INPUT B SIGNAL S
Selects the type of input signal sent to the INPUT B jacks.
LANGUAGE S
Selects the language used on the menu.
POWER SAVING
When no signal is received at the input jacks for longer than 15 minutes, this unit automatically turns off
the lamp and enters the standby mode if ON is selected.
LAMP RUNNING TIME S
Displays the total lamp running time. The lamp running time can be reset on the submenu.
RESET S
Resets all parameters on the menu or parameters in the memory to the factory settings.
Choice
AUTO/NTSC/NTSC4.43/PAL/PAL-M/PAL-N/
PAL60/SECAM
COMPONENT/RGB PC/RGB TV
COMPONENT/RGB PC/RGB TV
/ENGLISH/DEUTSCH/ESPAÑOL/
FRANÇAIS/ITALIANO/
OFF/ON
—
ALL SETTINGS/ALL MEMORIES/
CURRENT MEMORY
■ 4 <SETUP>
Menu item
INSTALLATION S
There are four methods to install this unit; tabletop or on-ceiling for front or rear projection. The image can
be inverted or rotated according to the setting for the installation method.
SCREEN ASPECT
Selects 4:3 or 16:9 depending on the screen to be used. If 16:9 is selected, vertical adjustment of the image
can be made by changing the value of the item “DIGITAL LENS SHIFT”. And automatically makes an
adjustment to project the 4:3 input signal without losing any part of it off screen.
* DIGITAL LENS SHIFT
The image on the screen can be vertically adjusted within a certain range by digital processing. h moves the
image upward and g downward. This adjustment is available only when the screen aspect ratio is set to 16:9.
KEYSTONE
If this unit projects on a the screen with some elevation or depression angle at its installation, the image on
the screen is distorted into a trapezoid. This parameter electrically corrects the distortion. Increase the value
when the upper part of the image is wider. Decrease the value when the lower part if the image is wider.
KEYSTONE MODE
There are two modes; “FULL” that corrects the key stone effect without changing the vertical length of the
image, and “NORMAL” that makes vertical correction by shifting the bottom at the same time. Select the
appropriate mode to make correction depending on your installation.
Choice/adjustment range
FRONT/TABLE, FRONT/CEILING,
REAR/TABLE, REAR/CEILING
4:3/16:9*
–96 to 96
–128 to 127
NORMAL/FULL
2Full correction
This correction adjusts the horizontal distortion without changing
the vertical length of the projected image.
When the upper part of the image is wider than the
lower part, increase the value to the positive (+)
direction.
When the upper part of the image is wider than the
lower part, increase the value to the positive (+)
direction.
When the lower part of the image is wider than the
upper part, decrease the value to the negative (–)
direction.
When the lower part of the image is wider than the
upper part, decrease the value to the negative (–)
direction.
R/C SENSOR S
Sets the remote control sensor to be used. This unit has its remote control sensor in two locations: at the front
and the rear.
MENU
1Normal correction
This correction shifts the bottom of the projected image to correct
the horizontal distortion.
FRONT&REAR/FRONT/REAR
English
E-17
Menu operation
■ Menu screen and operating buttons
This section provides you with general information about the menu screen and operating buttons on the remote control and this unit’s control
panel for easier operation. Please read it carefully before starting to operate the menu.
MOVE MENU WINDOW
MOVE MENU WINDOW
Menu group
Menu item
SIGNAL
INITIAL
COLOR SYSTEM
AUTO
INPUT A SIGNAL
COMPONENT
INPUT B SIGNAL
RGB PC
LANGUAGE
ENGLISH
POWER SAVING
OFF
LAMP RUNNING TIME
2H.
SETUP
The menu has a three-level hierarchy: menu group, menu item, and
submenu for some menu items.
Parameter
ENGLISH
LANGUAGE
ON
DEUTSCH
ESPAÑOL
FRANÇAIS
RESET
Submenu
parameter
ITALIANO
ESCAPE: EXIT
MEMORY1
VIDEO
Help message
Memory setting
number
Submenu mark
Input signal
1 MENU button
Opens or closes the menu.
STANDBY/ON
PATTERN
AUTO
2 Cursor buttons
PATT
6
MENU
ESCAPE
+/– (for side-to-side movements)
1
• Select a menu group.
2
• Open or closes a submenu.
SELECT
• Select or changes a setting.
h/g (for up and down movements)
3
INPUT
ASPECT
• Select a menu item.
5
RESET
STILL
• Select or changes a setting.
HIDE
3 SELECT button
INPUT
S VIDEO
A
DVI
• Opens a submenu.
VIDEO
B
D4
• Confirms a new setting when adjusting “COLOR SYSTEM”, “INPUT A SIGNAL”, “INPUT B SIGNAL”, or R/
C SENSOR”.
MEMORY
1
2
3
4
5
6
4
• Opens a one-touch image menu when the menu screen has
not been opened.
4 MEMORY 1 to 6 button (Remote control only)
Selects a memory setting number.
1
6
2
3
5 RESET button (Remote control only)
Resets the parameter setting to the factory setting.
Items without factory settings cannot be reset.
SELECT
ESCAPE
INPUT
PATTERN
MENU
6 ESCAPE button
• Returns the cursor to the menu group hierarchy from the
menu item hierarchy.
• Returns to the menu from the MOVE MENU WINDOW.
• Closes the submenu.
• Closes the menu when the cursor is on one of the menu
groups.
• Closes the one-touch image menu.
E-18
Menu operation
■ Basic menu operation
To ensure proper projection, start with setting and adjustment for the menu group “SETUP”.
STANDBY/ON
AUTO
2, 4
PATTERN
PATT
5
ESCAPE
MENU
1, 6
SELECT
STANDBY/ON
ESCAPE
INPUT
LAMP
/COVER
TEMP
/FAN
PATTERN
24P
MENU
3, 5
SELECT
2, 4
ASPECT
4
RESET
INPUT
STILL
1, 6
5
3, 5
HIDE
1. Press the MENU button to open the menu.
The previous menu screen opens if menu operation has already
been performed.
3. Press the g button to enter the menu item hierarchy.
Then select an item to be adjusted by pressing the h or g
button.
MENU
MENU
or
or
SELECT
Remote control
Control panel
MOVE MENU WINDOW
SIGNAL
INITIAL
BLACK LEVEL
0
CONTRAST
0
BRIGHTNESS
0
GAMMA TRIM
Control panel
SIGNAL
INITIAL
INSTALLATION
A
SHARPNESS
Remote control
SETUP
1
B
2
C
D
3
4
E
SCREEN ASPECT
5
KEYSTONE
SETUP
FRONT/TABLE
4:3
16:9
FULL
0
HUE
0
KEYSTONE MODE
NORMAL
SATURATION
0
R/C SENSOR
FRONT&REAR
COLOR BOOST
0
MEMORY1
VIDEO
2. Press the + or – button to select a menu group.
MEMORY1
VIDEO
4. Select or change the parameter by pressing the + or –
button.
SELECT
or
MENU
SELECT
Remote control
or
Control panel
MOVE MENU WINDOW
SIGNAL
INITIAL
SETUP
INSTALLATION
FRONT/TABLE
SCREEN ASPECT
4:3
16:9
KEYSTONE MODE
NORMAL
FULL
R/C SENSOR
FRONT&REAR
KEYSTONE
0
Remote control
Control panel
SIGNAL
SETUP
INSTALLATION
FRONT/TABLE
SCREEN ASPECT
4:3
16:9
KEYSTONE MODE
NORMAL
FULL
R/C SENSOR
FRONT&REAR
DIGITAL LENS SHIFT
KEYSTONE
MEMORY1
INITIAL
0
VIDEO
MEMORY1
VIDEO
English
E-19
Menu operation
Some items are adjusted by increasing or decreasing the value on
the scale, and others by selecting a number or a word.
KEYSTONE
0
KEYSTONE MODE
NORMAL
FULL
Press the RESET button to reset the parameter to the factory
setting. (Items without a factory setting cannot be reset.)
5. Press the h or g button to move the cursor to the
next item.
■ Submenu
Following is a list of the menu items that have a submenu.
Submenu operation varies according to the menu item selected.
Follow the steps of the applicable submenu operation group.
Menu items with a submenu
Menu group
SIGNAL
INITIAL
First return to the menu group by pressing the ESCAPE or h
button if the next item belongs to the another menu group.
Then follow the previous steps 2—4 to continue menu setting.
SELECT
or
Remote control
SETUP
Control panel
6. Press the MENU button to close the menu when
setting has been completed.
MENU
MENU
or
Remote control
Control panel
Menu item
WHITE BALANCE
ASPECT*
COLOR SYSTEM
INPUT A SIGNAL
INPUT B SIGNAL
LANGUAGE
LAMP RUNNING
TIME
RESET
INSTALLATION
DIGITAL LENS
SHIFT
R/C SENSOR
Submenu operation
group
C
A
B
B
B
A
D
D
A
A
B
Operation group A: Press the SELECT or + button to open the
submenu. Select the desired parameter by pressing the h or g
button, and then press the ESCAPE or – button to close the
submenu.
Operation group B: Press the SELECT or + button to open the
submenu. Select the desired parameter by pressing the h or g
button, and then confirm the new setting by pressing the SELECT
button. After the setting has been confirmed, press the ESCAPE or
– button to close the submenu.
Operation group C: Press the SELECT or + button to open the
submenu. Select the submenu item by pressing the h or g button,
and then change the parameter by pressing the h or g button.
It is not necessary to confirm the new setting.
Operation group D: Press the SELECT or + button to open the
submenu, which is in the form of messages. Perform menu
operation by following the direction in the message. The submenu
for this group is explained in the section on pages 22 and 23.
-Exception* When the menu item “SCREEN ASPECT” in the menu group
“SETUP” is set to “16:9”
If “ZOOM -SUBTITLE-” is selected in the submenu for
“ASPECT”, there is an additional menu to make your desired
setting. Press the SELECT button to open the additional menu.
There are two items, “SUBTITLE AREA” and “V SCROLL”.
Select the item to be adjusted by pressing the h or g button.
Set the desired value by pressing the + or – button. Press the
ESCAPE button to close the additional menu.
E-20
Menu operation
■ Basic submenu operation
3. Select the submenu parameter by pressing the h or g
button.
[Operation groups A and B]
or
SELECT
1. Select the menu item to be adjusted by following
steps 1—3 in “Basic menu operation”.
The submenu mark “ ” appears on the right side of the item.
Remote control
SIGNAL
INITIAL
Control panel
SETUP
COLOR SYSTEM
AUTO
INPUT A SIGNAL
COMPONENT
INPUT B SIGNAL
RGB PC
LANGUAGE
ENGLISH
POWER SAVING
OFF
LAMP RUNNING TIME
2H.
SIGNAL
EINST.
AUFST.
ENGLISH
SPRACHE
ON
DEUTSCH
ESPAÑOL
FRANÇAIS
RESET
ITALIANO
MEMORY1
VIDEO
ESCAPE: VERLASSEN
2. Press the SELECT or + button to open the submenu.
SELECT
or
SELECT
Press the RESET button to reset the parameter to the factory
setting. (Items without a factory setting cannot be reset.)
Control panel
SIGNAL
INITIAL
SETUP
[Operation group B only]
Press the SELECT button to confirm the new setting and close
the submenu. Setting cannot be changed for the above items if
not confirmed by the SELECT button.
SELECT
ENGLISH
LANGUAGE
VIDEO
When setting “COLOR SYSTEM”, “INPUT A SIGNAL”,
“INPUT B SIGNAL”, or “R/C SENSOR”, the following step
[Operation group B only] is necessary.
Remote control
SPEICHER1
DEUTSCH
ESPAÑOL
SELECT
or
FRANÇAIS
ITALIANO
Remote control
ESCAPE: EXIT
MEMORY1
VIDEO
Control panel
To reset the parameter to the factory setting, press the RESET
button when the submenu has been opened.
4. Press the MENU button to close the menu.
MENU
MENU
MENU
Remote control
or
Control panel
Press the ESCAPE or – button to return to the previous screen
if continuing to adjust settings.
English
E-21
Menu operation
● Submenu operation—“WHITE BALANCE”
Press the RESET button to reset the parameter to the factory
setting.
[Operation group C]
1. Select the menu item “WHITE BALANCE” in the menu
group “IMAGE” by following steps 1—3 in “Basic
menu operation”.
The submenu mark “ ” appears on the right side of the item.
4. Select the value by pressing the + or – button.
SIGNAL
INITIAL
COLOR TEMP
SETUP
LOW MID-L MID
HIGH
SIGNAL
INITIAL
SETUP
WHITE BALANCE
CONTRAST R
100%
CONTRAST G
100%
CONTRAST B
80%
BRIGHTNESS R
0%
BRIGHTNESS G
0%
BRIGHTNESS B
0%
WHITE BALANCE
WHITE BOOST
0
ESCAPE: EXIT
MEMORY1
VIDEO
5. Press the MENU button to close the menu.
Press the ESCAPE button to return to the previous screen if
continuing to adjust settings. The – button does not close the
submenu to return to the previous screen for this parameter.
MEMORY1
VIDEO
2. Press the SELECT or + button to open the submenu.
SIGNAL
INITIAL
SETUP
WHITE BALANCE
CONTRAST R
100%
CONTRAST G
100%
CONTRAST B
100%
BRIGHTNESS R
0%
BRIGHTNESS G
0%
BRIGHTNESS B
0%
ESCAPE: EXIT
menu group “INITIAL” by following steps 1–3 in
“Basic menu operation”.
The submenu mark “ ” appears on the right side of the item.
MEMORY1
VIDEO
button.
SIGNAL
[Operation group D]
1. Select the menu item “LAMP RUNNING TIME” in the
3. Select the submenu item by pressing the h or g
● Submenu operation—“LAMP RUNNING TIME”
INITIAL
SETUP
SIGNAL
INITIAL
COLOR SYSTEM
AUTO
INPUT A SIGNAL
COMPONENT
INPUT B SIGNAL
RGB PC
LANGUAGE
ENGLISH
POWER SAVING
OFF
LAMP RUNNING TIME
2H.
SETUP
ON
RESET
WHITE BALANCE
CONTRAST R
100%
CONTRAST G
100%
CONTRAST B
100%
BRIGHTNESS R
0%
BRIGHTNESS G
0%
BRIGHTNESS B
0%
ESCAPE: EXIT
MEMORY1
VIDEO
2. Press the SELECT or + button to open the confirmation message screen.
MEMORY1
SIGNAL
INITIAL
SETUP
VIDEO
PRESS ”SELECT” TO RESET
LAMP RUNNING TIME ON
”YES”.
LAMP RUNNING TIME 2H. NO
YES
ESCAPE: EXIT
E-22
MEMORY1
VIDEO
Menu operation
3. Select “YES” by pressing the h or g button, and then
press the SELECT button to reset the lamp running
time to 0.
3. Select the submenu item to be reset by pressing the
h or g button.
SIGNAL
INITIAL
SIGNAL
INITIAL
SETUP
SETUP
PRESS ”SELECT” TO RESET
LAMP RUNNING TIME ON
”YES”.
ALL SETTINGS
LAMP RUNNING TIME 2H. NO
ALL MEMORIES
RESET
YES
CURRENT MEMORY
ESCAPE: EXIT
ESCAPE: EXIT
MEMORY1
MEMORY1
VIDEO
VIDEO
4. Press the SELECT or + button to open the confirma4. Press the MENU button to close the menu.
tion message screen.
● Submenu operation—“RESET”
INITIAL
SETUP
PRESS ”SELECT” TO RESET
[Operation group D]
1.
SIGNAL
TO FACTORY SETTINGS.
Select the menu item “RESET” in the menu group
“INITIAL” by following steps 1—3 in “Basic menu
operation”.
The submenu mark “ ” appears on the right side of the item.
ESCAPE: EXIT
SIGNAL
INITIAL
COLOR SYSTEM
AUTO
INPUT A SIGNAL
COMPONENT
INPUT B SIGNAL
RGB PC
LANGUAGE
ENGLISH
POWER SAVING
OFF
LAMP RUNNING TIME
2H.
MEMORY1
VIDEO
SETUP
5. Press the SELECT button to reset to the factory
setting.
The menu closes after the parameters have been reset to the
factory settings.
ON
RESET
MEMORY1
VIDEO
2. Press the SELECT or + button to open the submenu.
SIGNAL
INITIAL
MENU
SETUP
ALL SETTINGS
RESET
ALL MEMORIES
CURRENT MEMORY
ESCAPE: EXIT
MEMORY1
VIDEO
English
E-23
Menu operation
■ One-touch image menu
■ Changing the menu location
1. Press the SELECT button to open the one-touch
1. Press the ESCAPE or h button to return the cursor to
image menu when the menu has not been opened.
The image menu items appear at the bottom of the screen one
after another. The previous parameter appears once menu
operation has been performed.
The displayed item turns off if no operation is performed
within five seconds.
the menu group.
ESCAPE
ESCAPE
or
SELECT
SELECT
Remote control
Control panel
MOVE MENU WINDOW
or
SELECT
SIGNAL
INITIAL
INSTALLATION
Remote control
Control panel
BLACK LEVEL
FRONT/TABLE
SCREEN ASPECT
0
4:3
16:9
KEYSTONE MODE
NORMAL
FULL
R/C SENSOR
FRONT&REAR
KEYSTONE
2. Select the item to be adjusted by pressing the h and
SETUP
0
g button.
MEMORY1
VIDEO
or
SELECT
2. Press the h button to enter the “MOVE MENU WINDOW”.
Remote control
Control panel
CONTRAST
SELECT
0
3. Select the value by pressing the + or – button.
or
Remote control
Control panel
MOVE MENU WINDOW
SETUP
or
SELECT
Remote control
Control panel
CONTRAST
100
Press the RESET button to reset the parameter to the factory
setting.
ESCAPE: EXIT
4. Press the SELECT or ESCAPE button to close the
one-touch menu.
ESCAPE
SELECT
h, or g button.
or
SELECT
Remote control
VIDEO
3. Change the location of the menu by pressing the +, –,
ESCAPE
SELECT
MEMORY1
or
Control panel
Remote control
Control panel
4. Press the ESCAPE button to return to the menu after
the location has been decided.
ESCAPE
ESCAPE
Remote control
E-24
or
Control panel
Memory function
This unit has a memory function that can store six settings to
project different types of input sources in the most appropriate
manner. Select one of these six settings that is most suitable for
your projection. Although six settings have already been prepared,
each parameter in the settings can be changed and restored as you
wish. The following lists the menu items that can be stored in
memory.
BLACK LEVEL
CONTRAST
BRIGHTNESS
GAMMA TRIM
SHARPNESS
HUE
SATURATION
COLOR BOOST
COLOR TEMP
WHITE BALANCE
WHITE BOOST
Signal
3D Y/C SEPARATION
NOISE REDUCTION
VIDEO TYPE
SETUP LEVEL
3. Press the + button to open the submenu.
SIGNAL
INITIAL
SETUP
MEMORY1
MEMORY2
MEMORY3
MEMORY4
MEMORY5
ESCAPE: EXIT
■ Selecting the memory setting number
MEMORY6
VIDEO
4. Select the desired memory setting number by
pressing the h or g button.
To select by operating the remote control
Press the number of the desired memory setting among the
MEMORY 1—6 buttons.
MEMORY
1
2
3
4
5
6
5. Press the ESCAPE button to close the submenu.
ESCAPE
To select by operating the menu
1. Press the MENU button to open the menu.
MENU
2. Press the g button to enter the memory setting
number at the bottom of the screen.
SIGNAL
INITIAL
ASPECT
SETUP
AUTO
OFF
SUBTITLE MASK
MASK POSITION
ON
0
3D Y/C SEPARATION
OFF
NOISE REDUCTION
OFF
VIDEO TYPE
DVD
VCR
SETUP LEVEL
0%
7.5%
+: EDIT
MENU
ON
1
2
MOMORY1
3
VIDEO
English
E-25
Memory function
■ Resetting to the factory setting
For one parameter
Select the parameter to be reset to the factory setting by following
steps 1—3 in “Basic menu operation”. Press the RESET button on
the remote control to reset to the factory setting. (Items without a
factory setting cannot be reset.)
For all parameters in the memory setting being
selected
Select “CURRENT MEMORY” on the submenu by following
“Submenu operation—RESET” on page 23. Press the SELECT or
+ button to open the confirmation message screen. Press the
SELECT button to reset to the factory setting.
SELECT
or
SELECT
Remote control
Control panel
SIGNAL
INITIAL
SETUP
PRESS ”SELECT” TO RESET
CURRENT MEMORY.
ESCAPE: EXIT
MEMORY1
VIDEO
For all parameters in six memory settings
Select “ALL MEMORIES” on the submenu by following
“Submenu operation—RESET” on page 23. Press the SELECT or
+ button to open the confirmation message screen. Press the
SELECT button to reset to the factory setting.
SELECT
or
SELECT
Remote control
Control panel
SIGNAL
INITIAL
SETUP
PRESS ”SELECT” TO RESET
ALL MEMORIES.
ESCAPE: EXIT
E-26
MEMORY1
VIDEO
ADDITIONAL INFORMATION
Additional information
■ Glossary
DLP™ technology
This stands for Digital Light Processing. DLP uses the DMD™
optical semiconductor chip developed by Texas Instruments.
Component video signal
This signal is sent with its luminance signal and color signal
independent. It creates higher image quality compared with an
ordinary composite video signal because it bypasses the mixing
and separating circuits. This signal is sent in three lines: the
luminance signal (Y) and two color difference signals (PB/CB,
PR/CR).
S video signal
S stands for Separate. This signal is sent with its luminance
signal (Y) and color signal (C) separately. A 4-pin mini DIN
connector and cable are used for connection.
Composite video signal
This is the most common type of video signal. The luminance
signal and color signal are sent combined in one line. Mixing
and separating processes are necessary on both the send and
receive sides. A pin cable is used for connection.
RGB signal
An RGB signal transmits color information by using a numeric
representation of the primary colors of red, green and blue
separately. When the signal is received, it can be expressed in
various colors by adding and mixing colors. This signal is
widely used for sending and receiving color images between
computers. Horizontal and vertical sync signals are also
necessary.
D connector
* This connector is designed for the Japanese D format only.
This connector is used for sending and receiving the image
signal between the latest type of A/V components. This
connector can receive the component signal by using a D
connector cable. There are five levels (D1—D5) of performance characteristics. This unit is compatible with D1, 2, 3 and
4.
DVI connector
Ceiling mount bracket
This is the mounting hardware used when hanging this unit
from the ceiling. Two types of ceiling mount bracket (low
ceiling and high ceiling) are available for different heights of
the ceiling. These mounts are optional.
Interlace
The common type of scanning for most televisions. It divides
into two fields: even and odd numbered lines of the field to
build one frame of an image.
Progressive
This displays all the scanning lines of the entire frame at one
time. It greatly reduces the flicker that is more noticeable on a
larger screen to create a sharp and smooth image. This unit
projects by progressive scanning.
Key stone
If this unit has an elevation or depression angle when projecting on the screen, the image is distorted in a trapezoid. This
item electrically corrects the distortion. Two types of correction
are available; “Normal correction” and “Full correction”.
Letter box
This is the method to convert the content of a film in landscape
orientation to 4:3 signal. It is possible to watch the landscape
image without trimming by adding a black bar on the top and
bottom of the screen. Vertical resolution may be sacrificed to
some extent.
Squeeze
This method horizontally squeezes the film so that the aspect
ratio is 4:3 when recording the film on a video medium. The
squeezed image must be passed through the desqueezing circuit
otherwise the image remains in a slender shape.
Vista size
One of the film sizes. The aspect ratio is 1.85:1 in North
America and 1.66:1 in Europe.
Cinema scope size
This is the widest film size that uses a 70 mm film. The aspect
ratio is 2.35:1.
A digital RGB signal is sent from a computer to this connector
differencially. A 24-pin connector and cable are used for
connection.
Standby
The state under which the circuit to receive infrared-signals
from the remote control is activated but other main circuits are
turned off. A small amount of power is consumed in this state.
Test pattern
ADDITIONAL
INFORMATION
Test patterns are stored in this unit to adjust the position and
focus of the projected image on the screen.
Aspect ratio (aspect)
• DLP™ and DMD™ are trademarks of Texas Instruments.
E-27
English
This basically means the length-to-width ratio of an image.
This unit’s menu deals with two kinds of aspect ratio: the
screen aspect that sets the length-to-width ratio of the screen to
be used, and the display aspect that changes the size and aspect
ratio of the images to be projected for different types of input
signal.
Additional information
■ Projectable signals
The following charts show the types and formats of the signals that can be projected by this unit. Any signals not listed below may not be
properly projected.
1. TV format 1 ------ Composite or S video signals sent to the VIDEO or S VIDEO input terminal
Type of signal
NTSC
PAL
SECAM
PAL60
NTSC4.43
PAL-M
PAL-N
V active
(lines)
f (V)
(Hz)
480
576
576
480
480
480
576
59.94
50.00
50.00
59.94
59.94
59.94
50.00
Color signal
(MHz)
3.5795
4.43
4.406, 4.25
4.43
4.43
3.5756
3.582
Color system
NTSC
PAL
SECAM
PAL
NTSC
PAL
PAL
2. TV format 2 ------- Component or RGB signals sent to the INPUT A, B, or component signals sent to the D4 input terminal
Type of signal
H active
(pixels)
480i
576i
480p
720p
1035i
1080i
V active
(lines)
720
720
720
1280
1920
1920
483
576
480
720
1035
1080
f (H)
(kHz)
15.734
15.625
31.469
45.000
33.750
33.716
f (V)
(Hz)
59.940
50.000
59.940
59.940
60.000
59.940
3. PC format 1 ------ Analog RGB signals sent to the INPUT A or B input terminal
VESA
Apple
Type of signal
VGA@60Hz
VGA@72Hz
VGA@75Hz
VGA@85Hz
SVGA@56Hz
SVGA@60Hz
SVGA@72Hz
SVGA@75Hz
SVGA@85Hz
XGA@60Hz
XGA@70Hz
XGA@75Hz
XGA@85Hz
1152x864@75Hz
1280x960@60Hz
SXGA@60Hz
SXGA@75Hz
Mac13”
Mac16”
Mac19”
Mac21”
H active
(pixels)
640
640
640
640
800
800
800
800
800
1024
1024
1024
1024
1152
1280
1280
1280
640
832
1024
1152
V active
(lines)
480
480
480
480
600
600
600
600
600
768
768
768
768
864
960
1024
1024
480
624
768
870
f (H)
(kHz)
31.469
37.861
37.500
43.269
35.156
37.879
48.077
46.875
53.674
48.363
56.476
60.023
68.677
67.500
60.000
63.981
79.976
35.000
49.725
60.241
68.681
f (V)
(Hz)
59.940
72.809
75.000
85.008
56.250
60.317
72.188
75.000
85.061
60.004
70.069
75.029
84.997
75.000
60.000
60.020
75.025
66.666
74.550
74.926
75.061
4. PC format 2 ------ Digital signals sent to the DVI input terminal
VESA
Type of signal
VGA@60Hz
SVGA@60Hz
XGA@60Hz
1280x960@60Hz
SXGA@60Hz
H active
(pixels)
640
800
1024
1280
1280
V active
(lines)
480
600
768
960
1024
• VESA is trademark of Video Electronics Standards Association.
• Macintosh is a trademark of Apple Computer, Inc.
E-28
f (H)
(kHz)
31.469
37.879
48.363
60.000
63.981
f (V)
(Hz)
59.940
60.316
60.003
60.000
60.019
Additional information
■ Menu items and input signals
A menu item can or cannot be adjusted depending on the type of input signal. The following list shows the types of input signals that can be
adjusted for each item in the menu groups <IMAGE> and <SIGNAL>. Most of these items can store their settings in the memory
(MEMORY 1–6). Refer to page 25. The items in the menu groups <INITIAL> and <SETUP> store their settings in this unit when adjusted.
<IMAGE>
Type of input signal
MENU ITEM
BLACK LEVEL
CONTRAST
BRIGHTNESS
GAMMA TRIM
SHARPNESS*
HUE
SATURATION
COLOR BOOST
COLOR TEMP
WHITE BALANCE
CONTRAST (RGB)
BRIGHTNESS (RGB)
WHITE BOOST
NOTE
M
M
M
M
M
M
M
M
M
Component signal
(480i—1080i)
✓
✓
✓
✓
✓
RGB TV
✓
✓
✓
✓
✓
RGB PC/DVI
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Composite/
S video signal
✓
✓
✓
✓
✓
✓
✓
M
M
M
* Three kinds of setting can be stored in memory for different types of input signals (ordinary video signal, HDTV, RGB PC/DVI).
<SIGNAL>
Type of input signal
MENU ITEM
ASPECT
SUBTITLE MASK
MASK POSITION
3D Y/C SEPARATION
NOISE REDUCTION
VIDEO TYPE
SETUP LEVEL
DOT PHASE
SIZE H
SHIFT H
SHIFT V
SIGNAL STATUS
NOTE
A
M
M
M
M
S
S
S
S
NTSC
✓
✓
✓
✓
✓
✓
✓
Composite/
S video signal
NTSC-S
Others
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
480i
✓
✓
✓
Component signal
480p
576i
720i/1080i
✓
✓
✓
✓
✓
✓
✓
✓
✓
PC signal
DVI
RGB
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
◆ Note ◆
M: Items that can be stored in memory. Six patterns can be stored and recalled by pressing the MEMORY button on the remote control.
S: Several patterns of the latest information can be stored in this unit depending on the type of input signals. This is convenient when projecting the RGB
signals.
A: Depending on the setting for “SCREEN ASPECT”, one display aspect can be stored for each type of input signal listed below.
Type of input signal
SCREEN
ASPECT
4:3
AUTO
NORMAL
SQUEEZE
ZOOM
THROUGH
THROUGH -SQUEEZEAUTO
NORMAL
SQUEEZE
ZOOM
ZOOM -SUBTITLETHROUGH
THROUGH -SQUEEZE-
HDTV signal
(720p/1080i)
PC signal
(RGB/DVI)
✓
✓
✓
✓
✓
✓
✓
✓
ADDITIONAL
INFORMATION
16:9
ASPECT
Ordinary video signal
(Composite, S video, 480i/
480p/576i)
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
English
E-29
Additional information
■ Message display
Message
Condition
NO SIGNAL
This unit is not receiving any input signal.
INPUT A <COMPONENT> (Example)
The input name selected by the INPUT button is displayed. It will turn off 1 minute after the signal has
been input.
OUT OF RANGE
This unit cannot receive the RGB signal that is coming into this unit.
UNKNOWN FORMAT
This unit cannot receive the video signal that is coming into this unit.
AUTO SYNC...
This unit is making the most appropriate setting according to the input RGB signal being received.
STILL
The STILL (freezing the image) function has been activated.
STILL OFF
The STILL (freezing the image) function has been cancelled.
MEMORY 1—6
The memory setting number selected is displayed and turns off after 1 minute.
ESCAPE:EXIT (Example)
Help messages are displayed for easier menu operation.
LAMP REPLACEMENT TIME HAS
COME. PLEASE REPLACE WITH A
NEW LAMP.
PRESS “ESCAPE” TO REMOVE THIS
INDICATION.
This message is displayed when the power switch is turned on after the lamp running time has exceeded
1000 hours. Press the ESCAPE button to turn off the message.
PRESS AGAIN FOR STANDBY.
This unit will enter the standby mode and the lamp will turn off if the STANDBY/ON button is pressed
again.
E-30
Maintenance
■ Regular care
3. Remove the wire remains placed inside the filter
frame that snaps into place behind four tabs. Then
remove the thin sponge filter from both sides.
Disconnect the power cable from this unit before starting regular
care. Clean the housing of this unit with a soft cloth. If heavily
soiled, use a damp cloth with a mild detergent and then wipe with a
dry cloth again. Do not use strong detergents or solvents such as
alcohol or thinner to prevent from damaging the finish or shape of
the unit. When cleaning the housing, do not directly touch or rub
the lens.
■ Cleaning the filter
If dust has accumulated on the filter attached in the ventilation slot,
the air does not circulate well and the temperature inside this unit
will rise. This may cause damage to this unit. Clean the filter every
200 hours. If you find difficulty clearing the dust, replace it with
new one.
1. Turn off the power and disconnect the power cable
from this unit.
2. Pull down the filter holders located on the rear of this
unit. Remove the filter frame by pulling it toward you
and then downward.
4. Carefully clean and wash the removed filters to
eliminate accumulated dust.
5. After the cleaned filters are completely dry, put them
back on this unit. If they are not refitted correctly, the
lamp will not turn on.
Important
•
If the filter is heavily soiled, replace it with the new one
supplied.
•
When you need more filters for replacement, contact the
store where this unit was purchased.
ADDITIONAL
INFORMATION
English
E-31
Maintenance
■ Replacing the lamp cartridge
5. Completely loosen the three screws securing the
The lamp used as the source of light is a consumable and will
gradually lose its brightness over the course of usage. It is
recommended that the lamp should be replaced when its usage
exceeds 1000 hours in order to enjoy the best image possible.
lamp cartridge.
“LAMP RUNNING TIME” in the menu group 3 <INITIAL> tells
you how many hours the lamp has been used so far. The LAMP/
COVER indicator also lets you know the lamp replacement timing
by flashing in red after the lamp usage has exceeded 1000 hours.
(See page 14.) A message to replace the lamp will be displayed on
the screen as well.
Follow the following steps to replace the lamp with a new one. Use
the replacement lamp cartridge PJL-112 for replacement. For
details, consult the store where this unit was purchased.
Lamp cartridge
Important
•
Before starting to replace the lamp cartridge, turn off the
power, disconnect the power cable after the fan has completely stopped, and wait at least one hour for the lamp to
cool down.
•
Do not remove any other screws than those specified in the
following steps.
6. Hold the handle and pull up the lamp cartridge.
1. Carefully place this unit upside down on cloth spread
on the floor to prevent from creating any scratches.
7. Secure the new lamp cartridge with the screws by
reversing the steps described above.
8. Put the lamp cover back and secure it with the
Adjuster
screws.
If it is not correctly installed, the lamp will not light up.
9. Turn on the power switch and reset the “LAMP
RUNNING TIME” on the menu when the lamp is
turned on. (See page 22.)
2. Loosen the adjuster to remove the lamp cover.
3. Loosen the screws of the lamp cover.
4. Remove the lamp cover.
Lamp cover
E-32
Troubleshooting
Problem
This unit does not turn on.
Cause
Remedy
The power switch is not turned on.
Turn on the power switch.
You attempted to turn on this unit again just after
having turned off the power switch.
Wait a little longer. This unit does not turn on for 1
minute after the power switch has been turned off to
protect the lamp.
The filter cover is not correctly attached.
Correctly attach the filter cover.
The lamp cover is not correctly attached.
Correctly attach the lamp cover.
The lens cap has not been removed.
Remove the lens cap.
This unit is not correctly connected to the other
components.
Check the connection.
The input signal has not been correctly selected.
Select the correct input signal with the INPUT button.
The input signal has not been correctly selected in
“INPUT A SIGNAL” and “INPUT B SIGNAL” on the
menu.
Select the correct input signal.
The picture is turned off temporarily by the HIDE
function.
Press the HIDE button again to cancel the HIDE
function.
The computer is not set to display on the external
monitor.
Make an appropriate setting on the computer to
display on the external monitor. (Also refer to the
operation instructions of the computer.)
Image is unstable.
The connection cables are not correctly connected to
this unit.
Correctly connect the cables to the appropriate
terminals.
Picture is blurred.
The lens is not correctly focused.
Adjust the focus of the lens with the focus ring.
This unit and the screen are not placed squarely (90
degrees).
Adjust the projection angle and direction, and the
height of this unit.
The batteries are exhausted.
Replace both batteries with new ones.
The remote control sensor is not correctly selected in
“R/C SENSOR” on the menu.
Select an appropriate remote control sensor.
There is a fluorescent lamp near the remote control
sensor being used.
Select the other sensor in “R/C SENSOR” on the
menu that the fluorescent lamps will not interfere
with.
The filter cover is not correctly attached.
Tightly attach the filter cover.
The lamp cover is not correctly attached.
Tightly attach the lamp cover.
The lamp has exceeded its specified usage hours.
Replace the lamp with a new one.
The lamp has burned out.
Replace the lamp with a new one.
TEMP/FAN indicator lights up.
The temperature inside this unit is extremely high.
Check that the ventilation slots are not covered.
TEMP/FAN indicator flashes.
The fan is broken.
Contact the store where this unit was purchased.
No picture
Remote control does not work correctly.
LAMP/COVER indicator lights up.
LAMP/COVER indicator flashes.
ADDITIONAL
INFORMATION
English
E-33
Specifications
■ Specifications
Controls
Optical
Remote ........................................................ RS-232C (D-Sub 9 pin)
Projection mode .......................... DLP™ (Digital Light Processing)
Images of 1024 x 768 pixels, 0.9 inch
Lens ..................................................... f=35 to 42 mm F=2.7 to 3.0
Manual zoom (x 1.2)
Manual focus
Trigger ................................................ +12 V when the power is on;
0 V when the power is off (mini jack)
Remote control sensor
....................................................................... 1 in front and 1 at rear
Lamp ....................................................................... 120 W VIP lamp
Image size ................................................... 200 inches at maximum
Projection distance 10.6 m (35 ft.) (wide image, 16:9 screen)
Luminosity ................................................................... 800 ANSI lm
Contrast ratio ........................................................................... 900:1
General
Usable temperature range .............................................. 5°C to 35°C
Usable humidity range
30% to 85% (There should be no condensation.)
Power supply ................... AC 100 to 120 V/220 to 240 V, 50/60 Hz
Electrical
Color mode .................................. NTSC, PAL, SECAM, NTSC4.43,
PAL M, PAL N, PAL60
Scanning frequency .......................... H:15 to 80 kHz;V:50 to 85 Hz
Power consumption ................................................................ 185 W
Standby mode ...................................................................... 10 W
Dimension ................................... 415 (W) x 129 (H) x 422 (D) mm
16-3/8 (W) x 5-1/16 (H) x 16-5/8 (D) inch
Weight ................................................................ 7.8 kg (17 lbs 3 oz)
Input
VIDEO
S VIDEO
■ Accessories
Composite signal
1Vp-p/75Ω, negative sync.
S video signal
Y: 1Vp-p/75Ω, negative sync.
C: 0.286 or 0.3Vp-p/75Ω
D4 VIDEO Component signal
Y with sync.: 1Vp-p/75Ω, negative sync.
(480i, 576i, 480p)
Y with sync.: 1Vp-p/75Ω, 3 values sync.
(1035i, 1080i, 720p)
PB, PR: 0.7Vp-p/75Ω
INPUT A/ INPUT B
Component signal
Y with sync.: 1Vp-p/75Ω, negative sync.
(480i, 576i, 480p)
Y with sync.: 1Vp-p/75Ω, 3 values sync.
(1035i, 1080i, 720p)
PB, PR: 0.7Vp-p/75Ω
RGB signal
G with sync.: 1Vp-p/75Ω, negative sync.
(480i, 576i, 480p)
G with sync.: 1Vp-p/75Ω, 3 values sync.
(1035i, 1080i, 720p)
G: 0.7Vp-p/75Ω (when using HD/VD or SYNC)
B, R: 0.7Vp-p/75Ω
HD, VD: TTL level (positive and negative)/2.2 kΩ
SYNC: 2Vp-p/2.2kΩ, negative sync. (480i, 576i)
DVI
E-34
Digital RGB signal
• Power cord
1
• Plug adapter
1
• Wireless remote control
1
• Batteries (AA, UM-3 or R6)
2
• Pin/BNC adapter
3
• Lens cap
1
• Filter for replacement
2
• Owner’s Manual
1
* Specifications are subject to change without notice.
Specifications
415
16-5/16
ESCAPE
MENU
PATTERN
INPUT
24P
STANDBY/ON
LAMP
/COVER
TEMP
/FAN
150
5-7/8
DIGITAL CINEMA PROJECTOR DPX–1
SELECT
■ Dimensional drawing
80
3-1/8
422
16-5/8
VIDEO
INPUT B
TRIGGER OUT
INPUT A
G/Y
90
3-9/16
B/PB/CB
R/PR/CR
HD/SYNC
DVI
D4 VIDEO
VD
RS-232C
129
5-1/16
RGB/YPBPR/YCBCR
S VIDEO
190
7-1/2
STANBY/ON
LAMP
/COVER
TEMP
/FAN
24P
MENU
200
7-7/8
PATTERN
55
2-3/16
INPUT
SELECT
ADDITIONAL
INFORMATION
ESCAPE
English
E-35
