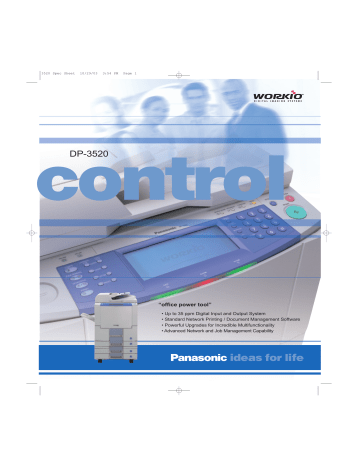

DP-3520
3520 Spec Sheet
10/29/03
3:54 PM
Page 1
DP-3520
“office power tool”
• Up to 35 ppm Digital Input and Output System
• Standard Network Printing / Document Management Software
• Powerful Upgrades for Incredible Multifunctionality
• Advanced Network and Job Management Capability
3520 Spec Sheet
10/29/03
3:55 PM
Page 2
Specifications
DP-3520 Specifications
General Functions
Network Printer
Dimensions
Type
Semi Console
Printer Interface
Ethernet 10Base-T/100Base-TX, Bi-directional Parallel (IEEE1284)
Copy/Print Process
Laser/Electrostatic photographic method
Standard Network Printing
Windows GDI
Developing Process
Dry Dual Component
Printing Speed
up to 35 ppm
Automatic Document Feeder
70 sheets (Letter, 20 lb, 75 g/m2)
Paper Size
Ledger – Invoice
Paper Feed
Std. 1,550 (Large-capacity tray) + 550-sheets
+ 50-sheets bypass
Printing Resolution
up to 1,200 dpi equivalent x 600 dpi (PCL, PS), up to 600 dpi x 600 dpi (GDI)
Printer Memory
20MB
Max. 6,250 sheets (20 lb, 75 g/m2) with option
Page Description Language (option) PCL 5e Emulation, PCL 6 Emulation, PostScript® 3™
Power Requirements
AC 120 V, 60 Hz, 12 A
Compatible Operating Systems Windows® XP/2000/98/Me, Windows NT® 4.0,
Power Consumption
Max.: Less than 1.5 kW
Sleep mode: Approx. 20 Wh
Network Protocol
Dimensions (W x D x H)*1
23.6" x 29.8" x 35.4" (600 x 758 x 900 mm)
Network Scanner (Option)
(Excluding optional equipment)
(Main unit with Inverting Automatic Document Feeder)
TCP/IP, IPX/SPX (PCL, PS), EtherTalk (PS only), IPP (PCL, PS)
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Scanning Size
Ledger – Invoice
Digital Copier Functions (Standard)
Warm-up Time
Less than 30 sec.
Scanning Resolution
150 dpi x 150 dpi, 300 dpi x 300 dpi, 600 dpi x 600 dpi
Data Format
TIFF, PDF
First Copy Time
Less than 5.8 sec. (Letter)
G3 Fax Functions (Option)
Resolution
up to 600 dpi
Compatibility
ITU-T Group 3, ECM
Gray Scale
256 steps
Modem Speed
33.6–2.4 kbps with automatic fallback
Multi Copy Speed*2
up to 35 cpm
Coding Scheme
JBIG / MMR / MR / MH
Maximum Original Size
Ledger
Transmission Speed*3
Less than 3 sec.
Copy Size
Ledger – Invoice
Scanning Speed*4
0.7 sec. (Letter portrait in Standard or Fine mode with ADF)
Scanning Resolution
Standard: 203 dpi x 98 lpi (8 dots/mm x 3.85 lines/mm)
Enlargement(fixed)
Notes
Super Fine: 406 dpi x 391 lpi (16 dots/mm x 15.4 lines/mm)
Reduction(fixed)
29.8"
23.6"
Fine: 203 dpi x 196 lpi (8 dots/mm x 7.7lines/mm)
200%, 155%, 129%, 121%
39.5"
MacOS 8.6-10.2 (PS only)
Weight (Excluding optional equipment)*1Approx. 283 lb (128.5 kg)
Copy Ratio
46.0"
600 dpi: 600 dpi x 600 dpi
79%, 77%, 65%, 61%, 50%
Zoom (variable)
25~400% (in 1% increments)
Effective Scanning Width
Ledger (11 1/2")
Multiple Copy
1 to 999, Automatic reset to 1
Recording Resolution
600 x 600 dpi
Exposure Controller
Text, Text / Photo, Photo
Standard Memory
2MB (Approx. 120 pages)*5
Sort Memory
Uses JBIG Compression
Optional Memory
Base memory plus 4MB (240 pages)*5 / 8MB (480 pages)*5
Standard
32MB (Image Memory)
No. of Auto Dialers
200 (Max. 1,000 with optional HDD)
Optional
Base Image Memory (32MB) plus 16MB / 64MB /
Scan-to-Email (Option) / Internet Fax (Option)
128 MB (Max. 160MB) and optional 12GB HDD
Compatibility
IETF RFC 2305, ITU-T T.37
Communication Protocol
TCP/IP, SMTP, POP3, MIME
Network Connectivity
Ethernet 10Base-T/100Base-TX (IEEE802.3)
Data Format
TIFF (Profile S/F/J), PDF
*1 Dimensions and weight are approximate.
*2 Speeds are contingent upon applications, machine configuration, and status. Individual speeds may vary.
*3 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between
the same models at maximum modem speed. Transmission time may vary in actual usage. Usually
public telephone lines can only support communication speeds of 28.8 Kbps or lower. Via PBX,
transmission speed may fall back to a lower speed.
*4 Scanning speed applies to the feeding process from the top to the end of a single page test chart.
The time for the feeding process does not include the time that it takes for the top edge of the page
to reach the scanning point and page ejection. Time for entire storing process is not applied.
*5 Based on ITU-T Image No.1 scanned in Standard mode.
Design and specifications are subject to change without notice. Not all options may be available at
the time of notification.
Microsoft® Windows® and Windows NT® are registered trademarks of Microsoft Corporation.
Adobe®, PostScript®, PostScript® 3™, PDF and PostScript logos are registered trademarks of Adobe Systems, Inc.
PCL® is a registered trademark of Hewlett-Packard.
MetaConsole™ is a trademark of Netaphor™ Software Inc.
OneRIP® is a registered trademark of Advanced Hi-Tech Corporation (AHT).
WORKiO® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
All other brand or product names are the property of their respective holders.
ISO 9001
Quality Management System
Our business processes which produce document, information
and network products, from manufacturing to marketing, conform
to ISO9001 Quality Management Systems standard.
Design, development, manufacture, installation, repair and
maintenance of document, information and network products,
their associated devices and consumables.
In addition, the plants outside Japan have acquired
ISO 9001 certification.
As an Energy Star® partner, Panasonic
has determined that this product
meets the Energy Star® guidelines for
energy efficiency.
Panasonic Digital Document Company
Unit of Matsushita Electric Corporation of America
Two Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
http://www.panasonic.com/office
PPC-DP-3520-SS
