exciters/all-in-one transmitters

exciters/all-in-one transmitters
exciters/all-in-one transmitters
> professional series
> digital series

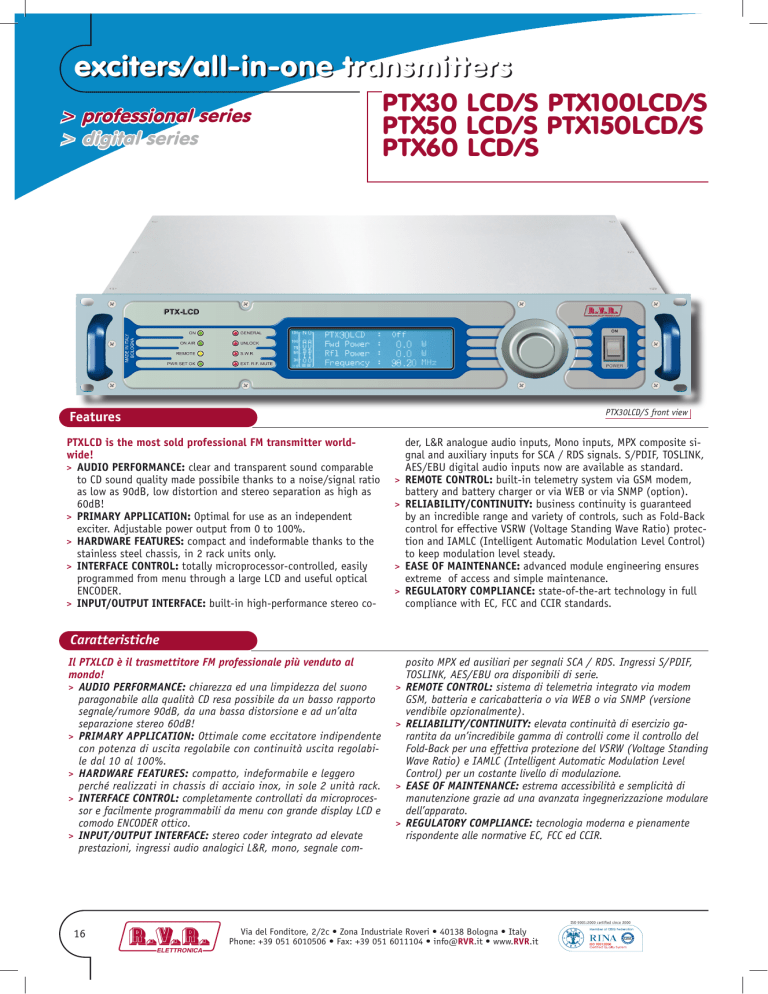

PTX30LCD/S front view
PTXLCD is the most sold professional FM transmitter worldwide!
>AUDIO PERFORMANCE: clear and transparent sound comparable
to CD sound quality made possibile thanks to a noise/signal ratio
as low as 90dB, low distortion and stereo separation as high as
>PRIMARY APPLICATION: Optimal for use as an independent
exciter. Adjustable power output from 0 to 100%.
>HARDWARE FEATURES: compact and indeformable thanks to the
stainless steel chassis, in 2 rack units only.
>INTERFACE CONTROL: totally microprocessor-controlled, easily
programmed from menu through a large LCD and useful optical
>INPUT/OUTPUT INTERFACE: built-in high-performance stereo co-
der, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. S/PDIF, TOSLINK,
AES/EBU digital audio inputs now are available as standard.
>REMOTE CONTROL: built-in telemetry system via GSM modem,
battery and battery charger or via WEB or via SNMP (option).
>RELIABILITY/CONTINUITY: business continuity is guaranteed
by an incredible range and variety of controls, such as Fold-Back
control for effective VSRW (Voltage Standing Wave Ratio) protection and IAMLC (Intelligent Automatic Modulation Level Control)
to keep modulation level steady.
>EASE OF MAINTENANCE: advanced module engineering ensures
extreme of access and simple maintenance.
>REGULATORY COMPLIANCE: state-of-the-art technology in full
compliance with EC, FCC and CCIR standards.
Il PTXLCD è il trasmettitore FM professionale più venduto al
>AUDIO PERFORMANCE: chiarezza ed una limpidezza del suono
paragonabile alla qualità CD resa possibile da un basso rapporto
segnale/rumore 90dB, da una bassa distorsione e ad un’alta
separazione stereo 60dB!
>PRIMARY APPLICATION: Ottimale come eccitatore indipendente
con potenza di uscita regolabile con continuità uscita regolabile dal 10 al 100%.
>HARDWARE FEATURES: compatto, indeformabile e leggero
perché realizzati in chassis di acciaio inox, in sole 2 unità rack.
>INTERFACE CONTROL: completamente controllati da microprocessor e facilmente programmabili da menu con grande display LCD e
comodo ENCODER ottico.
>INPUT/OUTPUT INTERFACE: stereo coder integrato ad elevate
prestazioni, ingressi audio analogici L&R, mono, segnale com-
posito MPX ed ausiliari per segnali SCA / RDS. Ingressi S/PDIF,
TOSLINK, AES/EBU ora disponibili di serie.
>REMOTE CONTROL: sistema di telemetria integrato via modem
GSM, batteria e caricabatteria o via WEB o via SNMP (versione
vendibile opzionalmente).
>RELIABILITY/CONTINUITY: elevata continuità di esercizio garantita da un’incredibile gamma di controlli come il controllo del
Fold-Back per una effettiva protezione del VSRW (Voltage Standing
Wave Ratio) e IAMLC (Intelligent Automatic Modulation Level
Control) per un costante livello di modulazione.
>EASE OF MAINTENANCE: estrema accessibilità e semplicità di
manutenzione grazie ad una avanzata ingegnerizzazione modulare
>REGULATORY COMPLIANCE: tecnologia moderna e pienamente
rispondente alle normative EC, FCC ed CCIR.
ISO 9001:2000 certified since 2000
Via del Fonditore, 2/2c • Zona Industriale Roveri • 40138 Bologna • Italy
Phone: +39 051 6010506 • Fax: +39 051 6011104 • [email protected] • www.RVR.it
exciters/all-in-one transmitters
( )
Oirt, JPN &
China Band
others on request
All-in-One Transmitters
Technical specifications
All pictures are RVR’s property and they are only indicative and not binding. The pictures can be modified without notice.
These are general specifications. They show typical values and are subject to change without notice.
Revision: 05/16
Ordering Information
ISO 9001:2000 certified since 2000
Via del Fonditore, 2/2c • Zona Industriale Roveri • 40138 Bologna • Italy
Phone: +39 051 6010506 • Fax: +39 051 6011104 • [email protected] • www.RVR.it
