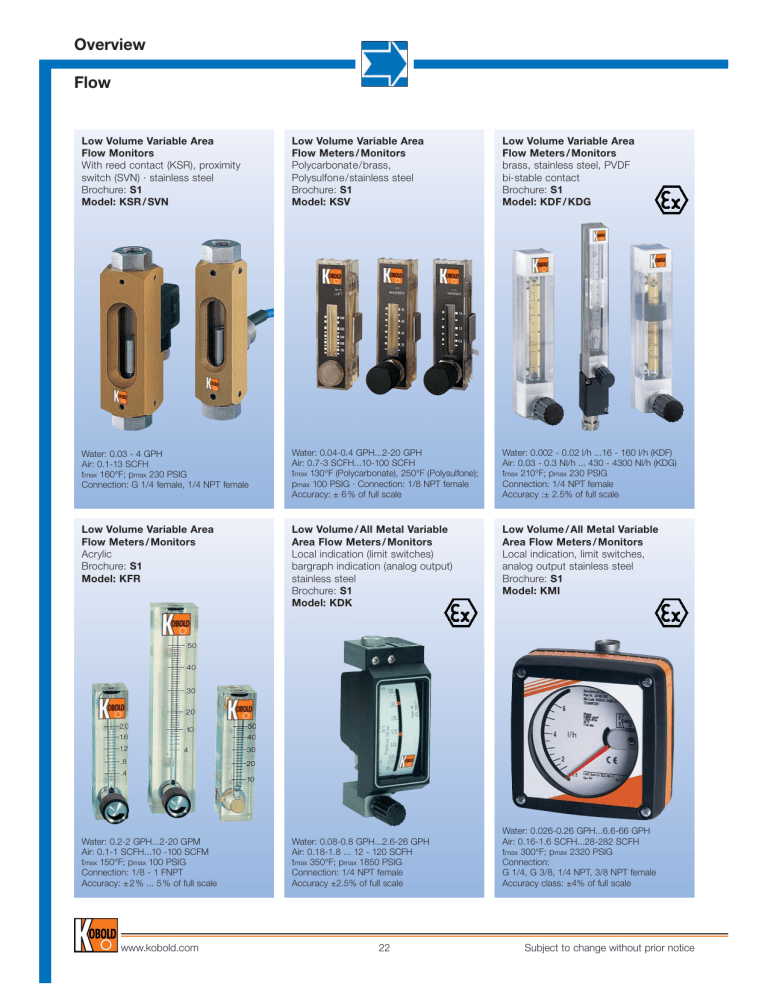

Overview Flow
Overview
Flow
Low Volume Variable Area
Flow Monitors
With reed contact (KSR), proximity
switch (SVN) · stainless steel
Brochure: S1
Model: KSR / SVN
Low Volume Variable Area
Flow Meters / Monitors
Polycarbonate/brass,
Polysulfone/stainless steel
Brochure: S1
Model: KSV
Low Volume Variable Area
Flow Meters / Monitors
brass, stainless steel, PVDF
bi-stable contact
Brochure: S1
Model: KDF / KDG
Water: 0.03 - 4 GPH
Air: 0.1-13 SCFH
tmax 160°F; pmax 230 PSIG
Connection: G 1/4 female, 1/4 NPT female
Water: 0.04-0.4 GPH...2-20 GPH
Air: 0.7-3 SCFH...10-100 SCFH
tmax 130°F (Polycarbonate), 250°F (Polysulfone);
pmax 100 PSIG · Connection: 1/8 NPT female
Accuracy: ± 6 % of full scale
Water: 0.002 - 0.02 l/h ...16 - 160 l/h (KDF)
Air: 0.03 - 0.3 Nl/h ... 430 - 4300 Nl/h (KDG)
tmax 210°F; pmax 230 PSIG
Connection: 1/4 NPT female
Accuracy :± 2.5% of full scale
Low Volume Variable Area
Flow Meters / Monitors
Acrylic
Brochure: S1
Model: KFR
Low Volume / All Metal Variable
Area Flow Meters / Monitors
Local indication (limit switches)
bargraph indication (analog output)
stainless steel
Brochure: S1
Model: KDK
Low Volume / All Metal Variable
Area Flow Meters / Monitors
Local indication, limit switches,
analog output stainless steel
Brochure: S1
Model: KMI
Water: 0.2-2 GPH...2-20 GPM
Air: 0.1-1 SCFH...10 -100 SCFM
tmax 150°F; pmax 100 PSIG
Connection: 1/8 - 1 FNPT
Accuracy: ± 2 % ... 5 % of full scale
Water: 0.08-0.8 GPH...2.6-26 GPH
Air: 0.18-1.8 ... 12 - 120 SCFH
tmax 350°F; pmax 1850 PSIG
Connection: 1/4 NPT female
Accuracy ±2.5% of full scale
www.kobold.com
22
Water: 0.026-0.26 GPH...6.6-66 GPH
Air: 0.16-1.6 SCFH...28-282 SCFH
tmax 300°F; pmax 2320 PSIG
Connection:
G 1/4, G 3/8, 1/4 NPT, 3/8 NPT female
Accuracy class: ±4% of full scale
Subject to change without prior notice
Overview
Flow
Low Volume Variable Area
Flow Meters
Grillon
Brochure: S1
Model: KLF
Low Volume Variable Area
Flow Meters / Monitors
Trogamid, Polysulfone, PVDF
Brochure: S1
Model: KSK / PSK
Low Volume Variable Area
Flow Monitors
PVC
Brochure: S1
Model: SWK-13
Water: 0.07 - 0.55 l/min ... 2 - 22 l/min
Air: 1 - 7.5 l/min ... 1 - 12 l/sec
tmax 140°F; pmax 145 PSIG
Connection: R 1/4 ... R 3/4 male
Accuracy: ± 2 % of full scale
Water: 0.006-0.05 GPM...0.44-4.4 GPM
Air: 0.1 - 0.55 Nm3/h ... 6 - 30 Nm3/h
tmax 140°F; pmax 145 PSIG
Connection: G 3/4 - G 1 1/2 male, 3/8”-1” NPT
Accuracy: ±4 % of full scale
Water: 0.05 - 0.1 l/min ... 9 - 24 l/min
Air: on request
tmax 140°F; pmax 90 PSIG
Connection: G 1/2 male, Hose nipple
Low Volume / All Metal Variable
Area Flow Monitors
Brass, stainless steel
Brochure: S1
Model: SWK-1
Low Volume / All Metal Variable
Area Flow Meters / Monitors
Brass, stainless steel
Brochure: S1
Model: SWK-2
Piston Flow Monitors
For gases and liquids
Brass, stainless steel
Brochure: S2
Model: DKI
Water: 0.05 - 0.1 l/min ... 9 - 24 l/min
Air: on request
tmax 212°F; pmax 3600 PSIG
Connection: G 1/2 female
Water: 0.05 - 0.1 l/min ... 9 - 24 l/min
Air: on request
tmax 212°F; pmax 3600 PSIG
Connection: G 1/2 female
Accuracy: ± 4 % of full scale
Water: 0-0.5 GPM...0 - 21 GPM
Air: on request
Connection: G 1/2, 1/2 NPT female
tmax 250°F; pmax 930 PSIG
Subject to change without prior notice
23
www.kobold.com
Overview
Flow
All Metal Variable Area
Flow Monitors
Brass, stainless steel
Brochure: S2
Model: S
All Metal Variable Area
Flow Meters / Monitors
Brass, stainless steel
Brochure: S2
Model: SMV
Variable Area
Flow Meters
Brass, stainless steel
Brochure: S2
Model: SV-5
Water: 0.075-0.25 GPM...1-14 GPM
Air: on request
tmax 160°F; pmax 3600 (brass), 5000 PSIG (ss)
Connection:
G 1/4 - G 1 1/4 female, 1/4 - 1 1/4 NPT female
Accuracy: ± 4 % of full scale
Water: 0.05-0.15 GPM...4-40 GPM
Air: on request; tmax 160°F;
pmax 3600 PSIG (brass), 5000 PSIG (ss)
Connection:
G 1/4 - G 1 1/4 female, 1/4 - 1 1/4 NPT female
Accuracy: ± 4 % of full scale
Water: 0.05-0.35 GPM ... 2.5-40 GPM
Air: on request
tmax 160°F; pmax 145 PSIG
Connection:
G 1/4 - G 1 1/4 female, 1/4 - 1 1/4 NPT female
Accuracy: ± 4 % of full scale
Variable Area
Flow Meters / Monitors
Brass, stainless steel
Brochure: S2
Model: SV-7
All Metal Variable Area
Flow Monitors
With fixed min. or max. contact
brass, stainless steel
Brochure: S2
Model: SMN
Variable Area
Flow Meters / Monitors
Graduated glass tube in sleeve fitting
steel, stainless steel
Brochure: S2
Model: KHN
Water: 0.4-13 GPM
Air: on request
tmax 250°F;
pmax 3600 PSIG (brass), 5000 PSIG (ss)
Connection: G 1 female, 1” NPT
Water: 0.002 - 0.025 l/h ... 1600 - 16000 l/h
Air: 0.19 - 1.9 Nl/h ... 16 - 160 Nm3/h
tmax 175°F (265°F); pmax 230 PSIG
Connection: G 1/2 - G 3 female
Accuracy class: ± 1.6 % of full scale
Water: 0.05-0.35 GPM...2.5-40 GPM
Air: on request
tmax 160°F; pmax 145 PSIG
Connection:
G 1/4 - G 1 1/4 female, 1/4 - 1 1/4 NPT female
Accuracy: ± 4 % of full scale
www.kobold.com
24
Subject to change without prior notice
Overview
Flow
Variable Area
Flow Meters / Switches
Trogamid, Polysulfone, PVDF
Brochure: S2
Model: KSM
All Metal Variable Area
Flow Meters / Switches/ Counters
Option: analog output; version Ex
stainless steel, PTFE, Hastelloy
Brochure: S2
Model: KDM
Viscosity Compensated and
Mounting Position Independent
Flow Meters / Switches
Polysulfone
Brochure: S2
Model: VKP
Water: 0.06-0.66 GPM...13.2-132 GPM
Air: 0.5-3 SCFM...60-500 SCFM
tmax 140°F; pmax 145 PSIG
Connection:
G 1/2 - G 3 1/2 female/male 1”-2” NPT
Accuracy class: ± 4% of full scale
Water: 0.011-0.11 GPM...44-440 GPM
Air: 0.041 - 0.41 SCFM...29-290 SCFM
tmax 390°F; pmax 580 PSIG
Connection:
flange DN 15 - DN 100, 1/2”-4” ANSI
Accuracy class: ± 1.6%, ± 2.5% of full scale
Water: 0.5-5 GPM...5-26 GPM
Oil: (100 mm2/s) 0.5-4.5 GPM...3-20 GPM
tmax 250°F; pmax 230 PSIG
Connection:
G 3/4, G 1, female or male, 1 NPT male
Accuracy: ± 8% of full scale
Viscosity Compensated and Mounting
Position Independent
Flow Meters / Switches
Brass, stainless steel
Brochure: S2
Model: VKG
Viscosity Compensated
Flow Meters / Switches with
Manifold Valve, Modular System
1-8 fold Block
aluminum, brass, stainless steel
Brochure: S2
Model: VKG-BVB
Viscosity Compensated and
Mounting Position Independent
All Metal Flow Meters / Switches
Brass
Brochure: S2
Model: VKA
Viscosity range: 1-760 cSt
Water / oil: 0.03-0.12...2-22 GPM
tmax 240°F; pmax 175 PSIG
Connection:
G 1/4 - G 1 female, 1/4 - 1 NPT female
Accuracy: ± 5% of full scale
Subject to change without prior notice
Flow rate:
max. 6.3 GPM per complete block valve
tmax 240°F; pmax 235 PSIG
Connection: G 1/2 female, 1/2 NPT female
Accuracy: ± 5% of full scale
25
Viscosity range: 30 - 540 cSt
Oil: 2 - 6.3 ... 8 - 26 GPM
tmax 212°F
pmax 3600 PSIG
Connection: G 1 female, reduction G 1/4, G 1/2,
G 3/4, 1/2 NPT, 3/4 NPT
Accuracy: ± 4 % of full scale (by 105 cSt)
www.kobold.com
Overview
Flow
Baffle-Flap Flow Meters
PVC, stainless steel
Brochure: S3
Model: DPR
Viscosity Compensated and
Mounting Position Independent
All Metal Flow Meters / Monitors
Option: analog output
brass, stainless steel
Brochure: S2
Model: VKM
Viscosity Compensated
All Metal Flow Meters / Monitors
Analog output and 2 limit values,
digital, bargraph or combined display
brass, stainless steel
Brochure: S2
Model: VKM with ADI
Viscosity 1-760 cSt
Water / oil: 0.002 - 0.018 GPM...2-20 GPM
tmax 240°F;
pmax 3600 PSIG (brass), 5000 PSIG (ss)
Connection:
G 1/4 - G 1 female, 1/4 - 1 NPT female
Accuracy: ± 5% of full scale
Viscosity range: 1 - 760 cSt
Water / oil: 0.002-0.018 GPM...2-20 GPM
tmax 240°F;
pmax 3600 (brass), 5000 PSIG (ss)
Connection:
G 1/4 - G 1 female, 1/4 - 1 NPT female
Accuracy: ± 5% of full scale
Water: 0.8 - 8 m3/h ... 100 - 1000 m3/h
Connections: ND 32 - 600
tmax 185°F;
pmax 145 PSIG (PVC), 580 PSIG (ss)
Accuracy: ± 5 % of full scale
Paddle Type Flow Monitors
With reed contact
brass, stainless steel
for nominal pipe sizes ≥ 2”
Brochure: S3
Model: PS
Paddle Type Flow Monitors
With reed contact or micro switch
pipe fitting
brass, stainless steel
Brochure: S3
Model: PSR
Paddle Type Flow Monitors
With reed contact
Polysulfone
for nominal pipe sizes ≥ 1”
Brochure: S3
Model: PPS
Water: 18-24 GPM...101-141 GPM
Air: on request
tmax 230°F;
pmax 1450 (brass), 3600 PSIG (ss)
Connection: G 1/2 male, 1/2 NPT male
Water: 0.9-1.3 GPM...9.2-15 GPM
Air: on request
tmax 230°F;
pmax 1450 PSIG (brass), 3600 PSIG (ss)
Connection: G 1/4 - G 1 1/2 female,
1/4 - 1 1/2 NPT female
Water: 9.5-28.5 GPM
Air: on request
tmax 225°F; pmax 145 PSIG
Connection: G 1 male, 1 NPT male
www.kobold.com
26
Subject to change without prior notice
Overview
Flow
Paddle Bellows Flow Monitors
brass, stainless steel
Brochure: S3
Model: FPS
Paddle Bellows Flow Monitors
brass
Brochure: S3
Model: FPS
Water: 0.9 - 4.4 GPM... 113.2 - 396.7 GPM
Air: on request
tmax 250°F
pmax 160 PSIG (brass), 450 PSIG (ss)
Connection: G 1 male, 1” NPT
Water: 3.3 - 7.5 GPM...3.3-8.5 GPM
Air: on request
tmax 250°F
pmax 160 PSIG
Connection:
G 1/2, G 3/4 female, 1/2”-3/4” NPT
Paddle Bellows Flow Monitors
brass, stainless steel
Brochure: S3
Model: DWP/DWN
Paddle Bellows
Flow Meters / Monitors
brass, stainless steel
Brochure: S3
Model: DWU
Water: 0.26 - 1.3 GPM...1850-4950 GPM
tmax 210°F; pmax 230 PSIG
Connection: G 3/8 - G 2 female/male, 3/8” - 2
1/2” NPT male; ANSI flange to 2 1/2”
weld-on units 1-1/2” - 24”
Accuracy: ±3 % of full scale
Water: 0.26-1.3 GPM...1850-4950 GPM
tmax 210°F; pmax 230 PSIG
Connection: G 3/8 - G 2 female/male,
3/8 “- 2-1/2” NPT male; ANSI flange 2-1/2”
weld-on units 1-1/2” - 24”
Accuracy: ±3 % of full scale
Subject to change without prior notice
27
Paddle Type Flow Monitors
For air
brass
Brochure: S3
Model: LPS
Air: 195-1575 FPM
tmax 185°F; pressureless
Connection: flange
Paddle Type Flow Meters / Monitors
Analog output, frequency output,
digital display, RS232, 2 limit contacts
brass, stainless steel, PVC
Brochure: S3
Model: DWD
Water: 0.26 - 2.6 GPM...1980-19800 GPM
tmax 210°F; pmax 360 PSIG
Connection: G 3/8 - G 2 female/male,
3/8 - 2 NPT male; flange DN 10...50
Accuracy: ±1.5 % of full scale
www.kobold.com
Overview
Flow
Paddle Torsion Flow Meters
Analog output (mA, V)
aluminum-bronze, stainless steel
Brochure: S3
Model: DPT
Paddle Torsion Flow Meters
Digital display, contact or
analog output
aluminum-bronze, stainless steel
Brochure: S3
Model: DPT with compact electronics
Paddle Torsion Flow Meters
Digital-, bargraph- or
combined display,
analog output, contacts
aluminum-bronze, stainless steel
Brochure: S3
Model: DPT with ADI
Water: 1.3 - 500 GPM
Air: 10 - 3000 Nm3/h
tmax 176°F; pmax 580 PSIG
Connections: G 3/8 - G 3 fem., 3/8 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 500 GPM
Air: 10 - 3000 Nm3/h
tmax 176°F; pmax 580 PSIG
Connections: G 3/8 - G 3 fem., 3/8 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 500 GPM
Air: 10 - 3000 Nm3/h
tmax 176°F; pmax 580 PSIG
Connections: G 3/8 - G 3 fem., 3/8 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Low Volume
Turbine Wheel Flow Meters
Voltage / frequency output
brass, PTFE, Ryton®
Brochure: S4
Model: KFF-1/KFG-1
Low Volume
Turbine Wheel Flow Meters
Voltage output, bar display
brass, PTFE, Ryton®
Brochure: S4
Model: KFF-2/KFG-2
Low Volume
Turbine Wheel Flow Meters
Voltage output, digital display
brass, PTFE, Ryton®
Brochure: S4
Model: KFF-3/KFG-3
Water: 0.015 - 0.1 l/min ... 1 - 10 l/min
Air: 0.01 - 0.05 l/min ... 100 - 500 l/min
tmax 120°F; pmax 500 PSIG (Brass)
Connection: 1/8 ... 3/8 male
Accuracy: ± 3 % of full scale
Water: 0.015 - 0.1 l/min ... 1 - 10 l/min
Air: 0.01 - 0.05 l/min ... 100 - 500 l/min
tmax 120°F; pmax 500 PSIG (Brass)
Connection: 1/8 ... 3/8 male
Accuracy: ± 3 % of full scale
Water: 0.013 - 0.1 l/min ... 0.2 - 5 l/min
Air: 0.01 - 0.05 Nl/min ... 2 - 10 Nl/min
tmax 120°F; pmax 500 PSIG (Brass)
Connection: 1/8 ... 3/8 male
Accuracy: ± 3 % of full scale
www.kobold.com
28
Subject to change without prior notice
Overview
Flow
Low Volume
Turbine Wheel Flow Meters
Pulse output
Nylon
Brochure: S4
Model: DGE
Turbine Wheel Flow Meters
for Liquids
Pulse output
Polyamide
Brochure: S4
Model: EDM
Water: 0.13 - 1.3 GPM ... 0.26 - 6.6 GPM
tmax 210°F; pmax 145 PSIG
Connection: G 3/8 male, 3/8 NPT male
Accuracy: ± 2.5 % of measured value
Water: 1 - 10 GPM ... 30 - 300 GPM
tmax 176°F; pmax 290 PSIG
Connection: 1/2” - 2” NPT
Accuracy: ± 1%/± 1.5% of full scale
Gas: 0.3 - 45 m/sec.
tmax 120°F
Accuracy: ± 3% of measured value
Low Volume
Turbine Wheel Flow Meters
For liquids
pulse output
PVDF, stainless steel
Brochure: S4
Model: SFL
Low Volume
Turbine Wheel Flow Meters
For liquids
pulse output
PVDF, stainless steel
Brochure: S4
Model: SFL with
remote indication
Low Volume
Turbine Wheel Flow Meters
For liquids
pulse output
PVDF, stainless steel
Brochure: S4
Model: SFL with
separate batch unit
Water: 0.5 - 20 l/min
tmax 194°F; pmax 3600 PSIG
Connection: G 3/8 male
Accuracy: ± 1% of measured value
Water: 0.5 - 20 l/min
tmax 194°F; pmax 3600 PSIG
Connection: G 3/8 male
Accuracy: ± 1% of measured value
Water: 0.5 - 20 l/min
tmax 194°F; pmax 3600 PSIG
Accuracy: G 3/8 male
Accuracy: ± 1% of measured value
Subject to change without prior notice
29
Vane Anemometer for Gases
Hand-held measuring instrument
with digital display
cable length 2 m
option: temperature measurement
Brochure: S4
Model: AVM
www.kobold.com
Overview
Flow
Turbine Wheel Flow Meters
Pulse output
stainless steel
Brochure: S4
Model: TUV
Turbine Wheel Flow Meters
Analog output (mA) /plug-on display
stainless steel
Brochure: S4
Model: TUV
with plug-on display AUF
Turbine Wheel Flow Meters
Analog output (0 -10 V)
stainless steel
Brochure: S4
Model: TUV with analog indication
Water: 0.5 - 4 l/min ... 35 - 400 l/min
tmax 250°F (660°F); pmax 9200 PSIG
Connection: G 1/4 ... G 1 1/2 female
Accuracy: ± 1 % of full scale
Water: 0.5 - 4 l/min ... 35 - 400 l/min
tmax 250°F (660)°F; pmax 9200 PSIG
Connection: G 1/4 ... G 1 1/2 female
Accuracy: ± 1 % of full scale
Water: 0.5 - 4 l/min ... 35 - 400 l/min
tmax 250°F (660)°F; pmax 9200 PSIG
Connection: G 1/4 ... G 1 1/2 female
Accuracy: ± 1 % of full scale
Turbine Wheel Flow Meters
Digital display, contact
or analog output
stainless steel
Brochure: S4
Typ: TUV with compact electronics
Turbine Wheel Flow Meters
Pulse output
stainless steel
Brochure: S4
Model: TUV with
remote indication
Turbine Wheel Flow Meters
and Counters
LCD display, counter
stainless steel
Brochure: S4
Model: DTC
Water: 0.5 - 4 l/min ... 35 - 400 l/min
tmax 250°F (660)°F; pmax 9200 PSIG
Connection: G 1/4 ... G 1 1/2 female
Accuracy: ± 1 % of full scale
Water: 0.5 - 4 l/min ... 35 - 400 l/min
tmax 250°F (660)°F; pmax 9200 PSIG
Connection: G 1/4 ... G 1 1/2 female
Accuracy: ± 1 % of full scale
Water: 0.04 - 40 m3/h ... 0.25 - 800 m3/h
tmax 210°F; pmax 230 (900) PSIG
Connection: G 3/8 ... G 1 1/2 male;
flange DN 25 ... DN 200
Accuracy: ± 0.5 % of full scale
www.kobold.com
30
Subject to change without prior notice
Overview
Flow
Turbine Wheel Flow Meters
Pulse output
brass, stainless steel, PPO
Brochure: S4
Model: DRS-1...DRS-4
Water: 0.5 - 13.2 GPM
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 3 % of full scale
Turbine Wheel Flow Meters
Pulse /analog output,
temperature sensor
brass, stainless steel, PPO
Brochure: S4
Model: DRS-...P
Turbine Wheel Flow Meters
Analog output (mA)/plug-on display
brass, stainless steel, PPO
Brochure: S4
Model: DRS
with plug-on display AUF
Water: 0.5 - 13.2 GPM
Temperature: -4 ... 176°F
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 1.5 % of full scale
Water: 0.5 - 13.2 GPM
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 1.5 % of full scale
Turbine Wheel Flow Meters
Analog output (0 -10 V)
brass, stainless steel, PPO
Brochure: S4
Model: DRS
with analog indication
Turbine Wheel Flow Meters
With digital display, contact or
analog output
brass, stainless steel, PPO
Brochure: S4
Model: DRS-5/ DRS-6
with compact electronics
Turbine Wheel Flow Meters
Pulse output
brass, stainless steel, PPO
Brochure: S4
Model: DRS with
remote indication
Water: 0.5 - 13.2 GPM
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 1.5 % of full scale
Water: 0.5 - 13.2 GPM
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 1.5 % of full scale
Water: 0.5 - 13.2 GPM
tmax 300°F; pmax 230 PSIG
Connection: G 1/2, G 3/4, 3/4 NPT male
Accuracy: ± 1.5 % of full scale
Subject to change without prior notice
31
www.kobold.com
Overview
Flow
Turbine Wheel Flow Meters
Analog/pulse output
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE
Turbine Wheel Flow Meters
Analog output (mA)/plug-on display
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE
with plug-on display AUF
Turbine Wheel Flow Meters
Analog output (0 -10 V)
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE
with analog indication
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 -198 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2-19.8 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Turbine Wheel Flow Meters
Digital display, contact or
analog output
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE
with compact electronics
Turbine Wheel Flow Meters
Digital-, bargraph- or
combined display,
analog output, contacts
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE with ADI
Turbine Wheel Flow Meters
Digital display, counter, contacts,
analog output
stainless steel, aluminum-bronze
Brochure: S4
Model: DPE with batch unit
Water: 1.3 - 7.9 GPM...13.2-198 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
www.kobold.com
32
Subject to change without prior notice
Overview
Flow
Turbine Wheel Flow Meters
Analog/ pulse output
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB
Turbine Wheel Flow Meters
Analog output (mA)/plug-on display
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB
with plug-on display AUF
Turbine Wheel Flow Meters
Analog output (0 -10 V)
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB
with analog indication
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Turbine Wheel Flow Meters
Digital display, contact or
analog output
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB
with compact electronics
Turbine Wheel Flow Meters
With analog output,
up to two contacts
digital-, bargraph- or combined display
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB with ADI
Turbine Wheel Flow Meters
Digital display, counter, contacts,
analog output
stainless steel, aluminum-bronze
Brochure: S4
Model: DRB with batch unit
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Water: 1.3 - 7.9 GPM...13.2 - 198 GPM
tmax 176°F; pmax 360 PSIG
Connection:
G 1/2 - G 3 female, 1/2 - 3 NPT female
Accuracy: ± 2.5 % of full scale
Subject to change without prior notice
33
www.kobold.com
Overview
Flow
Turbine Wheel Flow Meters
Pulse output
PVC, PVDF
Brochure: S4
Model: TUR-3...
Turbine Wheel Flow Meters
Analog output
PVC, PVDF
Brochure: S4
Model: TUR-4...
Turbine Wheel Flow Meters
Analog output (0 -10 V)
PVC, PVDF
Brochure: S4
Model: TUR
with analog indication
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
Turbine Wheel Flow Meters
Digital display, contact or
analog output
PVC, PVDF
Brochure: S4
Model: TUR
with compact electronics
Turbine Wheel Flow Meters
Digital-, bargraph- or
combined display,
analog output, contacts
PVC, PVDF
Brochure: S4
Model: TUR with digital indication
Turbine Wheel Flow Meters
Digital display, counter, contacts,
analog output
PVC, PVDF
Broschure: S4
Model: TUR with batch unit
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
Water: 0.88 - 22 GPM...11 - 440 GPM
tmax 140°F (PVC), 160°F (PVDF); pmax 145 PSIG
Connection: flange DN 25 - DN 100, ANSI 2”, 4”
Accuracy: ±1 % of full scale
www.kobold.com
34
Subject to change without prior notice
Overview
Flow
Low Volume Rotating Vane
Flow Meters
For liquids
Pelton principle
pulse output
brass, stainless steel
Brochure: S4
Model: DPM
Low Volume Rotating Vane
Flow Meters
For liquids
Pelton principle
pulse output, analog output (mA, V)
brass, stainless steel
Brochure: S4
Model: DPM
Low Volume Rotating Vane
Flow Meters
For liquids · Pelton principle
analog output (mA)/plug-on display
brass, stainless steel
Brochure: S4
Model: DPM with
plug-on display AUF
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ± 2,5 % of full scale
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ±1 % of full scale
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ±1 % of full scale
Low Volume Rotating Vane
Flow Meters
For liquids · Pelton principle
analog output (0 - 10 V)
brass, stainless steel
Brochure: S4
Model: DPM with
analog indication
Low Volume Rotating Vane
Flow Meters
For liquids · Pelton principle
digital display, contact or
analog output
brass, stainless steel
Brochure: S4
Model: DPM with
compact electronics
Low Volume Rotating Vane
Flow Meters
For liquids
Pelton principle
pulse output
brass, stainless steel
Brochure: S4
Model: DPM with
remote indication
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ±1 % of full scale
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ±1 % of full scale
Water: 0.003-0.18 GPM...0.013-1.32 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/8, G 1/4, 1/8 NPTF, 1/4 NPTF female
Accuracy: ±1 % of full scale
Subject to change without prior notice
35
www.kobold.com
Overview
Flow
Low Volume Rotating Vane
Flow Meters
Pulse output
POM, Polypropylene
(option: SK-conformance)
Brochure: S4
Model: DPL
Low Volume Rotating Vane
Flow Meters
Pulse-, analog output (mA, V)
POM, Polypropylene
(option: SK-conformance)
Brochure: S4
Model: DPL
Low Volume Rotating Vane
Flow Meters
Analog output (mA) / plug-on display
POM, Polypropylene
(option: SK-conformance)
Brochure: S4
Model: DPL with plug-on
display AUF
Water: 0.0.4 - 8.0 GPH...16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG (POM)
Connection: G 1/2 male, NPT on request
Accuracy: ± 3 - 5 % of full scale
Water: 0.4 - 8.0 GPH...16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG (POM)
Connection: G 1/2 male, NPT on request
Accuracy: ± 1.5 % of full scale
Water: 0.4 - 8.0 GPH...16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG (POM)
Connection: G 1/2 male, NPT on request
Accuracy: ± 1.5 % of full scale
Low Volume Rotating Vane
Flow Meters
Analog output (0 -10 V)
POM, Polypropylene
Brochure: S4
Model: DPL
with analog indication
Low Volume Rotating Vane
Flow Meters
Digital display, contact or
analog output
POM, Polypropylene
Brochure: DPL
Model: DPL
with compact electronics
Low Volume Rotating Vane
Flow Meters
With batch unit
POM
(option: SK-conformance)
Brochure: S4
Model: DPL
Water: 0.4 - 8.0 GPH...16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG (POM)
Connection: G 1/2 male, NPT on request
Accuracy: ± 1.5 % of full scale
Water: 0.4 - 8.0 GPH...16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG (POM)
Connection: G 1/2 male, NPT on request
Accuracy: ± 1.5 % of full scale
Water: 0.4 - 8.0 GPH...16 - 400 GPH
tmax 120°F; pmax 100 PSIG
Connection:
G 1/2 male, G 5/8 A, NPT on request
Accuracy: ± 1.5 % of full scale
www.kobold.com
36
Subject to change without prior notice
Overview
Flow
Rotating Vane Flow Meters
Pelton principle
pulse output /analog output
Nylon, PP, PVDF, stainless steel
Brochure: S4
Model: PEL-L
Rotating Vane Flow Meters
Pelton principle
pulse output /analog output
PVC, PVDF, stainless steel, titanium
Brochure: S4
Model: PEL-M
Rotating Vane Flow Meters
Pelton principle
pulse output /analog output
PVC, PVDF, stainless steel, titanium
Brochure: S4
Model: PEL-M
Water: 0.01 - 0.25 l/min ... 0.1 - 28 l/min
tmax 212°F; pmax 145 PSIG
Connection: R 1/4, hose connector
Accuracy: ± 0.2 ... 0.5 % of full scale
Water: 1 - 65 l/min ... 5 - 220 l/min
tmax 270°F; pmax 4350 PSIG (70 PSIG PVC)
Connection: R 1/2 ... R 1 1/4
Accuracy: ± 1% of full scale
Water: 7 - 350 l/min ... 500 - 20.000 l/min
tmax 270°F; pmax 4350 PSIG (70 PSIG PVC)
Connection:
intermediate flange DN 40 ... DN 300
Accuracy: ± 1 % of full scale
Rotating Vane Flow Meters
Pulse output
brass
Brochure: S4
Model: DFT-D
Rotating Vane Flow Meters
Pulse output
teflon
Brochure: S4
Model: DFT-F
Rotating Vane Flow Meters
Rate indication, limit switch
and analog output
teflon, brass
Brochure: S4
Model: DFT-F...K
Water: 0.02 - 0.14 GPM...0.66-15.8 GPM
tmax 176°F; pmax 230 PSIG
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...0.66-15.8 GPM
tmax 176°F; pmax 85 PSIG
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...0.66-15.8 GPM
tmax 176°F; pmax 85 PSIG
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Subject to change without prior notice
37
www.kobold.com
Overview
Flow
Rotating Vane Flow Meters
Pulse output
Trogamid, Polysulfone, Polypropylene,
PTFE, brass, stainless steel
Brochure: S4
Model: DF
Rotating Vane Flow Meters
Analog output
Trogamide, Polysulfone, Polypropylene,
PTFE, brass, stainless steel
Brochure: S4
Model: DF-MA
Rotating Vane
Flow Meters / Monitors
Rate indication digital,
limit switch and analog output
Trogamid, Polysulfone, Polypropylene,
PTFE, brass, stainless steel
Brochure: S4
Model: DF-K
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 212°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 180°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 180°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
Rotating Vane
Flow Meters / Monitors
Limit switch
Trogamid, Polysulfone, Polypropylene,
PTFE, brass, stainless steel
Brochure: S4
Model: DF-WM
Rotating Vane
Flow Meters / Monitors
LED bar display, analog output
2 limit switches
Brochure: S4
Model: DF-WMA
Rotating Vane
Flow Meters / Counter / Batcher
Digital display
counter (DF-Z), batcher with
rate indication (DF-D)
Brochure: S4
Model: DF-Z, DF-D
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 180°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 180°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
Water: 0.02 - 0.14 GPM...1.5 -36 GPM
tmax 180°F (145°F trogamid)
pmax 85-1450 PSIG
Connection: G 1/4 - G 1 1/2,
1/4 - 1 1/2 NPT female; flange DN 15 - DN 50
Accuracy: ± 2.5 % of full scale
www.kobold.com
38
Subject to change without prior notice
Overview
Flow
Rotating Vane Flow Meters
Analog/ pulse output
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH
Rotating Vane Flow Meters
Analog output /plug-on display
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH
with plug-on display AUF
Rotating Vane Flow Meters
Analog output (0 -10 V)
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH
with analog indication
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Connection: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Accuracy: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Connection: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Rotating Vane Flow Meters
Digital display, contact or
analog output
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH
with compact electronics
Rotating Vane Flow Meters
Pulse output
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH with
remote indication
Rotating Vane Flow Meters
Pulse output
POM, PVDF, brass, stainless steel
Brochure: S4
Model: DRH with
separate batch unit
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Connection: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Connection: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Water: 0.05 - 0.74 GPM...0.26 - 15.8 GPM
tmax 176°F; pmax 1450 PSIG
Connection: G 3/8, G 1, 3/8 NPT, 1 NPT
Accuracy: ± 2.5% of full scale
Subject to change without prior notice
39
www.kobold.com
Overview
Flow
Rotating Vane Flow Meters
Analog/ pulse output
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG
Rotating Vane Flow Meters
Analog output (mA) /plug-on display
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG
with plug-on display AUF
Rotating Vane Flow Meters
Analog output (0 -10 V)
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG
with analog indication
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/4 - G 1 female; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/4 - G 1 female; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/4 - G 1 female; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
Rotating Vane Flow Meters
Digital display, contact or
analog output
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG
with compact electronics
Rotating Vane Flow Meters
Pulse output
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG with remote indication
Rotating Vane Flow Meters
Pulse output
Polypropylene, aluminum-bronze,
stainless steel
Brochure: S4
Model: DRG with separate batch unit
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection:
G 1/4 - G 1 female; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection: G 1/4 - G 1 fem.; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
Water: 0.05 - 0.5 GPM...0.9 - 34 GPM
tmax 176°F; pmax 580 PSIG
Connection: G 1/4 - G 1 fem.; 1/4 - 1 NPT female
Accuracy: ± 3 % of full scale
www.kobold.com
40
Subject to change without prior notice
Overview
Flow
Piston Flow Meters
For viscous media
pulse output , contact or
analog output (mA, V)
brass, stainless steel
Brochure: S4
Model: DRZ
Piston Flow Meters
For viscous media
analog output (mA)
brass, stainless steel
Brochure: S4
Model:
DRZ with plug-on display AUF
Piston Flow Meters
For viscous media
digital display, contact or
analog output
brass, stainless steel
Brochure: S4
Model: DRZ
with compact electronics
Viscosity range: 5 - 500 cSt
Measuring range: 0.26 - 52 GPH
tmax -14°F - 140°F; pmax 230 PSIG (580 PSIG)
Connection: G 1/8 - G 1/4, 1/8 - 1/4 NPT
Accuracy: ± 1 % of full scale
Viscosity range: 5 - 500 cSt
Measuring range: 0.26 - 52 GPH
tmax -14°F - 140°F; pmax 230 PSIG (580 PSIG)
Connection: G 1/8 - G 1/4, 1/8 - 1/4 NPT
Accuracy: ± 1 % of full scale
Viscosity range: 5 - 500 cSt
Measuring range: 0.26 - 52 GPH
tmax -14°F - 140°F; pmax 230 PSIG (580 PSIG)
Connection: G 1/8 - G 1/4, 1/8 - 1/4 NPT
Accuracy: ± 1 % of full scale
Oval Gear Wheel Flow Meters
Pulse output
POM, aluminum
Brochure: S4
Model: OVZ
Oval Gear Wheel Flow Meters
Analog output (mA) /plug-on display
POM, aluminum
Brochure: S4
Model: OVZ
with plug-on display AUF
Oval Gear Wheel Flow Meters
Digital display, contact or
analog output
POM, aluminum
Brochure: S4
Model: OVZ
with compact electronics
Viscosity range: 30 - 1000 cSt
Oil: 0.03 - 0.5 GPM...0.4 - 10.6 GPM
tmax 175°F; pmax 230 PSIG (580 PSIG)
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Viscosity range: 30 - 1000 cSt
Oil: 0.03 - 0.5 GPM...0.4 - 10.6 GPM
tmax 175°F; pmax 230 PSIG (580 PSIG)
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Viscosity range: 30 - 1000 cSt
Oil: 0.03 - 0.5 GPM...0.4 - 10.6 GPM
tmax 175°F; pmax 230 PSIG (580 PSIG)
Connection:
G 1/4 - G 3/4 female, 1/4 - 3/4 NPT female
Accuracy: ± 2.5 % of full scale
Subject to change without prior notice
41
www.kobold.com
Overview
Flow
Screw Spindle Flow Meters
For viscous fluid,
with directional marking (option),
pulse output
aluminum
Brochure: S4
Model: OME
Screw Spindle Flow Meters
For viscous fluid,
with directional marking (option),
pulse output
aluminum
Brochure: S4
Model: OME with
remote indication
Screw Spindle Flow Meters
For viscous fluid,
with directional marking (option),
pulse output
aluminum
Brochure: S4
Model: OME with
separate batch unit
Viscosity range: 1 - 5000 cSt
Oil: 0.05 - 2.6 GPM...0.5 - 26 GPM
tmax 212°C; pmax 580 PSIG
Connection: 1/2” NPT - 1” NPT
G 1/2 - G 1 female, flange DN 15 - DN 25
Accuracy: ± 0.3 % of measured value
Viscosity range: 1 - 5000 cSt
Oil: 0.05 - 2.6 GPM...0.5 - 26 GPM
tmax 212°C; pmax 580 PSIG
Connection: 1/2” NPT - 1” NPT
G 1/2 - G 1 female, flange DN 15 - DN 25
Accuracy: ± 0.3 % of measured value
Viscosity range: 1 - 5000 cSt
Oil: 0.05 - 2.6 GPM...0.5 - 26 GPM
tmax 212°C; pmax 580 PSIG
Connection: 1/2” NPT - 1” NPT
G 1/2 - G 1 female, flange DN 15 - DN 25
Accuracy: ± 0.3 % of measured value
Screw Spindle Flow Meters
Pulse output
continuously cast, stainless steel
Brochure: S4
Model: OMG
with separate batch unit
Positive Displacement Flowmeters
Pulse output
aluminum, stainless steel
Brochure: S4
Model: OMP
Positive Displacement Flowmeters
Pulse output with display
aluminum, stainless steel
Brochure: S4
Model: OMP
Viscosity range: 1 - 5000 cSt
Water/oil: 0.2 - 10 l/min ... 40 - 2000 l/min
tmax 400°F; pmax 5800 PSIG
Connection:
G 1/4 ... G 4 female, flange DN 15 ... DN 100
Accuracy: ± 0.3 % of measured value
Viscosity range: 1 - 1000 cPs +
Water/oil: 0.53 - 26 GPH ... 4 - 93 GPM
tmax 176°F - 248°F; pmax 150 - 8000 PSIG
Connection:
1/4” - 1-1/2” NPT, 1” - 2” ANSI
Accuracy: ± 1% of measured value
Viscosity range: 1 - 1000 cPs +
Water/oil: 0.26 - 8 GPM ... 4 - 93 GPM
tmax 176°F - 248°F; pmax 150 - 800 PSIG
Connection:
1/2” - 1-1/2” NPT, 1” - 2” ANSI
Accuracy: ± 1% of measured value
www.kobold.com
42
Subject to change without prior notice
Overview
Flow
Gear Wheel Flow Meters
Pulse output
cast iron, stainless steel
Brochure: S4
Model: DZR
Gear Wheel Flow Meters
Pulse output
cast iron, stainless steel
Brochure: S4
Model: DZR
with remote indication
Gear Wheel Flow Meters
Pulse output
cast iron, stainless steel
Brochure: S4
Model: DZR
with separate batch unit
Viscosity range: 20 - 5000 cSt
Oil: 0.008 - 2 l/min ... 1 - 250 l/min
tmax 300°F; pmax 5800 PSIG
Connection: G 3/8 - G 1 1/2 female, UNF
Accuracy: ± 0.3 - 1 % of measured value
Viscosity range: 20 - 5000 cSt
Oil: 0.008 - 2 l/min...1-250 l/min
tmax 300°F; pmax 5800 PSIG
Connection: G 3/8 - G 1 1/2 female, UNF
Accuracy: ± 0.3 - 1 % of measured value
Viscosity range: 20 - 5000 cSt
Oil: 0.008 - 2 l/min ... 1 - 250 l/min
tmax 300°F; pmax 5800 PSIG
Connection: G 3/8 - G 1 1/2 female, UNF
Accuracy: ± 0.3 - 1 % of measured value
Gear Wheel Flow Meters
Pulse output
grey cast iron, stainless steel
Brochure: S4
Model: ZDM
Gear Wheel Flow Meters
Digital-, bargraph- or
combined display
analog output, contacts
grey cast iron, stainless steel
Brochure: S4
Model: ZDM with remote indication
Gear Wheel Flow Meters
Digital display, counter
contacts, analog output
grey cast iron, stainless steel
Brochure: S4
Model: ZDM with batch unit
Viscosity range: 0.3 - 100000 cSt
Oil: 0.0003 - 0.50 GPM... 0.3-80 GPM
tmax 300°F; pmax 4600 PSIG
Connection:
G 1/2 - G 1 1/2 female, 1/2 - 1 1/2 NPT
Accuracy: ± 0.1 % of measured value
Viscosity range: 0.3 - 100000 cSt
Oil: 0.0003 - 0.50 GPM... 0.3-80 GPM
tmax 300°F; pmax 4600 PSIG
Connection:
G 1/2 - G 1 1/2 female, 1/2 - 1 1/2 NPT
Accuracy: ± 0.1 % of measured value
Viscosity range: 0.3 - 100000 cSt
Oil: 0.0003 - 0.50 GPM... 0.3-80 GPM
tmax 300°F; pmax 4600 PSIG
Connection:
G 1/2 - G 1 1/2 female, 1/2 - 1 1/2 NPT
Accuracy: ± 0.1 % of measured value
Subject to change without prior notice
43
www.kobold.com
Overview
Flow
Gear Wheel Flow Meters
For viscous media
analog output /plug-on display
aluminum
Brochure: S4
Model: KZA
with plug-on display AUF
Gear Wheel Flow Meters
For viscous media
pulse output
aluminum
Brochure: S4
Model: KZA
with remote indication
Viscosity range: 20 - 4000 cSt
Oil: 0.07 - 2.6 GPM... 0.26 - 17.2 GPM
tmax 250°F; pmax 2300 PSIG
Connection:
G 3/8 - G 3/4 female, 3/8 - 3/4 NPT female
Accuracy: ±0.3 - 3 % of measured value
Viscosity range: 20 - 4000 cSt
Oil: 0.07 - 2.6 GPM... 0.26 - 17.2 GPM
tmax 250°F; pmax 2300 PSIG
Connection:
G 3/8 - G 3/4 female, 3/8 - 3/4 NPT female
Accuracy: ±0.3 - 3 % of measured value
Viscosity range: 20 - 4000 cSt
Oil: 0.07 - 2.6 GPM... 0.26 - 17.2 GPM
tmax 250°F; pmax 2300 PSIG
Connection:
G 3/8 - G 3/4 female, 3/8 - 3/4 NPT female
Accuracy: ±0.3 - 3 % of measured value
Micro-flow Rate Measuring
Transducer for Liquids
Dual-ring Piston principle
pulse output
stainless steel
Brochure: S4
Model: LFM
Micro-flow Rate Measuring
Transducer for Liquids
Dual-ring Piston principle
pulse output
stainless steel
Brochure: S4
Model: LFM with remote indication
Ultrasonic Flow Switches
Temperature changes independent
short response time
stainless steel, PEEK
Brochure: L1
Model: LDU
R
OU
P
EUR
O
P
G
Gear Wheel Flow Meters
For viscous media
pulse output
aluminum
Brochure: S4
Model: KZA
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
Water: 0.005 - 0.250 l/min
tmax 150°F; pmax 5800 PSIG
Connection: G 1/8 and Swagelock 6 mm
Accuracy: ± 2.5 % of measured value
www.kobold.com
Water: 0.005 - 0.250 l/min
tmax 150°F; pmax 5800 PSIG
Connection: G 1/8 and Swagelock 6 mm
Accuracy: ± 2.5 % of measured value
44
Limit values: 0.1 / 0.3 / 0.5 m/s
tmax 212°F (option: up to 300°F); pmax 145 PSIG
Repeatability: < 1 %
Connection: G 1/2, union nut
Output: active, max. 50 mA
Subject to change without prior notice
Overview
Flow
Calorimetric Flow Monitors
Compact design
Temperature compensated
Trend-, status display,
medium compensation
stainless steel
Brochure: S5
Model: KAL-D
Calorimetric Flow Monitors
Modular design
100% temperature compensation
Trend-, status display, medium
compensation, temperature monitoring
brass, stainless steel
Brochure: S5
Model: KAL, KAL-H
Calorimetric Flow Monitors
Compact design
100% temperature compensation
Push button medium compensation
limit contact, trend-, status display
stainless steel
Brochure: S5
Model: KAL-K
®
3
konform
Switching range: 4 cm/s ... 2 m/s
tmax 210°F; pmax 1150 PSIG
Connection G 1/2, G 3/4, 1/2 NPT, 3/4 NPT
Calorimetric Flow Meters /Monitors
Compact design
100% temperature compensation
Push button medium compensation
KAL-A: analog output, trend display
KAL-AK: analog output, limit contact,
trend display
stainless steel
Brochure: S5
Model: KAL-A(K)
Switching range: 4 cm/s ... 2 m/s
tmax 175°F; pmax 1450 PSIG
Connection: G 1/4 - G 3/4 male, 1/4 - 1 NPT
Accuracy: ± 10 % of full scale,
Repeatability: 3 %
Subject to change without prior notice
Switching range: 4 cm/s ... 2 m/s
tmax 250°F; pmax 1450 PSIG
Connection:
G 1/4 - G 1 1/2 female; G 1/2 male
Switching range: 4 cm/s ... 2 m/s
tmax 175°F; pmax 1450 PSIG
Connection:
G 1/4 - G 3/4 male, 1/4 - 1 NPT male, triclamp
Accuracy: ± 10 % of full scale,
Repeatability: 3 %
Calorimetric Flow Meters /Monitors
and Counters
Compact or separate design
LCD display, switching output
Brochure: S5
Model: DVK
Calorimetric Flow Monitors
For air
push button medium compensation
brass
Brochure: S5
Model: KAL-L
Air: 1 - 10 l/min ... 5 - 50 l/min
tmax 175°F; pmax 72 PSIG
Connection: G 1/8, G 1/4, NPT on request
Accuracy: ± 5 % of full scale
Switching range: 1 ... 20 m/s
tmax 175°F; pmax 120 PSIG
Connection: G 1/2 or clamping flange
Accuracy: ± 10 % of measured value
45
www.kobold.com
Overview
Flow
Differential Pressure Flow Meters
Mechanical pointer display,
without auxiliary energy
stainless steel, aluminum-bronze
Brochure: S5
Model: RCD
Differential Pressure Flow Meters
Digital display, contacts or
analog output
stainless steel, aluminum-bronze
Brochure: S5
Model: RCD with
compact electronics
Differential Pressure Flow Meters
Digital-, bargraph- or
combined display
analog output, contacts
stainless steel, aluminum-bronze
Brochure: S5
Model: RCD with ADI
Water: 1-7 GPM ... 100 - 600 GPM
Air: 2.5 - 25 SCFM ... 300 - 1700 SCFM
tmax 212°F; pmax 580 PSIG
Connection: G 1/2...G 3; 1/2 NPT...3 NPT female
Accuracy: ± 3 % of full scale
Water: 1 - 7 GPM ... 100 - 600 GPM
Air: 2.5 - 25 SCFM ... 300 - 1700 SCFM
tmax 175°F; pmax 580 PSIG
Connection: G 1/2...G 3; 1/2 NPT...3 NPT female
Accuracy: ± 3 % of full scale
Water: 1 - 7 GPM ... 100 - 600 GPM
Air: 2.5 - 25 SCFM ... 300 - 1700 SCFM
tmax 175°F; pmax 580 PSIG
Connection: G 1/2...G 3; 1/2 NPT...3 NPT female
Accuracy: ± 3 % of full scale
Differential Pressure Flow Switch
For gases, steam and liquids
brass, stainless steel
Brochure: S5
Model: KES
Differential Pressure Flow Meters
For gases, steam and liquids
bronze, monel, stainless steel
Brochure: S5
Model: RCM
Differential Pressure Flow Meters
For gases, steam and liquids
brass, stainless steel
Brochure: S5
Model: KEL
Water: 0.1 - 0.5 GPM ... 400 - 2000 GPM
Air: On request
tmax 200°F/350°F; pmax 230 PSIG
Connection: 1/2” - 3” NPT, 1/2” - 8” ANSI
Contact: One Nonmagnetic Mechanical SPDT
Water: 0.5 - 4 GPH ... 400 - 3000 GPM
Air: 5 - 40 SCFH ... 3000 - 20000 SCFM
tmax 212°F/350°F; pmax 180/400 PSIG
Connection: 1/4” - 3” NPT, 1/2” - 8” ANSI
Accuracy: ± 3% of full scale
Water: 0.1 - 0.5 GPM ... 400 - 2000 GPM
Air: On request
tmax 200°F/350°F; pmax 230 PSIG
Connection: 1/2” - 3” NPT, 1/2” - 8” ANSI
Accuracy: ± 5% of full scale
www.kobold.com
46
Subject to change without prior notice
Overview
Flow
Magnetic-Inductive
Flow Meters / Monitors
Analog output, contact
stainless steel
Brochure: S5
Model: PME
Magnetic-Inductive Flow Meters
without moving parts
output: 4 -20 mA/pulses/system alarm
supply: 24 VAC/DC
fitting: PEEK, PETP
electrodes: Hastelloy C
Brochure: S5/L1
Model: DMI
Magnetic-Inductive Flow Monitors
Analog output, counter,
LCD display, RS 485
coating: PTFE
electrodes: stainless steel
Brochure: L1
Model: LDI
Liquids: 1 - 5 m/s
Conductivity: ≥ 20 µS/cm
tmax 212°F pmax 230 PSIG @ 75°F;
145 PSIG @ 212°F
Connection: weldable conn. sleeve (1” - 12”)
Accuracy: ± 2 % of measured value
Conductivity: > 50 µS/cm
Liquids: 0 - 10 GPM... 0 - 320 GPM
tmax 230°F (PEEK); pmax 145 PSIG
Connection: DN 10,15,25, 50 (3/4” - 2-1/2” NPT)
Accuracy: 3 % of meas. value, option: 1.5 %
Conductivity: > 5 µS/cm
Liquids: 0.1 - 12 m/s
tmax 300°F; pmax 145 PSIG
Connection: DN 25 to DN 150
Accuracy: ± 0.2 % of measured value
Magnetic-Inductive Flow Meters
Analog and pulse output
coating: PTFE
electrodes: stainless steel
Brochure: S5
Model: PMG
Vortex Flow Meters / Monitors
and Counters
Compact design
LCD display, switching output
Brochure: S5
Model: DVW
Vortex Flow Meters / Monitors
and Counters
External sensor design
Panel or rail mounting
LCD display, switching output
Brochure: S5
Model: DVW
Conductivity: > 5 µS/cm
Liquids: 0 - 0.53 GPM... 0 - 124400 GPM
tmax 265°F; pmax 580 PSIG
Connection: 1/2” - 1” NPT, 1" to 24" ANSI
Accuracy: 0.5 % of measured value
Liquids: 0.13 - 1 GPM ... 1.3 - 10 GPM
tmax 120°F; pmax 145 PSIG
Connection: G 3/8 ... G 3/4, NPT on request
Accuracy: 5 % of full scale
Liquids: 0.13 - 1 GPM ... 1.3 -10 GPM
tmax 120°F; pmax 145 PSIG
Connection: G 3/8 ... G 3/4, NPT on request
Accuracy: 5 % of full scale
Subject to change without prior notice
47
www.kobold.com
Overview
Flow
Vortex Flow Meters
LCD display, counter
stainless steel
Brochure: S5
Model: DVC
Vortex Flow Meters
Analog output (mA) /plug-on display
PVC, PVDF
Brochure: S5
Model: KUV
with plug-on display AUF
Vortex Flow Meters and Counters
For gases, steam and liquids
analog- and pulse output
stainless steel
Brochure: S5
Model: PWL
Liquids: 0.7 - 5 GPM ... 25 - 300 GPM
Gases: 7 - 600 m3/h ... 60 - 6000 m3/h
tmax 200°F; pmax 145 PSIG
Connection: wafer flange DN 25 ... DN 250
Accuracy: ± 1% of full scale
Liquids: 0.7 - 5 GPM ... 25 - 300 GPM
tmax 200°F; pmax 145 PSIG
Connection: 1/4 NPT ... 2 NPT male
Accuracy: ± 1% of full scale
Liquids: 0.7 - 22 GPM ... 57 - 2800 GPM
Gases: 4 - 25 Nm3/h ... 379 - 5381 Nm3/h
tmax 750°F; pmax 580 PSIG
Connection: DN 25 to DN 300, 1" to 12" ANSI
Accuracy: 1 % of measured value
Low Volume Thermal
Mass Flow Meters
Independent of pressure and
temperature fluctuations
analog output
nylon, aluminum, stainless steel
Brochure: S5
Model: MAS
Low Volume Thermal
Mass Flow Meters with Controller
Independent of pressure and
temperature fluctuations
analog output
nylon, stainless steel
Brochure: S5
Model: MFC
Air: 0 - 10 sccm ... 0 - 500 slm
tmax 122°F; pmax 100 PSIG/500 PSIG
Connection: 1/4" - 1/2” Swagelok style
Accuracy: ± 1.5% of full scale
Air: 0 - 10 sccm ... 0 - 50 slm
tmax 122°F; pmax 150 PSIG
Connection: 1/8" -1/4” Swagelok style
Accuracy: ± 1.5% of full scale
www.kobold.com
48
In-Line Thermal Mass Flow Meters
Analog output, digital display
aluminum, stainless steel
Brochure: S5
Model: WFM
Air: 0.1 - 6 Nl/min ... 0.3 - 400 Nl/min
tmax 140°F; pmax 145 PSIG
Connection:
1/8, 1/4, 3/8", clamp connection
Accuracy: ± 3 % of full scale
Subject to change without prior notice
Overview
Flow
Compressed Air Meters
Pulse / a n a l o g output,
contact, 4 digit LCD,
6 digit mechanical counter
brass, stainless steel
Brochure: S5
Model: DLV
Fluidistor-Oscillation Flow Meters
for Gases and Liquids
Oscillation frequency
without moving parts
cast steel, steel, stainless steel
Brochure: S5
Model: DOG
Air: 1 - 50 Nm3/h ... 10 - 500 Nm3/h
tmax 140°F; pmax 360 PSIG
Connection: flange DN 15 ... DN 50
Accuracy:
± 2.5% of measured value (max. ±1% of F. S.)
Water: 0.07 - 3.54 m3/h ... 70 - 3500 m3/h
Gases: 0.2 - 20 m3/h ... 200 - 20.000 m3/h
tmax 250°F; pmax 580 PSIG
Connection: flange DN 25 ... DN 400
Accuracy: ± 1.5 % of measured value (gases)
± 1 % of measured value (water)
Gases: 0.4 - 20 m3/h ... 400 - 20000 m3/h
tmax 250°F; pmax 580 PSIG
Connection: wafer flange DN 25 ... DN 400
Accuracy: ± 1.5 % of measured value
Constant Flow Rate Control Valves
For liquids · without auxiliary energy
brass, stainless steel
for montage between flanges
Brochure: Z1
Model: REG
Constant Flow Rate Control Valves
For liquids · without auxiliary energy
brass, stainless steel
with flange
Brochure: Z1
Model: REG
Constant Flow Rate Control Valves
For liquids · without auxiliary energy
brass, stainless steel
Brochure: Z1
Model: REG
l/min.
25
l/min.
l/min.
25
Fixed orifice
20
15
Fluidistor-Oscillation Flow Meters
for Gases
Oscillation frequency
measuring span: 50 : 1
Brochure: S5
Model: DOG
25
Fixed orifice
20
15
Regulating valve
10
10
5
5
Viscosity:
0
2
4
6
8 10 bar
max. 30 cSt
Flow rates: from 1 - 30 l/min H2O
tmax 500°F; pmax 2900 PSIG
Connection: G 1/2, G 3/4 female/male, 3/4”NPT
Subject to change without prior notice
15
Regulating valve
Regulating valve
10
5
0
Connections:
G 1 1/2 ... G 3 1/2
Flow quantities:
60 ... 330 l/min
Fixed orifice
20
2
4
6
8
10 bar
0
2
4
6
Connections:
flange DN 40 ... DN 65
Flow quantities:
60 ... 330 l/min
49
www.kobold.com
8
10 bar
Overview
Flow
Flow Indicators with Rotor
brass, stainless steel
Brochure: S6
Model: DAA
Rotating Vane Flow Indicators
Trogamid, Polysulfone,
brass, stainless steel
Brochure: S6
Model: DAF
Rotating Vane Flow Indicators
Trogamid, Polysulfone,
brass, stainless steel
Brochure: S6
Model: DAF
Viscosity range: 1 - 150 cSt
Water: 0.11 -2.1 GPM ... 1.1 - 42 GPM
tmax 212°F; pmax 230 PSIG
Connection: 1/4” - 1-1/2” NPT
Water: 0.16 - 1.6 GPH ... 105 - 2400 GPH
tmax 140/250°F; pmax 145/235 PSIG
Connection:
G 1/8 - G 1 1/2 female, 1/8 - 1 1/2 NPT
Water: 0.16 - 1.6 GPH ... 105 - 2400 GPH
tmax 140/250°F; pmax 145/235 PSIG
Connection: flange DN 15 - DN 50, ANSI
Flow Indicators with Rotor
Grey cast iron, cast steel,
stainless steel
Brochure: S6
Model: DAR-1
Flow Indicators with Rotor
Grey cast iron, cast steel,
stainless steel
Brochure: S6
Model: DAR-2
tmax 570°F; pmax 360 PSIG
Connection: G 1/4 - G 2 female, 1/4 - 2 NPT
tmax 570°F; pmax 360 PSIG
Connection: flange DN 15 - DN 200, ANSI
www.kobold.com
50
Rotating Vane Flow Indicators
brass
Brochure: S6
Model: DKF
Water: 0.03 - 1.8 GPM ... 0.08 - 16 GPM
tmax 250°F; pmax 85 PSIG
Connection: G 1/8 - G 1 female, 1/8 - 1 NPT
Subject to change without prior notice
Overview
Flow
Rotating Vane Flow Indicators
Housing: POM, PVDF,
brass, stainless steel
Brochure: S6
Model: DIH
Rotating Vane Flow Indicators
Housing: PP, aluminum-bronze,
stainless steel
Brochure: S6
Model: DIG
Flow Indicators with Ball
Mounted in horizontal position
brass
Brochure: S6
Model: DKB
Water: 0.05 - 0.4 GPM ... 0.3 -13 GPM
tmax 212°F; pmax 580 PSIG
Connection: G 3/8, G 1; 3/8 NPT, 1 NPT female
Water: 0.13 - 3.2 GPM ... 0.8 -21 GPM
tmax 175°F; pmax 230 PSIG
Connection:
G 1/8 ... G 1, 1/8 NPT ... 1 NPT female
Water: 0.03 - 1.8 GPM ... 0.08 - 16 GPM
tmax 250°F; pmax 85 PSIG
Connection: G 1/8 - G 1 female, 1/8 - 1 NPT
Flow Indicators with Flap
Grey cast iron, cast steel,
stainless steel
Brochure: S6
Model: DAK-1
Flow Indicators with Flap
Grey cast iron, cast steel,
stainless steel
Brochure: S6
Model: DAK-2
tmax 570°F; pmax 360 PSIG
Connection: G 3/8 - G 2 female, 3/8 - 2 NPT
tmax 570°F; pmax 360 PSIG
Connection: flange DN 15 - DN 200, ANSI
Flow Indicators / Meters with Flap
Red cast iron
Brochure: S6
Model: DAZ
Water: 2.1 - 25 l/min ... 2.1 - 65 l/min
tmax 390°F; pmax 230 PSIG
Connections: G 1/2 - G 1, 1/2 - 1 NPT
Subject to change without prior notice
51
www.kobold.com
Overview
Pressure
Digital Pressure Gauges
Battery Powered
With LCD display, analog output
1 adjustable limit contact
option: analog output 0 - 2 V
Housing: PA, glass fiber strengthened
Brochure: P1
Model: MAN-SD
Digital Pressure Gauges
With LED display, analog output
2 adjustable limit contacts
option: 0(4) - 20 mA, 0 - 10 V output
housing: PA, glass fiber strengthened
Brochure: P1
Model: MAN-LD
Pressure Transducer
With analog output 4 - 20 mA,
0 - 20 mA, 0 -10 V
(option: oil filling)
housing: stainless steel
Brochure: P1
Model: MAN-ZF
Pressure ranges: -0 - 30” Hg ... 0 - 6000 PSIG
Housing diameter: 74 mm
tmax 160°F; Overload protection: x 1.5
Connection: G 1/2 male, 1/4” - 1/2” NPT, SS
Accuracy: ± 0.5 % of full scale
Pressure ranges: -0 - 30” Hg ... 0 - 6000 PSIG
Housing diameter: 74 mm
tmax 160°F; Overload protection: x 1.5
Connection: G 1/2 male, 1/4” - 1/2” NPT SS
Accuracy: ± 0.5 % of full scale
Pressure ranges: 0 - 15 PSIG ... 0 - 5000 PSIG
Housing diameter: 100 mm
tmax 140°F; Overload protection: x 1.15 to x 1.3
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy: ± 1 % of full scale
Digital Pressure Gauges
Battery Powered
With LCD display, analog output
1 adjustable limit contact
Housing: stainless steel
Brochure: P1
Model: MAN-HF
Digital Pressure Gauges
With LED display, analog output
2 adjustable limit contacts
option: 0(4) - 20 mA, 0 - 10 V output
Housing: stainless steel
Brochure: P1
Model: MAN-LF
Digital Pressure Gauges
For differential pressure
analog output
2 adjustable limit contacts
housing: stainless steel
Brochure: P1
Model: MAN-SF
Pressure ranges:
-14.7 to 0 PSIG ... 0 - 5800 PSIG
Housing diameter: 100 mm
tmax 160°F; Overload protection: x 1.5
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy: ± 0.5 % of full scale
Pressure ranges:
-14.7 to 0 PSIG ... 0 - 5800 PSIG
Housing diameter: 100 mm
tmax 160°F; Overload protection: x 1.5
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy: ± 0.5 % of full scale
Pressure ranges:
-14.7 to 0 PSIG ... 0 - 5800 PSIG
Housing diameter: 100 mm
tmax 160°F; Overload protection: x 1.5
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy: ± 0.5 % of full scale
www.kobold.com
52
Subject to change without prior notice
Overview
Pressure
Bourdon Tube Pressure Gauges
Housing: steel
Wetted Parts: brass
Brochure: P1
Model: PGE
Bourdon Tube Pressure Gauges
Housing: stainless steel
Wetted Parts: brass
Brochure: P1
Model: PGF
Diaphragm Pressure Gauges
Housing: stainless steel
Brochure: P1
Model: MAN-P
Pressure ranges:
0 - 100 PSIG ... 0 - 300 PSIG
Housing diameter: 2-1/2”, 4”
tmax 158°F;
Connection: 1/4” NPT, brass
Accuracy class: 3-2-3%
Pressure ranges:
-30” - 0” Hg ... 0 - 5000 PSIG
Housing diameter: 2-1/2”, 4”
tmax 149°F
Connection: 1/4” NPT, brass
Accuracy class: ±1.6% of full scale
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 360 PSIG
Housing diameter: 63, 100, 160 mm
tmax 140°F; Overload protection: x 1.15 to x 1.3
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy class: 1.6
Pressure Gauge with PBT Housing
Housing: polybutylene
Brochure: P1
Model: PGP
Solid Front All Stainless Steel
Bourdon Tube Pressure Gauges
Housing: stainless steel
Blow-out protection
Brochure: P1
Model: MAN-R...S
Solid Front Pressure Gauges
Housing: Phenol
Brochure: P1
Model: MAN-RH
Pressure ranges:
0 - 5000 PSIG
Housing diameter: 4”, 6”
tmax 250°F;
Connection: 1/4” - 1/2” NPT, brass
Accuracy class: ±1% of full scale
Subject to change without prior notice
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 14500 PSIG
Housing diameter: 63, 100 mm
tmax 176°F; Overload protection: x 1.15 to x 1.3
Connection:
G 1/4, G 1/2 male, 1/4” - 1/2” NPT, SS
Accuracy class: 1.0
53
Pressure ranges: 0 - 15 PSIG ... 0 - 15000 PSIG
Housing diameter: 5" (125 mm)
tmax 300°F; Overload protection: x 1.15 to x 1.3
Connection: 1/2 NPT, brass
Accuracy class: 0.5
www.kobold.com
Overview
Pressure
Membrane Diaphragm Seal
With capillary and limit switches
for differential pressure
housing: aluminium, steel
for pressure gauges with or without
contacts · Brochure: P1
Model: MAN
Bourdon Tube Test
Pressure Gauges
Housing: steel, stainless steel,
option: aluminium
Brochure: P1
Model: MAN-F
Bourdon Tube or Diaphragm
Differential Pressure Gauges
Housing: steel, stainless steel
Brochure: P1
Model: MAN-D
Pressure ranges: 0 - 8.7 PSIG ... 0 - 23000 PSIG
Housing diameter: 160 and 250 mm
tmax 140°F; Overload protection: x 1.15 to x 1.3
Connection: G 1/2 male, 1/2” NPT, brass
Accuracy class: 0.6; 0.25; 0.1
Pressure ranges: 0 - 3.6 PSIG ... 0 - 360 PSIG
Housing diameter: 100 and 160 mm
tmax 160°F; Overload protection: x 1.15 to x 1.3
Connection: G 1/2 male, 1/2” NPT, brass
Accuracy class: 1.6
Pressure ranges: 0 - 60 PSIG ... 0 - 580 PSIG
Housing diameter: 160 mm
tmax 210°F
Connection: flange, diameter 85 mm
Membrane diameter: 48 mm, stainless steel
Accuracy class: 1.6
Membrane Diaphragm Seal
With cooling element and limit switches
acc. to DIN 11851 for the food industry
housing: stainless steel
for pressure gauges with or without
contacts · Brochure: P1
Model: MAN
In-Line Diaphragm Seal
With shaped membrane
for pharmaceutical, chemical
and food industry
Housing: stainless steel
Brochure: P1
Model: DRM
Membrane Diaphragm Seal
With vibration clamping
for pulp and paper industry
housing: stainless steel
for pressure gauges with or without
contacts · Brochure: P1
Model: MAN
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 and 160 mm
tmax 300°F
Connection: Union Nut acc. to DIN 11851,
DN 25 / 32 / 40 / 50
Accuracy class: 1.6
Pressure ranges:
23 - 580 PSIG ... 36 - 580 PSIG
Housing diameter: 100 and 160 mm
tmax 176°F (1/2 h to 280°F)
Connection:
DIN 11851, SMS, clamp, sterile connection
Accuracy class: 1.6
Pressure ranges: 0 - 360 PSIG ... 0 - 580 PSIG
Housing diameter: 100 and 160 mm
tmax 210°F
Connection: flange, diameter 85 mm
Membrane diameter: 48 mm
Accuracy class: 1.6
www.kobold.com
54
Subject to change without prior notice
Overview
Pressure
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal
and Union Nut acc. to DIN 11851
Housing: stainless steel
Brochure: P1
Model: MAN-RF...DRM
All Stainless Steel Pressure Gauges
with Liquid Damping, Membrane
Diaphragm Seal and Union Nut
acc. to DIN 11851
Housing: stainless steel
Brochure: P1
Model: MAN-RF...M21...DRM
All Stainless Steel Pressure Gauges
with Capillary, Diaphragm Seal
and Union Nut acc. to DIN 11851
Housing: stainless steel
Brochure: P1
Model: MAN-RF...DRM
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 210°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 210°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 390°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal,
Capillary and Clamp Connection
Housing: stainless steel
Brochure: P1
Model: MAN-RF...DRM
All Stainless Steel Contact
Pressure Gauges with Flange
Membrane Diaphragm Seal
Housing: stainless steel
Brochure: P1
Model: MAN-RF...M1...DRM
All Stainless Steel Contact Pressure
Gauges with Membrane Diaphragm
Seal for High Temperature
Housing: stainless steel
Brochure: P1
Model: MAN-RF-26...M21...DRM
Pressure ranges: 0 - 36 PSIG ... 0 - 145 PSIG
Housing diameter: 100 mm
tmax 390°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 210°F
Connection: DN 100, SS
Accuracy class: 1.6
Pressure ranges:
0 - 1450 PSIG ... 0 - 8700 PSIG
Housing diameter: 100 mm; tmax 660°F
Connection:
18 mm with G 3/4 male, 3/4” NPT, SS
Accuracy class: 1.6
Subject to change without prior notice
55
www.kobold.com
Overview
Pressure
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal
Housing: stainless steel
Brochure: P1
Model: MAN-RD...DRM
All Stainless Steel Pressure Gauges
with Capillary, Threaded Membrane
Diaphragm Seal and Spiral
Protection Jacket
Housing: stainless steel
Brochure: P1
Model:
MAN-RD...DRM
All Stainless Steel Pressure Gauges
with Capillary and Threaded
Membrane Diaphragm Seal
Housing: stainless steel
Brochure: P1
Model: MAN-RF...DRM
Pressure ranges: 0 - 36 PSIG ... 0 - 8700 PSIG
Housing diameter: 63 mm; tmax 160°F
Connection:
G 1/2 ... G 1 1/4 , 1/2” - 1-1/4” NPT, SS
Accuracy class: 1.6
Pressure ranges: 0 - 90 PSIG ... 0 - 14500 PSIG
Housing diameter: 63 mm; tmax 390°F
Connection:
G 1/2 ... G 1 1/4, 1/2” - 1-1/4” NPT, SS
Accuracy class: 1.6
Pressure ranges: 0 - 90 PSIG ... 0 - 14500 PSIG
Housing diameter: 100 mm; tmax 390°F
Connection:
G 1/2 ... G 1 1/4, 1/2” - 1-1/2” NPT, SS
Accuracy class: 1.6
Threaded Membrane
Diaphragm Seal with
Capillary and Contacts
Housing: stainless steel
Brochure: P1
Model: MAN-RF...M...DRM
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal
PVC Ø 90 mm
Housing: stainless steel
Brochure: P1
Model: MAN-RF...DRM
Filled Contact Pressure Gauges
with Membrane Diaphragm Seal
PVDF Ø 90 mm
Housing: stainless steel
Brochure: P1
Model: MAN-RF...M...DRM
Pressure ranges: 0 - 90 PSIG ... 0 - 14500 PSIG
Housing diameter: 100 mm
tmax 390°F
Connection: G 1/2 ... G 1 1/4, SS
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 - 145 PSIG
Housing diameter: 100 mm
tmax 120°F
Connection: G 1/4 female; G 1/2 female, PVC
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 - 230 PSIG
Housing diameter: 100 mm
tmax 120°F
Connection: G 1/4 female; G 1/2 female
Accuracy class: 1.6
www.kobold.com
56
Subject to change without prior notice
Overview
Pressure
Pressure Gauges with
Membrane Diaphragm Seal
PVDF Ø 90 mm
Housing: stainless steel
Brochure: P1
Model: MAN-RD...DRM
Battery Powered Digital Manometer
with Membrane Diaphragm Seal
PVDF Ø 90 mm
Housing: PA
Brochure: P1
Model: MAN-SD...DRM
Battery Powered Digital Manometer
with Membrane Diaphragm Seal
PVC Ø 90 mm
Housing: PA
Brochure: P1
Model: MAN-SD...DRM
Pressure ranges: 0 - 23 PSIG ... 0 - 230 PSIG
Housing diameter: 63 mm
tmax 120°F
Connection: G 1/4 female ... G 1/2 female, PVDF
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 - 230 PSIG
Housing diameter: 74 mm
tmax 120°F
Connection: G 1/4 female; G 1/2 female, PVDF
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 - 145 PSIG
Housing diameter: 74 mm
tmax 120°F
Connection: G 1/4 female; G 1/2 female, PVDF
Accuracy class: 1.6
Battery Powered Digital Manometer
with Membrane Diaphragm Seal
PP Ø 90 mm
Housing: PA
Brochure: P1
Model: MAN-SD...DRM
Pressure Transmitter with
Membrane Diaphragm Seal
PVDF Ø 90 mm
Housing: stainless steel
Brochure: P1/P2
Model: SEN...DRM
Pressure Transmitter with
Membrane Diaphragm Seal
PP Ø 90 mm
Housing: stainless steel
Brochure: P1/P2
Model: SD...DRM
Pressure ranges: 0 - 23 PSIG ... 0 - 145 PSIG
Housing diameter: 74 mm
tmax 120°F
Connection: G 1/4 female ... G 1/2 female, PP
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 - 145 PSIG
tmax 120°F
Connection: G 1/4 female; G 1/2 female, PVDF
Accuracy class: 1.6
Pressure ranges: 0 - 23 PSIG ... 0 ... 145 PSIG
tmax 120°F
Connection: G 1/4 female; G 1/2 female, PP
Accuracy class: 1.6
Subject to change without prior notice
57
www.kobold.com
Overview
Pressure
Pressure Transmitter with
Threaded Membrane Diaphragm
Seal and Pug-On Display AUF
Version: stainless steel
Ceramic sensor element
Brochure: P1/P2
Model: SEN...DRM
Pressure Sensor for
Homogenized Plants
Version: stainless steel
Ceramic sensor element
Brochure: P1/P2
Model: SEN...DRM
Pressure Sensor for
Homogenized Plants with
Plug-On Display AUF
Version: stainless steel
Ceramic sensor element
Brochure: P1/P2
Model: SEN...DRM
Pressure ranges: 0 - 36 PSIG ... 0 - 8700 PSIG
tmax 160°F
Connection:
G 1/2 male ... G 1 1/4 male, SS
Accuracy class: 1.0
Pressure ranges: 0 - 5800 PSIG, 0 - 8700 PSIG
Membrane: flush front; 316 Ti SS
tmax 210°F
Connection: for Block flange
Accuracy class: 1.0
Pressure ranges: 0 - 5800 PSIG, 0 - 8700 PSIG
Membrane: flush front; 316 Ti SS
tmax 210°F
Connection: for Block flange
Accuracy class: 1.0
Digital Display Unit with
Pressure Sensor for
Homogenized Plants
Version: stainless steel
Brochure: P1/P2
Model: SEN...DRM
Digital Display Unit with
External Sensor for
Homogenized Plants
Version: stainless steel
Brochure: P1/P2
Model: SEN...DRM
Battery Driven Digital Display Unit
with Pressure Sensor 4-Digit
for Homogenized Plants
Version: stainless steel
Brochure: P1
Model: MAN-SD...DRM
Pressure ranges: 0 - 5800 PSIG, 0 - 8700 PSIG
Membrane: flush front; 316 Ti SS
Display: 4-digit, green LED display
tmax 210°F
Connection: for Block flange
Accuracy class: 1.0
Pressure ranges: 0 - 5800 PSIG, 0 - 8700 PSIG
Membrane: flush front; 316 Ti SS
Display: 4-digit, green LED display
tmax 210°F
Connection: for Block flange
Accuracy class: 1.0
Pressure ranges: 0 - 5800 PSIG, 0 - 8700 PSIG
Membrane: flush front; 316 Ti SS
tmax 210°F
Connection: for Block flange
Accuracy class: 1.0
www.kobold.com
58
Subject to change without prior notice
Overview
Pressure
Pressure Sensor with
Plug-On Display
Heavy-Duty OEM
with internal diaphragm
sensor element
thin film technology / piezoresistive
analog output for over- and
absolute pressure
Brochure: P2
Model: SEN
Pressure Sensor
Heavy-Duty
with internal diaphragm
sensor element
thin film technology / piezoresistive
analog output for overpressure
Brochure: P2
Model: SEN
Pressure Sensor
Industrial Heavy-Duty
with internal diaphragm
sensor element
thin film technology / piezoresistive
absolute or gauge ranges
4 - 20 mA output
Brochure: P2
Model: KPK
Pressure ranges:
0 - 14.5 PSIG ... 0 - 14500 PSIG
tmax 176°F; Overload protection: x 1.3 - x 2
Connection: G 1/4 male, 1/4” NPT SS
Accuracy: 1 %
Pressure ranges:
0 - 14.5 PSIG ... 0 - 14500 PSIG
tmax 176°F; Overload protection: x 1.3 - x 2
Connection: G 1/4 male, 1/4” NPT SS
Accuracy: 1 %
Pressure ranges:
0 - 30” Hg Abs ... 0 - 15000 PSIG
tmax 212°F
Connection: 1/4” NPT, SS
Accuracy: 0.25 %; 0.5%
Pressure Sensor
Industrial Heavy-Duty
with internal diaphragm
sensor element
thin film technology / piezoresistive
absolute or gauge ranges
4 -20 mA, VDC output
Brochure: P2
Model: KPG
Pressure Sensor with
Plug-On Display
Industrial Heavy-Duty for over- and
absolute pressure
with front-flush diaphragm
sensor element
thin film technology / piezoresistive
analog output
Brochure: P2
Model: SEN
Pressure Sensor
Heavy-Duty Precision
with internal diaphragm
sensor element
thin film technology / piezoresistive
submersible
4 -20 mA, VDC output
Brochure: P2
Model: KPW
Pressure ranges: 0 - 1.5 PSIG ... 0 - 8700 PSIG
tmax 176°F; Overload protection: x 2 - x 3.5
Connection: G 1/2, G 1 male, SS
Accuracy: 0.5 %; 0.25 %
Pressure ranges: 0 - 2 PSIG ... 0 - 300 PSIG
tmax 175°F;
Connection: Submersible cable
Accuracy: 0.25%; 0.12%
Pressure ranges:
0 - 30” Hg Abs ... 0 - 60000 PSIG
tmax 212°F;
Connection: 1/4”, 1/2” NPT, SS
Accuracy: 0.25 %; 0.12%
Subject to change without prior notice
59
www.kobold.com
Overview
Pressure
Pressure Sensor with
Ceramic Sensor Element
and Plug-On Display
Analog output for overpressure
housing: stainless steel
Brochure: P2
Model: SEN
Pressure Sensor with
Ceramic Sensor Element
and Plug-On Display
Analog output for overpressure
housing: stainless steel
Brochure: P2
Model: SEN
Digital Differential Pressure Gauge
with External Sensor
Housing: stainless steel
Brochure: P1
Model: MAN-BF
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 8700 PSIG
tmax 176°F
Connection: G 1/2 male,1/2” NPT, SS
Accuracy class: 0.5; 1.0
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 8700 PSIG
tmax 176°F
Connection: G 1/4 male,1/4” NPT, SS
Accuracy class: 0.5; 1.0
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 8700 PSIG
Housing diameter: 100 mm; tmax 176°F
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy class: 1.0
Digital Differential Pressure Gauge
with 2 External Sensors
Housing: stainless steel
Brochure: P1
Model: MAN-BF
Pressure Gauges for
Aggressive Media
Housing: PPH
Brochure: P1
Model: MAN
Pressure Gauges for
Aggressive Media
Analog output
Housing: PPH
Brochure: P1
Model: MAN...
Pressure ranges:
-14.5 - 0 PSIG ... 0 - 8700 PSIG
Housing diameter: 100 mm; tmax 176°F
Connection: G 1/2 male, 1/2” NPT, SS
Accuracy class: 1.0
Pressure ranges: 0 - 1 bar ... 0 - 25 bar
Housing diameter: 100 mm
tmax 140°F
Connection: G 3/4 male, PPH
Accuracy class: 1.0
Pressure ranges: 0 - 1 bar ... 0 - 25 bar
Housing diameter: 100 mm
tmax 140°F
Connection: G 3/4 male, PPH
Accuracy class: 1.0
www.kobold.com
60
Subject to change without prior notice
Overview
Pressure
Electronic Pressure Switch
Digital display, contact or
analog output
Brochure: P2 / P3
Model: PDD
Electronic Pressure Switch
2 switch outputs p-switching
brass / plastic
Brochure: P3
Model: PDL
Electronic Pressure Switch
2 switch outputs p-switching
brass / plastic
Brochure: P3
Model: PDL
Switching ranges:
-14.5 - 0 PSIG ... 0 - 5800 PSIG
tmax 210°F
Connection: G 1/2, 1/2 NPT, SS
Accuracy class: 0.5
Switching ranges:
87 - 870 PSIG ... 870 - 8700 PSIG
Switching function: N/C or N/O
tmax 176°F
Connection: G 1/2 male, 1/2” NPT, brass
Repeatability: < 1 % of full scale
Switching ranges:
1.4 - 14.5 PSIG ... 36 - 360 PSIG
Switching function: N/C or N/O
tmax 176°F
Connection: G 1/4 male, 1/2” NPT, brass
Repeatability: < 1 % of full scale
Pressure Switch
Heavy-Duty Pressure Switch
SPDT contact
Brochure: P3
Model: KRT
Pressure Switch
Heavy-Duty Pressure Switch
SPDT Contact
Brochure: P3
Model: KPS/KAS
Sandwich Plug-On Display
Option Limit Contact
Version Ex
Brochure: P1
Model: AUF
Pressure ranges:
-14.5 to 0 PSIG ... 145 - 435 PSIG
tmax 300°F;
Connection: 1/4” NPT, brass
Contact: SPDT, 380 VAC, 4A
Pressure ranges:
0 - 36 PSIG ... 87 - 870 PSIG
tmax 212°F;
Contact: SPDT, 250 VAC, 0.1 A (KAS)
SPDT, 440 VAC, 6 A (KPS)
For all transducers
with 4 - 20 mA output and
DIN 43650 plug
Subject to change without prior notice
61
www.kobold.com
Overview
Level
Magnetic Float Level Switches
For side installation
brass, stainless steel
Brochure: N1
Model: NV...
Magnetic Float Level Switches
For side installation
Polypropylene, PVDF
Brochure: N1
Model: NKP
Dual Magnet Float Level Switch
For side installation
housing resistant to sea water
approved by Germanic Lloyd, Cenelec
aluminium-bronze, stainless steel
Brochure: N1
Model: NGS-01
GL
Density: ≥ 0.8 g/cc
tmax 230°F; pmax 230 PSIG
Connection: 3/4“ NPT
Density: ≥ 0.6 g/cc
tmax 175°F (PP), 212°F (PVDF); pmax 145 PSIG
Connection: 1/2” NPT, Bulkhead
Density: ≥ 0.7 g/cc
tmax 480°F; pmax 360 PSIG
Connection: four edged flange
Magnetic Float Level Switches
For side installation
brass, stainless steel, PVC, PP, Buna-N
Brochure: N1
Model: NC
Magnetic Float Level Switches
Brass, Stainless steel, Buna-N, PP, PVC
Brochure: N1
Model: NCB/NCP
Bypass Magnetic
Float Level Switches
Aluminium, stainless steel
Brochure: N1
Model: NB..-100
SP Gravity:≥ 0.50/0.80
tmax 300°F; pmax 275 PSIG
Connection: 1/8” NPT
SP Gravity: ≥ 0.50/0.80
tmax 140°F/300°F
pmax 100 PSIG/400 PSIG
Connection: 1/8” - 1/4” NPT
www.kobold.com
62
Density: ≥ 0.7 g/cm3
tmax 300°F; pmax 145 PSIG
Connection: G 3/8 female, 3/8 NPT female
Subject to change without prior notice
Overview
Level
Float Level Switches
Micro-switch (SPDT)
Polypropylene
Brochure: N1
Model: NSM
Float Level Switches
Mechanical Switch
(N/O contact/SPDT contact)
Polypropylene, PVC
Brochure: N1
Model: NAE
Float Level Switches
Mercury contact (SPDT)
for hot, extremely aggressive liquids
teflon
Brochure: N1
Model: NST
Density: ≥ 0.6 g/oc
tmax 140°F; pmax 30 PSIG
Connection: cable
Density: ≥ 1.4 g/cc (max)
tmax 200°F; pmax 80 PSIG
Connection: cable
Density: ≥ 0.85 g/cc
tmax 320°F; pmax 15 PSIG
Connection: cable
Float Level Switches
Mercury contact
(N/C or N/O contact)
Polyethylene
Brochure: N1
Model: NSP
Float Level Switches
Micro-switch Polypropylene, PVC
Brochure: N1
Model: NNE
Float Level Switches
Micro-switch (SPDT)
for hot, aggressive, pasty liquids
stainless steel
Brochure: N1
Model: NSE
Density: ≥ 0.8 g/cc
tmax 140°F; pmax 30 PSIG
Connection: cable
Density: ≥ 0.7 g/cc (max)
tmax 200°F; pmax 80 PSIG
Connection: cable
Density: ≥ 0.8 g/cc
tmax 320°F; pmax 218 PSIG
Connection: cable
Subject to change without prior notice
63
www.kobold.com
Overview
Level
Conductive Level Switches
For conductive liquids
Rod electrodes
stainless steel, Hastelloy, Titanium,
Polyolefine, Polypropylene, PTFE,
Neoprene, PVC
Brochure: N1
Model: NES...
Conductive Level Switches
For conductive liquids
suspended electrodes
stainless steel, Hastelloy, Titanium,
Polypropylene, PTFE, Neoprene, PVC
Brochure: N1
Model: NEH...
Conductive Level Switches
for Containers Storing
Water-Contaminating Liquids
For conductive liquids
stainless steel, Hastelloy, Titanium,
Polypropylene, PTFE
Brochure: N1
Model: NEW...
Conductivity: ≥ 20 µS
tmax 300°F; pmax 440 PSIG
Connection: 1/2”, 1 1/2” NPT
Conductivity: ≥ 20 cµS
tmax 300°F; pmax 90 PSIG
Connection: 1/2”, 1 1/2” NPT
Conductivity: ≥ 20 µS
tmax 140°F; unpressurized
Connection: 1, 1 1/2” NPT
Electrode Relays 1 Channel
Monitoring and control of
conductive liquids in connection
with level detectors NES/NEH
Brochure: N1
Model: NE-104
Electrode Relays 2 Channel
Monitoring and control of
conductive liquids in connection
with level detectors NES/NEH
Brochure: N1
Model: NE-304
Electrode Relays acc. to
Water Resources Act
Over-fill protection in connection with
level detectors NEW for stationary
containers storing inflammable,
water-contaminating liquids
Brochure: N1
Model: NE-204 acc. to
§ 19 Water Resources Act
Relay 250 V AC / 5A / 600 VA for
1 limit signal or
1 min/max controller
2 relays 250 V AC / 5A / 600 VA for
2 limit signals or
2 min/max controller
Relay 250 V AC / 5A / 600 VA for
1 limit signal or
1 min/max controller
www.kobold.com
64
Subject to change without prior notice
Overview
Level
DESIGN
T
N
IC
EQUIPM
E
G
G
G
DESIGN
T
N
E
EA
N
DESIGN
N
Conductive Level Switches
With integrated electronics,
for all conductive liquids
PP, PPS (Rhyton)
Brochure: N1
Model: NEK
O
HYG
IE
N
T
IE
Head Mounted Relay for
Conductive Level Probes
Brochure: L1
Model: LNR
P
IC
N
HYG
Rod length: 200 - 1000 mm
Conductivity: ≥ 10 µS/cm
tmax 300°F; pmax 90 PSIG
Connection: G1/2, food connection
Output: max 50 mA
EQUIPM
E
3
konform
65
N
3
Rod length: 200 - 1000 mm
Conductivity: ≥ 10 µS/cm
tmax 300°F; pmax 90 PSIG
Connection: G1/2, food connection
Output: max. 50 mA
Sensitivity: 0.1/1/10/100 k ohms
tmax 180°F
Output: 14 V DC, max. 50 mA
O
konform
®
Subject to change without prior notice
EUR
EA
Conductive Level Switches
With integrated electronics
stainless steel, PEEK,
Halar-coating (E-CTFE)
Brochure: L1
Model: LNK
Rod length: 200 - 1000 mm
Conductivity: ≥ 10 µS/cm
tmax 300°F; pmax 90 PSIG
Connection: G1, food connection
Output: max. 50 mA
P
®
3
D
OU
D
konform
Rod length: 4 mm
(also available in other lengths)
Conductivity: ≥ 10 µS/cm
tmax 300°F; pmax 90 PSIG
Connection: G1/2, food connection
Output: max. 50 mA
EUR
N
N
3
P
R
®
konform
OU
IE
IE
D
®
R
O
P
DESIGN
EUR
HYG
HYG
T
P
N
N
N
OU
EA
EA
D
R
P
G
O
EQUIPM
EUR
IC
P
E
OU
P
R
Conductive Level Switches
With integrated electronics
stainless steel, hastelloy, titanium,
Halar-coating (E-CTFE)
Brochure: L1
Model: LNK
EQUIPM
Conductive Level Switches
With integrated electronics
stainless steel, PEEK
Brochure: L1
Model: LNK
IC
Conductive Level Switches
With integrated electronics
stainless steel, PEEK
Brochure: L1
Model: LNK
Conductivity: ≥ 32 µS/cm
tmax 185°F; pmax 290 psi
Connection: 3/4" NPT
Output: open collector or relay
www.kobold.com
Overview
Level
RF-Level Switches
For all types of liquids
independent of viscosity and
degree of dirt
fully isolated with PTFE or partially
isolated with stainless steel
Brochure: N1
Model: NHF
Vibration Level Switches
Based on the tuning fork principle
stainless steel
Brochure: N1
Model: NWS
tmax 180°F; pmax 145 PSIG
Connection: 1”, 1 1/2” NPT
Viscosity: max. 5000 cSt
tmax 270°F; pmax 725 PSIG
Connection: 3/4” - 1” NPT male
Viscosity: max. 5000 cSt
tmax 270°F; pmax 725 PSIG
Connection: 3/4” - 1” NPT male
Optical Electronic Level Switches
For transparent liquids
Polypropylene, stainless steel,
polysulfone
Brochure: N1
Model: OPT
Microwave Level Switch
Also by froth and build-ups
output: active, max. 50 mA
stainless steel, PEEK
Brochure: L1
Model: LNM
Static Pressure Level Switches
For liquids in non-pressurized vessels
Polyamide, Buna-N
Brochure: N1
Model: NDT
R
OU
P
EUR
O
P
G
Vibration Level Switches
Based on the tuning fork principle
stainless steel
Brochure: N1
Model: NWS
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
tmax 185°F; pmax 145 PSIG
Connection: 1/2” NPT, bulkhead
www.kobold.com
tmax 300°F, pmax 145 PSIG
Connection: G1/2, food connection
66
tmax 185°F
Connection: 1-1/2 hose clamp
Subject to change without prior notice
Overview
Level
Vibration Level Switches
Based on the tuning fork principle
for fine grained bulk goods
universal installation
steel
Brochure: N1
Typ: NTM
tmax 300°F; pmax 230 PSIG
Connection: R1 1/2 male
Diaphragm Level Switches
For solids
Neoprene, Viton, steel, stainless steel
Brochure: N1
Model: NMF
Density: 26 - 260lbs/ft3
Grain Size: < 30 mm, 1.2”
tmax 175°F
Connection: flange
Subject to change without prior notice
Vibration Level Switches
For powder, granular
relay output
Probe material: stainless steel
Brochure: N1
Model: NVI
Probe length: 235 mm
tmax 230°F, pmax 90 PSIG
Connection: G1-1/2
Capacitance Level Switches
For solids < 30 mm grain size
Probe material: PPS
Brochure: N1
Model: NTS
tmax 250°F; pmax 360 PSIG
Connection: R1
Microwellen-Niveauwächter
Rotary Level
Monitors
auch bei Schaum- und
For solids
housing:Kondensatbildung
plastic
EHEDGk-konform
Brochure:
N1
Edelstahl, PEEK
Model: ND-R
Broschüre: L1
Typ: LNM-N
Rotary Level Monitors
For solids
plastic, stainless steel, aluminium
Brochure: N1
Model: ND-D
Tmax 150°C; Pmax 10 bar
Anschluss:
G 1/2, Lebensmittelmuffe
pmax 15 PSIG
tmax 175°F;
Adapter:
1 1/2 und G 1/ ISO 228
Connection:
R1-1/4Rmale
Density: 2500 g/cc3
tmax 660°F
Connection: flange
67
www.kobold.com
Overview
Level
Float Type Level Transducer
Resistance / reed contact chain
stainless steel, PVC, PP, PTFE
Brochure: N2
Model: NM
Float Type Level Transducer
Resistance / reed contact chain
stainless steel, PVC, PP, PTFE
Brochure: N2
Model: NM and ADI
Max. tube length: 19.7 ft
Density: ≥ 0.6 g/cc
tmax 350°F; pmax 290 psi
Connection: 3/8” - 2” NPT, 2” - 4” ANSI
Contact resolution: 10 mm
Max. tube length: 19.7 ft
Density: ≥ 0.6 g/cc
tmax 350°F; pmax 290 psi
Connection: 1/2” - 2” NPT, 2” - 4” ANSI
Contact resolution: 10 mm
Capacitance Level Transmitter
Heavy Duty Design
4- 20 mA output
Brochure: N2
Model: NRF
Capacitance Level & Temperature
Transmitter
Convenient dual-rod design for
non-metal tanks
4 - 20 mA output
Brochure: N2
Model: NRF-2
Universal Displays
Digital-, bargraph display or
combined display
Input: current, voltage, frequency
Brochure: S4
Model: ADI
Measuring length: 20’ (200’ flexible)
tmax 350°F; pmax 500 PSIG
Connection: 3/4” - 1-1/2” NPT, Tri-Clamp
Accuracy: ± 1% of span
Option: built-in temperature transmitter
Measuring length: 20’ (200’ flexible)
tmax 350°F; pmax 500 PSIG
Connection: 3/4” - 1-1/2” NPT, Tri-Clamp
Accuracy: ± 1% of span
Option: built-in temperature transmitter
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Switch-panel mount: 96 x 96 mm
or field housing
Option: sensor power supply, contacts,
analog output
www.kobold.com
68
Magnetostrictive Level Meters
for Liquids
Echo time measurement, stainless steel
output: 4 -20 mA
Brochure: N2
Model: NMT
Measuring length: 300 - 2500 mm
tmax 176°F; pmax 145 PSIG
Connection: G2 male
Accuracy: ± 1 mm
Subject to change without prior notice
Overview
Level
Bypass Level Indicators
Local indicator
stainless steel
Brochure: N2
Model: NBK...
Bypass Level Indicators /
Meters / Monitors
Local indicator with limit contacts,
resistance- / reed contact chain
Brochure: N2
Model: NBK...
Bypass Level Indicators /
Meters / Monitors
Local indicator at tanks
limit contacts
magnetostrictive transmitter
stainless steel
Brochure: N2
Model: NBK
Viscosity: 500 cPs (max)
Density: > 0.55 g/cc
tmax 750°F; pmax 4600 PSIG
Connection: 1/2” - 1-1/2” NPT, 1/2” - 2” ANSI
Contact Resolution: 10 mm
Viscosity: 500 cPs (max)
Density: > 0.55 g/cc
tmax 750°F; pmax 4600 PSIG
Connection: 1/2” - 1-1/2” NPT, 1/2” - 2” ANSI
Transmitter Accuracy: 1 mm
Plastic Bypass Level Indicators
Magnetostrictive Transmitter
Local indication at tanks
limit contacts
PVC, PP, PVDF
Brochure: N2
Model: NBK
Mini-Bypass Level Meters
Magnetostrictive Transmitter
Local indication for small tanks
Brochure: N2
Model: NBK
GL
Viscosity: 500 cPs (max)
Density: > 0.55 g/cc
tmax 750°F; pmax 4600 PSIG
Connection: 1/2” - 1-1/2” NPT, 1/2” - 2” ANSI
Bypass Level Indicators
for Overhead Installation
Magnetostrictive Transmitter
Local indication of underground tanks
limit contacts
stainless steel
Brochure: N2
Model: NBK
Viscosity: 500 cPs (max)
Density: ≥ 0.55 g/cc
tmax 250°F; pmax 230 PSIG
Connection: flange
Transmitter Accuracy: 1 mm
Subject to change without prior notice
Viscosity: max 5000 cPs (max)
Density: ≥ 0.6 g/cc
tmax 140°F; pmax 90 PSIG
Transmitter Accuracy: 1 mm
69
Viscosity: 200 cPs (max)
Density: ≥ 0.8 g/cc
tmax 250°F; pmax 230 PSIG
Connection: 1/2’ NPT
Transmitter Accuracy: 1 mm
www.kobold.com
Overview
Level
Limit Contacts for
Bypass Level Indicators
Bistable SPDT contact
Polycarbonate
Brochure: N2
Model: NBK-R
Limit Contacts for
Bypass Level Indicators
Bistable SPDT contact
aluminium
Brochure: N2
Model: NBK-RT
Limit Contacts Ex for
Bypass Level Indicators
Bistable changeover contact Ex-d-llc-T6
Polycarbonate
Brochure: N2
Model: NBK-REx
tmax 160°F
Switch capacity: 40 W / VA, 230 V / 0.8 A
Electr. connection: 3 m PVC cable
tmax 750°F
Switch capacity: 40 W / VA, 230 V / 0.8 A
Electr. connection: terminal strip
tmax 160°F
Switch capacity: 20 W / 45 VA, 220 V / 0.8A
Electr. connection; 3 m PVC cable
Ultrasonic Level Switches
For liquids
viscosity independent
stainless steel
Brochure: N1
Model: NQ
Ultrasonic Level Switches
without Media Contact
For liquids
for pipes made of plastic, metal, glass
switching output
Brochure: N1
Model: NDW
Ultrasonic Level Meters
Compact system for measurement
in liquids and slurries
analog output
Brochure: N2
Model: NUS
For pipes: 8 - 55 mm O.D.
tmax 275°F
Power: 24 VDC
Connection: “C” clamp
Measuring ranges: 16 ft. max (1-1/2”)
26 ft. max (2”)
Connection: 1-1/2, 2” NPT or adapter flanges
Output: 4 ... 20 mA
tmax 300°F
pmax 1000 PSIG
Connection: 1” NPT
www.kobold.com
70
Subject to change without prior notice
Overview
Level
Level Measurement
with Hydrostatic Pressure
For side installation at tanks
Capacitive cells in stainless steel sensor
with contact or analog output
Brochure: N1
Model: NDD
Diaphragm Meter for
Level Measuring
For tanks in chemical industry,
food industry
stainless steel
Brochure: N2
Model: NPF
Min. conductivity: ≥1 µS/cm
variable rod lengths
tmax 250°F, pmax 145 PSIG
Connection: G1/2, food connection
Accuracy: ≤1 %
Measuring ranges: 33 ft.
Tmax: 176°F
Connection: 1/2”, 3/4” NPT
Output: 4 - 20 mA
Accuracy: +/- 0.5 %
Measuring ranges:
0 - 16” water; 0 to 236” water
tmax: 176°F
Connection: G1/2
Accuracy class: +/- 2%
Deep-Well-Probe
Level measurement in wells,
water reserves or deep reservoirs
sensor 28 mm Ø from stainless steel
cable polyurethane
Brochure: N2
Model: NTB
Capacitive Level Measurement
Hydrostatic Principle
Front flush ceramic membrane
output: 4 ... 20 mA
stainless steel, ceramic AI2O3
Brochure: L1
Model: LPC
Multi-Function Controller
Analog or frequency input
Batch, total or rate capable
16-point linearization
Brochure: L1
Model: SRT
R
OU
P
EUR
O
P
G
Conductive Level Probe
Potentiometric measuring principle
for viscous and very sticky media
output: 4 ... 20 mA
stainless steel, PEEK
Brochure: L1
Model: LNP
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
O
IC
DESIGN
N
N
T
D
IE
EQUIPM
E
71
EUR
HYG
Subject to change without prior notice
P
N
Max. cable length: 650 ft.
Output: 4 - 20 mA two wire
Measuring range: 325 ft.
tmax 212°F
Connection: G1, food connection
Accuracy: ≤ 0.1% of F. S.
OU
EA
3
konform
R
P
G
®
Three user-definable control inputs
tmax 120°F; Power: 12, 24 VDC; 110, 220 VAC
Analog or pulse output; Display LCD: 2 line
Input: analog or frequency
Standard RS-232 port
Contacts: 2 to 4 SPDT
www.kobold.com
Overview
Temperature
Electronic Temperature Switches
With LED chain, programmable
contact or analog output
stainless steel
Brochure: T1
Model: TDD-2
Electronic Temperature Switches
With LED display, programmable
contact or analog output
stainless steel
Brochure: T1
Model: TDD-1
Measuring and switching ranges:
-9 to 65°F ... 185 to 250°F
tmax 250°F; pmax 1160 PSIG
Connection:
G 1/2, G 3/4, 1/2 NPT, 3/4 NPT male
Measuring and switching ranges:
-4 to 250°F, programmable
tmax 250°F; pmax 1160 PSIG
Connection:
G 1/2, G 3/4, 1/2 NPT, 3/4 NPT male
Bimetal Temperature
Controllers / Monitors
With fixed switching point
brass, stainless steel
Brochure: T1
Model: TWR
Thermal Reed Switches
For temperature monitoring
and fixed switch point
brass, stainless steel
Brochure: T1
Model: TRS
Machine Thermometers
Acc. to DIN 16181-16195
with thermometer liquid or mercury filling
Brochure: T2
Model: TGL
Switching ranges:
+30 to +120°C (86 to 250°F)
Graduation: in 5°C /10°C increments
tmax 300° F; pmax 930 PSIG
Connection: G 3/4 male, 3/4 NPT
Switching ranges: +10 to +120°C (50 to 250°F)
Graduation: in 10°C increments
tmax 250°F; pmax 360 PSIG
Connection:
G 1/4 - G 1 female, 1/4 - 1 NPT female
Measuring ranges: -76 to 100°F ... 32 to 1100°F
Housing length: 110, 150 or 200 mm
Connection: G 1/2 or 1/2 NPT male
Immersion tube: brass, steel
Accuracy class: 1
www.kobold.com
72
Electronic Temperature Switches
Remote Version
With LED display, programmable
contact or analog output
stainless steel
Brochure: T1
Model: TDD-1
Measuring and switching ranges:
-58 to 250°F, programmable
Subject to change without prior notice
Overview
Temperature
Bimetal Thermometers
For heating, air conditioning,
ventilation, industry
Brochure: T2
Model: TBI
Measuring ranges: -20 to 120°F ... 32 to 900°F
Housing diameter: 63, 80 and 100 mm
pmax 360 PSIG
Connection:
G 1/2, air flange, welding thermowells
Accuracy class: 1 and 2
Safety Thermometers with Contacts
With N2-gas filling
shaft or capillary thermometer
inductive, magnetic spring contacts
steel, stainless steel
Brochure: T2
Modelp: TNS, TNF
Measuring ranges: 0 to 100°F ... 32 to 1100°F
Housing diameter: 100 and 160 mm
tmax 600°C; pmax 360 PSIG
Connection: G 1/2 - G 1, 1/2 - 1 NPT, Tri Clamp
Accuracy class: 1
Subject to change without prior notice
Shaft Thermometers
With N2-gas filling
acc. to DIN 16205
steel, aluminium, stainless steel
Brochure: T2
Model: TNS
Capillary Thermometers
With N2-gas filling
acc. to DIN 16206
steel, aluminium, stainless steel
Brochure: T2
Model: TNF
Measuring ranges: 0 to 100°F ... 32 to 1100°F
Housing diameter: 63, 80, 100 and 160 mm
pmax 360 PSIG
Connection: G 1/2 - G 1, 1/2 - 1 NPT, Tri Clamp
Accuracy class: 1
Measuring ranges: 0 to 100°F ... 32 to 1100°F
Housing diameter: 63, 80, 100 and 160 mm
pmax 360 PSIG
Connection: G 1/2 - G 1, 1/2 - 1 NPT, Tri Clamp
Accuracy class: 1
Shaft Thermometers for
Diesel Motors
Shock proof
with oil filling
Brochure: T2
Model: TND
Thermowells
Stainless steel
Brochure: T2
Model: TSH
Measuring ranges: 32 - 1100°F ... 32 to 1500°F
Housing diameter: 63, 80 and 100 mm
pmax 360 PSIG
Connection:
G 1/2, G 3/4 male, 1/2 NPT, 3/4 NPT
Accuracy class: 1 and 1.6
73
pmax 360 PSIG
Connection:
G 1/2 female / male, 1/2” NPT welding nipple
www.kobold.com
Overview
Temperature
Sheath Resistance Thermometers
Stainless steel
Brochure: T2
Model: TWM
Contact Resistance Thermometers
Aluminium, stainless steel
Brochure: T2
Model: TWA
Measuring ranges: -50 to 1100°F
Mech. connection:
G 1/8 - G 1/2, 1/8 - 1/2 NPT, bayonet
Electr. connection:
cable, plug, connection head
Accuracy class: B, option: A
Measuring ranges:
-50 to 350°F... -50 to 500°F
PTFE, Captone or Silicone tube
Accuracy class: B
Measuring ranges: -50 to 1100°F
pmax 25 bar (40 bar), 360 PSIG (580 PSIG)
Connection: G 1/2 - G 1 male,
1/2 - 1 NPT male, clamp flange
Accuracy class: A or B
Insertion Resistance Thermometers
with Bayonet Lock
Stainless steel
Brochure: T2
Model: TWE 5...
Pipe Temperature Sensor for
Reliable Dead-Zone-Free
Temperature Measurement
Brochure: T2
Model: TWP
Measuring ranges: 32 to 750°F (NiCr-Ni)
-50 to 660°F (Pt 100)
Electr. connection: cable
Measuring ranges: 0 - 390°F
CIP/SIP compliance
Connections: hygienic connection,
Clamp, others on request
Sheath Thermocouple
Brass, stainless steel
Brochure: T2
Model: TTM
Measuring ranges: -325 to 2100°F
Ni-CrNi or FeCu-Ni
Mech. Connection:
G 1/8 - G 1/2, 1/8 - 1/2 NPT, bayonet
Electr. connection:
cable, plug, connection head
Accuracy class: 2
www.kobold.com
74
Resistance Temperature Probes
With installation fitting acc. to DIN
steel, stainless steel
transducer
Brochure: T2
Model: TWD
Subject to change without prior notice
Overview
Temperature
R
OU
P
EUR
Resistance Temperature Probes
acc. to DIN
With installation fitting
stainless steel
transducer
Brochure: T2
Model: TWD
Thermowell Temperature Probes
With installation fitting acc. to DIN,
steel, stainless steel, ceramic
transducer
Brochure: T2
Model: TTD
O
P
G
Resistance Temperature Probes
With integrated electronics
stainless steel · output: Pt100, 4 ... 20 mA
transducer
Brochure: L1
Model: LTS
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
Measuring ranges: -58 to 480°F
Insertion lengths: 50, 150, 250 mm
pmax 145 PSIG
Connection: G 1/2, food connection
Accuracy class: A
Measuring ranges: --76 to 1020°F (weld-on)
-328 to 750°F (flange)
Accuracy class: A or B
Resistance Temperature Probes
With laser-trimmed electronic sensor
or Pt100-sensor
for liquids and gases
brass, stainless steel
Brochure: T2
Model: TSA
Screw-In Resistance Thermometers
with Integrated Transducer
With sandwich plug-on display
and changeable armature
Brochure: T2
Model: TMA
with AUF
Measuring ranges: -40 to 300°F
tmax 350°F; pmax 360 PSIG
Connection:
G 1/4 - G 1 female, 1/4 - 1 NPT female
Accuracy class: ± 2.5% of full scale
Measuring ranges: -58 to 300°F ... 32 to 1100°F
pmax 520 PSIG
Connection: Probe: G 1/2 or 1/2 NPT male
Ball valve: G 1/2 - G 2 female
Subject to change without prior notice
75
Measuring ranges: -328 to 2100°F (Ni-CrNi)
-328 to 1380°F (FeCu-Ni)
32 to 2370°F (Pt10 Rh-Pt)
pmax 360 PSIG (580 PSIG))
Connection: G 1/2 - G 1 male, 1/2 - 1 NPT male,
clamp flange
Accuracy class: 2
Temperature Transducer for
Head or Rail Mounting
Pt100, Ni-CrNi, Fe-CuNi,
NiCrSi-NiSi, Cu-CuNi
Brochure: T2
Model: TUM
Measuring ranges:
-58 to 300°F ... 32 to 750°F (Pt100)
32 to 1100°F ... 32 to 2100°F (thermoelements)
Output: 4 - 20 mA
Supply: 6.5 ... 32 VDC
www.kobold.com
Overview
Temperature
Digital Thermometers
Microprocessor controlled
sensor: Pt100 · analog output, RS 232
2 (4) limit contacts, adjustable
measuring range scalable · stainless steel
Brochure: T2
Model: DTM
Measuring ranges: 32 to 140°F ... 32 to 750°F
Housing diameter: 100 mm
pmax 360 PSIG (from 390°F external sensor)
Connection: G 1/2, G 3/4, G 1,
1/2 NPT, 3/4 NPT, 1 NPT
Accuracy class: 0.5
Stationary Infrared Thermometers
Emissivity adjustable,
simple usage
output: 4 - 20 mA or
thermal voltage type J, K, 10 mV /°C
Brochure: T2
Model: TIR-S
Measuring ranges:
-4 to 570°F ... 2000 to 4500°F
Housing diameter: 25 mm / Pg 11
Accuracy class: ± 1.5 % of full scale
www.kobold.com
Digital Thermometers with
Union Nut
Microprocessor controlled
sensor: Pt100 · analog output, RS 232
2 (4) limit contacts, adjustable
measuring range scalable · stainless steel
Brochure: T2
Model: DTM
Resistance / Thermocouple
Hand Thermometers
1 or 2 measuring channels
differential temperature measurement,
analog output, Interface,
Min/Max memory, hold function
surface and immersion measurement
with just one probe
Brochure: T2
Model: TD 1300
Measuring ranges: 32 to 140°F ... 32 to 320°F
Housing diameter: 100 mm
Connection: Union Nut acc. to DIN 11851
Accuracy class: 1.0
Measuring ranges: 200°C to +1300°C
(-320 to 2370°F)
Accuracy: ± 0.2°C ±1 Digit;
from 400°C ± 0.2 % of measured value ±1 Digit
Infrared Hand Thermometers
Emissivity adjustable
laser pointer
small dimensions
Brochure: T2
Model: TIR-HA
Infrared Hand Thermometers
Emissivity adjustable,
simple usage
analog output, RS 232,
data memory, laser pointer
Brochure: T2
Model: TIR-HN
Measuring ranges: -30 to 300°C (-22 to 570°F)
Measuring accuracy: ± 1 ... 3°C
76
Measuring ranges: -30 to 900°C
(-22 TO 1650°F)
Accuracy class: ± 2 % of measured value and
1 % of measured value
Subject to change without prior notice
Overview
Analysis: pH, Redox
pH-Combination Electrodes
Compact-Line
Brochure: A1
Model: APS-Z
ORP-Combination Electrodes
Compact-Line
Brochure: A1
Model: ARS-Z
Measuring range: pH 0 ... 12
tmax 176°F; pmax 145 PSIG
KCI-Gel filling
Salt reservoir for longer life times
Diaphragm: Teflon-ring or ceramic
Integrated Pt 100 possible
Active part made of Platinum or Gold
tmax 194°F; pmax 145 PSIG
KCI-Gel filling
Salt reservoir for longer life times
Diaphragm: Teflon-ring or ceramic
pH-Combination Electrodes
Expert-Line
Brochure: A1
Model: APS-X
ORP-Combination Electrodes
Expert-Line
Brochure: A1
Model: ARS-X
Measuring range: pH 0 ... 12
tmax 176°F; pmax 145 PSIG
KCI-Gel filling or KCI-Fluid filling
Diaphragm: Teflon-ring or ceramic
Glass electrode also in plastic coating
Also useable by low conductivities
Integrated Pt 100 possible
Active part made of Platinum or Gold
tmax 265°F; pmax 90 PSIG
KCI-Gel filling
Diaphragm: Teflon-ring
Glass electrode also in plastic coating
Panel Mounted Housing
Field Housing
Transmitter for pH-Value
and Redox-Potential (ORP)
Compact-Line
Brochure: A1
Model: APM-Z, ARM-Z
Indication of pH or mV (Redox) and Temperature
2 binary inputs
Analog process value output
2 relay as controller freely selectable
1 binary output
Panel Mounted Housing
Field Housing
Transmitter for pH-Value
and Redox-Potential (ORP)
Expert-Line
Brochure: A1
Model: APM-X
Huge, easy-to-see display (clear text display)
Indication of pH or mV (Redox) and Temperature
Analog process value output
Alarm-relay · 2 additional relays useable as
limit contacts or P(ID)-controller
Subject to change without prior notice
77
www.kobold.com
Overview
Analysis: Conductivity
Conductivity Measuring Cells
(Conductive)
Compact-Line
Brochure: A1
Model: ACS-Z
Conductivity Measuring System
(Inductive)
Compact-Line
Brochure: A1
Model: ACI-Z
Measuring range: 0 - 200 mS/cm
Indication of Conductivity and Temperature
2 binary inputs · Analog process value output
2 relays as controller free programmable
1 binary output
Measuring range: 0.05 µS/cm ... 100 mS/cm
tmax 275°F; pmax 230 PSIG
Connection: G 3/4 male
Cell constants: K=0.01; K=0.1; K=1.0 1/cm
Pt 100 integrated · 2-electrodes measuring cells
Measuring range: up to 1000 mS/cm
tmax 280°F; pmax 145 PSIG
Isolated, hermetically sealed transmitter
made of PVDF
Pt 100 integrated · 2 analog outputs for
conductivity and temperature
Transmitter for Conductivity
and Impedance
Expert-Line
Brochure: A1
Model: ACM-X
Conductivity Measuring Cells
(Conductive)
Expert-Line
Brochure: A1
Model: ACS-X
Conductivity Measuring Cells
(Inductive)
Expert-Line
Brochure: A1
Model: ACS-X0I
Measuring range: 0.04 µS/cm ... 20 mS/cm
tmax 250°F; pmax 90 PSIG
Connection: 1/2 NPT or G 1
Cell constants: K=0.01; K=0.1; K=1.0 1/cm
2-electrodes measuring cells
Integrated Pt 100 possible
Measuring range: 5 µS/cm ... 2000 mS/cm
tmax 250°F; pmax 90 PSIG
Connection: G 3/4 male, 1 NPT male
Chemically high resistant
PEEK-coated, isolated hermetically sealed
Integrated Pt 100
Less sensitive to dirt
Panel Mounted Housing
Field Housing
Panel Mounted Housing
Field Housing
Transmitter for Conductivity
Compact-Line
Brochure: A1
Model: ACM-Z
Large, easy-to-see display (clear text display)
Indication of Conductivity or Impedance and
Temperature · Analog process value output
Alarm-relay · 2 additional relays useable as
limit contacts or P(ID)-controller
www.kobold.com
78
Subject to change without prior notice
Overview
Analysis: Conductivity
pH- and ORP
Calibration Solutions
Brochure: A1
Model: AZP
Conductivity Calibration Solutions
Brochure: A1
Model: AZC
Measuring range: 0 ... 500 mS/cm
Resolution: 10 µS/cm
Repeatability: 1% of F. S.
tmax 300°F
Connection: G 1, Union Nut
2 analog outputs: 4 - 20 mA
Measured value display
Buffer solutions for calibration
of pH-combined electrodes
Solutions of different pH-values
Solutions of different conductivities
for calibrating the
conductivity measuring cells
Immersion Assemblies for pHand ORP Combination Electrodes
Brochure: A1
Model: AZA
Flow Assemblies for pH- and
ORP Combination Electrodes
Brochure: A1
Model: AZA
Changeable Armature for pHand ORP Combination Electrodes
Brochure: A1
Model: AZA
For 1 glass electrode Pg 13.5
For 3 glass electrodes Pg 13.5
For 1 electrode 3/4" NPT
Immersion lengths: 500, 1000, 1630 mm
Material: PP, PVC
For 3 glass electrodes Pg 13.5
tmax 194°F; pmax 90 PSIG
Material: PP and Macrolone
Connection: G 1 and G 1/2 male
For 1 glass electrodes Pg 13.5
tmax 275°F; pmax 145 PSIG
Material: SS 316 Ti SS
Connection: G 3/4 male
R
OU
P
EUR
O
P
G
Inductive Conductivity Measuring
System with Temperature Sensor
Dirt insensitive, robust
temperature compensated
stainless steel, PEEK
Brochure: L1
Model: LAL
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
Subject to change without prior notice
79
www.kobold.com
Overview
Analysis: Humidity
Humidity-, Humidity / Temperature
Sensor, Hygrometric Measurement
Resistive output or
current output: 4 ... 20 mA
Brochure: A2
Model: AFH-G
Humidity-, Humidity / Temperature
Sensor, Capacitive Measurement
Canal Measurement
Current outputs: 4 ... 20 mA
Brochure: A2
Model: AFK-G
Humidity-, Humidity / Temperature
Sensor for Applications by High
Pressure or Higher Temperatures
Capacitive Measurement
Current outputs: 4 ... 20 mA
Brochure: A2
Model: AFK-G
Measuring ranges: 30 - 100 % rH
-22 ... 176°F
tmax 176°F; pmax pressureless
Accuracies:
• Humidity: > 40 % rH ± 2 .5 % rH
• Temperature: ± 0.5°C
Active or passive sensor
Measuring ranges: 0 - 100 % rH
-4 ... 250°F
tmax 250°F; pmax 145 PSIG
Accuracies:
• Humidity (MB 5 ... 95 % rH): ± 2 % rH
• Temperature: ± 0.5°C
Operating voltage: 12 ... 30 V DC
Measuring ranges: 0 - 100 % rH
-76 ... 390°F
tmax 390°F; pmax 360 PSIG
Accuracies:
• Humidity: (MB 5 ... 95 % rH): ± 2 % rH
• Temperature: ± 0.5°C
Operating voltage: 12 ... 30 V DC
Humidity Sensor with Display
Capacitive Measurement
Current outputs: 4 ... 20 mA
Brochure: A2
Model: AFA-G
Humidity / Temperature Measuring
System for Industrial Applications
Analog outputs for
humidity and temperature
high pressure version
Brochure: A2
Model: AFK-E
Canal-Hygrostat, Room Hygrostat,
Humidity Additional Switch
1 changeover contact each
Brochure: A2
Model: AFS-G
Measuring range: 0 - 100 % rH
tmax 140°F; pmax pressureless
Operating voltage: 17 ... 35 V DC
Switching output (open collector)
Accuracy: (MB 5 ... 95 % rH): ± 2 % rH
www.kobold.com
Measuring ranges: 0 - 100 % rH
-40 ... 350°F
tmax 350°F; pmax 220 PSIG
Serial Interface
optional: Plus-Packet
Accuracy: 2 % rH
80
Measuring range: 30 - 100 % rH
tmax 140°F; pmax pressureless
Adjustable range: 35 ... 100 % rH
Switching difference: approx. 4 % rH
Accuracy: 3 % rH
Subject to change without prior notice
Overview
Analysis: Turbidity
G
G
DESIGN
T
E
IC
EQUIPM
E
Measured value display: 0 ... 100 %
tmax 190°F (short time up to 250°F)
pmax 145 PSIG
Different connections
Analog output: 4 - 20 mA
Repeatability: < 1 %
Measured value display: 0 ... 100 %
tmax 250°F; pmax 145 PSIG
Connection: G 1/2 male, food connection
Analog output: 4 - 20 mA
Switching output
Accuracy: 1% of F. S.
Turbidity Sensor
Absorption principle (infrared)
stainless steel
Brochure: A3
Model: ATA-K
Turbidity Sensor
2-Beam scattering light method (11°)
stainless steel
Brochure: A3
Model: ATS-K
Transducer for
ATA-K or ATS-K
In panel mounting set
Brochure: A3
Model: ATT-K
Measuring range: 0 - 500 ppm (FTU, EBC also)
tmax 212°F (short time 250°F); pmax PN 10 /16
Different connections
Accuracy: <1 % of F. S.
Measuring range:
0 - 25...500 ppm (FTU, EBC also)
tmax 212°F (option: 374°F); pmax PN 10 /16
Different connections
Accuracy: <1 % of F. S.
Supply: 115/230 V AC
(optional 24 V AC/DC)
Analog output: 4 ... 20 mA
Measured value display
2 alarm contacts (SPDT)
1 alarm (lamp- and function controls)
81
www.kobold.com
N
N
DESIGN
T
D
konform
Measuring range:
0.01 ... 1000 TE/F or 0.01 ... 500 EBC
tmax 176°F, pmax 90 PSIG
Different connections
Analog output: 4 - 20 mA
Accuracy: ±1 %
Subject to change without prior notice
O
IE
3
EUR
HYG
N
P
N
DESIGN
OU
EA
T
R
P
D
N
N
konform
®
O
IE
IE
3
EUR
HYG
HYG
N
P
N
N
konform
OU
EA
EA
D
R
P
G
®
O
EQUIPM
EUR
IC
P
E
OU
P
3
R
Compact Turbidity Meter
Infrared reflect scattering method
for weak to medium concentrations
(e. g. by Phase Separations)
food industry compatible materials
Brochure: L1/A3
Model: LAT-N3
EQUIPM
®
Turbidity Meter
Pulsed infrared method
for minimal to medium concentrations
(e. g. in dairies)
food industry compatible materials
Brochure: L1/A3
Model: LAT-N2
IC
Turbidity Meter
4-beam pulsed-light method
(DIN 38 404)
for minimal to medium concentrations
(e. g. in Breweries)
food industry compatible materials
Brochure: L1/A3
Model: LAT-N1
Overview
Food: Flow
Ultrasonic Flow Switch
Temperature changes free
very short response
stainless steel, PEEK
Brochure: L1
Model: LDU
Low Volume Rotating
Vane Flow Meters
Impulse output
POM, Polypropylene
(option: SK-compliance)
Brochure: S4/L1
Model: DPL
R
OU
P
EUR
O
P
G
Calorimetric Flow Meters / Monitors
Of compact design
for food industry applications
100% temperature compensation
push button medium compensation
stainless steel
Brochure: S5/L1
Model: KAL-C
N
T
IE
IC
N
HYG
EQUIPM
E
®
®
3
3
konform
Flow range: 0.3 - 5 GPM ... 310 - 5600 GPM
tmax 185°F; pmax 1450 PSIG
Connection:
Tri clamp, DIN 32676, special connections
Accuracy: ± 10 % of full scale
Repeatabilty: 3 %
N
DESIGN
EA
D
konform
Limit values: 0.1 / 0.3 / 0.5 m/s
tmax 212°F (option: up to 300°F); pmax 145 PSIG
Connection: G 1/2, food connections
Output: active, max. 50 mA
Repeatability: <1 %
Water: 0.4 - 8 GPH ... 16 - 400 GPH
tmax 160°F
pmax 145 PSIG (Polypropylene), 100 PSIG
Connection: G 1/2 male, NPT on request
Accuracy: ± 1.5 % of full scale
Magnetic-Inductive Flow Monitors
Analog output, counter,
LCD display, RS 485
coating: PTFE
electrodes: stainless steel
Brochure: L1
Model: LDI
Magnetic-Inductive Flow Monitors,
Compact-Device
Analog output, counter,
LCD display, RS 485
coating: PTFE
electrodes: stainless steel
Brochure: L1
Model: LDI
Magnetic-Inductive Flow Meters
Without moving parts
output: 4 - 20 mA / pulses / system alarm
fitting: PEEK, PETP
electrodes: Hastelloy C
Brochure: S5/L1
Model: DMI
Conductivity: > 5 µS/cm
Measuring range: 0.1 - 12 m/s
tmax 300°F; pmax 145 PSIG
Connection: DN 25 to DN 150
Accuracy: ± 0.2 % of measured value
Conductivity: > 5 µS/cm
Measuring range: 0.1 - 12 m/s
tmax 300°F; pmax 145 PSIG
Connection: DN 25 to DN 150
Accuracy: ± 0.2 % of measured value
www.kobold.com
82
Conductivity: > 50 µS/cm
tmax 176°F (PEEK); pmax 145 PSIG
Connection: DN 10, 15, 25, 50 (G 3/4 ... 2 3/4)
Accuracy: 3 % of measured value, option: 1.5 %
Subject to change without prior notice
Overview
Food: Pressure
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal
and Union Nut acc. to DIN 11851
Housing: stainless steel
Brochure: P1/L1
Model: MAN-RF...DRM
All Stainless Steel Pressure Gauges
with Liquid Damping, Membrane
Diaphragm Seal and Union Nut
acc. to DIN 11851
Housing: stainless steel
Brochure: P1/L1
Model: MAN-RG...DRM
All Stainless Steel Pressure Gauges
with Capillary, Diaphragm Seal
and Union Nut acc. to DIN 11851
Housing: stainless steel
Brochure: P1/L1
Model: MAN-RF...DRM
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 212°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 212°F
Connection: DN 25 to DN 50, SS
Accuracy class: 1.6
Pressure ranges: 0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm
tmax 212°F
Connection: DN 25 to DN 50
Accuracy class: 1.6
All Stainless Steel Pressure Gauges
with Membrane Diaphragm Seal,
Capillary and Clamp Connection
Housing: stainless steel
Brochure: P1/L1
Model: MAN-RF...DRM
Pressure Transmitter for
Homogenizing Machines with
Plug-On Display, 4 Segment
Stainless steel version
Brochure: P1/P2/L1
Model: SEN-8600...DRM
Digital Display with Pressure
Transmitter Battery Powered for
Homogenizing Machines, 4 Segment
Stainless steel version
Brochure: P1/L1
Model: MAN-SD...DRM
Pressure ranges:
0 - 14.5 PSIG ... 0 - 580 PSIG
Housing diameter: 100 mm; tmax 212°F
Connection: DN 25 to DN 50
Accuracy class: 1.6
Pressure ranges:
0 - 750 PSIG ... 0 - 1100 PSIG
Front membrane; tmax 212°F
Connection: block flange
Accuracy class: 1.0
Pressure ranges:
0 - 750 PSIG ... 0 - 1100 PSIG
Housing diameter: 100 mm; tmax 212°F
Connection: block flange
Accuracy class: 1.0
Subject to change without prior notice
83
www.kobold.com
Overview
Food: Level
P
EUR
O
G
DESIGN
T
E
IC
EQUIPM
E
3
3
konform
Viscosity: max. 5000 cPs
tmax 270°F; pmax 650 PSIG
Connection:
G 3/4 male, 3/4” - 1” NPT male, Triclamp,
Union Nut acc. to DIN 11851
Conductive Level Probe
Potentiometric measuring principle
for viscous and very sticky media
output: 4 ... 20 mA
stainless steel, PEEK
Brochure: L1
Model: LNP
Capacitive Level Measurement
Hydrostatic Principle
Front flush ceramic membrane
output: 4 ... 20 mA
stainless steel, ceramic AI2O3
Brochure: L1
Model: LPC
EUR
tmax 300°F, pmax 145 PSIG
Connection: G 1/2, food connection
Output: active, max. 50 mA
Multi-Function Controller
Analog or frequency input
Batch, total or rate capable
16-point linearization
Brochure: L1
Model: SRT
O
P
G
Rod length: 4 mm
(also available in other lengths)
Conductivity: > 10 µS/cm
tmax 300°F; pmax 90 PSIG
Connection: G 1/2, food connection
Output: active, max. 50 mA
P
N
N
®
konform
OU
IE
IE
®
R
O
D
N
DESIGN
EUR
HYG
HYG
T
P
N
N
N
OU
EA
EA
D
R
EQUIPM
OU
P
R
Microwave Level Switch
Also by froth and build-ups
stainless steel, PEEK
Brochure: L1
Model: LNM
P
G
Level Switches
Based on the tuning fork principle
stainless steel
Brochure: N1/L1
Model: NWS
IC
Conductive Level Switches
With integrated electronics
stainless steel, PEEK
Brochure: L1
Model: LNK
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
G
®
O
DESIGN
T
N
IC
N
IE
D
EQUIPM
E
Measuring range: 0 - 100 m water column
tmax 212°F (optional 300°F)
Connection: G 1, food connection
Accuracy: ≤ 0.1 % of F. S.
84
EUR
HYG
www.kobold.com
P
N
Min. conductivity: ≥ 1 µS/cm
variable rod lengths
tmax 250°F (short time 300°F), pmax 145 PSIG
Connection: G 1/2, food connection
Accuracy: ≤ 1 %
OU
EA
3
konform
R
P
3
konform
Three user-definable control inputs
tmax 120°F; Power: 12, 24 VDC; 110, 220 VAC
Analog or pulse output; Display LCD: 2 line
Input: analog or frequency
Standard RS-232 port
Contacts: 2 to 4 SPDT
Subject to change without prior notice
Overview
Food: Temperature
Resistance Temperature Probes
With collar tube
integrated electronics
stainless steel
output: Pt100, 4 ... 20 mA
Brochure: L1
Model: LTS
EUR
O
G
O
DESIGN
T
N
N
N
IC
EQUIPM
E
®
IE
IE
D
E
DESIGN
EUR
HYG
HYG
T
P
N
N
N
OU
EA
EA
D
R
P
G
P
EQUIPM
OU
P
R
Pipe Temperature Sensor for
Reliable Dead-Zone-Free
Temperature Measurement
Brochure: T2
Model: TWP
IC
Resistance Temperature Probes
With integrated electronics
stainless steel
output: Pt100, 4 ... 20 mA
Brochure: L1
Model: LTS
®
3
3
konform
konform
Measuring ranges: -50 to 480°F
Insertion probe lengths: 50, 150, 250 mm
pmax 145 PSIG
Connection: G 1/2 male, food connection
Accuracy class: A
Measuring ranges: -50 to 480°F
Insertion probe lengths: 50, 150, 250 mm
pmax 145 PSIG
Connection: G 1/2 male, food connection
Accuracy class: A
Shaft Thermometers
With N2-gas filling
acc. to DIN 16205
steel, aluminium, stainless steel
Brochure: T2
Model: TNS
Digital Thermometers
Microprocessor controlled
sensor: Pt100 · analog output, RS 232
2 (4) limit contacts, adjustable
measuring range scalable · stainless steel
Brochure: T2
Model: DTM
Measuring ranges: 0 to 100°F ... 32 to 750°F
Housing diameter: 63, 80, 100 and 160 mm
pmax 360 PSIG
Connection:
G 1/2 - G 1 male, 1/2 - 1 NPT, Tri Clamp
Accuracy class: 1
Measuring ranges: 32 to 140°F ... 32 to 750°F
Housing diameter: 100 mm
pmax 360 PSIG (from 390°F external sensor)
Connection: G 1/2, G 3/4, G 1,
1/2 NPT, 3/4 NPT, 1 NPT
Accuracy class: 0.5
Subject to change without prior notice
85
Measuring ranges: 0 to 390°F
CIP/SIP compliance
Connections: hygienic connection,
Clamp, others on request
Resistance / Thermocouple
Hand Thermometers
1 or 2 measuring channels
differential temperature measurement,
analog output, Interface,
Min/Max memory, hold function
surface and immersion measurement
with just one probe
Brochure: T2
Model: TD 1300
Measuring ranges: -200°C to +1300°C
(-328°F to 2300°F)
Accuracy: ± 0.2°C ±1 Digit;
from 400°C ± 0.2 % of measured value ±1 Digit
www.kobold.com
Overview
Food:
Turbidity, Conductivity
G
G
DESIGN
T
N
DESIGN
T
D
EQUIPM
E
IC
EQUIPM
E
Measured value display: 0 ... 100 %
tmax 194°F (short time up to 250°F)
pmax 145 PSIG
Different connections
Analog output: 4 - 20 mA
Repeatability: < 1 %
Measured value display: 0 ... 100%
tmax 250°F; pmax 145 PSIG
Connection: G 1/2 male, food connection
Analog output: 4 - 20 mA
Switching output
Accuracy: 1 % of F. S.
Conductivity Measuring System
(Inductive) with Temperature Sensor
Deposits and wear resistant,
temperature compensated
stainless steel, PEEK
Brochure: L1
Model: LAL
Digital Display Battery Powered
Converts process variables to
analog signals 4 - 20 mA
sturdy stainless steel housing
Brochure: L1
Model: LZA-N
Installation Sets for Sensors
Hygienic Equipment Design
Weld-on process connection
CIP/SIP compliance
stainless steel
Brochure: L1
Model: LZE
DESIGN
G
DESIGN
T
N
N
T
D
IE
IC
N
®
O
HYG
EQUIPM
E
G
EUR
N
N
konform
P
EA
IE
EUR
HYG
P
N
OU
3
OU
P
EA
D
R
3
konform
O
P
R
®
O
E
EUR
EQUIPM
P
IC
OU
P
G
Measuring range:
0.01 ... 1000 TE/F or 0.01 ... 500 EBC
tmax 176°F, pmax 90 PSIG
Different connections
Analog output: 4 - 20 mA
Accuracy: ±1 %
N
konform
R
O
IE
3
EUR
HYG
N
P
N
DESIGN
OU
EA
konform
R
P
D
N
T
®
O
IE
N
N
EUR
HYG
IE
3
P
N
HYG
konform
OU
EA
N
D
R
P
G
®
O
EA
3
EUR
IC
P
E
OU
P
R
Compact Turbidity Meter
Infrared reflect scattering method
for weak to medium concentrations
(e. g. by Phase Separations)
food industry compatible materials
Brochure: L1
Model: LAT-N3
EQUIPM
®
Turbidity Meter
Pulsed infrared method
for minimal to medium concentrations
(e. g. in dairies)
food industry compatible materials
Brochure: L1
Model: LAT-N2
IC
Turbidity Meter
4-beam pulsed-light method
(DIN 38 404)
for minimal to medium concentrations
(e. g. in Breweries)
food industry compatible materials
Brochure: L1
Model: LAT-N1
N
DESIGN
EA
N
T
IE
IC
N
HYG
D
EQUIPM
E
®
3
konform
Measuring range: 0 ... 500 mS/cm
Auflösung: 10 µS/cm
Repeatability: 1 % of F. S.
tmax 300°F
Connection: G 1 male, food connections
2 analog outputs: 4 - 20 mA
Measured value display
www.kobold.com
Mounting: mounting flange
Output: 4 - 20 mA
Accuracy: ±0.1 % ±1 Digit
86
Threads: M 12 x 1.5 / G 1/2 / G 1
tmax 480°F; pmax 145 PSIG
Sealing: metallic, PEEK-ring
Subject to change without prior notice
Overview
Accessories: Armatures
Mini Ball Valves
With hand actuator
brass
Brochure: Z1
Model: KUG-VF
Brass Ball Valves
2- and 3 way
Brass
Brochure: Z1
Model: KUG-TB
Stainless Steel / Steel Ball Valves
2- and 3 way
steel, stainless steel
Brochure: Z1
Model: KUG-ZE, KUG-KD
tmax +120°C; PN 15
Connection: G 1/8 - G 3/4
Seals: NBR, FKM, PTFE
tmax +180°C; PN 40
Connection: G 1/4 - G 4
Hand lever and vane handle
tmax +180°C; PN 64 (PN 500)
Connection: G 1/4 - G 4
Welding end: DN 10 - DN 100
1-, 2- and 3 parts versions
Mini Plastic Ball Valves
2- to 5 way
PP, PVDF, PFA
Brochure: Z1
Model: KUG-6L
Plastic Ball Valves
2- and 3 way
PVC
Brochure: Z1
Model: KUG-NK, KUG-DK
Flange Ball Valves
2- and 3 way
stainless steel, GG-25, GGG-40, steel
Brochure: Z1
Model: KUG-VK
PN 10 max
Connection: G 1/4, G 1/2, 1/4 NPT, 1/2 NPT
tmax +60°C, PN 10
Connection: glue sleeves DN 10 - DN 100
Through-hole, T- and L-bores
tmax +180°C; PN 16
Connection: flanges DN 15 - DN 200
Through-hole, T- and L-bores
Subject to change without prior notice
87
www.kobold.com
Overview
Accessories: Armatures
Shut-Off Valves
To fasten and to flange
stainless steel, GG-25, GGG-40,
aluminium
Brochure: Z1
Model: KLA-VA
Shut-Off Valves
For fastening
PVC
Brochure: Z1
Model: KLA-AK
Stuff Slider
Total length DIN 3202, K 1
GG-25, stainless steel
Brochure: Z1
Model: ZUB-WG
tmax +200°C; PN 10 max
Connection: flanges DN 50 - DN 400
Seals: NBR, FKM, PTFE
tmax +60°C; PN 6
Connection: flanges DN 65 - DN 200
Hand lever with 15° resolution
tmax +130°C; PN 10
Connection: flanges DN 50 - DN 400
Seals: metallic, NBR, EPDM, FKM
Shut-Off Valves
with Pneumatic Actuator
Stainless steel, GG-25, GGG-40
aluminium, PVC
Brochure: Z1
Model: KLP-VA
Shut-Off Valves
with Electric Actuator
Stainless steel, GG-25, GGG-40
aluminium, PVC
Brochure: Z1
Model: KLE-VA
Stuff Slider
with Pneumatic Actuator
GG-25, stainless steel
Brochure: Z1
Model: KUP-WG
tmax +180°C; PN 10 max
Connection: flanges DN 50 - DN 200
Double acting or spring resetting
Control pressure 6 - 8 bar
tmax +180°C; PN 10 max
Connection: flanges DN 50 - DN 100
230 VAC, 24 VDC
Incl. optical position indicator
Manual emergency operation
2 end position switches
www.kobold.com
88
tmax +130°C; PN 10 max.
Connection: flanges DN 50 - DN 400
Double acting
Control pressure 6 -10 bar,
Seals: metallic, NBR, EPDM
Subject to change without prior notice
Overview
Accessories: Armatures
Pneumatic Drives
Brochure: Z1
Model: KUP
Brass Ball Valves
with Pneumatic Actuator
2- and 3 way
brass
Brochure: Z1
Model: KUP-KA
Stainless Steel / Steel Ball Valves
with Pneumatic Actuator
2- and 3 way
steel, stainless steel
Brochure: Z1
Model: KUP-ZA
Single or double acting
Control pressure 2 - 10 bar
Ambient temperature: -20°C ... +95°C
Angle of traverse 90°
Torque upto 29.7 Nm/bar
tmax +120°C; PN 40
Connection: G 1/2 - G 4
Double acting or spring resetting
Control pressure 6 - 8 bar
Through-hole, T- and L-bore
tmax +180°C; PN 64
Connection: G 1/2 - G 4
Double acting or spring resetting
For gaseous and liquid media
Through-hole, T- and L-bore
Plastic Ball Valves
with Pneumatic Actuator
PVC
Brochure: Z1
Model: KUP-SK
Flange Ball Valves
with Pneumatic Actuator
2- and 3 way
stainless steel, GG-25, steel
Brochure: Z1
Model: KUP-VO
Accessories for Pneumatic Drives
Magnet valves, limit switches
position indicators
Brochure: Z1
Model: KUP-RE
tmax + 60°C; PN 16 max.
Connection:
G 1/2 - G 4, glue sleeves DN 20 - DN 100
Double acting or spring resetting
Control pressure 6 - 8 bar
Subject to change without prior notice
tmax + 120°C; PN 16
Connection: flanges DN 25 - DN 200
For gaseous and liquid media
Double acting or spring resetting
Control pressure 6 - 8 bar
Through-hole, T- and L-bore
89
3/2- and 5/2 way magnet valves
Diverse voltages, Ex-version
Mechanical limit switches and
proximity initiators, Ex-version
www.kobold.com
Overview
Accessories: Armatures
Electric Actuators
230 VAC, 24 VDC
running time 15 s to 120 s
Brochure: Z1
Model: KUE
Electric Actuators
230 VAC, 24 VDC, 400 V 3-phase
Brochure: Z1
Model: KUE
Brass Ball Valves
with Electric Actuators
2- and 3 way
Brochure: Z1
Model: KUE-KA
tmax +120°C; PN 40
Connection: G 1/2 - G 4
Voltage: 24 VDC or 230 VAC
Through-hole, T- and L bore
Torque 20 Nm to 50 Nm
Additional limit switch
Overload protection, optical position indication
Manual emergency operation
Torque upto 2500 Nm
Additional limit switch
Running time: 5 s to 70 s
Stainless Steel / Steel Ball Valves
with Electric Actuator
2- and 3 way
Brochure: Z1
Model: KUE-ZA
Plastic Ball Valves
with Electric Actuator
PVC
Brochure: Z1
Model: KUE-SK
Flange Ball Valves
with Electric Actuator
2- and 3 way
stainless steel, GG-25, steel
Brochure: Z1
Model: KUE-MD
tmax +180°C; PN 40
Connection:
G 1/2 - G 4, weld ends DN 15 - DN 100
Voltage: 24 VDC or 230 VAC
Through-hole, T- and L bore
tmax +60°C; PN 16 max
Connection:
G 1/2 - G 3, glue-in sleeve 20 mm - 90 mm
Voltage: 24 VDC or 230 VAC
tmax +180°C; PN 16
Connection: DN 15 - DN 200
Voltage: 24 VDC or 230 VAC
Through-hole, T- and L bore
www.kobold.com
90
Subject to change without prior notice
Overview
Accessories: Armatures
Valves
Needle- and discharge valves
inclined and straight valves
brass, stainless steel
Brochure: Z1
Model: ZUB-AD, ZUB-AC
tmax +180°C; PN 16 - PN 100
Connections:
G 1/4 - G 3, weld ends DN 15 - DN 50
Overflow Valves
Stainless steel
Brochure: Z1
Model: ZUB-UV
Connection: G 1/2 - G 2,
flange, weld ends DN 15 - DN 50
Pressure ranges: 0.3 ...1 bar to 6 ... 30 bar
Subject to change without prior notice
Stainless Steel Needle Valves
With female/male thread connections
compression fitting DIN 2353L, DIN 2353S
Brochure: Z1
Model: NAD
Ball Valves
With measuring unit's turn-off under
process-conditions
brass, stainless steel
female threaded connection
Brochure: Z1
Model: KUG-S
tmax +120°C; PN 250 - PN 630
Connection: G 1/8 - G 1 1/4,
1/8 NPT - 1 NPT
For pipe 6 - 22 mm
tmax +120°C; PN 16 max, PN 25 max
Connection: G 1/2 - G 2
Sensor mounting: G 1/4, G 1/2
Safety Valves
Red cast iron, brass,
stainless steel, steel
Brochure: Z1
Model: ZUB-SV
Check Valves
Red cast iron, brass, stainless steel, steel
thread, weld end, flange
Brochure: Z1
Model: KUR-EB, KUR-CK
tmax +280°C
Connection: G 3/8 - G 1 1/2,
flange DN 15 - DN 100
Component checked and normal version
tmax +400°C; PN 40 max.
Connection: G 3/8 - G 4,
flange, weld ends DN 15 - DN 200
91
www.kobold.com
Overview
Accessories: Armatures
Check Valves
Stainless steel, brass, steel, GG-25
Brochure: Z1
Model: KUR-TR, KUR-CK
Shut Off Gate Valve
Stainless steel, brass,
red cast-iron, GG-25
Brochure: Z1
Model: ZUB-TC
Magnet Filter
Bronze, brass, grey cast-iron
thread, flange, solder connection
Brochure: Z1
Model: MFR, MFT, MFA, MFL, MFF
tmax +230°C, PN 16 max
Connection: G 3/8 - G 4,
flange DN 40 - DN 300
tmax +150°C; PN 20
Connection: G 1/4 - G 4,
flange DN 40 - DN 300
tmax +200°C; PN 16
Connection: Rp 1/2 - Rp 3
flange DN 50 - DN 200
Filter grade: 280 µm - 1200 µm
Pressure Reducer
Stainless steel, brass, red cast-iron
Brochure: Z1
Model: ZUB-DM
Water Shock Damper
Stainless steel
Brochure: Z1
Model: ZUB-TS
Flow Regulating Valve
For liquids, without auxiliary energy
brass, stainless steel
Brochure Z1
Model: REG
l/min.
25
Fixed orifice
20
15
Regulating valve
10
5
tmax +150°C
Inlet pressure: bis 25 bar
Outlet pressure: 0.2 - 16 bar
Connection: G 1/4 - G 1,
weld ends DN 15 - DN 25
www.kobold.com
tmax +70°C
Burst pressure: 60 bar
Connection: G 1/2
Volume: 160 cm3
92
Viscosity:
0
2
max. 30 mm2/s
Flow rates: 1 - 30 l/min water
tmax +300°C; pmax 200 bar
Connection: G 1/2 and G 3/4
4
6
8
10 bar
Subject to change without prior notice
Overview
Accessories: Connections
Thread Connections
Stainless steel
Brochure: Z1
Model: ZUB-FG
Compression Fitting Connections
Stainless steel
Brochure: Z1
Model: ZUB-GV, ZUB-TV
Pneumatic Connections
Brass
Brochure: Z1
Model: ZUB-A12, ZUB-A13, ZUB-A55
tmax +200°C; PN 40
Connection: G 1/8 - G 4
Diverse constructions
tmax +200°C; PN 100 - PN 630
Connection: for pipe-Ø 4 mm - 38 mm
Versions: LL, L and S
tmax +200°C; PN 40
Connection: G 1/8 - G 2
Diverse constructions
Hose- / Plug Connections
Brass, plastic
Brochure: Z1
Model: ZUB-C11, ZUB-C16, ZUB-C30
Plastic Connections
PA, PP, PVDF, PFA
Brochure: Z1
Model: ZUB-1A
Manometer Accessories
Brass, steel, stainless steel
Brochure: P1
Model: MZB
tmax +200°C; pmax 16 bar
Connection: for hose-Ø outer 5 - 15 mm
Diverse constructions
tmax +140°C; PN 10 max
Version: straight hose,
screw-in and screw-on connection,
angle connections, accessories
1/8" to 3/4", hose 4/6 - 10/12
tmax +160°C; PN 40 max
Shut-off cocks and valves,
Syphons, throttle and overpressure
protection equipment, adapters
Subject to change without prior notice
93
www.kobold.com
Overview
Accessories: Relays
Isolation and Switch Unit
for Initiators (Ex-Zone)
Brochure: Z2
Model: REL-6000/6005
Conductive Electrode Relays
Brochure: N1
Model: NE-104, NE-204, NE-304
Input: potential free contacts
1 or 2 relay outputs, changeover contact
Supply: 230 V AC
Input: Initiator (Namur),
potential free contacts
1 relay output, changeover contact
Supply: 230 VAC / 24 VDC
Input: conductive level switch
1 or 2 limit values or
1 or 2 min./max. controls
Supply: 24, 230 VAC
Power Supply Unit for Transmitter
Brochure: Z2
Model: REL-4405
Frequency Transmitter
Brochure: Z2
Model: FMU
Compact Continuous Line
and Dotted-Line Recorder
Brochure: Z2
Model: KLS
Contact Protection Relays
Brochure: Z2
Model: MSR
Input/output: 4 - 20 mA
2-wire transmitter
EEx ia IIA / ..IIB / ..IIC
Supply: 24 VDC
www.kobold.com
Frequency measurement up to 40 kHz
Output: 0(4) - 20 mA, 0 -10 VDC
Supply: 230 VAC, 115 VAC, 24 VDC
94
1 to 6 channels
Input: voltage, current,
resistance thermometer, thermo elementes
with 64 m roll of paper
2 x 16 digit LCD display
Output: 4 limit values, Interface
Supply: wide range power supplies
Subject to change without prior notice
Overview
Accessories: Measuring and
Control Instruments
Plug-On Display
For all transducers with
4 - 20 mA output and
DIN 43 650 plug
Brochure: Z2
Model: AUF
Digital Indicators
Input: frequency
Rate meter, totalizer and batcher
Brochure: Z2
Model: MRT
Digital Indicators
Analog Input
Integrating ratemeter/totalizer
Brochure: Z2
Model: INT
Without additional auxiliary power supply
Display: 4-digit, free programmable
Option: open collector
Ex-Version
Power supply: 12 VDC; 110, 230 VAC
Display rate or total; batching version available;
2 presets; fully scalable
Analog output, contacts
Power Supply: 15-24 VDC, 110 VAC, 220 VAC
Display rate, total, peak or valley
Completely user programmable
Analog or serial communication
Optional SPDT relays
Display and Control Unit
For flow, pressure,
level and temperature
analog output;
adjustable Min. and Max. contact
Brochure: Z2
Model: DFA
Universal Batch Controller
Digital display, counter
input: current, voltage, frequency
Brochure: Z2
Model: ADI
Universal Analog Displays
Input: current, voltage, frequency
Brochure: Z2
Model: ZEI
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Field housing: 96 x 96 mm
Protection: IP 65
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Field housing: 96 x 96 mm
Protection: IP 65
Power suply:
230 VAC, 115 VAC, 24 VAC, 24 VDC
Display: 0 - 100 %
Wall-mount
Protection cat.: IP 40 (IP 65)
Subject to change without prior notice
95
www.kobold.com
Overview
Accessories: Universal Indicators
Universal Indicators
Bargraph display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-B
Universal Indicators
Digital display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-D
Universal Indicators
Combined digital and
bargraph display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-K
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Switch-panel mount: 96 x 96 mm
Option: sensor power supply, contacts, Analog
output
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Switch-panel mount: 96 x 96 mm
Option: sensor power supply, contacts, Analog
output
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Switch-panel mount: 96 x 96 mm
Option: sensor power supply, contacts, Analog
output
Universal Indicators
Bargraph display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-B with Field housing
Universal Indicators
Digital display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-D with Field housing
Universal Indicators
Combined digital and
bargraph display
Input: current, voltage, frequency
Brochure: Z2
Model: ADI-K with Field housing
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Field housing: 96 x 96 mm
Protection: IP 65
Option: sensor power supply, contacts, Analog
output
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Field housing: 96 x 96 mm
Protection: IP 65
Option: sensor power supply, contacts, Analog
output
Power supply: 24 VDC; 24, 48, 110, 230 VAC
Field housing: 96 x 96 mm
Protection: IP 65
Option: sensor power supply, contacts, Analog
output
www.kobold.com
96
Subject to change without prior notice
Overview
Accessories: Rotation Transmitter
Miniature Incremental
Rotation Transmitter
Shaft style
Brochure: Z3
Model: ZDI
Miniature Incremental
Rotation Transmitter
Hollow shaft style
Brochure: Z3
Model: ZDI
Miniature Incremental
Rotation Transmitter
Shaft style
Brochure: Z3
Model: ZDI
Max. No. of revolutions: 12000 rpm
Shaft: Ø 4/6 mm
Output: push-pull
Cable connection: 2 m
No. of pulses: 50 - 1024 pulses
Max. pulse frequency: 160 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -40 ... +85°C
Protection: IP 64
Max. No. of revolutions: 12000 rpm
Shaft: Ø 4/6 mm
Output: push-pull
Cable connection: 2 m
No. of pulses: 50 - 1024 pulses
Max. pulse frequency: 160 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -40 ... +85°C
Protection: IP 64
Max. No. of revolutions: 12000 rpm
Shaft: Ø 6/10 mm
Output: RS422 or push-pull
12 pin plug connection
No. of pulses: 200 - 5000 pulses
Max. pulse frequency: 200 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +75°C
Protection: IP 65
Miniature Incremental
Rotation Transmitter
Hollow shaft style
Brochure: Z3
Model: ZDI
Special Incremental
Rotation Transmitter
Big hollow shaft
Brochure: Z3
Model: ZDI
Special Incremental
Rotation Transmitter
For food and chemical industry
non-rusting hollow shaft
Brochure: Z3
Model: ZDI
Max. No. of revolutions: 12000 rpm
Shaft: Ø 10/12 mm
Output: RS422 or push-pull
Cable connection: 1 m
No. of pulses: 500 - 5000 pulses
Max. pulse frequency: 200 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +75°C
Protection: IP 66
Max. No. of revolutions: 6000 rpm
Shaft: up to Ø 42 mm
Output: RS422 or push-pull or SIN/COS
Plug or cable connection
No. of pulses: 360 - 5000 pulses
Max. pulse frequency: 300 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +75°C
Protection: IP 65
Max. No. of revolutions: 6000 rpm
Shaft: Ø 12 mm
Output: RS422 or push-pull
Cable connection
No. of pulses: max. 5000 pulses
Max. pulse frequency: 300 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +85°C
Protection: IP 66
Subject to change without prior notice
97
www.kobold.com
Overview
Accessories: Rotation Transmitter
Absolute Rotation Transmitter,
Single turn
Shaft style
Brochure: Z3
Model: ZDA
Absolute Rotation Transmitter,
Single turn
Hollow shaft style
Brochure: Z3
Model: ZDA
Absolute Rotation Transmitter,
Multi-Turn
Shaft and hollow shaft style
Brochure: Z3
Model: ZDA
Max. No. of revolutions: 6000 rpm
Shaft: Ø 6/10 mm
Max. resolution: 14 bit
Code: Gray/Gray-Excess
Interface: parallel
Cable connection
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +90°C
Protection: IP 66
Max. No. of revolutions: 6000 rpm
Shaft: Ø 10/12 mm
Max. resolution: 14 bit
Code: Gray/Gray-Excess
Interface: parallel
Cable connection
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +90°C
Protection: IP 66
Max. No. of revolutions: 6000 rpm
Shaft: up to Ø 28 mm
Max. graduation: 13 x 12 bit
Code: Gray / Binary
Interface: SSI, programmable
Cable connection
Supply: 5 - 30 VDC
Max. operating temperature: -10 ... +70°C
Protection: IP 65
EX-Incremental Rotation Transmitter
Shaft and hollow shaft style
Brochure: Z3
Model: ZDI
EX-Absolute Rotation Transmitter,
Single Turn
Shaft and hollow shaft style
EEx d IIC T6
Brochure: Z3
Model: ZDA
Accessories Rotation Transmitter
Brochure: Z3
Model: ZDZ
Max. No. of revolutions: 6000 rpm
Shaft: Ø 12 mm
Output: RS422 or push-pull
Cable connection
No. of pulses: max. 5000 pulses
Max. pulse frequency: 300 kHz
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +60°C
Protection: IP 64
Max. No. of revolutions: 6000 rpm
Shaft: Ø 12 mm
Max. resolution: 14 bit
Code: Gray, binary, BCD
Interface: SSI, parallel or 4 - 20 mA
Cable connection
Supply: 5 - 30 VDC
Max. operating temperature: -20 ... +60°C
Protection: IP 64
www.kobold.com
98
12 pin plug connector
Shaft style: metal bellow clutches,
Angle flange, rectangular flange,
Eccentric-fixer for synchro-flange
Hollow shaft style:
Stator-coupling, fixing set
Subject to change without prior notice
Overview
Accessories: Totalizer
Robust Panel Totalizer with
Clamp Fixing
Housing: 34 x 23 mm
Brochure: Z2
Model: ZMZ
Micro Totalizer
Housing: 32 x 15 mm
Brochure: Z2
Model: ZMZ
Micro Pulse Totalizer
Housing: 34 x 23 mm
Brochure: Z2
Model: ZMZ
Input: totalizer
Indication: 7 digit
Material: plastic
Digit size: 4 x 1.2 mm
Panel mount
Voltage: 4,5 VDC; 12 VDC;
24 VDC; 115 VAC; 230 VAC
Input: pulse totalisation with hand reset
Indication: 5 digit
Material: plastic
Digit size: 4 x 1.7 mm
Panel mount
Voltage: 12 VDC; 24 VDC;
115 VAC; 230 VAC
Micro Totalizer for Rail Mounting
Housing: 34 x 23 mm
Brochure: Z2
Model: ZMZ
Batcher with Indicated
Pre-Selection
Housing: 53 x 53 mm
Brochure: Z2
Model: ZMZ
Electronic Pre-Selection Totalizer
DIN housing: 48 x 48 mm
Brochure: Z3
Model: ZEZ
Input: counter
Indication: 7 digit
Material: plastic
Digit size: 4 x 1.2 mm
DIN rail mounting
Voltage: 12 VDC; 24 VDC;
24 VAC; 115 VAC; 230 VAC
Input: batch counter with hand reset
Indication: 5 digit
Output: 1 microswitch SPDT
Material: plastic
Digit size: 4 (4.5) mm
DIN rail mounting
Voltage: 24 VDC; 115 VAC; 230 VAC
Input: pulse totalizer with pre selection
Indication: 2 - 6 digit, LCD
Output: 1 relay N/O N/C
Programming via front buttons
Material: plasctic
DIN rail mounting
Power supply: battery
Subject to change without prior notice
99
Input: pulse totalisation with or without
hand reset
Indication: 6 digit with reset
8 digit without reset
Material: plastic
Digit size: 4 (4.5) x 2 mm
Panel mount
Voltage: 24 VDC; 230 VAC
www.kobold.com
Overview
Accessories: Time
Electronic Service Hour Meter
Low priced
DIN housing: 48 x 24 mm
Brochure: Z4
Model: ZEC
Electronic Service Hour Meter
Combined Instrument
DIN housing: 48 x 24 mm
Brochure: Z4
Model: ZEC
Electronic Service Hour Meter
Multiple function
DIN housing: 48 x 24 mm
Brochure: Z4
Model: ZEC
Input: time counter
Indication: 6-digit LED
Digit size: 8 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC
Input: time counter, pulse counter
Indication: 6-digit LED
Digit size: 8 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC
Input: time counter, pulse counter,
Position indicator, frequency counter
Indication: 6-digit LED
Digit size: 8 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC
Electronic Service Hour Meter
Low priced
DIN housing: 96 x 48 mm
Brochure: Z4
Model: ZEC
Electronic Service Hour Meter
Combined instrument
DIN housing: 96 x 48 mm
Brochure: Z4
Model: ZEC
Electronic Service Hour Meter
Multiple function
DIN housing: 96 x 48 mm
Brochure: Z4
Model: ZEC
Input: time counter
Indication: 6-digit LED
Digit size: 14 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC / 90 - 260 V AC
Input: time counter, pulse counter
Indication: 6-digit LED
Digit size: 14 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC / 90 - 260 V AC
Input: time counter, pulse counter,
Position indicator, frequency counter
Indication: 6-digit LED
Digit size: 14 mm
Resolution up to 1 mm
Programming via front buttons
Material: plastic
Panel mounting
Power supply: 24 VDC / 90 - 260 V AC
www.kobold.com
100
Subject to change without prior notice
Overview
Accessories: Time
Micro Service Hour Meter
Housing: 32 x 15 mm
Brochure: Z4
Model: ZBS
Mini Service Hour Meter
Housing: 37 x 26 mm
Brochure: Z4
Model: ZBS
Small Service Hour Meter
DIN housing: 48 x 24 mm
Brochure: Z4
Model: ZBS
Input: service hour meter
Indication: 7 digit
Material: plastic
Digit size: 4 x 1.7 mm
Panel mount
Voltage: 4.5 - 12; 18 - 26 VDC
Input: service hour meter
Indication: 7 digit
Material: plastic
Digit size: 3.8 x 1.7 mm
Panel mount
Voltage: 10 - 30 VDC;
115 VAC, 60 Hz; 230 VAC, 50 Hz
Input: service hour meter
Indication: 7 digit
Material: plastic
Digit size: 4 mm
Panel mount
Voltage: 10 - 30 VDC;
115 VAC, 60 Hz; 230 VAC, 50 Hz
Standard Service Hour Meter
DIN housing: 48 x 48 mm
Brochure: Z4
Model: ZBS
Combination of Time and
Pulse Totalizer
Housing: 48 x 48 mm
Brochure: Z4
Model: ZBS
Service Hour Meter for
DIN-Rail Mounting
Brochure: Z4
Model: ZBS
Input: service hour meter
Indication: 7 digit
Material: plastic
Digit size: 4 mm
Panel mount
Voltage: 10 - 30 VDC;
115 VAC, 60 Hz; 230 VAC, 50 Hz
Input: pulse- and service hour meter
Indication: 2 x 7 digit
Material: plastic
Digit size: 4 x 1.7 mm
Panel mount
Voltage: 10 - 30 VDC;
115 VAC, 60 Hz; 230 VAC, 50 Hz
Input: service hour meter
Indication: 6 digit
Digit size: 3.5 x 1.5 mm
Housing: rail mounting
Material: plastic
Voltage: 10 - 30 VDC;
115 VAC, 60 Hz; 230 VAC, 50 Hz
Subject to change without prior notice
101
www.kobold.com
Overview
Accessories: Time
Electronic Stop Watch
Water proof ABS housing
2.5 line LCD display, 7 (5) mm
upper line: 6-digit, lower line: 7-digit
function window
Brochure: Z4
Model: Delta E200
Electronic Stop Watch
Water proof ABS housing
2-line LCD display, 6 mm
upper line: 6-digit, lower line: 7-digit
illuminated display
Brochure: Z4
Model: Magma Pro
2-button operation
Resolution: 1/100 sec.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
addition / split / lap / short-lap, acoustic button
control, countdown, daytime/ date,
65 memories
1-button operation
Resolution: 1/100 sec.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
addition / split / lap / short-lap, acoustic button
control, countdown, daytime/ date,
10 memories (each 10 split / lap / addition)
2-button operation
Resolution: 1/100 sec.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
addition / split / lap / short-lap; daytime;
5 memories (5 split- und 5 lap times)
Electronic Stop Watch
Water proof ABS housing
LCD display, 7-digit, 8 mm
Brochure: Z4
Model: Profil 1
Electronic Stop Watch
Water proof ABS housing
LCD display, 7-digit, 8 mm
Brochure: Z4
Model: Pro Solar
Electronic Stop Watch
Water proof ABS housing
LCD display, 7-digit, 7 mm
Brochure: Z4
Model: Stopstar
2-button operation
Resolution: 1/100 sec.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
addition / split ; dual measurement
2-button operation
Resolution: 1/100 sec.
Supply: solar energy
Function: start / stop / reset;
addition / split; dual measurement
2-button operation
Resolution: 1/100 sec.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
addition / split; dual measurement
www.kobold.com
102
Electronic Stop Watch
Water proof ABS housing
LCD display, 7-digit, 8 mm
Brochure: Z4
Model: Profil 5
Subject to change without prior notice
Overview
Accessories: Time
Electronic Short Timer
Clip and magnet to hang and stand
3-line LCD display, 8 (6) mm
6-digit
Brochure: Z4
Model: Labor 3
Electronic Short Timer
Clip and magnet to hang and stand
LCD display, 6-digit, 8 mm
Brochure: Z4
Model: Compact
Resolution: 1/1 sec.
Supply: Lithium battery SR 44
Function: count-down (3 x),
Alarm at 0, count-up,
Day time (12/24 h), date
Resolution: 1/1 sec.
Supply: Lithium battery SR 44
Function: count-down count-up,
Count-down with alarm and repeat,
Day time (24 h), date
Table Timer
2-line LCD display, 22/8 mm
function window
Brochure: Z4
Model: Prisma 200
Electronic Industrial Stop Watch
Water proof ABS housing
2.5-line LCD display, 7 (5) mm
upper line: 6-digit, lower line: 7-digit
function window
Brochure: Z4
Model: Spectron
Resolution: 1/10 sec.; 1/100 min.
Supply: Mignon cell R 6
Function: 2 timer, start/stop/reset, Addition,
Flyback, count-down, alarm tone
Subject to change without prior notice
2-button operation
Resolution: 1/100 sec.; 1/100 min.
Supply: Mignon cell 1.5 V
Function: start / stop / reset;
Addition / split / lap ;
day time; date; 65 memories
103
Analog Table - Wall Stop Watch
Analog indication Ø 110 mm
outer dial: 0 - 60 sec. + 0 - 60 min.
inside dial: 0 -100 /100 min.
Brochure: Z4
Model: Mesotron
Resolution: 0 - 60 sec., 1/100 min.
Function: start / stop / reset;
Addition; Flyback
Industrial Timer with Write Pad
2-line LCD display, 8.5 mm
upper line: running time,
lower line: single turn
Brochure: Z4
Model: Programmtimer 100
Resolution: 1/100 min.
Supply: Mignon cell 1.5 V
Function: running timer / single timer,
System and memory reset,
7 memories (running- and single time)
www.kobold.com
Overview
Accessories: Time
Mechanical Double Stop Watch
With drag pointer
chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1350101-00
Mechanical Double Stop Watch
With drag pointer
chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1350401-00
Mechanical Double Stop Watch
With drag pointer
chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1350201-00
Resolution: 1/5 sec.
Total time: 30 min.
Function: start / stop / intermediate time/
Zero reset with interrupt
7 jewels, anchor
Shock-, dust-, water proof
Resolution: 1/10 sec.
Total time: 15 min.
Function: start / stop / intermediate time/
Zero reset with interrupt
7 jewels, anchor
Shock-, dust-, water proof
Resolution: 1/100 sec.
Total time: 30 min.
Function: start / stop / intermediate time/
Zero reset with interrupt
7 jewels, anchor
Shock-, dust-, water proof
Mechanical Stop Watch
Chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1220101-00
Mechanical Stop Watch
Chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1220401-00
Mechanical Stop Watch
Chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1220301-00
Resolution: 1/5 sec.
Total time: 30 min.
Function: start / stop / zero reset with interrupt
7 jewels, shaft anchor
Shock-, dust-, water proof
Resolution: 1/10 sec.
Total time: 15 min.
Function: start / stop / zero reset with interrupt
7 jewels, shaft anchor
Shock-, dust-, water proof
Resolution: 1/5 sec. + 1/100 min.
Total time: 30 min.
Function: start / stop / zero reset with interrupt
7 jewels, shaft anchor
Shock-, dust-, water proof
www.kobold.com
104
Subject to change without prior notice
Overview
Accessories: Time
Mechanical Double Stop Watch
Industrial Version
Chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1250104-00
Mechanical Stop Watch
ABS housing Ø 55 mm
Brochure: Z4
Model: ZSU1210117-00
Mechanical Crown Stop Watch
Chromium plated brass housing Ø 55 mm
Brochure: Z4
Model: ZSU1120401-00
Resolution: 1/5 sec.
Overal time: 30 min.
Function: start / stop / zero reset with interrupt
7 jewels, anchor,
Scratch- and acid resistant mineral glass,
Solvent resistant,
Metal push button and metal crown
Resolution: 1/5 sec.
Overal time: 30 min.
Function: start / stop / zero reset with interrupt
1 jewel, shaft anchor
Resolution: 1/10 sec.
Overal time: 15 min.
Function: start / stop / zero reset
without interrupt
7 jewels, shaft anchor
Shock-, dust-, water proof
Mechanical Crown Stop Watch
ABS housing Ø 55 mm
Brochure: Z4
Model: ZSU1110117-00
Mechanical Stop Watch
ABS housing Ø 55 mm
Brochure: Z4
Model: ZSU1410434-00
Mechanical Double Stop Watch
ABS housing Ø 55 mm
enlarged scale
Brochure: Z4
Model: ZSU1743219-00
Resolution: 1/5 sec.
Overal time: 30 min.
Function: start / stop / zero reset
without interrupt
1 jewel, shaft anchor
Resolution: 1/10 sec.
Overal time: 15 min.
Function: start / stop / zero reset with interrupt
1 jewel, shaft anchor
Resolution: 1/5 sec.
Overal time: 30 min.
Function: start / stop / zero reset with interrupt
1 jewel, shaft anchor
Subject to change without prior notice
105
www.kobold.com
Overview
Accessories: Time
Instrument-Style Stop Watch
Automatic winding chronograph
Sandblasted stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Endurance A
Instrument-Style Stop Watch
Automatic winding chronograph
Polished stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Endurance B
Instrument-Style Stop Watch
Automatic winding chronograph
Polished stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Endurance C
20 atm, 25 synthetic rubies
Day and date display
Domed sapphire crystal, exhibition back
20 atm, 28 synthetic rubies
Date display
Domed sapphire crystal, exhibition back
20 atm, 25 synthetic rubies
Day and date display
Domed sapphire crystal, exhibition back
Instrument-Style Stop Watch
Automatic winding chronograph
Sandblasted stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Endurance D
Instrument-Style Stop Watch
Automatic winding chronograph
Sandblasted stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Limits A
Instrument-Style Stop Watch
Automatic winding chronograph
Polished stainless steel case
Water and shock resistant acc. to DIN.
Brochure: Z4
Model: Aviation B
20 atm, 25 synthetic rubies
Day and date display
Domed sapphire crystal, exhibition back
10 atm, 25 synthetic rubies
Day and date display
Sapphire crystal, solid case-back
10 atm, 25 synthetic rubies
Day and date display
Sapphire crystal, exhibition back
www.kobold.com
106
Subject to change without prior notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
