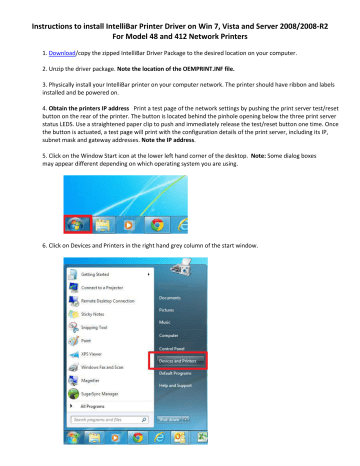

Instructions to install IntelliBar Printer Driver on Win 7, Vista and Server 2008/2008-R2
For Model 48 and 412 Network Printers
1. Download/copy the zipped IntelliBar Driver Package to the desired location on your computer.
2. Unzip the driver package. Note the location of the OEMPRINT.INF file.
3. Physically install your IntelliBar printer on your computer network. The printer should have ribbon and labels
installed and be powered on.
4. Obtain the printers IP address Print a test page of the network settings by pushing the print server test/reset
button on the rear of the printer. The button is located behind the pinhole opening below the three print server
status LEDS. Use a straightened paper clip to push and immediately release the test/reset button one time. Once
the button is actuated, a test page will print with the configuration details of the print server, including its IP,
subnet mask and gateway addresses. Note the IP address.
5. Click on the Window Start icon at the lower left hand corner of the desktop. Note: Some dialog boxes
may appear different depending on which operating system you are using.
6. Click on Devices and Printers in the right hand grey column of the start window.
7. Click on the “Add a printer” link in the top tool bar to open the “Add Printer” window.
8. Click “Add a network, wireless or Bluetooth printer.”
9. A network search will take place. Wait for it to finish. If you do not see your printer listed, click on “The
printer that I want isn’t listed” text.
10. Select “Add a printer using a TCP/IP address or hostname and click “Next”.
11. In the “hostname or IP address:” field, enter the IP address obtained earlier in step 4. Click “Next” to
continue. Note: Your IP address may be different than the one shown here.
12. Make sure the “Standard” button and the “Generic Network Card” is selected. Click “Next” to continue.
13. Click the “Have Disk…” button.
14. The “Install From Disk” window will open. Click on the “Browse” button.
15. Navigate to the location where you downloaded and unzipped the IntelliBar Windows 7 Driver Package
(from step 2) and click on the OEMPRINT.INF file to select it. Click the “Open” button.
16. The “Install From Disk” window will reopen. Click on the “OK” button.
17. The “Install the printer driver” window will appear. Click on your IntelliBar model to select it and then click
on the “Next” button.
NOTE: The IntelliBar driver installation package senses whether your Windows 7 operating system is 32
bit or 64 bit and automatically presents the appropriate drivers for you to select.
NOTE: Windows may present a warning: This driver is not digitally signed! This is not cause for alarm.
Note:
If a dialog box pops up asking which driver to use, choose “Replace current
driver” if you are upgrading to a newer driver.
18. The “Type a printer name” window will open. Type your choice of a name for your IntelliBar printer in the
“Printer name:” box and click the “Next” button.
19. Windows may present a Windows Security Warning box, warning that Windows can’t verify the publisher of
this driver software. The IntelliBar Windows 7 driver will not harm your computer system. Click on the “Install
this driver software anyway” selection to continue.
20. The IntelliBar driver will be installed and the Printer Sharing window will open. Choose whether or not to
share the IntelliBar printer. If you choose to share, you may edit the Share name, indicate its location or add a
comment. After making your selection and entries, click the “Next” button.
21. Windows will notify you that the IntelliBar printer has been successfully added to your system. You may set
the IntelliBar as your default printer by clicking on the “Set as the default printer” box, or leave it unselected as
you wish. Click on the “Print a test page” button. Your IntelliBar printer will print out the test page, or the
portion of which will fit on the label you have installed in the printer. Click the “Finish” button to complete the
installation.
Your IntelliBar printer is now ready for use with your Windows 7 operating system.
2-18-15
V: 2.-0
10-06-16
V: 2.1
*** END OF DOCUMENT ***
