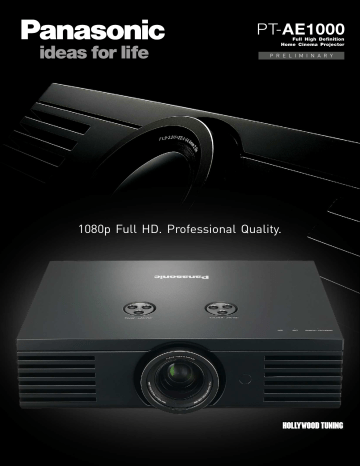

PT-AE1000
Full High Definition
Home Cinema Projector
P R E L I M I N A R Y
1080p Full HD. Professional Quality.
PT-AE1000
Full High Definition Home Cinema Projector
The PT-AE1000 is a full-HD compatible
home cinema projector featuring 1,080p
LCD panels. Extensive research and development was conducted on the optical system, image processing engine, and other
major components to bring high-resolution,
full-HD images into the home for full and
easy enjoyment. The development team
collaborated with leading Hollywood colorists to further increase imaging precision
through the “Hollywood tuning” process.
The result is a full high definition home
cinema projector that packs comprehensive
Panasonic technologies into a compact,
stylish cabinet.
• 1,920 x 1,080 full-HD panels with perpendicularly aligned liquid crystals
• Outstanding 11,000:1 contrast ratio—
highest in its class*1
• Newly developed lens system with original aspherical lenses
• Pure Color Filter adjusted to professional specifications for rich, deep blacks
and vivid colors
• 14-bit gamma processing original LSI
• HD-optimized Dynamic Iris with new
algorithm
• Lens-centered symmetrical design
• 2x powered optical zoom and powered
focus
• H/V lens shift (horizontal ±40%, vertical
±100%)
• Learning remote control
• Two HDMI inputs
• Built-in test pattern
• Optional cable cover (ET-PCE1000)
• Easy filter/lamp replacement
• Waveform monitor function
• HD-optimized Smooth Screen
• Cinema Color Management
• Progressive Cinema Scan (3/2 pulldown)
• Scene-adaptive MPEG noise reduction
Specifications
Power supply
100–240 V AC, 50/60 Hz
Power consumption
240 W (Approx. 0.08 W in standby
mode with fan stopped)
2
LCD panel*
Panel size
0.74˝ diagonally
Aspect ratio 16:9 aspect ratio
Display method
Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels
2,073,600 (1,920 x 1,080) x 3, total of
6,220,800 pixels
Lens
Powered zoom (2x)/powered focus,
F 1.9–3.2, f 22.4 mm–44.8 mm
3
Lamp*
165 W UHM™ lamp
Brightness
1,100 lumens*4
11,000:1*4 (full on/full off)
Contrast
Center-to-corner uniformity ratio
85%
Full color (1,070,000,000 colors)
Colors
Projection size 1,016–5,080 mm (40–200 inches)
diagonally, 16:9 aspect ratio
Throw distance 1.2 m–12.4 m (3´11˝–40´8˝)
Screen aspect ratio
16:9 (4:3 compatible)
RGB: 1,920 x 1,080 pixels
Resolution
Scanning frequency for RGB
Horizontal: 30–70 kHz,
Vertical: 50–87 Hz
YPBPR signal compatibility
525i (480i), 525p (480p), 625i (576i),
625p (576p), 750 (720)/50p,
750 (720)/60p, 1,125 (1,080)/24p,
1,125 (1,080)/50i, 1,125 (1,080)/50p,
1,125 (1,080)/60i, 1,125 (1,080)/60p
Colour system PAL, PAL-M, PAL-N, PAL 60, SECAM,
NTSC, NTSC 4.43
Optical axis shift*5
Horizontal ±40% and vertical ±100%
Keystone correction range
Vertical: approx. ±30°
Installation
Ceiling/desk, front/rear
(menu selection)
OSD languages English, French, German, Spanish,
Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish,
Czech, Hungarian, Portuguese, Thai
Terminals
S-VIDEO IN
Mini DIN 4-pin x 1
VIDEO IN
RCA pin x 1
PC (RGB) IN D-sub HD 15-pin (female) x 1
COMPONENT IN
PT-AE1000U RCA pin (Y, PB/CB, PR/CR) x 2
PT-AE1000E RCA pin (Y, PB/CB, PR/CR) x 1
21-pin x 1 for PT-AE1000E only
SCART IN
19-pin HDMI connector x 1
HDMI IN
D-sub 9-pin x 2 (RS-232C based)
SERIAL
Power cord length
3 m (9´10˝)
Cabinet material
ABS/PC
Dimensions*6
(W x H x D) 460 x 130 x 300 mm
(18-1/8˝ x 5-1/8˝ x 11-25/32˝)
Weight
7.2 kg (15.9 lbs.)
Operating environment
Temperature: 0°–40°C (32°–104°F)
Humidity: 20%–80% (no condensation)
Remote control unit
Power supply 3 V DC (UM-3 (AA) battery x 2)
Operation range
Approx. 7 m (23´) when operated from
directly in front of the signal receptor
Dimensions 52 x 200 x 28.5 mm
(W x H x D) (2-1/16˝ x 7-27/32˝ x 1-1/8˝)
Weight
170 g (6 oz.) (including batteries)
Supplied accessories
Power cord, Wireless remote control
unit, Batteries for remote control
(UM-3 x 2)
Optional accessories
ET-LAE1000 Replacement lamp unit
ET-PKE1000S Ceiling mount bracket
ET-PKX100
Ceiling mount bracket for high ceilings
ET-PCE1000 Cable cover
*1: For an LCD projector with 1,100 lumens of brightness or more, as of September 2006.
*2: The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology designed to provide one of the finest
possible images. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please note that this is an intrinsic characteristic of the manufacturing technology that
affects all products using LCD technology.
*3: The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended
use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
*4: In AI mode, with dynamic iris on.
*5: Shift range is limited during simultaneous horizontal and vertical shifting.
*6: Excluding protrusions
Please contact Panasonic or your dealer for a demonstration.
Projector Global Web Site
http://panasonic.co.jp/pavc/global/projector
Weights and dimensions shown are approximate. Specifications are subject to change without notice.
This product may be subject to export control regulations. UHM is a trademark of Matsushita Electric Industrial Co.,
Ltd. VGA and XGA are trademarks of International Business Machines Corporation. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
All other trademarks are the property of their respective trademark owners. Projection images simulated.
PT-AE1000PRE1-06SEP
