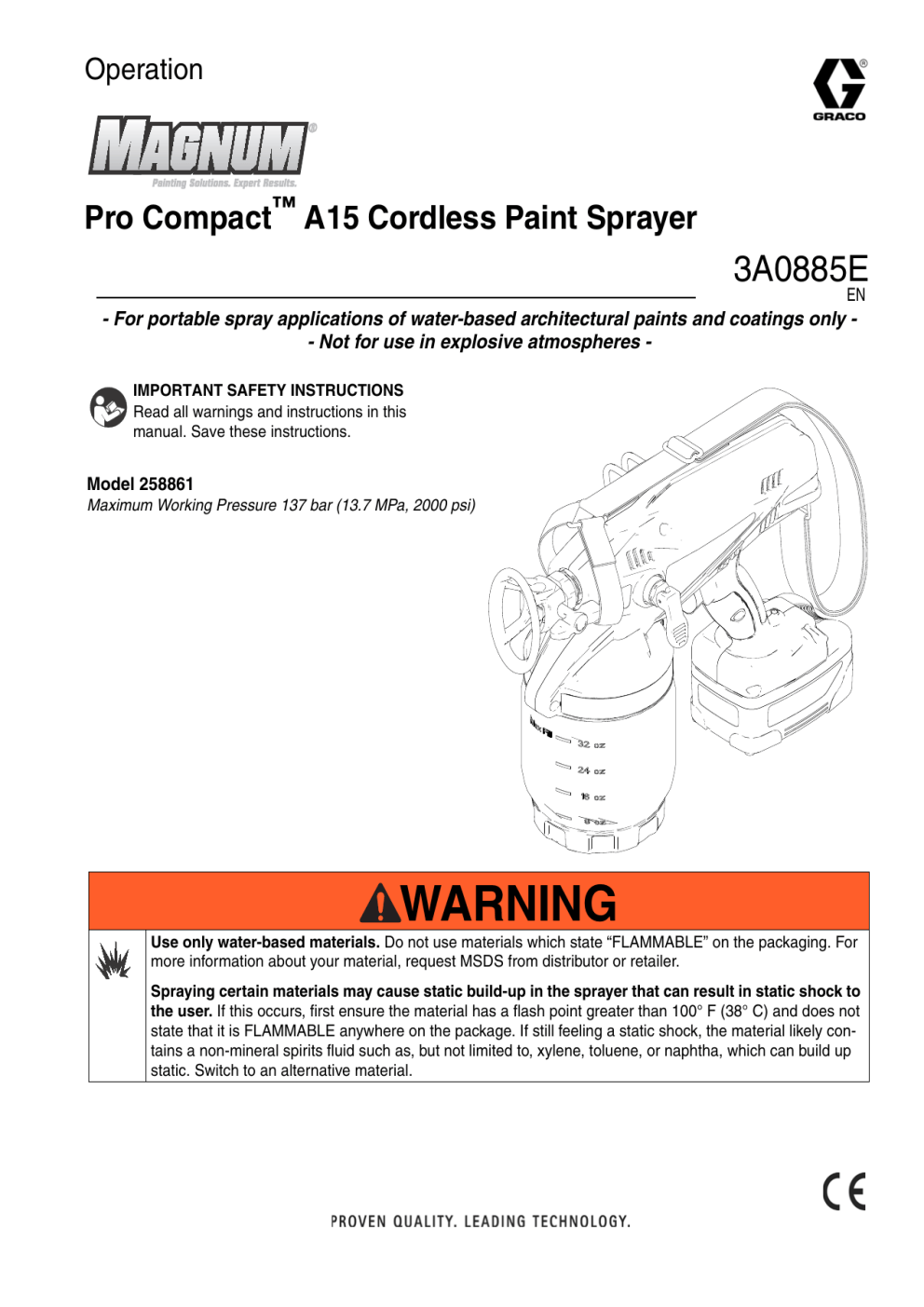

Graco 3A0885E - Pro Compact A15 Cordless Paint Gun Owner's Manual

Operation

Pro Compact

™

A15 Cordless Paint Sprayer

3A0885E

- For portable spray applications of water-based architectural paints and coatings only -

- Not for use in explosive atmospheres -

IMPORTANT SAFETY INSTRUCTIONS

Read all warnings and instructions in this manual. Save these instructions.

Model 258861

Maximum Working Pressure 137 bar (13.7 MPa, 2000 psi)

ti14773a

Use only water-based materials. Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Spraying certain materials may cause static build-up in the sprayer that can result in static shock to

the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and does not state that it is FLAMMABLE anywhere on the package. If still feeling a static shock, the material likely contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up static. Switch to an alternative material.

Table of Contents

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . 5

Common Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . . . . 6

Trigger Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Spray Tip Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control Valve Position . . . . . . . . . . . . . . . . . . . . . . . . . 6

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Charger Status Indicator Lights . . . . . . . . . . . . . . . . . . 7

Sprayer Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . 7

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Suction Tube Selection . . . . . . . . . . . . . . . . . . . . . . . . . 8

Spraying Stains or Clear Coats

(Fine-Finish Optimizer) . . . . . . . . . . . . . . . . . . . . . 9

Sprayer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Install Tip/Guard Assembly

(if not installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Shoulder Strap Installation . . . . . . . . . . . . . . . . . . . . . . . 12

Basic Spraying Techniques . . . . . . . . . . . . . . . . . . . . . . 13

Triggering Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Aiming Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Unclogging Spray Tip/Guard Assembly . . . . . . . . . . . . 14

Shutdown and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 15

Flushing Sprayer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Cleaning Sprayer Exterior . . . . . . . . . . . . . . . . . . . . . 17

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Replacement Parts and Kits . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Alternate Priming Method . . . . . . . . . . . . . . . . . . . . . . . . 22

Inlet Valve Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Graco Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . 28

Important User Information

Read this before using your sprayer. See the Operation Manual provided with your sprayer for complete instructions on proper use and safety warnings.

DO NOT RETURN THIS SPRAYER TO THE STORE!

If you experience problems, contact Graco Customer Service at www.graco.eu.

Congratulations! You have purchased a high-quality paint sprayer made by Graco Inc. This sprayer is designed to provide superior spray performance with water-based architectural paints and coatings. This user information sheet is intended to help you understand the types of materials that can and cannot be used with your sprayer.

Before using this equipment, be sure to read and follow the information on your container label and ask for a Material

Safety Data Sheet (MSDS). The container label and MSDS will explain the contents of the material and the specific precautions related to it.

Paints, coatings and clean-up materials generally fit into one of the following 2 basic categories:

WATER-BASED: The container label should indicate that the material can be cleaned up with soap and water. Your sprayer is compatible with this type of material. Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach.

FLAMMABLE: This type of material contains flammable solvents such as xylene, toluene, naphtha, MEK, lacquer thinner, acetone, denatured alcohol, and turpentine. The container label should indicate that this material is FLAMMABLE. This type of material is NOT compatible with your sprayer and CANNOT be used.

3A0885E

Warnings

Warnings

The following warnings are for the setup, use, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.

3A0885E

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help prevent fire and explosion:

• Sprayer generates sparks. Do not spray or flush with flammable liquids.

• Use only water-based materials.

• Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

• Do not spray or flush with combustible materials near an open flame or sources of ignition.

• Paint or solvent flowing through the equipment is able to result in static electricity. Static electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. Keep sprayer at least 10 cm away from objects while spraying or flushing.

• Do not smoke in the spray area.

• Do not operate light switches, engines, or similar spark producing products in the spray area.

• Keep area clean and free of paint or solvent containers, rags, and other flammable materials.

• Know the contents of the paints and solvents being sprayed. Read all Material Safety Data Sheets (MSDS) and container labels provided with the paints and solvents. Follow the paint and solvents manufacturer’s safety instructions.

• Fire extinguisher equipment shall be present and working.

SKIN INJECTION HAZARD

High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the event that injection occurs, get immediate surgical treatment.

• Do not aim the sprayer at, or spray any person or animal.

• Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.

• Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.

• Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.

• Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs while spraying, follow the Pressure Relief Procedure for turning off the unit and relieving the pressure before removing the nozzle tip to clean.

• Do not leave the unit energized or under pressure while unattended. When the unit is not in use, turn off the unit and follow the Pressure Relief Procedure for turning off the unit.

• Check parts for signs of damage. Replace any damaged parts.

• This system is capable of producing 2000 psi. Use replacement parts or accessories that are rated a minimum of 2000 psi.

• Do not carry the tool with a finger on the trigger.

• Verify that all connections are secure before operating the unit.

• Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Always wear appropriate gloves, eye protection, and a respirator or mask when painting.

• Do not operate or spray near children. Keep children away from equipment at all times.

• Do not overreach or stand on an unstable support. Keep effective footing and balance at all times.

• Stay alert and watch what you are doing.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Use only in dry locations. Do not expose to water or rain.

• Use in well-lit areas.

Warnings

BATTERY HAZARD

The battery may leak, explode, cause burns, or cause an explosion if mishandled. Contents of an open battery can cause severe irritation and/or chemical burns. If on skin, wash with soap and water. If in eyes, flush with water for at least 15 minutes and seek immediate medical attention.

• Do not short-circuit the terminals of the battery.

• Keep the battery away from fire.

• Charge only with Graco approved charger as listed in this manual.

• Do not expose to heat above 170° F (80° C).

• Do not expose battery to water or rain.

• Do not disassemble, crush, or penetrate the battery.

• Follow local ordinances and/or regulations for disposal.

CHARGER ELECTRIC SHOCK, FIRE AND EXPLOSION HAZARD

Improper setup or usage can cause electric shock, fire, and explosion.

• Charge only Graco 18V Lithium Ion batteries; other batteries may burst.

• Use only in dry locations. Do not expose to water or rain.

• If the supply cord is damaged, it must obtained from the manufacturer to avoid a hazard.

• Ensure that the outside surface of the battery is clean and dry before plugging into the charger.

• Do not attempt to charge non-rechargeable batteries.

• Place charger on flat non-flammable surfaces and keep away from flammable materials or fumes when recharging battery.

PRESSURIZED ALUMINUM PARTS HAZARD

Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage.

• Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or fluids containing such solvents.

• Many other fluids may contain chemicals that can react with aluminum. Contact your material supplier for compatibility.

MOVING PARTS HAZARD

Moving parts can pinch or amputate fingers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure in this manual. Disconnect power.

TOXIC FLUID OR FUMES HAZARD

Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swallowed.

• Read MSDS’s to know the specific hazards of the fluids you are using.

• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.

PERSONAL PROTECTIVE EQUIPMENT

You must wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect you from serious injury, including eye injury, hearing loss, inhalation of toxic fumes, and burns. This equipment includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufacturer.

3A0885E

Component Identification

Component Identification

J ti15479a

Pro Compact Cordless Paint Sprayer

Sprayer Hook

Spray Tip/Guard Assembly

(311, 515 included)

Tip Filter (*Reverse Threaded) E

F Standard Suction Tube

G Fine-Finish Optimizer with Storage/Cleaning Tool

Material Cup Cover and Seal

Material Cup (1 L)

Control Valve

M Lithium Ion Premium Power Battery Charger

N Material Cup Liners

P Shoulder Strap

R Lithium Ion Premium Power Battery (2 included)

S Battery Release Button

T Battery Status Indicator Light

W Sprayer Trigger

Sprayer Trigger Lock

Storage Case

*NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to tighten, turn right (or clockwise) to loosen.

3A0885E 5

Common Procedures

Common Procedures

Pressure Relief Procedure Spray Tip Position

Do not operate or spray near children. Do not aim the sprayer at, or spray any person or animal. Keep hands and other body parts away from the front of the sprayer.

For example, do not try to stop the paint flow with any part of the body.

This sprayer builds up an internal pressure of 2,000 psi during use. Follow this Pressure Relief Procedure whenever you stop spraying and before cleaning, checking, servicing, or transporting equipment to prevent serious injury.

Engage trigger lock.

Always perform Pressure Relief Procedure before adjusting spray tip position.

ti14985a

Tip Forward

(SPRAY position)

ti14991a

Tip Reversed

(UNCLOG position)

Control Valve Position

ti15510a

Put control valve UP to release pressure.

ti14999a

Trigger Lock

Always engage the trigger lock when you stop spraying to prevent the sprayer from being triggered accidentally by hand, or if dropped or bumped. ti14999a

UP position

(Releases pump pressure)

ti15425a

DOWN position

(Ready to spray)

ti14994a

Trigger Locked

ti14995a

Trigger Unlocked

(red ring is visible)

3A0885E

Charging the Battery

Charging the Battery

NOTE: Batteries can remain in the charger, which automatically switches to maintenance mode. It is not recommended to store the battery in the charger for longer than one week.

Batteries may leak, explode, cause burns or cause an explosion if mishandled.

Batteries are initially 50% charges to provide optimum battery life and require charging before first use. It takes approximately 45 minutes to charge a dead battery to

80%, at which point it can be used.It will take approximately 75 minutes to fully charge a dead battery.

Slide battery into charger as shown (light will turn on within 5 seconds).

To reduce the risk of electric shock, only use Graco batteries with the Graco charger. Do not insert any foreign objects into the adapter cup.

NOTE: The amount sprayed with each battery varies depending on material, tip size, battery charge, and battery temperature. 1 battery fully charged will spray approximately 1 gallon when using the 515 tip with latex paint. You will get less when using a smaller tip or thinner material.

NOTICE

Do not place a wet battery in the charger. Damage to equipment will occur.

ti14990

Charger Status Indicator Lights

Label Appearance

Solid green light

Flashing green light

Flashing red light

Solid red light

Description

Indicates a full charge. Use the battery or leave it in the charger.

The automatic Maintenance Mode holds the batteries at full charge.

Battery is charging, indicates 80% charge.

Battery can be used.

Battery is charging, indicates less than 80% charge.

Do NOT use battery.

Battery is too hot or too cold to charge and must cool or warm up before charging. Leave battery in charger.

Sprayer Status Indicator

Light Appearance

No light

Solid red

Flashing red

Description

Normal operation.

Battery is low on power and needs to be charged or battery is too cold and must warm up prior to spraying.

Battery temperature is too high, or tip is clogged.

See Troubleshooting, page 19.

NOTE: The indicator light is only visible when sprayer trigger is engaged. You must squeeze and hold the trigger to see the Sprayer Status Indicator.

3A0885E 7

Setup

Setup Suction Tube Selection

This sprayer comes with two different suction tubes.

Standard Suction Tube (sprays ceilings and walls):

When spraying walls, the inlet of the suction tube should be aimed at the front of the material cup.

Use only water-based materials. Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Spraying certain materials may cause static build-up in the sprayer that can result in static

shock to the user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and does not state that it is FLAMMABLE anywhere on the package. If still feeling a static shock, the material likely contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up static. Switch to an alternative material.

Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

ti15476a

When spraying ceilings, the inlet of the suction tube should be aimed at the back of the material cup

(towards the trigger).

NOTICE

Your sprayer is NOT compatible with harsh cleaners such as chlorine bleach. Using these cleaners will cause damage to the sprayer. ti15475a

Specialized Suction Tube (sprays floors):

When spraying floors, the inlet of the suction tube should be aimed at the front of the material cup (towards

Spray Tip/Guard Assembly).

ti15477a

NOTE: If the sprayer is angled or tilted too far, the suction tube will lose contact with the material and the sprayer will stop spraying.

3A0885E

Setup

Spraying Stains or Clear Coats

(Fine-Finish Optimizer)

The Fine-Finish Optimizer should be installed and used when spraying thin material such as stain or clear coats.

The Fine-Finish Optimizer restricts the material flow resulting in a finer quality finish.

Push Fine-Finish Optimizer into pump inlet until completely engaged and re-install suction tube.

NOTICE

Failure to install the Fine-Finish Optimizer when spraying thin materials will cause the sprayer to pulsate.

Installation

Remove material cup and suction tube.

ti15473a

Cleanup/Storage

Be sure to remove and clean the Fine-Finish Optimizer immediately after use. Store the Fine-Finish Optimizer on the Storage/cleaning Tool supplied to keep the hole clear of dried material.

ti15440a

Remove the cleaning tool before installing the

Fine-Finish Optimizer into the sprayer.

ti15480a

3A0885E 9

Setup

Sprayer Setup

This sprayer arrives from the factory with a small amount of test material in the system. It is important

that you flush this material from the sprayer before using it for the first time:

Fill material cup with water and thread onto sprayer.

Unscrew and remove material cup.

Disengage trigger lock, put control valve DOWN, hold sprayer slightly above material cup, and pull trigger to discharge fluid from pump.

ti14992a ti15478a

Put control valve to UP position, then hold trigger in for 10 seconds.

Discard material in cup.

NOTE: If the sprayer is angled or tilted too far, the suction tube will lose contact with the material and the sprayer will stop spraying. ti14999a

Put control valve DOWN to spray position.

ti15425a

Reverse spray tip to UNCLOG position and trigger sprayer into a waste area.

ti15511a ti14991a ti15491a

Engage trigger lock and put control valve UP to release pressure. ti14994a ti14999a

10 3A0885E

Setup

Materials

Install material cup liner, fill with material, and thread onto sprayer.

ti15474a

Use only water-based materials. Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Spraying certain materials may cause static build-up in the sprayer that can result in static

Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

To begin using, disengage trigger lock and trigger sprayer for 5-10 seconds. Then release trigger and put control valve DOWN to spray position.

• When spraying water-based materials, flush the sprayer thoroughly with water.

Starting a New Job (or Refilling the Cup)

Engage trigger lock and put control valve UP to release pressure. ti14995a ti15418a ti15425a

Reverse spray tip to UNCLOG position and spray into waste area for 5 seconds. Then rotate tip back to SPRAY position. NOTE: Failure to perform this operation could result in poor spray pattern.

ti14991a ti15491a ti14985a

NOTE: If sprayer fails to prime, follow Alternative

Priming Method (page 22) and/or Inlet Valve

Cleaning (page 23).

ti14994a ti14999a

Use the Fine-Finish Optimizer cleaning tool to lightly push on inlet valve to make sure it moves up and down freely.

3A0885E 11

Install Tip/Guard Assembly (if not installed)

Install Tip/Guard Assembly

(if not installed)

Reversible Tip Selection Chart

MATERIALS

*Thin

Thin stains, semi-transparent stains

Medium

Enamels, solid stains, thin latex

Heavy

Heavy latex

311 315, 515 517

*For thin materials install Fine-Finish Optimizer, see page 9.

NOTICE

The tip is a permanently attached to the guard.

Removing the tip from the guard will result in damage to tip assembly.

Shoulder Strap Installation

Attach the metal eyelet to the back of the sprayer.

Engage trigger lock and put control valve UP to release pressure. Then remove Tip/Guard Assembly.

Open the velcro end of the strap, then route it through the slot under the tip of the sprayer.

ti14994a ti14999a

Install filter to Spray Tip/Guard Assembly (make sure filter is fully installed into sprayer). NOTE: Filter assembly is reverse-threaded. Turn left (or counter-clockwise) to install. Turn right (or clockwise) to remove.

Route velcro up through the metal triangle, then fold

down and attach velcro to strap.

ti14775a

NOTICE

Make sure filter is completely screwed into the Tip/Guard

Assembly to avoid splattering material or damage to the filter.

Firmly screw Tip/Guard Assembly onto sprayer.

Tighten retaining nut until completely engaged with sprayer. If Tip/Guard Assembly is not fully tightened, poor spray results and possible damage to the sprayer could occur.

ti15490a ti14997a

12 3A0885E

Basic Spraying Techniques

Basic Spraying Techniques

NOTE: Use a piece of scrap cardboard to practice these basic spraying techniques before you begin spraying the surface. Anything you don’t want painted that is in

the area of your spraying surface should be covered or removed.

Hold sprayer at least 25 cm (10 in.) from surface and adjust accordingly to achieve desired results. Aim sprayer straight at surface. Tilting sprayer to direct spray angle causes an uneven finish.

25 cm

(10 in.) thick even finish ti14780a uneven finish thin

Flex your wrist while moving your arm to keep the sprayer pointed straight. Tilting the sprayer or spraying at an angle causes an uneven finish.

even finish thin thick thin

Triggering Sprayer

To achieve even spraying, pull trigger after starting the stroke. Release trigger before the end of the stroke.

Sprayer must be moving when trigger is pulled and released.

Start Moving Pull Trigger ti14988a

Release Trigger

Aiming Sprayer

Aim tip of sprayer at bottom edge of previous stroke, overlapping each stroke by half.

ti14782a ti14986a ti14987a

NOTE: How fast you move the sprayer will affect spray application. If material is pulsating, you are moving too fast.

If material drips, you are moving too slow. See Trouble-

shooting, page 19.

3A0885E 13

Unclogging Spray

Tip/Guard Assembly

Unclogging Spray Tip/Guard Assembly

Engage trigger lock. Put control valve UP to release pressure and rotate spray tip back to SPRAY position.

Do not operate or spray near children. Do not aim the sprayer at, or spray any person or animal. Keep hands and other body parts away from the discharge. For example, do not try to stop leaks with any part of the body.

ti14994a ti14999a

Disengage trigger lock, put control valve DOWN to spray position, and resume spraying.

Occasionally, debris from material can accumulate and clog the spray tip. Perform the following steps to unclog the tip.

To unclog tip obstruction, engage trigger lock and pull relief valve UP to release pressure.

If tip is still clogged, you may have to repeat steps

1 - 5 and rotate the tip from SPRAY to UNCLOG several times. Repeat step 1 to release pressure, remove and clean filter, or replace with new tip assembly. ti14994a ti14999a

Reverse spray tip to UNCLOG position.

ti14989a ti14991a

Aim sprayer at waste area, disengage trigger lock, and put control valve DOWN to spray position. Pull trigger to clear clog.

NOTE: Filter assembly is reverse-threaded:

Turn left (or counter-clockwise) to install.

Turn right (or clockwise) to remove.

If obstruction is cleared, engage trigger lock and rotate arrow-shaped handle back to SPRAY position.

ti1995a ti15425a

14 3A0885E

Shutdown and Cleaning

Shutdown and Cleaning

Remove material cup and properly dispose cup liner or excess material.

NOTICE

Failure to properly clean sprayer after each use will result in hardened materials, damage to the sprayer, and the warranty will no longer be valid.

Flushing Sprayer

Remove and clean sprayer intake tube and screen with water (or flushing fluid) and a brush every time you flush the sprayer. Reconnect intake tube.

Use only water-based materials. Do not use materials which state “FLAMMABLE” on the packaging. For more information about your material, request MSDS from distributor or retailer.

Spraying certain materials may cause static build-up in the sprayer that can result in static shock to the

user. If this occurs, first ensure the material has a flash point greater than 100° F (38° C) and does not state that it is FLAMMABLE anywhere on the package. If still feeling a static shock, the material likely contains a non-mineral spirits fluid such as, but not limited to, xylene, toluene, or naphtha, which can build up static. Switch to an alternative material.

Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

ti15002a

Clean cup if not using a liner, and fill with water or appropriate flushing fluid.

NOTICE

Protect the internal parts of this sprayer from water.

Do not submerge the sprayer in cleaning fluid. Openings in shroud allow cooling of mechanical parts and electronics inside. If water gets into these openings, the sprayer could malfunction or become permanently damaged.

Engage trigger lock and pull relief valve UP to release pressure.

ti15001a

Reconnect material cup and shake sprayer to move clean water around and clean all areas inside of cup and underside of sprayer.

ti14994a ti14999a ti15441a

3A0885E 15

Disengage trigger lock and trigger sprayer for approximately 15 seconds. Engage trigger lock.

Shutdown and Cleaning

10. Engage trigger lock and put control valve UP to release pressure.

ti14994a

Discard contaminated fluid and refill with appropriate flushing fluid.

Disengage trigger lock, reverse tip to UNCLOG position, and pull trigger for 5 seconds to prime sprayer.

ti14999a

11. Remove material cup and discard used fluid.

12. Use a soft brush to clean the black rubber inlet seal.

If the vent holes become clogged, use the fine finish optimizer cleaning tool or a paper clip to clear the holes.

ti14995a ti14991a

Put control valve DOWN to spray position.

Trigger sprayer into waste area until no paint appears in water or flushing fluid.

ti15425a ti15491a

13. Remove Spray Tip/Guard Assembly and clean with water or flushing fluid. A soft brush can be used to loosen and remove dried material if needed. Run underwater and use a soft brush to clean the filter.

To avoid serious injury or damage to equipment, do not expose the sprayer electronics to flushing solvents.

Keep sprayer at least 25 cm above the rim of the container when flushing.

NOTICE

The tip is permanently attached to the guard. Removing the tip from the guard will result in damage to the tip assembly.

14. Replace tip assembly.

15. If you used the Fine-Finish Optimizer, remove and clean optimizer with water (or flushing fluid) and a brush. Reconnect intake tube.

ti5529a

Keep spray area well-ventilated. Keep a good supply of fresh air moving through the area.

16 3A0885E

Storage

Cleaning Sprayer Exterior

• Wipe paint off outside of sprayer using a soft cloth moistened with water or flushing fluid.

Do NOT submerge the sprayer.

Thread cup into sprayer, put control valve to UP position and squeeze sprayer trigger for approximately 10 seconds.

ti14999a

Reverse spray tip to UNCLOG position, put control valve DOWN to spray position, and aim sprayer into waste area. Pull trigger for 1-2 seconds.

Tips

• Tips will require replacement depending on abrasiveness of paint.

• Do not spray with worn tip. See Troubleshooting,

page 19.

ti14991a ti15425a ti15418a

Properly dispose of used Pump Armor mixture from material cup and rinse cup with water.

Storage

NOTICE

Failure to store with sprayer with Pump Armor will result in operational problems the next time you spray.

Always circulate Pump Armor through the sprayer after cleaning. Water left in the sprayer will corrode and damage the pump.

Dilute 120 ml (4 oz.) of Pump Armor Concentrate with an additional 120 ml (4 oz.) of water in material cup.

ti15001a

Store sprayer indoors in a cool, dry place. Store in an upright position only.

4 oz ti15442a

NOTE: For prolonged battery life, lithium ion batteries should be stored at half charge in an environment below 90° F (32° C).

3A0885E 17

Replacement Parts and Kits

Replacement Parts and Kits

11a

10 8

11a

Ref.

Part Description

262452 Sprayer, replacement (no tip, battery, suc-

16D562

24F045 tion tube, or material cup)

Liner, replacement (10 pack)

Fine Finish Optimizer (with Cleaning Tool)

2-Pack

253574 Pump Armor (1 L)

24F077 Storage Case

Tip/Guard Assembly

NAR311 311

NAR315 315

XWD515 515

XWD517 517

Tip Filter

24E376 Kit, 1-pack

24F039 Kit, 3-pack

24F076 Standard Suction Tube with screen and 8

16D558 o-rings

Lithium Ion Premium Power Battery

16E403 Sprayer Cup Seal

24D425 Cover with seal (included in 13 and 14)

11a 16C650 Material Cup Cover Seal

(included in 13 and 14)

2 ti15497a

Ref.

Part Description

16D799

16D560

16D561

24E377

Lithium Ion Battery Charger

Material Cup (1 L) cover and seal

Material Cup (1.5 L) cover and seal

Shoulder Strap

106553 Suction Tube o-ring (not shown)

▲

16 24E609 Warning Labels Kit (ENG / FRA / SPA)

24E552 Battery Label (European languages)

24E553 Charger Label (European languages)

24E554 Sprayer Label (European languages)

262602 Inlet Valve Kit

262438 Needle Assembly Kit

262604 Prime Valve Handle

262680 Enclosure, replacement (product labels not

21 included)

16F499 Label, brand, ProCompact

▲

Replacement Danger and Warning labels, tags, and cards are available at no cost.

3A0885E

Troubleshooting

Troubleshooting

Check everything in this Troubleshooting Table before you bring the sprayer to an authorized service center.

Problem

Sprayer makes no sound when trigger is pulled

Sprayer makes sound but no material is sprayed when trigger is pulled

Cause Solution

Trigger is locked.

Status Indicator Light is solid RED when triggering, indicating that the battery charge is low or the battery is too cold.

Disengage trigger lock. See page 6.

Replace with charged battery and place old battery in charger or allow the battery to warm up.

Allow battery to cool.

Status Indicator Light is flashing RED when triggering, indicating that the battery is too hot to operate.

Status Indicator Light does not light when sprayer is triggered.

Sprayer is not primed.

Battery is not installed or is damaged.

Prime the pump. See Starting a new Job

(or Refilling the Cup), page 11. If the sprayer fails to prime, follow Inlet Valve

Cleaning (page 23) and/or Alternate

Priming Method (page

Control valve is in UP position.

Suction Tube is missing or improperly installed.

Inlet valve is stuck from material residue left in sprayer.

Tip is not in SPRAY position.

Tip is clogged.

Pull valve DOWN to spray position.

Make sure Suction Tube is properly installed.

Use the Fine-Finish Optimizer cleaning tool to lightly push on inlet valve to make sure it moves up and down freely. See

Inlet Valve Cleaning (page 23).

Turn tip to SPRAY position.

See Unclogging Tip/Guard

Assembly, page 14.

See Shutdown and Cleaning, page 15.

Suction Tube screen is clogged or vent holes in black rubber inlet seal are clogged.

Sprayer has been tilted too far and suction tube has lost contact with material.

No or low material in cup.

Tip filter is clogged.

Fine Finish Optimizer is installed while using an incompatible material.

Make sure cup is filled with material. Do not tilt the cup too far. Prime the pump.

See Starting a new Job (or Refilling the

Cup), page 11.

Refill cup with material.

Remove and clean tip filter. See Unclog-

ging Tip/Guard Assembly, page 14.

Make sure compatible material is being used. See Reversible Tip Selection

Chart, page 12.

Replace Suction Tube and o-rings.

Suction Tube o-rings are damaged or missing.

Pump is clogged, frozen, or has debris inside.

Sprayer has reached maximum life.

Material is leaking from hole in front of sprayer.

Flush the pump. See Setup, page 8.

Replace sprayer.

3A0885E 19

Troubleshooting

Problem Cause Solution

Sprays with poor results Tip is partially clogged

Tip is not in correct position

Incorrect tip for application of material.

See Unclogging Tip/Guard Assembly,

page 14.

Rotate tip to SPRAY position.

See Reversible Tip Selection Chart,

page 12.

Tip filter is partially clogged

Clean or replace filter. See page 14.

Suction Tube screen is partially clogged.

Clean or replace Suction Tube. See page

15.

Paint leaks from sprayer trigger area.

Battery is discharged but charger still displays green light when battery is inserted.

Fine Finish Optimizer is partially clogged. Clean or replace Fine Finish Optimizer.

See page 9.

Fine Finish Optimizer is installed while using an incompatible material.

Make sure compatible material is being used. See Reversible Tip Selection

Chart, page 12.

Tip is worn or damaged

Inlet or Outlet Valves are worn.

Sprayer has reached its maximum life.

Damaged battery.

Replace tip. See Install Tip/Guard

Assembly, page 12.

Replace sprayer.

Replace battery.

Spray Pattern Diagnostics

Problem Cause Solution

Spray pattern is pulsating: Fine Finish Optimizer is installed while using an incompatible material.

Make sure material is compatible. See Revers-

ible Tip Selection Chart, page 12.

Operator is moving too fast while spraying.

Slow speed of movement.

ti15524

Spray pattern has tails: Fine Finish Optimizer is installed while using an incompatible material.

Make sure compatible material is being used.

See Reversible Tip Selection Chart, page 12.

Fine Finish Optimizer is partially clogged.

Clean or replace Fine Finish Optimizer.

See page 9.

Switch material.

ti15526

Material not compatible with sprayer.

Inlet or Outlet Valves are worn.

Spray pattern has dripping: Sprayer is moving too slow for material.

Sprayer is too close to target surface.

Replace Sprayer.

Move sprayer faster while spraying.

Move sprayer away from surface (10 in).

Release trigger when changing directions.

Holding trigger while changing spray direction.

ti15522

Incorrect tip for application of material.

See Reversible Tip Selection Chart, page 12.

Replace tip. See Install Tip/Guard Assembly,

page 12.

Move sprayer away from surface (10 in).

See Reversible Tip Selection Chart, page 12.

Replace tip. See Install Tip/Guard Assembly,

page 12.

ti15523

Tip is worn or damaged.

Spray pattern is too narrow: Sprayer is too close to target surface.

Incorrect tip for application of material.

Tip is worn or damaged.

20 3A0885E

Troubleshooting

Problem

Spray pattern is too wide:

Cause

Sprayer is too far away from target surface.

Incorrect tip for application of material.

Solution

Move sprayer closer to surface.

See Reversible Tip Selection Chart, page 12.

ti15527a

Spray pattern “spits” at the end: Excess material has accumulated on Spray

Tip/Guard Assembly.

Tip filter is partially clogged.

Tip/Guard Assembly not threaded completely onto sprayer.

Seat is worn.

ti15525a

Tip continues to drip or ooze material after trigger is released:

Sprayer is worn out.

See Shutdown and Cleaning, page 15.

Clean or replace filter. See page 14.

See Install Tip/Guard Assembly, page 12.

Replace Spray tip.

Replace sprayer.

ti15528a

Spray pattern does not adequately cover target surface

Fine Finish Optimizer is installed while using an incompatible material.

Make sure compatible material is being used.

See Reversible Tip Selection Chart, page 12.

Sprayer is worn out.

Replace sprayer.

3A0885E 21

Alternate Priming Method

Alternate Priming Method

Hold sprayer above sink or waste area, disengage the trigger lock, and quickly trigger sprayer until material comes out of the drain tube.

Engage trigger lock and put prime/relief valve UP to release pressure.

ti14995a ti14991a ti14994a ti14999a

Remove material cup and fill with flushing material.

NOTE: Material can shoot out of the drain tube when performing this procedure. Be sure to wear appropriate safety equipment and point drain tube away from yourself when pulling the trigger,

Thread the material cup back onto sprayer.

With sprayer in prime mode, turn sprayer upside-down, remove strainer, and slowly pour flushing material into the intake tube until full.

Trigger the gun for 10 seconds then release the trigger and put the prime/relief valve DOWN to spray position. ti15425a

Reverse spray tip to UNCLOG position and spray into waste area for five seconds to ensure sprayer has primed.

ti14995a ti14991a

Sprayer is now ready to spray. Follow Starting New

Job instructions on page 11.

3A0885E

Inlet Valve Cleaning

Inlet Valve Cleaning

Removal

Engage trigger lock and pull relief valve UP to release pressure.

ti14994a ti14999a

Remove material cup and suction tube.

Clean as much excess material from pump cavity as possible. Make sure you also clean spring (a), o-ring

(c), and top of inlet fitting (d).

Installation

NOTE: Before installing, make sure o-ring (c) is installed on inlet valve (b).

Place inlet valve (b) with spring (a) on top of inlet fitting (d). Push inlet fitting up into pump cavity. a b c ti15504

Hold sprayer upside-down and use wrench or socket to loosen and remove inlet fitting, inlet valve, and spring. d ti15502a

Hold inlet in place and turn sprayer upside-down.

Remove inlet fitting and visually check to see that inlet valve has seated correctly.

ti15505a

NOTE: Make sure the spring also comes out. Use needle-nose pliers to remove if needed. Inlet cavity should be completely empty (as shown below).

ti15530a

Replace inlet fitting and use wrench and socket to tighten to 10 ft-lb.

NOTICE

Do NOT over-tighten inlet fitting. Damage to the equipment will occur.

Use your Fine-Finish Optimizer cleaning tool to lightly push on inlet valve to make sure it moves up and down freely.

3A0885E 23

Technical Data

Sprayer:

Maximum working pressure

Weight

Dimensions:

Length

Width

Height

Storage temperature range

◆❖

Operating temperature range

✔

Storage Humidity Range

Sound Pressure Level

Vibration Level Acceleration

Charger:

Charging Time

Power Source

Battery:

Voltage

Capacity

137.8 bar, 13.7 MPa (2000 psi)

2.87 kg (6.32 lb)

33.6 cm (13.25 in.)

12.7 cm (5.0 in.)

26.4 cm (10.375 in.)

0° to 50°C (32° to 122°F)

4° to 32°C (40° to 90° F)

0% to 95% relative humidity, non-condensing

79.5 dBa† (for sound power level, add 11 dBa)

Less than 2.5 m/s

45 - 75 minutes

240 VAC

(8.2 feet/s

)††

18 VDC, Lithium Ion

2.4 Ah, 43.2 Wh

◆

Pump damage will occur if fluid freezes in pump.

❖

Damage to plastic parts may result if impact occurs in low temperature conditions.

✔

Changes in paint viscosity at very low or very high temperatures can affect sprayer performance.

† per ISO 3744 measured at 3.1 feet (1m)

†† per ISO 5349, no load condition

Technical Data

24 3A0885E

Notes

Notes

3A0885E 25

Notes

Notes

26 3A0885E

Notes

Notes

3A0885E 27

Graco Standard Warranty

Graco warrants all equipment referenced in this document which is manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by

Graco to be defective. This warranty applies only when the equipment is installed, operated and maintained in accordance with Graco’s written recommendations.

This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or substitution of non-Graco component parts. Nor shall Graco be liable for malfunction, damage or wear caused by the incompatibility of Graco equipment with structures, accessories, equipment or materials not supplied by Graco, or the improper design, manufacture, installation, operation or maintenance of structures, accessories, equipment or materials not supplied by Graco.

This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized Graco distributor for verification of the claimed defect. If the claimed defect is verified, Graco will repair or replace free of charge any defective parts. The equipment will be returned to the original purchaser transportation prepaid. If inspection of the equipment does not disclose any defect in material or workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor, and transportation.

THIS WARRANTY IS EXCLUSIVE, AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED

TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

Graco’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other remedy

(including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale.

GRACO MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT

MANUFACTURED BY GRACO. These items sold, but not manufactured by Graco (such as electric motors, switches, hose, etc.), are subject to the warranty, if any, of their manufacturer. Graco will provide purchaser with reasonable assistance in making any claim for breach of these warranties.

In no event will Graco be liable for indirect, incidental, special or consequential damages resulting from Graco supplying equipment hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach of warranty, the negligence of Graco, or otherwise.

FOR GRACO CANADA CUSTOMERS

The Parties acknowledge that they have required that the present document, as well as all documents, notices and legal proceedings entered into, given or instituted pursuant hereto or relating directly or indirectly hereto, be drawn up in English. Les parties reconnaissent avoir convenu que la rédaction du présente document sera en Anglais, ainsi que tous documents, avis et procédures judiciaires exécutés, donnés ou intentés, à la suite de ou en rapport, directement ou indirectement, avec les procédures concernées.
