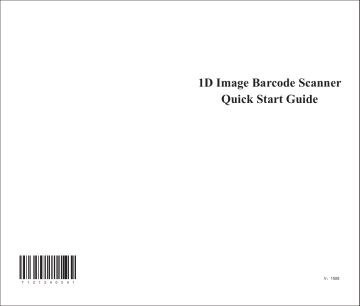

1D Image Barcode Scanner
Quick Start Guide
V:1508
7
1
2
1
2
4
0
0
0
1
Technical Parameters
Light Source
Sighting Device
Connect the Barcode Scanner
White LED
Red LED, 617nm
Indicator
Green=decoding successfully
Interface
USB
Scanning Type
Scanning Angle
Angle of pitch ±70°,Angle of inclination ±60°,
Rotation ±180°
Discernible Printing Contrast Minimum 30% contrast
Decoding Capability
Input Voltage
Operating Power
Standby Power
DC Power
EMC
2W; 400mA @ 5V-typical value
0.45W; 90mA @ 5V-typical value
Class2;DC5V/1A
IEC60950
Humidity
Light Level
Shock Resistance
Dust Proof
IP Level
Bar Code Density
USB keyboard (default)
Scan the below bar code to set up the scanner as USB convert to RS232
mode. (Need to install driver. Please contact our sales team.)
EN55022, EN55024 Class B
IEC62471
Storage Temperature
This barcode scanner supports USB keyboard mode and USB convert to
RS232 mode.
Scan the below bar code to set up the scanner as USB Keyboard mode.
This is the default mode.
4 ~ 5.5 V DC
C B
Operating Temperature
Interface Mode
All standard 1D
LED Safety Certificate
Other Certificate
Connect the barcode scanner to the incidental special connector, and then
insert the USB port to the PC.
If the barcode configuration is off, please refer to ‘Configuration Code
ON/OFF’ and scan ‘ON’.
GOST-R, CE
USB convert to RS232
0°C - 40°C
-40°C - 60°C
5%~95% relative humidity (non-condensing)
0 - 100,000LUX
Designed to withstand1.5 meters drop on
concrete surface
Seal to prevent air dust
Configuration Code ON/OFF
When this function is on, all setup bar codes can be scanned to configure
the scanner.
When this function is off, all setup bar codes can’t be scanned to configure
the scanner. Re-scan ‘ON’ then the scanner can read the setup bar codes and
start settings.
Ip54
Depth of field
5 mil Code39
33 - 95 mm (1.3 - 3.7 in.)
13 mil UPC-A
32 - 255 mm (1.3 - 10.0 in.)
20 mil Code 39
35 - 355 mm (1.4 - 14.0 in.)
10mil Data Matrix
30 - 100 mm (1.2 - 3.9 in.)
15mil Data Matrix
21 -162 mm (0.8 -6.4 in.)
Resolution
4 mil
Tolerance
100mm/sec 13 mil UPC
ON (default)
OFF
Default Configuration
Scan the below bar code to reset configuration to defaults.
Reset Factory Default
1
User Configuration
Suffix
Scan the below bar code to save the current parameters as user
configuration.
Notes:
Scan the below bar codes to setup different suffix under the USB serial
mode. It can only add CR suffix under the USB keyboard mode.
Save user configuration
Scan the below bar code can reset the scanner to the saved user
configuration.
Cancel CR /LF suffix
Reset user configuration
Add CR suffix
Screen Reading Mode
When this mode is on, the scanner will read the bar codes on mobile
phone screen or computer screen. Please note that this mode will probably
lower the scanning speed of reading bar codes on paper. This mode is off as
factory default.
Add LF suffix
OFF (Defaults)
Add CR&LF suffix (Defaults)
ON
Center Mode
When center mode is on, the scanner will only read the bar codes in the
center area which it aims at. This mode is off as factory default.
Instructions
To make a good read, the light beam of the scanner should aim at the
center of the bar code at any direction.
The closer the scanner to the bar code, the smaller the light beam is. If not,
the light beam is larger. If the bar code is small, make the scanner closer to the
bar code. If not, make the scanner farther to make a good read.
If the bar code is with a high reflexivity (ex. coating film), the barcode
should be at a right angle of slope, then can read successfully.
OFF (Defaults)
ON
2
3
4
