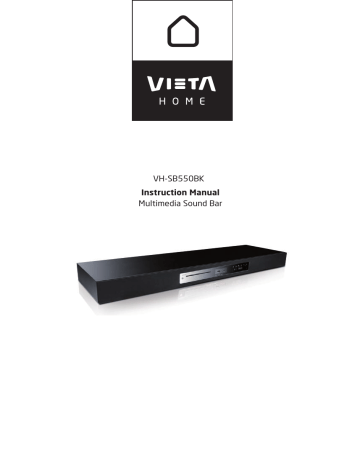

manual VH-SB550BK-EN
VH-SB550BK
Instruction Manual
Multimedia Sound Bar
Contents
IMPORTANT SAFETY INSTRUCTIONS............... 2
SAFETY....................................................................... 2
WARNING.................................................................... 2
Identifying the Parts................................................ 4
Main Unit...................................................................... 4
Remote Control............................................................ 6
Connections........................................................... 7
Connect to FM Antenna............................................... 7
Connect to TV.............................................................. 7
Connect to an External Audio Device.......................... 8
Connect power............................................................. 9
Battery Installation ................................................. 9
Precautions Concerning Batteries............................... 9
Install Remote Control Batteries.................................. 9
Basic Operation.................................................... 10
Power......................................................................... 10
Select the Correct TV System................................... 10
Change System Menu Language.............................. 10
Set the Clock............................................................. 10
Adjust Volume Level.................................................. 10
Select a Preset Sound Effect..................................... 10
Super Bass Boost...................................................... 10
Select Surround Sound............................................. 10
Mute Sound............................................................... 10
Adjust Brightness of Display Panel........................... 10
Play ..................................................................... 11
Play a Disc..................................................................11
Play from USB............................................................11
Play MP3/WMA/Picture Files......................................11
Play Control................................................................11
Play Options.............................................................. 12
Picture View Options................................................. 12
Play iPhone/iPod....................................................... 13
Adjust Settings..................................................... 13
Introduction................................................................ 13
General Setup Page.................................................. 13
Audio Setup Page...................................................... 14
Video Setup Page...................................................... 14
Preference Setup Page............................................. 15
Listening to the FM Radio .................................. 16
Tuning in a Station..................................................... 16
Presetting Stations.................................................... 16
Tune to a Preset Radio Station................................. 16
Other Features.................................................... 16
Set the Alarm Timer................................................... 16
Set the Sleep Timer................................................... 16
Troubleshooting.................................................... 17
Specifications....................................................... 18
Standard Accessories ......................................... 18
1
IMPORTANT SAFETY INSTRUCTIONS
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15) Battery usage CAUTION - To prevent battery leakage which may result in bodily injury,
property damage, or damage to the apparatus:
- Install all batteries correctly, + and - as marked on the apparatus.
- Do not mix batteries (old and new or carbon
and alkaline, etc.).
- Remove batteries when the unit is not used for a long time.
16) The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
17) Apparatus shall not be exposed to dripping or splashing.
18) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
19) This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations.
20) When the appliance coupler is used as the
disconnect device, the appliance coupler shall
remain readily operable.
21) Do not expose the apparatus to any dripping or
splashing and make sure no object filled with
liquids. such as vases, etc., are placed on them.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
SAFETY
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) For countries with a polarized mains, do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Caution:To prevent electric shock, match the
wide blade of the plug to the wide slot, fully insert.
10) Protect the power cord from being walked
on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
WARNING

Before operating this system, check the voltage
of this system to see if it is identical with the
voltage of your local power supply.
 The ventilation should not be impeded by
covering the ventilation openings with items such
as newspaper, table-cloths, curtains etc. Make
sure there is at least 20 cm of space above and
at least 5 cm of space on each side of the unit.
 Do not place this unit close to strong magnetic
field.
2








Do not place the unit on the amplifier or receiver.
Don’t place this unit close to the damper, or the moisture will affect the life of the laser head.
If the system is brought directly from a cold to
a warm location, or is placed in a very damp
room, moisture may condense on the lens
inside the player. Should this occur, the system
will not operate properly. Remove the disc and
leave the system turned on for about an hour
until the moisture evaporates.
To keep the laser pickup clean, do not touch it,
and always close the disc tray.
Should any solid object or liquid fall into the
system, unplug the system and have it checked
by qualified personnel before operating it any
further.
Do not attempt to clean the unit with chemical
sol vents as this might damage the finish. Use a
clean, dry or slightly damp cloth.
When removing the power plug from the wall
outlet, always pull directly on the plug, never
yank on the cord.
Depending on the electromagnetic waves used
by a television broadcast, if a TV is turned on
near this unit while it is also on, lines might
appear on the TV screen. Neither this unit nor
the TV are malfunctioning. If you see such lines, keep this unit well away from the TV set.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
This unit includes this label:
The type plate is located on the rear of the unit.
Do not move the unit during playback
During playback, the disc rotates at high speed.
Do NOT lift or move the unit during playback.
Doing so may damage the disc or the unit.
When moving this unit
When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc tray to its closed position in the player. Then, press the power switch to
turn the power off, and disconnect the power
cord. Moving this unit with the disc loaded may
result in damage to this unit.
3
Identifying the Parts
Main Unit
View
Back
Panel View
4
Back View
Panel View
1
1
HDMI Socket
Connect to a TV.
2 AUDIO OUT Terminal
3
Touch this button to turn on this product or switch
to the Eco Power standby mode.
2 Disc Compartment
Connect to a TV.
VIDEO Terminal
3
Connect to a TV.
4 OPTICAL Terminals
5
Connect to a digital amplifier.
AUX IN Terminals
6
Connect to an external audio device.
FM Antenna Socket
7
Connect to a FM Antenna.
AC~ Power Cord
5
Touch this button to rotate out or rotate in the
iPad/iPhone/iPod docking.
FUNCTION
7
Connect to power.
8 COMPONENT Socket
Connect to a TV.
SCART OUT/IN Socket
Connect to a TV.
Connect to an external audio device.
KDISC
Touch this button to open or close the disc
compartment.
6 KDOCK
9
USB
Connect to a USB flash drive.
4 MP3 LINK
8
Touch this button repeatedly to select a source
BF PLAY
Start or pause playback.
Search station.
9 VOLUME Touch this button to decrease the volume level.
10VOLUME +
Touch this button to increase the volume level.
11Remote control sensor
12Display lens
13iPad/iPhone/iPod Docking
5
4
Remote Control
SLEEP/TIMER
Set sleep timer
Set alarm timer
5 REPEAT
6
Select repeat play modes
CLOCK
Display current clock (Hold and press
insandby mode) activate clock setup.
7
L
Stop play
Erase a preset radio station.
8
Skip to next title/ chapter/ tracks.
Select next radio station.
9 MUTE
Press this button to mute or resume the sound.
10H
Skip to previous title/ chapter/ tracks.
Select previous radio station.
11SETUP
Access or exist system setup menu.
12
Navigate up through menus.
Tune to a radio station.
Rotate a picture.
13D,

G
Navigate left through menus.
Search backward within a track/disc.
Tune to a radio station by searching backward.

 

14
Navigate down through menus.
Tune to a radio station.
Rotate a picture.
15TITLE
Access title menu.
16ANGLE
Select a camera angle to view video play.
17DISC/USB
Select DISC or USB function.
18DOCK
Select DOCK function.
1
19RS-BASS
Turn on this product or switch to the Eco Power
standby mode.
2 Numeric keypad (0~9)
20RS-EQ
Enable and adjust bass level.
Select a preset sound effect:
MOVIE,TV, DANCE, JAZZ, MUSIC.
21K
Select a title/ chapter/ track.
Input password.
Select a preset radio station.
3 GOTO
Open or close the disc compartment.
Access quick menu of title/ chapter/ track
selection.
6
22PROG
Connections
Program tracks
Program titles/chapters fo DVD playback
Program radio stations
Erase file from program list.
23SHUFFLE
Connect to FM Antenna
Connect the supplied FM wire antenna to the
FM antenna socket on the unit.
Select shuffle play modes
24A-B
Repeat a specific section within a track/chapter.
25OSD/RDS
Display play information on TV.
26BF
Start or pause play
(Press and hold) change the grid for tuner
searching.
27VOL+ (Volume)
Increase the volume level.
28VOL- (Volume)
If reception is poor, connect the outside antenna.
Note:
Before attaching a 75 ohm coaxial lead (the
kind with a round wire going to an outside
antenna), disconnect the supplied FM wire antenna.
Decrease the volume level.
29MENU
For video discs: Access or exit disc menu.
For video disc with playback control: turn on/off
PBC.
For USB/data disc playback: switch between
folder/file list/program list.
30ENTER
Confirm a selection.
31,C
Navigate right through menus.
Search forward within a track/disc.
Tune to a radio station by searching forward.
32ZOOM
Connect to TV
IMPORTANT!
- You only need to make one video connection from the following options, depending on the capabilities of your TV.
Note:
- Connect the DVD system directly to the TV.
Zoom in/out image on screen.
33SUBTITLE
Select a subtitle language during video play.
34INPUT
Select AUX, MP3 LINK, OPTICAL or SCART
function.
35TUNER
Caution:
To avoid noise, keep antennas away from the system, the connecting cord and the AC power cord.
Select TUNER function.
36DIM
Adjust brightness level of display panel.
37AUDIO
Select a audio channel during video play.
7
Connect to an External Audio Device
1 Using COMPONENT socket
-
-
Connect a progressive scan TV through
component video for higher quality video.
Connect component video cables(red/blue/
green-not supplied) to:
 The VIDEO OUT (Y Pb/Cb Pr/Cr)sockets on this
unit.
 The component video input sockets on the TV.
Note:
- The progressive scan video quality is only
available when a progressive scan TV is
connected.
- If you TV does not support progressive scan,you
cannot view the picture.
- For how to activate progressive scan on your
TV ,refer to the TV user manual.
The component video input jack on the TV might be
labeled as Y Pb Pr or YUV.
You can also listen to an external audio device
through this unit.
2 Using AV OUT socket
Connect audio cables to:
-
-
The AUDIO OUT R / L sockets on this unit.
The audio input sockets on the external audio
device.
Connect the composite video cable to:
-
The VIDEO socket on this unit.
-
The video input socket on the TV.
1 Using AUX IN socket
Connect audio cables to:
- the AUX IN sockets on this unit.
- the audio output sockets on the external audio device.
3 Using SCART OUT socket
Connect the SCART cable to:
- The SCART OUT socket on this unit.
- The corresponding Scart input jacks on the TV.
2 Using OPTICAL socket
Connect a optical cable to:
- the OPTICAL socket
- the digital input socket on the digital recorder
Note:
Mute function is invalid in this mode.
4 Using HDMI socket
Connect HDMI (High Definition Multimedia
Interface), DVI (Digital Visual Interface), or HDCP
(High-bandwidth Digital Contents Protection)compliant TVs through HDMI for the best picture
quality. This connection transmits both video and
audio signals. Through this connection, you can
watch DVDs that contain HD (High-Definition)
content.
Note:
Some TVs do not support HDMI audio
transmission.
Connect an HDMI cable to:
- the HDMI socket on this unit.
- the HDMI socket on the TV.
Note:
If your TV has only a DVI connection, connect
through a HDMI/DVI adaptor. An extra
audio connection is needed to complete this
connection.
Connect to Other Devices
Listen to an Audio Player
You can listen to audio player through this unit.
8
1
Install Remote Control Batteries
Connect the audio player.
- For audio players with RCA audio output sockets: Connect audio cable to the AUX IN L/R sockets and to the audio output sockets on the audio player.
- For audio players with headphone sockets: Connect the MP3 Link cable to the MP3 LINK socket and to the headphone socket on the audio player.
2 Press the AUX/MP3 LINK button to select the 3
The provided Remote Control allows the unit to be operated from a distance.
When operating the Remote Control, point it towards the remote sensor on the front panel of the unit.
 Even if the Remote Control is operated within the effective range (5m), remote control
operation may be impossible if there are any
obstacles between the unit and the remote control.
 If the Remote Control is operated near other
products which generate infrared rays, or if other
remote control devices using infrared rays
are used near the unit, it may operate incorrectly.
Conversely, the other products may operate
incorrectly.
AUX source or MP3 Link source.
Start to play on the audio player.
Connect Power
Caution:
- Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
- Before connecting the AC power cord, ensure you have completed all other connections.
Battery Installation
1
2
Remove the battery compartment cover.
Insert two “AAA” (R03 or UM-4) dry batteries. Make sure that the batteries are inserted with their positive “” and negative “” poles
positioned correctly.
3 Close the cover.
Precautions Concerning Batteries


Connect the AC power cord to:
- the AC~ socket on the unit.
- the wall socket.







9
Be sure to insert the batteries with correct
positive “” and negative “” polarities.
Use batteries of the same type. Never use
different types of batteries together.
Either rechargeable or non-rechargeable
batteries can be used. Refer to the precautions
on their labels.
When the Remote Control is not to be used for a
long time (more than a month), remove the
battery from the Remote Control to prevent it
from leaking.
If the batteries leak, wipe away the leakage
inside the battery compartment and replace the
batteries with new ones.
Do not use any batteries other than those
specified.Do not mix new batteries with old ones.
Do not heat or disassemble batteries. Never
throw them in fire or water.
Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short
circuit, leak or explode.
Never recharge a battery unless it is confirmed to be a rechargeable type.
Basic Operation
Power
You can use all the functions on the panel of the
unit or the remote control after connecting to power
supply (called Standby Mode).
Turning the System On
Press the
button to turn the system on from
standby mode.
Note:
The set switch to last selected source
Turning the System Off
Press the
button again to turn the system off
and go to standby mode.
Note:
Be sure to unplug the power cord from the outlet
when the system is not in use for an extended
period of time.
Select the Correct TV System
Change this setting if the video does not appear
correctly. By default, this setting matches the most
common setting for TV in your country.
1 No disc mode, press the SETUP button.
2
3
4
Select [Preference Setup Page].
Select a setting and then press the ENTER button.
- [PAL] - For TV with PAL color system.
- [Auto] - For TV that is compatible with both NTSC and PAL (multi-system).
- [NTSC] - For TV with NTSC color system.
5 To exit the menu, press the SETUP button.
4
Select a setting and then press the ENTER button.
5
To exit the menu, press the SETUP button .
minute indicator will blink.
4 Set the minute with the  button or  button.
5
Press the ENTER or CLOCK button to confirm, the built-in clock starts operating and the seconds start counting from 0.
Note:
* The operating time of every step shouldn’t be longer than 10 seconds or it will return to the original display.
* If there is a power failure or the power system is turned off, the clock will lose its setting.
To confirm the clock time
When you press the CLOCK button, the clock time
is displayed. Wait for a few seconds until the display
returns to the original display.
Adjust Volume Level
During play, press the VOL+/- buttons to
increase/decrease the volume level.
Select a Preset Sound Effect
Super Bass Boost
Press the RS-BASS button repeatedly to select
the base boost level.
Change System Menu Language
Press the SETUP button.
Select [General Setup Page].
Select [OSD language] and then press the  button.
Press the ENTER or CLOCK button to confirm, During play, press the RS-EQ button repeatedly
to select:
- [MOVIE]
- [TV]
- [DANCE]
- [JAZZ]
- [MUSIC]
Select [TV Type] and then press the  button.
1
2
3
3
Select Surround Sound
Press V-SUR. button to get surround sound.
Press this button again to cancel the effect.
Mute Sound
During play, press the MUTE
button to mute
or restore sound. Press this button again or
VOLUME+ button to cancel the effect.
Set the Clock
The built-in clock shows the correct time in the
display.
1 In standby mode, press and hold the CLOCK button to activate the clock setting mode, hour indicator will blink.
2 Set the hour with the  button or  button.
10
Adjust Brightness of Display Panel
Press the DIM button repeatedly to select
different levels of brightness for the display
panel.
Play
Play a Disc
Caution!
- Never look at the laser beam inside the unit.
- Risk of product damage! Never play discs with accessories such as disc stabilizer rings or disc
treatment sheets.
- Never put any objects other than discs into the disc compartment.
1 Press the DISC/USB button to select the DISC Select a Subtitle Language
You can select a subtitle language on DVDs discs.
 During play, press the SUBTITLE button.
Note:
For some DVDs, the language can only
be changed from the disc menu. Press the SETUP button to access the menu.
Play from USB
1
2
3
source.
2 Use the K DISC button to open the disc tray.
Place a disc onto the disc tray (with the printed side up) and use the K DISC button to close the disc tray.
4 The unit will read the disc and play it automatically.
- To stop play, press the L button.
- To pause or resume play, press the BF button.
- To skip to the previous/next title/chapter/
track, press the H/G buttons.
If play does not start automatically:
- Select a title/chapter/track and then press the
BF or ENTER button.
Use the Disc Menu
When you load a DVD/(S)VCD disc, a menu may be
displayed on the TV screen.
 To access or exit the menu manually:
Press the MENU button.
 For VCD with PlayBack Control (PBC) feature (version 2.0 only):
With the PBC feature, you can play VCD interactively according to the menu screen.
During play, press the MENU button to enable/
disable PBC.
- When PBC is enabled, the menu screen is displayed.
- When PBC is disabled, normal play is resumed.
Select an Audio Language
You can select an audio language on DVDs video.
 During disc play, press the AUDIO button.
- The language options appear. If the selected
audio channels is unavailable, the default disc audio channel is used.
Note:
For some DVDs, the language can only be changed from the disc menu. Press the
SETUP button to access the menu.
Insert the USB device.
Press the DISC/USB button to select the USB source.
3 Press the / buttons to select a folder, then 4
5
press the ENTER button to confirm.
Press the / buttons to select a file from the folder.
Press the BF to start play.
- To stop play, press the L button.
- To pause or resume play, press the BF button.
- To skip to the previous/next file, press the H/G buttons.
6 Press MENU button repeatedly to switch
between filelist, folder and program list
Play MP3/WMA/Picture Files
You can play MP3/WMA/picture files copied onto a
CD-R/RW, recordable DVD or USB device.
1 Insert a disc or connect a USB device.
2 Press DISC/USB to select a source
3 Press the / buttons to select a folder, then press the ENTER button to confirm.
4
Press the / buttons to select a file from the folder.
5
Press the BF button to start play.
- To stop play, press the L button.
- To pause or resume play, press the BF button.
- To skip to the previous/next file, press the H/G buttons.
Play Control
Select repeat play options

During play, press the MODE button repeatedly to select a repeat option play mode.
Repeat A-B (DVD/VCD/CD/MP3/WMA)
1
During music or video play, press the A-B button at the start point.
11
2
Press the A-B button at the end point.
- The selected section starts to play repeatedly.
- To cancel repeat play, press the A -B button again.
Note:
The section A and B can be setted only within the same track/title.
4

1
Press the MENU button until the program list is displayed.
2 Select a file, then press the PROG button to delete the file from the program list.
During play, press the D/C buttons repeatedly to select a search speed.
- To resume play at normal speed, press the
BF button.
Change the Audio Channel

During play VCD, press the AUDIO button repeatedly to select an audio channel available on the disc:
- Mono Left
- Mono Right
- Stereo
 During play DVD, press the AUDIO button to select an audio language.
During the DVD/VCD playback, press the GOTO
button to access quick menu:
- For the Track/Title/Chapter field, enter the
track/title/chapter number.
- For the Disc time/Track time/Title time/
Chapter time, enter the play position in
hours, minutes and seconds.
- Play starts automatically at your selected point.
- For Repeat/Audio/Subtitle/Angle fields, you can select one repeat mode/audio mode/
subtitle language/view angle for play.
- For the Display field, you can select one mode to view the information of disc time.
Display Menu
In play mode, press the TITLE button, to go back
to the title menu during PBC playback.
Select a Camera Angle
During play, press ANGLE button repeatedly to
select a camera angle.
Note:
This feature is only available for DVDs recorded with multiple camera angles.
Resume Video Play From Last Stopped Point
In stop mode and when the disc has not been removed, press the BF button.
To cancel resume mode and stop play
Picture View Options
completely:
 In stop mode, press the L button.
Note:
This feature is only available for DVD/VCD play.
Preview Pictures
1
During play, press the L button.
- The thumbnails of 12 pictures are displayed.
2 Select one of the following:
- a picture
- the slide show option
- the menu option
- the next/previous page (if available)
3 Press the ENTER button to:
Play Options
Display Play Information

During play or in stop mode,select a file, then
press the PROG button to add the file to the
program list.
Repeat steps 2 until the program is complete.
Press MENU to display program list, then select program file.
Press the ENTER button to play the program.
To delete a file from the [Program List] :
2
3
Search by Time or Chapter/Track Number

For MP3/WMA Files:
1
Search Forward/Backward


During play, press the OSD button repeatedly to display play information.
-
-
-
-
Program

For video discs/audio CDs:
1
During play or in stop mode, press the PROG button to access the program menu.
2
3
4
Enter the tracks/chapters to add to the program.
Repeat step 2 until the program is completed.
Select [Start] , then press the BF button to play the program.
play the selected picture
start slide show of all pictures
enter the menu where each remote key function is explained
turn to the next/previous page (if available)
Select a Slide Show Play Mode

12
During play, press the PROG buttons repeatedly to select a slide-show play mode.
Rotate Picture

During play, press the ,,,buttons to rotate the picture anti-clockwise/clockwise.
Zoom in/out Image
During video play, press the ZOOM button
repeatedly to zoom in/out the image.
- When the image is zoomed in, you can press the ,,, to pan through the image.
Play iPad/iPhone/iPod
You can enjoy audio from iPad/iPhone/iPod through
this unit.
Note:
- You can play video from iPad/iPhone/iPod through connecting AV VIDEO terminal.
- Some function keys are unavailable for iPad.
1 Press the DOCK button on remote control or FUNCTION button on front panel to select the iPad/iPhone/iPod source.
2 Touch the K DOCK button to rotate out of the iPad/iPhone/iPod dock.
3 Place the iPad/iPhone/iPod in the dock.
4 Start to play the connected iPad/iPhone/iPod .
- To pause/resume play, press the BF button.
- To skip to a track, press the H/G buttons.
- To search during play: press and hold H/
Gbuttons, then release to resume normal
play.
- To navigate the menu: press MENU button,
then press ,to select, and press ENTER
to confirm.
- To select repeat play options: press the
MODE button repeatedly to select a repeat
option play mode.
- To select repeat shuffle options: press the
MODE button repeatedly to select a shuffle
option play mode.
Charge the iPad/iPhone/iPod
The docked iPad/iPhone/iPod begins to charge as
soon as the unit is connected to AC power.
Remove the iPad/iPhone/iPod
1 Pull the iPad/iPhone/iPod out of the dock.
2 Press KDOCK button on the front panel to
rotate in of the iPad/iPhone/iPod dock.
Adjust Settings
Introduction
This chapter describes how to use the SETUP
menu. Most settings and adjustments are required
to be set when you first use the system.
1 Press the SETUP button.
2
3
Press the , buttons to select a setup page .
Press the , buttons to select an option and then press the  button.
4 Press the , buttons to select a setting and then press the ENTER button .
- To return to the previous menu, press the  button.
- To exit the menu, press the SETUP button.
General Setup Page
TV Display
The shape of the television or monitor may not match the shape of the movie frame. To avoid distortion on older televisions, you may need to change the way in which the image is displayed. Televisions use a 4:3 aspect ratio; high-definition televisions use 16:9 aspect ratio
(as do movies).
Note:
You may need to read your television’s manual
in conjunction with this section in order to
achieve the best results. Some discs do not
allow the aspect ratio to be changed and you will
therefore have to change the aspect ratio on the
TV.
Make this setting while playback is stopped; you
cannot do this while playing back a disc.
NORMAL/PS
This mode is used with 4:3 televisions. 4:3
images are displayed normally. When showing
16:9 programmes, the full height of the screen is
displayed, and the left and right part of the image
are cut off.
NORMAL/LB
This mode is used with 4:3 televisions. 4:3
images are displayed normally. 16:9 images are
visible at their full width, but there are blank area
at the top and bottom of the screen.
WIDE
Use with a 16:9 wide television.
OSD (On Screen Display) Language
Select the desired language for on screen menus of the unit.
Screen Saver
On
The screen saver starts up if nothing is played
back and no operations are performed for 4
minutes.
13
Off
The screen saver does not start up.
Last Memory
On
Select this to make last memory function
available.
Off
Select this to make last memory function invalid.
Audio Setup Page
Downmix (Analog Audio)
LT/RT
5.1 channel audio is mixed into left channel
and right channel and is output via FL and FR
speakers respectively.
Stereo
5.1 channel audio is mixed into stereo signal and
is output via the FL and FR speakers.
Off
Select this to make this function invalid.
Note:
Only for Dolby AC-3 encoded 5.1- channel discs.
3D Processing
This setting provides following sound effects:
Off, Concert, Living Room, Hall, Bathroom,
Cave, Arena, Church
Video Setup Page
Quality
You can adjust some parameters of video picture.
1 Highlight “Quality” and press the  button.
2 Use the / buttons to select the parameter.
Sharpness
This adjusts the sharpness of the picture shown
on the monitor.
Select High, Medium or Low using the Cursor
buttons, and press the ENTER button.
Brightness
This adjusts the brightness of the picture.
Use the left and right buttons to change the
value, and press the ENTER button.
Contrast
This adjusts the picture contrast.
Use the left and right buttons to change the
value, and press the ENTER button.
Gamma
This adjusts the gamma value of the picture.
Select High, Medium, Low or None using the
Cursor buttons, and press the ENTER button.
Hue
This adjusts the green/red balance of the picture
(only for progressive-scan and S-Video output).
Use the left and right buttons to change the
value, and press the ENTER button.
14
Saturation
This adjusts the saturation level.
Use the left and right buttons to change the
value, and press the ENTER button.
3 Press left button () to return to the Video Setup Page.
HDMI Setup
On(HDMI)
Select this to have the signal output when your
TV or monitor is connected to the HDMI out
terminal.
Off (HDMI)
Select this when you do not use the HDMI out
terminal.
No signal is output from the HDMI out terminal.
AUDIO FORMAT
AUTO
Detect and select the best supported audio format
automatically
PCM
Multi-channel audio format will be down-mixed to
two channel sound.
RESOLUTION
The resolution options include 480p(60Hz),
720p(60Hz), 1080i(60Hz), 1080p(60Hz),
576p(50Hz), 720p(50Hz), 1080i(50Hz) and
1080p(50Hz).
CEC SETUP
You can use one single remote control to control
HDMC-CEC devices that are connected through
HDMI connectors.
Note:
To enable the HDMI CEC feature, you must turn on
the HDMI CEC operations on the TV and on other
devices connected to TV. Refer to TVs/devices
manual for details.
HDMI-CEC
On
Select this to turn on the HDMI CEC function.
Off
Select this when you do not use the HDMI CEC.
One-Touch Play
On
Press
button to turn on this product. TV (if
the TVsupports one-touch play) will turn on
automatically and switched to the correct videoin channel. If a disc is loaded in this product, disc
play automatically starts(Except CD).
Off
Select this to turn off one-touch play function.
One-Touch Standby
button, all the
When you press and hold
connected HDMI CEC devices (if the device
supports one-touch standby) swith to standby
mode simultaneously.
On
Select this to turn on one-touch standby function.
Off
Select this to turn off one-touch standby function.
Note:
If no display appears on the TV screen due to
unsupported resolution, reconnect any available
interlace video output to your display and readjust the resolution settings to 480p/576p.
Preference Page
Notes:
You can’t set TV type until HDMI is setted to off.
TV Type
Pal
Select this when the unit is connected to a PAL
TV.
Auto
Select this when the unit is connected to a Multi
TV.
Ntsc
Select this when the unit is connected to an
NTSC TV.
PBC
Turn on or off the content menu of VCD/SVCD
with PBC (playback control) feature
on
Display the index menu when you load a disc
off
Skip the menu and start play from the first title
Audio, Subtitle, Disc Menu
You can select a preferred language for audio,
subtitle and disc menu.
 When you select a preferred language that is not recorded on the DVD, one of the recorded languages is automatically selected.
 You can override the Audio setting in the Setup menu by pressing the AUDIO button on the remote control unit while a DVD disc is playing.
 You can override the Subtitle setting in the Setup menu by pressing the SUBTITLE button on the remote control while a DVD disc is playing.
 Select Off to turn subtitles off. Note that subtitles on some discs cannot be removed even when you select Off.
Parental
Play back of some DVD discs can be limited
depending on the age of the users. The parental
control system allows the playback limitation level to
be set by the parent.
Note:
 The lower the level, the stricter the limitation.
 If the rating of the loaded DVD disc is higher than the level you set, the system will require a password. Enter your password and press the ENTER button to start playback.
1 Select the desired parental control level from the menu, then press Enter button.
2 You will be prompted to enter your password. Use the 0-9 buttons to enter 000000 (or your
privacy password if already established).
 No need to enter a password if “Password
Mode” is set to OFF.
Default
All the items in the Setup menu (except for the
password and parental control) will be reset to the
default settings.
Password
Password Mode
You can temporarily unlock discs for playback
according to the level.
To change this setting, select On or Off, enter
your password, and press the ENTER button.
On
You need a password to change the level of
parental control.
Off
You can change the level of parental control
without a password. You cannot temporarily
unlock discs for playback.
Password
You can set a new password for parental control.
The default password is 000000.
1 Select “Change” and press the ENTER button.
2 Enter 000000 (or your privacy password) using
the 0-9 buttons.
3 Enter a new password.
4 Enter the same password again to confirm.
5 Press Enter button.
Note:
you will need your password to change the level
of control in the future as well as to temporarily
unlock discs for playback.
If you forget your password, use 000000.
15
Listening to the FM Radio
Other features
Tuning in a Station
Set the Alarm Timer
1
In standby mode, you can use the daily timer setting
to turn the unit on automatically at a certain time
everyday under standby mode. However the clock
must be set correctly for the timer function to work.
1 In standby mode, press and hold the TIMER
button for several seconds, then press /
button to select an alarm sound source.
2 Press the TIMER or ENTER button , volume indicator will blink. Set the alarm volume with the  button or button.
3 Press the TIMER or ENTER button , hour
indicator will blink. Set the hour with the  button
orbutton.
4 Press the ENTER or TIMER button, minute indicator will blink.Set the minute with the  button or  button.
5 Press the ENTER or TIMER button or ENTER button, the selected time is set.
6 Set the daily timer to “ON” (daily timer set is in effect) or “OFF” (daily timer set is to cancel) with the  button or  button.
Note:
* The operating time of every step shouldn’t be longer than 15 seconds or it will return to time display.
 To confirm the daily time
Press the TIMER button in standby mode, the
daily time is displayed. Wait for a second until
the display returns to the time display.
 To cancel the daily timer setting
In standby mode, repeatedly press the TIMER
button until the “ON” will display, then you can
set the daily timer to “OFF” by pressing the
 button or  button (the daily timer will be
cancelled).
Turning off the system also cancels the daily
timer.
Ensure that you have connected and fully
extended the FM antenna.
2 Press the TUNER button to select the TUNER 3
source.
Press the D/C buttons, the frequency
changes down or up automatically until a station is found. Or press / buttons repeatedly until you find the station you want.
Note:
- Press and hold BF button on the remote control to change grid.
- The unit will automatically switch the Stereo or MONO channel to receive the FM radio mode, it can get the best effect.
Presetting Stations
You can preset up to 20 FM stations.

Program radio stations automatically
Press and hold the PROG button for 2 seconds
to activate automatic programming. All available
stations are programmed in the order of
waveband reception strength.
- The first programed radio station is played automatically.

Program radio stations manually
1
Tune in the desired station, then press the PROG button.
2 Press the 0~9, H or G buttons to select the preset number.
3 Press the PROG button to store the station.
4 Repeat above steps 1 to 3 for each station you want to store in memory with a preset number.
5 Press and hold the L button to erase the memory radio stations.
Note:
If the system is unplugged or if a power failure occurs, the preset stations will not be erased.
Set the Sleep Timer
Tune to a Preset Radio Station
Use the sleep timer to turn the system off after a
certain number of minutes when in play mode. By
setting the sleep timer, you can fall asleep to music
and know that your system will turn off by itself
rather than play all night.
1 Play a disc or tune in to the desired station.
2 To set the sleep timer by press the SLEEP/
TIMER button repeatedly, select a set period of time (in minutes). The unit turns off automatically after the set period of time.

Press the H or G buttons to select a preset
number that you want.
Note:
You can also use the numerical keypad to select a preset station directly.
16
Troubleshooting
To keep the warranty valid, never try to repair the
system yourself. If you encounter problems when
using this unit, check the following points before
requesting service.
No power.
- Ensure that the AC cord of the apparatus is connected properly.
- Ensure that there is power at the AC outlet.
- Press standby button to turn the unit on.
No disc detected
- Check if the disc is inserted upside down.
- Wait until the moisture condensation at the lens has cleared.
- Replace or clean the disc.
- Use a finalized CD or correct format disc.
No picture
- Check the video connection.
- Turn on the TV to the correct Video-In channel.
Black and white or distorted picture
- The disc does not match the TV color system standard (PAL/NTSC).
- Sometimes a slight picture distortion may appear. This is not a malfunction.
- Clean the disc.
The aspect ratio of the TV screen cannot be
changed even though you have set the TV
display format.
- The aspect ratio if fixed on the loaded DVD disc.
- The aspect ratio may not be changed for some TV systems.
Remote control does not work
- Before you press any function button, first select the correct source.
- Reduce the distance between the remote control and the unit.
- Insert the battery with its polarities (+/-) aligned as indicated.
- Replace the battery.
- Aim the remote control directly at the ensor on the front of the unit.
Disc does not play
- Insert a readable disc and ensure that the label side faces up.
- Check the disc type, color system and regional code. Check for any scratches or smudges on the disc.
- Press MENU to exit the system setup menu.
- Disable the password for parental control or change the rating level.
-
Moisture has condensed inside the system. Remove the disc and leave the system turned on for about an hour. Disconnect and reconnect the AC power plug, and then turn on the system again.
Poor radio reception
- Increase the distance between the unit and your TV or VCR.
- Fully extend the FM antenna.
- Connect an outdoor FM antenna instead.
Audio or subtitle languages cannot be set
- The disc is not recorded with sound or subtitles in multiple languages.
- The audio or subtitle language setting is prohibited on the disc.
Cannot display some files in USB device
- The number of folders or files in the USB device has exceeded a certain limit. This phenomenon is not a malfunction.
- The formats of these files are not supported.
USB device not supported
- The USB device is incompatible with the unit. Try
another one.
Timer does not work
- Set the clock correctly.
- Switch on the timer.
Clock/timer setting erased
- Power has been interrupted or the power cord has been disconnected.
- Reset the clock/timer.
Can't operate
- This unit contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause
it to lockup. In the unlikely even that this should
happen, unplug the power cord from the wall
outlet, wait at least 5 seconds, and then plug it
back in again.
Using iPhone to play music
- While the iPhone is playing the music throught
the docking, there may be a chance that the iPhone may not be under a good receiption mode to get the incoming call signal.
17
Specifications
General
Power Requirements.................................................................................................................. AC 230V ~ 50Hz
Power Consumption . .................................................................................................................................... 45W
Output Power .............................................................................................................................50W x 2 + 100W
Total Harmonic Distortion .............................................................................................................. 1%(1kHz, 1W)
Audio Input Sensitivity/Impedance...................................... ....................................................LINE: 500mV/47kΩ
Frequency Response.......................................................................................................... 40Hz - 20kHz(+/-3dB)
Tuning Range . ...........................................................................................................................87.5 - 108.0MHz
Unit Dimensions (W x H x D) ...................................................................................................990 x 299 x 84mm
Speaker
Front
Impedance .......................................................................................................................................................3 Ω
Rated Power ................................................................................................................................................. 50W
Woofer
Impedance ...................................................................................................................................................... 6 Ω
Rated Power..................................................................................................................................................100W
Remote
Distance .......................................................................................................................................................... 6m
Angle .............................................................................................................................................................. 30O
Standard Accessories
FM Antenna . ....................................................................................................................................................x 1
Video Cable . ...................................................................................................................................................x 1
Batteries ..........................................................................................................................................................x 2
Remote Control ..............................................................................................................................................x 1
Owner’s Manual ..............................................................................................................................................x 1
Power Cord ....................................................................................................................................................x 1

Design and specifications are subject to change without notice.
18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
