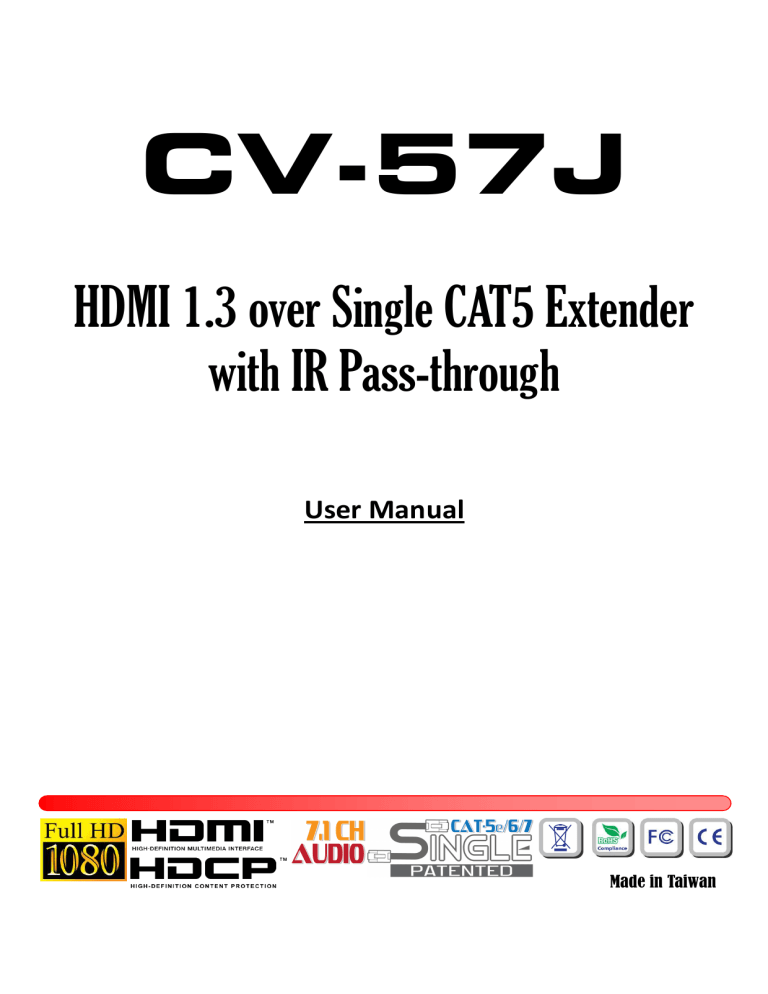

CV-57J
HDMI 1.3 over Single CAT5 Extender
with IR Pass-through
User Manual
Made in Taiwan
Safety and Notice
The CV-57J HDMI 1.3 over Single CAT5 Extender with IR Pass-through has been tested for conformity to
safety regulations and requirements, and has been certified for international use. However, like all electronic
equipments, the CV-57J should be used with care. Please read and follow the safety instructions to protect
yourself from possible injury and to minimize the risk of damage to the unit.
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.
Use only the power adapter and power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
~1~
Introduction
The CV-57J HDMI 1.3 over Single CAT5 Extender with IR Pass-through boosts up your video/audio
transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m
(65ft) in HDTV 1080p with 36 bit color depth. With only one cost effective LAN cable, users can readily extend
HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with
TMDS to distant display monitors including HDMI/DVI enabled TV sets or LCD PC monitors. With the
state-of-the-art Silicon Image chipsets equipped, deep color video, DTS-HD or Dolby TrueHD audio, and HDCP
supports and compatibility are all further insured. This flexibility makes HDCP compliant DVD players or PS3
transmit utmost high quality video and audio with a greater distance at the minimal cost, when integrating several
components apart. In addition, CV-57J is also equipped with bi-directional IR pass-through path. This bonus
feature allows users to boost IR control distance up to 100m (330 ft) and makes IR control possible through only
single CAT-5 type cable including HDMI signals.
The CV-57J includes two units: transmitting (CV-57J[Tx]) and receiving (CV-57J[Rx]) units. The transmitting
unit is used to capture the input HDMI/DVI signals with IR control packets and carry the signals through one
RJ-45 connector into one cost effective Cat-5/5e/6 cable. The receiving unit is responsible for equalizing the
transmitted HDMI signal and reconstructing IR signals. The transmission distance between the sending and
receiving units can be up to 60m (200ft) under HD (720p/1080i) or 40m (130ft) under Full HD (1080p). With an
8-level equalization rotary control on the receiving unit, users can adjust the equalization strength to the received
HDMI signals accordingly, and therefore optimize the transmission distance between source and destination.
~2~
Features
State-of-the-art Silicon Image (founder of HDMI) chipset embedded for upmost compatibility and reliability
HDMI 1.3c compliant
Extend the transmission length up to 60m (200ft) from the HDMI sources under HD resolution (1080i or
720p at 24-bit color depth)
Extend the transmission length up to 40m (130ft) from the HDMI sources under Full HD resolution (1080p at
24-bit color depth)
Extend the transmission length up to 20m (65ft) from the HDMI sources under Full HD resolution (1080p at
36-bit color depth)
HDCP 1.1 compliant
Minimize the cable skew by adjustable 8-level equalization control
Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission
DTS-HD and Dolby True HD high bit rate audio support
Support full bandwidth of IR signal, 20KHz ~ 60KHz
Bi-directional IR path
Allows cascading
Wall mounting housing design for easy and robust installation
Perfectly integrated with other HDMI over CAT5 series products
The length depends on the characteristics and quality of the cables. Higher resolutions and longer
transmission distances require low skew cables (<25ns/100m) for best performance. Unshielded CAT6
with metal RJ-45 connectors is recommended.
~3~
Specifications & Package Contents
Model Name
Technical
Role of usage
HDMI compliance
HDCP compliance
Video bandwidth
Video support
HDMI over UTP
transmission [24-bit]
Audio support
Signal Equalization
Input TMDS signal
Input DDC signal
ESD protection
PCB stack-up
IR pass-thru
Input
Output
HDMI source control
IR remote control
HDMI connector
RJ-45 connector
3.5mm connector
Rotary control switch
Mechanical
Housing
Model
Dimensions
Package
[L x W x H]
Carton
Model
Weight
Package
Fixedness
Power supply
Power consumption
Operation temperature
Storage temperature
Relative humidity
Package Contents
CV-57G
CV-57G[Tx]
CV-57G[Rx]
Transmitter [TX] Receiver [RX]
CV-57C
CV-57J
CV-57C[Tx]
CV-57C[Rx]
CV-57J[Tx]
CV-57J[Rx]
Transmitter [TX]
Receiver [RX] Transmitter [TX]
Receiver [RX]
HDMI 1.3c
Yes
Single-link 225MHz [6.75Gbps]
480i / 480p / 720p / 1080i / 1080p60
Full HD (1080p)-40m (130ft) [CAT5e] / 50m (165ft) [CAT6]
HD (720p/1080i)-50m (165ft) [CAT5e] / 60m (200ft) [CAT6]
Surround sound (up to 7.1ch) or stereo digital audio
8-level digital control at RX
1.2 Volts [peak-to-peak]
5 Volts [peak-to-peak, TTL]
[1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge]
[2] Core chipset — ±8kV
4-layer board [impedance control — differential 100Ω; single 50Ω]
N/A
Uni-directional
Bi-directional
2x RJ-45
1x RJ-45
1x HDMI
1x RJ-45
1x HDMI
1x HDMI
1x 3.5mm
2x 3.5mm
2x RJ-45
1x RJ-45
1x RJ-45
1x HDMI
1x HDMI
1x HDMI
1x 3.5mm
2x 3.5mm
No
Controllable via IR pass-through from RX to TX with IR extenders
Electro-optical characteristics: τ = 25° Electro-optical characteristics: τ = 25°
N/A
Carrier frequency: 36-40kHz
Carrier frequency: 20-60kHz
Type A [19-pin female]
WE/SS 8P8C with 2 LED indicators
None
None
IR blaster
IR receiver
IR blaster
IR receiver
Mode
Signal level
None
Signal level
Mode
Signal level
CV-57G
CV-57C
CV-57J
Metal enclosure
93x60x25mm [3.7”x2.4”x1”]
85 x 60 x 25mm [3.3”x2.4”x1”]
75 x 90 x 25mm [2.9”x3.5”x1”]
270 x 175 x 80mm [10.6” x 6.9” x 3.1”]
450 x 370 x 300mm [1’6” x 1’3” x 1’]
405g [14oz]
320g [11oz]
480g [1.1 lbs]
815g [1.8 lbs]
720g [1.6 lbs]
780g [1.7 lbs]
Wall-mounting case with screws
5V 2A DC
5V 4A DC
5V 2A DC
1 Watt [max]
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
1x CV-57G [TX & RX]
2x 5V power supply unit
1x User Manual
1x CV-57C [TX & RX]
1x IR blaster
1x IR receiver
1x 5V power supply unit
1x User Manual
~4~
1x CV-57J [TX & RX]
2x IR blaster
2x IR receiver
2x 5V power supply unit
1x User Manual
Panel Description
Front Panel — Transmitting Unit
CV-57J[Tx]
HDMI IN: Connects to a HDMI source with a HDMI male-male cable here
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
MODE:
0 = [Video] – supports up to HDMI 1.3 output. [Audio] – supports up to 7.1ch output
1 = [Video] – supports up to HDMI 1.3 output. [Audio] – locks to stereo audio output
2 = [Video] – locks to HDMI 1.2 output. [Audio] – supports up to 7.1ch output
3 = [Video] – locks to HDMI 1.2 output. [Audio] – locks to stereo audio output
4 = [Video] – DVI display mode. [Audio] – no audio output
1
5 = [Safe Mode] – uses default EDID with video supported up to 720p/1080i
2
6 = [Default Mode] – uses default EDID with video supported up to 1080p
3
7 = [EDID Learning Mode] – learns EDID from the display
Note for EDID (Extended Display Identification Data) learning
1. If you cannot get the audio/video output from the connected display from the first time setup. Please
follow the instructions below to check if the extender is OK:
Step 1 – Please set the rotary arrow on TX at “Mode 5” for Safe Mode, and wait for the LED of the
RJ-45 connector blinks for a couple seconds.
Step 2 – Please turn the rotary arrow counterclockwise [
] from Mode 5 to Mode 3. If you can get
audio/video from the display, you can stay tune at this setting for 720p or 1080i and stereo
audio. If you need to get 720p/1080i with 7.1ch audio output, please turn the rotary arrow
counterclockwise [
] from Mode 3 to Mode 2. For better audio/video output, please check
Note#2. If you still cannot get the audio/video out normally, please go on the next step.
Step 3 – Please turn the rotary arrow counterclockwise [
] from Mode 3 to Mode 7. Wait a few
seconds until the LED of the RJ-45 connector dims and then lights again.
Step 4 – Please turn the rotary arrow clockwise [
] from Mode 7 to Mode 1. You should have normal
audio/video output. If not, please contact technical support.
~5~
2. For desirable 1080p video output, please follow the instructions below:
Step 1 – Please set the rotary arrow on TX at “Mode 6” for Default Mode, and wait for the LED of the
RJ-45 connector blinks for a couple seconds.
Step 2 – Please turn the rotary arrow clockwise [
] from Mode 6 to Mode 1. If you can get
audio/video from the display, you can stay tune at this setting for 1080p and stereo audio. If
you need to get 1080p with 7.1ch audio output, please turn the rotary arrow
counterclockwise [
] from Mode 1 to Mode 0. If you cannot get the audio/video out
normally, please go on the next step.
Step 3 – Please turn the rotary arrow counterclockwise [
] from Mode 0/1 to Mode 7. Wait a few
seconds until the LED of the RJ-45 connector dims and then lights again.
Step 4 – Please turn the rotary arrow clockwise [
] from Mode 7 to Mode 0/1. You should have your
desirable audio/video output. If not, please follow the instruction in Note#1.
3. To learn EDID from the HDMI display, please follow the instruction below:
Step 1 – Please connect the display which you want to read EDID with a HDMI cable to the
transmitter’s HDMI IN and set the rotary arrow at Mode 7 so the TX can learn the EDID
information from the connected display. The LED on the RJ45 connector of TX will dim and
light again in a few seconds, which indicates the EDID learning procedure is complete.
Step 2 – Please turn the rotary arrow clockwise [
] from Mode 7 to Mode 0 or Mode 1 for desirable
audio setting and enjoy the experience. DO NOT let the rotary arrow pass by Mode 5 and
Mode 6 which will erase the EDID just learned and restore the default EDID.
Rear Panel — Transmitting Unit
CV-57J[Tx]
+5V DC: Connect to 5V DC power supply.
HDMI Signal OUT: Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the receiving unit
CV-57J[Rx].
~6~
Front Panel — Receiving Unit
CV-57J[Rx]
HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here.
IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
Signal Level: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies
from 0 (strongest) to 7 (weakest) for respective transmission length from longest possible range to short
distance. Please adjust the signal level from 7 to 0 and stop turning the rotary switch whenever the
audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would
shorten the product life significantly!
Rear Panel — Receiving Unit
CV-57J[Rx]
HDMI Signal IN: Plug in a Cat-5/5e/6 cable that needs to be linked to the RJ-45 connector of the transmitting unit
CV-57J[Tx].
+5V DC: Connect to 5V DC power supply.
~7~
IR Pass-through
IR Extenders
IR Blaster
IR Receiver
IR Sockets
IR Blaster:
Plug in the IR blaster here to emit all IR command signals received from the IR receiver to control the
HDMI source devices.
IR Receiver: Plug in the IR receiver here to receive all IR command signals from the IR remote controls of the
HDMI source devices.
CAUTION!
Wrongly insert IR blaster and IR receiver to wrong 3.5mm infrared sockets may result in the failure of
the IR extenders. Please check carefully before plugging in the IR extender to the respective IR sockets.
Definition of IR Earphone Jack
IR Blaster
IR Receiver
You can buy any IR extension cables in the market that are compatible to the definition of the IR sockets
for the matrix if necessary for replacement use. However, IR cables longer than 2m (6-ft) may not work.
~8~
Hardware Installation
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting unit CV-57J[Tx].
2. Connect a HDMI or DVI display (such as a LCD TV) to the receiving unit CV-57J[Rx].
3. Connect IR Blaster/Receiver to both TX and RX units.
4. Connect a Cat-5/5e/6 cable between the transmitting and receiving units.
5. Make sure this Cat-5/5e/6 cable is tightly connected and not loose.
6. Plug in 5V DC power supply unit to the power jack of the receiving unit CV-57J[Rx].
7. Plug in 5V DC power supply unit to the power jack of the transmitting unit CV-57J[Tx].
8. If you see flickering or blinking image on the display, please adjust the rotary control switch to improve
the cable skew. 0 stands for the strongest HDMI signal level for longest possible transmission length
while 7 stands for the weakest HDMI signal level for short transmission length. Please adjust the signal
level from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally.
Inappropriate signal level setting may cause overpowering issue that would shorten the product life
significantly!
EDID Learning
1. Turn on CV-57J[Tx].
2. Turn “MODE” on the transmitter unit CV-57J[Tx] counterclockwise [] to 7.
3. Connect the HDMI display to “HDMI IN” on the CV-57J[Tx] with a HDMI cable and better not connect to video
source. The LED on the RJ-45 connector of CV-57J[Tx] will dim and light again, which indicates the EDID
learning procedure is complete.
4. Turn “MODE” on the CV-57J[Tx] clockwise [
] from 7 to 0 (for surround sound) or 1 (for stereo). The most
important thing is don’t let the rotary arrow pass through mode 5 and Mode 6 which will erase the EDID just
learned and restore to default EDID.
5. Unplug the HDMI cable from the display and follow the instruction in [Hardware Installation] to set up the
CV-57J and enjoy the experience.
~9~
Pin Definition
HDMI
Pin 1 TMDS Data2+
Pin 8
TMDS Data0 Shield
Pin 15
SCL
Pin 2 TMDS Data2 Shield
Pin 9
TMDS Data0–
Pin 16
SDA
Pin 3 TMDS Data2–
Pin 10
TMDS Clock+
Pin 17
DDC/CEC Ground
Pin 4 TMDS Data1+
Pin 11
TMDS Clock Shield
Pin 18
+5 V Power
Pin 5 TMDS Data1 Shield
Pin 12
TMDS Clock–
Pin 19
Hot Plug Detect
Pin 6 TMDS Data1–
Pin 13
CEC
Pin 7 TMDS Data0+
Pin 14
Reserved (N.C. on device)
CAT5 [RJ-45]
Pair of Cat-5/5e/6 Cable
White/orange stripe
Orange solid
White/green stripe
Blue solid
White/blue stripe
Green solid
White/brown stripe
Brown solid
~ 10 ~
Definition
TX0–
TX0+
TX1–
TX2–
TX2+
TX1+
TXC–
TXC+
Notice
1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop
turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may
cause overpowering issue that would shorten the product life significantly!
2. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and
provide DVI or HDMI display EDID information.
3. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and
ASTRODESIGN Video Signal Generator VG-859C.
4. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of HDMI sources, and
the type of HDMI display. The testing result shows solid UTP cables (usually in the form of 300m [1,000ft]
bulk cables) can transmit a lot longer signals than stranded UTP cables (usually in the form of fixed length
patch cords). Shielded STP cables are better suited than unshielded UTP cables. A solid UTP Cat-5e cable
shows longer transmission range than stranded STP Cat-6 cable. For long extension applications, solid
UTP/STP cables are the only viable choice.
5. EIA/TIA-568-B termination (T568B) for Cat-5/5e/6 cables is recommended for better performance.
6. To reduce the interference among the unshielded twisted pairs of wires in Cat-5/5e/6 cable, one can use
shielded STP cables to improve EMI problems, which is worsen in long transmission.
7. Because the quality of the CAT5/6 cables has the major effect on how long the transmission limit can achieve
and how good is the received picture quality, the actual transmission range is subject to one’s choice of
Cat-5/5e/6 cables. For desired resolutions greater than 1080i or 1280x1024, a Cat-6 cable is recommended.
8. If your HDMI display has multiple HDMI inputs, it is found that the first HDMI input [HDMI input #1] generally
can produce better transmission performance among all HDMI inputs.
Performance Guide for HDMI over Category Cable Transmission
Performance rating
Wiring
Shielding
Unshielded (UTP)
Solid
Shielded (STP)
Unshielded (UTP)
Stranded
Shielded (STP)
Termination
Type of category cable
CAT5
CAT5e
CAT6
Please use EIA/TIA-568-B termination (T568B) at any time
~ 11 ~
Limited Warranty
The SELLER warrants the CV-57J HDMI 1.3 over Single CAT5 Extender with IR Pass-through to be free
from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER,
at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse
or any unauthorized modifications including static discharge and power surge. This warranty is offered by the
SELLER for its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing
is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other
implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are responsible for
shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must
be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER
assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be
liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in
this manual, even if advised of the possibility of such damages. Also, the technical information contained herein
regarding the CV-57J features and specifications is subject to change without further notice.
~ 12 ~
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
