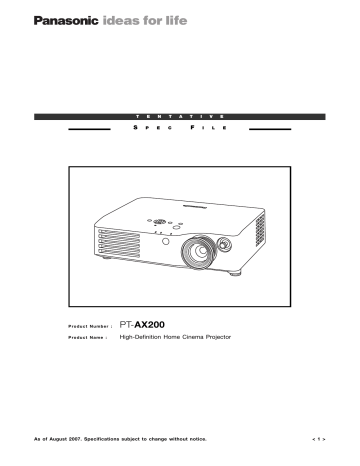

PT-AX200 Spec File
T
S
E
N
T
P
E
C
A
T
F
I
V
I
L
E
E
P ro d u c t N u m b e r :
PT-AX200
P ro d u c t N a m e :
High-Definition Home Cinema Projector
As of August 2007. Specifications subject to change without notice.
< 1 >
S
P
E
C
F
I
L
E
T
E
N
T
A
T
I
V
E
PT-AX200
High-Definition Home Cinema Projector
Specifications
Main Unit
LCD*1 panel:
Panel size:
0.7˝ diagonal (16:9 aspect ratio)
Display method:
Transparent LCD panel (x 3, R/G/B)
Drive method:
Active matrix
Pixels:
921,600 (1,280 x 720) x 3, total of 2,764,800 pixels
Pixel configuration:
Stripe
Lamp* :
220 W UHM™ lamp
Brightness:
2,000 lumens or more (high power mode)
Centre-to-corner uniformity ratio:
85 %
Contrast:
6,000:1*3 (full on/full off, dynamic iris on)
Lens:
Manual zoom/focus lens (1:1 –1:2), F 1.9 – 3.1, f 21.7– 43.1 mm
Projection size:
40 – 200 inches (1,016 – 5,080 mm) diagonally, 16:9 aspect ratio
Throw distance:
1.2–12.4 m (3´11˝–40´8˝) (16:9 aspect ratio)
Optical axis shift*4:
Horizontal: ±25%, vertical: ±63%
Keystone correction range:
Vertical: approx. ±30°
Installation:
Ceiling/floor, front/rear
2
Scanning frequency:
S-Video/Video:
fH 15.75 kHz, fV 60 Hz (NTSC, NTSC4.43, PAL-M, PAL60)
fH 15.63 kHz, fV 50 Hz (PAL, PAL-N, SECAM)
PC (RGB):
fH 30–70 kHz, fV 50 – 87 Hz
YPBPR (YCBCR):
480i (525i): fH 15.75 kHz, fV 60 Hz
480p (525p): fH 31.5 kHz, fV 60 Hz
576i (625i): fH 15.63 kHz, fV 50 Hz
576p (625p): fH 31.25 kHz, fV 50 Hz
720/50p (750/50p): fH 45 kHz, fV 60 Hz
720/60p (750/60p): fH 37.5 kHz, fV 50 Hz
1080/24p (1125/24p): fH 27.0 kHz, fV 24 Hz
1080/50i (1125/50i): fH 28.125 kHz, fV 50 Hz
1080/50p (1125/50p): fH 56.3 kHz, fV 50 Hz
1080/60i (1125/60i): fH 33.75 kHz, fV 60 Hz
1080/60p (1125/60p): fH 67.5 kHz, fV 60 Hz
Terminals:
HDMI IN:
19-pin HDMI connector x 2
S-VIDEO IN:
Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
VIDEO IN:
RCA pin x 1, 1.0 Vp-p, 75 ohms
PC (RGB) IN:
D-sub HD 15-pin (female) x 1,
R, G, B:
0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms
HD/SYNC, VD:
TTL, high impedance (positive/negative polarity)
COMPONENT IN:
1.0 p-p, 75 ohms
PB/PR (CB/CR):
0.7 Vp-p, 75 ohms
SERIAL IN:
On-screen menu languages:
RCA pin (Y, PB/CB, PR/CR) x 1
Y:
Mini DIN 8-pin (female) x 1, for external control (RS-232C compliant)
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai
As of August 2007
< 2 >
S
P
E
C
F
I
L
E
T
E
N
T
A
T
I
V
E
PT-AX200
High-Definition Home Cinema Projector
Power supply:
100–240 V AC, 50/60 Hz
Power consumption:
290 W (0.08 W in standby mode with fan stopped)
Dimensions (W x H x D):
395 x 112 x 300 mm (15-17/32˝ x 4-13/32˝ x 11-25/32˝) *5
Weight:
4.9 kg (10.8 lbs)
Operating temperature:
0°– 40°C (32°–104°F)
Operating humidity:
20%–80% (no condensation)
Remote Control
Power supply:
3 V DC (AA battery x 2)
Operating range:
Approx. 7 m (23´) (when operated directly in front of signal
receptor)
Dimensions (W x H x D):
48 x 138 x 28 mm (1-7/8˝ x 7-27/32˝ x 1-3/32˝)
Weight:
125 g (4.4 oz.)
Optional Accessories
Replacement lamp: ET-LAX100
Ceiling mount bracket: ET-PKX100
Serial adapter: ET-ADSER (DIN 8-pin/D-sub 9-pin)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
*1:
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology designed to provide one of the finest possible images. Occasionally, a few pixels may remain turned on (bright) or turned off (dark). Please
note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
*2:
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on
individual lamp characteristics and usage conditions.
*3:
In AI mode
*4:
Shift range is limited during simultaneous horizontal and vertical shifting.
*5:
Lens and legs not included.
As of August 2007
< 3 >
