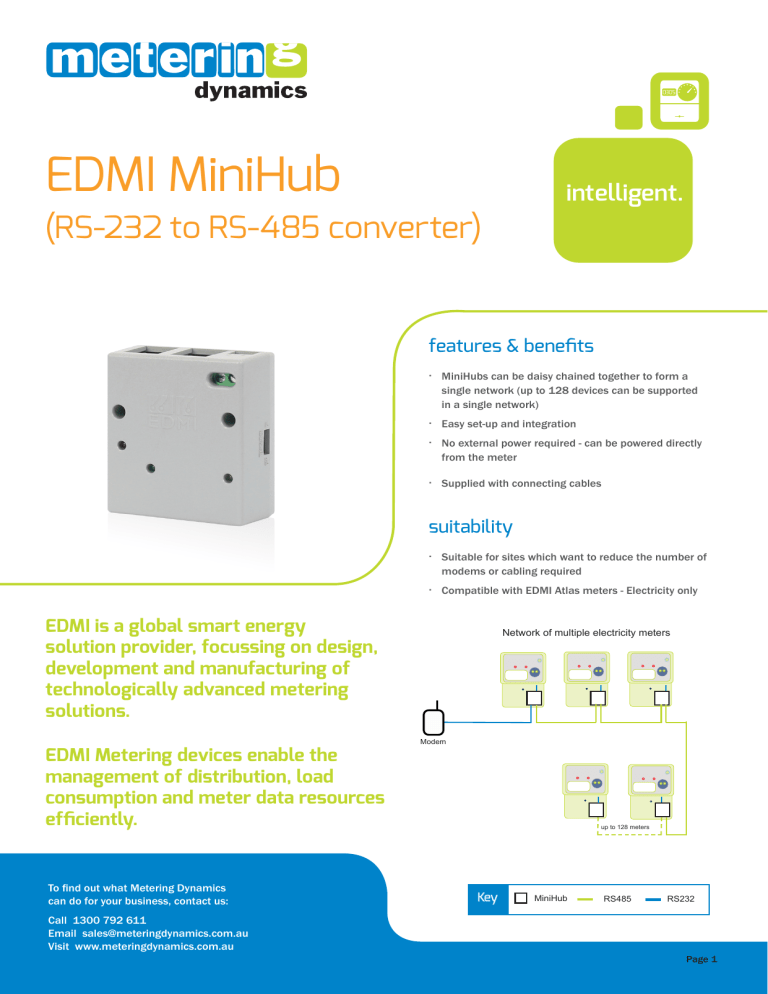

EDMI MiniHub
intelligent.
(RS-232 to RS-485 converter)
features & benefits
·· MiniHubs can be daisy chained together to form a
single network (up to 128 devices can be supported
in a single network)
·· Easy set-up and integration
·· No external power required - can be powered directly
from the meter
·· Supplied with connecting cables
suitability
·· Suitable for sites which want to reduce the number of
modems or cabling required
·· Compatible with EDMI Atlas meters - Electricity only
EDMI is a global smart energy
solution provider, focussing on design,
development and manufacturing of
technologically advanced metering
solutions.
EDMI Metering devices enable the
management of distribution, load
consumption and meter data resources
efficiently.
To find out what Metering Dynamics
can do for your business, contact us:
Network of multiple electricity meters
Modem
up to 128 meters
Key
MiniHub
RS485
RS232
Call 1300 792 611
Email [email protected]
Visit www.meteringdynamics.com.au
Page 1
metering solutions
821683
4 4
5 7 35
95 418
5
1
2
technical specifications
Item
Description
Dimensions
60mm (H) x 53mm (W) x 24mm (D)
Weight
Approximately 50 grams
Max Cable Length
1200 m
Meter Compatibility
EDMI Atlas range of meters
Maximum Network
Up to 128 MiniHubs can be connected to the same
network (1/4 standard load)
Cable Requirements
CAT5E
Power Requirements
Additional power supply not required, as power is sourced
from the existing meters
Energex Limited ABN 40 078 849 055 trading as Metering Dynamics.
© All contents copyright Metering Dynamics 2017.
® The Metering Dynamics word and device are registered trade marks of
Energex Limited ABN 40 078 849 055.
8670 20.04.2017
