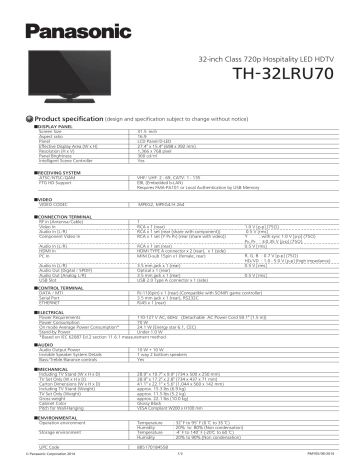

32-inch Class 720p Hospitality LED HDTV
TH-32LRU70
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size
Aspect ratio
Panel
Effective Display Area (W x H)
Resolution (H x V)
Panel Brightness
Intelligent Scene Controller
■RECEIVING SYSTEM
ATSC/NTSC/QAM
FTG HD Support
■VIDEO
VIDEO CODEC
■CONNECTION TERMINAL
RF in (Antenna/Cable)
Video In
Audio In (L/R)
Component Video In
31.5 -inch
16:9
LCD Panel/D-LED
27.4" x 15.4" (698 x 392 mm)
1,366 x 768 pixel
300 cd/㎡
Yes
VHF/ UHF: 2 - 69, CATV: 1 - 135
EBL (Embedded b-LAN)
Requires FMA-PA101 or Local Authentication by USB Memory
MPEG2, MPEG4/H.264
1
RCA x 1 (rear)
RCA x 1 set (rear (share with component))
RCA x 1 set (Y PB PR) (rear (share with video))
Audio In (L/R)
HDMI In
PC In
RCA x 1 set (rear)
HDMI TYPE A connector x 2 (rear), x 1 (side)
MINI D-sub 15pin x1 (female, rear)
Audio In (L/R)
Audio Out (Digital / SPDIF)
Audio Out (Analog L/R)
USB Slot
3.5 mm jack x 1 (rear)
Optical x 1 (rear)
3.5 mm jack x 1 (rear)
USB 2.0 Type A connector x 1 (side)
■CONTROL TERMINAL
DATA / MTI
Serial Port
ETHERNET
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
RJ-11(6pin) x 1 (rear) (Compatible with SONIFI game controller)
3.5 mm jack x 1 (rear), RS232C
RJ45 x 1 (rear)
■ELECTRICAL
110-127 V AC, 60Hz (Detachable AC Power Cord 59.1" (1.5 m))
Power Requirements
70 W
Power Consumption
24.1 W (Energy star 6.1, CEC)
On mode Average Power Consumption*
Under 1.0 W
Stand-by Power
*Based on IEC 62087 Ed.2 section 11.6.1 measurement method
■AUDIO
Audio Output Power
Invisible Speaker System Details
Bass/Treble/Barance controls
10 W + 10 W
1 way 2 bottom speakers
Yes
■MECHANICAL
Including TV Stand (W x H x D)
TV Set Only (W x H x D)
Carton Dimensions (W x H x D)
Including TV Stand (Weight)
TV Set Only (Weight)
Gross weight
Cabinet Color
Pitch for Wall-Hanging
28.9" x 19.7" x 9.9" (734 x 500 x 250 mm)
28.9" x 17.2" x 2.8" (734 x 437 x 71 mm)
41.1" x 22.1" x 5.6" (1,044 x 560 x 142 mm)
approx. 15.3 lbs (6.9 kg)
approx. 11.5 lbs (5.2 kg)
approx. 22.1 lbs (10.0 kg)
Glossy Black
VESA Compliant W200 x H100 mm
■ENVIRONMENTAL
Operation environment
Storage environment
UPC Code
© Panasonic Corporation 2014
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 95°F (0 ℃ to 35 ℃)
20% to 80% (Non condensation)
-4°F to 140°F (-20℃ to 60 ℃)
20% to 90% (Non condensation)
885170184558
1/2
PMY05/09/2014
TH-32LRU70
32-inch Class 720p Hospitality LED HDTV
MAIN FEATURE
VIERA LinkTM, HDAVI ControlTM
Integrated Pro:Idiom
Local Authentication
Welcome Image
USB Slot
OFF Timer
Hotel Mode
ACCESSORIES
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback),
Cloning
15/30/60/90 minutes
Initial INPUT
Initial Channel
Initial VOL level
Maximum VOL level
Button Lock
Power Control
Included Accessories
Swivel Stand
(Rotate Angle : 30/60/90 degrees)
AC Power Cord 59.1" (1.5 m)
Antitheft Screw for Stand
Remote control transmitter
(N2QAYB000820)
Batteries for the Remote Control
Transmitter (AA Battery x 2)
Security Lockdown Screws
(Security Bit : Optional)
Operating Instruction
STANDARD (CERTIFICATIONS)
Safety Regulations
Radiation Regulations
ENERGY STAR 6.1, CEC
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003
Yes
DIMENSIONS
Cautions: This drawing is not a scale
2.8
(70)
Units : inches (mm)
Rotation angle of 30°
6.8
(170.5)
27.5 (697)
2.8 (71)
9.4
(238.7)
2.8
(68.9)
28.9 (734)
Rotation angle of 60°
4.5
(114.3)
12
(302.9)
19.7 (500)
18.8 (477.3)
2.7
(66.8)
13.8
(348.5)
11.8 (298)
11.4 (289)
11.2 (283)
17.2 (436.1)
8.8 (222.8)
23.9 (605.8)
9.9 (250)
17.8 (449.9)
13.5 (340.8)
CONNECTION TERMINAL
Rotation angle of 90°
<side>
14.5 (366.7)
14.5 (366.7)
<rear>
5.2 (131.5)
© Panasonic Corporation 2014
2/2
PMY05/09/2014
