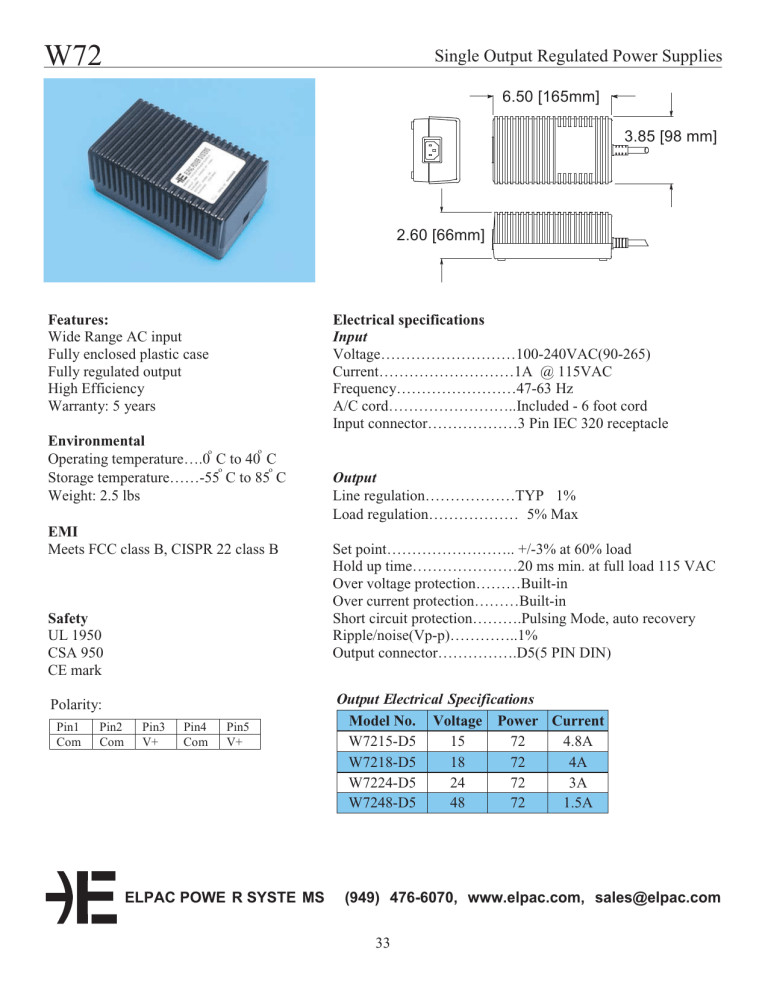

W72
Single Output Regulated Power Supplies
6.50 [165mm]
3.85 [98 mm]
2.60 [66mm]
Features:
Wide Range AC input
Fully enclosed plastic case
Fully regulated output
High Efficiency
Warranty: 5 years
Electrical specifications
Input
Voltage………………………100-240VAC(90-265)
Current………………………1A @ 115VAC
Frequency……………………47-63 Hz
A/C cord……………………..Included - 6 foot cord
Input connector………………3 Pin IEC 320 receptacle
Environmental
o
o
Operating temperature….0 C to 40 C
o
o
Storage temperature……-55 C to 85 C
Weight: 2.5 lbs
EMI
Meets FCC class B, CISPR 22 class B
Safety
UL 1950
CSA 950
CE mark
Polarity:
Pin1
Com
Pin2
Com
Pin3
V+
Pin4
Com
Pin5
V+
ELPAC POWE R SYSTE MS
Output
Line regulation………………TYP 1%
Load regulation……………… 5% Max
Set point…………………….. +/-3% at 60% load
Hold up time…………………20 ms min. at full load 115 VAC
Over voltage protection………Built-in
Over current protection………Built-in
Short circuit protection……….Pulsing Mode, auto recovery
Ripple/noise(Vp-p)…………..1%
Output connector…………….D5(5 PIN DIN)
Output Electrical Specifications
Model No. Voltage Power Current
W7215-D5
15
72
4.8A
W7218-D5
18
72
4A
W7224-D5
24
72
3A
W7248-D5
48
72
1.5A
(949) 476-6070, www.elpac.com, [email protected]
33
