exciters/all-in-one transmitters

exciters/all-in-one transmitters
exciters/all-in-one transmitters
> Easy maintenance exciter
> All-in-One transmitter series
> All-in-One high fidelity series

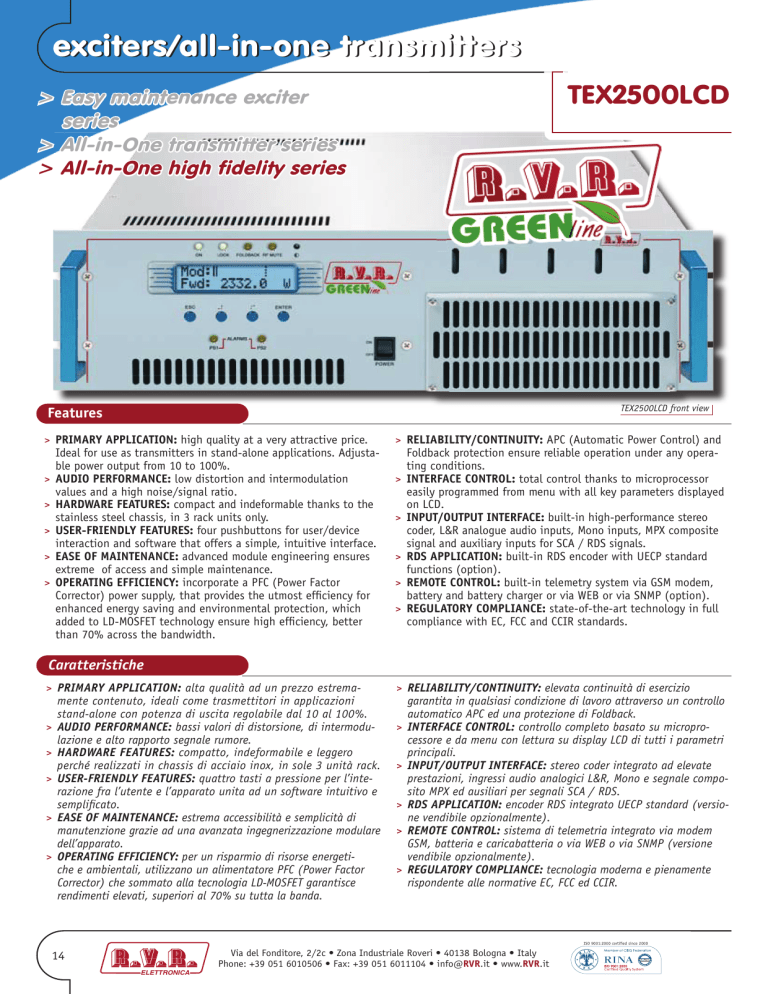

TEX2500LCD front view
> PRIMARY APPLICATION: high quality at a very attractive price.
Ideal for use as transmitters in stand-alone applications. Adjustable power output from 10 to 100%.
> AUDIO PERFORMANCE: low distortion and intermodulation
values and a high noise/signal ratio.
> HARDWARE FEATURES: compact and indeformable thanks to the
stainless steel chassis, in 3 rack units only.
> USER-FRIENDLY FEATURES: four pushbuttons for user/device
interaction and software that offers a simple, intuitive interface.
> EASE OF MAINTENANCE: advanced module engineering ensures
extreme of access and simple maintenance.
> OPERATING EFFICIENCY: incorporate a PFC (Power Factor
Corrector) power supply, that provides the utmost efficiency for
enhanced energy saving and environmental protection, which
added to LD-MOSFET technology ensure high efficiency, better
than 70% across the bandwidth.
> RELIABILITY/CONTINUITY: APC (Automatic Power Control) and
Foldback protection ensure reliable operation under any operating conditions.
> INTERFACE CONTROL: total control thanks to microprocessor
easily programmed from menu with all key parameters displayed
on LCD.
> INPUT/OUTPUT INTERFACE: built-in high-performance stereo
coder, L&R analogue audio inputs, Mono inputs, MPX composite
signal and auxiliary inputs for SCA / RDS signals.
> RDS APPLICATION: built-in RDS encoder with UECP standard
functions (option).
> REMOTE CONTROL: built-in telemetry system via GSM modem,
battery and battery charger or via WEB or via SNMP (option).
> REGULATORY COMPLIANCE: state-of-the-art technology in full
compliance with EC, FCC and CCIR standards.
> PRIMARY APPLICATION: alta qualità ad un prezzo estremamente contenuto, ideali come trasmettitori in applicazioni
stand-alone con potenza di uscita regolabile dal 10 al 100%.
> AUDIO PERFORMANCE: bassi valori di distorsione, di intermodulazione e alto rapporto segnale rumore.
> HARDWARE FEATURES: compatto, indeformabile e leggero
perché realizzati in chassis di acciaio inox, in sole 3 unità rack.
> USER-FRIENDLY FEATURES: quattro tasti a pressione per l’interazione fra l’utente e l’apparato unita ad un software intuitivo e
> EASE OF MAINTENANCE: estrema accessibilità e semplicità di
manutenzione grazie ad una avanzata ingegnerizzazione modulare
> OPERATING EFFICIENCY: per un risparmio di risorse energetiche e ambientali, utilizzano un alimentatore PFC (Power Factor
Corrector) che sommato alla tecnologia LD-MOSFET garantisce
rendimenti elevati, superiori al 70% su tutta la banda.
> RELIABILITY/CONTINUITY: elevata continuità di esercizio
garantita in qualsiasi condizione di lavoro attraverso un controllo
automatico APC ed una protezione di Foldback.
> INTERFACE CONTROL: controllo completo basato su microprocessore e da menu con lettura su display LCD di tutti i parametri
> INPUT/OUTPUT INTERFACE: stereo coder integrato ad elevate
prestazioni, ingressi audio analogici L&R, Mono e segnale composito MPX ed ausiliari per segnali SCA / RDS.
> RDS APPLICATION: encoder RDS integrato UECP standard (versione vendibile opzionalmente).
> REMOTE CONTROL: sistema di telemetria integrato via modem
GSM, batteria e caricabatteria o via WEB o via SNMP (versione
vendibile opzionalmente).
> REGULATORY COMPLIANCE: tecnologia moderna e pienamente
rispondente alle normative EC, FCC ed CCIR.
ISO 9001:2000 certified since 2000
Via del Fonditore, 2/2c • Zona Industriale Roveri • 40138 Bologna • Italy
Phone: +39 051 6010506 • Fax: +39 051 6011104 • [email protected] • www.RVR.it
exciters/all-in-one transmitters
( )
Oirt, JPN &
China Band
on request
All-in-One Transmitters
Technical specifications
All pictures are RVR’s property and they are only indicative and not binding. The pictures can be modified without notice.
These are general specifications. They show typical values and are subject to change without notice.
Revision: 07/14
Ordering Information
ISO 9001:2000 certified since 2000
Via del Fonditore, 2/2c • Zona Industriale Roveri • 40138 Bologna • Italy
Phone: +39 051 6010506 • Fax: +39 051 6011104 • [email protected] • www.RVR.it
