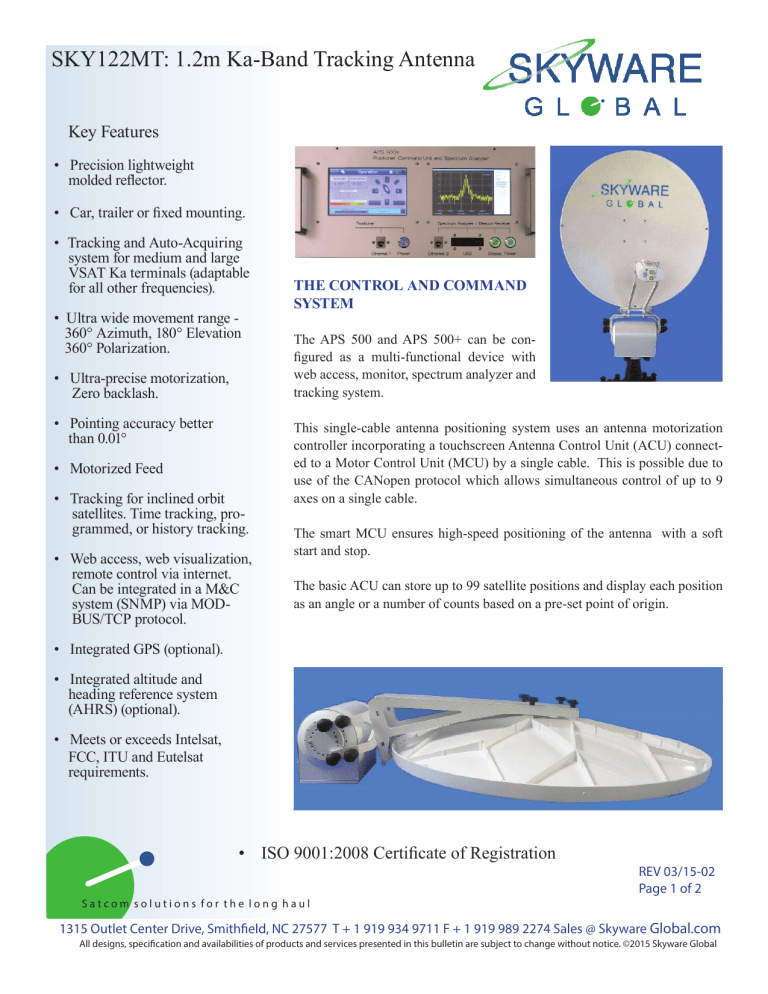

SKY122MT: 1.2m Ka-Band Tracking Antenna

SKY122MT: 1.2m Ka-Band Tracking Antenna
SKY122MT: 1.2m Ka-Band Tracking Antenna
Key Features
• Precision lightweight
molded reflector.
• Car, trailer or fixed mounting.
• Tracking and Auto-Acquiring
system for medium and large
VSAT Ka terminals (adaptable
for all other frequencies).
• Ultra wide movement range 360° Azimuth, 180° Elevation
360° Polarization.
• Ultra-precise motorization,
Zero backlash.
• Pointing accuracy better
than 0.01°
• Motorized Feed
• Tracking for inclined orbit
satellites. Time tracking, programmed, or history tracking.
• Web access, web visualization,
remote control via internet.
Can be integrated in a M&C
system (SNMP) via MODBUS/TCP protocol.
THE CONTROL AND COMMAND
SYSTEM
The APS 500 and APS 500+ can be configured as a multi-functional device with
web access, monitor, spectrum analyzer and
tracking system.
This single-cable antenna positioning system uses an antenna motorization
controller incorporating a touchscreen Antenna Control Unit (ACU) connected to a Motor Control Unit (MCU) by a single cable. This is possible due to
use of the CANopen protocol which allows simultaneous control of up to 9
axes on a single cable.
The smart MCU ensures high-speed positioning of the antenna with a soft
start and stop.
The basic ACU can store up to 99 satellite positions and display each position
as an angle or a number of counts based on a pre-set point of origin.
• Integrated GPS (optional).
• Integrated altitude and
heading reference system
(AHRS) (optional).
• Meets or exceeds Intelsat,
FCC, ITU and Eutelsat
requirements.
• ISO 9001:2008 Certificate of Registration
REV 03/15-02
Page 1 of 2
Satcom solutions for the long haul
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2015 Skyware Global
•P R O D U C T S P E C I F I C AT I O N S
RF Performance
Mechanical Performance
Operating Frequency
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29.50-30.00GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.20-20.20GHz
Reflector Material. . . . . . . . . . . . . Light Weight Composite
Polarization
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Circular, RH or LH
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Circular, RH or LH
Environmental Performance
Gain1 (min)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . 49.3 dBi @ 30.0GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . 46.0 dBi @ 20.2GHz
Functional Survival . . . . . . . . . . . . . . . . 128km/h (80 mph)
Antenna Optics . . . . . .One-Piece Offset Feed Prime Focus
Windloading
Operational. . . . . . . . . . . . . . . . . . . . . . . .75km/h (45 mph)
3 dB Beamwidth
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6° @ 30GHz
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.9° @ 20GHz
Ultimate Survival . . . . . . . . . . . . . . . . .200km/h (125 mph)
Sidelobe Envelope (Tx, Co-Pol dBi)
100 λ/D < q < 20° . . . . . . . . . . . . . . . . . . 29-25 log q dBi
20° < q < 26.3°. . . . . . . . . . . . . . . . . . . . . . . . . . . . -3.5 dBi
26.3° < q < 48° . . . . . . . . . . . . . . . . . . . . .32-25 log q dBi
48° < q < 180° . . . . . . . . . . . . . . . . . . . . . -10 dBi (Typical)
Operational Temperature . . . . . . . . . . . . . . .-40°C to +55°C
Antenna Cross-Polarization (within 1dB B/W)
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25dB
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22dB
Solar Radiation . . . . . . . . . . . . . . . . . . . . . . . .360 BTU/h/ft2
Antenna Noise Temperature 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . [email protected] 30° EL 57°K Max
VSWR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2:1 Max
Isolation
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90dB
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75dB
Feed Interface
TX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WR28 Flat Flange
RX . . . . . . . . . . . . . . . . . . . . . . . . . . . . .WR42 Flat Flange
1 Gain and Noise Temperature at Feed Horn Flange
(All specifications typical)
Survival Temperature . . . . . . . . . . . . . . . . . . -50°C to +80°C
Humidity . . . . . . . . . . . . . . . . . . . . 0 to 100% (Condensing)
Atmosphere . . . . . . . . .Standard Hardware meets 500 Hrs
SST Requirements (ASTM B-117)
Shock and Vibration . . . . . . . . . . . . As Encountered during
Shipping and Handling
Controller
Accessibility
• Integrated touch panel, 7” wide-screen display 256k
colors LED back-lit.
• Maximum cable length 6.7 Km (Controller to terminal)
• Web access.
Positioning
• Up to 5 rotational axes and 2 polarization switches,
with simultaneous movement of all axes.
• Store up to 99 satellite positions on all axes.
Power
• 24V DC, 220V AC or 380V AC.
Satcom solutions for the long haul
REV 03/15-02
Page 2 of 2
1315 Outlet Center Drive, Smithfield, NC 27577 T + 1 919 934 9711 F + 1 919 989 2274 Sales @ Skyware Global.com
All designs, specification and availabilities of products and services presented in this bulletin are subject to change without notice. ©2015 Skyware Global
