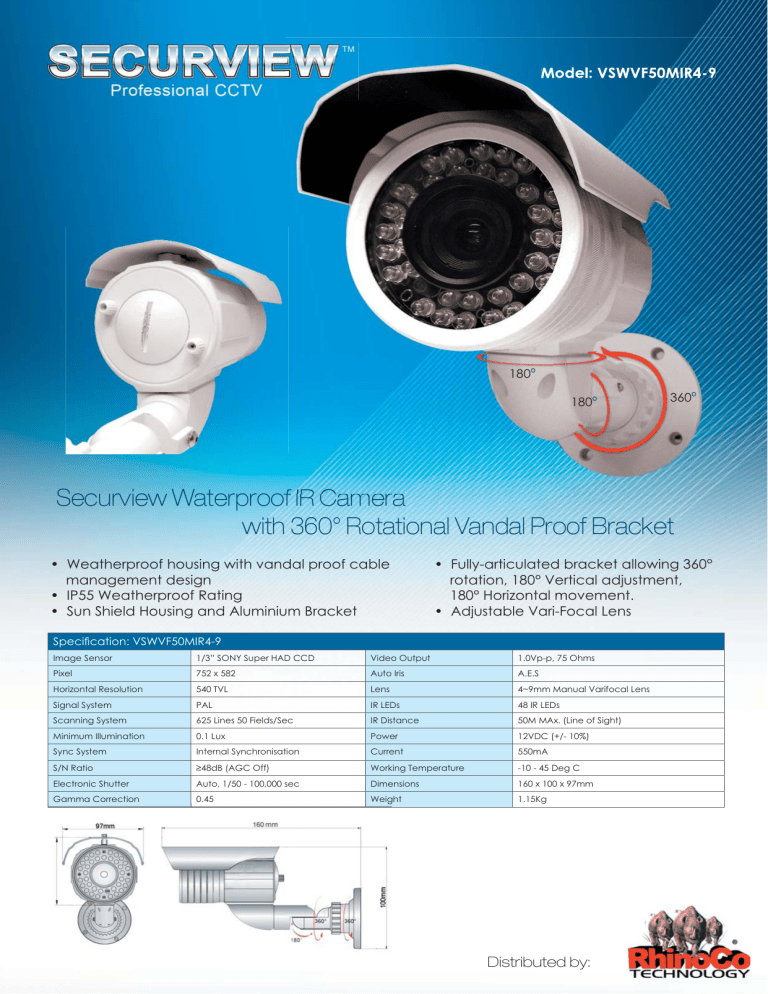

Securview Waterproof IR Camera with 360° Rotational Vandal Proof

Securview Waterproof IR Camera with 360° Rotational Vandal Proof
Model: VSWVF50MIR4-9
180°
180°
360°
Securview Waterproof IR Camera
with 360° Rotational Vandal Proof Bracket
• Weatherproof housing with vandal proof cable
management design
• IP55 Weatherproof Rating
• Sun Shield Housing and Aluminium Bracket
• Fully-articulated bracket allowing 360°
rotation, 180° Vertical adjustment,
180° Horizontal movement.
• Adjustable Vari-Focal Lens
Specification: VSWVF50MIR4-9
Image Sensor
1/3” SONY Super HAD CCD
Video Output
Pixel
752 x 582
Auto Iris
1.0Vp-p, 75 Ohms
A.E.S
Horizontal Resolution
540 TVL
Lens
4~9mm Manual Varifocal Lens
Signal System
PAL
IR LEDs
48 IR LEDs
Scanning System
625 Lines 50 Fields/Sec
IR Distance
50M MAx. (Line of Sight)
Minimum Illumination
0.1 Lux
Power
12VDC (+/- 10%)
Sync System
Internal Synchronisation
Current
550mA
S/N Ratio
≥48dB (AGC Off)
Working Temperature
-10 - 45 Deg C
Electronic Shutter
Auto, 1/50 - 100,000 sec
Dimensions
160 x 100 x 97mm
Gamma Correction
0.45
Weight
1.15Kg
Distributed by:
