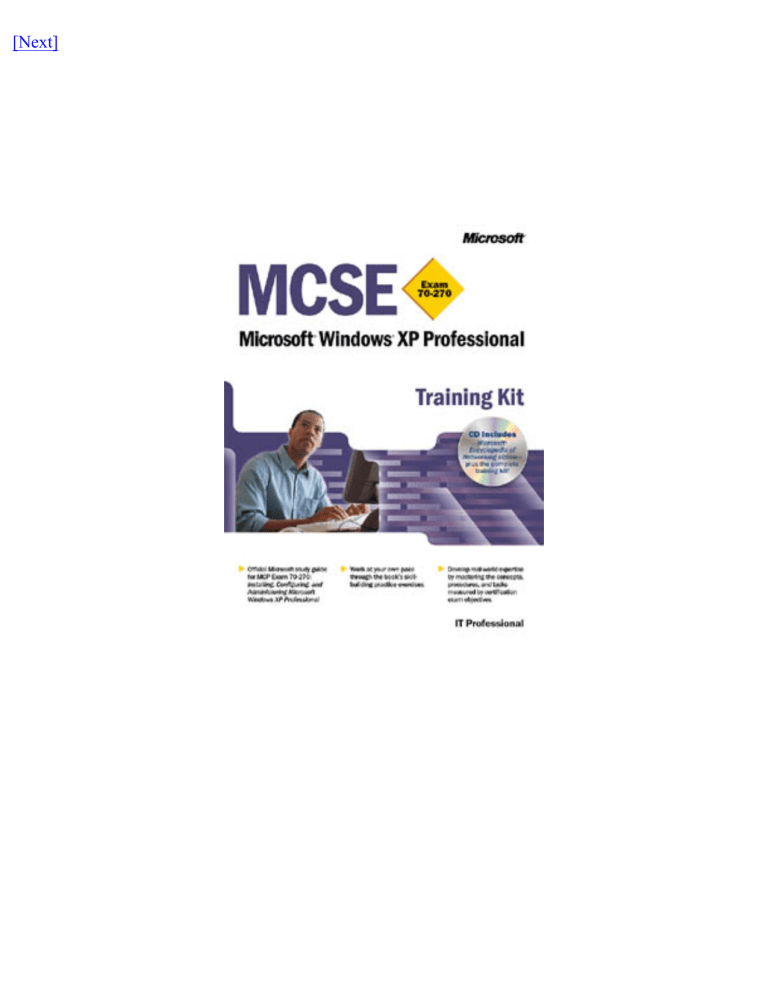

Cover

LOC

Chapter 1 -- Introduction to Windows XP Professional

Lesson 1: Exploring New Features and Improvements

Lesson 2: Troubleshooting Using Help and Support Center

Lesson 3: Understanding Workgroups and Domains

Lesson 4: Logging On and Off Windows XP Professional

Chapter 2 -- Installing Windows XP Professional

Lesson 1: Getting Started

Lesson 2: Installing Windows XP Professional from a CD-ROM

Lesson 3: Installing Windows XP Professional over the Network

Lesson 4: Upgrading Earlier Versions of Windows to Windows XP Professional

Lesson 5: Troubleshooting Windows XP Professional Setup

Chapter 3 -- Setting Up and Managing User Accounts

Lesson 1: Understanding User Accounts

Lesson 2: Planning New User Accounts

Lesson 3: Creating, Modifying, and Deleting User Accounts

Lesson 4: Setting Properties for User Accounts

Lesson 5: Implementing Groups

Chapter 4 -- Installing, Configuring, and Troubleshooting Network Protocols

Lesson 1: Understanding the TCP/IP Protocol Suite

Lesson 2: Configuring and Troubleshooting TCP/IP

Lesson 3: Installing, Configuring, and Troubleshooting NWLink

Lesson 4: Network Bindings

Chapter 5 -- Using the DNS Service and Active Directory Service

Lesson 1: Understanding DNS

Lesson 2: Understanding Name Resolution

Lesson 3: Configuring a DNS Client

Lesson 4: Understanding Active Directory

Lesson 5: Understanding Active Directory Structure and Replication

Lesson 6: Understanding Active Directory Concepts

Chapter 6 -- Setting Up, Configuring, and Troubleshooting Common Setup and Configuration

Problems for Network Printers

Lesson 1: Introduction to Windows XP Professional Printing

Lesson 2: Setting Up Network Printers

Lesson 3: Connecting to Network Printers

Lesson 4: Configuring Network Printers

Lesson 5: Troubleshooting Setup and Configuration Problems

Chapter 7 -- Administering and Troubleshooting Common Administrative Problems for

Network Printers

Lesson 1: Understanding Printer Administration

Lesson 2: Managing Printers

Lesson 3: Managing Documents

Lesson 4: Administering Printers Using a Web Browser

Lesson 5: Troubleshooting Common Printing Problems

Chapter 8 -- Securing Resources with NTFS Permissions

Lesson 1: Understanding and Applying NTFS Permissions

Lesson 2: Assigning NTFS Permissions and Special Permissions

Lesson 3: Solving Permissions Problems

Chapter 9 -- Administering Shared Folders

Lesson 1: Understanding Shared Folders

Lesson 2: Planning, Sharing, and Connecting to Shared Folders

Lesson 3: Combining Shared Folder Permissions and NTFS Permissions

Chapter 10 -- Configuring Windows XP Professional

Lesson 1: Configuring and Troubleshooting the Display

Lesson 2: Configuring Power Management

Lesson 3: Configuring Operating System Settings

Lesson 4: Configuring and Troubleshooting the Desktop Environment

Lesson 5: Managing Windows Components

Chapter 11 -- Installing, Managing, and Troubleshooting Hardware Devices and Drivers

Lesson 1: Understanding Automatic and Manual Hardware Installation

Lesson 2: Configuring and Troubleshooting Hardware Devices

Lesson 3: Viewing and Configuring Hardware Profiles

Lesson 4: Configuring, Monitoring, and Troubleshooting Driver Signing

Lesson 5: Configuring Computers with Multiple Processors

Chapter 12 -- Auditing Resources and Events

Lesson 1: Planning an Audit Policy

Lesson 2: Implementing an Audit Policy

Lesson 3: Using Event Viewer

Chapter 13 -- Configuring Security Settings and Internet Options

Lesson 1: Configuring Account Policies

Lesson 2: Configuring User Rights

Lesson 3: Configuring Security Options

Lesson 4: Configuring Internet Explorer Security Options

Chapter 14 -- Managing Data Storage

Lesson 1: Managing Compression

Lesson 2: Managing Disk Quotas

Lesson 3: Increasing Security with EFS

Lesson 4: Using Disk Defragmenter, Check Disk, and Disk Cleanup

Chapter 15 -- Monitoring, Managing, and Maintaining Network Resources

Lesson 1: Monitoring Access to Shared Folders

Lesson 2: Creating and Sharing Local and Remote Folders

Lesson 3: Monitoring Network Users

Lesson 4: Using Offline Folders and Files

Lesson 5: Using Scheduled Tasks

Lesson 6: Using Task Manager

Lesson 7: Using Performance Console

Chapter 16 -- Backing Up and Restoring Data

Lesson 1: Using the Backup Utility

Lesson 2: Backing Up Data

Lesson 3: Restoring Data

Lesson 4: Using the Automated System Recovery Wizard

Chapter 17 -- Configuring Network and Internet Connections

Lesson 1: Configuring Inbound Connections

Lesson 2: Configuring Outbound Connections

Lesson 3: Enabling and Configuring Home and Small Business Components

Chapter 18 -- Modifying and Troubleshooting the Boot Process

Lesson 1: Understanding the Boot Process

Lesson 2: Editing the Registry

Lesson 3: Using Startup and Recovery Tools

Chapter 19 -- Deploying Windows XP Professional

Lesson 1: Automating Installations Using Windows Setup Manager

Lesson 2: Using Disk Duplication to Deploy Windows XP Professional

Lesson 3: Performing Remote Installations

E

F

C

D

G

Lesson 4: Using Tools to Simplify Deployment

Appendix A -- Questions and Answers

Glossary

A

B

I

H

V

W

Z

S

T

Q

R

U

J

K

N

O

L

M

P

[Previous]

[Next]

PUBLISHED BY

Microsoft Press

A Division of Microsoft Corporation

One Microsoft Way

Redmond, Washington 98052-6399

Copyright © 2002 by Microsoft Corporation

All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the written permission of the publisher.

Library of Congress Cataloging-in-Publication Data pending.

Printed and bound in the United States of America.

1 2 3 4 5 6 7 8 9 QWT 6 5 4 3 2

Distributed in Canada by Penguin Books Canada Limited.

A CIP catalogue record for this book is available from the British Library.

Microsoft Press books are available through booksellers and distributors worldwide. For further information about international editions, contact your local Microsoft Corporation office or contact

Microsoft Press International directly at fax (425) 706-7329. Visit our Web site at

www.microsoft.com/mspress

. Send comments to

[email protected]

.

Active Directory, BackOffice, FrontPage, HotMail, Intellimirror, Microsoft, Microsoft Press, MS-DOS,

MSN, Outlook, Win32, Windows, and Windows NT are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries. Other product and company names mentioned herein may be the trademarks of their respective owners.

The example companies, organizations, products, domain names, e-mail addresses, logos, people, places, and events depicted herein are fictitious. No association with any real company, organiza-tion, product, domain name, e-mail address, logo, person, place, or event is intended or should be inferred.

Project Editor: Karen Szall

Author: Rick Wallace

Body Part No. X08-06100

[Home]

[Previous]

[Next]

Chapter 1

Introduction to Windows XP Professional

About This Chapter

This book is written to prepare you to install, configure, and support Windows XP Professional. This chapter introduces you to some of the areas in which Microsoft has improved Microsoft Windows XP

Professional over earlier versions of Microsoft Windows. It also describes the features available in

Windows XP Professional Help and Support Center, introduces the concepts of workgroups and domains, and explains how to log on and off Windows XP Professional.

Before You Begin

There are no special requirements to complete this chapter.

[Home]

[Previous]

[Next]

Lesson 1: Exploring New Features and

Improvements

This lesson introduces a number of the features and enhancements incorporated into Windows XP

Professional since the release of Microsoft Windows 2000.

After this lesson, you will be able to

Identify the key new features of Windows XP Professional

Estimated lesson time: 45 minutes

Automatic Updates

Windows XP Professional includes an Automatic Updates (AU) feature. AU is a proactive service that allows users with administrative privileges to automatically download and install critical operating system updates, such as security fixes and patches. Because the installation might require you to restart your computer, you are notified before the installation takes place and given the opportunity to postpone the download operation. Updates are downloaded in the background so that you can continue to work during downloading.

AU uses the Windows Update control to scan the system and decide which updates apply to a particular computer. AU uses its innovative bandwidth-throttling technology for downloads. Bandwidth throttling uses only idle bandwidth so that downloads do not interfere with or slow down other network activity, such as Internet browsing. Only one administrative user at a time can run the AU client.

For more information about the Automatic Updates feature, see

Chapter 10 , "Configuring Windows XP

Professional."

Copying Files and Folders to a CD

Windows XP Professional enables users to save information such as photos and software to a compact

disc (CD) without using third-party software. Because CD-recordable (CD-R) and CD-rewritable (CD-

RW) drives are now inexpensive options on computers, this feature enhances the standard conveniences that Windows offers to users.

Users can select a folder of images from a digital camera, drag it to the CD-R icon, and then create a CD.

They can also transfer files more easily to a CD instead of copying them to a smaller capacity floppy disk.

This feature also provides options for original equipment manufacturers (OEMs) and independent software vendors (ISVs). OEMs can create branded applications that generate emergency boot CDs instead of emergency boot floppy disks, and ISVs can offer a "burn to CD" option on their Windows versions.

To copy files or folders to a CD follow these steps:

1. Insert a blank, writable CD into the CD recorder.

You must have a blank, writable CD and a CD-ROM drive that has the capability of writing CDs to use this feature.

2. Click Start, right-click My Computer and select the files and folders you want to write to the CD.

3. Under File And Folder Tasks, click Copy This File, Copy This Folder, or Copy The Selected

Items.

4. In the Copy Items dialog box, click the CD recording drive and then click Copy.

5. In My Computer, click the CD recording drive and then under CD Writing Tasks, click Write

These Files To The CD.

Standard CDs hold 650 MB of information. High-density CDs hold at least 700 MB of information. You must have enough space on your hard drive to temporarily hold the files you want to copy to the CD or the operation will fail.

ClearType Support

Windows XP Professional supports ClearType, a new text display technology. ClearType triples the horizontal resolution available for rendering text through software, which provides a clearer text display on a liquid crystal display (LCD) screen with digital interface.

To specify ClearType follow these steps:

1. Click Start and then click Control Panel.

2. Click Appearance And Themes, and then click Display.

3. In the Appearance And Themes dialog box, click Appearance.

4. In the Appearance tab, click Effects.

5. Select the Use The Following Method To Smooth Edges Of Screen Fonts check box, and then select ClearType from the drop-down list (see Figure 1.1).

Figure 1.1 The Effects dialog box

6. Click OK to close the Effects dialog box.

7. Click OK to close the Display Properties dialog box.

Compressed Folders

The Compressed Folders feature provides the ability to create ZIP folders and view their contents.

Compressed folders allow you to compress large files so that you can store more files on a floppy disk or hard drive.

To create a compressed folder follow these steps:

1. Click Start, right-click My Computer, and then click Explore.

2. On the File menu, click New, and then click Compressed Folder.

If you drag and drop files and folders into a compressed folder, they will be compressed. You cannot save a file to a compressed folder.

Desktop Cleanup Wizard

The Desktop Cleanup Wizard helps keep your desktop uncluttered by periodically checking for unused shortcuts and removing them without harming the installed program. By default, the Desktop Cleanup

Wizard checks for unused shortcuts every 60 days and offers to move them to a folder on the desktop called Unused Desktop Shortcuts.

To run the Desktop Cleanup Wizard follow these steps:

1. Click Start, and then click Control Panel.

2. Click Appearance And Themes, and then click Display.

3. Click Desktop and then click Customize Desktop.

Windows XP Professional displays the Desktop Items dialog box, as shown in Figure 1.2.

Figure 1.2 The Desktop Items dialog box

4. Under Desktop Cleanup, click Clean Desktop Now to run the Desktop Cleanup Wizard now.

Start Menu

The Start menu has been redesigned for easier access to important and frequently used tasks. In addition to prominent Internet and e-mail links, the new Start menu lists the programs that you use most frequently. Windows XP Professional continually updates this list based on your usage of programs. It adds programs that you are using and removes programs from the list that you have not been using.

Windows XP Professional does not remove the programs from your computer, just from this list. The

Start menu also lists important user folders such as My Documents, My Pictures, and My Music.

To customize the Start menu follow these steps:

1. Right-click Start, and then click Properties.

2. Click the Start Menu tab.

The Start Menu tab lets you choose between the Windows XP Professional Start menu and the

Classic Start menu used in earlier versions of Windows.

3. Click Customize.

The Customize Start Menu dialog box has two tabs: General and Advanced.

The General tab allows you to select an icon size for programs, configure the amount of frequently used programs you want displayed on the Start menu, and select the Internet and e-mail items shown on the Start menu.

The Advanced tab, shown in Figure 1.3, allows you to configure Start menu settings, items, and recent documents.

Figure 1.3 The Advanced tab of the Customize Start Menu dialog box

Fax Support

Windows XP Professional provides fax support that enables you to send faxes over a network from a computer with an attached fax modem or fax board or with a local area network (LAN) connection. You can print to fax from any application, send cover fax pages, and track and monitor faxes. New wizards enable simpler configuration of this feature and fax sending.

IT administrators can use the Component Object Model (COM) application programming interface (API) to control fax capabilities and the Microsoft Management Console (MMC) to set up the fax service within their infrastructure. Developers can use COM to send faxes programmatically. In addition, they can use the fax APIs to write applications to automatically send faxes.

To send or manage faxes follow these steps:

1. Click Start, point to All Programs, and point to Accessories.

2. Point to Communications and point to Fax.

For more information about fax support, see

Chapter 11 , "Installing, Managing, and Troubleshooting

Hardware Devices and Drivers."

Fast User Switching for Multiple Users of a

Computer

The Fast User Switching feature allows multiple users to simultaneously share a computer without closing all of their applications first. For example, if you are creating a Microsoft Word document and leave your computer for a short time, Fast User Switching permits another person to use your computer to access another computer account-perhaps to find a customer's account balance-while leaving your

Word session open. All of this is done without either of you logging off the computer.

For more information about Fast User Switching, see Chapter 3

, "Setting Up and Managing User

Accounts."

Locale Support Additions and Regional Options

Enhancements

A locale is a set of cultural and regional preferences that correspond to a user's language and sublanguage

(for example, Canadian French and U.K. English). Compared with Windows 2000 Professional, this

feature adds support for the following locales: Galician, Gujarati, Kannada, Kyrgyz, Mongolian

(Cyrillic), Punjabi, Divehi, Syriac, and Telugu. The feature also includes enhancements to the Regional and Language Options control panel.

For more information about Locale Support and the Regional and Language Options enhancements, see

Chapter 10 , "Configuring Windows XP Professional."

Auto-Configuration for Multiple Network

Connectivity

The Auto-Configuration for Multiple Network Connectivity feature provides easy access to network devices and the Internet. It also allows a mobile computer user to seamlessly operate both office and home networks without manually reconfiguring Transmission Control Protocol/Internet Protocol

(TCP/IP) settings.

You can use this feature to specify an alternate configuration for TCP/IP if a Dynamic Host

Configuration Protocol (DHCP) server is not found. The alternate configuration is useful when a computer is used on multiple networks, one of which does not have a DHCP server and does not use an automatic private Internet Protocol (IP) addressing configuration.

For more information on specifying an alternate configuration for TCP/IP for multiple network

connectivity, see Chapter 4 , "Installing, Configuring, and Troubleshooting Network Protocols."

Microsoft Internet Explorer 6.0

Microsoft Internet Explorer 6.0 provides visual refresh and enhanced support for Document Object

Model (DOM) Level 1 and Cascading Style Sheets (CSS) Level 1. Internet Explorer 6.0 also provides the following features:

Media acquisition enhancements, which include a shortcut menu to make saving images more discoverable and support for My Videos and My Music folders as defaults for those media types.

Native support for Macromedia Flash and Macromedia Shockwave Player files.

Automatic Image Resize, which allows you to automatically resize an image to fit entirely within the current browser frame. This feature works only when you have directly navigated to an image; it does not resize images embedded within Hypertext Markup Language (HTML) pages.

Networking has also been enhanced to include changes to cookie handling for improved privacy, and changes to Passport and other authentication dialogs to allow a more integrated password and credential management.

For more information about configuring Internet Explorer, see

Chapter 13 , "Configuring Security

Settings and Internet Options."

Instant Messaging

Instant Messaging allows users to quickly communicate with one another over the Internet. Internet

Explorer 6.0 includes the ability to show MSN Messenger, Outlook Express, and Outlook contacts in a side panel. The Windows Messenger in Windows XP Professional offers multimedia audio, video, and data real-time communication over the Internet. All you need is a .NET passport, which you can create using your Microsoft Hotmail account or using MSN Messenger, and a dial-in connection to the Internet.

If you want real-time audio and video, you will need a microphone and a Web cam.

To access Instant Messaging follow these steps:

1. Click Start, point to All Programs, and then click Internet Explorer.

2. Click Online Buddies, and double-click the contact name for the person you want to talk to.

If you are using a Web cam, you will have to click Start for the camera and both you and your friend will need to be using Windows Messenger and have audio/video enabled on your computers.

Internet Connection Firewall (ICF)

Microsoft designed the Internet Connection Firewall (ICF) for use in the home and by small businesses.

It provides protection on computers directly connected to the Internet. It is available for LAN or dial-up networking, virtual private networking (VPN), and Point-to-Point Protocol over Ethernet (PPPoE) connections. It also prevents scanning of ports and resources (file and printer shares) from external resources.

For more information about Internet Connection Firewall, see Chapter 17

, "Configuring Network and

Internet Connections."

Terminal Services: Remote Desktop and Remote

Desktop Connection

Windows XP Professional includes two Terminal Services features: Remote Desktop and Remote

Desktop Connection. Remote Desktop provides access to a desktop from any Terminal Services client. It also allows you to access the following:

The full set of installed applications, work in progress, and all connectivity usually found on a workstation or server

Sessions on a computer running Windows 2000 Server products that can be used for computer administration or server-based computing

In addition, Remote Desktop enables Remote Console access, allowing the primary screen output to be redirected to a Terminal Server client.

The Remote Desktop Connection feature is the end-user tool for establishing connections to computers running Terminal Services. Corporate employees who work at home, using a line-of-business application that is hosted on a Terminal Server, can use the Remote Access Service (RAS) to dial in and the Remote

Desktop Connection to use the application. Remote Desktop Connection has many features that allow optimization for almost any network speed.

To access the Remote Desktop Connection follow these steps:

1. Click Start, and then point to All Programs.

2. Point to Accessories, point to Communications, and then click Remote Desktop Connection.

Windows XP Professional displays the Remote Desktop Connection dialog box, as shown in

Figure 1.4.

Figure 1.4 The Remote Desktop Connection dialog box

WebDAV Redirector

The Web Distributed Authoring and Versioning (WebDAV) redirector is a new mini-redirector that supports the WebDAV protocol for remote document sharing over Hypertext Transfer Protocol (HTTP).

The WebDAV redirector supports the use of existing applications and allows file sharing across the

Internet (through firewalls and routers) to HTTP servers. For example, the WebDAV redirector allows users at different locations to share and collaborate on a file. A user can also use WebDAV redirectors to publish Web data, or make use of Internet repositories for storing data or sharing information with family and friends.

To use the WebDAV redirector follow these steps:

1. Click Start, and then click My Computer. Click My Network Places.

2. Under Network Tasks, click Add A Network Place.

Windows XP Professional starts the Add Network Place Wizard.

3. Click Next in the Welcome screen.

The Add Network Place Wizard displays the Where Do You Want To Create This Network Place dialog box (see Figure 1.5).

4. Follow the instructions for adding a shortcut to a Web site that supports Web folders (WebDAV).

The Web server must support Web folders (the WebDAV protocol) and Microsoft Internet Information

Services (IIS) or the Web Extender Client (WEC) protocol and FrontPage extensions.

Figure 1.5 The Where Do You Want To Create This Network Place dialog box

Web Publishing

The Web Publishing feature enables users to publish files to a Web-hosting service. This feature uses the

.NET Passport Wizard to sign up for passports so a user does not need to enter a password at the Web site.

To publish files, click Start, click My Documents, and select the files you want to publish. Under File

And Folder Tasks, click Publish This File To The Web. In the Web Publishing Wizard page, click Next.

In the Destination Web Site page, select a destination location for your files, and then follow the wizard prompts to complete publishing the files.

Welcome Screen

The Welcome screen provides the ability to set up multiple user accounts on one computer. You create these accounts during Setup or from the Control Panel. The separate accounts establish profiles that separate each user's data. By default, the accounts are not password protected, but users can set passwords on their specific accounts if they want.

For more information about configuring the Welcome screen, see Chapter 3

, "Setting Up and Managing

User Accounts."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. Which of the following statements about Automatic Updates (AU) are correct? (Choose all that apply.) a. AU is a proactive service that runs in the background and automatically detects, downloads, and installs Windows updates on a computer.

b. AU allows multiple administrative users to run the AU client concurrently.

c. AU allows users with administrative privileges to automatically download and install

Windows updates on a computer.

d. AU uses only idle bandwidth so that downloads do not interrupt or slow down other network activity.

2. What is ClearType support?

3. The Desktop Cleanup Wizard helps you keep your desktop free of ________________ that you don't use regularly. By default, it runs every _______ days.

4. What does the Fast User Switching for Multiple Users of a Computer feature provide on computers running Windows XP Professional?

5. Internet Explorer version _________________ comes included with Windows XP Professional.

Lesson Summary

AU is a proactive service that allows users with administrative privileges to automatically download and install Windows updates, such as security fixes and patches, on a computer.

The CD Burning feature enables users to save information to a CD as easily as to a floppy or hard disk.

Windows XP Professional supports ClearType, a new text display technology that triples the horizontal resolution available for rendering text through software. This feature provides a clearer text display on an LCD screen with digital interface.

The Compressed Folders feature allows you to drag and drop files and folders into a compressed folder to compress large files. This enables you to store more files on a floppy or hard drive and to easily send large files as an attachment in e-mail.

Windows XP Professional fax support enables users to send faxes using their network.

Fast User Switching allows multiple users to share a computer without forcing each user to close all running applications and log off before another user can log on to the computer.

Instant Messaging allows users to quickly communicate with one another using multimedia audio, video, and data real-time communication over the Internet.

Internet Connection Firewall (ICF) protects computers in the home and small businesses environment.

The Web Distributed Authoring and Versioning (WebDAV) redirector is a new mini-redirector that supports the WebDAV protocol for remote document sharing over HTTP.

[Home]

[Previous]

[Next]

Lesson 2: Troubleshooting Using Help and Support Center

Microsoft has greatly enhanced and improved the Help and Support Center in Windows XP Professional. This lesson acquaints you with the features available in Help and Support Center.

After this lesson you will be able to

Identify the features in and use the Windows XP Professional Help and Support Center

Estimated lesson time: 15 minutes

Assisted Support

Windows XP Professional now includes two Assisted Support services-Microsoft Incident Submission and Management and Windows Newsgroupswhich help users resolve computer support issues.

Microsoft Incident Submission and Management

The Microsoft Incident Submission and Management feature allows you to submit electronic support incidents to Microsoft, collaborate with support engineers, and manage submitted incidents. For example, if you are having problems installing drivers for new hardware on your computer, you can launch Help and Support to submit an electronic incident report to Microsoft.

To access Help and Support follow these steps:

1. Click Start.

2. Click Help And Support.

Windows XP Professional displays the Help And Support Center window, as shown in Figure 1.6.

Figure 1.6 Help And Support Center window

Windows Newsgroups

Windows Newsgroups provide valuable information to help you resolve computer support issues in a free, online setting. You can use the connectionless message boards and the real-time chat rooms to get answers quickly without submitting incident reports to a Microsoft or OEM support organization. The goal of this feature is to promote Windows and MSN Community offerings in Windows XP Professional Help and

Support, as well as to encourage users to add or extend this service in their own communities.

To access the Windows Newsgroups follow these steps:

1. Click Start, and then click Help And Support.

2. In the Help And Support Center window, under Get Assistance, click Get Support Or Find Information In Windows XP Newsgroups.

Compatible Hardware and Software

The Compatible Hardware and Software feature provides up-to-date, comprehensive, user-friendly hardware and software compatibility information to aid users in upgrading equipment, making purchasing decisions, and troubleshooting problems. For example, if you purchase an application that requires a 3-D accelerator card, you might not know which cards are compatible with your computer. You can use Help and Support to run a comprehensive query and find compatible 3-D accelerator cards. You can run queries based on manufacturer, product type, software, or hardware.

The Microsoft compatibility teams use data from user interactions, independent hardware vendors (IHVs), and ISVs to improve their products.

To access the Compatible Hardware and Software feature follow these steps:

1. Click Start, and then click Help And Support.

2. In the Help And Support Center window, under Pick A Task, click Find Compatible Hardware And Software For Windows XP.

Device Driver Referral Site

The Device Driver Referral Site helps you install device drivers that are not included with Windows XP Professional or on a disk with the device.

When such a device is connected, Windows XP Professional starts Help and Support Center and asks the user to send device information to

Microsoft. After uploading the information, Help and Support Center offers additional information, including the following:

A search for compatible devices, which can include product status, downloadable updates, and drivers available at third-party Web sites

A list of compatible devices

Knowledge Base articles related to the device in question

The Microsoft Knowledge Base is a comprehensive database containing detailed articles with technical information about Microsoft products, fix lists, documentation errors, and answers to commonly asked technical support questions. To access Knowledge Base, connect to the following address: http://www.microsoft.com/mspress/support/search.asp

Additional Help topics related to finding and installing devices

A method to submit and manage incidents escalated to Microsoft Product Support Services

Full-Text Search

The Windows Help system uses HTML to format and display information. If you have an Internet connection, you can search for every occurrence of a word or phrase across all Windows compiled HTML Help files. Because the Windows Help System is also extensible, multiple search engines can plug into the Help and Support Center application using a set of standard interfaces. Users can search for content across multiple remote and online providers. For example, you can search for information resident on your computer or located remotely in the Microsoft Knowledge Base or in a participating OEM's knowledge base.

To access Full Text Search follow these steps:

1. Click Start, and then click Help And Support.

2. In the Help And Support Center window, in the Search box, type in the text you want to find.

3. To control how the search will be performed, click Set Search Options (see Figure 1.7).

Figure 1.7 Help And Support Center Set Search Options window

My Computer Information

My Computer Information provides an easily understood, highly accessible view of personalized software and hardware information about your computer or another computer for which you have administrative permissions.

To access My Computer Information follow these steps:

1. Click Start, and then click Help And Support.

2. In the Help And Support Center window, under Pick A Task, click Use Tools To View Your Computer Information And Diagnose Problems.

3. Under Tools, click My Computer Information.

You can view information in five categories, as described in the following sections.

View General System Information about This Computer

The My Computer Information - General category allows you to view information about your computer such as the computer manufacturer, model, basic input/output system (BIOS) version, processor version and speed, operating system, amount of memory, and amount of available disk space.

View the Status of My System Hardware and Software

The My Computer Information - Status category allows you to examine diagnostic information about your computer, including the following:

Obsolete applications and device drivers

System software

Hardware: video card, network card, sound card, and universal serial bus (USB) controller

Hard disks

Random access memory (RAM)

Find Information about the Hardware Installed on This Computer

The Computer Information - Hardware category allows you to examine descriptive information about your computer's hardware including the local disk, display, video card, modem, sound card, USB controller, network cards, CD-ROM drives, floppy drives, memory, and printers.

View a List of Microsoft Software Installed on This Computer

The Software category allows you to view a list of Microsoft products that are installed and registered by a product identification (PID) number on your computer, including products that run automatically from Startup. It also shows you Windows Watson Crash Information about any software that crashed while running on your computer.

View Advanced System Information

Advanced System Information allows you to choose from the following options:

View Detailed System Information (MSINFO32.EXE). This option allows you to view detailed information on hardware resources, components (multimedia, input, network, ports, and storage), software environment, and Internet settings, as shown in Figure 1.8.

Figure 1.8 The System Information window

View Running Services.

View Group Policy Settings Applied.

View The Error Log.

View Information For Another Computer. If you have administrative permissions on a remote computer, you can view My Computer

Information on that remote computer. If you click View Computer Information On Another Computer, the Web Page dialog box appears prompting you to enter the name of the remote computer you want to view. Enter the remote computer name and then click Open to view the remote computer information.

Multiple Instances

You can open two sessions of the Help and Support Center application at the same time. Running concurrent sessions enables you to submit incident reports while looking at Help or System Information.

Printing

The Help and Support Center application allows you to print an entire chapter of Help content with one print command; that is, it can iteratively print all available topics in a specified node. If some topics are not available because of network connection problems, Windows XP Professional prints only the available content. After you have located the information you want to print, click Print (see Figure 1.9).

Figure 1.9 The Help And Support Center Print option

Remote Assistance

The Remote Assistance feature allows you to remotely view and control a computer for any support task. It also enables chat and file transfers. If you have a computer problem, you can invite another person (a remote assistant) to help you over the Internet. The remote assistant can accept your invitation, chat with you about the problem, and view your desktop. The remote assistant can also transfer any files required to fix the problem. With your permission, the remote assistant can also get full control of your computer to perform any complex steps needed to fix the problem.

For more information about the Remote Assistance feature, see

Chapter 10 , "Configuring Windows XP Professional."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. How can Windows XP Professional help you in making a recommendation about how to upgrade the equipment in your office?

2. If you are talking with a support engineer about a problem you are having with your computer and the engineer asks you for the BIOS level on

your computer, how can you use Help and Support Center to find this information?

3. If you have administrative responsibility for your company's workgroup and have administrative control over all computers in the workgroup, how can you easily determine the model and driver for each network adapter in the workgroup?

Lesson Summary

Assisted Support allows you to submit electronic support incidents to Microsoft, collaborate with support engineers, and manage submitted incidents.

Windows Newsgroups are valuable facilities available to you to get information and resolve computer-related support issues in a free, online setting.

The Compatible Hardware and Software feature provides up-to-date, comprehensive, user-friendly hardware and software compatibility information to aid users in upgrading, making purchasing decisions, and troubleshooting support issues.

My Computer Information provides you with an easy-to-comprehend, accessible view of personalized software and hardware information specific to your computer or to remote computers on your network.

[Home]

[Previous]

[Next]

Lesson 3: Understanding Workgroups and Domains

Windows XP Professional supports two secure network environments in which users are able to share common resources, regardless of network size: workgroups and domains.

After this lesson, you will be able to

Identify the key characteristics of workgroups and domains and explain how they work

Estimated lesson time: 15 minutes

Workgroups

A Windows XP Professional workgroup is a logical grouping of networked computers that share resources, such as files and printers. A workgroup is also called a peer-to-peer network because all computers in the workgroup can share resources as equals (peers) without a dedicated server.

Each computer in the workgroup maintains a local security database, which is a list of user accounts and resource security information for the computer on which it resides. Therefore, using a local security database decentralizes the administration of user accounts and resource security in a workgroup. Figure

1.10 shows a local security database.

Figure 1.10 An example of a Windows XP Professional workgroup

A workgroup can contain computers running one of the Microsoft Windows NT and Windows 2000

Server products as long as the server is not configured as a domain controller. (Domain controllers are explained later in this lesson.) In a workgroup, a computer running Windows NT or Windows 2000

Server is called a stand-alone server.

Because workgroups have decentralized administration and security, the following are true:

A user must have a user account on each computer to which he or she wants to gain access.

Any changes to user accounts, such as changing a user's password or adding a new user account, must be made on each computer in the workgroup. If you forget to add a new user account to one of the computers in your workgroup, the new user will not be able to log on to that computer and will be unable to access resources on it.

A workgroup provides the following advantages:

It does not require inclusion of a domain controller in the configuration to hold centralized security information.

It is simple to design and implement. It does not require the extensive planning and administration that a domain requires.

It is a convenient networking environment for a limited number of computers in close proximity.

However, a workgroup becomes impractical in environments with more than 10 computers.

Domains

A domain is a logical grouping of network computers that share a central directory database (see Figure

1.11). A directory database contains user accounts and security information for the domain. This database is known as the directory and is the database portion of Active Directory service, the Windows 2000 directory service.

Figure 1.11 A Windows 2000 domain

In a domain, the directory resides on computers that are configured as domain controllers. A domain

controller is a server that manages all security-related aspects of user and domain interactions, centralizing security and administration.

You can designate only a computer running one of the Microsoft Windows 2000 Server products as a

domain controller. If all computers on the network are running Windows XP Professional, the only type of network available is a workgroup.

A domain does not refer to a single location or specific type of network configuration. The computers in a domain can share physical proximity on a small LAN, or they can be located in different corners of the world. They can communicate over any number of physical connections, including dial-up lines,

Integrated Services Digital Network (ISDN) lines, fiber lines, Ethernet lines, token ring connections, frame relay connections, satellite connections, and leased lines.

The benefits of a domain include the following:

Centralized administration, because all user information is stored centrally.

A single logon process for users to gain access to network resources (such as file, print, and application resources) for which they have permissions. In other words, you can log on to one computer and use resources on another computer in the network as long as you have appropriate permissions to access the resource.

Scalability, so that you can create very large networks.

A typical Windows 2000 domain includes the following types of computers:

Domain controllers running Windows 2000 Server. Each domain controller stores and maintains a copy of the directory. In a domain, you create a user account once, which Windows

2000 records in the directory. When a user logs on to a computer in the domain, a domain controller authenticates the user by checking the directory for the user name, password, and logon restrictions. When there are multiple domain controllers in a domain, they periodically replicate their directory information.

Member servers running Windows 2000 Server. A member server is a server that is not configured as a domain controller. A member server does not store directory information and cannot authenticate users. Member servers provide shared resources such as shared folders or printers.

Client computers running Windows XP Professional, Windows 2000 Professional, or one of

the other Microsoft Windows client operating systems. Client computers run a user's desktop environment and allow the user to gain access to resources in the domain.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next

lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. Which of the following statements about a Windows XP Professional workgroup are correct?

(Choose all that apply.) a. A workgroup is also called a peer-to-peer network.

b. A workgroup is a logical grouping of network computers that share a central directory database.

c. A workgroup becomes impractical in environments with more than 100 computers.

d. A workgroup can contain computers running Microsoft Windows 2000 Server as long as the server is not configured as a domain controller.

2. What is a domain controller?

3. A directory database contains user accounts and security information for the domain and is known as the __________________. This directory database is the database portion of

______________________________, which is the Windows 2000 directory service.

4. A ____________ provides a single logon for users to gain access to network resources that they have permissions to access, such as file, print, and application resources.

Lesson Summary

A Windows XP Professional workgroup is a logical grouping of networked computers that share resources such as files and printers.

A workgroup is referred to as a peer-to-peer network because all computers in the workgroup can share resources as equals (peers) without a dedicated server.

Each computer in the workgroup maintains a local security database, which is a list of user accounts and resource security information for the computer on which it resides.

A domain is a logical grouping of network computers that share a central directory database containing user accounts and security information for the domain.

This central directory database is known as the directory and is the database portion of Active

Directory service, which is the Windows 2000 directory service.

The computers in a domain can share physical proximity on a small LAN or can be distributed worldwide, communicating over any number of physical connections.

A computer running Windows 2000 Server can be designated as a domain controller. If all computers on the network are running Windows XP Professional, the only type of network available is a workgroup.

[Home]

[Previous]

[Next]

Lesson 4: Logging On and Off Windows

XP Professional

This lesson explains the Welcome screen and the Enter Password dialog box, the two options that you use to log on to Windows XP Professional. It also explains how Windows XP Professional authenticates a user during the logon process. This mandatory authentication process ensures that only valid users can gain access to resources and data on a computer or the network.

After this lesson, you will be able to

Explain how to use the Welcome screen to log on to Windows XP Professional

Explain how to configure Windows XP Professional to use the Log On To Windows dialog box

Identify the features of the Log On To Windows dialog box

Identify how Windows XP Professional authenticates a user when the user logs on to a local computer or to a domain

Explain how to log off or turn off a computer that is running Windows XP Professional

Identify the features of the Windows Security dialog box

Estimated lesson time: 20 minutes

Logging On Locally to the Computer

Windows XP Professional offers two options for logging on locally: the Welcome screen and the Log On

To Windows dialog box.

The Welcome Screen

By default, Windows XP Professional uses the Welcome screen to allow users to log on locally. To log on, click the icon for the user account you want to use. If the account requires a password, you are prompted to enter it. If the account is not password protected, you are logged on to the computer. You can also use Ctrl+Alt+Delete at the Welcome screen to get the Log On To Windows dialog box. This enables you to log on to the Administrator account, which is not displayed on the Welcome screen when

other user accounts have been created. To use Ctrl+Alt+Delete, you must enter the sequence twice to get the logon prompt.

For more information about creating user accounts during installation, see

Chapter 2

, "Installing

Windows XP Professional." For more information about creating user accounts after installation, see

Chapter 3

, "Setting Up and Managing User Accounts."

A user can log on locally to either of the following:

A computer that is a member of a workgroup

A computer that is a member of a domain but is not a domain controller

Because domain controllers do not maintain a local security database, local user accounts are not available on domain controllers. Therefore, a user cannot log on locally to a domain controller.

The User Accounts program in the Control Panel includes a Change The Way Users Log On Or Off task, which allows you to configure Windows XP Professional to use the Log On To Windows dialog box instead of the Welcome screen.

The Log On To Windows Dialog Box

To use the Log On To Windows dialog box to log on locally to a computer running Windows XP

Professional, you must supply a valid user name; if the user name is password protected, you must also supply the password. Windows XP Professional authenticates the user's identity during the logon process. Only valid users can access resources and data on a computer or a network. Windows XP

Professional authenticates users who log on locally to the computer at which they are seated and one of the domain controllers in a Windows 2000 domain authenticates users who log on to a domain.

When a user starts a computer running Windows XP Professional that is configured to use the Log On To

Windows dialog box, an Options button also appears. Table 1.1 describes the options in the Log On To

Windows dialog box for a computer that is part of a domain.

Table 1.1 Log On To Windows Dialog Box Options

Option

User Name

Description

A unique user logon name that is assigned by an administrator. To log on to a domain with the user name, the user must have an account that resides in the directory.

Password

The password that is assigned to the user account. Users must enter a password to prove their identity. Passwords are case sensitive. For security purposes, the password appears on the screen as asterisks

(*). To prevent unauthorized access to resources and data, users must keep passwords secret.

Log On To

Shutdown

Allows the user to choose to log on to the local computer or to log on to the domain.

Permits a user to connect to a domain server by using dial-up

Log On Using Dial-Up Connection networking. Dial-up networking allows a user to log on and perform work from a remote location.

Closes all files, saves all operating system data, and prepares the computer so that a user can safely turn it off.

Options

Toggles on and off between the Log On To option and the Log On

Using Dial-Up Connection option. The Options button appears only if the computer is a member of a domain.

If your computer is not part of a domain, you will not get the Log On To option.

Windows XP Professional Authentication Process

To gain access to a computer running Windows XP Professional or to any resource on that computer, whether the computer is configured to use the Welcome screen or the Log On To Windows dialog box, you must provide a user name and possibly a password.

How Windows XP Professional authenticates a user depends on whether the user is logging on to a domain or logging on locally to a computer (see Figure 1.12).

Figure 1.12 Windows XP Professional authentication process at logon

The steps in the authentication process are as follows:

1. The user logs on by providing logon information, such as user name and password, and Windows

XP Professional forwards this information to the security subsystem of that local computer.

2. Windows XP Professional compares the logon information with the user information in the local security database, which resides in the security subsystem of the local computer.

3. If the information matches and the user account is valid, Windows XP Professional creates an access token for the user. An access token is the user's identification for that local computer. It contains the user's security settings, which allow the user to gain access to the appropriate resources on that computer and to perform specific system tasks.

In addition to the logon process, any time a user makes a connection to a computer, that computer authenticates the user and returns an access token. This authentication process is invisible to the user.

If a user logs on to a domain, Windows XP Professional contacts an available domain controller in the domain. The domain controller compares the logon information with the user information that is in the directory for the domain. If the information matches and the user account is valid, the domain controller creates an access token for the user. The security settings contained in the access token allow the user to gain access to the appropriate resources in the domain.

Logging Off Windows XP Professional

To log off a computer running Windows XP Professional, click Start and then click Log Off. Notice that the Start menu, shown in Figure 1.13, also provides a method to turn off the computer.

Figure 1.13 The Start menu provides a way to log off Windows XP Professional

The Windows Security Dialog Box

The Windows Security dialog box provides information such as the user account currently logged on and the domain or computer to which the user is logged on. This information is important for users with multiple user accounts, such as a user who has a regular user account as well as a user account with administrative privileges.

You access the Windows Security dialog box by pressing Ctrl+Alt+Delete if the computer is joined to a domain or the Welcome screen is disabled. Otherwise, the Task Manager will be activated. Figure 1.14 shows the Windows Security dialog box and Table 1.2 describes the Windows Security dialog box options.

Figure 1.14 Windows Security dialog box

Table 1.2 The Windows Security Dialog Box Options

Option

Lock Computer

Description

Allows users to secure the computer without logging off. All programs remain running. Users should lock their computers when they leave for a short time. The user who locks the computer can unlock it by pressing Ctrl+Alt+Delete and entering the valid password. An administrator can also unlock a locked computer. This process logs off the current user.

Log Off

Shut Down

Allows a user to log off as the current user and close all running programs, but leaves

Windows XP Professional running.

Allows a user to close all files, save all operating system data, and prepare the computer so that it can be safely turned off.

Allows a user to change his or her user account password. The user must know the

Change Password current password to create a new one. This is the only way users can change their own passwords. Administrators can also change the password.

Task Manager

Provides a list of the programs that are running and a summary of overall CPU and memory usage, as well as a quick view of how each program, program component, or system process is using the CPU and memory resources. Users can also use Task

Manager to switch between programs and to stop a program that is not responding.

Cancel Closes the Windows Security dialog box.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next chapter. If you have difficulty answering these questions, go back and review the material in this

lesson before proceeding to the next chapter. The answers for these questions are in Appendix A ,

"Questions and Answers."

1. What can you do when you log on locally to a computer, and what determines what you can do when you log on locally to a computer?

2. What is the main difference in the authentication process for logging on locally to a computer and logging on to a domain?

3. How can you configure Windows XP Professional to use the Log On To Windows dialog box instead of the Welcome screen to allow users to log on locally to the computer?

4. Which of the following computers can a user log on to locally? (Choose all that apply.) a. A computer running Windows XP Professional that is in a workgroup b. A computer running Windows XP Professional that is in a domain c. A computer running Windows 2000 Server that is configured as a domain controller d. A computer running Windows 2000 Server that is a member server in a domain

5. Which of the following statements about the Windows Security dialog box are correct? (Choose all that apply.) a. It is accessed by pressing Ctrl+Alt+Delete. b. It tells how long the current user has been logged on.

c. It allows you to log off the computer or domain.

d. It allows a user with administrative permissions to change other users' passwords.

Lesson Summary

By default, Windows XP Professional uses the Welcome screen to allow users to log on locally to

the computer.

You can configure Windows XP Professional to use the Log On To Windows dialog box instead of the Welcome screen.

When a user logs on, he or she can log on to the local computer or, if the computer is a member of a domain, the user can log on to the domain.

When a user logs on locally, the local computer does the authentication.

When a user logs on to a domain, a domain controller must do the authentication.

In a workgroup environment, an access token is the user's identification for that local computer, and it contains the user's security settings. These security settings allow the user to gain access to the appropriate resources on that computer and to perform specific system tasks.

The Windows Security dialog box, which is accessed by pressing Ctrl+Alt+Delete, provides information such as the user account that is currently logged on and the domain or computer to which the user is logged on.

The Windows Security dialog box allows you to lock your computer, change your password, log off your computer, shut down your computer, and access Task Manager.

[Home]

[Previous]

[Next]

Chapter 2

Installing Windows XP Professional

About This Chapter

This chapter prepares you to install Microsoft Windows XP Professional. You will learn some preinstallation tasks that help ensure your installation of Windows XP Professional will go smoothly.

These tasks include verifying that your hardware and any software installed on the computer are compatible with Windows XP Professional, determining which file system to use, and deciding if your computer is going to join a workgroup or a domain. You will learn about installing Windows XP

Professional from a CD-ROM and over the network. Finally, you will learn how to modify the installation using switches and how to troubleshoot Setup.

Before You Begin

To complete this chapter, you must have

A Windows XP Professional CD-ROM

[Home]

[Previous]

[Next]

Lesson 1: Getting Started

When you install Windows XP Professional, the Windows XP Professional Setup program asks you to specify how to install and configure the operating system. Preparing in advance helps you avoid problems during and after installation.

After this lesson, you will be able to

Identify the hardware and installation information required to install Windows XP Professional successfully

Estimated lesson time: 30 minutes

Preinstallation Tasks

Before you start the installation, complete the following tasks:

Ensure that your hardware meets the requirements for installing Windows XP Professional.

Determine whether your hardware is on the Hardware Compatibility List (HCL).

Decide how you will partition the hard disk on which you will install Windows XP Professional.

Choose a file system for the installation partition.

Determine whether your computer will join a domain or a workgroup.

Complete a preinstallation checklist.

Hardware Requirements

You must determine whether your hardware meets or exceeds the minimum requirements for installing and operating Windows XP Professional, as shown in Table 2.1.

Table 2.1 Windows XP Professional Hardware Requirements

Component Requirements

Central processing unit (CPU) Pentium 233 megahertz (MHz) or equivalent

Memory

64 megabytes (MB) minimum; 128 MB recommended 4 gigabytes (GB) of random access memory (RAM) maximum

Hard disk space

Networking

Display

Other drives

Accessories

1.5 GB on a 2-GB hard disk minimum The minimum amount of hard disk space allows for auto-updates over the Internet, additional Windows components, applications that you will be installing, and users' data

Network adapter card and related cable

Video display adapter and monitor with Video Graphics Adapter (VGA) resolution or higher

CD-ROM drive, 12X or faster recommended (not required for installing

Windows XP Professional over a network), or DVD drive

A high-density 3.5-inch disk drive as drive A, unless the computer supports starting the Setup program from a CD-ROM or DVD drive

Keyboard and mouse or other pointing device

Hardware Compatibility List

Although the Windows XP Professional Setup Wizard automatically checks your hardware and software for potential conflicts, before you install Windows XP Professional, you should verify that your hardware is on the Windows XP Professional HCL. Microsoft provides tested drivers for the listed devices only.

Using hardware not listed on the HCL could cause problems during and after installation. The most recent versions of the HCL for released operating systems are on the Microsoft Web site at http://www.microsoft.com/hcl/ .

If your hardware is not on the HCL, the hardware manufacturer might be able to provide you with a

Windows XP Professional driver for the component.

Disk Partitions

The Windows XP Professional Setup program examines the hard disk to determine its existing configuration. Setup then allows you to install Windows XP Professional on an existing partition or to

create a new partition on which to install it.

New Partition or Existing Partition

Depending on the hard disk configuration, do one of the following during installation:

If the hard disk is unpartitioned, create and size the Windows XP Professional partition.

If the hard disk is partitioned and contains enough unpartitioned disk space, use the unpartitioned space to create the Windows XP Professional partition.

If the existing partition is large enough, install Windows XP Professional on that partition.

Installing on an existing partition overwrites any existing data.

If the existing partition is not large enough, delete it to provide more unpartitioned disk space for creating the Windows XP Professional partition.

Remaining Free Hard Disk Space

Although you can use Setup to create other partitions, you should create and size only the partition on which you will install Windows XP Professional. After you install Windows XP Professional, use the Disk

Management administrative tool to partition any remaining unpartitioned space on the hard disk.

Installation Partition Size

Microsoft recommends installing Windows XP Professional on a 1.5-GB or larger partition. Although

Windows XP Professional requires less disk space for installation, using a larger installation partition provides the flexibility to install Windows XP Professional updates, operating system tools, or other necessary files in the future.

File Systems

After you create the installation partition, Setup prompts you to select the file system with which to format the partition. Like Microsoft Windows NT 4 and Microsoft Windows 2000 Professional, Windows XP

Professional supports the NT file system (NTFS) and file allocation table (FAT). Both Windows 2000

Professional and Windows XP Professional support FAT32. Figure 2.1 summarizes some of the features of these file systems.

Figure 2.1 NTFS and FAT/FAT32 file system features

Use NTFS when the partition on which Windows XP Professional will reside requires any of the following features:

File- and folder-level security. NTFS allows you to control access to files and folders. For additional information, see

Chapter 8

, "Securing Resources with NTFS Permissions."

Disk compression. NTFS compresses files to store more data on the partition. For additional information, see

Chapter 14

, "Managing Data Storage."

Disk quotas. NTFS allows you to control disk usage on a per-user basis. For additional information, see

Chapter 14

, "Managing Data Storage."

Encryption. NTFS allows you to encrypt file data on the physical hard disk, using the Microsoft

Encrypting File System (EFS). For additional information, see

Chapter 14

, "Managing Data

Storage."

The version of NTFS in Windows XP Professional supports remote storage, dynamic volumes, and mounting volumes to folders. Windows XP Professional, Windows 2000, and Windows NT are the only operating systems that can access data on a local hard disk formatted with NTFS.

FAT and FAT32

FAT and FAT32 offer compatibility with other operating systems. You must format the system partition with either FAT or FAT32 if you will dual boot Windows XP Professional and another operating system that requires FAT or FAT32.

FAT and FAT32 do not offer many of the features (for example, file-level security) that NTFS supports.

Therefore, in most situations, you should format the hard disk with NTFS. The only reason to use FAT or

FAT32 is for dual booting with another operating system that does not support NTFS. If you are setting up a computer for dual booting, you need to format only the system partition as FAT or FAT32. For example, if drive C is the system partition, you could format drive C as FAT or FAT32 and format drive D as NTFS.

Converting a FAT or FAT32 Volume to NTFS

Windows XP Professional provides the Convert command for converting a partition to NTFS without reformatting the partition and losing all the information on the partition. To use the Convert command, click Start, click Run, type cmd in the Open text box, and then click OK. This opens a command prompt, which you use to request the Convert command. The following example shows how you might use switches with the Convert command.

Convert volume /FS:NTFS [/V] [/CvtArea:filename] [/Nosecurity] [/X]

Table 2.2 lists the switches available in the Convert command and describes their functions.

Table 2.2 Convert Command Switches

Switch

Volume

Function

Specifies the drive letter (followed by a colon), volume mount point, or volume name that you want to convert

Specifies converting the volume to NTFS

Required

Yes

/FS:NTFS

/V

Yes

No Runs the Convert command in verbose mode

/CvtArea:filename

Specifies a contiguous file in the root directory to be the placeholder for

NTFS system files

No

/NoSecurity

/X

Sets the security settings to make converted files and directories accessible by everyone

No

Forces the volume to dismount first if necessary, and all open handles to the volume are then not valid

No

For help with any command-line program, at the command prompt type the command followed by /? and

then press Enter. For example, to receive help on the Convert command, type Convert /? and then press

Enter.

Domain or Workgroup Membership

During installation, you must choose the type of network security group that the computer will join: a domain or a workgroup. Figure 2.2 shows the requirements for joining a domain or workgroup.

Figure 2.2 Domain or workgroup membership requirements

Joining a Domain

When you install Windows XP Professional on a computer, you can add that computer to an existing domain. Adding a computer to a domain is referred to as joining a domain.

A computer can join a domain during or after installation.

Joining a domain during installation requires the following:

A domain name. Ask the domain administrator for the Domain Name System (DNS) name for the

domain that the computer will join. An example of a DNS-compatible domain name is

microsoft.com, in which microsoft is the name of the organization's DNS identity.

A computer account. Before a computer can join a domain, you must create a computer account in the domain. You can ask a domain administrator to create the computer account before installation or, if you have administrative privileges for the domain, you can create the computer account during installation. If you create the computer account during installation, Setup prompts you for the name and password of a user account with authority to add domain computer accounts.

An available domain controller and a server running the DNS service (called the DNS server).

At least one domain controller in the domain that you are joining and one DNS server must be online when you install a computer in the domain.

Joining a Workgroup

When you install Windows XP Professional on a computer, you can add that computer to an existing workgroup. This process is referred to as joining a workgroup.

If you join a computer to a workgroup during installation, you must assign a workgroup name to the computer. The workgroup name you assign can be the name of an existing workgroup or the name of a new workgroup that you create during installation.

Preinstallation Checklist

Use the following preinstallation checklist to ensure that you have all the necessary information available before you begin installing Windows XP Professional.

Task

Verify that your components meet the minimum hardware requirements.

Verify that all of your hardware is listed on the HCL.

Verify that the hard disk on which you will install Windows XP Professional has a minimum of 1.5

GB of free disk space.

Select the file system for the Windows XP Professional partition. Format this partition with NTFS unless you need to dual boot operating systems with an operating system that requires a FAT partition.

Done

Determine the name of the domain or workgroup that each computer will join. If the computer joins a domain, write down the domain name in the DNS format: server.subdomain.domain. If the computer joins a workgroup, use the 15-character NetBIOS naming convention: Server_name.

Determine the name of the computer before installation.

If the computer will join a domain, create a computer account in that domain. You can create a computer account during installation if you have administrative privileges in the domain

Determine a password for the Administrator account.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning

the next lesson. The answers are in Appendix A

, "Questions and Answers."

1. What are the minimum and recommended memory requirements for installing Windows XP

Professional?

2. The minimum hard disk space required for installing Windows XP Professional is a. 1.5 GB on a 2-GB hard disk b. 1 GB on a 2-GB hard disk c. 500 MB on a 1-GB hard disk d. 750 MB on a 2-GB hard disk

3. Where can you find the most recent versions of the HCL for released operating systems?

4. Joining a domain during Windows XP Professional installation requires which of the following?

(Choose all that apply.) a. You must know the DNS name for the domain the computer will join.

b. You must have a user account in the domain.

c. At least one domain controller in the domain must be online when you install a computer in the domain.

d. At least one DNS server must be online when you install a computer in the domain.

5. Which of the following statements about file systems are correct? (Choose all that apply.) a. File- and folder-level security are available only with NTFS.

b. Disk compression is available with FAT, FAT32, and NTFS.

c. Dual booting between Microsoft Windows 98 and Windows XP Professional is available

only with NTFS.

d. Encryption is available only with NTFS.

Lesson Summary

The first preinstallation task is to ensure that your hardware meets the hardware requirements for installing Windows XP Professional.

The next preinstallation task is to ensure that your hardware is on the Windows XP Professional

HCL.

Additional preinstallation tasks include determining how to partition the hard disk on which you will install Windows XP Professional and deciding whether to format the partition as NTFS, FAT, or FAT32.

Your computer can join a domain or a workgroup during or after installation.

[Home]

[Previous]

[Next]

Lesson 2: Installing Windows XP

Professional from a CD-ROM

This lesson covers the four-stage process of installing Windows XP Professional from a CD-ROM. After you learn about these four stages, you will install Windows XP Professional on your computer.

After this lesson, you will be able to

Install Windows XP Professional from a CD-ROM

Estimated lesson time: 70 minutes

The Windows XP Professional Setup Program

The installation process for Windows XP Professional combines the Setup program with wizards and informational screens. Installing Windows XP Professional from a CD-ROM to a clean hard disk consists of these four stages:

1. Running the Setup program.

Setup prepares the hard disk for the later installation stages and copies the files necessary to run the Setup

Wizard.

2. Running the Setup Wizard.

The Setup Wizard requests setup information about the computer, such as names, and passwords.

3. Installing Windows XP Professional networking components.

After gathering information about the computer, the Setup Wizard prompts you for networking information and then installs the networking components that allow the computer to communicate with other computers on the network.

4. Completing the installation.

Setup copies files to the hard disk and configures the computer. The system restarts after installation is complete.

The following sections cover the four steps in more detail.

Running the Setup Program

To start the Setup program, insert the Windows XP Professional installation CD-ROM in your CD-ROM drive, and start your computer.

Figure 2.3 shows the six steps involved in running the Setup program.

Figure 2.3 Steps in the Setup program

Running the Setup program involves the following steps:

1. After the computer starts, a minimal version of Windows XP Professional is copied into memory. This version of Windows XP Professional starts the Setup program.

2. Setup restarts the computer and then starts the text-mode portion of Setup, which prompts you to read and accept a licensing agreement.

3. Setup prompts you to select the partition on which to install Windows XP Professional. You can select an

existing partition or create a new partition by using unpartitioned space on the hard disk.

4. Setup prompts you to select a file system for the new partition. Next, Setup formats the partition with the selected file system.

5. Setup copies files to the hard disk and saves configuration information.

6. Setup restarts the computer and then starts the Windows XP Professional Setup Wizard, the graphical user interface (GUI) portion of Setup. By default, the Setup Wizard installs the Windows XP Professional operating system files in the C:\Windows folder.

Running the Setup Wizard

The GUI-based Windows XP Professional Setup Wizard leads you through the next stage of the installation process. It gathers information about you, your organization, and your computer, including the following information:

Regional settings. Customize language, locale, and keyboard settings. You can configure Windows XP

Professional to use multiple languages and regional settings.

You can add another language or change the locale and keyboard settings after installation is complete. For

more information, see Chapter 10 , "Configuring Windows XP Professional."

Name and organization. Enter the name of the person and the organization to which this copy of Windows

XP Professional is licensed.

Computer name. Enter a computer name of up to 15 characters. The computer name must be different from other computer, workgroup, or domain names on the network. The Setup Wizard displays a default name

(the organization name you entered earlier in the process). If Transmission Control Protocol/Internet

Protocol (TCP/IP) is installed on your computer, the computer name can be up to 63 characters but should contain only alphanumeric characters (A-Z, a-z, 0-9) and hyphens.

To change the computer name after installation is complete, click Start, click My Computer, and then click

View System Information. In the System Properties dialog box, click the Computer Name tab, and then click Change.

Password for Administrator account. Specify a password for the Administrator user account, which the

Setup Wizard creates during installation. The Administrator account provides the administrative privileges required to manage the computer.

Time and date. Select the time zone, adjust the date and time settings if necessary, and determine whether you want Windows XP Professional to automatically adjust for daylight savings time.

After you complete this step, the Setup Wizard starts to install the Windows networking components.

Installing Windows XP Professional Networking Components

After gathering information about your computer, the Setup Wizard guides you through installing the Windows XP

Professional networking components (see Figure 2.4).

Figure 2.4 Installing Windows networking components

Installing Windows XP Professional networking components involves the following steps:

1. Detect network adapter cards.

The Windows XP Professional Setup Wizard detects and configures any network adapter cards installed on the computer. After configuring network adapters, it attempts to locate a server running the Dynamic Host

Configuration Protocol (DHCP) service (called the DHCP server) on the network.

2. Select networking components.

The Setup Wizard prompts you to choose typical or customized settings for the networking components it installs. The typical installation includes the following options:

Client For Microsoft Networks. Allows your computer to access network resources.

File And Printer Sharing For Microsoft Networks. Allows other computers to access file and print resources on your computer.

QoS Packet Scheduler. Helps provide a guaranteed delivery system for network traffic, such as

Internet Protocol (TCP/IP) packets.

Internet Protocol (TCP/IP). Allows your computer to communicate over local area networks

(LANs) and wide area networks (WANs). TCP/IP is the default networking protocol.

You can install other clients, services, and network protocols during the Windows XP Professional installation, or you can wait until after the installation has completed.

3. Join a workgroup or domain.

If you choose to join a domain for which you have administrative privileges, you can create the computer account during installation. The Setup Wizard prompts you for the name and password of a user account

with authority to add domain computer accounts.

To change the domain or workgroup for your computer after you've installed Windows XP Professional, click Start, click My Computer, click View System Information, click the Computer Name tab, and then click Change.

4. Install components.

The Setup Wizard installs and configures the Windows networking components you selected.

Completing the Installation

After installing the networking components, the Setup Wizard automatically starts the final step in the installation process (see Figure 2.5).

Figure 2.5 The final steps in completing the installation

To complete the installation, the Setup Wizard performs the following tasks:

1. Installs Start menu items.

The Setup Wizard sets up shortcuts that will appear on the Start menu.

2. Registers components.

The Setup Wizard applies the configuration settings that you specified earlier.

3. Saves the configuration.

The Setup Wizard saves your configuration settings to the local hard disk. The next time you start Windows

XP Professional, the computer uses this configuration automatically.

4. Removes temporary files.

To save hard disk space, the Setup Wizard deletes any files used for installation only.

5. Restarts the computer.

The Setup Wizard restarts the computer. This finishes the installation.

Practice 1: Installing Windows XP Professional from a

CD-ROM

In this practice, you install Windows XP Professional from a CD-ROM on to a computer that contains no partitions or operating systems. If your computer will not boot from a CD-ROM or if there is already an operating system loaded on your computer, go to Practice 2 to install Windows XP Professional from a CD-ROM without having to boot from the Windows XP Professional installation CD-ROM.

To run the Setup program

1. Insert the Windows XP Professional CD-ROM into the CD-ROM drive and turn on the computer.

Some computers will require you to press a key to boot from the CD-ROM drive. If you are prompted to press any key to boot from the CD, press the spacebar.

Setup displays the Windows Setup screen while it is loading files, and then displays the Windows XP

Professional Setup screen.

If you are loading an Evaluation Edition of Windows XP Professional, press Enter to continue (or F3 to quit

Setup). Setup displays the Welcome To Setup screen.

You can also use Windows XP Professional Setup to repair or recover a damaged Windows XP Professional installation.

2. Read the Welcome To Setup screen and press Enter to continue.

Setup displays the Windows XP Licensing Agreement screen.

3. Read the licensing agreement, and press F8 to agree with the licensing terms.

Setup displays another screen, which prompts you to create a partition in which to install Windows XP

Professional.

If you want to use only a portion of the available space, enter the amount of space you want to use and then press Enter.

You must create a space of at least 2000 MB in size.

4. Select an area of unpartitioned space, at least 2000 MB in size, and press C.

Setup prompts you to enter a size for the partition.

5. If you want to use all the available space to create the partition, press Enter.

If you already have partitions created, you can also delete partitions at this time. If you have a C partition, you might not be able to delete it because Setup has already loaded some files onto it.

Setup displays the list of existing partitions for you to select a partition for the installation.

6. Press Enter to install Windows XP Professional on the partition you created.

Because you are installing into a newly created, unformatted partition, Windows XP Professional Setup prompts you to format the partition.

If you are planning on dual booting your computer with an operating system that does not support NTFS, your C drive cannot be formatted with NTFS. You might want to install Windows XP Professional in a different drive and format that drive with NTFS.

7. When prompted, format the partition with NTFS.

If you format the partition with the FAT file system, Windows XP Professional provides the Convert command, which you can use to convert a partition to NTFS after installation is complete without reformatting the partition and losing all the information contained on the partition.

Setup formats the hard drive, examines it, and then copies files to the Windows XP Professional installation folders.

8. When Setup prompts you to restart the computer, remove all the disks from the drives, and then press Enter.

Ensure that you remove the Windows XP Professional CD-ROM from the CD-ROM drive. If you don't and your computer supports booting from the CD-ROM drive, the computer can attempt to reboot from the CD-

ROM. If this happens, remove the CD-ROM and then restart the computer.

The computer restarts. A message box appears, prompting you to insert the Windows XP Professional CD-

ROM into your CD-ROM drive.

To run the Setup Wizard

1. Insert the Windows XP Professional CD-ROM into your CD-ROM drive, and then click OK.

The Setup Wizard displays a Files Needed dialog box prompting you to verify the path to the Windows XP

Professional installation files.

2. Ensure the path to the Windows XP Professional installation files is correct and then click OK.

Windows installs the files. This might take several minutes.

The Setup Wizard prompts you to customize Windows XP Professional for different regions and languages.

3. Select the appropriate system locale, user locale, and keyboard layout or ensure that they are correct for your language and location, and then click Next.

The Setup Wizard displays the Personalize Your Software page, prompting you for your name and organization name. Setup uses your organization name to generate the default computer name. Many applications that you install later will use this information for product registration and document identification.

4. In the Name box, type your name. In the Organization box, type the name of your organization, and then click Next.

The Setup Wizard displays the Your Product Key page.

5. Enter your 25-character product key located on the back of the Windows XP Professional CD-ROM case, and then click Next.

The Setup Wizard displays the Computer Name And Administrator Password page.

6. Type Pro1 in the Computer Name box.

Windows XP Professional displays the computer name in all uppercase letters, no matter how you type it.

If your computer is on a network, check with the network administrator before assigning a name to your computer. The practice sessions in this training kit refer to Pro1. If you do not name your computer Pro1, you must substitute the name of your computer in each practice.

7. In the Administrator Password box and in the Confirm Password box, type password, and then click Next.

For the practice sections in this training kit, you will use password for the Administrator account. You should always use a complex password for the Administrator account (one that others cannot easily guess).

Microsoft recommends mixing uppercase and lowercase letters, numbers, and symbols (for example,

Lp6*g9f2).

The Setup Wizard displays the Modem Dialing Information page.

If the Setup Wizard does not display the Modem Dialing Information page, it is probably because there is not a modem installed on your computer. Skip to step 12.

8. Ensure that the correct country or region is selected.

9. Type the correct area code or city code.

10. If you dial a number to get an outside line, type the number.

11. Ensure that the correct type of phone system is selected, and then click Next.

The Setup Wizard displays the Date And Time Settings page.

12. If necessary, adjust the date and time.

13. If necessary, select the time zone for your location from the Time Zone drop-down list.

14. Ensure that the Automatically Adjust Clock For Daylight Saving Changes check box is selected if you want

Windows XP Professional to automatically adjust the time on your computer for daylight savings, and then click Next.

If you have configured your computer for dual booting with another operating system that can also adjust your clock for daylight savings, enable this feature for the operating system you use most frequently so that the daylight savings adjustment will occur only once.

The Setup Wizard installs some networking files and then displays the Networking Settings page.

To install Windows Networking

1. Ensure that Typical Settings is selected, and then click Next.

The Setup Wizard displays the Workgroup Or Computer Domain page.

2. Ensure that No, This Computer Is Not On A Network, Or Is On A Network Without A Domain is selected and that the workgroup name is WORKGROUP, and then click Next.

The Setup Wizard copies files. This process takes several minutes.

To complete the installation

The Setup Wizard finishes the configuration, copies files, and completes the networking portion of the installation.

Then the Setup Wizard installs Start menu items, registers components, saves settings, and removes temporary files. This process takes several minutes.

The computer restarts, and the Setup Wizard displays the Welcome To Microsoft Windows page.

If your computer attempts to reboot from the CD-ROM, remove the CD-ROM and then restart the computer.

1. Click Next to continue.

The Setup Wizard displays the Will This Computer Connect To The Internet Directly, Or Through A

Network page.

2. If you would like to connect to the Internet at this time, select the appropriate connection method, and then click Next.

The Setup Wizard displays the Ready To Activate Windows page.

At some point you will have to activate Windows XP Professional. However, it is not necessary to activate it while you complete this training kit.

3. Click Yes, Activate Windows Over The Internet Now, and then click Next.

The Setup Wizard displays The Ready To Register With Microsoft page.

4. Click Yes, I'd Like To Register With Microsoft Now, and then click Next.

The Setup Wizard displays the Collecting Registration Information page.

5. Fill in the appropriate text boxes.

The Setup Wizard displays the Ready To Send Information page.

6. Click Next.

The Setup Wizard displays the Do You Want To Set Up Internet Access Now page.

Internet access is not required for this training kit. If you want to connect to the Internet at this time, click

Yes Help Me Connect To The Internet, click Next and follow the instructions on your screen.

7. Click No, Not At This Time, and then click Next.

The Setup Wizard displays the Who Will Use This Computer page. Your name should already be entered.

8. Type Fred for the second user, and then click Next.

The Setup Wizard displays the Thank You page.

9. Read the page and then click Finish.

10. To log on, select Fred (or the account name created for you during setup).

You have completed your installation of Windows XP Professional and logged on as an administrator.

Practice 2: Installing Windows XP Professional without

Booting from the CD-ROM

If your computer will not boot from a CD-ROM or if there is already an operating system loaded on your computer, you can install Windows XP Professional from a CD-ROM without having to boot from the Windows XP

Professional installation CD-ROM. If you have completed Practice 1, do not do this practice.

If your computer is configured with an El-Torito compatible CD-ROM drive, you can install Windows XP

Professional without using Setup disks. Run the Setup program by restarting the computer with the CD-ROM inserted in the CD-ROM drive.

To run the Setup program

This begins the Collecting Information portion of Setup.

1. If there is an operating system currently installed on your computer, start the computer, log on, and then insert the Windows XP Professional CD-ROM into the CD-ROM drive.

2. When the Welcome To Microsoft Windows XP screen appears, click Install Windows XP.

3. If you get a Windows Setup message box indicating that the version of the operating system cannot be upgraded and that option to upgrade will not be available, click OK.

Setup displays the Welcome To Setup screen.

4. In the Installation Type box, select New Installation (Advanced) and then click Next. Setup displays the

License Agreement screen.

5. Read the license agreement, select I Accept This Agreement, and then click Next.

Setup displays the Your Product Key screen.

6. Type in your 25-character product key, and then click Next.

Setup displays the Setup Options screen that allows you to configure the following three options:

Advanced Options, which allows you to control where the installation files are obtained, where the installation files are copied to, whether or not to copy all installation files to the hard disk, and whether or not you want to specify the drive letter and partition during Setup.

Accessibility Options, which gives you the option of using the Microsoft Magnifier during setup to display an enlarged portion of the screen in a separate window for users with limited vision and the option of using the Microsoft Narrator to read the contents of the screen for users who are blind.

Select The Primary Language And Region You Want To Use, which allows you to specify the primary language and region you use.

7. After you have configured any required Setup options, click Next.

Setup displays the Get Updated Setup Files dialog box.

If your computer has access to the Internet, you might want to ensure that the Yes, Download The Updated

Setup Files (Recommended) checkbox is selected and click Next.

8. Select No, Skip This Step And Continue Installing Windows, and then click Next.

If your partition is not currently formatted with Windows XP Professional NTFS, the Setup Wizard displays the Upgrade To The Windows NTFS File System screen.

If you are planning on dual booting your computer with an operating system that does not support NTFS, your C drive cannot be formatted NTFS. You might want to install Windows XP Professional in a different drive and format that drive with NTFS. If you install Windows XP Professional on a drive other than the C drive, for the rest of the practices in the training kit you must be sure you are using the correct drive.

9. If you get the Upgrade To The Windows NTFS File System screen, ensure Yes, Upgrade My Drive is selected, and then click Next.

If you are installing an Evaluation Edition of Microsoft Windows XP Professional, the Setup Wizard displays the Setup Notification screen informing you that this is an evaluation version.

10. If Setup displays the Setup Notification screen, press Enter to continue.

Setup displays the Welcome To Setup screen.

You can also use this method to access the Recovery Console to repair an existing Windows XP Professional installation by pressing R. You can quit the installation by pressing F3.

To run the Setup Wizard

1. On the Welcome To Setup Screen, press Enter to install Windows XP Professional.

The Setup Wizard prompts you to select an area of free space or an existing partition to install Windows XP

Professional.

You can also delete partitions at this time. If you have a C partition, you might not be able to delete it because Setup has already loaded some files onto it. The partition you choose to use must be at least 2000

MB in size. If you cannot use the C partition to install Windows XP Professional, you must replace the C partition in all following practices in this training kit with the appropriate partition, the one on which you install Windows XP Professional.

2. Select the C partition.

The Setup Wizard displays the following message: You chose to install Windows XP on a partition that contains another operating system. Installing Windows XP Professional on this partition might cause the other operating system to function improperly.

3. Press C to have Setup continue and use this partition.

Depending on the operating system currently installed on the C partition, Setup might display the following message: A \WINDOWS folder already exists that may contain a Windows installation. If you continue the existing Windows installation will be overwritten. If you want to keep both operating systems, press Esc and specify a different folder to use.

4. If you get a warning about a \WINDOWS folder already existing, press L to use the folder and delete the installation in it.

If your partition was not formatted with NTFS and you choose to have the partition formatted as NTFS, then

Setup formats it as NTFS and then copies files. Otherwise Setup examines the partition and then copies files.

The Setup Wizard reboots the computer and continues to copy files in GUI mode.

The Setup Wizard displays the Regional And Language Options page.

5. Select the appropriate system locale, user locale, and keyboard layout or ensure that they are correct for your language and location, and then click Next.

Setup displays the Personalize Your Software page, prompting you for your name and your organization name. The Setup Wizard uses your organization name to generate the default computer name. Many applications that you install later will use this information for product registration and document identification.

6. In the Name text box, type your name. In the Organization text box, type the name of your organization, and then click Next.

The Setup Wizard displays the Computer Name And Administrator Password page.

7. Type Pro1 in the Computer Name text box.

Windows XP Professional displays the computer name in all uppercase letters, no matter how you type it.

If your computer is on a network, check with the network administrator before assigning a name to your computer. The practice sessions here refer to Pro1. If you do not name your computer Pro1, substitute the name of your computer.

8. In the Administrator Password text box and in the Confirm Password text box, type password, and then click Next.

For the practice sections in this self-paced training kit, you will use password for the Administrator account.

You should always use a complex password for the Administrator account (one that others cannot easily guess). Microsoft recommends mixing uppercase and lowercase letters, numbers, and symbols (for example,

Lp6*g9f2).

Depending on your computer configuration, the Setup Wizard might display the Modem Dialing

Information page.

If the Setup Wizard does not display the Modem Dialing Information page, skip to step 13.

9. Ensure that the correct country or region is selected.

10. Type the correct area code or city code.

11. If you dial a number to get an outside line, type the number.

12. Ensure that the correct dialing tone is selected, and then click Next.

The Setup Wizard displays the Date And Time Settings page.

13. If necessary, select the time zone for your location from the Time Zone drop-down list and adjust the date and the time.

14. Ensure that the Automatically Adjust Clock For Daylight Saving Changes check box is selected if you want

Windows XP Professional to automatically adjust the time on your computer for daylight savings time, and then click Next.

If you have configured your computer for dual booting with another operating system that can also adjust your clock for daylight savings time, enable this feature for the operating system you use most frequently so that the daylight savings adjustment occurs only once.

The Setup Wizard displays the Networking Settings page.

To install Windows Networking

1. Ensure that Typical Settings is selected, and then click Next.

The Setup Wizard displays the Workgroup Or Computer Domain page.

2. Ensure that No, This Computer Is Not On A Network, Or Is On A Network Without A Domain is selected and that the workgroup name is Workgroup, and then click Next.

The Setup Wizard configures the networking components and then copies files. This process takes several minutes.

To complete the installation

The Setup Wizard installs Start menu items, registers components, saves settings, and removes temporary files.

This process takes several minutes.

The computer restarts, and the Welcome To Microsoft Windows page appears.

Ensure that you remove the Windows XP Professional CD-ROM from the CD-ROM drive. If you don't and your computer supports booting from the CD-ROM drive, the computer might attempt to reboot from the CD-ROM. If this happens, remove the CD-ROM and then restart the computer.

1. Click Next to continue.

The Will This Computer Connect To The Internet Directly, Or Through A Network page appears.

2. If you would like to connect to the Internet at this time, select the appropriate connection method, and then click Next.

If you do not want to connect to the Internet at this time, click Skip.

The Setup Wizard displays The Ready To Activate Windows page.

3. Click Yes, Activate Windows Over The Internet Now, and then click Next.

The Setup Wizard displays The Ready To Register With Microsoft page.

4. Click Yes, I'd Like To Register With Microsoft Now, and then click Next.

The Setup Wizard displays the Collecting Registration Information page.

5. Fill in the appropriate text boxes.

The Setup Wizard displays the Ready To Send Information page.

6. Click Next.

The Setup Wizard displays Do You Want To Set Up Internet Access Now page.

Internet access is not required for this training kit. If you want to connect to the Internet at this time, click

Yes Help Me Connect To The Internet, and then click Next and follow the instructions on your screen.

7. Click No, Not At This Time, and then click Next.

The Setup Wizard displays the Who Will Use This Computer page. Your name should already be entered.

8. Type Fred in the Second User text box, and then click Next.

The Setup Wizard displays the Thank You page.

9. Read the page, and then click Finish.

10. To log on, select Fred (or the account name created for you during setup).

You have completed your installation of Windows XP Professional and logged on as an administrator.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson.

The answers are in

Appendix A

, "Questions and Answers."

1. If TCP/IP is installed on your computer, what is the maximum length for the computer name you specify during installation?

2. Can you change the computer name after installation without having to reinstall Windows XP Professional?

If you can change the name, how do you do it? If you cannot change the name, why not?

3. Which of the following statements about joining a workgroup or a domain are correct? (Choose all that

apply.) a. You can add your computer to a workgroup or a domain only during installation.

b. If you add your computer to a workgroup during installation, you can join the computer to a domain later.

c. If you add your computer to a domain during installation, you can join the computer to a workgroup later.

d. You cannot add your computer to a workgroup or a domain during installation.

4. Which of the following configurations can you change after installing Windows XP Professional? (Choose all that apply.) a. Language b. Locale c. Keyboard settings d. Network protocol

5. When you install networking components with typical settings, what components are installed? What does each component do?

Lesson Summary

If your computer does not support booting from a CD-ROM, you can install Windows XP Professional by booting another operating system first and then accessing the Windows XP Professional installation CD-

ROM.

The Setup Wizard asks you to provide regional settings, your name and your organization's name, a computer name, and a password for the Administrator account. It also asks you to specify the time zone, time, and date and to decide whether you want Windows XP Professional to automatically adjust for daylight savings time.

Choosing to install networking components using typical settings installs the Client for Microsoft Networks,

File and Printer Sharing for Microsoft Networks, and TCP/IP.

You can customize the networking components during installation or any time after installation.

[Home]

[Previous]

[Next]

Lesson 3: Installing Windows XP

Professional over the Network

You can install Windows XP Professional over the network. This lesson discusses the similarities and differences between installing from a CD-ROM and installing over the network. The major difference is the location of the source files needed for installation. This lesson also lists the requirements for an overthe-network installation.

After this lesson, you will be able to

Complete a network installation of Windows XP Professional

Estimated lesson time: 30 minutes

Preparing for a Network Installation

In a network installation, the Windows XP Professional installation files are located in a shared location on a network file server, which is called a distribution server. From the computer on which you want to install

Windows XP Professional (the target computer), you connect to the distribution server and then run the

Setup program.

Figure 2.6 shows the requirements for a network installation.

Figure 2.6 Requirements for a network installation

Installing Windows XP Professional requires you to do the following:

Locate a distribution server. The distribution server contains the installation files from the I386 folder on the Windows XP Professional CD-ROM. These files reside in a common network location in a shared folder that allows computers on the network to access the installation files.

Contact a network administrator to obtain the path to the installation files on the distribution server.

After you have created or located a distribution server, you can use the over-the-network installation method to concurrently install Windows XP Professional on multiple computers.

Create a FAT partition on the target computer. The target computer requires a formatted partition to which to copy the installation files. Create a partition containing at least 1.5 GB of disk space or more and format it with the FAT file system.

Install a network client. A network client is software that allows the target computer to connect to the distribution server. On a computer without an operating system, you must boot from a client disk that includes a network client that enables the target computer to connect to the distribution server.

Installing over the Network

The Setup program copies the installation files to the target computer and creates the Setup boot disks.

After Setup copies the installation files, you start the installation on the target computer by booting from the Setup boot disks. From this point, you install Windows XP Professional as you would from a CD-

ROM.

Figure 2.7 shows the process for installing Windows XP Professional over the network.

Figure 2.7 Installing Windows XP Professional over the network

Installing Windows XP Professional over the network involves the following steps:

1. Boot the network client.

On the target computer, boot from a floppy disk that includes a network client or start another operating system that can be used to connect to the distribution server.

2. Connect to the distribution server.

After you start the network client on the target computer, connect to the shared folder on the distribution server that contains the Windows XP Professional installation files.

3. Run WINNT.EXE or WINNT32.EXE to start the Setup program.

WINNT.EXE and WINNT32.EXE reside in the shared folder on the distribution server.

Use WINNT.EXE for an installation using MS-DOS or Windows 3.0 or later versions on the source system.

Use WINNT32.EXE for an installation using Microsoft Windows 95, Windows 98,

Microsoft Windows Me, Windows NT 4, or Windows 2000 Professional.

Running WINNT.EXE or WINNT32.EXE from the shared folder does the following:

Creates the $Win_nt$.~ls temporary folder on the target computer

Copies the Windows XP Professional installation files from the shared folder on the distribution server to the $Win_nt$.~ls folder on the target computer

4. Install Windows XP Professional.

Setup restarts the local computer and begins installing Windows XP Professional.

Modifying the Setup Process Using WINNT.EXE

You can modify an over-the-network installation by changing how WINNT.EXE runs Setup. Table 2.3 lists the switches you can use with WINNT.EXE and describes their functions.

Table 2.3 WINNT.EXE Switches

Switch

/a

Function

Enables accessibility options.

/r[:folder]

Specifies an optional folder to be copied and saved. The folder remains after Setup finishes.

Specifies the optional folder to be copied. The folder is deleted after Setup finishes. /rx[:folder]

/s[:sourcepath]

Specifies the source location of Windows XP Professional files. This must be a full path of the form x:\[path] or \\server\share\[path]. The default is the current folder location

/t[:tempdrive]

Specifies a drive to contain temporary setup files and directs Setup to install Windows

XP Professional on that drive. If you do not specify a drive, Setup attempts to locate the drive with the most available space.

/u[:script_file]

Performs an unattended installation by using an optional script file. Unattended installations also require using the /s switch. The answer file provides answers to some or all of the prompts that the end user normally responds to during Setup.

Indicates an identifier (id) that Setup uses to specify how a Uniqueness Database File

(UDF) modifies an answer file. The /udf parameter overrides values in the answer file,

/udf:id[,UDF_file] and the identifier determines which values in the UDF file are used. If you do not specify a UDF_file, Setup prompts you to insert a disk that contains the

$UNIQUE$.UDB file.

Modifying the Setup Process Using WINNT32.EXE

You can modify an over-the-network installation by changing how WINNT32.EXE runs Setup. Table 2.4 lists the switches you can use with WINNT32.EXE and describes their functions.

Table 2.4 WINNT32.EXE Switches

Switch

/checkupgradeonly

/cmd:command_line

Function

Checks your computer for upgrade compatibility for Windows XP

Professional. If you use this option with unattend, no user input is required. Otherwise the results are displayed on the screen and you can save them under the filename you specify.

For Windows 98 or Windows Me upgrades, the default filename is UPGRADE.TXT in the %systemroot% folder (the folder that contains the Windows XP Professional system files).

For Windows NT 4 or Windows 2000 upgrades, the default filename is NTCOMPAT.TXT in the %systemroot% folder.

For more information about generating a compatibility report, see

Lesson 4, "Upgrading Earlier Versions of Windows to WindowsXP

Professional."

Specifies a specific command that Setup is to run. This command is run after the computer restarts and after Setup collects the necessary configuration information.

/cmdcons

/copydir:foldername

/copysource:foldername

/debug[level] [:file_name]

/dudisable

Copies to the hard disk the additional files necessary to load a command-line interface, the Recovery Console, which is used for repair and recovery. The Recovery Console is installed as a Startup option. You can use the Recovery Console to stop and start services and to access the local drive, including drives formatted with NTFS.

You can use this option only after you install Windows XP

Professional.

Creates an additional folder within the %systemroot% folder, which contains the Windows XP Professional system files. For example, if your source folder contains a folder called My_drivers, type

/copydir:My_drivers to copy the My_drivers folder to your system folder. You can use the /copydir switch to create as many additional folders as you want.

Creates an additional folder within the %systemroot% folder. Setup deletes folders created with /copysource after installation is complete.

Creates a debug log at the specified level. By default, the debug log file is C:\WINNT32.LOG and the default level is 2. Includes the following levels:

0 (severe errors)

1 (errors)

2 (warnings)

3 (information)

4 (detailed information for debugging)

Each level includes the level below it.

Prevents Dynamic Update from running. Without Dynamic Updates,

Setup runs only with the original Setup files. This option disables

Dynamic Update even if you use an answer file and specify Dynamic

Update options in that file.

/dushare: pathname

/duprepare: pathname

/m:foldername

/makelocalsource

/noreboot

/s:sourcepath

/syspart:[drive_letter]

Specifies a share on which you previously downloaded Dynamic

Update files (updated files for use with Setup) from the Windows

Update Web site. When run from your installation share and used with

/prepareinstall, it prepares the updated files for use in network-based client installations. When used without /prepareinstall and run on a client, it specifies that the client installation will use the updated files on the share specified in pathname.

Prepares an installation share for use with Dynamic Update files that you downloaded from the Windows Update Web site. You can use this share for installing Windows XP Professional for multiple clients (used only with /dushare).

Instructs Setup to copy replacement files from an alternate location.

Directs Setup to look in the alternate location first and, if files are present, to use them instead of the files from the default location.

Instructs Setup to copy all installation source files to the local hard disk. Use this switch when installing from a CD-ROM to provide installation files when the CD-ROM is not available later in the installation.

Prevents Setup from restarting the computer after completing the filecopy phase. This allows you to execute another command.

Specifies the source location of Windows XP Professional installation files. To simultaneously copy files from multiple paths, use a separate

/s switch for each source path. If you type multiple /s switches, the first location specified must be available or the installation will fail. You can use a maximum of eight /s switches.

Copies Setup startup files to a hard disk and marks the drive as active.

You can then install the drive in another computer. When you start that computer, Setup starts at the next phase. Using /syspart requires the

/tempdrive switch. You can use syspart on computers running

Windows NT 4, Windows 2000, Windows XP Professional, or

Windows 2000 Server. You cannot use it on computers running

Windows 95, Windows 98, or Windows Me.

/tempdrive:drive_letter

Places temporary files on the specified drive and installs Windows XP

Professional on that drive.

Performs an unattended installation. The answer file provides your custom specifications to Setup. If you don't specify an answer file, all user settings are taken from the previous installation. You can specify

/unattend [number]: [answer_file] the number of seconds between the time that Setup finishes copying the files and when it restarts with number. You can specify the number of seconds only on computers running Windows 98, Windows Me,

Windows NT 4, or Windows 2000 that are upgrading to a newer version of Windows XP Professional.

/udf:id[,udb_file]

Indicates an identifier (id) that Setup uses to specify how a UDF modifies an answer file. The UDF file overrides values in the answer file, and the identifier determines which values in the UDF file are used. For example, /udf:RAS_user, OUR_COMPANY.UDF overrides settings that are specified for the RAS_user identifier in the

OUR_COMPANY.UDF file. If you do not specify a UDF file, Setup prompts you to insert a disk that contains the $UNIQUE$.UDF file.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next lesson. The answers are in Appendix A , "Questions and Answers."

1. On which of the following operating systems running on the client computer do you use

WINNT32.EXE to install Windows XP Professional? (Choose all that apply.) a. Windows 3.0 or later b. Windows 95 c. Windows 98 d. Windows NT 4

2. On which of the following operating systems running on the client computer do you use

WINNT.EXE to install Windows XP Professional? (Choose all that apply.) a. Windows 3.0 or later b. Windows 95

c. Windows Me d. Windows NT 4

3. What Windows XP Professional command allows you to verify that your computer is compatible with Windows XP Professional before you begin installing it?

4. You use the ____________________________ switch with WINNT32.EXE to prevent Setup from restarting the computer after completing the file-copy phase.

5. You use the ____________________________ switch with WINNT32.EXE to tell Setup to copy all installation source files to your local hard disk.

Lesson Summary

When you install Windows XP Professional, the main difference between an over-the-network installation and an installation from CD-ROM is the location of the source files.

After you connect to the shared folder containing the source files and start WINNT.EXE or

WINNT32.EXE, the installation proceeds as an installation from CD-ROM.

Several switches for WINNT.EXE and WINNT32.EXE allow you to modify the installation process.

The /checkupgradeonly switch specifies that WINNT32.EXE should check your computer only for upgrade compatibility with Windows XP Professional.

[Home]

[Previous]

[Next]

Lesson 4: Upgrading Earlier Versions of

Windows to Windows XP Professional

You can upgrade many earlier versions of Windows operating systems directly to Windows XP

Professional. Before upgrading, however, you must do the following:

Ensure that the computer hardware meets the minimum Windows XP Professional hardware requirements.

Check the HCL or test the computer for hardware compatibility using the Windows XP

Professional Compatibility tool. Using compatible hardware prevents problems when you start the upgrade on a large number of client computers.

You can upgrade computers directly to Windows XP Professional if they are running earlier versions of

Windows that use compatible hardware. If your Windows 95 and Windows 98 client systems are using incompatible or insufficient hardware, you can still take advantage of the Active Directory service functionality provided by a Windows 2000 Server domain by installing the Windows 2000 Server

Directory Services Client on these systems.

After this lesson, you will be able to

Upgrade earlier Windows client operating systems to Windows XP Professional

Estimated lesson time: 25 minutes

Identifying Client Upgrade Paths

You can upgrade most client computers running earlier versions of Windows directly to Windows XP

Professional. However, computers running some earlier versions of Windows (including Windows 95,

Microsoft Windows NT 3.1, and Microsoft Windows NT 3.5) require an additional step. Table 2.5 lists the Windows XP Professional upgrade paths for various client operating systems.

Table 2.5 Windows XP Professional Upgrade Paths for Client Operating Systems

Upgrade from

Windows 98

Windows Me

Upgrade to

Windows XP Professional

Windows XP Professional

Windows NT Workstation 4.0 Windows XP Professional

Windows 2000 Professional Windows XP Professional

Windows 95 Windows 98 first, and then upgrade to Windows XP Professional

Windows NT 3.1, 3.5, or 3.51

Windows NT 4 Workstation first, and then upgrade to Windows XP

Professional

Windows XP Professional also upgrades all released service packs for Windows NT Workstation 4.0.

Generating a Hardware Compatibility Report

Before you upgrade a client computer to Windows XP Professional, ensure that it meets the minimum hardware requirements by using the Windows XP Compatibility tool to generate a hardware and software compatibility report. This tool runs automatically during system upgrades, but running it before beginning the upgrade should identify any hardware and software problems and allow you to fix compatibility problems ahead of time.

Generating the Report

To run the Windows XP Compatibility tool and generate a compatibility report, perform the following steps:

1. Insert the Windows XP Professional CD-ROM into the CD-ROM drive.

2. At a command prompt, type d:\i386\winnt32 /checkupgradeonly

d:\ represents the drive letter of the CD-ROM drive

3. Press Enter.

Generating the upgrade report can take several minutes. The tool checks only for compatible hardware and software and generates a report that you can analyze to determine the system components that are compatible with Windows XP Professional.

Reviewing the Report

Winnt32 /checkupgradeonly generates a report that appears as a text document, which you can view in the tool or save as a text file. The report documents the system hardware and software that are incompatible with Windows XP Professional. It also specifies whether you need to obtain an upgrade pack for software installed on the system and recommends additional system changes or modifications to maintain functionality in Windows XP Professional.

Upgrading Compatible Windows 98 Computers

For client systems that test as compatible with Windows XP Professional, run WINNT32.EXE to complete the upgrade. To upgrade a Windows 98 computer, complete the following procedure.

To perform the upgrade follow these steps:

1. Insert the Windows XP Professional CD-ROM in the CD-ROM drive.

The AUTORUN program on the Windows XP Professional CD-ROM displays the Welcome To

Microsoft Windows XP screen.

If you do not want to use any switches with WINNT32.EXE, click Install Windows XP and follow the prompts on your screen. These steps are the same as Practice 2 in Lesson 2.

2. Run WINNT32.EXE with any appropriate switches.

3. Accept the license agreement.

4. If the computer is already a member of a domain, create a computer account in that domain.

Windows 98 clients do not require a computer account, but Windows XP Professional clients do.

5. Provide upgrade packs for applications that need them. Upgrade packs update the software to work with Windows XP Professional. These packs are available from the software vendor.

6. Upgrade to NTFS when prompted. Select the upgrade if you do not plan to set up the client computer to dual boot.

7. Continue with the upgrade if the Windows XP Professional Compatibility tool generates a report showing that the computer is compatible with Windows XP Professional. The upgrade finishes without further intervention and adds your computer to a domain or workgroup.

If the report shows that the computer is incompatible with Windows XP Professional, terminate the upgrade process, and then upgrade your hardware or software.

Upgrading a Windows NT 4 Client

The upgrade process for computers running Windows NT 4 is similar to the upgrade process for computers running Windows 98.

Verifying Compatibility

Before you perform the upgrade, use the Windows XP Professional Compatibility tool to verify that the systems are compatible with Windows XP Professional and to identify any potential problems.

Upgrading Compatible Systems

Windows NT 4 computers that meet the hardware compatibility requirements can upgrade directly to

Windows XP Professional. To start the upgrade process, complete the following procedure.

To perform the upgrade follow these steps:

1. Insert the Windows XP Professional CD-ROM in the CD-ROM drive.

The AUTORUN program on the Windows XP Professional CD-ROM displays the Welcome To

Microsoft Windows XP screen.

If you do not want to use any switches with WINNT32.EXE, click Install Windows XP and follow the prompts on your screen. These steps are the same as Practice 2 in Lesson 2.

2. Click Exit to close the Welcome To Microsoft Windows XP screen.

3. Click Start, and then click Run.

4. Type d:\i386\winnt32 /switch (where d is the drive letter for your CD-ROM and /switch represents one or more switches that you want to use with the WINNT32 command), and then press Enter.

The Welcome To Windows page appears.

5. In the Installation Type drop-down list, select Upgrade and then click Next.

The License Agreement page is displayed.

6. Read the license agreement, click I Accept This Agreement, and then click Next.

Setup displays the Product Key page.

7. Enter your 25-character product key, which is located on the back of the Windows XP

Professional CD-ROM case.

Setup displays the Upgrading To The Windows XP Professional NTFS File System page.

8. Click Yes, Upgrade My Drive and then click Next. The Copying Installation Files page appears.

9. The Restarting The Computer page appears, and the computer restarts. Then the upgrade finishes without further intervention.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. Which of the following operating systems can be upgraded directly to Windows XP Professional?

(Choose all that apply.) a. Windows NT Workstation 4.0

b. Windows NT 3.51

c. Windows 2000 Professional d. Windows NT Server 4.0

2. How can you upgrade a computer running Windows 95 to Windows XP Professional?

3. Before you upgrade a computer running Windows NT 4, which of the following actions should you perform? (Choose all that apply.) a. Create a 2-GB partition on which to install Windows XP Professional.

b. Verify that the computer meets the minimum hardware requirements.

c. Generate a hardware and software compatibility report.

d. Format the partition containing Windows NT 4 so that you can install Windows XP

Professional.

4. How can you verify that your computer is compatible with Windows XP Professional and therefore can be upgraded?

Lesson Summary

Before you upgrade a client computer to Windows XP Professional, ensure that it meets the minimum hardware requirements.

Use the Windows XP Professional Compatibility tool to generate a hardware and software compatibility report.

For client systems that test as compatible with Windows XP Professional, run the Windows XP

Professional Setup program (WINNT32.EXE) to complete the upgrade.

[Home]

[Previous]

[Next]

Lesson 5: Troubleshooting Windows XP

Professional Setup

Your installation of Windows XP Professional should complete without any problems. However, this lesson covers some common issues you might encounter during installation.

After this lesson, you will be able to

Troubleshoot Windows XP Professional installations

Estimated lesson time: 5 minutes

Resolving Common Problems

Table 2.6 lists some common installation problems and offers solutions.

Table 2.6 Troubleshooting Tips

Problem

Media errors occur

Solution

If you are installing from a CD-ROM, use a different CD-ROM.

To request a replacement CD-ROM, contact Microsoft or your vendor. Try using a different computer and CD-ROM drive. If you can read the CD-ROM on a different computer, you can perform an over-the-network installation. If one of your Setup disks is not working, try using a different set of Setup disks.

CD-ROM drive is not supported

Computer is unable to copy files from the CD-ROM

Insufficient disk space

Dependency service fails

Replace the CD-ROM drive with a supported drive. If replacement is impossible, try another installation method such as installing over the network. After you complete the installation, add the adapter card driver for the CD-ROM drive if it is available.

Test the CD-ROM on another computer. If you can copy the files using a different CD-ROM drive on a different computer, use the

CD-ROM to copy the files to a network share or to the hard drive of the computer on which you want to install Windows XP

Professional.

Do one of the following: ª Use the Setup program to create a partition by using existing free space on the hard disk. ª Delete and create partitions as needed to create a partition that is large enough for installation. ª Reformat an existing partition to create more space.

In the Windows XP Professional Setup Wizard, return to the to start Network Settings dialog box and verify that you installed the correct protocol and network adapter. Verify that the network adapter has the proper configuration settings, such as transceiver type, and that the local computer name is unique on the network.

Setup cannot connect to the domain controller

Verify the following:

The domain name is correct.

The server running the DNS service and the domain controller are both running and online. If you cannot locate a domain controller, install Windows XP

Professional into a workgroup and then join the domain after installation.

The network adapter card and protocol settings are set correctly.

If you are reinstalling Windows XP Professional and are using the same computer name, delete the computer account and recreate it.

Windows XP Professional fails to install or start

Verify the following:

Windows XP Professional is detecting all of the hardware.

All of the hardware is on the HCL.

Try running Winnt32 /checkupgradeonly to verify that the hardware is compatible with Windows XP Professional.

Setup Logs

During Setup, Windows XP Professional generates a number of log files containing installation information that can help you resolve any problems that occur after setup is completed. The action log and the error log are especially useful for troubleshooting.

Action Log

The action log records in chronological order the actions that the Setup program performs. It includes actions such as copying files and creating Registry entries. It also contains entries that are written to the

Setup error log. The action log is stored in SETUPACT.LOG.

Error Log

The error log describes errors that occur during setup and their severity. If errors occur, the log viewer displays the error log at the end of setup. The error log is stored in SETUPERR.LOG.

Additional Logs

Setup creates a number of additional logs, including the following:

% windir%\comsetup.log Outlines installation for Optional Component Manager and COM+ components.

% windir%\setupapi.log Receives an entry each time a line from an .inf file is implemented. If an error occurs, this log describes the failure.

% windir%\debug\NetSetup.log Logs activity when computers join domains or workgroups.

% windir%\repair\setup.log Provides information that is used by the Recovery Console. (In

Windows NT 4, this was used by the Emergency Repair Process.) For more information about the

Recovery Console, see Chapter 18 , "Modifying and Troubleshooting the Boot Process."

For additional information about troubleshooting installations, see Lesson 3, "Using Startup And

Recovery Tools," in Chapter 18 , "Modifying and Troubleshooting the Boot Process."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. If you encounter an error during setup, which of the following log files should you check?

(Choose all that apply.) a. SETUPERR.LOG

b. NETSETUP.LOG

c. SETUP.LOG

d. SETUPACT.LOG

2. If your computer cannot connect to the domain controller during installation, what should you do?

3. If your computer cannot connect to read the CD-ROM during installation, what should you do?

Lesson Summary

The action log, SETUPACT.LOG, records and describes in chronological order the actions that

Setup performs.

The error log, SETUPERR.LOG, describes errors that occur during setup and indicates the severity of each error.

A number of additional logs are created during setup, including COMSETUP.LOG,

SETUPAPI.LGO, NETSETUP.LOG, and SETUP.LOG.

[Home]

[Previous]

[Next]

Chapter 3

Setting Up and Managing User Accounts

About This Chapter

This chapter explains how to plan, establish, and maintain Microsoft Windows XP Professional user accounts. It also presents the skills and knowledge necessary to create local user accounts and set properties for them.

Before You Begin

To complete this chapter, you must have

Windows XP Professional installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Understanding User Accounts

Windows XP Professional uses three types of user accounts: local user accounts, domain user accounts, and built-in user accounts.

A local user account allows you to log on to a specific computer to access resources on that computer.

A domain user account allows you to log on to the domain to access network resources.

A built-in user account allows you to perform administrative tasks or access local or network resources.

After this lesson, you will be able to

Explain how to create local user accounts and domain user accounts

Describe how to create and disable built-in user acconts

Estimated lesson time: 30 minutes

Local User Accounts

Local user accounts allow users to log on only to the computer on which the local user account has been created and to access resources on only that computer. When you create a local user account, Windows XP Professional creates the account only in that computer's security database, called the local security database, shown in Figure 3.1. Windows XP Professional uses the local security database to authenticate the local user account, which allows the user to log on to that computer. Windows XP Professional does not replicate local user account information to any other computer.

Figure 3.1 Characteristics of local user accounts

Microsoft recommends that you use local user accounts only on computers in workgroups. If you create a local user account in a

workgroup of five computers running Windows XP Professional-for example, User1 on Computer1-you can only log on to Computer1 with the User1 account. If you need to be able to log on as User1 to all five computers in the workgroup, you must create a local user account, User1, on each of the five computers. Furthermore, if you decide to change the password for User1, you must change the password for User1 on each of the five computers because each computer maintains its own local security database.

A domain does not recognize local user accounts, so do not create local user accounts on computers running Windows XP Professional that are part of a domain. Doing so restricts users from accessing resources in the domain and prevents the domain administrator from administering the local user account properties or assigning access permissions for domain resources.

Domain User Accounts

Domain user accounts allow you to log on to the domain and access resources anywhere on the network. When you log on, you provide your logon information-your user name and password. Microsoft Windows 2000 Server uses this logon information to authenticate your identity and build an access token that contains your user information and security settings. The access token identifies you to the computers in the domain on which you try to access resources. The access token is valid throughout the logon session.

You can have domain user accounts only if you have a domain.You can have a domain only if you have at least one computer running one of the Windows 2000 Server products that is configured as a domain controller, which has the Active Directory directory service installed.

You create a domain user account in the copy of the Active Directory database (the directory) on a domain controller, as shown in Figure

3.2. The domain controller replicates the new user account information to all domain controllers in the domain. After Windows 2000

Server replicates the new user account information, all of the domain controllers in the domain tree can authenticate the user during the logon process.

Figure 3.2 Domain user accounts

Built-In User Accounts

Windows XP Professional automatically creates built-in accounts. Two commonly used built-in accounts are Administrator and Guest.

Administrator

Use the built-in Administrator account to manage the overall computer. You can perform tasks to create and modify user accounts and groups, manage security policies, create printer resources, and assign the permissions and rights that allow user accounts to access resources.

If you want to log on as Administrator and are using the Welcome screen, you can press Ctrl+Alt+Delete twice. Windows XP

Professional displays a logon prompt and you can log on as Administrator. The Administrator account will not appear on the Welcome screen if you are running in a workgroup environment, the Welcome screen is enabled, and you created a user account during Setup. See

Chapter 2

, "Installing Windows XP Professional," for information about creating a user account during Setup. Lesson 3 in this chapter explains how to configure the computer to use the logon prompt instead of the Welcome screen.

As the administrator, you should create a user account for performing nonadministrative tasks and use your Administrator account only for administrative tasks.

You cannot delete the Administrator account. As a best practice, you should always rename the built-in Administrator account to provide greater security. Use a name that does not identify it as the Administrator account, making it more difficult for unauthorized users to use it to break into your computer.

The Administrator account is enabled by default, but you can configure the Account: Administrator Account Status Security Option to disable it. For more information, see

Chapter 13 , "Configuring Security Settings and Internet Options."

Guest

Use the built-in Guest account to allow occasional users to log on and access resources. For example, an employee who needs access to resources for a short time can use the Guest account.

Allow Guest access only in low-security networks, and always assign a password to the Guest account. You can rename the Guest account, but you cannot delete it.

Enabling the Guest Account

Log on with a user account that is a member of the Administrators group and use the User Accounts tool in the Control Panel (shown in

Figure 3.3) to give access to the Guest account on the computer.

Figure 3.3 The User Accounts tool in a workgroup environment

To access the User Accounts program, click Start, click Control Panel, and then click User Accounts.

The User Accounts program displays the user accounts that can log on to the computer. The User Accounts program in Figure 3.3 indicates that Guest access is off, meaning that the Guest account is disabled.

To enable the Guest account, complete the following steps:

1. Click Start, click Control Panel, and then click User Accounts.

2. In the User Accounts window, click the Guest icon to access the Do You Want To Turn On The Guest Account window (see

Figure 3.4).

Figure 3.4 The Do You Want To Turn On The Guest Account window

3. Click Turn On The Guest Account. The Guest account is now enabled.

4. Close the User Accounts window and the Control Panel.

Disabling the Guest Account

You can also use the User Accounts program to disable Guest account access. If the Guest account is active, the User Accounts program indicates that Guest Access Is On.

To prevent Guest account access to the computer, complete the following steps:

1. In the User Accounts window, click the Guest icon.

2. In the What Do You Want To Change About The Guest Account window, click Turn Off The Guest Account.

The Guest account is now disabled.

3. Close the User Accounts window and Control Panel.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty

answering these questions, review the material in this lesson before beginning the next lesson. The answers are in Appendix A

,

"Questions and Answers."

1. Where do local user accounts allow users to log on and gain access to resources?

2. Where should you create user accounts for computers running Windows XP Professional that are part of a domain?

3. Which of the following statements about domain user accounts are correct? (Choose all that apply.) a. Domain user accounts allow users to log on to the domain and gain access to resources anywhere on the network, as long as the users have the required access permissions.

b. If at least one computer running one of the Windows 2000 Server products is configured as a domain controller, you should use domain user accounts only.

c. The domain controller replicates the new user account information to all other computers in the domain.

d. A new domain user account is established in the local security database on the domain controller on which you created the account.

4. Which of the following statements about built-in accounts are correct? (Choose all that apply.) a. You can delete the Guest account.

b. You cannot delete the Administrator account.

c. You cannot rename the Guest account.

d. You can rename the Administrator account.

5. How do you disable the Guest account?

Lesson Summary

Windows XP Professional uses local user accounts, domain user accounts, and built-in user accounts.

Local user accounts allow users to log on at and access resources on only the computer on which you create the local user account.

When you create a local user account, Windows XP Professional creates the account only in that computer's security database, which is called the local security database.

Do not create local user accounts on computers running Windows XP Professional that are part of a domain because the domain does not recognize local user accounts.

Domain user accounts allow users to log on to the domain and access resources anywhere on the network.

You create a domain user account in the copy of the Active Directory database (the directory) on a domain controller.

You can only have domain user accounts if at least one computer is running one of the Windows 2000 Server products configured as a domain controller.

Windows XP Professional automatically creates two commonly used built-in accounts: Administrator and Guest.

Rename the Administrator account to provide greater security. The Administrator account is enabled by default.

You can rename the Guest account, and you can use the User Accounts tool to enable or disable it.

You cannot delete built-in accounts.

[Home]

[Previous]

[Next]

Lesson 2: Planning New User Accounts

You can streamline the process of creating user accounts by planning and organizing user account information such as:

Naming conventions

Password requirements

After this lesson, you will be able to

Establish an effective naming convention for your organization

Describe the password guidelines for protecting access to computers running Windows XP

Professional

Estimated lesson time: 10 minutes

Naming Conventions

A naming convention is an organization's established standard for identifying users in the domain.

Following a consistent naming convention helps administrators and users remember logon names. It also makes it easier for administrators to locate specific user accounts to add them to groups or perform account administration. Table 3.1 summarizes some guidelines for determining an effective naming convention for your organization.

Table 3.1 Naming Convention Guidelines

Guideline

Create unique user logon names.

Explanation

Local user account names must be unique on the computer on which you create the local user account. User logon names for domain user accounts must be unique to the directory.

Use a maximum of 20 characters.

Remember that user logon names are not case sensitive.

User account names can contain up to 20 uppercase or lowercase characters. The field accepts more than 20 characters, but Windows XP

Professional recognizes only the first 20.

You can use a combination of special and alphanumeric characters to establish unique user accounts. User logon names are not case sensitive, but Windows XP Professional preserves the case for display purposes.

Avoid characters that are not valid.

The following characters are not valid: " / \ [ ] : ; |

= , + * ? < >

Accommodate employees with duplicate names.

If two users have the same name, you could create a user logon name consisting of the first name, the last initial, and additional letters from the last name to differentiate the users. For example, if two users are named John Evans, you could create one user account logon as johne and the other as johnev. You could also number each user logon name-for example, johne1 and johne2.

Identify the type of employee.

Some organizations prefer to identify temporary employees in their user accounts. You could add a

T and a dash in front of the user's logon name (Tjohne) or use parentheses at the end-for example, johne(Temp).

Rename the Administrator and Guest built-in user accounts.

You should rename the Administrator and Guest accounts to provide greater security.

Password Requirements

To protect access to the computer, every user account should have a password. Consider the following guidelines for passwords:

Always assign a password to the Administrator account to prevent unauthorized access to the account.

Determine whether the Administrator or the users will control passwords. You can assign unique passwords to user accounts and prevent users from changing them, or you can allow users to enter their own passwords the first time they log on. In most cases, users should control their passwords.

Use passwords that are hard to guess. For example, avoid using passwords with an obvious association, such as a family member's name.

Passwords can contain up to 128 characters; a minimum length of 8 characters is recommended.

Include both uppercase and lowercase letters (unlike user names, user passwords are case sensitive), numerals, and the valid non-alphanumeric characters. (See Table 3.1 for a list of characters that are not valid.)

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. The maximum number of characters that Windows XP Professional recognizes in a local user account name is __________.

2. When are duplicate local user accounts valid in a network of computers running Windows XP

Professional?

3. Passwords can be up to ______ characters long with a minimum length of ______ characters recommended.

4. Which of the following sets of characters are valid to use in a local user account name on a computer running Windows XP Professional? (Choose all that apply.) a. 0 ( ) 9 b. - + = > c. A through Z; a through z d. [ ] _ |

5. When users create their own passwords, which of the following guidelines should they observe?

(Choose all that apply.) a. Use the maximum number of characters allowed in a password.

b. Use a password that is hard for others to guess.

c. Use at least one uppercase letter, one lowercase letter, one numeral, and one valid nonalphanumeric character.

d. Use the name of your spouse, child, cat, or dog so that you can easily remember it.

Lesson Summary

Local user account names must be unique on the computer on which you create the account, and domain user accounts must be unique to the directory.

User logon names can contain up to 20 uppercase or lowercase characters. The User Name text box in the Log On To Windows dialog box accepts more than 20 characters, but Windows XP

Professional recognizes only the first 20.

The following characters are not valid: " / \ [ ] : ; | = , + * ? < >

User logon names are not case sensitive, but Windows XP Professional preserves the case for display purposes.

Passwords can be up to 128 characters long; a minimum of 8 characters is recommended.

Use uppercase and lowercase letters, numerals, and valid nonalphanumeric characters in creating passwords.

[Home]

[Previous]

[Next]

Lesson 3: Creating, Modifying, and Deleting User

Accounts

Windows XP Professional provides two ways to create, modify, and delete user accounts: the User Accounts tool in the Control Panel and the

Computer Management snap-in.

After this lesson, you will be able to

Modify existing user accounts

Create local user accounts

Delete user accounts

Estimated lesson time: 50 minutes

User Accounts Tool

The User Accounts tool in the Control Panel (shown in Figure 3.5) is one of the tools you use to create, modify, and delete local user accounts.

Figure 3.5 The User Accounts tool

If you are logged on with an account that is a member of the Administrators group, the Pick A Task portion of the User Accounts tool allows you to perform the following tasks:

Change an account (which includes deleting the account)

Create a new user account

Change the way users log on or log off

Changing an Account

If you are an administrator, the Change An Account task allows you to make changes to any user account on the computer. If you are logged on with a limited user account, you do not see the same Pick A Task screen as an administrator; you see only a Pick A Task screen that contains some of the following options that an administrator can perform:

Change My/The Name. Changes the user account name of an account on the computer. You only see this option if you are logged on as an administrator because only an administrator can perform this task.

Create A Password. Creates a password for your account. You only see this option if your user account does not have a password.

Only an administrator can create passwords for other user accounts.

Change My/The Password. Changes the password for your account. You only see this option if your user account already has a password assigned to it; you see this option instead of the Create A Password option. Only an administrator can change passwords for other user accounts.

Remove My/The Password. Removes the password for your account or any other account on the computer. You only see this option if your user account already has a password assigned to it. Only an administrator can remove passwords for other user accounts.

Change My/The Picture. Changes the picture that appears on the Welcome screen. Only an administrator can change the pictures for other user accounts.

Change My/The Account Type. Changes the account type for a specified account. Only an administrator can change the account type for a user account.

Set Up My Account To Use A .NET Passport. Starts the Add A .NET Passport To Your Windows XP Professional Account Wizard.

A passport allows you to have online conversations with family and friends, create your own personal Web pages, and sign in instantly to all .NET-enabled sites and services. You can set up only your own account to use a .NET passport.

Delete The Account. Deletes a specified user account. You only see this option if you are logged on as an administrator because only an administrator can perform this task.

When you delete a user account, Windows XP Professional displays the Do You Want To Keep local_user_account's Files window. If you click Keep Files, Windows XP Professional saves the contents of the local_user_account's desktop and My Documents folder to a new folder called local_user_account on your desktop. However, it cannot save local_user_account's e-mail messages, Internet Favorites, or other settings.

To change your account while logged on with a limited user account, complete the following steps:

1. Click Start, click Control Panel, and then click User Accounts.

The Pick A Task window appears.

2. Click the appropriate option for the modification that you want to make and then follow the prompts on the screen.

To change an account while logged on as an administrator, complete the following steps:

1. Click Start, click Control Panel, and then click User Accounts.

2. In the User Accounts window, click Change An Account.

The Pick An Account To Change window appears.

3. Click the account you want to change.

The What Do You Want To Change About account_name Account window appears.

4. Click the appropriate option for the modification that you want to make and then follow the prompts on the screen.

Creating a New User Account

Only administrators can create new user accounts. This option is only available on the Pick A Task screen if you are logged on with a user account that is a member of the Administrators group.

To create a new user account, complete the following steps:

1. Click Start, click Control Panel, and then click User Accounts.

2. In the User Accounts window, click Create A New Account.

The Name The New Account window appears.

3. In the Type A Name For The New Account box, type a user logon name (up to 20 characters), and then click Next.

The user's logon name appears in the Welcome screen and on the Start menu. For information about valid characters for creating user accounts, see Table 3.1.

The Pick An Account Type window appears. Windows XP Professional provides two account types: Computer Administrator and

Limited. Table 3.2 lists the capabilities of each account type.

4. Select the appropriate account type, and then click Create Account.

Table 3.2 User Account Types and Capabilities

Capability

Change your own picture

Create, change, or remove your password

Change your own account type

Change your own account name

Change other users' pictures, passwords, account types, and account names X

Have full access to other user accounts X

Create user accounts on this computer

X

X

X

Computer Administrator Limited

X X

X X

Access and read all files on this computer

Install programs and hardware

Make systemwide changes to the computer

X

X

X

Changing the Way Users Log On or Log Off

Only administrators can change the way users log on or log off the computer. This option is only available on the Pick A Task screen if you

are logged on with a user account that is a member of the Administrators group.

These two options control how all users log on and log off the computer:

Use The Welcome Screen. This check box, enabled by default, allows you to click your user account on the Welcome screen to log on to the computer. If you clear this check box, you must type your user name and password at a logon prompt to log on.

Use Fast User Switching. This check box, enabled by default, allows you to quickly switch to another user account without first logging off and closing all programs. When you are finished, you can switch to the first user account.

To change the way users log on or log off, complete the following steps:

1. Click Start, click Control Panel, and then click User Accounts.

2. In the User Accounts window, click Change The Way Users Log On Or Off. The Select Logon And Logoff Options window appears.

3. Select or clear the appropriate check boxes.

Picking an Account to Change

The Pick An Account To Change portion of the User Accounts tool is only available if you are logged on with a user account that is a member of the Administrators group. It allows you to select a user account to modify. The account modifications you can make depend on the account type and how it is configured. The account characteristics that you can change are the same as those discussed earlier in this lesson in the section entitled, "Changing an Account."

The Computer Management Snap-In

One of the tools for managing Microsoft Windows XP Professional is the Microsoft Management Console (MMC). The MMC provides a standardized method for creating, saving, and opening administrative tools. The MMC doesn't provide management functions itself, but it hosts management applications called snap-ins that you use to perform one or more administrative tasks.

The MMC allows you to do the following:

Administer tasks and troubleshoot problems locally. You can perform most of your administrative tasks and troubleshoot many problems using only the MMC.

Administer tasks and troubleshoot problems remotely. You can use most snap-ins for remote administration and troubleshooting.

Windows XP Professional prompts you with a dialog box when you can use a snap-in remotely.

Centralize administration. You can use consoles to perform most of your administrative tasks from one computer. Each console can contain one or more snap-ins, including third-party snap-ins, so you can create one console that contains all the tools you need to perform your administrative tasks.

When you add snap-ins to an empty console, you create a customized console. One of the snap-ins that you can add is the Computer

Management snap-in, shown in Figure 3.6. The Computer Management snap-in is another Windows XP Professional tool for creating, deleting, modifying, and disabling local user accounts and changing passwords.

Figure 3.6 The Computer Management snap-in

Creating a Customized MMC Console

To create a customized MMC console containing Computer Management, complete the following steps:

1. Click Start, and then click Run.

2. In the Open text box, type mmc and then click OK.

MMC starts and displays an empty console.

3. Maximize the Console1 window.

4. Maximize the Console Root window.

5. On the File menu, click Add/Remove Snap-In.

MMC displays the Add/Remove Snap-In dialog box.

6. In the Standalone tab, click Add.

MMC displays the Add Standalone Snap-In dialog box shown in Figure 3.7.

Figure 3.7 The Add Standalone Snap-In dialog box

7. In the Available Standalone Snap-Ins list, select Computer Management, and then click Add.

MMC displays the Computer Management dialog box (shown in Figure 3.8), which allows you to specify which computer you want to administer. The Local Computer: (The Computer This Console Is Running On) option is selected by default.

Figure 3.8 The Computer Management dialog box

You can add Computer Management for the local computer on which you are working or, if your local computer is part of a network, you can add Computer Management and point to a remote computer. To add Computer Management for a remote computer, in the

Computer Management Snap-In dialog box, select Another Computer and then click Browse. In the Select Computer dialog box, in the

Enter The Object Name To Select text box, type the name of the remote computer that you want to administer with Computer

Management and then click OK. There is also a check box that allows you to change the selected computer when you launch the MMC console from the command line.

8. In the Computer Management dialog box, click Finish.

9. In the Add Standalone Snap-In dialog box (see Figure 3.7), click Close.

10. In the Add/Remove dialog box, click OK to place the Computer Management snap-in in an MMC console.

The MMC console you created is named Console1. To save this console to use again, go to the File menu and click Save As. In the File Name text box, type Computer Management Local, and then click Save.

Creating a Local User Account Using the Computer Management Snap-In

To create local user accounts using the Computer Management snap-in complete the following steps:

1. Expand the MMC console containing the Computer Management snap-in.

2. In the console pane of the Computer Management window, click the Computer Management plus sign (+) icon to expand the tree.

Computer Management contains three folders: System Tools, Storage, and Services And Applications.

3. In the console pane, double-click System Tools, and then click Local Users And Groups.

4. In the details pane, right-click Users, and then click New User.

5. Fill in the appropriate text boxes in the New User dialog box (Figure 3.9), click Create, and then click Close.

Figure 3.9 New User dialog box

Table 3.3 describes the local user account options shown in Figure 3.9.

Table 3.3 Local User Account Options

Option

User Name

Full Name

Description

Action

Type the user's logon name. This field is required.

Type the user's full name. You can include the user's first and last names, but you can also include the middle name or initial. This field is optional.

Type descriptive text about the user account or the user. This field is optional.

Password

Confirm Password

Type the account password that is used to authenticate the user. For greater security, always assign a password. As an additional security measure, the password appears as a string of asterisks as you type it.

Confirm the password by typing it a second time. This field is required if you assign a password.

Select this check box if you want the user to change his or her password the first time that he or

User Must Change Password At Next Logon she logs on. This ensures that only the user knows the password. This option is selected by default.

User Cannot Change Password

Select this check box if more than one person uses the same user account (such as Guest), or if you want only administrators to control passwords. If you have selected the User Must Change

Password At Next Logon check box, this option is not available.

Password Never Expires

Select this check box if you never want the password to change-for example, for a domain user account that a program or a Windows XP Professional service uses. The User Must Change

Password At Next Logon option overrides this option, so if you have selected the User Must

Change Password At Next Logon check box, this option is not available.

Account Is Disabled

Select this check box to prevent use of this account-for example, for a new employee who has not yet started working for your organization.

Always require new users to change their passwords the first time they log on. This forces them to use passwords that only they know.

For added network security, use a combination of letters and numbers to create unique initial passwords for all new user accounts.

Practice: Creating, Modifying, and Deleting Local User Accounts

In this practice, you create a new local user account and assign it a password using the User Accounts tool. You then create a custom MMC console that contains the Computer Management snap-in and then use the snap-in to create two more new user accounts. Then you test one of the newly created local user accounts. You complete the practice by using the User Accounts tool to delete a local user account.

After completing this practice, you will be able to

Use the User Accounts program to create a new local user account

Create a customized MMC console containing the Computer Management snap-in

Use the Computer Management snap-in to create a new local user account

Run the LocalUserAccounts file in the Demos folder on the CD-ROM accompanying this book for a demonstration of creating, modifying, and deleting local user accounts.

Exercise 1: Creating a New Local User Account Using the User Accounts Tool

In this exercise, you use the User Accounts tool to create a new user account.

To create a local user account

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, click Control Panel, and then click User Accounts.

3. In the User Accounts window, under Pick A Task, click Create A New Account.

Windows XP Professional displays the Name The New Account window.

4. In the Type A Name For The New User text box, type User1, and then click Next.

Windows XP Professional displays the Pick An Account Type dialog box.

5. Click Limited.

If your account is a limited account type, you can change or remove your password, change the picture displayed with your account, and change your theme and other desktop settings. You can also view files you created and files in the shared documents folder.

6. Click Create Account.

Windows XP Professional displays the User Accounts window; User1 appears in the list of accounts.

7. Create an account for User2 using steps 3 through 6.

Leave the User Accounts window open for the next exercise.

Exercise 2: Assigning a Password to a Local User Account Using the User Accounts Tool

In this exercise, you use the User Accounts tool to assign a password to a local user account.

To assign a password to a local user account using the User Accounts tool

1. In the User Accounts window, click User1.

2. Click Create A Password.

3. Type password in both the Type A New Password text box and the Type The New Password Again To Confirm text box.

4. Type the most commonly used password in the Type A Word Or Phrase To Use As A Password Hint text box.

5. Click Create Password.

The What Do You Want To Change About User1's Account window appears. Notice that the list of changes you can make now includes two new options: Change The Password and Remove The Password. The Create A Password option is gone.

6. Click the Home icon to return to the User Accounts window.

7. Assign User2 the password User2.

8. Close the User Accounts window and Control Panel.

Exercise 3: Creating a Customized MMC Console That Contains the Computer Management

Snap-In

In this exercise, you create a customized MMC console that contains the Computer Management snap-in.

To create a custom MMC containing Computer Management

1. Click Start and then click Run.

2. In the Open text box, type mmc and then click OK.

MMC starts and displays an empty console.

3. Maximize the Console1 window by clicking Maximize.

4. Maximize the Console Root window by clicking Maximize.

5. On the File menu, click Add/Remove Snap-In.

MMC displays the Add/Remove Snap-In dialog box.

6. Click Add.

MMC displays the Add Standalone Snap-In dialog box.

7. In the Available Standalone Snap-Ins list, click Computer Management and then click Add.

MMC displays the Computer Management dialog box, which allows you to specify the computer that you want to administer. The

Local Computer option is selected by default.

8. In the Computer Management dialog box, click Finish.

The MMC creates the console that contains the Computer Management snap-in for managing the local computer.

9. In the Add Standalone Snap-In dialog box, click Close.

10. In the Add/Remove Snap-In dialog box, click OK to place the Computer Management snap-in in your customized MMC console.

Computer Management (Local) now appears in the console tree.

11. On the File menu, click Save As.

MMC displays the Save As dialog box.

12. In the File Name text box, type Computer Management Local, and then click Save.

The title bar is now Computer Management Local. You have just created a customized MMC console containing the Computer

Management snap-in and have named it Computer Management Local.

Exercise 4: Creating a New Local User Account Using the Computer Management Snap-In

In this exercise, you use the Computer Management snap-in to create two new local user accounts.

To create a local user account using the Computer Management snap-in

1. In the Computer Management window, in the console pane, click the plus sign in front of Computer Management (Local) to expand it.

Computer Management contains three folders: System Tools, Storage, and Services And Applications.

2. In the console pane, double-click System Tools, and then click Local Users And Groups.

3. In the details pane, right-click Users, and then select New User.

The New User dialog box appears.

4. In the User Name text box, type User3.

5. In the Full Name text box, type User Three.

Do not assign a password to the user account.

6. Confirm that the User Must Change Password At Next Logon check box is selected.

7. Click Create to create the new user, and then click Close.

8. Click Start, click Control Panel, and then click User Accounts.

The User Accounts window appears.

What type of account is User3?

Notice that User3 is a password-protected account. The password for User3 is a blank password.

9. Close the User Accounts window and then close Control Panel.

10. In the Computer Management details pane, right-click Users, and then click New User.

11. In the User Name text box, type User4.

12. In the Full Name text box, type User Four.

13. In the Password and Confirm Password text boxes, type User4.

How does the password appear on the screen? Why?

In high-security environments, assign initial passwords to user accounts and then require users to change their passwords the next time they log on. This accomplishes two goals: it prevents a user account from existing without a password and ensures that only the user knows the password. The password assigned in this exercise was for ease of use in the exercise. The passwords you assign should be difficult to guess and should include both uppercase and lowercase letters, numerals, and valid nonalphanumeric characters.

14. Confirm that the User Must Change Password At Next Logon check box is selected and then click Create.

15. Close the New User dialog box.

16. In the Computer Management console, on the File menu, click Exit to close the Computer Management custom MMC console.

The Microsoft Management Console dialog box appears, in which you indicate whether you want to save Console settings to Computer

Management.

If you click Yes, the next time you open the Computer Management console, it appears as it does now. If you click No, Windows XP

Professional does not save the settings.

17. Click Yes to save the Console settings.

Exercise 5: Testing a New Local User Account

In this exercise, you test one of the new local user accounts to verify that it works as expected.

To test a local user account

1. Click Start and then click Log Off.

Windows XP Professional displays a Log Off Windows dialog box telling you to click Switch User if you want to leave programs running and switch to another user. Your other options are to click Log Off or Cancel.

2. In the Log Off Windows dialog box, click Log Off.

3. On the Welcome screen, click User3.

What happens?

4. Click OK. The Change Password dialog box appears.

5. Leave the Old Password text box blank, and in the New Password and Confirm New Password text boxes, type User3, and then click

OK.

Windows XP Professional displays a Change Password dialog box indicating that the password has been changed.

6. Click OK to close the Change Password dialog box.

The user account, User3, that you created using the Computer Management snap-in allowed you to log on. Because you left the default check box, User Must Change Password At Next Logon, selected when you created the account, you were prompted to change passwords when you logged on as User3. You confirmed that the User3 user account was created with a blank password when you left

the Old Password box blank and successfully changed the password to User3.

7. Log off the computer.

Exercise 6: Deleting a Local User Account

In this exercise, you use the User Accounts tool to delete the User3 local user account.

To delete a local user account

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. In the Control Panel, click User Accounts.

3. Click User3.

Windows XP Professional displays the What Do You Want To Change About User Three's Account window.

4. Click Delete The Account.

Windows XP Professional displays the Do You Want To Keep User Three's Files window.

Windows XP Professional can automatically save the contents of User Three's desktop and My Documents folder to a new folder called User Three on your desktop. However, it cannot save User Three's e-mail messages, Internet Favorites, and other settings.

5. Click Delete Files.

Windows XP Professional displays the Are You Sure You Want To Delete User Three's Account window.

6. Click Delete Account.

Windows XP Professional displays the User Accounts window. Notice that the User3 account is no longer listed under Or Pick An

Account To Change.

7. Close the User Accounts tool and then close the Control Panel.

8. Log off the computer.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions

and Answers."

1. Which of the following statements about the Windows XP Professional User Accounts tool are correct? (Choose all that apply.) a. The User Accounts tool allows you to remotely create, modify, and delete user accounts on all computers in the network running Windows XP Professional.

b. The User Accounts tool allows you to view and modify all accounts on the computer.

c. The tasks you can perform with the User Accounts tool depend on the type of account you use to log on to the local computer.

d. The User Accounts tool allows users to delete, create, or remove their individual passwords.

2. Which of the following tasks can both account types perform? (Choose all that apply.) a. Change your picture b. Change your account type c. Create, change, or remove your password d. Change your account name

3. Which of the following statements about logging on or logging off a computer running Windows XP Professional are true? (Choose all that apply.) a. When you use the Welcome screen to log on the local computer, you can quickly switch to another user account without logging off and closing all programs that you are running.

b. The User Accounts tool allows you to disable a local user account to prevent users from using the disabled account to log on.

c. When you use the Welcome screen to log on the local computer, you can only log on using one of the accounts displayed on the

Welcome screen.

d. The User Accounts tool allows you to replace the Welcome screen with a logon prompt that requires users to type their individual user names and passwords.

4. When you use the Computer Management snap-in to create a new user account, which check box do you select to prevent a new employee from using the new account until the employee starts working for the company?

Lesson Summary

The User Accounts tool allows administrators to create a new user account, change an existing account, and change the way a user logs on or logs off.

The two check boxes that control the way users log on and log off the computer, Use The Welcome Screen and Use Fast User

Switching, are for all users. You cannot set them for individual local user accounts.

The Computer Management snap-in allows you to create, modify, and delete user accounts for the local computer on which you are working. If your computer is part of a network, you can use the Computer Management snap-in on a remote computer.

The Computer Management snap-in provides all the functionality of the User Accounts tool and additional functionality, including the ability to view all accounts in the local security database and to disable accounts.

Always require new users to change their passwords the first time they log on to force them to use passwords that only they know.

If you select the Use The Welcome Screen and the Use Fast User Switching check boxes, when you log off the computer, a dialog box appears allowing you to leave programs running and switch to another user without logging off and closing all programs.

[Home]

[Previous]

[Next]

Lesson 4: Setting Properties for User

Accounts

Windows XP Professional creates a set of default account properties for each local user account. After you create a local user account, you can configure the account properties using the Computer

Management snap-in. The account properties are grouped under three tabs in a user account-name

Properties dialog box: General, Member Of, and Profile.

After this lesson, you will be able to

Set properties for user accounts

Estimated lesson time: 30 minutes

The General Tab

The General tab in the account-name Properties dialog box (see Figure 3.10) allows you to set or edit all the fields from the New User dialog box, except User Name, Password, and Confirm Password. In addition, it provides an Account Is Locked Out check box.

Figure 3.10 The General tab of the Properties dialog box for a user account

If the account is active and is not locked out of the system, the Account Is Locked Out check box is unavailable. The system locks out a user who exceeds the limit for the number of failed logon attempts.

This security feature makes it more difficult for an unauthorized user to break into the system. If the system locks out an account, the Account Is Locked Out check box becomes available, and an administrator can clear the check box to allow user access.

The Member Of Tab

The Member Of tab in the account-name Properties dialog box allows you to add the user account to or remove the user account from a group. For information about groups, see Lesson 5, "Implementing

Groups."

The Profile Tab

The Profile tab in the Properties dialog box allows you to set a path for the user profile, logon script, and home folder (see Figure 3.11).

Figure 3.11 The Profile tab of the Properties dialog box for a user account

User Profile

A user profile is a collection of folders and data that stores your current desktop environment, application settings, and personal data. It also contains all the network connections that are established when you log on to a computer, such as Start menu items and drives mapped to network servers. The user profile maintains consistency by providing the same desktop environment every time you log on to the computer.

Windows XP Professional creates a user profile the first time you log on to a computer and stores it on that computer. This user profile is also known as a local user profile.

User profiles operate in the following way on client computers running Windows XP Professional:

When you log on the client computer, you always receive your desktop settings and connections, regardless of how many users share the same client computer.

The first time you log on to the client computer, Windows XP Professional creates a default user profile for you. The default user profile is stored in the system_partition_root\Documents and

Settings\user_logon_name folder (typically C:\Documents and Settings\user_logon_name), where

user_logon_name is the name you enter when logging on to the system.

The user profile contains the My Documents folder, which provides a place to store personal files.

My Documents is the default location for the File Open and Save As commands. My Documents appears on the Start menu, which makes it easier to locate personal documents.

Users can store their documents in My Documents or in home folders, such as a home directory located on a network server. Home folders are covered later in this lesson. Windows XP

Professional automatically sets up My Documents as the default location for storing data for

Microsoft applications. If there is adequate room on the C drive or the drive where Windows XP

Professional was installed, users can store their documents in My Documents. However, using My

Documents to store personal data greatly increases the amount of space required on a hard disk for installing Windows XP Professional well beyond the minimum.

You can change your user profile by changing desktop settings. For example, if you make a new network connection or add a file to My Documents, Windows XP Professional incorporates the changes into your user profile when you log off. The next time you log on, the new network connection and the file are present.

For information about creating, modifying, and managing user profiles, see Chapter 10

, "Configuring

Windows XP Professional."

Logon Script

A logon script is a file you can create and assign to a user account to configure the user's working environment. For example, you can use a logon script to establish network connections or start applications. Each time a user logs on, the assigned logon script is run.

Home Folder

In addition to the My Documents folder, Windows XP Professional allows you to create home folders for users to store their personal documents. You can store a home folder on a client computer, in a shared folder on a file server, or in a central location on a network server.

Storing all home folders on a file server provides the following advantages:

Users can access their home folders from any client computer on the network.

You can centralize backing up and administering user documents by moving the responsibility for backing up and managing the documents out of the hands of the users and into the hands of one of the network backup operators or network administrators.

The home folders are accessible from a client computer running any Microsoft operating system, including MS-DOS, Microsoft Windows 95, Microsoft Windows 98, Windows 2000 Professional, and

Windows XP Professional.

Store home folders on an NT File System (NTFS) volume so that you can use NTFS permissions to secure user documents. If you store home folders on a file allocation table (FAT) volume, you can restrict home folder access only by using shared folder permissions.

To create a home folder on a network file server, complete the following steps:

1. Create and share a folder for storing all users' home folders on a network server.

The home folder for each user will reside in this shared folder.

2. For the shared folder, remove the default Full Control permission from the Everyone group and assign Full Control to the Users group.

This ensures that only users with domain user accounts can access the shared folder.

3. In the account-name Properties dialog box, in the Profile tab, click Connect and select or type a drive letter with which to connect to the user account home folder on the network.

4. In the To text box, type a Universal Naming Convention (UNC) name (for example,

\\server_name\shared_folder_name\user_logon_name).

Type the username variable as the user's logon name to automatically give each user's home folder the user logon name (for example, \\server_name\Users\%username%). Naming a folder on an NTFS volume with the username variable assigns the NTFS Full Control permission to the user and removes all other permissions for the folder, including those for the Administrator account.

To set User Account properties, complete the following steps:

1. Click Start, point to All Programs, point to Administrative Tools, and click Computer

Management.

2. Under System Tools, double-click Local Users And Groups, and then click Users.

3. In the details pane, right-click the appropriate user account, and then click Properties.

4. Click the appropriate tab for the properties that you want to configure or modify, and then enter values for each property.

Practice: Modifying User Account Properties

This practice presents exercises that allow you to modify user account properties and test them.

Run the UserAccountProperties file in the Demos folder on the CD-ROM accompanying this book for a demonstration of modifying user account properties.

Exercise 1: Setting User Account Properties

In this exercise you set and then test the User Cannot Change Password property.

To set the User Cannot Change Password property and the Account Is Disabled property

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, click Run, type mmc, and then click OK.

MMC starts and displays an empty console.

3. On the File menu, click Computer Management Local.

4. Expand Local Users And Groups and then click Users.

MMC displays the user accounts in the details pane.

5. Right-click User1 and then click Properties.

6. In the User1 Properties dialog box, in the General tab, select User Cannot Change Password, and then clear all other check boxes.

When you select the User Cannot Change Password check box, the User Must Change Password

At Next Logon option is unavailable.

7. Click OK to close the User1 Properties dialog box.

8. Right-click User2 and then click Properties.

9. In the User2 Properties dialog box, in the General tab, select the Account Is Disabled check box and clear all other check boxes.

10. Click OK to close the User2 Properties dialog box.

11. Close the Computer Management window, and if you are prompted about saving the console settings, click No.

12. Log off the computer.

Exercise 2: Testing User Account Properties

In this exercise you test the properties for a user account.

To test User Account properties

1. On the Welcome screen, click User1.

2. In the Type Your Password dialog box, click the question mark icon for your password hint.

Windows XP Professional displays the password hint you entered.

3. In the Type Your Password text box, type password, and then press Enter.

4. In the Control Panel, click User Accounts.

Windows XP Professional starts the User Accounts tool.

5. Click Change My Password.

6. In the Type Your Current Password text box, type password.

7. In the Type A New Password and Type The New Password Again To Confirm text boxes, Type

User1.

8. Click Change Password.

What happens? Why?

9. Log off as User1.

Notice that disabled accounts such as User2 don't appear on the Welcome screen.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. When can you select the Account Is Locked Out check box for a user and why?

2. Which of the following statements about local user account properties are correct? (Choose all that apply.) a. You can configure all of the default properties associated with each local user account using the User Accounts tool located in the Control Panel.

b. In Computer Management, the General tab in the account-name Properties dialog box for a user account allows you to disable the account.

c. In Computer Management, the General tab in the account-name Properties dialog box for a user account allows you to select the Account Is Locked Out check box to prevent the user from logging on to the computer.

d. You can use the Computer Management snap-in to configure all of the default properties associated with each local user account.

3. Which of the following statements about user profiles are correct? (Choose all that apply.) a. A user profile is a collection of folders and data that stores the user's current desktop environment, application settings, and personal data.

b. A user profile contains all the network connections that are established when a user logs on to a computer.

c. Windows XP Professional creates a user profile when you create a new local user account.

d. You must create each user profile by copying and modifying an existing user profile.

4. Which of the following statements about user profiles are correct? (Choose all that apply.) a. Users should store their documents in home directories rather than in their My Documents folders.

b. The Profile tab in the account-name Properties dialog box for a user account allows you to set a path for the user profile, logon script, and home folder.

c. A user profile contains the My Documents folder, which provides a place for users to store personal files.

d. When users change their desktop settings, the changes are reflected in their user profiles.

5. What three tasks must you perform to create a home folder on a network server?

Lesson Summary

Each local user account that you create has an associated set of default properties.

The Computer Management snap-in allows you to easily configure or modify the local user account properties.

The General tab in the account-name Properties dialog box allows you to set or edit all the fields from the New User dialog box, except for User Name, Password, and Confirm Password. In addition, it provides an Account Is Locked Out check box.

The Member Of tab in the account-name Properties dialog box allows you to add the user account to or remove the user account from a group.

The Profile tab in the account-name Properties dialog box for a user account allows you to set a path for the user profile, logon script, and home folder.

[Home]

[Previous]

[Next]

Lesson 5: Implementing Groups

In this lesson, you will learn what groups are and how you can use them to simplify user account administration. You will also learn about built-in groups, which have a predetermined set of user rights and group membership. Windows XP Professional has two categories of built-in groups, local and system, which it creates for you to simplify the process of assigning rights and permissions for commonly used functions.

After this lesson, you will be able to

Describe the key features of local groups and Windows XP Professional built-in groups

Create and delete local groups

Add members to and remove them from local groups

Estimated lesson time: 40 minutes

Understanding Groups

A group is a collection of user accounts. Groups simplify administration by allowing you to assign permissions and rights to a group of users rather than to each user account individually (see Figure 3.12).

Figure 3.12 Groups simplify administration

Permissions control what users can do with a resource such as a folder, file, or printer. When you assign permissions, you allow users to gain access to a resource and you define the type of access that they have. For example, if several users need to read the same file, you can add their user accounts to a group and then give the group permission to read the file. Rights allow users to perform system tasks, such as changing the time on a computer and backing up or restoring files.

For more information about permissions, see

Chapter 8

, "Securing Resources with NTFS." For more information about rights, see

Chapter 13 ,

"Configuring Security Settings and Internet Options."

Understanding Local Groups

A local group is a collection of user accounts on a computer. Use local groups to assign permissions to resources residing on the computer on which the local group is created. Windows XP Professional creates local groups in the local security database.

Preparing to Use Local Groups

Guidelines for using local groups include the following:

Use local groups on computers that do not belong to a domain.

You can use local groups only on the computer on which you create them. Although local groups are available on member servers and domain computers running Windows 2000 Server, do not use local groups on computers that are part of a domain. Using local groups on domain computers prevents you from centralizing group administration. Local groups do not appear in the Active Directory service, and you must administer them separately for each computer.

You can assign permissions to local groups to access only the resources on the computer on which you create the local groups.

You cannot create local groups on domain controllers because domain controllers cannot have a security database that is independent of the database in Active Directory.

Membership rules for local groups include the following:

Local groups can contain local user accounts from the computer on which you create the local groups.

Local groups cannot belong to any other group.

Creating Local Groups

Use the Computer Management snap-in (shown in Figure 3.13) to create local groups in the Groups folder.

Figure 3.13 The New Group dialog box

To create a local group, complete the following steps:

1. In Computer Management, expand Local Users And Groups.

2. Right-click Groups and then click New Group.

MMC displays the New Group dialog box. Table 3.4 describes the available options.

Table 3.4 New Local Group Options

Option Description

Group Name

Requires a unique name for the local group. This is the only required entry. Use any character except for the backslash (\ ). The name can contain up to 256 characters, but very long names might not display in some windows.

Description Describes the group.

Members Lists the user accounts belonging to the group.

Add Adds a user to the list of members.

Remove Removes a user from the list of members.

Create

Close

Creates the group.

Closes the New Group dialog box.

3. Enter the appropriate information, and then click Create.

Adding Members to a Group

You can add members to a local group when you create the group by clicking Add. In addition, Windows XP Professional provides two methods for adding members to a group that has already been created: the Computer Management snap-in and the Member Of tab in the group-name Properties dialog box.

To use the Computer Management snap-in to add members to a group that has already been created, complete the following steps:

1. Start the Computer Management snap-in.

2. Expand Local Users And Groups and then click Groups.

3. In the details pane, right-click the appropriate group, and then click Properties.

Computer Management displays the group-name Properties dialog box.

4. Click Add.

Computer Management displays the Select Users dialog box, as shown in Figure 3.14.

Figure 3.14 The Select Users dialog box

5. In the From This Location text box, ensure that the computer on which you created the group is selected.

6. In the Select Users dialog box, in the Enter The Object Names To Select text box, type the user account names that you want to add to the group, separated by semicolons, and then click OK.

The Member Of tab in the group-name Properties dialog box of a user account allows you to add a user account to multiple groups. Use this method to quickly add the same user account to multiple groups. To review how to use the Member Of tab, see the section in Lesson 4 entitled "The Member

Of Tab."

Deleting Local Groups

Use the Computer Management snap-in to delete local groups. Each group that you create has a unique identifier that cannot be used again. Windows

XP Professional uses this value to identify the group and its assigned permissions. When you delete a group, Windows XP Professional does not use the identifier again, even if you create a new group with the same name as the group that you deleted. Therefore, you cannot restore access to resources by recreating the group.

When you delete a group, you remove only the group and its associated permissions and rights. Deleting a group does not delete the user accounts that are members of the group. To delete a group, right-click the group name in the Computer Management snap-in and then click Delete.

Practice: Creating and Managing Local Groups

In this practice, you create two local groups, add members to the local groups when you create them, and then add a member to one of the groups after it has been created. You delete a member from one of the groups, and then delete one of the local groups that you created.

Run the LocalGroups file in the Demos folder on the CD-ROM accompanying this book for a demonstration of creating and managing local groups.

Exercise 1: Creating Local Groups and Adding and Removing Members

In this exercise, you create two local groups, Accounting and Marketing, and add members to both groups. You add a member to the existing

Marketing group, and then remove a member from the Marketing group.

To create the Accounting and Marketing local groups

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, point to All Programs, point to Administrative Tools, and then click Computer Management.

Windows XP Professional starts Computer Management.

3. Under System Tools, if necessary, expand Local Users And Groups, right-click Groups, and then click New Group.

MMC displays the New Group dialog box.

4. In the Group Name text box, type Accounting.

5. In the Description text box, type Access to Accounts Receivable Files.

6. Click Add.

MMC displays the Select Users dialog box.

7. In the Name text box, type User1; User2; User4 and then click OK.

User1, User2, and User4 appear in the Members list in the New Group dialog box.

8. Click Create.

Windows XP Professional creates the group and adds it to the list of groups in the details pane. Note that the New Group dialog box is still open and might block your view of the list of groups.

9. Repeat steps 4 through 9 to create a group named Marketing with a description of Access to Mailing Lists and User2 and User4 as group members.

10. When you finish creating both the Accounting and the Marketing groups, click Close to close the New Group dialog box.

The Accounting and the Marketing groups now appear in the details pane.

To add members to and remove members from the Marketing local group

1. In the details pane of the Computer Management window, double-click Marketing.

The Marketing Properties dialog box displays the properties of the group. Notice that User2 and User4 are in the Members list.

2. To add a member to the group, click Add.

Computer Management displays the Select Users dialog box.

3. In the Name text box, type User1, and then click OK.

The Marketing Properties dialog box now displays User1, User2, and User4 in the Members list.

4. Select User4 and then click Remove.

Notice that User4 is no longer in the Members list. User4 still exists as a local user account, but it is no longer a member of the Marketing group.

5. Click OK.

Exercise 2: Deleting a Local Group

In this exercise, you delete the Marketing local group.

To delete the Marketing local group

1. In the details pane of the Computer Management window, right-click Marketing, and then click Delete.

Computer Management displays a Local Users And Groups dialog box asking if you are sure that you want to delete the group.

2. Click Yes.

Marketing is no longer listed in the details pane indicating that the Marketing group was successfully deleted.

3. In the console pane of the Computer Management window, click Users.

User1 and User2 are still listed in the details pane indicating that the group was deleted, but the members of the group were not deleted from the Users folder.

4. Close Computer Management.

Understanding Built-In Local Groups

All stand-alone servers, member servers, and computers running Windows XP Professional have built-in local groups. These groups give rights to perform system tasks on a single computer, such as backing up and restoring files, changing the system time, and administering system resources.

Windows XP Professional places the built-in local groups in the Groups folder in Computer Management.

Table 3.5 lists the most commonly used built-in local groups and describes their capabilities. Except where noted, these groups do not include initial members.

Table 3.5 Built-In Local Group Capabilities

Local group

Administrators

Description

Members can perform all administrative tasks on the computer. By default, the built-in Administrator account is a member. When a member server or a computer running Windows XP Professional joins a domain, Windows 2000 Server adds the Domain

Admins group to the local Administrators group.

Backup Operators Members can use Windows Backup to back up and restore the computer.

Guests

Power Users

Replicator

Users

Members can do the following:

Perform only the tasks for which they have been specifically granted rights

Access only those resources for which they have assigned permissions

Members cannot make permanent changes to their desktop environment. By default, the built-in Guest account is a member.

When a member server or a computer running Windows XP Professional joins a domain, Windows 2000 Server adds the Domain

Guests group to the local Guests group.

Members can create and modify local user accounts on the computer and share resources.

Supports file replication in a domain.

Members can do the following:

Perform only the tasks for which they have been specifically granted rights

Access only those resources for which they have assigned permissions

By default, Windows XP Professional adds to the Users group all local user accounts that an administrator creates on the computer. When a member server or a computer running Windows XP Professional joins a domain, Windows 2000 Server adds the Domain Users group to the local Users group.

Understanding Built-In System Groups

Built-in system groups exist on all computers running Windows XP Professional. System groups do not have specific memberships that you can modify, but they can represent different users at different times, depending on how a user gains access to a computer or resource. You do not see system groups when you administer groups, but they are available when you assign rights and permissions to resources. Windows XP Professional bases system group membership on how the computer is accessed, not on who uses the computer. Table 3.6 lists the most commonly used built-in system groups and describes their capabilities.

Table 3.6 Built-In System Group Capabilities

System group

Everyone

Authenticated Users

All users with valid user accounts on the computer. (If your computer is part of a domain, it includes all users in Active

Directory.) Use the Authenticated Users group instead of the Everyone group to prevent anonymous access to a resource.

Creator Owner

The user account for the user who created or took ownership of a resource. If a member of the Administrators group creates a resource, the Administrators group owns the resource.

Network

Description

All users who access the computer. By default, when you format a volume with NTFS, the Full Control permission is assigned to the Everyone group. This presented a problem in earlier versions of Windows, including Microsoft Windows 2000. In

Windows XP Professional, the Anonymous Logon is no longer included in the Everyone group. When a Windows 2000

Professional system is upgraded to a Windows XP Professional system, resources with permission entries for the Everyone group and not explicitly for the Anonymous Logon group are no longer available to the Anonymous Logon group.

Interactive

Any user with a current connection from another computer on the network to a shared resource on the computer.

The user account for the user who is logged on at the computer. Members of the Interactive group can access resources on the computer at which they are physically located. They log on and access resources by "interacting" with the computer.

Anonymous Logon Any user account that Windows XP Professional cannot authenticate.

Dialup Any user who currently has a dial-up connection.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering

these questions, review the material in this lesson before beginning the next chapter. The answers are in Appendix A , "Questions and Answers."

1. What are groups, and why do you use them?

2. An administrator or owner of a resource uses __________________ to control what users can do with a resource such as a folder, file, or printer.

3. You use local groups to assign permissions to resources residing __________________.

4. Which of the following statements about local groups are correct? (Choose all that apply.) a. If a computer running Windows XP Professional is part of a domain, the local groups for that computer are stored in the directory rather than in the local security database on that computer.

b. Local groups allow you to grant permission to the group to perform system tasks, such as changing the time on a computer and backing up or restoring files.

c. A local group is a collection of user accounts on a computer that you can use to control access to resources residing on that computer.

d. You can use the Computer Management snap-in to create groups, to add members to existing groups, and to delete groups from a computer running Windows XP Professional.

5. Which of the following statements about local groups are correct? (Choose all that apply.) a. You can use local groups only on the computer on which you create them.

b. Local groups are available on member servers and domain computers running Windows 2000 Server.

c. Local groups appear in Active Directory so you can administer them centrally.

d. You must create each user profile by copying and modifying an existing user profile.

6. Which of the following statements about deleting local groups are correct? (Choose all that apply.) a. Each group that you create has a unique identifier that cannot be reused.

b. You can restore access to resources by recreating the group.

c. When you delete a group, you also remove the permissions and rights associated with it.

d. Deleting a group deletes the user accounts that are members of the group.

7. What is the difference between built-in system groups and built-in local groups found on computers running Windows XP Professional? Give at least two examples of each type of group.

Lesson Summary

Groups simplify administration by allowing you to assign permissions and rights to a group of users rather than to individual user accounts.

Permissions control what users can do with a resource such as a folder, file, or printer.

Rights allow users to perform system tasks, such as changing the time on a computer and backing up or restoring files.

Windows XP Professional creates local groups in the local security database, so you can use local groups only on the computer on which you create them. You cannot use local groups on computers that are part of a domain.

You can use the Computer Management snap-in to create, add members to, and delete local groups.

All stand-alone servers, member servers, and computers running Windows XP Professional have built-in local groups that give rights to perform system tasks on a single computer.

[Home]

[Previous]

[Next]

Chapter 4

Installing, Configuring, and

Troubleshooting Network Protocols

About This Chapter

A protocol is a set of rules and conventions for sending information over a network. Microsoft Windows

XP Professional relies on the Transmission Control Protocol/ Internet Protocol (TCP/IP) for logon, file and print services, replication of information between domain controllers, and other common functions.

This chapter presents the skills and knowledge necessary to install, configure, and troubleshoot TCP/IP and NWLink. The chapter also discusses the process for configuring network bindings, which are links that enable communication among network adapter cards, protocols, and services.

Before You Begin

To complete this chapter, you must have

Windows XP Professional software installed on the computer with TCP/IP installed as the only network protocol

[Home]

[Previous]

[Next]

Lesson 1: Understanding the TCP/IP

Protocol Suite

TCP/IP provides communication across networks of computers with various hardware architectures and operating systems. Microsoft's implementation of TCP/IP enables enterprise networking and connectivity on computers running Windows XP Professional.

After this lesson, you will be able to

Describe the TCP/IP protocol suite and the TCP/IP tools that ship with Windows XP Professional

Estimated lesson time: 25 minutes

The TCP/IP Protocol Suite

TCP/IP is an industry-standard suite of protocols that enables enterprise networking and connectivity on Windows

XP Professional-based computers. Adding TCP/IP to a Windows XP Professional configuration offers the following advantages:

A routable networking protocol supported by most operating systems. Most large networks rely on TCP/IP.

A technology for connecting dissimilar systems. You can use many standard connectivity tools to access and transfer data across dissimilar systems. Windows XP Professional includes several of these standard tools.

A robust, scalable, cross-platform client/server framework. TCP/IP supports the Microsoft Windows

Sockets (Winsock) interface, which is ideal for developing client/server applications for Winsockcompliant stacks.

A method of gaining access to Internet resources.

The TCP/IP suite of protocols provides a set of standards for how computers communicate and how networks are interconnected. The TCP/IP suite of protocols maps to a four-layer conceptual model: network interface, Internet, transport, and application. These layers can be seen in Figure 4.1.

Figure 4.1 The TCP/IP suite of protocols within four layers

Network Interface Layer

At the base of the model is the network interface layer, which puts frames on the wire and pulls frames off the wire.

Internet Layer

Internet layer protocols encapsulate packets into Internet datagrams and run all the necessary routing algorithms.

The four Internet layer protocols are Internet Protocol (IP), Address Resolution Protocol (ARP), Internet Control

Message Protocol (ICMP), and Internet Group Management Protocol (IGMP). Table 4.1 describes these four

Internet layer protocols.

Table 4.1 Protocols Included in the Internet Layer

Protocol Description

IP

Provides connectionless packet delivery for all other protocols in the suite. Does not guarantee packet arrival or correct packet sequence. Does not try to recover from errors such as lost packets, packets delivered out of sequence, duplicated packets, or delayed packets. Packet acknowledgment and the recovery of lost packets are the responsibility of a higher layer protocol, such as TCP. IP is primarily responsible for addressing and routing packets between hosts.

ARP

Provides IP address mapping to the media access control (MAC) sublayer address to acquire the physical MAC control address of the destination. IP address resolution is required when IP packets are sent on shared access, broadcast-based networking technology, such as Ethernet. IP broadcasts a special

ARP inquiry packet containing the IP address of the destination system. The system that owns the IP address replies by sending its physical address to the requester. The MAC sublayer communicates directly with the network adapter card and is responsible for delivering error-free data between two computers on a network.

ICMP

Provides special communication between hosts, allowing them to share status and error information.

Higher level protocols use this information to recover from transmission problems. Network administrators use this information to detect network trouble. The Ping tool uses ICMP packets to determine whether a particular IP device on a network is functional. One instance in which ICMP provides special communication between hosts occurs when IP is unable to deliver a packet to the destination host; ICMP sends a Destination Unreachable message to the source host.

IGMP

Provides multicasting, which is a limited form of broadcasting, to communicate and manage information between all member devices in an IP multicast group. An IP multicast group is a set of hosts that listen for IP traffic destined for a specific IP multicast address. IP multicast traffic is sent to a single MAC address but is processed by multiple hosts. IGMP informs neighboring multicast routers of the host group memberships present on a particular network. Windows XP Professional supports multicast capabilities that allow developers to create multicast programs, such as Microsoft Windows

2000 Server NetShow Services.

Transport Layer

Transport layer protocols provide communication sessions between computers. The desired method of data delivery determines the transport protocol. The two transport layer protocols, described in Table 4.2, are

Transmission Control Protocol (TCP) and User Datagram Protocol (UDP).

Table 4.2 Protocols Included in the Transport Layer

Protocol Description

TCP

Provides connection-oriented, reliable communications for applications that typically transfer large amounts of data at once or require an acknowledgment for data received. TCP is connection-oriented, so a connection must be established before hosts can exchange data. TCP provides reliable communication by assigning a sequence number to each segment of data that is transmitted so that the receiving host can send an acknowledgment (ACK) to verify that the data was received. If an ACK is not received, the data is retransmitted. TCP guarantees the delivery of packets, ensures proper sequencing of the data, and provides a checksum feature that validates both the packet header and its data for accuracy.

UDP

Provides connectionless communications but does not guarantee the delivery or the correct sequence of packets. Applications that use UDP typically transfer small amounts of data at once. Reliable delivery is the responsibility of the application.

Application Layer

At the top of the model is the application layer, in which applications gain access to the network. There are many standard TCP/IP tools and services in the application layer, such as File Transfer Protocol (FTP), Telnet, Simple

Network Management Protocol (SNMP), Domain Name System (DNS), and so on.

TCP/IP provides two interfaces for network applications to use the services of the TCP/IP protocol stack: Winsock and the NetBIOS over TCP/IP (NetBT) interface. Table 4.3 describes these two interfaces.

Table 4.3 Interfaces Through Which Applications Use TCP/IP Services

Interface Description

Winsock

Serves as the standard interface between socket-based applications and TCP/IP protocols. An application specifies the protocol, the IP address of the destination host, and the port of the destination application. Winsock provides services that allow the application to bind to a particular port and IP address on a host, initiate and accept a connection, send and receive data, and close the connection.

NetBT

Serves as the standard interface for NetBIOS services, including name, datagram, and session services.

It also provides a standard interface between NetBIOS-based applications and TCP/IP protocols.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson.

The answers are in Appendix A

, "Questions and Answers."

1. What are the four layers to which the TCP/IP suite of protocols maps? What are the functions of the protocols that map to each layer?

2. Which of the following statements correctly describes IP? (Choose all answers that are correct.) a. IP guarantees packet arrival and correct packet sequence.

b. IP provides connection-oriented, reliable communications for applications that typically transfer large amounts of data at one time.

c. IP is primarily responsible for addressing and routing packets between hosts.

d. IP provides connectionless packet delivery for all other protocols in the suite.

3. Which of the following statements correctly describes TCP? (Choose all answers that are correct.) a. TCP provides connectionless communications but does not guarantee that packets will be delivered.

b. TCP provides connection-oriented, reliable communications for applications that typically transfer large amounts of data at one time.

c. TCP provides services that allow the application to bind to a particular port and IP address on a host.

d. TCP provides and assigns a sequence number to each segment of data that is transmitted.

4. Which of the four layers to which the TCP/IP suite of protocols maps does IGMP map to and what is IGMP used for?

5. What is multicasting?

6. The two transport layer protocols are ____________________________ and

_______________________________________.

7. Which of the following statements correctly describes ARP? (Choose all answers that are correct.) a. ARP is a protocol included in the Internet layer.

b. ARP is a protocol included in the transport layer.

c. ARP provides IP address mapping to the MAC sublayer address to acquire the physical MAC control address of the destination.

d. ARP is primarily responsible for addressing and routing packets between hosts.

Lesson Summary

Microsoft's implementation of TCP/IP provides a robust, scalable, cross-platform client/server framework that is supported by most large networks, including the Internet.

Windows XP Professional includes many standard connectivity tools to access and transfer data between dissimilar systems.

The TCP/IP suite of protocols maps to a four-layer conceptual model: network interface, Internet, transport, and application.

The four Internet layer protocols-IP, ARP, ICMP, and IGMP-encapsulate packets into Internet datagrams and run all the necessary routing algorithms.

IP provides connectionless, unreliable packet delivery for all other protocols in the TCP/IP suite and is primarily responsible for addressing and routing packets between hosts.

The two transport layer protocols-TCP and UDP-provide communication sessions between computers.

TCP provides connection-oriented, reliable communications for applications that typically transfer large amounts of data at once or require an acknowledgment for data received.

There are many standard TCP/IP tools and services in the application layer, such as FTP, Telnet, SNMP,

DNS, and so on.

TCP/IP provides two interfaces for network applications to use the services of the TCP/IP protocol stack:

Winsock and the NetBT interface.

[Home]

[Previous]

[Next]

Lesson 2: Configuring and

Troubleshooting TCP/IP

Each TCP/IP host is identified by a logical IP address that identifies a computer's location on the network in much the same way as a street address identifies a house on a street. Microsoft's implementation of

TCP/IP enables a TCP/IP host to use a static IP address or to obtain an IP address automatically from a

Dynamic Host Configuration Protocol (DHCP) server. For simple network configurations based on local area networks (LANs), it supports automatic assignment of IP addresses. Windows XP Professional includes tools that you can use to troubleshoot TCP/IP and test connectivity.

After this lesson, you will be able to

Configure TCP/IP to use a static IP address

Configure TCP/IP to obtain an IP address automatically

Explain Automatic Private IP Addressing

Disable Automatic Private IP Addressing

Estimated lesson time: 60 minutes

Understanding IP Addresses

Each IP address consists of a network ID and a host ID. The network ID, also known as the network address, identifies the systems that are located on the same physical network. All computers in the same physical network must have the same network ID, and the network ID must be unique to the internetwork. The host ID, also known as the host address, identifies each TCP/IP host within a network.

IP addresses are logical 32-bit numbers that are broken down into four 8-bit fields known as octets.

Microsoft TCP/IP supports class A, B, and C addresses. The class addresses define which bits are used for the network ID and which bits are used for the host ID. Table 4.4 summarizes class A, B, and C IP addresses.

Table 4.4 Class A, B, and C IP Addresses

Class Description

A

The first network ID is 1.0.0.0 and the last is 126.0.0.0. This allows for 126 networks and

16,777,214 hosts per network. The class A address 127.x.y.z is reserved for loopback testing and interprocess communications on the local computer. For class A addresses, the network ID is always the first octet in the address and the host ID is the last three octets.

B

The first network ID is 128.0.0.0 and the last is 191.255.0.0. This allows for 16,384 networks and

65,534 hosts per network. For class B addresses, the network ID is always the first two octets in the address and the host ID is the last two octets.

C

The first network ID is 192.0.0.0 and the last is 223.255.255.0. This allows for 2,097,152 networks and 254 hosts per network. For class C addresses, the network ID is always the first three octets in the address and the host ID is the last octet.

Using a Static IP Address

By default, client computers, for example those running Windows XP Professional, Windows 2000,

Windows Me, Windows NT, Microsoft Windows 98, or Microsoft Windows 95, obtain TCP/IP configuration information automatically from the DHCP Service. However, even in a DHCP-enabled environment, you should assign a static IP address to selected network computers. For example, the computer running the DHCP Service cannot be a DHCP client, so it must have a static IP address. If the

DHCP Service is not available, you can also configure TCP/IP to use a static IP address. For each network adapter card that uses TCP/IP in a computer, you can configure an IP address, subnet mask, and default gateway, as shown in Figure 4.2.

Figure 4.2 Configuring a static TCP/IP address

Table 4.5 describes the options used in configuring a static TCP/IP address.

Table 4.5 Options for Configuring a Static TCP/IP Address

Option

IP address

Description

A logical 32-bit address that identifies a TCP/IP host. Each network adapter card in a computer running TCP/IP requires a unique IP address, such as 192.168.0.108. Each address has two parts: a network ID, which identifies all hosts on the same physical network, and a host ID, which identifies a host on the network. In this example, the network ID is 192.168.0, and the host ID is 108.

Subnet mask

Subnets divide a large network into multiple physical networks connected with routers.

A subnet mask blocks out part of the IP address so that TCP/IP can distinguish the network ID from the host ID. When TCP/IP hosts try to communicate, the subnet mask determines whether the destination host is on a local or remote network. To communicate on a local network, computers must have the same subnet mask.

The intermediate device on a local network that stores network IDs of other networks in the enterprise or Internet. To communicate with a host on another network,

Default gateway configure an IP address for the default gateway. TCP/IP sends packets for remote networks to the default gateway (if no other route is configured), which then forwards the packets to other gateways until the packet is delivered to a gateway connected to the specified destination.

To configure TCP/IP to use a static IP address, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, double-click

Local Area Connection, and then click Properties.

4. In the Local Area Connection Properties dialog box, click Internet Protocol (TCP/IP), verify that the check box to its left is selected, and then click Properties.

5. In the Internet Protocol (TCP/IP) Properties dialog box, in the General tab, click Use The

Following IP Address, type the TCP/IP configuration parameters, and then click OK.

6. Click OK to close the Local Area Connection Properties dialog box and then close the Network

And Dial-Up Connections window.

IP communications can fail if duplicate IP addresses exist on a network. Therefore, you should always check with the network administrator to obtain a valid static IP address.

Obtaining an IP Address Automatically

If a server running the DHCP Service is available on the network, it can automatically assign TCP/IP configuration information to the DHCP client, as shown in Figure 4.3. You can then configure any clients running Windows XP Professional, Windows 95, and Windows 98 to obtain TCP/IP configuration information automatically from the DHCP Service. This can simplify administration and ensure correct configuration information.

Windows XP Professional does not include the DHCP Service. Only the Windows 2000 Server products provide the DHCP Service.

Figure 4.3 A server running the DHCP Service assigns TCP/IP addresses

Windows XP Professional also includes an Automatic Private IP Addressing feature that provides DHCP clients with limited network functionality if a DHCP server is unavailable during startup.

You can use the DHCP Service to provide clients with TCP/IP configuration information automatically.

However, you must configure a computer as a DHCP client before it can interact with the DHCP Service.

To configure a DHCP client, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, double-click

Local Area Connection, and then click Properties.

4. In the Local Area Connection Properties dialog box, click Internet Protocol (TCP/IP), verify that the check box to its left is selected, and then click Properties.

5. In the Network And Dial-Up Connections window, right-click Local Area Connection, and then click Properties.

6. In the Local Area Connection Properties dialog box, click Internet Protocol (TCP/IP), verify that the check box to its left is selected, and then click Properties.

7. In the Internet Protocol (TCP/IP) Properties dialog box, in the General tab, click Obtain An IP

Address Automatically.

8. Click OK to close the Local Area Connection Properties dialog box and then close the Network

And Dial-Up Connections window.

Using Automatic Private IP Addressing

The Windows XP Professional implementation of TCP/IP supports automatic assignment of IP addresses for simple LAN-based network configurations. This addressing mechanism is an extension of dynamic IP address assignment for LAN adapters, enabling configuration of IP addresses without using static IP address assignment or installing the DHCP Service. Automatic Private IP Addressing is enabled by default in Windows XP Professional so that home users and small business users can create a functioning, single-subnet, TCP/IP-based network without having to configure the TCP/IP protocol manually or set up a DHCP server.

The process for the Automatic Private IP Addressing feature, shown in Figure 4.4, is explained in the following steps:

1. Windows XP Professional TCP/IP attempts to find a DHCP server on the attached network to obtain a dynamically assigned IP address.

2. In the absence of a DHCP server during startup (for example, if the server is down for maintenance or repairs), the client cannot obtain an IP address.

3. Automatic Private IP Addressing generates an IP address in the form of 169.254.x.y (where x.y is the client's unique identifier) and a subnet mask of 255.255.0.0.

Figure 4.4 Automatic Private IP Addressing feature

The Internet Assigned Numbers Authority (IANA) has reserved 169.254.0.0 through169.254.255.255 for

Automatic Private IP Addressing. As a result, Automatic Private IP Addressing provides an address that is guaranteed not to conflict with routable addresses.

After the computer generates the address, it broadcasts to this address and then assigns the address to itself if no other computer responds. The computer continues to use this address until it detects and receives configuration information from a DHCP server. This allows two computers to be plugged into a

LAN hub to restart without any IP address configuration and to use TCP/IP for local network access.

If the computer is a DHCP client that has previously obtained a lease from a DHCP server and the lease has not expired at boot time, the sequence of events is slightly different. The client tries to renew its lease with the DHCP server. If the client cannot locate a DHCP server during the renewal attempt, it attempts to ping the default gateway listed in the lease.

If pinging the default gateway succeeds, the DHCP client assumes that it is still on the same network where it obtained its current lease, so it continues to use the lease. By default, the client attempts to renew its lease when 50 percent of its assigned lease time has expired. If pinging the default gateway fails, the client assumes that it has been moved to a network that has no DHCP services cur-rently available and it autoconfigures itself as previously described. Once auto-configured, it continues to try to

locate a DHCP server every 5 minutes.

Windows 98, Microsoft Windows Millennium Edition, Microsoft Windows 2000, and Windows XP

Home Edition also support Automatic Private IP Addressing.

Automatic Private IP Addressing can assign a TCP/IP address to DHCP clients automatically. However,

Automatic Private IP Addressing does not generate all the information that typically is provided by

DHCP, such as the address of a default gateway. Consequently, computers enabled with Automatic

Private IP Addressing can communicate only with computers on the same subnet that also have addresses of the form 169.254.x.y.

Disabling Automatic Private IP Addressing

By default, the Automatic Private IP Addressing feature is enabled. However, you can disable it by specifying an alternate configuration to use if a DHCP server cannot be located (see Figure 4.5), as discussed in the next section.

Figure 4.5 Specifying an alternate TCP/IP configuration

Specifying an Alternate Configuration for TCP/IP

Auto-Configuration for Multiple Networks Connectivity provides easy access to network devices and the

Internet. It also allows a mobile computer user to seamlessly operate both office and home networks without having to manually reconfigure TCP/IP settings.

You specify an alternate configuration for TCP/IP if a DHCP server is not found. The alternate configuration is useful when a computer is used on multiple networks, one of which does not have a

DHCP server and does not use an automatic private IP addressing configuration.

To configure Auto-Configuration for Multiple Networks Connectivity, do the following:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, and then click

Local Area Connection.

4. Click Change Settings Of This Connection.

Windows XP Professional displays the Local Area Connection Properties dialog box.

5. Click Internet Protocol (TCP/IP), and then click Properties.

Windows XP Professional displays the Internet Protocol (TCP/IP) Properties dialog box with the

General tab active.

6. Click Alternate Configuration.

7. Specify the alternate TCP/IP configuration (see Figure 4.5).

Using TCP/IP Tools

Windows XP Professional includes the tools diagrammed in Figure 4.6, which you can use to troubleshoot TCP/IP and test connectivity.

Figure 4.6 TCP/IP tools included with Windows XP Professional

Troubleshooting TCP/IP

Windows XP Professional offers several tools to assist you in troubleshooting TCP/IP, as described in

Table 4.6.

Table 4.6 Tools Used to Troubleshoot TCP/IP

Option Description

Ping Verifies configurations and tests connections

ARP Displays locally resolved IP addresses as physical addresses

Ipconfig Displays the current TCP/IP configuration

Nbtstat Displays statistics and connections using NetBT

Netstat Displays TCP/IP protocol statistics and connections

Route Displays or modifies the local routing table

Hostname

Returns the local computer's host name for authentication by the Remote Copy Protocol

(RCP), Remote Shell (RSH), and Remote Execution (REXEC) tools

Tracert Checks the route to a remote system

PathPing

Verifies that the routers on the way to a remote host are operating correctly by detecting packet loss over multiple-hop trips

These troubleshooting tools are all executed from within a command prompt. For information about how to use all of these commands, except Hostname and Tracert, open a command prompt, type the command followed by /?, and then press Enter. For example, for information about the Ping tool, open a command prompt, type ping /?, and then press Enter.

To use the Hostname tool, open a command prompt, type hostname, and then press Enter. Hostname returns the name of the local computer.

For information about how to use the Tracert tool, open a command prompt, type tracert, and then press

Enter.

Testing TCP/IP Connectivity

Windows XP Professional also provides tools for testing TCP/IP connectivity, as described in Table 4.7.

Table 4.7 Tools Used to Test TCP/IP Connectivity

Option

FTP

Description

Provides bidirectional file transfer between a computer running

Windows XP Professional and any TCP/IP host running FTP.

Windows 2000 Server ships with the ability to serve as an FTP client or server.

Trivial File Transfer Protocol (TFTP)

Provides bidirectional file transfer between a computer running

Windows XP Professional and a TCP/IP host running TFTP.

Telnet

RCP

RSH

REXEC

Finger

Provides terminal emulation to a TCP/IP host running Telnet.

Windows 2000 Server ships with the ability to serve as a Telnet client.

Copies files between a client and a host that support RCP; for example, a computer running Windows XP Professional and a

UNIX host.

Runs commands on a UNIX host.

Runs a process on a remote computer.

Retrieves system information from a remote computer that supports TCP/IP and the Finger tool.

Testing a TCP/IP Configuration

After configuring TCP/IP and restarting the computer, you should use the Ipconfig and Ping commandprompt tools to test the configuration and connections to other TCP/IP hosts and networks. Such testing helps ensure that TCP/IP is functioning properly.

Using Ipconfig

You use the Ipconfig tool to verify the TCP/IP configuration parameters on a host. This helps to determine whether the configuration is initialized or if a duplicate IP address exists. Use the Ipconfig tool with the /all switch to verify configuration information.

Type ipconfig /all | more to prevent the Ipconfig output from scrolling off the screen; to scroll down and view additional output, press Spacebar.

The result of the Ipconfig /all command is as follows:

If a configuration has initialized, the Ipconfig tool displays the IP address and subnet mask, and, if it is assigned, the default gateway.

If a duplicate IP address exists, the Ipconfig tool indicates that the IP address is configured; however, the subnet mask is 0.0.0.0.

If the computer is unable to obtain an IP address from a server running the DHCP Service on the network, the Ipconfig tool displays the IP address as the address provided by Automatic Private IP

Addressing.

Using Ping

The Ping tool is a diagnostic tool that you can use to test TCP/IP configurations and diagnose connection failures. After you have verified the TCP/IP configuration, use the Ping tool to determine whether a particular TCP/IP host is available and functional. To test connectivity, use the Ping tool with the following syntax: ping IP_address

Using Ipconfig and Ping

Figure 4.7 outlines the steps for verifying a computer's configuration and for testing router connections.

Figure 4.7 Using Ipconfig and Ping

The following list explains the steps outlined in Figure 4.7:

1. Use the Ipconfig tool to verify that the TCP/IP configuration has been initialized.

2. Use the Ping tool with the loopback address (ping 127.0.0.1) to verify that TCP/IP is correctly installed and bound to your network adapter card.

3. Use the Ping tool with the IP address of the computer to verify that your computer is not a

duplicate of another IP address on the network.

4. Use the Ping tool with the IP address of the default gateway to verify that the default gateway is operational and that your computer can communicate with the local network.

5. Use the Ping tool with the IP address of a remote host to verify that the computer can communicate through a router.

Typically, if you ping the remote host (step 5) and the ping is successful, steps 1 through 4 are successful by default. If the ping is not successful, ping the IP address of another remote host before completing the entire diagnostic process because the current host might be turned off.

By default, the following message appears four times in response to a successful Ping command:

Reply from IP_address

Practice: Configuring TCP/IP

In this practice, you'll use two TCP/IP tools to verify your computer's configuration. Then you'll configure your computer to use a static IP address and verify your computer's new configuration. Next you'll configure your computer to use a DHCP server to automatically assign an IP address to your computer, whether or not there is a DHCP server available on your network. Finally, you'll test the

Automatic Private IPAddressing feature in Windows XP Professional by disabling the DHCP server, if there is one on your network.

After completing this practice, you will be able to

Verify a computer's TCP/IP configuration

Configure TCP/IP to use a static IP address using Automatic IP Addressing

Configure TCP/IP to obtain an IP address automatically using DHCP

Determine what happens when there is no server running the DHCP Service to provide an IP address

To complete this practice, you need

TCP/IP as the only installed protocol.

Optional: A server running the DHCP Service to provide IP addresses. If you are working on a computer that is not part of a network and there is no server running the DHCP Service, there are

certain procedures in this practice that you will not be able to perform.

In the following table, record the IP address, subnet mask, and default gateway that your network administrator provides for you to use during this practice. Ask your network administrator if there is another computer that you can use to test your computer's connectivity, and record the IP address of that computer as well. If you are not on a network, you can use the suggested values.

Variable value

Static IP address

Suggested value Your value

192.168.1.201

Subnet mask 255.255.0.0

Default gateway (if required) None

Computer to test connectivity N/A

Run the ConfiguringTCP/IP file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring TCP/IP.

Exercise 1: Verifying a Computer's TCP/IP Configuration

In this exercise, you'll use two TCP/IP tools, Ipconfig and Ping, to verify your computer's configuration.

As you complete the exercises in this practice, you will use the command prompt and Network

Connections windows frequently. For the sake of efficiency, open the windows one time, and then minimize and restore them as necessary.

To verify a computer's configuration

1. Click Start and then click Run.

2. In the Run dialog box, type cmd and then click OK to open a command prompt.

3. At the command prompt, type ipconfig /all | more and then press Enter.

The Windows XP Professional IP Configuration tool displays the TCP/IP configuration of the physical and logical adapters configured on your computer.

4. Press Spacebar as necessary to display the heading Local Area Connection. Use the information displayed in this section to complete as much of the following table as possible. Press Spacebar to display additional information as necessary and to return to the command prompt.

Local Area Connection setting

Host name

Value

Primary DNS suffix

Connection-specific DNS suffix description

Physical address

DHCP enabled

Autoconfiguration enabled

Autoconfiguration IP address

Subnet mask

Default gateway

5. Press Spacebar as necessary to scroll through the configuration information and return to the command prompt.

6. To verify that the IP address is working and configured for your adapter, type ping 127.0.0.1 and then press Enter.

A response similar to the following indicates a successful ping:

Pinging 127.0.0.1 with 32 bytes of data:

Reply from 127.0.0.1: bytes=32 time<10ms TTL=128

Reply from 127.0.0.1: bytes=32 time<10ms TTL=128

Reply from 127.0.0.1: bytes=32 time<10ms TTL=128

Reply from 127.0.0.1: bytes=32 time<10ms TTL=128

Ping statistics for 127.0.0.1:

Packets: Sent = 4, Received = 4, Lost = 0 <0% loss>,

Approximate round trip times in milliseconds:

Minimum = 0ms, Maximum = 0ms, Average = 0ms

7. Minimize the command prompt.

Exercise 2: Configuring TCP/IP to Use a Static IP Address

In this exercise, you'll configure TCP/IP to use a static IP address.

To configure TCP/IP to use a static IP address

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, and then click

Local Area Connection.

4. Under Network Tools, click Change Settings Of This Connection.

The Local Area Connection Properties dialog box appears, displaying the network adapter in use and the network components used in this connection.

5. Click Internet Protocol (TCP/IP), and then verify that the check box to the left of the entry is selected.

6. Click Properties.

The Internet Protocol (TCP/IP) Properties dialog box appears.

7. Click Use The Following IP Address.

In the next step, if the computer you are using is on a network, enter the IP address, subnet mask, and default gateway values you recorded in the table in Exercise 1. If you are on a stand-alone computer, complete the next step as it is written.

8. In the IP Address text box, type 198.168.1.201 and in the Subnet Mask text box type

255.255.255.0.

Be careful when entering IP configuration settings manually, especially numeric addresses. The most frequent cause of TCP/IP connection problems is incorrectly entered IP address information.

9. Click OK to return to the Local Area Connection Properties dialog box.

10. Click OK to close the Local Area Connection Properties dialog box and return to the Network

Connections window.

11. Minimize the Network Connections window.

To test the static TCP/IP configuration

1. Restore the command prompt.

2. At the command prompt, type ipconfig /all | more and then press Enter.

The Windows XP Professional IP Configuration tool displays the physical and logical adapters configured on your computer.

3. Press Spacebar as needed to scroll through the configuration information and locate the local area connection information.

4. Record the current TCP/IP configuration settings for your local area connection in the following table.

Setting

IP address

Value

Subnet mask

5. Press Spacebar as necessary to scroll through the configuration information and return to the command prompt.

6. To verify that the IP address is working and configured for your adapter, type ping 127.0.0.1 and then press Enter.

If the address is working and configured, you receive the following result:

Reply from 127.0.0.1: bytes=32 time<1ms TTL=128

Reply from 127.0.0.1: bytes=32 time<1ms TTL=128

Reply from 127.0.0.1: bytes=32 time<1ms TTL=128

Reply from 127.0.0.1: bytes=32 time<1ms TTL=128

7. If you have a computer that you are using to test connectivity, type ping ip_address (where

ip_address is the IP address of the computer you are using to test connectivity) and then press

Enter. Minimize the command prompt.

Exercise 3: Configuring TCP/IP to Automatically Obtain an IP

Address

In this exercise, you'll configure TCP/IP to automatically obtain an IP address. You'll then test the configuration to verify that the DHCP Service has provided the appropriate IP addressing information.

Be sure to perform the first part of this exercise even if you have no DHCP server because these settings are also used in Exercise 4.

To configure TCP/IP to automatically obtain an IP address

1. Restore the Network Connections window, right-click Local Area Connection, and then click

Properties.

The Local Area Connection Properties dialog box appears.

2. Click Internet Protocol (TCP/IP) and verify that the checkbox to the left of the entry is selected.

3. Click Properties.

The Internet Protocol (TCP/IP) Properties dialog box appears.

4. Click Obtain An IP Address Automatically.

5. Click OK to close the Internet Protocol (TCP/IP) Properties dialog box.

6. Click OK to close the Local Area Connection Properties dialog box.

7. Minimize the Network Connections window.

To test the TCP/IP configuration

If there is not an available server running the DHCP Service to provide an IP address, skip this procedure and continue with Exercise 4.

1. Restore the command prompt, type ipconfig /release and then press Enter.

2. At the command prompt, type ipconfig /renew and then press Enter.

3. At the command prompt, type ipconfig | more and then press Enter.

4. Pressing Spacebar as necessary, record the current TCP/IP configuration settings for your local area connection in the following table.

Setting

IP address

Value

Subnet mask

Default gateway

To test that TCP/IP is working and bound to your adapter, type ping 127.0.0.1 and then press

Enter.

5. The internal loopback test displays four replies if TCP/IP is bound to the adapter.

Exercise 4: Obtaining an IP Address Using Automatic Private IP

Addressing

In this exercise, if you have a server running the DHCP Service, you need to disable it on that server so that a DHCP server is not available to provide an IP address for your computer. Without a DHCP server available to provide an IP address, the Windows XP Professional Automatic Private IP Addressing feature provides unique IP addresses for your computer. If the DHCP Service cannot be disabled, simply disconnect your network adapter cable.

To obtain an IP address by using Automatic Private IP Addressing

1. At the command prompt, type ipconfig /release and then press Enter.

2. At the command prompt, type ipconfig /renew and then press Enter.

There is a pause while Windows XP Professional attempts to locate a DHCP server on the network.

What message appears, and what does it indicate?

3. Click OK to close the dialog box.

To test the TCP/IP configuration

1. At the command prompt, type ipconfig | more and then press Enter.

2. Pressing Spacebar as necessary, record the current TCP/IP settings for your local area connection in the following table.

Setting

IP address

Value

Subnet mask

Default gateway

Is this the same IP address assigned to your computer in Exercise 3? Why or why not?

3. Press Spacebar to finish scrolling through the configuration information, as necessary.

4. To verify that TCP/IP is working and bound to your adapter, type ping 127.0.0.1 and then press

Enter. The internal loopback test displays four replies if TCP/IP is bound to the adapter.

5. If you have a computer to test TCP/IP connectivity with your computer, type ping ip_address

(where ip_address is the IP address of the computer that you are using to test connectivity) and

then press Enter. If you do not have a computer to test connectivity, skip this step and proceed to

Exercise 5.

Were you successful? Why or why not?

Exercise 5: Obtaining an IP Address Using DHCP

Before you begin this exercise, you'll need to enable the DHCP Service running on the computer that is acting as a DHCP server (or reconnect your network cable if you disconnected it in Exercise 4). In this exercise, your computer obtains IP addressing information from the DHCP server.

If there is not an available server running the DHCP Service to provide an IP address, skip this exercise.

To obtain an IP address using DHCP

1. At the command prompt, type ipconfig /release and then press Enter.

2. At the command prompt, type ipconfig /renew and then press Enter.

After a short wait, a message box indicates that a new IP address was assigned.

3. Click OK to close the message box.

4. At the command prompt, type ipconfig /all | more and then press Enter.

5. Verify that the DHCP server has assigned an IP address to your computer.

6. Close the command prompt.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. Why would you assign a computer a static IP address?

2. Which of the following statements correctly describe IP addresses? (Choose all answers that are correct.) a. Logical 64-bit addresses that identify a TCP/IP host.

b. Each network adapter card in a computer running TCP/IP requires a unique IP address.

c. 192.168.0.108 is an example of a class C IP address.

d. The host ID in an IP address is always the last two octets in the address.

3. What is the purpose of a subnet mask?

4. By default, client computers running Windows XP Professional, Windows 95, or Windows 98 obtain TCP/IP configuration information automatically from the DHCP Service: True or false?

5. Which of the following statements about obtaining an IP address automatically are true? (Choose all answers that are correct.) a. Windows XP Professional includes the DHCP Service.

b. Windows XP Professional includes an Automatic Private IP Addressing feature, which provides DHCP clients with limited network functionality if a DHCP server is unavailable during startup.

c. The Internet Assigned Numbers Authority (IANA) has reserved 169.254.0.0 through

169.254.255.255 for Automatic Private IP Addressing.

d. You should always disable Automatic Private IP Addressing in small workgroups.

6. Your computer running Windows XP Professional was configured manually for TCP/IP. You can connect to any host on your own subnet, but you cannot connect to or even ping any host on a remote subnet. What is the likely cause of the problem and how would you fix it?

7. Your computer's Computer Name is Pro1 and you ping Pro1. The local address for Pro1 is returned as 169.254.x.y. What does this tell you?

Lesson Summary

Each TCP/IP host is identified by a logical IP address that identifies a computer's location on the network.

Microsoft's implementation of TCP/IP enables a TCP/IP host to use a static IP address, to obtain an IP address automatically from a DHCP server, or to use automatic assignment of IP addresses.

Windows XP Professional does not include the DHCP Service; only the Windows 2000 Server products provide the DHCP Service.

Computers enabled with Automatic Private IP Addressing can communicate only with computers on the same subnet that also have addresses of the form 169.254.x.y.

You should use the Ipconfig and Ping command-prompt tools to test the configuration and connections to other TCP/IP hosts and networks.

[Home]

[Previous]

[Next]

Lesson 3: Installing, Configuring, and

Troubleshooting NWLink

The NWLink IPX/SPX/NetBIOS Compatible Transport Protocol (usually referred to as NWLink) is

Microsoft's implementation of Novell's NetWare Internetwork Packet Exchange/Sequenced Packet

Exchange (IPX/SPX) protocol. NWLink is most commonly used in environments in which clients running Microsoft operating systems are used to access resources on NetWare servers, or in which clients running NetWare are used to access resources on computers running Microsoft operating systems.

After this lesson, you will be able to

Install and configure NWLink

Describe the tools Windows XP Professional provides for troubleshooting NWLink

Estimated lesson time: 40 minutes

Understanding NWLink Features

NWLink allows computers running Windows XP Professional to communicate with other network devices that are using IPX/SPX. NWLink also can be used in small network environments that use only clients running Windows XP Professional and other Microsoft operating systems.

NWLink supports the networking application programming interfaces (APIs) that provide the interprocess communication (IPC) services described in Table 4.8.

Table 4.8 Networking APIs Supported by NWLink

Networking API Description

Winsock

Supports existing NetWare applications written to comply with the NetWare

IPX/SPX Sockets interface

Implemented as NWLink NetBIOS; supports communication between a NetWare

NetBIOS over IPX client running NetBIOS and a computer running Windows XP Professional and

NWLink NetBIOS

NWLink also provides NetWare clients with access to applications designed for Windows 2000 Server, such as Microsoft SQL Server and Microsoft SNA Server. To provide NetWare clients access to file and print resources on a computer running Windows 2000 Server, you should install File and Print Services for NetWare (FPNW).

In summary, the 32-bit Windows XP Professional implementation of NWLink provides the following features:

Supports communications with NetWare networks

Supports sockets and NetBIOS over IPX

Provides NetWare clients with access to Windows 2000 servers

Installing NWLink

The procedure for installing NWLink is the same process used to install any network protocol in

Windows XP Professional.

To install NWLink, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, and then click

Local Area Connection.

4. Under Network Tools, click Change Settings Of This Connection. The Local Area Connection

Properties dialog box appears, displaying the network adapter in use and the network components used in this connection.

5. Click Install.

The Select Network Component Type dialog box appears.

6. In the Select Network Component Type dialog box, click Protocol, and then click Add.

The Select Network Protocol dialog box appears.

7. In the Select Network Protocol dialog box, in the Network Protocol list, click NWLink

IPX/SPX/NetBIOS Compatible Transport Protocol (see Figure 4.8), and then click OK.

Figure 4.8 The Select Network Protocol dialog box

Configuring NWLink

NWLink configuration involves three components: frame type, network number, and internal network number. By default, Windows XP Professional detects a frame type and a network number automatically when you install NWLink. Windows XP Professional also provides a generic internal network number.

However, you must specify an internal network number manually if you plan to run FPNW or IPX routing, as shown in Figure 4.9.

Each network adapter card bound to NWLink in a computer requires a frame type and network number.

Figure 4.9 Configuring NWLink

Frame Type

A frame type defines the way the network adapter card formats data. To ensure proper communication between a computer running Windows XP Professional and a NetWare server, you must configure the

NWLink frame type to match the frame type on the NetWare server.

A connection between two computers that use different frame types is possible if the NetWare server is acting as a router. However, this is inefficient and can result in a slow connection.

Table 4.9 lists the topologies and frame types supported by NWLink.

Table 4.9 Topologies and Frame Types Supported by NWLink

Topology

Ethernet

Frame type

Ethernet II, 802.3, 802.2, and Subnetwork Access Protocol

(SNAP), which defaults to 802.2

802.5 and SNAP Token Ring

Fiber Distributed Data Interface (FDDI) 802.2 and SNAP

On Ethernet networks, the standard frame type for NetWare 2.2 and NetWare 3.11 is 802.3. For NetWare

3.12 and later, the default is 802.2.

When you install NWLink, Windows XP Professional automatically determines which IPX frame type is in use on the network and sets the NWLink frame type accordingly. If Windows XP Professional detects frame types in addition to 802.2 during NWLink installation, the frame type for NWLink defaults to

802.2.

Network Number

Each frame type configured on a network adapter card requires a network number, which must be unique for each network segment. All computers on a segment using the same frame type must use the same network number to communicate with one another.

On a computer running Windows XP Professional, type ipxroute config at a command prompt to display the network number, frame type, and device in use.

Although Windows XP Professional automatically detects a network number during NWLink installation by default, you can also specify a network number manually by using the Registry Editor.

Setting a network number in the registry for a given frame type requires entering two corresponding entries, NetworkNumber and PktType, in the HKEY_LOCAL_

MACHINE\SYSTEM\CurrentControlSet\Services\ Nwlnkipx\Parameters\Adapters\Adapter subkey of the registry.

NetworkNumber specifies the network number (in hexadecimal) for the adapter. If the value for this entry is 0, NWLink gets the network number from the network while it is running. Network numbers are

4 bytes (eight hexadecimal characters). The NetworkNumber entry takes a REG_MULTI_SZ data type.

If an adapter uses multiple packet types, you can specify the network number for each packet type by adding corresponding values in the NetworkNumber entry.

PktType specifies the packet form to use. The PktType entry takes a REG_MULTI_SZ data type. Table

4.10 lists the values for the PktType entry and the packet forms supported by NWLink.

Table 4.10 Packet Types or Forms Supported by NWLink

Value

0

1

2

Packet form

Ethernet_II

Ethernet_802.3

Ethernet 802.2

3 Ethernet SNAP

FF (default) Auto Detect

In most cases you should use Auto Detect. You should configure the frame type and network number manually only if Auto Detect does not work in your environment.

Internal Network Number

An internal network number uniquely identifies a computer on the network for internal routing. This eight-digit hexadecimal number, or virtual network number, is set to 00000000 by default.

The internal network number identifies a virtual network segment inside the computer. That is, it identifies another (virtual) segment on the network. Therefore, if an internal network number is configured for a computer running Windows XP Professional, a NetWare server or a router adds an extra hop in its route to the computer.

You must manually assign a unique, nonzero internal network number in the following situations:

FPNW is installed and there are multiple frame types on a single adapter.

FPNW is installed and NWLink is bound to multiple adapters in the computer.

An application is using the NetWare Service Advertising Protocol (SAP). SQL Server and SNA

Server are examples of applications that can use SAP.

If a computer has multiple network adapter cards bound to NWLink, and if you want each to use a different frame type, configure each network adapter card to use the Manual Frame Type Detection option. You also must specify a frame type, network number, and internal network number for each network adapter card.

Troubleshooting NetWare Connectivity

Windows XP Professional provides several tools to help you resolve NetWare connectivity problems, including those listed in Table 4.11.

Table 4.11 Troubleshooting Tools for NetWare Connectivity Problems

Tool

Ipxroute config

Use

Type this command in a command prompt to determine information about the current state of the stack. It displays the current IPX status, including the network number,

MAC address, interface name, and frame type.

Ipxroute ripout

Type ipxroute ripout #### (where #### is an eight-digit hexadecimal number, the network number) to determine whether there is a connection to a specific network.

Network Monitor

Allows you to detect and troubleshoot problems on LANs and on wide area networks

(WANs). Network Monitor helps you identify network traffic patterns and problems.

Connection problems are usually caused by incorrect configuration settings for NWLink. The following sections include several common configuration problems that you should check when you are having problems connecting to a NetWare server from a client running Windows XP Professional.

Verify That NWLink and Client Services for NetWare Are Installed

For a client running Windows XP Professional to access a NetWare server, you must install NWLink and

Client Services for NetWare on the client, and Client Services for NetWare must be running.

To verify that NWLink and Client Services for NetWare are installed, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, Click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, and then doubleclick Local Area Connection.

4. The Local Area Connection Status dialog box appears.

5. Click Properties.

6. The Local Area Connection Properties dialog box appears, displaying the network adapter in use and the network components used in this connection.

7. Verify that NWLink and Client Services for NetWare are listed.

To verify that Client Services for NetWare is running, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, double-click Administrative Tools.

3. In the Status column, verify that Client Service for NetWare is listed as started.

Verify That the Frame Type Is Set to Auto Detect on the Client

For a client running Windows XP Professional to access a NetWare server, the frame type should be configured to Auto Detect.

To verify the frame type on the client is set to Auto Detect, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections, and then doubleclick Local Area Connection.

The Local Area Connection Status dialog box appears.

4. Click Properties.

The Local Area Connection Properties dialog box appears.

5. Double-click NWLink IPX/SPX/NetBIOS Compatible Transport Protocol.

6. In the General tab, verify that Auto Detect is selected in the Frame Type list.

Verify the Installed Network Number and Frame Type on the Client

For a client running Windows XP Professional to access a NetWare server, the frame type and network number must be configured to match the NetWare server.

To determine the installed network number and frame type on the client, complete the following steps:

1. Click Start and then click Run.

2. In the Run dialog box, type cmd and then click OK to open a command prompt.

3. At the command prompt, type ipxroute config and press Enter.

4. Verify that the network number and frame type in the Network and Frame columns are correct for your installation.

Practice: Installing and Configuring NWLink

In this practice, you'll install and configure the NWLink IPX/SPX/NetBIOS Compatible Transport

Protocol. Then you'll install and configure NWLink. With multiple protocols installed, you'll change the binding order of a protocol, unbind a protocol from a network adapter card, and remove NWLink from a computer.

After completing this practice, you will be able to

Install NWLink

Use Ipxroute config to determine the installed network number and frame type

To complete this practice, you need

TCP/IP as the only installed protocol.

You can install any of the available protocols in Windows XP Professional using this procedure.

Run the NWLink file in the Demos folder on the CD-ROM accompanying this book for a demonstration of installing and configuring NWLink.

To install and configure NWLink

1. Restore the Network Connections window.

2. Click Local Area Connection.

3. Under Network Tools, click Change Settings Of This Connection.

Windows XP Professional displays the Local Area Connection Properties dialog box, which shows the network adapter card in use and the network components used in this connection.

4. Click Add.

Windows XP Professional displays the Select Network Component Type dialog box.

5. Click Protocol, and then click Add.

Windows XP Professional displays the Select Network Protocol dialog box.

What protocols can you install?

6. Select NWLink IPX/SPX/NetBIOS Compatible Transport Protocol, and then click OK.

Windows XP Professional displays the Local Area Connection Properties dialog box.

7. Select NWLink IPX/SPX/NetBIOS Compatible Transport Protocol, and then click Properties.

What type of frame detection is selected by default?

Notice that when the default frame type is selected, the Network Number option is not active.

8. Click the arrow to view the Frame Type drop-down menu selections.

What other frame types are listed?

9. Select one of the frame types listed, other than Auto Detect.

Why is the Network Number option now active?

10. Click Cancel to close the NWLink IPX/SPX/NetBIOS Compatible Transport Protocol Properties dialog box.

11. Click Close to close the Local Area Connection Properties dialog box.

To determine the installed network number and frame type on the client

1. Click Start and then click Run.

2. In the Run dialog box, type cmd and then click OK to open a command prompt.

3. At the command prompt, type ipxroute config and press Enter.

What is the network number and frame type for the LAN?

4. Type exit and press Enter to close the command prompt.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. Your computer running Windows XP Professional can communicate with some but not all of the

NetWare servers on your network. Some of the NetWare servers are running frame type 802.2 and some are running 802.3. What is the likely cause of the problem?

2. How can you verify that the network number and frame type are correct for your client computer running Windows XP Professional and attempting to access a NetWare server?

3. Which of the following statements about NWLink are true? (Choose all answers that are correct.) a. NWLink allows computers running Windows XP Professional to communicate with other network devices that are using IPX/SPX.

b. NWLink provides NetWare clients with access to Microsoft SQL Server.

c. NWLink provides NetWare clients access to file and print resources on a computer running Windows 2000 Server.

d. NWLink provides NetWare clients with access to Microsoft SNA Server.

4. Which of the following commands or tools do you type in a command prompt to determine information about the stack, including the current IPX status, network number, MAC address, interface name, and frame type?

a. Ipconfig b. Iproute config c. Ipxroute config d. Ipxroute ripout

Lesson Summary

The NWLink IPX/SPX/NetBIOS Compatible Transport Protocol (NWLink) is Microsoft's implementation of Novell's NetWare IPX/SPX protocol.

NWLink is most commonly used in environments in which clients running Microsoft operating systems are used to access resources on NetWare servers, or in which clients running NetWare are used to access resources on computers running Microsoft operating systems.

NWLink provides NetWare clients with access to applications designed for Windows 2000

Server, such as Microsoft SQL Server and Microsoft SNA Server.

To provide NetWare clients with access to file and print resources on a computer running

Windows 2000 Server, you should install FPNW.

NWLink configuration involves three components: frame type, network number, and internal network number.

By default, Windows XP Professional detects a frame type and a network number automatically when you install NWLink.

Windows XP Professional provides a generic internal network number, but you must specify an internal network number manually if you plan to run FPNW or IPX routing.

For a client running Windows XP Professional to access a NetWare server, you must install

NWLink and Client Services for NetWare on the client, and Client Services for NetWare must be running.

Windows XP Professional provides Ipxroute config, Ipxroute ripout, and Network Monitor to help you resolve NetWare connectivity problems.

[Home]

[Previous]

[Next]

Lesson 4: Network Bindings

Network bindings enable communication among network adapter card drivers, protocols, and services.

Figure 4.10 shows an example of network bindings. In this example, the workstation service is bound to each of three protocols, and each protocol is bound to at least one network adapter card. This lesson describes the function of bindings in a network and the process for configuring them.

Figure 4.10 Network bindings

The Windows XP Professional network architecture uses a series of interdependent layers. The bottom layer of the network architecture ends at the network adapter card, which places information on the cable, allowing information to flow between computers.

After this lesson, you will be able to

Explain how to configure network bindings

Estimated lesson time: 20 minutes

Binding Between Architectural Levels

Binding is the process of linking network components on different levels to enable communication between those components. A network component can be bound to one or more network components above or below it. The services that each component provides can be shared by all other components that are bound to it. For example, in Figure 4.10, TCP/IP is bound to both the Workstation service and the

Server service.

Combining Network Bindings

Many combinations of network bindings are possible. In the example shown in Figure 4.10, all three protocols are bound to the Workstation service, but only the routable protocols, NWLink and TCP/IP, are bound to the Server service. It is possible to select which protocols are bound to the network adapter cards if you are a member of the Administrators group. Network adapter card (0) is bound to all three protocols, and network adapter card (1) is bound only to the routable protocols.

When adding network software, Windows XP Professional automatically binds all dependent network components accordingly. Network Driver Interface Specification (NDIS) 5.1 provides the capability to bind multiple protocols to multiple network adapter card drivers.

Configuring Network Bindings

You can configure your network bindings using My Network Places.

To configure network bindings, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections.

4. In the Network Connections window, on the Advanced menu, click Advanced Settings.

5. In the Advanced Settings dialog box, under Client For Microsoft Networks, do one of the following:

To bind the protocol to the selected adapter, select the check box to the left of the adapter.

There should be a check mark in the check box.

To unbind the protocol from the selected adapter, clear the check box to the left of the adapter.

There should not be a check mark in the check box.

Only an experienced network administrator familiar with the requirements of the network software should attempt to change binding settings.

Specifying Binding Order

You also can specify binding order to optimize network performance. For example, a computer running

Windows XP Professional has NWLink IPX/SPX and TCP/IP installed. However, most of the servers to which this computer connects are running only TCP/IP. Verify that the Workstation binding to TCP/IP is listed before the Workstation bindings for the NWLink IPX/SPX protocol. In this way, when a user attempts to make a connection to a server, the Workstation service first attempts to establish the connection using TCP/IP.

To specify binding order, complete the following steps:

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections.

4. In the Network Connections window, on the Advanced menu, click Advanced Settings.

5. In the Advanced Settings dialog box, under Client For Microsoft Networks, click the protocol for which you want to change the binding order.

6. Use the arrow buttons to change the binding order for protocols that are bound to a specific adapter:

To move the protocol higher in the binding order, click the upward pointing arrow.

To move the protocol lower in the binding order, click the downward pointing arrow.

Practice: Working with Network Bindings

In this practice, you'll change the binding order of the protocols bound to your network adapter card.

Then you'll unbind a protocol from your network adapter card and bind a protocol to your network

adapter card. Finally, you'll uninstall a network protocol.

After completing this practice you will be able to

Change the binding order of protocols

Bind and unbind a protocol

Remove a protocol

To complete this practice, you need

TCP/IP installed as the first network protocol on the computer and NWLink installed as the only other installed protocol.

Run the NetworkBindings file in the Demos folder on the CD-ROM accompanying this book for a demonstration of changing the binding order for a protocol.

Exercise 1: Changing the Binding Order for a Protocol

In this exercise, you'll change the binding order of the protocols bound to your network adapter card.

To change the protocol binding order

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections.

4. In the Network Connections window, on the Advanced menu, click Advanced Settings.

The Advanced Settings dialog box appears.

What is the order of the protocols listed under Client For Microsoft Networks?

5. Under Client For Microsoft Networks, click Internet Protocol (TCP/IP).

There should still be a check mark in the check box in front of Internet Protocol (TCP/IP).

6. Click the upward pointing arrow.

Notice that the order of the protocols listed under Client For Microsoft Networks has changed.

Internet Protocol (TCP/IP) is now listed above NWLink IPX/SPX/NetBIOS Compatible

Transport Protocol.

7. Leave the Advanced Settings window open.

Exercise 2: Unbinding a Protocol

In this exercise, you'll unbind TCP/IP from your network adapter card, leaving NWLink as the only protocol available to access other computers.

To unbind TCP/IP

1. In the Advanced Settings dialog box, under Client For Microsoft Networks, unbind Internet

Protocol (TCP/IP) by clearing the check box to the left of the entry.

2. Click OK.

TCP/IP is no longer bound to your network adapter card.

Exercise 3: Binding a Protocol

In this exercise, you'll bind TCP/IP to your network adapter card.

To bind TCP/IP

1. On the Advanced menu of the Network And Dial-Up Connections window, click Advanced

Settings.

The Advanced Settings dialog box appears.

2. Under Client For Microsoft Networks, select the check box to the left of Internet Protocol

(TCP/IP).

There should now be a check mark in the check box to the left of Internet Protocol (TCP/IP).

3. Click OK.

TCP/IP is now bound to your network adapter card.

Exercise 4: Uninstalling NWLink

In this exercise, you'll uninstall the NWLink IPX/SPX/NetBIOS Compatible Transport Protocol.

To remove NWLink

1. In the Network Connections window, double-click Local Area Connection, and then click

Properties.

The Local Area Connection Properties dialog box appears, displaying the adapter in use and the network components configured for this connection.

2. Click NWLink IPX/SPX/NetBIOS Compatible Transport Protocol, and then click Uninstall.

The Uninstall NWLink IPX/SPX/NetBIOS Compatible Transport Protocol dialog box appears.

3. In the Uninstall NWLink IPX/SPX/NetBIOS Compatible Transport Protocol dialog box, click

Yes to continue.

4. Click OK.

5. In the Network Connections window, double-click Local Area Connection, and then click

Properties.

Notice that NWLink IPX/SPX/NetBIOS Compatible Transport Protocol is no longer listed as an installed protocol.

6. Click Cancel.

7. Close the Network Connections window.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next chapter. If you have difficulty answering these questions, review the material in this lesson before

beginning the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. What is binding?

2. What is the significance of the binding order of network protocols?

3. Can a network component bind to more than one component above or below it? Why is that important?

4. What function does NDIS provide and what version is in Windows XP Professional?

Lesson Summary

Binding is the process of linking network components on different levels to enable communication between those components.

A network component can be bound to one or more network components above or below it.

The services that each component provides can be shared by all other components that are bound to it.

To control which components are bound together, you must be a member of the Administrators group.

You can specify binding order to optimize network performance.

[Home]

[Previous]

[Next]

Chapter 5

Using the DNS Service and Active

Directory Service

About This Chapter

Domain Name System (DNS) is a naming system based on a distributed database used in Transmission

Control Protocol/Internet Protocol (TCP/IP) networks to translate computer names to Internet Protocol

(IP) addresses. It is the widely used default naming system for IP-based networks. DNS makes it easy to locate computers and other resources on these networks. The version of DNS that ships with Microsoft

Windows 2000 Server products is compliant with standard DNS as described in the Request for

Comments (RFC) documents of the Internet Engineering Task Force (IETF). This chapter presents an introduction to DNS and name resolution. It also presents the skills and knowledge necessary to configure clients to use the DNS Service.

A directory service uniquely defines users and resources on a network. Directory services based on

Active Directory technology in Windows 2000 provide a single point of network management, allowing you to add, remove, and relocate users and resources easily. This chapter introduces you to the Active

Directory service.

The DNS Service and Active Directory are not available with Microsoft Windows XP Professional. You must have a computer running one of the Windows 2000 Server products to use Microsoft's DNS Service and Active Directory.

Before You Begin

To complete this chapter, you must have

Installed the Windows XP Professional software on the computer

Installed TCP/IP as the only protocol

[Home]

[Previous]

[Next]

Lesson 1: Understanding DNS

DNS is most commonly associated with the Internet. However, private networks use DNS extensively to resolve computer names and to locate computers within their local networks and the Internet. DNS provides the following benefits:

DNS names are user-friendly, which means that they are easier to remember than IP addresses.

DNS names remain more constant than IP addresses. An IP address for a server can change, but the server name remains the same.

DNS allows users to connect to local servers using the same naming convention as the Internet.

For more information about DNS, see RFC 1034 and RFC 1035. To read the text of these RFCs, use your

Web browser to search for "RFC 1034" and "RFC 1035."

After this lesson, you will be able to

Explain the function of DNS and its components

Estimated lesson time: 20 minutes

Domain Namespace

The domain namespace is the naming scheme that provides the hierarchical structure for the DNS database. Each node, referred to as a domain, represents a partition of the DNS database.

The DNS database is indexed by name, so each domain must have a name. As you add domains to the hierarchy, the name of the parent domain is added to its child domain (called a subdomain).

Consequently, a domain's name identifies its position in the hierarchy. For example, in Figure 5.1, the domain name sales.microsoft.com identifies the sales domain as a subdomain of the microsoft.com domain and microsoft as a subdomain of the com domain.

The hierarchical structure of the domain namespace consists of a root domain, top-level domains, secondlevel domains, and host names.

The term domain, in the context of DNS, is not related to the term as used in the Windows 2000 directory

services. A Windows 2000 domain is a grouping of computers and devices that are administered as a unit.

Figure 5.1 Hierarchical structure of a domain namespace

Root Domain

The root domain is at the top of the hierarchy and is represented as a period (.). The Internet root domain is managed by several organizations, including Network Solutions, Inc.

Top-Level Domains

Top-level domains are two- or three-character name codes. Top-level domains are grouped by organization type or geographic location. Table 5.1 provides some examples of top-level domain names.

Table 5.1 Top-Level Domains

Top-level domain Description

gov com edu org au

Government organizations

Commercial organizations

Educational institutions

Noncommercial organizations

Country code of Australia

Top-level domains can contain second-level domains and host names.

Second-Level Domains

Organizations such as Network Solutions, Inc., assign and register second-level domains to individuals and organizations for the Internet. A second-level name has two name parts: a top-level name and a unique second-level name. Table 5.2 provides some examples of second-level domains.

Table 5.2 Second-Level Domains

Second-level domain Description

ed.gov United States Department of Education

Microsoft.com

Stanford.edu

Microsoft Corporation

Stanford University w3.org pm.gov.au

World Wide Web Consortium

Prime Minister of Australia

Host Names

Host names refer to specific computers on the Internet or a private network. For example, in Figure 5.1,

Computer1 is a host name. A host name is the leftmost portion of a fully qualified domain name (FQDN),

which describes the exact position of a host within the domain hierarchy. In Figure 5.1,

Computer1.sales.microsoft.com. (including the end period, which represents the root domain) is an

FQDN.

DNS uses a host's FQDN to resolve a name to an IP address.

The host name does not have to be the same as the computer name. By default, TCP/IP setup uses the computer name for the host name, replacing illegal characters, such as the underscore (_), with a hyphen

(-). For accepted domain naming conventions, see RFC 1035.

Domain Naming Guidelines

When you create a domain namespace, consider the following domain guidelines and standard naming conventions:

Limit the number of domain levels. Typically, DNS host entries should be three or four levels down the DNS hierarchy and no more than five levels down the hierarchy. The numbers of levels increase the administrative tasks.

Use unique names. Each subdomain must have a unique name within its parent domain to ensure that the name is unique throughout the DNS namespace.

Use simple names. Simple and precise domain names are easier for users to remember and they enable users to search intuitively and locate Web sites or other computers on the Internet or an intranet.

Avoid lengthy domain names. Domain names can be up to 63 characters, including periods. The total length of an FQDN cannot exceed 255 characters. Case-sensitive naming is not supported.

Use standard DNS characters and Unicode characters.

Windows 2000 supports the following standard DNS characters: A-Z, a-z, 0-9, and the hyphen (-), as defined in RFC 1035.

The DNS Service also supports the Unicode character set. The Unicode character set includes additional characters not found in the American Standard Code for Information Exchange (ASCII) character set, which are required for languages such as French, German, and Spanish.

Use Unicode characters only if all servers running the DNS Service in your environment support

Unicode. For more information about the Unicode character set, read RFC 2044 by searching for "RFC

2044" with your Web browser.

Zones

A zone represents a discrete portion of the domain namespace. Zones provide a way to partition the domain namespace into manageable sections and they provide the following functions:

Multiple zones in a domain namespace are used to distribute administrative tasks to different groups. For example, Figure 5.2 depicts the microsoft.com domain namespace divided into two zones. These zones allow one administrator to manage the microsoft and sales domains and another administrator to manage the development domain.

A zone must encompass a contiguous domain namespace. For example, in Figure 5.2, you could not create a zone that consists of only the sales.microsoft.com and development.microsoft.com domains, because these two domains are not contiguous.

For more information about contiguous namespaces, see Lesson 6, "Understanding Active Directory

Concepts," later in this chapter.

Figure 5.2 Domain namespace divided into zones

The name-to-IP address mappings for a zone are stored in the zone database file. Each zone is anchored to a specific domain, referred to as the zone's root domain. The zone database file does not necessarily contain information for all subdomains of the zone's root domain, only those subdomains within the zone.

In Figure 5.2, the root domain for Zone1 is microsoft.com, and its zone file contains the name-to-IP address mappings for the microsoft and sales domains. The root domain for Zone2 is development, and its zone file contains the name-to-IP address mappings only for the development domain. The zone file for Zone1 does not contain the name-to-IP address mappings for the development domain, although development is a subdomain of the microsoft domain.

Name Servers

A DNS name server stores the zone database file. Name servers can store data for one zone or multiple zones. A name server is said to have authority for the domain name space that the zone encompasses.

One name server contains the master zone database file, referred to as the primary zone database file, for the specified zone. As a result, there must be at least one name server for a zone. Changes to a zone, such as adding domains or hosts, are performed on the server that contains the primary zone database file.

Multiple name servers act as a backup to the name server containing the primary zone database file.

Multiple name servers provide the following advantages:

They perform zone transfers. The additional name servers obtain a copy of the zone database file from the name server that contains the primary database zone file. This process is called a zone transfer. These name servers periodically query the name server containing the primary zone database file for updated zone data.

They provide redundancy. If the name server containing the primary zone database file fails, the additional name servers can provide service.

They improve access speed for remote locations. If there are a number of clients in remote locations, use additional name servers to reduce query traffic across slow wide area network

(WAN) links.

They reduce the load on the name server containing the primary zone database file.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next lesson. The answers for these questions are in Appendix A

, "Questions and Answers."

1. What is DNS and what is it used for?

2. Which of the following statements correctly describes DNS root domains? (Choose all answers that are correct.) a. The root domain is at the top of the hierarchy.

b. The root domain is at the bottom of the hierarchy.

c. The root domain is represented by a two- or three-character name code.

d. The root domain is represented by a period (.).

3. Which of the following are second-level domain names? (Choose all answers that are correct.) a. gov b. Microsoft.com

c. au d. ed.gov

4. ________________ provide a way to partition the domain namespace into manageable sections and each ________________ represents a discrete portion of the domain namespace.

Lesson Summary

Domain Name System (DNS) is a distributed database that is the default naming system for IPbased networks.

DNS is used to resolve computer names and to locate computers within local networks and on the

Internet.

Some of the benefits that DNS provides include user-friendly DNS names that are less likely to change than IP addresses, and allowing users to connect to local servers by using the same naming convention as the Internet.

The DNS database is indexed by name, so each domain (node) must have a name. The hierarchical structure of the domain namespace consists of a root domain, top-level domains, second-level domains, and host names.

Host names refer to specific computers on the Internet or a private network. A host name is the leftmost portion of a fully qualified domain name (FQDN), which describes the exact position of a host within the domain hierarchy.

Zones provide a way to partition the domain namespace into smaller sections, so a zone represents a discrete portion of the domain namespace.

[Home]

[Previous]

[Next]

Lesson 2: Understanding Name

Resolution

Name resolution is the process of resolving names to IP addresses. It is similar to looking up a name in a telephone book, in which the name is associated with a telephone number. For example, when you connect to the Microsoft Web site, you use the name www.microsoft.com. DNS resolves

www.microsoft.com to its associated IP address. The mapping of names to IP addresses is stored in the

DNS distributed database.

DNS name servers resolve forward and reverse lookup queries. A forward lookup query resolves a name to an IP address, and a reverse lookup query resolves an IP address to a name. A name server can only resolve a query for a zone for which it has authority. If a name server can't resolve the query, it passes the query to other name servers that can. The name server caches the query results to reduce the DNS traffic on the network.

After this lesson, you will be able to

Explain the name resolution process

Estimated lesson time: 10 minutes

Forward Lookup Query

The DNS Service uses a client/server model for name resolution. To resolve a forward lookup query, which resolves a name to an IP address, a client passes a query to a local name server. The local name server either resolves the query and provides an IP address or queries another name server for resolution.

Figure 5.3 represents a client querying the name server for an IP address of www.microsoft.com.

Figure 5.3 Resolving a forward lookup query

The numbers in Figure 5.3 depict the following activities:

1. The client passes a forward lookup query for www.microsoft.com to its local name server.

2. The local name server checks its zone database file to determine whether it contains the name-to-

IP address mapping for the client query. The local name server does not have authority for the microsoft.com domain, so it passes the query to one of the DNS root servers, requesting resolution of the host name. The root name server sends back a referral to the com name servers.

3. The local name server sends a request to a com name server, which responds with a referral to the

Microsoft name servers.

4. The local name server sends a request to the Microsoft name server. Because the Microsoft name server has authority for that portion of the domain namespace, when it receives the request, it returns the IP address for www.microsoft.com to the local name server.

5. The name server sends the IP address for www.microsoft.com to the client.

6. The name resolution is complete, and the client can access www.microsoft.com.

Name Server Caching

When a name server is processing a query, it might be required to send out several queries to find the answer. With each query, the name server discovers other name servers that have authority for a portion of the domain namespace. The name server caches these query results to reduce network traffic.

When a name server receives a query result, the following process takes place (see Figure 5.4):

1. The name server caches the query result for a specified amount of time, referred to as Time to

Live (TTL).

The zone that provided the query results specifies the TTL. The default value is 60 minutes.

2. After the name server caches the query result, TTL starts counting down from its original value.

3. When TTL expires, the name server deletes the query result from its cache.

Caching query results enables the name server to resolve other queries to the same portion of the domain namespace quickly.

Figure 5.4 Caching query results

Shorter TTL values ensure that data about the domain namespace is more current across the network.

However, shorter TTL values cause the cached values to expire sooner and increase the DNS traffic. A longer TTL value causes the cached values to be retained longer, which decreases the DNS traffic but increases the risk of the entries becoming stale. If a change does occur, the client doesn't receive the updated information until the TTL expires and a new query to that portion of the domain namespace is resolved.

Reverse Lookup Query

A reverse lookup query maps an IP address to a name. Troubleshooting tools, such as the nslookup

command-line tool, use reverse lookup queries to report back host names. Additionally, certain applications implement security based on the ability to connect to names, not IP addresses.

Because the DNS distributed database is indexed by name and not by IP address, a reverse lookup query would require an exhaustive search of every domain name. To solve this problem, in-addr.arpa was created. This special second-level domain follows the same hierarchical naming scheme as the rest of the domain namespace; however, it is based on IP addresses, not domain names, as follows:

Subdomains are named after the numbers in the dotted-decimal representation of IP addresses.

The order of the IP address octets is reversed.

Companies administer subdomains of the in-addr.arpa domain based on their assigned IP addresses and subnet mask.

For example, Figure 5.5 shows a dotted-decimal representation of the IP address 192.168.16.200. A company that has an assigned IP address range of 192.168.16.0 to 192.168.16.255 with a subnet mask of

255.255.255.0 has authority over the 16.168.192.in-addr.arpa domain.

Figure 5.5 The in-addr.arpa domain

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is a forward lookup query and how is it resolved?

2. In DNS name resolution, which of the following statements about Time to Live (TTL) are correct? (Choose all answers that are correct.) a. TTL is the length of time a query can exist before it is resolved or discarded.

b. Shorter TTL values help ensure that data about the domain namespace is more current across the network.

c. Longer TTL values increase the amount of DNS traffic.

d. Longer TTL values cause the cached values to be retained longer.

3. Which of the following statements about DNS name and address resolution are correct? (Choose all answers that are correct.) a. The DNS distributed database is indexed by both names and IP addresses.

b. The top-level domain in-addr.arpa is used for both forward and reverse queries.

c. In the in-addr.arpa domain the order of the IP address octets is reversed.

d. Troubleshooting tools, such as the nslookup command-line tool, use reverse lookup queries to report back host names.

Lesson Summary

Name resolution is the process of resolving names to IP addresses. The mapping of names to IP addresses is stored in the DNS distributed database.

A forward lookup query resolves a name to an IP address, and a reverse lookup query resolves an

IP address to a name.

Name servers cache query results to reduce DNS traffic on the network.

The DNS distributed database is indexed by name and not by IP address, so in-addr.arpa, a special second-level domain, was created. It is based on IP addresses instead of domain names.

[Home]

[Previous]

[Next]

Lesson 3: Configuring a DNS Client

There are several methods available for configuring TCP/IP name resolution on Windows XP

Professional clients. The method covered in this lesson uses DNS to provide name resolution. A second method is to use a HOSTS file. For networks without access to a DNS name server, creating a HOSTS file, which is a manually maintained local file, can provide host-to-IP address and NetBIOS-to-IP name resolution for applications and services. HOSTS files can also be used in environments in which name servers are available, but not all hosts are registered, perhaps because some hosts are only available to a limited number of clients.

If there is a computer on your network that is running Windows 2000 Server and has the DNS Service installed and configured on it, you should use DNS for name resolution. This lesson shows you how to configure your computer as a DNS client.

After this lesson, you will be able to

Configure a DNS client

Estimated lesson time: 25 minutes

Because DNS is a distributed database that is used in TCP/IP networks to translate computer names to IP addresses, you must first ensure that TCP/IP is installed on a client running Windows XP Professional.

Internet Protocol (TCP/IP) is installed by default during Windows XP Professional installation. Once you have confirmed that TCP/IP is installed on your client, you are ready to configure your computer as a

DNS client.

To configure your computer as a DNS client, you would do the following:

1. Click Start, and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. In the Network And Internet Connections window, click Network Connections.

4. Right-click Local Area Connection and then click Properties.

Windows XP Professional displays the Local Area Connection Properties dialog box.

5. Click Internet Protocol (TCP/IP) and then click Properties.

Windows XP Professional displays the Internet Protocol (TCP/IP) Properties dialog box (see

Figure 5.6).

Figure 5.6 Internet Protocol (TCP/IP) Properties dialog box

Configuring DNS Server Addresses

You must select one of the two following options:

Obtain DNS Server Address Automatically. If you select this option, you must have a Dynamic

Host Configuration Protocol (DHCP) server available on your network to provide the IP address of a DNS server.

Use The Following DNS Server Addresses. If you select this option, you must type in the IP addresses of the DNS servers you want this client to use. You can enter a Preferred DNS Server address and an Alternate DNS Server address.

If you click Advanced and then click the DNS tab, you can set additional configurations for DNS (see

Figure 5.7).

Figure 5.7 Advanced TCP/IP Settings dialog box

In the Advanced TCP/IP Settings dialog box, for the DNS Server Addresses, In Order Of Use box, you can do one of the following:

Click Add to enter additional DNS server addresses to the list of servers that service this computer

to resolve DNS domain names.

Click Edit to modify the addresses listed (for example, to correct an error you made in entering an

IP address).

Click Remove to delete the address of a DNS server from the list.

Click the up-pointing arrow or down-pointing arrow to change the order of the servers listed.

These arrows work like the up-pointing and down-pointing arrows you use to change the binding order. The order that the addresses are listed is the order in which the servers are used. If you use the up-pointing arrow to move an address higher on the list, that server is used before all the servers listed after it. Conversely, using the down-pointing arrow to move a server lower on the list causes all servers that are listed above it to be used first to resolve DNS domain names.

Configuring DNS Query Settings

In the Advanced TCP/IP Settings dialog box, you can also configure how suffixes are added to queries.

Append Primary And Connection Specific DNS Suffixes

By default, the Append Primary And Connection Specific DNS Suffixes option is selected. This option causes the DNS resolver to append the client name to the primary domain name, as well as the domain name defined in the DNS Domain Name field of each network connection. The resolver then queries for that FQDN. If this query fails and you have specified a connection-specific DNS suffix in the DNS

Suffix For This Connection text box, it causes the DNS resolver to append the client name to the name you specified there. If a DHCP server configures this connection and you do not specify a DNS suffix, a

DNS suffix for the connection is assigned by an appropriately configured DHCP server. If you specify a

DNS suffix, it is used instead of one assigned by a DHCP server.

The Append Parent Suffixes Of The Primary DNS Suffix check box is also selected by default. If it is selected, the DNS resolver strips off the leftmost portion of the primary DNS suffix and attempts the resulting domain name. If this fails, it continues stripping off the leftmost label and attempting the resulting domain name until only two labels remain.

Append These DNS Suffixes (In Order)

By default, the Append Primary And Connection Specific DNS Suffixes option is selected, so the

Append These DNS Suffixes (In Order) option is not selected; only one of these two options can be selected at one time. This option allows you to specify a list of domains to try. The DNS resolver adds each one of these suffixes, one at a time and in the order you specified. Queries for unqualified names that are used on this computer are limited to the domains that you listed in Append These DNS Suffixes

(In Order).

Register This Connection's Addresses In DNS

Selecting the Register This Connection's Addresses In DNS check box causes the computer to attempt to dynamically register the IP addresses (through DNS) of this computer with its full computer name. To view the computer name for this computer click Start, click My Computer, click View System

Information, and click the Computer Name tab.

Use This Connection's DNS Suffix In DNS Registration

Selecting the Use This Connection's DNS Suffix In DNS Registration check box causes the computer to use DNS dynamic updates to register the IP addresses and the connection-specific domain name of the connection. The connection-specific name of this DNS connection is the computer name, which is the first label of the full computer name specified in the Computer Name tab located in View System

Information, and the DNS suffix of this connection. If the Register This Connection's Addresses In DNS check box is selected, this registration is in addition to the DNS registration of the full computer name.

Practice: Configuring a DNS Client

After completing this practice, you will be able to configure computers running Windows XP

Professional as DNS clients.

To configure a client to use the DNS Service

1. Click Start and then click Control Panel.

2. In the Control Panel window, click Network And Internet Connections.

3. Click Network Connections.

4. Right-click Local Area Connection, and then click Properties.

5. Click Internet Protocol (TCP/IP), and then click Properties.

6. In the Internet Protocol (TCP/IP) Properties dialog box, select Use The Following DNS Server

Addresses.

7. In the Preferred DNS Server text box, type the IP address of the primary name server for this client.

If you are on a network, ask your network administrator the IP address of a DNS server you can use and type that address in the Preferred DNS Server text box. If you are not on a network or if you do not have a DNS server on your network, you can type 192.168.1.203 as the Preferred DNS

Server IP address.

8. If there is a second name server available for this client, in the Alternate DNS Server text box, type the IP address of the second name server for this client.

If you are on a network, ask your network administrator for the IP address of a second DNS server you can use and type that address in the Alternate DNS Server text box. If you are not on a network or if you do not have a DNS server on your network, you can type 192.168.1.205 as the

Alternate DNS Server IP address.

A client attempts to send its query requests to the preferred name server. If that name server is not responding, the client sends the query request to the alternate name server.

If you are going to configure several computers running Windows XP Professional as DNS clients, configure some of the clients to use the alternate name server as the preferred name server. This reduces the load on the primary server.

9. Click Advanced, and then in the Advanced TCP/IP Settings dialog box, click the DNS tab.

10. Under DNS Server Addresses, In Order Of Use, click Add.

11. If there is a third name server available for this client, in the TCP/IP DNS Server text box, type the IP address of the third available name server for this client.

If you are on a network, ask your network administrator for the IP address of a third DNS server you can use and type that address in the TCP/IP DNS Server text box. If you are not on a network or if you do not have a DNS server on your network, you can type 192.168.1.207 as an additional

DNS Server IP address.

12. Click Add to add the third DNS server address and to close the TCP/IP DNS Server dialog box.

There are now three addresses in the DNS Server Addresses, In Order Of Use list box.

13. Click OK to close the Advanced TCP/IP Settings dialog box.

14. Click OK to close the Internet Protocol (TCP/IP) Properties dialog box.

15. Click Close to close the Local Connection Properties dialog box.

16. Close the Network Connections window.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is a HOSTS file and when would you create one?

2. Which of the following statements about configuring a DNS client are correct? (Choose all answers that are correct.) a. If you select the Obtain DNS Server Address Automatically option, at least one of the available DNS servers must be configured to broadcast its IP address.

b. If you select the Use The Following DNS Server Addresses, you are limiting your DNS client to being able to use only two DNS servers, the preferred DNS server and the alternate DNS server.

c. To use the Obtain DNS Server Address Automatically option, you must have a DHCP server available on your network.

d. To configure a DNS client, you use Network and Internet Connections, which is located in

Control Panel.

3. Which of the following functions do you perform using the Advanced TCP/IP Settings dialog box? (Choose all answers that are correct.) a. Edit the IP address of a DNS server.

b. Delete the IP address of a DNS server.

c. Enter additional IP addresses for other available DNS servers.

d. Edit the IP addresses of the DHCP servers on the network.

4. What does selecting the Append These DNS Suffixes (In Order) option do?

Lesson Summary

For networks without access to a DNS name server, you can manually create a HOSTS file, which provides host-to-IP address and NetBIOS-to-IP name resolution for applications and services.

In configuring a DNS client in an environment where there are DNS name servers, you can configure the client to obtain the address of the DNS server automatically from a DHCP server or you can manually enter multiple addresses for DNS servers.

In the Advanced TCP/IP Settings dialog box, you can configure how suffixes are added to queries.

[Home]

[Previous]

[Next]

Lesson 4: Understanding Active

Directory

Most computers running Windows XP Professional will be clients in a Windows 2000 domain. One of the benefits of joining a Windows 2000 domain is the Active Directory service. It is important to understand the overall purpose of a directory service and the role that Active Directory plays in a

Windows 2000 network. In addition, you should know about the key features of Active Directory, which have been designed to provide flexibility and ease of administration.

After this lesson, you will be able to

Explain the purpose and function of Active Directory

Estimated lesson time: 15 minutes

What Is Active Directory?

Active Directory is the directory service included in the Windows 2000 Server products. A directory service is a network service that identifies all resources on a network and makes them accessible to users and applications.

Active Directory includes the directory or data store, which is a structured database that stores information about network resources, as well as all the services that make the information available and useful. The resources stored in the directory, such as user data, printers, servers, databases, groups, computers, and security policies, are known as objects.

Simplified Administration

Active Directory organizes resources hierarchically in domains, which are logical groupings of servers and other network resources under a single domain name. The domain is the basic unit of replication and security in a Windows 2000 network.

Each domain includes one or more domain controllers. A domain controller is a computer running one of the Windows 2000 Server products that stores a complete replica of the domain directory. To simplify administration, all domain controllers in the domain are peers. You can make changes to any domain controller, and the updates are replicated to all other domain controllers in the domain.

Active Directory further simplifies administration by providing a single point of administration for all objects on the network. Because Active Directory provides a single logon point for all network resources, an administrator can log on to one computer and administer objects on any computer in the network.

Scalability

In Active Directory, the directory stores information by organizing itself into sections that permit storage for a very large number of objects. As a result, the directory can expand as an organization grows, allowing you to scale from a small installation with a few hundred objects to a very large installation with millions of objects.

You can distribute directory information across several computers in a network.

Open Standards Support

Active Directory integrates the Internet concept of a namespace with the Windows 2000 directory services. This allows you to unify and manage the multiple namespaces that now exist in the heterogeneous software and hardware environments of corporate networks. Active Directory uses DNS for its name system and can exchange information with any application or directory that uses

Lightweight Directory Access Protocol (LDAP) or Hypertext Transfer Protocol (HTTP).

Active Directory also shares information with other directory services that support LDAP version 2 and version 3, such as Novell Directory Services.

Domain Name System (DNS)

Because Active Directory uses DNS as its domain naming and location service, Windows 2000 domain names are also DNS names. Windows 2000 Server uses Dynamic DNS (DDNS), which enables clients with dynamically assigned addresses to register directly with a server running the DNS Service and update the DNS table dynamically. DDNS eliminates the need for other Internet naming services, such as

Windows Internet Naming Service (WINS), in a homogeneous environment.

For Active Directory and associated client software to function correctly, you must have installed and configured the DNS Service.

Support for LDAP and HTTP

Active Directory further embraces Internet standards by directly supporting LDAP and HTTP. LDAP is an Internet standard for accessing directory services, developed as a simpler alternative to the Directory

Access Protocol (DAP). For more information about LDAP, use your Web browser to search for "RFC

1777" and retrieve the text of this RFC. Active Directory supports both LDAP version 2 and version 3.

HTTP is the standard protocol for displaying pages on the World Wide Web. You can display every object in Active Directory as a Hypertext Markup Language (HTML) page in a Web browser. Thus, users receive the benefit of the familiar Web browsing model when querying and viewing objects in

Active Directory.

Active Directory uses LDAP to exchange information between directories and applications.

Support for Standard Name Formats

Active Directory supports several common name formats. Consequently, users and applications can access Active Directory by using the format with which they are most familiar. Table 5.3 describes some standard name formats supported by Active Directory.

Table 5.3 Standard Name Formats Supported by Active Directory

Format Description

RFC 822

RFC 822 names are in the form [email protected] and are familiar to most users as

Internet e-mail addresses.

HTTP

URL

HTTP Uniform Resource Locators (URLs) are familiar to users with Web browsers and take the form http://domain/path-to-page.

UNC

Active Directory supports the Universal Naming Convention (UNC) used in Windows 2000

Server-based networks to refer to shared volumes, printers, and files. An example is

\\microsoft.com\xl\budget.xls.

LDAP

URL

An LDAP URL specifies the server on which the Active Directory service resides and the attributed name of the object. Active Directory supports a draft to RFC 1779 and uses the attributes in the following example:

LDAP://someserver.microsoft.com/CN=FirstnameLastname,OU=sys,

OU=product,OU=division,DC=devel where CN represents CommonName, OU represents

OrganizationalUnitName, and DC represents DomainComponentName.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. ___________________ is the directory service included in the Windows 2000 Server products.

2. What is a directory service?

3. What are two ways that Active Directory simplifies administration?

4. Active Directory uses ________________ as its domain naming and location service.

Lesson Summary

Active Directory is the directory service included in the Windows 2000 Server products.

Active Directory is not included in Windows XP Professional, but if your Windows XP

Professional clients are in a Windows 2000 domain, the features and benefits provided by Active

Directory are also available on the clients.

Active Directory includes the directory or data store, which stores information about network resources. The directory can scale from a small installation with a few hundred objects to a very large installation with millions of objects.

Active Directory uses DNS as its domain naming and location service, so Windows 2000 domain names are also DNS names.

Windows 2000 Server uses Dynamic DNS (DDNS), so clients with dynamically assigned addresses can register directly with a server running the DNS Service and dynamically update the

DNS table.

[Home]

[Previous]

[Next]

Lesson 5: Understanding Active Directory

Structure and Replication

Active Directory provides a method for designing a directory structure that meets the needs of your organization.

As a result, before installing Active Directory, you should examine your organization's business structure and operations.

Many companies have a centralized structure. Typically, these companies have strong information technology (IT) departments that define and implement the network structure down to the smallest detail. Other organizations, especially large enterprises, are very decentralized. These companies have multiple businesses, each of which is very focused. They need decentralized approaches to managing their business relationships and networks.

With the flexibility of Active Directory, you can create the network structure that best fits your company's needs.

Active Directory completely separates the logical structure of the domain hierarchy from the physical structure.

After this lesson, you will be able to

Explain Active Directory structure and replication

Estimated lesson time: 30 minutes

Logical Structure

In Active Directory, you organize resources in a logical structure. This enables you to find a resource by its name rather than its physical location. Because you group resources logically, Active Directory makes the network's physical structure transparent to users.

Objects

An object is a distinct, named set of attributes that represents a network resource. Object attributes are characteristics of objects in the directory. For example, the attributes of a user account might include the user's first and last names, department, and e-mail address (see Figure 5.8).

Figure 5.8 Active Directory objects and attributes

In Active Directory, you can organize objects in classes, which are logical groupings of objects. For example, an object class might be user accounts, groups, computers, domains, or organizational units (OUs).

Some objects, known as containers, can contain other objects. For example, a domain is a container object.

Organizational Units

An OU is a container used to organize objects within a domain into logical administrative groups. An OU can contain objects such as user accounts, groups, computers, printers, applications, file shares, and other OUs (see

Figure 5.9).

Figure 5.9 Resources organized in a logical hierarchical structure

The OU hierarchy within a domain is independent of the OU hierarchy structure of other domains-each domain can implement its own OU hierarchy. There are no restrictions on the depth of the OU hierarchy. However, a shallow hierarchy performs better than a deep one, so you should not create an OU hierarchy any deeper than necessary.

You can delegate administrative tasks by assigning permissions to OUs.

Domains

The core unit of logical structure in Active Directory is the domain. Grouping objects into one or more domains allows your network to reflect your company's organization. Domains share the following characteristics:

All network objects exist within a domain, and each domain stores information only about the objects that it contains. Theoretically, a domain directory can contain up to 10 million objects, but 1 million objects per domain is a more practical amount.

A domain is a security boundary. Access control lists (ACLs) control access to domain objects. ACLs contain the permissions associated with objects that control which users can gain access to an object and what type of access users can gain. In Windows 2000, objects include files, folders, shares, printers, and

Active Directory objects. All security policies and settings-such as administrative rights, security policies, and ACLs-do not cross from one domain to another. The domain administrator has absolute rights to set policies only within that domain.

Trees

A tree is a grouping or hierarchical arrangement of one or more Windows 2000 domains that share a contiguous namespace (see Figure 5.10).

Figure 5.10 A domain tree

Trees have the following characteristics:

Following DNS standards, the domain name of a child domain is the relative name of that child domain appended with the name of the parent domain.

All domains within a single tree share a common schema, which is a formal definition of all object types that you can store in an Active Directory deployment.

All domains within a single tree share a common Global Catalog, which is the central repository of information about objects in a tree.

Forests

A forest is a grouping or hierarchical arrangement of one or more domain trees that form a disjointed namespace

(see Figure 5.11).

Figure 5.11 A forest of trees

Forests have the following characteristics:

All trees in a forest share a common schema.

Trees in a forest have different naming structures, according to their domains.

All domains in a forest share a common Global Catalog.

Domains in a forest operate independently, but the forest enables communication across the entire organization.

In Figure 5.11, microsoft.com and msn.com form a forest. The namespace is contiguous only within each tree.

Physical Structure

The physical components of Active Directory, domain controllers and sites, are used to mirror the physical structure of an organization.

Domain Controllers

A domain controller is a computer running Windows 2000 Server that stores a replica of the domain directory

(local domain database). Because a domain can contain one or more domain controllers, each domain controller in a domain has a complete replica of the domain's portion of the directory.

The functions of domain controllers include the following:

Each domain controller stores a complete copy of all Active Directory information for that domain, manages changes to that information, and replicates those changes to other domain controllers in the same domain.

Domain controllers in a domain automatically replicate all objects in the domain to each other. When you perform an action that causes an update to Active Directory, you are actually making the change at one of

the domain controllers. That domain controller then replicates the change to all other domain controllers within the domain. You can control replication of traffic between domain controllers in the network by specifying how often replication occurs and the amount of data that Windows 2000 replicates at one time.

Domain controllers immediately replicate certain important updates, such as the disabling of a user account.

Active Directory uses multimaster replication, in which no one domain controller is the master domain controller. Instead, all domain controllers within a domain are peers, and each domain controller contains a copy of the directory database that can be written to. Domain controllers can hold different information for short periods of time until all domain controllers have synchronized changes to Active Directory.

Domain controllers detect collisions, which can occur when an attribute is modified on a domain controller before a change to the same attribute on another domain controller is completely propagated. Collisions are detected by comparing each attribute's property version number, a number specific to an attribute that is initialized on creation of the attribute. Active Directory resolves the collision by replicating the changed attribute with the higher property version number.

Having more than one domain controller in a domain provides fault tolerance. If one domain controller is offline, another domain controller can provide all required functions, such as recording changes to Active

Directory.

Domain controllers manage all aspects of user domain interaction, such as locating Active Directory objects and validating user logon attempts.

In general there should be one domain controller for each domain in each site for authentication purposes.

However, authentication requirements for your organization determine the number of domain controllers and their locations.

Sites

A site is a combination of one or more IP subnets connected by a highly reliable, fast link to localize as much network traffic as possible. Typically, a site has the same boundaries as a local area network (LAN). When you group subnets on your network, you should combine only those subnets that have fast, cheap, and reliable network connections with one another. Fast network connections are at least 512 kilobits per second (Kbps). An available bandwidth of 128 Kbps and higher is sufficient.

With Active Directory, sites are not part of the namespace. When you browse the logical namespace, you see computers and users grouped into domains and OUs, not sites. Sites contain only computer objects and connection objects used to configure replication between sites.

A single domain can span multiple geographical sites, and a single site can include user accounts and computers belonging to multiple domains.

Replication Within a Site

Active Directory also includes a replication feature. Replication ensures that changes to a domain controller are reflected in all domain controllers within a domain. To understand replication, you must understand domain controllers. A domain controller is a computer running Windows 2000 Server that stores a replica of the domain directory. A domain can contain one or more domain controllers.

Within a site, Active Directory automatically generates a ring topology for replication among domain controllers in the same domain. The topology defines the path for directory updates to flow from one domain controller to another until all receive the directory updates (see Figure 5.12).

Figure 5.12 Replication topology

The ring structure ensures that there are at least two replication paths from one domain controller to another.

Therefore, if one domain controller is down temporarily, replication still continues to all other domain controllers.

Active Directory periodically analyzes the replication topology within a site to ensure that it is still efficient. If you add or remove a domain controller from the network or a site, Active Directory reconfigures the topology to reflect the change.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson.

The answers are in Appendix A , "Questions and Answers."

1. In Active Directory, you organize resources in a logical structure. What advantage does this provide?

2. A(n) _____________ is a distinct, named set of attributes that represents a network resource.

3. What component do you use to organize objects into logical administrative groups?

a. Site b. Tree c. Domain d. OU

4. A(n) ____________ is a grouping or hierarchical arrangement of one or more ___________________ that form a disjointed namespace.

5. A site is a combination of one or more IP subnets connected by a highly reliable and fast link to localize as much network traffic as possible. Fast network connections are at least

_________________________________ and an available bandwidth of

____________________________________ is sufficient.

a. 256 Kbps, 128 Kbps and higher b. 512 Kbps, 128 Kbps and higher c. 512 Kbps, 256 Kbps and higher d. 1024 Kbps, 512 Kbps and higher

6. The physical components of Active Directory are ______________________ and ________________.

Lesson Summary

Active Directory completely separates the logical structure of the domain hierarchy from the physical structure.

In Active Directory, grouping resources logically enables you to find a resource by its name rather than its physical location, making the network's physical structure transparent to users.

The core unit of logical structure in Active Directory is the domain. All network objects exist within a domain, and each domain stores information only about the objects that it contains.

An organizational unit (OU) is a container used to organize objects within a domain into logical administrative groups, and an OU can contain objects such as user accounts, groups, computers, printers, applications, file shares, and other OUs.

A tree is a grouping or hierarchical arrangement of one or more Windows 2000 domains that share a contiguous namespace. A forest is a grouping or hierarchical arrangement of one or more trees that form a disjointed namespace.

The physical structure of Active Directory is based on sites and domain controllers.

A site is a combination of one or more IP subnets connected by a high-speed link.

Within a site, Active Directory automatically generates a ring topology for replication among domain controllers in the same domain. The ring structure ensures that there are at least two replication paths from one domain controller to another; if one domain controller is down temporarily, replication continues to all other domain controllers.

[Home]

[Previous]

[Next]

Lesson 6: Understanding Active Directory

Concepts

There are several new concepts introduced with Active Directory. It is important that you understand their meaning as applied to Active Directory.

After this lesson, you will be able to

Explain concepts associated with Active Directory

Estimated lesson time: 30 minutes

Schema

The Active Directory schema defines objects that can be stored in Active Directory. The schema is a list of definitions that determines the kinds of objects and the type of information about those objects that can be stored in Active Directory, as shown earlier in Figure 5.8.

The schema contains two types of definition objects: schema class objects and schema attribute objects. Class objects and attribute objects are defined in separate lists within the schema (see Figure 5.13). Schema class and attribute objects are also referred to as schema objects.

Figure 5.13 Schema class and attribute objects

Schema class objects describe the possible Active Directory objects that can be created. Each schema class is a collection of schema attribute objects. For each object class, the schema defines what attributes an instance of the class must have, what additional attributes it can have, and what object class can be a parent of the current object class. Every object in Active Directory is an instance of a schema class object.

Schema attribute objects define the schema class objects with which they are associated. Each schema attribute is defined only once and can be used in multiple schema classes. Because the schema definitions are themselves stored as objects in Active Directory, they can be administered in the same manner as the rest of the objects in

Active Directory.

Installing Active Directory on the first domain controller in a network creates a default schema that contains a set of basic schema class attributes. The default schema also contains definitions of objects and properties that

Active Directory uses internally to function.

The Active Directory schema is extensible, which means that you can define new directory object types and attributes and new attributes for existing objects. You can extend the schema by using the Schema Manager snapin or the Active Directory Service Interfaces (ADSI). Only experienced developers or network administrators should dynamically extend the schema by defining new classes and attributes for existing classes.

The schema is implemented and stored within Active Directory itself (in the Global Catalog), and it can be updated dynamically. As a result, an application can extend the schema with new attributes and classes and use

the extensions immediately.

Write access to the schema is limited to members of the Schema Admins group by default.

Global Catalog

Active Directory allows users and administrators to find objects (such as files, printers, or users) in their own domain. However, finding objects outside of the domain and across the enterprise requires a mechanism that allows the domains to act as one entity. A catalog service contains selected information about every object in all domains in the directory, which is useful in performing searches across an enterprise. The catalog service provided by Active Directory services is called the Global Catalog.

The Global Catalog is the central repository of information about objects in a tree or forest, as shown in Figure

5.14. By default, a Global Catalog is created automatically on the first domain controller in the first domain in the forest, and the domain controller containing the Global Catalog is known as the Global Catalog server. Using

Active Directory service's multimaster replication, the Global Catalog information is replicated between Global

Catalog servers in other domains.

Figure 5.14 The Global Catalog

By default, the attributes stored in the Global Catalog are those most frequently used in search operations (such as a user's first and last names, logon name, and so forth) and those necessary to locate a full replica of the object. As a result, you can use the Global Catalog to locate objects anywhere in the network without replication of all domain information between domain controllers.

You use the Schema Manager snap-in to define which attributes are included in the Global Catalog replication process.

You can designate additional domain controllers as Global Catalog servers using the Sites and Servers

Management snap-in. When considering which domain controllers to designate as Global Catalog servers, base your decision on the ability of your network structure to handle replication and query traffic. The more Global

Catalog servers you have, the greater the replication traffic is. However, the availability of additional servers can provide quicker responses to user inquiries. Every major site in your enterprise should have a Global Catalog server.

Namespace

Active Directory, like all directory services, is primarily a namespace. A namespace is any bounded area in which a name can be resolved. Name resolution is the process of translating a name into some object or information that the name represents. The Active Directory namespace is based on the DNS naming scheme, which allows for interoperability with Internet technologies. An example namespace is shown in Figure 5.15.

Figure 5.15 Namespace diagram

Using a common namespace allows you to unify and manage multiple hardware and software environments in

your network. There are two types of namespaces:

Contiguous namespace. The name of the child object in an object hierarchy always contains the name of the parent domain. A tree is a contiguous namespace.

Disjointed namespace. The names of a parent object and a child of the same parent object are not directly related to one another. A forest is a disjointed namespace.

Naming Conventions

Every object in Active Directory is identified by a name. Active Directory uses a variety of naming conventions: distinguished names, relative distinguished names, globally unique identifiers, and user principal names.

Distinguished Name

Every object in Active Directory has a distinguished name (DN), which uniquely identifies an object and contains sufficient information for a client to retrieve the object from the directory. The DN includes the name of the domain that holds the object, as well as the complete path through the container hierarchy to the object.

For example, the following DN identifies the Firstname Lastname user object in the microsoft.com domain

(where Firstname and Lastname represent the actual first and last names of a user account):

/DC=COM/DC=microsoft/OU=dev/CN=Users/CN=Firstname Lastname

Table 5.4 describes the attributes in the example.

Table 5.4 Distinguished Name Attributes

Attribute Description

DC DomainComponentName

OU

CN

OrganizationalUnitName

CommonName

DNs must be unique, because Active Directory does not allow duplicate DNs.

Relative Distinguished Name

Active Directory supports querying by attributes, so you can locate an object even if the exact DN is unknown or has changed. The relative distinguished name (RDN) of an object is the part of the name that is an attribute of

the object itself. In the preceding example, the RDN of the Firstname Lastname user object is Firstname

Lastname. The RDN of the parent object is Users.

You can have duplicate RDNs for Active Directory objects, but you cannot have two objects with the same

RDN in the same OU. For example, if a user account is named Jane Doe, you cannot have another user account called Jane Doe in the same OU. However, objects with duplicate RDNs can exist in separate OUs because they have different DNs (see Figure 5.16).

Figure 5.16 DNs and RDNs

Globally Unique Identifier

A globally unique identifier (GUID) is a 128-bit number that is guaranteed to be unique. GUIDs are assigned to objects when they are created. The GUID never changes, even if you move or rename the object. Applications can store the GUID of an object and use it to retrieve that object regardless of its current DN.

User Principal Name

User accounts have a "friendly" name, the user principal name (UPN). The UPN is composed of a "shorthand" name for the user account and the DNS name of the tree where the user account object resides. For example, user Firstname Lastname (substitute the first and last names of an actual user) in the microsoft.com tree might have a UPN of [email protected] (using the full first name and the first letter of the last name).

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson.

If you have difficulty answering these questions, review the material in this lesson before beginning the next chapter. The answers are in

Appendix A , "Questions and Answers."

1. What is the Active Directory schema?

2. Which of the following statements are correct for Active Directory Global Catalogs?

a. The Global Catalog is the central repository of information about objects in a tree or forest.

b. By default, a Global Catalog is created automatically on the first domain controller in the first domain in the forest.

c. The Global Catalog is a list of definitions that determines the kinds of objects and the type of information about those objects that can be stored in Active Directory.

d. Only experienced developers or network administrators should dynamically extend the Global

Catalog.

3. Every object in Active Directory has a _______________________________ that uniquely identifies an object and contains sufficient information for a client to retrieve the object from the Directory.

4. A _________________________________ is a 128-bit number that is assigned to an object when it is created and is guaranteed to be unique.

5. What is the difference between a contiguous namespace and a disjointed namespace? Give an example of each type of namespace.

Lesson Summary

The schema contains a formal definition of the contents and structure of Active Directory, including all classes and attributes.

Installing Active Directory on the first domain controller in a network creates a default schema.

The Active Directory schema is extensible.

The Global Catalog contains selected information about every object in all domains in the directory.

In a contiguous namespace, the name of the child object in an object hierarchy always contains the name of the parent domain. A tree is an example of a contiguous namespace.

In a disjointed namespace, the names of a parent object and of a child of the same parent object are not directly related to one another. A forest is an example of a disjointed namespace.

[Home]

[Previous]

[Next]

Chapter 6

Setting Up, Configuring, and

Troubleshooting Common Setup and

Configuration Problems for Network

Printers

About This Chapter

This chapter introduces you to setting up and configuring network printers so that users can print over the network. You will also learn how to troubleshoot common printing problems associated with setting up network printers.

Before You Begin

To complete this chapter, you must have

Installed the Microsoft Windows XP Professional software on the computer

You do not need a printer to complete the exercises in this chapter.

[Home]

[Previous]

[Next]

Lesson 1: Introduction to Windows XP

Professional Printing

With Windows XP Professional printing, you can share printing resources across an entire network and administer printing from a central location. You can easily set up printing on client computers running

Microsoft Windows XP, Microsoft Windows 2000 Professional, Microsoft Windows NT 4, Microsoft

Windows Me, Microsoft Windows 98, and Microsoft Windows 95.

After this lesson, you will be able to

Define Microsoft Windows XP Professional printing terms

Estimated lesson time: 15 minutes

Terminology

Before you set up printing, you should be familiar with Windows XP Professional printing terminology to understand how the different components fit together, as shown in Figure 6.1.

Figure 6.1 Printing terminology

The following list defines some Windows XP Professional printing terms:

Printer. A hardware device that puts text or images on paper or on other print media.

Windows XP Professional supports the following print devices:

Local printers, which are connected to a physical port on the print server.

Network interface printers, which are connected to a print server through the network instead of a physical port. Network interface printers require their own network interface cards and have their own network address or they are attached to an external network adapter.

Printer port. The software interface through which a computer communicates with a printer by means of a locally attached interface. Windows XP Professional supports the following interfaces: line printer (LPT), COM, universal serial bus (USB) 1.1, IEEE 1394 (FireWire), and networkattached devices such as the HP JetDirect and Intel NetPort.

At this time, Windows XP Professional does not support USB 2.0. Windows XP Professional treats a FireWire card as a network and a peripheral connectivity device. FireWire is used to connect digital camcorders, scanners, and other high-bandwidth devices to computers.

Print server. The computer that manages one or more printers on a network. The print server receives and processes documents from client computers.

Printer driver. One file or a set of files containing information that Windows XP Professional requires to convert print commands into a specific printer language, such as Adobe PostScript.

This conversion makes it possible for a printer to print a document. A printer driver is specific to each printer model.

Requirements for Network Printing

The requirements for setting up printing on a Windows 2000 network include the following:

At least one computer to operate as the print server. If the print server is to manage many heavily used printers, Microsoft recommends a dedicated print server. The computer can run either of the following:

Windows 2000 Server, which can handle a large number of connections and supports

Apple Macintosh and UNIX computers and Novell NetWare clients.

Windows XP Professional, which is limited to 10 concurrent connections from other computers for file and print services. It does not support Macintosh computers or NetWare clients but does support UNIX computers.

Sufficient random access memory (RAM) to process documents. If a print server manages a large number of printers or many large documents, the server might require additional RAM beyond what Windows XP Professional or Windows 2000 Server requires for other tasks. If a print server does not have sufficient RAM for its workload, printing performance deteriorates.

Sufficient disk space on the print server to ensure that the print server can store documents that are sent to it until it sends the documents to the print device. This is critical when documents are large or likely to accumulate. For example, if 10 users send large documents to print at the same time, the print server must have enough disk space to hold all of the documents until it can send them to the print device. If there is not enough space to hold all of the documents, users get error messages and are unable to print.

The requirements for network printing are as follows:

A computer to operate as the print server running either Windows 2000 Server or, for networks with 10 or fewer concurrent client computers, Windows XP Professional

Sufficient RAM to process documents

Sufficient disk space on the print server to store documents until they print

Guidelines for a Network Printing Environment

Before you set up network printing, develop a network-wide printing strategy to meet users' printing needs without unnecessary duplication of resources or delays in printing. Table 6.1 provides some guidelines for developing such a strategy.

Table 6.1 Network Printing Environment Guidelines

Guideline

Determine users' printing requirements

Explanation

Determine the number of users who print and the printing workload. For example, 10 people in a billing department who print invoices continually will have a larger printing workload and might require more printers and possibly more print servers than 10 software developers who do all their work online.

Determine company's printing requirements

Determine the printing needs of your company. This includes the number and types of printers that are required. In addition, consider the type of workload that each printer will handle. Don't use a personal printer for network printing.

Determine the number of print servers that your network

Determine the number of print servers required requires to handle the number and types of printers that your network will contain.

Determine where to locate printers

Determine where to put the printers so that it's easy for users to pick up their printed documents.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A , "Questions and Answers."

1. ______________________ are connected to a physical port on the print server.

2. Do you have to have a computer running one of the Windows Server products to have a print server on your network? Why?

3. Windows XP Professional can provide __________________ concurrent connections from other computers for file and print services.

a. 20 b. 10 c. unlimited d. 30

4. A ______________________ is one file or a set of files containing information that Windows XP

Professional requires to convert print commands into a specific printer language, such as

PostScript.

5. Windows XP Professional printing supports which of the following software interfaces or printer ports? (Choose all answers that are correct.) a. LPT b. COM c. USB d. HP JetDirect

6. Windows XP Professional printing supports which of the following types of computers? (Choose all answers that are correct.) a. Macintosh computers b. UNIX computers c. NetWare clients d. Windows 98 computers

Lesson Summary

A printer is a hardware device that puts text or images on paper or on other print media.

Local printers are connected to a physical port on the print server, and network interface printers are connected to a print server through the network.

Network interface printers require their own network interface cards and have their own network address, or they are attached to an external network adapter.

Windows XP Professional supports the following printer ports (software interfaces): LPT, COM,

USB, and network-attached devices such as the HP JetDirect and Intel NetPort.

A printer driver is one file or a set of files containing information that Windows XP Professional requires to convert print commands into a specific printer language.

[Home]

[Previous]

[Next]

Lesson 2: Setting Up Network Printers

Setting up and sharing a network printer makes it possible for multiple users to utilize it. You can set up a local printer that is connected directly to the print server, or you can set up a network interface printer that is connected to the print server over the network. In larger organizations, most printers are network interface printers.

After this lesson, you will be able to

Identify the requirements for setting up a network printer and network printing resources

Add and share a new local or network interface printer

Describe how to add a new printer port

Set up client computers

Estimated lesson time: 30 minutes

Adding and Sharing a Local Printer

The steps for adding a local printer or a network interface printer are similar. You would use the following steps to add a local printer:

1. Log on as Administrator or with a user account that is a member of the Administrators group on the print server.

2. Click Start, click Control Panel, and then click Printers And Other Hardware.

3. Under Pick A Task, click Add A Printer to launch the Add Printer Wizard.

The Add Printer Wizard starts with the Welcome To The Add Printer Wizard page displayed.

If you have a Plug and Play printer that connects through a USB port, an IEEE 1394 interface, or any other port that allows you to attach or remove devices without having to shut down and restart your computer, you do not need to use the Add Printer Wizard. Plug the printer's cable into your computer or point the printer toward your computer's infrared port and turn on the printer.

Windows automatically installs the printer for you.

4. Click Next.

The Add Printer Wizard displays the Local Or Network Printer page (see Figure 6.2).

Figure 6.2 Local Or Network Printer page of the Add Printer Wizard

The Add Printer Wizard guides you through the steps to add a printer that is connected to the print server.

The number of local printers that you can connect to a print server through physical ports depends on your hardware configuration.

Table 6.2 describes the Add Printer Wizard pages and options for adding a local printer.

Table 6.2 Add Printer Wizard Pages and Options for a Local Printer

Page

Local Or Network Printer

Option

Local Printer Attached To This

Computer

Description

You are adding a printer to the computer at which you are sitting, which is the print server.

Select A Printer Port

Install Printer Software

Name Your Printer

Automatically Detect And Install

My Plug and Play Printer

A check box that allows you to specify whether you want Windows

XP Professional to automatically detect and install the Plug and Play printer.

Use The Following Port

Manufacturer And Printers

The port on the print server to which you attached the printer

Select the appropriate manufacturer and printer so that the correct printer driver for the local printer will be installed. If your printer is not in the list, you must provide a printer driver from the manufacturer or select a model that is similar enough that the printer can use it.

Printer Name

A name that identifies the printer to the users. Some applications might not support more than 31 characters in the server and printer name combinations.

Do You Want To Use This Printer

As The Default Printer?

Select Yes to make this printer the default printer for all Windowsbased applications and so that users do not have to set a printer for each application. The first time that you add a printer to the print server, this option does not appear because the printer is automatically set as the default printer.

Printer Sharing

Location And Comment

Print Test Page

Completing The Add Printer

Wizard

Share Name

Location

Comment

Do You Want To Print A Test

Page?

Finish

Back

Users (with the appropriate permissions) can use the share name to connect to the printer over the network. This name appears when users browse for a printer or supply a path to a printer. The share name must be compatible with the naming conventions for all client computers on the network. By default, the share name is the printer name truncated to an 8.3 character filename.

Describe the location of the printer.

Provide information that helps users determine whether the printer meets their needs. If your computer is in a domain, users can search the

Active Directory service for the information that you enter here.

Select Yes to print a test page and verify that you have installed the printer correctly.

If the information about how you configured the printer to be installed is correct, click Finish.

If you need to correct some information, click Back.

Adding and Sharing a Network Interface Printer

In larger companies, most printers are network interface printers. These printers offer several advantages.

First, you do not need to locate printers with the print server. In addition, network connections transfer data more quickly than printer cable connections.

To add a network interface printer, select Local Printer Attached To This Computer on the Local Or

Network Printer page of the Add Printer Wizard. The main difference between adding a local printer and adding a network interface printer is that for a typical network interface printer, you provide additional port and network protocol information.

The default network protocol for Windows XP Professional is Transmission Control Protocol/Internet

Protocol (TCP/IP), which many network interface printers use. For TCP/IP, you provide additional port information in the Add Standard TCP/IP Printer Port Wizard.

Figure 6.3 shows the Select A Printer Port page of the Add Printer Wizard, and Table 6.3 describes the options on this page that pertain to adding a network interface printer.

Figure 6.3 Select A Printer Port page of the Add Printer Wizard

Table 6.3 Options on the Select A Printer Port Page That Affect Adding a Network Interface Print

Device

Option Description

This selection starts the process of creating a new port for the print server to which

Create A New Port the network interface print device is connected. In this case, the new port points to the network connection of the print device.

Type Of Port

This selection determines the network protocol to use for the connection. If you select Standard TCP/IP it starts the Add Standard TCP/IP Printer Port Wizard.

Figure 6.4 shows the Add Port page of the Add Standard TCP/IP Printer Port Wizard, and Table 6.4 describes the options on this page.

Figure 6.4 Add Port page of the Add Standard TCP/IP Printer Port Wizard

Table 6.4 Options on the Add Port Page That Affect Adding a Network Interface Printer

Option Description

The network location of the printer. You must enter either the IP address or a Domain Name System (DNS) name of the network interface printer. If you provide an IP address, Windows XP Professional automatically

Printer Name Or IP Address supplies a suggested port name for the print device in the form

IP_Ipaddress. If Windows XP Professional cannot connect to and identify the network interface printer, you must supply additional information about the type of printer. To enable automatic identification, make sure that the printer is powered on and connected to the network.

Port Name

The name that Windows XP Professional assigns to the port that you created and defined. You can enter a different name. After you create the port, Windows XP Professional displays it on the Select A Printer Port page of the Add Printer Wizard.

If your printer uses a network protocol other than TCP/IP, you must install that network protocol before you can add additional ports that use it. The tasks and setup information required to configure a printer port depend on the network protocol.

Adding an LPR Port

The line printer remote (LPR) port is designed for computers that need to communicate with UNIX or

VAX host computers in accordance with Request for Comments (RFC) 1179. For computers that need to submit print jobs to host computers, the standard TCP/IP port should be used in most cases. A networkconnected printer must have a card that supports the line printer daemon (LPD) for TCP/IP printing to work properly.

If you want to add an LPR port, you must first install the optional networking component, Print Services for UNIX.

To install Print Services for UNIX complete the following steps:

1. Click Start, click Control Panel, and click Network And Internet Connections.

2. Click Network Connections.

3. On the Advanced menu, click Optional Networking Components.

4. In the Components list, click Other Network File And Print Services, and then click Details.

Windows XP Professional displays the Other Network File And Print Services dialog box.

5. Select Print Services For UNIX, and then click OK.

6. Click Next to close the Other Network File And Print Services dialog box.

7. When the installation completes, close the Network Connections dialog box.

To add an LPR port complete the following steps:

1. Click Start, click Control Panel, and click Printers And Other Hardware.

2. Click Printers And Faxes.

3. Click Add A Printer.

Windows XP Professional starts the Add Printer Wizard.

4. Click Next.

The Add Printer Wizard displays the Local Or Network Printer page.

5. Ensure that Local Printer is selected and Automatically Detect And Install My Plug And Play

Printer is cleared.

6. Click Next.

The Select A Printer Port page appears.

7. Click Create A New Port, and on the Type Of Port drop-down list, select LPR Port.

If LPR Port is not available, make sure the optional networking component, Print Services for

UNIX is installed. Click Cancel to exit the Add Printer Wizard.

8. Click Next.

9. In the Name Or Address Of Server Providing LPD text box, type the DNS name or Internet

Protocol (IP) address of the host of the printer you are adding.

The host can be the direct-connect TCP/IP printing device or the UNIX computer to which the printer is connected. The DNS name can be the name specified for the host in the HOSTS file.

LPD is a service on the print server that receives documents (print jobs) from the LPR utilities running on client systems.

10. Follow the directions on the screen to complete the installation of the TCP/IP printer.

You add and share a printer by using the Add Printer Wizard in the Printers folder.

Setting Up Client Computers

After you add and share a printer, you need to set up client computers so that users can print. Although the tasks to set up client computers vary depending on which operating systems are running on the client computers, all client computers require installation of a printer driver. The following points summarize the installation of printer drivers according to the computer's operating system:

Windows XP Professional automatically downloads the printer drivers for client computers

running Windows 2000, Windows NT versions 4 and earlier, Windows 95, or Windows 98.

Client computers running other Microsoft operating systems require installation of printer drivers.

Client computers running non-Microsoft operating systems require installation of both printer drivers and the print service on the print server.

Client Computers Running Windows 2000, Windows NT, Windows

Me, Windows 95, or Windows 98

Users of client computers running Windows XP Professional, Windows XP Home Edition, Windows

2000, Windows NT, Windows Me, Windows 98, and Windows 95 only need to connect to the shared printer. The client computer automatically downloads the appropriate printer driver, as long as there is a copy of it on the print server.

If your client computer is running Windows XP Professional and you want to connect to the shared printer, start the Add Printer Wizard on the client computer. On the Local Or Network Printer page (see

Figure 6.2), select A Network Printer, Or A Printer Attached To Another Computer, and then click Next.

The Specify A Printer page appears, as shown in Figure 6.5.

Figure 6.5 The Specify A Printer page of the Add Printer Wizard

If you are not sure what the name of the shared printer is, you can browse for it by selecting the Browse

For A Printer option, and then clicking Next. After you have located the shared printer and selected it, click Next. You are then asked if it should be the default printer. If you want it to be the default printer, click Yes; otherwise select No and then click Next. The Completing The Add Printer Wizard page appears. Check over the information and then click Finish. You have successfully made a connection from your client computer to the shared printer.

Client Computers Running Other Microsoft Operating Systems

To enable client computers running other Microsoft operating systems (such as Windows 3.1 or MS-

DOS) to print to a shared Windows XP Professional-based printer, you must manually install a printer driver on the client computer. You can get the appropriate printer driver for a Windows-based client computer from the installation disks for that client computer or from the printer manufacturer.

Client Computers Running Non-Microsoft Operating Systems

To enable users of client computers running non-Microsoft operating systems to print, the print server must have additional services installed on it. Table 6.5 lists services that are required for Macintosh and

UNIX client computers or computers running a NetWare client.

Table 6.5 Services Required for Client Computers Running Non-Microsoft Operating Systems

Client computer Required services

Macintosh

Services for Macintosh are included only with Windows 2000 Server, not Windows

XP Professional.

UNIX

NetWare

TCP/IP Printing, which is also called the LPD Service, is included with Windows

2000 Server but is not installed by default. It is not included with Windows XP

Professional.

File and Print Services for NetWare (FPNW), an optional add-on service for

Windows 2000 Server, is not included with Windows XP Professional or Windows

2000 Server.

Practice: Installing a Network Printer

In this practice, you use the Add Printer Wizard to install and share a local printer. Sharing the printer makes it available to other users on the network. You also take the printer offline and then print a document, which loads the document into the print queue.

Before you can share a printer or a folder on a computer running Windows XP Professional in a workgroup environment, you must run the Network Setup Wizard.

Run the NetworkSetupWizard and NetworkPrinter files in the Demos folder on the CD-ROM accompanying this book for a demonstration of using the Network Setup Wizard and the Add Printer

Wizard.

Exercise 1: Running the Network Setup Wizard

In this exercise you set up the network for your Windows XP Professional workgroup by running the

Network Setup Wizard.

To run the Network Setup Wizard

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, and then click Control Panel.

3. In Control Panel, click Network And Internet Connections.

4. Click Network Connections.

5. Under Network Tasks, click Set Up A Home Or Small Office Network.

Windows XP Professional displays the Welcome To The Network Setup Wizard page.

6. Click Next to continue.

Network Setup Wizard displays the Before You Continue page with the following steps that you should complete before running the wizard:

Install the network cards, modems, and cables.

Turn on all computers, printers, and external modems.

Connect to the Internet.

7. Ensure that you have completed the appropriate steps, and then click Next.

The Network Setup Wizard displays the Select A Connection Method page with the following options:

This Computer Connects Directly To The Internet

This Computer Connects To The Internet Through Another Computer On My Network Or

Through A Residential Gateway

Other

8. Select the appropriate option and then click Next.

The Network Setup Wizard displays the Give This Computer A Description And Name page.

9. Enter a description. Ensure the computer name is already filled in and then click Next.

The Network Setup Wizard displays the Name Your Network page.

10. Enter an appropriate name, and then click Next.

The Network Setup Wizard displays the Ready To Apply Network Settings page.

11. Review the settings and then click Next to have the Network Setup Wizard set up your network.

Setting up your network takes a few minutes and should not be interrupted.

The Network Setup Wizard displays the You're Almost Done page with the following four options:

Create A Network Setup Disk

Use The Network Setup Disk I Already Have

Use My Windows XP CD

Just Finish The Wizard; I Don't Need To Run The Wizard On Other Computers

12. Ensure the default option, Create A Network Setup Disk, is selected and then click Next.

If you do not have a floppy disk, select Use My Windows XP CD, click Next, and follow the directions on the screen to complete the wizard. Go to Exercise 2.

If you have more than one drive that can be used, The Network Setup Wizard displays the Select

A Disk Drive page listing the drives you can use. This list of drives includes floppy drives and Zip drives.

13. Select the appropriate disk drive and then click Next.

The Network Setup Wizard displays the Insert The Disk You Want To Use page.

14. Insert the disk you want to use to create a Network Setup Disk into the appropriate disk drive.

15. Click Format Disk.

The Network Setup Wizard displays a Format dialog box, allowing you to configure how the format will be performed.

16. Ensure the appropriate options are selected and then click Start.

The Format dialog box displays a warning message box indicating that formatting the disk will erase all information currently on the disk.

17. Click OK to continue.

The Format dialog box formats the disk. This could take a few minutes.

When the formatting is complete, the Format dialog box displays a Format Complete message box.

18. Click OK to close the Format Complete message box.

19. Click Close to close the Format dialog box.

20. In the Insert The Disk You Want To Use page, click Next to continue.

The Network Setup Wizard displays a Copying message box.

When the Network Setup Disk is completed, The Network Setup Wizard displays the To Run The

Wizard With The Network Setup Disk page. This page tells you that you need to insert the

Network Setup Disk in each computer on your network and run NETSETUP, located on the

Network Setup Disk, on each computer in your network.

21. Click Next to continue.

22. Review the information on the page and then click Finish.

Windows XP Professional displays a System Settings Change message box indicating that you

must restart your computer for the changes to take effect.

23. Remove your Network Setup Disk and then click Yes to restart your computer.

Exercise 2: Adding and Sharing a Printer

In this exercise, you use the Add Printer Wizard to add a local printer to your computer and share it.

To add a local printer

1. Log on as Administrator or with a user account that is a member of the Administrators group on the print server.

2. Click Start, click Control Panel, and then click Printers And Other Hardware.

3. Click Add A Printer to launch the Add Printer Wizard.

Windows XP Professional starts the Add Printer Wizard.

4. Click Next in the Welcome To The Add Printer Wizard page to continue.

The Add Printer Wizard displays the Local Or Network Printer page.

The Add Printer Wizard prompts you for the location of the printer. Because you are adding a printer on the computer at which you are sitting, this printer is referred to as a local printer.

5. Click Local Printer.

6. Ensure that the Automatically Detect And Install My Plug And Play Printer check box is cleared, and then click Next.

The Add Printer Wizard then displays the Select A Printer Port page. Which port types are available depends on the installed network protocols. For this exercise, assume that the print device that you are adding is directly attached to your computer using the LPT1 port.

If the print device is connected to a port that is not listed, click Create A New Port, and then enter the port type.

7. Scroll through the Use The Following Port drop-down list box and review the selection of ports.

You can select File to print to a file instead of a printer.

8. Verify that Use The Following Port is selected, and that LPT1 (Recommended Printer Port) is selected.

9. Click Next.

The Add Printer Wizard prompts you for the printer manufacturer and model. You will add an HP

Color LaserJet 4550 PS printer.

The list of printers is sorted in alphabetical order. If you cannot find a printer name, make sure that you are looking in the correct location.

10. Under Manufacturer, select HP. Then, under Printers, select HP Color LaserJet 4550 PS.

The selected driver is digitally signed to ensure reliability and to protect your system. Driver signing is covered in

Chapter 11

, "Implementing, Managing, and Troubleshooting Hardware

Devices and Drivers."

11. Click Next.

The Add Printer Wizard displays the Name Your Printer page. In the Printer Name list box,

Windows XP Professional automatically defaults to the printer name HP Color LaserJet 4550 PS.

For this exercise, do not change this name.

12. If other printers are already installed, the wizard also asks whether you want to make this the default printer. If the Add Printer Wizard displays the Do You Want To Use This Printer As The

Default Printer message, click Yes.

13. To accept the default printer name, click Next.

The Printer Sharing page appears, prompting you for printer sharing information.

To share a printer

1. In the Add Printer Wizard, on the Printer Sharing page, select Share Name.

You can assign a shared printer name, even though you already supplied a printer name. The shared printer name is used to identify a printer on the network and must conform to a naming convention. This shared name is different from the printer name that you entered previously. The printer name is a description that appears with the printer's icon in the Printers And Faxes folder and in Active Directory.

2. In the Share Name box, type Printer1 and then click Next.

The Add Printer Wizard displays the Location And Comment page.

If your computer running Windows XP Professional is part of a domain, Windows 2000 displays the values that you enter for Location and Comment when a user searches Active Directory for a printer. Entering this information is optional, but it can help users locate the printer more easily.

3. In the Location text box type second floor west and in the Comment text box type mail room -

room 2624.

4. Click Next.

The Add Printer Wizard displays the Print Test Page page.

You can print a test page to confirm that your printer is set up properly. In this exercise you do not need to have a printer, so you will not print a test page. When you are actually setting up a printer, you should print a test page to confirm that it is working properly.

5. Under Do You Want To Print A Test Page, ensure that No is selected and click Next.

The Add Printer Wizard displays the Completing The Add Printer Wizard page and provides a summary of your installation choices.

As you review the summary, you might notice an error in the information you entered. To modify these settings, click Back.

6. Confirm the summary of your installation choices, and then click Finish.

If necessary, Windows XP Professional displays the Files Needed dialog box, prompting you for the location of the Windows XP Professional distribution files.

7. If necessary, insert the Windows XP Professional CD-ROM and wait for about 10 seconds.

8. If Windows displays the Windows XP CD-ROM window, close it.

9. If prompted to insert the Windows XP Professional CD-ROM, click OK to close the Insert Disk dialog box.

If necessary, Windows XP Professional copies the printer files.

10. In the Printers And Other Hardware window, click Printers And Faxes.

Windows XP Professional created an icon for the shared HP Color LaserJet 4550 PS printer.

Notice that Windows XP Professional displays an open hand on the printer icon, indicating that the printer is shared. The check mark just above the printer indicates that printer as the default printer.

Exercise 3: Taking a Printer Offline and Printing a Test Document

In this exercise, you take the printer that you created offline. Taking a printer offline causes documents that you send to this printer to be held on the computer while the print device is not available. This eliminates error messages about unavailable printers in later exercises. Windows XP Professional displays such error messages when it attempts to send documents to a printer that is not connected to the computer.

To take a printer offline

1. In Control Panel, click Printers And Other Hardware.

2. In the Printers And Other Hardware window, click Printers And Faxes.

3. Right-click the HP Color LaserJet 4550 PS icon.

4. On the menu that appears, click Use Printer Offline.

Windows XP Professional dims the icon and changes the status of the printer from Ready to

Offline to reflect that the printer is not available.

To print a test document

1. In the Printers And Faxes folder, double-click the HP Color LaserJet 4550 PS icon.

The list of documents to be sent to the print device is empty.

2. Click Start, point to All Programs, point to Accessories, and then click Notepad.

3. In Notepad, type any text that you want.

4. Arrange Notepad and the HP Color LaserJet 4550 PS window so that you can see the contents of each.

5. In Notepad, on the File menu, click Print.

Windows XP Professional displays the Print dialog box, allowing you to select the printer and print options.

Many programs running under Windows XP Professional use the same Print dialog box.

The Print dialog box displays the location and comment information that you entered when you created the printer, and the Status for the printer shows that it is currently offline. You can also use this dialog box to search Active Directory for a printer.

Notice that HP Color LaserJet 4550 PS is selected as the printer.

6. Click Print.

Notepad briefly displays a message on your computer stating that the document is printing. On a fast computer, you might not be able to see this message.

7. Close Notepad and click No when prompted to save changes to your document.

In the HP Color LaserJet 4550 PS window, you will see the document waiting to be sent to the print device. Windows XP Professional holds the document because you took the printer offline.

Otherwise, Windows XP Professional would have sent the document to the print device.

8. Close the HP Color LaserJet 4550 PS window.

9. Close all open windows.

Exercise 4: Adding an LPR Port

In this exercise, you install Print Services for UNIX and create an LPR port.

To install Print Services for UNIX

1. In Control Panel, click Network And Internet Connections.

2. Click Network Connections.

3. On the Advanced menu, click Optional Networking Components.

4. In the Components list, click Other Network File And Print Services, and then click Details.

The Other Network File And Print Services dialog box appears.

5. Select Print Services for UNIX, and then click OK.

The Other Network And File Services dialog box appears.

6. Click Next and when the installation completes, close the Network Connections and Network And

Internet Connections windows.

To add an LPR port

1. In Control Panel, click Printers And Other Hardware, and then click Printers And Faxes.

2. Double-click Add Printer.

The Add Printer Wizard starts.

3. Click Next.

The Add Printer Wizard displays the Local Or Network Printer page.

4. Ensure that Local Printer is selected.

5. Ensure that the Automatically Detect And Install My Plug And Play Printer check box is not selected, and then click Next.

The Select A Printer Port page appears.

6. Click Create A Printer Port.

7. On the Type Of Port drop-down menu, select LPR port and click Next.

8. In the Name Or Address Of Server Providing LPD text box, type the DNS name or IP address of the host of the printer you are adding.

The host can be the direct-connect TCP/IP printing device or the UNIX computer to which the printer is connected. The DNS name can be the name specified for the host in the HOSTS file.

LPD is a service on the print server that receives documents (print jobs) from the LPR utilities running on client systems.

9. Follow the directions on the screen to complete the installation of the TCP/IP printer.

You add and share a printer by using the Add Printer Wizard in the Printers folder.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A , "Questions and Answers."

1. Which of the following tasks are done with the Add Printer Wizard? (Choose all answers that are correct.) a. Taking a local printer offline b. Printing multiple copies of a document c. Adding an LPR port d. Making a printer that is connected to your computer available to other network users

2. What is the default printer in Windows XP Professional?

3. After you get home from the store, you unpack your new computer and printer. You install

Windows XP Professional, and you want to install your printer. You want to set up the printer as your default printer. During the installation you are not prompted to use the printer as your default printer for all Windows-based applications. You know you have seen this option at work when you install local printers. Why aren't you seeing it on your home computer?

4. Which of the following statements about adding and using an LPR port are correct? (Choose all answers that are correct.) a. The LPR port is designed for computers that need to communicate with Macintosh computers in accordance with RFC 1179.

b. A network-connected printer must have a card that supports the LPD for TCP/IP printing to work properly.

c. When you are trying to add an LPR port, if the LPR Port option is not available, install the

optional networking component, Print Services for UNIX.

d. LPD is a service on the client computer that sends documents (print jobs) out the LPR port.

5. After you add and share a printer on a computer running Windows XP Professional, the tasks to set up client computers vary depending on which operating systems are running on the client computers. Which of the following operating systems running on client computers would require additional software or services to be installed before users on these computers can connect to the shared printer? (Choose all answers that are correct.) a. Windows 98 b. NetWare c. Windows 2000 Professional d. UNIX

Lesson Summary

To set up and share a printer for a local print device or for a network interface print device, use the Add Printer Wizard.

Sharing a local printer makes it possible for multiple users on the network to utilize it.

Users of client computers running Windows XP Professional, Windows 2000, Windows Me,

Windows NT, Windows 98, or Windows 95 only need to connect to the shared printer to be able to print.

To enable users of client computers running non-Microsoft operating systems to print, the print server must have additional services installed.

[Home]

[Previous]

[Next]

Lesson 3: Connecting to Network

Printers

After you have set up the print server with all required printer drivers for the shared printers, users on client computers running Windows XP Professional, Windows 2000, Windows Me, Windows NT,

Windows 95, and Windows 98 can easily make a connection and start printing. For most Windows-based client computers, if the appropriate printer drivers are on the print server, the client computer automatically downloads the drivers when the user makes a connection to the printer. For information on how you can install additional drivers on a print server, see Lesson 4 later in this chapter.

When you add and share a printer, by default, all users can connect to that printer and print documents.

The method used to connect to a printer depends on the client computer. Client computers running

Windows XP Professional, Windows XP Home Edition, Windows 2000, Windows Me, Windows NT,

Windows 98, or Windows 95 can use the Add Printer Wizard. Client computers running Windows XP

Professional, Windows XP Home Edition, or Windows 2000 can also use a Web browser to connect to the printer.

After this lesson, you will be able to

Connect to a network printer by using the Add Printer Wizard or a Web browser

Estimated lesson time: 15 minutes

Using the Add Printer Wizard

The Add Printer Wizard is one method that client computers running Windows XP Professional,

Windows XP Home Edition, Windows 2000, Windows Me, Windows NT, Windows 98, or Windows 95 can use to connect to a printer. This is the same wizard that you use to add and share a printer. The options that are available in the Add Printer Wizard that allow you to locate and connect to a printer vary depending on the operating system that the client computer is running.

Client Computers Running Windows XP Professional or Windows

2000

By using the Add Printer Wizard on client computers running Windows XP Professional or Windows

2000, you can connect to a printer through the following methods:

Using the Universal Naming Convention (UNC) name. You can use the UNC name

(\\print_server\printer_name) to make connections by selecting Type The Printer Name Or Click

Next To Browse For A Printer on the Locate Your Printer page of the Add Printer Wizard. If you know the UNC name, this is a quick method.

Browsing the network. You can also browse the network for the printer by selecting Type The

Printer Name Or Click Next To Browse For A Printer on the Locate Your Printer page of the Add

Printer Wizard, leaving the Name text box blank and clicking Next.

Using the Uniform Resource Locator (URL) name. You can also connect to a printer on the

Internet or your intranet by selecting Connect To A Printer On The Internet Or On Your Local

Intranet on the Locate Your Printer page of the Add Printer Wizard.

Searching Active Directory. If your computer running Windows XP Professional or Windows

2000 is a member of a domain, you can find the printer by using Active Directory search capabilities. You can search either the entire Active Directory or just a portion of it. You can also narrow the search by providing features of the printer, such as color printing.

Client Computers Running Windows NT 4, Windows 95, or Windows

98

On client computers running Windows NT 4, Windows 95, or Windows 98, the Add Printer Wizard only allows you to enter a UNC name or to browse Network Neighborhood to locate the printer.

You can also make a connection to a printer using the Run command on the Start menu. Type the UNC name of the printer in the Open text box and click OK.

Client Computers Running Other Microsoft Operating Systems

Users at client computers running early versions of Windows such as Windows 3.1, Windows 3.5, and

Windows for Workgroups use Print Manager instead of the Add Printer Wizard to make a connection to a printer.

Users of any Windows-based client computer can connect to a network printer using the following command: net use lptx: \\server_name\share_name where x is the number of the printer port.

The Net Use command is also the only method available for making a connection to a network printer from client computers running MS-DOS or IBM OS/2 with Microsoft LAN Manager client software installed.

Using a Web Browser

If you are using a client computer running Windows XP Professional, Windows XP Home Edition, or

Windows 2000, you can connect to a printer through your corporate intranet. You can type a URL in your Web browser, and you don't have to use the Add Printer Wizard. In Windows XP Professional you can use Microsoft Internet Explorer, the Printers And Faxes folder, My Computer, or any other window or folder that has an address bar. After you make a connection, Windows XP Professional copies the correct printer drivers to the client computer automatically.

A Web designer can customize this Web page, for example, to display a floor plan that shows the location of print devices to which users can connect. There are two ways to connect to a printer using a

Web browser:

If you don't know the printer's name, type http://server_name/printers.

The Web page lists all of the shared printers on the print server that you have permission to use.

The page provides information about the printers, including printer name, status of print jobs, location, model, and any comments that were entered when the printer was installed. This information helps you select the correct printer for your needs. Click the printer that you want to use.

If you know the printer's name, type http://server_name/printer_share_name.

You provide the intranet path for a specific printer. You must have permission to use the printer.

Windows automatically copies the appropriate printer driver to your computer and the icon appears in

Printers And Faxes. When you have connected to a shared printer from a Web browser, you can use the printer as if it were attached to your computer.

For Internet printing, you must have Internet Information Services (IIS) installed. You must use Internet

Explorer version 4.0 or higher to connect to a printer. For information about installing Windows

Components, see

Chapter 10

, "Configuring Windows XP Professional."

Using the Search Assistant

In the Search Assistant, the Find Printers feature allows you to search for printers in Active Directory

when you are logged on to a Windows 2000 domain. To activate the Search Assistant, click Start and then click Search. When the Search Assistant has started, click Find Printers. When you have located a printer using Find Printers, you can double-click the printer or you can right-click it, and then click

Connect to make a connection to the printer. The Find Printers dialog box has three tabs to help you locate a printer (see Figure 6.6).

Figure 6.6 The Find Printers dialog box

The following list describes the three tabs of the Find Printers dialog box:

Printers tab. Allows you to enter and search for specific information, such as the name, location, and model of the printer.

Features tab. Allows you to select from a prepared list of additional search options, such as

whether the printer can print double-sided copies or at a specific resolution.

Advanced tab. Allows you to use custom fields and Boolean operators to define complex searches, such as whether the printer supports collation and a specific printer language, such as

PostScript.

If you want to search for all available printers, you can leave all search criteria blank and click Find

Now. All of the printers in the domain will be listed.

The Find Printers feature is not available in the Search Assistant unless you are logged on to a Windows

2000 domain. If you are using a stand-alone computer that is in a workgroup, the Find Printers feature is not available.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A , "Questions and Answers."

1. When you add and share a printer, by default, who can connect to that printer?

2. Which of the following operating systems running on a client computer allow you to use the Net

Use command to connect to a network printer? (Choose all answers that are correct.) a. Windows 2000 b. Windows Me c. Windows NT 4 d. Windows XP Professional

3. Which of the following operating systems running on a client computer allow you to connect to a network printer by using Active Directory search capabilities? (Choose all answers that are correct.) a. Windows 2000 b. Windows Me c. Windows NT 4 d. Windows XP Professional

4. Which of the following operating systems running on a client computer allow you to use a Web browser to connect to a network printer? (Choose all answers that are correct.) a. Windows 2000 b. Windows Me c. Windows NT 4

d. Windows XP Professional

5. You have a small workgroup consisting of five computers running Windows XP Professional at your house. You are giving your friend, who has never seen Windows XP Professional, a tour around the new operating system. You are demonstrating how the Search Assistant works, but the

Find Printers feature is missing. Why?

Lesson Summary

Client computers running Windows XP Professional, Windows XP Home Edition, Windows

2000, Windows Me, Windows NT, Windows 98, or Windows 95 can use the Add Printer Wizard to connect to a printer.

On client computers running Windows XP Professional, Windows XP Home Edition, or

Windows 2000 that are part of a Windows 2000 domain, you can connect to a printer using

Active Directory search capabilities.

On client computers running Windows NT 4, Windows 95, or Windows 98, the Add Printer

Wizard only allows you to enter a UNC name or to browse Network Neighborhood to locate the printer.

Users on client computers running early versions of Windows (such as Windows 3.1, Windows

3.5, and Windows for Workgroups) use Print Manager to connect to a printer.

Users on any Windows-based client computer can connect to a network printer using the Net Use command.

The Find Printers feature of the Search Assistant allows you to search for printers in Active

Directory when you are logged on to a Windows 2000 domain.

[Home]

[Previous]

[Next]

Lesson 4: Configuring Network Printers

After you have set up and shared network printers, user and company printing needs might require you to configure printer settings so that your printing resources better fit these needs.

Five common configuration changes you can make are as follows:

You can share an existing nonshared printer if your printing load increases.

You can download additional print drivers so that clients running other versions of Windows can use the shared printer.

You can stop sharing an existing shared printer.

You can create a printer pool so that the print jobs are automatically distributed to the first available printer. In this way, users do not have to search for an available printer.

You can set priorities among printers so that critical documents always print before noncritical documents.

After this lesson, you will be able to

Share an existing printer

Download additional printer drivers

Stop sharing a printer

Create a printer pool

Set priorities between printers

Estimated lesson time: 25 minutes

Sharing an Existing Printer

If the printing demands on your network increase and your network has an existing, nonshared printer for a print device, you can share it so that users can utilize the printer.

When you share a printer, you need to assign the printer a share name, which appears in My Network Places. Use an intuitive name to help users when they are browsing for a printer. You can also add printer drivers for all versions of Windows XP Professional, Windows XP Home Edition,

Windows 2000, Windows NT, Windows 95, and Windows 98.

In the Properties dialog box for the printer, you can use the Sharing tab to share an existing printer (see Figure 6.7).

Figure 6.7 The Sharing Tab of the Properties dialog box for a printer

You would use the following steps to share an existing printer using the Sharing tab:

1. In Control Panel, click Printers And Other Hardware.

2. In Printers And Other Hardware, click Printers And Faxes.

3. In Printers And Faxes, right-click the icon for the printer that you want to share.

4. Click Sharing.

5. In the Sharing tab for the printer, click Share This Printer.

6. In the Share Name text box, type in a share name and then click OK.

After you have shared the printer, Windows XP Professional puts an open hand under the printer icon, indicating that the printer is shared.

Downloading Printer Drivers

If you are sharing the printer with users whose computers are running different versions of Windows, you need to install different drivers. To verify which printer drivers are downloaded or to download printer drivers to your print server, use the following steps:

1. On your print server, click Start, and then click Control Panel.

2. Click Printers And Other Hardware, and then click Printers And Faxes.

3. Right-click the printer for which you want to verify that the drivers are downloaded or for which you want to download additional printer drivers, and then click Properties.

4. In the Sharing tab, click Additional Drivers.

In the Additional Drivers dialog box (Figure 6.8), if the check box is selected, the printer drivers are downloaded.

Figure 6.8 The Additional Drivers dialog box

5. Select the check box for any additional printer drivers you want to download, and then click OK.

You are prompted to enter the path to the Windows XP Professional installation files.

6. Enter the path to the Windows XP Professional installation files, or insert the Windows XP Professional CD-ROM into the CD-ROM drive, and then click OK.

The drivers are installed.

Stopping the Sharing of a Printer

If the printing demands on your network change, you can stop sharing an existing shared printer. Use the Sharing tab of the Properties dialog box for that printer to stop sharing it. The steps to stop sharing a printer are similar to those for sharing a printer. However, in the steps to stop sharing a printer, in the Properties dialog box for the printer, in the Sharing tab, click Not Shared (see Figure 6.7) and then click OK.

Setting Up a Printer Pool

A printer pool consists of two or more identical printers that are connected to one print server and act as a single printer. The printers can be local or network interface printers. Although the printers should be identical, you can use printers that are not identical but use the same printer driver. After you install a printer, you can create a printer pool using the Ports tab of the Properties dialog box for that printer. In the Ports tab, select the Enable

Printer Pooling check box and select additional ports on the printer server (see Figure 6.9).

Figure 6.9 Enabling printer pooling

When you create a printer pool, users can print documents without checking which printer is available. The document prints on the first available printer in the printing pool.

When you set up a printer pool, you should place the printers in the same physical area so that users can easily locate their documents.

A printing pool has the following advantages:

In a network with a high volume of printing, it decreases the time that documents wait on the print server.

It simplifies administration because you can administer multiple printers simultaneously.

Before you create a printer pool, make sure that you connect the printers to the print server.

To create a printing pool complete the following steps:

1. Click Start, click Control Panel, and then click Printers And Other Hardware.

2. In the Printers And Other Hardware window, click Printers And Faxes.

3. Right-click the printer icon, and on the menu that appears, click Properties.

4. In the Properties dialog box for the printer, click the Ports tab.

5. In the Ports tab, select the Enable Printer Pooling check box.

6. Select the check box for each port to which a printer that you want to add to the pool is connected, and then click OK.

Setting Priorities Among Printers

Setting priorities among printers makes it possible to set priorities among groups of documents that all print on the same physical printer. Multiple virtual printers point to the same physical printer, which allows users to send critical documents to a high-priority printer and noncritical documents to a lower priority printer. The critical documents always print first.

There are two things that you must do to set priorities among printers:

Add a printer and share it. Then add a second printer and point it to the same physical printer or port. The port can be either a physical port on

the print server or a port that points to a network interface print device.

Set a different priority for each of the printers that is pointing to the physical printer or hardware device. Have different groups of users print to different virtual printers, or have users send different types of documents to different virtual printers.

For example, see Figure 6.10. User1 sends documents to a printer with the lowest priority of 1, and User2 sends documents to a printer with the highest priority of 99. In this example, User2's documents always print before User1's.

Figure 6.10 Printer pool with different priorities set

Use the following steps to set the priority for a printer:

1. Log on as Administrator or with a user account that is a member of the Administrators group on the print server.

2. Click Start, click Control Panel, and then click Printers And Other Hardware.

3. Right-click the icon for the printer, and then click Properties.

The Properties dialog box for the printer appears.

4. Click the Advanced tab.

5. In the Advanced tab, adjust the Priority setting for the printer.

This value for a printer can be set from 1 through 99-the higher the number, the higher the priority of the printer.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. What are some advantages to sharing a printer?

2. How do you share a printer?

3. Which of the following statements about a printing pool in Windows XP Professional are correct? (Choose all answers that are correct.) a. All printers in a printing pool must be network interface printers.

b. A printing pool consists of two or more identical printers that are connected to one print server and act as a single printer.

c. If you use printers that are not identical, they must use the same printer driver.

d. If you use printers that are not identical, you must install all the required printer drivers on the print server.

4. Why would you create virtual printers and vary the priorities on them?

Lesson Summary

To share an existing printer, use the Sharing tab of the Properties dialog box for the printer and select Share This Printer.

A printer pool consists of two or more identical printers that are connected to one print server and act as a single printer.

Setting priorities on virtual printers makes it possible for users to send critical documents to a high-priority printer and noncritical documents to a lower priority printer, even when there is only one physical printer.

[Home]

[Previous]

[Next]

Lesson 5: Troubleshooting Setup and Configuration

Problems

During setup and configuration of a printer, problems can occur. This lesson introduces you to a few common problems that you might encounter and provides some suggested solutions.

After this lesson, you will be able to

Troubleshoot network printing problems

Estimated lesson time: 5 minutes

Troubleshooters

Windows XP Professional helps you interactively troubleshoot problems you encounter. To troubleshoot problems with a printer, click Start, click Control Panel, and then click Printers And Other Hardware. In the Printers And Other Hardware window, under Troubleshooters, click

Printing. The Help And Support Center window appears with the printing troubleshooter displayed, as shown in Figure 6.11.

Figure 6.11 Printing troubleshooter

Notice the series of questions on the page. As you respond to these questions, the troubleshooter asks additional questions and makes suggestions to resolve your problem based on the answers you provide.

Common Troubleshooting Scenarios

Table 6.6 lists some of the common setup and configuration problems that you might encounter. It also gives probable causes of the problems and possible solutions.

Table 6.6 Common Printer Problems and Possible Solutions

Problem

Test page does not print. You have confirmed that the print device is connected and turned on.

Probable cause

The selected port is not correct.

Possible solution

Configure the printer for the correct port. For a printer that uses a network interface print device, make sure that the network address is correct.

Reinstall the printer with the correct printer driver.

Test page or documents print incorrectly as garbled text.

The installed printer driver is not correct.

Pages are only partially printing.

There might not be enough memory to print the document.

Consider adding memory to the print server.

The printer might not have enough toner. Try replacing the printer's toner cartridge.

Users report an error message that asks them to install a printer driver when they print to a print server running Windows

XP Professional.

Printer drivers for the client computers are not installed on the print server.

On the print server, add the appropriate printer drivers for the client computers. Use the client computer operating system CD-ROM or a printer driver from the vendor.

Documents from one client do not print, but documents from other client computers

The client computer is connected to the wrong printer. do.

On the client computer, remove the printer, and then add the correct computer printer.

Documents print correctly on some print devices in a printer pool but not all of them.

The print devices in the printer pool are not identical.

Verify that all print devices in the printer pool are identical or that they use the same printer driver. Remove inappropriate devices.

Printing is slow because the print server is taking a long time to render. the job.

The print server's disk could be in need of defragmenting or could be getting close to capacity.

Try defragmenting the print server's disk and check that there is adequate space for temporary files on the hard disk

Printing is slow and print jobs are taking a long time to reach the top of the queue.

If you are using a printing pool, you might not have enough printers in the pool.

Add printers to the printing pool.

Documents do not print in the right priority.

The printing priorities among printers are set incorrectly.

Adjust the printing priorities for the printers associated with the print device.

Lesson Review

Here are some questions to help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next chapter. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. How do you access and use the printing troubleshooter?

2. What should you check if documents print correctly on some printers in a printing pool but not all of them?

3. What should you check if printing is slow because the print server is taking a long time to render the job?

4. What should you check if pages are only partially printing?

Lesson Summary

Windows XP Professional helps you interactively troubleshoot problems you encounter. To troubleshoot printing problems, use the printing troubleshooter.

There are common setup and configuration problems that you learn how to handle as you encounter them.

[Home]

[Previous]

[Next]

Chapter 7

Administering and Troubleshooting

Common Administrative Problems for

Network Printers

About This Chapter

In this chapter, you will learn about setting up and administering network printers. You will learn how to manage printers and documents and how to troubleshoot common printing problems.

Before You Begin

To complete this chapter, you must have

Installed the Microsoft Windows XP Professional software on the computer

Installed the software for an HP Color LaserJet 4550 PS printer as directed in

Chapter 6 , "Setting

Up, Configuring, and Troubleshooting Common Setup and Configuration Problems for Network

Printers"

You do not need a printer to complete the exercises in this chapter. You just need to have installed the software for the HP Color LaserJet 4550 PS printer.

[Home]

[Previous]

[Next]

Lesson 1: Understanding Printer

Administration

After your printing network is set up, you will be responsible for administering it. You can administer network printers at the print server or remotely over the network. This lesson introduces you to the four major tasks involved in administering network printers: managing printers, managing documents, troubleshooting printers, and performing tasks that require the Manage Printers permission. In this lesson you will also learn that before you can administer printers, you must know how to access them and control access to them.

After this lesson, you will be able to

Identify the tasks and requirements for administering a printer

Gain access to printers for administration

Assign printer permissions to user accounts and groups

Estimated lesson time: 30 minutes

Managing Printers

Managing printers is one of the most important aspects of printer administration, and it includes the following tasks:

Assigning forms to paper trays

Setting a separator page

Pausing, resuming, and canceling documents on a printer

Redirecting documents

Taking ownership of a printer

Managing Documents

A second major aspect of printer administration is managing documents, which includes the following

tasks:

Pausing and resuming a document

Setting notification, priority, and printing time

Deleting a document

Troubleshooting Printers

Troubleshooting printers, which means identifying and resolving all printer problems, is a third major aspect of printer administration. The types of problems you need to troubleshoot include the following:

Printers that are off or offline

Printers that are out of paper or out of ink

Users who cannot print or cannot print correctly

Users who cannot access a printer

Performing Tasks That Require the Manage Printers

Permission

The following tasks involved with administering printers require the Manage Printers permission:

Adding and removing printers

Sharing printers

Taking ownership of a printer

Changing printer properties or permissions

By default, members of the Administrators and Power Users groups have the Manage Printers permission for all printers.

Accessing Printers

You can access printers for administration using the Printers And Faxes window. Windows XP

Professional has an improved user interface to make it easier for you to perform daily tasks. When you select a printer icon, many of the common printer management and document management tasks are listed for you, as shown in Figure 7.1.

Figure 7.1 Managing printers and documents using the Printers And Faxes window

These tasks, as well as some additional printer management and document management tasks, are covered in later lessons in this chapter.

To access printers using the Printers And Faxes window, complete the following steps:

1. Click Start, and then click Control Panel.

2. In the Control Panel window, click Printers And Other Hardware, and then click Printers And

Faxes.

3. In the Printers And Faxes window, select the appropriate printer icon.

4. After you have selected a printer icon, you can also use the File menu to manage printers and documents.

Click Open to open the printer window to perform document management tasks.

Click Properties to open the Properties dialog box to perform printer management tasks such as changing printer permissions or editing ActiveDirectory service information about the printer.

Setting Printer Permissions to Control Access

Windows XP Professional allows you to control printer usage and administration by assigning permissions. With printer permissions, you can control who can use a printer. You can also assign printer permissions to control who can administer a printer and the level of administration, which can include managing printers and managing documents.

For security reasons, you might need to limit user access to certain printers. You can also use printer permissions to delegate responsibilities for specific printers to users who are not administrators. Windows

XP Professional provides three levels of printer permissions: Print, Manage Documents, and Manage

Printers. Table 7.1 lists the capabilities of each level of permission.

Table 7.1 Printing Capabilities of Windows XP Professional Printer Permissions

Permissions

Print Manage documents Manage printers

X X X

Capabilities

Print documents

Pause, resume, restart, and cancel the user's own document

Connect to a printer

Control job settings for all documents

Pause, resume, restart, and cancel all other users' documents

Cancel all documents

Share a printer

Change printer properties

Delete a printer

Change printer permissions

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

You can allow or deny printer permissions. Denied permissions always override allowed permissions. For

example, if you select the Deny check box next to Manage Documents for the Everyone group, no one can manage documents, even if you grant this permission to another user account or group. This is because all user accounts are members of the Everyone group.

Assigning Printer Permissions

By default, Windows XP Professional assigns the Print permission for each printer to the built-in

Everyone group, allowing all users to send documents to the printer. You can also assign printer permissions to users or groups.

To assign printer permissions, complete the following steps:

1. Click Start, and then click Control Panel.

2. In the Control Panel window, click Printers And Other Hardware, and then click Printers And

Faxes.

3. In the Printers And Faxes window, right-click the appropriate printer icon, and then click

Properties.

4. Click the Security tab.

If your computer running Windows XP Professional is in a workgroup environment and you do not have a Security tab in your printer's Properties dialog box, close the Properties dialog box. In

Explorer, on the Tool menu, click Folder Options and click the View tab. Clear the Use Simple File

Sharing (Recommended) check box, and then display your Printer's Properties dialog box.

5. In the Security tab, click Add.

6. In the Select Users, Groups, Or Computers dialog box, select the appropriate user account or group, and then click Add. Repeat this step for all users or groups that you are adding.

7. Click OK.

8. In the Security tab, shown in Figure 7.2, select a user account or group, and then do one of the following:

Click the permissions in the bottom part of the dialog box that you want to assign.

Click Advanced and assign additional printer permissions that do not fit into the predefined permissions in the Security tab, and then click OK.

The bottom part of the dialog box shows the permissions granted to the user or group selected in the upper part.

9. Click OK to close the Properties dialog box.

Figure 7.2 Assigning printer permissions

Modifying Printer Permissions

You can change the default printer permissions that Windows XP Professional assigned, or that you previously assigned for any user or group.

To modify printer permissions, complete the following steps:

1. In the Printers And Faxes window, right-click the appropriate printer icon, and then click

Properties.

2. In the Security tab of the Properties dialog box for the printer, select the appropriate user account or group, and then do one of the following:

Click the permissions that you want to change for the user or group.

Click Advanced to modify additional printer permissions that do not fit into the predefined

permissions in the Security tab.

3. Click OK.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next lesson. The answers for these questions are in Appendix A

, "Questions and Answers."

1. What are the four major types of tasks involved with administering network printers?

2. Microsoft Windows XP Professional allows you to control printer usage and administration by assigning _________________.

3. Which level of printer permissions provided by Windows XP Professional grants users the ability to perform the most printing tasks?

a. Manage Printers b. Manage Documents c. Print d. Full Control

4. Which of the following tabs do you use to assign printer permissions to users and groups?

a. Security tab of the Properties dialog box for the printer b. Security tab of the Properties dialog box for the user or group c. Permissions tab of the Properties dialog box for the printer d. Permissions tab of the Properties dialog box for the user or group

5. Which Windows XP Professional printer permission allows users to pause, resume, restart, and cancel all other users' documents? (Choose all answers that are correct.) a. Print b. Manage Printers c. Full Control d. Manage Documents

Lesson Summary

There are four major types of tasks in administering printers: managing printers, managing documents, troubleshooting printers, and performing tasks that require the Manage Printers permission.

You can gain access to printers for administration by using the Printers And Faxes window accessed through Control Panel.

Windows XP Professional allows you to control printer usage and administration by assigning permissions.

[Home]

[Previous]

[Next]

Lesson 2: Managing Printers

Managing printers includes assigning forms to paper trays and setting a separator page. In addition, you can pause, resume, and cancel a document if a problem occurs on a printer. If a printer is faulty or you add printers to your network, you might need to redirect documents to a different printer. In addition, you might need to change which users have administrative responsibility for printers, which involves changing ownership.

After this lesson, you will be able to

Assign forms to paper trays

Set a separator page

Pause, resume, and cancel documents on a printer

Redirect documents to a different printer

Take ownership of a printer

Estimated lesson time: 40 minutes

Assigning Forms to Paper Trays

If a printer has multiple trays that regularly hold different paper sizes, you can assign a form to a specific tray. A form defines a paper size. Users can then select the paper size from within their application. When the user prints, Windows XP Professional automatically routes the print job to the paper tray that holds the correct form. Examples of forms include the following: Legal, A4, Envelopes #10, and Letter Small.

To assign a form to a paper tray, complete the following steps:

1. Click Start, and then click Control Panel.

2. In the Control Panel window, click Printers And Other Hardware, and then click Printers And Faxes.

3. In the Printers And Faxes window, right-click the icon of the appropriate printer, and then click Properties.

4. In the printer's Properties dialog box, click the Device Settings tab.

5. In the box next to each paper tray, click the form for the paper type for the tray, as shown in Figure 7.3.

6. Click OK.

Figure 7.3 Setting forms for a printer

After you have set up a paper tray, users specify the paper size from within applications. Windows XP Professional knows in which paper tray the form is located.

Setting a Separator Page

A separator page is a file that contains print device commands. Separator pages have two functions:

To identify and separate printed documents.

To switch print devices between print modes. Some print devices can switch between print modes that take advantage of different device features. You can use separator pages to specify the correct page description language. For example, you can specify PostScript or Printer

Control Language (PCL) for a print device that can switch between different print modes but cannot automatically detect which language a print job uses.

Windows XP Professional includes four separator page files, which are located in the %systemroot%\System32 folder. Table 7.2 lists the filename and describes the function for each of the included separator page files.

Table 7.2 Separator Page Files

Filename Function

SYSPRINT.SEP Prints a page before each document; compatible with PostScript print devices

PCL.SEP Switches the print mode to PCL for HP-series print devices and prints a page before each document

PSCRIPT.SEP Switches the print mode to PostScript for HP-series print devices but does not print a page before each document

SYSPRTJ.SEP A version of SYSPRINT.SEP that uses Japanese characters

When you have decided to use a separator page and have chosen an appropriate one, use the Advanced tab in the printer's Properties dialog box to have the separator page printed at the beginning of each print job.

To set up a separator page, complete the following steps:

1. In the Advanced tab in the Properties dialog box for the printer (see Figure 7.4), click Separator Page.

Figure 7.4 The Advanced tab for a printer's Properties dialog box

2. In the Separator Page dialog box, type the name of the separator page file.

To browse for a separator file, click Browse.

3. Click OK to close the Separator Page box, and then click OK again to close the printer's Properties dialog box.

Pausing, Resuming, and Canceling Documents

Pausing and resuming a printer or canceling all documents on a printer might be necessary if there is a printing problem.

To pause or cancel all documents, right-click the icon for the printer in the Printers And Faxes window, and then click the appropriate command. To resume printing on a printer, right-click the printer and click Resume Printing.

Table 7.3 describes the tasks that you might perform when you manage printers, how to perform the tasks, and examples of situations in which you might perform these tasks.

Table 7.3 Managing Printers Tasks

Task Action Example

To pause printing

To resume printing

Click Pause Printing. The Pause Printing command changes to Resume Printing.

Pause the printer if there is a problem with the printer until you fix the problem.

Click Resume Printing. The Resume Printing command changes to Pause Printing.

Resume printing after you fix a problem with a printer.

To cancel all documents

Click Cancel All Documents. All documents are deleted from the printer.

Cancel all documents when you need to clear a print queue after old documents that no longer need to print have accumulated.

You can also pause a printer by taking the printer offline. To take a printer offline, open the printer window, and on the Printer menu, click Use

Printer Offline.

Redirecting Documents to a Different Printer

You can redirect documents to a different printer. For example, if a printer is not working, you should redirect the documents so that users do not need to resubmit them. You can redirect all print jobs for a printer, but you cannot redirect specific documents. The new printer must use the same printer driver as the current printer.

To redirect documents to a different printer, complete the following steps:

1. Open the Printers And Faxes window, right-click the printer, and then click Properties.

2. In the Properties dialog box, click the Ports tab.

3. Click Add Port.

4. In the Available Port Types list, click Local Port, and then click New Port.

5. In the Port Name dialog box, in the Enter A Port Name text box, type the Universal Naming Convention (UNC) name for the printer to which you are redirecting documents (for example, \\prntsrv6\HPCLJ4550), as shown in Figure 7.5.

Figure 7.5 Redirecting documents to another printer

6. Click OK to accept the change and close the Port Name dialog box.

7. Click Close to close the Printer Ports dialog box.

8. Click OK to close the printer's Properties dialog box.

If another printer is available for the current print server, you can redirect the documents to that printer. To redirect documents to another local or network printer that uses the same printer driver, select the appropriate port on the print server and cancel the selection of the current port.

Taking Ownership of a Printer

There might be times when the owner of a printer can no longer manage that printer and you need to take ownership. Taking ownership of a printer enables you to change administrative responsibility for it. By default, the user who installed the printer owns it. If that user can no longer administer the printer, you should take ownership of it-for example, if the current owner leaves the company.

The following users can take ownership of a printer:

A user or a member of a group who has the Manage Printers permission for the printer.

Members of the Administrators and Power Users groups. By default these groups have the Manage Printers permission, which allows them to take ownership.

To take ownership of a printer, complete the following steps:

1. In the Properties dialog box for the printer, click the Security tab, and then click Advanced.

2. In the Advanced Security Settings dialog box, click the Owner tab, and then click your user account under Change Owner To, as shown in

Figure 7.6.

Figure 7.6 Taking ownership of a printer

3. Click OK to change ownership and to close the Advanced Security Settings dialog box.

4. Click OK to close the Properties dialog box for the printer.

Practice: Managing Printers

In this practice you perform three tasks that are part of managing printers. In the first exercise, you assign forms to paper trays. In the second exercise, you set up a separator page. In the third exercise you learn how to take ownership of a printer.

Exercise 1: Assigning Forms to Paper Trays

In this exercise, you assign a paper type (form) to a paper tray so that when users print to a specified form, the print job is automatically routed to and adjusted for the correct tray.

To assign forms to paper trays

1. Log on as the user you created during installation or any user that is a member of the Administrators group.

2. Click Start, and then click Control Panel.

3. In the Control Panel window, click Printers And Other Hardware, and then click Printers And Faxes.

4. Right-click the icon of your printer, and then click Properties.

If you do not have a printer installed, see Exercise 1: Adding and Sharing a Printer in Chapter 6 , "Setting Up, Configuring, and

Troubleshooting Common Setup and Configuration Problems for Network Printers."

5. In the Properties dialog box, click the Device Settings tab.

Some of the selections might be labeled Not Available because they depend on options that are not installed.

6. Click Tray 2, and then select Legal.

Whenever a user prints on legal size paper, Windows XP Professional instructs the printer to use paper from Tray 2.

7. Click Apply and leave the Properties dialog box open for the next exercise.

Exercise 2: Setting Up Separator Pages

In this exercise, you set up a separator page to print between documents. You use the SYSPRINT.SEP separator page that ships with Windows XP

Professional. This separator page includes the user's name and the date and time that the document was printed.

To set up a separator page

1. Click the Advanced tab of the Properties dialog box.

2. In the Advanced tab, click Separator Page.

3. In the Separator Page dialog box, click Browse.

Windows XP Professional displays a Separator Page dialog box that lists the contents of the System32 folder, which contains the separator pages that ship with Windows XP Professional. This dialog box also allows you to search in additional folders.

4. Select SYSPRINT.SEP, and then click Open.

Windows XP Professional displays the Separator Page dialog box with the full path to the SYSPRINT.SEP separator page specified.

5. Click OK.

Windows XP Professional is now set to print a separator page between print jobs.

6. Leave the Properties dialog box open for the next exercise.

Exercise 3: Taking Ownership of a Printer

In this exercise, you practice taking ownership of a printer.

To take ownership of a printer

1. Click the Security tab of the Properties dialog box.

2. In the Security tab, click Advanced.

The Advanced Security Settings For HP Color LaserJet 4550 dialog box is displayed.

3. Click the Owner tab.

4. To take ownership of the printer, select another user in the Name box.

5. If you actually wanted to take ownership you would click Apply, but for the purposes of this exercise, click Cancel and leave the ownership unchanged.

6. Click OK to close the Properties dialog box.

7. Click File and then click Close to close the Printers And Faxes window.

8. Log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. If a printer has multiple trays that regularly hold different paper sizes, you can assign a form to a specific tray. How do you assign a form to a paper tray?

2. A _______________________ is a file that contains print device commands that identify and separate printed documents.

3. Which of the following tabs do you use to redirect documents to a different printer?

a. Advanced tab of the Properties dialog box for the printer b. Security tab of the Properties dialog box for the printer c. Ports tab of the Properties dialog box for the printer d. Device Settings tab of the Properties dialog box for the printer

4. Which of the following tabs do you use to take ownership of a printer?

a. Advanced tab of the Properties dialog box for the printer b. Security tab of the Properties dialog box for the printer c. Ports tab of the Properties dialog box for the printer d. Permissions tab of the Properties dialog box for the printer

5. Which of the following tabs do you use to set up a separator page?

a. Advanced tab of the Properties dialog box for the printer b. Security tab of the Properties dialog box for the printer c. Ports tab of the Properties dialog box for the printer d. Permissions tab of the Properties dialog box for the printer

Lesson Summary

If a printer has multiple trays that regularly hold different paper sizes, you can assign a form to a specific tray. A form defines a paper size.

A separator page is a file that contains print device commands. Separator pages identify and separate printed documents, and they can be used to switch print devices between print modes.

To pause a printer, cancel all documents, or resume printing, right-click the icon for the printer in the Printers And Faxes window and then click the appropriate command.

You can redirect all print jobs for a printer, but you cannot redirect specific documents.

To take ownership of a printer, a user must have or be a member of a group that has the Manage Printers permission for the printer. By default, members of the Administrators and Power Users groups have the Manage Printers permission.

[Home]

[Previous]

[Next]

Lesson 3: Managing Documents

In addition to managing printers, Windows XP Professional allows you to manage documents. Managing documents includes pausing, resuming, restarting, and canceling documents. In addition, you can set someone to be notified when a print job is finished, the priority to allow a critical document to print before other documents, and a specific time for a document to print.

After this lesson, you will be able to

Pause, resume, restart, and cancel the printing of a document

Set a notification, priority, and printing time

Delete a document from the print queue

Estimated lesson time: 20 minutes

Pausing, Restarting, and Canceling a Document

If there is a printing problem with a specific document, you can pause and resume printing of that document. Additionally, you can restart or cancel a document. You must have the Manage Documents permission for the appropriate printer to perform these actions. Because the creator of a document has the default permissions to manage that document, users can perform any of these actions on their own documents.

To manage a document, right-click the icon representing the printer for the document in the Printers And

Faxes window, and then click Open. Select the appropriate documents, click the Document menu, and then click the appropriate command to pause, resume, and restart from the beginning, or cancel a document, as shown in Figure 7.7.

Figure 7.7 Managing documents

Table 7.4 describes the tasks that you might perform when you manage individual documents, how to perform the tasks, and examples of situations in which you might perform them.

Table 7.4 Managing Document Tasks

Task Action

Select the documents for which

To pause printing of a document you want to pause printing, and then click Pause. (The status changes to Paused.)

Example

Pause printing of a document when there is a problem with the document.

To resume printing a document

Select the documents for which you want to resume printing, and then click Resume. (The status changes to Printing.)

Resume printing of the document after you fix the problem with the paused document.

To restart printing a document

Select the documents for which you want to restart printing, and then click Restart. Restart causes printing to start from the beginning of the document.

Restart printing of a partially printed document after you fix a problem with the document or the print device.

To cancel printing a document

Select the documents for which you want to cancel printing, and then click Cancel. You can also cancel a document by pressing the

Delete key.

When a document has the wrong printer settings or is no longer needed, you can cancel it so it is deleted before it prints.

Setting Notification, Priority, and Printing Time

You can control print jobs by setting the notification, priority, and printing time. To perform these document management tasks, you must have the Manage Documents permission for the appropriate printer.

You can set the notification, priority, and printing time for a document in the General tab of the

Properties dialog box for the document, as shown in Figure 7.8. To open the Properties dialog box for one or more documents, first select the documents in the Printer window, click Document on the Printer window menu bar, and then click Properties.

Figure 7.8 Setting notification, priority, and printing time for a document

Table 7.5 describes the tasks that you might perform when you control print jobs, how to perform the tasks, and examples of situations in which you might perform them.

Table 7.5 Setting a Notification, Changing Priority, and Scheduling Print Times

Task

Set a notification

Action Example

In the Notify text box, type the logon

Change the print notification when name of the user who should receive the notification. By default, Windows

XP Professional enters the name of the printed the document needs to retrieve it. user who printed the document. someone other than the user who

Move the Priority slider to the priority Change a priority so that a critical

Change a document priority level that you want. The highest document prints before other priority is 99 and the lowest is 1. documents.

Schedule print times

To restrict print times, select Only

From in the Schedule section, and then set the hours between which you want the document to print.

Set the print time for a large document so that it prints during off hours, such as late at night.

Practice: Managing Documents

In this practice, you manage documents by printing a document, setting a notification for a document, changing the priority for a document, and then canceling a document.

To verify that a printer is offline

1. Log on as the user you created during installation or any user that is a member of the

Administrators group.

2. Click Start and then click Control Panel.

3. In the Control Panel window, click Printers And Other Hardware, and click Printers And Faxes.

4. In the Printers And Faxes window, click the printer icon.

5. Do one of the following to verify that the printer is offline:

On the File menu, verify that the Use Printer Online option is listed because that indicates that the printer is currently offline.

Right-click the printer icon and verify that the Use Printer Online command is listed because that indicates that the printer is currently offline.

If the Printers And Faxes window is displayed in Web view, verify that Use Printer Offline is displayed in the left portion of the window.

6. Verify that a check mark appears above the printer icon indicating that it is the default printer.

7. Minimize the Printers And Faxes window.

Keep the printer offline to keep it from trying to print. This eliminates error messages in later exercises when documents are spooled.

To print a document

1. Click Start, point to All Programs, point to Accessories, and then click WordPad.

2. Type How big is big? and then, on the File menu, click Save.

3. In the File Name text box, type BIG, and then click Save.

4. Click File and then click Print.

The Print dialog box appears. Notice that the file will be printed on the HP Color LaserJet 4550

PS printer.

5. Click Print, and then close WordPad.

To set a notification

1. Restore the Printers And Faxes window.

2. Double-click HP Color LaserJet 4550 PS.

3. In the Printer window, select BIG, and then, on the Document menu, click Properties.

Windows XP Professional displays the BIG Document Properties dialog box with the General tab active.

Which user is specified in the Notify text box? Why?

4. In the Notify text box, type Fred and then click Apply.

You set the notification to go to Fred.

To increase the priority of a document

1. In the BIG Document Properties dialog box, in the General tab, notice the default priority.

What is the current priority? Is it the lowest or highest priority?

2. In the Priority box, move the slider to the right to increase the priority of the document to 38, and then click OK.

Nothing changes visibly in the HP Color LaserJet 4550 PS - Use Printer Offline window.

To cancel a document

1. Select BIG in the Printer window document list.

2. On the Document menu, click Cancel.

Notice that the Status column changes to Deleting. BIG is removed from the document list.

You can also cancel a document by pressing the Delete key.

3. Close the Printer window, and then close the Printers And Faxes window.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A , "Questions and Answers."

1. What is the difference between resuming printing of a document and restarting printing of a document?

2. Which of the following statements about the range of priorities for a document to be printed is correct?

a. Priorities for a document range from 1 to 10, with 1 being the highest priority.

b. Priorities for a document range from 1 to 10, with 10 being the highest priority.

c. Priorities for a document range from 1 to 99, with 1 being the highest priority.

d. Priorities for a document range from 1 to 99, with 99 being the highest priority.

3. You set the notification, priority, and printing time for a document in the ______________ tab of the Properties dialog box for the document.

4. By default, Windows XP Professional enters the ______________ logon name in the Notify text box of a document.

a. Administrator's b. Owner of the printer's c. Owner of the document's d. Person who printed the document's

Lesson Summary

Managing documents includes pausing, resuming, restarting, and canceling documents.

In the Notify text box for a document, you can set who is notified when the print job is finished.

Setting the document priority allows a critical document to print before other documents.

Setting a specific time for a document to print allows large documents to only print during off

hours, such as late at night.

You must have the Manage Documents permission for the appropriate printer to perform these document management tasks.

The creator of a document has the default permissions to manage that document, so users can perform any of these actions on their own documents.

[Home]

[Previous]

[Next]

Lesson 4: Administering Printers Using a Web

Browser

Windows XP Professional enables you to manage printers from any computer running a Web browser, regardless of whether the computer is running Windows XP Professional or has the correct printer driver installed. All management tasks that you perform with Windows XP Professional management tools are the same when you use a Web browser. The difference in administering with a Web browser is the interface, which is a Web-based interface. To access a printer using a Web browser, a print server running Windows 2000 Server or Windows XP Professional must have Microsoft Internet

Information Services (IIS) installed.

For information about installing IIS, see

Chapter 10 , "Configuring Windows XP Professional."

After this lesson, you will be able to

Describe the advantages of administering printers using a Web browser

Describe how to administer printers using a Web browser

Estimated lesson time: 10 minutes

Using a Web Browser to Manage Printers

The following are the advantages of using a Web browser, such as Microsoft Internet Explorer, to manage printers:

It allows you to administer printers from any computer running a Web browser, regardless of whether the computer is running Windows XP Professional or has the correct printer driver installed.

It allows you to customize the interface. For example, you can create your own Web page containing a floor plan with the locations of the printers and the links to the printers.

It provides a summary page listing the status of all printers on a print server.

It can report real-time print device data, such as whether the print device is in power-saving mode, if the printer driver makes such information available. This information is not available in the Printers And Faxes window.

Accessing Printers Using a Web Browser

You can access all printers on a print server by using a Web browser or you can use any of the windows or folders within the Windows XP Professional interface that has an address bar, such as the Printers And Faxes window or Internet Explorer

(see Figure 7.9). In the Address text box, type http://print_server_name/printers. This command displays a page listing all the printers on the print server. Click the name of the printer that you want to use. When you are on that printer's page, under

Printer Actions, click Connect to connect to the printer. Windows XP automatically copies the appropriate printer drivers to your computer and adds an icon for the printer to the Printers And Faxes window.

Figure 7.9 Using Internet Explorer to access all printers on a print server

If you want to gain access to a specific printer by using a Web browser, open the Web browser, and then in the Address text box, type http://server_name/printer_share_name. You are directed to that printer's page. Under Printer Actions, click

Connect to connect to the printer.

From the printer's URL page, you can view information about the printer, such as its model, its location, and the number of documents waiting to print. You can manage any document you have sent to the printer, and if you have the Manage

Printers permission for the printer, you can also pause or resume operation of the printer.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. If you are using a computer running Windows XP Professional as your print server, users can gain access to the printers on it by using a Web browser only if the print server has ________________________________ installed.

2. How can you gain access to all printers on a print server?

3. Can you pause and resume operation of a printer that you have used Internet Explorer to connect to?

Lesson Summary

Windows XP Professional enables you to manage printers from any computer running a Web browser, regardless of whether the computer is running Windows XP Professional or has the correct printer driver installed.

All management tasks that you perform with Windows XP Professional management tools are the same when you use a Web browser.

You can gain access to all printers on a print server by using a Web browser or any of the windows or folders within the Windows XP Professional interface that has an address bar.

If you gain access to a printer using a Web browser and have the Manage Printers permission for the printer, you can pause or resume operation of the printer.

[Home]

[Previous]

[Next]

Lesson 5: Troubleshooting Common Printing Problems

In this lesson you will learn about some common printing problems and how to troubleshoot them. This chapter also introduces you to the built-in Printer Troubleshooter and some of the other troubleshooting features included in Windows XP Professional.

After this lesson, you will be able to

Describe how to troubleshoot some common printing problems

Describe the features included in Windows XP Professional to make it easier to resolve common printing problems

Estimated lesson time: 10 minutes

Examining the Problem

When you detect a printing problem, always verify that the printer is plugged in, turned on, and connected to the print server. For a network interface print device, verify that there is a network connection between the printer and the print server.

To determine the cause of a problem, first try printing from a different program to verify that the problem is with the printer and not with the program. If the problem is with the printer, ask the following questions:

Can other users print normally? If so, the problem is most likely caused by insufficient permissions, no network connection, or client computer problems.

Does the print server use the correct printer driver for the printer?

Is the print server operational and is there enough disk space for spooling?

Does the client computer have the correct printer driver?

Reviewing Common Printing Problems

There are some printing problems that are common to most network printing environments. Table 7.6 describes some of these common printing problems, as well as some possible causes and solutions.

Table 7.6 Common Printing Problems, Causes, and Solutions

Problem Possible cause

A user receives an Access Denied message when trying to configure a printer from an application (for example, earlier versions of Microsoft Excel).

The user does not have the appropriate permission to change printer configurations.

Solution

Change the user's permission or configure the printer for the user.

The document does not print completely or comes out garbled.

The printer driver is incorrect. Install the correct printer driver.

The hard disk starts thrashing and the document does not reach the print server.

There is insufficient hard disk space for spooling. Create more free space on the hard disk.

Windows XP Professional Printing Troubleshooter

Windows XP Professional has a built-in troubleshooter to help you resolve your printing problems. For example, in the Printers And Faxes window, you can click Troubleshoot Printing (see Figure 7.10).

Figure 7.10 Printers And Faxes window built-in troubleshooter

When you click Troubleshoot Printing, Windows XP Professional presents you with a series of potential printing problems. After you make a selection from the list of potential problems and click Next, the troubleshooter takes you through a series of suggestions and questions to help you resolve the problem. You can also perform a search to help resolve your problem or you can select the I Want The Troubleshooter To

Investigate Settings On This Computer option.

Additional Troubleshooting Options

If you experience a problem with your computer, Windows XP Professional provides a number of ways to help you resolve your problem. On the Start menu you can click Help And Support. If it is a printing problem, click Printing And Faxing (see Figure 7.11).

Figure 7.11 The Fixing A Printer Problem option in the Help And Support Center window

The Help and Support Center also allows you to use Remote Assistance to invite another person to help over the Internet. The expert can accept this invitation, chat with you, and view your desktop. He or she can also transfer any files required to fix the issue or perform any complex procedures that need to be performed. You can also visit the Windows XP newsgroups or try Microsoft Assisted Support.

For more information about these support features, see Chapter 1

, "Introduction to Windows XP Professional."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next chapter. The answers for these questions are in

Appendix A

, "Questions and Answers."

1. When you detect a printing problem, what three things should you always check before you start troubleshooting the problem?

2. If a user reports to you that he or she cannot print, what are some of the areas you should check?

3. The __________________________________________ feature included in Windows XP Professional allows you to invite an expert to take full control of your computer over the Internet to resolve printing problems on your computer.

Lesson Summary

When you detect a printing problem, always verify that the printer is plugged in, turned on, and connected to the print server.

For a network interface print device, verify that there is a network connection between the printer and the print server.

You can access the Windows XP Professional built-in Printing Troubleshooter from the Printers And Faxes window by clicking

Troubleshoot Printing.

You can use Remote Assistance to invite another person to help over the Internet. This expert can chat with you and view your desktop. With your permission, the expert can get full control of your computer to help resolve problems.

[Home]

[Previous]

[Next]

Chapter 8

Securing Resources with NTFS

Permissions

About This Chapter

This chapter introduces you to NT file system (NTFS) folder and file permissions for Windows XP

Professional. You will learn how to assign NTFS folder and file permissions to user accounts and groups, and you will see how moving or copying files and folders affects NTFS file and folder permissions. You will also learn how to troubleshoot common resource access problems.

Before You Begin

To complete this chapter, you must have

Microsoft Windows XP Professional installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Understanding and Applying

NTFS Permissions

You use NTFS permissions to specify which users and groups can access files and folders and what they can do with the contents of the files or folders. NTFS permissions are available only on NTFS volumes.

They are not available on volumes formatted with file allocation table (FAT) or FAT32 file systems.

NTFS security is effective whether a user accesses the file or folder at the local computer or over the network.

The permissions you assign for folders are different from the permissions you assign for files.

Administrators, the owners of files or folders, and users with Full Control permission can assign NTFS permissions to users and groups to control access to files and folders.

After this lesson, you will be able to

Define the standard NTFS folder and file permissions

Describe the result when you combine user account and group permissions

Describe the result when folder permissions are different from those of the files in the folder

Estimated lesson time: 30 minutes

NTFS Folder Permissions

You assign folder permissions to control the access that users have to folders and to the files and subfolders that are contained within the folders.

Table 8.1 lists the standard NTFS folder permissions that you can assign and the type of access that each provides.

Table 8.1 NTFS Folder Permissions

NTFS folder permission Allows the user to

Read

Write

List Folder Contents

Read & Execute

Modify

Full Control

See files and subfolders in the folder and view folder ownership, permissions, and attributes (such as Read-Only, Hidden, Archive, and System)

Create new files and subfolders within the folder, change folder attributes, and view folder ownership and permissions

See the names of files and subfolders in the folder

Move through folders to reach other files and folders, even if the users don't have permission for those folders, and perform actions permitted by the Read permission and the List Folder Contents permission

Delete the folder plus perform actions permitted by the Write permission and the Read & Execute permission

Change permissions, take ownership, and delete subfolders and files, plus perform actions permitted by all other NTFS folder permissions

You can deny permission to a user account or group. To deny all access to a user account or group for a folder, deny the Full Control permission.

NTFS File Permissions

You assign file permissions to control the access that users have to files. Table 8.2 lists the standard

NTFS file permissions that you can assign and the type of access that each provides.

Table 8.2 NTFS File Permissions

NTFS file permission Allows the user to

Read Read the file, and view file attributes, ownership, and permissions

Write

Read & Execute

Overwrite the file, change file attributes, and view file ownership and permissions

Run applications, plus perform the actions permitted by the Read permission

Modify

Full Control

Modify and delete the file, plus perform the actions permitted by the Write permission and the Read & Execute permission

Change permissions and take ownership, plus perform the actions permitted by all other NTFS file permissions

Access Control List

NTFS stores an access control list (ACL) with every file and folder on an NTFS volume. The ACL contains a list of all user accounts and groups that have been assigned permissions for the file or folder, as well as the permissions that they have been assigned. When a user attempts to gain access to a resource, the ACL must contain an entry, called an access control entry (ACE), for the user account or a group to which the user belongs. The entry must allow the type of access that is requested (for example,

Read access) for the user to gain access. If no ACE exists in the ACL, the user can't access the resource.

Multiple NTFS Permissions

You can assign multiple permissions to a user account and to each group of which the user is a member.

To assign permissions, you must understand the rules and priorities by which NTFS assigns and combines multiple permissions and NTFS permissions inheritance.

Effective Permissions

A user's effective permissions for a resource are the sum of the NTFS permissions that you assign to the individual user account and to all of the groups to which the user belongs. If a user has Read permission for a folder and is a member of a group with Write permission for the same folder, the user has both Read and Write permissions for that folder.

Overriding Folder Permissions with File Permissions

NTFS file permissions take priority over NTFS folder permissions. If you have access to a file, you will be able to access the file if you have the Bypass Traverse Checking security permission, even if you don't have access to the folder containing the file. You can access the files for which you have permissions by using the full Universal Naming Convention (UNC) or local path to open the file from its respective application, even though the folder in which it resides is invisible if you have no corresponding folder permission. In other words, if you don't have permission to access the folder containing the file you want to access, you must have the Bypass Traverse Checking security permission and you have to know the full path to the file to access it. Without permission to access the folder, you can't see the folder, so you

can't browse for the file.

The Bypass Traverse Checking security permission is detailed further in Lesson 2 of this chapter.

Overriding Other Permissions with Deny

You can deny permission to a user account or group for a specific file, although this is not the recommended method of controlling access to resources. Denying permission overrides all instances in which that permission is allowed. Even if a user has permission to access a file or folder as a member of a group, denying permission to the user blocks any other permissions the user might have (see Figure

8.1).

Figure 8.1 Multiple NTFS permissions

In Figure 8.1, User1 has Read permission for FolderA and is a member of Group A and Group B. Group

B has Write permission for FolderA. Group A has been denied Write permission for File2.

The user can read and write to File1. The user can also read File2 but cannot write to File2 because she is

a member of Group A, which has been denied Write permission for File2.

NTFS Permissions Inheritance

By default, permissions that you assign to the parent folder are inherited by and propagated to the subfolders and files contained in the parent folder. However, you can prevent permissions inheritance, as shown in Figure 8.2.

Figure 8.2 Inheritance

Understanding Permissions Inheritance

Whatever permissions you assign to the parent folder also apply to subfolders and files contained within the parent folder. When you assign NTFS permissions to give access to a folder, you assign permissions for the folder and for any existing files and subfolders, as well as for any new files and subfolders that are created in the folder.

Preventing Permissions Inheritance

You can prevent permissions that are assigned to a parent folder from being inherited by subfolders and files that are contained within the folder. That is, the subfolders and files will not inherit permissions that have been assigned to the parent folder containing them.

The folder for which you prevent permissions inheritance becomes the new parent folder. The subfolders and files contained within this new parent folder inherit the permissions assigned to it.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. Which of the following statements correctly describe NTFS file and folder permissions? (Choose all answers that are correct.) a. NTFS security is effective only when a user gains access to the file or folder over the network.

b. NTFS security is effective when a user gains access to the file or folder on the local computer.

c. NTFS permissions specify which users and groups can gain access to files and folders and what they can do with the contents of the file or folder.

d. NTFS permissions can be used on all file systems available with Windows XP

Professional.

2. Which of the following NTFS folder permissions allow you to delete the folder?

a. Read b. Read & Execute c. Modify d. Administer

3. Which of the NTFS file permissions should you assign to a file if you want to allow users to delete the file but do not want to allow users to take ownership of a file?

4. What is an access control list (ACL) and what is the difference between an ACL and an access control entry (ACE)?

5. What are a user's effective permissions for a resource?

6. By default, what inherits the permissions that you assign to the parent folder?

Lesson Summary

NTFS permissions are available only on NTFS volumes and are used to specify which users and groups can access files and folders and what these users can do with the contents of those files or folders.

NTFS folder permissions are Read, Write, List Folder Contents, Read & Execute, Modify, and

Full Control.

The NTFS file permissions are Read, Write, Read & Execute, Modify, and Full Control.

Administrators, the owners of files or folders, and users with Full Control permission can assign

NTFS permissions to users and groups to control access to files and folders.

NTFS stores an ACL, which contains a list of all user accounts and groups that have been granted access to the file or folder, as well as the type of access that they have been granted, with every file and folder on an NTFS volume.

A user attempting to gain access to a resource must have permission for the type of access that is requested to gain access.

You can assign multiple permissions to a user account by assigning permissions to his or her individual user account and to each group of which the user is a member.

NTFS file permissions take priority over NTFS folder permissions.

A user's effective permissions for a resource are based on the NTFS permissions that you assign to the individual user account and to all of the groups to which the user belongs.

[Home]

[Previous]

[Next]

Lesson 2: Assigning NTFS Permissions and Special Permissions

You should follow certain guidelines for assigning NTFS permissions. Assign permissions according to group and user needs, which include allowing or preventing permissions to be inherited from parent folders to subfolders and files that are contained in the parent folder.

After this lesson, you will be able to

Assign NTFS folder and file permissions to user accounts and groups

Give users the ability to change permissions on files or folders

Give users the ability to take ownership of files and folders

Estimated lesson time: 70 minutes

Planning NTFS Permissions

If you take the time to plan your NTFS permissions and follow a few guidelines, you will find that they are easy to manage. Use the following guidelines when you assign NTFS permissions:

To simplify administration, group files into application, data, and home folders. Centralize home and public folders on a volume that is separate from applications and the operating system. Doing so provides the following benefits:

You assign permissions only to folders, not to individual files.

Backup is less complex because you don't need to back up application files, and all home and public folders are in one location.

Allow users only the level of access that they require. If a user only needs to read a file, assign the

Read permission to his or her user account for the file. This reduces the possibility of users accidentally modifying or deleting important documents and application files.

Create groups according to the access that the group members require for resources, and then assign the appropriate permissions to the group. Assign permissions to individual user accounts only when necessary.

When you assign permissions for working with data or application folders, assign the Read &

Execute permission to the Users group and the Administrators group. This prevents application files from being accidentally deleted or damaged by users or viruses.

When you assign permissions for public data folders, assign the Read & Execute permission and the Write permission to the Users group and the Full Control permission to the CREATOR

OWNER. By default, the user who creates a file is also the owner of the file. The owner of a file can grant another user permission to take ownership of the file. The person who takes ownership would then become the owner of the file. If you assign the Read & Execute permission and the

Write permission to the Users group and the Full Control permission to the CREATOR OWNER, users have the ability to read and modify documents that other users create and the ability to read, modify, and delete the files and folders that they create.

Deny permissions only when it is essential to deny specific access to a specific user account or group.

Encourage users to assign permissions to the files and folders that they create and educate them about how to do so.

Setting NTFS Permissions

By default, when you format a volume with NTFS, the Full Control permission is assigned to the

Everyone group. This presented a problem in earlier versions of Windows, including Microsoft Windows

2000. In Windows XP Professional, the Anonymous Logon is no longer included in the Everyone group.

When a Windows 2000 Professional system is upgraded to a Windows XP Professional system, resources with permission entries for the Everyone group and not explicitly for the Anonymous Logon group are no longer available to the Anonymous Logon group.

Assigning or Modifying Permissions

Administrators, users with the Full Control permission, and the owners of files and folders can assign permissions to user accounts and groups.

To assign or modify NTFS permissions for a file or a folder, in the Security tab of the Properties dialog box for the file or folder, configure the options that are shown in Figure 8.3 and described in Table 8.3.

Table 8.3 Security Tab Options

Option

Group Or User Name

Description

Allows you to select the user account or group for which you want to change permissions or that you want to remove from the list.

Allows and denies permissions. Select the Allow check box to

Permissions For group or user name allow a permission. Select the Deny check box to deny a permission.

Add

Remove

Advanced

Opens the Select Users Or Groups dialog box, which you use to select user accounts and groups to add to the Group Or User Name list (see Figure 8.4).

Removes the selected user account or group and the associated permissions for the file or folder.

Opens the Advanced Security Settings dialog box for the selected folder so that you can grant or deny special permissions (see

Figure 8.5).

Figure 8.3 The Security tab of the Properties dialog box for a folder

Adding Users or Groups

Click Add to display the Select Users Or Groups dialog box (see Figure 8.4). Use this dialog box to add users or groups so that you can assign them permissions for accessing a folder or file. The options available in the Select Users Or Groups dialog box are described in Table 8.4.

Figure 8.4 The Select Users or Groups dialog box for a folder

Table 8.4 Select Users Or Groups Dialog Box Options

Option

Select The Object Type

Check Names

Description

Allows you to select the types of objects you want to look for, such as built-in security principals (users, groups, and computer accounts), user accounts, or groups.

From This Location

Locations

Indicates where you are currently looking, for example in the domain or on the local computer.

Allows you to select where you want to look, for example in the domain or on the local computer.

Enter The Object Names To Select

Allows you to type in a list of built-in security principals, users, or groups to be added.

Verifies the selected list of built-in security principals, users, or groups to be added.

Advanced

Allows you access to advanced search features, including the ability to search for deleted accounts, accounts with passwords that do not expire, and accounts that have not logged on for a certain number of days.

Granting or Denying Special Permissions

Click Advanced to display the Advanced Security Settings dialog box (Figure 8.5), which lists the users and groups and the permissions they have on this object. The Permissions Entries box also shows where the permissions were inherited from and where they are applied.

Figure 8.5 The Permissions tab of the Advanced Security Settings dialog box for a folder

You can use the Advanced Security Settings dialog box to change the permissions set for a user or group.

To change the permissions set for a user or group, select a user and click Edit to display the Permission

Entry For dialog box (see Figure 8.6). You can then select or clear the specific permissions, explained in

Table 8.5, that you want to change.

Figure 8.6 The Permission Entry dialog box for a folder

Table 8.5 Special Permissions

Permission

Full Control

Description

Full Control applies all permissions to the user or group.

Traverse Folder allows or denies moving through folders to access other files or folders, even when the user has no permissions for the traversed folder (the folder that the user is moving through). Traverse Folder is not applied if the user or group has the Bypass Traverse Checking user right

Traverse Folder/ Execute File granted in Group Policy. By default the Everyone group has Bypass

Traverse Checking granted, so you must modify the Group Policy if you want to use Traverse Folder permission. Traverse Folder applies only to folders. Execute File allows or denies running executable files

(application files). Execute File applies only to files.

List Folder/ Read Data

Read Attributes

List Folder allows or denies viewing file names and subfolder names within the folder. List Folder applies only to folders.

Read Data allows or denies viewing the contents of a file. Read Data applies only to files.

Read Attributes allows or denies the viewing of the attributes of a file or folder. These attributes are defined by NTFS.

Read Extended Attributes

Read Extended Attributes allows or denies the viewing of extended attributes of a file or a folder. These attributes are defined by programs.

Create Files/ Write Data

Create Files allows or denies the creation of files within a folder. Create

Files applies to folders only.

Write Data allows or denies the making of changes to a file and the overwriting of existing content. Write Data applies to files only.

Create Folders/ Append Data

Create Folders allows or denies the creation of folders within the folder.

Create Folders applies only to folders.

Write Attributes

Append Data allows or denies making changes to the end of the file, but not changing, deleting, or overwriting existing data. Append Data applies to files only.

Write Attributes allows or denies the changing of the attributes of a file or folder. These attributes are defined by NTFS.

Write Extended

Delete

Write Extended Attributes allows or denies the changing of the Attributes extended attributes of a file or a folder. These attributes are defined by programs.

Delete Subfolders and Files

Delete Subfolders and Files allows or denies the deletion of subfolders or files within a folder, even if the Delete permission has not been granted on the particular subfolder or file.

Delete allows or denies the deletion of a file or folder. A user can delete a file or folder even without having the Delete permission granted on that file or folder, if the Delete Subfolder and Files permission has been granted to the user on the parent folder.

Read Permissions

Read Permissions allows or denies the reading of the permissions assigned to the file or folder.

Change Permissions

Take Ownership

Synchronize

Change Permissions allows or denies the changing of the permissions assigned to the file or folder. You can give other administrators and users the ability to change permissions for a file or folder without giving them the Full Control permission over the file or folder. In this way, the administrator or user can't delete or write to the file or folder but can assign permissions to the file or folder.

Take Ownership allows or denies taking ownership of the file or folder.

The owner of a file can always change permissions on a file or folder, regardless of the permissions set to protect the file or folder.

Synchronize allows or denies different threads to wait on the handle for the file or folder and synchronize with another thread that may signal it.

This permission applies only to multithreaded, multiprocess programs.

Taking Ownership

You can transfer ownership of files and folders from one user account or group to another. You can give someone the ability to take ownership and, as an administrator, you can take ownership of a file or folder.

The following rules apply for taking ownership of a file or folder:

The current owner or any user with Full Control permission can assign the Full Control standard permission or the Take Ownership special access permission to another user account or group, allowing the user account or any member of the group to take ownership.

An administrator can take ownership of a folder or file, regardless of assigned permissions. If an administrator takes ownership, the Administrators group becomes the owner and any member of the Administrators group can change the permissions for the file or folder and assign the Take

Ownership permission to another user account or group.

For example, if an employee leaves the company, an administrator can take ownership of the employee's files and assign the Take Ownership permission to another employee, and then that employee can take ownership of the former employee's files.

You cannot assign anyone ownership of a file or folder. The owner of a file, an administrator, or anyone with Full Control permission can assign Take Ownership permission to a user account or group, allowing them to take ownership. To become the owner of a file or folder, a user or group member with Take

Ownership permission must explicitly take ownership of the file or folder.

To take ownership of a file or folder, the user or a group member with Take Ownership permission must explicitly take ownership of the file or folder, as follows:

1. In the Security tab of the Properties dialog box for the file or folder, click Advanced.

2. In the Advanced Security Settings dialog box, in the Owner tab, in the Change Owner To list, select your name.

3. Select the Replace Owner On Subcontainers And Objects check box to take ownership of all subfolders and files that are contained within the folder, and then click OK.

Preventing Permissions Inheritance

By default, subfolders and files inherit permissions that you assign to their parent folder. This is indicated in the Advanced Security Settings dialog box (Figure 8.5) when the Inherit From Parent The Permission

Entries That Apply To Child Objects check box is selected. To prevent a subfolder or file from inheriting permissions from a parent folder, clear the check box. You are then prompted to select one of the options described in Table 8.6.

Table 8.6 Preventing Permissions Inheritance Options

Option Description

Copy

Copy the permission entries that were previously applied from the parent to the child and then deny subsequent permissions inheritance from the parent folder.

Remove

Remove the permission entries that were previously applied from the parent to the child and retain only the permissions that you explicitly assign here.

Cancel Cancel the dialog box.

Practice: Planning and Assigning NTFS

Permissions

In this practice, you will plan NTFS permissions for folders and files based on a business scenario. Then you will apply NTFS permissions for folders and files on your computer running Windows XP

Professional in a workgroup environment, based on a second scenario. Finally, you will test the NTFS permissions that you set up to make sure that they are working properly.

Before beginning the exercises that follow, log on with an account that is a member of the Administrators group and create the users listed in the following table:

User account Type

User81 Limited

User82 Limited

User83

User84

Limited

Limited

Create the following folders:

C:\Public

C:\Public\Library

Run the PlanningNTFSPermissions file in the Demos folder on the CD-ROM accompanying this book for a demonstration of determining the default NTFS permissions applied to a folder. The demonstration also includes stopping a group from inheriting permissions from its parent object, deleting a group that has been assigned NTFS permissions, and adding a user and applying NTFS permissions to the user object for a folder.

Exercise 1: Determining the Default NTFS Permissions for a Folder

In this exercise, you determine the default NTFS permissions for the newly created Public folder located on a computer running Windows XP Professional in a workgroup environment.

To determine the default permissions on a folder

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Right-click My Computer, and then click Explore.

3. Expand Local Disk (C:), right-click the Public folder, and then click Properties.

Windows XP Professional displays the Public Properties dialog box with the General tab active.

4. Click the Security tab to display the permissions for the Public folder.

If you do not have a Security tab, there are two things to check: Is your partition formatted as

NTFS or FAT? Only NTFS partitions use NTFS permissions, so only NTFS partitions have a

Security tab. Are you using Simple File Sharing? Click Cancel to close the Public Properties dialog box. On the Tools menu, click Folder Options. In the Folder Options dialog box, click

View. Under Advanced Settings, clear the Use Simple File Sharing (Recommended) check box and click OK. Repeat steps 3 and 4 and continue with this practice.

If any of the users or groups have special permissions, click the user or group and then click

Advanced to see which special permissions are set.

Windows XP Professional displays the Public Properties dialog box with the Security tab active.

What are the existing folder permissions?

5. Click OK to close the Public Properties dialog box.

6. Close Windows Explorer and log off.

To test the folder permissions for the Public folder

1. Log on as User81, and then start Windows Explorer.

2. Expand the Public folder.

3. In the Public folder, create a text document named USER81 and type in the following text: The

first four letters in the alphabet are a, b, c, and d.

With the Public folder selected in the folder tree (the left pane), on the File menu, click New and then click Text Document to create the text document.

Were you successful? Why or why not?

4. Attempt to perform the following tasks for the file that you just created:

Open the file

Modify the file

Delete the file

Which tasks were you able to complete and why?

5. In the Public folder, recreate the text file named User81.

6. Log off Windows XP Professional.

7. Log on as User82.

8. Attempt to perform the following tasks on the USER81 text document.

Open the file

Modify the file

Delete the file

Which tasks were you able to perform and why?

Exercise 2: Assigning NTFS Permissions

In this exercise, you assign NTFS permissions for the Public folder.

The permissions that you assign are to be based on the following criteria:

All users should be able to read documents and files in the Public folder.

All users should be able to create documents in the Public folder.

All users should be able to modify the contents, properties, and permissions of the documents that they create in the Public folder.

User82 is responsible for maintaining the Public folder and should be able to modify and delete all files in the Public folder.

Based on what you learned in Exercise 1, what changes in permission assignments do you need to make to meet each of these four criteria? Why?

You are currently logged on as User82. Can you change the permissions assigned to User82 while logged on as User82? Why or why not?

To assign NTFS permissions for a folder

1. Log on as Fred or with a user account that is a member of the Administrators group, and then start

Windows Explorer.

2. Expand the Public folder.

3. Right-click the Public folder and then click Properties.

Windows XP Professional displays the Properties dialog box for the folder with the General tab active.

4. In the Properties dialog box for the folder, click the Security tab.

5. In the Security tab, click Add.

The Select Users Or Groups dialog box is displayed.

6. In the Enter The Object Names To Select text box, type User82 and then click Check Names.

PRO1\User82 should now appear in the Enter The Object Names To Select text box, indicating that Windows XP Professional located User82 on PRO1 and it is a valid user account.

7. Click OK to close the Select Users Or Groups dialog box.

User82 now appears in the Group Or User Name box in the Public Properties dialog box.

What permissions are assigned to User82?

8. Click Advanced.

Windows XP Professional displays the Advanced Security Settings For Public dialog box with

User82 (PRO1\User82) listed in the Permissions Entries text box.

9. Ensure User82 is selected and click Edit.

Windows XP Professional displays the Permission Entry For Public dialog box with User82

(PRO1\User82) displayed in the Name text box.

10. In the Allow column, click Full Control.

All the check boxes under Allow are now selected.

11. Click OK to close the Permission Entry For Public dialog box.

Windows XP Professional displays the Advanced Security Settings For Public dialog box.

12. Click OK to close the Advanced Security Settings For Public dialog box.

13. Click OK to close the Public Properties dialog box.

14. Close Explorer and log off Windows XP Professional.

To test NTFS permissions for a folder

1. Log on as User82 and type password when prompted for the password.

2. Start Windows Explorer.

3. Expand Local Disk (C:) and then expand the Public folder.

4. Attempt to perform the following tasks on the USER81 text document:

Modify the file

Delete the file

Which tasks were you able to record and why?

5. Close Windows Explorer and then log off Windows XP Professional.

Exercise 3: Testing NTFS Permissions

In this exercise, you create a file in a subfolder and test how NTFS permissions are inherited through a folder hierarchy.

To test permissions for the Library folder

1. Log on as User81, and then start Windows Explorer.

2. In Windows Explorer, expand the Public\Library folder.

3. Create a text document USER81 in the Library folder.

4. Log off Windows XP Professional.

To test permissions for the Library folder while logged on as User82

1. Log on as User82, and then start Windows Explorer.

2. Expand the Public\Library folder.

3. Attempt to perform the following tasks on USER81:

Open the file

Modify the file

Delete the file

Which tasks were you able to record and why?

4. Log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. By default, when you format a volume with NTFS, the ______________________ permission is assigned to the Everyone group.

2. When you assign permissions for public data folders, it is recommended that you assign the

______________________ permission and the ____________________ permission to the Users group and the ______________________ permission to the CREATOR OWNER user.

3. Which of the following users can assign permissions to user accounts and groups? (Choose all answers that are correct.) a. Administrators b. Power users c. Users with the Full Control permission d. Owners of files and folders

4. Which of the following tabs in the Properties dialog box for the file or folder do you use to assign or modify NTFS permissions for a file or a folder?

a. Advanced b. Permissions c. Security d. General

5. What is the purpose of the Traverse Folder/Execute File special permission?

6. What is the difference between the Delete permission and Delete Subfolder and Files permission?

Lesson Summary

By default, when you format a volume with NTFS, the Full Control permission is assigned to the

Everyone group.

To assign or modify NTFS permissions for a file or a folder, you use the Security tab of the

Properties dialog box for the file or folder.

By default, subfolders and files inherit permissions that you assign to their parent folder.

To stop subfolders and files from inheriting permissions that you assign to their parent folder, clear the Inherit From Parent The Permission Entries That Apply To Child Objects check box in the Advanced Security Settings dialog box.

The current owner or any user with Full Control permission can assign the Full Control standard permission or the Take Ownership special access permission to another user account or group, allowing the user account or a member of the group to take ownership.

You cannot assign anyone ownership of a file or folder.

[Home]

[Previous]

[Next]

Lesson 3: Solving Permissions Problems

When you assign or modify NTFS permissions to files and folders, problems might arise. When you copy or move files and folders, the permissions you set on the files or folders might change. Specific rules control how and when permissions change. Understanding these rules helps you solve permissions problems.

Troubleshooting these problems is important to keep resources available for the appropriate users and protected from unauthorized users.

After this lesson, you will be able to

Describe the effect on NTFS file and folder permissions when files and folders are copied

Describe the effect on NTFS file and folder permissions when files and folders are moved

Troubleshoot resource access problems

Estimated lesson time: 50 minutes

Copying Files and Folders

When you copy files or folders from one folder to another or from one volume to another, permissions change, as shown in Figure 8.7.

Figure 8.7 Copying files or folders between folders or volumes

When you copy a file within a single NTFS volume or between NTFS volumes, note the following:

Windows XP Professional treats it as a new file. As a new file, it takes on the permissions of the destination folder.

You must have Write permission for the destination folder to copy files and folders.

You become the creator and owner.

When you copy files or folders to FAT volumes, the folders and files lose their NTFS permissions because

FAT volumes don't support NTFS permissions.

Moving Files and Folders

When you move a file or folder, permissions might or might not change, depending on where you move the file or folder (see Figure 8.8).

Figure 8.8 Moving files or folders between folders or volumes

Moving Within a Single NTFS Volume

When you move a file or folder within a single NTFS volume, note the following:

The file or folder retains the original permissions.

You must have the Write permission for the destination folder to move files and folders into it.

You must have the Modify permission for the source file or folder. The Modify permission is required to move a file or folder because Windows 2000 deletes the file or folder from the source folder after it is copied to the destination folder.

You become the creator and owner.

Moving Between NTFS Volumes

When you move a file or folder between NTFS volumes, note the following:

The file or folder inherits the permissions of the destination folder.

You must have the Write permission for the destination folder to move files and folders into it.

You must have the Modify permission for the source file or folder. The Modify permission is required to move a file or folder because Windows XP Professional deletes the file or folder from the source folder after it is copied to the destination folder.

You become the creator and owner.

When you move files or folders to FAT volumes, the folders and files lose their NTFS permissions because

FAT volumes don't support NTFS permissions.

Troubleshooting Permissions Problems

Table 8.7 describes some common permissions problems that you might encounter and provides solutions that you can use to try to resolve these problems.

Table 8.7 Permissions Problems and Troubleshooting Solutions

Problem

A user can't gain access to a file or folder.

Solution

If the file or folder was copied moved to or another

NTFS volume, the permissions might have changed.

Check the permissions that are assigned to the user account and to groups to which the user belongs. The user might not have permission or might be denied access either individually or as a member of a group.

You add a user account to a group to give that user access to a file or folder, but the user still can't gain access.

For access permissions to be updated to include the new group to which you have added the user account, the user must either log off and then log on again or close all network connections to the computer on which the file or folder resides and then make new connections.

A user with Full Control permission to a folder deletes a file in the folder, although that user doesn't have permission to delete the file, itself.

You want to stop the user it from being able to delete more files.

You have to clear the special access permission, the

Delete Subfolders And Files check box for that folder to prevent users with Full Control of the folder from being able to delete files in.

Windows XP Professional supports Portable Operating System Interface for UNIX (POSIX) applications that are designed to run on UNIX. On UNIX systems, Full Control permission allows you to delete files in a folder. In Windows 2000, the Full Control permission includes the Delete Subfolders and Files special

access permission, allowing you the same ability to delete files in that folder regardless of the permissions that you have for those files.

Avoiding Permissions Problems

The following list provides best practices for implementing NTFS permissions. These guidelines will help you avoid permission problems.

Assign the most restrictive NTFS permissions that still enable users and groups to accomplish necessary tasks.

Assign all permissions at the folder level, not at the file level. Group files in a separate folder for which you want to restrict user access, and then assign restricted access to that folder.

For all application-executable files, assign Read & Execute and Change Permissions to the

Administrators group, and assign Read & Execute to the Users group. Damage to application files is usually a result of accidents and viruses. By assigning Read & Execute to Users and Read & Execute and Change Permissions to Administrators, you can prevent users or viruses from modifying or deleting executable files. To update files, members of the Administrators group can assign Full

Control to their user account to make changes and then reassign Read & Execute and Change

Permissions.

Assign Full Control to CREATOR OWNER for public data folders so that users can delete and modify files and folders that they create. Doing so gives the user who creates the file or folder full access to only the files or folders that he or she creates in the public data folder.

For public folders, assign Full Control to CREATOR OWNER and Read and Write to the Everyone group. This gives users full access to the files that they create, but members of the Everyone group can only read files in the folder and add files to the folder.

Use long, descriptive names if the resource will be accessed only at the computer. If a folder will eventually be shared, use folder names and filenames that are accessible by all client computers.

Allow permissions rather than denying permissions. If you don't want a user or group to access a particular folder or file, don't assign permissions. Denying permissions should be an exception, not a common practice.

Practice: Managing NTFS Permissions

In this practice, you will observe the effects of taking ownership of a file. Then you will determine the effects of permission and ownership when you copy or move files. Finally, you will determine what happens when a user with Full Control permission to a folder has been denied all access to a file in that folder but attempts to delete the file.

To successfully complete this practice, you must have completed "Practice: Planning and Assigning NTFS

Permissions" in Lesson 2 of this chapter.

Exercise 1: Taking Ownership of a File

In this exercise, you observe the effects of taking ownership of a file. To do this, you must determine permissions for a file, assign the Take Ownership permission to a user account, and then take ownership as that user.

To determine the permissions for a file

1. Log on as Fred or with a user account that is a member of the Administrators group, and then start

Windows Explorer.

2. In the Public folder, create a text document named OWNER.

3. Right-click OWNER, and then click Properties.

Microsoft Windows XP Professional displays the Owner Properties dialog box with the General tab active.

4. Click the Security tab to display the permissions for the OWNER file.

5. Click Advanced.

Windows XP Professional displays the Advanced Security Settings For Owner dialog box with the

Permissions tab active.

6. Click the Owner tab.

Who is the current owner of the OWNER file?

To assign permission to a user to take ownership

1. In the Advanced Security Settings For Owner dialog box, click the Permissions tab.

2. Click Add.

Windows XP Professional displays the Select User Or Group dialog box.

3. In the From This Location text box at the top of the dialog box, ensure that your computer (PRO1) is selected.

4. In the Enter The Object Names To Select text box, type User81, and then click Check Name.

PRO1\User81 should now appear in the Enter The Object Names To Select text box indicating that

Windows XP Professional located User81 on PRO1 and it is a valid user account.

5. Click OK.

Windows XP Professional displays the Permission Entry For Owner dialog box. Notice that all of the permission entries for User81 are blank.

6. Under Permissions, select the Allow check box next to Take Ownership.

7. Click OK.

Windows XP Professional displays the Advanced Security Settings For Owner dialog box with the

Permissions tab selected.

8. Click OK to return to the Owner Properties dialog box.

9. Click OK to apply your changes and close the Owner Properties dialog box.

10. Close Windows Explorer, and then log off Windows XP Professional.

To take ownership of a file

1. Log on as User81, and then start Windows Explorer.

2. Expand the Public folder.

3. Right-click OWNER and then click Properties.

Windows XP Professional displays the Owner Properties dialog box with the General tab active.

4. Click the Security tab to display the permissions for OWNER.

Windows XP Professional displays the Owner Properties dialog box with the Security tab active.

5. Click Advanced to display the Advanced Security Settings For Owner dialog box, and then click the

Owner tab.

6. Under Change Owner To, select User81, and then click Apply.

Who is now the owner of the OWNER file?

7. Click OK to close the Advanced Security Settings For Owner dialog box.

8. Click OK to close the Owner Properties dialog box.

To test permissions for a file as the owner

1. While you are logged on as User81, assign User81 the Full Control permission for the OWNER text document and click Apply.

2. Click Advanced and clear the Inherit From Parent The Permission Entries That Apply To Child

Objects check box.

3. In the Security dialog box, click Remove.

4. Click OK to close the Advanced Security Settings For Owner dialog box.

5. Click OK to close the Owner Properties dialog box.

6. Delete the OWNER text document.

Exercise 2: Copying and Moving Folders

In this exercise, you see the effects of permissions and ownership when you copy and move folders.

To create a folder while logged on as a user

1. While you are logged on as User81, in Windows Explorer, in the root folder of drive C, create a folder named Temp1.

What are the permissions that are assigned to the folder?

User or group Permissions

Who is the owner? Why?

2. Close all applications, and then log off Windows XP Professional.

To create a folder while logged on as a member of the Administrators group

1. Log on as Administrator, or as a user account that is a member of the Administrators group, and then start Windows Explorer.

2. In the root folder of drive C, create the folders Temp2 and Temp3.

What are the permissions for the Temp2 and Temp3 folders that you just created?

User or group Permissions

Who is the owner of the Temp2 and Temp3 folders? Why?

3. Assign the following permissions to the Temp2 and Temp3 folders. Clear the Inherit From Parent

The Permission Entries That Apply To Child Objects check box. When prompted, click Remove to remove all permissions except those explicitly set.

Folder Assign these permissions

Temp2 Administrators: Full Control Users: Read & Execute

Temp3 Administrators: Full Control Backup Operators: Read & Execute Users: Full Control

To copy a folder to another folder within a Windows XP Professional NTFS volume

1. While logged on with an account that is a member of the Administrators group, in Windows

Explorer, copy C:\Temp2 to C:\Temp1 by selecting C:\Temp2, holding down Ctrl, and then dragging

C:\Temp2 to C:\Temp1.

Because this is a copy, C:\Temp2 and C:\Temp1\Temp2 should both exist.

2. Select C:\Temp1\Temp2, and then compare the permissions and ownership with C:\Temp2.

Who is the owner of C:\Temp1\Temp2 and what are the permissions? Why?

To move a folder within the same NTFS volume

1. Log on as User81.

2. In Windows Explorer, select C:\Temp3, and then move it to C:\Temp1.

What happens to the permissions and ownership for C:\Temp1\Temp3? Why?

3. Close all windows and log off.

Exercise 3: Deleting a File with All Permissions Denied

In this exercise, you use the Temp3 folder for which the Users group has been given Full Control permission. You create a file in the Temp3 folder but deny all permissions to that file. You then observe what happens when a user attempts to delete that file.

To create a file and deny access to it

1. Log on with a user account that is a member of the Administrators group.

2. In the C:\Temp1\Temp3 folder, create a text document named NOACCESS.

3. Deny the Users group the Full Control permission for the NOACCESS text document.

Windows XP Professional displays a Security dialog box with the following message:

You are setting a deny permissions entry. Deny entries take precedence over allow entries. This means that if a user is a member of two groups, one that is allowed a permission, and another that is denied the same permission, the user is denied that permission.

Do you want to continue?

4. Click Yes to apply your changes and close the Security dialog box.

5. Click OK to close the NoAccess Properties dialog box.

To view the result of the Full Control permission being denied for a folder

1. In Windows Explorer, double-click the NOACCESS text document in the Temp3 folder to open it.

Were you successful? Why or why not?

2. Click Start and then click Run.

Windows XP Professional displays the Run dialog box.

3. Type cmd in the Open text box and click OK.

4. Change to C:\Temp1\Temp3.

5. Type Del NOACCESS.TXT and press Enter.

Were you successful? Why or why not?

How would you prevent users with Full Control permission for a folder from deleting a file in that folder for which they have been denied the Full Control permission?

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning

the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. Which of the following statements about copying a file or folder are correct? (Choose all answers that are correct.) a. When you copy a file from one folder to another folder on the same volume, the permissions on the file do not change.

b. When you copy a file from a folder on an NTFS volume to a folder on a FAT volume, the permissions on the file do not change.

c. When you copy a file from a folder on an NTFS volume to a folder on another NTFS volume, the permissions on the file match those of the destination folder.

d. When you copy a file from a folder on an NTFS volume to a folder on a FAT volume, the permissions are lost.

2. Which of the following statements about moving a file or folder are correct? (Choose all answers that are correct.) a. When you move a file from one folder to another folder on the same volume, the permissions on the file do not change.

b. When you move a file from a folder on an NTFS volume to a folder on a FAT volume, the permissions on the file do not change.

c. When you move a file from a folder on an NTFS volume to a folder on another NTFS volume, the permissions on the file match those of the destination folder.

d. When you move a file from a folder on an NTFS volume to a folder on the same volume, the permissions on the file match those of the destination folder.

3. When you assign NTFS permissions you should assign the _____________________ (least/most) restrictive permissions.

4. If you don't want a user or group to gain access to a particular folder or file, should you deny access permissions to that folder or file?

Lesson Summary

When you copy or move files and folders, the permissions you set on the files or folders might change.

When you copy files or folders from one folder to another or from one volume to another, Windows

XP Professional treats the copied file or folder as a new file or folder. Therefore, it takes on the permissions of the destination folder.

You must have Write permission for the destination folder to copy files and folders.

When you copy a file, you become the creator and owner of the file.

When you move a file or folder within a single NTFS volume, the file or folder retains its original permissions.

When you move a file or folder between NTFS volumes, the file or folder inherits the permissions of the destination folder.

You should assign the most restrictive NTFS permissions that still enable users and groups to accomplish necessary tasks.

You should assign permissions at the folder level, not the file level.

You should assign Full Control to CREATOR OWNER for public folders and Read and Write to the

Everyone group.

Allow permissions rather than deny permissions.

[Home]

[Previous]

[Next]

Chapter 9

Administering Shared Folders

About This Chapter

In

Chapter 8 , "Securing Resources with NTFS Permissions," you learned about NT file system (NTFS)

permissions for Microsoft Windows XP Professional. You use NTFS permissions to specify which users and groups can access files and folders and what these permissions allow users to do with the contents of the file or folder. NTFS permissions are available only on NTFS volumes. NTFS security is effective whether a user gains access to the file or folder at the local computer or over the network.

In this chapter, you will learn how to make folders accessible over the network. You can access a computer's folders and their contents only by physically sitting at the computer and logging on to it or by accessing a shared folder on a remote computer. Sharing folders is the only way to make folders and their contents available over the network. Shared folders also provide another way to secure file resources, one that can be used on file allocation table (FAT) or FAT32 partitions. In this chapter, you will also learn how to share file resources, secure them with permissions, and provide access to them.

Before You Begin

To complete this chapter, you must have

Microsoft Windows XP Professional installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Understanding Shared Folders

You use shared folders to provide network users with access to file resources. When a folder is shared, users can connect to the folder over the network and access the files it contains. However, to access the files, users must have permissions to access the shared folders.

After this lesson, you will be able to

Use shared folders to provide access to network resources

Describe how permissions affect access to shared folders

Estimated lesson time: 30 minutes

Shared Folder Permissions

A shared folder can contain applications, data, or a user's personal data, called a home folder. Each type of data requires different shared folder permissions.

The following are characteristics of shared folder permissions:

Shared folder permissions apply to folders, not individual files. Because you can apply shared folder permissions only to the entire shared folder and not to individual files or subfolders in the shared folder, they provide less detailed security than NTFS permissions.

Shared folder permissions don't restrict access to users who gain access to the folder at the computer where the folder is stored. They apply only to users who connect to the folder over the network.

Shared folder permissions are the only way to secure network resources on a FAT volume. NTFS permissions aren't available on FAT volumes.

The default shared folder permission is Full Control, and it is assigned to the Everyone group when you share the folder.

A shared folder appears in Windows Explorer as an icon of a hand, shown in Figure 9.1, holding the shared folder.

Figure 9.1 Shared folders in Windows Explorer

To control how users gain access to a shared folder, you assign shared folder permissions. Table 9.1 explains what each of the shared folder permissions allows a user to do, presented from most restrictive to least restrictive.

Table 9.1 Shared Folder Permissions

Shared folder permission Allows the user to

Read

Display folder names, filenames, file data, and attributes; run program files; and change folders within the shared folder

Change

Full Control

Create folders, add files to folders, change data in files, append data to files, change file attributes, delete folders and files; also allows the user to perform actions permitted by the

Read permission

Change file permissions, take ownership of files, and perform all tasks permitted by the Change permission

You can allow or deny shared folder permissions. Generally, it is best to allow permissions and to assign permissions to a

group rather than to individual users. Deny permissions only when it is necessary to override permissions that are otherwise applied, for example, when it is necessary to deny permission to a specific user who belongs to a group to which you have given the permission. If you deny a shared folder permission to a user, the user won't have that permission. For example, to deny all access to a shared folder, deny the Full Control permission.

How Shared Folder Permissions Are Applied

Applying shared permissions to user accounts and groups affects access to a shared folder. Denying permission takes precedence over the permissions that you allow. The following list describes the effects of applying permissions:

Multiple permissions. A user can be a member of multiple groups, each with different permissions that provide different levels of access to a shared folder. When you assign permission to a user for a shared folder and that user is a member of a group to which you assigned a different permission, the user's effective permissions are the combination of the user and group permissions. For example, if a user has Read permission and is a member of a group with Change permission, the user's effective permission is Change, which includes Read.

Deny permissions. Denied permissions take precedence over any permissions that you otherwise allow for user accounts and groups. If you deny a shared folder permission to a user, the user won't have that permission, even if you allow the permission for a group of which the user is a member.

NTFS permissions. Shared folder permissions are sufficient to gain access to files and folders on a FAT volume but not on an NTFS volume. On a FAT volume, users can gain access to a shared folder for which they have permissions, as well as all of the folder's contents. When users gain access to a shared folder on an NTFS volume, they need the shared folder permission and also the appropriate NTFS permissions for each file and folder to which they gain access. A user's effective permission for a shared folder on a NTFS volume is the more restrictive of the shared and NTFS permissions.

When you copy a shared folder, the original folder is still shared, but the copy is not. When you rename or move a shared folder, it is no longer shared.

Guidelines for Shared Folder Permissions

The following list provides some general guidelines for managing your shared folders and assigning shared folder permissions:

Determine which groups need access to each resource and the level of access that they require. Document the groups and their permissions for each resource.

Assign permissions to groups instead of user accounts to simplify access administration.

Assign to a resource the most restrictive permissions that still allow users to perform required tasks. For example, if users only need to read information in a folder and they will never delete or create files, assign the Read permission.

Organize resources so that folders with the same security requirements are located within a folder. For example, if users require Read permission for several application folders, store those folders within the same folder. Then share this folder instead of sharing each individual application folder.

Use intuitive share names so that users can easily recognize and locate resources. For example, for the Application folder, use Apps for the share name. You should also use share names that all client operating systems can use.

Table 9.2 describes share and folder naming conventions for different client computer operating systems.

Table 9.2 Client Computer Operating Systems and Share Name Length

Operating system

Windows XP and Microsoft Windows 2000

Share name length

80 characters

Microsoft Windows NT, Microsoft Windows 98, and Microsoft Windows 95 12 characters

MS-DOS, Microsoft Windows 3.x, and Microsoft Windows for Workgroups 8.3 characters

Microsoft Windows XP Professional provides 8.3-character equivalent names, but the resulting names might not be intuitive to users. For example, a Windows XP Professional folder named Accountants Database would appear as Account~1 on client computers running MS-DOS, Windows 3.x, and Windows for Workgroups.

Practice: Applied Permissions

In the following practice, User101 has been assigned permissions to access resources as an individual and as a member of a group, as shown in Figure 9.2.

Figure 9.2 Applied permissions

Determine which effective permissions are assigned for User101 and User2.

1. User101 is a member of Group1, Group2, and Group3. Group1 has Read permission. Group2 has Full Control permission for FolderA, and Group3 has change permissions assigned for FolderA. What are User101's effective permissions for FolderA?

2. User102 has been granted the Full Control shared folder permission for FolderB as an individual user. User102 is a member of the Managers group, which has been granted Change permission for FolderB, and a member of the Sales group, which has been denied all access to FolderB. What are User102's effective permissions for FolderB?

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions and Answers."

1. Because you use NTFS permissions to specify which users and groups can access files and folders and what these permissions allow users to do with the contents of the file or folder, why do you need to share a folder or use shared folder permissions?

2. Which of the following permissions are shared folder permissions? (Choose all answers that are correct.) a. Read b. Write c. Modify d. Full Control

3. ______________________ (Denied /Allowed) permissions take precedence over ____________ (denied /allowed) permissions on a shared folder.

4. When you copy a shared folder, the original folder is ___________________ (no longer shared /still shared) and the copy is ______________________ (not shared /shared).

5. When you move a shared folder, the folder is ______________________ (no longer shared /still shared).

6. When you rename a shared folder, the folder is ______________________ (no longer shared /still shared).

Lesson Summary

You can make a folder and its contents available to other users over the network by sharing the folder.

Using shared folder permissions is the only way to secure file resources on FAT volumes.

Shared folder permissions apply to folders, not individual files.

Shared folder permissions don't restrict access to users who gain access to the folder at the computer where the folder is stored. Shared folder permissions apply only to users who connect to the folder over the network.

The three shared folder permissions are Read, Change, and Full Control.

The default shared folder permission is Full Control, and it is assigned to the Everyone group when you share the folder.

[Home]

[Previous]

[Next]

Lesson 2: Planning, Sharing, and

Connecting to Shared Folders

When you plan shared folders, you can reduce administrative overhead and ease user access by organizing resources that will be shared and putting them into folders according to common access requirements. You can also determine which resources you want shared, organize resources according to function and use, and decide how you will administer the resources.

Shared folders can contain applications and data. Use shared application folders to centralize administration and provide a central location for users to store and access common files. If all data files are centralized in one shared folder, users can find them easily. You will be able to back up data folders more easily if they are centralized, and you will be able to upgrade application software more easily if applications are centralized.

You can share resources with others by sharing folders containing those resources. To share a folder, you must be a member of one of several groups, depending on the role of the computer where the shared folder resides. When you share a folder, you can control access to the folder by limiting the number of users who can simultaneously gain access to it, and you can also control access to the folder and its contents by assigning permissions to selected users and groups. Once you have shared a folder, users must connect to the shared folder and must have the appropriate permissions to access it. After you have shared a folder, you might want to modify it. You can stop sharing it, change its share name, and change user and group permissions to gain access to it.

After this lesson, you will be able to

Plan which shared folder permissions to assign to user accounts and groups for application and data folders

Create and modify shared folders

Make a connection to a shared folder

Estimated lesson time: 30 minutes

Shared Application Folders

Shared application folders are used for applications that are installed on a network server and can be used from client computers. The main advantage of shared applications is that you don't need to install and maintain most components of the applications on each computer. Although program files for applications can be stored on a server, configuration information for most network applications is often stored on each client computer. The exact way in which you share application folders will vary depending on the application and your particular network environment and company organization.

When you share application folders, consider the following points:

Create one shared folder for applications and organize all of your applications under this folder.

This designates one location for installing and upgrading software.

Assign the Administrators group the Full Control permission for the applications folder so that members of this group can manage the application software and control user permissions.

Remove the Full Control permission from the Everyone group and assign Read permission to the

Users group.

Assign the Change permission to groups that are responsible for upgrading and troubleshooting applications.

Create a separate shared folder outside your application folder hierarchy for any application for which you need to assign different permissions. Then assign the appropriate permissions to that folder.

Shared Data Folders

Users on a network use data folders to exchange public and working data. Working data folders are used by members of a team who need access to shared files. Public data folders are used by larger groups of users who all need access to common data.

Create and share common data folders on a separate volume from the operating system and applications.

Data files should be backed up frequently, and keeping data folders on a separate volume makes this convenient. If the operating system requires reinstallation, the volume containing the data folder remains intact.

Public Data

When you share a common public data folder, do the following:

Use centralized data folders so that data can be easily backed up.

Assign the Change permission to the Users group for the common data folder (see Figure 9.3).

This provides users with a central, publicly accessible location for storing data files that they want to share with other users. Users will be able to access the folder and read, create, or change files in

it.

Figure 9.3 Public data and working data shared folders

Working Data

When you share a working data folder, do the following:

Assign the Full Control permission to the Administrators group for a central data folder so that administrators can perform maintenance.

Share lower level data folders below the central folder with the Change permission for the appropriate groups when you need to restrict access to those folders.

For an example, see Figure 9.3. To protect data in the Accountants folder, which is a subfolder of the

Data folder, share the Accountants folder and assign the Change permission to the Accountants group so that only members of that group can access the Accountants folder.

Requirements for Sharing Folders

In Windows XP Professional, members of the built-in Administrators and Power Users groups are able to share folders. Which groups can share folders and on which machines they can share them depends on whether it is a workgroup or a domain and the type of computer on which the shared folders reside, as follows:

In a Windows 2000 domain, the Administrators and Server Operators groups can share folders residing on any machines in the domain. The Power Users group is a local group that can share

folders residing only on the stand-alone server or computer running Windows 2000 Professional where the group is located.

In a Windows workgroup, the Administrators and Power Users groups can share folders on the

Windows 2000 stand-alone server or the computer running Windows XP Professional on which the group exists.

If the folder to be shared resides on an NTFS volume, users must also have at least the Read permission for that folder to be able to share it.

Administrative Shared Folders

Windows XP Professional automatically shares folders for administrative purposes. These shares are marked with a dollar sign ($), which hides them from users who browse the computer. The root of each volume, the system root folder, and the location of the printer drivers are hidden shared folders that you can access across the network.

Table 9.3 describes the purpose of the administrative shared folders that Windows XP Professional automatically provides.

Table 9.3 Windows XP Professional Administrative Shared Folders

Share Purpose

The root of each volume on a hard disk is automatically shared,and the share name is the drive letter with a dollar sign ($). Whenyou connect to this folder,

C$, D$, E$, and so on you have access to the entire volume. You use the administrative shares to remotely connect to the computer to perform administrative tasks. Windows

XPProfessional assigns the Full Control permission to the Administrators group.

Admin$

Print$

The system root folder, which is C:\Windows by default, is sharedas Admin$.

Administrators can access this shared folder toadminister Windows XP

Professional without knowing in which folder it is installed. Only members of the

Administrators group have access to this share. Windows XP Professional assigns the Full Control permission to the Administrators group.

When you install the first shared printer, the %systemroot%

\System32\Spool\Drivers folder is shared as Print$. This folder provides access to printer driver files for clients. Only members of the Administrators and Power

Users groups have the Full Control permission. The Everyone group has the

Read permission.

Hidden shared folders aren't limited to those that the system automatically creates. You can share additional folders and add a dollar sign to the end of the share name. Only users who know the folder name can access it if they also possess the proper permissions.

Sharing a Folder

When you share a folder, you can give it a share name, provide comments to describe the folder and its content, control the number of users who have access to the folder, assign permissions, and share the same folder multiple times.

You can share a folder as follows:

1. Log on with a user account that is a member of a group that is able to share folders.

2. Right-click the folder that you want to share, and then click Properties.

3. In the Sharing tab of the Properties dialog box, click Share This Folder and configure the options shown in Figure 9.4 and described in Table 9.4.

Figure 9.4 The Sharing tab of a folder's Properties dialog box

Table 9.4 Sharing Tab Options

Option Description

The name that users from remote locations use to connect to the shared folder. You must

Share Name enter a share name. By default this is the same name as the folder. You can type in a different name up to 80 characters long.

Comment

An optional description for the share name. The comment appearsin addition to the share name when users at client computers browse the server for shared folders. This comment can be used to identify contents of the shared folder.

User Limit

The number of users who can concurrently connect to the shared folder. If you click

Maximum Allowed as the user limit, Windows XP Professional supports up to 10 connections. Windows 2000 Server can support an unlimited number of connections, but the number of client access licenses (CALs) that you purchase limits the connections.

The shared folder permissions that apply only when the folder is accessed over the

Permissions network. By default, the Everyone group is assigned Full Control for all new shared folders.

Caching The settings to configure offline access to this shared folder.

New Share

The settings to configure more than one share name and set of permissions for this folder.

This option appears only when the folder has already been shared.

Assigning Shared Folder Permissions

After you share a folder, the next step is to specify which users have access to the shared folder by assigning shared folder permissions to selected user accounts and groups. You can assign permissions to user accounts and groups for a shared folder as follows:

1. In the Sharing tab of the Properties dialog box of the shared folder, click Permissions.

2. In the Permissions dialog box, ensure that the Everyone group is selected and then click Remove.

3. In the Permissions dialog box, click Add.

4. In the Select Users Or Groups dialog box (see Figure 9.5), in the Enter The Object Names To

Select text box, type the name of the user or group to which you want to assign permissions.

Repeat this step for all user accounts and groups to which you want to assign permissions.

If you want to enter more than one user account or group at a time, separate the names by a semicolon. If you want to ensure the names are correct, click Check Names.

Figure 9.5 The Select Users Or Groups dialog box

5. Click OK.

6. In the Permissions dialog box for the shared folder, click the user account or group, and then, under Permissions, select the Allow check box or the Deny check box for the appropriate permissions for the user account or group.

Caching

To make shared folders available offline, copies of the files are stored in a reserved portion of disk space on your computer called a cache. Because the cache is on your hard disk, the computer can access it regardless of whether it is connected to the network. By default, the cache size is set to 10 percent of the available disk space. You can change the size of the cache in the Folder Options dialog box using the

Offline Files tab. You can also see how much space the cache is using by opening the Offline Files folder and clicking Properties on the File menu.

For more information about the cache, including how to change the cache size, see

Chapter 15 ,

"Monitoring, Managing, and Maintaining Network Resources."

When you share a folder, you can allow others to make the shared folder available offline by clicking

Caching in the folder's Properties dialog box. In the Caching Settings dialog box (see Figure 9.6), use the

Allow Caching Of Files In This Shared Folder check box to turn caching on and off.

Figure 9.6 The Caching Settings dialog box

The Caching Settings dialog box contains three caching options:

Manual Caching Of Documents. Users must manually specify all files they want available when working offline. This caching option, the default, is recommended for a shared network folder containing files that are to be accessed and modified by several people. To ensure proper file sharing, the network version of the file is always opened.

Automatic Caching Of Documents. This option makes every file that a user opens from your shared folder available to that person offline. Files that aren't opened are not available offline.

Each time a file is opened, the older copy of the file is automatically deleted. To ensure proper file sharing, the network version of the file is always opened.

Automatic Caching Of Programs And Documents. This option provides offline access to shared folders containing files that are read, referenced, or run, but that are not changed in the process. This setting reduces network traffic because offline files are opened directly without accessing the network versions in any way, and generally they start and run faster than the network versions. This option is recommended for folders containing read-only data or applications that are run from the network.

Creating Multiple Share Names

You might want to set different permissions on a shared folder. You can create multiple share names for the same folder and assign each a different one. To share a folder with multiple share names, click New

Share in the folder's Properties dialog box. In the New Share dialog box (see Figure 9.7) you can assign a new share name, limit the number of connections to the share, and click Permissions to set the permissions for the shared folder.

Figure 9.7 The New Share dialog box

Modifying Shared Folders

You can modify shared folders, stop sharing a folder, modify the share name, and modify shared folder permissions.

You can modify a shared folder as follows:

1. In the Properties dialog box of the shared folder, click the Sharing tab.

2. To complete the appropriate task, use the steps in Table 9.5.

Table 9.5 Steps to Modify a Shared Folder

To

Stop sharing a folder

Modify the share name

Do this

Click Do Not Share This Folder.

Click Do Not Share This Folder to stop sharing the folder and click

Apply. Then click Share This Folder and type the new sharename in the Share Name text box.

Click Permissions. In the Permissions dialog box, click Add to add a user account or group so that you can specify permissions for a

Modify shared folder permissions specific user or group, or click Remove to remove a user account or group. In the Select Users, Computers, Or Groups dialog box, click the user account or group whose permissions you want to modify and then select Allow or Deny for the appropriate permissions.

If you stop sharing a folder while a user has a file open, the user might lose data. If you click Do Not

Share This Folder and a user has a connection to the shared folder, Windows XP Professional displays a dialog box notifying you of that fact.

Connecting to a Shared Folder

You can access a shared folder on another computer by using My Network Places, My Computer, the

Add Network Place Wizard, or the Run command.

To connect to a shared folder using My Network Places, do the following:

1. Click Start.

When you start using My Network Places, Windows XP Professional adds it to your Start menu.

If My Network Places is listed on your Start menu, click it and go to step 4.

2. Click Control Panel and then click Network And Internet Connections.

3. In the Network And Internet Connections window, under See Also, click My Network Places.

4. Double-click the share you want to access.

If the share you want to connect to is listed, when you double-click it, you are connected. If the share you want to connect to is not listed, go to step 5.

5. If the share you want to connect to is not listed, click Add A Network Place.

The Welcome To The Add Network Place Wizard page is displayed.

6. Click Next.

7. In the Where Do You Want To Create This Network Place page, select Choose Another Network

Location, and then click Next.

8. In the What Is The Address Of This Network Place page, you can type a Universal Naming

Convention (UNC) path to the folder (for example, \\computer_name\sharedfolder_name; see

Figure 9.8) and click Next.

Figure 9.8 The What Is The Address Of This Network Place page

You can also use the Other Locations On Your Network page to make a network connection shortcut to a

Web share (http://Webserver\share) or a File Transfer Protocol (FTP) site (ftp://ftp.microsoft.com).

To connect to a shared folder using My Computer, you can do the following:

1. Click Start and click My Computer.

2. On the Tools menu, click Map Network Drive.

Windows XP Professional displays the Map Network Drive dialog box (Figure 9.9), which allows you to assign a drive letter to the connection. By default, the drive letter displayed is Z or the lowest letter of the alphabet that is currently unassigned.

Figure 9.9 The Map Network Drive dialog box

3. In the Folder text box, type \\server\sharename or click Browse to browse for a share.

By default, Reconnect At Logon is selected.

4. Clear the Reconnect At Logon check box unless you want to have Windows XP Professional create a connection to this share each time you log on to your computer.

5. Click Finish to establish the connection.

On My Computer, under Network Drives, the connection to the shared folder is listed.

You can connect to a shared folder using the Run command, as follows:

1. Click Start, click Run, and then type \\computer_name in the Open text box.

Windows XP Professional displays shared folders for the computer.

2. Double-click the shared folder to which you want to connect.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is a shared application folder? What is the main advantage of using shared applications?

2. In a Windows workgroup, the ____________________ group and the

_______________________ group can share folders on the Windows 2000 stand-alone server or the computer running Windows XP Professional on which the group exists.

3. Windows XP Professional automatically shares folders for administrative purposes. These shares are marked with a __________________, which hides them from users who browse the computer.

4. The system root folder, which is C:\Windows by default, is shared as ____________.

Administrators can access this shared folder to administer Windows XP Professional without knowing in which folder it is installed. Only members of the Administrators group have access to this share. Windows XP Professional assigns the Full Control permission to the Administrators group.

5. To assign permissions to user accounts and groups for a shared folder, which of the following tabs do you use?

a. The Permissions tab of the Properties dialog box of the shared folder b. The Sharing tab of the Properties dialog box of the shared folder c. The General tab of the Properties dialog box of the shared folder d. The Security tab of the Properties dialog box of the shared folder

6. Which of the following statements about size of the cache for making shared folders available offline is correct?

a. By default, the cache size is set to 20 percent of the available disk space.

b. By default, the cache size is set to 15 percent of the available disk space.

c. By default, the cache size is set to 10 percent of the available disk space.

d. By default, the cache size is set to 5 percent of the available disk space.

Lesson Summary

When you use shared application folders, assign the Administrators group the Full Control permission for the applications folder so that members of this group can manage the application software and control user permissions.

To access a shared folder, users must connect to it and have the appropriate permissions.

Windows XP Professional automatically shares folders for administrative purposes. These shares are marked with a dollar sign ($), which hides them from users who browse the computer.

In Windows XP Professional, members of the built-in Administrators and Power Users groups are able to share folders.

To make shared folders available offline, copies of the files are stored in the cache on your hard disk. By default, the cache size is set to 10 percent of the available disk space.

You can access a shared folder on another computer by using My Computer, the Add Network

Place Wizard, the Run command, or My Network Places.

[Home]

[Previous]

[Next]

Lesson 3: Combining Shared Folder

Permissions and NTFS Permissions

You share folders to provide network users with access to resources. If you are using a FAT volume, the shared folder permissions are the only resource available to provide security for the folders you have shared and the folders and files they contain. If you are using an NTFS volume, you can assign NTFS permissions to individual users and groups to better control access to the files and subfolders in the shared folders. When you combine shared folder permissions and NTFS permissions, the more restrictive permission is always the overriding permission.

After this lesson, you will be able to

Combine shared folder permissions and NTFS permissions

Estimated lesson time: 45 minutes

Strategies for Combining Shared Folder Permissions and NTFS Permissions

One strategy for providing access to resources on an NTFS volume is to share folders with the default shared folder permissions and then control access by assigning NTFS permissions. When you share a folder on an

NTFS volume, both shared folder permissions and NTFS permissions combine to secure file resources.

Shared folder permissions provide limited security for resources. You gain the greatest flexibility by using

NTFS permissions to control access to shared folders. Also, NTFS permissions apply whether the resource is accessed locally or over the network.

When you use shared folder permissions on an NTFS volume, the following rules apply:

You can apply NTFS permissions to files and subfolders in the shared folder. You can apply different

NTFS permissions to each file and subfolder contained in a shared folder.

In addition to shared folder permissions, users must have NTFS permissions for the files and subfolders contained in shared folders to access those files and subfolders. This is in contrast to FAT volumes, in which permissions for a shared folder are the only permissions protecting files and

subfolders in the shared folder.

When you combine shared folder permissions and NTFS permissions, the more restrictive permission is always the overriding permission.

In Figure 9.10, the Everyone group has the shared folder Full Control permission for the Public folder and the

NTFS Read permission for FileA. The Everyone group's effective permission for FileA is the more restrictive

Read permission. The effective permission for FileB is Full Control because both the shared folder permission and the NTFS permission allow this level of access.

Figure 9.10 Combining shared folder permissions and NTFS permissions

Practice: Managing Shared Folders

In this practice, you will determine users' effective permissions, plan shared folders, plan permissions, share a folder, assign shared folder permissions, connect to a shared folder, stop sharing a folder, and test the combined effects of shared folder permissions and NTFS permissions.

To complete the optional exercises (5 and 8), you must have two networked computers. One computer must be running Windows XP Professional and the other must be running one of the following Windows products:

Windows XP, Windows 2000 Professional, Windows 2000 Server, or Windows 2000 Advanced Server. Both computers must use password as the password for the Administrator account.

Exercise 1: Combining Permissions

Figure 9.11 shows examples of shared folders on NTFS volumes. These shared folders contain subfolders that have also been assigned NTFS permissions. Determine a user's effective permissions for each example.

Figure 9.11 Combined permissions

1. In the first example, the Data folder is shared. The Sales group has the shared folder Read permission for the Data folder and the NTFS Full Control permission for the Sales subfolder.

What are the Sales group's effective permissions for the Sales subfolder when they gain access to the

Sales subfolder by making a connection to the Data shared folder?

2. In the second example, the Users folder contains user home folders. Each user home folder contains data accessible only to the user for whom the folder is named. The Users folder has been shared, and the Users group has the shared folder Full Control permission for the Users folder. User1 and User2 have the NTFS Full Control permission for their home folder only and no NTFS permissions for other folders. These users are all members of the Users group.

What permissions does User1 have when he or she accesses the User1 subfolder by making a connection to the Users shared folder? What are User1's permissions for the User2 subfolder?

Exercise 2: Planning Shared Folders

In this exercise, you plan how to share resources on servers in the main office of a manufacturing company.

Record your decisions in the table at the end of this exercise. Figure 9.12 illustrates a partial folder structure for the servers at the manufacturing company.

Figure 9.12 A partial folder structure for the servers at a manufacturing company

You need to make resources on these servers available to network users. To do this, determine which folders to share and which permissions to assign to groups, including the appropriate built-in groups. Base your planning decisions on the following criteria:

Members of the Managers group need to read and revise documents in the Management Guidelines folder. Nobody else should have access to this folder.

Administrators need complete access to all shared folders, except for Management Guidelines.

The customer service department needs its own network location to store working files. All customer service representatives are members of the Customer Service group.

All employees need a network location to share information with each other.

All employees need to use the spreadsheet, database, and word processing software.

Only members of the Managers group should have access to the project management software.

Members of the CustomerDBFull group need to read and update the customer database.

Members of the CustomerDBRead group need to read only the customer database.

Each user needs a private network location to store files, which must be accessible only to that user.

Share names must be accessible from Windows XP Professional, Windows 2000, Windows NT,

Windows 98, Windows 95, and non-Windows-NT-based platforms.

Record your answers in this table.

Folder name and location Shared name Groups and permissions

Example: Management Guidelines MgmtGd Managers: Full Control

Exercise 3: Sharing Folders

In this exercise, you share a folder.

Run the SharedFolders file in the Demos folder on the CD-ROM accompanying this book for a demonstration of sharing a folder.

To share a folder

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Start Windows Explorer, create a C:\MktApps folder, right-click MktApps, and then click Properties.

3. In the MktApps Properties dialog box, click the Sharing tab.

Notice that the folder is currently not shared.

4. Click Share This Folder.

The Share Name value defaults to the name of the folder. If you want the share name to be different from the folder's name, change it here.

5. In the Comment text box, type Shared Marketing Applications and then click OK.

Windows Explorer changes the appearance of the Apps folder by placing a hand icon under it to indicate that it is a shared folder.

Exercise 4: Assigning Shared Folder Permissions

In this exercise, you determine the current permissions for a shared folder and assign shared folder permissions to groups in your domain.

To determine the current permissions for the MktApps shared folder

1. In Windows Explorer, right-click C:\MktApps, and then click Sharing And Security.

Windows XP Professional displays the MktApps Properties dialog box with the Sharing tab active.

2. Click Permissions.

Windows XP Professional displays the Permissions For MktApps dialog box.

The default permission for the MktApps shared folder is for the Everyone group to have Full Control permission.

To remove permissions for a group

1. Verify that Everyone is selected.

2. Click Remove.

To assign permissions to a group

1. Click Add.

Windows XP Professional displays the Select Users Or Groups dialog box.

2. In the Name text box, type administrators and then click OK.

Windows XP Professional adds Administrators to the list of names with permissions.

Which type of access does Windows XP Professional assign to the Administrators group by default?

3. In the Permissions For Administrators dialog box, under Allow, select the Full Control check box.

Why did Windows Explorer also select the Change permission for you?

4. Click Add.

Windows XP Professional displays the Select Users Or Groups dialog box.

5. In the Name text box, type users and then click OK.

Windows XP Professional adds Users to the list of names with permissions and assigns Read as the default permission.

6. Click OK to close the Permissions For MktApps dialog box.

7. Click OK to close the MktApps Properties dialog box.

8. Close Windows Explorer.

Exercise 5 (Optional): Connecting to a Shared Folder

In this exercise, you use the Run command to connect to a shared folder.

To complete this exercise, you must have two networked computers. One computer must be running

Windows XP Professional and the other must be running Windows XP or Windows 2000. Both computers must use password as the password for the Administrator account.

To connect to a network drive using the Run command

1. Log on as Administrator on your second computer.

2. Click Start and then click Run.

3. In the Open text box, type \\PRO1. (If you didn't use PRO1 as the name of your computer, use the appropriate name here and in the following steps.) Click OK.

Your second computer displays the PRO1 window. Notice that only the folders that are shared appear to network users.

4. Double-click MktApps to confirm that you can gain access to its contents.

MktApps contains no files or folders for you to access, but the system opens the folder and displays its contents.

5. Close the MktApps On PRO1 window.

Exercise 6: Stopping Folder Sharing

In this exercise, you stop sharing a folder.

To stop sharing a folder

1. Log on as Administrator on the PRO1 computer (or the computer running Windows XP Professional with the name you specified), and then start Windows Explorer.

2. Right-click C:\MktApps, and then click Sharing And Security.

3. Click Do Not Share This Folder, and then click OK.

A Sharing dialog box appears, indicating that a file is still open and asking if you want to continue.

4. Click Yes to continue.

Windows XP Professional no longer displays the hand icon that identifies a shared folder under the

MktApps folder. You might need to refresh the screen; if so, press F5.

5. Close Windows Explorer.

Exercise 7: Assigning NTFS Permissions and Sharing Folders

In this exercise, you assign NTFS permissions to the MktApps, Manuals, and Public folders. Then you will share MktApps.

To assign NTFS permissions

1. Open Windows Explorer and create C:\MktApps.

2. In the Security tab of the MktApps Properties dialog box, add the Administrators group and assign it the Full Control NTFS permission.

3. Add the Users group and assign it the Read & Execute NTFS permission.

4. Remove the Everyone group.

Before you can remove the Everyone group, you must clear the Inherit From Parents The Permission

Entries That Apply to Child Objects check box located in the Advanced Security Settings For

MktApps dialog box. When prompted, remove the permission entries that were previously applied from the parent.

5. Click OK to close the Advanced Security Settings For MktApps dialog box and then click OK to close the MktApps Properties dialog box.

6. Use Windows Explorer to create the C:\MktApps\Manuals folder.

7. Clear the Inherit From Parents The Permission Entries That Apply to Child Objects check box, and when prompted, click Remove to remove the permission entries that were previously applied from the parent.

8. Click Add and add the Administrators group with the Full Control NTFS permission.

9. Click OK to close the Permission Entry For Manual dialog box.

10. Click OK to close the Advanced Security Settings For Manual dialog box.

11. Add the Users group with the Read & Execute NTFS permission.

12. Use Windows Explorer to create the C:\MktApps\Public folder.

13. Clear the Inherit From Parents The Permission Entries That Apply to Child Objects check box and, when prompted, click Remove to remove the permission entries that were previously applied from the parent.

14. Click Add and add the Administrators group with the Full Control NTFS permission.

15. Click OK to close the Permission Entry For Manual dialog box.

16. Click OK to close the Advanced Security Settings For Manual dialog box.

17. Add the Users group with the Read & Execute NTFS permission.

To share folders and assign shared folder permissions

Share the MktApps folder and assign permissions to network user accounts based on the information in the following table. Remove all other shared folder permissions.

Path and shared folder name Group or user account Shared folder permissions

C:\MktApps shared as MktApps Administrators Full Control

Users Full Control

Exercise 8 (Optional): Testing NTFS and Shared Folder Permissions

In this exercise, you use different user accounts to test how NTFS permissions and shared folder permissions combine. To answer the questions in this exercise, refer to the tables in Exercise 7.

To complete this exercise, you must have two networked computers. One computer must be running

Windows XP Professional and the other must be running Windows XP or Windows 2000. Both computers must use password as the password for the Administrator account.

To test permissions for the Manuals folder when a user logs on locally

1. Log on as User1 with a password of password on the PRO1 computer.

2. In Windows Explorer, expand C:\MktApps\Manuals.

3. In the Manuals folder, attempt to create a test document.

Were you successful? Why or why not?

4. Close Windows Explorer.

To test permissions for the Manuals folder when a user makes a connection over the network

1. Log on as Administrator with a password of password on your second computer.

2. Create a user account, User1, with a password of User1 and clear the User Must Change Password At

Next Logon check box, if necessary.

In a workgroup, no centralized database of user accounts exists. Therefore, you must create the same user account with the same password on each computer in the workgroup. This applies to the

Administrator account as well.

3. Log off and then log on as User1 at your second computer.

4. Click Start and then click Run.

5. In the Open text box, type \\PRO1\MktApps and then click OK.

6. In the MktApps On PRO1 window, double-click Manuals.

7. In the Manuals window, attempt to create a file.

Were you successful? Why or why not?

8. Close all windows and log off Windows XP Professional.

To test permissions for the Manuals folder when a user logs on over the network as

Administrator

1. Log on as Administrator with a password of password at your second computer, not PRO1.

2. Make a connection to the shared folder C:\MktApps on PRO1.

3. In the MktApps On PRO1 window, double-click Manuals.

4. In the Manuals window, attempt to create a file.

Were you successful? Why or why not?

5. Close all windows and log off Windows XP Professional.

To test permissions for the Public folder when a user makes a connection over the network

1. Log on as User1 with a password of User1 on your second computer.

2. Click Start and then click Run.

3. In the Open text box, type \\PRO1\MktApps and then click OK.

4. In the MktApps On PRO1 window, double-click Public.

5. In the Public window, attempt to create a file.

Were you successful? Why or why not?

6. Close all windows and log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning

the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. If you are using both shared folder and NTFS permissions, the ______________ (least/most) restrictive permission is always the overriding permission.

2. Which of the following statements about combining shared folder permissions and NTFS permissions are true? (Choose all answers that are correct.) a. You can use shared folder permissions on all shared folders.

b. The Change shared folder permission is more restrictive than the Read NTFS permission.

c. You can use NTFS permissions on all shared folders.

d. The Read NTFS permission is more restrictive than the Change shared folder permission.

3. Which of the following statements about shared folder permissions and NTFS permissions are true?

(Choose all answers that are correct.) a. NTFS permissions apply only when the resource is accessed over the network.

b. NTFS permissions apply whether the resource is accessed locally or over the network.

c. Shared folder permissions apply only when the resource is accessed over the network.

d. Shared folder permissions apply whether the resource is accessed locally or over the network.

4. If needed, you can apply different ______________________ permissions to each folder, file, and subfolder.

Lesson Summary

On a FAT volume, the shared folder permissions are the only available way to provide security for the folders you have shared and for the folders and files they contain.

On an NTFS volume, you can assign NTFS permissions to individual users and groups to better control access to the files and subfolders in the shared folders.

On an NTFS volume, you can apply different NTFS permissions to each file and subfolder in a shared folder.

When you combine shared folder permissions and NTFS permissions, the more restrictive permission is always the overriding permission.

[Home]

[Previous]

[Next]

Chapter 10

Configuring Windows XP Professional

About This Chapter

Microsoft Windows XP Professional stores configuration information in two locations: the registry and the Active Directory service. Active Directory is only available in a domain environment and requires a computer running one of the Microsoft Windows 2000 server products configured as a domain controller. Modifications to the registry or Active Directory change the configuration of the Windows XP

Professional environment. You use the following tools to modify the registry or Active Directory:

Microsoft Management Console (MMC)

Control Panel

Registry Editor

Before You Begin

To complete this chapter, you must have

Installed the Windows XP Professional software on the computer

For information about the registry and the Registry Editor see

Chapter 18 , "Modifying and

Troubleshooting the Boot Process."

[Home]

[Previous]

[Next]

Lesson 1: Configuring and

Troubleshooting the Display

Users can configure and clean up the icons that appear on their computer's desktop. Users with permission to load and unload device drivers can also install and test video drivers. Windows XP

Professional can change video resolutions dynamically without restarting the system and also supports multiple display configurations.

After this lesson, you will be able to

Use Control Panel to configure, manage, and troubleshoot the display

Use Control Panel to manage which icons appear on the desktop

Estimated lesson time: 30 minutes

Configuring Display and Desktop Properties

To view or modify the display or the Desktop properties, in Control Panel, click Appearance And

Themes, and then click Display. The tabs in the Display Properties dialog box (see Figure 10.1) are described in Table 10.1.

Figure 10.1 Screen Saver tab of the Display Properties dialog box

Table 10.1 Display Properties Dialog Box Tabs

Tab

Themes

Desktop

Description

Allows you to chose a theme. A theme is a background, plus a set of sounds, icons, and other elements to help you personalize your computer.

Allows you to choose a background and color for your desktop. The Customize Desktop button allows you to add or remove some Windows program icons and determine what icons represent those programs. You can also include Web content on your Desktop (see

Figure 10.2).

Allows you to choose a screen saver. A screen saver is a moving picture or pattern that appears on your screen after the keyboard or mouse has not been used for a specific period of time that you configure. The default is 15 minutes. Screen savers prevent damage to

Screen Saver monitors by preventing an image from becoming burned into the monitor. You can use your own picture as a screen saver by uploading it from a digital camera or scanner, copying it from the Internet, or copying it from an e-mail attachment. You can also click

Power to adjust monitor power settings and save energy. See Lesson 2, "Configuring

Power Management."

Appearance

Allows you to configure the windows and buttons style, the color scheme, and font size.

Click Effects to configure the following options:

Use The Following Transition Effect For Menus And Tooltips

Use The Following Method To Smooth Edges For Screen Fonts

Use Large Icons

Show Shadows Under Menus

Show Windows Contents While Dragging

Hide Underlined Letters For Keyboard Navigation Until I Press The Alt Key

If you select Windows Classic as your theme, you can click Advanced to customize the look of windows, menus, fonts, and icons.

Settings

Allows you to configure display options including the number of colors, video resolution, font size, and refresh frequency, as shown in Figure 10.3 and explained in Table 10.2.

You can enable Group Policy settings that restrict access to Display options. For example, you can remove the Appearance tab or the Settings tab from the Display Properties dialog box. For more

information about Group Policy, see Chapter 12

, "Auditing Resources and Events" and

Chapter 13 ,

"Configuring Security Settings and Internet Options."

Figure 10.2 Desktop Items dialog box

To access the Desktop Items dialog box, on the Desktop tab, click Customize Desktop. The Desktop

Items dialog box allows you to choose to include or exclude an icon for My Documents, My Computer,

My Network Places, and the Recycle Bin on your Desktop, as well as to customize the icons used to represent these items. You can also configure the frequency with which the Desktop Cleanup Wizard is run from this dialog box. The default setting for running the Desktop Cleanup Wizard is every 60 days.

Click Clean Desktop Now to run the Desktop Cleanup Wizard immediately. The Desktop Cleanup

Wizard removes icons from the desktop that have not been used in the last 60 days, but it does not remove any programs from your computer.

To include Web content on your Desktop, in the Desktop Items dialog box, click the Web tab. Any Web page listed in the Web Pages text box can be included on your Desktop by selecting it. Click New to add a Web page and click Delete to remove a Web page from the list. Click Properties to view the Properties dialog box for the Web page. The Properties dialog box allows you to make the Web page available offline, synchronize immediately or schedule the synchronization of this offline Web page with the

content on the Internet, and specify whether you want Internet Explorer to download more than just the top-level page of this Web site.

If you want Internet Explorer to download more than just the top-level page, you can specify up to three levels deep, but specifying three levels deep downloads all the pages linked to the second-level pages.

Figure 10.3 Settings tab of the Display Properties dialog box

Table 10.2 describes the options available in the Settings tab for configuring the display settings.

Table 10.2 Settings Tab Options for Configuring the Display

Option Description

Color Quality

Displays the current color settings for the monitor attached to the video adapter listed under Display. This option allows you to change the color quality for the display adapter.

Displays the current screen resolution settings for the monitor attached to the video

Screen Resolution adapter listed under Display. This option allows you to set the resolution for the display adapter. As you increase the number of pixels, you display more information on the screen, but you decrease the size of the information.

Troubleshoot Opens the Video Display Troubleshooter to aid you in diagnosing display problems.

Advanced Opens the Properties dialog box for the display adapter, as described next.

To open the Properties dialog box for the display adapter, click Advanced. Table 10.3 describes the display adapter options.

Table 10.3 Display Adapter Advanced Options

Tab

General

Option

Display

Compatibility

Description

Provides small, large, or other display font option. The other option lets you choose any custom font size you want.

Determines the action that the Windows XP operating systems should take when you make changes to display settings. After you change the color settings, you must choose one of the following options:

Restart The Computer Before Applying The New

Display Settings

Apply The New Display Settings Without Restarting

Ask Me Before Applying The New Display Settings

Adapter

Monitor

Troubleshoot

Adapter Type

Provides the manufacturer and modelnumber of the installed adapter. Clicking Properties displays the Properties dialog box for your adapter. The General tab of the

Properties dialog box provides additional information, including device status, resource settings, and any conflicting devices. The Driver tab of the Properties dialog box provides details about the driver and allows you to update the driver, roll back to the previously installed driver, and uninstall the driver. The Resources tab of the

Properties dialog box indicates resources, such as areas of memory being used by the adapter.

Adapter Information

Provides additional information about the display adapter, such as video chip type, digital-to-analog converter (DAC) type, memory size, and basic input/output system (BIOS).

List All Modes

Monitor Type

Monitor Settings

Displays all compatible modes for your display adapter and lets you select resolution, color depth, and refresh frequency in one step.

Provides the manufacturer and model number of the monitor currently installed. The Properties button provides additional information and gives access to the Video

Display Trouble-shooter to help resolve problems with this device.

Configures the refresh rate frequency. This option applies only to high-resolution drivers. Do not select a refresh rate and screen resolution combination that is unsupported by the monitor. If you are unsure, refer to your monitor documentation or select the lowest refresh rate option.

Lets you progressively decrease your display hardware's acceleration features to help you isolate and eliminate display problems. Lets you select whether to use write

Hardware Acceleration combining, which improves video performance by speeding up the display of information to your screen. Increased speed can lead to screen corruption, however. If you experience trouble with your display, try clearing the

Enable Write Combining check box.

Color Management Chooses the color profile for your monitor.

Using Multiple Displays

Windows XP Professional supports multiple display configurations. Multiple displays allow you to extend your desktop across more than one monitor, as shown in Figure 10.4. Windows XP Professional supports the extension of your display across a maximum of 10 monitors.

Figure 10.4 Multiple displays

You must use Peripheral Component Interconnect (PCI) or Accelerated Graphics Port (AGP) video adapters when configuring multiple displays.

If one of the display adapters is built into the motherboard, note these additional considerations:

The motherboard adapter always becomes the secondary adapter. It must be multiple-display compatible.

You must set up Windows XP Professional before installing another adapter. Windows XP

Professional Setup disables the motherboard adapter if it detects another adapter. Some systems completely disable the onboard adapter on detecting an add-in adapter. If you are unable to override this detection in the BIOS, you cannot use the motherboard adapter with multiple displays.

Typically, the system BIOS selects the primary display based on PCI slot order. However, on some computers, the BIOS allows the user to select the primary display device.

You cannot stop the primary display. This is an important consideration for laptop computers with docking stations. For example, some docking stations contain a display adapter; these often disable, or turn off, a laptop's built-in display. Multiple display support does not function on these configurations unless you attach multiple adapters to the docking station.

Configuring Multiple Displays

Before you can configure multiple displays, you must install them. When you configure multiple displays, you must configure each one in a multiple-display environment.

To install multiple monitors, complete the following steps:

1. Turn off your computer and insert one or more additional PCI or AGP video adapters into available slots on your computer.

2. Plug an additional monitor into each PCI or AGP video adapter that you installed.

3. Turn on your computer and allow Windows XP Professional to detect the new adapters and install the appropriate device drivers.

4. In Control Panel, click Appearance And Themes, and then click Display.

5. In the Settings tab, click the monitor icon that represents the monitor you want to use in addition to your primary monitor.

6. Select the Extend My Windows Desktop Onto This Monitor check box and then click OK.

To configure your display in a multiple-display environment, complete the following steps:

1. In Control Panel, click Appearance And Themes, and then click Display.

2. In the Display Properties dialog box, click the Settings tab.

3. Click the monitor icon for the primary display device.

4. Select the display adapter for the primary display, and then select the color depth and resolution.

5. Click the monitor icon for the secondary display device.

6. Select the display adapter for the secondary display, and then select the Extend My Windows

Desktop Onto This Monitor check box.

7. Select the color depth and resolution for the secondary display.

8. Repeat steps 5 through 7 for each additional display.

Windows XP Professional uses the virtual desktop concept to determine the relationship of each display.

The virtual desktop uses coordinates to track the position of each individual display desktop.

The coordinates of the top-left corner of the primary display always remain 0, 0. Windows XP

Professional sets secondary display coordinates so that all the displays adjoin each other on the virtual desktop. This allows the system to maintain the illusion of a single, large desktop where users can cross from one monitor to another without losing track of the mouse.

To change the display positions on the virtual desktop, in the Settings tab click Identify and drag the display representations to the desired position. The positions of the icons dictate the coordinates and the relative positions of the displays to one another.

Troubleshooting Multiple Displays

If you encounter problems with multiple displays, use the troubleshooting guidelines in Table 10.4 to help resolve those problems.

Table 10.4 Troubleshooting Tips for Multiple Displays

Problem

You cannot see any output on the secondary displays

Solution

Activate the device in the Display Properties dialog box. Confirm that you chose the correct video driver.

Restart the computer to confirm that the secondary display initialized. If not, check the status of the video adapter inDevice Manager.

Switch the order of the adapters in the slots. (The adapter must qualify as a secondary adapter.)

The Extend My Windows Desktop Onto This

Monitor check box is unavailable

Select the secondary display rather than the primary one in the Display Properties dialog box.

Confirm that the secondary display adapter is supported.

Confirm that Windows XP Professional can detect the secondary display.

Run the application on the primary display.

An application fails to display on the secondary display.

Run the application in full-screen mode (Microsoft

MS-DOS) or maximized (Microsoft Windows).

Disable the secondary display to determine whether the problem is specific to multiple-display support.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. You can enable ________________________________ to restrict access to Display options.

2. Which of the following items does the Desktop Items dialog box allow you to choose to include or exclude an icon on your desktop? (Choose all answers that are correct.) a. My Documents b. Control Panel c. My Network Places d. Recycle Bin

3. Windows XP Professional supports extension of your display across a maximum of

______________ monitors.

4. You must use __________________________ or ______________________ video adapters when configuring multiple displays.

5. If one of the display adapters is built into the motherboard, the motherboard adapter always becomes the _____________ (primary/secondary) adapter.

Lesson Summary

The Desktop Items dialog box allows you to choose to include or exclude an icon for My

Documents, My Computer, My Network Places, and the Recycle Bin on your desktop.

By default, the Desktop Cleanup Wizard runs every 60 days and removes any icons from the desktop that have not been used in the last 60 days.

You must use Peripheral Component Interconnect (PCI) or Accelerated Graphics Port (AGP) video adapters when configuring multiple displays.

Windows XP Professional supports the extension of your display across a maximum of 10 monitors.

[Home]

[Previous]

[Next]

Lesson 2: Configuring Power

Management

Windows XP Professional contains a number of features that allow the operating system to manage the use of power by your computer and the hardware devices attached to it. Power management features included in Windows XP Professional include System Power Management, Device Power Management,

Processor Power Management, System Events, and Battery Management.

After this lesson, you will be able to

Use Control Panel to configure Power Options

Estimated lesson time: 40 minutes

Configuring Power Options

Power Options allows you to configure Windows XP Professional to turn off the power to your monitor and your hard disk or put the computer in hibernate mode. To configure Power Options, in Control Panel, click Performance And Maintenance, and then click Power Options. The Power Options Properties dialog box allows you to configure Power Options (see Figure 10.5).

Figure 10.5 Power Schemes tab of the Power Options Properties dialog box

Your hardware must support powering off the monitor and hard disk for you to configure power schemes.

Selecting a Power Scheme

Power schemes allow you to configure Windows XP Professional to turn off the power to your monitor and your hard disk, conserving energy. In the Power Options Properties dialog box, click the Power

Schemes tab. Windows XP Professional provides the following six built-in power schemes:

Home/Office Desk. This power scheme is designed for a desktop computer. After 20 minutes of inactivity, the monitor is turned off, but the hard disks are never turned off.

Portable/Laptop. This power scheme is optimized for portable computers that will be running on batteries. After 15 minutes of inactivity the monitor is turned off, and after 30 minutes of inactivity the hard disks are turned off.

Presentation. This power scheme is designed for use with presentations for which the computer display is always to remain on. The monitor and the hard disks are never turned off.

Always On. This power scheme is designed for use with personal servers. After 20 minutes of inactivity, the monitor is turned off, but the hard disks are never turned off.

Minimal Power Management. This power scheme disables some power management features such as timed hibernation. After 15 minutes of inactivity, the monitor is turned off, but the hard disks are never turned off.

Max Battery. This power scheme is designed to conserve as much battery power as possible.

After 15 minutes of inactivity, the monitor is turned off, but the hard disks are never turned off.

To select a power scheme, you can perform the following steps:

1. Ensure that you are logged on with a user account that is a member of the Administrators group.

2. Click Start, click Control Panel, and then click Performance And Maintenance.

3. Click Power Options.

Windows XP Professional displays the Power Options Properties dialog box with the Power

Schemes tab active.

4. Click the arrow at the end of the Power Schemes box to display the pull-down menu listing the available power schemes. Click the power scheme you want to use.

5. Click OK to close the Power Options Properties dialog box.

If none of these power schemes is appropriate for your computer environment, you can modify one of the built-in power schemes or configure a new power scheme. To modify a power scheme or to create a new power scheme, perform the following steps:

1. Ensure that you are logged on with a user account that is a member of the Administrators group.

2. Click Start, click Control Panel, and then click Performance And Maintenance.

3. Click Power Options.

Windows XP Professional displays the Power Options Properties dialog box with the Power

Schemes tab active.

4. Click the arrow at the end of the Power Schemes box to display the pull-down menu listing the available power schemes. Click the power scheme you want to use.

5. In the Settings For Power_Scheme_Name Power Scheme text box, modify the amount of inactive time before the monitor or hard drives are turned off.

6. Do one of the following:

Click OK to modify the existing power scheme and close the Power Options Properties dialog box.

Click Save As to create a new power scheme.

Configuring Advanced Power Options

To configure your computer to use advanced power options, use the Power Options Properties dialog box and click the Advanced tab. There are two options in the Advanced tab. If you want an icon for quick access to Power Management to appear on the taskbar, select the Always Show Icon On The Taskbar check box. The second check box in the Advanced tab is Prompt For Password When Computer

Resumes From Standby. Selecting this check box causes you to be prompted for your Windows password when your computer comes out of standby mode.

On older systems, the Prompt For Password When Computer Resumes From Standby box might not be displayed unless the system is set to hibernate.

Enabling Hibernate Mode

When your computer hibernates, it saves the current system state to your hard disk, and then your computer shuts down. When you start the computer after it has been hibernating, it returns to its previous state. Restarting to the previous state includes automatically restarting any programs that were running when it went into hibernate mode, and it even restores any network connections that were active at the time. To configure your computer to use hibernate mode, use the Power Options Properties dialog box.

Click Hibernate and select the Enable Hibernation check box. If the Hibernate tab is unavailable, your computer does not support this mode.

Configuring Advanced Power Management

Windows XP Professional supports Advanced Power Management (APM), which helps reduce the power consumption of your system. To configure your computer to use APM, use the Power Options

Properties dialog box. Click the APM tab and select the Enable Advanced Power Management Support check box. If the APM tab is unavailable, your computer is compliant with Advanced Configuration and

Power Interface (ACPI), which automatically enables Advanced Power Management Support and disables the APM tab. You must be logged on as a member of the Administrators group to configure

APM.

If your computer does not have an APM BIOS installed, Windows XP Professional does not install

APM, so there will not be an APM tab in the Power Options Properties dialog box. However, your computer can still function as an ACPI computer if it has an ACPI-based BIOS, which takes over system configuration and power management from the Plug and Play BIOS.

If your laptop has an ACPI-based BIOS, you can insert and remove PC cards on the fly and Windows XP

Professional automatically detects and configures them without requiring you to restart your machine.

This is known as dynamic configuration of PC cards. There are two other important features for mobile

computers that rely on dynamic Plug and Play: hot and warm docking/undocking and hot swapping of

Integrated Device Electronics (IDE) and floppy devices. Hot and warm docking/undocking means you can dock and undock from the Windows XP Professional Start menu without turning off your computer.

Windows XP Professional automatically creates two hardware profiles for laptop computers: one for the

docked state and one for the undocked state. (For more information about hardware profiles see Chapter

11

, "Installing, Managing, and Troubleshooting Hardware Devices and Drivers.") Hot swapping of IDE and floppy devices means that you can remove and swap devices such as floppy drives, DVD/CD drives, and hard drives without shutting down your system or restarting your system; Windows XP Professional automatically detects and configures these devices.

Configuring an Uninterruptible Power Supply

An uninterruptible power supply (UPS) is a device connected between a computer or another piece of electronic equipment and a power source, such as an electrical outlet. The UPS ensures that the electrical flow to the computer is not interrupted because of a blackout and, in most cases, protects the computer against potentially damaging events such as power surges and brownouts. Different UPS models offer different levels of protection. To configure your UPS, click the UPS tab in the Power Options Properties dialog box. The UPS tab shows the current power source, the estimated UPS run time, the estimated UPS capacity, and the battery condition. In the UPS tab, click Details to display the UPS Selection dialog box.

It displays a list of manufacturers so that you can select the manufacturer of your UPS.

Check the Windows XP Professional Hardware Compatibility List (HCL) to make sure the UPS you are considering is compatible with Windows XP Professional before you purchase it.

If you want to configure a custom simple-signaling UPS, in the Select Manufacturer list box select

Generic. In the Select Model list box, click Generic and then click Next. You can configure the conditions that trigger the UPS device to send a signal in the UPS Interface Configuration dialog box

(see Figure 10.6). These conditions include power failures, a low battery, and the UPS shutting down.

You should select Positive if your UPS sends a signal with positive polarity when the power fails and the

UPS is running on battery. Select Negative if your UPS sends a signal with negative polarity.

Be sure to check your UPS documentation before you configure signal polarity.

Figure 10.6 UPS Interface Configuration dialog box

After you have configured the UPS service for your computer, you should test the configuration to ensure that your computer is protected from power failures. Disconnect the main power supply to simulate a power failure. During your test the computer and the devices connected to the computer should remain operational. You should let the test run long enough for the UPS battery to reach a low level so that you can verify that an orderly shutdown occurs.

Do not test your UPS on a production computer. You could lose valuable data. Use a spare computer for the test.

Practice: Configuring Power Options

In this practice you use Control Panel to configure Power Options.

To configure Power Options

1. Ensure that you are logged on as Fred or with a user account that is a member of the

Administrators group.

2. Click Start, click Control Panel, and then click Performance And Maintenance.

3. Click Power Options.

Windows XP Professional displays the Power Options Properties dialog box with the Power

Schemes tab active.

4. In the Power Schemes list, select Portable/Laptop.

5. In the Turn Off Monitor box, select After 10 Minutes.

6. In the Turn Off Hard Disks box, select After 20 Minutes.

7. Click Save As, and then in the Save Scheme text box, type Airplane.

8. Click OK.

You have just created a new power scheme. If you click the arrow at the end of the Power Scheme box, Airplane is now included in the list of available power schemes. If you want to use this power scheme, click Apply.

9. Click the Advanced tab and select the Always Show Icon In The Taskbar check box.

10. Click the Hibernate tab.

11. If the Enable Hibernate Support check box is not selected, select it and then click Apply.

12. Click the APM tab.

13. If the Enable Advanced Power Management Support check box is not selected, select it and then click Apply.

14. To apply these changes you would click OK; click Cancel.

Windows XP Professional closes the Power Options Properties dialog box.

15. Close all open windows.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is a power scheme and why would you use one?

2. Which of the following statements about Windows XP Professional power schemes are true?

(Choose all answers that are correct.) a. Windows XP Professional ships with six built-in power schemes.

b. Windows XP Professional allows you to create your own power schemes.

c. Windows XP Professional allows you to modify existing power schemes, but you cannot create new ones.

d. Windows XP Professional does not ship with any built-in power schemes.

3. A _____________________________ is a device that connects between a computer and a power source to ensure that the electrical flow to the computer is not abruptly stopped because of a blackout.

4. What does hibernate mode do?

5. ______________________ means that you can remove or exchange devices such as floppy drives, DVD/CD drives, and hard drives without shutting down your system or restarting your system. Windows XP Professional automatically detects and configures these devices.

Lesson Summary

Power Options allows you to configure Windows XP Professional to turn off the power to your monitor and your hard disk or put the computer in hibernate mode.

To configure Power Options, in Control Panel, click Performance And Maintenance and then click Power Options.

The advanced power management options allow you to add an icon for quick access to Power

Management to the taskbar and choose to be prompted for your Windows password when your computer comes out of standby mode.

When your computer hibernates, it saves the current system state to your hard disk, and then your computer shuts down. When you start the computer after it has been hibernating, it returns to its previous state.

ACPI automatically enables Advanced Power Management Support and removes the APM tab.

A UPS is a device that ensures that the electrical flow to a computer is not interrupted because of power loss.

[Home]

[Previous]

[Next]

Lesson 3: Configuring Operating System Settings

You use certain Control Panel programs to configure operating system settings. The System program that you use to configure the operating system settings affects the operating system environment regardless of which user is logged on to the computer.

After this lesson, you will be able to

Configure the system's performance options

Create, modify, and manage user profiles

Configure the system's startup and recovery settings

Configure the system's environment variables

Configure the system's error reporting

Configure the system's tracking and reversal of harmful changes

Configure the system's Automatic Update feature

Configure remote computers' access to your computer

Join a domain or workgroup

Estimated lesson time: 70 minutes

Configuring Performance Options

To configure operating system settings, in Control Panel, click Performance And Maintenance. To view operating system performance configuration options, in the Performance And Maintenance window, click System, and then click the Advanced tab. The Advanced tab of the

System Properties dialog box (see Figure 10.7) allows you to configure performance options, user profiles, startup and recovery settings, environment variables, and error reporting.

Figure 10.7 The Advanced tab of the System Properties dialog box

In the Advanced tab, in the Performance box, click Settings to display the Performance Options dialog box. There are two tabs on the

Performance Options dialog box: the Visual Effects tab and the Advanced tab.

Visual Effects

The Visual Effects tab of the Performance Options dialog box is shown in Figure 10.8. There are a number of options that you can select to manually control the visual effects on your computer. Windows XP Professional provides four options to help you control the visual effects:

Let Windows Choose What's Best For My Computer, Adjust For Best Appearance, Adjust For Best Performance, and Custom. If you want to manually indicate which visual effects to apply, select Custom.

Figure 10.8 The Visual Effects tab of the Performance Options dialog box

A second method for accessing the Performance Options dialog box is to click Adjust Visual Effects in the Performance And Maintenance window.

Advanced Performance Options

The Advanced tab of the Performance Options dialog box is shown in Figure 10.9. The options in this dialog box allow you to adjust the application response, which is the priority of foreground programs versus background programs, and virtual memory.

Figure 10.9 The Advanced tab of the Performance Options dialog box

Processor Scheduling

Windows XP Professional uses the Processor Scheduling settings to distribute microprocessor resources between running programs. Selecting

Programs assigns more resources to the foreground program (the active program that is responding to user input). Windows XP Professional assigns more resources to the foreground program by allocating short, variable time slices, or quanta, to running programs. A time slice, or quantum, is a brief period of time during which a particular task is given control of the microprocessor. When you select Background

Services, Windows assigns an equal number of resources to all programs by assigning long, fixed quanta instead.

Memory Usage

Windows XP Professional uses the Memory Usage settings to distribute memory resources between running programs. Select Programs if your computer is being used primarily as a workstation. With the Programs option, your programs will work faster and your system cache will be the default size for Windows XP Professional. Select System Cache if you are using your computer as a server or if the programs you are running require a large system cache.

Virtual Memory

For virtual memory, Windows XP Professional uses a process called demand paging to exchange data between random access memory

(RAM) and paging files. When you install Windows XP Professional, Setup creates a virtual-memory paging file, PAGEFILE.SYS, on the partition where you installed Windows XP Professional. The default or recommended paging file size for Windows XP Professional is equal to 1.5 times the total amount of RAM. For best results, never set the value of the paging file size to less than the recommended amount.

Typically, you can leave the size of the paging file set to the default value. In some circumstances, such as when you run a large number of applications simultaneously, you might find it advantageous to use a larger paging file or multiple paging files.

To configure the paging file, in the Performance Options dialog box, click Change. The Virtual Memory dialog box (see Figure 10.10) identifies the drives on which the paging files reside and allows you to modify the paging file size for the selected drive.

Figure 10.10 The Virtual Memory dialog box

Only users with administrative rights can use the Performance Options dialog box to increase the paging file size.

Paging files never decrease below the value found in the Initial Size text box that was set during installation. Unused space in the paging file remains available to the internal Windows XP Professional Virtual Memory Manager (VMM). As needed, a paging file grows from its initial size to the maximum configured size, which is listed in the Maximum Size text box. When the paging file reaches the maximum size, system performance might degrade if you place additional demands on the system by running more applications.

When you restart a computer running Windows XP Professional, the system resizes all paging files to the initial size.

Enhancing Performance

You can enhance system performance in several ways. First, if your computer has multiple hard disks, create a paging file for each disk.

Distributing information across multiple paging files improves performance because the hard disk controller can read from and write to multiple hard disks simultaneously. When attempting to write to the paging file, VMM tries to write the page data to the paging file on the disk that is the least busy.

When choosing the drives to contain paging files, don't use a paging file on heavily accessed drives, and don't put paging files on multiple partitions on the same physical drive.

Second, you can enhance performance by moving the paging file off the drive that contains the Windows XP Professional %systemroot% folder (by default, the Windows folder). This avoids competition between the various reading and writing requests. If you place a paging file on the Windows XP Professional system partition to facilitate the recovery feature, which is discussed in the section entitled "Recovery" later in this chapter, you can still increase performance by creating multiple paging files. Because the VMM alternates write operations between paging files, the paging file on the boot partition is accessed less frequently.

Third, you can enhance system performance by setting the initial size of the paging file to the value displayed in the Virtual Memory dialog box's Maximum Size box. This eliminates the time required to enlarge the file from the initial size to the maximum size.

When applying new settings, be sure to click Set before clicking OK.

Configuring User Profiles

To view, create, delete, and change the type of user profiles, in Control Panel, click Performance And Maintenance, click System, and then click the Advanced tab (see Figure 10.7). In the User Profiles box, click Settings to display the User Profiles dialog box (see Figure 10.11).

Figure 10.11 The User Profiles dialog box

The User Profiles dialog box lists the profiles stored on the computer you are sitting at. You can perform the following tasks:

Change Type. Allows you to change the type of profile. There are two types of profiles:

Local profile. Windows XP Professional creates a user profile the first time that a user logs on at a computer. After the user logs on for the first time, Windows XP Professional stores the local profile on that computer.

Roaming profile. A roaming user profile is especially helpful in a domain environment because it follows the user around, setting up the same desktop environment for the user no matter which computer the user logs on to in the domain.

A read-only roaming user profile is called a mandatory user profile. When the user logs off, Windows XP Professional does not save any changes made to the desktop environment during the session, so the next time the user logs on the profile is exactly the same as the

last time the user logged on. See Chapter 3 , "Setting Up and Managing User Accounts," for information about creating a mandatory

user profile.

Delete. Allows you to delete user profiles.

Copy To. Allows you to create user profiles by copying an existing user profile and assigning it to another user.

The Copy Profile To text box allows you to specify a path for the location to which the user profile is to be copied. You can click Browse to locate the appropriate path. The Permitted To Use box allows you to specify the user or users who can use the user profile.

Configuring Startup and Recovery Settings

The System Properties dialog box also controls the startup and recovery settings for a computer. Click Settings to display the Startup And

Recovery dialog box, as shown in Figure 10.12. The System Startup options control the behavior of the Please Select The Operating System

To Start menu. The Recovery options control the actions that Windows XP Professional performs in the event of a stop error, which is a severe error that causes Windows XP Professional to stop all processes. Stop errors are also known as fatal system errors or blue screen errors.

Figure 10.12 The Startup And Recovery dialog box

System Startup

When you first turn on the computer, the system displays the Please Select The Operating System To Start screen, which lists the available operating systems. By default, the system chooses one of the operating systems and displays a countdown timer. If you do not choose another operating system, the system starts the preselected operating system when the countdown timer reaches zero or when you press Enter. Modify the options under System Startup to determine which operating system is preselected, how long the countdown timer runs, and whether to display the boot menu. You are also given the option of modifying the BOOT.INI file manually, but you should allow Windows XP

Professional to modify the file rather than attempting to do so manually.

System Recovery

The four recovery options that Windows XP Professional provides to assist users in the event of a system failure are described in Table 10.5.

You must be logged on as a member of the Administrators group to set the options in the Startup And Recovery dialog box.

Table 10.5 Recovery Options

Option Additional information

Write An Event To The System Log

Select this check box to have Windows XP Professional write an event to the system log when a system stops unexpectedly.

Send An Administrative Alert

Select this check box to have Windows XP Professional send an administrative alert to administrators when the system stops unexpectedly.

Automatically Restart

Write Debugging Information

Select this check box to have Windows XP Professional reboot whenever the system stops unexpectedly.

The first option allows you to specify what information Windows XP Professional should write to the dump file, MEMORY.DMP. The following four choices are available:

None. Nothing is written to the dump file.

Small Memory Dump. The minimum amount of usefulinformation will be dumped. This option requires a paging file of at least 2 MB on the boot volume of your computer. A new dump file will be created every time the system stops unexpectedly. The small dump directory stores a history of these dumps and can be set. By default the small dump directory is %Systemroot%\Minidump.

Kernel Memory Dump. Only kernel memory is written to the dump file. Depending on the amount of

RAM on your computer, you must have from 50 MB to 800 MB available in the paging file on the boot volume.

Complete Memory Dump. Records the entire contents of system memory when the system stops unexpectedly. You must have a paging file on the boot volume large enough to hold all the RAM on your system plus 1 MB.

There are also two additional options:

Dump File. Specifies the name and location of the dump file. By default it is

%Systemroot%\MEMORY.DMP

Overwrite Any Existing File. By default, if you choose Complete Memory Dump or Kernel Memory

Dump, Windows XP Professional always writes to the same dump file, MEMORY.DMP. Clear this check box to prevent Windows from overwriting MEMORY.DMP.

The following requirements must be met for the Write Debugging Information recovery option to work:

A paging file must be on the system partition (the partition that contains the %systemroot% folder).

The paging file must be at least 1 MB larger than the amount of physical RAM in your computer if you choose Complete Memory

Dump.

You must have enough disk space to write the file to the location you specify.

Configuring Environment Variables

Environment variables define the system and user environment information, and they contain information such as a drive, path, or filename.

Environment variables provide information that Windows XP Professional uses to control various applications. For example, the TEMP environment variable specifies where an application places its temporary files.

In the Advanced tab of the System Properties dialog box, click Environment Variables to display the system and user environment variables that are currently in effect in the Environment Variables dialog box (see Figure 10.13).

Figure 10.13 The Environment Variables dialog box

System Environment Variables

System environment variables apply to the entire system. Consequently, these variables affect all system users. During installation, Setup configures the default system environment variables, including the path to the Windows XP Professional files. Only an administrator can add, modify, or remove a system environment variable.

User Environment Variables

The user environment variables differ for each user of a particular computer. The user environment variables include any user-defined settings

(such as a desktop pattern) and any variables defined by applications (such as the path to the location of the application files). Users can add, modify, or remove their user environment variables in the System Properties dialog box.

How Windows XP Professional Sets Environment Variables

Windows XP Professional sets environment variables in the following order:

1. By default, Windows XP Professional searches the AUTOEXEC.BAT file, if it exists, and sets any environment variables.

2. Next the system environment variables are set. If any system environment variables conflict with environment variables set from the search of the AUTOEXEC.BAT file, the system environment variables override them.

3. Finally, the user environment variables are set. If any user environment variables conflict with environment variables set from the search of the AUTOEXEC.BAT file or from the system environment variables, the user environment variables override them.

For example, if you add the line SET TMP=C:\ in AUTOEXEC.BAT, and a TMP=X:\TEMP user variable is set, the user environment variable setting (X:\TEMP) overrides the prior setting C:\.

You can prevent Windows XP Professional from searching the AUTOEXEC.BAT file by editing the registry and setting the value of the

ParseAutoexec entry to 0. The ParseAutoexec entry is located in the registry under the following subkey:

\HKEY_CURRENT_USER\SOFTWARE\Microsoft\Windows NT\ CurrentVersion\Winlogon

Configuring Error Reporting

Error reporting assists Microsoft in improving future products and in resolving any difficulties you might encounter with Windows XP

Professional. To configure error reporting, in the Advanced tab of the System Properties dialog box, click Error Reporting. This displays the

Error Reporting dialog box. Notice that Enable Error Reporting is selected. To turn off error reporting, click Disable Error Reporting.

If you do not want to turn off error checking, you can configure reporting to indicate which errors to report. Under Enable Error Reporting there are two check boxes selected by default. Clear the Windows Operating System check box if you do not want errors in the operating system to be reported. Clear the Programs check box if you do not want errors in any of the programs running on your system to be reported.

If you want to specify the programs for which Windows XP Professional reports errors, click Select Programs.

If a system or program error occurs and you have configured your system to report it, Windows XP Professional displays a dialog box that allows you to indicate whether you want to send the report to Microsoft.

Configuring System Restore

The Windows XP Professional System Restore feature allows you to track and reverse harmful changes made to your system. In the System

Properties dialog box, click the System Restore tab (see Figure 10.14).

Figure 10.14 The System Restore tab of the System Properties dialog box

If you want to configure the status of System Restore on a drive, select the drive and then click Settings. The Settings dialog box for a drive allows you to turn off System Restore monitoring for the drive and to configure the amount of disk space reserved for System Restore. You cannot turn off System Restore on the drive on which Windows XP Professional is installed without turning off System Restore on all drives.

System Restore monitors and restores only the partitions and drives that it is configured to monitor. It doesn't monitor partitions of drives that are redirected or excluded from System Restore monitoring. System Restore also doesn't monitor or restore the contents of redirected folders or any settings associated with roaming user profiles.

For information about using the System Restore Wizard, see Chapter 16

, "Backing Up and Restoring Data."

Configuring Automatic Updates

Automatic Updates (AU) is a proactive service that allows users with administrative privileges to automatically download and install critical operating system updates such as security fixes and patches. You are notified before the installation takes place and given the opportunity to postpone the download operation. Updates are downloaded in the background so that you can continue to work during downloading. To configure AU, click the Automatic Updates tab of the System Properties dialog box (see Figure 10.15).

Figure 10.15 The Automatic Updates tab of the System Properties dialog box

Under Notification Settings, you can select one of the following three options:

Download The Updates Automatically And Notify Me When They Are Ready To Be Installed.

Notify Me Before Downloading Any Updates And Notify Me Again Before Installing Them On My Computer.

Turn Off Automatic Updating. I Want To Update My Computer Manually.

AU uses the Windows Update control to scan the system and decide which updates apply to a particular computer. AU employs its innovative bandwidth-throttling technology, which uses only idle bandwidth for downloads so they do not interfere with or slow down other network activity, such as Internet browsing. Only one administrative user at a time can run the Automatic Updates feature.

If you choose not to install an update, Windows XP Professional deletes it from your computer. If you decide you want to install a previous update, in the Previous Updates box, click Restore Hidden Items. Any previous updates that are still applicable to your computer appear the next time Windows XP Professional notifies you that updates are available.

You can always go to the Windows Update Page at http://www.microsoft.com

and manually install any update that is available.

Configuring Remote Access to Your Computer

If you have a computer problem, the Remote Assistance feature allows you to invite another person, a remote assistant, to help you over the

Internet. The remote assistant can accept your invitation, chat with you about the problem, and view your desktop. He or she can also transfer any files required to fix the problem. To configure the Remote Assistance feature, click the Remote tab in the System Properties dialog box

(see Figure 10.16).

Figure 10.16 The Remote tab of the System Properties dialog box

Under Remote Assistance, you can configure your computer to allow or prevent remote assistance invitations to be sent from your computer.

Click Advanced to display the Remote Assistance Settings dialog box. To allow the remote assistant full control of your computer, ensure that the default option, Allow This Computer To Be Controlled Remotely, is selected. To allow the assistant to view but not take control of your computer, clear the check box. You can also control the number of days, hours, or minutes before the invitation expires.

In the Remote tab of the System Properties dialog box, under Remote Desktop, you can configure your computer so that remote computers can make a connection to it. This allows you to leave an application running on your office computer, for example, and then connect to your computer from home. The Remote Desktop feature allows multiple users to have active sessions on a single computer.

You can also configure which users can have remote access to your computer. Click Select Remote Users to configure the users that can access your computer remotely in the Remote Desktop Users dialog box (see Figure 10.17). All users that are listed, as well as all users that are members of the Administrators group, have remote access. You can add other users to this list by clicking Add and supplying the complete user name when prompted.

Figure 10.17 The Remote Desktop Users dialog box

Joining a Domain or Workgroup

You might need to install a computer when it is not attached to the network, the network is down, or a domain controller is not available. In those instances you can install Windows XP Professional and have your computer join a workgroup. When you add your computer to the network, or the network or a domain controller is available, you can join your computer to the domain. To join a domain or a workgroup, you use the Computer Name tab of the System Properties dialog box (see Figure 10.18).

Figure 10.18 The Computer Name tab of the System Properties dialog box

The Computer Name tab shows you the full name of your computer and the domain or workgroup to which it currently belongs. You can add a description for your computer in the Computer Description text box, and you can click Change to change your computer's name or to join a domain or workgroup. To join a domain, there must be a computer account created for your computer in the domain or you must have the name and password of a user account that is a member of the Domain Admins group so that you can create the computer account as you join the domain.

Practice: Using Control Panel to Change Operating System Settings

In this practice, you use the System program to change some of the system settings. First you change the default Remote Assistance setting so that a remote assistant can only view your computer rather than take full control of your computer. Then you change the paging file size.

Finally, you add and test a new system environment variable.

Run the OSSettings file in the Demos folder on the CD-ROM accompanying this book for a demonstration of changing system settings.

Exercise 1: Changing the Remote Assistance Access Permission

In this exercise, you change the access of a remote assistant from full control to being able to only view your computer. You also set the expiration time for the Remote Assistance invitation to six hours.

To decrease the Remote Assistance access permission

1. Log on as Fred or a user account that is a member of the Administrators group.

2. In Control Panel, click Performance And Maintenance.

Windows XP Professional displays the Performance And Maintenance window.

3. Click System.

Windows XP Professional displays the System Properties dialog box.

4. In the System Properties dialog box, click the Remote tab.

5. In the Remote tab, in the Remote Assistance box, click Advanced.

Windows XP Professional displays the Remote Assistance Settings dialog box.

6. Clear the Allow This Computer To Be Controlled Remotely check box.

Clearing this check box allows the remote assistant to view but not take control of your computer.

7. In the Invitations box, change the Set The Maximum Amount Of Time Invitations Can Remain Open to six hours.

8. Click OK.

You are returned to the System Properties dialog box with the Remote tab active. Leave the System Properties dialog box open for the next exercise.

Exercise 2: Changing the Paging File Size

In this exercise, you use the System Properties dialog box to change the size of the Windows XP Professional paging file.

To change the paging file size

1. In the System Properties dialog box, click the Advanced tab.

2. In the Performance box, click Settings.

Windows XP Professional displays the Performance Options dialog box with the Visual Effects tab active.

3. Click the Advanced tab.

By default, both Processor Scheduling and Memory Usage are optimized for applications.

4. In the Virtual Memory box, click Change.

Windows XP Professional displays the Virtual Memory dialog box.

5. In the Drive list, click the drive that contains your paging file, if necessary.

6. In the Initial Size text box, increase the value by 10, and then click Set.

You have just increased the initial size of the paging file.

7. Click OK to close the Virtual Memory dialog box.

8. Click OK to close the Performance Options dialog box.

Leave the System Properties dialog box open for the next exercise.

Exercise 3: Adding a System Environment Variable

In this exercise, you use the System Properties dialog box to add a new system environment variable. You then test the new variable by using it at the command prompt.

To add a system environment variable

1. In the System Properties dialog box, in the Advanced tab, click Environment Variables.

Windows XP Professional displays the Environment Variables dialog box.

2. Under System Variables, click New.

Windows XP Professional displays the New System Variable dialog box.

3. In the Variable Name text box, type WinXPdir.

4. In the Variable Value text box, type the path to the folder containing the Windows XP Professional system files, for example,

C:\Windows.

If you are not sure of the path to the Windows XP Professional system files, use Windows Explorer to locate the Windows directory.

5. Click OK.

You are returned to the Environment Variables dialog box.

6. Scroll through the System Environment Variables and verify that WinXPdir is listed.

7. Click OK to close the Environment Variables dialog box, and then click OK to close the System Properties dialog box.

8. Close the Performance And Maintenance window.

To test the new variable

1. From the Start menu, click Run.

2. In the Open text box, type cmd and then click OK.

3. At the command prompt, type set | more and then press Enter.

The list of current environment variables is displayed and WinXPdir is listed. (Note you might need to press Spacebar to scroll down to see WinXPdir listed.)

4. If necessary, type c: and then press Enter to switch to the drive on which you installed Windows XP Professional. (Adjust the drive letter if necessary.)

5. Type cd\ and then press Enter to switch to the root directory.

6. Type cd %WinXPdir% and then press Enter.

You should now be in the Windows directory.

7. Type exit and press Enter to close the command prompt.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions

and Answers."

1. What performance options can you control with the tabs of the Performance Options dialog box?

2. Which of the following statements about the use of virtual memory in Windows XP Professional are correct? (Choose all answers that are correct.) a. When you install Windows XP Professional, Setup creates a virtual memory paging file, PAGEFILE.SYS, on the partition where you installed Windows XP Professional.

b. In some environments, you might find it advantageous to use multiple paging files.

c. If the entire paging file is not in use, it can decrease below the initial size that was set during installation.

d. Unused space in the paging file remains unavailable to all programs, even the internal Windows XP Professional VMM.

3. When you first turn on the computer, the system displays a Please Select The Operating System To Start screen, which lists the available operating systems. What happens if a user does not select an operating system before the countdown timer reaches zero?

4. What requirements must be met for the Write Debugging Information recovery option to work?

5. What is the Windows XP Professional Remote Assistance feature?

6. To join a domain, you use the ____________________ tab of the _____________________ dialog box.

Lesson Summary

The System program that you use to configure the operating system settings affects the operating system environment regardless of which user is logged on to the computer.

The Advanced tab of the System Properties dialog box allows you to configure performance options, user profiles, startup and recovery settings, environment variables, and error reporting.

Windows XP Professional creates a local user profile the first time that a user logs on at a computer and stores the local profile on that computer.

A roaming user profile follows the user around, setting up the same desktop environment for the user no matter which computer the user logs on to in the domain.

The System program also controls the startup and recovery settings for a computer.

Windows XP Professional first searches the AUTOEXEC.BAT file, if it exists, and sets any environment variables. Next the system environment variables are set, and if there are any conflicts with the environment variables, the system environment variables override them. Finally the user environment variables are set; the user environment variables override all other environment variables.

The Windows XP Professional System Restore feature allows you to track and reverse harmful changes made to your system.

AU is a proactive service that allows users with administrative privileges to automatically download and install critical operating system updates such as security fixes and patches.

The Remote Assistance feature allows you to invite another person, a remote assistant, to help you over the Internet.

To join a domain or a workgroup, use the Computer Name tab of the System Properties dialog box.

[Home]

[Previous]

[Next]

Lesson 4: Configuring and Troubleshooting the

Desktop Environment

Windows XP Professional provides great flexibility in configuring the desktop. You can configure your computer for multiple languages and multiple locations. This is especially important for international companies that deal with customers in more than one country or users who live in a country where more than one language is spoken. Windows XP Professional also provides accessibility options that allow you to make the operating system easier to use. All of the desktop settings available through the Control Panel are as easy to configure as those discussed in detail.

After this lesson, you will be able to

Configure and troubleshoot multiple languages

Configure and troubleshoot accessibility options

Estimated lesson time: 40 minutes

Configuring Multiple Languages and Multiple Locations

To configure multiple languages and multiple locations, in Control Panel, click Date, Time, Language, and Regional Options. To configure multiple languages, in the Date, Time, Language, And Regional Options window, you can click Add Other Languages or

Regional And Language Options. Both selections open the Regional And Language Options dialog box (see Figure 10.19).

The Regional Options tab allows you to configure standards and formats for each language. For example, you can configure the format for displaying numbers, currency, the time, and dates. If you have configured multiple locations, you can also choose your preferred location. In contrast to Microsoft Windows 2000 Professional, Windows XP Professional adds support for the following locales: Galician, Gujarati, Kannada, Kyrgyz, Mongolian (Cyrillic), Punjabi, Divehi, Syriac, and Telugu.

To configure multiple languages in the Languages tab of the Regional And Languages Options dialog box, click Details. Windows

XP Professional displays the Text Services And Input Languages dialog box. There are two check boxes available in the Text

Services And Input Languages dialog box. The first is Install Files For Complex Script And Right-To-Left Languages. These files are required for Arabic, Armenian, Georgian, Hebrew, Indic, Thai, and Vietnamese languages. The second is Install Files For East Asian

Languages. These files are required for Chinese, Japanese, and Korean languages. In the Text Services dialog box, click Add to access the Add Input Language dialog box (see Figure 10.20).

Figure 10.19 The Regional Options tab of the Regional And Language Options dialog box

Figure 10.20 The Text Services And Input Languages and Add Input Language dialog boxes

To configure additional languages, scroll through the list of languages and select the one you want to add. If you added at least one language to the one already installed on your computer, your computer is now supporting multiple languages.

If there are any problems with the way your multiple languages or locales are working, you might want to double-check your settings.

You can also try uninstalling the multiple language support or multiple locale support. Make sure that everything is working correctly with only one language or locale, and then reconfigure and reinstall the multiple language or multiple locale support.

Practice: Using Control Panel to Configure Multiple Languages

In this practice, you use the Regional And Language Options icon in Control Panel to configure multiple languages and multiple locations.

Run the MultiLanguages file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring multiple languages.

To configure multiple languages

1. Ensure that you are logged on as Fred or with a user account that is a member of the Administrators group.

2. In Control Panel, click the Date, Time, Language, And Regional Options icon.

3. Click Regional And Language Options.

Windows XP Professional displays the Regional And Language Options dialog box with the Regional Options tab active.

4. Click the Languages tab.

5. In the Text Services And Input Languages box, click Details.

Windows XP Professional displays the Text Services And Input Languages dialog box.

6. In the Installed Services box, click Add.

Windows XP Professional displays the Add Input Language dialog box.

7. Click the down-pointing arrow at the end of the Input Languages box to scroll through the listed languages, and select French

(France).

The French Keyboard Layout/IME is selected automatically.

8. Click OK to close the Add Input Language dialog box.

Windows XP Professional displays the Text Services And Input Languages dialog box. Notice that there are now two Installed

Services.

9. Click OK to close the Text Services And Input Languages dialog box.

10. Click OK to close the Regional And Language Options dialog box.

11. Close all open programs.

Configuring and Troubleshooting Accessibility Options

Windows XP Professional provides the ability to configure accessibility options through the Accessibility Options icon in Control

Panel.

Configuring Keyboard Options

To configure keyboard options, in Control Panel, click Accessibility Options. In the Accessibility Options window, click

Accessibility Options to display the Accessibility Options dialog box. The Keyboard tab of the Accessibility Options dialog box, shown in Figure 10.21, allows you to configure the keyboard options StickyKeys, FilterKeys, and ToggleKeys.

Figure 10.21 The Keyboard tab of the Accessibility Options dialog box

StickyKeys

Turning on StickyKeys allows you to press a multiple key combination, like Ctrl+Alt+Delete, one key at a time. This is useful for people who have difficulty pushing more than one key at a time. This is a check box selection, so it is either on or off. You can configure StickyKeys by clicking Settings to activate the Settings For StickyKeys dialog box (see Figure 10.22).

Figure 10.22 The Settings For StickyKeys dialog box

You can configure a shortcut key for StickyKeys. You can use the default shortcut key, pressing Shift five times, to turn on

StickyKeys. This option is activated by default.

Two other options can also be configured for StickyKeys: Press Modifier Key Twice To Lock and Turn StickyKeys Off If Two Keys

Are Pressed At Once. The modifier keys are Ctrl, Alt, Shift, and the Windows Logo key. If you select the modifier key option, pressing one of the modifier keys twice will cause that key to remain active until you press it again. This is useful for people who have difficulty pressing key combinations. If you choose to use the second option, StickyKeys is disabled if two keys are pressed simultaneously.

Two Notification settings can be configured for StickyKeys: Make Sounds When Modifier Key Is Pressed and Show StickyKeys

Status On Screen. The first notification setting causes a sound to be made when any of the modifier keys-Ctrl, Alt, Shift, or the

Windows Logo key-is pressed. The second notification setting causes a StickyKeys icon to be displayed in the taskbar when

StickyKeys is turned on.

FilterKeys

The Keyboard tab also allows you to configure FilterKeys. Turning on FilterKeys causes the keyboard to ignore brief or repeated keystrokes. This option also allows you to configure the keyboard repeat rate, which is the rate at which a key continuously held down repeats the keystroke. This is a check box selection, so it is either on or off. You can configure FilterKeys by clicking Settings to activate the Settings For FilterKeys dialog box (see Figure 10.23).

Figure 10.23 The Settings For FilterKeys dialog box

You can configure a shortcut key for FilterKeys. You can use the default shortcut key, holding down the Right Shift key for eight seconds, to turn on FilterKeys. This setting is activated by default.

Two other Filter options can also be configured for FilterKeys: Ignore Repeated Keystrokes and Ignore Quick Keystrokes And Slow

Down The Repeat Rate. Ignore Repeated Keystrokes is inactive by default, and Ignore Quick Keystrokes And Slow Down The

Repeat Rate is active by default. Only one of these two filter options can be active at a time. Configure each of them by clicking

Settings.

Two Notification settings can be configured for FilterKeys: Beep When Keys Pressed Or Accepted and Show FilterKey Status On

Screen. The first notification setting causes a beep when you press a key and another beep when the keystroke is accepted. The second notification option causes a FilterKeys icon to be displayed in the taskbar when FilterKeys is turned on. These settings are check boxes, so one of the settings, both of the settings (the default), or neither of the settings can be selected.

ToggleKeys

You can also configure ToggleKeys in the Keyboard tab. Turning on ToggleKeys causes the computer to make a high-pitched sound each time the Caps Lock, Num Lock, or Scroll Lock keys are switched on. Turning on ToggleKeys also causes the computer to make a low-pitched sound each time these three keys are turned off.

You can configure a shortcut key for ToggleKeys by clicking Settings. You can use the shortcut key, holding down Num Lock for five seconds, to turn on ToggleKeys. This setting is activated by default.

There is one more check box on the Keyboard tab: Show Extra Keyboard Help In Programs. When activated, this causes other programs to display additional keyboard help if available.

Configuring Sound Options

The Sound tab provides the Use Sound Sentry check box, which allows you to configure Windows XP Professional to generate visual warnings when your computer makes a sound. The Sound tab also provides the Use ShowSounds check box, which allows you to configure Windows XP Professional programs to display captions for the speech and sounds they make.

Configuring Display Options

The Display tab of the Accessibility Options dialog box provides a High Contrast check box, which allows you to configure

Windows XP Professional to use color and fonts designed for easy reading. You can click Settings to turn off or on the use of a shortcut, Left Alt+Left Shift+Print Screen, which is enabled by default. Clicking Settings also allows you to select the high-contrast appearance scheme that you want to use. The Display tab also provides cursor options that allow you to set the blink rate and the width of the cursor.

Configuring Mouse Options

The Mouse tab provides the Use MouseKeys check box, which allows you to configure Windows XP Professional to control the pointer with the numeric keypad on your keyboard. You can click Settings to configure MouseKeys in the Settings For MouseKeys dialog box (see Figure 10.24).

Figure 10.24 The Settings For MouseKeys dialog box

MouseKeys uses a shortcut, Left Alt+Left Shift+Num Lock, which is enabled by default. You can also configure the pointer speed and acceleration speed. There is even a check box, Hold Down Ctrl To Speed Up And Shift To Slow Down, that allows you to temporarily speed up or slow down the mouse pointer speed when you are using MouseKeys. To speed up the mouse pointer movement, hold down Ctrl while you press the numeric keypad directional keys. To slow down the mouse pointer movement, hold down Shift while you press the numeric keypad directional keys.

Configuring General Tab Options

The General tab (see Figure 10.25) allows you to configure Automatic Reset. This feature turns off all the accessibility features, except the SerialKeys devices, after the computer has been idle for a specified amount of time.

Figure 10.25 The General tab of the Accessibility Options dialog box

The General tab includes the Notification feature, which allows you to configure Windows XP Professional to give a warning message when a feature is activated and to make a sound when turning a feature on or off.

The General tab also allows you to activate the SerialKeys Devices feature, which configures Windows XP Professional to support an alternative input device (also called an augmentative communication device) to your computer's serial port.

The Administrative Options feature provides two check boxes, Apply All Settings To Logon Desktop and Apply All Settings To

Defaults For New Users, that allow you to configure Windows XP Professional to apply all configured accessibility options to this user at logon and to apply all configured accessibility options to all new users.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have

difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in Appendix

A , "Questions and Answers."

1. How can you configure Windows XP Professional to use multiple languages?

2. Turning on ________________________ allows you to press a multiple key combination, like Ctrl+Alt+Delete, one key at a time. (Choose all answers that are correct.) a. FilterKeys

b. StickyKeys c. ToggleKeys d. MultiKeys

3. Turning on ________________________ causes the keyboard to ignore brief or repeated keystrokes. This option also allows you to configure the keyboard repeat rate, which is the rate at which a key continuously held down repeats the keystroke.

4. When using MouseKeys, to speed up the mouse pointer movement, hold down the ________ key while you press the numeric keypad directional keys. To slow down the mouse pointer movement, hold down the ________ key while you press the numeric keypad directional keys.

5. The ______________ tab in the Accessibility Options dialog box includes the Notification feature, which allows you to configure Windows XP Professional to give a warning message when a feature is activated and to make a sound when turning a feature on or off.

Lesson Summary

In Control Panel, click Date, Time, Language, And Regional Options to configure Windows XP Professional for multiple languages and multiple locales.

StickyKeys allows you to press a multiple key combination, like Ctrl+Alt+Delete, one key at a time.

FilterKeys causes the keyboard to ignore brief or repeated keystrokes.

ToggleKeys causes the computer to make a high-pitched sound each time the Caps Lock, Num Lock, or Scroll Lock keys are switched on.

SoundSentry causes Windows XP Professional to generate visual warnings when your computer makes a sound.

ShowSounds causes Windows XP Professional programs to display captions for the speech and sounds they make.

The Display tab of the Accessibility Options dialog box provides a High Contrast check box that allows you to configure

Windows XP Professional to use color and fonts designed for easy reading.

MouseKeys allows you to configure Windows XP Professional to control the pointer with the numeric keypad on your keyboard.

[Home]

[Previous]

[Next]

Lesson 5: Managing Windows

Components

Windows XP Professional provides the Add or Remove Programs tool in Control Panel to make it easy for you manage programs and Windows components on your computer. You use it to add applications, such as Microsoft Word from CD-ROM, floppy disk, or network shares. You also use it to add Windows components to a Windows XP Professional installation. Use the Add or Remove Programs tool to remove applications or Windows components as well. All the Windows components are installed in the same way. This lesson concentrates on Internet Information Services (IIS).

After this lesson, you will be able to

Add and remove Windows components

Install Microsoft Internet Information Services (IIS)

Estimated lesson time: 20 minutes

Installing and Removing Windows Components

To install or remove programs (such as Microsoft Word) on a computer running Windows XP

Professional, in Control Panel, click Add Or Remove Programs. You also use the Add or Remove

Programs tool to install or remove Windows components from a computer running Windows XP

Professional. In the Add Or Remove Programs window, click Add/Remove Windows Components.

Windows XP Professional starts the Windows Components Wizard (see Figure 10.26).

Figure 10.26 Windows Components Wizard

Installing Windows Components

You can install Windows components that you did not select when you installed Windows XP

Professional on your computer. The components you can install include Fax Services, Internet

Information Services (IIS), Management and Monitoring Tools, Message Queuing, and additional

Network Services. If you want to install one of the Windows components, select it and then click Next.

To install IIS, you would do the following:

1. Click Start, click Control Panel, and then click Add Or Remove Programs.

2. In the Add Or Remove Programs window, click Add/Remove Windows Components.

Windows XP Professional starts the Windows Components Wizard.

3. Select Internet Information Services (IIS).

4. Ensure that the checkbox to the left of Internet Information Services (IIS) is selected. Click

Details.

The Windows Components Wizard displays the Internet Information Services page, which shows the components included when you install Internet Information Services. Table 10.6 lists these components.

Table 10.6 Components Included with Internet Information Services (IIS)

Component

Common Files

Documentation

Selected by default Description

Yes Installs the required IIS program files

Yes

No

Installs documentation about publishing site content, and Web and

FTP Server Administration

Provides support to create FTP sites used to upload and download files

File Transfer Protocol (FTP)

Service

FrontPage 2000 Server Extensions Yes

Internet Information Services Snap-

In

SMTP Service

Yes

Yes

Enables authoring and administration of Web sites with Microsoft FrontPage and Microsoft Visual InterDev

Installs the IIS Administrative interface into Microsoft Management Console

Supports the transfer of electronic mail

World Wide Web Yes

Uses the Hypertext Transfer Protocol

Service (HTTP) to respond to Web client requests on a Transmission

Control Protocol/Internet Protocol

(TCP/IP) network

5. Click OK to close the Internet Information Services (IIS) page.

6. In the Windows Components page, click Next to continue with the installation of IIS.

The Windows Components Wizard displays the Configuring Components page while the appropriate files are copied and the components are configured. This might take a few minutes.

7. In the Completing The Windows Components Wizard page, click Finish.

8. Click Close to close the Add or Remove Programs tool.

Removing Windows Components

The Windows Components Wizard is also used to uninstall or remove Windows components from your computer. If you want to remove a Windows component, on the Windows Component page of the

Windows Components Wizard, clear the check box for the component you want to remove and click

Next. The Windows Components Wizard displays the Configuring Components page as the files are removed from your computer. When the component is removed, the Windows Components Wizard displays the Completing The Windows Components Wizard page; click Finish to close the wizard. Click

Close to close the Add or Remove Programs tool and then close Control Panel.

Managing Internet Information Services

Internet Information Services (IIS) allows you to easily publish information on the Internet or on your or your company's intranet. You place your Web files in directories on your server and users establish

HTTP connections and view your files with a Web browser. Internet Information Services for Windows

XP Professional is designed for home or small business networks and only allows 10 simultaneous client connections. It also does not provide all of the features that the server version provides.

Use the Internet Information Services snap-in to manage IIS. The Internet Information Services snap-in helps you manage the content of and access to your Web and FTP sites. To access the Internet

Information Services snap-in, click Start, point to All Programs, point to Administrative Tools, and then click Internet Information Services. The Internet Information Services snap-in lets you handle all aspects of administration for IIS. For example, every Web and FTP site must have a home directory. When you install IIS, a default home directory is created. When you create a new Web site, you can use the Internet

Information Services snap-in to change your home directory.

To change your home directory, in the Internet Information Services snap-in, right-click a Web or FTP site and then click Properties. In the site's Properties dialog box, click the Home directory tab. You can specify a directory on this computer, a shared directory located on another computer, or a redirection to a

Uniform Resource Locator (URL), and then type the path in the Local Path text box. Click OK and you have changed your home directory.

If your Web site contains files that are located in directories other than your home directory (for example, on another computer), you must create virtual directories to include these files on your Web site. You use the Internet Information Services snap-in to create these virtual directories. In the snap-in select the Web or FTP site to which you want to add a directory. On the Action menu, point to New, and click Virtual

Directory. This starts the Virtual Directory Creation Wizard, which will guide you through creating the new directory.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. How do you add Windows components to your Windows XP Professional installation?

2. What service does Internet Information Services (IIS) provide?

3. How many simultaneous client connections can you have using Internet Information Services for

Windows XP Professional?

a. 8 b. 10 c. 20 d. 32

4. How do you administer Internet Information Services (IIS) for Windows XP Professional?

Lesson Summary

You use the Add or Remove Programs tool in Control Panel to add and remove applications from

CD-ROM, floppy disk, or network shares.

You use the Add or Remove Programs tool to add or remove Windows components, such Internet

Information Services (IIS).

You click Add/Remove Windows Components in the Add or Remove Programs window to start the Windows Components Wizard.

You use Internet Information Services (IIS) to publish information on the Internet or on your intranet.

Internet Information Services for Windows XP Professional is designed for home or small business networks and only allows 10 simultaneous client connections.

You use the Internet Information Services snap-in to manage IIS.

[Home]

[Previous]

[Next]

Chapter 11

Installing, Managing, and

Troubleshooting Hardware Devices and

Drivers

About This Chapter

One of the primary tools for configuring hardware is the Control Panel. Another useful tool for implementing, managing, and troubleshooting hardware devices and drivers is the Device Manager, found in the Computer Management console.

Before You Begin

To complete this chapter, you must have

Installed the Microsoft Windows XP Professional software on the computer

[Home]

[Previous]

[Next]

Lesson 1: Understanding Automatic and

Manual Hardware Installation

Windows XP Professional supports both Plug and Play and non-Plug and Play hardware. This lesson introduces you to the automatic hardware installation features of Windows XP Professional. Occasionally, Windows XP

Professional fails to automatically detect a hardware device. When this occurs, you must install the hardware device manually. You might also have to do this if the device requires a specific hardware resource to ensure that it is installed properly.

After this lesson, you will be able to

Describe how to install hardware automatically

Describe how to install hardware manually

Estimated lesson time: 30 minutes

Installing Hardware Automatically

Windows XP Professional supports Plug and Play hardware. For most devices that are Plug and Play-compliant, as long as the appropriate driver is available and the basic input/output system (BIOS) on the computer is a Plug and Play BIOS or an Advanced Configuration and Power Interface (ACPI) BIOS, Windows XP Professional automatically detects, installs, and configures the device. When there is a new piece of hardware detected that cannot be installed automatically, Windows XP Professional displays the Found New Hardware Wizard (see

Figure 11.1).

Figure 11.1 The Found New Hardware Wizard

However, you might occasionally need to initiate automatic installation for some Plug and Play hardware. You do this with the Add Hardware Wizard. For non-Plug and Play hardware, Windows XP Professional often identifies the hardware and automatically installs and configures it. For non-Plug and Play hardware that Windows XP

Professional does not identify, install, and configure, you initiate the automatic installation of the hardware with the Add Hardware Wizard.

To automatically install hardware, complete the following steps:

1. Click Start, click Control Panel, and then click Printers And Other Hardware.

2. In the Printers And Other Hardware window, under See Also, click Add Hardware to start the Add

Hardware Wizard.

Windows XP Professional queries the hardware about the hardware resources that it requires and the settings for those resources. A hardware resource allows a hardware device to communicate directly with the operating system. Windows XP Professional can resolve conflicts between Plug and Play hardware for hardware resources.

3. Confirm the automatic hardware installation.

After Windows XP Professional finishes the installation, you should verify correct installation and

configure the hardware.

Using the Add Hardware Wizard

You can also use the Add Hardware Wizard to initiate automatic hardware installation for undetected hardware devices, both Plug and Play and non-Plug and Play, and to troubleshoot devices.

To start the Add Hardware Wizard, do the following:

1. In Control Panel, click Printers And Other Hardware.

2. Click Add Hardware.

Windows XP Professional starts the Add Hardware Wizard, which is used to install software to support the hardware you add to your computer and to troubleshoot problems that you might be having with your hardware.

You can also click System in the Performance And Maintenance window accessed from Control Panel and start the Add Hardware Wizard from the Hardware tab of the System Properties dialog box.

3. Click Next to close the Welcome To The Add Hardware Wizard page.

Windows XP Professional searches for new devices and one of the following three events occurs:

If Windows XP Professional detects any new Plug and Play hardware, it installs the new hardware.

If Windows XP Professional detects new hardware, it starts the Found New Hardware Wizard.

If the wizard cannot find a new device, it displays the Is The Hardware Connected page. If you have already connected the new device, click Yes, I Have Already Connected The Hardware and then click Next. The wizard displays the The Following Hardware Is Already Installed On Your

Computer page, shown in Figure 11.2. To add hardware that is not in the list, click Add A New

Hardware Device.

Figure 11.2 Adding hardware or troubleshooting with the Add Hardware Wizard

To use the Add Hardware Wizard to troubleshoot a hardware device, click the device in the list of installed hardware devices and click Next. The Completing The Add Hardware Wizard page appears. Click Finish to launch a troubleshooter to help resolve any problems you might be having with that hardware device.

Confirming Hardware Installation

After installing hardware, you should confirm the installation using the Device Manager.

You can do the following to start Device Manager:

1. In Control Panel, click Performance And Maintenance.

2. Click System.

3. Click the Hardware tab, and then click Device Manager.

Device Manager can also be launched from the Computer Management console. It is a snap-in located under

System Tools.

This allows you to view the installed hardware, as shown in Figure 11.3.

Figure 11.3 Device Manager showing devices listed by type

Windows XP Professional uses icons in the Device Manager window to identify each installed hardware device.

If Windows XP Professional does not have an icon for the device type, it displays a question mark.

Expand the device tree to locate the newly installed hardware device. The device icon indicates whether the hardware device is operating properly. You can use the information in Table 11.1 to determine the hardware status.

Table 11.1 Device Manager Hardware Status

Icon

Normal icon

Stop sign on icon

Hardware status

Hardware is operating properly.

Windows XP Professional disabled the hardware device because of hardware conflicts. To correct this, right-click the device icon and then click Properties. Set the hardware resources manually according to what is available in the system.

Exclamation point on icon The hardware device is incorrectly configured or its drivers are missing.

Installing Hardware Manually

To manually install hardware, first determine which hardware resource is required by the hardware device. Next, you must determine the available hardware resources. In some cases, you will have to change hardware resources.

Finally, you might have to troubleshoot any problems you encounter.

Determining Which Hardware Resources Are Required

When installing new hardware, you need to know what resources the hardware can use. You can reference the product documentation to determine the resources that a hardware device requires. Table 11.2 describes the resources that hardware devices use to communicate with an operating system.

Table 11.2 Hardware Device Resources

Resource

Interrupts

Input/output(I/O) ports

Description

Hardware devices use interrupts to send messages. The microprocessor knows this as an interrupt request (IRQ). The microprocessor uses this information to determine which device needs its attention andthe type of attention that it needs.

Windows XP Professional provides 16 IRQs, numbered 0 to 15, that are assigned to devices. For example, Windows XP Professional assigns IRQ 1 to the keyboard.

I/O ports are a section of memory that a hardware device uses to communicate with the operating system. When a microprocessor receives an IRQ, the operating system checks the I/O port address to retrieve additional information about what the hardware device wants it to do. An I/O port is represented as a hexadecimal number.

DMAs are channels that allow a hardware device, such as a floppy disk drive, to

Direct memory access (DMA) access memory directly, without interrupting the microprocessor. DMA channels speed up access to memory. Windows XP Professional has eight DMA channels, numbered 0 through 7.

Memory

Many hardware devices, such as a network interface card (NIC), use onboard memory or reserve system memory. This reserved memory is unavailable for use by other devices or Windows XP Professional.

Determining Available Hardware Resources

After you determine which resources a hardware device requires, you can look for an available resource. Device

Manager provides a list of all hardware resources and their availability, as shown in Figure 11.4.

Figure 11.4 Device Manager showing resources listed by connection

You can do the following to view the hardware resource lists:

1. In the System Properties dialog box, click the Hardware tab, and then click Device Manager.

2. On the View menu, click Resources By Connection.

The Device Manager displays the resources that are currently in use (for example, IRQs).

3. To view a list of resources for another type of hardware resource, click the type of hardware resource you want to see on the View menu.

When you know which hardware resources are available, you can install the hardware manually with the Add

Hardware Wizard.

If you select a hardware resource during manual installation, you might need to configure the hardware device so that it can use the resource. For example, for a network adapter to use IRQ 5, you might have to set a jumper on

the adapter and configure Windows XP Professional so that it recognizes that the adapter now uses IRQ 5.

Changing Hardware Resource Assignments

You might need to change hardware resource assignments. For example, a hardware device might require a specific resource presently in use by another device. You might also encounter two hardware devices requesting the same hardware resource, resulting in a conflict.

To change a resource setting, use the Resources tab in the device's Properties dialog box. You can use the following procedure to access the Resources tab:

1. In the Hardware tab of the System Properties dialog box, click Device Manager.

2. Expand the device list, right-click the specific device, and then click Properties.

3. In the Properties dialog box for the device, click the Resources tab.

When you change a hardware resource, print the content of Device Manager. This provides you with a record of the hardware configuration. If you encounter problems, you can use the printout to verify the hardware resource assignments.

From this point, follow the same procedures that you used to choose a hardware resource during a manual installation.

Changing the resource assignments for non-Plug and Play devices in Device Manager does not change the resources used by that device. You only use Device Manager to instruct the operating system on device configuration. To change the resources used by a non-Plug and Play device, consult the device documentation to see whether switches or jumpers must be configured on the device.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson.

If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. When you initiate automatic hardware installation by starting the Add Hardware Wizard, what does

Windows XP Professional query the hardware about?

2. _______________________ are channels that allow a hardware device, such as a floppy disk drive, to access memory directly, without interrupting the microprocessor.

3. Why would you install a hardware device manually?

Lesson Summary

For most Plug and Play hardware, you connect the device to the computer, and Windows XP Professional automatically configures the new settings.

For non-Plug and Play hardware, Windows XP Professional often identifies the hardware and automatically installs and configures it.

For the occasional Plug and Play hardware device and for any non-Plug and Play hardware that Windows

XP Professional does not identify, install, and configure, you initiate automatic hardware installation with the Add Hardware Wizard.

When you manually install hardware, you must determine any resources required by that hardware device.

Hardware resources include interrupts, I/O ports, and memory.

The Device Manager snap-in provides a list of all hardware resources and their availability.

[Home]

[Previous]

[Next]

Lesson 2: Configuring and Troubleshooting

Hardware Devices

Device Manager is one of the tools you use to manage and troubleshoot devices. This lesson also introduces the System

Information snap-in, how to use it, and how it helps you manage your system.

After this lesson, you will be able to

Use Device Manager to configure and troubleshoot devices

Use System Information to manage devices

Estimated lesson time: 60 minutes

Using Device Manager

Device Manager provides you with a graphical view of the hardware installed on your computer and helps you manage and troubleshoot it. You can use Device Manager to disable, uninstall, and update device drivers. Device Manager also helps you determine if the hardware on your computer is working properly. It lists devices with problems, and each device that is flagged is displayed with the corresponding status information.

Windows XP Professional also provides the Hardware Troubleshooter to troubleshoot hardware problems. To access the

Hardware Troubleshooter, on the Start menu, click Help And Support. In the Help And Support Center, under Pick A

Help Topic, click Hardware. In the Hardware list, click Fixing A Hardware Problem. Under Fixing A Hardware

Problem, click Hardware Troubleshooter.

Configuring and Troubleshooting Devices

When you change device configurations manually, Device Manager can help you avoid problems by allowing you to identify free resources and assign a device to that resource, disable devices to free resources, and reallocate resources used by devices to free a required resource. You must be logged on as a member of the Administrators group to change resource settings. Even if you are logged on as Administrator, if your computer is connected to a network, policy settings on the network might prevent you from changing resources.

Improperly changing resource settings on devices can disable your hardware and cause your computer to stop working.

Windows XP Professional automatically identifies Plug and Play devices and arbitrates their resource requests.

However, the resource allocation among Plug and Play devices is not permanent. If another Plug and Play device requests a resource that has already been allocated, Windows XP Professional again arbitrates the requests to satisfy all of them.

You should not change resource settings for a Plug and Play device manually because Windows XP Professional will then be unable to arbitrate the assigned resources if requested by another Plug and Play device. In Device Manager, Plug and Play devices have a Resources tab in their Properties dialog box. To free the resource settings you manually assigned and allow Windows XP Professional to again arbitrate the resources, select the Use Automatic Settings check box in the Resources tab.

Devices supported by Microsoft Windows NT 4 have fixed resource settings. These resource settings are usually defined during an upgrade from Windows NT 4 to Windows XP Professional, but you can also define them by using the Add

New Hardware Wizard in Control Panel.

You can use the following procedure to configure or troubleshoot a device using Device Manager:

1. Click Start, right-click My Computer, and then click Manage.

The Computer Management console opens, as shown in Figure 11.5.

Figure 11.5 The Computer Management console

2. Under System Tools, click Device Manager.

3. In the Details pane, double-click the device type, and then double-click the device you want to configure.

The device Properties dialog box appears (where device is a specific device; see Figure 11.6).

Figure 11.6 Netelligent 10/100TX PCI UTP Controller Properties dialog box

The tabs available in the device Properties dialog box vary depending on the device selected, but might include some of the ones listed in Table 11.3.

Table 11.3 Device Properties Dialog Box Tabs

Tab Functionality

Advanced or Advanced Properties The properties listed vary depending on the device selected.

General

Device Properties

Displays the device type, manufacturer, and location. It also displays the device status and provides a troubleshooter to help you troubleshoot any problems you are having with the device. The troubleshooter steps you through a series of questions to determine the problem and provide a solution.

The properties listed vary depending on the device selected.

Driver

Port Settings

Displays the driver provider, driver date, driver version, and digital signer.

This tab also provides the following three additional buttons: Driver Details,

Uninstall, and Driver Update. These buttons allow you to get additional information on the driver, uninstall the driver, or update the driver with a newer version, respectively.

In a communications port (COM1) Properties dialog box, displays and allows you to configure settings for bits per second, data bits, parity, stop bits, and flow control.

Properties

Determines the way Windows uses the device. For example, on the CD-

ROM, the properties could include volume and digital CD playback, which allows you to enable digital instead of analog playback. These settings determine how Windows uses the CD-ROM for playing CD music.

Resources

Displays the resource type and setting, whether there are any resource conflicts, and whether or not you can change the resource settings.

4. To configure a device, click the appropriate tab. To troubleshoot, in the General tab, click Troubleshooter.

Viewing Hidden Devices

By default, Device Manager does not display all devices. Some devices, like non-Plug and Play devices and devices that are not currently connected to the computer (phantom devices), are hidden.

To view any hidden non-Plug and Play devices, on the Device Manager View menu, click Show Hidden Devices.

To view phantom devices, follow these steps:

1. Click Start and then click Run. In the Open text box, type cmd and click OK.

2. At the command prompt, type set DEVMGR_SHOW_NONPRESENT_DEVICES=1

3. Press Enter.

4. Start Device Manager.

5. At the command prompt, type start devmgmt.msc.

To set Device Manager to always show phantom devices, add the following system environment variable: set

DEVMGR_SHOW_NONPRESENT_DEVICES=1 For information on adding system environment variables, see

Chapter 10

, "Configuring Windows XP Professional," Lesson 3, "Configuring Operating System Settings."

Practice: Using Device Manager

In this practice, you use Device Manager to review the devices on your system and their status. You also use Device

Manager to simulate troubleshooting an unterminated Small Computer System Interface (SCSI) chain.

To use Device Manager

1. Click Start, right-click My Computer, and then click Manage.

The Computer Management console opens.

2. Under System Tools, click Device Manager.

3. In the details pane, double-click Disk Drives, and then double-click one of the drives listed.

The Properties dialog box for that drive appears and in the General tab, the Device Status field indicates if there are any problems with the drive.

4. Click Troubleshoot. (Normally you would only do this if a problem was indicated with this device.)

Windows XP Professional displays the Help And Support Center window with the Drives And Network Adapters

Troubleshooter displayed. Troubleshooter steps you through a series of questions to help you resolve your problem.

5. Click I Am Having A Problem With A Hard Disk Drive Or Floppy Disk Drive, and then click Next.

6. Click Yes, I Am Having A Problem With A SCSI Device, and then click Next.

You are asked, "Is Your Hardware On The HCL?"

7. Click Yes, My Hardware Is On The HCL.

You are asked, "Does Your Drive Work When All The SCSI Components Have The Power They Need?"

8. Click No, My Drive Does Not Work, and then click Next.

You are asked, "Does This Information Help You To Solve The Problem?"

9. Click No, My Device Still Does Not Work, and then click Next.

You are asked, "Does Rolling Back To A Previous Driver Solve The Problem?"

10. Click No, I Still Have A Problem.

You are asked, "Does Reinstalling Or Updating Your Driver Solve The Problem?"

11. Click No, I Still Have A Problem.

You are asked, "Does Your Drive Work When You Replace Any Faulty Cables Or Adapters?"

12. Click No, My Drive Does Not Work.

You are asked, "Does Your Drive Work When You Terminate The SCSI Chain?"

13. Click Yes, Terminating The SCSI Chain Solves The Problem, and then click Next.

Had an unterminated SCSI chain been the problem you were trying to solve, you would have just fixed it.

14. Close Help And Support Center, close the Properties dialog box for the selected disk drive, and close Computer

Management.

Installing, Configuring, Managing, and Troubleshooting

Fax Support

Windows XP Professional can provide complete fax facilities from your computer. It provides you with the capability to send and receive faxes with a locally attached fax device, or with a remote fax device connected on your network. You can track and monitor fax activity as well. However, the Fax component of Windows XP Professional is not installed by default, so you must install it.

You can use the following procedure to install the Fax component:

1. Click Start, click Control Panel, and then click Add Or Remove Programs.

2. In the Add Or Remove Programs window, click Add/Remove Windows Components.

3. In the Windows Components Wizard, select Fax Services, and then click Next.

The Configuring Components page appears while the Windows Components Wizard examines the components, copies the necessary files, and configures the Fax Service.

4. When the Completing The Windows Components Wizard page appears, read the page, and then click Finish.

5. Close the Add Or Remove Programs window.

6. In Control Panel, click Printers And Other Hardware.

7. In the Printers And Other Hardware window, click Printers And Faxes.

Notice the Fax icon.

If there is no Fax icon, click Install a Local Fax Printer to add one.

If you have a fax device, such as a fax modem, installed when you install the Fax Service, Control Panel has a Fax icon.

The Fax icon is used to add, monitor, and troubleshoot fax devices, including fax modems and fax printers.

You can use the following procedure to configure the Fax component:

1. In the Printers And Faxes window, double-click the Fax icon.

Windows XP Professional displays the Welcome To The Fax Configuration Wizard page. The Fax Configuration

Wizard helps you configure your computer to send and receive faxes.

2. Click Next.

The Fax Configuration Wizard displays the Sender Information page, which allows you to enter information in the following text boxes: Your Full Name, Fax Number, E-Mail Address, Title, Company, Office Location,

Department, Home Phone, Work Phone, Address, and Billing Code.

3. Type the appropriate information in the text boxes and click Next.

4. On the Completing The Fax Configuration Wizard page, click Finish.

Windows XP Professional displays the Fax Console.

To configure a fax, click Configure Fax on the Tools menu of the Fax Console. To open the Fax Console, click Start, point to All Programs, point to Accessories, point to Communications, point to Fax, and then click Fax Console.

Managing and Troubleshooting Fax Support

Windows XP Professional provides the Fax Console to help you manage and troubleshoot faxes.

To manage and troubleshoot faxes, complete the following steps:

1. Click Start, point to All Programs, and point to Accessories.

2. Point to Communications, point to Fax, and then click Fax Console.

Windows XP Professional displays the Fax Console (see Figure 11.7).

Figure 11.7 The Fax Console

The Outbox contains all faxes waiting to be sent, or in the process of being sent, whether the faxes were sent using a locally attached fax device or a network fax device. You can right-click any fax in the details pane, and then press

Delete or click Delete on the File menu to delete the fax. When you right-click a fax in the details pane, you can also click Pause to prevent it from being sent, or click Resume to place a fax that you paused back in the queue to be sent. If a fax fails, you can right-click the fax in the details pane and click Restart to attempt to resend the fax. Finally, when you right-click a fax in the details pane, you can click Save As to save a copy of the fax, Mail To to mail a copy of the fax to someone, or Print to print a copy of the fax.

The Incoming box allows you to manage incoming faxes in the same manner that the Outgoing box helps you manage outgoing faxes. You can click the Incoming box, and then right-click a fax in the details pane to delete, pause, resume, save, mail to someone, and print the fax. You can also click Properties to view the properties of an incoming fax.

Table 11.4 discusses some common troubleshooting scenarios.

Table 11.4 Common Troubleshooting Scenarios

Problem Cause Solution

When I click the Print button on my application's toolbar, my fax does not print to a fax printer.

The print button on the toolbar of some Windows applications does not

On the File menu of your Windows application, click Print to access the use the Print dialog box, causing

Print dialog box so that you can select your document to be printed on the your fax printer. last printer used.

A fax I sent is pending in the Outbox.

Either there is no local fax device configured to send faxes or there is a

There is a problem with the local fax problem with the local fax device.

Verify there is a local fax device and device. that it is configured for sending faxes.

On the Tools menu of the Fax Console, click Fax Printer Status.

The remote fax device is busy.

On the Tools menu of the Fax Console, click Fax Printer Status.

Someone sent me a fax, and my incoming fax device is not detecting the call.

There is a problem with your local fax device.

Verify that your local fax device is configured to receive faxes. If you have an external modem, turn it off and on.

If you have an internal modem, shut down your computer and restart it.

I'm using dialing rules with calling cards, but the calling card information is not working.

Calling card information is defined on a per-user basis. Ensure the Fax

Service is running using the same user account as the calling card information.

Right-click My Computer, click

Manage, and then click Services And

Applications. In the Services list, double-click Fax. Click Log On. Set the

Fax Service to run under the calling card user account.

I can't send faxes with Microsoft

Outlook Express. compliant with a

Messaging Application Programming

Interface (MAPI) client interface and cannot be used to send faxes.

Outlook Express is not Use Microsoft Outlook 2000.

Sending a Fax

Windows XP Professional makes it simple for you to use your computer to send faxes.

If you need to install a fax printer, the steps are the same as for installing a printer. For more information, see

Chapter 6 ,

"Setting Up, Configuring, and Troubleshooting Common Setup and Configuration Problems for Network Printers." To configure a fax printer or check the status of a fax printer, click Fax Printer Configuration or Fax Printer Status on the

Tools menu of the Fax Console. To open the Fax Console, click Start, point to All Programs, point to Accessories, point to Communications, point to Fax, and then click Fax Console.

You can use the following procedure to send a fax:

1. Click Start, point to All Programs, and point to Accessories.

2. Point to Communications, point to Fax, and then click Send A Fax.

Windows XP Professional displays the Welcome To The Send Fax Wizard page, which indicates that if you want to fax a document, you create or open the document in a Windows-based application and print it to a fax printer.

3. Click Next.

The Send Fax Wizard displays the Recipient Information page, which allows you to enter the name and number of the person to whom you want to send a fax.

To send the fax to multiple recipients, enter the first person's name and phone number and then click Add. Enter the information for each recipient and click Add until all recipients have been entered.

4. Enter the appropriate information, and then click Next.

The Send Fax Wizard displays the Preparing The Cover Page page, which allows you to select a cover page template. You can also enter a subject line, a note, and sender information.

Either the Subject Line or Note text boxes must be filled in to proceed.

5. Enter the appropriate information and then click Next.

The Send Fax Wizard displays the Schedule page, which allows you to choose from the following options to send the fax: Now, When Discount Rates Apply, or A Specific Time In The Next 24 Hours. It also allows you to specify a priority of High, Normal, or Low.

6. Select the appropriate settings, and then click Next.

The Send Fax Wizard displays the Completing The Send Fax Wizard page.

7. Review the information displayed on the Completing The Send Fax Wizard page and, if it is correct, click Finish to send the fax.

Managing and Troubleshooting I/O Devices

The list of devices that can be installed is too long to include here. The following paragraphs include some of the most common devices and how they are installed, configured, and managed.

Scanners and Cameras

Most digital cameras, scanners, and other imaging devices are Plug and Play devices and Windows XP Professional installs them automatically when you connect them to your computer. If your imaging device is not installed automatically when you connect it, or if it does not support Plug and Play, use the Scanner And Camera Installation

Wizard. To open this wizard, in Control Panel, click Printers And Other Hardware, and then click Scanners And

Cameras. In the Scanners And Cameras window, double-click Add An Imaging Device to start the Scanners And

Camera Installation Wizard. Click Next and follow the on-screen instructions to install your digital camera, scanner, or

other imaging device.

In Device Manager, select the appropriate device, and then click Properties. The standard color profile for Integrated

Color Management (ICM 2.0) is RGB, but you can add, remove, or select an alternate color profile for a device. To change the color profile, click the Color Management tab on the device Properties dialog box. If you are having problems with your scanner or camera, click Troubleshoot in the Scanners And Cameras Properties dialog box.

Mouse Devices

Click the Mouse icon in the Printers And Other Hardware window of Control Panel to configure and troubleshoot your mouse. The Buttons tab (see Figure 11.8) allows you to configure your mouse for a left-handed or right-handed user. It also allows you to set a single mouse click as select or open and to control the double-click speed.

Figure 11.8 The Buttons tab of the Mouse Properties dialog box

The Pointers tab allows you to select or create a custom scheme for your pointer. The Pointer Options tab allows you to adjust the speed and acceleration of your pointer and to set the Snap To Default option, which moves the pointer automatically to the default button in dialog boxes. The last tab is the Hardware tab, which allows you to access the troubleshooter if you are having problems with your mouse. The Hardware tab also has a Properties button that allows you to do an advanced configuration for your mouse. This includes uninstalling or updating your driver, viewing or changing the resources allocated to your mouse, and increasing or decreasing the sensitivity of your mouse by varying

the sample rate, which changes how often Windows XP Professional determines the position of your mouse.

Modems

Click Phone And Modem Options in the Printers And Other Hardware window of Control Panel to install, configure, or troubleshoot your modem. To install a new modem, in the Modems tab, click Add. The Add Hardware Wizard then starts to step you through the installation process. To configure an installed modem, click the Modems tab, select the modem from the list of installed modems, and click Properties. Click the appropriate tab for the configuration changes you wish to make; for example, click the Modem tab to set the maximum port speed and whether or not to wait for a dial tone before dialing. The Diagnostics tab allows you to query the modem and to view the modem log. If you need additional help in troubleshooting the modem, the General tab allows you to access the troubleshooter.

There are two other tabs on the Phone And Modem Options dialog box: the Dialing Rules tab and the Advanced tab.

The Dialing Rules tab lists all the locations you have configured on the computer. Click Add on this tab to add a new location or click Edit to edit an existing location. The Advanced tab shows the telephony providers installed on this computer. It also allows you to add or remove telephony providers and to configure those already installed.

Game Controllers

Click Game Controllers in the Printers And Other Hardware window of Control Panel to install, configure, or troubleshoot your game controller. Attach the game controller to the computer (for example, if it is a universal serial bus

[USB] game controller, attach it to a USB port). If it does not install properly, in Device Manager, look under Human

Interface Devices. If the controller is not listed, then check to make sure that USB is enabled in the BIOS. When prompted during system startup, enter BIOS setup and enable USB. If USB is enabled in BIOS, contact the maker or vendor for your computer and obtain the current version of BIOS.

To configure the controller, select a device, then click Properties. To troubleshoot a device, select it and then click

Troubleshoot.

IrDA and Wireless Devices

Most internal Infrared Data Association (IrDA) devices should be installed by Windows XP Professional Setup, or when you start Windows XP Professional after adding one of these devices. If you attach an IrDA transceiver to a serial port, you must install it using the Add Hardware Wizard. In Control Panel, click Printers And Other Hardware, and then click

Add Hardware to start the Add Hardware Wizard. Click Next to close the Welcome To The Add Hardware Wizard page.

Select Yes I Have Already Connected The Hardware, and then click Next. Select Add A New Hardware Device and then click Next, and follow the directions on your screen.

To configure an IrDA device, in Control Panel click Wireless Link. In the Hardware tab, click the device you want to configure and then click Properties. The Properties dialog box shows the status of the device, driver files, and any power management settings.

The Wireless Link icon appears in Control Panel only if you have already installed an infrared device on your computer.

Keyboards

Click Keyboard in the Printers And Other Hardware window of Control Panel to configure or troubleshoot a keyboard.

In the Speed tab, you can configure the character repeat delay and the character repeat rate. You can also control the cursor blink rate. The Hardware tab shows you the device properties for the installed keyboard and allows you to access the troubleshooter if you are having problems with your keyboard. You can also install a device driver, roll back to a previous device driver, or uninstall a device driver.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The

answers are in Appendix A , "Questions and Answers."

1. Windows XP Professional automatically identifies Plug and Play devices and arbitrates their resource requests; the resource allocation among these devices is ___________________________ (permanent/not permanent).

2. How can you free any resource settings that you manually assigned to a Plug and Play device?

3. Which of the following devices are not shown by default in Device Manager? (Choose all that apply.) a. Devices sharing an IRQ b. Phantom devices c. Plug and Play devices d. Non-Plug and Play devices

4. You get a call on the help desk from a user upset because he cannot send faxes from Outlook Express. What should you tell the user?

5. You get a call on the help desk from a user wondering why there is no Wireless Link icon in Control Panel on her desktop computer like the one on her laptop computer. What should you tell the user?

Lesson Summary

Device Manager provides you with a graphical view of the hardware installed on your computer and helps you manage and troubleshoot it.

Device Manager lists devices with problems, and each device that is flagged is displayed with the corresponding status information.

By default, Device Manager does not display non-Plug and Play devices and devices that are not currently connected to the computer (phantom devices).

Most imaging devices are installed automatically when you connect them, but if your device is not, Windows XP

Professional provides the Scanner and Camera Installation Wizard to help you install it.

Use the Mouse option in the Printers And Other Hardware window of Control Panel to configure and troubleshoot your mouse.

Use the Phone And Modem Options option in the Printers And Other Hardware window of Control Panel to install, configure, or troubleshoot your modem.

Use the Game Controllers option in the Printers And Other Hardware window of Control Panel to install, configure, or troubleshoot your game controller.

Use the Add Hardware Wizard to install an IrDA transceiver you attach to a serial port.

The Wireless Link icon that you use to configure an infrared device does not appear in Control Panel until you have installed an infrared device on your computer.

Use the Keyboard option in the Printers And Other Hardware window of Control Panel to configure or troubleshoot a keyboard.

[Home]

[Previous]

[Next]

Lesson 3: Viewing and Configuring

Hardware Profiles

Control Panel contains applications that you use to customize selected aspects of the hardware and software configuration for a computer. You configure hardware settings by creating and configuring hardware profiles. Windows XP Professional uses these hardware profiles to determine which drivers to load when system hardware changes.

After this lesson, you will be able to

Manage hardware profiles

Estimated lesson time: 15 minutes

Understanding Hardware Profiles

A hardware profile stores configuration settings for a set of devices and services. Windows XP

Professional can store different hardware profiles to meet the user's different needs. Hardware profiles are used primarily for portable computers. For example, a portable computer can use different hardware configurations depending on whether it is docked or undocked. A portable-computer user can create a hardware profile for each state (docked and undocked) and choose the appropriate profile when starting

Windows XP Professional.

Creating or Modifying a Hardware Profile

To create or modify a hardware profile, in Control Panel, click Performance And Maintenance. In the

Performance And Maintenance window, click System, and then in the System Properties dialog box, click the Hardware tab. Click Hardware Profiles to view the Available Hardware Profiles list (see Figure

11.9).

Figure 11.9 Available Hardware Profiles list in the Hardware Profiles dialog box

Windows XP Professional creates an initial profile during installation, listed as Profile 1 (Current). You can create a new profile with the same configuration as another profile. To create a new profile, in the

Available Hardware Profiles list, select the profile that you want to copy, and then click Copy.

The order of the profiles in the Available Hardware Profiles list determines the default order at startup.

The first profile in the list becomes the default profile. To change the order of the profiles, use the Up and Down arrow buttons.

Activating a Hardware Profile

If there are two or more profiles in the Available Hardware Profiles list, Windows XP Professional prompts the user to make a selection during startup. You can configure how long the computer waits before starting the default configuration. To adjust this time delay, click the Select The First Profile

Listed If I Don't Select A Profile In option and then specify the number of seconds in the Seconds text box within the Hardware Profiles Selection group. You can configure Windows XP Professional to start

the default profile by setting the number of seconds to 0. To override the default during startup, press

Spacebar during the system prompt. You can also select the Wait Until I Select A Hardware Profile option to have Windows XP Professional wait for you to select a profile.

When using hardware profiles, be careful not to disable one of the boot devices with the Devices program in Control Panel. If you disable a required boot device, Windows XP Professional might not start. It is a good idea to make a copy of the default profile and then make changes to the new profile.

This way, you can use the default profile again if a problem occurs.

Viewing Hardware Profile Properties

To view the properties for a hardware profile, in the Available Hardware Profiles list, select a profile, and then click Properties. This displays the Properties dialog box for the profile.

If Windows XP Professional identifies your computer as a portable unit, the This Is A Portable Computer check box is selected. If Windows XP Professional determines that your portable computer is docked, it automatically selects that option. You cannot change this docked option setting after Windows XP

Professional selects it.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is the minimum number of hardware profiles you can have on your computer?

2. Computer hardware profiles are an especially important feature for what type of computers?

a. Computers in a network environment b. Computers in a domain c. Stand-alone computers d. Portable computers

3. Windows XP Professional creates an initial profile during installation and assigns it the name of

_______________________ in the list of hardware profiles available on the computer.

4. Which of the following statements are true about hardware profiles in Windows XP Professional?

(Choose all that apply.) a. Windows XP Professional only prompts the user to select a hardware profile during startup

if there are two or more profiles in the Available Hardware Profiles list.

b. It is a good idea to delete the default profile when you create a new profile to avoid confusion.

c. You can configure Windows XP Professional to always start the default profile by selecting the Do Not Display The Select Hardware Profile check box.

d. You can select the Wait Until I Select A Hardware Profile option to have Windows XP

Professional wait for you to select a profile at startup.

Lesson Summary

A hardware profile stores configuration settings for a set of devices and services.

Windows XP Professional uses hardware profiles to determine which drivers to load when system hardware changes.

The primary use of hardware profiles is for a portable computer that can use different hardware configurations depending on whether it is docked or undocked.

To create or modify a hardware profile, in the System Properties dialog box, click the Hardware tab and then click Hardware Profiles to view the Available Hardware Profiles list.

During installation, Windows XP Professional automatically creates an initial profile.

[Home]

[Previous]

[Next]

Lesson 4: Configuring, Monitoring, and

Troubleshooting Driver Signing

Windows XP Professional drivers and operating system files have been digitally signed by Microsoft to ensure their quality. In Device Manager, you can look in the Driver tab of a device Properties dialog box to verify that the digital signer of the installed driver is correct. Some applications overwrite existing operating files as part of their installation process, which might cause system errors that are difficult to troubleshoot. Microsoft has greatly simplified the tracking and troubleshooting of altered files by signing the original operating system files and allowing you to easily verify these signatures.

After this lesson, you will be able to

Configure driver signing

Describe the System File Checker (SFC) tool and how to use it to verify and troubleshoot driver signing

Use the Windows Signature Verification tool to monitor and troubleshoot driver signing

Estimated lesson time: 20 minutes

Configuring Driver Signing

You can configure how the system responds to unsigned files by clicking System in the Performance And

Maintenance window in Control Panel and clicking the Hardware tab. In the Hardware tab, in the Device Manager box, click Driver Signing (see Figure 11.10).

Figure 11.10 Configuring driver signing in the Driver Signing Options dialog box

The following three settings are available to configure driver signing:

Ignore. This option allows any files to be installed regardless of their digital signature or the lack thereof.

Warn. This option, the default, displays a warning message before allowing the installation of an unsigned file.

Block. This option prevents the installation of unsigned files.

If you are logged on as Administrator or as a member of the Administrators group, you can select the Make This

Action The System Default check box to apply the driver signing configuration you set up to all users who log on to the computer.

Monitoring and Troubleshooting Driver Signing

Windows XP Professional also provides System File Checker (SFC), a command-line tool that you can use to check the digital signature of files. The syntax of the SFC tool is as follows:

Sfc [/scannow] [/scanonce] [/scanboot] [/revert] [/purgecache] [/cachesize=x]

Table 11.5 explains the SFC optional parameters.

Table 11.5 System File Checker Optional Parameters

Parameter Description

/scannow Causes the SFC tool to scan all protected system files immediately

/scanonce Causes the SFC tool to scan all protected system files once at the nextsystem restart

/scanboot Causes the SFC tool to scan all protected system files every time the system restarts

/revert Causes the SFC settings to be returned to the default settings

/purgecache Purges the file cache

/cachesize=x Sets the file cache size

Using the Windows File Signature Verification Tool

There is also a Windows File Signature Verification tool. To use it, click Start, click Run, type sigverif, and then press Enter. Once the File Signature Verification tool begins, you can click Advanced to configure it (see Figure

11.11).

Figure 11.11 Configuring driver signing

The File Signature Verification tool allows you to view the file's name, location, modification date, file type, and version number.

Practice: Using the Windows File Signature Verification

Tool

In this practice, you use File Signature Verification to monitor and troubleshoot driver signing on your system.

Run the SignatureVerification file in the Demos folder on the CD-ROM accompanying this book for a demonstration of using the File Signature Verification tool to monitor and troubleshoot driver signing on your system.

To use sigverif

1. Click Start, click Run, type sigverif, and then press Enter.

The File Signature Verification dialog box appears.

2. Click Advanced.

The Advanced File Signature Verification Settings dialog box appears with the Search tab active. By default you are notified if any system files are not signed. Notice that you can select the Look For Other

Files That Are Not Digitally Signed option. This setting has the File Signature Verification tool verify nonsystem files to see if they are digitally signed. If you select this option, you can specify the search parameters for the files you want checked.

3. Leave the default setting of Notify Me If Any System Files Are Not Signed selected, and then click the

Logging tab.

By default the Signature Verification tool saves the file signature verification to a log file named

SIGVERIF.TXT.

4. Leave the default settings and click OK to close the Advanced File Signature Verification Settings dialog box.

5. Click Start.

The Signature Verification tool builds a list of files to check and then scans the files. When the Signature

Verification tool completes its check, a Signature Verification Results window appears if there are files that are not signed. Otherwise you see a Sigverif message box telling you that your files have been scanned and verified as being digitally signed.

6. If you get a Signature Verification Results window, review the results and then click Close to close the

Signature Verification Results window. Otherwise, click OK to close the Sigverif message box.

7. Click Close to exit the File Signature Verification tool.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson.

If you have difficulty answering these questions, review the material in this lesson before beginning the next

lesson. The answers are in Appendix A

, "Questions and Answers."

1. Why does Microsoft digitally sign the files in Windows XP Professional?

2. Which of the following tools would you use to block the installation of unsigned files?

a. File Signature Verification b. Driver Signing Options in the System Control Panel c. System File Checker d. Sigverif

3. How can you view the file signature verification log file?

Lesson Summary

Windows XP Professional provides two tools to verify the digital signatures of system files: SFC and File

Signature Verification.

SFC is a command-line tool. It has a number of optional parameters that let you control how and when it will run.

File Signature Verification is a Windows tool. By default it saves the File Signature Verification to a

SIGVERIF.TXT log file.

[Home]

[Previous]

[Next]

Lesson 5: Configuring Computers with

Multiple Processors

This lesson explains how to use Device Manager to upgrade the device drivers on your computer. It covers scaling and upgrading your computer from a single processor to multiprocessor system.

After this lesson, you will be able to

Use Device Manager to update drivers

Use Device Manager to upgrade your computer from a single processor to a multiprocessor computer

Estimated lesson time: 10 minutes

Scaling

Adding processors to your system to improve performance is called scaling. This is more of an issue for

Windows 2000 Server products than it is for Windows XP Professional because multiprocessor configurations are typically used for processor-intensive applications, such as those found on database servers or Web servers. However, any computer that runs applications that perform heavy computation, such as scientific or financial applications and complex graphic rendering (like computer-aided design programs), also benefit from multiprocessor systems.

Upgrading to multiple processors can increase the load on other system resources. You might need to increase other resources such as disks, memory, and network components to get the maximum benefit from scaling.

Updating Drivers

You use Device Manager to update drivers. You update a driver whenever a newer version of the driver is released. You also update drivers to upgrade them, for example when you upgrade a driver to convert your computer from a single-processor system to one that supports multiple processors.

If your computer only has a single processor, upgrading the driver is not going to make it a multipleprocessor computer. In fact, a computer with only one processor might no longer function if you upgrade the driver to one that supports multiple processors.

The following steps allow you to update the drivers loaded on a computer:

1. Open Device Manager and double-click Computer.

2. Right-click the appropriate model, and then click Properties.

3. In the Driver tab, click Update Driver.

The Welcome To The Hardware Update Wizard page appears. The default option is Install The

Software Automatically (Recommended), but you can also select the Install From A List Or

Specific Location (Advanced) option.

4. Select Install From A List Or Specific Location (Advanced) and click Next.

The Please Choose Your Search And Installation Options page appears.

5. Click Next to accept the default setting Search For The Best Driver In These Locations.

Windows XP Professional searches for drivers. If it finds a better driver, you are given the chance to install it; otherwise you are prompted to click Finish to close the Hardware Update Wizard.

Windows XP Professional also includes an Automatic Updates feature. For more information about

Automatic Updates, see Chapter 10

, "Configuring Windows XP Professional."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next chapter. The answers are in Appendix A

, "Questions and Answers."

1. Adding processors to your system to improve performance is called

___________________________.

2. How can you manually update a driver on your computer?

Lesson Summary

If your computer only has a single processor, upgrading the driver is not going to make it a multiple-processor computer.

Scaling can increase the load on other system resources, so you might need to increase other system resources to maximize the benefits of using more than one processor.

You use Device Manager to update drivers whenever a newer version of a driver is released or if you want to upgrade a driver, for example to convert your computer from a single-processor system to one that supports multiple processors.

[Home]

[Previous]

[Next]

Chapter 12

Auditing Resources and Events

About This Chapter

In this chapter, you will learn about auditing, one of the features controlled by the Microsoft Windows

XP Professional Group Policy. Auditing is a tool for maintaining network security that allows you to track user activities and systemwide events. In addition, you will learn about audit policies and what you need to consider before you set one up. You will also learn how to set up auditing on resources and how to maintain security logs.

Before You Begin

To complete this chapter, you must have

Windows XP Professional installed on the computer

Installed printer software (Hardware is not required. The software for an HP Color LaserJet 4500

PS printer was installed in

Chapter 6 , "Setting Up, Configuring, and Troubleshooting Common

Setup and Configuration Problems for Network Printers.")

User2 created in

Chapter 3

, "Setting Up and Managing User Accounts"

[Home]

[Previous]

[Next]

Lesson 1: Planning an Audit Policy

Auditing allows you to track both user activities and Windows XP Professional activities, which are called events, on a computer. Through auditing, you can specify that Windows XP Professional writes a record of an event to the security log, which maintains a record of valid and invalid logon attempts and events related to creating, opening, or deleting files or other objects. An audit entry in the security log contains the following information:

The action that was performed

The user who performed the action

The success or failure of the event and when the event occurred

After this lesson, you will be able to

Describe the purpose of auditing

Plan an audit strategy and determine which events to audit

Estimated lesson time: 15 minutes

Understanding Audit Policies

An audit policy defines the types of security events that Windows XP Professional records in the security log on each computer. The security log allows you to track the events that you specify.

Windows XP Professional writes events to the security log on the computer on which the event occurs.

For example, any time someone tries to log on and the logon attempt fails, Windows XP Professional writes an event to the security log on that computer.

You can set up an audit policy for a computer to do the following:

Track the success and failure of events, such as logon attempts by users, an attempt by a particular user to read a specific file, changes to a user account or to group memberships, and changes to your security settings

Eliminate or minimize the risk of unauthorized use of resources

You use Event Viewer to view events that Windows XP Professional has recorded in the security log.

You can also archive log files to track trends over time-for example, to determine the use of printers or files or to verify attempts at unauthorized use of resources.

Determining What to Audit

When you plan an audit policy, you must determine what you want to audit and the computers on which to set up auditing. Auditing is turned off by default. As you determine which computers to audit, you must also plan what to audit on each one. Windows XP Professional records audited events on each computer separately.

The types of events that you can audit include the following:

Accessing files and folders

Logging on and off

Shutting down a computer running Windows XP Professional

Starting a computer running Windows XP Professional

Changing user accounts and groups

Attempting to make changes to Active Directory objects (only if your Windows XP Professional computer is part of a domain)

After you have determined the types of events to audit, you must also determine whether to audit the success of events, the failure of events, or both. Tracking successful events can tell you how often

Windows XP Professional or users access specific files, printers, or other objects, and you can use this information for resource planning.

Tracking failed events can alert you to possible security breaches. For example, if you notice several failed logon attempts by a certain user account, especially if they are occurring outside normal business hours, you can assume that an unauthorized person is attempting to break into your system.

Other guidelines in determining your audit policy include the following:

Determine whether you need to track system usage trends. If so, plan to archive event logs.

This will allow you to view how usage changes over time and will allow you to plan to increase system resources before they become a problem.

Review security logs frequently. You should set a schedule and regularly review security logs because configuring auditing alone doesn't alert you to security breaches.

Define an audit policy that is useful and manageable. Always audit sensitive and confidential data. Audit only those events that will provide you with meaningful information about your network environment. This minimizes usage of the computer's resources and makes essential

information easier to locate. Auditing too many types of events can create excess overhead for

Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What is auditing?

2. What is an audit policy?

3. On a computer running Windows XP Professional, auditing is turned ______ (on/off) by default.

4. When you are auditing events on a computer running Windows XP Professional, where are the audited events being recorded?

5. When you are auditing events on a computer running Windows XP Professional, why would you track failed events?

Lesson Summary

On a computer running Windows XP Professional, auditing helps ensure that your network is secure by tracking user activities and systemwide events.

You set up an audit policy to specify which events to record.

Windows XP Professional records audited events in the security log.

You use Event Viewer to view the security log.

In planning an audit policy, you must determine on which computers to set up auditing and what to audit on each one.

You can audit the success of events, the failure of events, or both.

[Home]

[Previous]

[Next]

Lesson 2: Implementing an Audit Policy

Auditing is a powerful tool for tracking events that occur on computers in your organization. To implement auditing, you need to consider auditing requirements and set the audit policy. After you set an audit policy on a computer, you can implement auditing on files, folders, and printers.

After this lesson, you will be able to

Set up auditing on files and folders

Set up auditing on printers

Estimated lesson time: 40 minutes

Configuring Auditing

For computers running Windows XP Professional, you set up an audit policy for each individual computer.

Auditing Requirements

The requirements to set up and administer auditing are as follows:

You must have the Manage Auditing And Security Log user right for the computer on which you want to configure an audit policy or review an audit log. By default, Windows XP Professional grants these rights to the Administrators group.

The files and folders to be audited must be on NT file system (NTFS) volumes.

Setting up Auditing

Setting up auditing is a two-part process:

1. Set the audit policy. The audit policy enables auditing of objects but doesn't activate auditing of specific objects.

2. Enable auditing of specific resources. You designate the specific events to audit for files, folders, printers, and Active Directory objects. Windows XP Professional then tracks and logs the specified events.

Setting an Audit Policy

The first step in implementing an audit policy is selecting the types of events for Windows XP Professional to audit. For each event that you can audit, the configuration settings indicate whether to track successful or failed attempts. You set audit policies for a local computer in the Group Policy snap-in, which can be accessed by using the Microsoft Management Console (MMC) console and adding the Group Policy snap-in.

Table 12.1 describes the types of events that Windows XP Professional can audit.

Table 12.1 Types of Events Audited by Windows XP Professional

Event

Account Logon Events

Description

A domain controller received a request to validate a user account.(This is applicable only if your computer running Windows XP Professional joins a Microsoft Windows

2000 domain.)

Account Management

An administrator created, changed, or deleted a user account or group. A user account was renamed, disabled, or enabled, or a password was set or changed.

A user gained access to an Active Directory object. You must configure specific

Directory Service Access

Active Directory objects for auditing to log this type of event. (Active Directory is available only if your computer running Windows XP Professional joins a Windows

2000 domain.)

Logon Events

Object Access

Policy Change

Privilege Use

Process Tracking

System Events

A user logged on or logged off, or a user made or canceled a network connection to the computer.

A user gained access to a file, folder, or printer. You must configure specific files, folders, or printers for auditing. Object access is auditing a user's access to files, folders, and printers.

A change was made to the user security options, user rights, or audit policies.

A user exercised a right, such as changing the system time. (This doesn't include rights that are related to logging on and logging off.)

A program performed an action. This information is generally useful only for programmers who want to track details of program execution.

A user restarted or shut down the computer, or an event occurred that affected

Windows XP Professional security or the security log. (For example, the audit log is full and Windows XP Professional starts discarding entries.)

To set an audit policy on a computer that is running Windows XP Professional, access the Group Policy snap-in, as follows:

1. Log on with an account that is a member of the Administrators group.

2. Click Start and click Run. In the Open text box, type mmc and then click OK.

3. In the Console 1 window, on the File menu, click Add/Remove Snap-In.

4. In the Add/Remove Snap-In dialog box, click Add.

5. In the Add Standalone Snap-In dialog box, select Group Policy and then click Add.

6. In the Select Group Policy Object dialog box, ensure that the Group Policy Object text box contains Local

Computer, and then click Finish.

7. In the Add Standalone Snap-In dialog box, click Close.

In the Add/Remove Snap-In dialog box, notice that it contains Local Computer Policy, even though you added Group Policy. Group Policy for the local computer is referred to as Local Computer Policy.

8. In the Add/Remove Snap-In dialog box, click OK.

9. In the console tree of the Local Computer Policy snap-in, double-click Local Computer Policy.

10. Double-click Computer Configuration, and then double-click Windows Settings.

11. Double-click Security Settings, and then double-click Local Policies.

12. Click Audit Policy.

The console displays the current audit policy settings in the details pane of the Local Computer Policy window, as shown in Figure 12.1.

Figure 12.1 Events that Windows XP Professional can audit

13. Select the type of event to audit, and then, on the Action menu, click Properties.

For example, if you select Audit Logon Events and on the Action menu you click Properties, the Audit

Account Logon Events Properties dialog box appears, as shown in Figure 12.2.

Figure 12.2 The Audit Account Logon Events Properties dialog box

14. Select the Success check box, the Failure check box, or both.

A check mark in the Success check box indicates that auditing is in effect for successful attempts. A check mark in the Failure check box indicates that auditing is in effect for failed attempts.

15. Click OK.

16. Restart your computer.

Once you have set the audit policy, remember that the changes that you make to your computer's audit policy don't take effect immediately unless you restart your computer.

The Gpupdate command allows you to refresh local and Active Directory-based Group Policy settings, including

Security settings. To update your local computer, start a command prompt, type gpupdate and press Enter. For more information about Gpupdate, click Start, click Help And Support, and search for Gpupdate.

Auditing Access to Files and Folders

If security breaches are an issue for your organization, you can set up auditing for files and folders on NTFS partitions. To audit user access to files and folders, you must first set your audit policy to audit object access, which includes files and folders.

When you set your audit policy to audit object access, you enable auditing for specific files and folders and specify which types of access, by which users or groups, to audit.

You can enable auditing for specific files and folders as follows:

1. Click Start, right-click My Computer, and then click Explore.

2. Right-click the file or folder for which you want to enable auditing and click Properties.

3. In the Security tab of the Properties dialog box for a file or folder, click Advanced.

If you do not have a Security tab on the Properties dialog box for your files and folders there are two things you should check:

Are your files and folders located on a partition formatted as NTFS?

If your computer is not a member of a domain, have you turned off Simple File Sharing? To stop using

Simple File Sharing, click Start, right-click My Computer, and then click Explore. On the Tools menu, click Folder Options. Click the View tab, clear Use Simple File Sharing (Recommended), and click OK.

4. In the Auditing tab of the Advanced Security Settings For folder_name dialog box, click Add, select the users for whom you want to audit file and folder access, and then click OK.

5. In the Audit Entry For folder_name dialog box, select the Successful check box, the Failed check box, or both for the events that you want to audit.

For a list of the events that can be audited for folders, see Figure 12.3.

Table 12.2 describes the user activity that triggers these events so you can determine when you should audit these events.

Figure 12.3 Events that can be audited for folders

Table 12.2 User Events and What Triggers Them

Event

Traverse Folder/Execute File

User activity that triggers the event

Running a program or gaining access to a folder to change directories

List Folder/Read Data Displaying the contents of a file or a folder

Read Attributes Read Extended Attributes Displaying the attributes of a file or folder

Create Files/Write Data files Changing the contents of a file or creating new in a folder

Create Folders/Append Data Creating folders in a folder

Write Attributes Write Extended Attributes Changing attributes of a file or folder

Delete Subfolders And Files

Delete

Read Permissions

Deleting a file or subfolder in a folder

Deleting a file or folder

Viewing permissions for the file owner for a file or folder

Change Permissions Changing permissions for a file or folder

Take Ownership Taking ownership of a file or folder

6. Click OK to return to the Advanced Security Settings For folder_name dialog box.

By default, any auditing changes that you make to a parent folder also apply to all child folders and all files in the parent and child folders.

7. To prevent changes that are made to a parent folder from applying to the currently selected file or folder, clear the Inherit From Parent The Auditing Entries That Apply To Child Objects check box.

8. Click OK.

Auditing Access to Printers

Audit access to printers to track access to sensitive printers. To audit access to printers, set your audit policy to audit object access, which includes printers. Enable auditing for specific printers and specify which types of access to audit and which users will have access. After you select the printer, you use the same steps that you use to set up auditing on files and folders, as follows:

1. Click Start, click Control Panel, and then click Printers And Other Hardware.

2. Click Printers And Faxes, right-click the printer you want to audit, and then click Properties.

3. In the Properties dialog box for the printer, click the Security tab, and then click Advanced.

The Advanced Security Settings dialog box appears.

4. In the Auditing tab, click Add, select the appropriate users or groups for whom you want to audit printer access, and then click OK.

5. In the Apply Onto box in the Auditing Entry dialog box, select where the auditing setting applies.

The options in the Apply Onto box for a printer are This Printer Only, Documents, and This Printer And

Documents.

6. Under Access, select the Successful check box, the Failed check box, or both for the events that you want to audit (see Figure 12.4).

7. Click OK in the appropriate dialog boxes to exit.

Figure 12.4 Printer events that can be audited

Table 12.3 describes audit events for printers and explains which user action triggers the event.

Table 12.3 Printer Events and What Triggers Them

Event

Print

User activity that triggers the event

Printing a file

Manage Printers Changing printer settings, pausing a printer, sharing a printer, or removing a printer

Manage Documents

Changing job settings; pausing, restarting, moving, or deleting documents; sharing a printer; or changing printer properties

Read Permissions Viewing printer permissions

Change Permissions Changing printer permissions

Take Ownership Taking printer ownership

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson.

If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. What are the requirements to set up and administer auditing?

2. What are the two steps in setting up auditing?

3. How do you set audit policies for a local computer?

4. What are some reasons for auditing system events?

5. By default, any auditing changes that you make to a parent folder ________________ (are inherited/are not inherited) by all child folders and all files in the parent and child folders.

Lesson Summary

The first step in implementing an audit policy is selecting the types of events for Windows XP

Professional to audit.

You can select the events to audit for files and folders on NTFS volumes, and you can select the events you want to audit for printers.

When you have set your audit policy to audit object access, you can enable auditing for specific files, folders, and printers and specify which types of access, by which users or groups, to audit.

For each event that you can audit, the configuration settings indicate whether to track successful attempts, failed attempts, or both.

You must have the Manage Auditing And Security Log user right for the computer on which you want to configure an audit policy or review an audit log. By default, Windows XP Professional grants these rights to the Administrators group.

You use the Group Policy snap-in to set audit policies, and then you restart your computer if you want to immediately enable auditing.

[Home]

[Previous]

[Next]

Lesson 3: Using Event Viewer

You use Event Viewer to perform a variety of tasks, including viewing the audit logs that are generated as a result of setting the audit policy and auditing events. You can also use Event Viewer to view the contents of security log files and find specific events within log files.

After this lesson, you will be able to

View a log

Locate events in a log

Filter events in a log

Archive security logs

Configure the size of audit logs

Estimated lesson time: 50 minutes

Understanding Windows XP Professional Logs

You use Event Viewer to view information contained in Windows XP Professional logs. By default, Event Viewer has three logs available to view, as described in Table 12.4.

Table 12.4 Logs Maintained by Windows XP Professional

Log Description

Application log

Contains errors, warnings, or information that programs, such as a database program or an e-mail program, generate. The program developer presets which events to record.

Security log

Contains information about the success or failure of audited events. The events that Windows XP

Professional records are a result of your audit policy.

System log

Contains errors, warnings, and information that Windows XP Professional generates. Windows XP

Professional presets which events to record.

If additional services are installed, they might add their own event logs.

Viewing Security Logs

The security log contains information about events that are monitored by an audit policy, such as failed and successful logon attempts. You can view the security log by performing the following steps:

1. Click Start, click Control Panel, click Performance And Maintenance, click Administrative Tools, and then double-click Event Viewer.

2. In the console tree, click Security.

In the details pane, Event Viewer displays a list of log entries and summary information for each item, as shown in Figure 12.5.

Figure 12.5 Event Viewer displaying a sample security log

Successful events are marked with a key icon and unsuccessful events are marked with a lock icon. Other important information includes the date and time that the event occurred, the category of the event, and the user who generated the event.

The category indicates the type of event, such as object access, account management, directory service access, or logon events.

3. To view additional information for any event, select the event, and then on the Action menu, click Properties.

Windows XP Professional records events in the security log on the computer on which the event occurred. You can view these events from any computer as long as you have administrative privileges for the computer where the events occurred. To view the security log on a remote computer, open the MMC console and point Event Viewer to a remote computer.

Locating Events

When you first start Event Viewer, it automatically displays all events that are recorded in the selected log. To change what appears in the log, you can locate selected events using the Filter command. You can also search for specific events using the Find command.

To filter or find events, start Event Viewer, and then on the View menu click Filter or click Find. The options provided by Filter and Find are almost identical. Figure 12.6 shows the options available in the Filter tab.

Figure 12.6 System Properties for Using Event Viewer with the Filter tab selected

Table 12.5 describes the options for using the Filter tab to filter events and the Find command to find events.

Table 12.5 Options for Filtering and Finding Events

Option Description

Event Types The types of events to view.

Event Source The software or component driver that logged the event.

Category The type of event, such as a logon or logoff attempt or a system event.

Event ID

An event number to identify the event. This number helps product support representatives track events.

User

Computer

A user logon name.

A computer name.

From and To The date ranges for which to view events (Filter tab only).

Restore Defaults Clears any changes in this tab and restores all defaults.

Description The text that is in the description of the event (Find dialog box only).

Search Direction The direction (up or down) in which to search the log (Find dialog box only).

Find Next Finds and displays the next occurrence defined by the Find Settings.

Managing Audit Logs

You can track trends in Windows XP Professional by archiving event logs and comparing logs from different periods.

Viewing trends helps you determine resource use and plan for growth. You can also use logs to determine if a pattern of unauthorized resource use is a concern. Windows XP Professional allows you to control the size of the logs and to specify the action that it takes when a log becomes full.

You can configure the properties of each individual audit log. To configure the settings for logs, select the log in Event

Viewer, and then on the Action menu, click Properties to display the Properties dialog box for the log.

Use the Properties dialog box for each type of audit log to control the following:

The maximum size of each log, which can be from 64 KB to 4,194,240 KB (4 GB). The default size is 512 KB.

The action that Windows XP Professional takes when the log fills up. To control this action, click one of the options described in Table 12.6.

Table 12.6 Options for Handling Full Audit Log Files

Option

Overwrite Events As Needed

Description

You might lose information if the log becomes full before you archive it.

However, this setting requires no maintenance.

You might lose information if the log becomes full before you archive it, but

Overwrite Events Older Than X Days Windows XP Professional will only lose information that is at least x days old.

Enter the number of days for this option. The default is 7 days.

Do Not Overwrite Events

This option requires you to clear the log manually. When the log becomes full,

Windows XP Professional will stop, but no security log entries will be overwritten.

Archiving Logs

Archiving security logs allows you to maintain a history of security-related events. Many companies have policies on keeping archive logs for a specified period to track security-related information over time.

If you want to archive, clear, or view an archived log, select the log you want to configure in Event Viewer, click the

Action menu, and then click one of the options described in Table 12.7.

Table 12.7 Options to Archive, Clear, or View a Log File

To

Archive the log

Do this

Click Save Log File As and then type a filename.

Clear the log

Click Clear All Events to clear the log. Windows XP Professional creates a security log entry stating that the log was cleared.

View an archived log Click New Log View; add another view of the selected log.

Practice: Auditing Resources and Events

In this practice, you'll plan an audit policy for your computer. Then you'll set up an audit policy by enabling auditing on certain events. You'll also set up auditing of a file and a printer. Then you'll view the security log file and configure

Event Viewer to overwrite events when the log file is filled.

Exercise 1: Planning an Audit Policy

In this exercise, you plan an audit policy for your computer. You need to determine the following:

Which types of events to audit

Whether to audit the success or failure of an event, or both

Use the following criteria to make your decisions:

Record unsuccessful attempts to gain access to the computer.

Record unauthorized access to the files that make up the customer database.

For billing purposes, track color printer use.

Track whenever someone tries to tamper with the computer's hardware.

Keep a record of actions that an administrator performs to track unauthorized changes.

Track backup procedures to prevent data theft.

Track unauthorized access to sensitive Active Directory objects.

Record your decisions to audit successful events, failed events, or both for the actions listed in the following table:

Action to audit

Account Logon Events

Successful Failed

Account Management

Directory Service Access

Logon Events

Object Access

Policy Change

Privilege Use

Process Tracking

System Events

Exercise 2: Setting Up an Audit Policy

In this exercise, you open the MMC console, add the Group Policy snap-in pointing to the local machine, and then enable auditing for selected events.

To set up an audit policy

1. Log on as Fred or with an account that is a member of the Administrators group.

2. Click Start, click Run, and in the Open text box, type mmc and then click OK.

3. In the Console 1 window, on the File menu, click Add/Remove Snap-In.

4. In the Add/Remove Snap-In dialog box, click Add.

5. In the Add Standalone Snap-In dialog box, select Group Policy and then click Add.

6. In the Select Group Policy Object dialog box, ensure that the Group Policy Object text box says Local

Computer, and then click Finish.

7. In the Add Standalone Snap-In dialog box, click Close.

In the Add/Remove Snap-In dialog box, notice that it says Local Computer Policy, even though you added

Group Policy. Group Policy for the local computer is referred to as Local Computer Policy.

8. In the Add/Remove Snap-In dialog box, click OK.

9. In the console tree of the Local Computer Policy snap-in, double-click Local Computer Policy.

10. Double-click Computer Configuration, and then double-click Windows Settings.

11. Double-click Security Settings, and then double-click Local Policies.

12. Click Audit Policy.

The console displays the current audit policy settings in the details pane of the Local Computer Policy window.

13. To set the audit policy, in the details pane, double-click each type of event, and then select either the Audit

Successful Attempts check box or the Audit Failed Attempts check box, as listed in the following table:

Event

Account Logon Events

Audit Successful Attempts Audit Failed Attempts

Account Management X

Directory Service Access

Logon Events

Object Access X

X Policy Change

Privilege Use X

Process Tracking

System Events X X

14. Close the MMC console and save the Local Group Policy.

X

X

15. Restart your computer to make the changes take effect immediately.

Exercise 3: Setting Up Auditing of Files

In this exercise, you set up auditing for a file.

To set up auditing of files

1. Log on as Fred or with an account that is a member of the Administrators group.

2. In Windows Explorer, create a folder named Audit in the root folder of your system disk (for example,

C:\Audit).

3. Create a text file named AUDIT in the Audit folder (for example, C:\Audit\Audit).

4. Right-click the AUDIT file and then click Properties.

5. In the Properties dialog box, click the Security tab, and then click Advanced.

6. In the Access Control Settings dialog box, click the Auditing tab.

7. Click Add.

8. In the Select User Or Group dialog box, in the Name text box, type Everyone and click OK.

9. In the Audit Entry For Audit.txt dialog box, select the Successful check box and the Failed check box for each of the following events:

Create Files/Write Data

Delete

Change Permissions

Take Ownership

10. Click OK.

Windows XP Professional displays the Everyone group in the Advanced Security Settings For dialog box.

11. Click OK to apply your changes.

Leave the Audit Properties dialog box open for the next procedure.

To verify file permissions

1. In the Audit Properties dialog box, click Users (PRO1\Users) and verify that the Allow permissions for the file are Read & Execute and Read.

2. Click OK to close the Properties dialog box, and then close Windows Explorer.

Exercise 4: Setting Up Auditing of a Printer

In this exercise, you set up auditing of a printer.

To set up auditing of a printer

1. Click Start, click Control Panel, click Printers And Other Hardware, and click Printers And Faxes.

2. In the Printers window, right-click HP Color LaserJet 4500 PS and then click Properties. (Any installed printer

will do. The procedure for installing a printer is covered in Chapter 6

, "Setting Up, Configuring, and

Troubleshooting Common Setup and Configuration Problems for Network Printers.")

3. Click the Security tab, and then click Advanced.

4. In the Advanced Security Settings For HP Color LaserJet 4500 PS dialog box, click the Auditing tab and then click Add.

5. In the Select User Or Group dialog box, in the Name text box type Everyone and then click OK.

6. In the Auditing Entry For HP Color LaserJet 4500 PS dialog box, select the Successful check box for all types of access.

7. Click OK.

Windows XP Professional displays the Everyone group in the Access Control Settings For HP Color LaserJet

4500 PS dialog box.

8. Click OK to apply your changes.

9. Click OK to close the HP Color LaserJet 4500 PS Properties dialog box.

10. Close the Printers And Faxes window.

Exercise 5: Testing the Auditing Policy Set Up on the AUDIT File

In this exercise, you attempt to access and modify the AUDIT file to create entries in the security log for your computer.

To test the auditing policy

1. Click Start, click Control Panel, and then click User Accounts.

2. Verify that User2 exists and is a Limited account.

3. Create a password of User2 for the User2 user account.

4. Close all open windows and log off the computer.

5. Log on to the computer as User2 with a password of User2.

6. Open Windows Explorer and then open the file C:\Audit\Audit.

Notepad opens and displays the blank file AUDIT.

7. Type in the following text: User2 has modified this file.

8. Save the file.

Were you able to save the file? Why or why not?

9. Close the file without saving it and log off as User2.

Exercise 6: Viewing the Security Log

In this exercise, you view the security log for your computer, and then you use Event Viewer to filter events and to search for potential security breaches.

To view and filter the security log for your computer

1. Log on to your computer as Fred or with a user account that is a member of the Administrators group.

2. Click Start, click Control Panel, click Performance And Maintenance, click Administrative Tools, and then

double-click the Event Viewer shortcut.

3. In the console tree, click the application log and view the contents. As you scroll through the logs, double-click a couple of events to view a description.

4. In the console tree, click the system log and view the contents. As you scroll through the logs, double-click a couple of events to view a description.

5. In the console tree, click the security log and view the contents. As you scroll through the logs, double-click each of the Failure Audit events until you can locate the one for User2 trying to access C:\Audit\Audit.

6. Click Filter on the View menu.

7. In the Security Properties dialog box, in the User text box, type User2 and then click OK.

Filtering reduces the number of events that you have to search through.

8. Double-click each of the events and notice that all of them have to do with User2.

Exercise 7: Managing the Security Log

In this exercise, you configure Event Viewer to overwrite events when the log file gets full. Then you clear the security log and view an archived security log.

To control the size and contents of a log file

1. In the console tree, click System.

2. On the Action menu, click Properties.

3. In the System Properties dialog box, click Overwrite Events As Needed.

4. In the Maximum Log Size box, change the maximum log size to 2048 (KB) and then click OK.

Windows XP Professional now allows the log to grow to 2048 KB and will then overwrite older events with new events as necessary.

5. Close Event Viewer, and then close Administrative Tools.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next chapter. The answers are in

Appendix A

, "Questions and Answers."

1. What are the three Windows XP Professional logs you can view with Event Viewer and what is the purpose of each log?

2. How can you view the security log on a remote computer?

3. The two ways that Event Viewer provides for locating specific events are the _____________ command and the

_____________ command. What does each of the commands allow you to do?

4. The size of each log can be from ____ KB to ____ GB, and the default size is ____ KB.

5. If you select the Do Not Overwrite Events option, what happens when the log becomes full?

Lesson Summary

Windows XP Professional has the following three logs by default: the application log, the security log, and the system log.

You use Event Viewer to view the contents of the Windows XP Professional logs.

You can use the Filter and Find commands in Event Viewer to easily locate specific events or types of events.

You can view the security log on a remote computer by opening the MMC console and pointing Event Viewer to the remote computer.

You can manage the Windows XP logs by archiving them to allow you to track trends over time and by controlling the size of the log files.

[Home]

[Previous]

[Next]

Chapter 13

Configuring Security Settings and

Internet Options

About This Chapter

Group Policy administrators use Group Policy to define and control programs, network resources, and the operating system for users and computers. Typically Group Policy is set for the entire domain or network. It is used in an Active Directory environment and is applied to users or computers based on membership in sites, domains, or organizational units. The Group Policy snap-in is the tool used to configure Group Policy. As discussed in the previous chapter, when you add the Group Policy snap-in to a Microsoft Management Console (MMC) console and point it at the local computer, the snap-in that is added is the Local Computer Policy, which is Group Policy for the local computer.

In this chapter, you learn how to improve the security on your computer. You learn about configuring security settings that are part of the Local Computer Policy or Group Policy snap-in. The security

settings include Account Policies and Local Policies. In Chapter 12 , "Auditing Resources and Events,"

you learned about auditing, which is one of the three Local Policies found in the Local Computer Policy or Group Policy snap-in. In this chapter, you also learn how to improve the security of your computer by configuring Internet Options to control and secure the way Microsoft Internet Explorer interacts with the

Internet.

Before You Begin

To complete this chapter, you must have

Microsoft Windows XP Professional software installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Configuring Account Policies

In

Chapter 3 , "Setting Up and Managing User Accounts," you learned about assigning user account passwords and how to unlock an

account that was locked by the system. In this lesson, you learn how to improve the security of your user's passwords and how to control when the system locks out a user account.

After this lesson, you will be able to

Configure Account Policies

Estimated lesson time: 40 minutes

Configuring Password Policy

Password Policy allows you to improve security on your computer by controlling how passwords are created and managed. You can specify the maximum length of time a password can be used before the user must change it. Changing passwords decreases the chances of an unauthorized person breaking into your computer. If an unauthorized user has discovered a user account and password combination for your computer, forcing users to change passwords regularly will cause the user account and password combination to eventually fail and lock the unauthorized user out of the system.

Other Password Policy options are available to improve a computer's security. For example, you can specify a minimum password length. The longer the password, the more difficult it is to discover. Another example is maintaining a history of the passwords used.

This prevents a user from having two passwords and alternating between them.

You can configure Password Policy on a computer running Windows XP Professional by using the Group Policy snap-in. You use the

Group Policy snap-in to configure Password Policy as follows:

1. Click Start, and then click Run.

2. Type mmc in the Open text box, and click OK to open an empty custom MMC console.

3. On the File menu, click Add/Remove Snap-In, and then click Add.

4. In the Add Standalone Snap-In dialog box, click Group Policy and then click Add.

The Select Group Policy Object dialog box appears, allowing you to point the Group Policy snap-in at the local computer or at a remote computer. The Allow The Focus Of The Group Policy Snap-In To Be Changed When Launching From The Command

Line check box allows you to configure the MMC so that you can decide which computer to use Group Policy on when you start the MMC.

5. Click Finish to leave Group Policy with its focus on the Local Computer, the default setting, and click Close to exit the Add

Standalone Snap-In dialog box.

6. In the Add/Remove Snap-In dialog box, click OK, and save the console with Local Group Policy.

7. Expand Local Computer Policy, under Computer Configuration expand Windows Settings, expand Security Settings, expand

Account Policies, and then click Password Policy.

8. Select the settings you want to configure, and then on the Action menu, click Properties.

The console displays the current Password Policy settings in the details pane, as shown in Figure 13.1.

Figure 13.1 The Group Policy snap-in displaying Password Policy settings

Table 13.1 explains the available Password Policy settings.

Table 13.1 Password Policy Settings

Setting

Enforce Password History

Maximum Password Age

Description

The value you enter for this setting indicates the number of passwords to be kept in a password history. The default value of 0 indicates that no password history is being kept. You can set the value from 0 to 24, indicating the number of passwords to be kept in password history. This value indicates the number of new passwords that a user must use before he or she can reuse an old password.

The value you enter for this setting is the number of days a user can use a password before he or she is required to change it.

A value of 0 indicates the password will not expire.

The default value is 42 days and the range of values is 0 to 999 days.

Minimum Password Age

Minimum Password Length

Passwords Must Meet Complexity Requirements

The value you enter for this setting is the number of days a user must keep a password before he or she can change it.

The default value of 0 indicates that the password can be changed immediately. If you are enforcing password history, this value should not be set to 0.

You can set the range of values from 0 to 999 days. This value indicates how long the user must wait before changing his or her password again. Use this value to prevent a user who was forced by the system to change his or her password from immediately changing it back to the old password.

The minimum password age must be less than the maximum password age.

The value you enter for this setting is the minimum number of characters required in a password. The value can range from 0 to 14 characters inclusive.

The default value of 0 indicates that no password is required.

The options are Enabled or Disabled (the default).

If enabled, all passwords must meet or exceed the specified minimum password length; must comply with the password history settings; must contain capitals, numerals, or punctuation; and cannot contain the user's account or full name.

The options are Enabled or Disabled (the default).

Store Password Using Reversible Encryption For All Users In

The Domain

This enables Windows XP Professional to store a reversibly encrypted password for all users in the domain-for example, to be used with the Challenge Handshake Authentication Protocol

(CHAP). This option is only applicable if your computer running

Windows XP Professional is in a domain.

The MMC Console displays the properties dialog box for the selected setting. Figure 13.2 shows the properties dialog box for the

Maximum Password Age setting.

Figure 13.2 The Maximum Password Age Properties dialog box

By carefully planning and configuring your Password Policy settings you can improve the security of your computer by decreasing the chances of an unauthorized user gaining access to it.

Configuring Account Lockout Policy

The Account Lockout Policy settings also allow you to improve the security on your computer. If no account lockout policy is in place, an unauthorized user can repeatedly try to break into your computer. If, however, you have set an account lockout policy, the system locks out the user account under the conditions you specify in Account Lockout Policy.

You access the Account Lockout Policy settings using the Group Policy snap-in, just as you did to configure the Password Policy settings. The console displaying the current Account Lockout Policy settings in the details pane is shown in Figure 13.3.

Figure 13.3 The Group Policy snap-in displaying the Account Lockout Policy settings

Table 13.2 explains the settings available in Account Lockout Policy.

Table 13.2 Account Lockout Policy Settings

Setting

Account Lockout Duration

Description

The value you enter for this setting indicates the number of minutes that the account is locked out. A value of 0 indicates that the user account is locked out indefinitely until an administrator unlocks the user account. You can set the value from 0 to 99,999 minutes. (The maximum value of 99,999 minutes is approximately 69.4 days.)

Account Lockout Threshold

The value you enter for this setting is the number of invalid logon attempts before the user account is locked out from logging on to the computer. A value of 0 indicates that the account will not be locked out, no matter how many invalid logon attempts are made. You can set the range of values from 0 to 999 attempts.

Reset Lockout Counter After

The value you enter for this setting is the number of minutes to wait before resetting the account lockout counter. You can set the range of values from 1 to 99,999 minutes.

Practice: Configuring Account Policy

In this practice you configure the Account Policy settings for your computer and then test them to make sure you set them correctly.

Run the AccountPolicy file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring account policy.

Exercise 1: Configuring Minimum Password Length

In this exercise, you use the custom MMC console containing the Group Policy snap-in you created in Chapter 12 , "Auditing Resources

and Events," and saved with the name Local Group Policy. You use it to configure the minimum password length, one of the Account

Policy settings for your computer. You then test the minimum password length to confirm it was correctly configured.

To configure the minimum password length

1. Log on as Fred or with an account that is a member of the Administrators group.

2. Click Start, click Run, type mmc in the Open text box, and click OK to open the MMC console.

3. On the File menu, click Local Group Policy.

The MMC console opens the Local Group Policy console you created in

Chapter 12

, "Auditing Resources and Events." If you have not created the Local Group Policy console, see the first practice in that chapter for the steps to create it.

4. In the Local Group Policy console, expand Local Computer Policy\Computer Configuration\Windows Settings\Security

Settings\and then Account Policies.

Account Policies has two nodes: Password Policy and Account Lockout Policy.

5. In the console tree, click Password Policy.

6. In the details pane, right-click Minimum Password Length and then click Properties.

Windows XP Professional displays the Minimum Password Length Properties dialog box.

7. In the Password Must Be At Least text box, type 8 to set the minimum password length to eight characters, and then click OK.

8. Click File and then click Exit to close the MMC console.

9. When prompted to Save Console Settings To Local Group Policy, click No.

To test minimum password length

1. Click Start and then click Control Panel.

2. Click User Accounts and then click Create A New Account.

3. In the Type A Name For The New Account text box, type User13 and then click Next.

4. Click Limited and then click Create Account.

5. Click User13 and then click Change The Password.

6. In the Type A New Password and the Type The New Password Again To Confirm text boxes, type water.

7. Click Change Password.

A User Accounts message box appears, indicating that your new password does not meet the password policy requirements.

This test proves that you correctly configured the minimum password length account policy to eight characters.

8. Click OK to close the User Accounts message box.

9. Click Cancel to close the Change User13's Password window.

10. Close the What Do You Want To Change About User13's Account window, and then close Control Panel.

Exercise 2: Configuring and Testing Additional Account Policy Settings

In this exercise, you configure and test some additional Account Policy settings.

To configure Account Policy settings

1. Use the Local Group Policy custom MMC console you created to configure the following Account Policy settings:

A user should have at least five different passwords before using a previously used password.

After changing a password, a user must wait 24 hours before he or she can change it again.

A user should change his or her password every 3 weeks.

What settings did you use for each of the three listed items?

2. Close the Local Group Policy custom MMC console.

To test Account Policy settings

1. Log on as User13 with no password.

Windows XP Professional displays a Logon Message message box indicating that you must change your password at first logon.

2. Click OK to close the message box.

3. Press Tab to move to the New Password text box and leave the Old Password text box blank.

4. In the New Password and Confirm New Password text boxes, type hotwater and then click OK.

Windows XP Professional displays a Change Password message box indicating that your password was successfully changed.

5. Click OK to close the Change Password message box.

6. Click Start and then click Control Panel.

7. Click User Accounts and then click Change My Password.

8. In the Type Your Current Password text box, type hotwater.

9. In the Type A New Password and Type The New Password Again To Confirm text boxes, type chocolate.

10. Click Change Password.

Were you successful? Why or why not?

11. Close any open message boxes and windows and log off.

Exercise 3: Configuring Account Lockout Policy

In this exercise, you configure Account Lockout Policy settings and then test them to make sure they are set up correctly.

To configure Account Lockout Policy settings

1. Log on to your computer as Fred or with a user account that is a member of the Administrators group.

2. Click Start and click Run.

3. In the Open text box, type mmc, and then press Enter.

4. Open the Local Group Policy custom MMC console you created.

5. In the Local Group Policy console tree, double-click Account Policies.

6. Click Account Lockout Policy.

7. Use Account Lockout Policy settings to do the following:

Lock out a user account after four failed logon attempts.

Lock out user accounts until an administrator unlocks the user account.

If a Suggested Value Changes dialog box appears, click OK and then verify that your settings are correct.

What Account Lockout Policy settings did you use for each of the two conditions?

8. Log off Windows XP Professional.

To test Account Lockout Policy settings

1. Try to log on as User13 with a password of chocolate four times.

2. Try to log on as User13 with a password of chocolate again and a dialog box appears, indicating that the account is locked out.

3. Click OK and then log on as Fred or as a user that is a member of the Administrators group.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty

answering these questions, review the material in this lesson before beginning the next lesson. The answers are in Appendix A ,

"Questions and Answers."

1. What tool does Microsoft Windows XP Professional provide for you to configure Password Policy?

2. What is the range of values Windows XP Professional allows you to set for the Enforce Password History setting and what do those values mean?

3. The range of values Windows XP Professional allows you to set for the Maximum Password Age setting is ______ to ______ days. The default value is ______ days.

4. Which of the following selections are requirements for a password if the Passwords Must Meet Complexity Requirements setting is enabled? (Choose all that apply.) a. All passwords must exceed the specified minimum password length.

b. All passwords must comply with the password history settings.

c. No passwords can contain capitals or punctuation.

d. No passwords can contain the user's account or full name.

5. What is Account Lockout Duration and what is the range of values?

Lesson Summary

The Group Policy snap-in allows you to improve the security on your computer by making it more difficult for an unauthorized user to gain access.

Password Policy allows you to manage the passwords used on your computer. For example, you can force users to change passwords on a regular basis and you can control the minimum length of a password.

The Enforce Password History setting allows you to set the number of passwords to be kept in a password history. The default value of 0 indicates that no password history is being kept.

If the Passwords Must Meet Complexity Requirements setting is enabled, all passwords must meet or exceed the specified minimum password length; must comply with the password history settings; must contain capitals, numerals, or punctuation; and cannot contain the user's account or full name.

Account Lockout Policy allows you determine the number of invalid logon attempts before a user account is locked out of the computer.

[Home]

[Previous]

[Next]

Lesson 2: Configuring User Rights

Under the Local Policies node, there are three nodes: Audit Policy, User Rights Assignment, and Security Options. Audit Policy was explained in

Chapter 12

, "Auditing Resources and Events." In this lesson you learn how use the Group Policy snap-in to assign user rights. Security options are covered in Lesson 3.

After this lesson, you will be able to

Configure user rights

Estimated lesson time: 30 minutes

User Rights

You can assign specific rights to groups or individual user accounts. To simplify administration of user rights, Microsoft recommends that you assign user rights only to groups and not individual user accounts. Each user right allows the members of the group or the individual users assigned the right to perform a specific action, such as backing up files or changing the system time. If a user is a member of more than one group, the user rights applied to that user are cumulative, so the user has all the user rights assigned to all the groups of which he or she is a member.

You can configure user rights on a computer running Windows XP Professional by using the Group Policy snap-in as follows:

1. Click Start and click Run. Type mmc in the Open text box, and click OK to open an empty custom MMC console.

2. On the File menu, click Add/Remove Snap-In, and then click Add.

3. In the Add Standalone Snap-In dialog box, click Group Policy and then click Add.

The Select Group Policy Object dialog box appears, allowing you to point the MMC console containing Group Policy at the local computer or at a remote computer. The Allow The Focus Of The Group Policy Snap-In To Be Changed When Launching

From The Command Line check box allows you to configure the MMC so that you can decide which computer to use Group

Policy on when you start the MMC.

4. Click Finish to leave Group Policy with its focus on the Local Computer, the default setting, and save the console with Local

Group Policy.

5. Expand Local Computer Policy, Computer Configuration, Windows Settings, Security Settings, and Local Policies, and then click User Right Assignments.

6. In the details pane, select the user right you want to configure, and then on the Action menu, click Properties.

The console displays the current groups and user accounts that have this user right assigned, as shown in Figure 13.4. To add groups or user accounts, click Add. To remove a group or user, select the group or user and click Remove.

Figure 13.4 The Group Policy snap-in displaying User Rights Assignment

There are two types of user rights: privileges and logon rights.

Privileges

A privilege is a user right that allows the members of the group to which it is assigned to perform a specific task, usually one that affects an entire computer system rather than one object. Table 13.3 explains the privileges you can assign in Windows XP

Professional.

Table 13.3 Privileges Available in Windows XP Professional

Privilege

Act As Part Of The Operating System

Description

Allows a process to authenticate like a user and thus gain access to the same resources as a user.

Do not grant this privilege unless you are certain it is needed. Only low-level authentication services should require this privilege. Processes that require this privilege should use the LocalSystem account because it already has this privilege assigned.

A separate user account with this privilege allows a user or process to build an access token, granting them more rights than they should have, and does not provide a primary identity for tracking events in the audit log.

Add Workstations To Domain

Back Up Files And Directories

Bypass Traverse Checking

Change The System Time

Create A Token Object

Create Permanent Shared Objects

Create A Pagefile

Allows a user to add a computer to a domain. The user specifies the domain being added on the computer, and an object is created in the Computer container of Active Directory in that domain.

For this privilege to be effective, it must be assigned as part of the default domain controller policy for the domain.

Allows a user to back up the system without being assigned permissions to access all files and folders on the system.

By default, members of the Administrators and Backup Operators groups have this privilege on workstations, member servers, and domain controllers.

On domain controllers, members of the Server Operators group have this privilege.

Allows a user to move through folders that he or she has no permission to access. This privilege does not allow the user to view the contents of a folder, just to move through the folder.

By default, members of the Administrators, Backup Operators, Power Users,

Users, and Everyone groups have this privilege on workstations and member servers.

Allows a user to set the time for the internal clock of the computer.

By default, members of the Administrators and Power Users groups, as well as the LocalSystem and NetworkService accounts, have this privilege on workstations and member servers.

By default, members of the Administrators and Server Operators groups, as well as the LocalSystem and NetworkService accounts, have this privilege on domain controllers.

Allows a process to create a token that it can then use to access any local resource when the process uses a token-creating application programming interface (API).

Microsoft recommends that processes requiring this privilege use the

LocalSystem account because it already has this privilege.

Allows a process to create a directory object in the Windows object manager. This privilege is useful to kernel-mode components that plan to extend the Windows object namespace. Components that run in kernel mode already have this privilege, so it is not necessary for you to assign it to them.

Allows a user to create a pagefile and modify the size of existing pagefiles.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Debug Programs

Allows a user to attach a debugger on any process. This privilege provides powerful access to sensitive and critical system operating components.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Allows the user to set the Trusted For Delegation setting on a user or computer object. A server process running on a computer that is trusted for delegation or run by a user who is trusted fordelegation can access resources on another computer.

Do not assign this privilege unless you understand that this privilege and the

Enable Computer And User Accounts To Be Trusted For Trusted For Delegation setting can open your network to attacks from Trojan horse programs that impersonate incoming clients and use their credentials to access network resources.

This privilege is not assigned to anyone on workstations or member servers.

On domain controllers it is assigned by default to the members of the

Administrators group.

Force Shutdown From A Remote System

Generate Security Audits

Adjust Memory Quotas For A Process

Increase Scheduling Priority

Allows a user to shut down a computer from a remote computer on the network.

By default, members of the Administrators group have this privilege on workstations and member servers. By default, members of the

Administrators and Server Operators groups have this privilege on domain controllers.

Allows a process to make entries in the security log for object access auditing.

Allows a process to increase the processor quota assigned to another process.

The process must have write access to the process for which it increases the processor quota.

Allows a process to increase the execution priority of another process. The process must have write access to the process for which it increases the execution priority.

Allows users to change the scheduling priority of a process through Task

Manager.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Load And Unload Device Drivers

Lock Pages In Memory

Manage Auditing And Security Log

Modify Firmware Environment Values

Perform Volume Maintenance Tasks

Profile A Single Process

Profile System Performance

Allows a user to install and uninstall Plug and Play device drivers. Non-Plug and Play device drivers are not affected by this privilege.

By default, only Administrators have this privilege. Exercise caution in granting this privilege. Device drivers run as trusted programs and only device drivers with correct digital signatures should be installed.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Allows a process to lock data in physical memory and prevent Windows XP

Professional from paging the data to virtual memory (a pagefile) on disk.

This privilege is not assigned to anyone by default. Some system processes have this privilege.

Allows a user to specify object access auditing options for individual resources such as files, Active Directory objects, and registry keys.

A user with this privilege can also view and clear the security log from the

Event Viewer.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Allows a user to use the System Properties program to modify system environment variables.

Allows a process to use an API to modify the system environment variables.

Allows users to run disk tools, such as Disk Cleanup or Disk Defragmenter.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Allows a user to use performance-monitoring tools to monitor the performance of nonsystem processes.

By default, on workstations and member servers, Administrators and Power

Users have this privilege. On domain controllers, only Administrators have this privilege.

Allows a user to use performance-monitoring tools to monitor the performance of system processes.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Remove Computer From Docking Station

Replace A Process- Level Token

Restore Files And Directories

Shut Down The System

Synchronize Directory Service Data

Take Ownership Of Files Or Other Objects

Allows a user to undock a portable computer.

By default, members of the Administrators, Power Users, and Users groups have this privilege on workstations and member servers.

Allows a parent process to replace the access token associated with a child process.

Allows a user to restore backed up files and directories without being assigned the appropriate file and folder permissions, and allows a user to set any valid security principal as the owner of the object.

By default, members of the Administrators and Backup Operators groups have this privilege on workstations, member servers, and domain controllers.

On domain controllers, members of the Server Operators group also have this privilege.

Allows a user to shut down the local computer.

By default, members of the Administrators, Backup Operators, Power Users, and Users groups have this privilege on workstations.

By default, members of the Administrators, Backup Operators, and Power

Users groups have this privilege on member servers.

By default, members of the Administrators, Account Operators, Backup

Operators, Print Operators, and Server Operators groups have this privilege on domain controllers.

Allows a process to provide directory service synchronization services. This privilege is relevant only on domain controllers.

Allows a user to take ownership of objects in the system, including Active

Directory objects, files and folders, printers, registry keys, processes, and threads.

By default, members of the Administrators group have this privilege on workstations, member servers, and domain controllers.

Logon Rights

A logon right is a user right assigned to a group or an individual user account. Logon rights control the way users can log on to a system. Table 13.4 explains the logon rights you can assign in Windows XP Professional.

Table 13.4 Logon Rights Available in Windows XP Professional

Logon right Description

Access This Computer From The Network

Deny Access To This Computer From The

Network

Log On As A Batch Job

Deny Logon As A Batch Job

Log On As A Service

Deny Logon As A Service

Log On Locally

Deny Logon Locally

Allow Logon Through Terminal Services

Allows a user to connect to the computer over the network.

By default, members of the Administrators, Power Users, and Everyone groups are granted this logon right on workstations, member servers, and domain controllers.

Prevents a user from connecting to the computer over the network.

By default, this right is not granted to anyone.

Allows a user to log on using a batch-queue facility.

By default, members of the Administrators group are granted this logon right on workstations, member servers, and domain controllers.

If Internet Information Services (IIS) is installed, the right is automatically assigned to the built-in account for anonymous access to IIS.

Prevents a user from logging on using a batch-queue facility.

By default, this right is not granted to anyone.

Allows a security principal (an account holder such as a user, computer, or service) to log on as a service. Services can be configured to run under the

LocalSystem, LocalService, or NetworkService accounts, which have the right to log on as a service. Any service that runs under a separate account must be granted this right.

By default, this right is not granted to anyone.

Prevents a security principal from logging on as a service.

By default, this right is not granted to anyone.

Allows a user to log on at the computer's keyboard.

By default, members of the Administrators, Account Operators, Backup

Operators, Print Operators, and Server Operators groups are granted this logon right.

Prevents a user from logging on at the computer's keyboard.

By default, this right is not granted to anyone.

Allows a user to log on using Terminal Services.

By default, members of the Administrators and Remote Desktop Users groups are granted this logon right on workstations and member servers. On domain controllers, only Administrators are granted this logon right.

Deny Logon Through Terminal Services

Prevents a user from logging on using Terminal Services.

By default, this right is not granted to anyone.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty

answering these questions, review the material in this lesson before beginning the next lesson. The answers are in Appendix A ,

"Questions and Answers."

1. Which of the following statements about user rights are correct? (Choose all that apply.) a. Microsoft recommends that you assign user rights to individual user accounts.

b. Microsoft recommends that you assign user rights to groups rather than individual user accounts.

c. User rights allow users assigned the right to perform a specific action, such as backing up files and directories.

d. There are two types of user rights: privileges and logon rights.

2. If your computer running Windows XP Professional is part of a Windows 2000 domain environment and you configure the

Local Security Policies on your computer so that you assign yourself the Add Workstation To A Domain user right, can you add additional workstations to the domain? Why or why not?

3. What benefit does the Back Up Files And Directories user right provide?

4. What are logon rights and what do they do?

Lesson Summary

User Rights Assignment is one of the three nodes located under the Local Policies node and it can be configured using the

Group Policy snap-in.

A privilege is a user right that allows users to perform a specific task, usually one that affects an entire computer system rather than one object.

Bypass Traverse Tracking is a privilege that allows users to move through folders that they have no permission to access.

Logon rights are user rights assigned to a group or an individual user account to control the way users can log on to a system.

Logon rights control whether or not a user can connect to a computer over the network or sitting at the computer's keyboard.

[Home]

[Previous]

[Next]

Lesson 3: Configuring Security Options

Under the Local Policies node, there is a Security Options node. There are close to 60 additional security options grouped into the following categories: accounts, audit, devices, domain controller, domain member, interactive logon, Microsoft network client, network access, network security, recovery console, shutdown, system cryptography, and system objects. In this lesson, you learn about a few of these available options.

After this lesson, you will be able to

Configure security options

Estimated lesson time: 15 minutes

Renaming the Administrator Account

You cannot delete the Administrator account, but you should rename the built-in Administrator account to provide a greater degree of security. You should use a name that does not identify it as the

Administrator account to make it difficult for unauthorized users to break into the account. One of the account settings allows you to enter an account name to automatically rename the Administrator account.

To automatically rename the administrator account, access the security options using the Group Policy snap-in, expand Local Policies, and then select Security Options. Right-click Accounts: Rename The

Administrator Account and then click Properties. Type in the new name you wish to use for the

Administrator account and click OK.

To automatically rename the Guest account, use Accounts: Rename Guest Account.

A security option that is important in securing your computer is the Interactive Log: Number Of Previous

Logons To Cache option. This allows you to determine the number of times users can log on to a

Windows domain using cached account information. Logon information can be cached locally, so if a domain controller is not available, the user can still log on to the domain. This setting determines the number of times a user can log on using that cached information. The default is 10 times. Setting this value to 0 disables the local caching of this information. A second option is the Network Logon: Do Not

Allow Stored User Names And Passwords To Save Passwords Or Credentials For Domain

Authentication option. Enabling this option prevents the storing of user names and credentials.

Shutting Down the Computer Without Logging On

By default, Windows XP Professional does not require a user to be logged on to the computer to shut it down. One of the account settings allows you to force users to log on to the computer before it can be shut down. Access the security options using the Group Policy snap-in, just as you did to configure

Account Policy. Once you start the Group Policy snap-in, expand Local Policies and then select Security

Options.

Right-click Shutdown: Allow System To Be Shut Down Without Having To Log On, and then click

Properties. Figure 13.5 shows the Properties dialog box for the Shutdown: Allow System To Be Shut

Down Without Having To Log On setting. This setting is either enabled, which is the default, or disabled. To force users to have to log on to shut down the system, select Disabled.

Your computer must be a member of a domain or you must turn off the use of the Welcome screen to use this setting.

Figure 13.5 Setting the Allow System To Be Shut Down Without Having To Log On setting

Clearing the Virtual Memory Pagefile on Shutdown

By default, Windows XP Professional does not clear the virtual memory pagefile when the system is shut down. In some organizations this is considered a breach of security because the data in the pagefile might be accessible to users who are not authorized to view that information. To enable this feature and clear

the pagefile each time the system is shut down, start the Group Policy snap-in, expand Local Policies, and then select Security Options. Right-click Shutdown: Clear Virtual Memory Pagefile and then click

Properties. As shown in Figure 13.6, this feature is either enabled or disabled. By default, it is disabled.

To force Windows XP Professional to clear the pagefile when the system is shut down, select Enabled.

Figure 13.6 Setting the Clear Virtual Memory Pagefile option

Disabling Ctrl+Alt+Delete Requirement for Logon

Windows XP Professional allows you to configure your computer so that users are required to press

Ctrl+Alt+Delete to log on to the computer. By forcing users to press Ctrl+Alt+Delete, you are using a key combination recognized only by Windows. This ensures that you are giving the password only to

Windows and not to a Trojan horse program waiting to capture your password.

If you are in an environment where security is not a concern, you can leave the default setting of Not

Defined or you can enable the Interactive Logon: Do Not Require Ctrl+Alt+Del option. With either of these settings, users will not have to use this key combination to log on to the computer. To require users to press this key combination to log on, start the Group Policy snap-in, expand Local Policies, and then select Security Options. Right-click Interactive Logon: Do Not Require Ctrl+Alt+Del and then click

Properties and click Disabled. Disable this setting if security is a concern.

Your computer must be a member of a domain or you must turn off the use of the Welcome screen to use this setting.

Preventing the Display of the Last User Name in

Logon Screen

By default, Windows XP Professional displays the last user name to log on to the computer in the

Windows Security dialog box. In some situations this is a security risk because an unauthorized user can see a valid user account name displayed on the screen. This makes it much easier to break into the computer.

Enable Interactive Logon: Do Not Display Last User Name to prevent the last user name from being displayed in the Windows Security dialog box. In the Group Policy snap-in, click the Local Policies node in the console pane, and then click Security Options. In the details pane, right-click Interactive Logon:

Do Not Display Last User Name, click Properties, and then select Enabled to enable this feature, which is either enabled or disabled (see Figure 13.7).

Figure 13.7 Disabling the Do Not Display Last User Name In Logon Screen option

Your computer must be a member of a domain or you must turn off the use of the Welcome screen to use this setting.

Practice: Configuring Security Settings

In this practice, you configure the security setting that automatically renames the Guest account on your computer. Then you turn off the Welcome screen and configure some additional security settings on your computer.

Run the SecuritySettings file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring security settings.

Exercise 1: Configuring the Accounts: Rename the Guest Account

Security Setting

In this exercise, you use the custom MMC console containing the Group Policy snap-in you created and saved with the name Local Group Policy to automatically rename the Guest account.

To configure and test the Accounts: Rename The Guest Account security option

1. Log on to your computer as Fred or with a user account that is a member of the Administrators group.

2. Click Start and click Run. In the Open text box, type mmc, and then click OK.

3. On the File menu, click Open and click the Local Group Policy MMC console you created in the first practice in this chapter.

4. In the Group Policy snap-in's console tree, click Local Computer Policy, Computer Configuration,

Windows Settings, Security Settings, Local Policies, and Security Options.

5. Configure your computer so that the Guest account is automatically renamed Fox.

6. Start the User Accounts tool and verify that the Guest account is now named Fox.

Exercise 2: Turning off Use of the Welcome Screen

In this exercise, you turn off the use of the Welcome screen.

To turn off the Welcome screen

1. Click Start and then click Control Panel.

2. Click User Accounts.

3. Click Change The Way Users Log On Or Off.

Windows XP Professional displays the Select Logon And Logoff Options window.

4. Clear the Use The Welcome Screen check box.

Windows XP Professional also clears the Use Fast User Switching check box.

5. Click Apply Options, close all open windows, and then log off Windows XP Professional.

Notice that the Welcome Screen is not displayed and that the Welcome To Windows dialog box requiring you to press Ctrl+Alt+Delete is displayed.

Exercise 3: Configuring Additional Security Settings

In this exercise, you configure some additional security settings.

1. Press Ctrl+Alt+Delete.

The Log On To Windows Screen is displayed and the name of the last user to log on to the computer is automatically filled in.

2. Click Options.

Notice that Shut Down is available.

3. Log on as Fred or with a user account that is a member of the Administrators group.

4. Use the Group Policy snap-in and configure your computer so that the following conditions are true:

Windows XP Professional will not display the user account last logged on the computer in the Windows Security dialog box.

Users must log on to shut down the computer.

5. Log off Windows XP Professional.

6. Verify that the name of the user account last logged on is not displayed.

7. Verify that users must log on to shut down the computer; the Shut Down button is no longer available.

8. Log on to the computer and enable the use of the Welcome screen.

9. Log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. How can you require a user to be logged on to the computer to shut it down? (Discuss using the

Welcome screen and using Ctrl+Alt+Delete to log on.)

2. By default Windows XP Professional does not clear the virtual memory pagefile when the system is shut down. Why can this be considered a security breach and what can you do to resolve it?

3. Why does forcing users to press Ctrl+Alt+Delete improve security on your computer?

4. By default, Windows XP Professional displays the last user name to log on to the computer in the

Windows Security dialog box. Why is this considered a security risk and what can you do to resolve it?

5. How can you disable the Welcome screen in Windows XP Professional?

Lesson Summary

The security options in the Local Security Policy snap-in allow you to improve the effective security on any of your computers that require it.

If you have disabled the Welcome screen, you can prevent an unauthorized user from shutting down your computer by forcing users to log on before they can shut down the computer.

If you have disabled the Welcome screen, you can force users to press Ctrl+Alt+Delete before they can log on to prevent a Trojan horse application from stealing user passwords.

The Ctrl+Alt+Delete key combination is recognized by Windows and ensures that only Windows picks up the keystrokes entered for user name and password.

You can also increase security by not displaying a valid user name for the last user account that logged on in the Windows Security dialog box.

[Home]

[Previous]

[Next]

Lesson 4: Configuring Internet Explorer

Security Options

Internet options allow you to configure Internet Explorer 6.0. You can specify the first Web page you see when you start Internet Explorer, delete temporary Internet files stored on your computer, use Content

Advisor to block access to objectionable materials, and set your security level. This lesson introduces you to configuring Internet options.

After this lesson, you will be able to

Configure Internet options

Estimated lesson time: 40 minutes

Using Internet Options

To access Internet options, you would do the following:

1. Click Start, and then click Control Panel.

2. Click Network And Internet Connections, and then click Internet Options.

Windows XP Professional displays the Internet Properties dialog box, as shown in Figure 13.8.

Figure 13.8 The General tab of the Internet Properties dialog box

Using the General Tab

The Home Page section in the General tab of the Internet Properties dialog box allows you to change the page you use for your home page, the page you see each time you start Internet Explorer. This is also the page you are returned to each time you click the Home icon on the toolbar.

The Temporary Internet Files section in the General tab allows you to delete all cookies and temporary

Internet files stored on your computer. A cookie is a file created by a Web site that stores information about you on your computer. To delete all the cookies stored on your computer, click Delete Cookies.

Windows XP Professional displays a Delete Cookies message box for you to confirm that you want to delete all the cookies stored on your computer. Click OK to delete all the cookies or click Cancel to leave the cookies stored on your computer. A temporary Internet file is a file downloaded from a Web site on the Internet to decrease your access time to the Web site the next time you view it. To delete all

temporary Internet files on your computer, click Delete Files. A message box will be displayed for you to confirm that you want to delete all temporary Internet files on your computer. The Delete All Offline

Content checkbox allows you to delete any sites you have configured to be available offline. Click OK to delete all the temporary Internet files on your computer. Click Settings to specify when your system should check for newer versions of stored files and the size and location of the folder that stores these temporary files.

The History section allows you to specify the length of time links to pages you have visited are kept and to clear all saved links. The General tab also allows you to configure the colors, fonts, languages, and accessibility options used.

Using the Security Tab

The Security tab of the Internet Properties dialog box allows you to assign Web sites into zones, so you can customize the security for each zone. The first zone is the Internet, which contains all Web sites not assigned to another zone (see Figure 13.9).

Figure 13.9 The Security tab of the Internet Properties dialog box

The second zone is for your local intranet. The third zone is for trusted sites, and the fourth zone is for restricted sites. To add Web sites to any of these zones, click the zone and then click Sites.

The Security Level For This Zone section allows you to customize the security settings for each zone. To customize a zone's security level, click the zone and then click Custom Level. Windows XP Professional displays the Security Settings dialog box (see Figure 13.10).

The Security Settings dialog box allows you to control what gets loaded onto your computer from the

Internet. For example, for Download Signed ActiveX Controls you can choose one of the following three options:

Enable. Allows you to download signed ActiveX controls

Disable. Disables the downloading of ActiveX controls

Prompt. Prompts you so that you can determine whether or not you want to download ActiveX controls

Figure 13.10 The Security Settings dialog box

Other settings on the Security Settings dialog box include the following:

File Download

Font Download

Access Data Sources Across Domains

Allow META REFRESH

Display Mixed Content

Don't Prompt For Client Certificate Selection When No Certificates Or Only One Certificate

Exists

Drag And Drop Or Copy And Paste Files

Installation Of Desktop Items

Launching Programs And Files In An IFRAME

Navigate Subframes Across Different Domains

Submit Nonencrypted Form Data

User Data Persistence

Active Scripting

Allow Paste Operations Via Script

Scripting Of Java Applets

User Authentication Logon

Internet Explorer 6.0 and Windows XP Professional do not contain the Sun Microsystems Java Virtual

Machine (JVM). The first time you connect to a Web site that requires JVM support, you must download

JVM.

One other setting located in the Security Settings dialog box is Software Channel Permissions. The options you can set for it are as follows:

Low Safety. Allows software to be automatically downloaded and installed from software distribution channels without prompting

Medium Safety. Allows the automatic downloading of software from a software distribution channel without prompting, but does not allow automatic installation of the software

High Safety. Allows automatic notification, but not automatic downloading or installing of software from software distribution channels

Using the Privacy Tab

The Privacy tab allows you to determine how cookies are handled on your computer for all Web sites in the Internet zone. Table 13.5 explains the available privacy settings.

Table 13.5 Privacy Tab Settings

Setting Description

Block All Cookies

Blocks cookies from all Web sites and makes existing cookies on your computer unreadable by Web sites.

High

Medium High

Blocks cookies that do not have a compact privacy policy and those that use personally identifiable information without your explicit consent.

Blocks third-party cookies that do not have a compact privacy policy and those that use personally identifiable information without your explicit consent. It also blocks first-party cookies that use personally identifiable information without your implicit consent.

Medium

Low

Blocks third-party cookies that do not have a compact privacy policy and those that use personally identifiable information without your implicit consent. It also restricts first-party cookies that use personally identifiable information without your implicit consent.

Restricts third-party cookies that do not have a compact privacy policy and those that use personally identifiable information without your implicit consent.

Accept All Cookies

Allows all cookies to be saved on the computer. Existing cookies on this computer can be read by the Web sites that created them.

You can also click Advanced to override automatic cookie handling and manually define whether to accept, block, or prompt first-party and third-party cookies.

Using the Content Tab

The Content tab gives you access to the Content Advisor, which allows you to control what can be viewed on the Internet. This is a valuable tool for parents who want to protect their children from areas of the Internet suitable only for adults. You can control access based on language, nudity, sex, and violence.

You can also create a list of Web sites that are always viewable or never viewable, no matter how they are rated.

The Connections tab helps you set up an Internet connection and the Programs tab allows you to specify which program Windows XP Professional automatically uses for each Internet service.

Using the Advanced Tab

The Advanced tab allows you to fine-tune accessibility, browsing, HTTP 1.1 settings, multimedia functionality, and security. Accessibility provides the following two check boxes:

Always Expand ALT Text For Images. Specifies whether the image size should expand to fit all of the alternate text when the Show Pictures text box is cleared.

Move System Caret With Focus/Selection Changes. Specifies whether to move the system caret whenever the focus or selection changes. Some accessibility aids, such as screen readers or screen magnifiers, use the system caret to determine which area of the screen to read or magnify.

Browsing provides many options that allow control browsing, including the following check boxes:

Always Send URLs As UTF-8. Specifies whether to use UTF-8, a standard that defines characters so they are readable in any language. This enables you to exchange Internet addresses

(URLs) that contain characters from another language. This option is selected by default.

Enable Folder View For FTP Sites. Specifies that FTP sites be shown in folder view. This feature might not work with certain types of proxy connections. If you clear this check box, FTP sites will display their contents in a Hypertext Markup Language (HTML)-based layout. This option is selected by default.

Enable Install On Demand (Other). Specifies to automatically download and install Web components if a Web page needs them to display the page properly or perform a particular task.

This option is selected by default.

The HTTP 1.1 settings allow you to specify whether you want to use HTTP 1.1. Many Web sites still use

HTTP 1.0, so if you are having difficulties connecting to some Web sites, you might not want to use

HTTP 1.1.

The Multimedia section provides many options including the following check boxes:

Play Animations In Web Pages. Specifies whether animations can play when pages are displayed. Pages that contain animations display very slowly. To display pages faster, clear this check box. You can still play an individual animation even when this check box is not selected if you right-click the icon that represents the animation and then click Show Picture. This option is selected by default.

Play Sounds In Web Pages. Specifies whether music and other sounds can play when pages are displayed. Some pages that contain sounds download very slowly. Clear this check box to speed up the downloading of these pages. If RealNetworks RealAudio is installed or if a video clip is playing, some sounds might play even though you cleared this check box. This option is selected by default.

Show Pictures. Specifies whether graphical images should be included when pages are displayed. Pages that contain several graphical images can display very slowly. Clear this check box to speed up the downloading of these pages. You can still view an individual image even when this check box is not selected if you right-click the icon that represents the graphic and then click Show Picture. This option is selected by default.

The Printing settings allow you to specify whether you want to print background colors and images.

The Security settings (see Figure 13.11) allow you to fine-tune your security settings.

Figure 13.11 The Advanced tab of the Internet Properties dialog box

The Security section provides many options including the following check boxes:

Empty Temporary Internet Files Folder When Browser Is Closed. Specifies whether you want to empty the Internet Temporary Files folder when the browser is closed. This option is not selected by default.

Use SSL 2.0. Controls whether you want to send and receive secured information through Secure

Sockets Layer Level 2 (SSL 2.0), the standard protocol for secure transmissions. All Web sites support this protocol. This option is selected by default.

Use SSL 3.0. Specifies whether you want to send and receive secured information through

Secure Sockets Layer Level 3 (SSL 3.0), which is designed to be more secure than SSL 2.0. Some

Web sites might not support SSL 3.0. This option is selected by default.

Warn About Invalid Site Certificates. Specifies whether Internet Explorer should warn you if the address (URL) in a Web site's security certificate is not valid. This option is selected by

default.

Warn If Changing Between Secure And Not Secure Mode. Specifies whether Internet

Explorer should warn you if you are switching between Internet sites that are secure and sites that are not secure.

For information about any of the other check boxes located in the Advanced tab of the Internet Properties dialog box, click on the question mark in the upper right corner of the dialog box and then click the check box.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, please go back and review the material in

this lesson before beginning the next chapter. The answers are in Appendix A , "Questions and Answers."

1. What is a cookie? How can you delete all the cookies that are stored on your computer?

2. How can you control which cookies are stored on your computer?

3. As a concerned parent, how can you help protect your children from adult material found on the

Internet?

4. How can you speed up the downloading of pages?

5. How can you have the Internet Temporary Files folder emptied each time you close your browser?

Lesson Summary

To access the Internet Options dialog box, in Control Panel, click Network And Internet

Connections, and then click Internet Options.

The Home Page section in the General tab of the Internet Properties dialog box allows you to change the page you use for your home page.

The Temporary Internet Files section in the General tab of the Internet Properties dialog box allows you to delete all cookies and temporary Internet files stored on your computer.

The General tab also allows you to configure the colors, fonts, languages, and accessibility options used and to specify the length of time links to pages you have visited are stored.

The Security tab of the Internet Properties dialog box allows you to assign Web sites into zones, so you can customize the security for each zone.

Internet Explorer 6.0 and Windows XP Professional do not contain the Sun Microsystems Java

Virtual Machine (JVM); the first time you connect to a Web site that requires JVM support, you must download JVM.

The Privacy tab allows you to determine how cookies will be handled on your computer for all

Web sites in the Internet zone.

The Content tab gives you access to the Content Advisor, which allows parents to protect their children from areas of the Internet suitable only for adults.

The Advanced tab allows you to fine-tune accessibility, browsing, HTTP 1.1 settings, multimedia functionality, and security.

[Home]

[Previous]

[Next]

Chapter 14

Managing Data Storage

About This Chapter

This chapter introduces data storage management on volumes formatted with NT file system (NTFS).

You will learn about compression, which allows you to store more data on a disk, and you will learn about disk quotas, which allow you to control how much space a user can use on a disk. You will learn how you can increase the security of files and folders on your computer by using the Microsoft

Encrypting File System (EFS). You will also learn about defragmenting a disk, which allows your system to access and save files and folders more efficiently.

Before You Begin

To complete this chapter, you must have

Microsoft Windows XP Professional installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Managing Compression

Windows XP Professional supports two types of compression: NTFS compression and Compressed

Folders. NTFS compression enables you to compress files, folders, or an entire drive. NTFS compressed files and folders occupy less space on an NTFS-formatted volume, which enables you to store more data.

Each file and folder on an NTFS volume has a compression state, which is either compressed or uncompressed. The Compressed Folders feature allows you to create a compressed folder so that all files you store in that folder are automatically compressed.

After this lesson, you will be able to

Manage disk compression

Compress and uncompress files, folders, and NTFS volumes

Estimated lesson time: 60 minutes

Using Compressed Folders

The Compressed Folders feature is new in Windows XP Professional and provides the ability to create compressed folders and view their contents. The Compressed Folders feature in Windows XP Professional allows you to compress large files so that you can store more files on a floppy disk or hard drive.

To create a compressed folder, start Windows Explorer, click File, click New, and then click Compressed

Folder. This creates a compressed folder in the current folder. You can drag and drop files into the compressed folder and the files are automatically compressed. If you copy a file from the compressed folder to another that is not compressed, that file will no longer be compressed. A zipper icon is shown, marking compressed folders (see Figure 14.1), and these folders are labeled Compressed Folder.

Figure 14.1 A compressed folder showing the zipper icon

Benefits of using compressed folders generated with the Compressed Folders feature include the following:

You can create and use compressed files and folders on both file allocation table (FAT) and NTFS volumes.

You can open files directly from the compressed folders and you can run some programs directly from compressed folders.

You can move these compressed files and folders to any drive or folder on your computer, the

Internet, or your network and they are compatible with other zip programs.

You can encrypt compressed folders that you created using this feature.

You can compress folders without decreasing performance.

You can only compress individual files by storing them in a compressed folder. If you move or extract the files into an uncompressed folder, they will be uncompressed.

Using NTFS Compressed Files and Folders

NTFS compressed files can be read and written to by any Windows-based or MS-DOS-based application without first being uncompressed by another program. When an application, such as Microsoft Word

2000, or an operating system command, such as Copy, requests access to a compressed file, NTFS automatically uncompresses the file before making it available. When you close or explicitly save a file,

NTFS compresses it again.

NTFS allocates disk space based on uncompressed file size. If you copy a compressed file to an NTFS volume with enough space for the compressed file, but not enough space for the uncompressed file, you might get an error message stating that there is not enough disk space for the file, and the file will not be copied to the volume.

Compressing Files and Folders Using NTFS

Compression

You can set the compression state of folders and files and you can change the color that is used to display compressed files and folders in Microsoft Windows Explorer.

If you want to set the compression state of a folder or file, right-click the folder or file in Windows

Explorer, click Properties, and then click Advanced. In the Advanced Attributes dialog box, shown in

Figure 14.2, select the Compress Contents To Save Disk Space check box. Click OK, and then, in the

Properties dialog box, click Apply.

NTFS encryption and compression are mutually exclusive. For that reason, if you select the Encrypt

Contents To Secure Data check box, you cannot compress the folder or file.

Figure 14.2 The Advanced Attributes dialog box

To change the compression state for a file or folder, you must have Write permission for that file or folder.

The compression state for a folder does not reflect the compression state of the files and subfolders in that folder. A folder can be compressed, yet all of the files in that folder can be uncompressed. Alternatively, an uncompressed folder can contain compressed files. When you compress a folder that contains one or more files, folders, or both, Windows XP Professional displays the Confirm Attribute Changes dialog box, shown in Figure 14.3.

Figure 14.3 The Confirm Attribute Changes dialog box

The Confirm Attribute Changes dialog box has the two additional options explained in Table 14.1.

Table 14.1 Confirm Attribute Changes Dialog Box Options

Option

Apply Changes To This Folder Only

Description

Compresses only the folder that you have selected

Apply Changes To This Folder, Subfolders, And

Files

Compresses the folder and all subfolders and files that are contained within it and subsequently added to it

Compressing a Drive or Volume Using NTFS

Compression

You can set the compression state of an entire NTFS drive or volume. To do so, in Windows Explorer, right-click the drive or volume, and then click Properties. In the Properties dialog box, select the Compress

Drive To Save Disk Space check box, as shown in Figure 14.4, and then click OK.

Figure 14.4 The Local Disk (C:) Properties dialog box

Displaying NTFS Compressed Files and Folders in a

Different Color

Windows Explorer makes it easy for you to quickly determine if a file or folder is compressed. By default, it displays the names of compressed files and folders in a different color to distinguish them from those that are uncompressed.

You can control the display of compressed files and folders in a different color by doing the following:

1. In Windows Explorer, on the Tools menu, click Folder Options.

2. In the View tab, clear the Show Encrypted Or Compressed Files In Color check box to turn off the displaying of the names of compressed files and folders in a different color or select it to display

the names in a different color.

Copying and Moving NTFS Compressed Files and

Folders

There are rules that determine whether the compression state of files and folders is retained when you copy or move them within and between NTFS and FAT volumes. The following list describes how Windows

XP Professional treats the compression state of a file or folder when you copy or move a compressed file or folder within or between NTFS volumes or between NTFS and FAT volumes.

Copying a file within an NTFS volume. When you copy a file within an NTFS volume (shown as

A in Figure 14.5), the file inherits the compression state of the target folder. For example, if you copy a compressed file to an uncompressed folder, the file is automatically uncompressed.

Moving a file or folder within an NTFS volume. When you move a file or folder within an

NTFS volume (shown as B in Figure 14.5), the file or folder retains its original compression state.

For example, if you move a compressed file to an uncompressed folder, the file remains compressed.

Copying a file or folder between NTFS volumes. When you copy a file or folder between NTFS volumes (shown as C in Figure 14.5), the file or folder inherits the compression state of the target folder.

Moving a file or folder between NTFS volumes. When you move a file or folder between NTFS volumes (shown as C in Figure 14.5), the file or folder inherits the compression state of the target folder. Because Windows XP Professional treats a move as a copy and a delete, the files inherit the compression state of the target folder.

Moving or copying a file or folder to a FAT volume. Windows XP Professional supports compression only for NTFS files, so when you move or copy a compressed NTFS file or folder to a

FAT volume, Windows XP Professional automatically uncompresses the file or folder.

Moving or copying a compressed file or folder to a floppy disk. When you move or copy a compressed NTFS file or folder to a floppy disk, Windows XP Professional automatically uncompresses the file or folder.

Figure 14.5 The effects of copying and moving compressed folders and files

When you copy a compressed NTFS file, Windows XP Professional uncompresses the file, copies the file, and then compresses the file again as a new file. This might cause performance degradation.

Using NTFS Compression Guidelines

The following list provides best practices for using compression on NTFS volumes:

Because some file types compress more than others, select file types to compress based on the anticipated resulting file size. For example, because Windows bitmap files contain more redundant data than application executable files, this file type compresses to a smaller size. Bitmaps often compress to less than 50 percent of the original file size, whereas application files rarely compress to less than 75 percent of the original size.

Do not store compressed files, such as PKZIP files, in a compressed folder. Windows XP

Professional will attempt to compress the file, wasting system time and yielding no additional disk space.

Compress static data rather than data that changes frequently. Compressing and uncompressing files incurs some system overhead. By choosing to compress files that are infrequently accessed, you minimize the amount of system time dedicated to compression and uncompression activities.

NTFS compression can cause performance degradation when you copy and move files. When a compressed file is copied, it is uncompressed, copied, and then compressed again as a new file.

Compress data that is not copied or moved frequently.

Practice: Managing Compression

In this practice, you use NTFS compression to compress files and folders. You uncompress a file and test the effects that copying and moving files have on compression. In the last portion of the practice, you create a compressed folder using the Compressed Folders feature.

In this practice, it is assumed that you installed Windows XP Professional on the C drive and that the C drive is formatted with NTFS. If you installed Windows XP Professional on a different partition and that partition is formatted with NTFS, use that drive letter when the practice refers to drive C.

Run the Compression file in the Demos folder on the CD-ROM accompanying this book for a demonstration of creating a compressed folder using the Compressed Folders feature and using NTFS compression to compress files and folders, and testing the effects that copying and moving files have on compression.

Exercise 1: Compressing Files in an NTFS Partition

In this exercise, you use Windows Explorer to compress files and folders to make more disk space available on your NTFS partition. You also configure Windows Explorer to display the compressed files and folders in a different color. Next, you uncompress a file. Finally, you view the effects that copying and moving files have on compressed files.

To view the capacity and free space for drive C

1. Log on as Fred or with an account that is a member of the Administrators group.

2. Click Start, right-click My Computer, and then click Explore.

3. Right-click drive C, and then click Properties.

Windows XP Professional displays the Local Disk (C:) Properties dialog box with the General tab active.

What is the capacity of drive C?

What is the free space on drive C?

4. Click Cancel to close the Local Disk (C:) Properties dialog box and return to Windows Explorer.

To create an NTFS compressed folder

1. In Windows Explorer, expand Local Disk (C:).

2. Create a folder on drive C and name it Compressed.

To create a folder on drive C, click Local Disk (C:). On the File menu, click New. Windows XP

Professional creates a folder named New Folder in the root folder of the C drive. Right-click New

Folder and then click Rename. Type Compressed and then press Enter.

3. Click Compressed to select it.

4. Create a folder in Compressed and name it Compressed2.

5. Right-click the Compressed folder, and then click Properties.

Windows XP Professional displays the Compressed Properties dialog box with the General tab active.

6. In the General tab, click Advanced.

Windows XP Professional displays the Advanced Attributes dialog box.

7. Select the Compress Contents To Save Disk Space check box.

8. Select the Encrypt Contents To Secure Data check box.

Notice that the system automatically removes the check from the Compress Contents To Save Disk

Space check box.

9. Select the Compress Contents To Save Disk Space check box.

10. Click OK to return to the Compressed Properties dialog box.

11. Click Apply to apply your settings.

Windows XP Professional displays the Confirm Attribute Changes dialog box, prompting you to specify whether to compress only this folder or this folder and all subfolders.

12. Select the Apply Changes To This Folder, Subfolders And Files check box, and then click OK.

Windows XP Professional displays the Applying Attributes message box, indicating the progress of the operation and the paths and names of folders and files as they are compressed. Because there is

little data on drive C, compression completes too quickly for you to view this dialog box.

13. Click OK to close the Properties dialog box.

To uncompress a folder

1. In Windows Explorer, expand the Compressed folder.

2. In the Compressed folder, right-click Compressed2, and then click Properties.

Windows XP Professional displays the Compressed2 Properties dialog box with the General tab active.

3. In the General tab, click Advanced.

Windows XP Professional displays the Advanced Attributes dialog box.

4. Clear the Compress Contents To Save Disk Space check box, and then click OK to apply your settings and return to the Compressed2 Properties dialog box.

5. Click OK to close the Compressed2 Properties dialog box.

Because the Compressed2 folder is empty, Windows XP Professional does not display the Confirm

Attributes Changes dialog box asking you to specify whether to uncompress only this folder or this folder and all subfolders.

What indication do you have that the Compressed2 folder is no longer compressed?

Exercise 2: Copying and Moving Files

In this exercise, you see the effects that copying and moving files has on compressed files.

To create a compressed file

1. In Windows Explorer, click the Compressed folder.

2. On the File menu, click New, and then click Text Document.

3. Type Text1 and then press Enter.

How can you verify that Text1 is compressed?

To copy a compressed file to an uncompressed folder

1. Copy (hold down Ctrl and drag the file) Text1 to the Compressed\Compressed2 folder.

2. Examine the properties for Text1 in the Compressed2 folder.

Is the Text1 file in the Compressed\Compressed2 folder compressed or uncompressed? Why?

To move a compressed file to an uncompressed folder

1. Examine the properties of the Text1 file in the Compressed folder.

Is Text1 compressed or uncompressed?

2. Move Text1 to the Compressed\Compressed2 folder. If the Confirm File Replace dialog box appears, asking whether you want to replace the file, click Yes.

3. Examine the properties of Text1 in the Compressed2 folder.

Is Text1 compressed or uncompressed? Why?

To uncompress the NTFS Compressed folder

1. In Windows Explorer, right-click the Compressed folder, and then click Properties.

Windows XP Professional displays the Compressed Properties dialog box with the General tab active.

2. In the General tab, click Advanced.

Windows XP Professional displays the Advanced Attributes dialog box.

3. Clear the Compress Contents To Save Disk Space check box, and then click OK to return to the

Compressed Properties dialog box.

4. Click Apply.

Windows XP Professional displays the Confirm Attributes Changes dialog box, prompting you to specify whether to uncompress only this folder or this folder and all subfolders.

5. Click Apply Changes To This Folder, Subfolders And All Files, and then click OK.

Windows XP Professional briefly displays the Applying Attributes message box. This might happen so fast that you do not see it.

6. Click OK to close the Properties dialog box, and then close Windows Explorer.

Exercise 3: Creating Compressed Folders

In this exercise, you will create a compressed folder using the Compressed Folders feature.

To create a compressed folder using the Compressed Folders feature

1. Start Windows Explorer.

2. Click File and then click New.

Compressed Folder is an option on the New menu.

3. Click Compressed Folder.

You have just created a compressed folder. Notice the zipper icon that identifies compressed folders. You can drag and drop files into the compressed folder and they will automatically be compressed. If you copy a file from the compressed folder to another that is not compressed, the file will no longer be compressed.

4. Close Windows Explorer.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions and Answers."

1. When Bob tried to copy a compressed file from one NTFS volume to another, the file was not copied and he got an error message stating that there was not enough disk space for the file. Before he attempted to copy the file, Bob verified that there was enough room for the compressed bitmap on the destination volume. Why did he get the error message?

2. Which of the following will Windows XP Professional allow you to compress using NTFS compression? (Choose all answers that are correct.) a. A FAT volume b. An NTFS volume c. A bitmap stored on a floppy d. A folder on an NTFS volume

3. When you move a file between NTFS volumes, does the file retain the compression state of the

source folder or does the file inherit the compression state of the target folder? Why?

4. What does Windows XP Professional do when you try to copy a compressed file to a floppy disk?

Why?

5. Which of the following types of files or data are good candidates for NTFS compression? (Choose all statements that are correct.) a. Encrypted data b. Frequently updated data c. Bitmaps d. Static data

Lesson Summary

In Windows XP Professional, NTFS compression allows you to compress files, folders, or an entire volume.

Any Windows-based or MS-DOS-based application can read and write to compressed files without having the files uncompressed by another program.

Use the View tab in the Folder Options dialog box in Windows Explorer to display NTFS compressed files and folders in a different color to distinguish them from uncompressed files and folders.

NTFS encryption and compression are mutually exclusive.

When you copy a file within an NTFS volume, the file inherits the compression state of the target folder.

When you move a file or folder within an NTFS volume, the file or folder retains its original compression state.

When you copy a file or folder between NTFS volumes, the file or folder inherits the compression state of the target folder.

When you move or copy a compressed NTFS file or folder to a floppy disk or to a FAT volume,

Windows XP Professional automatically uncompresses the file or folder.

To create a compressed folder using the Compressed Folders feature, start Windows Explorer, click

File, click New, and then click Compressed Folder.

A compressed folder created by the Compressed Folders feature appears in Windows Explorer as an icon of a zipper across a folder.

You can drag and drop files into a compressed folder created using the Compressed Folders feature and the files are automatically compressed.

[Home]

[Previous]

[Next]

Lesson 2: Managing Disk Quotas

You use disk quotas to manage storage growth in distributed environments. Disk quotas allow you to allocate disk space to users based on the files and folders that they own. You can set disk quotas, quota thresholds, and quota limits for all users and for individual users.

You can also monitor the amount of hard disk space that users have used and the amount that they have left against their quota.

After this lesson, you will be able to

Configure and manage disk quotas

Estimated lesson time: 20 minutes

Understanding Disk Quota Management

Windows XP Professional disk quotas track and control disk usage on a per-user, per-volume basis. Windows XP Professional tracks disk quotas for each volume, even if the volumes are on the same hard disk. Because quotas are tracked on a per-user basis, every user's disk space is tracked regardless of the folder in which the user stores files. Table 14.2 describes the characteristics of Windows XP

Professional disk quotas.

Table 14.2 Disk Quota Characteristics and Descriptions

Characteristic

Disk usage is basedon file and folder ownership.

Description

Windows XP Professional calculates disk space usage for users based on the files and folders that they own. When a user copies or saves a new file to an NTFS volume or takes ownership of a file on an NTFS volume, Windows XP Professional charges the disk space for the file against the user's quota limit.

Disk quotas do not use compression.

Windows XP Professional ignores compression when it calculates hard disk space usage. Users are charged for each uncompressed byte, regardless of how much hard disk space is actually used. This is done partially because file compression produces different degrees of compression for different types of files. Different uncompressed file types that are the same size might end up being very different sizes when they are compressed.

When you enable disk quotas, the free space that Windows XP Professional reports

Free space for applications is based on quota limit. to applications for the volume is the amount of space remaining within the user's disk quota limit.

Disk quotas can only be applied to Windows XP Professional NTFS volumes.

You use disk quotas to monitor and control hard disk space usage. System administrators can do the following:

Set a disk quota limit to specify the amount of disk space for each user.

Set a disk quota warning to specify when Windows XP Professional should log an event, indicating that the user is nearing his or her limit.

Enforce disk quota limits and deny users access if they exceed their limit, or allow them continued access.

Log an event when a user exceeds a specified disk space threshold. The threshold could be when users exceed their quota limit or when they exceed their warning level.

After you enable disk quotas for a volume, Windows XP Professional collects disk usage data for all users who own files and folders on the volume. This allows you to monitor volume usage on a per-user basis. By default, only members of the Administrators group can view and change quota settings. However, you can allow users to view quota settings.

Setting Disk Quotas

You can enable disk quotas and enforce disk quota warnings and limits for all users or for individual users.

If you want to enable disk quotas, open the Properties dialog box for a disk, click the Quota tab, and configure the options that are described in Table 14.3 and displayed in Figure 14.6.

Table 14.3 Quota Tab Options

Option

Enable Quota Management

Description

Select this check box to enable disk quota management.

Deny Disk Space To Users Exceeding Quota Limit

Select this check box so that when users exceed their hard disk space allocation, they receive an "out of disk space" message and cannot write to the volume.

Do Not Limit Disk Usage

Limit Disk Space To

Click this option when you do not want to limit the amount of hard disk space for users.

Configure the amount of disk space that users can use.

Set Warning Level To

Configure the amount of disk space that users can fill before Windows XP

Professional logs an event, indicating that a user is nearing his or her limit.

Log Event When A User Exceeds Their Quota Limit

Select this option if you want Windows XP Professional to log an event in the

Security log every time a user exceeds his or her quota limit.

Log Event When A User Exceeds Their Warning Level

Select this option if you want Windows XP Professional to log an event in the

Security log every time a user exceeds the warning level.

Quota Entries

Click this button to open the Quota Entries For dialog box, where you can add a new entry, delete an entry, and view the per-user quota information.

Figure 14.6 The Quota tab of the Properties dialog box for a disk

You can enforce identical quota limits for all users as follows:

1. In the Limit Disk Space To text box and the Set Warning Level To text box, enter the values for the limit and warning levels that you want to set.

2. Select the Deny Disk Space To Users Exceeding Quota Limit check box.

Windows XP Professional will monitor usage and will not allow users to create files or folders on the volume when they exceed the limit.

Determining the Status of Disk Quotas

You can determine the status of disk quotas in the Properties dialog box for a disk by checking the traffic light icon and reading the status message to its right (see Figure 14.6). The color shown on the traffic light icon indicates the status of disk quotas as follows:

A red traffic light indicates that disk quotas are disabled.

A yellow traffic light indicates that Windows XP Professional is rebuilding disk quota information.

A green traffic light indicates that the disk quota system is active.

You can enforce different quota limits for one or more specific users, as follows:

1. Open the Properties dialog box for a disk, click the Quota tab, and then click Quota Entries.

2. In the Quota Entries For dialog box, shown in Figure 14.7, double-click the user account for which you want to set a disk quota limit or create an entry by clicking New Quota Entry on the Quota menu.

Figure 14.7 The Quota Entries For dialog box

3. Configure the disk space limit and the warning level for each individual user.

Monitoring Disk Quotas

You use the Quota Entries For dialog box (see Figure 14.7) to monitor usage for all users who have copied, saved, or taken ownership of files and folders on the volume. Windows XP Professional scans the volume and monitors the amount of disk space in use by each user.

Use the Quota Entries For dialog box to view the following:

The amount of hard disk space that each user uses

Users who are over their quota warning threshold, signified by a yellow triangle

Users who are over their quota limit, signified by a red circle

The warning threshold and the disk quota limit for each user

Best Uses for Disk Quotas

Use the following guidelines for using disk quotas:

If you enable disk quota settings on the volume where Windows XP Professional is installed and your user account has a disk quota limit, log on as Administrator to install additional Windows XP Professional components and applications. In this way,

Windows XP Professional will not charge the disk space that you use to install applications against the disk quota allowance for your user account.

You can monitor hard disk usage and generate hard disk usage information without preventing users from saving data. To do so, clear the Deny Disk Space To Users Exceeding Quota Limit check box when you enable disk quotas.

Set more restrictive default limits for all user accounts and then modify the limits to allow more disk space to users who work with large files.

If multiple users share computers running Windows XP Professional, set disk quota limits on computer volumes so that disk space is shared by all users who share the computer.

Generally, you should set disk quotas on shared volumes to limit storage for users. Set disk quotas on public folders and network servers to ensure that users share hard disk space appropriately. When storage resources are scarce, you might want to set disk quotas on all shared hard disk space.

Delete disk quota entries for users who no longer store files on a volume. You can delete quota entries for a user account only after all files that the user owns have been removed from the volume or another user has taken ownership of the files.

Practice: Enabling and Disabling Disk Quotas

In this practice you configure default quota management settings to limit the amount of data users can store on drive C (their hard disk drive). Next, you configure a custom quota setting for a user account. You increase the amount of data the user can store on drive C to 20

MB with a warning level set to 16 MB. Finally, you turn off quota management for drive C.

If you did not install Windows XP Professional on drive C, substitute the NTFS partition on which you did install Windows XP

Professional whenever drive C is referred to in the practice.

Run the DiskQuotas file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring disk management and disabling disk quotas.

Exercise 1: Configuring Quota Management Settings

In this exercise, you configure the quota management settings for drive C to limit the data that users can store on the volume. You then configure custom quota settings for a user account.

To configure default quota management settings

1. Log on as Fred or with an account that is a member of the Administrators group.

2. Use the User Accounts tool in Control Panel to create a user account, User5, and assign it a Limited account type.

3. In Windows Explorer, right-click the drive C icon, and then click Properties.

Windows XP Professional displays the Local Disk (C:) Properties dialog box with the General tab active.

4. Click the Quota tab.

Notice that disk quotas are disabled by default.

5. In the Quota tab, select the Enable Quota Management check box.

Notice that by default, the Do Not Limit Disk Usage option is selected.

6. Click Limit Disk Usage To.

What is the default disk space limit for new users?

If you wanted to place the same quota limit on all users of this computer, you would use the Limit Disk Usage To option.

7. Click Do Not Limit Disk Usage.

8. Select Deny Disk Space To Users Exceeding Quota Limit.

9. Select Log Event When A User Exceeds Their Quota Limit and Log Event When A User Exceeds Their Warning Limit, and then click Apply.

Windows XP Professional displays the Disk Quota dialog box, telling you that you should enable the quota system only if you are going to use quotas on this disk volume and warning you that the volume will be rescanned to update disk usage statistics if you enable quotas.

10. Click OK to enable disk quotas.

To configure quota management settings for a user

1. In the Quota tab of the Local Disk (C:) Properties dialog box, click Quota Entries.

Windows XP Professional displays the Quota Entries For Local Disk (C:) dialog box.

Are any user accounts listed? Why or why not?

2. On the Quota menu, click New Quota Entry.

Windows XP Professional displays the Select Users dialog box.

3. Ensure the Look In box says Pro1.

If you did not name your computer Pro1 or if your computer is part of a domain, select the appropriate computer or domain name.

4. In the Name text box, type User5, and then click OK.

Windows XP Professional displays the Add New Quota Entry dialog box.

What are the default settings for the user you just set a quota limit for?

5. Increase the amount of data that the user can store on drive C by changing the Limit Disk Space To setting to 10 MB and the Set

Warning Level To setting to 6 MB.

6. Click OK to return to the Quota Entries For Local Disk (C:) dialog box.

7. Close the Quota Entries For Local Disk (C:) dialog box.

8. Click OK to close the Local Disk (C:) Properties dialog box.

9. Log off.

To test quota management settings

1. Log on as User5 with no password.

2. Start Windows Explorer and create a User5 folder on drive C.

3. Insert the CD-ROM you used to install Windows XP Professional into your CD-ROM drive.

4. If a dialog box appears as a result of inserting the CD-ROM, close it.

5. Copy the i386 folder from your CD-ROM to the User5 folder.

Windows XP Professional begins copying files from the i386 folder on the CD-ROM to a new i386 folder in the User5 folder on drive C. After copying some files, Windows XP Professional displays the Error Copying File Or Folder dialog box indicating that there is not enough room on the disk.

Why did you get this error message?

6. Click OK to close the dialog box.

7. Right-click the User5 folder and then click Properties.

Notice that the Size On Disk value is slightly less than your quota limit of 10 MB.

8. Close all open windows and log off.

Exercise 2: Disabling Quota Management

In this exercise, you disable quota management settings for drive C.

To disable quota management settings for drive C

1. Log on as Fred or another account that is a member of the Administrators group.

2. Start Windows Explorer.

3. Delete the User5 folder.

4. Right-click the drive C icon, and then click Properties.

Windows XP Professional displays the Local Disk (C:) Properties dialog box with the General tab active.

5. Click the Quota tab.

6. In the Quota tab, clear the Enable Quota Management check box.

All quota settings for drive C are no longer available.

7. Click Apply.

Windows XP Professional displays the Disk Quota dialog box, warning you that if you disable quotas, the volume will be rescanned if you enable them later.

8. Click OK to close the Disk Quota dialog box.

9. Click OK to close the Local Disk (C:) Properties dialog box.

10. Close all applications and log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

,

"Questions and Answers."

1. What is the purpose of disk quotas?

2. Which of the following statements about disk quotas in Windows XP Professional is correct?

a. Disk quotas track and control disk usage on a per-user, per-disk basis.

b. Disk quotas track and control disk usage on a per-group, per-volume basis.

c. Disk quotas track and control disk usage on a per-user, per-volume basis.

d. Disk quotas track and control disk usage on a per-group, per-disk basis.

3. Which of the following statements about disk quotas in Windows XP Professional is correct? (Choose all answers that are correct.) a. Disk quotas can only be applied to Windows XP Professional NTFS volumes.

b. Disk quotas can be applied to any Windows XP Professional volume.

c. You must be logged on with the Administrator user account to configure default quota management settings.

d. Members of the Administrators and Power Users groups can configure default quota management settings.

4. You get a call from an administrator who cannot delete a quota entry for a user account. What would you tell the administrator to check?

Lesson Summary

Use Windows XP Professional disk quotas to allocate disk space usage to users.

You can set disk quotas, quota thresholds, and quota limits for all users and for individual users.

Windows XP Professional ignores compression when it calculates hard disk space usage.

You can apply disk quotas only to Windows XP Professional NTFS volumes.

Windows XP Professional disk quotas track and control disk usage on a per-user, per-volume basis.

Windows XP Professional tracks disk quotas for each volume, even if the volumes are on the same hard disk.

Windows XP Professional quotas track every user's disk space regardless of the folder in which the user stores files.

[Home]

[Previous]

[Next]

Lesson 3: Increasing Security with EFS

Encryption is the process of making information indecipherable to protect it from unauthorized viewing or use. A key is required to decode the information. The Microsoft Encrypting File System (EFS) provides encryption for data in NTFS files stored on disk. This encryption is public key-based and runs as an integrated system service, making it easy to manage, difficult to attack, and transparent to the file owner. If a user who attempts to access an encrypted NTFS file has the private key to that file, the file can be decrypted so that the user can open the file and work with it transparently as a normal document. A user without the private key is denied access.

Windows XP Professional also includes the Cipher command, which provides the ability to encrypt and decrypt files and folders from a command prompt. Windows XP Professional also provides a recovery agent. In the event that the owner loses the private key, the recovery agent can still recover the encrypted file.

After this lesson, you will be able to

Encrypt folders and files

Decrypt folders and files

Estimated lesson time: 40 minutes

Understanding EFS

EFS allows users to encrypt NTFS files by using a strong public key-based cryptographic scheme that encrypts all files in a folder. Users with roaming profiles can use the same key with trusted remote systems. No administrative effort is needed to begin, and most operations are transparent. Backups and copies of encrypted files are also encrypted if they are in NTFS volumes. Files remain encrypted if you move or rename them, and temporary files created during editing and left unencrypted in the paging file or in a temporary file do not defeat encryption.

You can set policies to recover EFS-encrypted data when necessary. The recovery policy is integrated with overall

Windows XP Professional security policy. Control of this policy can be delegated to individuals with recovery authority, and different recovery policies can be configured for different parts of the enterprise. Data recovery discloses only the recovered data, not the key that was used to encrypt the file. Several protections ensure that data recovery is possible and that no data is lost in the case of total system failure.

EFS is implemented either from Windows Explorer or from the command line. It can be enabled or disabled for a computer, domain, or organizational unit (OU) by resetting recovery policy in the Group Policy console in Microsoft

Management Console (MMC).

To set Group Policy for the domain or for an OU, your computer must be part of a Microsoft Windows 2000 domain.

You can use EFS to encrypt and decrypt files on remote file servers but not to encrypt data that is transferred over the network. Windows XP Professional provides network protocols, such as Secure Sockets Layer (SSL) authentication, to encrypt data over the network.

Table 14.4 lists the key features provided by Windows XP Professional EFS.

Table 14.4 EFS Features

Feature

Transparent encryption

Description

In EFS, file encryption does not require the file owner to decrypt and re-encrypt the file on each use. Decryption and encryption happen transparently on file reads and writes to disk.

Public key encryption resists all but the most sophisticated methods of attack.

Therefore, in EFS, the file encryption keys areencrypted using a public key from

Strong protection of encryption keys the user's certificate. (Note that Windows XP Professional and Windows 2000 use

X.509 v3 certificates.) The list of encrypted file encryption keys is stored with the encrypted file and is unique to it. To decrypt the file encryption keys, the file owner supplies a private key, which only he or she has.

Integral data-recovery system

If the owner's private key is unavailable, the recovery agent can open the file using his or her own private key. There can be more than one recovery agent, each with a different public key, but at least one public recovery key must be present on the system to encrypt a file.

Secure temporary and paging files

Many applications create temporary files while you edit a document, and these temporary files can be left unencrypted on the disk. On computers running

Windows XP Professional, EFS can be implemented at the folder level, so any temporary copies of an encrypted file are also encrypted, provided that all files are on NTFS volumes. EFS resides in the Windows operating system kernel and uses the nonpaged pool to store file encryption keys, ensuring that they are never copied to the paging file.

Encrypting

The recommended method to encrypt files is to create an NTFS folder and then encrypt the folder. To encrypt a folder, in the Properties dialog box for the folder, click the General tab. In the General tab, click Advanced, and then select the

Encrypt Contents To Secure Data check box. All files placed in the folder are encrypted and the folder is now marked for encryption. Folders that are marked for encryption are not actually encrypted; only the files within the folder are encrypted.

Compressed files cannot be encrypted, and encrypted files cannot be compressed.

After you encrypt the folder, when you save a file in that folder, the file is encrypted using file encryption keys, which are fast symmetric keys designed for bulk encryption. The file is encrypted in blocks, with a different file encryption key

for each block. All of the file encryption keys are stored and encrypted in the Data Decryption field (DDF) and the Data

Recovery field (DRF) in the file header.

By default, encryption provided by EFS is standard 56-bit encryption. For additional security, North American users can obtain 128-bit encryption by ordering the Enhanced CryptoPAK from Microsoft. Files encrypted by the CryptoPAK cannot be decrypted, accessed, or recovered on a system that supports only the 56-bit encryption.

You use a file that you encrypted just like you would use any other file, as encryption is transparent. There is one exception to using an encrypted file just like you would any other file: encrypted files can't be shared. You do not need to decrypt a file you encrypted before you can use it. When you open an encrypted file, your private key is applied to the

DDF to unlock the list of file encryption keys, allowing the file contents to appear normally. EFS automatically detects an encrypted file and locates a user certificate and associated private key. You open the file, make changes to it, and save it, as you would any other file. However, if someone else tries to open your encrypted file, he or she is unable to access the file and receives an access denied message.

If an administrator removes the password on a user account, the user account will lose all EFS-encrypted files, personal certificates, and stored passwords for Web sites or network resources. Each user should make a password reset disk to avoid this situation. To create a password floppy disk, open User Accounts and, under Related Tasks, click Prevent A

Forgotten Password. The Forgotten Password Wizard steps you through creating the password reset disk.

Decrypting

Decrypting a folder or file refers to clearing the Encrypt Contents To Secure Data check box in a folder's or file's

Advanced Attributes dialog box, which you access from the folder's or file's Properties dialog box. Once decrypted, the file remains so until you select the Encrypt Contents To Secure Data check box. The only reason you might want to decrypt a file would be if other people needed access to the folder or file-for example, if you want to share the folder or make the file available across the network.

Using the Cipher Command

The Cipher command provides the ability to encrypt and decrypt files and folders from a command prompt. The following example shows the available switches for the Cipher command, described in Table 14.5: cipher [/e | /d] [/s:folder_name] [/a] [/i] [/f] [/q] [/h] [/k] [file_name [...]]

Table 14.5 Cipher Command Switches

Switch Description

/e Encrypts the specified folders. Folders are marked so any files that are added later are encrypted.

/d

/s

Decrypts the specified folders. Folders are marked so any files that are added later are not encrypted.

Performs the specified operation on files in the given folder and all subfolders.

/a

/i

Performs the specified operation on files as well as folders. Encrypted files could be decrypted when modified, if the parent folder is not encrypted. To avoid this, encrypt the file and the parent folder.

Continues performing the specified operation even after errors have occurred. By default, Cipher stops when an error is encountered.

/f

/q

/h

Forces the encryption operation on all specified files, even those that are already encrypted. Files that are already encrypted are skipped by default.

Reports only the most essential information.

Displays files with the hidden or system attributes, which are not shown by default.

/k

Creates a new file encryption key for the user running the Cipher command. Using this option causes the

Cipher command to ignore all other options.

file_name Specifies a pattern, file, or folder.

If you run the Cipher command without parameters, it displays the encryption state of the current folder and any files that it contains. You can specify multiple filenames and use wildcards. You must put spaces between multiple parameters.

Using the Recovery Agent

If you lose your file encryption certificate and associated private key through disk failure or any other reason, a person designated as the recovery agent can open the file using his or her own certificate and associated private key. If the recovery agent is on another computer in the network, send the file to the recovery agent. The recovery agent can bring his or her private key to the owner's computer, but it is never a good security practice to copy a private key onto another computer.

The default recovery agent is the administrator of the local computer unless the computer is part of a domain. In a domain, the domain administrator is the default recovery agent. You can designate alternative EFS recovery accounts for computers grouped by OUs. Before you can designate accounts to alternate recovery agents in a Windows 2000 domain, you must deploy Windows 2000 Server and Certificate Services to issue recovery agent certificates. For more

information about Certificate Services, see Chapter 16

, "Windows 2000 Certificate Services and Public Key

Infrastructure" in the Microsoft Windows 2000 Server Resource Kit Distributed System Guide.

It is a good security practice to rotate recovery agents. However, if the agent designation changes, access to the file is denied. For this reason, you should keep recovery certificates and private keys until all files that are encrypted with them have been updated.

The person designated as the recovery agent has a special certificate and associated private key that allow data recovery.

To recover an encrypted file, the recovery agent does the following:

1. Use Backup or another backup tool to restore a user's backup version of the encrypted file or folder to the computer where his or her file recovery certificate is located.

2. In Windows Explorer, open the Properties dialog box for the file or folder, and in the General tab, click

Advanced.

3. Clear the Encrypt Contents To Secure Data check box.

4. Make a backup version of the decrypted file or folder and return the backup version to the user.

Disabling EFS

You can disable EFS for a domain, OU, or computer by applying an empty Encrypted Data Recovery Agent policy setting. Until Encrypted Data Recovery Agent settings are configured and applied through Group Policy, there is no policy, so the default recovery agents are used by EFS. EFS must use the recovery agents that are listed in the Encrypted

Data Recovery Agents Group Policy agent if the settings have been configured and applied. If the policy that is applied is empty, EFS does not operate.

Practice: Encrypting Files

In this practice, you log on as an administrator and encrypt a folder and its files. You then log on using a different user account and attempt to open an encrypted file and disable encryption on the encrypted file. Finally, you log on again with the same administrative account and decrypt the folder and its contents that you previously encrypted.

Run the EncryptingFiles file in the Demos folder on the CD-ROM accompanying this book for a demonstration of encrypting folders and files, accessing encrypting files, and decrypting encrypted files.

Exercise 1: Encrypting Files

In this exercise, you will encrypt a folder and its contents.

To encrypt a file

1. In Windows Explorer, create C:\Secret\File1, and then right-click File1 and click Properties.

Windows XP Professional displays the Properties dialog box with the General tab active.

2. Click Advanced.

The Advanced Attributes dialog box appears.

3. Click the Encrypt Contents To Secure Data check box and then click OK.

4. Click OK to close the File1 Properties dialog box.

An Encryption Warning dialog box informs you that you are about to encrypt a file that is not in an encrypted folder. The default is to encrypt the folder and file, but you can also choose to encrypt only the file.

5. Click Cancel to close the Encryption Warning dialog box, and then click Cancel again to close the File1

Properties dialog box without encrypting File1.

6. In Windows Explorer, right-click C:\Secret and then click Properties.

7. Click Advanced.

The Advanced Attributes dialog box appears.

8. Select the Encrypt Contents To Secure Data check box and then click OK.

9. Click OK to close the Secret Properties dialog box.

The Confirm Attribute Change dialog box informs you that you are about to encrypt a folder. You have two choices: you can encrypt only this folder, or you can encrypt the folder and all subfolders and files in the folder.

10. Select the Apply Changes To This Folder, Subfolders And Files option, and then click OK.

11. In the Secret folder, right-click File1 and then click Properties.

The File1 Properties dialog box appears.

12. Click Advanced.

The Advanced Attributes dialog box appears. Notice that the Encrypt Contents To Secure Data check box is selected.

13. Close the Advanced Attributes dialog box.

14. Close the Properties dialog box.

15. Close all windows and log off.

Exercise 2: Testing the Encrypted Files

In this exercise, you log on using the User5 account and then attempt to open an encrypted file. You then try to disable encryption on the encrypted files.

To test an encrypted file

1. Log on as User5 with a password of password.

2. Start Windows Explorer and open C:\Secret\File1.

What happens?

3. Close Notepad.

To attempt to disable the encryption

1. Right-click C:\Secret\File1 and then click Properties.

2. Click Advanced.

3. Clear the Encrypt Contents To Secure Data check box and then click OK.

4. Click OK to close the File1 Properties dialog box.

The Error Applying Attributes dialog box appears and informs you that access to the file is denied.

5. Click Cancel.

6. Close all open windows and dialog boxes.

7. Log off as User5 and log on as Administrator.

Exercise 3: Decrypting Folders and Files

In this exercise, you decrypt the folder and file that you previously encrypted.

To decrypt files

1. Start Windows Explorer.

2. Right-click C:\Secret\File1, and then click Properties.

3. Click Advanced.

4. Clear the Encrypt Contents To Secure Data check box and then click OK.

5. Click OK to close the File1 Properties dialog box.

6. Close Windows Explorer and log off.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions and Answers."

1. What is encryption and what is the Microsoft EFS?

2. Which of the following files and folders will Windows XP Professional allow you to encrypt? (Choose all answers that are correct.) a. A file on an NTFS volume b. A folder on a FAT volume c. A file stored on a floppy d. A folder on an NTFS volume

3. How do you encrypt a folder? Is the folder actually encrypted?

4. If the private key belonging to the owner of an encrypted file is not available, how can you decrypt the file?

5. By default, the recovery agent for a computer running Windows XP Professional in a workgroup is

____________ and the recovery agent for a computer running Windows XP Professional in a domain environment is _____________________.

Lesson Summary

EFS provides the core file encryption technology for storage of NTFS files on disk.

EFS allows users to encrypt NTFS files by using a strong public key-based cryptographic scheme that encrypts all files in a folder.

Users with roaming profiles can use the same key with trusted remote systems.

Backups and copies of encrypted files are also encrypted if they are in NTFS volumes.

Files remain encrypted if you move or rename them, and encryption is not defeated by leakage to paging files.

Windows XP Professional also provides a recovery agent. In the event an owner loses the private key, the recovery agent can still recover the encrypted file.

EFS is implemented either from Windows Explorer or from the command line using commands such as Cipher.

EFS can be enabled or disabled for a computer, domain, or OU by resetting recovery policy in the Group Policy console in MMC.

You can use EFS to encrypt and decrypt files on remote computers, but not to encrypt data that is transferred over the network. Windows XP Professional provides network protocols, such as SSL, to encrypt data over the network.

[Home]

[Previous]

[Next]

Lesson 4: Using Disk Defragmenter, Check Disk, and

Disk Cleanup

Windows XP Professional saves files and folders in the first available space on a hard disk and not necessarily in an area of contiguous space. The parts of the files and folders are scattered over the hard disk rather than being in a contiguous area. This scattering of files and folders across a hard disk is known as fragmentation. When your hard disk contains numerous fragmented files and folders, your computer takes longer to access them because it requires several additional reads to collect the various pieces. Creating new files and folders also takes longer because the available free space on the hard disk is scattered. Your computer must save a new file or folder in various locations on the hard disk.

Temporary files, Internet cache files, and unnecessary programs also take up space on your computer's hard drive. Sometimes there are file system errors and sometimes sectors on your hard disk go bad, which can cause you to lose data you have stored on your hard disk. This lesson introduces three Windows XP Professional tools-Disk Defragmenter, Check Disk, and Disk Cleanup-that help you organize your hard disks, recover readable information from damaged areas on your hard disk, and clean up any temporary files and unnecessary programs taking up space on your hard drive.

After this lesson, you will be able to

Describe fragmentation and defragmentation

Use Disk Defragmenter to organize your hard disks

Use Check Disk to search for and repair file system errors and recover readable information from bad sectors

Use Disk Cleanup to clean up your hard disks

Estimated lesson time: 60 minutes

Defragmenting Disks

The process of finding and consolidating fragmented files and folders is called defragmenting. Disk Defragmenter locates fragmented files and folders and defragments them by moving the pieces of each file or folder to one location so that each occupies a single, contiguous space on the hard disk. Consequently, your system can access and save files and folders more efficiently. By consolidating files and folders,

Disk Defragmenter also consolidates free space, making it less likely that new files will be fragmented. Disk Defragmenter can defragment

FAT, FAT32, and NTFS volumes.

You access Disk Defragmenter by selecting Start, pointing to All Programs, pointing to Accessories, pointing to System Tools, and then clicking Disk Defragmenter. The Disk Defragmenter dialog box is split into three areas, as shown in Figure 14.8.

Figure 14.8 The Disk Defragmenter dialog box

The upper portion of the dialog box lists the volumes that you can analyze and defragment. The middle portion provides a graphic representation of how fragmented the selected volume is. The lower portion provides a dynamic representation of the volume that continuously updates during defragmentation. The display colors indicate the condition of the volume as follows:

Red indicates fragmented files.

Blue indicates contiguous (nonfragmented) files.

Green indicates system files, which Disk Defragmenter cannot move.

White indicates free space on the volume.

By comparing the Analysis Display band to the Defragmentation Display band during and after defragmentation, you can easily see the improvement in the volume.

You can also open Disk Defragmenter by selecting a drive you want to defragment in Windows Explorer or My Computer. On the File menu, click Properties, click the Tools tab, and click Defragment Now. Then select one of the options described in Table 14.6.

Table 14.6 Disk Defragmenter Options

Option Description

Analyze

Click this button to analyze the disk for fragmentation. After the analysis, the Analysis Display band provides a graphic representation of how fragmented the volume is.

Defragment

Click this button to defragment the disk. After defragmentation, the Defragmentation Display band provides a graphic representation of the defragmented volume.

Figure 14.9 shows the Disk Defragmenter dialog box after you have analyzed the C drive. Windows XP Professional displays another Disk

Defragmenter dialog box indicating that you need to defragment the volume. You can view a report showing more details about the fragmentation on your volume, close the dialog box and run the defragmenter at a later time, or defragment the volume now.

Figure 14.9 The Disk Defragmenter window showing a completed analysis

If there is not enough fragmentation to require you to defragment the volume, Windows XP Professional displays a Disk Defragmenter dialog box indicating that there is no need to defragment the volume at this time.

Using Disk Defragmenter Effectively

The following list provides some guidelines for using Disk Defragmenter:

Run Disk Defragmenter when the computer will receive the least usage. During defragmentation, data is moved around on the hard disk and that process is microprocessor-intensive. The defragmentation process will adversely affect access time to other disk-based resources.

Educate users to defragment their local hard disks at least once a month to prevent accumulation of fragmented files.

Analyze the target volume before you install large applications and defragment the volume if necessary. Installations complete more quickly when the target media has adequate contiguous free space. Additionally, accessing the application after installation is faster.

When you delete a large number of files or folders, your hard disk might become excessively fragmented, so be sure that you analyze it afterward. Generally, you should defragment hard disks on busy file servers more often than those on single-user client computers.

Using Check Disk

Check Disk attempts to repair file system errors, locate bad sectors, and recover readable information from those bad sectors. All files must be closed for this program to run. To access Check Disk, select the drive you want to check in Windows Explorer or My Computer. Click the File menu, click Properties, click the Tools tab, and click Check Now. Select one of the options on the Check Disk dialog box shown in

Figure 14.10. The options are explained in Table 14.7.

Figure 14.10 The Check Disk dialog box

Table 14.7 Check Disk Options

Check box

Automatically Fix File System Errors

Description

Select this check box to have Windows XP Professional attempt to repair file system errors found during disk checking. All files must be closed for this program to run. If the drive is currently in use, a message asks you if you would like to reschedule the disk checking for the next time you restart your computer. Your drive is not available to run other tasks while the disk is being checked.

Select this check box to have Windows XP Professional attempt to repair file system errors found during disk checking, locate bad sectors, and recover any readable information located in those bad sectors. All files must be closed for this program to run.

Scan For And Attempt Recovery Of Bad Sectors

If the drive is currently in use, a message asks you if you would like to reschedule the disk checking for the next time you restart your computer. Your drive is not available to run other tasks while the disk is being checked. If you select this check box, you do not need to select Automatically Fix File System Errors because Windows XP Professional attempts to fix any errors on the disk.

Check Disk runs in five phases: file verification, index verification, security descriptor verification, file data verification, and free space verification.

You can also use the command-line version of Check Disk. The command-line syntax for Chkdsk is as follows:

Chkdsk [volume[[path]filename]]] [/f] [/v] [/r] [/x] [/i] [/c] [/l[:size]]

The switches used by Chkdsk are explained in Table 14.8.

Table 14.8 Chkdsk Switches

Switch Description

Filename

Specifies the file or set of files to check for fragmentation. You can use the wildcards * and ?. This switch is only valid on volumes formatted with FAT12, FAT16, and FAT32 file systems.

Path

Specifies the location of a file or set of files within the folder structure of the volume. This switch is only valid on volumes formatted with FAT12, FAT16, and FAT32 file systems.

Size

Changes the log file size. You must use the /l switch with this switch. This switch is only valid on volumes formatted with

NTFS.

/s

/?

/i

/l

Volume

Specifies the drive letter (followed by a colon), mount point, or volume name. This switch is only valid on volumes formatted with FAT12, FAT16, and FAT32 file systems.

/c

/f

Skips the checking of cycles within the folder structure. This switch is only valid on volumes formatted with NTFS.

Fixes errors on the volume. If Chkdsk cannot lock the volume, you are prompted to have Chkdsk check it the next time the computer starts.

/r

/v

Performs a less vigorous check of index entries. This switch is only valid on volumes formatted with NTFS.

Displays the current size of the log file. This switch is only valid on volumes formatted with NTFS.

Locates bad sectors and recovers readable information. If Chkdsk cannot lock the volume, you are prompted to have Chkdsk check it the next time the computer starts.

On volumes formatted with FAT12, FAT16, or FAT32, displays the full path and name of every file on the volume. On volumes formatted with NTFS, displays any cleanup messages.

Forces the volume to dismount first, if necessary.

Displays this list of switches.

Used without parameters, Chkdsk displays the status of the disk in the current volume.

Using Disk Cleanup

You can use Disk Cleanup to free up disk space by deleting temporary files and uninstalling programs. Disk Cleanup lists the temporary files, Internet cache files, and unnecessary programs that you can safely delete. To access Disk Cleanup, select the drive you want to check in Windows Explorer or My Computer. On the File menu, click Properties, and in the General tab, click Disk Cleanup. The Disk Cleanup dialog box is shown in Figure 14.11 and its options are explained in Table 14.9.

Figure 14.11 The Disk Cleanup dialog box

Table 14.9 Disk Cleanup Deletion Options

Check box

Downloaded Program Files

Temporary Internet Files

Recycle Bin

Description

Select this check box to have Windows XP Professional delete theActiveX controls and Java applets that have been downloaded automatically from the Internet when users viewed certain pages.

These files are temporarily stored in the Downloaded Program Files folder on the computer's hard disk.

Select this check box to have Windows XP Professional delete the files in the Temporary

Internet Files folder on the computer's hard drive.

These files are Web pages stored on the hard disk for quick viewing. Users' personalized settings for Web pages are not deleted.

Select this check box to have Windows XP Professional delete thefiles in the Recycle bin.

When you delete a file from your computer, it is not permanently removed from the computer until the Recycle Bin is emptied (by deleting the files contained in the Recycle Bin).

Temporary Files

Select this check box to have Windows XP Professional delete any Temporary files on this volume.

Programs sometimes store temporary information in a Temp folder. Before a program closes, it usually deletes this information. You can safely delete temporary files that have not been modified in more than a week.

WebClient/Publisher Temporary Files

Select this check box to have Windows XP Professional delete any temporary

WebClient/Publisher files.

The WebClient/Publisher service maintains a cache of accessed files on this disk. These files are kept locally for performance reasons only and can be deleted safely.

Compress Old Files

Select this check box to compress files that have not been accessed in a while.

No files are deleted and all files are still accessible.

Because files compress at different rates, the value displayed for the amount of space you will recover is an approximation.

Catalog Files For any The Content Indexer

Select this check box to have Windows XP Professional delete old catalog files left over from previous indexing operations.

The Indexing Service speeds up and enriches file searches by maintaining an index of the files on this disk.

There are additional ways to free up space on your hard disk using Disk Cleanup. Click the More Options tab in the Disk Cleanup dialog box (see Figure 14.12). The available options are explained in Table 14.10.

Figure 14.12 The More Options tab of the Disk Cleanup dialog box

Table 14.10 Disk Cleanup More Options Tab Options

Option Description

Click Clean Up under Windows Components to launch the Windows Components Wizard, which allows you to add and remove Windows components from your installation.

Windows Components

The Windows Components include Accessories and Utilities, Fax Services, Indexing Services, Microsoft Internet

Explorer, Internet Information Services (IIS), Management and Monitoring Tools, Message Queuing, MSN

Explorer, Networking Services, Other Network File and Print Services, and Update Root Certificates.

Installed Programs

Click Clean Up under Installed Programs to launch Add Or Remove Programs, which allows you to install programs and to uninstall programs that are no longer in use.

The list of programs available to be uninstalled depends on what programs are installed on your computer.

System Restore

Click Clean Up under System Restore to delete all but the most recent restore points.

For more information about restore points and System Restore, see

Chapter 18 , "Modifying and Troubleshooting

the Boot Process."

Practice: Managing NTFS Compression

In this practice you use the Disk Defragmenter to determine if your hard disk is fragmented. If it is, you will defragment your hard disk. You then use Check Disk to examine your hard disk for file system errors, fix them, locate any bad sectors, and recover any readable information from those bad sectors. Finally, you use Disk Cleanup to free up disk space by deleting temporary files and uninstalling programs.

If you started with a clean hard disk and installed Windows XP Professional in Chapter 2

, "Installing Windows XP Professional," there should be little for any of these disk maintenance tools to clean up or repair.

Exercise 1: Defragmenting a Hard Drive

In Exercise 1, you use the Disk Defragmenter to determine if your hard disk is fragmented. If it is, you will defragment your hard disk.

To defragment a hard drive

1. Log on as Fred or an account that is a member of the Administrators group.

2. Click Start, and then point to More Programs.

3. Point to Accessories, point to System Tools, and then click Disk Defragmenter.

Windows XP Professional displays the Disk Defragmenter dialog box.

4. If there are multiple volumes on your computer, select C and then click Analyze.

5. If Windows XP Professional displays a dialog box indicating that there is no need to defragment your volume at this time, click

Close and then read through steps 6 through 12.

6. If Windows XP Professional displays a Disk Defragmenter dialog box indicating that you need to defragment your volume now (see

Figure 14.13), click View Report.

Figure 14.13 The Disk Defragmenter dialog box

7. In the Analysis Report dialog box, shown in Figure 14.14, scroll through the Volume Information box.

Figure 14.14 The Analysis Report dialog box

8. Scroll through the Most Fragmented Files box, and then click Save As.

Windows XP Professional displays the Save Defragmentation Report dialog box. Notice that the default title for the report is

VolumeC and the default location for the report is in the My Documents folder.

9. Click Save to save the report as VolumeC in the My Documents folder.

You are returned to the Analysis Report dialog box.

10. Click Defragment.

Disk Defragmenter defragments the volume. This could take a long time to complete, depending on the size of the volume and the amount of fragmentation.

11. Compare the Analysis Display with the Defragmentation Display (see Figure 14.15).

Figure 14.15 The Disk Defragmenter dialog box

12. Close Disk Defragmenter.

Leave the Local Disk (C:) Properties dialog box open for the next exercise.

Exercise 2: Running Check Disk

In Exercise 2, you run Check Disk to examine your hard disk for file system errors. If any errors are found, you fix them. You also locate any bad sectors and recover any readable information from those bad sectors.

To use Check Disk on a hard drive

1. In the Local Disk (C:) Properties dialog box, click the Tools tab.

2. In the Tools tab, click Check Now.

Windows XP Professional displays the Check Disk Local Disk (C:) dialog box.

3. Select Scan For And Attempt Recovery Of Bad Sectors.

4. Click Start.

It might take a few minutes to complete all five phases.

5. When prompted that the Disk Check is complete, click OK.

Leave the Local Disk (C:) Properties dialog box open for the next exercise.

Exercise 3: Running Disk Cleanup

In Exercise 3, you run Disk Cleanup to free up disk space. Disk Cleanup allows you to delete temporary files and uninstall programs.

To use Disk Cleanup on a hard drive

1. In the General tab of the Local Disk (C:) Properties dialog box, click Disk Cleanup.

A Disk Cleanup dialog box appears, indicating that it is calculating how much space you will be able to free on the C drive.

2. In the Files To Delete list box in the Disk Cleanup For (C:) dialog box, review the files that Disk Cleanup is recommending you delete.

If you started with a clean hard disk and installed Windows XP Professional in

Chapter 2 , there might be few, if any, files that Disk

Cleanup found to delete. If you wanted to delete any files that Disk Cleanup recommended you delete, make sure that the files you want to delete are selected (a check mark is in the check box in front of the files) and then click OK.

3. Click the More Options tab.

When would you use the options available in the More Options tab?

4. Click Cancel.

5. Close Disk Cleanup and all open windows.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next chapter. If you have difficulty answering these questions, review the material in this lesson before beginning the next chapter. The answers are in

Appendix A , "Questions

and Answers."

1. What is fragmentation and what problems does it cause?

2. The process of finding and consolidating fragmented files and folders is called _______________. The Windows XP Professional system tool that locates fragmented files and folders and arranges them in contiguous space is _____________________.

3. Windows XP Professional provides a tool to locate fragmented files and folders and arrange them in contiguous space on volumes formatted with which file systems?

4. Which of the following functions does Check Disk perform? (Choose all answers that are correct.) a. Locate fragmented files and folders and arrange contiguously b. Locate and attempt to repair file system errors c. Locate bad sectors and recover readable information from those bad sectors d. Delete temporary files and offline files

5. Why do you need to empty the Recycle Bin?

Lesson Summary

Windows XP Professional saves files and folders in the first available space on a hard disk and not necessarily in an area of contiguous space, which can lead to file and folder fragmentation.

Windows XP Professional takes longer to access existing files and folders and to create new files and folders when the hard disk is fragmented.

Disk Defragmenter, a Windows XP Professional system tool, locates fragmented files and folders and defragments them, enabling your system to access and save files and folders more efficiently.

Disk Defragmenter not only consolidates files and folders, it also consolidates free space, making it less likely that new files will be fragmented.

Disk Defragmenter can defragment FAT, FAT32, and NTFS volumes.

Check Disk attempts to repair file system errors, locate bad sectors, and recover readable information from those bad sectors.

Disk Cleanup frees up disk space by locating temporary files, Internet cache files, and unnecessary programs that you can safely delete, and it also deletes temporary files and uninstalling programs.

[Home]

[Previous]

[Next]

Chapter 15

Monitoring, Managing, and Maintaining

Network Resources

About This Chapter

This chapter prepares you to monitor network resources. You learn about the Shared Folders snap-in and how to use it to view and create shares. You also learn how to use the Shared Folders snap-in to view sessions, open files, and disconnect users from your shared folders.

Before You Begin

To complete this chapter, you must have

Microsoft Windows XP Professional installed on the computer

[Home]

[Previous]

[Next]

Lesson 1: Monitoring Access to Shared Folders

Windows XP Professional includes the Shared Folders snap-in, which allows you to easily monitor access to network resources and send administrative messages to users. You monitor access to network resources to assess and manage current usage on network servers. You monitor access to shared folders to determine how many users currently have a connection to each folder. You can also monitor open files to determine which users are accessing the files, and you can disconnect users from one open file or from all open files.

After this lesson, you will be able to

Identify three reasons for monitoring access to network resources

Identify who can monitor access to network resources

View and monitor the shared folders on a computer

View and modify the properties of a shared folder

Monitor open files and disconnect users from one or all open files

Estimated lesson time: 30 minutes

Understanding Monitoring Network Resources

It is important that you understand why you should monitor the network resources in your computer environment. Some of the reasons it is important to assess and manage network resources are included in the following list:

Maintenance. You should determine which users are currently using a resource so that you can notify them before making the resource temporarily or permanently unavailable.

Security. You should monitor user access to resources that are confidential or need to be secure to verify that only authorized users are accessing them.

Planning. You should determine which resources are being used and how much they are being used so that you can plan for future system growth.

When you add the Shared Folders snap-in to the Microsoft Management Console (MMC) console, you specify whether you want to monitor the resources on the local computer or a remote computer.

Requirements to Monitor Network Resources

Not all users can monitor access to network resources. Table 15.1 lists the group membership requirements for monitoring access to network resources using the Shared Folders snap-in.

Table 15.1 Groups That Can Access Network Resources

A member of these groups

Administrators or Server Operators for the domain

Can monitor

All computers in the domain

Administrators or Power Users for a member server or a computer running Windows

XP Professional

Local or remote computers in the workgroup

Monitoring Shared Folders

You use the Shares folder in the Shared Folders snap-in to view a list of all shared folders on the computer and to determine how many users have a connection to each folder. In Figure 15.1, the Shares folder has been selected in the Computer Management console tree and all the shared folders on that computer are shown in the details pane.

Figure 15.1 Shares folder of the Shared Folders snap-in

Table 15.2 explains the information provided in the details pane shown in Figure 15.1.

Table 15.2 Fields in the Details Pane for the Shares Folder

Column name

Shared Folder

Description

The shared folders on the computer. This is the name that was given to the folder when it was shared.

Shared Path

Type

The path to the shared folder.

The type of network connection: Microsoft Windows, Novell NetWare, or Apple Macintosh.

# Client Connections The number of clients who have made a remote connection to the shared folder.

Comment Descriptive text about the folder. This comment was provided when the folder was shared.

Windows XP Professional does not update the list of shared folders, open files, and user sessions automatically. To update these lists,

on the Action menu, click Refresh.

Determining How Many Users Can Access a Shared Folder Concurrently

You can use the Shared Folders snap-in to determine the maximum number of users that are permitted to access a folder. In the

Shared Folders details pane, click the shared folder for which you want to determine the maximum number of concurrent users who can access the folder. On the Action menu, click Properties, displaying the Properties dialog box for the shared folder. The General tab shows you the user limit. In Windows XP Professional the maximum is 10, but you can set this to a lower value. You can also use the Shared Folders snap-in to determine if the maximum number of users that are permitted to access a folder has been reached.

There is a quick and easy way to troubleshoot connectivity problems when a user can't connect to a share. Determine the number of connections to the share and the maximum connections allowed. If the maximum number of connections has already been made, the user cannot connect to the shared resource.

Modifying Shared Folder Properties

You can modify existing shared folders, including shared folder permissions, from the Shares folder. To change a shared folder's properties, click the shared folder, and then on the Action menu, click Properties. The General tab of the Properties dialog box shows you the share name, the path to the shared folder, and any comment that has been entered. The General tab also allows you to view and set a user limit for accessing the shared folder. The Security tab allows you to view and change the shared folder permissions.

Monitoring Open Files

Use the Open Files folder in the Shared Folders snap-in to view a list of open files that are located in shared folders and the users who have a current connection to each file. You can use this information when you need to contact users to notify them that you are shutting down the system. Additionally, you can determine which users have a current connection and should be contacted when another user is trying to access a file that is in use.

Table 15.3 describes the information that is available in the Open Files folder.

Table 15.3 Information Available in the Open Files Folder

Column name Description

Open File The name of the open files on the computer.

Accessed By The logon name of the user who has the file open.

Type The operating system running on the computer where the user is logged on.

# Locks

The number of locks on the file. Programs can request the operating system to lock a file to gain exclusive access and prevent other programs from making changes to the file.

Open Mode The type of access that the user's application requested when it opened the file, such as Read or Write.

Disconnecting Users from Open Files

You can disconnect users from one open file or from all open files. If you make changes to the NT file system (NTFS) permissions for a file that is currently opened by a user, the new permissions will not affect the user until he or she closes and then attempts to

reopen the file.

You can force these changes to take place immediately by doing either of the following:

Disconnecting all users from all open files. To disconnect all users from all open files, in the Shared Folders snap-in console tree, click Open Files, and then on the Action menu, click Disconnect All Open Files.

Disconnecting all users from one open file. To disconnect users from one open file, in the Shared Folders snap-in console tree, click Open Files. In the details pane select the open file, and then on the Action menu, click Close Open File.

Disconnecting users from open files can result in data loss.

Practice: Managing Shared Folders

In this practice you use the Shared Folders snap-in to view the shared folders and open files on your server. If there are any open files on your server and you want to disconnect them, use the Disconnect All Open Files selection. This selection will disconnect all users from all open files.

To view the shared folders on your computer

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, and point to All Programs.

3. Point to Administrative Tools and click Computer Management.

Windows XP Professional displays Computer Management.

You can also use Computer Management Local that you created in Chapter 3 , "Setting Up and Managing User Accounts." It is

also listed in Administrative Tools.

4. In the console tree (left pane) of Computer Management, expand System Tools, and then expand Shared Folders.

5. In the console tree, under Shared Folders, click Shares.

Notice that the details pane shows a list of the existing shared folders on your computer.

To view the open files on your computer

1. In the console tree, under Shared Folders, click Open Files.

If you are working on a computer that is not connected to a network, there will not be any open files because the open files only show connections from a remote computer to a share on your computer.

2. If there are any open files and you want to disconnect them, on the Action menu, click Disconnect All Open Files.

3. Leave Computer Management open and remain logged on as Fred or a user account that is a member of the Administrators group for the next practice.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have

difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in Appendix

A , "Questions and Answers."

1. Why is it important to manage network resources?

2. On a computer running Windows XP Professional, members of the ___________________________ and

_________________________ groups can use the Shared Folders snap-in to monitor network resources.

3. How can you determine what files are open on a computer running Windows XP Professional?

4. Which of the following statements about monitoring network resources are correct? (Choose all answers that are correct.) a. You can use the Shared Folders snap-in to disconnect all users from all open files.

b. You can use the Shared Folders snap-in to disconnect one user from one file.

c. If you change the NTFS permissions for an open file, the changes affect all users who have the file open immediately.

d. If you make changes to the NTFS permissions for an open file, the changes do not affect the user who has that file opened until he or she closes and reopens the file.

Lesson Summary

Monitoring network resources helps you determine whether a network resource is still needed and if it is secure, and it helps you plan for future growth.

Use the Shared Folders snap-in to monitor access to network resources on local or remote computers.

Use the Shared Folders snap-in to send administrative messages to remote users.

In a workgroup, only members of the Administrators group or the Power Users group can monitor resources.

In a domain, only members of the Administrators group or the Server Operators group for the domain can monitor resources on all the computers in the domain.

Use the Shares folder in the Shared Folders snap-in to manage shared folders and open files on a computer.

[Home]

[Previous]

[Next]

Lesson 2: Creating and Sharing Local and Remote Folders

You can use the Computer Management snap-in or the Shared Folders snap-in to share an existing folder or to create a new folder and share it on the local computer or on a remote computer. You can also modify the shared folder and NTFS permissions when you share the folder.

After this lesson, you will be able to

Share a folder

Stop sharing a folder

Estimated lesson time: 20 minutes

From either the Computer Management snap-in or the Shared Folders snap-in, you can run the Create

Shared Folder Wizard to create a new folder and share it. When you use the Computer Management snapin or Shared Folders snap-in to share an existing folder or to create a new shared folder and share it,

Windows XP Professional assigns the Full Control shared folder permission to the Everyone group by default. If you select the Customize Share And Folder Permissions option, you can also assign NTFS permissions when you share the folder. Table 15.4 describes the basic share permissions you can assign to a newly created shared folder when you use the Create Shared Folder Wizard.

Table 15.4 Basic Share Permissions

Option

All Users Have Full Control

Description

The Create Shared Folder Wizard assigns the Full

Control share permission to the Everyone group.

Administrators Have Full Control, Other Users

Have Read-Only Access

Administrators Have Full Control, Other Users

Have No Access

The Create Shared Folder Wizard assigns the Full

Control share permission to the Administrators group and the Read share permission to the

Everyone group

The Create Shared Folder Wizard assigns the Full

Control share permission to the Administrators group.

Customize Share And Folder Permissions

Select this option to create your own custom share permissions and NTFS permissions.

Using either the Computer Management snap-in or the Shared Folders snap-in is the only way to create a shared folder on a remote computer. Otherwise, you need to be physically located at the computer where the folder resides to share it.

Practice: Creating a Shared Folder

In this practice, you use the Computer Management snap-in to create a new shared folder on your computer.

To create a new shared folder on your computer

1. In the console tree, under Shared Folders, click Shares.

2. On the Action menu, click New File Share.

The Create Shared Folder Wizard starts.

3. In the Create Shared Folder Wizard page, in the Folder To Share text box, type C:\Library.

4. In the Share Name text box, type Library.

5. Click Next.

A message box appears asking you if you want to create C:\Library.

6. Click Yes.

A message box appears informing you that C:\Library has been created.

7. Click OK.

The Create Shared Folder Wizard displays a final page of three basic share permission options and a customizable permissions option, as described in Table 15.4. You can use one of the three basic permissions or you can choose Customize Share And Folder Permissions to create your own permissions.

8. Click Finish to accept the default permissions option, All Users Have Full Control.

The Create Shared Folder Wizard displays a message box telling you that the folder has been successfully shared and asking if you want to create another shared folder.

9. Click No.

You can also use either the Computer Management snap-in or the Shared Folders snap-in to stop sharing a shared folder.

To stop sharing a folder

1. In the console tree, under Shared Folders, click Shares.

2. Select the Library folder in the details pane.

3. On the Action menu, click Stop Sharing.

Windows XP Professional displays a message box asking if you are sure you want to stop sharing

Library.

4. Click Yes.

The Library share disappears from the list of shared folders.

If you stop sharing a folder while a user has a file open, the user might lose data.

Sharing a Folder on a Remote Computer

If you want to share a folder on a remote computer, you run MMC and add the Computer Management snap-in or the Shared Folders snap-in to it. When you add either of these snap-ins, point it to the remote computer on which you want to create and manage shared folders.

To create a Shared Folder console to use on a remote computer

1. On the Start menu, click Run. Type mmc, and then click OK.

Windows XP Professional starts the Microsoft Management Console with a blank console displayed.

2. On the File menu, click Add/Remove Snap-In.

The Microsoft Management Console displays the Add/Remove Snap-In dialog box.

3. In the Add/Remove Snap-In dialog box, click Add.

The Microsoft Management Console displays the Add Standalone Snap-In dialog box.

4. Click Shared Folders and then click Add.

The Shared Folders dialog box appears (see Figure 15.2).

Figure 15.2 The Shared Folders dialog box that allows you to specify a remote computer

5. In the Shared Folders dialog box, select Another Computer and then type in the name of the remote computer.

If you select the Allow The Selected Computer To Be Changed When Launching From The

Command Line check box, you can choose which remote computer on which you want to create and manage shares. If you do not select this check box, the console is always directed to the same remote computer.

6. Click Finish.

7. Close the Add/Remove Snap-In and Add Standalone Snap-In dialog boxes.

If you want to create and manage shared folders on remote computers and you are not in a domain, you must create the same user account with the same password on each computer. In workgroups, you do not have a central database that contains all user accounts. Instead, each computer in the workgroup has its own local security database. For more information on local security databases, see

Chapter 3 , "Setting Up

and Managing User Accounts."

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before

beginning the next lesson. The answers are in Appendix A

, "Questions and Answers."

1. Which of the following tools can you use to create a shared folder on a remote computer? (Choose all answers that are correct.) a. Windows Explorer b. Computer Management snap-in c. Domain Management snap-in d. Shared Folders snap-in

2. How can you create and share a folder on a remote computer?

3. Can you create a custom tool that will allow you to administer more than one specific remote computer? How?

Lesson Summary

You use the Computer Management snap-in or the Shared Folders snap-in to share an existing folder or to create and share a new folder on the local computer.

You use only the Computer Management snap-in or Shared Folders snap-in to monitor access to

network resources on local or remote computers.

You create a custom MMC console for creating and managing shares on remote computers by specifying a remote computer when you add the Computer Management snap-in or Shared Folders snap-in to the MMC console.

You can only create a shared folder on a remote computer using the Computer Management snapin or Shared Folders snap-in.

You can allow administrators to specify the remote computer that a custom MMC console points to when they launch it from the command line.

[Home]

[Previous]

[Next]

Lesson 3: Monitoring Network Users

You can also use the Computer Management snap-in or Shared Folders snap-in to monitor which users are currently accessing shared folder resources on a server from a remote computer, and you can view the resources to which the users have connections. You can disconnect users and send administrative messages to computers and users, including those not currently accessing network resources.

After this lesson, you will be able to

Disconnect a specific user from his or her network connection

Send administrative messages to users

Estimated lesson time: 20 minutes

Monitoring User Sessions

You can use the Computer Management snap-in or Shared Folders snap-in to view which users have a connection to open files on a server and the files to which they have a connection. This information enables you to determine which users you should contact when you need to stop sharing a folder or shut down the server on which the shared folder resides. You can disconnect one or more users to free idle connections to the shared folder, to prepare for a backup or restore operation, to shut down a server, or to change group membership and permissions for the shared folder.

You use the Sessions folder in the Computer Management snap-in or Shared Folders snap-in to view a list of the users with a current network connection to the computer that you are monitoring (see Figure 15.3).

Figure 15.3 Sessions folder of the Shared Folders snap-in

Table 15.5 describes the information that is available in the Sessions folder.

Table 15.5 Information Available in the Sessions Folder

Column name Description

User The users with a current network connection to this computer

Computer The name of the user's computer

Type The operating system running on the user's computer

# Open Files The number of files that the user has open on this computer

Connected Time The time that has elapsed since the user established the session

Idle Time

Guest

The time that has elapsed since the user last accessed a resource on this computer

Whether this computer authenticated the user as a member of the built-in Guest account

Disconnecting Users

You can disconnect one or all users with a network connection to a computer so that you can do any of the following:

Have changes to shared folder and NTFS permissions take effect immediately. A user retains all permissions for a shared resource that

Windows XP Professional assigned when the user connected to it. Windows XP Professional evaluates the permissions again the next time that a connection is made.

Free idle connections on a computer so that other users can make a connection when the maximum number of connections has been reached. User connections to resources might remain active for several minutes after a user finishes accessing a resource.

Shut down a server.

After you disconnect a user, he or she can immediately make a new connection. If the user gains access to a shared folder from a Windowsbased client computer, the client computer automatically reestablishes the connection with the shared folder. This connection is established without user intervention unless you change the permissions to prevent the user from accessing the shared folder or you stop sharing the folder to prevent all users from accessing it.

You can disconnect a specific user as follows:

1. In the Computer Management console tree, under Shared Folders, click Sessions.

2. In the list of users in the details pane, select the user that you want to disconnect, and then, on the Action menu, click Close Session.

If you want to disconnect all users, click Sessions in the console tree, and then, on the Action menu, click Disconnect All Sessions.

To prevent data loss, you should always notify users who are accessing shared folders or files that you are ready to stop sharing a folder or shut down the computer.

Sending Administrative Messages to Users

You can send administrative messages to one or more users or computers. Send them to users with a current connection to a computer on which network resources are shared to notify them when there will be a disruption to the computer or resource availability. Some common reasons for sending administrative messages are to notify users when you intend to do any of the following:

Perform a backup or restore operation

Disconnect users from a resource

Upgrade software or hardware

Shut down the computer

Use the Shared Folders snap-in to send administrative messages to users. By default, all currently connected computers to which you can send a message appear in the list of recipients. You can add other users or computers to this list even if they do not have a current connection to resources on the computer.

Practice: Sending Console Messages

In this practice, you use the Shared Folders snap-in to send a console message.

To send a console message

1. In the console tree, under Shared Folders, select Shares.

2. On the Action menu, point to All Tasks, and then click Send Console Message.

3. In the Message box, type Log Off Now - Pro1 is shutting down in 5 minutes.

If your computer is not connected to a network, you will notice that Send is unavailable and that the Recipients list box is empty.

4. Click Add.

The Select Computer dialog box appears.

5. Type Pro1 in the Enter The Object Name To Select (Examples) text box.

Pro1 should be the name of your computer. If you did not name your computer Pro1, type the name of your computer in the Recipients text box.

6. Click OK.

Notice that Send is now available.

7. Click Send.

A message box briefly appears, showing that the message is being sent, and then the Messenger Service dialog box appears, as shown in Figure 15.4. It confirms that a message was sent from Pro1 to Pro1, indicates the date and time the message was sent, and displays the message that was sent.

8. Click OK to close the Messenger Service dialog box.

Figure 15.4 Messenger Service dialog box

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A , "Questions

and Answers."

1. How can you determine which users have a connection to open files on a computer and the files to which they have a connection?

2. How can you disconnect a specific user from a file?

3. Why would you send an administrative message to users with current connections?

4. What can you do to prevent a user from reestablishing a network connection after you have disconnected that user from a shared folder?

Lesson Summary

Use the Sessions folder in the Computer Management snap-in or Shared Folders snap-in to view which users have a connection to open files on a computer and the files to which they have a connection.

Use the Sessions folder in the Computer Management snap-in or Shared Folders snap-in to disconnect a specific user or all users with a network connection to a computer.

Use the Computer Management snap-in or Shared Folders snap-in to send administrative messages to one or more users or computers.

[Home]

[Previous]

[Next]

Lesson 4: Using Offline Folders and Files

When the network is unavailable or when you are on the road and your laptop is undocked, offline folders and files allow you to continue working on files that are stored on shared folders on the network.

These network files are cached on your local disk so that they are available even if the network is not.

When the network becomes available or when you dock your laptop, your connection to the network is reestablished. Offline files synchronize the cached files and folders on your local disk with those stored on the network.

After this lesson, you will be able to

Configure and use offline folders and files

Estimated lesson time: 30 minutes

Configuring Your Computer to Use Offline Folders and Files

Before you can use offline folders and files, you must configure your computer to use them. You configure offline folders and files by using the Folder Options selection located on the Tools menu of My

Computer. In the Offline Files tab of Folder Options, you must select the Enable Offline Files and the

Synchronize All Offline Files Before Logging Off check boxes (see Figure 15.5).

Figure 15.5 The Offline Files tab in the Folder Options dialog box

In the Offline Files tab, you can click Delete Files to delete the locally cached copy of a network file.

Click View Files to view the files stored in the Offline Files folder; these are the locally cached files that you have stored on your system. Click Advanced to configure how your computer responds when a network connection is lost. For example, when a network connection is lost, you can configure your computer to notify you and allow you to begin working offline.

Practice: Configuring Offline Folders

In this practice you configure your computer running Windows XP Professional just as you would if it were a laptop computer running Windows XP Professional so that you can use offline folders and files.

This allows you to work offline.

Run the OfflineFolders file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring a computer so you can use offline files.

To configure Offline Folders and Files

1. Log on as Fred or with a user account that is a member of the Administrators group.

2. Click Start, right-click My Computer, and then click Open.

3. On the Tools menu, click Folder Options.

Windows XP Professional displays the Folder Options dialog box.

4. Click the Offline Files tab.

If Fast User Switching is enabled, Offline Files cannot be enabled. Click Cancel to close the

Folder Options dialog box. Open User Accounts in Control Panel, and select Change The Way

Users Log On Or Off. Clear the Use Fast User Switching check box and click Apply Options.

Close User Accounts. In My Computer, on the Tools menu, click Folder Options and then click the Offline Files tab. Go to step 5.

5. Select the Enable Offline Files check box.

6. Ensure that the Synchronize All Offline Files Before Logging Off check box is selected, and then click OK.

Your computer is now configured so that you can use offline folders and files.

7. Close the My Computer window.

Configuring Your Computer to Share Offline

Folders and Files

Before other users on the network can use offline folders and files on your computer, you must configure the resource to allow caching for offline use. You configure offline folders and files through Windows

Explorer or My Computer. Figure 15.6 shows the Allow Caching Of Files In This Shared Folder check box in Windows Explorer.

Figure 15.6 The Allow Caching Of Files In This Shared Folder check box

Windows XP Professional provides the following three settings for caching:

Manual Caching Of Documents. The default setting. Users must manually specify any files that they want available when they are working offline. To ensure proper file sharing, the server version of the file is always open.

Automatic Caching Of Documents. Every file a user opens is automatically downloaded and cached on the user's hard drive so that it will be available offline. If an earlier version of a file is already loaded on the user's hard drive, it is automatically replaced with the newer version. To ensure proper file sharing, the server version of the file is always opened.

Automatic Caching Of Programs and Documents. Opened files are automatically downloaded and cached on the user's hard drive so that it will be available offline. If an earlier version of a file is already loaded on the user's hard drive, it is automatically replaced with the newer version. File sharing is not ensured.

Practice: Configuring Offline Folders for Sharing

In this practice, you configure a network share on a computer running Windows XP Professional so that users can access the files in the share and use them offline.

To enable a network share to provide files to be used offline

1. Ensure that you are still logged on as Administrator, and start Windows Explorer.

2. Create a folder C:\Offline.

3. Right-click Offline and then click Sharing And Security.

Windows Explorer displays the Offline Properties dialog box with the Sharing tab active.

4. Click Share This Folder, and then click Caching.

Windows Explorer displays the Caching Settings dialog box.

5. Click the down arrow at the end of the Setting dialog box.

6. Ensure Manual Caching Of Documents is selected and then click OK.

7. Click OK to close the Offline Properties dialog box.

Leave Windows Explorer open.

Synchronizing Files

File synchronization is straightforward if the copy of the file on the network does not change while you are editing a cached version of the file. Your edits are incorporated into the copy on the network.

However, it is possible that another user could edit the network version of the file while you are working offline. If both your cached offline copy of the file and the network copy of the file are edited, you must decide what to do. You are given a choice of retaining your edited version and not updating the network copy with your edits, of overwriting your cached version with the version on the network, or of keeping a copy of both versions of the file. In the last case, you must rename your version of the file, and both copies will exist on your hard disk and on the network.

Configuring the Synchronization Manager

To configure the synchronization manager, open Windows Explorer, click the Tools menu, and then click Synchronize. Notice that you can manually synchronize your offline files with those on the network by clicking Synchronize. You can also configure the Synchronization Manager by clicking Setup.

In configuring the Synchronization Manager, you have three sets of options for configuring synchronization. The first set of options is accessed through the Logon/Logoff tab (see Figure 15.7). You can configure synchronization to occur when you log on, when you log off, or both. You can also specify that you want to be prompted before synchronization occurs. You can specify the items to be synchronized at log on or log off, or both, and you can specify the network connection.

Figure 15.7 Logon/Logoff tab of the Synchronization Settings dialog box

The second set of options in configuring the Synchronization Manager is accessed through the On Idle

tab. The items configurable are similar to those configurable through the Logon/Logoff tab. The following items are configurable through the On Idle tab:

When I Am Using This Network Connection. This option allows you to specify the network connection and which items to synchronize.

Synchronize The Selected Items While My Computer Is Idle. This option allows you to specify which items you want to synchronize.

Synchronize The Selected Items While My Computer Is Idle. This option allows you to turn off or on synchronization during idle time.

Click Advanced on the On Idle tab to configure the following options: Automatically Synchronize The

Specified Items After My Computer Has Been Idle For X Minutes; While My Computer Remains Idle,

Repeat Synchronization Every X Minutes; and Prevent Synchronization When My Computer Is Running

On Battery Power.

The third set of options for scheduling synchronization is accessed through the Scheduled tab. You can click Add to start the Scheduled Synchronization Wizard. The first page of the Scheduled

Synchronization Wizard allows you to specify the connection, the items to synchronize and whether you want the computer to automatically connect if you are not connected when the scheduled time for synchronization arrives. The second page of the wizard is the Select The Time And Day You Want The

Synchronization To Start page. It allows you to configure the starting time and date for the synchronization. You can also configure the frequency of the synchronization, which can be set for every day, every weekday, or at a specified interval measured in days. On the third page of the wizard you assign a name to this scheduled synchronization and, on the final page, you review your settings.

Practice: Configuring Synchronization Manager

In this practice you configure the Synchronization Manager.

Run the SynchronizationManager file in the Demos folder on the CD-ROM accompanying this book for a demonstration of configuring Synchronization Manager.

To configure Synchronization Manager

1. Ensure that you are still logged on as Administrator.

Windows Explorer should be open from the last practice.

2. Click Tools and then click Synchronize.

Windows XP Professional displays the Items To Synchronize dialog box, which allows you to specify which folders you want to synchronize.

3. If nothing is selected, click My Current Home Page, and then click Setup.

Windows XP Professional displays the Synchronization Settings dialog box with the

Logon/Logoff tab selected.

4. Review the options on the Logon/Logoff tab, and then review the options on the On-Idle tab and the Scheduled tab.

5. On the Logon/Logoff tab, select My Current Home Page.

6. Ensure that both the When I Log On To My Computer and When I Log Off My Computer check boxes are checked.

7. Select the Ask Me Before Synchronizing The Items check box, and then click OK.

8. Click Close to close the Items To Synchronize dialog box, and then close Windows Explorer.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. How do you configure your computer to use offline folders and files?

2. What tools does Windows XP Professional provide for you to configure your computer to provide offline files? What must you do to allow others to access files on your computer?

3. What does Synchronization Manager do?

Lesson Summary

Offline files are network files that are cached on your local disk so that they are available even if the network is not.

Before you can use offline files, you must use the Folders Options selection on the Tools menu of

My Computer or Windows Explorer to configure your computer to use offline files.

You must use the User Accounts tool to disable Fast User Switching before you can enable

Offline Files.

You use Synchronization Manager to configure synchronization of the offline files you are using and the copies on the server.

Synchronization Manager allows you to configure synchronization to occur when you log on, when you log off, or both, and you can specify that you want to be asked before synchronization occurs.

[Home]

[Previous]

[Next]

Lesson 5: Using Scheduled Tasks

Use Scheduled Tasks to identify programs and batch files you want to run once, at regular intervals, or at specific times. You can schedule any script, program, or document to start at a specified time and interval or when certain operating system events occur. This feature can complete many administrative tasks for you.

After this lesson, you will be able to

Use Scheduled Tasks

Estimated lesson time: 25 minutes

Introducing Scheduled Tasks

Windows XP Professional saves scheduled tasks in the Scheduled Tasks folder, which can be accessed through the Control Panel under Performance And Maintenance. In addition, you can access Scheduled

Tasks on another computer by browsing that computer's resources using My Network Places. This allows you to move tasks from one computer to another. For example, you can create task files for maintenance and then add them to a user's computer as needed.

Use Scheduled Tasks to perform the following tasks:

Run maintenance programs at specific intervals

Run programs when there is less demand for computer resources

Configuring Options

Use the Scheduled Task Wizard to schedule tasks. You access the wizard in the Scheduled Tasks folder by double-clicking Add Scheduled Task. Table 15.6 describes the options that you can configure in the

Scheduled Task Wizard.

Table 15.6 Scheduled Task Wizard Options

Option

Application

Description

The applications to schedule. Select from a list of applications that are registered with Windows XP Professional, or click Browse to specify any program or batch file.

A descriptive name for the task. Name

Perform This Task

How often Windows XP Professional will perform the task. You can select daily, weekly, monthly, one time only, when the computer starts, or when you log on.

Start Time The start time for the task to occur.

Start Date The start date for the task.

A user name and password. You can enter your user name and password or another user name and password to have the application run under the security settings for that user account. If the user account that you used to log on does not

Name And Password have the rights required by the scheduled task, you can use another user account that does have the required rights. For example, you can run a scheduled backup by using a user account that has the required rights to back up data but does not have other administrative privileges.

Advanced Properties

Select this check box if you want the wizard to display the Advanced Properties dialog box so that you can configure additional properties after you click Finish.

Setting Advanced Properties

In addition to the options that are available in the Scheduled Task Wizard, you can set several additional options for tasks. You can change options that you set with the Scheduled Task Wizard or set additional advanced options by configuring advanced properties for the task.

Table 15.7 describes the tabs in the Advanced Properties dialog box for the scheduled task.

Table 15.7 Scheduled Task Wizard Advanced Options

Tab Description

Task

Change the scheduled task or change the user account that is used to run the task. You can also turn the task on and off.

Set and display multiple schedules for the same task. You can set the date, time, and number

Schedule of repeat occurrences for the task. For example, you can set up a task to run every Friday at

10:00 p.m.

Settings

Set options that affect when a task starts or stops, such as how long a backup can take, if the computer can be in use, or if the computer can be running on batteries when it runs the task.

Security

Change the list of users and groups that have permission to perform the task, or change the permissions for a specific user or group.

Troubleshooting Scheduled Tasks

In general, troubleshooting the Scheduled Tasks involves checking the parameters that you have set up.

However, the Advanced menu provides a few options to help you with troubleshooting. When you open

Scheduled Tasks and click Advanced, the first option on the Advanced menu allows you to stop and start the Task Scheduler Service, and the selection is either Stop Using The Task Scheduler or Start Using The

Task Scheduler. If your scheduled tasks are not starting, you can check this option to be sure that the

Task Scheduler Service is running and if it is not, you can start it. The second option is similar to the first, only it pauses and continues the service. If the service is paused, scheduled tasks do not start.

The third option on the Advanced menu is Notify Me Of Missed Tasks. This option causes the system to send you a message when a scheduled task does not occur. The next option on the Advanced menu is the

AT Service Account, which allows you to change the account being used from the System account. The final option, View Log, allows you to view a log of when the Task Scheduler Service started, stopped, paused, and continued. It also logs the name of each scheduled task, the application or task that started, and the time and date the task was started.

Practice: Using Task Scheduler

In this practice, you schedule Address Book to start at a predetermined time. You can use this as a

reminder to review address information. You also configure Task Scheduler options.

Run the TaskScheduler file in the Demos folder on the CD-ROM accompanying this book for a demonstration of using Task Scheduler.

To schedule a task to start automatically

1. Click Start, click Control Panel, click Performance And Maintenance, and then click Scheduled

Tasks.

Windows XP Professional opens the Scheduled Tasks folder.

2. Double-click Add Scheduled Task.

The Scheduled Task Wizard appears.

3. Click Next.

Windows XP Professional displays a list of currently installed programs. To schedule a program that is not registered with Windows XP Professional, click Browse to locate the program.

4. Click Browse.

Windows XP Professional displays the Select Program To Schedule page.

5. Double-click Program Files, and then double-click Windows NT.

6. Double-click Accessories, and then double-click WordPad.

7. Type Launch WordPad in the Type A Name For This Task text box.

The Type A Name For This Task text box allows you to enter a description that is more intuitive than the program name. Windows XP Professional displays this name in the Scheduled Tasks folder when you finish the wizard.

8. Click One Time Only, and then click Next.

9. In the Start Time box, set the time to 4 minutes after the current system time and make a note of this time.

To confirm the current system time, look at the Windows taskbar. Do not change the entry in the

Start Date text box.

10. Click Next.

The wizard requires you to enter the name and password of a user account. When Task Scheduler runs the scheduled task, the program receives all of the rights and permissions of the user account that you enter here. The program is also bound by any restrictions on the user account. Notice that the user name you are currently using is already filled in as the default. You must type the correct password for the user account in both password boxes before you can continue.

You will schedule the console to run with your administrative privileges.

11. In both the Enter The Password text box and the Confirm Password text box, type password.

12. Click Next.

Do not select the Open Advanced Properties For This Task When I Click Finish check box. You will review the Advanced properties in the next procedure.

13. Click Finish.

Notice that the wizard added the task to the list of scheduled tasks.

14. To confirm that you scheduled the task successfully, wait for the time that you configured in step

9 and WordPad will start.

15. Close WordPad.

To configure advanced Task Scheduler options

1. In the Scheduled Tasks folder, double-click Launch WordPad.

Windows XP Professional displays the Launch WordPad dialog box. Notice the tabs and review the options in the tabs. These are the same options that are available if you select the check box for setting advanced options on the last page of the Scheduled Task Wizard. Do not change any of the settings.

2. Click the Settings tab.

3. Select the Delete The Task If It Is Not Scheduled To Run Again check box.

4. Click the Schedule tab, and then set the start time for 2 minutes after the current system time.

Make a note of this time.

5. Click OK.

To confirm that you scheduled the task successfully, wait for the time that you set in step 4 of this procedure. WordPad will start.

6. Close WordPad.

Notice that the scheduled event is no longer in the Scheduled Tasks folder. The option of automatically deleting a task after it finishes is useful for cleaning up after tasks that only need to run once.

7. Close the Scheduled Tasks folder.

8. Log off Windows XP Professional.

Lesson Review

The following questions will help you determine whether you have learned enough to move on to the next lesson. If you have difficulty answering these questions, review the material in this lesson before beginning the next lesson. The answers are in

Appendix A

, "Questions and Answers."

1. How can Scheduled Tasks help you monitor, manage, and maintain network resources?

2. Which of the following are valid choices for the frequency with which Scheduled Tasks schedules programs to run? (Choose all answers that are correct.) a. Daily b. One time only c. When the computer shuts down d. When a user logs off

3. Why do you have to assign a user account and password for each task that you schedule using the

Scheduled Task Wizard?

4. If none of your scheduled tasks are starting, what is one thing that you need to check?

Lesson Summary

You can use Scheduled Tasks to schedule programs and batch files to run once, at regular intervals, at specific times, or when certain operating system events occur.

Windows XP Professional saves scheduled tasks in the Scheduled Tasks folder, which can be accessed through Performance and Maintenance in Control Panel.

After you have scheduled a task to run, you can still modify any of the options or advanced features for the task, including the program to be run.

You can access Scheduled Tasks on another computer by browsing that computer's resources using My Network Places, so you can move tasks from one computer to another.

[Home]

[Previous]

[Next]

Lesson 6: Using Task Manager

Task Manager provides information about the programs and processes running on your computer and the performance of your computer. You can use Task Manager to start programs, to stop programs and processes, and to view a dynamic view of your computer's performance.

After this lesson, you will be able to

Identify three methods for starting Task Manager

Use Task Manager to monitor programs, processes, and system performance

Add columns to the Processes tab display

Use Task Manager to start and stop programs

Estimated lesson time: 25 minutes

Monitoring Programs

Task Manager allows you to monitor applications and processes currently running on your computer. It also provides information about the processes, including the memory usage of each one. It provides statistics about the memory and processor performance and network usage.

You can start Task Manager in any of the following three ways:

Press Ctrl+Shift+Esc

Right-click the Windows taskbar, and then click Task Manager

Press Ctrl+Alt+Delete

Depending on whether your computer running Windows XP Professional is in a workgroup environment or a domain environment and, if it is in a workgroup environment, how the Logon and Logoff Options are configured, you start Task Manager by either pressing Ctrl+Alt+Delete or by selecting it.

The Task Manager dialog box shown in Figure 15.8 has four tabs: Applications, Processes, Performance, and Networking.

Figure 15.8 Task Manager dialog box with the Applications tab selected

You can use the options in the Applications tab of the Task Manager dialog box to stop a program from running (End Task), to switch to a program and bring the program into the foreground (Switch To), and to start a program (New Task). At the bottom of the display, Task

Manager shows you the number of processes currently running, the CPU usage, and the memory usage.

When the Task Manager is running, Windows XP Professional displays an accurate miniature CPU usage icon on the taskbar. If you point to the icon, Task Manager displays the percentage of processor usage in text format.

Monitoring Processes

The Processes tab in the Task Manager dialog box (see Figure 15.9) lists all processes currently running on your computer that run in their own address space, including all applications and system services. Task Manager also allows you to end processes.

Figure 15.9 Task Manager dialog box showing the Select Columns option

By default, the Processes tab shows you the processes, the users running each process, and the CPU and memory usage for each process that is running. You can add additional performance measures to those shown by default in the Processes tab. To add performance measures, on the

View menu, click Select Columns (see Figure 15.9). Table 15.8 describes the columns that are displayed in Task Manager by default and some of the columns that can be added to the Processes tab.

Table 15.8 Processes Tab Columns

Column

Image Name

Description

The name of the process, displayed by default.

PID (Process Identifier) The numerical identifier assigned to the process while it is running.

User Name The name of the user that the process is running under, by default.

CPU Usage

CPU Time

The percentage of time the threads of the process used processor since the last update, displayed by default.

The total processor time (in seconds) used by the process since it was started.

Memory Usage

Base Priority

I/O Read Bytes

I/O Reads

I/O Write Bytes

I/O Writes

Nonpaged Pool

Paged Pool

The amount of memory (in kilobytes) used by the process, displayed by default.

Determines the order in which threads are scheduled for the processor. The base priority is not set by the operating system; it is set by the code.

You can use Task Manager to change the base priority of processes. To change the base priority of a process, rightclick the process and click Set Priority.

The number of bytes transferred in input/output generated by a process.

The number of read input/output operations generated by a process.

The number of bytes written in input/output operations generated by a process.

The number of write input/output operations generated by a process.

The amount of memory (in kilobytes) that is used by a process; operating system memory that is never paged

(moved from memory) to disk.

The amount of system-allocated virtual memory (in kilobytes) used by a process; virtual memory that can be paged to diskPaging is the moving of infrequently used data from RAM to the paging file on the hard disk.

Page Faults

The number of times that data had to be retrieved from pagefile on the hard disk for this process because it had been paged out of physical memory.

Peak Memory Usage The maximum amount of physical memory resident in a process since it started.

Thread Count The number of threads running in the process.

Monitoring System Performance

You can use the Performance tab in the Task Manager dialog box (see Figure 15.10) to see a dynamic overview of system performance.

Figure 15.10 Task Manager dialog box with the Performance tab selected

Table 15.9 describes the fields that are displayed in Task Manager by default in the Performance tab.

Table 15.9 Performance Tab Fields

Field

CPU Usage

CPU Usage History

PF Usage

Page File

Description

The percentage of time that the processor is running a thread other than the idle thread

The percentage of time that the processor is running a thread other than the idle thread shown over time

The amount of virtual memory used (in kilobytes)

The amount of virtual memory used (in kilobytes) shown over Usage History time

Total: Handles Threads

The number of object handles in the tables of all processes The number of running threads including one idle thread per processor

The number of active processes, including the idle process Processes

Physical Memory (K): Total The amount of physical RAM installed in the computer

Available The amount of physical memory available to processes

System Cache The amount of physical memory released to the file cache on demand

Commit Charge: Total

Limit

Peak

The size of virtual memory in use by all processes

The amount of virtual memory that can be committed to processes without enlarging the paging file

The maximum amount of virtual memory used in the session

Kernel Memory (K): Total The sum of the paged and nonpaged memory

Paged

Non paged

The size of the paged pool allocated to the operating system

The size of the nonpaged pool allocated to the operating system

Monitoring Networking

The Networking tab in the Task Manager dialog box lists the adapter name, the network utilization, the link speed, and the state of the connection.

Practice: Using Task Manager

In this practice, you use Task Manager to monitor programs, processes, and system performance. You use Task Manager to start a program and to stop a program. Finally, you add new columns to the Processes tab.

Run the TaskManager file in the
