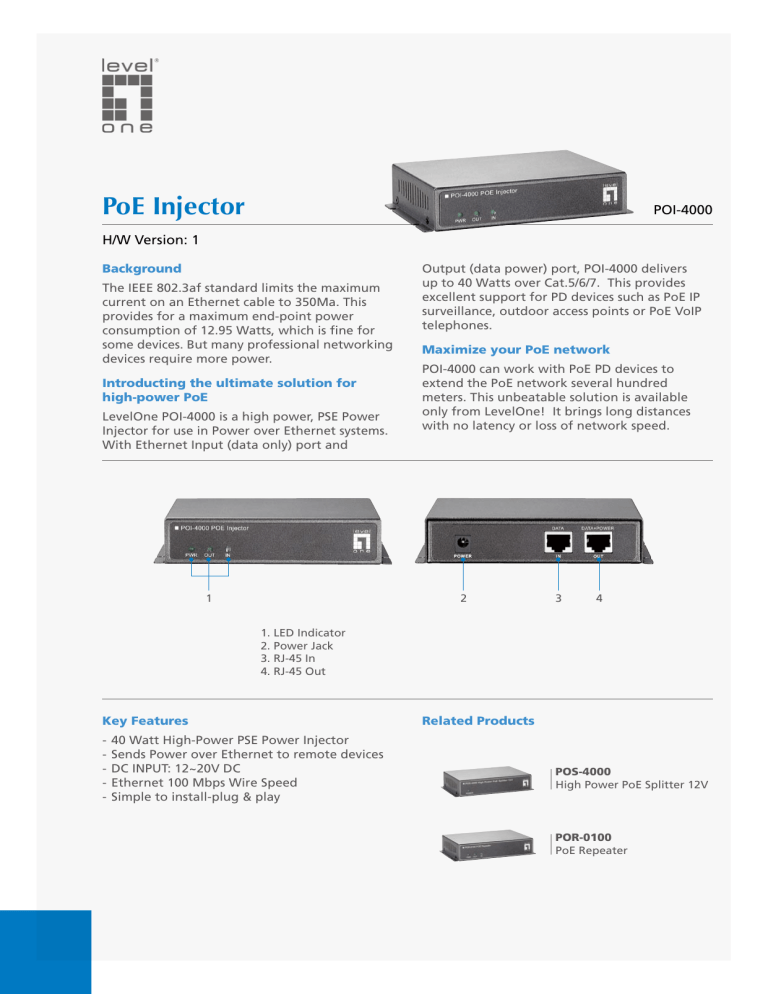

PoE Injector
PoE Injector
POI-4000
H/W Version: 1
Background
The IEEE 802.3af standard limits the maximum
current on an Ethernet cable to 350Ma. This
provides for a maximum end-point power
consumption of 12.95 Watts, which is fine for
some devices. But many professional networking
devices require more power.
Introducting the ultimate solution for
high-power PoE
LevelOne POI-4000 is a high power, PSE Power
Injector for use in Power over Ethernet systems.
With Ethernet Input (data only) port and
1
Output (data power) port, POI-4000 delivers
up to 40 Watts over Cat.5/6/7. This provides
excellent support for PD devices such as PoE IP
surveillance, outdoor access points or PoE VoIP
telephones.
Maximize your PoE network
POI-4000 can work with PoE PD devices to
extend the PoE network several hundred
meters. This unbeatable solution is available
only from LevelOne! It brings long distances
with no latency or loss of network speed.
2
3
4
1. LED Indicator
2. Power Jack
3. RJ-45 In
4. RJ-45 Out
Key Features
-40 Watt High-Power PSE Power Injector
-Sends Power over Ethernet to remote devices
-DC INPUT: 12~20V DC
-Ethernet 100 Mbps Wire Speed
-Simple to install-plug & play
Related Products
POS-4000
High Power PoE Splitter 12V
POR-0100
PoE Repeater
www.level1.com I one world_one brand_one level_
Ethernet Switches
Technical Specifications
LAN Interface:
Regulations & Approvals:
IEEE 802.3x, Auto-Detection for 10/100BASE-T and full/
FCC Rules Part 15 Class A
half duplex
CE
Standard Straight-through, or Cross-over CAT 5 Cable
Power
Automatic MDIX function
19V / 3.16A
RJ-45 Connector x 2
Physical Dimension: (L x W x H)
LED Indicators:
120mm x 90mm x 28mm
POWER: Power is ON
Operating Environment:
LAN IN: Data Activity of LAN IN Port
Humidity : 5% to 90% non-condensing
LAN OUT: Data Activity of LAN OUT Port
Temperature: 0~50°C
Product Diagram
POI-4000
Ethernet Cable (RJ-45)
PoE
Non-PoE Switch
100m
100m
POR-1100
100m
POR-1100
100m
POR-1100
POR-1100
100m
PoE Device (≤ 6.5W)
100m
POR-1100
100m
POR-1100
FCS-5011
Order Information
POI-4000: PoE Injector
POI-4000-Z: PoE Injector without Extenal Power for POC-4000(19" PSE Rack) Use.
Package Contents
POI-4000 x 1
Power Adapter x 1
Quick Installation Guide x 1
All mentioned brand names are registered trademarks and property of their owners. Technical specifications are subject to change without notice.
© Copyright 2009 Digital Data Communications GmbH. All Rights Reserved.
V1.0
