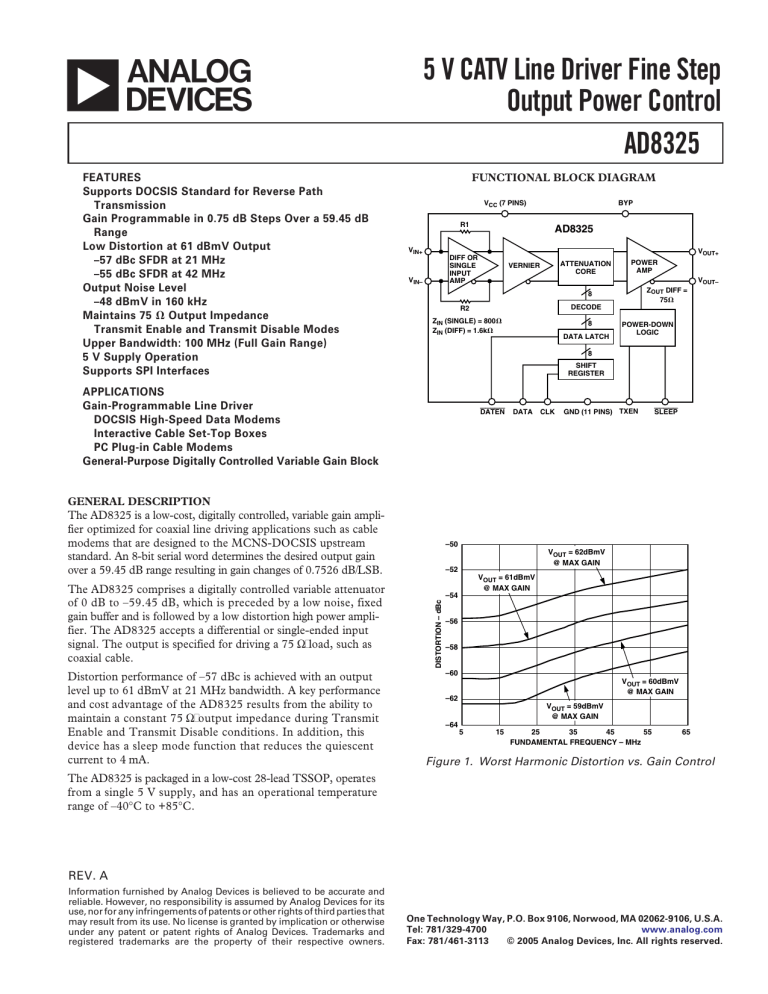

Rev. A
a
FEATURES
Supports DOCSIS Standard for Reverse Path
Transmission
Gain Programmable in 0.75 dB Steps Over a 59.45 dB
Range
Low Distortion at 61 dBmV Output
–57 dBc SFDR at 21 MHz
–55 dBc SFDR at 42 MHz
Output Noise Level
–48 dBmV in 160 kHz
Maintains 75 � Output Impedance
Transmit Enable and Transmit Disable Modes
Upper Bandwidth: 100 MHz (Full Gain Range)
5 V Supply Operation
Supports SPI Interfaces
5 V CATV Line Driver Fine Step
Output Power Control
AD8325
FUNCTIONAL BLOCK DIAGRAM
VCC (7 PINS)
R1
VIN+
AD8325
VOUT+
DIFF OR
SINGLE
INPUT
AMP
VIN–
BYP
ATTENUATION
CORE
VERNIER
POWER
AMP
VOUT–
ZOUT DIFF =
75�
8
DECODE
R2
ZIN (SINGLE) = 800�
ZIN (DIFF) = 1.6k�
8
DATA LATCH
POWER-DOWN
LOGIC
8
SHIFT
REGISTER
APPLICATIONS
Gain-Programmable Line Driver
DOCSIS High-Speed Data Modems
Interactive Cable Set-Top Boxes
PC Plug-in Cable Modems
General-Purpose Digitally Controlled Variable Gain Block
DATEN
DATA
CLK
GND (11 PINS) TXEN
SLEEP
GENERAL DESCRIPTION
The AD8325 is a low-cost, digitally controlled, variable gain ampli­
fier optimized for coaxial line driving applications such as cable
modems that are designed to the MCNS-DOCSIS upstream
standard. An 8-bit serial word determines the desired output gain
over a 59.45 dB range resulting in gain changes of 0.7526 dB/LSB.
Distortion performance of –57 dBc is achieved with an output
level up to 61 dBmV at 21 MHz bandwidth. A key performance
and cost advantage of the AD8325 results from the ability to
maintain a constant 75 W output impedance during Transmit
Enable and Transmit Disable conditions. In addition, this
device has a sleep mode function that reduces the quiescent
current to 4 mA.
VOUT = 62dBmV
@ MAX GAIN
–52
VOUT = 61dBmV
@ MAX GAIN
DISTORTION – dBc
The AD8325 comprises a digitally controlled variable attenuator
of 0 dB to –59.45 dB, which is preceded by a low noise, fixed
gain buffer and is followed by a low distortion high power ampli­
fier. The AD8325 accepts a differential or single-ended input
signal. The output is specified for driving a 75 W load, such as
coaxial cable.
–50
–54
–56
–58
–60
VOUT = 60dBmV
@ MAX GAIN
–62
VOUT = 59dBmV
@ MAX GAIN
–64
5
15
25
35
45
55
FUNDAMENTAL FREQUENCY – MHz
65
Figure 1. Worst Harmonic Distortion vs. Gain Control
The AD8325 is packaged in a low-cost 28-lead TSSOP, operates
from a single 5 V supply, and has an operational temperature
range of –40∞C to +85∞C.
REV. A
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/461-3113
© 2005 Analog Devices, Inc. All rights reserved.
AD8325* Product Page Quick Links
Last Content Update: 08/30/2016
Comparable Parts
Design Resources
View a parametric search of comparable parts
•
•
•
•
Documentation
Application Notes
• AN-851: A WiMax Double Downconversion IF Sampling
Receiver Design
Data Sheet
• AD8325: 5 V CATV Line Driver Fine Step Output Power
Control Data Sheet
AD8325 Material Declaration
PCN-PDN Information
Quality And Reliability
Symbols and Footprints
Discussions
View all AD8325 EngineerZone Discussions
Sample and Buy
Reference Materials
Visit the product page to see pricing options
Product Selection Guide
• Variable Gain Amplifier Selection Table
Tutorials
• Design and Operation of Automatic Gain Control Loops for
Receivers in Modern Communication Systems
Technical Support
Submit a technical question or find your regional support
number
* This page was dynamically generated by Analog Devices, Inc. and inserted into this data sheet. Note: Dynamic changes to
the content on this page does not constitute a change to the revision number of the product data sheet. This content may be
frequently modified.
(T = 25�C, V = 5 V, R = 75 �, V
AD8325–SPECIFICATIONS
a 1:1 transformer with an insertion loss of 0.5 dB @ 10 MHz unless otherwise noted.)
A
S
L
IN
(differential) = 31 dBmV, VOUT measured through
1
Parameter
INPUT CHARACTERISTICS
Specified AC Voltage
Noise Figure
Input Resistance
Conditions
Min
Output = 61 dBmV, Max Gain
Max Gain, f = 10 MHz
Single-Ended Input
Differential Input
OUTPUT CHARACTERISTICS
Bandwidth (–3 dB)
Bandwidth Roll-Off
Bandwidth Peaking
Output Noise Spectral Density
1 dB Compression Point
Differential Output Impedance
OVERALL PERFORMANCE
Second Order Harmonic Distortion
Third Order Harmonic Distortion
Adjacent Channel Power
Gain Linearity Error
Output Settling
Due to Gain Change (TGS)
Due to Input Change
Isolation in Transmit Disable Mode
Gain Code = 79 Dec
Gain Code = 0 Dec
58.45 59.45
29.2 30.0
–30.25 –29.45
0.7526
Unit
dBmV
dB
W
W
pF
60.45 dB
30.8
dB
–28.65 dB
dB/LSB
All Gain Codes
f = 65 MHz
f = 65 MHz
Max Gain, f = 10 MHz
100
1.6
0
–33
Min Gain, f = 10 MHz
–48
Transmit Disable Mode, f = 10 MHz
–68
Max Gain, f = 10 MHz
Transmit Enable and Transmit Disable Modes
18.5
75 ± 20%
MHz
dB
dB
dBmV in
160 kHz
dBmV in
160 kHz
dBmV in
160 kHz
dBm
W
f = 21 MHz, VOUT = 61 dBmV @ Max Gain
f = 42 MHz, VOUT = 61 dBmV @ Max Gain
f = 65 MHz, VOUT = 61 dBmV @ Max Gain
f = 21 MHz, VOUT = 61 dBmV @ Max Gain
f = 42 MHz, VOUT = 61 dBmV @ Max Gain
f = 65 MHz, VOUT = 61 dBmV @ Max Gain
Adjacent Channel Width = Transmit Channel
Width = 160 KSYM/SEC
f = 10 MHz, Code to Code
–70
–67
–60
–57
–55
–54
–53.8
dBc
dBc
dBc
dBc
dBc
dBc
dBc
± 0.3
dB
60
30
–33
ns
ns
dBc
300
40
3
50
ns
ns
mV p-p
mV p-p
Min to Max Gain
Max Gain, VIN = 31 dBmV
Max Gain, TXEN = 0 V, f = 42 MHz,
VIN = 31 dBmV
POWER CONTROL
Transmit Enable Settling Time (TON) Max Gain, VIN = 0 V
Transmit Disable Settling Time (TOFF) Max Gain, VIN = 0 V
Between Burst Transients2
Equivalent Output = 31 dBmV
Equivalent Output = 61 dBmV
POWER SUPPLY
Operating Range
Quiescent Current
Max
31
13.8
800
1600
2
Input Capacitance
GAIN CONTROL INTERFACE
Gain Range
Maximum Gain
Minimum Gain
Gain Scaling Factor
Typ
Transmit Enable Mode (TXEN = 1)
Transmit Disable Mode (TXEN = 0)
Sleep Mode
OPERATING TEMPERATURE
RANGE
4.75
123
30
2
–40
5
133
35
4
5.25
140
10
7
V
mA
mA
mA
+85
∞C
NOTES
1
TOKO 617DB-A0070 used for above specifications. MACOM ETC-1-IT-15 can be substituted.
2
Between Burst Transients measured at the output of a 42 MHz diplexer.
Specifications subject to change without notice.
–2–
REV. A
AD8325
LOGIC INPUTS (TTL/CMOS-Compatible Logic) (DATEN, CLK, SDATA, TXEN, SLEEP, V
Parameter
Min
Logic “1” Voltage
Logic “0” Voltage
Logic “1” Current (VINH = 5 V) CLK, SDATA, DATEN
Logic “0” Current (VINL = 0 V) CLK, SDATA, DATEN
Logic “1” Current (VINH = 5 V) TXEN
Logic “0” Current (VINL = 0 V) TXEN
Logic “1” Current (VINH = 5 V) SLEEP
Logic “0” Current (VINL = 0 V) SLEEP
2.1
0
0
–600
50
–250
50
–250
TIMING REQUIREMENTS
CC
Typ
Max
Unit
5.0
0.8
20
–100
190
–30
190
–30
V
V
nA
nA
mA
mA
mA
mA
(Full Temperature Range, VCC = 5 V, TR = TF = 4 ns, fCLK = 8 MHz unless otherwise noted.)
Parameter
Min
Clock Pulsewidth (TWH)
Clock Period (TC)
Setup Time SDATA vs. Clock (TDS)
Setup Time DATEN vs. Clock (TES)
Hold Time SDATA vs. Clock (TDH)
Hold Time DATEN vs. Clock (TEH)
Input Rise and Fall Times, SDATA, DATEN, Clock (TR, TF)
16.0
32.0
5.0
15.0
5.0
3.0
Typ
TDS
VALID DATA WORD G1
MSB. . . .LSB
SDATA
VALID DATA WORD G2
TC
TWH
CLK
TES
TEH
8 CLOCK
CYCLES
DATEN
GAIN TRANSFER (G1)
GAIN TRANSFER (G2)
TOFF
TXEN
TGS
TON
ANALOG
OUTPUT
SIGNAL AMPLITUDE (p-p)
Figure 2. Serial Interface Timing
VALID DATA BIT
SDATA MSB
MSB-1
TDS
MSB-2
TDH
CLK
Figure 3. SDATA Timing
REV. A
= 5 V: Full Temperature Range)
–3–
Max
Unit
10
ns
ns
ns
ns
ns
ns
ns
AD8325
PIN CONFIGURATION
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage +VS
Pins 5, 9, 10, 19, 20, 23, 27 . . . . . . . . . . . . . . . . . . . . . . 6 V
Input Voltages
Pins 25, 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 0.5 V
Pins 1, 2, 3, 6, 7 . . . . . . . . . . . . . . . . . . . . . –0.8 V to +5.5 V
Internal Power Dissipation
TSSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.9 W
Operating Temperature Range . . . . . . . . . . . –40∞C to +85∞C
Storage Temperature Range . . . . . . . . . . . . –65∞C to +150∞C
Lead Temperature, Soldering 60 seconds . . . . . . . . . . . 300∞C
AD8325ARU
AD8325ARU-REEL
AD8325ARUZ2
AD8325ARUZ-REEL2
AD8325-EVAL
1
2
–40∞C to +85∞C
–40∞C to +85∞C
–40∞C to +85∞C
–40∞C to +85∞C
28
2
27
VCC
CLK
3
26
VIN–
GND
4
25
VIN+
VCC
5
24
GND
TXEN
6
23
VCC
SLEEP
7
VCC
ORDERING GUIDE
Temperature Range
1
SDATA
GND
*Stresses above those listed under Absolute Maximum Ratings may cause perma­
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
Model
DATEN
Package Description
28-Lead TSSOP
28-Lead TSSOP
28-Lead TSSOP
28-Lead TSSOP
Evaluation Board
AD8325
GND
TOP VIEW 22 GND
8 (Not to Scale) 21 BYP
VCC
9
20
VCC 10
19
VCC
GND 11
18
GND
GND 12
17
GND
GND 13
16
GND
OUT– 14
15
OUT+
�JA
Package Option
1
67.7∞C/W
67.7∞C/W1
67.7∞C/W1
67.7∞C/W1
RU-28
RU-28
RU-28
RU-28
Thermal Resistance measured on SEMI standard 4-layer board.
Z = Pb-free part.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although
the AD8325 features proprietary ESD protection circuitry, permanent damage may occur on
devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
recommended to avoid performance degradation or loss of functionality.
WARNING!
ESD SENSITIVE DEVICE
PIN FUNCTION DESCRIPTIONS
Pin No.
Mnemonic
Description
1
DATEN
2
SDATA
3
CLK
4, 8, 11, 12,
13, 16, 17, 18,
22, 24, 28
5, 9, 10, 19,
20, 23, 27
6
7
GND
Data Enable Low Input. This port controls the 8-bit parallel data latch and shift register. A Logic
0-to-1 transition transfers the latched data to the attenuator core (updates the gain) and simulta­
neously inhibits serial data transfer into the register. A 1-to-0 transition inhibits the data latch
(holds the previous gain state) and simultaneously enables the register for serial data load.
Serial Data Input. This digital input allows for an 8-bit serial (gain) word to be loaded into the
internal register with the MSB (Most Significant Bit) first.
Clock Input. The clock port controls the serial attenuator data transfer rate to the 8-bit masterslave register. A Logic 0-to-1 transition latches the data bit and a 1-to-0 transfers the data bit to
the slave. This requires the input serial data word to be valid at or before this clock transition.
Common External Ground Reference.
VCC
Common Positive External Supply Voltage. A 0.1 mF capacitor must decouple each pin.
TXEN
SLEEP
14
15
21
25
OUT–
OUT+
BYP
VIN+
26
VIN–
Logic “0” disables transmission. Logic “1” enables transmission.
Low Power Sleep Mode. Logic 0 enables Sleep mode, where ZOUT goes to 400 W and supply
current is reduced to 4 mA. Logic 1 enables normal operation.
Negative Output Signal.
Positive Output Signal.
Internal Bypass. This pin must be externally ac-coupled (0.1 mF cap).
Noninverting Input. DC-biased to approximately VCC/2. Should be ac-coupled with a 0.1 mF
capacitor.
Inverting Input. DC-biased to approximately VCC/2. Should be ac-coupled with a 0.1 mF capacitor.
–4–
REV. A
Typical Performance Characteristics– AD8325
34
VOUT = 61dBmV
@ MAX GAIN
CL= 0pF
CL= 10pF
31
VCC
GAIN – dB
TOKO 617DB–A0070
1:1
0.1�F
VIN–
VIN
OUT–
RL
75�
AD8325
165�
28
CL= 20pF
CL= 50pF
25
VCC TOKO617DB–A0070
1:1
OUT+
VIN+
0.1�F
GND
0.1�F
VIN–
22
OUT–
OUT+
VIN+ GND
VIN 165�
CL
RL
75�
0.1�F
19
TPC 1. Basic Test Circuit
1
100
TPC 4. AC Response for Various Cap Loads
–30
0.5
f = 10MHz
TXEN = 1
OUTPUT NOISE – dBmV IN 160kHz
f = 10MHz
0
GAIN ERROR – dB
10
FREQUENCY – MHz
f = 5MHz
–0.5
f = 42MHz
–1.0
–1.5
–34
–38
–42
–46
f = 65MHz
–50
–2.0
0
10
20
40
30
50
60
GAIN CONTROL – Decimal
70
80
TPC 2. Gain Error vs. Gain Control
0
8
24
40
48
56
32
GAIN CONTROL – Decimal
16
72
80
TPC 5. Output Referred Noise vs. Gain Control
0
40
79D
TXEN = 0
VIN = 31dBmV
30
–20
20
10
MAX GAIN
46D
ISOLATION – dB
GAIN – dB
64
0
23D
–10
–20
–40
–60
00D
–30
MIN GAIN
–80
–40
–50
0.1
1
10
FREQUENCY – MHz
100
–100
0.1
1000
TPC 3. AC Response
REV. A
1
10
FREQUENCY – MHz
100
1000
TPC 6. Isolation in Transmit Disable Mode vs. Frequency
–5–
AD8325
180
–55
170
VOUT = 62dBmV @ MAX GAIN
160
TXEN = 0
IMPEDANCE – �
DISTORTION – dBc
–60
VOUT = 61dBmV @ MAX GAIN
150
–65
TXEN = 1
TOKO 617DB–A0070
1:1
VCC
140
VOUT = 60dBmV @ MAX GAIN
0.1�F
VIN–
130
–70
120
0.1�F
GND
–75
15
55
25
35
45
FUNDAMENTAL FREQUENCY – MHz
RL 75�
VIN+
VOUT = 59dBmV @ MAX GAIN
5
OUT–
OUT+
ZIN 165�
110
65
1
TPC 7. Second Order Harmonic Distortion vs. Frequency
for Various Output Levels
100
10
FREQUENCY – MHz
TPC 10. Input Impedance vs. Frequency
–50
90
VOUT = 62dBmV @ MAX GAIN
–52
85
VOUT = 61dBmV @ MAX GAIN
80
IMPEDANCE – �
DISTORTION – dBc
–54
–56
–58
–60
TXEN = 1
75
70
TXEN = 0
65
VOUT = 60dBmV @ MAX GAIN
–62
60
VOUT = 59dBmV @ MAX GAIN
–64
5
15
25
35
45
55
FUNDAMENTAL FREQUENCY – MHz
55
65
TPC 8. Third Order Harmonic Distortion vs. Frequency for
Various Output Levels
10
FREQUENCY – MHz
100
TPC 11. Output Impedance vs. Frequency
–10
–50
FO = 42MHz
VOUT = 61dBmV @ MAX GAIN
–55
DISTORTION – dBc
1
–20
CH PWR
ACP UP
ACP LOW
12.3dBm
–54.02dB
–53.79dB
CU1
CU1
–30
–40
HD3
–60
–50
–60
–65
–70
–70
–80
–90
–75
–80
HD2
0
10
20
40
50
60
30
GAIN CONTROL – Dec Code
–100
70
C11
–110
CENTER 21MHz
80
TPC 9. Harmonic Distortion vs. Gain Control
C11
C0
C0
75kHz/DIV
SPAN 750kHz
TPC 12. Adjacent Channel Power
–6–
REV. A
AD8325
APPLICATIONS
General Application
with a transformer, the stated gain values already take into account
the losses associated with the transformer.
The AD8325 is primarily intended for use as the upstream
power amplifier (PA) in DOCSIS (Data Over Cable Service
Interface Specifications) certified cable modems and CATV
set-top boxes. Upstream data is modulated in QPSK or QAM
format, and done with DSP or a dedicated QPSK/QAM modula­
tor. The amplifier receives its input signal from the QPSK/QAM
modulator or from a DAC. In either case the signal must be
low-pass filtered before being applied to the amplifier. Because
the distance from the cable modem to the central office will vary
with each subscriber, the AD8325 must be capable of varying its
output power by applying gain or attenuation to ensure that all
signals arriving at the central office are of the same amplitude.
The upstream signal path contains components such as a trans­
former and diplexer that will result in some amount of power loss.
Therefore, the amplifier must be capable of providing enough
power into a 75 W load to overcome these losses without sacri­
ficing the integrity of the output signal.
The gain transfer function is as follows:
AV = 30.0 dB – (0.7526 dB ¥ (79 – CODE)) for 0 £ CODE £ 79
where AV is the gain in dB and CODE is the decimal equivalent
of the 8-bit word.
Valid gain codes are from 0 to 79. Figure 4 shows the gain char­
acteristics of the AD8325 for all possible values in an 8-bit
word. Note that maximum gain is achieved at Code 79. From
Code 80 through 127, the 5.25 dB of attenuation from the ver­
nier stage is being applied over every eight codes, resulting in
the sawtooth characteristic at the top of the gain range. Because
the eighth bit is a “don’t care” bit, the characteristic for codes 0
through 127 repeats from Codes 128 through 255.
30
25
20
Operational Description
SPI Programming and Gain Adjustment
Gain programming of the AD8325 is accomplished using a
serial peripheral interface (SPI) and three digital control lines,
DATEN, SDATA, and CLK. To change the gain, eight bits
of data are streamed into the serial shift register through the
SDATA port. The SDATA load sequence begins with a falling
edge on the DATEN pin, thus activating the CLK line. With the
CLK line activated, data on the SDATA line is clocked into the
serial shift register Most Significant Bit (MSB) first, on the rising
edge of each CLK pulse. Because only a 7-bit shift register is
used, the MSB of the 8-bit word is a “don’t care” bit and is shifted
out of the register on the eighth clock pulse. A rising edge on
the DATEN line latches the contents of the shift register into
the attenuator core resulting in a well controlled change in the
output signal level. The serial interface timing for the AD8325 is
shown in Figures 2 and 3. The programmable gain range of the
AD8325 is –29.45 dB to +30 dB and scales 0.7526 dB per least
significant bit (LSB). Because the AD8325 was characterized
REV. A
15
10
GAIN – dB
The AD8325 is composed of four analog functions in the powerup or forward mode. The input amplifier (preamp) can be used
single-endedly or differentially. If the input is used in the differ­
ential configuration, it is imperative that the input signals are 180
degrees out of phase and of equal amplitudes. This will ensure
proper gain accuracy and harmonic performance. The preamp
stage drives a vernier stage that provides the fine tune gain
adjustment. The 0.7526 dB step resolution is implemented in
the vernier stage and provides a total of approximately 5.25 dB of
attenuation. After the vernier stage, a DAC provides the bulk
of the AD8325’s attenuation (9 bits or 54 dB). The signals in the
preamp and vernier gain blocks are differential to improve the
PSRR and linearity. A differential current is fed from the DAC
into the output stage, which amplifies these currents to the
appropriate levels necessary to drive a 75 W load. The output
stage utilizes negative feedback to implement a differential
75 W output impedance. This eliminates the need for external
matching resistors needed in typical video (or video filter) ter­
mination requirements.
5
0
–5
–10
–15
–20
–25
–30
0
32
64
96
128
160
GAIN CODE – Decimal
192
224
256
Figure 4. Gain vs. Gain Code
Input Bias, Impedance, and Termination
The VIN+ and VIN– inputs have a dc bias level of approximately
VCC/2, therefore the input signal should be ac-coupled. The
differential input impedance is approximately 1600 W while the
single-ended input impedance is 800 W. If the AD8325 is being
operated in a single-ended input configuration with a desired
input impedance of 75 W, the VIN+ and VIN– inputs should be
terminated as shown in Figure 5. If an input impedance other
than 75 W is desired, the values of R1 and R2 in Figure 5 can be
calculated using the following equations:
ZIN = R1800
R2 = Z IN R1
ZIN = 75�
–
R1 = 82.5�
AD8325
+
R2 = 39.2�
Figure 5. Single-Ended Input Termination
–7–
AD8325
input and output traces should be kept as short and symmetrical
as possible. In addition, the input and output traces should be
kept far apart in order to minimize coupling (crosstalk) through
the board. Following these guidelines will improve the overall
performance of the AD8325 in all applications.
Output Bias, Impedance, and Termination
The differential output pins VOUT+ and VOUT– are also biased to a
dc level of approximately VCC/2. Therefore, the outputs should be
ac-coupled before being applied to the load. This is accomplished
with a 1:1 transformer as seen in the typical applications circuit
of Figure 6. The transformer also converts the output signal
from differential to single-ended, while maintaining a proper
impedance match to the line. The differential output impedance
of the AD8325 is internally maintained at 75 W, regardless of
whether the amplifier is in transmit enable mode (TXEN = 1)
or transmit disable mode (TXEN = 0). If the output signal is
being evaluated on standard 50 W test equipment, a 75 W to 50 W
pad must be used to provide the test circuit with the correct
impedance match.
Initial Power-Up
When the 5 V supply is first applied to the VCC pins of the
AD8325, the gain setting of the amplifier is indeterminate.
Therefore, as power is first applied to the amplifier, the TXEN
pin should be held low (Logic 0) thus preventing forward signal
transmission. After power has been applied to the amplifier, the
gain can be set to the desired level by following the procedure in
the SPI Programming and Gain Adjustment section. The TXEN
pin can then be brought from Logic 0 to 1, enabling forward
signal transmission at the desired gain level.
Power Supply Decoupling, Grounding, and Layout
Considerations
Between Burst Operation
Careful attention to printed circuit board layout details will
prevent problems due to associated board parasitics. Proper RF
design techniques are mandatory. The 5 V supply power should be
delivered to each of the VCC pins via a low impedance power bus
to ensure that each pin is at the same potential. The power bus
should be decoupled to ground with a 10 mF tantalum capacitor
located in close proximity to the AD8325. In addition to the
10 mF capacitor, each VCC pin should be individually decoupled to
ground with a 0.1 mF ceramic chip capacitor located as close to
the pin as possible. The pin labeled BYP (Pin 21) should also be
decoupled with a 0.1 mF capacitor. The PCB should have a lowimpedance ground plane covering all unused portions of the
component side of the board, except in the area of the input and
output traces (see Figure 10). It is important that all of the
AD8325’s ground pins are connected to the ground plane to
ensure proper grounding of all internal nodes. The differential
The asynchronous TXEN pin is used to place the AD8325 into
“Between Burst” mode while maintaining a differential output
impedance of 75 W. Applying a Logic 0 to the TXEN pin acti­
vates the on-chip reverse amplifier, providing a 74% reduction
in consumed power. The supply current is reduced from approxi­
mately 133 mA to approximately 35 mA. In this mode of
operation, between burst noise is minimized and the amplifier
can no longer transmit in the upstream direction. In addition to
the TXEN pin, the AD8325 also incorporates an asynchronous
SLEEP pin, which may be used to place the amplifier in a high
output impedance state and further reduce the supply current to
approximately 4 mA. Applying a Logic 0 to the SLEEP pin
places the amplifier into SLEEP mode. Transitioning into or
out of SLEEP mode will result in a transient voltage at the output
of the amplifier. Therefore, use only the TXEN pin for DOCSIS
compliant “Between Burst” operation.
5V
10�F
25V
0.1�F
AD8325 TSSOP
DATEN
SDATA
CLK
DATEN
SDATA
0.1�F
TXEN
CLK
GND1
VCC
TXEN
0.1�F
SLEEP
0.1�F
VIN–
0.1�F
GND11
VCC6
VIN–
ZIN = 150�
165�
VIN+
0.1�F
GND10
VCC5
SLEEP
GND2
VCC1
GND9
BYP
VCC4
VCC2
GND3
GND4
GND5
OUT–
VCC3
GND8
GND7
GND6
OUT+
VIN+
0.1�F
0.1�F
0.1�F
0.1�F
TOKO 617DB-A0070
TO DIPLEXER ZIN = 75�
Figure 6. Typical Applications Circuit
–8–
REV. A
AD8325
Distortion, Adjacent Channel Power, and DOCSIS
Evaluation Board Features and Operation
In order to deliver 58 dBmV of high fidelity output power required
by DOCSIS, the PA should be able to deliver about 61 dBmV
in order to make up for losses associated with the transformer
and diplexer. TPC 7 and TPC 8 show the AD8325 second and
third harmonic distortion performance versus fundamental
frequency for various output power levels. These figures are
useful for determining the inband harmonic levels from 5 MHz
to 65 MHz. Harmonics higher in frequency will be sharply attenu­
ated by the low-pass filter function of the diplexer. Another
measure of signal integrity is adjacent channel power or ACP.
DOCSIS section 4.2.9.1.1 states, “Spurious emissions from
a transmitted carrier may occur in an adjacent channel that could
be occupied by a carrier of the same or different symbol rates.”
TPC 12 shows the measured ACP for a 16 QAM, 61 dBmV signal,
taken at the output of the AD8325 evaluation board (see Figure
12 for evaluation board schematic). The transmit channel width
and adjacent channel width in TPC 12 correspond to symbol rates
of 160 KSYM/SEC. Table I shows the ACP results for the AD8325
for all conditions in DOCSIS Table 4-7 “Adjacent Channel
Spurious Emissions.”
The AD8325 evaluation board (Part # AD8325-EVAL) and
control software can be used to control the AD8325 upstream
cable driver via the parallel port of a PC. A standard printer
cable connected between the parallel port and the evaluation
board is used to feed all the necessary data to the AD8325 by
means of the Windows-based, Microsoft Visual Basic control
software. This package provides a means of evaluating the
amplifier by providing a convenient way to program the gain/
attenuation as well as offering easy control of the amplifiers’
asynchronous TXEN and SLEEP pins. With this evaluation kit
the AD8325 can be evaluated with either a single-ended or differ­
ential input configuration. The amplifier can also be evaluated
with or without the PULSE diplexer in the output signal path. To
remove the diplexer from the signal path, leave R6 and R8 open
and install a 0 W chip resistor at R7. A schematic of the evalua­
tion board is provided in Figure 12.
Table I. ACP Performance for All DOCSIS Conditions (All Values in dBc)
TRANSMIT
CHANNEL
SYMBOL
RATE
ADJACENT CHANNEL SYMBOL RATE
160 KSYM/SEC 320 KSYM/SEC 640 KSYM/SEC 1280 KSYM/SEC 2560 KSYM/SEC
160 KSYM/SEC
–53.8
–55.6
–61.1
–67.0
–66.7
320 KSYM/SEC
–53.1
–53.8
–56.0
–61.5
–67.6
640 KSYM/SEC
–54.3
–53.2
–54.0
–56.3
–62.0
1280 KSYM/SEC
–56.3
–54.3
–53.4
–54.1
–56.3
2560 KSYM/SEC
–58.5
–56.2
–54.4
–53.5
–54.1
Noise and DOCSIS
Overshoot on PC Printer Ports
At minimum gain, the AD8325’s output noise spectral density is
10 nV/÷Hz measured at 10 MHz. DOCSIS Table 4-8, “Spurious
Emissions in 5 MHz to 42 MHz,” specifies the output noise for
various symbol rates. The calculated noise power in dBmV for
160 KSYM/SECOND is:
The data lines on some PC parallel printer ports have excessive
overshoot that may cause communications problems when pre­
sented to the CLK pin of the AD8325 (TP6 on the evaluation
board). The evaluation board was designed to accommodate a
series resistor and shunt capacitor (R2 and C5) to filter the
CLK signal if required.
Ê
2
Ê
ˆˆ
Á 20 log Á Ê 10 nV ˆ ¥ 160 kHz ˜ ˜ + 60 = –48 dBmV
ÁÁ
Á ÁË Hz ˜¯
˜˜
Ë
¯ ¯˜
Ë
Comparing the computed noise power of –48 dBmV to the
8 dBmV signal yields –56 dBc, which meets the required level of
–53 dBc set forth in DOCSIS Table 4-8. As the AD8325’s gain is
increased from this minimum value, the output signal increases at a
faster rate than the noise, resulting in a signal to noise ratio that
improves with gain. In transmit disable mode, the output noise
spectral density computed over 160 KSYM/SECOND is 1.0 nV/÷Hz
or –68 dBmV.
REV. A
Transformer and Diplexer
A 1:1 transformer is needed to couple the differential outputs of
the AD8325 to the cable while maintaining a proper impedance
match. The specified transformer is available from TOKO (Part
# 617DB-A0070); however, MA/COM part # ETC-1-1T-15
can also be used. The evaluation board is equipped with the
TOKO transformer, but is also designed to accept the MA/COM
transformer. The PULSE diplexer included on the evaluation
board provides a high-order low-pass filter function, typically
used in the upstream path. The ability of the PULSE diplexer
to achieve DOCSIS compliance is neither expressed nor implied
by Analog Devices Inc. Data on the diplexer can be obtained
from PULSE.
–9–
AD8325
Differential Inputs
Installing the Visual Basic Control Software
The AD8325-EVAL evaluation board may be driven with a
differential signal in one of two ways. A transformer may be
used to convert a single-ended signal to differential, or a differ­
ential signal source may be used. Figure 7 and the following
paragraphs describe each of these methods.
To install the “CABDRIVE_25” evaluation board control soft­
ware, close all Windows applications and then run “SETUP.EXE”
located on Disk 1 of the AD8325 Evaluation Software. Follow
the on-screen instructions and insert Disk 2 when prompted to
do so. Enter the path of the directory into which the software
will be installed and select the button in the upper left corner to
complete the installation.
Single-Ended-to-Differential Input (Figure 7, Option 1)
A TOKO 617DB-A0070 1:1 transformer is preinstalled in the
T3 location of the evaluation board. Install 0 W chip resistors at
R14, R15, and R20, and leave R16 through R19 open. For
50 W differential input impedance, install a 51.1 W resistor at R13.
For 75 W differential input impedance, use a 78.7 W resistor.
In this configuration, the input signal must be applied to the
VIN+ port of the evaluation board. For input impedances other
than 50 W or 75 W, the correct value for R13 can be calculated
using the following equation.
Desired Input Impedance = (R131600)
Differential Input (Figure 7, Option 2)
If a differential signal source is available, it may be applied
directly to both the VIN+ and VIN– input ports of the evaluation
board. In this case, 0 W chip resistors should be installed at
locations R16 through R19, and R14, R15, and R20 should be
left open. The equation at the end of the preceding paragraph
can be used to compute the correct value for R13 for any
desired differential input impedance. For differential input
impedances of 75 W or 150 W, the value of R13 will be 78.7 W or
165 W respectively.
DIFF IN
T1
R13
AD8325
To invoke the control software, go to START -> PROGRAMS
-> CABDRIVE_25, or select the AD8325.EXE icon from the
directory containing the software.
Controlling the Gain/Attenuation of the AD8325
The slide bar controls the AD8325’s gain/attenuation, which is
displayed in dB and in V/V. The gain scales at 0.7526 dB per
LSB with the valid codes being from decimal 0 to 79. The gain
code (i.e., position of the slide bar) is displayed in decimal, binary,
and hexadecimal (see Figure 8).
Transmit Enable, Transmit Disable, and Sleep
The “Transmit Enable” and “Transmit Disable” buttons select
the mode of operation of the AD8325 by controlling the logic
level on the asynchronous TXEN pin. The “Transmit Enable”
button applies a Logic 1 to the TXEN pin putting the AD8325
in forward transmit mode. The “Transmit Disable” button
applies a Logic 0 to the TXEN pin selecting reverse mode, where
the forward signal transmission is disabled while a back termina­
tion of 75 W is maintained. On early revisions of the software,
the “Transmit Enable” and “Transmit Disable” buttons may be
called “Power-Up” and “Power-Down” respectively. Checking
the “Enable SLEEP Mode” box applies a Logic 0 to the asyn­
chronous SLEEP pin, putting the AD8325 into SLEEP mode.
Memory Section
DIFFERENTIAL INPUT, OPTION 1
VIN+
R13
Running the Software
AD8325
VIN–
The “MEMORY” section of the software provides a convenient
way to alternate between two gain settings. The “X->M1” but­
ton stores the current value of the gain slide bar into memory
while the “RM1” button recalls the stored value, returning the
gain slide bar to that level. The “X->M2” and “RM2” buttons
work in the same manner.
DIFFERENTIAL INPUT, OPTION 2
Figure 7. Differential Input Termination Options
–10–
REV. A
AD8325
EVALUATION BOARD FEATURES AND OPERATION
Figure 8. Screen Display of Windows-Based Control Software
REV. A
–11–
AD8325
Figure 9. Evaluation Board—Assembly (Component Side)
–12–
REV. A
AD8325
Figure 10. Evaluation Board Layout (Component Side)
REV. A
–13–
AD8325
Figure 11. Evaluation Board—Solder Side
–14–
REV. A
REV. A
–15–
Figure 12. Evaluation Board Schematic
12
13
14
15
16
17
18
P1
P1
P1
P1
P1
P1
8
P1
P1
7
P1
11
6
P1
P1
5
P1
9
4
P1
10
3
P1
P1
2
P1
P1
1
P1
AGND
C3
0.1�F
C2
0.1�F
C1
0.1�F
SLEEP
TXEN
CLK
SDATA
DATEN
0�
R3
AGND
TP7
0�
R1
TP5
TP3
TP1
C6
DNI
TP8
R2
0�
C4
DNI
TP4
TP2
C5
1000pF
TP6
33
34
35
36
P1
P1
P1
32
31
30
29
28
27
26
25
24
23
22
P1
P1
P1
P1
P1
P1
P1
P1
P1
P1
P1
P1
21
20
P1
P1
19
P1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
AGND
TSSOP28
28
27
26
25
24
23
22
21
20
19
18
17
16
15
TP14
DNI
DATEN GND
VCC
SDATA
VIN–
CLK
VIN+
GND
VCC
GND
TXEN
VCC
SLEEP
GND
BYP
GND
VCC
VCC
VCC
VCC
GND
GND
GND
GND
GND
GND
OUT+
OUT–
Z1
R5
DNI
TP15
DNI
R4
DNI
TP17
DNI
TP16
DNI
TP10
TP11
TP12
SEC
1
2
T2 3
DNI
ETC1
PRI
5
4
TP18
DNI
1
2
T1 6
AGND
TOKO1
PRI SEC
3
4
TP19
DNI
R6
0�
AGND
R11
DNI
R13
51.1�
AGND
R12
DNI
C15
0.1�F
C16
0.1�F
DEVICE = 2LUGPWR
TB1
C7
0.1�F
AGND
AGND
C9
0.1�F
VCC
C11
0.1�F
PKG_TYPE = R1206
TP13
DNI
AGND
C8
0.1�F
C10
0.1�F
AGND
C12
10�F
TP9 VCC
R8
0�
R14
0�
R16
DNI
R22
DNI
LPP
HPP
9
5
R9
0�
TP20
DNI
AGND
VIN–0
R10
DNI
AGND
CABLE_0
TP21
DNI
HPF_0
VIN+0
R20
0�
AGND
R21
DNI
TP22
DNI
CBL
R18
DNI
COM
CX6002 3 10–18
1
AGND
DNI
TOKO1
1
2
T3 6
ETC1
3
4
PRI SEC
1
2
T4 3
AGND
R19
DNI
PRI SEC
5
4
R17
DNI
DNI = DO NOT INSTALL
R7
DNI
TP24
R15
0�
TP23
AD8325
AD8325
EVALUATION BOARD BILL OF MATERIALS
Qty.
Description
Vendor
Ref Desc.
1
1
2
8
11
1
2
8
1
3
1
1
3
2
1
1
1
4
4
2
2
2
2
10 mF 25 V. ‘D’ size tantalum chip capacitor
1,000 pF 50 V. 1206 ceramic chip capacitor
0.1 mF 50 V. 1206 size ceramic chip capacitor
0.1 mF 25 V. 0603 size ceramic chip capacitor
0 W 5% 1/8 W. 1206 size chip resistor
51.1 W 1% 1/8 W. 1206 size chip resistor
Yellow Test Point
White Test Point
Red Test Point
Black Test Point
Centronics-type 36-pin Right-Angle Connector
Terminal Block 2-Pos Green ED1973-ND
SMA End launch Jack (E F JOHNSON # 142-0701-801)
1:1 Transformer TOKO # 617DB – A0070
PULSE Diplexer*
AD8325 (TSSOP) UPSTREAM Cable Driver
AD8325 REV. B Evaluation PC board
#4–40 ¥ 1/4 inch STAINLESS panhead machine screw
#4–40 ¥ 3/4 inch long aluminum round stand-off
# 2–56 ¥ 3/8 inch STAINLESS panhead machine screw
# 2 steel flat washer
# 2 steel internal tooth lockwasher
# 2 STAINLESS STEEL hex. machine nut
ADS # 4-7-2
ADS # 4-5-20
ADS # 4-5-18
ADS # 4-12-8
ADS # 3-18-88
ADS # 3-18-99
ADS# 12-18-32
ADS# 12-18-42
ADS# 12-18-43
ADS# 12-18-44
ADS# 12-3-50
ADS# 12-19-13
ADS# 12-1-31
TOKO
PULSE
ADI# AD8325XRU
NC
ADS# 30-1-1
ADS# 30-16-3
ADS# 30-1-17
ADS# 30-6-6
ADS# 30-5-2
ADS# 30-7-6
C12
C5
C15, C16
C1–C3, C7–C11
R1–R3, R6, R8, R9, R14, R15, R20
R13
TP23, TP24
TP1–TP8
TP9
TP10–TP12 (GND)
P1
TB1
VIN–, VIN+, CABLE_0
T1–T3
Z2
Z1
Evaluation PC board
(P1 hardware)
(P1 hardware)
(P1 hardware)
(P1 hardware)
NOTES
*PULSE Diplexer part numbers B5008 (42 MHz), CX6002 (42 MHz), B5009 (65 MHz).
DO NOT INSTALL C4, C6, R4, R5, R7, R10–R12, R16–R19, R21, R22, T2, T4, TP13–TP22.
SMA’s TXEN, CLK, SLEEP, DATEN, SDATA, HPF_0
OUTLINE DIMENSIONS
28-Lead Thin Shrink Small Outline Package [TSSOP]
(RU-28)
Dimensions shown in millimeters.
Revision History
Location
Page
6/05—Data Sheet Changed from REV. 0 to REV. A.
Changes to ORDERING GUIDE ....................................................................................................................................................4
–16–
REV. A
C02439–0–6/05(A)
AD8325 Evaluation Board Rev. B, Single-Ended-to-Differential Input – Revised – February 21, 2001
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
