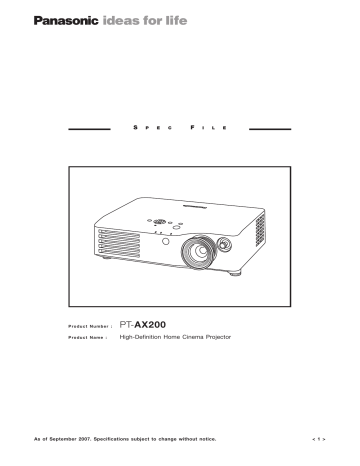

PT-AX200 Spec File
S
P
E
C
F
I
L
E
P ro d u c t N u m b e r :
PT-AX200
P ro d u c t N a m e :
High-Definition Home Cinema Projector
As of September 2007. Specifications subject to change without notice.
< 1 >
S
P
E
C
F
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Specifications
Main Unit
Power supply:
100–240 V AC, 50/60 Hz
Power consumption:
LCD*1 panel:
290 W (0.08 W in standby mode with fan stopped)
Panel size:
0.7˝ diagonal (16:9 aspect ratio)
Display method:
Transparent LCD panel (x 3, R/G/B)
Drive method:
Active matrix
Pixels:
921,600 (1,280 x 720) x 3, total of 2,764,800 pixels
Lamp*2:
220 W UHM™ lamp
Lens:
Manual zoom/focus lens (1:1 –1:2), F 1.9 – 3.1, f 21.7– 43.1 mm
Screen size:
40 – 200 inches (1,016 – 5,080 mm) diagonally, 16:9 aspect ratio
Throw distance:
1.2–12.4 m (3´11˝–40´8˝) (16:9 aspect ratio)
Colours:
Full colour (1,073,741,824 colours)
Brightness* :
2,000 lumens* 4
Centre-to-corner uniformity ratio* 3:
85 %
Contrast* :
6,000:1* 4 (full on/full off)
Resolution:
1,280 x 720 pixels (1,920 x 1,080 pixels with compression)
3
3
Scanning frequency:
RGB:
fH 30–70 kHz, fV 50 – 87 Hz
Dot clock: Less than 150 MHz
YPBPR (YCBCR):
480i (525i): fH 15.75 kHz, fV 60 Hz
480p (525p): fH 31.5 kHz, fV 60 Hz
576i (625i): fH 15.63 kHz, fV 50 Hz
576p (625p): fH 31.25 kHz, fV 50 Hz
720/50p (750/50p): fH 45 kHz, fV 60 Hz
720/60p (750/60p): fH 37.5 kHz, fV 50 Hz
1080/50i (1125/50i): fH 28.125 kHz, fV 50 Hz
1080/50p (1125/50p): fH 56.3 kHz, fV 50 Hz
1080/24p (1125/24p): fH 27.0 kHz, fV 24 Hz
1080/60i (1125/60i): fH 33.75 kHz, fV 60 Hz
1080/60p (1125/60p): fH 67.5 kHz, fV 60 Hz
S-Video/Video:
fH 15.75 kHz, fV 60 Hz (NTSC, NTSC4.43, PAL-M, PAL60)
fH 15.63 kHz, fV 50 Hz (PAL, PAL-N, SECAM)
Optical axis shift* 5:
Horizontal: ±25%, vertical: ±63%
Keystone correction range:
Vertical: approx. ±30°
Installation:
Ceiling/floor, front/rear
OSD languages:
English, French, German, Spanish, Italian, Chinese, Korean, Russian,
Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese,
Thai
Terminals:
HDMI IN:
HDMI connector x 2
COMPUTER IN:
D-sub HD 15-pin (female) x 1,
R, G, B:
0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms
HD/SYNC, VD:
TTL, high impedance (positive/negative polarity)
COMPONENT IN:
As of September 2007
RCA pin (Y, PB/CB, PR/CR) x 1
Y:
1.0 p-p, 75 ohms
PB/CB, PR/CR:
0.7 Vp-p, 75 ohms
VIDEO IN:
RCA pin x 1, 1.0 Vp-p, 75 ohms
S-VIDEO IN:
Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
SERIAL IN:
Mini DIN 8-pin (female) x 1, for external control (RS-232C compliant)
< 2 >
S
P
E
C
F
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Power cord length:
3 m (9´10˝)
Cabinet material:
PC + ABS
Dimensions (W x H x D):
395 x 112 x 300 mm (15-17/32˝ x 4-13/32˝ x 11-25/32˝) * 6
Weight:
4.9 kg (10.8 lbs)
Operating temperature:
0°– 40°C (32°–104°F)
Operating humidity:
20%–80% (no condensation)
Remote Control
Power supply:
3 V DC (AA type battery x 2)
Operating range:
Approx. 7 m (23´) (when operated directly in front of signal
receptor)
Dimensions (W x H x D):
48 x 138 x 28 mm (1-7/8˝ x 7-27/32˝ x 1-3/32˝)
Weight:
125 g (4.4 oz.)
Supplied Accessories
Power cord
Wireless remote control unit
Batteries for remote control (AA type x 2)
Optional Accessories
Replacement lamp: ET-LAX100
Ceiling mount bracket: ET-PKX200
Serial adapter: ET-ADSER (DIN 8-pin/D-sub 9-pin)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
*1:
The projector uses a type of liquid crystal panel that typically consists of millions of pixels. This panel is built with very high-precision technology designed to provide one of the finest possible images. Occasionally, a few pixels may remain turned on (bright) or turned off (dark).
Please note that this is an intrinsic characteristic of the manufacturing technology that affects all products using LCD technology.
*2:
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to
illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending
on individual lamp characteristics and usage conditions.
*3:
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4:
In AI mode, with dynamic iris on
*5:
Shift range is limited during simultaneous horizontal and vertical shifting.
*6:
Lens and legs not included.
As of September 2007
< 3 >
S
P
E
F
C
I
L
E
PT-AX200
High-Definition Home Cinema Projector
300
(11-25/32)
271
(10-21/32)
Dimensions
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
103
(4-21/16)
84
(3-5/16)
121
(4-3/4)
52
(2-1/16)
112
(4-13/32)
395
(15-17/32)
309
(12-5/32)
Terminals
1
2
3
4
5
6
7
1
Serial input
2
HDMI 1 input
3
HDMI 2 input
4
Computer input
5
Component (Y/P B /P R ) Input
6
S-Video input
7
Video input
RGB IN connector pin assignment
6
11
1
15
5
10
D-sub HD 15-pin, female
As of September 2007
no.
signal
no.
signal
no.
signal
1
R
6
GND
11
GND
2
G
7
GND
12
NC
3
B
8
GND
13
HD/SYNC
4
GND
9
NC
14
VD
5
GND
10
GND
15
NC
< 4 >
S
P
E
F
C
I
L
E
PT-AX200
High-Definition Home Cinema Projector
366 – 446
(14-13/32˝–
17-9/16˝)
Adjustable in
20 mm (25/32˝) steps
Standard setting-up positions
Ø49
(1-15/16˝)
Ø43
(1-11/16˝)
H
*1
L
179
Projected image
(7-1/16˝)
L
H
unit : mm (inch)
Lower edge of projected image
65
(2-9/16˝)
70
(2-3/4˝)
W
L
NOTE:
Illustrations show the projector installed
using optional ceiling bracket ET-PKX100.
62 (2-7/16˝)
Projected image
This illustration is not drawn to scale.
Values shown are approximate.
Projection distance (screen aspect ratio 16:9)
Projection size (16:9)
Diagonal length
Projection distance (L)
Min (Wide)
Max (Telephoto)
Height from the
edge of screen to
center of lens
(E)
Width from the
right edge of screen to
center of lens
(W)
1.01 m /
40˝
1.2 m / 3´11˝
2.4 m / 7´10˝
-0.07 m – 0.57 m / 2.8˝ – 1´10˝
0.22 m – 0.67 m /
9˝ –
2´2˝
1.52 m /
60˝
1.8 m / 5´10˝
3.7 m / 12´1˝
-0.10 m – 0.85 m / 3.9˝ – 4´11˝
0.33 m – 1.00 m /
1´1˝ –
3´3˝
2.03 m /
80˝
2.4 m / 7´10˝
4.9 m /
16´
-0.13 m – 1.13 m / 5.1˝ – 3´8˝
0.44 m – 1.33 m /
1´5˝ –
4´4˝
2.54 m / 100˝
3.1 m / 10´2˝
6.2 m / 20´4˝
-0.16 m – 1.40 m / 6.3˝ – 4´7˝
0.55 m – 1.66 m / 1´10˝ –
5´5˝
3.05 m / 120˝
3.7 m / 12´1˝
7.4 m / 24´3˝
-0.19 m – 1.68 m / 7.5˝ – 5´6˝
0.67 m – 2.00 m /
2´2˝ –
6´7˝
3.81 m / 150˝
4.6 m / 15´1˝
9.3 m / 30´6˝
-0.24 m – 2.11 m / 9.4˝ – 6´11˝
0.83 m – 2.49 m /
2´9˝ –
8´2˝
5.08 m / 200˝
6.2 m / 20´4˝
12.4 m / 40´8˝
-0.32 m – 2.81 m / 12.6˝ – 9´3˝
1.11 m – 3.32 m /
3´8˝ – 10´11˝
Projection distance (screen aspect ratio 4:3)
Projection size (4:3)
Diagonal length
Projection distance (L)
Min (Wide)
Max (Telephoto)
Height from the
edge of screen to
center of lens
(E)
Width from the
right edge of screen to
center of lens
(W)
1.01 m /
40˝
1.5 m / 4´11˝
3.0 m / 9´10˝
-0.01 m – 0.62 m / 0.4˝ –
2´
0.19 m – 0.63 m /
7˝ –
2´
1.52 m /
60˝
2.3 m / 7´7˝
4.5 m / 14´9˝
-0.01 m – 0.93 m / 0.4˝ –
3´˝
0.28 m – 0.94 m /
11˝ –
3´1˝
2.03 m /
80˝
3.0 m / 9´10˝
6.0 m / 19´8˝
-0.02 m – 1.24 m / 0.8˝ – 4´1˝
0.37 m – 1.26 m /
1´3˝ –
4´2˝
2.54 m / 100˝
3.8 m / 12´6˝
7.6 m / 24´11˝
-0.02 m – 1.55 m / 0.8˝ – 5´1˝
0.46 m – 1.57 m /
1´6˝ –
5´2˝
3.81 m / 150˝
5.7 m / 18´8˝
11.4 m / 37´5˝
-0.03 m – 2.32 m / 1.2˝ – 7´7˝
0.69 m – 2.35 m /
2´3˝ –
7´9˝
NOTE: The values of L shown above vary due to characteristics of the zoom lens. Images may slightly distort due to characteristics of the zoom
lens when the zoom lens is set to the minimum throw distance.
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
16 : 9
4 : 3
minimum
maximum
minimum
maximum
L
L
L
L
(m)
(m)
(m)
(m)
=
=
=
=
(diagonal
(diagonal
(diagonal
(diagonal
screen
screen
screen
screen
size
size
size
size
in
in
in
in
inches)
inches)
inches)
inches)
x
x
x
x
0.0311
0.0621
0.0381
0.0761
-
0.056
0.056
0.046
0.056
NOTE: The accuracy of calculated value by the formula shown above is ±5%.
As of September 2007
< 5 >
S
P
E
F
C
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Shift range
Optical axis shift function allows to shift the position of a projected image as shown below.
H
(Width of
projected image)
0.25H
Standard position
of projected image
0.63V
V
(Height of
projected image)
0.63V
0.25H
Installable angle
Install the projector at an angle within the range shown below.
-
°
30
+3
0°
• Vertical direction
The projector may be installed at a vertical angle of ±30°.
• Horizontal direction
The projector may not be angled horizontally.
0°
As of September 2007
< 6 >
S
P
E
F
C
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Computer data compatibility
This projector accepts up to 70 kHz horizontal scanning frequency and 108 MHz dot clock.
NOTE:
The display resolution of this projector is 1280 x 720 pixels. If the display resolution indicated in the above data does not match
this resolution, the input signal will be converted to 1280 x 720 pixels.
List of Compatible Signals
Display mode
Display
resolution
1
(dots)
Scanning frequency
H
V
(kHz)
(kHz)
Dot clock
frequency
(MHz)
quality 2
Format
NTSC/NTSC4.43/PAL-M/PAL60
720 x 480i
15.7
59.9
-
A
VIDEO/S-VIDEO
PAL/PAL-N/SECAM
720 x 576i
15.6
50.0
-
A
VIDEO/S-VIDEO
480i (525i)
720 x 480i
15.7
59.9
13.5
A
COMPONENT
576i (625i)
720 x 576i
15.6
50.0
13.5
A
COMPONENT
480p (525p)
720 x 480
31.5
59.9
27.0
A
COMPONENT/HDMI
576p (625p)
720 x 576
31.3
50.0
27.0
A
COMPONENT/HDMI
720 (750)/60p
1,280 x 720
45.0
60.0
74.3
AA
COMPONENT/HDMI
720 (750)/50p
1,280 x 720
37.5
50.0
74.3
AA
COMPONENT/HDMI
1080 (1125)/60i
1,920 x 1,080i
33.8
60.0
74.3
AA
COMPONENT/PC/HDMI
1080 (1125)/50i
1,920 x 1,080i
28.1
50.0
74.3
AA
COMPONENT/PC/HDMI
1080 (1125)/24p
1,920 x 1,080
27.0
24.0
74.3
AA
COMPONENT/HDMI
1080 (1125)/60p
1,920 x 1,080
67.5
60.0
148.5
AA
COMPONENT/PC/HDMI
1080 (1125)/50p
1,920 x 1,080
56.3
50.0
148.5
AA
COMPONENT/PC/HDMI
640 x 480
31.5
59.9
25.2
A
PC/HDMI
640 x 480
37.5
75.0
31.5
A
PC
640 x 480
43.3
85.0
36.0
A
PC
VGA480
640 x 480
72.1
138.0
62.3
A
PC
WIDE480
856 x 480
30.1
60.1
31.5
A
PC
SVGA
800 x 600
35.2
56.3
36.0
A
PC
800 x 600
37.9
60.3
40.0
A
PC
800 x 600
48.1
72.2
50.0
A
PC
800 x 600
46.9
75.0
50.0
A
PC
800 x 600
53.7
85.1
56.3
A
PC
WIDE600
1,072 x 600
37.2
59.9
51.4
A
PC
WIDE720
1,280 x 720
45.1
60.1
76.5
AA
PC
XGA
1,024 x 768
48.4
60.0
65.0
A
PC
1,024 x 768
56.5
70.1
75.0
A
PC
1,024 x 768
60.0
75.0
78.8
A
PC
1,024 x 768
68.7
85.0
94.5
A
PC
1,024 x 768
72.1
89.0
99.2
A
PC
WIDE768
1,280 x 768
45.3
56.5
76.2
A
PC
MXGA
1,125 x 864
64.0
71.2
94.2
A
PC
1,125 x 864
67.5
74.9
108.0
A
PC
SXGA
1,280 x 1,024
64.0
60.0
108.0
A
PC
1,360 x 768
48.8
59.8
74.3
A
PC
WIDE768-2
1.
The “i” appearing after the resolution indicates an interlaced signal.
2.
The following symbols are used to indicate picture quality.
AA
Maximum picture quality can be obtained.
A
Signals are converted by the image processing circuit before picture is projected.
As of September 2007
< 7 >
S
P
E
F
C
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, commands must be input through communication software, based on the format and satisfying the communication conditions shown below.
SERIAL
8-pin DIN (male)
CAUTIION
Be sure to see that an optional serial adapter ET-ADSER and a
RS-232C communication cable match the PC to be connected.
PC
Serial adapter
ET-ADSER
Communication cable (RS-232C)
Pin assignments and signal names
1
2
3
5
6
8
No. Signal name
Description
No. Signal name
Description
1
–
Connected internally
5
TXD
Send data
2
–
Connected internally
6
–
Connected internally
3
RXD
Receive data
7
–
NC
4
GND
Ground
8
–
NC
Mini DIN 8-pin
Communication conditions (factory setting)
Signal level
RS-232C-compliant
Synchronization method
Start-stop synchronization
Baud rate
9,600 bps
Parity
None
Character length
8 bits
Stop bit
1 bit
X parameter
None
S parameter
None
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
STX
C1 C2 C3
Start
(1 byte)
:
P1 P2 P3 P4
ETX
Colon
Parameter
Command
(1 byte)
(1-4 bytes)
(3 bytes)
(Control and/or query commands)
End
(1 byte)
CAUTIION
When sending multiple commands, be sure to send the next command after receiving a response from the projector.
Cable specifications
As of September 2007
Serial adapter
(ET-ADSER)
Projector
–
–
1
5
2
2
3
3
3
–
–
4
4
5
5
6
6
6
1
7
7
2
8
8
–
9
PC (DTE)
NC
NC
1
2
3
NC
NC
DSR
NC
4
5
6
7
8
NC
NC
9
< 8 >
S
P
E
C
F
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Control commands
Command: <Parameter>
Function
Callback: <Parameter>
P ON *
P OF *
I IS:<input si gnal>
O ST
O FZ:<off_on>
O EN
V PM:<picture mode>
<NOR>
<DYN>
<CN1>
<CN2>
<VCN>
<GAM>
<NAT>
O MN
O CU
O CD
O CL
O CR
O OT:<off_time r>
O SH *
O VM
V S1
O BK
Power on (standby mode on)
Power off (standby mode off)
Input signal selection
The same function as “DEFAULT” button
Freeze
Enter
Picture mode
Normal
Dynamic
Cinema 1
Cinema 2
Vivid cinema
Game
Natural
Menu
Cursor up
Cursor down
Cursor left
Cursor right
Off timer
Shutter
The same function as “PICTURE MODE” button
The same function as “ASPECT” button
The same function as “RETURN” button
PON
POF
IIS:<input signal>
OST
OFZ:<off_on>
OEN
VPM:<picture mode>
<NOR>
<DYN>
<CN1>
<CN2>
<VCN>
<GAM>
<NAT>
OMN
OCU
OCD
OCL
OCR
OOT:<off_timer>
OSH
OVM
VS1
OBK
Parameter value
Min
Max
–
–
–
0
–
–
–
–
–
–
–
–
–
–
–
–
–
1
–
–
–
–
–
–
–
–
–
0
7
* Do not send PON, POF, or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement cycle.
Status asking commands
Command
Description
Q PW
Q IN
Q PM
Standby power status
Input signal status
Normal
Picture mode status
Dynamic
Cinema 1
Cinema 2
Vivid cinema
Game
Natural
Freeze status
Off timer status
Shutter function status
Q FZ
Q OT
Q SH
As of September 2007
Callback
<Parameter>
<power condition>
<input signal>
<NOR>
<DYN>
<CN1>
<CN2>
<VCN>
<GAM>
<NAT>
<off_on>
<off_timer>
<off_on>
< 9 >
S
P
E
C
F
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Parameter format
Parameter format
Size (Byte)
<off_on>
<input signal>
1
3
<power condition>
<off_timer>
3
1
Difinition
0 = off, 1 = on
VID = video, SVD = S-video, RG1 = computer, YUV = YPBPR,
HD1 = HDMI 1, HD2 = HDMI 2
000 = power on (standby mode on), 001 = power off (standby mode off)
0 = off, 1 = 60 min, 2 = 90 min, 3 = 120 min, 4 = 150 min, 5 = 180 min,
6 = 210 min, 7 = 240 min
NOTE: If a wrong command is received, the projector will send an ER401 command to the computer.
Command example
To set the volume to +30, send the command as shown below.
STX
Start
AVL
:
Command
30
ETX
Parameter
End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
As of September 2007
< 10 >
S
P
E
C
F
I
L
E
PT-AX200
High-Definition Home Cinema Projector
Notes on Projector Placement and Operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1.
Never place objects on top of the projector while it is operating.
2.
Make sure there is an unobstructed space of 100 mm (3-15/16˝) or more around the projector’s air
intake openings.
3.
If the projector is placed in a box or enclosure, ensure the temperature of the air surrounding the
projector is between 0°C/32°F and 35°C/95°F. Also make sure the projector’s intake and exhaust
openings are not blocked. Take particular care to ensure that hot air from the exhaust openings is
not sucked into the intake openings.
100 mm (3-15/16˝)
or more
100 mm (3-15/16˝)
or more
100 mm (3-15/16˝)
or more
Direction of Air Intake and Exhaust
Intake
Exhaust
Operating the Projector Continuously
1.
If the projector is to be operated continuously 10 hours or more, lamp replacement cycle duration
becomes shorter.
2.
The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods.
As of September 2007
< 11 >
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
