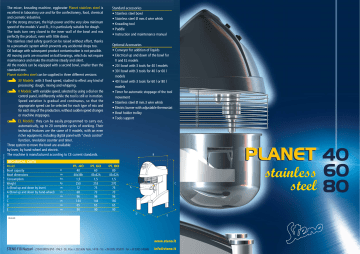

DepliantA3-PL40 inox
The mixer, kneading machine, eggbeater Planet stainless steel is
excellent in laboratory use and for the confectionery, food, chemical
and cosmetic industries.
For the strong structure, the high power and the very slow minimum
speed of the models V and EL, it is particularly suitable for dough.
The tools turn very closed to the inner wall of the bowl and mix
perfectly the product, even with little doses.
The stainless steel safety guard can be raised without effort, thanks
to a pneumatic system which prevents any accidental drops too.
Oil leakage with subsequent product contamination is not possible.
All moving parts are mounted on ball bearings, which do not require
maintenance and make the machine steady and silent.
All the models can be equipped with a second bowl, smaller than the
standard one.
Planet stainless steel can be supplied in three different versions:
3V Models: with 3 fixed speed, studied to effect any kind of
processing: dough, mixing and whipping.
Non binding data. The manufacturer reserves the right to make any modifications he deems necessary
V Models: with variable speed, selected by using a dial on the
control panel, indifferently while the tool is still or in motion.
Speed variation is gradual and continuous, so that the
appropriate speed can be selected for each type of mix and
for each step of the production, without sudden speed changes
or machine stoppages.
EL Models: they can be easily programmed to carry out,
automatically, up to 20 complete cycles of working. Their
technical features are the same of V models, with an even
richer equipment, including digital panel with “check control”
function, revolution counter and timer.
Three system to move the bowl are available:
by lever, by hand-wheel and electric.
The machine is manufactured according to CE current standards.
TECHNICAL DATA
Model
Bowl capacity
Bowl dimensions
Consumption
Weight
A (Bowl up and down by lever)
A (Bowl up and down by hand-wheel)
B
C
D
E
Lt.
cm.
Kw.
Kg.
cm.
cm.
cm.
cm.
cm.
cm.
PL 40
40
40x36h
1,5
250
72
68
96
144
65
90
PL 60
60
45x42h
1,5
253
75
73
96
144
65
90
Standard accessories
• Stainless steel bowl
• Stainless steel Ø mm.4 wire whisk
• Kneading tool
• Paddle
• Instruction and maintenance manual
Optional Accessories
• Conveyor for addition of liquids
• Electrical up and down of the bowl for
V and EL models
• 20 l bowl with 3 tools for 40 l models
• 30 l bowl with 3 tools for 40 l or 60 l
models
• 40 l bowl with 3 tools for 60 l or 80 l
models
• Timer for automatic stoppage of the tool
movement
• Stainless steel Ø mm.3 wire whisk
• Electric burner with adjustable thermostat
• Bowl holder trolley
• Tools support
B
PL 80
80
45x52h
1,5
270
75
73
96
160
65
90
C
A
D
DEALER
E
www.steno.it
STENO F.lli Nazzari - 27043 BRONI (PV) - ITALY - Str. Prov. n.202 delle Teste, 14/16 - Tel. +39 0385 245878 - Fax +39 0385 240686
[email protected]
stainless
steel
Powerful, reliable, versatile.
More than
a Planetary
Mixer
stainless
steel
The high power, in spite of the very
reduced consumption, and the very
slow minimum speed allow the mixer
to work perfectly every kind of dough,
even the most consistent one
More than
a safety system
Easy to lift.
It cannot drop
Reduction
kit
Kit 20
Kit 30
Kit 40
Reduction kit
with 20, 30 and
40 l bowls
More than a beautiful line
New Look in stainless steel.
Quality and Reliability guaranteed
by over 50 years’ experience
3 versions
for every
requirement
3 speeds
Variable speed
Electronic control
