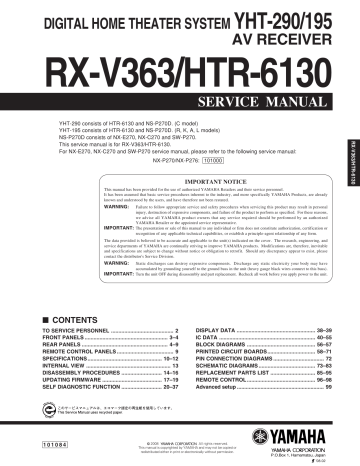

DIGITAL HOME THEATER SYSTEM

YHT-290/195

AV RECEIVER

RX-V363/HTR-6130

SERVICE MANUAL

YHT-290 consists of HTR-6130 and NS-P270D. (C model)

YHT-195 consists of HTR-6130 and NS-P270D. (R, K, A, L models)

NS-P270D consists of NX-E270, NX-C270 and SW-P270.

This service manual is for RX-V363/HTR-6130.

For NX-E270, NX-C270 and SW-P270 service manual, please refer to the following service manual:

NX-P270/NX-P276: 101000

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.

It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated.

WARNING:

Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized

YAMAHA Retailer or the appointed service representative.

IMPORTANT:

The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division.

WARNING:

Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).

IMPORTANT:

Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

CONTENTS

TO SERVICE PERSONNEL .......................................... 2

FRONT PANELS ........................................................ 3–4

REAR PANELS .......................................................... 4–9

REMOTE CONTROL PANELS ...................................... 9

SPECIFICATIONS .................................................. 10–12

INTERNAL VIEW ......................................................... 13

DISASSEMBLY PROCEDURES ........................... 14–16

UPDATING FIRMWARE ........................................ 17–19

SELF DIAGNOSTIC FUNCTION ........................... 20–37

DISPLAY DATA ..................................................... 38–39

IC DATA ................................................................. 40–55

BLOCK DIAGRAMS .............................................. 56–57

PRINTED CIRCUIT BOARDS ................................ 58–71

PIN CONNECTION DIAGRAMS .................................. 72

SCHEMATIC DIAGRAMS ...................................... 73–83

REPLACEMENT PARTS LIST .............................. 85–95

REMOTE CONTROL .............................................. 96–98

Advanced setup ........................................................... 99

1 0 1 0 8 4

2008 All rights reserved.

This manual is copyrighted by YAMAHA and may not be copied or redistributed either in print or electronically without permission.

P.O.Box 1, Hamamatsu, Japan

'08.02

2

RX-V363/HTR-6130

TO SERVICE PERSONNEL

1. Critical Components Information

Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

2. Leakage Current Measurement (For 120V Models Only)

When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits.

● Meter impedance should be equivalent to 1500 ohms shunted by 0.15

µF.

WALL

OUTLET

EQUIPMENT

UNDER TEST

AC LEAKAGE

TESTER OR

EQUIVALENT

INSULATING

TABLE

Leakage current must not exceed 0.5mA.

Be sure to test for leakage with the AC plug in both polarities.

For U model

“CAUTION”

“F2251: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A,

125V FUSE.”

For C model

CAUTION

F2251: REPLACE WITH SAME TYPE 6A, 125V FUSE.

ATTENTION

F2251: UTILISER UN FUSIBLE DE RECHANGE DE MÉME TYPE DE 6A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

This product contains chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY

REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.

About lead free solder

All of the P.C.B.s installed in this unit and solder joints are soldered using the lead free solder.

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work.

• Sn + Ag + Cu (tin + silver + copper)

• Sn + Cu (tin + copper)

• Sn + Zn + Bi (tin + zinc + bismuth)

Caution:

As the melting point temperature of the lead free solder is about 30

°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder.

RX-V363/HTR-6130

10

SPECIFICATIONS

Audio Section

Minimum RMS Output Power (Power Amp. Section)

(1 kHz, 0.9 % THD)

FRONT L/R, CENTER, SURROUND L/R

U, C models (8 ohms) ........................................ 100 W/ch

R, T, K, A, B, G, E, F, L models (6 ohms) ......... 100 W/ch

Maximum Power (JEITA) (1 kHz, 10 % THD)

FRONT L/R, CENTER, SURROUND L/R

U, C models (8 ohms) ........................................ 135 W/ch

R, T, K, A, L models (6 ohms) ........................... 135 W/ch

Max. Power Per Channel [B, G, E, F models]

(1 kHz, 0.7 % THD, 4 ohms)

FRONT L/R, CENTER, SURROUND L/R .... 105 W or more

IEC Power [B, G, E, F models]

(1 kHz, 0.1 % THD, 6 ohms)

MAIN L/R ........................................................ 90 W or more

Dynamic Power Per Channel (IHF) (FRONT L/R)

U, C models

(8/6/4/2 ohms) .................................... 110/130/160/180 W

R, T, K, A, B, G, E, F, L models

(6/4/2 ohms) .............................................. 105/130/150 W

Dynamic Headroom

U, C models (8 ohms) ............................................. 0.41 dB

Input Sensitivity/Input Impedance

(1 kHz, 100 W / 6 ohms)

CD, etc. ............................................... 200 mV / 47 k-ohms

MULTI CH INPUT

FRONT L/R, CENTER, SURROUND L/R, SUBWOOFER

........................................................ 200 mV / 47 k-ohms

Maximum Input Signal (1 kHz, 0.5 % THD, Effect on)

CD, etc. .......................................................... 2.0 V or more

Output Level/Output Impedance

REC OUT ........................................... 200 mV / 1.2 k-ohms

SUBWOOFER (2 ch STEREO and FRONT SP: Small)

................................................................ 4 V / 1.2 k-ohms

Headphone Jack Rated Output/Impedance

CD, etc. (1 kHz, 200 mV, 8 ohms) ....... 400 mV / 470 ohms

Frequency Response

(10 Hz to 100 kHz)

CD, etc. to FRONT L/R ..................................... 0 / -3.0 dB

(10 Hz to 20 kHz)

V-AUX to FRONT L/R ....................................... 0 / -3.0 dB

Total Harmonic Distortion (1 kHz, 50 W)

CD, etc. (2ch stereo) to FRONT L/R SP OUT

U, C models (8 ohms) ................................. 0.06 % or less

R, T, K, A, B, G, E, F, L models (6 ohms) ..... 0.06 % or less

Signal to Noise Ratio (IHF-A Network)

CD, etc. (STEREO) to Input shorted SP OUT

200 mV ........................................................ 98 dB or more

250 mV ...................................................... 100 dB or more

Residual Noise (IHF-A Network)

FRONT L/R SP OUT .................................... 170

µV or less

Channel Separation

CD, etc. (Input 5.1 k-ohms shorted, 1 kHz / 10 kHz)

......................................... 60 dB or more / 45 dB or more

Tone Control Characteristics

BASS

Boost/Cut ................................................

±10 dB (100 Hz)

TREBLE

Boost/Cut ................................................

±10 dB (20 kHz)

Filter Characteristics

FRONT, CENTER, SURROUND, SURROUND BACK small (H.P.F.)

....... fc=40/60/80/90/100/110/120/160/200 Hz, 12 dB/oct.

SUBWOOFER (L.P.F.)

....... fc=40/60/80/90/100/110/120/160/200 Hz, 24 dB/oct.

Video Section

Video Signal Type (Gray back)

U, C, R, K models ...................................................... NTSC

T, A, B, G, E, F, L models ............................................. PAL

Composite Video Signal Level

.................................................................. 1 Vp-p / 75 ohms

Component Signal Level

Y ............................................................... 1 Vp-p / 75 ohms

Video Maximum Input Level

.................................................................. 1.5 Vp-p or more

Signal to Noise Ratio (IHF)

....................................................................... 50 dB or more

Monitor Out Frequency Response

Component video signal .................. 5 Hz to 60 MHz, -3 dB

FM Section

Tuning Range

U, C models ............................................ 87.5 to 107.9 MHz

R, L models ............... 87.5 to 108.0 / 87.50 to 108.00 MHz

T, K, A, B, G, E, F models ................. 87.50 to 108.00 MHz

50dB Quieting Sensitivity (IHF) (1 kHz, 100 % Mod.)

Mono ......................................................... 2.8

µV (20.2 dBf)

Signal to Noise Ratio (IHF)

Mono / Stereo ................................................. 73 dB / 70 dB

Harmonic Distortion (1 kHz)

Mono / Stereo ................................................. 0.5 % / 0.5 %

Antenna Input .................................... 75 ohms unbalanced

AM Section

Tuning Range

U, C models .............................................. 530 to 1,710 kHz

R, L models ....................... 530 to 1,710 / 531 to 1,611 kHz

T, K, A, B, G, E, F models ....................... 531 to 1,611 kHz

Antenna Input ................................................. Loop antenna

General

Power Supply

U, C models ............................................... AC 120 V, 60 Hz

R, L models .................... AC 110-120/220-240 V, 50/60 Hz

T model ..................................................... AC 220 V, 50 Hz

K model ..................................................... AC 220 V, 60 Hz

A model ..................................................... AC 240 V, 50 Hz

B, G, E, F models ...................................... AC 230 V, 50 Hz

Power Consumption

U, C models ................................................ 240 W / 320 VA

R, T, K, A, B, G, E, F, L models ................................ 240 W

Standby Power Consumption (reference data)

U, C, T, K, A, B, G, E, F models ................................ 0.8 W

Maximum Power Consumption (5 ch drive, 10 % THD)

R, L models ............................................................... 530 W

Dimensions (W x H x D)

......... 435 x 151 x 317.6 mm (17-1/8" x 5-15/16" x 12-1/2")

Weight ................................................. 8.0 kg (17 lbs. 10 oz.)

Finish

[RX-V363]

Gold color ........................................................ T, L models

Black color ..................... U, C, R, A, B, G, E, F, L models

Silver color ................................... R, A, G, E, F, L models

Titanium color ................................... K, B, G, F, L models

[HTR-6130]

Gold color .............................................................. T model

Black color .............................. U, C, R, A, G, F, L models

Silver color .......................... U, R, K, A, G, E, F, L models

Accessories ............................................ Remote control x 1

Batteries (R03, AAA, UM-4) x 2

Indoor FM antenna x 1

AM loop antenna x 1

Optimizer microphone x 1 (R, K, A, B, G, E, F, L models)

* Specifications are subject to change without notice due to product improvements.

U .......... U.S.A. model

C .......... Canadian model

R .......... General model

T .......... Chinese model

K .......... Korean model

A .......... Australian model

B .......... British model

G .......... European model

E .......... South European model

F .......... Russian model

L ........... Singapore model

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic”, and the double-D symbol are trademarks of

Dolby Laboratories.

“SILENT CINEMA” is a trademark of Yamaha Corporation.

“HDMI”, the “HDMI” logo and “High-Definition Multimedia Interface” are trademarks or registered trademarks of HDMI Licensing LLC.

“iPod” is a trademark of Apple Inc., registered in the U.S. and other countries.

Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

“DTS” and “DTS Digital Surround” are registered trademarks of DTS,

Inc.

• DIMENSIONS

RX-V363/HTR-6130

• SCENE TEMPLATE

SCENE name Contents Source

Mode

Program

Sub-mode

NIGHT

Mode

DVD Viewing

DVD Movie Viewing

DVD Live Viewing

DVR Viewing

Music Disc Listening

Disc Listening

CD Listening

CD Music Listening

Radio Listening

DVD

DVR

DVD-Audio /

SA-CD / CD

CD

TUNER/RADIO

Movie

Music Live

Music Disc

Music Disc

FM/AM

DOCK Listening

TV Viewing

TV Sports Viewing

Game Playing

DAP

TV

GAME iPod

Bluetooth

DVD

DVD

DVD

DVR

DVD

DVD

CD

CD

FM/AM

(TUNER)

DOCK

(V-AUX)

DTV/CBL

DTV/CBL

V-AUX

STRAIGHT

MOVIE

MUSIC

MOVIE

STEREO

STEREO

STEREO

STEREO

STRAIGHT

ENTERTAINMENT

ENTERTAINMENT Game

Movie Dramatic

Pop/Rock

Movie Dramatic

2ch Stereo

5ch Stereo

5ch Stereo

2ch Stereo

MUSIC ENHANCER Music Enh. 5ch

MUSIC ENHANCER Music Enh. 5ch

TV Sports

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

SYSTEM

Select (Default)

U, C models

R, T, K, A, B, G,

E, F, L models

O (SCENE 1)

O

O

O

O

O (SCENE 2)

O

O

O

O (SCENE 1)

O

O

O (SCENE 2)

O

O

O

O (SCENE 4)

O

O (SCENE 3)

O

O

O (SCENE 4)

O (SCENE 3)

O

O

• SOUND/SURROUND SELECT MENU

Sound Field Parameters

STEREO

MUSIC

ENTERTAIN

MOVIE

ENHANCER

Surround Decoders

2ch Stereo

5ch Stereo

Pop/Rock

Hall

Jazz

Game

TV Sports

Movie Spacious

Movie Dramatic

Music Enh. 2ch

Music Enh. 5ch

DSP LEVEL

MIN, [MID], MAX

MUSIC ENHANCER

LOW, [HIGH]

O

O

O

O

O

O

O

O

O

PANORAMA

ON, [OFF]

DIMENSION

-3, [STD], +3

CENTER WIDTH

0, 1, 2, [3], 4, 5, 6, 7

DECODING FORMAT

POST DECODING FORMAT

Dolby Digital

DTS

Dolby Pro Logic

Dolby Pro Logic II Music

Dolby Pro Logic II Movie

Dolby Pro Logic II Game

O O O

395 (15-9/16")

435 (17-1/8")

Unit: mm (inch)

11

12

RX-V363/HTR-6130

RX-V363/HTR-6130

INTERNAL VIEW

1 2 3 4 5 6 7 8

B A 0 9

1

Power Transformer

2

OPERATION (3) P.C.B.

3

OPERATION (5) P.C.B. (R, L models)

4

MAIN (3) P.C.B.

5

Tuner

6

HDMI P.C.B.

7

OPERATION (4) P.C.B.

8

DSP P.C.B.

9

MAIN (4) P.C.B.

0

MAIN (1) P.C.B.

A

OPERATION (2) P.C.B.

B

OPERATION (11) P.C.B.

C

OPERATION (6) P.C.B.

D

OPERATION (10) P.C.B.

E

OPERATION (1) P.C.B.

F

OPERATION (7) P.C.B.

C D E F

13

14

RX-V363/HTR-6130

DISASSEMBLY PROCEDURES

(Remove parts in the order as numbered.)

Disconnect the power cable from the AC outlet.

1. Removal of Top Cover

a. Remove 4 screws (1), 4 screws (2) and 1 screw (3). (Fig. 1) b. Slide the top cover rearward to remove it. (Fig. 1)

2. Removal of Front Panel Unit

a. Remove 6 screws (4). (Fig. 1) b. Remove CB192, CB234, CB261 and CB408. (Fig. 1) c. Release hook and then remove the front panel unit. (Fig. 1)

2

Top cover

3

CB261

Front panel unit

4

CB234

4

4

Fig. 1

Hook

CB192

CB408

1

2

RX-V363/HTR-6130

3. Removal of HDMI P.C.B.

a. Remove CB904 and CB905. (Fig. 2) b. Remove 5 screws (5). (Fig. 3) c. Remove HDMI P.C.B.. (Fig. 2)

4. Removal of OPERATION (4) P.C.B.

a. Remove CB193 and CB182. (Fig. 2) b. Remove 7 screws (6). (Fig. 3) c. Remove OPERATION (4) P.C.B.. (Fig. 2)

5. Removal of DSP P.C.B.

a. Remove 18 screws (7), 3 screws (8) and 2 screws (9) (R, L models). (Fig. 3) b. Remove cord stopper. (Fig. 2) c. Remove rear panel. (Fig. 2) d. Remove screw (0). (Fig. 2) e. Remove CB512 and CB516. (Fig. 2) f. Remove the DSP P.C.B. which is connected directly to the MAIN (1) P.C.B. with board-to-board connectors. (Fig. 2)

Cord stopper

Rear panel

6 5

HDMI P.C.B.

CB904 CB905

OPERATION (4) P.C.B.

CB181

CB182

DSP P.C.B.

• Board-to-board connectors

DSP P.C.B.

CB502

CB501

CB512

CB516

CB193

CB101

CB164

MAIN (1) P.C.B.

0

Fig. 2

7

8

Fig. 3

9 (R, L models)

15

RX-V363/HTR-6130

When checking the P.C.B.

a. Remove the Top cover. (Fig. 1) b. Remove 3 screws (8). (Fig. 3) c. Remove 5 screws (A) and 4 screws (B). (Fig. 4) d. Place the P.C.B.s (with rear panel) upright. (Fig. 5) e. Connect the ground of heat sink, rear panel and MAIN (1) P.C.B. (G103, G104, G105 and ST101) to the chassis with a ground lead or the like. (Fig. 5)

• Use the extension cable for connection for the following connectors. (Fig. 6)

DSP P.C.B. CB408 – OPERATION (1) P.C.B. CB202: MF117350 (17P, 300mm)

A B

A

Fig. 4

Rear panel

A

Rear panel

MAIN (1) P.C.B.

ST101

Ground lead

G105

G103

Ground lead

G104

Chassis

Ground lead

DSP P.C.B.

Fig. 5

CB408

16

OPERATION (1) P.C.B.

CB202

Fig. 6

MF117350

RX-V363/HTR-6130

UPDATING FIRMWARE

After replacing the following parts, be sure to write the latest firmware.

• DSP P.C.B.

• IC201 (DSP P.C.B.)

Required Tools

• DVD or CD player (with DIGITAL OUTPUT (OPTI-

CAL or COAXIAL) jack)

• Optical cable (when OPTICAL jack is used)

• Digital audio pin cable (when COAXIAL jack is used)

• Firmware CD

* To make the firmware CD, download the latest firmware from the specified download source to

PC.

Operation Procedures

1. Connect this unit and DVD/CD player as shown below. (Fig. 1)

Example of connection between digital OPTICAL jacks

This unit

DVD/CD player

Optical cable

Example of connection between digital COAXIAL jacks

This unit

DVD/CD player

Digital audio pin cable

Fig. 1

17

18

RX-V363/HTR-6130

2. While simultaneously pressing the “STANDBY/ON” and “SPEAKERS A/B/OFF” keys of this unit, connect the power cable of this unit to the AC outlet. (Fig. 2)

The FIRMWARE UPDATE mode is activated and “SPDIF Upgrade” is displayed. (Fig. 2)

"STANDBY/ON" key

"SPEAKERS A/B/OFF" key

FIRMWARE UPDATE mode

SPDIF Upgrade

Fig. 2

3. Connect the power cable of DVD/CD player to the AC outlet.

4. Press the “STANDBY/ON” key of the DVD/CD player.

5. Press the “EJECT” key of the DVD/CD player to open the disc tray.

6. Place the firmware CD in the disc tray and close the disc tray.

7. Press the “PLAY” key of the DVD/CD player.

Then writing of the firmware is started. (Fig. 3)

8. When writing of the firmware is completed, “Upgrade OK”, “Please...” and “Turn off!!” are displayed repeatedly. (Fig. 3)

Writing is started.

Address:XXXXXX

XXXXXX: Address information of the received data

Writing is completed.

Upgrade OK

Please...

Turn off!!

Fig. 3

RX-V363/HTR-6130

* When the version of the firmware to be written is the same as the one existing in this unit, “Same Version”,

“Please...” and “Turn off!!” are displayed repeatedly. (Upgrading is not necessary.)

If the display remains unchanged for more than 10 seconds after starting the firmware CD play procedure, perform the firmware CD play procedure again from the beginning.

If “FILE CORRUPTED” is displayed after “Address:XXXXXX”, make sure that the firmware CD is not corrupted and perform steps 1 to 8 of “Operation Procedures” again.

If “Upgrade Failed” is displayed, perform Steps 1 to 8 of “Operation Procedures” again.

9. Press the “STOP” key of the DVD/CD player.

10. Press the “EJECT” key of the DVD/CD player to open the disc tray.

11. Remove the firmware CD from the disc tray and close the disc tray.

12. Turn off the power of the DVD/CD player and disconnect the power cable from the AC outlet.

13. Turn off the power by pressing the “STANDBY/ON” key of this unit.

Confirmation of firmware version and checksum

To confirm that the firmware is updated successfully, check the firmware version and checksum value by using the selfdiagnostic function menu “14. ROM VER/SUM”.

For more information, refer to “SELF DIAGNOSTIC FUNCTION”.

* When the displayed firmware version and checksum are different from written firmware version and checksum, follow the steps from 1 to 13 of “Operation Procedures” again.

Initializing of this unit

* After updating the firmware, be sure to initialize this unit.

1. Connect the power cable of this unit to the AC outlet.

2. Press the “STANDBY/ON” key while simultaneously pressing the “STRAIGHT” and “AUDIO SELECT” keys. (Fig. 5)

The self-diagnostic function is activated.

3. Select the main menu “13. FACTORY PRESET”.

4. Select the “PRESET RSRV”.

PRESET INHIBIT (Initialization inhibited)

13.PRESET

INHI

PRESET RESERVED (Initialization reserved)

13.PRESET

RSRV

5. Turn off the power of this unit and disconnect the power cable from the AC outlet.

19

20

RX-V363/HTR-6130

SELF DIAGNOSTIC FUNCTION

This unit has self diagnosis functions that are intended for inspection, measurement and location of faulty point.

There are 14 main menu items, each of which has sub-menu items.

Listed in the table below are menu items and sub-menu items.

Note that not all menu items listed will apply to the models covered in this service manual.

No.

1 BYPASS

2 AUDIO CHECK

Main menu

3 SPEAKERS SET

4 6CH-INPUT

5

6

MIC CHECK

FL CHECK

7 TEST TONE

8 PROTECTION

9 AD DATA CHECK

ANALOG BYPASS

DSP BYPASS

AUDIO CHECK

MUTE ALL

MUTE SYSTEM IC

MUTE TRUNSISTOR

FRNT : SML 0dB

CENTER : NONE

LFE/B : FRNT

TONE : MAX

TONE : MIN

6ch INPUT 6-ohm

6ch INPUT 8-ohm

LIM : , PLDET : , THM :

MIC CHECK

VFD CHECK

VFD DISP OFF

VFD DISP ALL

VFD DIMMER

CHECK PATTERN

TEST ALL

TEST FRNT L

TEST CENTER

TEST FRNT R

TEST SURR R

TEST SURR L

TEST LFE

PRD L : xxx

PRD H : xxx

PRV L : xxx

PRV H : xxx

THM : xxx

PLDET8_L : xxx

PLDET8_H : xxx

PLDET6_L : xxx

PLDET6_H : xxx

PRI : xxx

PDET : xxx

PD : xxx PV : xxx

TH : xxx PL : xxx

PI : xxx DE : xxx

K0 : xxx K1 : xxx

Sub-menu

RX-V363/HTR-6130

No.

10

Main menu

PROTECTION HISTORY

11 iPod

12 SOFT SW

13

14

FACTORY PRESET

ROM VER/SUM

Sub-menu

History 1

History 2

History 3

History 4

DOCK : xxx

DOCK ignore

SW MODE

MODEL

DESTINATION

TUNER DESTINATION

VIDEO FORMAT

AAC

YPAO

RDS

DOCK (iPod)

PRESET INHI

PRESET RSRV

TOTAL VERSION

CRC14 ALL program

CRC16 apprication & standby (Main program CRC16)

CRC16 SPI F/W update code

CRC16 S/PDIF/ F/W update code

FLASH ROM Read/Write check

SDRAM Read/Write check

EEPROM Read/Write check

21

22

RX-V363/HTR-6130

• Starting Self-diagnostic Function

Press the “STANDBY/ON” key while simultaneously pressing those two keys of this unit as indicated in the figure below.

Keys of this unit

Turn on the power while pressing these keys.

• Starting Self-diagnostic Function in the protection cancel mode

If the protection function works and causes hindrance to trouble diagnosis, cancel the protection function as described below, and it will be possible to enter the self-diagnostic function mode. (The protection functions other than the excess current detect function will be disabled.)

Press the “STANDBY/ON” key while simultaneously pressing those two keys indicated in the figure above. At this time, keep pressing those two keys for 3 seconds or longer.

In this mode, the [SLEEP] segment of the FL display of this unit flashes to indicate that the mode is self-diagnostic function mode with the protection functions disabled.

CAUTION!

Using this product with the protection function disabled may cause damage to this unit. Use special care for this point when using this mode.

• Canceling Self-diagnostic Function

1. Before canceling self-diagnostic function, execute setting for FACTORY PRESET of main menu No.13 (Memory initialization inhibited or Memory initialized).

* In order to keep the user memory stored, be sure to select PRESET INHIBITED (Memory initialization inhibited).

2. Turn off the power by pressing the “STANDBY/ON” key of this unit.

• Display provided when Self-diagnostic Function started

On the FL display of this unit, an opening message (including the protection history) appears for a few seconds followed by the self-diagnostic function menu display (1. ANALOG BYPASS).

RX-V363/HTR-6130

When there is no history of protection function:

When there is no protection history

After a few seconds

NO PROTECTION 1.ANLOG

BYPASS

When there is a history of protection function due to excess current

PRI PRT:xxx

AD value when the protection function is working

Cause: An excessive current flowed through the power amplifier.

Supplementary information:

As current of the power amplifier is detected, the abnormal channel can be identified by checking the current detect transistor.

Turning on the power without correcting the abnormality will cause the protection function to work immediately and the power supply will instantly be shut off.

Note)

• Applying the power to this unit without correcting the abnormality can be dangerous and cause additional circuit damage. To avoid this, if “PRI” and “PRD” protection function has been activated 3 times continuously, the power will not turn on even when the “STANDBY/ON” key is pressed. In order to turn on the power again, disconnect the power cable of this unit from the AC outlet once and then reconnect it again.

• The output transistors in each amplifier channel should be checked for damage before applying power to this unit.

• Amplifier current should be monitored by measuring DC voltage across the emitter resistors for each channel.

When there is a history of protection function due to abnormal DC output

PRD PRT:xxx

AD value when the protection function is working

Cause: DC output of the power amplifier is abnormal.

Supplementary information:

The protection function worked due to a DC voltage appearing at the speaker terminal.

A cause could be a defect in the amplifier.

If the power is turned on with the abnormality unsolved, the protection function works in about 3 seconds to turn off the power.

23

24

RX-V363/HTR-6130

When there is a history of protection function due to abnormal voltage in the power supply section

PRV PRT:xxx

AD value when the protection function is working

Cause: The voltage in the power supply section is abnormal.

Supplementary information:

The protection function worked due to a defect or overload in the power supply.

If the power is turned on with the abnormality unsolved, the protection function works in about 1 second to turn off the power.

When there is a history of protection function due to excessive heat sink temperature

THM PRT:xxx

AD value when the protection function is working

Cause: The temperature of the heat sink is excessive.

Supplementary information:

The protection function worked due to the temperature limit being exceeded.

Causes could be poor ventilation or a defect related to the thermal sensor.

If the power is turned on with the abnormality unsolved, the protection function works in about 1 second to turn off the power.

For detection of each protection function, refer to main menu described later.

History of protection function

When the protection function has worked, its history is stored in memory with a backup.

Even if no abnormality is noted while servicing the unit, an abnormality which has occurred previously can be defined as long as the backup data has been stored.

The history of the protection function is cleared when self-diagnostic function is cancelled by selecting PRESET

RESERVED (Memory initialized) of main menu No. 13 or when the backup data is erased.

RX-V363/HTR-6130

• Operation procedure of Main menu and Sub-menu

There are 14 menu items, each of having sub-menu items.

Main menu selection:

Select the menu using “>” (forward) and “<” (reverse) keys of PROGRAM.

Sub-menu selection:

Select the sub-menu using “SCENE 2” (forward) and “SCENE 1” (Reverse) keys.

Keys of this unit

Sub-menu selection

Reverse Forward

Reverse Forward

Main menu selection

• Functions in Self-Diagnostic Function mode

In addition to the self-diagnostic function menu items, functions as listed below are available.

• Power on/off

• Master volume

• Muting

• Speakers A/B/OFF

• Input selection

• Audio select

• Tone control

* Functions related to the tuner and the set menu are not available.

• Initial settings used to start Self-Diagnostic Function

The following initial settings are used when starting self-diagnostic function.

When self-diagnostic function is canceled, these settings are restored to those before starting self-diagnostic function.

• Master volume: -20 dB

• Input: DVD (MULTI CHANNEL INPUT OFF)

• Effect level: 0 dB

• Main menu: 1. ANALOG BYPASS

25

RX-V363/HTR-6130

26

• Details of Self-Diagnostic Function menu

1. BYPASS

Using the sub-menu, it is possible to select ANALOG BYPASS output or DSP BYPASS output.

ANALOG BYPASS

The analog input sound signal is output to FRONT L/R with EFFECT OFF.

1.ANLOG

BYPASS

INPUT: DVD ANALOG

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

Input level

Both ch, -20 dBm

Volume

+6.0 dB

FRONT

+11.5 dBm

SPEAKER OUT

CENTER

-

SURROUND

-

SUBWOOFER

OUTPUT

-

DSP BYPASS

The digital input sound signal is output to FRONT L/R with EFFECT OFF.

1.DSP

BYPASS

INPUT: DVD ANALOG

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

Input level

Both ch, -20 dBm

Volume

+6.0 dB

FRONT

+11.5 dBm

SPEAKER OUT

CENTER

-

SURROUND

-

SUBWOOFER

OUTPUT

-

2. AUDIO CHECK

The input sound signal is output.

* When the inputted sound signal is 2 ch L/R, it is distributed as follows when output.

L ch:

FRONT L, CENTER, SURROUND L,

LFE ( L ch +10 dB)

R ch:

SURROUND R

2.AUDIO

CHECK

INPUT: DVD ANALOG

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

Input level

Both ch, -20 dBm

Volume

+6.0 dB

FRONT

+11.5 dBm

SPEAKER OUT

CENTER

+11.5 dBm

SURROUND

+11.5 dBm

SUBWOOFER

OUTPUT

0 dBm

MUTE ALL

2.MUTE

ALL

MUTE SYSTEM IC

2.MUTE

SYS IC

MUTE TRANSISTOR

2.MUTE

TR

RX-V363/HTR-6130

3. SPEAKER SET

The analog switch settings for each sub-menu are as shown in the table below.

FRONT : SML 0dB

CENTER : NONE

LFE/B : FRNT

TONE : MAX

TONE : MIN

SMALL

LARGE

LARGE

LARGE

LARGE

LARGE

NONE

SMALL

LARGE

LARGE

LARGE

LARGE

SMALL

LARGE

LARGE

SWFR

SWFR

FRONT

SWFR

SWFR

LARGE: This mode is used for a speaker with high bass reproduction performance (a large unit).

Full bandwidth signals are output.

SMALL: This mode is used for a speaker with low bass reproduction performance (a small unit).

The signals of 90 Hz or less are mixed into the channel specified by LFE/BASS.

NONE:

This mode is used for no center speaker.

The center content is reduced by 3 dB and distributed to FRONT L/R.

SWFR:

LFE of 5.1 ch signal or LFE/BASS lower than 90 Hz is output through SUBWOOFER OUT.

FRONT: LFE of 5.1 ch signal or LFE/BASS lower than 90 Hz is distributed to FRONT L/R.

3.FRNT:SML 0dB

FRONT: SML 0dB

The FRONT L/R signal, when 90 Hz or lower, is mixed to the channel specified by LFE/BASS.

3.CENTER

NONE

3.LFE/B:FRNT

3.TONE:MAX

3.TONE:MIN

CENTER: NONE

The CENTER signal is distributed to FRONT L/R.

LFE / BASS: FRONT

The LFE (SUBWOOFER) signal is distributed to FRONT L/R.

TONE: MAX

The signal is output with the tone control [BASS +10 dB, TREBLE +10 dB].

TONE: MIN

The signal is output with the tone control [BASS -10 dB, TREBLE -10 dB].

INPUT: DVD ANALOG

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

Sub-menu

FRONT : SML 0dB

CENTER : NONE

LFE/B : FRNT

TONE : MAX

TONE : MIN

Input level

Both ch, -20 dBm

Both ch, -20 dBm

Both ch, -20 dBm

Both ch, -20 dBm

Both ch, -20 dBm

Volume

+6.0 dB

+6.0 dB

+6.0 dB

+6.0 dB

+6.0 dB

FRONT

+11.5 dBm

+11.5 dBm

+11.5 dBm

+14.5 dBm

+8.5 dBm

SPEAKER OUT

CENTER

-

-

-

-

-

SURROUND

-

-

-

-

-

SUBWOOFER

OUTPUT

-3.5 dBm

-

-

-

-

27

28

RX-V363/HTR-6130

4. 6CH INPUT

The input source [MULTI CHANNEL INPUT] is selected.

It is possible to select the 6-ohm/8-ohm by using the sub-menu.

6 ch INPUT 6-ohm

4.6ch

INPUT 6

INPUT: MULTI CH INPUT

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

Sub-menu

6 ch INPUT 6-ohm

Input level Volume

Both ch, -20 dBm +6.0 dB

FRONT

+11.5 dBm

SPEAKER OUT

CENTER

+11.5 dBm

SURROUND

+11.5 dBm

SUBWOOFER

OUTPUT

-3.5 dBm

6 ch INPUT 8-ohm

INPUT: MULTI CH INPUT

SPEAKER OUT: 1 kHz, SUBWOOFER OUTPUT: 50 Hz

4.6ch

INPUT 8

Sub-menu

6 ch INPUT 8-ohm

Input level Volume

Both ch, -20 dBm +6.0 dB

FRONT

+11.5 dBm

SPEAKER OUT

CENTER

+11.5 dBm

SURROUND

+11.5 dBm

LIM/PLDET/THM

LIM:

Setting value of LIM (Limiter control)

* Do not change the setting value because this item is only for the use of development staff.

PLDET: Power limiter detection

The A/D conversion value during operation is displayed.

THM:

Thermo protection detection

The A/D conversion value during operation is displayed.

(Reference voltage: 3.3 V=255)

SUBWOOFER

OUTPUT

-3.5 dBm

4.255:255: 82

THM (Thermo protection detection)

PLDET (Power limiter detection)

LIM (Limiter control)

5. MIC CHECK

The signals input through the microphone are output of FRONT L/R via A/D and D/A.

5.MIC

CHECK

6. FL CHECK

Use this program to check the FL display section.

For audio signal processing, use STRAIGHT.

Checking FL display section

Initial display

All segments OFF

All segments ON (dimmer 100%)

All segments ON (dimmer 50%)

Lighting of segments in lattice

RX-V363/HTR-6130

29

30

RX-V363/HTR-6130

7. TEST TONE

The outputs the noise through the channels specified by the submenu.

The noise frequency for LFE (SUBWOOFER) is 35 to 80 Hz.

Other than that, the noise frequency is 500 to 2 kHz.

7.TEST

7.TEST

FRNT L

7.TEST

CENTER

7.TEST

FRNT R

7.TEST

SURR R

7.TEST

SURR L

7.TEST

ALL

LFE

TEST ALL

Noise is output from all channels.

TEST FRONT L

Noise is output from the FRONT L channel.

TEST CENTER

Noise is output from the CENTER channel.

TEST FRONT R

Noise is output from the FRONT R channel.

TEST SURROUND R

Noise is output from the SURROUND R channel.

TEST SURROUND L

Noise is output from the SURROUND L channel.

TEST LFE (SUBWOOFER)

Noise is output from the LFE (SUBWOOFER) channel.

8. PROTECTION

The A/D setting value of each protection is displayed.

(Reference voltage: 3.3 V=255)

8.PRD

L : 35

8.PRD

H : 81

8.PRV

L : 83

8.PRV

8.THM

8.PLD8

8.PLD8

8.PLD6

8.PLD6

8.PRI

8.PDET

H :

:

L:

H:

L:

H:

153

128

77

100

77

100

100

209

PRD (Amplifier DC protection) Low

The minimum preset value of PRD is displayed.

PRD (Amplifier DC protection) High

The maximum preset value of PRD is displayed.

PRV (Voltage protection) Low

The minimum preset value of PRV is displayed.

PRV (Voltage protection) High

The maximum preset value of PRV is displayed.

THM (Thermo protection) High

The maximum preset value of THM is displayed.

PLD (PLDET (Power limiter detection)) 8-ohm Low

The value for starting limiter operation of PLD8 is displayed.

PLD (PLDET (Power limiter detection)) 8-ohm High

The value for canceling limiter operation of PLD8 is displayed.

PLD (PLDET (Power limiter detection)) 6-ohm Low

The value for starting limiter operation of PLD6 is displayed.

PLD (PLDET (Power limiter detection)) 6-ohm High

The value for canceling limiter operation of PLD6 is displayed.

PRI (Amplifier current protection) High

The maximum preset value of PRI is displayed.

PDET Low

The minimum preset value of PDET is displayed.

RX-V363/HTR-6130

31

RX-V363/HTR-6130

32

9. A/D DATA CHECK

This menu is used to display the A/D conversion value of the microprocessor which detects panel keys of this unit and protection functions in using the sub-menu.

When K0/K1 menu is selected, keys become non-operable due to detection of the values of all keys. However, it is possible to advance to the next sub-menu by turning the VOLUME of this unit. When using this function, note that turning the VOLUME more than 1 click would cause the volume value to change.

Signal processing is maintained in the status before execution.

* The figures in the diagram are given as reference only.

PD/PV

PD:

PRD (Power amplifier DC protection detection)

The output of power amplifier DC (DC voltage) is detected.

Normal value: 35 to 81 (Reference voltage: 3.3 V=255)

PV:

PRV (Voltage protection detection)

Voltage detects: ACL, AC2, 10V, S9, +12,

-12, +5V and VP

Normal value: 84 to 153 (Reference voltage: 3.3 V=255)

* If PRD and PRV are out of the normal value range, the protection function works to turn off the power.

PD: 57 PV:128

TH/PL

TH:

THM (Thermo protection detection)

The temperature of the heat sink is detected.

Normal value: 0 to 124 (Reference voltage: 3.3 V=255)

* If THM is out of the normal value range, the protection function works to turn off the power.

PL:

PLDET (Power limiter detection)

The output voltage of power amplifier is detected.

TH: 77 PL:255

U, C models (Reference voltage: 3.3 V=255)

PLDET

LIM H: 255 / L: 102

(LIM: Limiter control)

During normal operation

255

H

Value for starting limiter operation

77

L

Value for canceling limiter operation

100

H

R, T, K, A, B, G, E, F, L models (Reference voltage: 3.3 V=255)

PLDET

LIM H: 255 / L: 90

(LIM: Limiter control)

During normal operation

255

H

Value for starting limiter operation

100

L

Value for canceling limiter operation

131

H

PI/DE

PI:

PRI (Current protection detection)

The current of the power amplifier is detected.

Normal value: 0 to 100 (Reference voltage: 3.3 V=255)

DE:

PDET (Sub-trans power detection)

Normal value: 209 to 255 (Reference voltage: 3.3 V=255)

* If PRI and PDET are out of the normal value range, the protection function works to turn off the power.

PI: 12 DE:255

RX-V363/HTR-6130

K0/K1

K0/K1: KEY0/KEY1 (Panel key of this unit)

The key will fail to function properly if its A/D conversion value deviates more than

±4 from reference value. In that case, check the constant of partial pressure resistor, solder condition, etc. with referring to the table below.

(Reference voltage: 3.3 V=255)

K0:255 K1:255

Display

23

± 4

42

± 4

66

± 4

92

± 4

120

± 4

147

± 4

165

± 4

182

± 4

198

± 4

217

± 4

255

KEY0

SCENE 1

SCENE 2

PROGRAM <

PROGRAM >

STRAIGHT

TONE CONTROL

SEARCH MODE

FM/AM

A/B/C/D/E

SPEAKERS

(KEY OFF)

KEY1

SCENE 3

SCENE 4

DIRECT

AUDIO SELECT

INPUT <

INPUT >

PRESET/TUNING <

PRESET/TUNING >

MEMORY

TUNING

(KEY OFF)

10. PROTECTION HISTORY

Four protection histories are displayed.

Example

10.PRI: 90

Example

10.PRD: 34

Example

10.THM: 60

Example

10.NO

PROT

History 1

History 2

History 3

History 4

33

34

RX-V363/HTR-6130

11. iPod (U, C models)

This menu is used to test the DOCK connector without the iPod itself. After turning off the power to this unit short between pins No. 14 (TX) and No. 18 (RX), between pins No. 1 (PWR) and No. 17 (ACCPOW) and between pins No. 4

(iPDET) and No. 8 (DGND) of the DOCK connector. (Make sure that the power is turned off when shorting pins.)

Start the self-diagnostic function and select this menu.

The check result is displayed according to the following display specifications.

Note) Be sure to return the shorted pins to their original condition after executing this test.

3

1

15 16

9 10

4

11 12

5 6

19 20

7

21

17 18

13 14

8

2

11.DOCK:NG NNN

All Y = “OK”

Others = “NG”

DOCK CONNECTOR

Check item

UART loop back test iPAP (iPod accessory power) detection iPDET (iPod installation to DOCK) detection

IC402 pin No. 1

IC402 pin No. 12

Result

OK

NG

High

Low

Low ( iPod universal dock

)

High (

Bluetooth adapter

)

Display

Y

N

Y

N

Y

N

DOCK ignore

When DOCK and iPod are connected, the input source [DOCK (iPod)] is made ineffective and [V-AUX] is selected.

11.DOCK

IGNORE

RX-V363/HTR-6130

12. SOFT SW

Note) Do not change the function settings because this menu is only for the use of development staff.

This menu is used to change the function of this unit by switching the function settings on P.C.B. through the software.

* Mentioning the details is not allowed because this menu is only for the use of development staff.

12.MODE:PCB

Switch mode

12.MODEL:363

Model

12.DEST

: UC

Destination

12.TUNER: UC

Tuner destination

12.VIDEO:NTSC

VIDEO format

12.AAC

: NOT

AAC

12.YPAO

: AVAIL

YPAO

12.RDS: AVAIL

RDS

12.DOCK: NOT

DOCK (iPod)

35

36

RX-V363/HTR-6130

13. FACTORY PRESET

This menu is used to reserve and inhibit initialization of the back-up RAM.

The signals are processed using EFFECT OFF (The L/R signal is output using ANALOG BYPASS).

13.PRESET

INHI

PRESET INHIBIT (Initialization inhibited)

Back-up RAM initialization is not executed. Select this sub-menu to protect the values set by the user.

13.PRESET

RSRV

PRESET RESERVED (Initialization reserved)

Initialization of the back-up RAM is reserved. (Actually, initialization is executed the next time that the power is turned on.)

Select this sub-menu to reset to the original factory settings or to reset the RAM.

Any protection history will be cleared.

CAUTION: Before setting to the PRESET RESERVED, write down the existing preset memory content of the tuner in a table as shown below.

(This is because setting to the PRESET RESERVED will cause the user memory content of the tuner to be erased.)

P2 P3 P4 P5 P6 P7 P8 Preset Group

A

B

C

D

E

P1

RX-V363/HTR-6130

14. ROM VER/SUM

The firmware version and checksum values are displayed. The signal is processed using EFFECT OFF.

The checksum is obtained by adding the data at every 8 bits for each program area and expressing the result as a 4figure hexadecimal data.

14.

VER.

C015

Version

Firmware version of microprocessor (IC101 DSP P.C.B.) is displayed.

14.A.SUM:6F75

All checksum

Checksum value of microprocessor (IC101 DSP P.C.B.) is displayed.

14.P.SUM:D057

Program checksum

Checksum value of application and standby code program is displayed.

14.SPI.S:A3F0

SPI (Serial Peripheral Interface) checksum

Checksum value of SPI firmware update code is displayed.

14.SPD.S:FC4A

SPD (S/PDIF) checksum

Checksum value of SPD firmware update code is displayed.

FROM TEST:NoEr

FlashROM test

The read/write test of microprocessor (IC101 DSP P.C.B.) and flash ROM (IC201 DSP P.C.B.).

NoEr: No error detected NG: An error is detected

DRAM TEST:NoEr

SDRAM test

The read/write test of microprocessor (IC101 DSP P.C.B.) and SDRAM (IC202 DSP P.C.B.).

NoEr: No error detected NG: An error is detected

PROM TEST:NoEr

EEPROM test

The read/write test of microprocessor (IC101 DSP P.C.B.) and EEPROM (IC102 DSP P.C.B.).

NoEr: No error detected NG: An error is detected

37

RX-V363/HTR-6130

DISPLAY DATA

V2001 : 17-BT-29GNK (OPERATION P.C.B.)

} 1

PATTERN AREA

PIN CONNECTION

Pin No.

69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35

Connection

F2 NX NP NP P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31

Pin No.

34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Connection

P32 P33 P34 P35 P36 P37 NX NX NX NX NX NX NX 17G 16G 15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP NX F1

Note : 1) F1, F2 ..... Filament pin 2) NP ..... No pin 3) NX ..... No extend pin 4) 1G-17G ..... Grid pin

GRID ASSIGNMENT

17G 16G 15G

S3 S4

38

S5

(17G)

S16

S18

S15

S17

S19

1-1 2-1 3-1 4-1 5-1

1-2 2-2 3-2 4-2 5-2

1-3 2-3 3-3 4-3 5-3

1-4 2-4 3-4 4-4 5-4

1-5 2-5 3-5 4-5 5-5

1-6 2-6 3-6 4-6 5-6

1-7 2-7 3-7 4-7 5-7

(1G-14G)

S6

1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G

S1

S7 S8 S9 S10 S11 S12 S13 S14

S20

(16G)

S21

(15G)

S22

1g

1f

1a

1b

2f

2a

2b s25

2g s24 s23 s25

1e

1d

1c

2e

2d

2c s24

S26

S27

S2

24P

25P

26P

27P

20P

21P

22P

23P

16P

17P

18P

19P

12P

13P

14P

15P

32P

33P

34P

35P

28P

29P

30P

31P

36P

37P

8P

9P

10P

11P

4P

5P

6P

7P

ANODE CONNECTION

17G

1P

2P

3P

S3

S5

S4

S15

S16

S17

S18

S19

S8

S9

S10

S11

16G

S1

S6

S7

S12

S20

S21

2a

2b

2c

2d

1d

1e

1f

1g

15G

S2

S26

S27

S22

1a

1b

1c

2e

2f

2g

S23

S24

S25

S13

S14

3-6

4-6

5-6

1-7

4-5

5-5

1-6

2-6

5-4

1-5

2-5

3-5

1-4

2-4

3-4

4-4

2-7

3-7

4-7

5-7

2-3

3-3

4-3

5-3

3-2

4-2

5-2

1-3

13G-1G

1-1

2-1

3-1

4-1

5-1

1-2

2-2

3-6

4-6

5-6

1-7

4-5

5-5

1-6

2-6

2-7

3-7

4-7

5-7

5-4

1-5

2-5

3-5

1-4

2-4

3-4

4-4

2-3

3-3

4-3

5-3

3-2

4-2

5-2

1-3

4-1

5-1

1-2

2-2

14G

1-1

2-1

3-1

RX-V363/HTR-6130

39

40

29

30

31

32

33

24

25

26

27

28

21

22

23

17

18

19

20

39

40

41

42

34

35

36

37

38

43

44

12

13

14

15

16

7

8

9

10

11

4

5

6

1

2

3

RTXI

VDDRTC

GND

VDDEXT

PPI_CLK

PP10

PP11

PP12

VDDINT

PP13

PF15

PF14

PF13

GND

VDDEXT

PF12

PF11

PF10

PF9

PF8

PF7

PF6

GND

GND

GND

GND

GND

GND

GND

GND

GND

VROUT2

VROUT1

VDDEXT

GND

GND

GND

CLKIN

XTAL

VDDEXT

RESET

NMI

GND

RTXO

RX-V363/HTR-6130

IC DATA

IC101: ADSP-BF531 CPU (DSP P.C.B.)

Microprocessor and DSP

JTAG test and emulation

Event controller/

Core timer

Voltage regulator

L1 order memory

Memory management unit

Core/System bus interface

L1 data memory

DMA controller

Boot ROM

ADSP-BF531

IC101

Core Clock = 25M * 16 / 1

= 400 MHz (Max : 400M)

System Clock = 25M * 16 / 3

= 133 MHz (Max : 133M)

Watch dock timer

Real time clock

UART port IrDA®

Timer0, Timer1, Timer2

PPI/GPIO

Serial port (2)

SPI port

External port for flash and SDRAM control

DATA0

DATA1

DATA2

DATA3

DATA4

VDDINT

DATA5

DATA6

DATA7

VDDEXT

GND

DATA8

DATA9

DATA10

DATA11

DATA12

DATA13

DATA14

DATA15

GND

BMODE0

BMODE1

TCK

VDDEXT

GND

GND

GND

GND

GND

GND

GND

GND

GND

ADDR13

ADDR14

ADDR15

ADDR16

ADDR17

ADDR18

ADDR19

BGH

BG

VDDEXT

GND

104

103

102

101

100

109

108

107

106

105

116

115

114

113

112

111

110

94

93

92

91

99

98

97

96

95

90

89

121

120

119

118

117

126

125

124

123

122

132

131

130

129

128

127

RX-V363/HTR-6130

DGND

RTXI/DGND

DGND

VDDEXT

VDDINT

VIB

VIA

DGND

VDDEXT

Port Name

DGND

DGND

DGND

/VINTSW

/VINTSW

VDDEXT

DGND

DGND

DGND

CLKIN

XTAL

VDDEXT

/DRESET

NMI/DGND

/ICXM

/XMPWR

INTAK

FSYNC/TFS0

R2A_DATA

R2A_CLK

VRB

DGND

DGND

DGND

DGND

DGND

DGND

VDDEXT

VRA

REM

PSW

/SPISEL2

/SPISEL1

/EXPE

VDDINT

SPISCK

SPIMI

SPIMO

DGND

VDDEXT

DT1SEC

DT1PRI

TFS1

27

28

29

30

31

23

24

25

26

19

20

21

22

15

16

17

18

11

12

13

14

7

8

9

10

Pin No.

1

2

5

6

3

4

50

51

52

53

54

55

44

45

46

47

48

49

56

57

58

59

60

38

39

40

41

42

43

32

33

34

35

36

37

PF4

PF3

PF2

PF1

PF0

VDDINT

SCK

MISO

MOSI

GND

VDDEXT

DT1SEC

DT1PRI

TFS1

VDDEXT

PF12

PF11

PF10

PF9

PF8

PF7

PF6

GND

GND

GND

GND

GND

GND

VDDEXT

PF5

GND

RTXO

RTXI

VDDRTC

GND

VDDEXT

PPI_CLK

PP10

PP11

PP12

VDDINT

PP13

PF15

PF14

PF13

GND

Function Name

GND

GND

GND

VROUT2

VROUT1

VDDEXT

GND

GND

GND

CLKIN

XTAL

VDDEXT

/RESET

NMI

I

O

O

I/O

I/O

I/O

I

I/O

I

O

I

I

O

I

O

O

I/O

I/O

I/O

I/O

O

O

I

I

I

O

O

O

I/O

I

O

O

I

I

O

O

Detail of Function

Ground of external

Ground of external

Ground of external

Voltage regulator drive for Q101

Voltage regulator drive for Q101

I/O power supply (EX3.3)

Ground of external

Ground of external

Ground of external

Clock/oscillation input

Oscillation output

I/O power supply (EX3.3)

Delayed reset

(Pull-down)

Ground of external

(Pull-down)

Ground of external

I/O power supply (EX3.3)

Power supply of microprocessor (BF1.2)

Video select B

Video select A

Ground of external

I/O power supply (EX3.3)

CODEC IC (IC301) interrupt

Frame sync detect

DATA for R2A volume/selector IC (IC162)

CLK for R2A volume/selector IC (IC161)

Volume rotary B

Ground of external

Ground of external

Ground of external

Ground of external

Ground of external

Ground of external

I/O power supply (EX3.3)

Volume rotary A

IR remote control pulse input

Power switch (STANDBY/ON)

CS for EEPROM (IC102)

CS for 4ch ADC (IC401)

Extended port enable

Power supply of microprocessor (BF1.2)

SPI clock

Master input/slave output

Master output/slave input

Ground of external

I/O power supply (EX3.3)

Serial port 1, secondary transmission data

Serial port 1, primary transmission data

Serial port 1, frame asynchronous transmission

41

RX-V363/HTR-6130

42

104

105

106

107

108

109

98

99

100

101

102

103

92

93

94

95

96

97

86

87

88

89

90

91

116

117

118

119

120

110

111

112

113

114

115

80

81

82

83

84

85

74

75

76

77

78

79

68

69

70

71

72

73

Pin No.

61

62

63

64

65

66

67

D16

D15

D14

D13

D12

D11

D09

D08

DGND

VDDEXT

D07

D06

DGND

DGND

DGND

DGND

DGND

VDDEXT

BMODE1

BMODE0

DGND

DR0PRI

RFS0

RSCLK0

LIMITER

VDDINT

DTXM

DRXM

Port Name

TSCLK1

DR1SEC

DR1PRI

RFS1

RSCLK1

VDDINT

DT0SEC

DT0PRI

TFS0

DGND

VDDEXT

TSCLK0

DR0SEC

D05

VDDINT

D04

D03

D02

D01

D00

DGND

VDDEXT

DATA15

DATA14

DATA13

DATA12

DATA11

DATA10

DATA9

DATA8

GND

VDDEXT

DATA7

DATA6

TDI

TDO

GND

GND

GND

GND

GND

VDDEXT

TCK

BMODE1

BMODE0

GND

Function Name

TSCLK1

DR1SEC

DR1PRI

RFS1

RSCLK1

VDDINT

DT0SEC

DT0PRI

TFS0

GND

VDDEXT

TSCLK0

DR0SEC

DR0PRI

RFS0

RSCLK0

TMR2

TMR1

TMR0

VDDINT

TX

RX

/EMU

/TRST

TMS

DATA5

VDDINT

DATA4

DATA3

DATA2

DATA1

DATA0

GND

VDDEXT

/BG

/BGH

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I/O

I

I

I

I

O

I/O

O

O

I/O

I/O

I/O

I/O

I/O

O

I

O

I

I

I

I/O

I/O

I/O

I/O

O

O

I/O

I/O

I

I/O

I/O

I

I

I/O

I/O

O

Detail of Function

Serial port 1, serial transmission clock

Serial port 1, secondary reception data

Serial port 1, primary reception data

Serial port 1, frame synchronization reception

Serial port 1, serial reception clock

Power supply of microprocessor (BF1.2)

Serial port 0, secondary transmission data

Serial port 0, primary transmission data

Serial port 0, frame asynchronous transmission

Ground of external

I/O power supply (EX3.3)

Serial port 0, serial transmission clock

Serial port 0, secondary reception data

Serial port 0, primary reception data

Serial port 0, frame synchronization reception

Serial port 0, serial reception clock

Limiter control output

Power supply of microprocessor (BF1.2)

Ground of external

Ground of external

Ground of external

Ground of external

Ground of external

I/O power supply (EX3.3)

(Pull-down)

(Pull-up)

Ground of external

SDRAM data bus 16

SDRAM data bus 15

SDRAM data bus 14

SDRAM data bus 13

SDRAM data bus 12

SDRAM data bus 11

SDRAM data bus 09

SDRAM data bus 08

Ground of external

I/O power supply (EX3.3)

SDRAM data bus 07

SDRAM data bus 06

SDRAM data bus 05

Power supply of microprocessor (BF1.2)

SDRAM data bus 04

SDRAM data bus 03

SDRAM data bus 02

SDRAM data bus 01

SDRAM data bus 00

Ground of external

I/O power supply (EX3.3)

164

165

166

167

168

169

158

159

160

161

162

163

170

171

172

173

174

175

176

152

153

154

155

156

157

146

147

148

149

150

151

140

141

142

143

144

145

134

135

136

137

138

139

Pin No.

121

122

123

124

125

126

127

128

129

130

131

132

133

/AMS3

/AMS2

/AMS1

/AMS0

ARDY

/BR

SA10

/SWE

/SCAS

/SRAS

VDDINT

CLKOUT

A04

A03

A02

A01

SDQM1

SDQM0

/AWE

/ARE

/AOE

DGND

VDDEXT

VDDINT

DGND

VDDEXT

/SMS

SCKE

DGND

DGND

DGND

VDDEXT

A12

A11

A10

A09

A08

A07

A06

A05

VDDINT

DGND

VDDEXT

Port Name

A19

A18

A17

A16

A15

A14

A13

DGND

DGND

DGND

DGND

DGND

DGND

/AMS3

/AMS2

/AMS1

/AMS0

ARDY

/BR

SA10

/SWE

/SCAS

/SRAS

VDDINT

CLKOUT

ADDR4

ADDR3

ADDR2

ADDR1

/ABE1

/ABE0

/AWE

/ARE

/AOE

GND

VDDEXT

VDDINT

GND

VDDEXT

/SMS

SCKE

GND

GND

GND

Function Name

ADDR19

ADDR18

ADDR17

ADDR16

ADDR15

ADDR14

ADDR13

GND

GND

GND

GND

GND

GND

VDDEXT

ADDR12

ADDR11

ADDR10

ADDR9

ADDR8

ADDR7

ADDR6

ADDR5

VDDINT

GND

VDDEXT

Detail of Function

SDRAM address bus 19

SDRAM address bus 18

SDRAM address bus 17

SDRAM address bus 16

SDRAM address bus 15

SDRAM address bus 14

SDRAM address bus 13

Ground of external

Ground of external

Ground of external

Ground of external

Ground of external

Ground of external

I/O power supply (EX3.3)

SDRAM address bus 12

SDRAM address bus 11

SDRAM address bus 10

SDRAM address bus 09

SDRAM address bus 08

SDRAM address bus 07

SDRAM address bus 06

SDRAM address bus 05

Power supply of microprocessor (BF1.2)

Ground of external

I/O power supply (EX3.3)

SDRAM address bus 04

SDRAM address bus 03

SDRAM address bus 02

SDRAM address bus 01

SDRAM byte enable/data mask 1

SDRAM byte enable/data mask 0

Write enable (Asynchronous)

Read enable

Output enable

Ground of external

I/O power supply (EX3.3)

Power supply of microprocessor (BF1.2)

Bank select 3

Bank select 2

Bank select 1

Bank select 0

Hardware ready control

(Pull-up)

A10 pin

Write enable (Synchronization)

Sequence address strobe

Line address strobe

Power supply of microprocessor (BF1.2)

Clock output

Ground of external

I/O power supply (EX3.3)

Bank select

Clock enable

Ground of external

Ground of external

Ground of external

O

O

O

O

O

O

O

O

O

I

I

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

I/O

O

O

O

O

O

O

O

RX-V363/HTR-6130

43

44

RX-V363/HTR-6130

• Microprocessor extended port

IC204-IC206: SN74LV573APWR (DSP P.C.B.)

Octal 3-state D-latches with 3-state outputs

OE

1

LE

11

1D

2

C1

1D

19

1Q

8D

9

C8

8D

12

8Q

OE

1D

2D

3D

4D

5D

6D

7D

8D

GND

7

8

5

6

3

4

1

2

9

10

16

15

14

13

20

19

18

17

12

11

V

CC

1Q

2Q

3Q

4Q

5Q

6Q

7Q

8Q

LE

IC204

17

18

19

20

11

12

13

14

15

16

Pin No.

1

2

3

4

8

9

10

5

6

7

Port Name

/OE

1D

2D

3D

4D

5D

6D

7D

8D

GND

LE

8Q

7Q

6Q

5Q

4Q

3Q

2Q

1Q

VCC

Function Name

/EXPE

D00

D01

D02

D03

D04

D05

D06

D07

DGND

LEEX1

/SPISEL3

ADSEL2

ADSEL1

ADSEL0

/CCBE

/CMT

/SMT

/FMT

EX3.3

Detail of Function

Extended port enable

Data bus 00

Data bus 01

Data bus 02

Data bus 03

Data bus 04

Data bus 05

Data bus 06

Data bus 07

Ground of external

Bank select 1

CS for CODEC IC (IC301, DSP P.C.B.)

4ch ADC input select 2

4ch ADC input select 1

4ch ADC input select 0

SPI bus switch

Center mute

Surround mute

Front mute

Power supply

IC205

Pin No.

13

14

15

16

9

10

11

12

17

18

19

20

7

8

5

6

3

4

1

2

Port Name

8D

GND

LE

8Q

7Q

6Q

5Q

4Q

/OE

1D

2D

3D

4D

5D

6D

7D

3Q

2Q

1Q

VCC

Function Name

/EXPE

D08

D09

D10

D11

D12

D13

D14

D15

DGND

LEEX1

CLKSEL/RDS_RST

SSEL3

SSEL2

SSEL1

/IC_AK

/SPISEL4

/3.3SW

PRY

EX3.3

Detail of Function

Extended port enable

Data bus 08

Data bus 09

Data bus 10

Data bus 11

Data bus 12

Data bus 13

Data bus 14

Data bus 15

Ground of external

Bank select 1 (B, G, E, F models)

Reset for RDS (B, G, E, F models)

SCENE select LED switch 3

SCENE select LED switch 2

SCENE select LED switch 1

IC for CODEC IC (IC301, DSP P.C.B.) and VFD (IC201, OPERATION P.C.B.)

CS for VFD (IC201, OPERATION P.C.B.)

+3.3S switch

Power relay

Power supply

RX-V363/HTR-6130

IC206

17

18

19

20

11

12

13

14

15

16

Pin No.

1

2

3

4

8

9

10

5

6

7

Port Name

/OE

1D

2D

3D

4D

5D

6D

7D

8D

GND

LE

8Q

7Q

6Q

5Q

4Q

3Q

2Q

1Q

VCC

Function Name

/EXPE

D00

D01

D02

D03

D04

D05

D06

D07

DGND

LEEX2

/VR1

SPISEL5

/8ohmSW

HPRY

MRYA

MRYB

CSRY

/SWMT

EX3.3

Detail of Function

Extended port enable

Data bus 00

Data bus 01

Data bus 02

Data bus 03

Data bus 04

Data bus 05

Data bus 06

Data bus 07

Ground of external

Bank select 2

Video select R

CE for tuner

AC H/L relay (RY106, MAIN P.C.B.)

Headphone relay (RY102, MAIN P.C.B.)

Main speakers A relay (RY101, MAIN P.C.B.)

Main speakers B relay (RY102, MAIN P.C.B.)

Center/surround speakers relay (RY103/RY105, MAIN P.C.B.)

Subwoofer mute

Power supply

45

46

RX-V363/HTR-6130

• Microprocessor ADC select port

IC401: ADC084S021CIMM (DSP P.C.B.)

4-channel, 200 kSPS, 8-bit A/D converter

IN1

IN2

IN3

IN4

MUX T/H

GND

8-Bit

SUCCESSIVE

APPROXIMATION

ADC

VA

GND

CONTROL

LOGIC

SCLK

CS

DIN

DOUT

CS 1 10

VA 2

GND 3

9

ADC084S021

8

IN4

IN3

4

5

7

6

SCLK

DOUT

DIN

IN1

IN2

Pin No.

7

8

5

6

3

4

1

2

9

10

Port Name

/CS

VA

GND

IN4

IN3

IN2

IN1

DIN

DOUT

SCLK

Function Name

/SPISEL1

VA

DGND

IN4

IN3

KEY1

KEY0

SPIMO

SPIMI

SPISCK

CS for microprocessor

+3.3S

Ground of external

SPI bus COM (IC402)

SPI bus COM (IC403)

Key input 1

Key input 0

Master output/slave input

Master input/slave output

SPI clock

Detail of Function

Key input (A/D), pull-up resistance 10 k-ohms

Ohm [ohm]

V [V]

KEY0 (7 pin)

+1.0 k

0.3

SCENE 1

+1.0 k

0.55

SCENE 2

+1.5 k

0.86

PROGRAM

<

KEY1 (6 pin) SCENE 3 SCENE 4 DIRECT

+2.2 k

1.2

PROGRAM

>

AUDIO

SELECT

+3.3 k

1.56

STRAIGHT

+4.7 k

1.91

TONE

CONTROL

INPUT < INPUT >

+4.7 k

2.14

SEARCH

MODE

PRESET/

TUNING <

+6.8 k

2.36

FM/AM

PRESET/

TUNING >

+10.0 k

2.57

+22.0 k

2.81

A/B/C/D/E SPEAKERS

MEMORY TUNING

IC402, IC403: SN74LV4051APWR (DSP P.C.B.)

8-channel analog multiplexers/demultiplexers

A

11

B

10

C

9

INH

6

3

COM

13

Y0

14

Y1

15

Y2

12

Y3

1

Y4

5

Y5

2

Y6

4

Y7

Y4

Y6

COM

Y7

Y5

INH

GND

GND

3

4

1

2

5

6

7

8

12

11

10

9

16

15

14

13

V

CC

Y2

Y1

Y0

Y3

A

B

C

INH

L

L

L

L

L

L

L

L

H

INPUTS

C B

L

L

L

L

H

H

H

L

H

L

L

H

H

L

H

X

H

X

A

L

H

L

H

L

H

L

H

X

ON

CHANNEL

Y0

Y1

Y2

Y3

Y4

Y5

Y6

Y7

None

IC402

11

12

13

14

7

8

9

10

15

16

Pin No.

1

2

5

6

3

4

Port Name

Y4

Y6

COM

Y7

Y5

INH

GND

GND

COM

B

A

Y3

Y0

Y1

Y2

Vcc

Function Name

COM

LINKACTIVE

XM_MUTE

DGND

DGND

DGND

ADSEL2

ADSEL1

ADSEL0

/ST

/TUNED

+3.3S

SPI bus IN4 (IC401)

Link detect (U, C models)

(Pull-down)

Ground of external

Ground of external

Input select 2

Input select 1

Input select 0

Stereo for tuner

Tuned for tuner

Power supply

Detail of Function

IC403

11

12

13

14

7

8

9

10

15

16

Pin No.

1

2

5

6

3

4

Port Name

Y4

Y6

COM

Y7

Y5

INH

GND

GND

COM

B

A

Y3

Y0

Y1

Y2

Vcc

*

Destination for A/D port

R406 [ohm]

R407 [ohm]

DEST (1 pin) [V]

A/D value (3.3 V=255)

Destination

1.5 k

8.2 k

2.6-3.0

206-226

U, C

Function Name

DEST

/PDET

COM

/HP

PRIIN

DGND

DGND

DGND

ADSEL2

ADSEL1

ADSEL0

PLDET

PRDIN

PRVIN

THMIN

+3.3S

Destination 1 *

Sub-trans detect

SPI bus IN3 (IC401)

Headphone detect

Current protection

(Pull-down)

Ground of external

Ground of external

Input select 2

Input select 1

Input select 0

Limiter detect

Amplifier DC detect

Voltage protection

Thermo protection

Power supply

3.3 k

6.8 k

2.0-2.4

162-182

R, L

4.7 k

5.6 k

1.6-2.0

129-149

T

6.8 k

3.9 k

1.0-1.4

83-103

K, A

Detail of Function

8.2 k

2.2 k

0.5-0.9

44-64

B, G, E, F

RX-V363/HTR-6130

47

48

RX-V363/HTR-6130

IC301: AK4588VQ (DSP P.C.B.)

2/8-channel audio CODEC with DIR

PVSS PVDD R

RX0

RX1

RX2

RX3

RX4

RX5

RX6

RX7

8 to 3

Input

Selector

Clock

Recovery

DAIF

Decoder

TX0

TX1

AVDD

AVSS

DVDD

DVSS

TVDD

VIN

B,C,U,

VOUT

LIN

RIN

LOUT1

ROUT1

LOUT2

ROUT2

LOUT3

ROUT3

LOUT4

ROUT4

XTI

X'tal

Oscillator

XTO

Clock

Generator

DEM

Audio

I/F

DIT

AC-3/MPEG

Detect

Error &

STATUS

Detect

Q-subcode buffer uP I/F

LPF

LPF

LPF

LPF

LPF

LPF

LPF

LPF

ADC

ADC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

HPF

HPF

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

Audio

I/F

MCLK

LRCK

BICK

SDOUT

SDIN1

SDIN2

SDIN3

SDIN4

Format

Converter

MCKO1

MCKO2

LRCK2

BICK2

SDTO2

DAUX2

PDN

I2C

CSN

CCLK

CDTO

CDTI

INT0

INT1

MCLK

LRCK1

BICK1

DAUX1

SDTO1

SDTI1

SDTI2

SDTI3

SDTI4

INT1

BOUT

TVDD

DVDD

DVSS

XTO

XTI

TEST3

MCKO2

MCKO1

COUT

UOUT

VOUT

SDTO2

BICK2

LRCK2

SDTO1

BICK1

LRCK1

CDTO

15

16

17

18

10

11

12

13

14

6

7

8

9

1

2

3

4

5

19

20

48

47

46

45

44

52

51

50

49

60

59

58

57

56

55

54

53

43

42

41

TEST1

RX1

NC

RX0

AVSS

AVDD

VREFH

VCOM

RIN

LIN

NC

ROUT1

NC

LOUT1

NC

ROUT2

NC

LOUT2

NC

ROUT3

RX-V363/HTR-6130

34

35

36

37

38

39

40

23

27

28

29

30

24

25

26

31

Pin No.

1

2

8

18

19

20

14

15

16

17

9

10

11

12

13

5

6

3

4

7

21

22

32

Function Name

INT1

BOUT

TVDD

DVDD

DVSS

XTO

XTI

TEST3

MCKO2

MCKO1

COUT

UOUT

VOUT

SDTO2

BICK2

LRCK2

SDTO1

BICK1

LRCK1

CDTO

CCLK

SCL

CDTI

SDA

CSN

DAUX1

SDTI4

SDTI3

SDTI2

SDTI1

XTL1

XTL0

PDN

MASTER

DZF2

33

OVF

DZF1

LOUT4

NC

ROUT4

NC

LOUT3

NC

O

O

O

I

I

I

I

I

I

I

I/O

I

I

I

I

I

I/O

I/O

O

I

O

I/O

I/O

O

O

O

O

O

O

O

I

I/O

O

O

I

I

O

O

O

Detail of Function

Interrupt 1 pin

Block-start output pin for receiver input “H” during first 40 flames

Output buffer power supply pin, 2.7 V to 5.5 V

Digital power supply pin, 4.5 V to 5.5 V

Digital ground pin

X’tal clock output pin

X’tal / External clock input pin

Test 3 pin

This pin should be connected to DVSS

Master clock output 2 pin

Master clock output 1 pin

C-bit output pin for receiver input

U-bit output pin for receiver input

V-bit output pin for receiver input

Audio serial data output pin (DIR/DIT part)

Audio serial data clock pin (DIR/DIT part)

Channel clock pin (DIR/DIT part)

Audio serial data output pin (ADC/DAC part)

Audio serial data clock pin (ADC/DAC part)

Input channel clock pin

Control data output pin in serial mode, I2C pin= “L”

Control data clock pin in serial mode, I2C pin= “L”

Control data clock pin in serial mode, I2C pin= “H”

Control data input pin in serial mode, I2C pin= “L”

Control data pin in serial mode, I2C pin= “H”

Chip select pin in serial mode, I2C pin=”L”

This pin should be connected to DVSS, I2C pin=”H”

AUX audio serial data input pin (ADC/DAC part)

DAC4 audio serial data input pin

DAC3 audio serial data input pin

DAC2 audio serial data input pin

DAC1 audio serial data input pin

X’tal frequency select 0 pin

X’tal frequency select 1 pin

Power-down mode pin

When “L”, the AK4588 is powered-down, all output pin goes “L”, all registers are reset

When CAD1-0 pins are changed, the AK4588 should be reset by PDN pin

Master mode select pin

“H”: Master mode, “L”: Slave mode

Zero input detect 2 pin (table 13)

When the input data of the group 1 follow total 8192 LRCK cycles with “0” input data, this pin goes to “H” / When RSTN1 bit is “0” or PWDAN bit is “0”, this pin goes to “H”

Analog input overflow detect pin

This pin goes to “H” if the analog input of L ch or R ch overflows

This pin becomes OVF pin if OVFE bit is set to 1

Zero input detect 1 pin (table 13)

When the input data of the group 1 follow total 8192 LRCK cycles with “0” input data, this pin goes to “H” / When RSTN1 bit is “0” or PWDAN bit is “0”, this pin goes to “H”

DAC4 L ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC4 R ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC3 L ch analog output pin

No connect pin

No internal bonding / This pin should be opened

49

RX-V363/HTR-6130

50

Pin No.

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

Function Name

ROUT3

NC

LOUT2

NC

ROUT2

NC

LOUT1

NC

ROUT1

NC

LIN

RIN

VCOM

VREFH

AVDD

AVSS

RX0

NC

RX1

TEST1

RX2

NC

RX3

PVSS

R

PVDD

RX4

TEST2

RX5

CAD0

RX6

CAD1

RX7

I2C

DAUX2

VIN

MCLK

TX0

TX1

I/O

O

O

O

O

O

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

I

O

O

Detail of Function

DAC3 R ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC2 L ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC2 R ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC1 L ch analog output pin

No connect pin

No internal bonding / This pin should be opened

DAC1 R ch analog output pin

No connect pin

No internal bonding / This pin should be opened

L ch analog input pin

R ch analog input pin

Common voltage output pin

2.2 F capacitor should be connected to AVSS externally

Positive voltage reference input pin, AVDD

Analog power supply pin, 4.5 V to 4.5 V

Analog ground pin, 0 V

Receiver channel 0 pin (Internal biased pin / Internally biased at PVDD/2)

No connect pin

No internal bonding / This pin should be connected to PVSS

Receiver channel 1 pin (Internal biased pin / Internally biased at PVDD/2)

Test 1 pin

This pin should be connected to PVSS

Receiver channel 2 pin (Internal biased pin / Internally biased at PVDD/2)

No connect pin

No internal bonding / This pin should be connected to PVSS

Receiver channel 3 pin (Internal biased pin / Internally biased at PVDD/2)

PLL ground pin

External resistor pin

12 k-ohms +/-1 % resistor should be connected to PVSS externally

PLL power supply pin, 4.5 V to 4.5 V

Receiver channel 4 pin (Internal biased pin / Internally biased at PVDD/2)

Test 2 pin

This pin should be connected to PVSS

Receiver channel 5 pin (Internal biased pin / Internally biased at PVDD/2)

Chip address 0 pin (ADC/DAC part)

Receiver channel 6 pin (Internal biased pin / Internally biased at PVDD/2)

Chip address 1 pin (ADC/DAC part)

Receiver channel 7 pin (Internal biased pin / Internally biased at PVDD/2)

Control mode select pin

“L”: 4-wire serial, “H”: I2C bus

Auxiliary audio data input pin (DIR/DIT part)

V-bit input pin for transmitter output

Master clock input pin

Transmit channel (through data) output 0 pin

Transmit channel output 1 pin

When TX bit = “0”, transmit channel (through data) output 1 pin.

When TX bit = “1”, transmit channel (DAUX2 data) output pin (default)

Interrupt 0 pin 80 INT0 O

Note: All input pins except internal biased pins and internal pull-down pin should not be left floating.

RX-V363/HTR-6130

IC161: R2A15218FP (MAIN P.C.B.)

8-channel electronic volume with 11 input selector and tone control

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

A VCC

MUTE 51

MCU

I/F

A VEE 52

A VEE

N.C.

53

0/-6/-12/-18dB

ADCL 54

ATT

ADCR 55

30

A VCC

29

N.C.

28 TREL

27 BASSL2

26

BASSL1

AGND

N.C.

INR1

56

57

58

MAIN

SUB

0~-95dB,

-

(0.5dBstep)

Tone

Bass/Treble

-14~+14dB

(2dBstep)

Bypass

Tone+MIX

Tone

+42~0dB

(0.5dBstep)

25

N.C.

24

FRC

23

FROUT

INL1

INR2

59

60

Tone

+42~0dB

(0.5dBstep)

22

A GND

21

FLOUT

INL2

61

0~95dB,

-

(0.5dBstep)

Bass/Treble

-14~+14dB

(2dBstep)

Tone+MIX Tone

Bypass

20

FLC

19

A GND INR3

62

INL3

63

INR4

64

-

+42~-95dB

18

17

CC

COUT

INL4 65 16

A GND

INR5

INL5

66

67

-

+42~-95dB

-

+42~-95dB

15

SWOUT

14 SWC

INR6

INL6

INR7

68

69

70

INL7

71

INR8

72

INL8 73

N.C.

74

-

+42~-95dB

+42~-95dB

-

∞(0.5dBstep)

13 N.C.

12

SRC

11

SROUT

+42~-95dB

-

∞(0.5dBstep)

10 A GND

9

SLOUT

8

SLC

7 A GND

INRA/RECR1

INLA/RECL1

N.C.

75

76

77

INR9

78

REC

6

SBRC

5

SBR OUT

4

A GND

INL9

N.C.

79

80

3 SBL OUT

2

SBLC

1 N.C.

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

51

RX-V363/HTR-6130

52

BASSR1

BASSR2

TRER

N.C.

SBLIN2

SBRIN2

CIN2

SWIN2

SLIN2

SRIN2

FLIN2

FRIN2

SBRCIN

SBLCIN

SUBL

SUBR

DGND

DATA

CLOCK

MUTE

AVEE

N.C.

ADCL

ADCR

AGND

COUT

CC

AGND

FLC

FLOUT

AGND

FROUT

FRC

N.C.

BASSL1

BASSL2

TREL

N.C.

AVCC

N.C.

N.C.

Function Name

SBLC

SBLOUT

AGND

SBROUT

SBRC

AGND

SLC

SLOUT

AGND

SROUT

SRC

N.C.

SWC

SWOUT

44

45

46

47

40

41

42

43

36

37

38

39

32

33

34

35

52

53

54

55

48

49

50

51

28

29

30

31

24

25

26

27

20

21

22

23

16

17

18

19

12

13

14

15

8

9

10

11

Pin No.

1

2

3

6

7

4

5

Detail of Function

No connected

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

Analog GND terminal

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

Analog GND terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

Analog GND terminal

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

No connected

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

Analog GND terminal

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

Analog GND terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

Analog GND terminal

FL/FR/C/SW/SL/SR/SBL/SBR ch output terminal

L/R/C/SW/SL/SR/SBL/SBR ch terminal to connect capacitor to reduce noise from changing the volume

No connected

L/R ch tone control (Bass) terminal for setting frequency characteristics

L/R ch tone control (Bass) terminal for setting frequency characteristics

L/R ch tone control (Treble) terminal for setting frequency characteristics

No connected

Positive side power terminal

No connected

L/R ch tone control (Bass) terminal for setting frequency characteristics

L/R ch tone control (Bass) terminal for setting frequency characteristics

L/R ch tone control (Treble) terminal for setting frequency characteristics

No connected

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

SBL/SBR ch volume input terminal

SBL/SBR ch volume input terminal

L/R ch SUB output terminal

L/R ch SUB output terminal

Digital GND terminal

Control data input terminal

Control data input terminal

External Mute Control terminal

Negative side power terminal

No connected

L/R ch ADC output terminal

L/R ch ADC output terminal

N.C.

N.C.

N.C.

RECR3

RECL3

N.C.

FLIN1

FRIN1

CIN1

SWIN1

SLIN1

SRIN1

SBLIN1

SBRIN1

INL7

INR8

INL8

N.C.

INRA/RECR1

INLA/RECL1

N.C.

INR9

INL9

N.C.

INRB/RECR2

INLB/RECL2

INR10/RECR4

INL10/RECL4

INR11/RECR5

INL11/RECL5

INL3

INR4

INL4

INR5

INL5

INR6

INL6

INR7

Function Name

AGND

N.C.

INR1

INL1

INR2

INL2

INR3

83

84

85

86

79

80

81

82

75

76

77

78

71

72

73

74

67

68

69

70

63

64

65

66

Pin No.

56

57

58

59

60

61

62

95

96

97

98

99

100

91

92

93

94

87

88

89

90

Detail of Function

Analog GND terminal

No connected

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

No connected

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

No connected

L/R ch input terminal (input selector)

L/R ch input terminal (input selector)

No connected

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

L/R ch input terminal (input selector) / L/R ch REC output terminal

No connected

No connected

No connected

L/R ch REC output terminal

L/R ch REC output terminal

No connected

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

L/R/C/SW/SL/SR/SBL/SBR ch input terminal (multi input 1/2)

RX-V363/HTR-6130

53

54

RX-V363/HTR-6130

IC201: M66003-0131FP-R (OPERATION P.C.B.)

18 digit 5x7 segment VFD controller/driver

CS 2

SCK

3

SDATA 4

Serial receive circuit data

Display code

RAM

(8-bit x 60)

Code write

CGROM

(35 bit x 166) dot data write

CGROM

(35 bit x 16)

Code/ command control circuit

XIN 7

XOUT 6

Clock generator timing clock

Display controller code select scan pulse

RESET

Vcc1

1

8

Vcc2 18

Vss 5

Vp

64

Segment output circuit

44 SEG00

19 SEG25

17

SEG26

9 SEG34

Segment/

Digit select/ output circuit

45

SEG35

52

51

50

49

48

47

46

DIG11/

SEG42

DIG12/

SEG41

DIG13/

SEG40

DIG14/

SEG39

DIG15/

SEG38

DIG16/

SEG37

DIG17/

SEG36

63 DIG00

Digit output circuit

53 DIG10

RESET

CS

SCK

SDATA

Vss

XOUT

XIN

Vcc1

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

SEG28

SEG27

DIG15/SEG38

DIG16/SEG37

DIG17/SEG36

SEG35

SEG00

SEG01

SEG02

SEG03

SEG04

SEG05

SEG06

SEG07

SEG08

SEG09

SEG10

SEG11

59

60

61

62

63

64

55

56

57

58

51

52

53

54

47

48

49

50

43

44

45

46

39

40

41

42

35

36

37

38

31

32

33

34

27

28

29

30

23

24

25

26

19

20

21

22

15

16

17

18

11

12

13

14

7

8

9

10

5

6

3

4

Pin No.

Port Name

1

2

Reset

CS

SEG09

SEG08

SEG07

SEG06

SEG05

SEG04

SEG03

SEG02

SEG01

SEG00

SEG35

DIG17/SEG36

DIG16/SEG37

DIG15/SEG38

DIG14/SEG39

DIG13/SEG40

DIG12/SEG41

DIG11/SEG42

DIG10

DIG09

DIG08

DIG07

DIG06

DIG05

DIG04

DIG03

DIG02

DIG01

DIG00

Vp

SEG25

SEG24

SEG23

SEG22

SEG21

SEG20

SEG19

SEG18

SEG17

SEG16

SEG15

SEG14

SEG13

SEG12

SEG11

SEG10

SCK

SDATA

Vss

XOUT

XIN

Vcc1

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

SEG28

SEG27

SEG26

Vcc2

Function Name

/RESET

/CEFL

I/O

Reset input

Chip select input

Detail of Function

When "L", M66003 is initialized

When "L", communication with the MCU is possible

When "H", any instruction from the MCU is neglected

Shift clock input

Serial data input

Serial input data is taken and shifted by the positive edge of SCK

Clock output

Clock input

GND (0V)

When use as a CR oscillator, connect external resistor and capacitor / When use an external clock, input external clock to XIN, and XOUT must be opened

Positive power supply for internal logic

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Positive power supply for DIG and SEG outputs

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Segment output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

Digit output

G5

G4

G3

G2

G1

VP

G13

G12

G11

G10

G9

G8

G7

G6

P34

P35

P36

P37

G17I

G16I

G15I

G14

P26

P27

P28

P29

P30

P31

P32

P33

P18I

P19

P20

P21

P22

P23

P24

P25

P10

P11

P12

P13

P14

P15

P16

P17

P3

P4

P5

P6

P7

P8

P9

VDD

CKFL

DTFL

VSS

XOUT

XIN

VDD

P1I

P2

Connect to segment (anode) pins of VFD

Connect to digit (grid) pins of VFD

Negative power supply to pull down

RX-V363/HTR-6130

55

A

RX-V363/HTR-6130

B C D E F G H I

1

2

3

4

5

6

7

56

BLOCK DIAGRAMS

OPERATION

• See page 79, 80

SCHEMATIC DIAGRAM

HDMI

• See page 83

SCHEMATIC DIAGRAM

VIDEO COMPONET

DVD

DTV/CBL

VCR

MONITOR OUT

VIDEO

DVD

DTV/CBL

V-AUX

DVR IN

MONITOR OUT

DVR OUT

HDMI SWITCHER

DTV/CBL

DVD

HDMI OUT

13,14,16,17,20,21,23,24

R1814 10K

R1816 10K

5,12,13

3,10,15

1,8,17

IC181

NJM2586AM

7,21

16,18

6dB

SELECTOR &

VIDEO AMP

20,22,24

6,9,11,14,19

+5

-5

3

IC182

5

9

13

NJM2595M

6dB

2,16

8

15

SELECTOR &

VIDEO AMP

12

27,28,30,31,33,34,39,40

3,4,6,7,9,10,45,46

IC903

CXB1442AR

36

+3.3

Q182

+5

R1816

10K

-5

10K R1816

10K R1816

VIDEO SELECT

/VIA

L

/VIB

L

H L

DVD

DTV

/VIA

/VIB

VIA

VIB

VR1

H

L

H

L

MONITOR OUT LOGIC

VIA VIB PS MONITOR

H

H

L

L

H

H

H

L

DVD

DTV/CBL

DVR

MUTE(V-AUX)

H L L MUTE(iPod )

MONITOR OUT LOGIC

VIA VIB VR1 MONITOR

H

L

H

L

H

H

H

L

L

L

L

L

L

L

H

DVD

DTV/CBL

DVR

V-AUX iPod

Q184

Q183

VIDEO, AUDIO and Power Supply Sections

DSP

• See page 73-78

SCHEMATIC DIAGRAM

POWER SUPPLY

Power supply for

AK4588 (IC301)

+5AAK +5DAK

Power supply for

BN74HC245 (IC404)

SN74LVU04 (IC305)

GP1FA553RZDF (U301,302)

+5D

Power supply for component video circuit

RDS decoder circuit

+5

Power supply for

BD3816 (IC3)

-7 +7

Power supply for

TUNER UNIT

+10

Q8

Q6

Q7

Q4

IC311

KIA7805

Power supply for power amplifier pre amp stage.

-BV +BV

Power supply for power amplifier final stage.

-B +B

Power supply for operation amplifier speaker relay composite video circuit. (-12 only)

-12 +12

Limiter circuit for positive power supply.

(Q109,110,112)

C1050

IC236

KIA7812

C1051

C203

Limiter circuit for negative power supply.

(Q111,113,114)

C204

KIA7912

IC237

Power supply for

XM AK4588(IC301)

(+3.3X) +3.3DAK

Power supply for

R2A15215,ADCOB4

+3.3S

Power supply for

BLACK FIN and peripheral

EX33.

SD3.3

BF3.3

-5

Power supply for component video circuit

Q501

(R, K, A, B, G, E, F, L models)

OPTIMIZER

MIC

INPUT

TUNER

CD

MD/CD-R

DVD

DTV/CBL

VCR

V-AUX

ANT

FM/AM

TUNER

62

66,67

70,71

68,69

83,84

78,79

72,73

58,59

DSP

SELECTOR and VOLUME

IC161

• See page 73-78

SCHEMATIC DIAGRAM

TONE

CONTROL

PORTABLE

REC OUT iPod DOCK

MD/CD-R

VCR

FRONT L/R

CENTER

MULCH CH

INPUT

SUR. L/R

SUBWOOFER

75,76

81,82

93,94

95

97,98

96

Buffer amplifier with adjustable gain.

Selector and volume

21,23

17

9,11

15

R2A15215FP

+7 -7

OPERATION

• See page 79, 80

SCHEMATIC DIAGRAM

IGND +5I

HGND 5HDMI 5HDMI

IC239

KIA7805

IC234

KIA7805

D120

+3.3

IC232

NJM2388F33

D173

D

DIODE

MUTE

IGND

Power supply for iPod

(U, C models)

D2169

D2163

C2178

RY106

Select for speaker impedance 4O or 6O

AC4

AC4

ACL

ACH

AC5

AC5

ACH

ACL

AC2

AC3

AC3

AC2

AC6

AC6

C373

Q152,153

Q155

D2164

POWER AMPLIFIER

IC101

31.6dB

31.6dB

IC101

IC102

31.6dB

POWER TRANSFORMER

D2253,2254,2256,2257

SUB TRANSFORMER

T251

SPEAKER RELAY

RY102

RY101

RY104

RY105

RY103

IC162-164

Q151,154

LIM

/8ohmSW

AC IN

POWER CABLE

For FL display filament

F1

F2

/3.3SW

PHONE

JK261

SP

FRONT A L/R

SP

FRONT B L/R

SP

CENTER

SP

SUR.L/R

13dB

IC169

SUB WOOFER

Q451,452

DSP

• See page 73-78

SCHEMATIC DIAGRAM

DIGITAL

INPUT

To microprocessor and DSP

COAXIAL

(U, C, R, T, K, A,

B, G, E, L models)

DVD

73

74

OPTICAL

DTV

(J model)

CD

(U, C, R, K,

A, L models)

DIGITAL INPUT and CODEC

IC301

A/D DATA

DIR DATA

17

14

PJ301

U301

U302

RX0

RX1

RX2

57

A/D Converter

DI R

D/A Converter

CODEC

AK4588

DTOPRI

To microprocessor and DSP

Filter amplifier with gain for removal of D/A converter noise.

/HP

HPRY

MRYA

MRYB

CSRY

/FMT

/SMT

/CMT

/SWMT

J

MAIN

• See page 81, 82

SCHEMATIC DIAGRAM

1

A B C D E

Control Sections

F G H I J

RX-V363/HTR-6130

2

3

4

5

6

OPERATION

• See page 79, 80

SCHEMATIC DIAGRAM

"STANDBY/ON" key

"VOLUME"

IR Remote

PSW

VRA

VRB

REM

LIM

LIM

MAIN

• See page 81, 82

SCHEMATIC DIAGRAM

DSP

• See page 73-78

SCHEMATIC DIAGRAM

U, C models

CB602

DOCK

17

(iPod or

Bluetooth)

18

14

4 iPDET iPAP

VIA

VIB

OPERATION

• See page 79, 80

SCHEMATIC DIAGRAM

/RESET from OPERATION

DIR DATA

A/D DATA

DTOPRI

IC505

IC202

RX

TX

13

82

81

26-28

PF14

28

PF15

27

48

46

38

47

74

73

IC505

SDRAM

W9864G6EH-7

/RESET

IC201

15

12

FlashROM

S29AL008D70TFI0

/DRESET

SA10, /SRAS, /SCAS,

/SMS, CLKOUT, SCKE,

/SWE, SDQM0, SDQM1

IC101

ARDY

162

/AWE,

/AOE,

/AMS0

ADSP-BF531

IC204-206

1

ExPort1/2

11

/OE

51

/EXPE

LE

IC203

LEEX

Logic

/AWE, /AMS1, /AMS2

CONTROL LIST

Input select VIA, VIB,

/VR1

SSEL1-3

Control bus SPISEL3-5

/CCBE

/IC_AK

A/D select

Speaker relay control MRYA

MRYB

CSRY

HPRY

Mute control

ADSEL0-2

Power control

RDS control

(B, G, E, F models)

/FMT

/CMT

/SMT

/SWMT

PRY

/8ohmSW

/3.3SW

RDS_RST

49

/SPISEL2

/SPISEL1

50

53

55

54

SPISCLK

SPIMO

SPIMI

SPISCLK

SPIMO

SPIMI

SPISCLK

SPIMO

SPIMI

ADSEL0-2

/CS

SCLK

SI

SD

/CS

SCLK

DIN

DOUT

IC102

1

2

5

6

EEPROM

IC401

1

10

8

9

4ch ADC

ADC084S021

7

6

4

IC402-403

11 10

3

9

KEY0

KEY1

Microprocessor and DSP

36

37

34

INTAK

INPUT LIST

Protection PDET

PRD

PRV

PLDET

THM

Keypad

Hi or Lo

KEY0

KEY1

PRI

/HP

/ST

TUNED

/MIC iPAP else iPDET

(R, K, A, B, G, E, F, L models)

(U, C models)

(U, C models)

SPISCLK

SPIMO

SPIMI

/ICAK

SPISEL5

/CCBE

/OE

9

/5SPISEL6

14

13

2

15

5SPISCK

Bus-

Switch

18

6

7

5SPIMI

5

5SPISEL5

3.3V <->

5V

19

RDS_RST

RDS_SW

IC404

12

17

8

3

/SPISEL4

5SPISCK

5SPIMO

/RESET

/CEFD

CKFD

DTFD

2

IC201

1

VFD

3

4

M66003-

0131FP-R

5SPISCK

5SPIMO

5SPISCK

5SPIMO

5SPIMI

CEP

SCLK

DI

DO

TUNER

RDCL

RDS_RST CH3 IN3

15

RDS_RDY CH1 IN1

1

5SPISCK

5SPIMI

SW

TUNED

/ST

COMP

RDS

IC181

IC301

/PDN

31

SPISCLK

/CS

/SPISEL3

CCLK

SPIMO

CDTI

SPIMI CDTO

23

21

22

20

CODEC with DIR

INT0

80

AK4588

R2A_DATA

R2A_CLK

SW1

V1

2

16

OPERATION (1)

• See page 79

SCHEMATIC DIAGRAM

OPERATION (4)

• See page 80

SCHEMATIC DIAGRAM

7

57

A

RX-V363/HTR-6130

B

1

PRINTED CIRCUIT BOARDS

DSP P.C.B.

(Side A)

C D E F G H I J

2

3

4

5

6

7

• Semiconductor Location

Ref no. Location

D101

D401

D402

D403

D404

D405

D408

IC101

IC102

CB408

CB501

CB502

CB504

CB512

CB516

CB602

G3

G3

G4

F5

F6

G4

G3

D3

F3

C4

E6

F6

F3

E3

D3

I4

Ref no. Location

IC305

IC401

IC402

IC403

IC404

IC501

IC505

Q101

Q501

IC201

IC202

IC203

IC204

IC205

IC206

IC301

H4

D3

F6

G4

D3

H6

G3

F3

F3

E5

E4

F6

E5

D5

D4

H5

58

B, G, E, F models

OPERATION (1)

(CB202)

V_CNTL

MG

+3.3S

ADKEY1

ADKEY0

/CEFD

DTFD

CKFD

/RSTFD

PSW

REM

VRA

VRB

SSEL1

SSEL2

SSEL3

/MIC

OPERATION (2)

(CB232)

CB516

MAIN (1)

(CB161)

OPERATION (4)

(CB182)

R, T, K, A, B, G, E, F, L models

7

8 14

IC501

1

CB512

CB504

8

16

9

IC402

9 16

IC403

1 8 1

1

IC401

5

10 6

27 28

11

IC206

20

10 1

1

54

132

133 176

1

IC101

48 1

IC201

25

1

IC205

10

20 11

1 10

20

IC204

11

24

89

88

CB501

45

44

1 7

1 7

IC203

14 8

14

IC505

8

5

4

IC102

8

1

CB502

MAIN (1)

(CB101)

MAIN (1)

(CB164)

1

IC404

10

20 11

80

1 20

21

61

60

IC301

41

40

B, G, E, F models

8

IC305

14

7 1

U, C models

No replacement part available.

B, G, E, F models

1

A B

DSP P.C.B.

(Side B)

2

C

3

4

5

6

D E F G H

CB516

IC501

CB512

R, K, A, B, G, E, F, L models

CB504

IC402 IC403

U, C models

IC401

IC404

IC206

IC101

IC201

IC205

IC204

CB501

IC203

IC505

CB502

IC102

B, G, E, F models

IC301

IC305

7

I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location

D407

D409

D602

F3

F3

G4

59

1

A

RX-V363/HTR-6130

B C D E F G H I J

OPERATION (1) P.C.B.

(Side A)

2

3

4

MAIN (4)

(CB191)

R, K, A, B, G, E, F, L models

DSP

(CB408)

/MICDET

SSEL2

VRB

REM1

/BLK

DTFD

ADKEY1

+3.3S

V_CN

SSEL3

SSEL1

VRA

PSW

CKFD

/CEFD

ADKEY0

MG

MIC E +12 -12

W2001

R, K, A, B, G, E, F, L models

W2006

VOLUME

TUNING

AUTO/MAN’L

R, K, A, B, G, E, F, L models

MEMORY

5

AUDIO SELECT

PRESET/TUNING

INPUT

4 3

SCENE

2

DIRECT STRAIGHT

EFFECT

6

7

• Semiconductor Location

Ref no. Location

CB202

CB203

CB204

D2001

D2003

D2005

D2007

D2002

B3

I3

I4

E4

F4

F4

G5

D4

60

A/B/C/D/E

1

PROGRAM

FM/AM

SEARCH MODE

/EDIT

TONE CONTROL

CB204

F1

VP

F2

OPERATION (2)

(CB235)

OPERATION (10)

(CB274)

FG

V_CTRL

PSW

SPEAKERS

A B

1

2

OPERATION (1) P.C.B.

(Side B)

C

3

D

R, K, A, B, G, E, F, L models

8 5

IC202

1 4

R, K, A, B, G, E, F, L models

E

4

5

6

7

• Semiconductor Location

Ref no. Location

D2002 D4

D2004

D2006

D2008

D2009

IC201

IC202

Q2001

Q2002

Q2003

D4

D4

H3

H3

G3

C3

F3

E3

F3

Ref no. Location

Q2004 H3

Q2005

Q2011

Q2012

Q2013

Q2014

Q2015

Q2016

Q2017

G3

G5

E5

E5

F5

G5

F5

F5

F G H

33 32

48

49 IC201

64

1

17

16

I J

RX-V363/HTR-6130

61

1

A

RX-V363/HTR-6130

B

OPERATION (2) P.C.B.

(Side A)

2

C

5

6

3

4

7

62

OPERATION (1)

(CB203)

AC6

VP

AC6

U, C models

CB235

POWER TRANSFORMER

CB234

D E F

CB231

OPERATION (3)

(CB251)

CB233

MAIN (1)

(CB103)

G

IC238

IC233

IC236

IC237

IC234

U, C models

IC239

4

IC232

1

W2154

H

HDMI

(CB905)

I

DSP

(CB516)

THM

XMPWR

PRV

PRY

/PDET

/RESET

+5I

IG

+5

MG

MG

+3.3

+5XM

J

• Semiconductor Location

Ref no. Location

CB231

CB232

CB233

CB234

CB235

D2152

D2158

D2162

D2163

D5

H4

F5

C5

C4

I3

I3

D3

D3

Ref no. Location

D2164

D2169

IC232

IC233

IC234

IC236

IC237

IC238

IC239

D3

C3

I3

G3

H3

G3

G3

F3

H3

5

6

7

A B

1

2

OPERATION (2) P.C.B.

(Side B)

C

U, C models

3

D

4

E F G H

U, C models

U, C models

I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location Ref no. Location

D2151

D2154

D2156

D2157

D2160

D2165

D2166

H4

H4

H4

I3

H4

I3

C3

D2167

D2168

D2170

D2171

Q2151

Q2152

Q2153

C3

H3

C3

C3

G4

H4

H4

63

1

A

RX-V363/HTR-6130

B C D E F G

OPERATION (3) P.C.B.

(Side A)

2

3

4

AC IN

R, L models

CB256

CB257

CB254

U, C, T, K, A, B, G, E, F models R, L models

CB252

OPERATION (2)

(CB231)

MG

ACDET

PRY

S9

R, L models

5

U, C models

R, L models

6

OPERATION (3) P.C.B.

(Side B)

H

7

64

I

R, L models

J

• Semiconductor Location

Ref no. Location

CB251

CB252

CB254

CB256

CB257

D2251

D2252

D2253

D2254

D2255

D4

C3

C3

B4

B3

D3

D4

D4

D5

D4

Ref no. Location

D2256

D2257

Q2251

Q2252

Q2253

Q2254

Q2255

D2258

D2259

D5

D5

D3

D3

D3

D4

D4

H4

I4

5

6

7

3

4

1

A B

OPERATION (4) P.C.B.

(Side A)

C

2

D E F

OPERATION (4) P.C.B.

(Side B)

G H

U, C models

HDMI

(W182)

/VIB

/VIA

GND

V-AUX

VE

MAIN (4)

(CB193)

-12

+12

+5

VR1

VIB

VIA

MAIN (1)

(W161)

IP_VE

IP_C

VIC

VIA

IP_V

IP_Y

IP_VE

VIB

/VR1

/CE_OSD

SDT_OSD

/MON

OSDSEL

SCK_OSD

DSP

(CB504)

U, C models

9 8

16 1

13 12

24 1

I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location

CB181

CB182

Q181

D181

IC181

IC183

Q182

Q183

Q184

D6

D6

D6

G6

G5

G3

G3

G4

G4

65

1

A

RX-V363/HTR-6130

B

OPERATION (5) P.C.B.

R, L models

(Side A)

C

2

D

3

4

5

6

VOLTAGE

SELECTOR

OPERATION (6) P.C.B.

(Side A)

POWER TRANSFORMER

CB258

PHONES

SILENT CINEMA

JK261

MAIN (1)

(W103)

HPR

E

HPL

/HP

7

66

E F G

OPERATION (5) P.C.B.

(Side B)

OPERATION (6) P.C.B.

(Side B)

H I J

• Semiconductor Location

Ref no. Location

CB258

CB261

D2301

D2302

D2303

D3

C6

H5

H6

H6

A B

1

2

OPERATION (7) P.C.B.

(Side A)

W2351

JK266

MAIN (4)

(CB192)

C

3

PORTABLE R

AUDIO

VIDEO AUX

L VIDEO

D

4

5

OPERATION (10) P.C.B.

(Side A)

CB274

OPERATION (1)

(CB204)

FG

V_CTRL

PSW

6

STANDBY

/ON

7

E F G

OPERATION (7) P.C.B.

(Side B)

H

OPERATION (11) P.C.B.

(Side A)

I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location

CB274

D2351

D2352

D2353

D2354

C5

I2

I2

H3

H3

67

1

A

RX-V363/HTR-6130

B

MAIN (1) P.C.B.

(Side A)

2

C D E F G

MULTI CH INPUT

FRONT SURROUND CENTER /

SUBWOOFER

L / R L / R

DVD

IN

L / R

DTV/CBL

IN

L / R

IN

DVR

OUT

AUDIO

CD

IN

L / R L / R L / R

B, G, E, F models

MD/CD-R

IN

(PLAY)

OUT

(REC)

L / R L / R

SUB

WOOFER

OUT

MAIN (3)

(W101B)

W101A

3

4

DSP

(CB502)

IPR,VR1

AGND,VIB

IPL,VIA

REMSENSE

ADFL

ADFR

E

DAC

DASW

DASL

DASR

E

DAFL

E

DAFR

LIM

PLDET

PRD

PRI

/CMT

/SMT

/FMT

DSP

(CB501)

5

W161

W163A

CB103

W102A

W103

H

6

7

68

1

VIA VIB VR1

+12 -12

OPERATION (4)

(CB181)

15

R2A_DATA

CSRY

MRYA

/HP

TMT

/ST

SPICK

CEP

RDS_CLK

RDS_RDY

R2A_CLK

/SWMT

MRYB

HPRY

8ohmSW

TUNED

SPIMI

SPIMO

RDS_RST

RDS_DATA

DSP

(CB512)

AMIC AGND

+12 -12 AXL

GND AXR

MAIN (4)

(W163B)

OPERATION (2)

(CB233)

1 19

I J

MAIN (3)

(W102B)

ACH

ACH

E

E

ACL

ACL

NC

+10B

/ST

TUL

TUR

SCKP

CEP

COMP

TUNED

TMT

TE

SDRP

SDTP

TUNER

OPERATION (6)

(CB261)

• Semiconductor Location

Ref no. Location

D106

D108

D109

D110

D111

D112

D113

D114

CB101

CB103

CB104

CB161

CB163

CB164

D102

D105

D115

D116

D117

D118

D119

D120

D121

G3

G4

G3

G5

B5

F5

E5

F5

F4

B4

H6

E5

B4

E4

I3

D4

E5

I3

F5

F4

G3

H5

G3

Ref no. Location

Q113

Q114

Q115

Q116

Q117

Q118

Q119

Q120

D122

D123

IC101

IC102

Q109

Q110

Q111

Q112

Q124

Q128

Q164

Q165

Q166

Q167

C5

F5

G5

E5

H6

H5

F5

E6

H6

H6

H6

H6

H4

H4

F6

C6

I3

E5

E4

D3

E3

F3

6

7

1

A B

MAIN (1) P.C.B.

(Side B)

2

3

4

8 5

IC169

1 4

8

IC164

5

1 4

8 IC163 5

1 4

8

IC162

5

1 4

C

100

1

81 80

IC161

51

50

30 31

D

5

E

8 1

9

IC168

16

F

B, G, E, F models

G H I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location

IC168

IC169

Q101

Q102

Q103

Q104

Q105

D103

D104

D107

D161

D162

D163

IC161

IC162

IC163

IC164

F4

B4

B5

B5

B6

B6

B5

D3

B3

B3

B3

C6

F5

G5

E4

D3

E3

Ref no. Location

Q130

Q131

Q132

Q133

Q161

Q162

Q163

Q106

Q107

Q108

Q121

Q122

Q123

Q125

Q126

Q127

Q129

G3

F4

H3

H3

G3

G3

F3

G3

F4

G3

H3

B4

B4

B5

H3

G3

G4

69

1

A

RX-V363/HTR-6130

B C D

MAIN (3) P.C.B.

(Side A)

SURROUND

R L

+ / + / -

SPEAKERS

CENTER

+ / -

FRONT B

R

+ / -

L

+ / -

2

E

3

W102B

W101B

4

5

6

7

70

MAIN (1)

(W102A)

MAIN (4) P.C.B.

(Side A)

OPERATION (1)

(W2001)

R, K, A, B, G, E, F, L models

OPERATION (7)

(W2351)

-12

+12

E

MTC

AXV

VE

AXL

E

AXR

VE

VE

AXV

OPERATION (4)

(W181)

W163B

MAIN (1)

(W163A)

MAIN (1)

(W101A)

F G

MAIN (3) P.C.B.

(Side B)

H

MAIN (4) P.C.B.

(Side B)

I J

• Semiconductor Location

Ref no. Location

CB191

CB192

CB193

B6

B6

C7

1

A B C D

2

3

4

5

HDMI P.C.B.

(Side A)

DTV/CBL

IN

CB903

HDMI

DVD

IN

CB902

OUT

CB901

1

16

IC907

8

1

IC904

4

9

8 5

IC908

5

1

IC906

5

4

1

3

4

3

CB904

48

1

IC902

5 4

1 3

12

13

37

36

IC903

25

24

OPERATION (4)

(W182)

IC905

OPERATION (2)

(W2154)

CB905

6

7

E F

HDMI P.C.B.

(Side B)

G H I J

RX-V363/HTR-6130

• Semiconductor Location

Ref no. Location

CB901

CB902

CB903

CB904

CB905

D4909

D4910

D4912

D3

C3

C3

C5

D5

D4

D4

D4

Ref no. Location

D4913

D4914

D4915

D4916

D4917

D4918

D4919

D4920

D4

D4

C4

C4

C4

C4

C4

C4

Ref no. Location Ref no. Location Ref no. Location Ref no. Location

D4921

D4922

D4923

D4924

D4925

D4926

D4927

D4928

C4

C4

C4

C4

C4

C4

B4

B4

D4929

D4930

D4931

D4932

D4933

D4934

IC902

IC903

B4

C4

C4

C4

D5

D5

D4

C4

IC904

IC905

IC906

IC907

IC908

Q4902

Q4903

Q4904

C5

D5

C5

C5

C5

H4

H4

H4

Q4905

Q4906

G4

G4

71

RX-V363/HTR-6130

PIN CONNECTION DIAGRAMS

• ICs

ADC084S021 CIMM ADSP-BF531 CPU

133

132 89

88

AK4588VQ

60

61

BR25L320F-W EEPROM

41

40

72

10

1

5

CXB1442AR-T4

37

36

25

24

176

1

K4S641632K-UC60000

44

45

54 28

80

1

KIA7805API

KIA7812API

20

21

8

1

4

KIA79M05PI

KIA7912PI

48

1

LM61CIZ

+V

S

V

OUT

GND

NJM2885DL1-33

IN

COM

OUT

12

13

1

LC72725KM

NJM2595M (TE1)

SN74CB3Q3257PWR

27

NJM2586AM

16

1

M66003-0131FP-R

49

48

8

NJM2388F05

NJM2388F33

64

1

33

32

16

17

NJM4565M

GND

INPUT

OUTPUT

NJM2867F3-05

5

4

1

3

2:GND

R2A15218FP

80

81

1:V

IN

3:V

OUT

51

50

12

24

1

SN74AHC02PWR

SN74AHCT08PWR

SN74LV08APWR

SN74LVU04APWR

1

1. V

IN

2. V

OUT

3. GND

4. ON/OFF CONTROL

4

SN74AHCT245PWR

SN74LV573APWR

100

1

SN74LVC2G17DCKR

31

30

SN74LVC3G04DCTR

14

1

SN74LV157APWR

SN74LV4051APWR

7

20

STK433-130-E

1

8

1

4

SN74LVC1G08DCKR

10

STK433-330-E

5

4

1

3

6

4

1

3

8

1

4

16

1

8

1

15

1

19

• Diodes

1SS133, 176

1SS270A

1T2

MTZJ4.7A

MTZJ3.3B

Anode

RB160L-40 TE25

Anode

MA8075-H

MA8100-H

Cathode

KBP103G 1.0A 200V

+

AC

AC

KDS160-RTK

Anode

Cathode

1SS355

RB500V-40

UDZ3.6BTE-17

UDZ5.1B

UDZS3.3BTE-17

UDZS5.6BTE-17

UDZS9.1B

Cathode

Cathode

Cathode

TS6P03G 6.0A 200V

Anode

+

AC

AC

Anode

• Transistors

2SA1015

2N5401C

2N5551C

KRC102M-AT

E

C

B

E

C

B

2SA1037K

2SC2412K

2SC3326

2SD1938F

2SA1708

2SC1740S 2SC1815

2SC2705

C

B

E

KRA102S-RTK/P

KRA104S-RTK

KRC102S-RTK

KRC104S-RTK

OUT

COMMON

IN

E

C

B

KTA1046-Y-U/P

1: Base

2: Collector

3: Emitter

1 2

3

B

C

E

RTQ040P02

E

C B

6

4

1

3

1. Drain

2. Drain

3. Gate

4. Source

5. Drain

6. Drain

9

10

7

8

4

5

2

3

6

1

A B

SCHEMATIC DIAGRAMS

DSP 1/6

C

to DSP 5/6 to DSP 6/6 to DSP 3/6 to DSP 5/6 to DSP 4/6 to DSP 2/6 to DSP 3/6, 4/6 to DSP3/6

EEPROM

3.4

0.4

3.4

0

3.3

3.4

3.4

3.4

D E F

to DSP 2/6

G H I J K L M N

RX-V363/HTR-6130

1.5

1.5

1.5

1.5

3.4

3.4

3.4

2.0

1.5

1.5

3.4

3.4

3.4

0.2

0

3.2

0

0

0

0

0

0

0.2

0.6

3.4

1.8

0

0

2.0

2.0

3.4

1.7

1.9

3.4

3.4

0

0

0

0

0

0

0

0

0

3.4

0

B-2

MICROPROCESSOR and

DSP

IC101

to DSP 5/6

3.4

0

0

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

0.3

0.3

0.6

3.4

0

0.3

0.3

0.3

0.3

0.3

1.5

0

0

0

0

0

0.2

3.4

0

0

0

0

0

0

0

0

0.2

0

0

0

0.2

0

to DSP 2/6

to DSP 6/6 to DSP 5/6

DIGITAL OUT

AD IN

POINT B-2 XL101 (Pin 11 of IC101)

DIGITAL IN

IC101: ADSP-BF531 CPU

Microprocessor

JTAG test and emulation

Event controller/

Core timer

Voltage regulator

L1 order memory

Memory management unit

Core/System bus interface

L1 data memory

DMA controller

Boot ROM

Watch dock timer

Real time clock

UART port IrDA®

Timer0, Timer1, Timer2

PPI/GPIO

Serial port (2)

SPI port

External port for flash and SDRAM control

IC102: BR25L320F-W EEPROM

SPI BUS 32 k-bit (4,096 x 8-bit) EEPROM

CS

1

SO 2

WP

3

GND

4

INSTRUCTION DECODE

CONTROL CLOCK

GENERATION

VOLTAGE

DETECTION

WRITE

INHIBITION

HIGH VOLTAGE

GENERATOR

INSTRUCTION

REGISTER

ADDRESS

REGISTER

12bit

ADDRESS

DECODER

12bit

STATUS REGISTER

32,768bit

EEPROM

DATA

REGISTER

8bit

READ/WRITE

AMP

8bit

8 Vcc

7 HOLD

6 SCK

5 SI

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

73

9

2

3

4

5

6

to DSP 5/6

to DSP 1/6

7

8

1

A

RX-V363/HTR-6130

DSP 2/6

B

3.4

3.4

3.4

3.4

3.4

3.4

IC203

3.4

3.4

3.4

IC203

3.4

0

C D

0

0

0.9

0.9

0

0

2.1

2.1

0

3.4

1.9

1.9

1.9

1.9

3.3

3.5

0.2

0.2

2.0

1.8

0.3

3.4

1.6

0.3

1.7

0.3

1.7

0.3

1.7

0.3

1.6

0.3

1.6

0

3.4

0

1.6

0.3

1.6

0.3

3.4

0

3.5

0.2

FLASH ROM

E F

to DSP 1/6

G

0.2

0.2

3.4

3.4

3.4

3.3

1.8

3.4

0.3

0.3

0.3

1.7

1.7

1.7

0.3

1.6

1.6

1.6

1.6

1.6

0.3

0.3

0.3

0.3

SDRAM

0

0

0

0

0

0

0

3.4

3.4

3.4

3.4

3.4

3.4

3.4

1.3

2.1

1.9

1.9

3.3

0.2

2.1

2.0

1.8

1.9

1.9

0.2

0.2

0.9

H

EXTENDED PORT

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0

3.3

3.4

3.4

3.3

3.4

3.3

1.7

3.4

3.4

3.4

0.3

1.7

1.7

1.7

1.6

1.6

1.6

1.6

1.6

0

3.4

3.4

0

3.3

3.4

0

0

0

0.5

3.4

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0

3.4

1.4

1.4

0.8

0.8

5.0

3.4

0.2

0

3.4

I

10

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

74

J K L M N

to DSP 5/6

to DSP 1/6 to DSP 5/6 to DSP 5/6 to DSP 4/6 to DSP 4/6 to DSP 3/6

IC202: K4S641632K-UC60000

64 M synchronous DRAM

Data Input Register

Bank Select

2M x 8 / 1M x16

2M x 8 / 1M x16

2M x 8 / 1M x16

2M x 8 / 1M x16

CLK

ADD

Column Decoder

Latency & Burst Length

LCKE

LRAS LCBR LWE LCAS

Timing Register

Programming Register

LWCBR

CLK CKE CS RAS CAS WE

WE

CAS

RAS

CS

BA0

BA1

A10/AP

A0

A1

A2

A3

V

DD

V

DD

DQ0

V

DDQ

DQ1

DQ2

V

SSQ

DQ3

DQ4

V

DDQ

DQ5

DQ6

V

SSQ

DQ7

V

DD

LDQM

18

19

20

21

22

23

24

25

26

27

11

12

13

14

15

16

17

7

8

5

6

9

10

3

4

1

2

LDQM

L(U)DQM

41

40

39

38

37

36

35

34

45

44

43

42

49

48

47

46

33

32

31

30

29

28

54

53

52

51

50

V

SS

DQ15

V

SSQ

DQ14

DQ13

V

DDQ

DQ12

DQ11

V

SSQ

DQ10

N.C

A11

A9

A8

A7

A6

A5

DQ9

V

DDQ

DQ8

V

SS

N.C/RFU

UDQM

CLK

CKE

A4

V

SS

LWE

LDQM

DQi to DSP 3/6, 4/6, 6/6 to DSP 4/6 to DSP 5/6 to DSP 5/6 to DSP 4/6 to DSP 4/6 to DSP 5/6 to DSP 3/6, 4/6

IC203: SN74AHC02PWR

Quadruple 2-input positive-NOR gates

1Y

1

1A 2

1B 3

2Y

4

2A

5

2B 6

GND 7

14

13

Vcc

4Y

12

4B

11

4A

3Y

10

9

8

3B

3A

IC204-206: SN74LV573APWR

Octal transparent D-type latches with 3-state outputs

OE

1

LE

11

1D

2

8D

9

C1

1D

C8

8D

19

1Q

12

8Q

4D

5D

6D

7D

OE

1D

2D

3D

8D

GND

7

8

5

6

3

4

1

2

9

10

16

15

14

13

20

19

18

17

12

11

V

CC

1Q

2Q

3Q

4Q

5Q

6Q

7Q

8Q

LE

1

A

DSP 3/6

B C

9

10

7

8

2

3

4

5

DVD

(U, C, R, T, K, A,

B, G, E, F, L models)

3.9

0

4.9

DIGITAL IN

2.5

IC305

2.0

5.0

IC305

4.4

0

IC305 IC305 IC305 IC305

CD

(U, C, R, T, K, A,

B, G, E, F, L models)

0.4

0

4.9

ANALOG L

to DSP 5/6

6

D E F G H I J

DIGITAL IN

AD IN

2.6

2.3

0

3.4

5.0

0

1.7

0.2

1.7

1.8

1.4

1.8

0.4

B-1

IC301

CODEC with DIR

2.5

2.5

2.5

2.5

0

3.9

4.4

0

4.9

4.9

2.5

2.5

2.5

2.5

DIGITAL IN

ANALOG L

to DSP 5/6

R, T, K, A, B, G, E, F, L models

SL

SW

C

FL

to DSP 5/6 to DSP 1/6, 2/6 to DSP 2/6 to DSP 5/6 to DSP 1/6 to DSP 1/6

MICRO-

PROCESSOR

to DSP 1/6

DIGITAL OUT

K L M N

RX-V363/HTR-6130

TX1

AVDD

AVSS

DV DD

DVSS

TVDD

VIN

B,C,U,

VOUT

LIN

RIN

LOUT1

ROUT1

LOUT2

ROUT2

LOUT3

ROUT3

LOUT4

ROUT4

IC301: AK4588VQ

2/8-channel audio CODEC with DIR

PVSS PVDD R XTI

RX0

RX1

RX2

RX3

RX4

RX5

RX6

RX7

8 to 3

Input

Selector

Clock

Recovery

DAIF

Decoder

DEM

TX0

X'tal

Oscillator

XTO

Clock

Generator

Audio

I/F

DIT

AC-3/MPEG

Detect

Error &

STAT US

Detect

Q-subcode buffer uP I/F

LPF

LPF

LPF

LPF

LPF

LPF

LPF

LPF

ADC

ADC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

DAC

HPF

HPF

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

DATT

DEM

Audio

I/F

MCLK

LRCK

BICK

SDOUT

SDIN1

SDIN2

SDIN3

SDIN4

Format

Converter

MCKO 1

MCKO 2

LRCK2

BICK2

SDTO2

DAUX2

PDN

I2C

CSN

CCLK

CDTO

CDTI

INT0

INT1

MCLK

LRCK1

BICK1

DAUX1

SDTO1

SDTI1

SDTI2

SDTI3

SDTI4

INT1

BOUT

TVDD

DVDD

DVSS

XTO

XTI

TEST3

MCKO2

MCKO1

COUT

UOUT

VOUT

SDTO2

BICK2

LRCK2

SDTO1

BICK1

LRCK1

CDTO

7

8

9

10

11

12

1

2

3

4

5

6

13

14

15

16

17

18

19

20

53

52

51

50

49

48

47

60

59

58

57

56

55

54

46

45

44

43

42

41

TEST1

RX1

NC

RX0

AVSS

AVDD

VREFH

VCOM

RIN

LIN

NC

ROUT1

NC

LOUT1

NC

ROUT2

NC

LOUT2

NC

ROUT3

IC305: SN74LVU04APWR

Hex inverters

A1

1

Y1 2

A2 3

Y2

4

A3 5

Y3

6

GND

7

14

VCC

13

A6

12

Y6

11

A5

10 Y5

9 A4

8

Y4

POINT B-1 XL301 (Pin 6 of IC301)

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

75

4

5

1

A

RX-V363/HTR-6130

DSP 4/6

B

to DSP 2/6

2

C

0

D

3

to DSP 5/6

0

1.7

0.2

0

0

0.8

3.4

3.4

0

6

to DSP 5/6

E F G H

3.3

1.7

3.3

3.4

0.8

0.2

1.1

3.4

0

0

0

3.4

5.1

1.7

3.4

2.9

*

3.3

1.7

3.3

3.4

3.3

3.3

3.3

3.4

0

0

0

0.9

0

1.8

1.2

3.3

A/D SELECTOR

to DSP 6/6

A/D SELECTOR

3.4

3.4

0

1.8

1.7

4ch ADC

IC401

3.3

0.6

3.3

3.4

3.3

7

8

Page 79 F10 to OPERATION (1)_CB202

to DSP 1/6

CB408

9

to DSP 5/6

10

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

76

0

0.6

0

0.6

3.4

5.0

0.2

5.0

5.0

0.2

0

5.0

0.2

3.3

3.3

0.5

3.4

3.4

0.6

0

BUS SWITCH

I J

to DSP 5/6 to DSP 1/6, 2/6

K

*

Destination for A/D port

R406 [ohm]

R407 [ohm]

DEST (1 pin) [V]

A/D value (3.3 V=255)

Destination

1.5 k

8.2 k

2.6-3.0

206-226

U, C

3.3 k

6.8 k

2.0-2.4

162-182

R, L

4.7 k

5.6 k

1.6-2.0

129-149

T

6.8 k

3.9 k

1.0-1.4

83-103

K, A

8.2 k

2.2 k

0.5-0.9

44-64

B, G, E, F to DSP 2/6 to DSP 2/6

L

to DSP 5/6

M N

B, G, E, F models to DSP 5/6 to DSP 5/6

IC402, 403: SN74LV4051APWR

8-channel analog multiplxers/demultiplexers

C

9

INH

6

A

11

B

10

1

Y4

5

Y5

2

Y6

4

Y7

3

COM

13

Y0

14

Y1

15

Y2

12

Y3

Y4

Y6

COM

Y7

Y5

INH

GND

GND

6

7

8

3

4

1

2

5

12

11

10

9

16

15

14

13

V

CC

Y2

Y1

Y0

Y3

A

B

C

L

H

L

L

INH

L

L

L

L

L

L

L

L

INPUTS

C B

L

L

H

L

H

H

L

H

H

H

X

L

H

H

X

H

L

H

L

A

L

H

L

H

X

ON

CHANNEL

Y0

Y1

Y2

Y3

Y4

Y5

Y6

Y7

None

IC404: SN74AHCT245PWR

Octal bus transceivers with 3-state outputs

DIR

1

A1

2

To Seven Other Channels

19

OE

18

B1

DIR

A1

A2

A3

A4

A5

A6

A7

A8

GND

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

B3

B4

B5

B6

V

CC

OE

B1

B2

B7

B8

IC401: ADC084S021 CIMM

4-channel, 200 ksps, 8-bit A/D converter

IN1

IN2

IN3

MUX T/H

8-Bit

SUCCESSIVE

APPROXIMATION

ADC

IN4

GND

CONTROL

LOGIC

VA

GND

CS

VA

GND

IN4

IN3

4

5

1 10

2

3

9

ADC084S021

8

7

6

SCLK

DOUT

DIN

IN1

IN2

SCLK

CS

DIN

DOUT

9

10

1

A

DSP 5/6

B

CB512

2

3

Page 82 D10 to MAIN (5)_CB161

CB501

4

Page 81 A5 to MAIN (1)_CB101

CB502

5

Page 82 F4 to MAIN (5)_CB164

to DSP 6/6

6

CB504

CB516

7

8

Page 80 A7 to OPERATION (2)_CB232

to DSP 6/6

C

FL

SL

SW

C

ANALOG L

D E

POINT A / EX3.3, B / Pin 8 of IC505, C / J504

EX3.3

A

IC505 8 pin

(/DRESET)

B

J504

(/RESET)

C

Power cable ON Power cable OFF

EX3.3

A

IC505 8 pin

(/DRESET)

B

J504

(/RESET)

C

Power cable ON

F

to DSP 1/6 to DSP 2/6 to DSP 3/6 to DSP 4/6

G H I J

to DSP 1/6, 2/6, 4/6 to DSP 2/6 to DSP 1/6-4/6

0

3.4

3.4

3.4

to DSP 3/6 to DSP 1/6-4/6 to DSP 3/6

4.9

4.9

0

0

3.4

IC501

3.4

3.4

IC501

3.4

0.8

IC501

0.8

1.3

IC501

1.3

to DSP 4/6

A

3.4

IC505

3.4

3.4

3.4

IC505

3.4

0

3.4

IC505

3.4

B

3.4

IC505

3.4

to DSP 1/6

C to DSP 2/6

K L M N

RX-V363/HTR-6130

IC501: SN74AHCT08PWR

Quadruple 2-input positive-AND gates

1A 1

1B 2

1Y 3

2A 4

2B 5

2Y 6

GND 7

14 Vcc

13 4B

12 4A

11 4Y

10 3B

9 3A

8 3Y

IC505: SN74LV08APWR

Quadruple 2-input positive-AND gate

1A 1

1B 2

1Y 3

2A 4

2B 5

2Y 6

GND 7

14 Vcc

13 4B

12 4A

11 4Y

10 3B

9 3A

8 3Y

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

77

1

A

RX-V363/HTR-6130

DSP 6/6

B C D E

2

3

4

5

to DSP 5/6 to DSP 4/6

B, G, E, F models

6

to DSP 1/6

7

8

B, G, E, F models to DSP 2/6

9

10

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

78

to DSP 1/6 to DSP 1/6

(U, C models)

F G

to DSP 5/6

H

0.4

3.3

I

to DSP 4/6 to DSP 1/6 to DSP 5/6 to DSP 5/6

J K L M N

to DSP 5/6

1

A

OPERATION 1/2

B C D E F

2

3

4

5

CB261

6

7

OPERATION (6)

OPERATION (11)

3.3

-29.4

-29.7

3.3

-29.8

-29.5

3.3

-29.3

-29.7

-29.5

-23.7

-21.7

-31.6

-25.5

-29.5

-23.7

-25.7

-23.7

-21.8

-23.7

-23.8

-29.6

-31.6

-29.7

-29.7

JK261

3.3

0

0 0

0 0

0

-1.3

2.4

3.3

3.3

-1.3

-1.3

-1.3

0

2.4

0

3.2

3.2

2.4

2.4

0

0

0

0

3.3

3.2

3.2

3.2

0

2.4

0

JK201

8

IC202

IC202

9

VFD

IC201

-17.9

-18.1

-19.9

-19.4

3.3

1.5

1.5

-25.5

-27.5

-21.6

-21.8

0

3.2

3.2

3.3

3.3

10

Page 82 I4 to MAIN (4)_CB191

(R, K, A, B, G, E, F, L models)

Page 76 C7 to DSP_CB408

G H

3.3

-19.4

-19.4

-24.9

-28.4

3.3

-16.1

-16.2

-31.9

I J K L M N

RX-V363/HTR-6130

W2004

CB203

Page 80 F9 to OPERATION (2)_CB235

OPERATION (10)

CB204

W2003

0

CB274

3.3

0

IC201: M66003-0131FP-R

18 digit 5 x 7 segment VFD controller/driver

CS 2

SCK

3

SDATA 4

Serial receive circuit data

Display code

RAM

(8-bit x 60)

Code write

CGROM

(35 bit x 166) dot data write

CGROM

(35 bit x 16)

Code/ command control circuit

XIN

7

XOUT 6

Clock generator timing clock

Display controller code select scan pulse

RESET 1

Vcc1 8

Vcc2

18

Vss 5

Vp 64

Segment output circuit

44 SEG00

19

SEG25

17 SEG26

9 SEG34

Segment/

Digit select/ output circuit

45 SEG35

52

51

50

49

48

47

46

DIG11/

SEG42

DIG12/

SEG41

DIG13/

SEG40

DIG14/

SEG39

DIG15/

SEG38

DIG16/

SEG37

DIG17/

SEG36

63 DIG00

Digit output circuit

53 DIG10

IC202: NJM4565M

Dual operational amplifier

V+

8

2, 6

–INPUT

+INPUT

3, 5

V–

4

1, 7

OUTPUT

TUNING

AUTO/MAN’L

OPERATION (7)

Page 82 J4 to MAIN (4)_CB192

0

0

0

0

0

W2351

0

0

0

0

0

0

0

0

0

0

0

OPERATION (1)

VIDEO

AUDIO

VIDEO

AUX

JK266

JK266

PORTABLE

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

79

1

A

RX-V363/HTR-6130

OPERATION 2/2

B C D

COMPONENT VIDEO

E F G H I J

MONITOR OUT DVR

VIDEO

DTV/CBL DVD

K L

2

3

IC181

RDS

0

4.9

0

0

0

3.6

5.0

-4.8

0

4.9

0

4.9

0

5.0

0

W181

Page 82 J4 to MAIN (4)_CB193

CB182

3.6

0

0

-4.9

-5.5

-11.1

-5.6

0

Page 77 A6 to DSP_CB504

(U, C models)

OPERATION (4)

4

0

0

0.7

0

0

0.7

5

6

7

8

9

CB231

CB232

W2152

CB233

W2153

W2154

10

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

80

3.3

3.3

7.2

0

0

0 0

3.3

3.3

0

0

9.5

8.8

IC232

8.8

9.5

3.3

0

0

0

0

1.7

0

OPERATION (2)

1.0

IC238

0

3.3

4.2

9.5

4.5

0

CB251

9.5

3.2

7.2

0

W2251

1.2

1.8

1.0

9.7

1.2

Page 82 E3 to MAIN (5)_W161

Page 83 M7 to HDMI_CB904

9.6

9.6

3.7

3.7

3.7

3.7

0 0

3.7

3.7

3.7

AC 9.3

3.7

CB252 CB254

CB257

CB256

OPERATION (5)

R, L models

AC IN

CB258

5.0

IC233

0

18.4

11.9

IC236

18.4

0

1.7

0

-11.9

0

IC237

-19.2

5.3

0

0

12.5

4.5

0

11.4

-0.1

18.4

-19.2

-0.1

OPERATION (3)

CB234

AC29.9

AC8.5

AC10.3

AC9.7

AC5.1

5.2

0

12.5

5.5

4.4

0

11.4

4.8

IC236: KIA7812API

Voltage regulator

1 INPUT

R22

Q11

R17 R23

R1

Q11-1

Q15

R12

Z1

R11

R13

Q12

Q14

Q17

R19

Q18

R18

Q1

Q6

R7

R2

Q2

Q13

R3

R4

Q3

R5

Q4

C1

R6

Q7

Q5 Q9

R8

Q19

R9

R10

Q8

R15

Q10

Q16

R14

R16

R20

3 OUTPUT

R21

2 COMMON (GND)

CB235

IC232: NJM2388F33

Low dropout voltage regulator with ON/OFF control

Vin 1 2 Vout

Cont

4

ON/OFF control

Bandgap

Reference

Over Voltage

Protection

+

-

GND 3

Thermal

Protection

Over Current

Protection

IC181: NJM2586AM

Wide band 3-input 1-output 3-circuit video amplifier

CH1 IN1

SW 1

CH1 IN2

SW 2

CH1 IN3

GND

V

+

1

7

1

2

Bias

Cont2

Cont1

Cont1

3

Bias

4

5

6dB

Amp

6dB

Amp

Cont1

6dB

Amp

Bias

6

CH2 IN1 8

GND 9

Bias

75

Driver

24 CH1 OUT

23 PS

75

Driver

22

CH2 OUT

21

V

+

2

75

Driver

20

CH3 OUT

19

GND

18 V

-

2

17 CH3 IN1

Bias

16 V

-

1

CH2 IN2 10

GND 11

Bias

CH2 IN3

12

Bias

Cont2 Cont2

15 CH3 IN2

Bias

14 GND

Bias

13 CH3 IN3

IC233, 234, 239: KIA7805API

Voltage regulator

1 INPUT

R1

R22

Q11

R17 R23

Q11-1

Q15

R12

Z1

R11

R13

Q12

Q14

Q17

R19

Q18

R18

Q1

Q6

R7

R2

Q2

Q13

R3

R4

Q3

R5

Q4

C1

R6

Q7

Q5 Q9

R8

Q19

R9

R10

Q8

R15

Q10

Q16

R14

R16

R20

3

OUTPUT

R21

2

COMMON (GND)

IC183: NJM2595M (TE1)

5-input 3-output video switch

V+

16

SW2

10

SW1

14

SW5

2

Vin1 13

S5

S1

Vin2 9

20k

20k

Vin3 7 S2

20k

S4

S6

Vin4 5

20k

S3

20k

Vin5 3

20k

S7

6dB

Amp

6dB

Amp

6dB

Amp

20k

75

Driver

1 Vout1

75

Driver

15 Vout2

75

Driver

11 Vout3

4

SW5

6

SW4

12

GND

8

V-

IC237: KIA7912PI

Voltage regulator

Q28

Q29

Q30

R0

Vout1

SW5

Vin5

SW3

Vin4

SW4

Vin3

V-

6

7

4

5

8

1

2

3

13

12

11

10

9

16

15

14

V+

Vout2

SW1

Vin1

GND

Vout3

SW2

Vin2

Q2

Q4 Q6

R2

R13 R12

1 COMMON (GND)

Q17

R1

R14

R15

R16

R18

R22

R21

Q21

Q22

Q23

Q24

Q19

Q18 Q20

R17

R19

Q31

R20

Q25

Q3

Q5

Q7

R26

R3

R23

R24

R25

Q26

Q8

Q9

Q12 Q13

Q26-1

R4

Q27-1

R5

C2

R10

Q27

D4

C1

Q14

Q15

Q16

R6

R9

Q11

Q10

R7

R11

R8

3 OUTPUT

2 INPUT

IC238: LM61CIZ

Temperature sensor

M N

1

A

MAIN 1/2

2

3

4

5

6

7

8

9

10

B C D E

POWER AMPLIFIER

IC102

SURROUND L

0

-11.9

0

0

51.6

0

0

5.16

51.8

-11.9

0

0

0

0

5.0

3.3

3.3

-12.0

0

51.6

0

CB101

3.3

3.3

-12.0

5.0

0

POWER AMPLIFIER

IC101

0

0

0

-11.9

0

0

-11.9

0

51.6

0

0

0

0

FRONT L

CENTER

MAIN (1)

3.3

3.3

-12.0

-11.9

0

0

0

0

51.6

51.6

51.6

50.9

51.6

2.7

4.4

3.4

2.7

LIM [V]

0.4

0

50.7

-51.3

-51.6

51.8

0.4

0

51.8

LIM [V] (A/D 3.3V=255)

+BV [V]

-BV [V]

High

+3.0 to +3.3 (255)

+46.0 to +52.0 (8-ohms)

+33.0 to +36.0 (6-ohms)

-52.0 to -46.0 (8-ohms)

-36.0 to -33.0 (6-ohms)

Low (U, C models) Low (R, T, K, A, B, G, E, F, L models)

+1.20 to +1.35 (102)

+20.0 to +23.0 (8-ohms/6-ohms)

+1.00 to +1.20 (90)

+18.0 to +21.0 (8-ohms/6-ohms)

-25.0 to -23.0 (8-ohms/6-ohms)

-22.0 to -19.0 (8-ohms/6-ohms)

0

0

51.6

0

0

51.6

0

0

F G

FRONT L

H I

W101A

SPEAKERS

FRONT A

L/R

J K L M N

RX-V363/HTR-6130

0

0

0

0

3.4

0

0

0

0

0

0

0

0

11.9

11.9

11.7

11.8

-12.0

-12.1

0

11.8

0.2

to MAIN 2/2 to MAIN 2/2

0

3.4

11.9

0

-12.0

11.7

-12.1

11.9

-12.0

0

11.9

-12.1

0 to MAIN 2/2

0.2

11.7

11.6

11.6

-12.1

11.7

0

11.6

0

0 to MAIN 2/2

3.3

11.6

0

-12.1

-35.7

-32.5

-31.8

-32.5

0 to MAIN 2/2

W103

MAIN (3)

SURROUND L

CENTER

W102A

W101B

W102B

L

FRONT B

R

CENTER SPEAKERS

L

R

SURROUND

CB103

IC101: STK433-330-E

3-channel AF power amplifier, stand-by circuit built-in

3

8

11

12

+

Pre

Driver

CH1

Pre

Driver

CH2

+

MONO IC

+

– –

Pre

Driver

CH3 to MAIN 2/2

0.2

11.9

11.8

0

11.9

11.9

-11.9

52.0

0

0

-51.9

-41.3

-41.3

0

0

1

2

AC61.9

CB104

To POWER TRANSFORMER

AC76.5

9

SUB

Bias Circuit

5 4 6 7 10 13 14151617 19 18

IC102: STK433-130-E

2-channel AF power amplifier, stand-by circuit built-in

3

8

Pre Driver

CH1

11

12

+

Pre Driver

CH2

+

15

14

1

2

Bias Circuit

10

SUB

9 5 4 6 7 13

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

81

1

A

RX-V363/HTR-6130

MAIN 2/2

B C D E F

FRONT

2

3

MULTI CH

INPUT

SURROUND

CENTER

SUBWOOFER

W163A

Page 77 B5 to DSP_CB502

Page 80 G4 to OPERATION (4)_CB181

4

DTV/CBL

0

0

0

ANALOG IN

5

6

7

8

AUDIO

OUTPUT

IN

OUT

0

0

-12.0

0

0

-12.0

0

-12.0

0

0

0

0

0

0

0

0

0

0

0

0

9

MAIN (5)

10

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

82

3.3

-12.0

3.3

to MAIN 1/2

Page 77 B2 to DSP_CB512

ANALOG L

11.8

7.8

7.1

0

7.8

0

-7.8

-12.1

-7.8

-7.1

0

0

0

0

0

0

0

0

0

-7.1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

SELECTOR and

VOLUME

0

0

7.1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

To TUNER

9.4

11.8

10.1

10.2

0

G H I J

11.7

0

IC162

0

0

0

0

IC162

-12.1

0

0

0

IC163

11.7

0

0

0

IC163

-12.1

0

11.7

0

IC164

0

0

0

0

IC164

-12.1

0

FRONT L

0

-12.1

IC169

0

0

SUB

WOOFER

11.7

11.2

IC169

0

11.2

CENTER

SURROUND L

FILTER

Page 79 K8 to OPERATION (7)_W2351

Page 79 D10 to OPERATION (1)_W2001

(R, K, A, B, G, E, F, L models)

Page 80 K3 to OPERATION (4)_W181

FL

W163B

SL

MAIN (4)

C

SW

K L M N

IC161: R2A15218FP

8-channel electronic volume with 11 input selector and tone control

50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31

A VCC

MUTE 51

MCU

I/F

A VEE 52

A VEE

N.C.

53

0/-6/-12/-18dB

ADCL 54

ATT

ADCR 55

30 A VCC

29

N.C.

28 TREL

27 BASSL2

26

BASSL1

AGND

N.C.

INR1

56

57

58

MAIN

SUB

0~-95dB,

-

(0.5dBstep)

Tone

Bass/Treble

-14~+14dB

(2dBstep)

Bypass

Tone+MIX

Tone

+42~0dB

(0.5dBstep)

25

N.C.

24 FRC

23

FROUT

INL1 59

INR2

60

Tone

+42~0dB

(0.5dBstep)

22

A GND

21

FLOUT

INL2

INR3

61

62

INL3 63

0~95dB,

-

(0.5dBstep)

Bass/Treble

-14~+14dB

(2dBstep)

Tone+MIX

Tone

Bypass

20

19

FLC

A GND

INR4

64

-

+42~-95dB

(0.5dBstep)

18

CC

17

COUT

INL4 65

INR5

INL5

66

67

INR6 68

-

+42~-95dB

(0.5dBstep)

-

+42~-95dB

(0.5dBstep)

16 A GND

15

SWOUT

14 SWC

INL6

INR7

69

70

INL7

71

-

+42~-95dB

(0.5dBstep)

13 N.C.

12 SRC

11

SROUT

INR8

INL8

N.C.

72

73

74

-

+42~-95dB

(0.5dBstep)

-

+42~-95dB

(0.5dBstep)

10

A GND

9 SLOUT

8

SLC

7

A GND

INRA/RECR1

75

INLA/RECL1

76

N.C.

77

INR9

78

REC

6

SBRC

5

SBR OUT

4

A GND

INL9

N.C.

79

80

3 SBL OUT

2

SBLC

1 N.C.

81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

IC162-164, 169: NJM4565M

Dual operational amplifier

V+

8

2, 6

–INPUT

+INPUT

3, 5

V–

4

1, 7

OUTPUT

IC168: LC72725KM

RDS signal demodulation IC

+3V

Vdda

Vssa

REFERENCE

VOLTAGE

MPXIN

ANTIALIASING

FILTER

TEST TEST

VREF

57kHz

BPF

(SCF)

FLOUT

VREF

SMOOTHING

FILTER

CIN

CLK(4.332MHz)

OSC

XIN XOUT

PLL

(57kHz)

CLOCK

RECOVERY

(1187.5Hz)

DATA

DECODER

RAM

(128bits)

RDS-ID

DETECT

+3V

Vddd

Vssd

RDDA

RDCL

MODE

RST

RDS-ID/

READY

IC168

4

5

7

8

9

10

1

A

HDMI

B

CB901

OUT

C

2

3

6

D E F

HDMI

CB903

DVD

G H I

CB903

DTV/CBL

J K L M N

RX-V363/HTR-6130

0

0

0

0

0

0

0

0

1.4

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1.2

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1.0

0

0

0

0

0

0

0

0

0

0

0

0

0

0.8

0

0

0

IC902

0

5.3

5.3

0

0

3.3

0

0

0

0

0

3.3

0

0

0

0

IC903

0

0

0

0

0

0

0

3.3

0

0

3.3

0

3.3

0

3.3

0

3.3

0

0

3.3

0

3.3

IC908

0

0

IC908

0

0

0

0

1.4

1.2

1.0

0

0

0

0

IC907

3.3

0

0

0

0

0

0

0

CB904

Page 80 I4 to OPERATION (4)_W182

CB905

Page 80 A8 to OPERATION (2)_W2154

IC904

0

3.3

0

0

5.3

3.3

5.3

IC905

0

3.3

3.3

0

IC902: NJM2867F3-05

Low dropout voltage regulator

V

IN

5

Control

1

Thermal

Protection

Bandgap

Reference

4

V

OUT

GND

2

EQ inputs

IC903: CXB1442AR-T4

Cable equalizer with 2-system switching function

ADTnP

ADTnN

Termination resistor n= 0, 1, 2

Input switching circuit

Equalizer

Quantizer

Output buffer

BDTnP

BDTnN

Output

Termination

Detector

YDTnP

YDTnN

EQ outputs

ACKP

ACKN

BCKP

BCKN

Input switching circuit

Equalizer

Quantizer

Output buffer

Output

Termination

Detector

Clock

Detector

Output Current

Control Circuit

YCKP

YCKN

REXT

Vcc

37

Vcc 38

ADT2N

39

ADT2P 40

GND 41

Vcc

42

Vcc 43

GND

44

BCKN 45

BCKP 46

Vcc 47

Vcc 48

36 35 34 33 32 31 30 29 28 27 26 25

24

23

22

21

20

19

18

17

16

15

14

13

YCKN

YCKP

GND

YDT0N

YDT0P

Vcc

Vcc

YDT1N

YDT1P

GND

YDT2N

YDT2P

1 2 3 4 5 6 7 8 9 10 11 12

CMOS inputs

SEL

CE

Control Logic

IC904: SN74LVC3G04DCTR

Triple inverter gate

1A

1

3Y

2

2A

3

GND

4

8

V

CC

7

1Y

6

3A

5

2Y

A

B

GND

1

2

3

IC905: NJM2885DL1-33

Low dropout voltage regulator

V

IN 1

GND

2

IC906: SN74LVC1G08DCKR

Single 2-input positive-AND gate

5 V

CC

4 Y

Bandgap

Reference

Thermal

Protection

3

V

OUT

IC907: SN74CB3Q3257PWR

Low boltage high-bandwidth bus switch

1A

4

SW

2A

7

3A

9

4A

12

S

1

OE

15

SW

SW

SW

SW

SW

SW

SW

2

1B1

3

1B2

5

2B1

6

2B2

11

3B1

10

3B2

14

4B1

13

4B2

S

1B1

1B2

1A

2B1

2B2

2A

GND

6

7

4

5

1

2

3

8

13

12

11

10

16

15

14

9

VCC

OE

4B1

4B2

4A

3B1

3B2

3A

IC908: SN74LVC2G17DCKR

Dual schmitt-trigger buffer

1A 1

GND 2

2A 3

6 1Y

5 VCC

4 2Y

★ All voltages are measured with a 10MΩ/V DC electronic voltmeter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

83

RX-V363/HTR-6130

REPLACEMENT PARTS LIST

• ELECTRICAL COMPONENT PARTS

WARNING

● Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

● The chip resistor is not supplied as a replacement part.

* When a chip resistor is necessary, use the following part.

AAX60720: CHIP RESISTOR SAMPLE BOOK

ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS:

C.A.EL.CHP

: CHIP ALUMI.ELECTROLYTIC CAP

C.CE

: CERAMIC CAP

C.CE.ARRAY : CERAMIC CAP ARRAY

C.CE.CHP

: CHIP CERAMIC CAP

C.CE.ML

: MULTILAYER CERAMIC CAP

C.CE.M.CHP

: CHIP MULTILAYER CERAMIC CAP

C.CE.SAFTY

: RECOGNIZED CERAMIC CAP

C.CE.TUBLR

: CERAMIC TUBULAR CAP

C.CE.SMI

C.EL

C.MICA

C.ML.FLM

: SEMI CONDUCTIVE CERAMIC CAP

: ELECTROLYTIC CAP

: MICA CAP

: MULTILAYER FILM CAP

C.MP

C.MYLAR

: METALLIZED PAPER CAP

: MYLAR FILM CAP

C.MYLAR.ML : MULTILAYER MYLAR FILM CAP

C.PAPER

: PAPER CAPACITOR

C.PLS

C.POL

C.POLY

C.PP

C.TNTL

: POLYSTYRENE FILM CAP

: POLYESTER FILM CAP

: POLYETHYLENE FILM CAP

: POLYPROPYLENE FILM CAP

: TANTALUM CAP

C.TNTL.CHP

: CHIP TANTALUM CAP

C.TRIM

: TRIMMER CAP

CN : CONNECTOR

CN.BS.PIN

: CONNECTOR,BASE PIN

CN.CANNON : CONNECTOR,CANNON

CN.DIN

CN.FLAT

: CONNECTOR,DIN

: CONNECTOR,FLAT CABLE

CN.POST

: CONNECTOR,BASE POST

COIL.MX.AM

: COIL,AM MIX

COIL.AT.FM

: COIL,FM ANTENNA

COIL.DT.FM

: COIL,FM DETECT

COIL.MX.FM

: COIL,FM MIX

COIL,OUTPT : OUTPUT COIL

DIOD.ARRAY : DIODE ARRAY

DIODE.BRG

: DIODE BRIDGE

DIODE.CHP

: CHIP DIODE

DIODE.VAR

: VARACTOR DIODE

DIOD.Z.CHP

: CHIP ZENER DIODE

DIODE.ZENR : ZENER DIODE

DSCR.CE

FER.BEAD

: CERAMIC DISCRIMINATOR

: FERRITE BEADS

FER.CORE

: FERRITE CORE

FET.CHP

: CHIP FET

FL.DSPLY

: FLUORESCENT DISPLAY

FLTR.CE

: CERAMIC FILTER

FLTR.COMB

: COMB FILTER MODULE

FLTR.LC.RF

: LC FILTER,EMI

GND.MTL

: GROUND PLATE

GND.TERM

: GROUND TERMINAL

HOLDER.FUS : FUSE HOLDER

IC.PRTCT

: IC PROTECTOR

JUMPER.CN

: JUMPER CONNECTOR

JUMPER.TST : JUMPER,TEST POINT

L.DTCT

: LIGHT DETECTING MODULE

L.EMIT

: LIGHT EMITTING MODULE

LED.DSPLY

: LED DISPLAY

LED.INFRD

: LED,INFRARED

MODUL.RF

: MODULATOR,RF

PHOT.CPL

: PHOTO COUPLER

PHOT.INTR

: PHOTO INTERRUPTER

PHOT.RFLCT : PHOTO REFLECTOR

PIN.TEST

: PIN,TEST POINT

PLST.RIVET

: PLASTIC RIVET

R.ARRAY

: RESISTOR ARRAY

R.CAR.

: CARBON RESISTOR

R.CAR.CHP

: CHIP RESISTOR

R.CAR.FP

R.FUS

: FLAME PROOF CARBON RESISTOR

: FUSABLE RESISTOR

R.MTL.CHP

: CHIP METAL FILM RESISTOR

R.MTL.FLM

: METAL FILM RESISTOR

R.MTL.OXD

: METAL OXIDE FILM RESISTOR

R.MTL.PLAT

: METAL PLATE RESISTOR

RSNR.CE

: CERAMIC RESONATOR

RSNR.CRYS

: CRYSTAL RESONATOR

R.TW.CEM

: TWIN CEMENT FIXED RESISTOR

R.CEMENT

: CEMENT RESISTOR

SCR.BND.HD : BIND HEAD B-TIGHT SCREW

SCR.BW.HD

: BW HEAD TAPPING SCREW

SCR.CUP

: CUP TIGHT SCREW

SCR.TERM

: SCREW TERMINAL

SCR.TR

: SCREW,TRANSISTOR

SUPRT.PCB

: SUPPORT,P.C.B.

SURG.PRTCT : SURGE PROTECTOR

SW.TACT

: TACT SWITCH

SW.LEAF

: LEAF SWITCH

SW.LEVER

: LEVER SWITCH

SW.MICRO

: MICRO SWITCH

SW.PUSH

: PUSH SWITCH

SW.RT.ENC

: ROTARY ENCODER

SW.RT.MTR

: ROTARY SWITCH WITH MOTOR

SW.RT

: ROTARY SWITCH

SW.SLIDE

TERM.SP

: SLIDE SWITCH

: SPEAKER TERMINAL

TERM.WRAP : WRAPPING TERMINAL

THRMST.CHP : CHIP THERMISTOR

TR.CHP

: CHIP TRANSISTOR

TR.DGT

: DIGITAL TRANSISTOR

TR.DGT.CHP : CHIP DIGITAL TRANSISTOR

TRANS : TRANSFORMER

TRANS.PULS : PULSE TRANSFORMER

TRANS.PWR : POWER TRANSFORMER ASS’Y

TUNER.AM

: TUNER PACK,AM

TUNER.FM

: TUNER PACK,FM

TUNER.PK

VR

VR.MTR

VR.SW

VR.SLIDE

VR.TRIM

: FRONT-ENDTUNER PACK

: ROTARY POTENTIOMETER

: POTENTIOMETER WITH MOTOR

: POTENTIOMETER WITH ROTARY SW

: SLIDE POTENTIOMETER

: TRIMMER POTENTIOMETER

85

RX-V363/HTR-6130

86

*

*

*

*

*

Ref. No.

Part No.

Description

WN242100 P.C.B.

DSP

WN242200 P.C.B.

DSP

WN242300 P.C.B.

DSP

WN242400 P.C.B.

DSP

CB408

CB501

CB502

CB504

CB512

CB516

C101

C102

WN242500 P.C.B.

DSP

VF982300 CN.BS.PIN 17P

VQ961000 CN.BS.PIN 7P

VQ961800 CN.BS.PIN 15P

VN394900 CN.BS.PIN 14P

VQ047500 CN.BS.PIN 20P

VK025700 CN.BS.PIN 13P

UR838220 C.EL

WH771300 C.EL

220uF 16V

100uF 10V

C103-104 US135100 C.CE.CHP 0.1uF 16V

C105

C106

US061270 C.CE.CHP 27pF 50V B

WH771300 C.EL

100uF 10V

C107 US135100 C.CE.CHP 0.1uF 16V

C108-129 US063100 C.CE.CHP 1000pF 50V B

C130

C131

US135100 C.CE.CHP 0.1uF 16V

US061270 C.CE.CHP 27pF 50V B

C132

C133

UR837100 C.EL

10uF 16V

US063100 C.CE.CHP 1000pF 50V B

C135 UB446100 C.CE.CHP 1uF 16V

C136-147 US135100 C.CE.CHP 0.1uF 16V

C148-154 UB446100 C.CE.CHP 1uF 16V

C201-206 US063100 C.CE.CHP 1000pF 50V B

C207-211 US135100 C.CE.CHP 0.1uF 16V

C212 US063100 C.CE.CHP 1000pF 50V B

C215-218 UB446100 C.CE.CHP 1uF 16V

C301-304 US135100 C.CE.CHP 0.1uF 16V

C305

C306

C307

C308

UR837470 C.EL

47uF 16V

US135100 C.CE.CHP 0.1uF 16V

US063100 C.CE.CHP 1000pF 50V B

UR837100 C.EL

10uF 16V

C309-310 US061270 C.CE.CHP 27pF 50V B

C311 UR866220 C.EL

2.2uF 50V

C312

C313

US135100 C.CE.CHP 0.1uF 16V

US061220 C.CE.CHP 22pF 50V B

C314 UR847220 C.EL

22uF 25V

C315-317 US135100 C.CE.CHP 0.1uF 16V

C321 US135100 C.CE.CHP 0.1uF 16V

C349-350 UR837100 C.EL

10uF 16V

C351-352 US135100 C.CE.CHP 0.1uF 16V

C354-358 US135100 C.CE.CHP 0.1uF 16V

C401-402 US135100 C.CE.CHP 0.1uF 16V

C404 UR837470 C.EL

47uF 16V

C405

C406

US135100 C.CE.CHP 0.1uF 16V

UB446100 C.CE.CHP 1uF 16V

C407-408 US062100 C.CE.CHP 100pF 50V B

C409 US135100 C.CE.CHP 0.1uF 16V

C410-411 US062100 C.CE.CHP 100pF 50V B

C413-416 US063100 C.CE.CHP 1000pF 50V B

C417 US062470 C.CE.CHP 470pF 50V B

C418-428 US135100 C.CE.CHP 0.1uF 16V

C429-435 US062100 C.CE.CHP 100pF 50V B

C436-439 US135100 C.CE.CHP 0.1uF 16V

C501

C502

US062100 C.CE.CHP 100pF 50V B

UR838220 C.EL

220uF 16V

C503-504 US062100 C.CE.CHP 100pF 50V B

C513-515 US062100 C.CE.CHP 100pF 50V B

✻ New Parts

P.C.B. DSP and P.C.B. OPERATION

Markets

UC

RL

T

KA

BGEF

UC

*

*

Ref. No.

Part No.

Description Markets

C516 US035100 C.CE.CHP 0.1uF 16V B

C517-518 US062100 C.CE.CHP 100pF 50V B

C519

C520

US135100 C.CE.CHP 0.1uF 16V

US035100 C.CE.CHP 0.1uF 16V B

C521 US063100 C.CE.CHP 1000pF 50V B

C522-523 US135100 C.CE.CHP 0.1uF 16V

C524-525 US063100 C.CE.CHP 1000pF 50V B

C527-528 US064100 C.CE.CHP 0.01uF 50V B

C529

C530

US062100 C.CE.CHP 100pF 50V B

US064100 C.CE.CHP 0.01uF 50V B

C531-534 US062100 C.CE.CHP 100pF 50V B

C535 US064100 C.CE.CHP 0.01uF 50V B

C536-549 US062100 C.CE.CHP 100pF 50V B

C550 US064100 C.CE.CHP 0.01uF 50V B

C603-608 US062220 C.CE.CHP 220pF 50V B

C609 US135100 C.CE.CHP 0.1uF 16V

C623

C625

C626

D101

D401

D402

US135100 C.CE.CHP 0.1uF 16V

US063100 C.CE.CHP 1000pF 50V B

US064100 C.CE.CHP 0.01uF 50V B

VS597600 DIODE.CHP RB160L-40 TE25

VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V

UC

UC

UC

UC

VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V BGEF

D403-404 VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V

D405 VT332900 DIODE 1SS355

D407

D408

VT332900 DIODE 1SS355

VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V

D409

D602

G101

IC101

VU171400 DIODE.ZENR UDZS3.3BTE-17 3.3V

VT332900 DIODE 1SS355

WB438000 TERM.GND M4 SD00433-21

X7534A00 IC.CPU

ADSP-BF531 CPU

RKABGEFL

UC

IC102

IC201

IC202

IC203

X8653A00 IC BR25L320F-W EEPROM

X9590A00 IC.MEMORY F49L160BA-70TG

X9626A00 IC.MEMORY K4S641632K-UC60000

X4201A00 IC SN74AHC02PWR

IC204-206 X4285A00 IC

IC301 X7919A00 IC

IC305

IC401

X3936A00 IC

X6905A00 IC

SN74LV573APWR

AK4588VQ

SN74LVU04APWR

ADC084S021CIMM

IC402-403 X5875A00 IC

IC404 X2709A00 IC

IC501

IC505

PJ301

X3824A00 IC

X4463A00 IC

SN74LV4051APWR

SN74AHCT245PWR

SN74AHCT08PWR

SN74LV08APWR

V8795700 JACK.PIN 1P

(boot only)

Q101

Q501

WE736300 FET

WE736300 FET

RTQ040P02

RTQ040P02

U301-302 WH169900 CN.PHOTO.R 1P GP1FAV51RK0F

XL101 VZ540700 RSNR.CRYS 25MHz SMD-49

XL301 WJ625200 RSNR.CRYS 24.576MHz

*

*

*

*

CB181

CB182

CB202

CB231

CB234

✻ New Parts

WN242700 P.C.B.

OPERATION

WN242800 P.C.B.

OPERATION

WN242900 P.C.B.

OPERATION

WN243000 P.C.B.

OPERATION

VB858500 CN.BS.PIN 6P

VF982200 CN.BS.PIN 14P

VF982300 CN.BS.PIN 17P

VK026300 CN.BS.PIN 4P

LB919110 CN.BS.PIN 11P SE

UC

RL

T

KABGEF

UC

RX-V363/HTR-6130

*

*

Ref. No.

Part No.

Description

CB235

CB252

VK024700 CN.BS.PIN 3P

WN077700 CLIP.FUSE CLIP PFC5000-0202F

CB254 WN077700 CLIP.FUSE CLIP PFC5000-0202F

CB256-257 VG879900 CN.BS.PIN 2P

CB258

CB261

V9377900 CN.BS.PIN 4P

VB858300 CN.BS.PIN 4P

C1801-1803 US060800 C.CE.CHP 8pF 50V B

C1804-1810 WE773800 C.CE.M.CHP 1uF 10V B

C1811-1813 US135100 C.CE.CHP 0.1uF 16V

C1814 UR837470 C.EL

47uF 16V s C1815

WE773800 C.CE.M.CHP 1uF 10V B

C1816-1817 UR837470 C.EL

47uF 16V

C1818

C1819

WE773800 C.CE.M.CHP 1uF 10V B

UR837100 C.EL

10uF 16V

C1820-1821 US062100 C.CE.CHP 100pF 50V B

C1822 UR838100 C.EL

100uF 16V

C1823

C1824

C1825

C1826

US135100 C.CE.CHP 0.1uF 16V

UR837100 C.EL

10uF 16V

US135100 C.CE.CHP 0.1uF 16V

UR838100 C.EL

100uF 16V

C1827-1829 UR837100 C.EL

C2001

10uF 16V

US064100 C.CE.CHP 0.01uF 50V B

C2002

C2003

C2004

C2005

C2006

C2007

C2008

C2009

US063100 C.CE.CHP 1000pF 50V B

UM397100 C.EL

10uF 16V

US062100 C.CE.CHP 100pF 50V B

UM387470 C.EL

47uF 16V

US135100 C.CE.CHP 0.1uF 16V

US061330 C.CE.CHP 33pF 50V B

UM397220 C.EL

UM397100 C.EL

22uF 25V

10uF 16V

C2010-2011 UM397220 C.EL

C2012

22uF 25V

US065100 C.CE.CHP 0.1uF 50V B

C2013-2014 US135100 C.CE.CHP 0.1uF 16V

C2015 UR068100 C.EL

100uF 50V

C2016

C2017

UM388330 C.EL

330uF 6.3V

US135100 C.CE.CHP 0.1uF 16V

C2018 US061820 C.CE.CHP 82pF 50V B

C2019-2020 US062100 C.CE.CHP 100pF 50V B

C2021 US061100 C.CE.CHP 10pF 50V B

C2022-2024 US135100 C.CE.CHP 0.1uF 16V

C2025

C2026

C2027

US064100 C.CE.CHP 0.01uF 50V B

US135100 C.CE.CHP 0.1uF 16V

UM397100 C.EL

10uF 16V

C2028 US135100 C.CE.CHP 0.1uF 16V

C2029-2030 US063100 C.CE.CHP 1000pF 50V B

C2101 US064100 C.CE.CHP 0.01uF 50V B

C2102-2105 US044220 C.CE.CHP 0.022uF 25V B

C2110-2111 US063100 C.CE.CHP 1000pF 50V B

C2152 UR866100 C.EL

1uF 50V

C2153

C2156

UR837470 C.EL

47uF 16V

US064100 C.CE.CHP 0.01uF 50V B

C2157

C2158

C2160

C2161

US135100 C.CE.CHP 0.1uF 16V

UR866100 C.EL

1uF 50V

UR866100 C.EL

1uF 50V

US135100 C.CE.CHP 0.1uF 16V

C2162

C2164

UR866100 C.EL

UR837100 C.EL

C2168-2170 UR866100 C.EL

C2171 UR739470 C.EL

C2172-2173 UR866100 C.EL

1uF 50V

10uF 16V

1uF 50V

4700uF 16V

1uF 50V

Markets

RL

UC

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

RKABGEFL

✻ New Parts

P.C.B. OPERATION

Ref. No.

Part No.

Description Markets

C2175

C2176

UR749470 C.EL

UR749220 C.EL

4700uF 25V

2200uF 25V

C2178 UR73A100 C.EL

10000uF 16V

C2179-2180 VE326000 C.MYLAR

0.1uF 50V

C2181

C2182

C2184

C2185

US135100 C.CE.CHP 0.1uF 16V

WJ605000 C.MYLAR

0.01uF 50V J

VE326000 C.MYLAR

0.1uF 50V

UR739470 C.EL

4700uF 16V

C2186-2187 UR866100 C.EL

C2251 UR749220 C.EL

C2251

C2252

UR759220 C.EL

1uF 50V

2200uF 25V

2200uF 35V

WJ605000 C.MYLAR

0.01uF 50V J

C2253

C2254

UR897100 C.EL

10uF 100V

WJ605000 C.MYLAR

0.01uF 50V J

C2255-2256 WJ605000 C.MYLAR

0.01uF 50V J s C2257

WB121400 C.CE.SAFTY 0.01uF 295V

C2301-2304 WJ605000 C.MYLAR

0.01uF 50V J

C2351-2352 US135100 C.CE.CHP 0.1uF 16V

C2353-2354 US062220 C.CE.CHP 220pF 50V B

C2355

D181

D2001

US135100 C.CE.CHP 0.1uF 16V

VU172000 DIODE.ZENR UDZS5.6BTE-17 5.6V

WJ249600 LED ORANGE

D2152

D2154

D2156

D2157

D2158

D2160

D2002

D2003

D2004

D2005

VU171900 DIODE.ZENR UDZ5.1B 5.1V

WJ249600 LED ORANGE

VT332900 DIODE

WJ249600 LED

1SS355

ORANGE

D2006

D2007

VT332900 DIODE

WJ249600 LED

1SS355

ORANGE

D2008-2009 VU171500 DIODE.ZENR UDZ 3.6BTE-17 3.6V

D2151 VT332900 DIODE 1SS355

VS997800 DIODE

VT332900 DIODE

VT332900 DIODE

VU171900 DIODE.ZENR UDZ5.1B 5.1V

VS997800 DIODE

VT332900 DIODE

1T2

1SS355

1SS355

1T2

1SS355

UC

UC

UCKABGEF

RL

RL

UCTKABGEF

RL

UC

RKABGEFL

RKABGEFL

RKABGEFL s D2162-2164 WA653100 DIODE.BRG KBP103G 1A 200V

D2165 VU171900 DIODE.ZENR UDZ5.1B 5.1V

D2166-2167 VT332900 DIODE

D2168

1SS355

V2376600 DIODE.SHOT RB500V-40

RTKABGEFL

D2169 WA653100 DIODE.BRG KBP103G 1A 200V UC

D2170-2171 VT332900 DIODE 1SS355 UC

D2251 VD631600 DIODE 1SS133,176

RL s D2252

VG437000 DIODE.ZENR MTZJ4.7A 4.7V

s D2253-2254 VS997800 DIODE s D2255

VS997800 DIODE

1T2

1T2 s D2256-2257 VS997800 DIODE

D2258-2259 WC398800 DIODE

1T2

KDS160-RTK

D2301 VU172500 DIODE.ZENR UDZS9.1B

D2302-2303 VT332900 DIODE 1SS355

D2351-2354 VT332900 DIODE s F2251

* s F2251

WB221200 FUSE

WM933100 FUSE s F2251

IC181

VV071700 FUSE

X7362A00 IC

* IC183

IC201

X9374A00 IC

X6386A00 IC

IC202 s IC232

X7378A00 IC

X6248A00 IC s IC233-234 X4928A00 IC

1SS355

T6A 125V

T5A 250V

3.15A 250V

NJM2586AM(TE2)

NJM2595M

M66003-0131FP

NJM4565M(TE1)

NJM2388F33

KIA7805API 5V

RL

UC

RL

TKABGEF

RKABGEFL

✻ New Parts

87

RX-V363/HTR-6130

88

Ref. No.

Part No.

Description

s IC236 s IC237

IC238

IC239

X4153A00 IC

X4154A00 IC

X0515A00 IC

X4928A00 IC

KIA7812API

KIA7912PI

LM61CIZ THERMAL

KIA7805API 5V

JK201

JK261

WJ117300 JACK.PHONE PHONES

V9408200 JACK.PHONE MSJ-064-05B GR

JK266 WJ117400 JACK.MNI OPTIMIZER MIC

PJ181-182 WG505100 JACK.PIN 6P

PJ183

PJ184

PJ185

PJ266

V7190000 JACK.PIN 2P

V7189800 JACK.PIN 1P

V7190000 JACK.PIN 2P

WJ117500 JACK.PIN 3P

PN201-202 V9637500 PIN

PN231-232 V9637500 PIN

PN266 V9637500 PIN

PN272-273 V9637500 PIN

L=70 #18

L=70 #18

L=70 #18

L=70 #18

Q181 iA1015I0 TR

Q182-184 VV556400 TR

2SA1015 Y

2SC2412K Q,R,S

Q2001-2005 VV556400 TR 2SC2412K Q,R,S

Q2011-2012 WC434800 TR.DGT

KRA102S-RTK/P

Q2013

Q2014

WC435000 TR.DGT

KRC102S-RTK

VV556400 TR 2SC2412K Q,R,S

Q2015-2016 VV556500 TR

Q2017 VV556400 TR

Q2151

Q2152

WC435100 TR.DGT

VV556400 TR

2SA1037K Q,R,S

2SC2412K Q,R,S

KRC104S-RTK

2SC2412K Q,R,S

Q2153

Q2251

Q2252

WC435100 TR.DGT

KRC104S-RTK iC1815I0 TR 2SC1815 Y iA1015I0 TR

VP872600 TR

2SA1015 Y

2SA1708 S,T s Q2253 s Q2254 s Q2255

R1815 iA1015I0 TR 2SA1015 Y

WC529200 TR.DGT

KRC102M-AT

HV754220 R.CAR.FP 22Ω 1/4W

HV753220 R.CAR.FP 2.2Ω 1/4W

*

R1825

R1831

R2160

HV753220 R.CAR.FP 2.2Ω 1/4W

WJ682400 R.MTL.FLM 1Ω 1W J

* s R2171

* s R2174

R2258

R2260

WJ682400 R.MTL.FLM 1Ω 1W J

WJ682000 R.MTL.FLM 0.47Ω 1W J

VC757900 R.MTL.OXD 47Ω 2W

V6730000 R.CAR.

2.2MΩ 1/2W

R2301-2302 WJ685600 R.MTL.FLM 470Ω 1W J s RY251

ST251

ST261

V9366900 RELAY DLS9D1-O(M)0.25W

WA789600 SCR.TERM M3

WA789700 SCR.TERM D3.5

SW201-220 WD483100 SW.TACT

SKRGAAD010 s SW221 s SW251

SW274 s T251 s T251

V9597100 SW.RT.ENC EC12E2460802

VZ075500 SW.SLIDE SL14-22AM5F

WD483100 SW.TACT

X8521A00 TRANS.PWR

X8522A00 TRANS.PWR

X8523A00 TRANS.PWR

SKRGAAD010 s T251 s T251

U2002

V2001

X8523A00 TRANS.PWR

WJ645300 L.DTCT

SM3385UMH6

WJ264400 FL.DSPLY 17-BT-29GNK

V6007100 SPACER.FL 4.6/10/32

✻ New Parts

P.C.B. OPERATION and P.C.B. MAIN

Markets

UC

RKABGEFL

RL

RL

RL

RL

UC

RL

UC

RL

UC

RL

T

KABGEF

*

*

*

*

*

Ref. No.

Part No.

Description

WN241400 P.C.B.

MAIN

WN241500 P.C.B.

MAIN

WN241600 P.C.B.

MAIN

WN241700 P.C.B.

MAIN

CB101

CB103

CB104

CB161

CB163

CB164

CB191

CB192

CB193

C1001

WN241800 P.C.B.

MAIN

VQ962800 CN.BS.PIN 7P

VK025100 CN.BS.PIN 7P

LB932060 CN.BS.PIN 6P

VQ047500 CN.BS.PIN 20P

VM923600 CN.BS.PIN 13P

VQ963600 CN.BS.PIN 15P

VB858300 CN.BS.PIN 4P

VB858400 CN.BS.PIN 5P

VB858200 CN.BS.PIN 3P

WJ605000 C.MYLAR

0.01uF 50V J

C1002-1003 UR837100 C.EL

10uF 16V

C1004

C1005

UR866220 C.EL

UR837100 C.EL

2.2uF 50V

10uF 16V

C1006-1007 UR866220 C.EL

C1008-1009 UR837100 C.EL

C1010

C1011

UR877220 C.EL

2.2uF 50V

10uF 16V

22uF 63V

WJ603300 C.MYLAR

470pF 50V J

C1012

C1013

C1014

C1015

UR896470 C.EL

4.7uF 100V

WJ603300 C.MYLAR

470pF 50V J

UR896470 C.EL

UR877220 C.EL

4.7uF 100V

22uF 63V

C1016-1017 UR896470 C.EL

4.7uF 100V

C1018-1020 WJ603300 C.MYLAR

470pF 50V J

C1021

C1022

WJ602900 C.MYLAR

UR867330 C.EL

100pF 50V K

33uF 50V

C1023 WJ602900 C.MYLAR

100pF 50V K

C1024-1025 UR867330 C.EL

33uF 50V

C1026 WJ602900 C.MYLAR

100pF 50V K

C1027-1028 UR867330 C.EL

33uF 50V

C1029

C1030

C1031

C1032

WJ602900 C.MYLAR

UR897100 C.EL

100pF 50V K

10uF 100V

WJ602900 C.MYLAR

100pF 50V K

FG651100 C.CE

10pF 50V

C1033 UR866100 C.EL

C1034-1037 FG650500 C.CE

1uF 50V

5pF 50V

C1038-1042 WJ605800 C.MYLAR

0.047uF 50V J

C1043 UR866470 C.EL

4.7uF 50V

C1044 UR828220 C.EL

220uF 10V

C1048

C1049

UR866470 C.EL

UR858100 C.EL

4.7uF 50V

100uF 35V s C1050-1051 WE514200 C.EL

6800uF 63V

C1052-1055 WJ605000 C.MYLAR

0.01uF 50V J

C1056-1057 WJ611400 C.MYLAR

0.1uF 100V J

C1058 UR868100 C.EL

100uF 50V

C1059

C1060

US064100 C.CE.CHP 0.01uF 50V B

UR837330 C.EL

33uF 16V

C1501-1510 WJ605000 C.MYLAR

0.01uF 50V J

C1601 WJ605000 C.MYLAR

0.01uF 50V J

C1602

C1603

WJ603300 C.MYLAR

470pF 50V J

US064100 C.CE.CHP 0.01uF 50V B

C1606-1617 US062220 C.CE.CHP 220pF 50V B

C1618-1619 US061470 C.CE.CHP 47pF 50V B

C1620-1623 US062220 C.CE.CHP 220pF 50V B

C1624-1625 US061470 C.CE.CHP 47pF 50V B

C1626-1629 UR837100 C.EL

10uF 16V

✻ New Parts

Markets

UC

RA

T

KL

BGEF

RKABGEFL

RX-V363/HTR-6130

Ref. No.

Part No.

Description

C1631

C1632

UR866220 C.EL

2.2uF 50V

US135100 C.CE.CHP 0.1uF 16V

C1633-1634 UR837100 C.EL

C1635-1636 UR847470 C.EL

10uF 16V

47uF 25V

C1637-1638 UR838100 C.EL

100uF 16V

C1639-1641 US062100 C.CE.CHP 100pF 50V B

C1642

C1643

US064100 C.CE.CHP 0.01uF 50V B

US063100 C.CE.CHP 1000pF 50V B

C1644

C1645

C1646

C1647

US062100 C.CE.CHP 100pF 50V B

WJ605400 C.MYLAR

WJ605800 C.MYLAR

VE326200 C.MYLAR

0.022uF 50V J

0.047uF 50V J

0.15uF 50V

C1648

C1649

UR837470 C.EL

47uF 16V

WJ605400 C.MYLAR

0.022uF 50V J

C1650-1655 UR837100 C.EL

C1656 UR837470 C.EL

10uF 16V

47uF 16V

C1657

C1658

C1659

C1660

VE326200 C.MYLAR

UR837470 C.EL

0.15uF 50V

US135100 C.CE.CHP 0.1uF 16V

WJ605800 C.MYLAR

0.047uF 50V J

47uF 16V

C1661 US135100 C.CE.CHP 0.1uF 16V

C1662-1667 UR837100 C.EL

10uF 16V

C1668

C1669

UR838100 C.EL

100uF 16V

US062330 C.CE.CHP 330pF 50V B

C1670 UR866220 C.EL

2.2uF 50V

C1671-1674 US162820 C.CE.CHP 820pF 50V J

C1675

C1676

US062820 C.CE.CHP 820pF 50V B

WJ605800 C.MYLAR

0.047uF 50V J

C1677-1678 UR837100 C.EL

C1679

10uF 16V

US062330 C.CE.CHP 330pF 50V B

C1680-1682 UR837100 C.EL

C1683-1684 UR837470 C.EL

10uF 16V

47uF 16V

C1685-1690 US062100 C.CE.CHP 100pF 50V B

C1691 US062560 C.CE.CHP 560pF 50V B

C1692 WJ604400 C.MYLAR

3900pF 50V J

C1693-1699 UR837100 C.EL

10uF 16V

C1700

C1701

US061270 C.CE.CHP 27pF 50V B

US135100 C.CE.CHP 0.1uF 16V

C1702

C1703

UR838100 C.EL

100uF 16V

US061270 C.CE.CHP 27pF 50V B

C1704 UR837470 C.EL

C1705-1706 UR838100 C.EL

47uF 16V

100uF 16V

C1707 US135100 C.CE.CHP 0.1uF 16V

C1901-1902 US064100 C.CE.CHP 0.01uF 50V B

D102

D103

VD631600 DIODE 1SS133,176

VU171900 DIODE.ZENR UDZ5.1B 5.1V

D104 WC398800 DIODE

D105-106 VN008700 DIODE

D107 WC398800 DIODE

D108-110 VN008700 DIODE

KDS160-RTK

1SS270A

KDS160-RTK

1SS270A

D111-113 VD631600 DIODE

D114-115 VN008700 DIODE s D116

D117

1SS133,176

1SS270A

VG443700 DIODE.ZENR MTZJ33B 33V

VN008700 DIODE 1SS270A

D118-119 VD631600 DIODE s D120

D121

WA653200 DIODE.BRG TS6P03G 6A 200V

VD631600 DIODE

1SS133,176

1SS133,176

D122-123 VS997800 DIODE 1T2

D161-162 VU994300 DIODE.ZENR MA8075-H 7.7V

D163 VU995500 DIODE.ZENR MA8100-H 10.3V

Markets

BGEF

BGEF

BGEF

BGEF

BGEF

BGEF

BGEF

BGEF

BGEF

BGEF

✻ New Parts

P.C.B. MAIN

*

Ref. No.

Part No.

Description Markets

s IC101 s IC102

IC161

X8190A00 IC

X7427A00 IC

X8155B00 IC

IC162-164 X7378A00 IC

STK433-330-E

STK433-130-E

R2A15218FP

NJM4565M(TE1)

IC168

IC169

PJ161

PJ162

X8235A00 IC

X7378A00 IC

LC72725KM

NJM4565M(TE1)

V7190400 JACK.PIN 6P

V7046800 JACK.PIN 6P MSP-246V1-01NI

PJ163 V7189700 JACK.PIN 1P

PJ164-165 V7046700 JACK.PIN 4P MSP-244V1-01NI

Q101-105 VD303700 TR 2SC3326 A,B

Q106-108 WC434800 TR.DGT

KRA102S-RTK/P s Q109

WC398400 TR s Q110-111

WG538600 TR s Q112

WC398400 TR s Q113-114

WC397700 TR

2N5551C-AT

KTA1046-Y-U/P

2N5551C-AT

2N5401C-AT s Q115-119

WC398400 TR s Q120

WC397700 TR

2N5551C-AT

2N5401C-AT s Q121-123

WC434900 TR.DGT

KRA104S-RTK

2SA1708 S,T s Q124

VP872600 TR s Q125-126

WC434900 TR.DGT

KRA104S-RTK s Q127

WC435000 TR.DGT

KRC102S-RTK

Q128 iC1815I0 TR 2SC1815 Y

Q129-132 WC435000 TR.DGT

KRC102S-RTK

Q133 WC434900 TR.DGT

KRA104S-RTK

Q161-162 VZ725900 TR

Q163 WC434800 TR.DGT

2SD1938F S,T

KRA102S-RTK/P

Q164

Q165

Q166

Q167 iC1815I0 TR iA1015I0 TR iC1815I0 TR iC174020 TR

2SC1815 Y

2SA1015 Y

2SC1815 Y

2SC1740S QRS

BGEF

BGEF s R1027-1028 HV753220 R.CAR.FP 2.2Ω 1/4W s R1031

HV755560 R.CAR.FP 560Ω 1/4W s R1038

HV754100 R.CAR.FP 10Ω 1/4W s R1043

HV754100 R.CAR.FP 10Ω 1/4W s R1054

WB279900 R.CEMENT RGC55C 0.22+0.22

s R1057

WB279900 R.CEMENT RGC55C 0.22+0.22

s R1061

WB279900 R.CEMENT RGC55C 0.22+0.22

s R1069-1070 WB279900 R.CEMENT RGC55C 0.22+0.22

R1085 HV754100 R.CAR.FP 10Ω 1/4W

R1087

R1089

HV754100 R.CAR.FP 10Ω 1/4W

HV754100 R.CAR.FP 10Ω 1/4W

R1092-1093 HV754100 R.CAR.FP 10Ω 1/4W s R1095

WB625100 R.MTL.FLM 4.7Ω 1W J s R1099-1100 WB625100 R.MTL.FLM 4.7Ω 1W J s R1103-1104 WB625100 R.MTL.FLM 4.7Ω 1W J s R1106

HV756150 R.CAR.FP 1.5KΩ 1/4W s R1110

HV755470 R.CAR.FP 470Ω 1/4W

R1659-1660 HV753220 R.CAR.FP 2.2Ω 1/4W s RY101-105 WJ122400 RELAY

RY106 WE648700 RELAY

ST101

TE101

981-2A-24DS-SP7

DC DH24D2-O-Q

WA789600 SCR.TERM M3

WK560800 TERM.SP

4P MST-204V1-01 NC UCRTA

TE101

TE151

XL161

WK560900 TERM.SP

4P MST-204V1-01 WC KBGEFL

WJ551900 TERM.SP

MSP-120V2-11(765A)

WJ588000 RSNR.CRYS 4.332MHz

WE774200 SCR.BND.HD 3x10 MFZN2W3

BGEF

✻ New Parts

89

RX-V363/HTR-6130

*

*

P.C.B. HDMI

Ref. No.

Part No.

Description

WN243200 P.C.B.

HDMI

CB901-903 WM462600 CN.HDMI

19P SE

CB904

CB905

VB389900 CN.BS.PIN 3P

LB919030 CN.BS.PIN 3P

C4902 WD758300 C.CE.CHP 10uF 10V

C4903-4905 US135100 C.CE.CHP 0.1uF 16V

C4906

C4907

V5333500 C.CE.CHP 10uF 6.3V

UF017220 C.EL.CHP 22uF 6.3V

C4908-4910 US135100 C.CE.CHP 0.1uF 16V

C4911 V5333500 C.CE.CHP 10uF 6.3V

C4912-4914 US135100 C.CE.CHP 0.1uF 16V

C4915 UF037100 C.EL.CHP 10uF 16V

C4916-4918 US135100 C.CE.CHP 0.1uF 16V

C4919 UF027220 C.EL.CHP 22uF 10V

C4920

C4921

US135100 C.CE.CHP 0.1uF 16V

UF028100 C.EL.CHP 100uF 10V

C4922

C4923

US135100 C.CE.CHP 0.1uF 16V

UF028100 C.EL.CHP 100uF 10V

D4909-4910 WE674800 DIODE

D4912 VT332900 DIODE

AVRL161A1R1NTB

1SS355

D4913-4916 WH641900 ESD

D4917-4918 WE674800 DIODE

PESD0603-140

AVRL161A1R1NTB

D4919-4926 WH641900 ESD

D4927-4928 WE674800 DIODE

D4929-4932 WH641900 ESD

D4933-4934 VT332900 DIODE

F4901

IC902

IC903

IC904

V2997600 SW.POLY

X7741A00 IC

X8900A00 IC

X7854A00 IC

PESD0603-140

AVRL161A1R1NTB

PESD0603-140

1SS355

SMDC050-02

NJM2867F3-05(TE1)

CXB1442AR-T4

SN74LVC3G04DCTR

IC905

IC906

IC907

IC908

X6869A00 IC

X5896A00 IC

X7743A00 IC

X4454A00 IC

NJM2885DL1-33

SN74LVC1G08DCKR

SN74CB3Q3257PWR

SN74LVC2G17DCKR

Q4902-4906 VV556400 TR 2SC2412K Q,R,S

ST901-902 WA789600 SCR.TERM M3

Markets Ref. No.

Part No.

Description Markets

90

✻ New Parts ✻ New Parts

Value

2.0 k

2.2 k

2.4 k

2.7 k

3.0 k

3.3 k

3.6 k

3.9 k

560

680

820

910

1.0 k

1.2 k

1.5 k

1.8 k

4.7 k

5.1 k

5.6 k

6.8 k

8.2 k

9.1 k

200

220

270

330

390

430

470

510

82

91

100

110

120

150

160

180

22

27

33

39

47

56

68

75

1.0

1.8

2.2

3.3

4.7

5.6

10

15

❊ : Not available

HF45

5680

HF45

5820

HF45

5910

HF45

6100

HF45

6120

HF45

6150

HF45

6180

HJ35

6200

HF45

6220

HJ35

6240

HF45

6270

HF45

6300

HF45

6330

HJ35

6360

HF45

6390

HF45

6470

HF45

6510

HF45

6560

HF45

6680

HF45

6820

HF45

6910

1/4W Type Part No. 1/6W Type Part No.

HJ35

3100

HJ35

HJ35

3180

3220

HF85

3100

HF85

3220

HJ35

3330

HJ35

3470

HF85

HF85

3330

3470

HJ35

3560

HF45

4100

HJ35

4150

HF45

4220

HF85

HF45

HF85

HF45

3560

4100

4150

4220

HJ35

4270

HF45

4330

HJ35

4470

HF45

4470

HF45

4560

HF45

4680

HF45

4750

HF45

4820

HF85

HF45

HF85

HF45

HF45

HF45

HF45

HF45

4270

4330

4390

4470

4560

4680

4750

4820

HF45

4910

HF45

5100

HJ35

5110

HF45

5120

HF45

5150

HJ35

5160

HF45

5180

HF45

5200

HF45

5220

HF45

5270

HF45

5330

HF45

5390

HF45

5430

HF45

5470

HF45

5510

HF45

5560

HF45

4910

HF45

5100

HF85

5110

HF45

5120

HF45

5150

HF45

5180

HF45

5200

HF45

5220

HF45

5270

HF45

5330

HF45

5390

HF45

5430

HF45

5470

HF45

5510

HF45

5560

HF45

5680

HF45

5820

HF45

5910

HF45

6100

HF45

6120

HF45

6150

HF45

6180

HF85

6200

HF45

6220

HF85

6240

HF45

6270

HF45

6300

HF45

6330

HF85

6360

HF45

6390

HF45

6470

HF45

6510

HF45

6560

HF45

6680

HF45

6820

HF45

6910

Carbon Resistors

Value

62 k

68 k

82 k

91 k

100 k

110 k

120 k

150 k

180 k

220 k

270 k

300 k

330 k

390 k

470 k

560 k

680 k

820 k

1.0 M

1.2 M

1.5 M

1.8 M

2.2 M

3.3 M

3.9 M

4.7 M

27 k

30 k

33 k

36 k

39 k

47 k

51 k

56 k

10 k

11 k

12 k

13 k

15 k

18 k

22 k

24 k

1/4W Type Part No. 1/6W Type Part No.

HF45

7100

HF45

7100

HF45

HJ35

7110

7120

HF45

7110

HF85

7120

HF45

HF45

HF45

HF45

7130

7150

7180

7220

HF45

7130

HF45

7150

HF45

7180

HF45

7220

HF45

HJ35

HF45

HF45

HF45

HF45

HF45

HF45

7240

7270

7300

7330

7360

7390

7470

7510

HF45

7240

HF85

7270

HF45

7300

HF45

7330

HF45

7360

HF45

7390

HF45

7470

HF45

7510

HF45

7560

HF45

7620

HF45

7680

HF45

7820

HF45

7910

HF45

8100

HF45

8110

HF45

8120

HF45

HF45

HJ35

HF45

HF45

HF45

HJ35

HF45

8470

HJ35

8560

HJ35

8680

HJ35

8820

HF45

9100

HJ35

HJ35

HJ35

HJ35

HJ35

HJ35

HJ35

8150

8180

8220

8270

8300

8330

8390

9120

9150

9180

9220

9330

9390

9470

HF45

HF45

HF45

HF45

HF45

HF45

HF45

HF45

HF45

8150

HF45

8180

HF85

8220

HF45

8270

HF45

8300

HF45

8330

HF85

8390

HF45

8470

HF85

HF85

HF85

7560

7620

7680

7820

7910

8100

8110

8120

8560

8680

8820

HF45

9100

HF85

9150

HF85

9180

HF85

9220

HF85

9330

HF85

9470

1/4W Type

HJ35

10mm

1/4W Type

HF45

1/6W Type

HF85

5mm

RX-V363/HTR-6130

91

1

A

RX-V363/HTR-6130

• OVERALL ASS’Y

B

200

201

C

2

200-1

202

U, C, R, T, L models

201-1

B, G, E, F models

171

172

3

202

K, A, B, G, E, F models

203

4

204

101

170

15

170

167

168

D E

157

R, K, A, B, G, E, F models

156

157

157

160

167

171

168

F

2-1

(3)

17

2-9

16

G

2-8

24

12

109

5 (3)

5

163

Front Panel Unit

151

6

5 (4)

H

160

160

167

AMP Unit

167

6

120

163

160

I

160

160

103

R, L models

103

164

5 (5)

J

121

163

163

152

7

92

120

163

A B C D

1

2

3

4

5

6

7

Ref. No.

Part No.

Description

*

*

*

* s 16 s 16 s 16 s 16 s 16 s 16 s 16

17

24

101

101

101

101

103

103

103

103

103

103

103

103

*

*

*

*

*

12

12

* s 15

* s 15

* s 15

* s 15

* s 15

5

5

6

12

5

5

2-8

2-9

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

120

120

121

121

121

121

151

152

103

103

103

103

103

103

103

109

156

157

160

163

164

167

168

✻ New Parts

MF120180 FLEXIBLE FLAT CABLE

MF113120 FLEXIBLE FLAT CABLE

WN242700 P.C.B. ASS'Y

WN242800 P.C.B. ASS'Y

WN242900 P.C.B. ASS'Y

WN243000 P.C.B. ASS'Y

WN243200 P.C.B. ASS'Y

WB424000 AM/FM TUNER

WB877300 AM/FM TUNER

WB424100 AM/FM TUNER

X9582A00 POWER TRANSFORMER

X9583A00 POWER TRANSFORMER

X9584A00 POWER TRANSFORMER

X9585A00 POWER TRANSFORMER

X9586A00 POWER TRANSFORMER

WB120500 POWER CABLE

WC992700 POWER CABLE

WB120600 POWER CABLE

WC753000 POWER CABLE

WC743700 POWER CABLE

WB212200 POWER CABLE

WB212300 POWER CABLE

V2438700 CORD STOPPER

MF114100 FLEXIBLE FLAT CABLE

WE065200 TOP COVER

WE065000 TOP COVER

WE065100 TOP COVER

WG481900 TOP COVER

WM759500 REAR PANEL

WM759700 REAR PANEL

WM759800 REAR PANEL

WM759900 REAR PANEL

WM760000 REAR PANEL

WM760100 REAR PANEL

WM760200 REAR PANEL

WM760300 REAR PANEL

WM760500 REAR PANEL

WM760700 REAR PANEL

WM760800 REAR PANEL

WM760900 REAR PANEL

WM761000 REAR PANEL

WM761100 REAR PANEL

WN121700 REAR PANEL

WA796100 SUPPORT P.C.B.

WA790600 LEG

WA790500 LEG

WM749500 KNOB D48

WM749400 KNOB D48

WM749600 KNOB D48

WM749700 KNOB D48

WB408400 DAMPER

WB484700 DAMPER

WJ589800 SHEET TOP

WJ323900 RIVET TOP

WE774100 BIND HEAD BONDING B-T. SCREW

WE774300 BIND HEAD B-TIGHT SCREW

WE774000 BIND HEAD SCREW

WF002600 PW HEAD B-TIGHT SCREW

WE774600 SCREW IC

20P 180mm P=1.25

13P 120mm P=1.25

OPERATION

OPERATION

OPERATION

OPERATION

HDMI

ENG06709Q

FAE381-A07F

ENG07711Q

2m

2m

2m

2m

2m

2m

2m

10P1

14P 100mm P=1.25

D60/H21 GD

D60/H21 HS

10x30 t=4

SCREW MASK

3x8 MFZN2B3

3x8 MFZN2W3

3x6 MFZN2W3

3x8 MFZN2W3

3x18 MFZN2W3

Remarks

GD

BL

TI

SI

V363

V363

V363

V363

V363

V363

V363

V363

6130

6130

6130

6130

6130

6130

6130

GD

BL, TI, SI

GD

BL

TI

SI

T

K

UC

R

A

GF

L

T

K

UC

R

A

B

GEF

L

Markets

UC

RL

T

KABGEF

UCRL

T

KABGEF

UC

RL

TK

A

BGEF

UC

R

A

B

T

K

GEFL

UC

RKABGEF

RKABGEF

RL

E F G H I J

RX-V363/HTR-6130

*

*

*

*

Ref. No.

Part No.

170

171

171

172

172

WE774700

VD069600

VH313200

WE200400

WE200500

Description

BIND HEAD S-TIGHT SCREW

PW HEAD S-TIGHT SCREW

PW HEAD S-TIGHT SCREW

DISH HEAD B-TIGHT SCREW

DISH HEAD B-TIGHT SCREW

200

200

WN058100

ACCESSORIES

REMOTE CONTROL

WN058200 REMOTE CONTROL

200-1 AAX82380 BATTERY COVER

201 WN466800 REMOTE CONTROL

201-1 AAX70730 BATTERY COVER

202

202

203

204

WB212500

WB212400

WB212600

WN649600

INDOOR FM ANTENNA

INDOOR FM ANTENNA

AM LOOP ANTENNA

OPTIMIZER MICROPHONE

BATTERY

SERVICE TOOL

MF117350 FLEXIBLE FLAT CABLE

Remarks

4x10 MFZN2W3

4x8-10 MFNI33 GD, TI, SI

4x8-10 MFNI3BL BL

3x6 MFNI33 GD, TI, SI

3x6 MFNI3BL BL

RAV283

RAV284

RAV34

1.4m 1pc

1.4m 1pc

1.0m 1pc

6.0m 1pc

R03,AAA,UM-4 2pcs

17P 350mm P=1.25

CG-2209

CG-8912

Markets

UC

RTKAL

UCRTKAL

BGEF

BGEF

UCRTL

KABGEF

EM6022L-HN1700 RKABGEFL

✻ New Parts

93

1

A

RX-V363/HTR-6130

B

• FRONT PANEL UNIT

C D E

1-25

2

3

4

5

6

1-8

1-13

1-12

1-5 (6)

5 (10)

1-25

5 (1)

1-25

1-25

1-5 (5)

1-25

1-25

5 (6)

1-5 (4)

1-7

1-5 (2)

1-5 (1)

1-5 (3)

1-6

1-25

1-2

5 (7)

1-25

1-25

1-4

F G H I J

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

Ref. No.

Part No.

Description

1-4

1-5

1-5

1-5

1-5

1-6

1-7

1-8

1-8

1-2

1-4

1-4

1-4

1-4

1-4

1-4

1-4

MF117180 FLEXIBLE FLAT CABLE

WM753300 FRONT PANEL

WM752100 FRONT PANEL

WM754100 FRONT PANEL

WM754600 FRONT PANEL

WM753400 FRONT PANEL

WM752200 FRONT PANEL

WM755000 FRONT PANEL

WM754700 FRONT PANEL

WJ192500 BUTTON CASE

WJ192300 BUTTON CASE

WJ192700 BUTTON CASE

WJ192600 BUTTON CASE

WJ192800 BUTTON TUNER

WJ193200 LENS BUTTON

WJ193400 EMBLEM GD

WJ193300 EMBLEM BL

5

5

5

1-12 WM750100 ESCUTCHEON VOL

1-12 WM750000 ESCUTCHEON VOL

1-12 WM750200 ESCUTCHEON VOL

1-12 WM750300 ESCUTCHEON VOL

1-13 WM995900 SHEET WINDOW

1-13 WM761800 SHEET WINDOW

1-25 WE774800 BIND HEAD P-TIGHT SCREW

5 WN242700 P.C.B. ASS'Y

WN242800 P.C.B. ASS'Y

WN242900 P.C.B. ASS'Y

WN243000 P.C.B. ASS'Y

17P 180mm P=1.25

SCENE

OPTIMIZER MIC

3x8 MFZN2W3

OPERATION

OPERATION

OPERATION

OPERATION

Remarks

GD

BL

TI

SI

V363GD

V363BL

V363TI

V363SI

6130GD

6130BL

6130SI

6130SI

GD

BL, TI, SI

GD

BL

TI

SI

Markets

URKAL

GEF

UCT

RKABGEFL

UC

RL

T

KABGEF

7

94

✻ New Parts

6

7

A

1

• AMP UNIT

2-104

B

2

5 (11)

5 (2)

C D

2-21

2-104 2-104

2-105

2-20

2-9

2-8

2-1

(1)

2-103

2-104

3

2-2

E

4

2-1

(4)

2-104

2-104

2-104

5

F G H I J

RX-V363/HTR-6130

*

*

*

*

*

*

*

*

*

*

*

*

*

*

Ref. No.

Part No.

Description

5

5

5

5

2-1

2-1

2-1

2-1

2-1

2-2

2-2

2-2

WN241400 P.C.B. ASS'Y

WN241500 P.C.B. ASS'Y

WN241600 P.C.B. ASS'Y

WN241700 P.C.B. ASS'Y

WN241800 P.C.B. ASS'Y

WN242100 P.C.B. ASS'Y

WN242200 P.C.B. ASS'Y

WN242300 P.C.B. ASS'Y

2-2

2-2

2-8

2-9

WN242400 P.C.B. ASS'Y

WN242500 P.C.B. ASS'Y

MF120180 FLEXIBLE FLAT CABLE

MF113120 FLEXIBLE FLAT CABLE

2-20 WG451000 SUPPORT TR-5P

2-21 WJ187700 SUPPORT TR-2P

2-103 WE774600 SCREW IC

2-104 WF002600 PW HEAD B-TIGHT SCREW

2-105 WE774300 BIND HEAD B-TIGHT SCREW

WN242700 P.C.B. ASS'Y

WN242800 P.C.B. ASS'Y

WN242900 P.C.B. ASS'Y

WN243000 P.C.B. ASS'Y

MAIN

MAIN

MAIN

MAIN

MAIN

DSP

DSP

DSP

DSP

DSP

20P 180mm P=1.25

13P 120mm P=1.25

3x18 MFZN2W3

3x8 MFZN2W3

3x8 MFZN2W3

OPERATION

OPERATION

OPERATION

OPERATION

Remarks Markets

UC

RA

T

KL

BGEF

UC

RL

T

KA

BGEF

UC

RL

T

KABGEF

✻ New Parts

95

1

A

RX-V363/HTR-6130

B C D

REMOTE CONTROL

RAV283 RX-V363 (U, C models), HTR-6130 (U, C models)

RAV284 RX-V363 (R, T, K, A, L models), HTR-6130 (R, T, K, A, L models)

• SCHEMATIC DIAGRAM

E

2

+3V

R3

100 ohms

3

4

5

D1

IR Diode

Q1

SMT

R1

1 ohm

C1

47uF

1

X1

8MHz

3

2

R2

47 ohms

11

12

13

14

15

16

17

8

9

10

22

18

24

25

U1

ZLR32300H2832G

P31

P32

P33

P34

P35

P37

P36

VDD

XTAL2

XTAL1

VSS

P30/Pref

P20

P21

P07

7

P06

6

P05

5

P04

4

P03

23

P02

21

P01

20

P00

P22

19

P27

P23

3

P26

P24

2

P25

1

28

27

26

F G

REW (SEARCH -) REC

LEFT

1

5

RETURN

9

TITLE

V-AUX/DOCK

SCENE

1

AMP

FF (SEARCH +) SKIP+

ENTER

2

6

UP

D

PLAY

VOL down

PAUSE

DISPLAY

SKIP-

RIGHT

4

8

SCENE

4

TV VOL -

ENTER

VOL up

TV VOL +

+10

SCENE

3

TV MUTE

3

7

MENU

E

DVD

TV POWER

CD

A

D-TV/CBL TV CH +

AV POWER MUTE

TV CH -

POWER

TUNER

C

DVR

STANDBY

STOP

DOWN

J6

0

J5

SCENE

2

J4

TV INPUT

J3

MD/CD-R

J2

B

J1

H I J

• PANELS

RAV283

RX-V363 (U, C models)

HTR-6130 (U, C models)

RAV284

RX-V363 (R, T, K, A, L models)

HTR-6130 (R, T, K, A, L models)

6

J1

J2

J3

J4

J5

J6

RAV283

X

X

X

O

X

X

RAV284

X

X

X

X

O

X

7

96

A

1

• KEY NO. LAYOUT

2

3

4

1

5

2

6

3

7

9 10 11 12

13 14 15 16

17 18 19 20

21 22 23 24

4

8

25 26 27 28

29

36

31

30

33 34 35

37

38

32

39

40 41 42 43

44 45 46 47

48 49 50 51

52 53 54 55

56 57 58 59

5

B

6

7

C D E F G H

• KEY CODE

10

11

12

13

8

9

6

7

Key

No.

1

4

5

2

3

18

19

20

21

14

15

16

17

Label

TV POWER

AV POWER

STANDBY

POWER

A

B

C

MUTE

CD

MD/CD-R

TUNER

TV CH +

DVD

D-TV/CBL

DVR

TV CH -

V-AUX/DOCK

D

E

TV VOL +

AMP

TV INPUT

TV MUTE

TV VOL -

SCENE 1

SCENE 2

SCENE 3

SCENE 4

TITLE

UP

MENU

VOL up

LEFT

ENTER

RIGHT

RETURN

DOWN

DISPLAY

VOL down

REC

STOP

PAUSE

PLAY

REW (SEARCH -)

FF (SEARCH +)

5

6

3

4

1

2

SKIP -

SKIP +

9

0

7

8

+10

ENTER

50

51

52

53

46

47

48

49

42

43

44

45

38

39

40

41

54

55

56

57

58

59

34

35

36

37

30

31

32

33

26

27

28

29

22

23

24

25

O

O

O

O

O

O

7A-C2

7A-1B

(device)

(device)

(device)

(device)

(device)

(device)

(device)

(device)

7A-59

7A-58

7A-94

7A-8D

7A-56

7A-DD

(TV INPUT)

(TV MUTE)

(TV VOL -)

7A-007F

7A-037C

7A-0679

7A-0976

7A-86

7A-9D

7A-84

7A-1A

7A-9F

7A-DE

7A-9E

7A-AA

7A-9C

7A-95

7A-C4

7A-87

7A-C3

7A-57

O

O

O

O

O

O

O

Command key

O

O

O

O

O

O

O

O

O

AMP

(TV POWER)

(device)

7E-7F

7E-7E

7F01-3F

7A-B4

7A-39

7A-1C

7A-15

7A-C9

7A-16

(TV CH +)

7A-C1

7A-54

7A-13

(TV CH -)

7A-55

7A-0F

7A-14

(TV VOL +)

SCENE SELECT

SCENE SELECT

SCENE SELECT

SCENE SELECT

VOL UP

79-0A

VOL DOWN

7A-4F

7A-09

7A-09

7A-08

7A-0D

7A-0C

7A-0B

7A-0A

79-11

79-12

79-13

79-14

79-15

79-16

79-17

79-18

79-19

79-10

79-1A

79-0B

(TV POWER)

79-60

STANDBY

POWER

A

B

C

MUTE

CD

MD/CD-R

TUNER

(TV CH +)

DVD

DTV/CBL

DVR

(TV CH -)

(TV POWER)

7F-80

(TV CH +)

(TV CH -)

V-AUX (/DOCK)

VCR

PHONO

(TV VOL +)

(TV VOL +)

Enter into AMP mode

9

CD

10

MD/CD-R

(TV INPUT)

(TV MUTE)

(TV VOL -)

(TV INPUT)

(TV MUTE)

(TV VOL -)

7F-9E

7F-91

7F-92

7F-93

7F-94

7F-95

7F-96

7F-97

7F-98

7F-84

7F-83

7F-82

7F-88

7F-89

7F-86

7F-87

7F-99

7F-90

7F-9A

7F-8A

(TV POWER)

D1-1B

(TV CH +)

(TV CH -)

(TV VOL +)

11

TUNER

(TV INPUT)

(TV MUTE)

(TV VOL -)

7A-AE

7A-10

7A-AB

7A-AC

7A-AD

7A-12

7A-AF

7A-11

7A-B0

7A-A4

7A-A5

7A-A6

7A-A7

7A-E5

7A-E6

7A-E7

7A-E8

7A-E9

7A-EA

7A-EB

7A-EC

7A-B1

7A-B2

7A-B3

(TV POWER)

7C-80

TV POWER

(DVR POWER)

(TV POWER)

048.012

(TV POWER)

7F01-00

(TV POWER)

TV POWER

(DVR POWER)

(TV CH +)

(TV CH -)

(TV VOL +)

13

DVD

(TV INPUT)

(TV MUTE)

(TV VOL -)

7C-B1

7C-B4

7C-B2

7C-B5

7C-B8

7C-B6

7C-B7

7C-B3

7C-A6

7C-8B

7C-85

7C-83

7C-82

7C-86

7C-87

7C-B9

7C-BA

7C-94

7C-95

7C-96

7C-97

7C-98

7C-99

7C-9A

7C-9B

7C-9C

7C-93

7C-9D

7C-9E

TV CH +

TV CH -

TV VOL +

14

DTV/CBL

TV INPUT

TV MUTE

TV VOL -

(DVR REC)

(DVR STOP)

(DVR PAUSE)

(DVR PLAY)

(DVR REW)

(DVR FF)

(DVR SKIP-)

(DVR SKIP+)

(TV CH +)

(TV CH -)

(TV VOL +)

15

DVR

(TV INPUT)

(TV MUTE)

(TV VOL -)

048.200

048.088

048.084

048.090

048.092

048.091

048.131

048.089

048.015

048.055

048.049

048.048

048.044

048.041

048.040

048.033

048.032

048.001

048.002

048.003

048.004

048.005

048.006

048.007

048.008

048.009

048.000

(TV CH +)

(TV CH -)

(TV VOL +)

17

V-AUX/DOCK

(TV INPUT)

(TV MUTE)

(TV VOL -)

7F01-0D

7F01-0E

7F01-0F

7F01-10

7F01-11

7F01-12

7F01-13

7F01-14

7F01-15

7F01-16

7F01-1D

7F01-1A

7F01-1E

7F01-17

7F01-18

7F01-1B

7F01-1C

7F01-01

7F01-02

7F01-03

7F01-04

7F01-05

7F01-06

7F01-07

7F01-08

7F01-09

7F01-0A

7F01-0B

7F01-0C

(TV CH +)

(TV CH -)

(TV VOL +)

18

VCR

(TV INPUT)

(TV MUTE)

(TV VOL -)

TV CH +

TV CH -

TV VOL +

19

PHONO

TV INPUT

TV MUTE

TV VOL -

(DVR REC)

(DVR STOP)

(DVR PAUSE)

(DVR PLAY)

(DVR REW)

(DVR FF)

(DVR SKIP-)

(DVR SKIP+)

I J

RX-V363/HTR-6130

97

98

RX-V363/HTR-6130

RAV34

RX-V363 (B, G, E, F models), THR-6130 (G, E, F models)

• SCHEMATIC DIAGRAM

+3V

D1

IR Diode

Q1

SMT

R2

47 ohms

R1

1 ohm

C1

47uF

1

X1

4MHz

3

2

1

2

3

4

5

6

7

8

9

10

U1 uPD6P8MC

KI/O6 KI/O5

20

KI/O7

S0

SI/LED

REM

VDD

Xout

Xin

GND

S2

KI/O4

19

KI/O3

18

KI/O2

17

KI/O1

16

KI/O0

15

KI3

14

KI2

13

KI1

12

KI0

11

INFO DTV/CBL

SCENE1

LEVEL RETURN

STRAIGHT VOLUME-

LEFT

POWER DVD

EON

MD/CD-R

V-AUX

SCENE2 AUDIO SEL PROG-

TUNER

PTY SHEEK

-START

SCENE3

MULTI CH IN DVR

PTY SHEEK

-MODE

SCENE4

SLEEP

DOWN

DISPLAY

PROG+

SUR.DECODE

ENHANCER

MUTE

VOLUME+

PRESET-

ENTER

PRESET+ MENU

UP

CD

RIGHT

STANDBY

NIGHT

A/B/C/D/E

• PANEL

• KEY NO. LAYOUT

1 2

3

7

11

4

8

12

5

9

13

6

10

14

18 19 20

22

26

30

34

38

42

23

27

31

35

39

43

24

28

32

36

40

44

25

29

33

37

41

45

• KEY CODE

Key No.

Key Name

SLEEP

LEVEL

UP

MENU

AUDIO SEL

LEFT

ENTER

RIGHT

NIGHT

RETURN

DOWN

DISPLAY

SUR.DECODE

STRAIGHT

PROG-

PROG+

ENHANCER

INFO

EON

PTY SHEEK-MODE

PTY SHEEK-START

STANDBY

POWER

SCENE1

SCENE2

SCENE3

SCENE4

CD

MD/CD-R

TUNER

MULTI CH IN

DVD

DTV/CBL

DVR

V-AUX

VOLUME-

MUTE

VOLUME+

A/B/C/D/E

PRESET-

PRESET+

31

32

33

34

35

26

27

28

29

30

20

22

23

24

25

12

13

14

18

19

41

42

43

44

45

36

37

38

39

40

8

9

6

7

10

11

3

4

1

2

5

Custom Code

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7A

7E

7E

7A

7A

7A

7A

7A

7A

7A

7A

7A

Data Code

9C

C2

8D

56

59

58

94

A4

A5

A6

A7

9F

DE

9E

95

AA

57

86

9D

84

C3

1C

1A

12

11

10

C1

54

13

55

1B

7F

7E

007F

037C

0679

0976

15

C9

16

87

RX-V363/HTR-6130

99

RX-V363/HTR-6130

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
