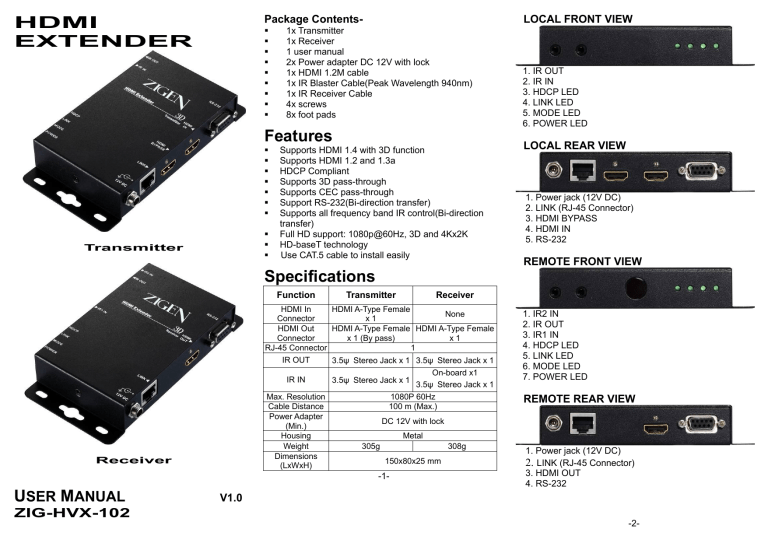

Package Contents-
HDMI
EXTENDER









LOCAL FRONT VIEW
1x Transmitter
1x Receiver
1 user manual
2x Power adapter DC 12V with lock
1x HDMI 1.2M cable
1x IR Blaster Cable(Peak Wavelength 940nm)
1x IR Receiver Cable
4x screws
8x foot pads
Features










Transmitter
Supports HDMI 1.4 with 3D function
Supports HDMI 1.2 and 1.3a
HDCP Compliant
Supports 3D pass-through
Supports CEC pass-through
Support RS-232(Bi-direction transfer)
Supports all frequency band IR control(Bi-direction
transfer)
Full HD support: [email protected], 3D and 4Kx2K
HD-baseT technology
Use CAT.5 cable to install easily
1. IR OUT
2. IR IN
3. HDCP LED
4. LINK LED
5. MODE LED
6. POWER LED
LOCAL REAR VIEW
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
3. HDMI BYPASS
4. HDMI IN
5. RS-232
REMOTE FRONT VIEW
Specifications
Function
Transmitter
HDMI In
HDMI A-Type Female
None
Connector
x1
HDMI Out
HDMI A-Type Female HDMI A-Type Female
Connector
x 1 (By pass)
x1
RJ-45 Connector
1
IR OUT
3.5ψ Stereo Jack x 1 3.5ψ Stereo Jack x 1
On-board x1
IR IN
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
Max. Resolution
1080P 60Hz
Cable Distance
100 m (Max.)
Power Adapter
DC 12V with lock
(Min.)
Housing
Metal
Weight
305g
308g
Dimensions
150x80x25 mm
(LxWxH)
Receiver
-1-
USER MANUAL
Receiver
1. IR2 IN
2. IR OUT
3. IR1 IN
4. HDCP LED
5. LINK LED
6. MODE LED
7. POWER LED
REMOTE REAR VIEW
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
3. HDMI OUT
4. RS-232
V1.0
ZIG-HVX-102
-2-
Installation
1. Be sure to turn OFF your HD source and HDTV.
2. Connect the HDMI extension cable between HD source
and the “HDMI IN” port of Transmitter.
3. Connect the HDMI extension cable between the HDTV
and the “HDMI OUT” port of Receiver.
4. Connect CAT.5 cables between the Transmitter “LINK”
port and the Receiver “LINK” port of extender.
5. Connect the power cord and power up the extender.
6. Turn on your HD source and HDTV.
※ When a HDMI device(TV) connected to BYPASS port,
the remote video output will be disable.
※
Conductor
Identification
NC
P+
N-
Pair 1
Pair 2
Pair 3
Pair 4
RJ45 Pin
Assignment
5
4
1
2
3
6
7
8
Color Code for
Conductor
White-Blue
Blue
White-Orange
Orange
White-Green
Green
White-Brown
Brown
Technical Specifications Output Signal
IR Receiver Cable Directions:
Plug IR Receiver into the HDMI-ERW “IR2 IN” port and
place the IR Receiver where you can point to it easily with
your IR remote controller.
IR Blaster Cable Directions:
Plug IR blaster cable plug into HDMI-ELW “IR OUT” port,
place IR Blaster in front of your HD source IR sensor, which
is located on the front-panel.
Pin #
Signal
1 TMDS Data 2+
2 TMDS Data 2 Shield
3 TMDS Data 2-
Additional Options
4
Select any additional options you may require.
1. IR Receiver Cable
5
6
7
8
9
10
GND
+V
Si g
Pin #
Signal
11 TMDS Clock Shield
12 TMDS Clock 13 CEC
TMDS Data 1+
14
TMDS Data 1 Shield
TMDS Data 1TMDS Data 0+
TMDS Data 0 Shield
TMDS Data 0TMDS Clock+
15
16
17
18
19
Reserved
(N.C. on device)
SCL
SDA
DDC/CEC Ground
+5 Power
Hot Plug Detect
Trademarks:
All the companies, brand names, and product names
referred to this manual are the trademarks or registered
trademarks belonging to their respective companies.
-32. IR Blaster Cable
-4-
-5-
