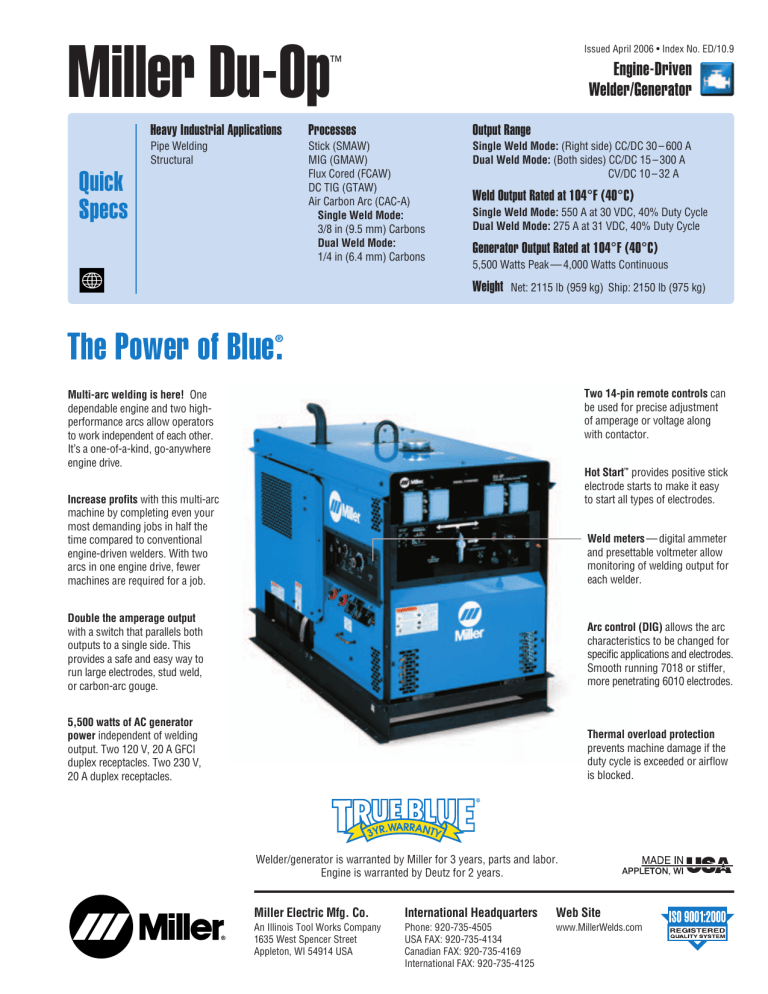

Miller Du-Op
Issued April 2006 • Index No. ED/10.9
™
Engine-Driven
Welder/Generator
Heavy Industrial Applications
Processes
Output Range
Pipe Welding
Structural
Stick (SMAW)
MIG (GMAW)
Flux Cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc (CAC-A)
Single Weld Mode:
3/8 in (9.5 mm) Carbons
Dual Weld Mode:
1/4 in (6.4 mm) Carbons
Single Weld Mode: (Right side) CC/DC 30 – 600 A
Dual Weld Mode: (Both sides) CC/DC 15 – 300 A
CV/DC 10 – 32 A
Quick
Specs
Weld Output Rated at 104°F (40°C)
Single Weld Mode: 550 A at 30 VDC, 40% Duty Cycle
Dual Weld Mode: 275 A at 31 VDC, 40% Duty Cycle
Generator Output Rated at 104°F (40°C)
5,500 Watts Peak — 4,000 Watts Continuous
Weight
Net: 2115 lb (959 kg) Ship: 2150 lb (975 kg)
The Power of Blue .
®
Two 14-pin remote controls can
be used for precise adjustment
of amperage or voltage along
with contactor.
Multi-arc welding is here! One
dependable engine and two highperformance arcs allow operators
to work independent of each other.
It’s a one-of-a-kind, go-anywhere
engine drive.
Hot Start™ provides positive stick
electrode starts to make it easy
to start all types of electrodes.
Increase profits with this multi-arc
machine by completing even your
most demanding jobs in half the
time compared to conventional
engine-driven welders. With two
arcs in one engine drive, fewer
machines are required for a job.
Weld meters — digital ammeter
and presettable voltmeter allow
monitoring of welding output for
each welder.
Double the amperage output
with a switch that parallels both
outputs to a single side. This
provides a safe and easy way to
run large electrodes, stud weld,
or carbon-arc gouge.
Arc control (DIG) allows the arc
characteristics to be changed for
specific applications and electrodes.
Smooth running 7018 or stiffer,
more penetrating 6010 electrodes.
5,500 watts of AC generator
power independent of welding
output. Two 120 V, 20 A GFCI
duplex receptacles. Two 230 V,
20 A duplex receptacles.
Thermal overload protection
prevents machine damage if the
duty cycle is exceeded or airflow
is blocked.
Welder/generator is warranted by Miller for 3 years, parts and labor.
Engine is warranted by Deutz for 2 years.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Specifications
Welding
Mode
Weld
Stations
Available
(Subject to change without notice.)
Weld
Output
Weld
Output
Range
Max. OpenCircuit
Voltage
Weld Output Rated
at 104˚ F (40˚ C)
Single
1
(Right side)
CC/DC
30 – 600 A
550 A at 30 VDC,
40% Duty Cycle
85
Dual
1 or 2
(Both sides)
CC/DC
15 – 300 A
10 – 32 V
275 A at 31 VDC,
40% Duty Cycle
85
CV/DC
Generator Output Rated
at 104˚ F (40˚ C)
Dimensions
Peak: 5500 watts
Continuous: 4000 watts,
34/17 A, 120/240 VAC,
while welding
H: 47-5/8 in
(1210 mm)
W: 31-1/4 in
(794 mm)
D: 60-1/2 in
(1537 mm)
49
Weight
Without Fuel*
Net: 2005 lb
(909 kg)
Ship: 2032 lb
(922 kg)
*Additional 176 lb (80 kg) when fuel tank is full.
Engine
(Subject to change without notice.)
Engine Brand
Deutz, F3L-914
Features
HP
Type
Tier II EPA-certified, direct-injected, air-cooled
engine with full-load sound levels of 83 dB @
7 m (108 Lwa). Right-side service access with
service intervals of 500 hours for oil and
filters.
48
Three-cylinder,
industrial, aircooled, diesel
Weld
Speed
Fuel
Capacity
Oil
Capacity
Coolant
Capacity
Automatic Engine
Shutdown
1800 RPM
Idle: N/A
25 gal
(95 L)
9 qt
(8.5 L)
Air
High oil
temperature
Low oil pressure
Control Panel
Front Panel
Side Panels
3
4
5
6
7
1
1
2
2
3
4
8
9
10
5
11
12
6
7
8
1. 120 VAC, 20 A GFCI Duplex Receptacle and Circuit Breakers
2. 240 VAC, 20 A Duplex Receptacle and Circuit Breakers
3. Battery Charging Warning Light
4. Engine Hour Meter
5. Engine Start Button
6. Manual Stop Control
7. Ether Starting Aid Switch (Optional)
8. Separate/Parallel Switch
1. Process Selector Switch
2. Arc Force (DIG) Control
3. Hot Start Switch
4. Ammeter
5. Voltmeter
6. Amperage/Voltage Control
7. High Temperature
Shutdown Light
8. Remote Amperage/Voltage
Control Switch
9. Output (Contactor) Switch
10. Negative Weld Output Terminal
11. CC Weld Output Terminal
12. CV Weld Output Terminal
Performance Data
DUTY CYCLE
AUXILIARY POWER
1000
SINGLE
6.62 1.46 1.75
125 250
100 200
25
50
0
0
25
30
40
50 60
80
100
0.95
CV
0.21 0.25
0
0
5
10
15
20
25
30
50
60
AC AMPERES IN 240V MODE
100% DUTY CYCLE
0
10
20
30
40
AC AMPERES IN 120V MODE
2
CC
1.98 0.40 0.50
U.S. GAL./HR.
50 100
150
20
3.78 0.83 1.00
2.84 0.62 0.75
200
15
4.73 1.04 1.25
75 150
IMP. GAL./HR.
DUAL
300
250
5.67 1.25 1.50
LITERS/HR.
600
500
400
AC VOLTS
WELD AMPERES
800
100
10
FUEL CONSUMPTION
7.57 1.70 2.00
150 300
0 50 100 150 200 250 300 350 400 450 500 550 600
DC WELD AMPERES AT 40% DUTY CYCLE
Genuine Miller Options and Accessories
Stick (SMAW) Welding
Wire Feeders
Remote Controls
SuitCase 8VS™ Wire Feeder #194 890
SuitCase™ X-TREME™ 12VS Wire Feeder
#195 500
Lightweight, portable, voltage-sensing wire
feeder for .045/.052 flux core and .035/.045
hard wire. Includes secondary contactor and
gas valve. Requires gun and drive roll kit.
See Lit. Index No. M/6.4 and M/6.41.
RHC-14 Hand Control #129 340
Miniature hand control for remote current
and contactor control. Dimensions: 4 x 4 x
3-1/4 in (102 x 102 x 82 mm). Includes
20 ft (6 m) cord and 14-pin plug.
No. 2/0 Stick Welding Accessory Kits
#173 851
50 ft (15 m) No. 2/0 electrode cable with
electrode holder and 50 ft (15 m) No. 2/0
work cable with work clamp. 350 A at
100% duty cycle.
#043 952
100 ft (30.5 m) No. 2/0 electrode cable with
electrode holder and 50 ft (15 m) No. 2/0
work cable with work clamp. 300 A at
100% duty cycle.
MIG (GMAW) Guns
Miller produces a complete line of
dependable MIG guns. Check literature
for complete details. See Lit. Index Nos.
Extension Cords for 14-Pin Remote Controls
#122 973 25 ft (7.6 m)
#122 974 50 ft (15.2 m)
#122 975 75 ft (22.9 m)
M/10.0 and M/13.4.
Trailers and Hitches
HWY-224 Trailer #043 805
A 2650 lb (1202 kg) capacity highway
trailer. Welded steel tubing frame, heavyduty axle with roller bearing hubs and
leaf-spring suspension. The HWY-224
comes with jack stand, 2 in (50 mm)
ball hitch, fenders and lights.
Note: Trailer is shipped unassembled.
OFR-224 Trailer #043 802
A 2650 lb (1202 kg) capacity off road
trailer. Welded steel tubing frame, heavyduty axle with roller bearing hubs and leaf
spring suspension. The OFR-224 comes
with jack stand and 2 in (50 mm) ball hitch.
Note: Trailer is shipped unassembled.
HWY-430 Tandem Axle Trailer #043 806
Smooth riding with 3750 lb (1701 kg)
capacity. Includes: adjustable hitch for
level operation, a hand operated parking
brake, a self-actuating hydraulic brake
system and a break-away device to lock
brakes if the trailer comes loose. It also
includes jack stand, fenders and lights.
(Hitch must be ordered separately.)
4 West Four-Wheel Steerable Off-Road
Trailer #042 801
A heavy-duty 2570 lb (1166 kg) capacity
trailer designed for use in mines, quarries,
and other rough terrain. Has narrow 22 ft
(6.7 m) turning radius. Includes 3 in lunette
eye, universal hitch and safety chains.
Note: Trailer is shipped unassembled.
Note: Some assembly required.
Ball Hitch 2 in (50 mm) #043 864
For use with the 430 trailer.
See page 4 for specifications on each trailer.
Lunette Eye 3 in (76 mm) #043 863
For use with the 430 trailer.
Lunette Eye 2-1/2 in (64 mm) #043 824
For use with both 224 trailers.
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords. Works on all
224 and 430 trailers.
3
Trailer Specifications
(Subject to change without notice.)
Model
Gross Axle
Gross Vehicle
Weight Rating Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
HWY-224
OFR-224
3500 lb
(1588 kg)
2960 lb
(1343 kg)
2650 lb
(1202 kg)
18-1/2 in
(470 mm)
7-1/2 in
(191 mm)
52 in
(1321 mm)
B78-13C
Length: 122-1/2 in (3112 mm) 355 lb
Width: HWY– 61 in (1549 mm)* (161 kg)
OFR–58-1/2 in (1486 mm)
HWY-430
2200 lb/axle
(998 kg/axle)
4280 lb
(1941 kg)
3750 lb
(1701 kg)
19-1/4 in
(489 mm)
8-1/2 in
(216 mm)
52 in
(1321 mm)
B78-13B
Length: 156-1/2 in (3975 mm)
Width: 61 in (1549 mm)*
530 lb
(240 kg)
4 West
2000 lb/axle
(907 kg/axle)
3000 lb
(1361 kg)
2570 lb
(1166 kg)
21-1/4 in
(540 mm)
8 in
(203 mm)
55-1/4 in
(1403 mm)
B78-13
Length: 91 in (2311 mm)**
Width: 61-1/4 in (1556 mm)
430 lb
(1950 kg)
Net
Weight
Dimensions
*Width at outside of fenders. **Does not include tongue.
Ordering Information
Equipment and Factory Options
Stock No.
Description
Miller Du-Op
#907 317
#907 317-01-1
Dry Battery
Suitcase 8VS Wire Feeder
#194 890
Includes contactor and gas valve. See Lit. Index No. M/6.4
Suitcase X-TREME™ 12VS Wire Feeder
#195 500
™
Base Model
International Model
Wire Feeders
MIG Guns and Consumables
Includes contactor and gas valve. See Lit. Index No. M/6.41
See Lit. Index No. M/10.0 and M/13.4
Stick Accessories
Welding Leads
#173 851
#043 952
2/0, 350 A, 100% duty cycle, 50 ft (15 m) stinger, 50 ft (15 m) work clamp
2/0, 300 A, 100% duty cycle, 100 ft (30.5 m) stinger, 50 ft (15 m) work clamp
RHC-14
#129 340
Hand control
Extension Cords
#122 973
#122 974
#122 975
25 ft (7.6 m), 14-pin remote controls
50 ft (15.2 m), 14-pin remote controls
75 ft (22.9 m), 14-pin remote controls
HWY-224 Trailer
#043 805
Trailer with lights, fenders and 2 in ball hitch
OFR-224 Trailer
#043 802
Trailer with 2 in ball hitch
Lunette Eye, 2-1/2 in
#043 824
Replaces the 2 in ball hitch on the HWY-224 or OFR-224
Cable Tree
#043 826
Trailer mounted cable holder for HWY-224, OFR-224 or HWY-430
HWY-430 Trailer
#043 806
Hitch required
Ball Hitch, 2 in
#043 864
For HWY-430 only
Lunette Eye, 3 in
#043 863
For HWY-430 only
4-West Trailer
#042 801
Four-wheel steerable implement trailer
Remote Controls
Trailers and Hitches
Date:
Total Quoted Price:
Distributed by:
Litho in USA
Qty.
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
