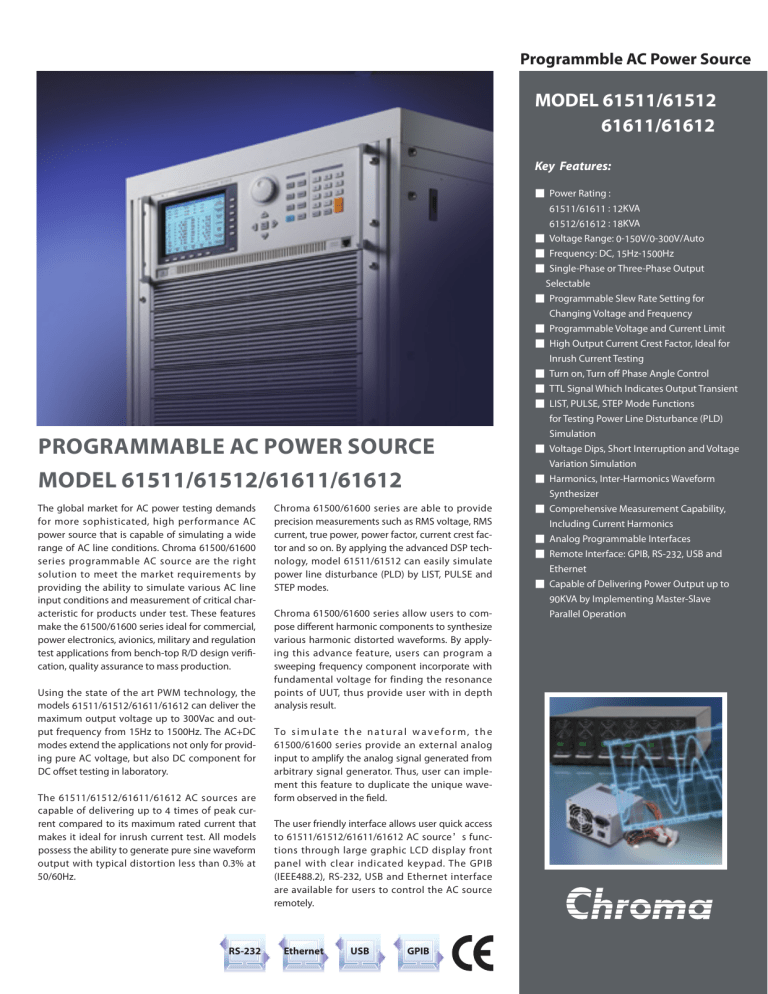

Programmble AC Power Source
MODEL 61511/61512
61611/61612
Key Features:
■ Power Rating :
61511/61611 : 12KVA
61512/61612 : 18KVA
■ Voltage Range: 0-150V/0-300V/Auto
■ Frequency: DC, 15Hz-1500Hz
■ Single-Phase or Three-Phase Output
PROGRAMMABLE AC POWER SOURCE
MODEL 61511/61512/61611/61612
The global market for AC power testing demands
for more sophisticated, high performance AC
power source that is capable of simulating a wide
range of AC line conditions. Chroma 61500/61600
series programmable AC source are the right
solution to meet the market requirements by
providing the ability to simulate various AC line
input conditions and measurement of critical characteristic for products under test. These features
make the 61500/61600 series ideal for commercial,
power electronics, avionics, military and regulation
test applications from bench-top R/D design verification, quality assurance to mass production.
Using the state of the art PWM technology, the
models 61511/61512/61611/61612 can deliver the
maximum output voltage up to 300Vac and output frequency from 15Hz to 1500Hz. The AC+DC
modes extend the applications not only for providing pure AC voltage, but also DC component for
DC offset testing in laboratory.
The 61511/61512/61611/61612 AC sources are
capable of delivering up to 4 times of peak current compared to its maximum rated current that
makes it ideal for inrush current test. All models
possess the ability to generate pure sine waveform
output with typical distortion less than 0.3% at
50/60Hz.
RS-232
Chroma 61500/61600 series are able to provide
precision measurements such as RMS voltage, RMS
current, true power, power factor, current crest factor and so on. By applying the advanced DSP technology, model 61511/61512 can easily simulate
power line disturbance (PLD) by LIST, PULSE and
STEP modes.
Chroma 61500/61600 series allow users to compose different harmonic components to synthesize
various harmonic distorted waveforms. By applying this advance feature, users can program a
sweeping frequency component incorporate with
fundamental voltage for finding the resonance
points of UUT, thus provide user with in depth
analysis result.
To s i m u l a t e t h e n a t u r a l w a v e f o r m , t h e
61500/61600 series provide an external analog
input to amplify the analog signal generated from
arbitrary signal generator. Thus, user can implement this feature to duplicate the unique waveform observed in the field.
The user friendly interface allows user quick access
to 61511/61512/61611/61612 AC source’s functions through large graphic LCD display front
panel with clear indicated keypad. The GPIB
(IEEE488.2), RS-232, USB and Ethernet interface
are available for users to control the AC source
remotely.
Ethernet
USB
GPIB
Selectable
■ Programmable Slew Rate Setting for
Changing Voltage and Frequency
■ Programmable Voltage and Current Limit
■ High Output Current Crest Factor, Ideal for
Inrush Current Testing
■ Turn on, Turn off Phase Angle Control
■ TTL Signal Which Indicates Output Transient
■ LIST, PULSE, STEP Mode Functions
for Testing Power Line Disturbance (PLD)
Simulation
■ Voltage Dips, Short Interruption and Voltage
Variation Simulation
■ Harmonics, Inter-Harmonics Waveform
Synthesizer
■ Comprehensive Measurement Capability,
Including Current Harmonics
■ Analog Programmable Interfaces
■ Remote Interface: GPIB, RS-232, USB and
Ethernet
■ Capable of Delivering Power Output up to
90KVA by Implementing Master-Slave
Parallel Operation
ADVANCED PWM TECHNOLOGY
Chroma 61500/61600 series AC power source are able to provide highest power density by its advanced high
speed PWM mode design. The modularized power stage design offer outstanding performance and high
reliability. The modularized design allows service personnel to identify the trouble spot more efficiently and
minimize the downtime. With no transformer at the output stage, it not only reduces the output impedance,
but also lets 61500/61600 series be able to program DC component for simulating AC voltage with DC offset
condition. This function allows user to simulate the test condition of unbalanced input current for rectified load.
SINGLE-PHASE AND THREE-PHASE OUTPUT
Model 61511/61512/61611/61612 AC sources are capable of delivering single or three-phase output depending
on the user's application. Users can select these output modes easily through front panel or via remote control.
Model 61511/61512/61611/61612 AC sources are able to provide full
power output without derating even with the output is configured
as single phase.
Phase Waveform
Panel
SLEW RATE SETTING FOR VOLTAGE AND FREQUENCY
Model 61511/61512/61611/61612 AC sources let users set the slew rate of
voltage and frequency. It will follow the slew rate to reach the final setting when
the output voltage or frequency is changed. This function can help the users
to verify the operation range of input power. For example, user can implement
this feature to sweep the voltage gradually from 90V to 264V instead of only
checking several points like 90V, 115V, 230V and 264V. Another application is; in
order to reduce the inrush current during motor startup or power on multiple
UUT, the user can decrease the slew rate setting to achieve the objective.
COMPREHENSIVE MEASUREMENTS
Chroma AC power source 61500/61600 series has a built in 16-bit measurement circuit and firmware utilities to measure the true RMS voltage, current, true
power, VA (apparent power), VAR (reactive power), power factor, current crest factor, peak repetitive current and inrush current. Using the advanced DSP
technology, 61500 series can measure THD and up to 40 orders of current harmonics. It makes 61500 series not only a sophisticated power source but also a
powerful analyzer.
POWER LINE DISTURBANCE SIMULATION (61500 SERIES)
In addition to the steady output voltage and frequency programming, Chroma AC power source 61500 series provides powerful functions to simulate all
kinds of power line disturbance conditions. The STEP and PULSE modes offer an easy and convenient method to execute a single step or continuous output
changes. The changes may be triggered by an internal or external event. With this capability, it's easy to simulate power line disturbances such as cycle
dropout, transient spike, brown out and etc.
The LIST Mode extends this function for more complex waveform generator needs, up to 100 sequences with different start-end conditions, that can
perform almost any waveform by AC and DC components. In this way, Chroma AC power source 61500 series is capable of simulating all sorts of voltage
dips, interruptions and variation waveforms for IEC 61000-4-11 pre-compliance test and IEC61000-4-14/IEC61000-4-28 compliance tests. It also allows users
to synchronize external events as well as measurement devices with output changes.
STEP Mode
PULSE Mode
LIST Mode
DISTORTION WAVEFORM, HARMONICS, INTERHARMONICS SYNTHESIS (61500 SERIES)
Traditional type of AC source only provides output voltage with sine waveform and
this type of AC source is unable to meet and keep up with the latest test requirements
for simulating the input voltage abnormal condition with distortion waveform. The
WAVEFORM function allow user to set square, clipped-sine wave and 30 stored distortion
waveforms.
The 61500 series allow users to composite integer up to 40 orders of harmonic
components based on 50Hz or 60Hz fundamental. The output will be a periodic harmonics
distortion waveform. It also provides sweeping interhamonics function. This means
the fundamental frequency will incorporate with a frequency sweeping component
between harmonic frequencies. It can help to find the resonance or the weakest points
of UUT. Chroma AC source 61500 series uses advanced DSP technology to synthesize the
harmonic and interharmonics waveforms. Therefore, it is capable of generating a periodic
harmonic and non-periodic harmonic distorted waveform to perform IEC 61000-4-13
compliance test.
Harmonic Waveform
PROGRAMMABLE OUTPUT IMPEDANCE (61500 SERIES)
Chroma AC source 61500 series allow users to program output impedance. A current
feedback control circuit makes the output voltage changed with the load. This feature
is suitable for IEC 61000-3-3 Flicker tests or other test condition with particular output
impedance requirement. It provides users a convenient and cost effective way to
implement the reference impedance.
Interharmonics Waveform
AC SOURCE (MASTER-SLAVE) PARALLEL OPERATION
The 61511/61512/61611/61612 AC source models provide the (Master-Slave) parallel operation function, which enable users to extend the AC source
power output ability by connecting AC sources in parallel. The maximum allowable number of AC source implemented for the parallel operation is 5
units. Therefore, users can achieve a maximum power output up to 90KVA by combining 5 units of assorted AC source of 18KVA in (Master-Slave) parallel
operation mode. The user could also use A615103 Power Stage as an alternative cost effective solution for the parallel operation, by implementing it as
slave unit. Please refer to the following figures for AC source models 61511/61512/61611/61612 setup for parallel operation configuration.
Master Mode
Slave Mode
Combine two units of Model 61512 for obtaining 36KVA
power output or combine AC source models 61512 +
61511 for obtaining 30KVA power output
Master Mode
Slave Mode
Slave Mode
Combine AC source Model 61512 with two units of A615103 (18KVA) for
obtaining 54KVA power output
To save the hassle with arranging the input and output wiring of multiple AC sources
connection in parallel operation, users can select and Implement the Chroma input/output
terminal fixture (A615104/A615105) designed specifically to solve the wiring issue.
THE 61500/61600 SERIES SOFTPANEL*
A615104: Input/Output terminal fixture for
connecting 2 parallel AC source units.
Chroma Softpanel is a graphical user interface which provides extraordinary capability and
convenience to user for delivering control to the unit. The 61500/61600 series Softpanel is
designed specifically for offering users to control the AC source by applying user friendly
interface configured in a graphical, instrument like settings. The self explanatory graphical
interface makes the enabling of extensive functions of AC source with just few clicks of button.
Users are able to perform online and offline waveform editing with the implementation
of Softpanel. The Softpanel is also equipped with data recording function as multiple
measurement data can be recorded simultaneously. One of the most powerful features for
Softpanel is the availability of test environment configured specifically for conducting IEC
regulation test, such as IEC 61000-4-11(Pre-complience), IEC61000-4-13, IEC61000-4-14 and
IEC61000-4-28.
Main Operation Menu
Transient Voltage Programming
Distorted Waveform Editor
Voltage DIP, Short Interruption,
Variation Regulation Test
Voltage Harmonic & Interharmonic Test
Voltage Fluctuation Test
Frequency Variation Test
Interharmonic Test
Recording Function
* Softpanel support functions are actually depending on the AC Source model being implemented. For instance, Softpanel will not
provide support for LIST mode function if 61600 series AC Source is implemented.
裁
切
線
裁
切
線
PANEL DESCRIPTION
FRONT PANEL OVERVIEW
1
2
3
1. LCD Display :
6.5 inches graphic LCD display for settings and
measurements read back
4
2. Rotary Knob
Use to adjust the voltage, frequency and parameters
setting
3. Function key
Hot keys for quick parameter setting
4. Numeric key
For data setting
5
6
7
8
REAR PANEL OVERVIEW
9
10
11
5. Power Switch
6. Soft Keys
The soft-keys adjacent to the command block display on
the LCD that provides users a menu driven interface to
control the AC source operation
12
13
14
15
16
17
7. Cursor Key
For cursor movement
8. Remote Control Port
9. Master/Slave Port
For Master-Slave parallel operation
18
19
10. External V reference
External analog signal for voltage control
11. TTL I/O
Signals for system integration
20
21
12. Remote Control Port
13. System Bus
14. Ethernet Interface
15. USB Interface
16. RS-232 Interface
17. GPIB Interface
18. Input Power Selection Switch
Δ or Y 3-phase connection selection
19. Remote Sense
Use to compensate the line drop between
AC source and testing point
20. Input Terminal
21. Output Terminal
ORDERING INFORMATION
61511: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ø/3ø
61512: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ø/3ø
61611: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ø/3ø
61612: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ø/3ø
A615007: Softpanel for 61500/61600 Series
A615103: Parallable power stage unit 18KVA, 1ø/3ø
A615104: Input/Output terminals for parallel connecting (2 units)
A615105: Input/Output terminals for parallel connecting (3 units)
A615106: Reverse Current Protection Unit for 61511/61512/61611/61612
Option for 277VLN/480VLL(5 Wires) AC input voltage are available with 61511/61512/61611/61612/A615103 models. Please contact with local sales
representative for ordering information.
SPECIFICATION
Model
61511
61611
61512
61612
61511+A615103
61611+A615103
61512+A615103
61612+A615103
1 or 3 selectable
Output Phase
Output Rating-AC
Power
12kVA
18kVA
30kVA
36kVA
Each Phase
4kVA
6 kVA
10kVA
12kVA
Voltage
Range
0~150V/0~300V
Accuracy
0.2%+0.2%F.S.
Resolution
0.1 V
Distortion *1
0.3% @50/60Hz , 1%@15~1kHz,1.5%@>1kHz
Line Regulation
0.1%
Load Regulation *2
0.2%
Temp. Coefficient
0.02% per degree from 25℃
Max Current (1-phase mode)
RMS
144A / 72A
240A / 120A
288A / 144A
96A / 48A
Peak (CF=4)
384A / 192A
576A / 288A
960A / 480A
1152A / 576A
Max Current (each phase in 3-phase mode)
RMS
32A / 16A
48A / 24A
80A / 40A
96A / 48A
Peak (CF=4)
128A / 64A
192A / 96A
320A / 160A
384A / 192A
Frequency
Range
DC, 15~1.5kHz
Accuracy
0.15%
Resolution
0.01 Hz
Phase
Range
0 ~ 360°
Resolution
0.3°
Accuracy
<0.8°@50/60Hz
DC Output (1-phase mode)
Power
6kW
9kW
15kW
18kW
Voltage
212V / 424V
212V / 424V
212V / 424V
212V / 424V
Current
48A / 24A
72A / 36A
120A / 60A
144A / 72A
DC Output (3-phase mode)
Power
2kW
3kW
5kW
6kW
Voltage
212V / 424V
212V / 424V
212V / 424V
212V / 424V
Current
16A / 8A
24A / 12A
40A / 20A
48A / 24A
Input AC Power (each phase)
AC type
3-phase, Delta or Y connecting
Voltage Operating Range *3
3Ø 200~240V±10%VLN (Delta: L-L ; Y: L-N)
Frequency Range
47-63 Hz
Delta: 200A ; Y: 160A *6
Delta: 240A ; Y: 180A *6
Max. Current
Delta: 80A ; Y: 70A*6
Delta: 120A ; Y: 90A *6
Measurement
Voltage
Range
150V / 300V
Accuracy
0.2%+0.2%F.S.
Resolution
0.1 V
Current
Range
128/32/8 A peak
192/48/12 A peak
320/80/20 A peak
384/96/24 A peak
Accuracy (RMS)
0.4%+0.3%F.S.
Accuracy (peak)
0.4%+0.6%F.S.
Resolution
0.1 A
Power
Accuracy
0.4%+0.4% F.S
Resolution
0.1 W
Others
Waveform Synthesis
0Ω+200µH ~ 1Ω+1mH
Harmonic Measurement
40 orders @ 50/60Hz
Programmable Impedance
Voltage / Current 40 orders @ 50/60Hz
0.75 (Typical)
Efficiency *4
UVP, OCP, OPP, OTP, FAN
Protect
GPIB, RS-232, USB, Ethernet (standard)
Interface
Temperature
Operating
0℃ ~40℃
Storage
-40℃~85℃
Humidity
30 %~90 %
CE (include EMC & LVD)
Safety & EMC
1163 x 546 x 700 mm / 45.78 x 21.5 x 27.56 inch *5
1163 x 546 x 700 mm / 45.78 x 21.5 x 27.56 inch x 2 units *5
Dimension (H x W x D)
242.4 kg / 533.92 lbs
480 kg / 1057.27 lbs
495 kg / 1090.31 lbs
229.4 kg / 505.29 lbs
Weight
Note*1 : Maximum distortion is tested on output 125VAC (150V RANGE) and 250VAC (300V RANGE) with maximum current to linear load.
Note*2 : Load regulation is tested with sine wave and remote sense.
Note*3 : Models with 277VLN/480VLL(5 Wires) AC input voltage are available upon request.
Note*4 : Efficiency is tested on input voltage 230V.
Note*5 : Dimension (H X W X D) with wheelsets : 1246x546x700 mm / 49.05x21.5x27.56 inch
Note*6 : Maximum current on input neutral line
All specifications are subject to change without notice. Please visit our website for the most up to date specifications.
Worldwide Distribution and
Service Network
Developed and Manufactured by :
CHROMA ATE INC.
致茂電子股份有限公司
HEADQUARTERS
66 Hwaya 1st Rd., Kueishan
Hwaya Technology Park,
Taoyuan County 33383,
Taiwan
Tel: +886-3-327-9999
Fax: +886-3-327-8898
http://www.chromaate.com
E-mail: [email protected]
CHINA
CHROMA ELECTRONICS
(SHENZHEN) CO., LTD.
8F, No.4, Nanyou Tian An
Industrial Estate, Shenzhen,
China PC: 518052
Tel: +86-755-2664-4598
Fax: +86-755-2641-9620
JAPAN
CHROMA JAPAN CORP.
472 Nippa-cho, Kouhoku-ku,
Yokohama-shi, Kanagawa,
223-0057 Japan
Tel: +81-45-542-1118
Fax: +81-45-542-1080
http://www.chroma.co.jp
E-mail: [email protected]
U.S.A.
CHROMA SYSTEMS
SOLUTIONS, INC.
19772 Pauling, Foothill
Ranch, CA 92610
Tel: +1-949-600-6400
Fax: +1-949-600-6401
Toll Free: +1-866-600-6050
http://www.chromausa.com
E-mail: [email protected]
EUROPE
CHROMA ATE EUROPE B.V.
Morsestraat 32, 6716 AH Ede,
The Netherlands
Tel: +31-318-648282
Fax: +31-318-648288
http://www.chromaeu.com
E-mail: [email protected]
61511/512/611/612-E-201211-2000
Programmble AC Power Source
Key Features:
■ Power Rating :
61511/61611 : 12KVA
61512/61612 : 18KVA
■ Voltage Range: 0-150V/0-300V/Auto
■ Frequency: DC, 15Hz-1500Hz
■ Single-Phase or Three-Phase Output
Selectable
■ Programmable Slew Rate Setting for
Changing Voltage and Frequency
■ Programmable Voltage and Current Limit
■ High Output Current Crest Factor, Ideal for
Inrush Current Testing
■ Turn on, Turn off Phase Angle Control
■ TTL Signal Which Indicates Output Transient
■ LIST, PULSE, STEP Mode Functions
for Testing Power Line Disturbance (PLD)
Simulation
■ Voltage Dips, Short Interruption and Voltage
Variation Simulation
Programmable AC Power Source
Model 61511/61512/61611/61612
The global market for AC power testing
demands for more sophisticated, high performance AC power source that is capable of
simulating a wide range of AC line conditions.
Chroma 61500/61600 series programmable AC
source are the right solution to meet the market
requirements by providing the ability to simulate
various AC line input conditions and measurement of critical characteristic for products under
test. These features make the 61500/61600
series ideal for commercial, power electronics,
avionics, military and regulation test applications from bench-top R/D design verification,
quality assurance to mass production.
Using the state of the art PWM technology, the
models 61511/61512/61611/61612 can deliver
the maximum output voltage up to 300Vac and
output frequency from 15Hz to 1500Hz. The
AC+DC modes extend the applications not
only for providing pure AC voltage, but also DC
component for DC offset testing in laboratory.
The 61511/61512/61611/61612 AC sources
are capable of delivering up to 4 times of peak
current compared to its maximum rated current that makes it ideal for inrush current test.
All models possess the ability to generate pure
sine waveform output with typical distortion less
than 0.3% at 50/60Hz.
RS-232
Chroma 61500/61600 series are able to provide precision measurements such as RMS
voltage, RMS current, true power, power factor,
current crest factor and so on. By applying the
advanced DSP technology, model 61511/61512
can easily simulate power line disturbance
(PLD) by LIST, PULSE and STEP modes.
Chroma 61500/61600 series allow users to
compose different harmonic components to
synthesize various harmonic distorted waveforms. By applying this advance feature, users
can program a sweeping frequency component
incorporate with fundamental voltage for finding
the resonance points of UUT, thus provide user
with in depth analysis result.
To s i m u l a t e t h e n a t u r a l w a v e f o r m , t h e
61500/61600 series provide an external analog
input to amplify the analog signal generated
from arbitrary signal generator. Thus, user can
implement this feature to duplicate the unique
waveform observed in the field.
The user friendly interface allows user quick
access to 61511/61512/61611/61612 AC
source’s functions through large graphic LCD
display front panel with clear indicated keypad.
The GPIB (IEEE488.2), RS-232, USB and
Ethernet interface are available for users to
control the AC source remotely.
Ethernet
USB
GPIB
■ Harmonics, Inter-Harmonics Waveform
Synthesizer
■ Comprehensive Measurement Capability,
Including Current Harmonics
■ Analog Programmable Interfaces
■ Remote Interface: GPIB, RS-232, USB and
Ethernet
■ Capable of Delivering Power Output up to
90KVA by Implementing Master-Slave
Parallel Operation
1. ADVANCED PWM TECHNOLOGY
Chroma 61500/61600 series AC power source are able to provide highest power density by its advanced
high speed PWM mode design. The modularized power stage design offer outstanding performance
and high reliability. The modularized design allows service personnel to identify the trouble spot more
efficiently and minimize the downtime. With no transformer at the output stage, it not only reduces the
output impedance, but also lets 61500/61600 series be able to program DC component for simulating AC
voltage with DC offset condition. This function allows user to simulate the test condition of unbalanced
input current for rectified load.
2. SINGLE-PHASE AND THREE-PHASE OUTPUT
Model 61511/61512/61611/61612 AC sources are capable of delivering single or three-phase output
depending on the user's application. Users can select these output modes easily through front panel
or via remote control. Model 61511/61512/61611/61612 AC
sources are able to provide full power output without derating
even with the output is configured as single phase.
Phase Waveform
Panel
3. SLEW RATE SETTING FOR VOLTAGE AND FREQUENCY
Model 61511/61512/61611/61612 AC sources let users set the slew rate of
voltage and frequency. It will follow the slew rate to reach the final setting
when the output voltage or frequency is changed. This function can help the
users to verify the operation range of input power. For example, user can
implement this feature to sweep the voltage gradually from 90V to 264V
instead of only checking several points like 90V, 115V, 230V and 264V.
Another application is; in order to reduce the inrush current during motor
startup or power on multiple UUT, the user can decrease the slew rate setting
to achieve the objective.
4. COMPREHENSIVE MEASUREMENTS
Chroma AC power source 61500/61600 series has a built in 16-bit measurement circuit and firmware utilities to measure the true
RMS voltage, current, true power, VA (apparent power), VAR (reactive power), power factor, current crest factor, peak repetitive
current and inrush current. Using the advanced DSP technology, 61500 series can measure THD and up to 40 orders of current
harmonics. It makes 61500 series not only a sophisticated power source but also a powerful analyzer.
5. POWER LINE DISTURBANCE SIMULATION (61500 SERIES)
In addition to the steady output voltage and frequency programming, Chroma AC power source 61500 series provides powerful
functions to simulate all kinds of power line disturbance conditions. The STEP and PULSE modes offer an easy and convenient
method to execute a single step or continuous output changes. The changes may be triggered by an internal or external event. With
this capability, it's easy to simulate power line disturbances such as cycle dropout, transient spike, brown out and etc.
The LIST Mode extends this function for more complex waveform generator needs, up to 100 sequences with different start-end
conditions, that can perform almost any waveform by AC and DC components. In this way, Chroma AC power source 61500 series
is capable of simulating all sorts of voltage dips, interruptions and variation waveforms for IEC 61000-4-11 pre-compliance test and
IEC61000-4-14/IEC61000-4-28 compliance tests. It also allows users to synchronize external events as well as measurement devices
with output changes.
STEP Mode
PULSE Mode
LIST Mode
6. DISTORTION WAVEFORM, HARMONICS, INTERHARMONICS SYNTHESIS (61500 SERIES)
Traditional type of AC source only provides output voltage with sine waveform and
this type of AC source is unable to meet and keep up with the latest test requirements
for simulating the input voltage abnormal condition with distortion waveform. The
WAVEFORM function allow user to set square, clipped-sine wave and 30 stored distortion
waveforms. Besides that, IEC 61000-4-13 standard requires not only the harmonics
waveform, but also interharmonics simulation.
Programmable AC Power Source
Model 61500 series allow users to composite integer up to 40 orders of harmonic
components based on 50Hz or 60Hz fundamental. The output will be a periodic
harmonics distortion waveform. It also provides sweeping interhamonics function. This
means the fundamental frequency will incorporate with a frequency sweeping component
between harmonic frequencies. It can help to find the resonance or the weakest points of
UUT. Chroma AC source 61500 series uses advanced DSP technology to synthesize the
harmonic and interharmonics waveforms. Therefore, it is capable of generating a periodic
harmonic and non-periodic harmonic distorted waveform to perform IEC 61000-4-13
compliance test.
7. PROGRAMMABLE OUTPUT IMPEDANCE (61500 SERIES)
Harmonic Waveform
Interharmonics Waveform
Chroma AC source 61500 series allow users to program output impedance. A current
feedback control circuit makes the output voltage changed with the load. This feature
is suitable for IEC 61000-3-3 Flicker tests or other test condition with particular output
impedance requirement. It provides users a convenient and cost effective way to
implement the reference impedance.
8. AC source (Master-Slave) Parallel Operation
The 61511/61512/61611/61612 AC source models provide the (Master-Slave) parallel operation function, which enable users to extend the AC
source power output ability by connecting AC sources in parallel. The maximum allowable number of AC source implemented for the parallel
operation is 5 units. Therefore, users can achieve a maximum power output up to 90KVA by combining 5 units of assorted AC source of 18KVA
in (Master-Slave) parallel operation mode. The user could also use A615103 Power Stage as an alternative cost effective solution for the
parallel operation, by implementing it as slave unit. Please refer to the following figures for AC source models 61511/61512/61611/61612 setup
for parallel operation configuration.
Master Mode
Slave Mode
Combine two units of Model 61512 for obtaining
36KVA power output or combine AC source models
61512 + 61511 for obtaining 30KVA power output
Master Mode
Slave Mode
Slave Mode
Combine AC source Model 61512 with two units of A615103
(18KVA) for obtaining 54KVA power output
All specifications are subject to change without notice.
Please visit our website for the most up to date specifications.
To save the hassle with arranging the input and output wiring of multiple AC sources
connection in parallel operation. Users can select and Implement the Chroma input/output
terminal fixture (A615104/A615105) designed specifically to solve the wiring issue.
A615104: Input/Output terminal fixture for connecting 2 parallel AC source units.
9. The 61500/61600 Series Softpanel*
Chroma Softpanel is a graphical user interface which provides extraordinary capability and convenience to user for delivering control to the
unit. The 61500/61600 series Softpanel is designed specifically for offering users to control the AC source by applying user friendly interface
configured in a graphical, instrument like settings. The self explanatory graphical interface makes the enabling of extensive functions of AC
source with just few clicks of button. Users are able to perform online and offline waveform editing with the implementation of Softpanel. The
Softpanel is also equipped with data recording function as multiple measurement data can be recorded simultaneously. One of the most
powerful features for Softpanel is the availability of test environment configured specifically for conducting IEC regulation test, such as IEC
61000-4-11, IEC61000-4-13, IEC61000-4-14 and IEC61000-4-28.
Main Operation Menu
Transient Voltage Programming
Distorted Waveform Editor
Voltage DIP,
Short Interruption,
Variation Regulation Test
Voltage Harmonic & Interharmonic Test
Voltage Fluctuation Test
Frequency Variation Test
Interharmonic Test
Recording Function
* Softpanel support functions are actually depending on the AC Source model being implemented. For instance, Softpanel will not
provide support for LIST mode function if 61600 series AC Source is implemented.
PANEL DESCRIPTION
Front panel overview
1
5
2
6
3
4
7
8
REAR panel overview
9
10
11
12
13
14
15
16
18
19
20
21
17
22
1. LCD Display :
6.5 inches graphic LCD display for settings and
measurements read back
2. Rotary Knob
Use to adjust the voltage, frequency and parameters
setting
3. Function key
Hot keys for quick parameter setting
4. Numeric key
For data setting
5. Power Switch
6. Soft Keys
The soft-keys adjacent to the command block display on
the LCD that provides users a menu driven interface to
control the AC source operation
7. Cursor Key
For cursor movement
8. Remote Control Port
For optional remote controller
9. Master/Slave Port
For Master-Slave parallel operation
10. External V reference
External analog signal for voltage control
11. TTL I/O
Signals for system integration
12. Remote Control Port
For optional remote controller
13. System Bus
14. Ethernet Interface
15. USB Interface
16. RS-232 Interface
17. GPIB Interface
18. Input Power Selection Switch
Δ or Y 3-phase connection selection
19. Remote Sense
Use to compensate the line drop between
AC source and testing point
20. Input Terminal
21. Output Terminal
22. A615101
AC Source Remote Controller
A615101
ORDERING INFORMATION
61511: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ø/3ø
61512: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ø/3ø
61611: Programmable AC Source 0~300V, 15~1.5KHz/12KVA, 1ø/3ø
61612: Programmable AC Source 0~300V, 15~1.5KHz/18KVA, 1ø/3ø
A615007: Softpanel for 61500/61600 Series
*A615101: AC Source Remote Controller for 61511/61512/61611/61612
A615103: Parallable power stage unit 18KVA, 1ø/3ø
A615104: Input/Output terminals for parallel connecting (2 units)
A615105: Input/Output terminals for parallel connecting (3 units)
Option for 277VLN/480VLL(5 Wires) AC input voltage are available with 61511/61512/61611/61612/A615103 models. Please contact with local sales
representative for ordering information.
* Call for availability
SPECIFICATION
Model
61511
61611
61512
61612
61511+A615103 61611+A615103 61512+A615103 61612+A615103
1 or 3 selectable
Output Phase
Output Rating-AC
Power
12kVA
18kVA
30kVA
36kVA
Each phase
4kVA
6 kVA
10kVA
12kVA
Voltage
Range
0~150V/0~300V
Accuracy
0.2%+0.2%F.S.
Resolution
0.1 V
Distortion *1
0.3% @50/60Hz , 1%@15~1kHz,1.5%@>1kHz
Line regulation
0.1%
Load regulation *2
0.2%
Temp. coefficient
0.02% per degree from 25℃
Max Current (1-phase mode)
RMS
96A / 48A
144A / 72A
240A / 120A
288A / 144A
Peak (CF=4)
384A / 192A
576A / 288A
960A / 480A
1152A / 576A
Max Current (each phase in 3-phase mode)
RMS
32A / 16A
48A / 24A
80A / 40A
96A / 48A
Peak (CF=4)
128A / 64A
192A / 96A
320A / 160A
384A / 192A
Frequency
Range
DC, 15-1.5kHz
Accuracy
0.15%
Phase
Range
0 ~ 360°
Resolution
0.3°
Accuracy
<0.8°@50/60Hz
DC Output (1-phase mode)
Power
6kW
9kW
15kW
18kW
Voltage
212V / 424V
212V / 424V
212V / 424V
212V / 424V
Current
48A / 24A
72A / 36A
120A / 60A
144A / 72A
DC Output (3-phase mode)
Power
2kW
3kW
5kW
6kW
Voltage
212V / 424V
212V / 424V
212V / 424V
212V / 424V
Current
16A / 8A
24A / 12A
40A / 20A
48A / 24A
Input AC Power (each phase)
AC type
3-phase, Delta or Y connecting
Voltage range *3
190-250V (Delta: L-L, Y: L-N)
Frequency range
47-63 Hz
Max. current
Delta: 80A Y: 70A
Delta: 120A Y: 90A
Delta: 200A Y: 160A
Delta: 240A Y: 180A
Measurement
Voltage
Range
150V / 300V
Accuracy
0.2%+0.2%F.S.
Resolution
0.1 V
Current
Range
128/32/8 A peak
192/48/12 A peak
320/80/20 A peak
384/96/24 A peak
Accuracy (rms)
0.4%+0.3%F.S.
Accuracy (peak)
0.4%+0.6%F.S.
Resolution
0.1 A
Power
Accuracy
0.4%+0.4% F.S
Resolution
0.1 W
0.75 (Typical)
Efficiency *4
UVP, OCP, OPP, OTP, FAN
Protect
GPIB, RS-232, USB, Ethernet (standard)
Interface
Temperature
Operation
0℃ ~40℃
Storage
-40℃~85℃
Humidity
30 %~90 %
CE
Safety & EMC
1163 x 546 x 700 mm / 45.78 x 21.5 x 27.56 inch *5
1163 x 546 x 700 mm / 45.78 x 21.5 x 27.56 inch x 2 units *5
Dimensions (H x W x D)
229.4 kg / 505.29 lbs
242.4 kg / 533.92 lbs
480 kg / 1057.27 lbs
495 kg / 1090.31 lbs
Weight
Note*1 : Maximum distortion is tested on output 125VAC (150V RANGE) and 250VAC (300V RANGE) with maximum current to linear load.
Note*2 : Load regulation is tested with sine wave and remote sense.
Note*3 : Models with 277VLN/480VLL(5 Wires) AC input voltage are available upon request.
Note*4 : Efficiency is tested on input voltage 230V.
Note*5 : Dimension (H X W X D) with wheelsets : 1246x546x700 mm / 49.05x21.5x27.56 inch
Others
Waveform Synthesis
Harmonic measurement
Programmable impedance
61511
61512
61511 + A615103
40 orders @ 50/60Hz
Voltage / Current 40 orders @ 50/60Hz
0Ω+200µH ~ 1Ω+1mH
All specifications are subject to change without notice. Please visit our website for the most up to date specifications.
Developed and Manufactured by :
CHROMA ATE INC.
致茂電子股份有限公司
HEADQUARTERS
No. 66, Hwa-Ya 1st Rd.,
Hwa-Ya Technology Park,
Kuei-Shan Hsiang,33383
Taoyuan County 33383
Taiwan
Tel: +886-3-327-9999
Fax: +886-3-327-8898
http://www.chromaate.com
CHINA
CHROMA ELECTRONICS
(SHENZHEN) CO., LTD.
8F, No.4, Nanyou Tian An
Industrial Estate, Shenzhen,
China PC: 518052
Tel: +86-755-2664-4598
Fax: +86-755-2641-9620
JAPAN
CHROMA JAPAN CORP.
472, Kohoku-ku Yokohama
city Ntsupa 223-0057 Japan
Tel: +81-045-542-1118
Fax: +81-045-542-1080
http://www.chroma.co.jp
U.S.A.
CHROMA SYSTEMS
SOLUTIONS, INC.
25612 Commercentre Drive,
Lake Forest, CA 92630-8830
Tel: +1-949-600-6400
Fax: +1-949-600-6401
Toll Free: +1-866-600-6050
http://www.chromausa.com
E-mail: [email protected]
61512 + A615103
Distributed by:
EUROPE
CHROMA ATE EUROPE B.V.
Morsestraat 32, 6716 AH Ede,
The Netherlands
Tel: +31-318-648282
Fax: +31-318-648288
http://www.chromaeu.com
E-mail: [email protected]
Worldwide Distribution and Service Network
61512-E-201102-E-PDF
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
