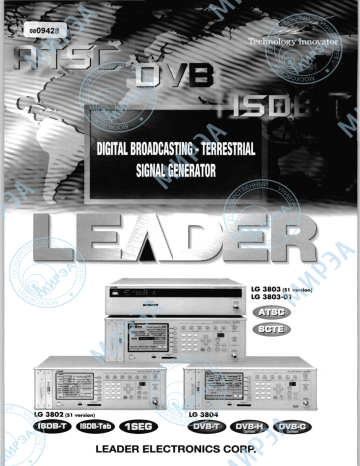

LG 3803 (SI version)
LG 3803-01
£Г36
LG 3802 (si
LG 3804
version)
ISDB-Tl riSDB-Tsbl Г1SEG
• iW =
LEADER ELECTRONICS CORP.
ISDB
SIGNAL GENERATOR
Suitable for Inspecting Production Applications and TV's with an
Integrated Services Digital Broadcasting-Terrestrial (ISDB-T) Tuner
GENERAL
The LG 3802(S1 version) ISDB-T Signal Generator with
the OFDM capability conforms to Integrated Services
Digital Broadcasting-Terrestrial (ISDB-T) standards for
digital terrestrial TV system in Japan. This instrument
features a channel coding/modulation, C/N generator,
and up converter in a single package. Consequently, the
modulated signal covering VHF and UHF channels can
be output. Since a pseudo random signal source (PN)
and BER counter are provided, the BER measurement
of a TV set and tuner can be performed with this model
only. In addition to the internal TS signal, the MPEG-2
TS can be externally applied. Therefore, the receiver
can be checked visually and acoustically by using the
existing TS. With such versatile capabilities, overall
functions of the reception system can be tested.
Arbitrary transmission parameter settings
The transmission parameter can be arbitrary set via the
front panel controls. The QVGA LCD graphically displays the setting conditions.
MPEG-2 TS encoding/modulation in realtime
The MPEG-2 TS applied from the DVB-ASI or DVB-SPI
connector can be encoded/modulated in realtime. In addition to the MPEG-2 TS, broadcasting TS prescribed in
the ARIB standards can also be used.
100 preset conditions
Up to 100 preset conditions can be stored in the
memory. Since the stored contents can be categorized
into 10 groups, the preset mode is convenient for inspection applications.
FEATURES
All-in-one
This instrument features the signal generator capability
and BER measurement capability in a single package.
The BER function is used to measure the front-end section, while the MPEG-2 TS function is used to visually
check the entire system. In addition to digital terrestrial
TV broadcasting, this instrument can also be used for
the connected segment transmission of 1, 3, and 8 segments in digital terrestrial audio broadcasting.
+Option
OP71
Shown with Option 71
Various factory options
*LG 3802 (S1 version) only
USB STORAGE Option
The TS can be played back from a HDD drive connected
via the USB, or internal HDD drive.
HDD Capacity:
USB Specification:
Function:
Play Back
Loop Playback:
Memory Playback:
Playback Range:
Sample TS:
80 GB
USB2.0
To connect an external HDD applicable
to USB2.0, or internal HDD drive
Possible (not applicable to seamless)
Possible (ON/OFF Selectable)
Possible (settable in time)
12+1 segment contents
OP72A
Fading Option
Fading noise can be added to mobile and portable receivers to check for ghosting and multipath.
Fading Generator
Settable Fading Mode
(Fading mode): Normal mode(Off),
6 Path mode(6 Path),
12 Path mode(12Path)
Speed of Mobile Object
(Speed):
Settable in the range
converted from output
frequency and maximum
Doppler frequency In
0.01 km/h steps
(common to each path)
Maximum Doppler Frequency
(Doppler):
0.1 to 200 Hz, in 0.1 Hz
resolution (common to each path)
Path State
(Path State): Each path can be
respectively set on/off.
Modulated Fading Type
(Fading Type): Rayleigh fading,
Rician fading,
Frequency Shift,
Phase shift,
Path through
Relative Delay Time
(Delay):
0 to BOO us, in - 0.1 us
Relative Path Loss
(Loss):
-30.0 to 0 dB
Factory option Low Phase Noise
•mm
ISDB-T
ISDB-Tsb
1 ill
SEG
LG 3802 (SI version)
Shown with Option 71
SPECIFICATIONS
Channel Coding Section
Broadcasting system
Digital Terrestrial TV:
Digital Terrestrial Sound:
Transmission Parameter
Hierarchical layer:
Mode:
Guard Interval:
Carrier Modulation:
Convolution Coding Rate:
Time Interleave Length:
Number of Segments:
Connected Segment Transmission:
Partial Reception:
Reed-Solomon Code:
RF Signal Generator Section
Frequency
Range:
Output
Range:
Resolution:
Connector:
Input/Output Signal Sources
Internal Signal
Pseudo Random Signal:
Still Picture Pattern
Pattern (Common):
<12seg>
Screen size:
Sound (Tone):
<1seg>
Screen size:
Sound (Tone):
DVB-ASI Signal Input
Input Connector:
Input Impedance:
Input Level:
Baud Rate:
DVB-SPI Signal Input
Input Connector:
Input Impedance:
Input Level:
Input Format:
LG 3802 (S1 version)
Update Parameter:
ARIB STD-B31
ARIB STD-B29
TV: 3 layers max.
Sound 3 segment: 2 layers max.
Sound 1 segment: 1 layer only
M O D E 1 , MODE 2, MODE 3
1/4, 1/8, 1/16, 1/32
DQPSK, QPSK, 16QAM, 64QAM
1/2, 2/3, 3/4, 5/6, 7/8
0 to 32 (depends on broadcasting system and MODE)
TV: 13, each layer can arbitrary be set.
Sound 3 segment: 3, each layer can arbitrary be set.
Sound 1 segment: 1
Settable
Settable(*1)
ON/OFF, selectable
* 1 : For the TS not independent of PCR
packet, the PCR of partial reception
section cannot be updated.
External REF Input
Input Connector:
Input Impedance:
Input Level:
Input Frequency:
REF Output
Output Connector:
Output Impedance:
Output Level:
Output Frequency:
BER Counter Section
Input Section
Packet Length:
Input Connector:
GO/NO-GO Function
Limit Settings:
50 to 860 MHz
-100to+13dBm(into50a)
ON/OFF, selectable
0.1 dB
N (50 a)
PN23
Color bar, ramp, monoscope (*2)
1920 x 1080i, 1440 x 1080i (16:9),
720 x 480i (4:3)
1 kHz (LR), 400 Hz,
1 kHz (L)+400 Hz(R)
320 x 180(16:9)
1 kHz (LR), 400 Hz (LR),
1 kHz (L)+400 Hz(R)
*2: 1440 x 1080 monoscope pattern is
not provided.
Moreover, the monoscope screen
for 1 seg becomes the subsize of
720x480(16:9).
BNC
75 U
0.8Vp-p
270 Mbps
25-pin D-sub
100 a differential input
LVDS
MPEG-2 TS or BER count input, selectable
ASI, SPI Input Specifications
Input Packet Length:
188, 204 bytes
Applicable Stream:
MPEG-2 TS (ISO/IEC 13818-1)
Input Data Rate:
TV: 23.2347 Mbps max. (*3)
Sound 3 segment: 5.3618 Mbps max. (*3)
GO/NO-GO Indication:
C/N Generator Section
C/N Variable Range:
Setting Resolution:
Additional Controller:
External Interface
Memory Card Interface
Memory Card:
ETHER Interface
Specifications:
USB Interface
Specifications:
GPIB
Connector:
Specifications:
Remote Control
Connector:
Remote Mode:
Input Level:
Display
LCD:
Environmental Conditions
Operating Temperature:
Operating Humidity:
Spec-Guaranteed Temperature:
Spec-Guaranteed Humidity:
Operating Environment:
Operating Altitude:
Overvoltage Category:
Pollution Degree:
Power Requirements:
Dimensions, Weight:
Accessories:
Optional Accessories:
Sound 1 segment: 1.7872 Mbps max. (*3)
PCR (8 max.)
*3: Maximum number of segments is obtained under the conditions below:
Guard interval
1/32
Carrier modulation 64QAM
Coding rate
7/8
The Maximum number of input data
rate depends on the modulation parameter.
BNC
50 a
0.8 Vp-p
10 MHz
BNC
50 a
OdBm
10 MHz
204 bytes
DVB-SPI INPUT connector is used.
Upper and lower limits of BER can be
set.
Displays GO/NO-GO on the screen.
0 to 30 dB
0.1 dB
ON/OFF, selectable
Compact flash card (CFATYPE-I)
10BASE-T, 100BASE-TX
USB1.1
24-pin square connector
Conforms to ANSI/IEEE Std. 488.11987.
24-pin square connector
57LE-30240 (Amphenol)
Recalling preset memory (INC/DEC)
TTL
5.7" QVGA (320 x 240) TFT color
0 to 40 "C
< 85 % RH (without condensation)
10 to 35 'C
< 85 % RH (without condensation)
Indoor use
Up to 2000 m
II
2
90 to 250 VAC universal, 50/60 Hz 1
140 Wmax.
426 (W) X 150 (H) X 450 (D) mm, 14 kg
Power cord
1
Instruction manual
1
Rack Support (LR 2429 mm size)
Rack Support (LR 2429-I inch size)
3
,,
..,„.
-
-
т« в
•
- -
SIGNAL GENERATOR
Ideal For The Production, Test and Alignment Of ATSC Compliant
Tuners And Receivers/STBs.
GENERAL
FEATURES
Designed to address the challenges of DTV tuner test­
ing, the LG 3803(S1 version) provides all of the signal
control necessary for testing the performance of ATSC
compliant tuners and receivers.
The RF output can be set to emulate 8VSB, 64 and
256QAM modulation formats, and the modulation fre­
quency can be set from 50 MHz to 900 MHz covering
the entire VHF and UHF spectrum. Output level ranges
from -100 to +13 dBm (50 Ohm) and it is settable with a
0.1dB resolution (ideal for doing input sensitivity tests).
A pseudo-random (PN) generator and a BER counter
are built into the instrument and facilitate easy BER
measurements in a single unit.
The instrument can be modulated internally (3 built in
test patterns; color bars and monoscope) or can be ex­
ternally modulated (DVB-ASI or SPI input).
The QVGA display provides easy instrument control.
The instrument can be Ethernet controlled. Remote
control allows preset recall and increment; up to 100 pre­
sets can be set up and recalled aiding in the automatic
testing process.
+Option
• Ideal For The Production, Test and Alignment Of ATSC
Compliant Tuners And Receivers/STBs.
• Includes 8VSB and 64QAM/256QAM Modulation Stan­
dards; Covers Both VHF And UHF Bands.
• Coding Modulator, C/N Generator and Upconverter Are
Integrated In A Single Instrument.
• Built-in Pseudo-Random (PN) Signal Source And BER
Counter Facilitate BER Measurements Using One In­
strument.
• Real Time Coding And Modulation Provides Realistic
Test Signals.
• Real Picture Playback Function Is Available As An Option
• Out-Of-Band Option Allows For CATV Return Path
BER Evaluation
•Intuitive, Clear Display, 100 Presets And Ergonomic
Design Make The LG 3803 The Perfect Choice For
Manufacturing And Service Applications.
• Out-Of-Band (OOB) Testing and BER Measurements
Can Be Performed By Connecting The Optional LG
3803-01 Out-Of-Band Generator (sold separately).
Shown with Option 71
Various factory options
•LG 3803 (S1 version) only
OP71
USB STORAGE Option
The TS can be played back from a HDD drive connected
via the USB, or internal HDD drive.
HDD Capacity:
USB Specification:
Function:
Play Back
Loop Playback:
Memory Playback:
Playback Range:
80 GB
USB2.0
To connect an external HDD applicable
to USB2.0, or internal HDD drive
Possible (not applicable to seamless)
Possible (ON/OFF Selectable)
Possible (settable in time)
OP72
Fading Option
Fading noise can be added to mobile and portable receiv­
ers to check for ghosting and multipath.
Fading Generator
Settable Fading Mode
(Fading mode): Normal mode(Off),
6 Path mode(6 Path),
12Pathmode(12Path)
Speed of Mobile Object
(Speed):
0 to 999.9 km/h, in 0.1
km/h steps {common to
each path)
Maximum floppier Frequency
(Doppler):
0.1 to 200 Hz, in 0.1 Hz
resolution (common to
each path)
Path State
(Path State): Each path can be
respectively set on/off.
Modulated Fading Type
(Fading Type): Rayleigh fading,
Rician fading,
Frequency shift,
Phase shift,
Path through
Relative Delay Time
(Delay):
0 to 800 us, in = 0.1 us
Relative Path Loss
(Loss):
-30.0 to 0 dB
ЛГ£Зи
LEADER
SIAIUS
ИВаЭЕиЯ
-
ZJ^lzL
_ ^
Preset Group No. ( Г ^
ЖН1ГСВ |
I'M
Modulation ( 'liv'sii' " totertenvit 1
CH/freq. j
^ T CH country 1 USA
uvai!
ШЖ mm
с / н 1 5ПГ UB
»'••» g n r m i » i
И
i
i
Key uKfc < Hush 1-5 Urn: : nmngml • ]
1
I
1
1
nit
(
- • -
LG 3803 (ST
Shown with Option 71
version)
SPECIFICATIONS
Channel Coding Section
Broadcasting System:
Modulation System:
RF Signal Generator
Frequency
Range:
Channel:
Accuracy:
Output
Range:
Digital Terrestrial (ATSC A/53B)
CATV (ITU-T J.83 annex B)
8VSB/64QAM/256QAM
50 to 900 MHz
USA, KOREA
±0.4 x 10 е
-100 to +13 dBm (into 50 £2)
ON/OFF, selectable
Resolution:
0.1 dB
Level Accuracy:
±1 dB (at 0 dBm, C/N off)
Connector:
N (50 a)
Input/Output Signal Sources
Internal Signal
Pseudo Random Signal:
PN15/PN23
Still Picture Pattern
Pattern:
Color bar, ramp, monoscope (*1)
Screen Size:
16:9 1920 x1080i, 1280 x 720p,
704x480i(*1)
4:3
704x480i(*1)
1 kHz (LR), 400 Hz (LR),
Sound (Tone):
1 kHz(L) + 4 0 0 H z ( R ) ( * 1 )
* 1 : Specifications are subject to change
without notice.
DVB-ASI Input
Input Connector:
BNC (75 £1)
Input Level:
0.8 Vp-p
Baud Rate:
270 Mbps
DVB-SPI Input
25-pin D-sub
Input Connector:
100 П differential input
Input Impedance:
LVDS
Input Level:
Input Format:
MPEG-2 TS or BER count input, automatic
selection
ASI, SPI Input Specifications
Input Packet Format:
188, 204 bytes
Applicable Stream:
MPEG-2 TS (ISO/IEC 13818-1)
FREQ STD Input
Input Connector:
BNC (50 £2)
0.8 Vp-p
Input Level:
10 MHz
Input Frequency:
FREQ STD Output
Output Connector:
BNC (50 O)
10 MHz
Output Frequency:
4-Wire Serial BER Input
Input Connector:
BNC
Input Level:
LVTTL 3.3 V
Input Signal:
SYNC, VALID, CLOCK, DATA
TS Clock Output
Output Connector:
BNC (50 Q)
Output Level:
TTL
Output Frequency:
8VSB
2.424083 MHz
64QAM
3.371294 MHz
256QAM 4.851338 MHz
BER Counter Section
Input Section
Packet Length:
188,204 bytes
Input Connector:
DVB-SPI connector, serial input
GO/NO-GO Function
Threshold Settings:
Upper and lower limits of BER
GO/NO-GO Indication:
Displays GO/NO-GO on the screen.
C/N Generator Section
C/N Variable Range:
0 to 31 dB
LG 3803 (S1 version)
Setting Resolution:
On/Off:
External Interface
Memory Card Interface
Memory Card:
ETHER Interface
Specifications:
USB Interface
Specifications:
GPIB
Connector:
Specifications:
Remote Control
Connector:
Controllable Mode:
0.1 dB
Selectable
Compact flash card (CFA TYPE-I)
10BASE-T, 100BASE-TX
USB1.1
24-pin, square
ANSI/IEEE Std 488.1-1987.
24-pin, square
57LE-30240 (Amphenol)
Recalling preset data from memory
(INC/DEC)
TTL
Input Level:
Display Panel
LCD:
5.7" QVGA (320 x 240) TFT color
Environmental Conditions
Operating Temperature:
0 to 40 °C
Operating Humidity:
<85% RH (without condensation)
Spec-Guaranteed Temperature:
10 to 35 °C
Spec-Guaranteed Humidity:
<85 % RH (without condensation)
Operating Environment:
Indoor use
Operating Altitude:
Up to 2000 m
Overvoltage Category:
Pollution Degree:
Power Requirements
Voltage:
90 to 250 VAC, 50/60 Hz
Power Consumption:
M O W max.
Dimensions, Weight:
426 (W) x 150 (H) x 450 (D) mm
14 kg approx.
Accessories:
Power cord
Instruction Manual
Optional Accessories:
Rack Support (LR 2429 mm size)
Rack Support (LR 2429-I inch size)
LG 3803-01 Out-of-Band Generator
The LG 3803-01 is a companion/accessory instrument for the LG 3803(S1
version) 8VSB/QAM Signal Generator. When the 2 instruments are connected, the LG 3803(S1 version)/3803-01 pair becomes capable of
providing QPSK signals compliant to USA CATV Out Of Band Standard
(ANSI/SCTE 55-1, 55-2). The testing features of the LG 3803(S1 version)
are extended to CATV Out of Band testing; modulator, C/N generator and
up-converter are all provided in one package. As a result, BER measurements can be easily and effectively performed and digital CATV capable
tuners can be fully tested (in-band and out-of-band testing).
ton
L
таУ№т«1
1
fiD
HUH П Е Э Я Б 1
bt - - ^
1
I.e. i
m»
• mm
•
LG 3803-01 is combined with LG 3803(S1 version)
'•
DVB
SIGNAL GENERATOR
Ideal For The Production, Test and Alignment Of DVB-T Compliant
Tuners And Receivers/STBs
FEATURES
GENERAL
Designed to address the challenges of DTV tuner testing, the LG 3804 provides all of the signal control
necessary for testing the performance of DVB-T compliant tuners and receivers.
Consequently, the modulated signal covering VHF and
UHF channels can be output.
Since a pseudo random signal source (PN) and BER
counter are provided, the BER measurement of a TV set
and tuner can be performed without additional equipment.
In addition to the internal TS signal, the MPEG-2 TS can
be externally applied. Therefore, the receiver can be
checked visually and acoustically by using the existing
TS. With such versatile capabilities, overall functions of
the reception system can be tested.
This basic model can expand applicable capabilities to
DVB-C and DVB-H with various Options.
+Option
OP71
Arbitrary transmission parameter settings
The transmission parameter can be arbitrary set via the
front panel controls. The QVGA LCD graphically displays the setting conditions.
MPEG-2 TS encoding/modulation in realtime
The MPEG-2 TS applied from the DVB-ASI or DVB-SPI
connector can be encoded/modulated in realtime.
100 preset conditions
Up to 100 preset conditions can be stored in the
memory. Since the stored contents can be categorized
into 10 groups, the preset mode is convenient for inspection applications.
Various options
USB STORAGE Option
(factory option)
The TS can be played back from a HDD drive connected
via the USB, or internal HDD drive.
HDD Capacity: 80 GB
USB Specification:
USB2.0
Function:
To connect an external
HDD applicable to
USB2.0, or internal
HDD drive
0P72
All-in-one
This instrument features the signal generator capability
and BER measurement capability in a single package.
The BER function is used to measure the front-end section, while the MPEG-2 TS function is used to visually
check the entire system. Also, such features are ideal for
the production line of STB and tuners.
Play Back
Loop Playback: Possible (not applicable
to seamless)
Memory Playback:
Possible(ON/OFF Selectable)
Playback Range:
Possible (settable in time)
Fading Option
OP73
DVB-H ADD-IN
SOFTWARE
This add-in software adds the DVB-H capability to the
Model 3804.
Channel Coding Section
Broadcasting System
Moblie Broadcasting:
DVB-H
Modulation Method:
COFDM
16QAM.32QAM.64QAM
Bandwidth: 5 MHz, 6 MHz, 7 MHz,
8 MHz
Coding Rate: 1/2, 2/3, 3/4, 5/6, 7/8
FFT Mode: 2k, 4k, 8k
Guard Interval:
1/4, 1/8, 1/16, 1/32
License
This add-in software can only be used
for a single LG 3804 main frame; not
for multiple main frames.
(factory option)
Fading noise can be added to mobile and portable receivers to check for ghosting and multipath.
Fading Generator
Settable Fading Mode
(Fading mode): Normal mode(Off),
6 Path modo(6 Path),
12 Path mode( 12 Path)
Speed of Mobile Object
(Speed):
Settable in the range
converted from output
frequency and maximum
Doppler frequency In
0.01 km/h steps
(common to each path)
Maximum Doppler Frequency
(Doppler):
0.1 to 200 Hz, in 0.1 Hz
resolution (common to each path)
Path State
(Path State): Each path can be
respectively set on/off.
Modulated Fading Type
(FadingType): Rayleigh fading,
Rician fading,
Frequency Shift,
Phase shift,
Path through
Relative Delay Time
(Delay):
0 to 800 us, in « 0.1 us
Relative Path Loss
(Loss):
-30.0 to 0 dB
0P74
DVB-C ADD-IN
SOFTWARE
This add-in software adds the DVB-C capability to the
Model 3804.
Channel Coding Section
Broadcasting System
CATV Digital Broadcating Specifications:
DVB-C
Modulation Method:
16QAM,32QAM,
64QAM, 128QAM,
256QAM
Symbol Rate:
1.000 Msps to 8-000 Msps
License
This add-in software can only be used
for a single LG 3804 main frame; not
for multiple main frames.
DVB-T
STATUS
CHyrwq.p
ЯГ CH
Pr»a*tOreup| 0
-40.0 dOm
С / N | - -"- dB
ifB-T
Bandwidth I
Спз1.1Шги|| 64QAM
FFTMaMJ 8 К
Hwnvchvj Nwi НпппИни!
[тТвГ
K»y Lock < Puth Рв 1мв : Changed >
LG 3804
Shown with Option 71
SPECIFICATIONS
Channel Coding Section
Broadcasting system:
Bandwidth:
Carrier Modulation:
Digital Terrestrial (DVB-T)
6 MHz/7 MHz/8 MHz
COFDM
QPSK, 16QAM, 64QAM
Convolution Coding Rate: 1/2, 2/3, 3/4, 5/6, 7/8
FFT Mode:
2K, 8K
Guard Interval:
1/4, 1/8, 1/16, 1/32
RF Signal Generator Section
Frequency
Range:
30 to 960 MHz
Output
Range:
-100 to +13 dBm (into 50 ft),
ON/OFF selectable
Resolution:
0.1 dB
Output Connector:
N (50 ft)
Input/Output Signal Sources
Internal Signal
Pseudo Random Signal: PN15/PN23
Still Picture Pattern:
Color bar, ramp, monoscope seamless
Play(*1)
Screen Size:
16:9 (HD), 4:3(SD)(*1)
Sound (Tone):
1 kHz(LR), 400 Hz(LR), 1 kHz(L)+400 Hz(R) (*1
* 1 : Specifications are subject to change
without notice.
DVB-ASI Signal Input
Input:
HP, LP
Input Connector:
BNC
Input Impedance:
75 ft
Input Level:
0.8 Vp-p
Baud Rate:
270 Mbps
DVB-SPI Signal Input
Input Connector:
25-pin D-sub
Input Impedance:
100 U differential input
Input Level:
LVDS
Input Format:
MPEG-2 TS or BER count input,
selectable
ASI, SPI Input Specifications
Input Packet Format: 188, 204 bytes
Applicable Stream:
MPEG-2 TS(ISO/IEC 13818-1)
FREQ STD Input
Input Connector:
BNC
Input Impedance:
50 a
Input Level:
0.8 Vp-p
Input Frequency:
10 MHz
FREQ STD Output
Output Connector:
BNC
Output Impedance:
50 ft
Output Frequency:
10 MHz
TSOut
Output:
BNC
Output Impedance:
75 U
Output Format:
MPEG-2 TS
IF Signal Output
Output Connector:
BNC
Output Impedance:
50 a
Output Frequency:
140 MHz
4-Wire Serial BER Inpu
Input Connector:
BNC
Input Level:
LVTTL 3.3 V
Input Signal:
CLOCK, DATA, VALID, SYNC
LG 3804
BER Counter Section
Input Section
Packet Length:
Input Connector:
GO/NO-GO Function
Limit Settings:
GO/NO-GO Indication:
C/N Generator Section
C/N Variable Range:
Setting Resolution:
Additional Controller:
External Interface
Memory Card Interface
Memory Card:
ETHER Interface
Specifications:
USB Interface
Specifications:
GPIB
Connector:
Specifications:
Display
LCD:
188, 204 bytes
DVB-SPI INPUT connector and serial input
connector are used.
Upper and lower limits of BER can be set.
Displays GO/NO-GO on the screen.
0 to 40 dB
0.1 dB
ON/OFF, selectable
Compact flash card (CFATYPE-I)
10BASE-T, 100BASE-TX
USB1.1
24-pin square connector
Conforms to ANSI/IEEE Std. 488.1-1987.
5.7" QVGA (320 x 240) TFT color
Environmental Conditions
Operating Temperature: 0 to 40 °C
Operating Humidity:
< 85 % RH (without condensation)
Spec-Guaranteed Temperature:
10 to 35 °C
Spec-Guaranteed Humidity: < 85 % RH (without condensation)
Operating Environment: Indoor use
Operating Altitude:
Up to 2000 m
Overvoltage Category:
Pollution Degree:
Power Requirements:
90 to 250 VAC universal, 50/60 Hz
Power Consumption:
150 W max.
Dimensions, Weight:
Accessories:
426 (W) X 150 (H) X 450 (D) mm, 14 kg
Power cord
1
Instruction manual
1
Rack Support (LR 2429 mm size)
Rack Support (LR 2429-I inch size)
Optional Accessories:
Shown with Option 71
Sold Separately
SERIAL-TO-PARALLEL CONVERTER
• General
This instrument coverts the TS data output from the digital broadcasting demodulator
1С into parallel output format.
With this capability, the BER of demodulator 1С used for the serial output system can
be measured by using the LG 3802.
Converts the TS serial data
output into parallel output
.
LEADER
CLOCK
1
• — . , . —
SERIAL PARALLEL CONVERTER
DATA
VALID
- ^ ^ .
LG3 802-01
SYNC
MODE
К
FORMAT
Ю
LG 3802-01
LEADER ELECTRONICS CORP.
•
9
•
•
Features
CD 2-wire input, (2) 3-wire input, (3) 4-wire input
The data latch timing, and the MSB and LSB of byte can be set.
The packet lengths convertible from the serial into parallel are 204 bytes and 188
bytes in MPEG-2 TS format.
•
Specifications
Input: CLOCK, DATA, VAILD, SYNC
Output: SPI OUTPUT
http://www.leader.co.jp
2-6-33 Tsunashima-Higashi, Kohoku-ku, Yokohama 223-8505, Japan
PHONE:81-45-541-2123
LEADER INSTRUMENTS CORP.(U.S.A)
PHONE:1-714-527-9300
LEADER INSTRUMENTS (H.K.)LTD.
PHONE:852-2721-2503
LEADER ELECTRONICS CORP.BEIJING OFFICE
PHONE:86-10-8511 -8606/8607
LEADER INSTRUMENTS (H.K.)LTD.DONGGUAN OFFICE
PHONE:86-769-83829381,83829391
LEADER ELECTRONICS CORP.SHANGHAI OFFICE
PHONE:86-21 -62756905,62759629
LEADER ELECTRONICS EUROPEAN OFFICE
PHONE:31-40-2565008
FAX:81-45-541-2823
FAX: 1-714-527-7490
FAX:852-2723-7573
FAX:86-10-8511-8608
FAX:86-769-83819289
FAX:86-21-62751486
FAX:31-40-2565009
AGENT
ISO 9001
ISO 14001
JQA-0733
JQA-EM5777
Jun.8,2007 07063K [TS] UJ Printed in Japan
ГУРосНИИИТиАП
Ассоциация МВТК
Федеральный информационный фонд отечественных и
иностранных каталогов на промышленную продукцию
Каталог был представлен на выставке
«ТВЧ Россия
(Новые технологии в Теле- и
Радиовещании - 2008»
Каталог включен в базу данных
«Федерального информационного фонда
отечественных и иностранных каталогов на
промышленную продукцию»
Россия, 105679, Москва, Измайловское шоссе, 44,
Тел./факс (495)366-5200, 366-7008, 365-5445. e-mail: [email protected],
www. fTpk.ru
Электронная копия издания изготовлена с целью её включения в базы
данных Федерального информационного фонда отечественных и
иностранных каталогов на промышленную продукцию, которые
формируются в соответствии с Постановлением Правительства РФ от 24
июля 1997 г. № 950 и Постановлением Правительства РФ от 31 декабря 1999
г. № 2172-р и зарегистрированы Комитетом по политике информатизации
при Президенте РФ под №№ 39-50.
2008 год
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
