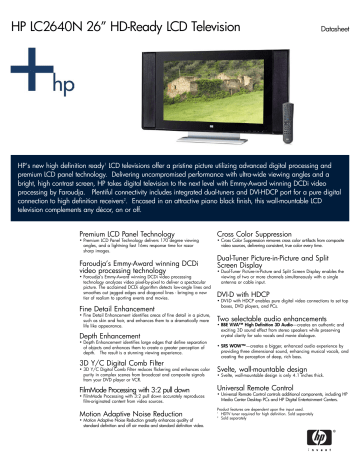

HP LC2640N 26” HD-Ready LCD Television

HP LC2640N 26” HD-Ready LCD Television
HP LC2640N 26” HD-Ready LCD Television
Datasheet
HP's new high definition ready1 LCD televisions offer a pristine picture utilizing advanced digital processing and
premium LCD panel technology. Delivering uncompromised performance with ultra-wide viewing angles and a
bright, high contrast screen, HP takes digital television to the next level with Emmy-Award winning DCDi video
processing by Faroudja. Plentiful connectivity includes integrated dual-tuners and DVI-HDCP port for a pure digital
connection to high definition receivers2. Encased in an attractive piano black finish, this wall-mountable LCD
television complements any décor, on or off.
Premium LCD Panel Technology
• Premium LCD Panel Technology delivers 170 degree viewing
angles, and a lightning fast 16ms response time for razor
sharp images.
Faroudja’s Emmy-Award winning DCDi
video processing technology
• Faroudja’s Emmy-Award winning DCDi video processing
technology analyzes video pixel-by-pixel to deliver a spectacular
picture. The acclaimed DCDi algorithm detects low-angle lines and
smoothes out jagged edges and diagonal lines - bringing a new
tier of realism to sporting events and movies.
Fine Detail Enhancement
• Fine Detail Enhancement identifies areas of fine detail in a picture,
such as skin and hair, and enhances them to a dramatically more
life like appearance.
Depth Enhancement
• Depth Enhancement identifies large edges that define separation
of objects and enhances them to create a greater perception of
depth. The result is a stunning viewing experience.
3D Y/C Digital Comb Filter
Cross Color Suppression
• Cross Color Suppression removes cross color artifacts from composite
video sources, delivering consistent, true color every time.
Dual-Tuner Picture-in-Picture and Split
Screen Display
• Dual-Tuner Picture-in-Picture and Split Screen Display enables the
viewing of two or more channels simultaneously with a single
antenna or cable input.
DVI-D with HDCP
• DVI-D with HDCP enables pure digital video connections to set top
boxes, DVD players, and PCs.
Two selectable audio enhancements
• BBE ViVA™ High Definition 3D Audio—creates an authentic and
exciting 3D sound effect from stereo speakers while preserving
crystal clarity for solo vocals and movie dialogue.
• SRS WOW™—creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
• 3D Y/C Digital Comb Filter reduces flickering and enhances color
purity in complex scenes from broadcast and composite signals
from your DVD player or VCR.
Svelte, wall-mountable design
FilmMode Processing with 3:2 pull down
Universal Remote Control
• FilmMode Processing with 3:2 pull down accurately reproduces
film-originated content from video sources.
• Universal Remote Control controls additional components, including HP
Media Center Desktop PCs and HP Digital Entertainment Centers.
Motion Adaptive Noise Reduction
Product features are dependent upon the input used.
1
HDTV tuner required for high definition. Sold separately
2
Sold separately
• Motion Adaptive Noise Reduction greatly enhances quality of
standard definition and off air media and standard definition video.
• Svelte, wall-mountable design is only 4.1 inches thick.
HP LC2640N 26” HD-Ready LCD Television
Datasheet
Key Television Specifications
Panel System
High Definition LCD Display
Aspect Ratio
15:9 Widescreen
Native Resolution
(Number of Pixels) (H x V)
1280 x 768
Brightness (typical)
Up to 500 cd/m2
Contrast (typical)
600 : 1
Video Format
Accepts RGB, NTSC, 480i, 480p, 720p, 1080i video formats.
Viewing Angle (typical)
170 degrees horizontal, 170 degrees vertical
Converts all video signals to 720p high definition video.
Response Rate (typical)
<16 ms (Grey to Grey)
Backlight life1
Up to 50,000 Hrs
Anti-reflective Coating
Yes
Built-in Dual NTSC TV Tuners with Picture-in-Picture and Side-by-Side
viewing capability
Closed Caption
Yes
MTS sound processing
Stereo, Mono, SAP
Channel Coverage
VHF 2 - 13
UHF 14 - 69
CATV 1 - 125
V-Chip
Password protect viewing according to Content Rating, TV Rating,
and MPAA Rating
Antenna
75 Ohm External
HDCP (on DVI)
Yes
Cable Tuning System
Standard, HRC, IRC
HDTV supported inputs
Component Input 1 & 2(YPbPr) : 1080i/720p/480p/480i
Supported Input Signals
480i, 480p, 720p, 1080i
Displayable Colors
Up to 16.7 Million
Diagonal Screen Size
26 in (66.0 cm)
Viewable Image Area
26 in (66.0 cm)
Tuner Specifications
TV Tuner
DVI-HDCP : 1080i/720p/480p/480i
Television Control Specifications
Universal Remote Control
Programmable universal remote controls TV and 3 additional
devices, including HP Media Center PCs and HP Digital
Entertainment Centers.
Front Controls
Input, Menu, Channel Up, Channel Down, Volume Up, Volume
Down, Exit
Additional Features
Television Connections Specifications
Auto Channel Program
Channel Skip/Add
Sleep timer (30-60-90-120 Minutes)
Closed Caption
V-Chip Parental Control
Reset to Default
Audio modes
MTS
PIP/PAP/Multi-PIP
Antenna Input (75 Ohms F connector)
High Definition Component Input (Y, Pb, Pr)
Composite Video Input
S-Video Input
PC Input (RGB-VGA)
DVI (with HDCP) Interface
A/V Audio Inputs
PC Audio Input
Composite Video Out
Audio Out - RCA Pair
Subwoofer out
Headphone
RS-232 (for service)
Television Power Specifications
Power Supply
Integrated
Maximum
< 180 watts
Input Power
90 ~ 240 VAC, auto-ranging
Power Saving Mode
< 3 watts
Nominal Current
1.7 A maximum
Off Mode
< 3 watts (switch off)
Frequency
50 ~ 60 Hz
Integrated Power Supply
Yes
Power Cable Length
70 in (1.8 m); Detachable
1
The life is determined as the time of which luminance is 50% compared to that of initial value at the typical lamp current on condition of continuous operating at 25 ± °C.
1
2
2
2
1
1
5
1
1
1
1
1
1
HP LC2640N 26” HD-Ready LCD Television
Datasheet
Key Audio Specifications
Speakers
15W x 2 Detachable speakers
MTS / SAP
Yes
Sound Modes
Standard, BBE ViVA, SRS WOW
PC Audio Input (mini-jack)
1
Sound Enhancement
SRS WOW™: creates a bigger, enhanced audio experience by
providing three dimensional sound, enhancing musical vocals, and
creating the perception of deep, rich bass.
Stereo Headphone Jack
1
Subwoofer Out
1
Audio out
1
Audio Controls
Bass, Treble, Balance, Volume, Subwoofer
BBE ViVA™ High Definition 3D Audio: creates an authentic and
exciting 3D sound effect from stereo speakers while preserving
crystal clarity for solo vocals and movie dialogue.
Television Weights and Dimensions
Environmental Specifications
Dimensions (H x W x D)
Unpacked w/ stand and speakers (h x w x d)
20.5 in. x 35.0 in. x 7.3 in. (520 mm x 891 mm x 186 mm);
Temperature—Operating
Panel without stand, with speakers (h x w x d)
18.3 in x 35.0 in x 4.1 in (466 x 891 x 104);
Humidity—Operating
Base Area (Footprint d x w)
15.7 in x 7.3 in (400 x 187 mm)
41° to 95° F (5° to 35° C)
Temperature—Non-operating -4° to 140° F (-20° to 60° C)
20% to 80%
Temperature—Non-operating 5% to 95%
Packaged
25.87 in x 10.39 in x 33.39 in (65.7 cm x 26.4 cm x 84.8 cm)
Weight
Unpacked w/ stand and speakers
35.3 lbs16 kg
Packaged
44.1 lbs20 kg
Base
Ships attached and is removable
Wall Mountable
Yes - VESA mount compatible (100x200mm) 6 holes (Wall Mount
sold separately)
Accessories, Warranty and Agency Approvals
Accessories Included
Cables included
Quick Start Guide
User Guide
Remote Control
Speakers
Stand (shipped attached)
Power Cord
Speaker Cables (2)
75 Ohm Coaxial Cable
VGA
DVI-D
S-Video
Component (YPbPr)
Composite
PC Audio
L/R RCA Audio
Recommended Solution
Additions
HP MR4000n HDTV ATSC Tuner
HP Media Center PC
HP Digital Entertainment Center
VESA Mounting
Yes-stand is shipped attached and must be removed for mounting
options VESA External Mounting is Standard 6 hole pattern,
100 mm x 200mm
Agency Approvals
FCC Approval
UL
Warranty
1 year, parts and labor
SRS WOW and the
symbol are trademarks of SRS Labs, Inc.
BBE and the BBE logo are registered trademarks or trademarks of BBE Sound, Inc.
DCDi™ is a trademark of Faroudja, a division of Genesis Microchip Inc.
Product Number: P8723AA#ABA 09/04
Actual product may vary from image shown on datasheet. HP shall not be liable for technical or editorial errors or omissions contained herein. All hardware
and software specifications are subject to change without notice. Copyright © 2004 Hewlett-Packard Development Company, L.P. SRS WOW and the
symbol are trademarks of SRS Labs, Inc. BBE and the BBE logo are registered trademarks of BBE Sound, Inc. DCDi® by Faroudja is a registered
trademark of Genesis Microchip Inc.
