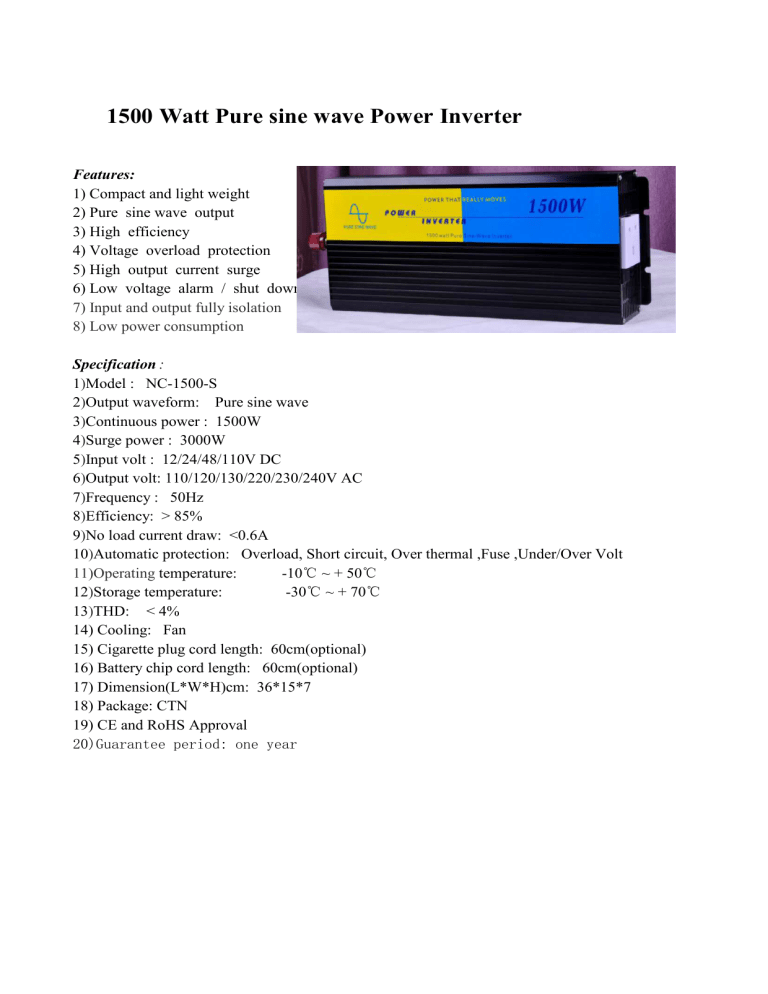

1500 Watt Pure sine wave Power Inverter
1500 Watt Pure sine wave Power Inverter
Features:
1) Compact and light weight
2) Pure sine wave output
3) High efficiency
4) Voltage overload protection
5) High output current surge
6) Low voltage alarm / shut down
7) Input and output fully isolation
8) Low power consumption
Specification :
1)Model : NC-1500-S
2)Output waveform: Pure sine wave
3)Continuous power : 1500W
4)Surge power : 3000W
5)Input volt : 12/24/48/110V DC
6)Output volt: 110/120/130/220/230/240V AC
7)Frequency : 50Hz
8)Efficiency: > 85%
9)No load current draw: <0.6A
10)Automatic protection: Overload, Short circuit, Over thermal ,Fuse ,Under/Over Volt
11)Operating temperature:
-10 ~ + 50
12)Storage temperature:
-30 ~ + 70
13)THD: < 4%
14) Cooling: Fan
15) Cigarette plug cord length: 60cm(optional)
16) Battery chip cord length: 60cm(optional)
17) Dimension(L*W*H)cm: 36*15*7
18) Package: CTN
19) CE and RoHS Approval
20)Guarantee period: one year
