Network Security Platform 8.1.7.13-8.1.5.75 NS

Network Security Platform 8.1.7.13-8.1.5.75 NS

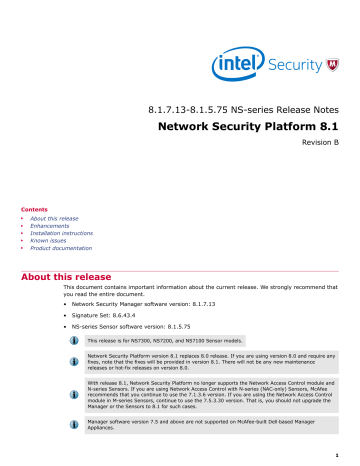

8.1.7.13-8.1.5.75 NS-series Release Notes
Network Security Platform 8.1
Revision B
Contents
About this release
Enhancements
Installation instructions
Known issues
Product documentation
About this release
This document contains important information about the current release. We strongly recommend that
you read the entire document.
•
Network Security Manager software version: 8.1.7.13
•
Signature Set: 8.6.43.4
•
NS-series Sensor software version: 8.1.5.75
This release is for NS7300, NS7200, and NS7100 Sensor models.
Network Security Platform version 8.1 replaces 8.0 release. If you are using version 8.0 and require any
fixes, note that the fixes will be provided in version 8.1. There will not be any new maintenance
releases or hot-fix releases on version 8.0.
With release 8.1, Network Security Platform no longer supports the Network Access Control module and
N-series Sensors. If you are using Network Access Control with N-series (NAC-only) Sensors, McAfee
recommends that you continue to use the 7.1.3.6 version. If you are using the Network Access Control
module in M-series Sensors, continue to use the 7.5.3.30 version. That is, you should not upgrade the
Manager or the Sensors to 8.1 for such cases.
Manager software version 7.5 and above are not supported on McAfee-built Dell‑based Manager
Appliances.
1
This version of 8.1 Manager software can be used to configure and manage the following hardware:
•
7.1, 7.5, and 8.1 M‑series and Mxx30-series Sensors
•
8.1 Virtual IPS Sensors
•
7.1 and 8.1 NS9x00-series Sensors
•
7.1, 7.5, and 8.1 XC Cluster Appliances
•
7.1, 7.5, and 8.1 NTBA Appliance software (Physical and Virtual)
•
7.1 I-series Sensors
Currently port 4167 is used as the UDP source port number for the SNMP command channel
communication between Manager and Sensors. This is to prevent opening up all UDP ports for inbound
connectivity from SNMP ports on the sensor. Older JRE versions allowed the Manager to bind to the
same source port 4167 for both IPv4 and IPv6 communication. But with the latest JRE version
1.7.0_45, it is no longer possible to do so, and the Manager uses port 4166 as the UDP source port to
bind for IPv6.
Manager 8.1 uses JRE version 1.7.0_51. If you have IPv6 Sensors behind a firewall, you need to
update your firewall rules accordingly such that port 4166 is open for the SNMP command channel to
function between those IPv6 Sensors and the Manager.
Enhancements
This release includes the following new enhancements.
Upgrade to Intel QuickAssist Technology
®
This release of the NS7x00 Sensors contains the latest Intel QuickAssist Technology (QAT) Software
Development Kit (SDK) to support the current and upcoming series of Sensor models. This helps to
support a broad range of communications and security applications, delivering performance and power
efficiency in a small footprint.
2
Installation instructions
Manager server/client system requirements
The following table lists the 8.1 Manager server requirements:
Operating
system
Minimum required
Recommended
Any of the following:
Same as the minimum
required.
• Windows Server 2008 R2 Standard or Enterprise Edition,
SP1 (Full Installation), English operating system
• Windows Server 2008 R2 Standard or Enterprise Edition,
SP1 (Full Installation), Japanese operating system
• Windows Server 2012 Standard Edition (Server with a GUI)
English operating system
• Windows Server 2012 Standard Edition (Server with a GUI)
Japanese operating system
• Windows Server 2012 R2 Standard Edition (Server with a
GUI) English operating system
• Windows Server 2012 R2 Standard Edition (Server with a
GUI) Japanese operating system
• Windows Server 2012 R2 Datacenter Edition (Server with a
GUI) English operating system
• Windows Server 2012 R2 Datacenter Edition (Server with a
GUI) Japanese operating system
Only X64 architecture is supported.
Memory
8 GB
8 GB or more
CPU
Server model processor such as Intel Xeon
Same
Disk space
100 GB
300 GB or more
Network
100 Mbps card
1000 Mbps card
Monitor
32-bit color, 1440 x 900 display setting
1440 x 900 (or above)
The following are the system requirements for hosting Central Manager/Manager server on a VMware
platform.
3
Table 3-1 Virtual machine requirements
Component
Minimum
Recommended
Operating
system
Any of the following:
Same as minimum
required.
• Windows Server 2008 R2 – Standard or Enterprise
Edition with SP1 English operating system
• Windows Server 2008 R2 – Standard or Enterprise
Edition with SP1 Japanese operating system
• Windows Server 2012 Standard Edition (Server with a
GUI) English operating system
• Windows Server 2012 Standard Edition (Server with a
GUI) Japanese operating system
• Windows Server 2012 R2 Standard Edition (Server with
a GUI) English operating system
• Windows Server 2012 R2 Standard Edition (Server with
a GUI) Japanese operating system
• Windows Server 2012 R2 Datacenter Edition (Server
with a GUI) English operating system
• Windows Server 2012 R2 Datacenter (Server with a
GUI) Japanese operating system
Only X64 architecture is supported.
Memory
8 GB
8 GB or more
Virtual CPUs
2
2 or more
Disk Space
100 GB
300 GB or more
Table 3-2 VMware ESX server requirements
Component
Minimum
Virtualization software • ESXi 5.0
• ESXi 5.1
• ESXi 5.5
CPU
Intel Xeon ® CPU ES 5335 @ 2.00 GHz; Physical Processors – 2; Logical
Processors – 8; Processor Speed – 2.00 GHz
Memory
Physical Memory: 16 GB
Internal Disks
1 TB
The following table lists the 8.1 Manager client requirements when using Windows 7 or Windows 8:
Minimum
Operating
system
Recommended
• Windows 7 English or Japanese
• Windows 8 English or Japanese
• Windows 8.1 English or Japanese
The display language of the Manager client must be
same as that of the Manager server operating
system.
RAM
4
2 GB
4 GB
Minimum
Recommended
CPU
1.5 GHz processor
1.5 GHz or faster
Browser
• Internet Explorer 9, 10 or 11
• Internet Explorer 11
• Mozilla Firefox
• Mozilla Firefox 20.0 or
above
• Google Chrome (App mode in Windows 8 is not
supported)
• Google Chrome 24.0 or
above
If you are using Google Chrome, add the Manager
certificate to the trusted certificate list.
For the Manager client, in addition to Windows 7 and Windows 8, you can also use the operating
systems mentioned for the Manager server.
The following table lists the 8.1 Central Manager / Manager client requirements when using Mac:
Mac operating system
Browser
• Lion
Safari 6 or 7
• Mountain Lion
For more information, see McAfee Network Security Platform Installation Guide.
Upgrade recommendations
McAfee regularly releases updated versions of the signature set. Note that automatic signature set
upgrade does not happen. You need to manually import the latest signature set and apply it to your
Sensors.
The following is the upgrade matrix supported for this release:
Component
Minimum Software Version
Manager/Central Manager software
• 7.1 — 7.1.3.5, 7.1.5.7, 7.1.5.10, 7.1.5.14, 7.1.5.15
• 7.5 — 7.5.3.11, 7.5.5.6, 7.5.5.7, 7.5.5.10, 7.5.5.11
• 8.1 — 8.1.3.4, 8.1.3.6, 8.1.7.5, 8.1.7.12
NS-series Sensor software
8.1 — 8.1.5.57
Known issues
For a list of known issues in this product release, see this McAfee KnowledgeBase article:
•
Manager software issues: KB81373
•
NS-series Sensor software issues: KB82173
5
Product documentation
Every McAfee product has a comprehensive set of documentation.
Find product documentation
1
Go to the McAfee ServicePortal at http://mysupport.mcafee.com and click Knowledge Center.
2
Enter a product name, select a version, then click Search to display a list of documents.
The related documents available with NS7x00 software are:
•
NS7x00 Sensor Quick Start Guide
•
NS7x00 Sensor Product Guide
•
Addendum II to 8.1 Documentation
Copyright © 2015 McAfee, Inc. www.intelsecurity.com
Intel and the Intel logo are trademarks/registered trademarks of Intel Corporation. McAfee and the McAfee logo are trademarks/
registered trademarks of McAfee, Inc. Other names and brands may be claimed as the property of others.
0A-00
