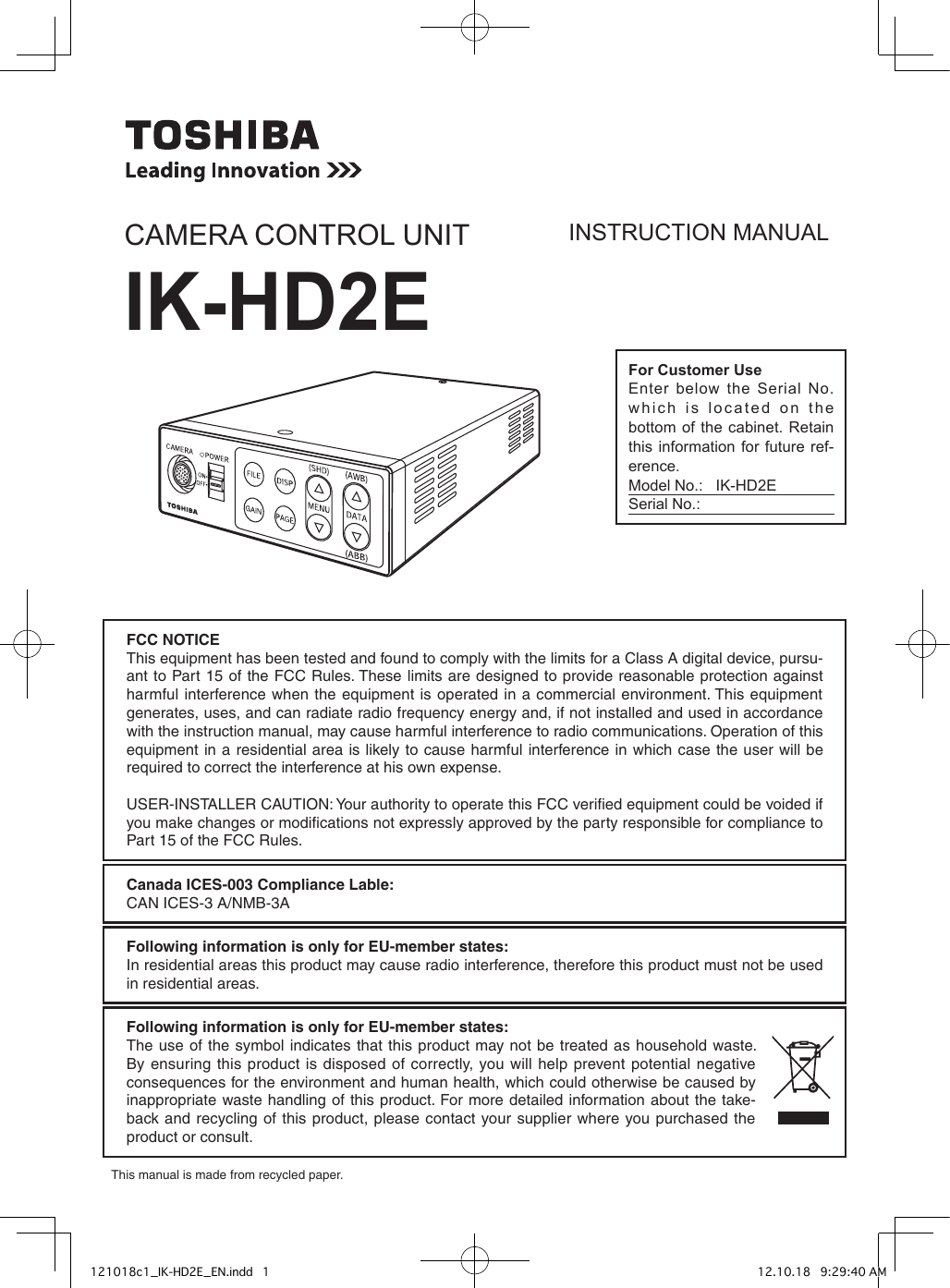

IK-HD2E

CAMERA CONTROL UNIT
IK-HD2E
INSTRUCTION MANUAL
For Customer Use
Enter below the Serial No.
which is located on the
bottom of the cabinet. Retain
this information for future reference.
Model No.: IK-HD2E
Serial No.:
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
USER-INSTALLER CAUTION: Your authority to operate this FCC verified equipment could be voided if
you make changes or modifications not expressly approved by the party responsible for compliance to
Part 15 of the FCC Rules.
Canada ICES-003 Compliance Lable:
CAN ICES-3 A/NMB-3A
Following information is only for EU-member states:
In residential areas this product may cause radio interference, therefore this product must not be used
in residential areas.
Following information is only for EU-member states:
The use of the symbol indicates that this product may not be treated as household waste.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about the takeback and recycling of this product, please contact your supplier where you purchased the
product or consult.
This manual is made from recycled paper.
121018c1_IK-HD2E_EN.indd 1
12.10.18 9:29:40 AM
SAFETY PRECAUTIONS
Safety icons
This manual contains safety instructions that must be observed in order to avoid potential
hazards that could result in personal injuries, damage to your equipment, or loss of data.
These safety cautions have been classified according to the seriousness of the risk, and the
icons highlight these instructions as follows:
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
Indicates a potentially hazardous situation which, if not avoided, may
result in property damage.
Stop operation immediately if any abnormality or defect occurs.
Use during an abnormal condition; such as emitting smoke, burning odors, damage
from dropping, invasion of foreign objects, etc. may result in fire and/or electrical
shock. Immediately disconnect the power source and contact your dealer.
Avoid installing in a shower room or a bathroom.
This may result in fire and/or electrical shock.
Do not operate in places where the product may get wet.
This may result in fire and/or electrical shock.
Do not repair, disassemble and/or modify by yourself.
This may result in fire and/or electrical shock. Always be sure to contact your
dealer for internal repair, check and cleaning of the product.
Use the specified power supply.
Otherwise, fire or electrical shock may occur.
Do not place anything on top of the unit.
Foreign materials, such as metals or liquids, getting into the product may result
in fire and/or electrical shock.
Do not put the product on an unstable, slanted or vibrating surface.
The product dropping or falling may result in serious injury.
Do not touch the product or any connection cables during a thunderstorm.
This may result in electrical shock.
2
121018c1_IK-HD2E_EN.indd 2
12.10.18 9:29:40 AM
Note the following instructions when installing.
• Do not cover the product with any material.
• Do not place the product on any inflammable material such as a carpet or
blanket.
• Do not place the product in a confined space, as this may cause heat to
build up inside the product.
Failure to follow the above cautions may result in fire.
Do not place the product in direct sunshine and/or high temperature.
Temperature build up inside the product may result in fire.
Avoid placing in humid, smoky, or dusty places.
This may result in fire and/or electrical shock.
Ask your dealer to perform a periodical check and internal cleaning (approx.
once every five years).
Dust inside the product may result in fire. For check and cleaning cost, please
consult your dealer.
The following description is described the state that the suitable camera head is connected to this
camera control unit.
Do not point the lens directly at the sun and/or intensive light such as direct sunlight, etc.
Focusing of the light may result in eye injury and/or fire.
Disclaimer
We disclaim any responsibility and shall be held harmless for any damages or losses incurred by the
user in any of the following cases:
1. Fire, earthquake or any other act of God; acts by third parties; misuse by the user, whether intentional or accidental; use under extreme operating conditions.
2. Malfunction or non-function resulting in indirect, additional or consequential damages, including
but not limited to loss of expected income and suspension of business activities.
3. Incorrect use not in compliance with instructions in this instruction manual.
4. Malfunctions resulting from misconnection to other equipment.
5. Repairs or modifications made by the user or caused to be made by the user and carried out by
an unauthorized third party.
6. Notwithstanding the foregoing, Toshiba’s liabilities shall not, in any circumstances, exceed the
purchase price of the product.
Copyright and Right of Portrait
There may be a conflict with the Copyright Law and other laws when a customer uses, displays,
distributes, or exhibits an image picked up by the camera without permission from the copyright
holder. Please also note that transfer of an image or file covered by copyright is restricted to use
within the scope permitted by the Copyright Law.
Protection of Personal Information
Images taken by the camera that reveal the likeness of an individual person may be considered
personal information. To disclose, exhibit or transmit those images over the internet or otherwise,
consent of the person may be required.
3
121018c1_IK-HD2E_EN.indd 3
12.10.18 9:29:41 AM
Limitation of Usage
The product is not designed for any “critical applications.” “Critical applications” means life support
systems, exhaust or smoke extraction applications, medical applications, commercial aviation, mass
transit applications, military applications, homeland security applications, nuclear facilities or systems
or any other applications where product failure could lead to injury to persons or less of life or
catastrophic property damage. Accordingly, [Toshiba] disclaims any and all liability arising out of the
use of the product in any critical applications.
TABLE OF CONTENTS
1
2
3
4
5
CAUTIONS ON USE AND INSTALLATION ............................................ 6
COMPONENTS ....................................................................................... 6
ITEMS CONTROLLED BY THE ON SCREEN DISPLAY ........................ 7
NAMES AND FUNCTIONS...................................................................... 8
CONNECTION........................................................................................ 9
5.1 Standard Connection ..................................................................................................
5.2 Cautions on Connection..............................................................................................
5.3 Connection on Back Panel..........................................................................................
5.4 A Connector Pin Assignments ....................................................................................
6
OPERATION........................................................................................... 11
6.1 Automatic Black Balance ............................................................................................
6.2 White Balance.............................................................................................................
6.3 Scene File ...................................................................................................................
6.4 Gain.............................................................................................................................
6.5 Shading Correction .....................................................................................................
7
9
10
10
10
11
12
14
14
15
MODE SETTING BY THE ON SCREEN DISPLAY ................................ 16
7.1 Using the Menus .........................................................................................................
7.2 Menus .........................................................................................................................
(1) SHUTTER (Electronic shutter) ....................................................................................
(1.1) Changing the setting in AUTO mode...................................................................
(1.2) Changing the setting in MANUAL mode ..............................................................
(1.3) Changing the setting in SS (Synchro. Scan) mode .............................................
(2) GAIN (Video gain) .......................................................................................................
(2.1) Changing maximum gain in AUTO (Automatic gain control) mode ....................
(2.2) Changing gain in MANUAL mode........................................................................
(3) WHT BAL (White Balance) ..........................................................................................
(3.1) Changing the setting in AWB (Automatic White Balance) mode ........................
(3.2) Changing the setting in ATW (Automatic Tracking White balance) mode .........
(3.3) Changing gain in MANUAL mode .......................................................................
(4) PROCESS ..................................................................................................................
(4.1) Changing gamma correction ON/OFF ................................................................
(4.2) Changing gamma correction level.......................................................................
(4.3) Changing black gamma correction level..............................................................
(4.4) Changing detail (outline) gain..............................................................................
(4.5) Changing pedestal ..............................................................................................
(4.6) Changing DNR(Digital Noise Reduction).............................................................
(5) MATRIX(Matrix color correction) .................................................................................
(5.1) Changing Matrix color correction ON/OFF ..........................................................
(5.2) Changing MATRIX setting ...................................................................................
16
17
17
18
20
20
21
21
21
22
22
23
24
25
25
25
26
26
26
26
27
27
27
4
121018c1_IK-HD2E_EN.indd 4
12.10.18 9:29:41 AM
(6) SYNC...........................................................................................................................
(6.1) INT screen...........................................................................................................
(6.2) Changing EXT. setting ........................................................................................
(7) OPTION.......................................................................................................................
(7.1) Changing OUTPUT mode ..................................................................................
(7.2) Changing shading correction mode ....................................................................
(7.3) Changing manual shading correction mode ........................................................
(7.4) Changing RGB SYNC .........................................................................................
(7.5) Changing detail signal output ..............................................................................
(7.6) Changing RS232C baud rate ..............................................................................
(7.7) Changing OSD OUTPUT mode ..........................................................................
(8) Setting USER area .....................................................................................................
(9) Returning to factory settings .......................................................................................
7.3 External Sync ..............................................................................................................
(1) External sync signal input conditions...........................................................................
(2) External sync frequency range ....................................................................................
(3) Using the unit with external sync signal.......................................................................
(3.1) H (Horizontal) phase adjustment .........................................................................
7.4 Synchro. Scan Operation ............................................................................................
(1) Setting by 1H ...............................................................................................................
8
9
28
28
28
29
29
29
29
30
30
30
30
31
32
32
32
32
32
32
32
32
BEFORE MAKING A SERVICE CALL.................................................... 33
SPECIFICATIONS .................................................................................. 34
10 EXTERNAL APPEARANCE DIAGRAM.................................................. 35
5
121018c1_IK-HD2E_EN.indd 5
12.10.18 9:29:41 AM
1. CAUTIONS ON USE AND INSTALLATION
•
Handling the unit.
The following descriptions are for a camera head
"IK-HD1H" connected to this camera control unit.
Do not drop, jolt, or vibrate, as this may result in
damage to the unit and cause problems. Treat
the camera cables carefully to prevent cable
problems, such as breaks in the cable and loose
connections.
•
•
If there is an intense light at a location on the
screen such as a spot light, a blooming and smearing may occur. When intense light enters, vertical
stripes may appear on the screen. This is not a
malfunction. Ghosts may occur when there is an
intense light near the object. In this case, change
the shooting angle.
Install the camera in a location free from noise.
If the camera or the cables are located near power
utility lines or a TV, etc. undesirable noise may appear on the screen. In such a case, try to change
the location of the camera or the cable wiring.
•
Be particularly careful when using in places exposed to direct sunlight. When shooting in hot
places, depending on the conditions of the object
and the camera (for example when the gain is increased), noise in the form of vertical strips or
white dots may occur. This is not a malfunction.
Moire
A moire pattern is an interference pattern
generated when two repetitive line patterns
overlap. This is not a malfunction. Eliminating the
repetitive line patterns, or aligning the two
patterns, will eliminate the moire.
•
Handling of the camera head and protection
cap.
Keep the camera head and protection cap away
from children as they may pose a choking
hazard. The protection cap protects the image
sensing plane when the lens is removed from the
camera head, do not discard.
When not using the camera for extended
periods of time.
Switch the control unit off and disconnect the
power supply.
•
•
Operating ambient temperature and humidity.
Do not use the camera in places where temperature and humidity exceed the specifications. Picture quality will deteriolate and internal parts may
be damaged.
•
Do not shoot intense light.
•
When cleaning the camera.
•
Installation without a tripod.
Avoid using or storing the camera in the following places:
Places filled with highly flammable gas.
Places near gasoline, benzene, or paint thinner.
Places subject to strong vibration.
Places containing chemicals (such as pesticides),
rubber or vinyl products for extended periods of
time.
Unplug the power source before cleaning. Clean
with a soft dry cloth only. Do not use chemicals or
chemically treated cloths. Chemicals may damage
coatings and printed letters. When cleaning the
lens, use lens cleaning paper.
Before installing the camera head, make sure
that the location can withstand the total weight of
the camera head.
If this is not the case, reinforce the area to
prevent the unit from dropping, which may result
in damage to the unit or personal injury.
2. COMPONENTS
1 Camera Control Unit ............................................................................................... 1
2 Accessories
a Instruction manual ........................................................................................ 1
6
121018c1_IK-HD2E_EN.indd 6
12.10.18 9:29:42 AM
3
ITEMS CONTROLLED BY THE ON SCREEN DISPLAY
Item
Item
Available
selections
Available selections
AUTO, MANUAL,
MANUAL, SS
SS
AUTO,
-100 – 0 –0 100 100
-100
10– 05 05
0510 : 00
10 00
00 : 10
00
: 05 –
11 – 1010– 2020
PRESETA,
A,PRESET
PRESETB,
B,PRESET
PRESETC,
C,PRESET D,
PRESET
PRESET E,
D,USER
PRESET E
PRESET
(USER
area is1/125s,
possible1/250s,
to set in
64 zones)
OFF, 1/100s,
1/500s,
1/1000s,
1/3000s,
1/5000s,
1/10000s,
1/50000s
OFF,
1/100s,
1/125s,
1/250s, 1/30000s,
1/500s, 1/1000s,
MANUAL speed
1/3000s,
1/5000s,560/1125H
1/10000s, 1/30000s, 1/50000s
Syncro. scan
OFF, 1/1125H
Syncro.
OFF,
1/1125H
– 560/1125H
MODE scan
AUTO,
MANUAL,
OFF
MODE
AUTO,
OFF
AUTO maximum gain
0dB to MANUAL,
18dB
AUTO
maximum
0dB
MANUAL
gain gain
0dB to
to 18dB
18dB
MANUAL
0dB
to ATW,
18dB MANUAL
MODE gain
AWB,
MODE
AWB,
ATW,
MANUAL
Color temperature
3200K,
5600K
Color
3200K,
5600K
-10
0
10
AWB temperature
R PAINT
AWB
-10
-10 – 0 –0 10 10
AWBRBPAINT
PAINT
AWB
PAINT
-10
– 0 – 10
AWBBarea
PRESET
A, PRESET B, PRESET C,
PRESET
PRESETA,
D,PRESET
PRESETB,
E PRESET C, PRESET D,
AWB
PRESET
-10
0 E, USER
10
ATW area
R PAINT
(USER
area
possible to set in 64 zones)
-10
0 is10
ATW B PAINT
ATW R PAINT
-10 – 0 – 10
-100
0
100
MANUAL R GAIN
ATW B PAINT
-10 – 0 – 10
-100
0
100
MANUAL B GAIN
MANUAL R GAIN
-100 – 0 – 100
Gamma correction
ON, OFF
MANUAL B GAIN
-100 – 0 – 100
Gamma correction level
-10
0
10
Gamma correction
ON, OFF
-7(OFF)
0
7
Detail gain
Gamma correction level
-10 – 0 – 10
-100
0
100
Master pedestal
Black gamma correction level LOW, NORMAL, HIGH
Digital noise reduction(DNR) ON, OFF
Detail gain
-7(OFF) – 0 – 7
Correction ON/OFF
ON, OFF
Master pedestal
-200 – 0 – 200
-15
0
15
R hue
Red pedestal
-100 – 0 – 100
-15
0
15
R gain
Blue pedestal
-100 – 0 – 100
-15
0
15
G
hue
Digital noise reduction (DNR) ON, OFF
-15 OFF0
15
G gain
Correction
ON/OFF
ON,
-15 – 0 –0 15 15
hue
RB hue
-15
-15 – 0 –0 15 15
gain
RB gain
-15
-15 – 0 –0 15 15
Yehue
hue
G
-15
-15 – 0 –0 15 15
Yegain
gain
G
-15
-15 – 0 –0 15 15
hue
BCy
hue
-15
-15 – 0 –0 15 15
BCy
gain
-15
gain
Ye
-15
-15 – 0 –0 15 15
Mghue
hue
Ye
-15
Mggain
gain
-15 – 0 –0 15 15
hue H phase adjustment -15
-650– 0 –015 650
Ext. Cy
Sync
Cy gain
-15
0 – 15
OUTPUT
Y/P–
b /Pr , RGB
Mg hue
-15
– 0MANUAL,
– 15
Shading
correction mode
SET,
OFF
Mg shading
gain
-15
15 127
Manual
correction
-128– 0 – 0
Ext.
– 0ON,
– 650
RGBSync
SYNCH phase adjustment -650
G, ALL
ALL OFF
OUTPUT
Y/Pb/Pr,
RS232C baud rate
9600bps,RGB
19200bps
Shading
correction mode
SET,
MANUAL,
OFF
OSD OUTPUT
ALL ON,
Analog,
Digital
Manual shading correction
-128 – 0 – 127
RGB SYNC
G, ALL ON, ALL OFF
Detail signal output
ON, OFF
RS232C baud rate
9600bps, 19200bps
OSD OUTPUT
ALL ON, Analog, Digital
Electronic
shutter
Electronic
shutter
MODE
MODE
AUTOlevel
level
AUTO
AUTOpeak/average
peak/average
AUTO
AUTOresponse
responsespeed
speed
AUTO
AUTO area
AUTO area
MANUAL speed
Presetvalue
value
Preset
(Factorysetting)
setting)
(Factory
MANUAL
MANUAL
00
0505: 0505
1010
PRESET A
PRESET A
OFF
Gain
Gain
White
balance
White
balance
OFF
OFF
OFF
OFF
OFF
18dB
18dB
0dB
0dB
AWB
AWB
3200K
3200K
0
00
0
PRESET
A
Matrix color correction
Matrix color correction
PRESET
0 A
0
0
0
0
0
0
ON
0
0
ON
0
0
0
NORMAL
OFF
0
ON
0
0
0
00
0
OFF
ON0
00
00
00
00
00
00
00
00
00
0 b /Pr
Y/P
0
OFF
00
0G
Y/Pb/Pr
9600bps
OFFON
ALL
0
G
OFF
9600bps
ALL ON
7
121018c1_IK-HD2E_EN.indd 7
12.10.18 9:29:42 AM
4. NAMES AND FUNCTIONS
FILE button
DISP button
POWER switch
MENU UP
(SHD) button
POWER LED
DATA UP
(AWB) button
Camera cable
for “IK-HD1H”
terminal
DATA DOWN
(ABB) button
GAIN button
[Front]
MENU DOWN
(SHD) button
PAGE button
PB/B terminal
PR/R terminal
Y/G terminal
KEY LOCK switch
DC IN 12V terminal
1
2
4
3
FORMAT switch
HD-SDI terminal
1 2 3 4 5
6 7 8 9
SYNC OUT terminal
REMOTE terminal
[Rear]
䐖 Camera cable for
“IK-HD1H” terminal
Where the camera cable for “IK-HD1H” is connected.
䐗 POWER LED
Illuminates to indicate the unit is powered on.
䐘 POWER switch
Turns power on or off.
䐙 FILE button
To switch the scene files.
䐚 GAIN button
To change the gain mode.
䐛 DISP button
Changes the display mode.
EXT. SYNC terminal
䐜 PAGE button
To switch and select menus.
䐝 MENU UP䟺SHD䟻button
To select the function to be confirmed or changed on the menu.
(Also used when performing auto shading correction.)
䐞 MENU DOWN(SHD) button To select and confirm the function or to change the menu.
䐟 DATA UP䟺AWB䟻button
To change the value of the function selected by the MENU (UP/DOWN) button.
(Also used when performing an AWB.)
䐠 DATA DOWN
䟺ABB䟻button
To change the value of the function selected by the MENU (UP/DOWN) button.
(Also used when performing an ABB.)
8
121018c1_IK-HD2E_EN.indd 8
12.10.18 9:29:43 AM
䐡 DC IN 12V terminal
Accept a DC power input (12V).
䐢 Y/G terminal
Outputs Y or G. (BNC connector)
䐣 PB/B terminal
Outputs PB or B. (BNC connector)
䐤 PR/R terminal
Outputs PR or R. (BNC connector)
䐥 REMOTE terminal
To connect to a RS-232C device for remote control function.
䐦 EXT. SYNC terminal
Used when the camera output signal is synchronized to an external signal.
(BNC connector)
䐧 SYNC OUT terminal
Output terminal for synchronization signal. (BNC connector)
䐨 HD-SDI terminal
Video signal output terminal for HD-SDI format video signal. (BNC connector)
䐩 KEY LOCK switch
Enables/disables buttons 䐙 to 䐠.
FORMAT switch
5
Switches between 59.94i and 50i.
CONNECTION
5
1 Standard Connection
5. 1 -1 Analog Connection
Lens
(option)
Camera Cable
for IK-HD2E
䟺option䟻
IK-HD2E
Y/PB/PR
Camera
Control unit
IK-HD1H
䟺option䟻
DC IN 12V
DC power supply
(option)
5. 1 -2 Digital Connection
Lens
(option)
Three Coaxial
Cables 75䂿
(option)
Camera Cable
for IK-HD2E
䟺option䟻
IK-HD2E
HD-SDI
Camera
Control unit
IK-HD1H
䟺option䟻
HD monitor
analog TV (option)
One Coaxial
Cable 75䂿
(option)
DC IN 12V
DC power supply
(option)
HD monitor
digital TV (option)
* Please use a low conductor resistance cable for HD-SDI terminal.
9
121018c1_IK-HD2E_EN.indd 9
12.10.18 9:29:43 AM
5
2 Caution on Connection
䝿 Only use optional camera head model # IK-HD1H with this camera controller.
The use of another head may cause damage to the control unit and camera head.
䝿 When connecting the camera cables, be sure to turn off the camera control unit and
any other equipment connected to it.
䝿 For DC power supply connecting to DC IN 12V terminal, use UL listed and/or CSA
approved ungrounded type AC adaptor with the specifications described below.
Power supply voltage
䠌 12V DC 㼳10%
Current rating
䠌 More than 1.5A
Ripple voltage
䠌 Less than 50mV (p-p)
䠌 HR10A-7P-4S by HIROSE electronics Co. Ltd
Connector
Pins 1, 2 䠌 12V
Pins 3, 4 䠌 GND
䝿 If the securing screw on the connector of the camera cable loosens, noise may appear
on the screen. Be sure to tighten the connector completely.
5
3 Connection on Back Panel
Back panel view
1
2
4
3
1 2 3 4 5
6 7 8 9
5
4 A Connector Pin Assignments
DC IN 12V
1
2
3
4
+12V
+12V
GND
GND
121018c1_IK-HD2E_EN.indd 10
REMOTE
1
2
3
4
5
6
7
8
9
NC
TXD
RXD
NC
GND
NC
NC
NC
NC
10
12.10.18 9:29:44 AM
6
OPERATION
A camera head "IK-HD1H" needs to be connected to this camera control unit from this section on.
䐖 Refer to the item “5. CONNECTION”, connect the equipment correctly.
䐗 Turn on the connected equipment and the camera.
䐘 When using the camera for the first time and when replacing the camera cable and the camera head, be
sure to perform the ABB adjustment, refer to the item “6.1 Automatic Black Balance”.
䐙 Aim the lens at the object, adjust the lens iris adjustment, focus adjustment, etc.
䐚 Refer to the item “6.2 White Balance”, make the adjustment.
䐛 Refer to the items “6.3 Scene File, 6.4 Gain, 7. MODE SETTING BY THE ON SCREEN DISPLAY”,
select the necessary items.
䐜 When switching the FORMAT switch on the back panel of the unit, be sure to perform the ABB adjustment,
refer to the item “6.1 Automatic Black Balance”.
6
1 Automatic Black Balance
Black balance adjustment is necessary to get the correct black picture level.
䝿 Close the lens iris.
䝿 If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the
[DISP] button to disable the color bar pattern or the character display.
䝿 Hold the [DATA DOWN] button for approx. 1 second.
䝿 When the black balance adjustment operation starts, the character ABB blinks on the screen.
䝿 When the black balance adjustment operation finishes, the character ABB stops blinking and the result
appears for approx. 1 second.
Display
ABB OK
Meaning
Automatic black balance adjustment finished correctly.
ABB NG
Automatic black balance adjustment cannot be performed because the lens iris
CLOSE LENS
is open. Close the lens iris.
ABB NG
Automatic black balance adjustment cannot be performed.
Operate the automatic black balance again.
11
121018c1_IK-HD2E_EN.indd 11
12.10.18 9:29:44 AM
6
2 White Balance
For white balance adjustment of this unit, ATW (Automatic Tracking White balance), AWB (Automatic
White Balance) and MANUAL (Manual white balance) adjustments are provided. Refer to the items “7.2
(3) WHT BAL (White Balance), 7. MODE SETTING BY THE ON SCREEN DISPLAY”, select the desired
mode.
Outline
Features
Notes
ATW
䟺 Automatic Tracking
White Balance䟻
䟻
The camera measures the
object color temperature and
adjusts the white balance
automatically.
AWB
䟺 Automatic White Balance䟻
䟻
Adjust white balance by
displaying the white object
inside the area set by AWB
menu and pressing the
[DATA UP] button.
MANUAL
䟺 Manual White Balance䟻
䟻
Adjust the white balance
manually using the WHT
BAL menu while shooting
the white object.
Tracks variations of color
Measurement accuracy is
temperature and adjusts white higher than ATW. This
balance automatically.
mode is effective when
shooting under less variations of color temperature.
Artificial white balance setting.
The manual adjustment is
most effective under shooting
conditions with no color
temperature variation.
If illumination is low, white
balance may not be corrected.
Adjustment is performed by
confirming with a vector
scope.
䐖 AWB(Automatic White Balance)
䝿 Set the MODE to AWB on the WHT BAL menu.
Perform the C.TEMP (color temperature conversion) setting, if necessary.
(Refer to the item “7.2 (3) WHT BAL (White Balance)”.)
3200K䠌Appropriate for indoor shooting.
5600K䠌Appropriate for outdoor shooting.
䝿 If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the [DISP]
button to disable the color bar pattern or the character display on the menu.
䝿 Shoot a known white object entirely in the area set by the AWB menu (refer to the item “7.2 (3) (3.1) (d)
Confirming the contents of the zone area selected by AWB” ) and push [DATA UP] button for approx. 1 second.
䝿 The character AWB blinks on the screen when the AWB starts.
䝿 The character AWB stops blinking when the AWB finishes, and the result is displayed for approx. 1 second.
12
121018c1_IK-HD2E_EN.indd 12
12.10.18 9:29:44 AM
Display
Meaning
AWB OK
Automatic white balance adjustment finished correctly.
AWB NG
Automatic white balance adjustment cannot be performed because the video level is
too low.
Adjust the video level by increasing the illumination or opening the lens iris.
LEVEL LOW
AWB NG
LEVEL HIGH
AWB NG
C. TEMP LOW
Automatic white balance adjustment cannot be performed because the video level is
too high.
Adjust the video level by decreasing the illumination or closing the lens iris.
Automatic white balance adjustment cannot be performed because the color
temperature is too low.
If the C.TEMP is set to 5600K, set to 3200K.
If the message appears with the C.TEMP set to 3200K, change the illumination or
use a color temperature conversion filter.
AWB NG
C. TEMP HIGH
Automatic white balance adjustment cannot be performed because the color
temperature is too high.
If the C.TEMP is set to 3200K, set to 5600K.
If the message appears with the C.TEMP set to 5600K, change the illumination or
use the color temperature conversion filter.
AWB NG
Automatic white balance adjustment cannot be performed for other reasons. Such as
no white area is included in an object, etc.
䐗 MANUAL(Manual white balance)
䝿 Set the MODE to MANUAL on the WHT BAL menu.
(Refer to the item “7.2 (3) WHT BAL (White Balance)”.)
䝿 Shoot a known white object, set the white balance by adjusting the levels of R GAIN and B GAIN on the
menu, confirming with a monitor or a vector scope.
(Refer to the item “7.2 (3) (3.3) Changing gain in MANUAL mode”.)
13
121018c1_IK-HD2E_EN.indd 13
12.10.18 9:29:45 AM
6
3 Scene File
Five scene files (A, B, C, D, E) are available as user memories for this unit. These are chosen depending
on shooting conditions. By using the [FILE] button, the camera operation is changed immediately from the
currently selected Scene File to the next. (Refer to the item “7. MODE SETTING BY THE ON SCREEN
DISPLAY”.)
䝿 While any menu is displayed, pressing the [FILE] button will display the menu settings for the next Scene File:
FILE A 䊲 FILE B 䊲 FILE C 䊲 FILE D 䊲 FILE E
䝿 When the [FILE] button is pressed while the camera is in live image mode, the current scene file selection
at that time is displayed for approx. 3 seconds in the upper right corner of the screen. If the [FILE] button is
pressed again while the position is displayed, the scene file cycles as described above.
6
4 Gain
When the image is dark even if the lens iris is open, change the gain (video gain) to get the desired video level.
For gain adjustment of the unit, AUTO (Automatic gain control), MANUAL (Manual), OFF (0 dB) modes
are provided. Select the mode on the GAIN menu. (Refer to the item “7.2 (2) GAIN (Video gain)”.)
䐖 AUTO(Automatic gain control)
When the output is low, gain is automatically adjusted to a suitable video level.
The maximum value of gain is 18dB, and can be set from 0 to 18dB in 1dB steps. (Refer to the item
“7.2 (2) (2.1) Changing the maximum gain in AUTO (Automatic gain control) mode”.)
Video level (LEVEL), peak average value ratio (PEAK/AVE), and measurement light area (AREA) are linked
to the setting on the automatic shutter. (Refer to the item “7.2 (1) (1.1) Changing the setting in AUTO mode”.)
䐗 MANUAL(Manual gain)
Gain adjustment is performed on the GAIN menu. The adjustment range is from 0 to 18dB in 1dB steps.
(Refer to the item “7.2 (2) (2.2) Changing gain in MANUAL mode”.)
䐘 OFF
Gain is fixed at 0 dB.
Gain button
ձIf the [GAIN] button is pressed, the current gain setting is displayed for approx. 3 seconds.
GAIN menu : OFF → GAIN OFF
: AUTO → GAIN AUTO
: MANUAL㸨㸨dB → GAIN dB
“㸨㸨” shows the setting gain in MANUAL mode.
ղIf the [GAIN] button is pressed again while the current setting mode is displayed, the gain mode can be
changed.
GAIN of MAX GAIN in AUTO mode and MANUAL mode can not be changed.
OFF 䊲 AUTO 䊲 MANUAL
14
121018c1_IK-HD2E_EN.indd 14
12.10.18 9:29:45 AM
Note:
White, red, green, or blue dots may occur when the gain is increased. This is not a malfunction, just
certain characteristics of the CCD becoming more visible.
6
5 Shading Correction
Due to the lens used or the environmental condition, color shading may occur at the upper and lower edge
of the screen. If this happens, the shading correction function can be used to decrease the amount of color
shading. For shading correction of the unit, SET (Automatic shading correction), MANUAL (Manual shading
correction), and OFF (no shading correction) modes are provided. Select the mode on the OPTION menu.
(Refer to the item “7.2 (7) (7.2) Changing shading correction mode”.)
䐖 SET(Auto shading)
䡗 If the color bar pattern is displayed on the screen or if the index menu/menu is displayed, press the
[DISP] button to remove them from the screen.
䝿 Push the [MENU UP] button for approx. 1 second.
䝿 When the automatic shading correction operation starts, the character SHD blinks on the screen.
䝿 When the automatic shading correction operation terminates, the character SHD ends blinking and the
result is displayed for approx. 1 second.
Display
SHD OK
Meaning
Automatic shading correction operation finished correctly.
SHD OK
Automatic shading correction operation finished, however, the correction
LIMIT
necessary exceeds the camera’s range so the maximum possible value is applied.
SHD NG
Automatic shading correction cannot be performed because the video level is too
LEVEL LOW
low. Adjust the video level by increasing the illumination or opening the lens iris.
SHD NG
Automatic shading correction cannot be performed because the video level is too
LEVEL HIGH
high. Adjust the video level by decreasing the illumination or closing the lens iris.
䐗 MANUAL(Manual Shading)
Perform the correction amount setting on the OPTION menu, confirming with a monitor or a vector scope.
(Refer to the “7.2 (7) (7.3) Changing manual shading correction mode”.)
䐘 OFF
The status is no shading correction.
* Shading correction is only effective when the lens iris and zoom ratio is fixed. Use the unit with
SHADING OFF for variable lens conditions.
.
Note:
Before shading correction is performed, please shoot a known white object that fills the screen in
the proper video level and set the automatic white balance (AWB) .
15
121018c1_IK-HD2E_EN.indd 15
12.10.18 9:29:45 AM
7
MODE SETTING BY THE ON SCREEN DISPLAY
Various settings can be controlled on the unit by using the on screen menu displayed on the monitor. The
contents once set are memorized in the scene files (A, B, C, D, E) selected, so if the power turns off, it is
unnecessary to set again when using the unit next time. When the setting is performed, select the menu of
the item to be set.
7
1 Using the Menus
When the power turns on, the normal screen showing only the video signal appears. Change the output to
each screen (video signal output, color bar screen, Index menu, menus, and area menu) by using the [DISP],
[PAGE], [MENU UP], and [MENU DOWN] buttons.
* A menu is selected when pushing the [PAGE] button after moving the “䊲” on the screen by the [MENU
UP], [MENU DOWN] button while the Index menu is displayed.
POWER SW
ON
Video signal output
Color bar screen
DISP
DISP
Index menu
DISP
PAGE
DISP
PAGE
PAGE
Menus
PAGE
1.SHUTTER
AUTO
MANU
SS
2.GAIN
PAGE
AUTO
3.WHT BAL
PAGE
AWB
MANU
ATW
OFF
MANU
DISP
DATA
UP/DOWN
Area menu
4.PROCESS
PAGE
GAMMA
ON
5.MATRIX
PAGE
GAMMA
OFF
DISP
DATA
UP/DOWN
Area menu
A
A
B
B
C
C
D
D
E
E
USER
USER
ON
OFF
6.SYNC
PAGE
7.OPTION
PAGE
INT
Y/Pb /Pr
EXT.
RGB
The screen is changed to the area screen by
selecting AUTO in the 1.SHUTTER menu and
AWB in the 3.WHT BAL menu in the setting
screen For more details, refer to the item "7.2
Menus".
16
121018c1_IK-HD2E_EN.indd 16
12.10.18 9:29:46 AM
7
2 Menus
䝿 Select the menu to change the setting by referring to the item “7.1 Using the Menus”.
䝿 When the [MENU UP], [MENU DOWN] buttons are pushed, the “䊲” on the screen moves up and down.
Move the “䊲” to the item whose setting you wish to change.
1
SHUTTER䟺Electronic shutter䟻
The electronic shutter has four modes; AUTO, MANUAL, SS(Synchro. Scan).
Press the “Page” button to enter the Shutter Page. Use the “Data Up/Down” buttons to select the Shutter
Mode.
AUTO
MANUAL
SS
AUTO
䠌 The exposure time is controlled automatically to obtain the video level set.
MANUAL
䠌 It is possible to select the exposure time from eleven speed settings; OFF (1/60s), 1/100s,
1/125s, 1/250s, 1/500s, 1/1000s, 1/3000s, 1/5000s, 1/10000s, 1/30000s, 1/50000s.
Note:
When setting a rapid shutter speed, sensitivity degrades according to the speed.
When a discharging light such as fluorescent lamp, etc. is used for the illumination,
SS
the flicker may be large.
䠌 Shutter speed can be set by the horizontal scanning time (1H) unit.
17
121018c1_IK-HD2E_EN.indd 17
12.10.18 9:29:46 AM
䟺1䠀
䠀1䟻
䟻 Changing the setting in AUTO mode
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
Shutter mode
--
1
SHUTTER --
MODE
LEVEL
PEAK AVE
SPEED
AREA
AREA DISPLAY
AUTO, MANUAL, SS
Video level adjustment
<FILE A>
-100 to 100
Peak and average ratio adjustment
AUTO
0
05 05
10
PRESET A
OFF
00
10 to 10
00
Automatic shutter response speed adjustment 1 to 20
Automatic shutter area selection
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,
USER
Automatic shutter area display selection
< MODE = AUTO>
(a) Changing the video level in the automatic shutter mode
䐖 Move the “䊲” to LEVEL by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the video level by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP]㻃㻃㻃㻃㻃㻃㻃㻃The value increases by pushing
-100
The value decreases by pushing
0
100
㻃㻃㻃㻃 [DATA DOWN]
(b) Changing the automatic shutter detection (ratio between peak and average value)
䐖 Move the “䊲” to PEAK/AVE by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the ratio between peak and average value by pushing [DATA UP], [DATA DOWN] buttons.
(Peak䠌Average)
The peak value increases by pushing [DATA UP]
00䠌10
05䠌05
10䠌00
The peak value decreases by pushing 㻃㻃㻃㻃㻃㻃[DATA DOWN]
(c) Changing the automatic shutter response speed
䐖 Move the “䊲” to SPEED by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the response speed by pushing [DATA UP], [DATA DOWN] buttons.
[DATA UP] 㻃㻃㻃㻃㻃㻃㻃The response speed becomes faster by pushing
1
The response speed becomes slower by pushing
10
20
[DATA DOWN]
18
121018c1_IK-HD2E_EN.indd 18
12.10.18 9:29:46 AM
(d) Changing the automatic shutter zone area
䐖 Move the “䊲” to AREA by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the measurement light area by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
PRESET A
PRESET B
PRESET C
PRESET D
䠭DATA DOWN䠯
PRESET E
USER
The available picture area is shown by the shading correction on the screen that is parted in 64.
PRESET A
PRESET B
PRESET C
PRESET D
Custom
Selection
PRESET E
USER
(e) Confirming the contents of the measurement light area selected by the automatic shutter
䐖 Set the “䊲” to AREA DISP by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Area screen appears by pushing [DATA UP], [DATA DOWN] buttons.
When AREA is set to USER, the setting can be changed on the area menu. When changing the area,
refer to the item “7.2 (8) Setting USER area”.
䐘 Push the [DISP] button to return to the menu.
19
121018c1_IK-HD2E_EN.indd 19
12.10.18 9:29:47 AM
䟺1䠀
䠀2䟻
䟻 Changing the setting in MANUAL mode
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
Shutter mode
--
1
SHUTTER --
MODE
MANUAL
<FILE A>
AUTO, MANUAL, SS
Shutter speed setting
OFF, 1/100s, 1/125s, 1/250s, 1/500s, 1/1000s,
1/3000s, 1/5000s, 1/10000s, 1/30000s, 1/50000s
MANUAL
1 10000s
< MODE = MANUAL>
(a) Changing the shutter speed
䐖 Move the “䊲” to MANU by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.
OFF
1/100s
1/125s
䠭DATA UP䠯
1/500s 1/1000s
1/250s
1/3000s
1/5000s
1/10000s
1/30000s
1/50000s
䠭DATA DOWN䠯
䟺1䠀
䠀3䟻
䟻 Changing the setting in SS (Synchro. Scan) mode
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
Shutter mode
--
1
SHUTTER --
MODE
SYNCHRO SCAN
<FILE A>
AUTO, MANUAL, SS
Synchro. scan setting
1 1125H
560 1125H
SS
OFF
OFF
< MODE = SS >
(a) Changing the shutter speed setting
䐖 Move the “䊲” to SYNCHRO SCAN by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the shutter speed by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
1/1125H
560/1125H
OFF
䠭DATA DOWN䠯
20
121018c1_IK-HD2E_EN.indd 20
12.10.18 9:29:47 AM
2
GAIN (Video gain)
GAIN has three modes; AUTO, MANUAL, OFF.
Move the “䊲 ” to MODE, push the [DATA UP], [DATA DOWN], and select one of the three modes :
AUTO, MANUAL, OFF. In the OFF mode, gain is fixed to 0dB.
䟺2䠀
䠀1䟻
䟻 Changing maximum gain in AUTO (Automatic gain control) mode
Move up and down
by pushing
MENU UP,DOWN
--
2
GAIN
Select the desired
value by pushing
DATA UP,DOWN
--
MODE
MAX GAIN
<FILE A>
Gain mode
AUTO
10dB
AUTO, MANUAL, OFF
Automatic maximum gain setting
0dB to 18dB (1dB step)
䐖 Move the “䊲” to MAX GAIN by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of automatic maximum gain by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
0dB
18dB
䠭DATA DOWN䠯
䟺 2䠀
䠀2䟻
䟻 Changing gain in MANUAL mode
Move up and down
by pushing
MENU UP,DOWN
--
2
GAIN
Select the desired
value by pushing
DATA UP,DOWN
--
MODE
MANUAL
<FILE A>
Gain mode
MANUAL
0dB
AUTO, MANUAL, OFF
Manual gain setting
0dB to 18dB (1dB step)
䐖 Move the “䊲” to MANUAL by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of manual gain by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
0dB
18dB
䠭DATA DOWN䠯
21
121018c1_IK-HD2E_EN.indd 21
12.10.18 9:29:48 AM
䟺3䟻
䟻 WHT BAL(White Balance)
The WHT BAL has three modes; AWB, ATW, MANUAL.
Move the “ 䊲” to MODE, push the [DATA UP], [DATA DOWN], and select one of the three modes :
AWB, ATW, MANUAL.
䟺 3䠀
䠀1䟻
䟻 Changing the setting in AWB(Automatic White Balance) mode
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
White balance mode setting
--
3
WHT BAL --
MODE
R PAINT
B PAINT
C TEMP
AREA
AREA DISPLAY
AWB, ATW, MANUAL
R PAINT adjustment
-10 to 10
B PAINT adjustment
-10 to 10
<FILE A>
AWB
0
0
3200K
PRESET A
OFF
Color temperature setting
3200K, 5600K
AWB area selection
PRESET A, PRESET B, PRESET C, PRESET D, PRESET E,
USER
AWB area display selection
(a) Changing color temperature setting
䐖 Move the “䊲” to C.TEMP by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either 3200K or 5600K by pushing [DATA UP], [DATA DOWN] buttons.
(b) Changing R PAINT
䐖 Move the “䊲” to R PAINT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red paint by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Red is decreased.
Red is increased.
0
10
䠭DATA DOWN䠯
(c) Changing B PAINT
䐖 Move the “䊲” to B PAINT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue paint by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Blue is decreased.
Blue is increased.
0
10
䠭DATA DOWN䠯
(d) Changing the contents of the zone area selected by AWB
䐖 Move the “䊲” to AREA DISP by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired area by pushing [DATA UP], [DATA DOWN] buttons.
22
121018c1_IK-HD2E_EN.indd 22
12.10.18 9:29:48 AM
The available picture area is shown by the shading correction on the screen that is divided into
64 parts.
PRESET A
PRESET B
PRESET C
PRESET D
Custom
Selection
USER
PRESET E
(e) Confirming the contents of the zone area selected by AWB
䐖 Set the “䊲” to AREA DISP by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Area screen appears by pushing [DATA UP], [DATA DOWN] buttons.
When AREA is set to USER, the setting can be changed on the area menu. When changing the area,
refer to the item “7.2 (8) Setting USER area”.
䐘 Push the [DISP] button to return to the menu.
䟺3䠀
䠀2䟻
䟻 Changing the setting in ATW(Automatic Tracking White balance) mode
Move up and down
by pushing
MENU UP,DOWN
--
3
Select the desired
value by pushing
DATA UP,DOWN
WHT BAL --
MODE
R PAINT
B PAINT
<FILE A>
ATW
0
0
White balance mode
AWB, ATW, MANUAL
R PAINT adjustment
-10 to 10
B PAINT adjustment
-10 to 10
(a) Changing R PAINT
䐖 Move the “䊲” to R PAINT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red paint by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Red is decreased.
Red is increased.
0
10
䠭DATA DOWN䠯
23
121018c1_IK-HD2E_EN.indd 23
12.10.18 9:29:48 AM
(b) Changing B PAINT
䐖 Move the “䊲” to B PAINT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue paint by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
Blue is decreased.
Blue is increased.
0
䟿10
10
䠭DATA DOWN䠯
䟺3䠀
䠀3䟻
䟻 Changing gain in MANUAL mode
Move up and down
by pushing
MENU UP,DOWN
--
3
Select the desired
value by pushing
DATA UP,DOWN
WHT BAL --
MODE
R GAIN
B GAIN
C TEMP
<FILE A>
MANUAL
0
0
3200k
White balance mode
AWB, ATW, MANUAL
Red gain adjustment
-100 to 100
Blue gain adjustment
-100 to 100
Color temperature setting
3200K, 5600K
(1) Changing the red gain
䐖 Move the “䊲” to R GAIN by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of red gain by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Red is decreased.
Red is increased.
0
10
䠭DATA DOWN䠯
(2) Changing the blue gain
䐖 Move the “䊲” to B GAIN by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of blue gain by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Blue is decreased.
Blue is increased.
0
10
䠭DATA DOWN䠯
24
121018c1_IK-HD2E_EN.indd 24
12.10.18 9:29:49 AM
䟺4䟻
䟻 PROCESS
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
Gamma correction
--
4
PROCESS --
GAMMA ON/OFF
GAMMA
DTL GAIN
M PED
R PED
B PED
DNR
ON, OFF
Gamma correction level setting
<FILE A>
Detail gain setting
ON
0
0
0
0
0
OFF
-10 to 10
-7 to 7
Master pedestal setting
-200 to 200
Red pedestal setting
-100 to 100
Blue pedestal setting
-100 to 100
Digital noise reduction
ON,OFF
䟺4䠀
䠀1䟻
䟻 Changing gamma correction ON/OFF
䐖 Move the “䊲” to GAMMA ON/OFF by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
When ON is selected, menu will show the GAMMA and BLACK GAMMA selections. When OFF is selected,
GAMMA and BLACK GAMMA are not displayed. So the setting for GAMMA and BLACK GAMMA cannot be
made.
Move up and down
by pushing
MENU UP,DOWN
--
4
Select the desired
value by pushing
DATA UP,DOWN
PROCESS --
GAMMA ON/OFF
DTL GAIN
M PED
R PED
B PED
DNR
<FILE A>
OFF
0
0
0
0
OFF
Gamma correction
ON, OFF
Detail gain setting
-7 to 7
Master pedestal setting
-200 to 200
Red pedestal setting
-100 to 100
Blue pedestal setting
-100 to 100
Digital noise reduction
ON,OFF
Menu when GAMMA OFF is selected.
䟺4䠀
䠀2䟻
䟻 Changing gamma correction level
䐖 Move the “䊲” to GAMMA by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of gamma correction level by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿10
Correction amount becomes smaller.
0
Correction amount becomes larger.
10
䠭DATA DOWN䠯
* When OFF is selected in GAMMA ON/OFF selection line, the gamma correction level change cannot
be changed.
25
121018c1_IK-HD2E_EN.indd 25
12.10.18 9:29:49 AM
䟺4䠀
䠀3䟻
䟻 Changing black gamma correction level
䐖 Set the “→” to BLACK GAMMA by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select black gamma correction by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
LOW NORMAL HIGH
䠭DATA DOWN䠯
* When OFF is selected in GAMMA ON/OFF selection line, the display BLACK GAMMA turns off
automatically. So the black gamma correction level change cannot be changed.
䟺4䠀
䠀4䟻
䟻 Changing detail (outline) gain
䐖 Move the “䊲” to DTL GAIN by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of the detail gain by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿7
The detail decreases.
The detail increases.
0
7
䠭DATA DOWN䠯
䠄4䠊
䠊5䠅
䠅 Changing pedestal
(a) Changing master pedestal
䐟 Move the “䊻” to M. PED by pushing [MENU UP], [MENU DOWN] buttons.
䐠 Select the desired value of the master pedestal by pushing [DATA UP], [DATA DOWN] buttons.
䠷DATA UP䠹
䠉200
M. PED decreases
M. PED rises
0
200
䠷DATA DOWN䠹
(b) Changing R. PED (red pedestal)
䐟 Move the “䊻” to R. PED by pushing [MENU UP], [MENU DOWN] buttons.
䐠 Select the desired value of red pedestal by pushing [DATA UP], [DATA DOWN] buttons.
䠷DATA UP䠹
䠉100
R. PED decreases
R. PED rises
0
100
䠷DATA DOWN䠹
(c) Changing B. PED (blue pedestal)
䐟 Move the “䊻” to B. PED by pushing [MENU UP], [MENU DOWN] buttons.
䐠 Select the desired value of blue pedestal by pushing [DATA UP], [DATA DOWN] buttons.
䠷DATA UP䠹
䠉100
B. PED decreases
B. PED rises
0
100
䠷DATA DOWN䠹
䠄4䠊
䠊6䠅
䠅 Changing DNR (Digital Noise Reduction)
䐟 Move the “䊻” to DNR by pushing [MENU UP], [MENU DOWN] buttons.
䐠 Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
Note:
When DNR is set to ON, noise is reduced, but shooting a fast moving object may affect the
video clarity.
26
121018c1_IK-HD2E_EN.indd 26
12.10.18 9:29:49 AM
䟺5䟻
䟻 MATRIX(Matrix color correction)
Move up and down
by pushing
MENU UP,DOWN
Red hue setting
--
5
MATRIX --
Red gain setting
MATRIX
ON
Green hue setting
R
R
G
G
B
B
0
0
0
0
0
0
Green gain setting
Blue hue setting
Blue gain setting
Select the desired
value by pushing
DATA UP,DOWN
HUE
GAIN
HUE
GAIN
HUE
GAIN
<FILE A>
Matrix color correction
ON, OFF
Yellow hue setting
Yellow gain setting
Ye
Ye
Cy
Cy
Mg
Mg
HUE
GAIN
HUE
GAIN
HUE
GAIN
0
0
0
0
0
0
Cyan hue setting
Cyan gain setting
Magenta hue setting
Magenta gain setting
䟺5䠀
䠀1䟻
䟻 Changing Matrix color correction ON/OFF
䐖 Move the “䊲” to MATRIX by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ON or OFF by pushing [DATA UP], [DATA DOWN] buttons.
䟺5䠀
䠀2䟻
䟻 Changing MATRIX setting
䐖 Move the “䊲” to the desired item by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of color by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿15
0
15
䠭DATA DOWN䠯
* When matrix color correction is set to OFF, the color cannot be adjusted.
27
121018c1_IK-HD2E_EN.indd 27
12.10.18 9:29:50 AM
䟺6䟻
䟻 SYNC
When an external sync signal is input, the display changes from INT (internal sync) to EXT.(external sync)
automatically.
INT
EXT
䟺6䠀
䠀1䟻
䟻 INT screen
--
6
SYNC --
MODE
<FILE A>
INT
䟺6䠀
䠀2䟻
䟻 Changing EXT. setting
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
Sync system display
--
6
SYNC --
MODE
H PHASE
<FILE A>
H PHASE
-650 to 650
EXT
0
(a) Adjusting horizontal phase
䐖 Move the “䊲” to H PHASE by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of horizontal phase by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿650
0
650
䠭DATA DOWN䠯
* If the phase difference is big, keep pressing [DATA UP]/[DATA DOWN] button for a while.
This will make the setting change by increments of ten.
28
121018c1_IK-HD2E_EN.indd 28
12.10.18 9:29:50 AM
䟺7䟻
䟻 OPTION
Move up and down
by pushing
MENU UP,DOWN
Select the desired
value by pushing
DATA UP,DOWN
OUTPUT
--
7
OPTION
--
<FILE A>
OUTPUT
Y/Pb/Pr
SHADING
DTL OUT
BAUD RATE
OSD OUTPUT
OFF
OFF
9600bps
ALL ON
Y/Pb/Pr, RGB
SHADING MODE
SET, MANUAL, OFF
Detail signal output ON, OFF
RS232C baud rate
OSD OUTPUT
9600bps, 19200bps
ALL ON, Analog, Digital
䟺7䠀
䠀1䟻
䟻 Changing OUTPUT mode
䐖 Move the “䊲” to OUTPUT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either Y/Pb/Pr or RGB by pushing [DATA UP], [DATA DOWN] buttons.
䟺 7䠀
䠀2䟻
䟻 Changing shading correction mode
䐖 Move the “䊲” to SHADING by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select SET, MANUAL or OFF by pushing [DATA UP], [DATA DOWN] buttons.
䟺7䠀
䠀3䟻
䟻 Changing manual shading correction mode
䐖 Move the “䊲” to MANUAL by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select the desired value of manual shading correction by pushing [DATA UP], [DATA DOWN] buttons.
䠭DATA UP䠯
䟿128
0
127
䠭DATA DOWN䠯
* When the shading correction mode is set to anything other than MANUAL, the display turns off, and
the setting cannot be adjusted.
29
121018c1_IK-HD2E_EN.indd 29
12.10.18 9:29:50 AM
Move up and down
by pushing
MENU UP,DOWN
--
7
OPTION
Select the desired
value by pushing
DATA UP,DOWN
--
OUTPUT
<FILE A>
OUTPUT
RGB
RGB SYNC
SHADING
DTL OUT
BAUD RATE
OSD OUTPUT
G
OFF
OFF
9600bps
ALL ON
Y/Pb/Pr, RGB
RGB SYNC
G, ALL ON, ALL OFF
SHADING MANUAL Setting
䟿128 to 127
Detail signal output ON, OFF
RS232C baud rate
OSD OUTPUT
9600bps, 19200bps
ALL ON, Analog, Digital
䟺7䠀
䠀4䟻
䟻 Changing RGB SYNC
䐖 Move the “䊲” to RGB SYNC by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select G, ALL ON or ALL OFF by pushing [DATA UP], [DATA DOWN] buttons.
* When Y/Pb/Pr is selected at OUTPUT, RGB SYNC change cannot be adjusted.
䟺7䠀
䠀5䟻
䟻 Changing detail signal output
䐖 Set the “䊲” to DTL OUT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ON (detail signal only is output) or OFF (video signal) by pushing [DATA UP],
[DATA DOWN] buttons.
䟺7䠀
䠀6䟻
䟻 Changing RS232C baud rate
䐖 Move the “䊲” to BAUD RATE by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either 9600bps or 19200bps by pushing [DATA UP], [DATA DOWN] buttons.
䟺7䠀
䠀7䟻
䟻 Changing OSD OUTPUT mode
䐖 Move the"→" to OSD OUTPUT by pushing [MENU UP], [MENU DOWN] buttons.
䐗 Select either ALL ON, Analog, or Digital by pushing [DATA UP], [DATA DOWN] buttons.
㻃㻃䟼㻃ALL ON can be performed in both analog and digital modes.
If Analog is selected, it outputs only for analog.
If Digital is selected, it outputs only for digital.
Please select a mode depending on the type of the monitor display that is connected.
If the incorrect mode is selected, there maybe no video on the display monitor.
In that case, please cycle the power, and refer to section “7.2 (8) Returning to factory settings” to reset
the camera so an image may be displayed on the monitor.
30
121018c1_IK-HD2E_EN.indd 30
12.10.18 9:29:51 AM
䠄8䠅
䠅 Setting USER area
䡡 When USER is selected for the AREA of the automatic shutter or for AWB, the light measurement zones
can be changed.
䡡 The USER area is composed of 64 zones with 8 (vertical) x 8 (horizontal) areas, and each area can be set
to ON/OFF.
䐟 Set the output to area menu.
Set the output to the area menu by referring to the item “7.2 (1.1) (e) Confirming the contents of the
measurement light area selected by automatic shutter” and “7.2 (3.1) (e) Confirming the contents of the
measurement light area selected by AWB”.
㻯㼡㼞㼟㼛㼞(blinking)
䐠 Move the 㼏㼡㼞㼟㼛㼞(blinking) to the zone to be appeared.
The display 㼏㼡㼞㼟㼛㼞(blinking) moves up, down, right and left by pushing [MENU UP], [MENU DOWN],
[DATA UP], [DATA DOWN] buttons.
Move to up
[MENU UP]
Move to left
[DATA DOWN]
[DATA UP]
Move to right
[MENU DOWN]
Move to down
䐡 Select ON/OFF for the zone.
Select ON (effective) or OFF (ineffective) by pushing [PAGE] button.
When ON is selected, the display “□” appears on the screen and when OFF is selected, “□” turns off.
䐢 Push [DISP] button to return to the menu.
Note:
When OFF is selected for all 64 zones, the automatic shutter function and AWB function are not
performed correctly. So do not select OFF for all.
31
121018c1_IK-HD2E_EN.indd 31
12.10.18 9:29:51 AM
䟺9䟻
䟻 Returning to factory settings
The contents set of each scene file can be returned to the factory default status (preset status).
(1) Select a scene file to set to the factory default status by pressing the [FILE] button.
(2) If the color bar pattern or characters are displayed on the screen, press the [DISP] button to disable the
color bar pattern and character display.
(3) Push [MENU DOWN] and [DATA DOWN] buttons simultaneously for approx. 1 second.
(4) The preset operation starts. When the preset operation finishes, the character PRESET OK is displayed
for approx. 1 second.
7
3 External Sync
When using the unit with an external sync signal to EXT. SYNC terminal on the rear panel.
When the external sync signal is input, the camera automatically switches its sync from the internal sync to
the external sync.
EXT. SYNC input
Operation
SYNC
External sync with SYNC
䟺1䟻
䟻 External sync signal input conditions
SYNC 䟺75䂿 unbalanced䟻 䠌 0.6 V (p-p) standard
2
External sync frequency range
(59.94 Hz Setting)
H : 33.716 䠽Hz 㼳 35 ppm
V : 59.94 Hz 㼳 35 ppm
(50 Hz Setting)
H : 28.125 䠽Hz 㼳 35 ppm
V : 50 Hz 㼳 35 ppm
3
Using the unit with external sync signal
Adjust H (Horizontal) phase if necessary to match the output of multiple cameras.
When adjusting H (Horizontal) phase, refer to the item “7.2 (6) SYNC”.
3. 1
H (Horizontal) phase adjustment
External
Sync. signal
Observe the external sync signal and the video signal output
waveform of the unit with a dual trace oscilloscope, and adjust
H phase so that the H phases match.
Match
the phase.
Camera
Sync. output
7
4 Synchro. Scan Operation
The shutter speed can be set by the horizontal scanning period (1H).
1
Setting by 1H
1/1125H to 560/1125H stands for the setting by the 1H and the shutter speed can be set by the 1H.
32
121018c1_IK-HD2E_EN.indd 32
12.10.18 9:29:52 AM
8. BEFORE MAKING SERVICE CALL
Symptom
No picture
Items to be checked
䡗 Is power supplied correctly?
䡗 Is the power switch on, and the power LED illuminated?
䡗 Is the lens iris adjusted correctly?
䡗 Are the camera and video cables connected correctly?
䡗 Is the shutter mode set correctly?
䡗 Is the monitor on, and in working condition?
Poor color
䡗 Is the monitor adjusted correctly?
䡗 Is the white balance of the camera adjusted correctly?
(in modes other than automatic tracking)
䡗 Is the matrix color correction set correctly?
䡗 Is the illumination sufficient?
Noise appears
䡗 Is the camera cable connected securely?
33
121018c1_IK-HD2E_EN.indd 33
12.10.18 9:29:52 AM
9. SPECIFICATIONS
* These conditions are only satisfied when the camera control unit is connected to camera head model # IK-HD1H.
Power supply
Power consumption
Image-acquisition method
Image sensor
Output pixels
Scanning system
Scan frequency
Sync system
Horizontal resolution
Vertical resolution
Sensitivity
Minimum illumination
SN ratio
Ambient temperature
Ambient humidity
Weight
External dimension
Scene file(user memories)
White balance
Gain
Output signal
12V DC㼳10%
Approx. 10.3 W (Including a camera head, when the DC power supply is 12V)
RGB, 3CCD, Micro prism system
1/3 inch, IT䟿CCD
Horizontal : 1920, Vertical : 1080
2䠌1 interlace
[59.94 Hz setting] Horizontal : 33.716 kHz, Vertical : 59.94 Hz
[50 Hz setting]
Horizontal : 28.125 kHz, Vertical : 50 Hz
Internal/External (Automatic switching)
800TV lines standard
800TV lines standard
F6.8䟺59.94 Hz setting, 2000 lx, 3000 K䟻, F7.4䟺50 Hz setting, 2000 lx, 3000 K䟻
13 lx䟺59.94 Hz setting, F2.2, sensitivity䟽18 dB䟻,
11 lx䟺50 Hz setting, F2.2, sensitivity䟽18 dB䟻
56 dB standard (gain 0 dB, DNR OFF)
0 䉔 to 40 䉔 (32㼲F to 104 㼲F)
Less than 90% (non condensing)
Approx. 730 g (1.61 lbs)
110(W)㽙40(H)㽙186(D) mm
(4.33”(W)㽙1.57”(H)㽙7.32”(D))
(excluding protrusions)
5 files (A, B, C, D, E)
ATW䟺Automatic tracing white balance䟻, AWB䟺Automatic white balance䟻㻏
MANUAL䟺Manual䟻
AUTO䟺Automatic gain control䟻, MANUAL䟺Manual䟻, OFF䟺0 dB䟻
Y/PB /PR or RGB : 0.7 V (p-p) standard 75 䂿 unbalanced, BNC connector
HD-SDI (SMPTE 292M) : 0.8 V (p-p) standard 75 䂿 unbalanced, BNC connector
External sync input
HD SYNC 0.6 V (p-p) 75 䂿 unbalanced BNC connector
[59.94 Hz setting] Horizontal : 33.716 kHz 㼳35 ppm, Vertical : 59.94 Hz 㼳35 ppm
[50 Hz setting]
Horizontal : 28.125 kHz 㼳35 ppm, Vertical : 50 Hz 㼳35 ppm
Sync signal output
SYNC : 0.6 V 㼳 0.1 V 75 䂿 unbalanced BNC connector
[59.94 Hz setting] Horizontal : 33.716 kHz 㼳35 ppm, Vertical : 59.94 Hz 㼳35 ppm
[50 Hz setting]
Horizontal : 28.125 kHz 㼳35 ppm, Vertical : 50 Hz 㼳35 ppm
Interface
Optional parts
Serial data interface䟺RS-232C䟻
IK-HD1H 䟺1/3 inch 3CCD camera head䟻
EXC䟿HD03 (Approx. 3 m (118”) Camera cable)
EXC䟿HD06 (Approx. 6 m (236”) Camera cable)
EXC䟿HD10 (Approx. 10 m (394”) Camera cable)
EXC䟿HD30 (Approx. 30 m (1181”) Camera cable)
Design and specifications are subject to change without notice.
34
121018c1_IK-HD2E_EN.indd 34
12.10.18 9:29:53 AM
10. EXTERNAL APPEARANCE DIAGRAM
㻔㻔㻓㻃㻾㻗㻑㻖㻖㼀
Unit : mm [inch]
㻔㻛㻑㻛㻖
㻾㻓㻑㻚㻗㼀
㻗㻓㻃㻾㻔㻑㻘㻛㼀
㻗㻗㻑㻙㻃㻾㻔㻑㻚㻙㼀
㻔㻛㻙㻃㻾㻚㻑㻖㻕㼀
[Front]
[Rear]
㻙㻕㼳㻓㻑㻔㻃㻾㻕㻑㻗㻗㼳㻓㻑㻓㻓㻗㼀
㻗㻐㻰㻖㻃㻥㻧
㻔㻖㻜㼳㻓㻑㻔㻘㻃㻾㻘㻑㻗㻚㻕㼳㻓㻑㻓㻓㻙㼀
㻕㻚㻃㻾㻔㻑㻓㻙㼀
35
121018c1_IK-HD2E_EN.indd 35
12.10.18 9:29:53 AM
Memo
The
with
On
ISD
pur
per
Aut
AS
Ins
You
ser
cor
You
Thi
1. Y
2. Y
s
3.
4. Y
c
DIS
AL
ME
NO
LA
IF T
RE
CO
PU
DIR
OR
AR
AN
SO
FO
TH
WH
TH
AB
WR
AU
SE
CO
Ho
To
1.
2.
3.
o
4.
No
term
any
is h
app
an
You
TO
Ima
974
Co
36
121018c1_IK-HD2E_EN.indd 36
12.10.18 9:29:54 AM
Limited Warranty – TOSHIBA Camera Control Unit
The Imaging Systems Division of Toshiba America Information Systems, Inc. ("ISD") makes the following limited warranty
with regard to this Camera Control Unit ("Product"). These limited warranties apply to the Original End-User ("You").
One (1) Year Limited Warranty of Labor and Parts
ISD warrants that this Product will perform in accordance with specifications for a period of one (1) year from the date of
purchase by the Original End-User. During this one (1) year period, ISD will repair or replace the Product, if it does not
perform as warranted. In order to take advantage of this Limited Warranty, You must: (a) deliver the Product to an ISD
Authorized Service Provider ("ASP"); and (b) pay all transportation and insurance charges for shipment of the Product to the
ASP. ISD reserves the right to substitute factory refurbished parts in place of those in need of repair.
Instruction Manual (Owner’s Manual):
You should read the Instruction Manual (Owner’s Manual) thoroughly before operating this Product. Before seeking warranty
service, you should check the troubleshooting guide in the Instruction Manual (Owner’s Manual) and follow the instructions to
correct the problem.
Your Responsibilities
This Limited Warranty is subject to the following conditions:
1. You must provide the bill of sale or proof of purchase at the time that warranty service is required.
2. You must notify an ASP within thirty (30) days after You discover that the Product does not perform in accordance with
specifications during the Limited Warranty period.
3. All warranty servicing of this product must be made by an ISD Authorized Service Provider.
4. You must pack the Product in its original carton using the original packing material, then insert the original carton
containing the Product into another carton with additional packing material before shipping the Product to an ASP.
DISCLAIMERS:
ALL OTHER EXPRESS OR IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. SOME STATES DO
NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.
IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE AND EXCLUSIVE
REMEDY SHALL BE THE REPAIR OR REPLACEMENT OF THE PRODUCT. IN NO EVENT WILL ISD OR ITS PARENT
COMPANY OR ANY ASP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT. THIS LIMITATION APPLIES TO DAMAGES OF ANY KIND, INCLUDING ANY
DIRECT OR INDIRECT DAMAGES, LOST PROFITS, LOST SAVINGS OR OTHER SPECIAL, INCIDENTAL, EXEMPLARY
OR CONSEQUENTIAL DAMAGES, WHETHER FOR BREACH OF CONTRACT, TORT OR OTHERWISE, OR WHETHER
ARISING OUT OF THE USE OF OR INABILITY TO USE SUCH PRODUCT, EVEN IF ISD, ITS PARENT COMPANY, OR
AN ASP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR OF ANY CLAIM BY ANY OTHER PARTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES
FOR SOME PRODUCTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH MAY VARY FROM STATE TO STATE.
THIS LIMITED WARRANTY SHALL BE VOID IF THE PRODUCT OR PARTS HAVE BEEN SUBJECTED TO MISUSE,
ABUSE, ACCIDENT, IMPROPER INSTALLATION, IMPROPER MAINTENANCE, OR USE IN VIOLATION OF ISD’S
WRITTEN INSTRUCTIONS, OR WHERE THE PRODUCT HAS BEEN ALTERED OR MODIFIED WITHOUT ISD’S PRIOR
AUTHORIZATION, OR UPON THE REMOVAL OR ALTERATION OF ISD’S FACTORY SERIAL NUMBER. LABOR
SERVICE CHARGES FOR PRODUCT INSTALLATION, SET UP AND ADJUSTMENT OF CONTROLS ARE NOT
COVERED BY THIS LIMITED WARRANTY.
How to Obtain Warranty Service – Step-By-Step Procedures:
To obtain warranty service, You should:
1. Contact an ASP for warranty service within thirty (30) days after the Product fails to comply with specifications.
2. Arrange for shipment of the Product to an ASP.
3. Securely pack the Product as described above, insure the carton, and include a letter explaining the problem and a copy
of the bill of sale or proof of purchase.
4. Prepay all transportation and insurance costs.
Questions? If you have any questions, please check ISD’s Web Site for support and a current e-mail contact to where
you can send e-mails:
Web Site: http://www.toshibacameras.com/
No person, agent, distributor, dealer, authorized service provider, or company is authorized to change, modify, or extend the
terms of this Limited Warranty in any manner whatsoever. The time within which an action must be commenced to enforce
any obligation of ISD arising under this Limited Warranty or under any statute, or law of the United States or any state thereof,
is hereby limited to one (1) year from the date You discover or should have discovered the problem. This limitation does not
apply to implied warranties arising under state law. Some states do not permit limitation of the time within which You may bring
an action beyond the limits provided by state law, so the above provision may not apply to You. This Limited Warranty gives
You specific legal rights and You may also have other rights which vary from state to state.
TOSHIBA AMERICA INFORMATION SYSTEMS, INC.
Imaging Systems Division
9740 Irvine Boulevard, Irvine, CA 92618-1697
Copyright© 2012 Toshiba America, Inc. All rights reserved.
121018c1_IK-HD2E_EN.indd 37
12.10.18 9:29:55 AM
