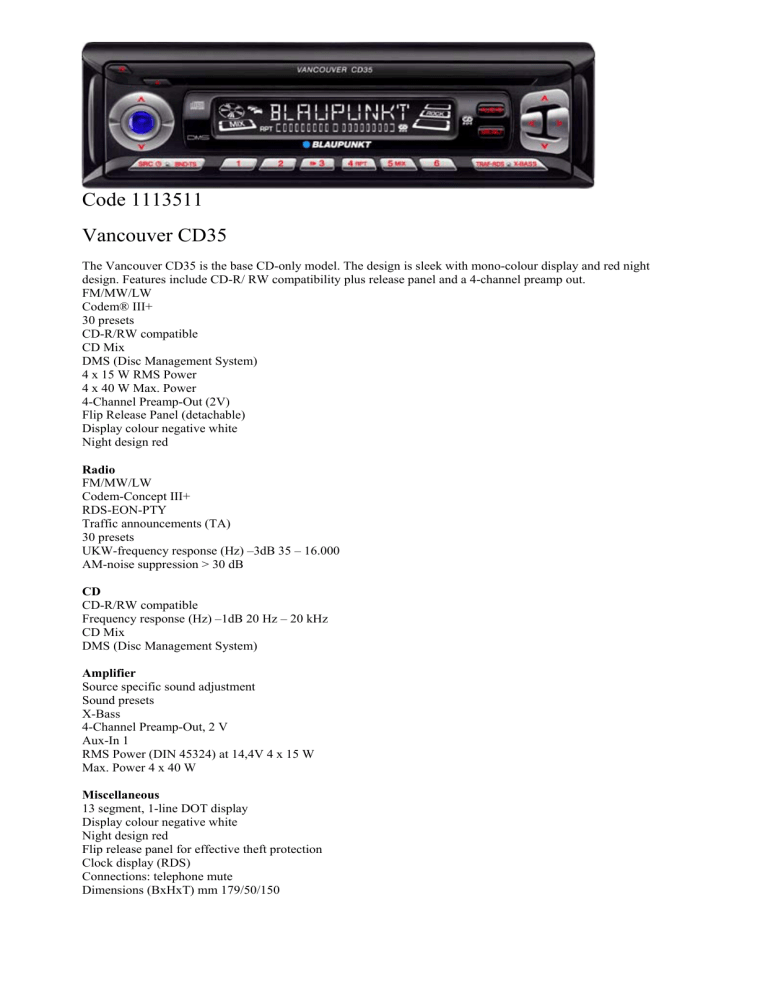

Code 1113511 Vancouver CD35

Code 1113511 Vancouver CD35
Code 1113511
Vancouver CD35
The Vancouver CD35 is the base CD-only model. The design is sleek with mono-colour display and red night
design. Features include CD-R/ RW compatibility plus release panel and a 4-channel preamp out.
FM/MW/LW
Codem® III+
30 presets
CD-R/RW compatible
CD Mix
DMS (Disc Management System)
4 x 15 W RMS Power
4 x 40 W Max. Power
4-Channel Preamp-Out (2V)
Flip Release Panel (detachable)
Display colour negative white
Night design red
Radio
FM/MW/LW
Codem-Concept III+
RDS-EON-PTY
Traffic announcements (TA)
30 presets
UKW-frequency response (Hz) –3dB 35 – 16.000
AM-noise suppression > 30 dB
CD
CD-R/RW compatible
Frequency response (Hz) –1dB 20 Hz – 20 kHz
CD Mix
DMS (Disc Management System)
Amplifier
Source specific sound adjustment
Sound presets
X-Bass
4-Channel Preamp-Out, 2 V
Aux-In 1
RMS Power (DIN 45324) at 14,4V 4 x 15 W
Max. Power 4 x 40 W
Miscellaneous
13 segment, 1-line DOT display
Display colour negative white
Night design red
Flip release panel for effective theft protection
Clock display (RDS)
Connections: telephone mute
Dimensions (BxHxT) mm 179/50/150
