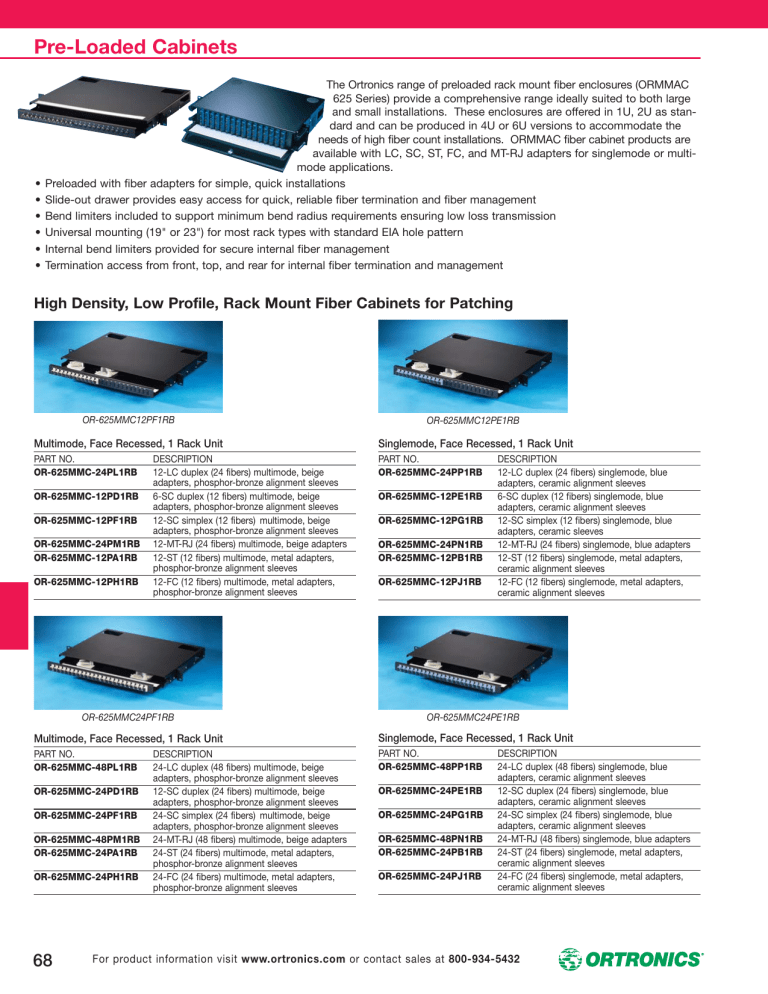

Pre-Loaded Cabinets
Pre-Loaded Cabinets
•
•
•
•
•
•
The Ortronics range of preloaded rack mount fiber enclosures (ORMMAC
625 Series) provide a comprehensive range ideally suited to both large
and small installations. These enclosures are offered in 1U, 2U as standard and can be produced in 4U or 6U versions to accommodate the
needs of high fiber count installations. ORMMAC fiber cabinet products are
available with LC, SC, ST, FC, and MT-RJ adapters for singlemode or multimode applications.
Preloaded with fiber adapters for simple, quick installations
Slide-out drawer provides easy access for quick, reliable fiber termination and fiber management
Bend limiters included to support minimum bend radius requirements ensuring low loss transmission
Universal mounting (19" or 23") for most rack types with standard EIA hole pattern
Internal bend limiters provided for secure internal fiber management
Termination access from front, top, and rear for internal fiber termination and management
High Density, Low Profile, Rack Mount Fiber Cabinets for Patching
OR-625MMC12PF1RB
OR-625MMC12PE1RB
Multimode, Face Recessed, 1 Rack Unit
Singlemode, Face Recessed, 1 Rack Unit
PART NO.
OR-625MMC-24PL1RB
PART NO.
OR-625MMC-24PP1RB
OR-625MMC-12PD1RB
OR-625MMC-12PF1RB
OR-625MMC-24PM1RB
OR-625MMC-12PA1RB
OR-625MMC-12PH1RB
DESCRIPTION
12-LC duplex (24 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
6-SC duplex (12 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
12-SC simplex (12 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
12-MT-RJ (24 fibers) multimode, beige adapters
12-ST (12 fibers) multimode, metal adapters,
phosphor-bronze alignment sleeves
12-FC (12 fibers) multimode, metal adapters,
phosphor-bronze alignment sleeves
OR-625MMC-12PE1RB
OR-625MMC-12PG1RB
OR-625MMC-24PN1RB
OR-625MMC-12PB1RB
OR-625MMC-12PJ1RB
DESCRIPTION
12-LC duplex (24 fibers) singlemode, blue
adapters, ceramic alignment sleeves
6-SC duplex (12 fibers) singlemode, blue
adapters, ceramic alignment sleeves
12-SC simplex (12 fibers) singlemode, blue
adapters, ceramic sleeves
12-MT-RJ (24 fibers) singlemode, blue adapters
12-ST (12 fibers) singlemode, metal adapters,
ceramic alignment sleeves
12-FC (12 fibers) singlemode, metal adapters,
ceramic alignment sleeves
OR-625MMC24PF1RB
OR-625MMC24PE1RB
Multimode, Face Recessed, 1 Rack Unit
Singlemode, Face Recessed, 1 Rack Unit
PART NO.
OR-625MMC-48PL1RB
PART NO.
OR-625MMC-48PP1RB
OR-625MMC-24PD1RB
OR-625MMC-24PF1RB
OR-625MMC-48PM1RB
OR-625MMC-24PA1RB
OR-625MMC-24PH1RB
68
DESCRIPTION
24-LC duplex (48 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
12-SC duplex (24 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
24-SC simplex (24 fibers) multimode, beige
adapters, phosphor-bronze alignment sleeves
24-MT-RJ (48 fibers) multimode, beige adapters
24-ST (24 fibers) multimode, metal adapters,
phosphor-bronze alignment sleeves
24-FC (24 fibers) multimode, metal adapters,
phosphor-bronze alignment sleeves
OR-625MMC-24PE1RB
OR-625MMC-24PG1RB
OR-625MMC-48PN1RB
OR-625MMC-24PB1RB
OR-625MMC-24PJ1RB
DESCRIPTION
24-LC duplex (48 fibers) singlemode, blue
adapters, ceramic alignment sleeves
12-SC duplex (24 fibers) singlemode, blue
adapters, ceramic alignment sleeves
24-SC simplex (24 fibers) singlemode, blue
adapters, ceramic alignment sleeves
24-MT-RJ (48 fibers) singlemode, blue adapters
24-ST (24 fibers) singlemode, metal adapters,
ceramic alignment sleeves
24-FC (24 fibers) singlemode, metal adapters,
ceramic alignment sleeves
For product information visit www.ortronics.com or contact sales at 800-934-5432
