Memory
160 MB (128 MB of Flash, 32 MB of SDRAM) standard,
designed to support up to 500 MB
Display
2.8", 240 x 320 pixel color TFT (QVGA)
Mag-stripe Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous and asynchronous
cards; EMV Level 1 and 2 Type Approval
Level 1
&
MV
PROVEN, POPULAR PLATFORM – EVOLVED FOR TODAY
• Runs on the advanced VX Evolution platform – powered by the timetested Verix operating system, with over eleven million Verix-based
devices sold
• Benefits from the broad network coverage for quick transactions
and faster loading of value-added applications
• Consistency and high usability ensure lower cost of ownership and
ease of use
UNPARALLELED FEATURES DELIVER NEXT-LEVEL PERFORMANCE
•A
vailable with VeriFone’s NFC software technology, enabling full
flexibility to manage multiple NFC mobile wallets, apps and programs.
All apps are fully insulated and firewalled from each other and existing
payment apps, ensuring complete security on payment transactions
while adding wallets, value-add offers, coupons and loyalty support
• Takes advantage of the industry’s fastest ARM11 processor to handle
encryption, decryption and processing at lightning speeds – moving
more transactions in the same time for greater profits
• Uniquely designed communication port area neatly connects cables
under the device for clean countertops
• Combines an ergonomic design, small footprint and unique cable
management system to optimize handover usage
REASSURING CONFIDENCE FROM FULL-SPECTRUM SECURITY
• EMV-ready with standard PCI PTS 3.0
• Provides end-to-end encryption with VeriShield Total Protect,
to maximize protection against fraud and misuse
SUPERIOR VALUE FROM EXTENDED-LIFE DESIGN
• Leverages VeriFone’s unmatched reputation for quality with
longer-life components to extend the field life of devices and
minimize repair frequency
• Metal dome keypad design delivers one of the most reliable keypads
in the POS industry, withstanding more than one million key presses
• Standard 15-key layout and 5-way navigation button
D
PP
2
E
COLOR

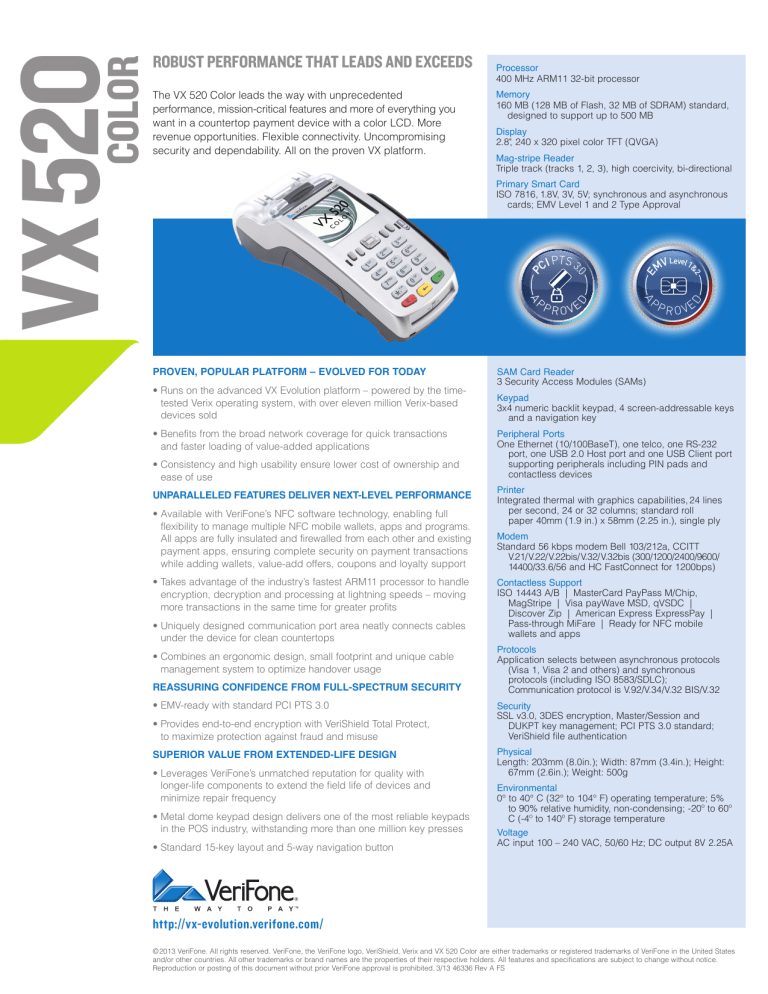

The VX 520 Color leads the way with unprecedented
performance, mission-critical features and more of everything you
want in a countertop payment device with a color LCD. More
revenue opportunities. Flexible connectivity. Uncompromising
security and dependability. All on the proven VX platform.
Processor
400 MHz ARM11 32-bit processor
A
VX 520
ROBUST PERFORMANCE THAT LEADS AND EXCEEDS
R O VE
SAM Card Reader
3 Security Access Modules (SAMs)
Keypad
3x4 numeric backlit keypad, 4 screen-addressable keys
and a navigation key
Peripheral Ports
One Ethernet (10/100BaseT), one telco, one RS-232
port, one USB 2.0 Host port and one USB Client port
supporting peripherals including PIN pads and
contactless devices
Printer
Integrated thermal with graphics capabilities, 24 lines
per second, 24 or 32 columns; standard roll
paper 40mm (1.9 in.) x 58mm (2.25 in.), single ply
Modem
Standard 56 kbps modem Bell 103/212a, CCITT
V.21/ V.22/ V.22bis/ V.32/ V.32bis (300/1200/2400/9600/
14400/33.6/56 and HC FastConnect for 1200bps)
Contactless Support
ISO 14443 A/B | MasterCard PayPass M/Chip,
MagStripe | Visa payWave MSD, qVSDC |
Discover Zip | American Express ExpressPay |
Pass-through MiFare | Ready for NFC mobile
wallets and apps
Protocols
Application selects between asynchronous protocols
(Visa 1, Visa 2 and others) and synchronous
protocols (including ISO 8583/SDLC);
Communication protocol is V.92/V.34/V.32 BIS/V.32
Security
SSL v3.0, 3DES encryption, Master/Session and
DUKPT key management; PCI PTS 3.0 standard;
VeriShield file authentication
Physical
Length: 203mm (8.0in.); Width: 87mm (3.4in.); Height:
67mm (2.6in.); Weight: 500g
Environmental
0° to 40° C (32° to 104° F) operating temperature; 5%
to 90% relative humidity, non-condensing; -20º to 60º
C (-4º to 140º F) storage temperature
Voltage
AC input 100 – 240 VAC, 50/60 Hz; DC output 8V 2.25A
http://vx-evolution.verifone.com/
© 2013 VeriFone. All rights reserved. VeriFone, the VeriFone logo, VeriShield, Verix and VX 520 Color are either trademarks or registered trademarks of VeriFone in the United States
and/or other countries. All other trademarks or brand names are the properties of their respective holders. All features and specifications are subject to change without notice.
Reproduction or posting of this document without prior VeriFone approval is prohibited. 3/13 46336 Rev A FS
