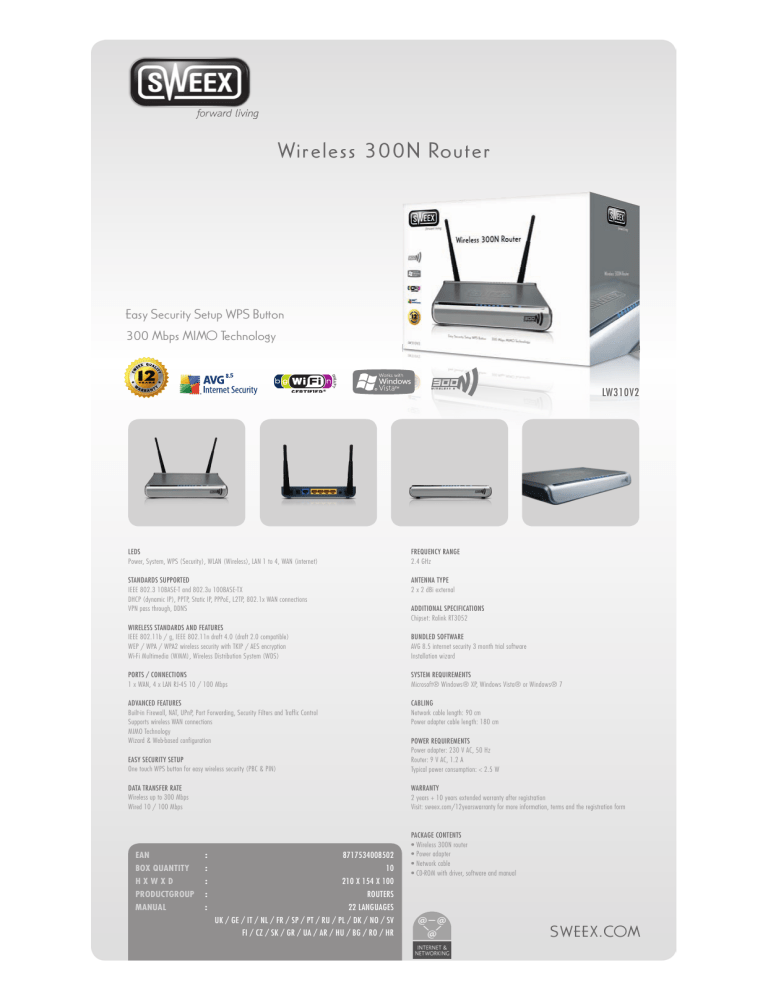

User manual | Wireless 300N Router

Wi r e l e s s 3 0 0 N Ro u t e r
Easy Security Setup WPS Button
300 Mbps MIMO Technology
5
LW310V2
LEDS
Power, System, WPS (Security), WLAN (Wireless), LAN 1 to 4, WAN (internet)
FREQUENCY RANGE
2.4 GHz
STANDARDS SUPPORTED
IEEE 802.3 10BASE-T and 802.3u 100BASE-TX
DHCP (dynamic IP), PPTP, Static IP, PPPoE, L2TP, 802.1x WAN connections
VPN pass through, DDNS
ANTENNA TYPE
2 x 2 dBi external
ADDITIONAL SPECIFICATIONS
Chipset: Ralink RT3052
WIRELESS STANDARDS AND FEATURES
IEEE 802.11b / g, IEEE 802.11n draft 4.0 (draft 2.0 compatible)
WEP / WPA / WPA2 wireless security with TKIP / AES encryption
Wi-Fi Multimedia (WMM), Wireless Distribution System (WDS)
BUNDLED SOFTWARE
AVG 8.5 internet security 3 month trial software
Installation wizard
PORTS / CONNECTIONS
1 x WAN, 4 x LAN RJ-45 10 / 100 Mbps
SYSTEM REQUIREMENTS
Microsoft® Windows® XP, Windows Vista® or Windows® 7
ADVANCED FEATURES
Built-in Firewall, NAT, UPnP, Port Forwarding, Security Filters and Traffic Control
Supports wireless WAN connections
MIMO Technology
Wizard & Web-based configuration
CABLING
Network cable length: 90 cm
Power adapter cable length: 180 cm
EASY SECURITY SETUP
One touch WPS button for easy wireless security (PBC & PIN)
POWER REQUIREMENTS
Power adapter: 230 V AC, 50 Hz
Router: 9 V AC, 1.2 A
Typical power consumption: < 2.5 W
DATA TRANSFER RATE
Wireless up to 300 Mbps
Wired 10 / 100 Mbps
WARRANTY
2 years + 10 years extended warranty after registration
Visit: sweex.com/12yearswarranty for more information, terms and the registration form
EAN
:
BOX QUANTITY
:
10
H X W X D
:
210 x 154 x 100
PRODUCTGROUP :
Manual
:
8717534008502
Package contents
• Wireless 300N router
• Power adapter
• Network cable
• CD-ROM with driver, software and manual
ROUTERS
22 LANGUAGES
UK / GE / IT / NL / FR / SP / PT / RU / PL / DK / NO / SV
FI / CZ / SK / GR / UA / AR / HU / BG / RO / HR
