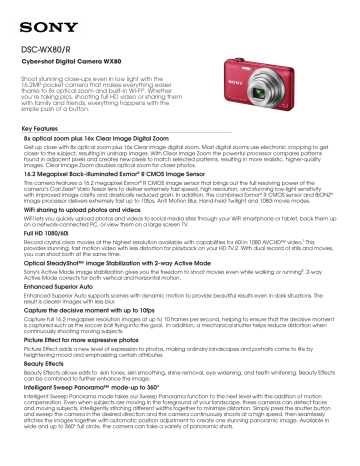

DSC-WX80/R
DSC-WX80/R
Cyber-shot Digital Camera WX80
Shoot stunning close-ups even in low light with the
16.2MP pocket camera that makes everything easier
thanks to 8x optical zoom and built-in Wi-Fi®. Whether
you’re taking pics, shooting full HD video or sharing them
with family and friends, everything happens with the
simple push of a button.
Key Features
8x optical zoom plus 16x Clear Image Digital Zoom
Get up close with 8x optical zoom plus 16x Clear Image digital zoom. Most digital zooms use electronic cropping to get
closer to the subject, resulting in unsharp images. With Clear Image Zoom the powerful processor compares patterns
found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality
images. Clear Image Zoom doubles optical zoom for closer photos.
16.2 Megapixel Back-illuminated Exmor® R CMOS Image Sensor
This camera features a 16.2 megapixel Exmor® R CMOS image sensor that brings out the full resolving power of the
camera’s Carl Zeiss® Vario Tessar lens to deliver extremely fast speed, high resolution, and stunning low-light sensitivity
with improved image clarity and drastically reduced grain. In addition, the combined Exmor® R CMOS sensor and BIONZ®
image processor delivers extremely fast up to 10fps, Anti Motion Blur, Hand-held Twilight and 1080i movie modes.
WiFi sharing to upload photos and videos
WiFi lets you quickly upload photos and videos to social media sites through your WiFi smartphone or tablet, back them up
on a network-connected PC, or view them on a large screen TV.
Full HD 1080/60i
Record crystal clear movies at the highest resolution available with capabilities for 60i in 1080 AVCHD™ video.¹ This
provides stunning, fast motion video with less distortion for playback on your HD TV.2 With dual record of stills and movies,
you can shoot both at the same time.
Optical SteadyShot™ image Stabilization with 2-way Active Mode
Sony's Active Mode image stabilization gives you the freedom to shoot movies even while walking or running³. 2-way
Active Mode corrects for both vertical and horizontal motion.
Enhanced Superior Auto
Enhanced Superior Auto supports scenes with dynamic motion to provide beautiful results even in dark situations. The
result is clearer images with less blur.
Capture the decisive moment with up to 10fps
Capture full 16.2 megapixel resolution images at up to 10 frames per second, helping to ensure that the decisive moment
is captured such as the soccer ball flying into the goal. In addition, a mechanical shutter helps reduce distortion when
continuously shooting moving subjects.
Picture Effect for more expressive photos
Picture Effect adds a new level of expression to photos, making ordinary landscapes and portraits come to life by
heightening mood and emphasizing certain attributes.
Beauty Effects
Beauty Effects allows edits to skin tones, skin smoothing, shine removal, eye widening, and teeth whitening. Beauty Effects
can be combined to further enhance the image.
Intelligent Sweep Panorama™ mode-up to 360°
Intelligent Sweep Panorama mode takes our Sweep Panorama function to the next level with the addition of motion
compensation. Even when subjects are moving in the foreground of your landscape, these cameras can detect faces
and moving subjects, intelligently stitching different widths together to minimize distortion. Simply press the shutter button
and sweep the camera in the desired direction and the camera continuously shoots at a high speed, then seamlessly
stitches the images together with automatic position adjustment to create one stunning panoramic image. Available in
wide and up to 360° full circle, the camera can take a variety of panoramic shots.
Specifications
Camera
Camera Type
Compact zoom digital camera
Imaging Sensor
Imaging Sensor
1/2.3” Exmor® R CMOS sensor
Processor
BIONZ®
Pixel Gross
16.8 MP
Effective Picture Resolution
16.2 MP
Color Filter System
RGB primary color filters
Recording
Media Type
optional “Memory Stick Duo” (No movie recording), optional “Memory Stick PRO
Duo” (Mark 2 only for movie recording), optional “Memory Stick PRO-HG Duo”,
optional SD Memory Card (Class 4 or higher), optional SDHC Memory Card (Class
4 or higher)
Still Image Max Effective Resolution
Approx. 16.2 Megapixels
Still Image Size 16:9
16:9 mode: 12M (4,608 x 2,592) / 2M (1,920 x 1,080)
Still Image Size 4:3
4:3 mode: 16M (4,608 x 3,456) / 10M (3,648 x 2,736) / 5M (2,592 x 1,944) / VGA
Panorama Still Image Size
Sweep Panorama: 360 (11,520 x 1,080) / HR (10,480x4,096) / Wide (7,152 x 1,080 /
4,912 x 1,920) / Standard (4,912 x 1,080 / 3,424 x 1,920)
Video Format
AVCHD Ver2.0 / MP4
Video Mode
AVCHD 60i: 24M FX / 17M FH (1,920x1,080/60i) / 9M HQ (1,440x1,080/60i), MP4: 12M
(1,440x1,080/30fps) / 6M (1,280x720/30fps) / 3M VGA (640x480/30fps)
Dual Record
Yes
Audio Format
AC3 (Stereo)
Microphone/Speaker
Stereo / Mono
Wind Noise Reduction
Off / On
Optics/Lens
Lens Type
Carl Zeiss® Vario-Tessar®
Aperture
iAuto (F3.3 / F8.0 (W), 2 steps with ND Filter) / Program Auto (F3.3 / F8.0 (W), 2 steps
with ND Filter)
Optical Zoom
8x
Digital Zoom
32
Focal Length (35mm equivalent)
Movie 4:3 34-272mm (SteadyShot Standard), 34-381mm (SteadyShot Active) / Still
16:9 28-224mm / Still Image 4:3 25-200mm / Movie 16:9 28-224mm (SteadyShot
Standard), 28-314mm (SteadyShot Active)
Lens Construction
8 elements in 7 groups (including 5 aspheric elements)
Minimum Focus Distance
iAuto: AF (W: Approx. 5cm (0.16') to Infinity, T: Approx. 150cm (4.92') to Infinity) /
Program Auto: AF (W: Approx. 5cm (0.16') to Infinity, T: Approx. 150cm (4.92') to
Infinity)
Steady Shot Mode:Active
Yes
LCD Display
LCD Type
2.7'' ClearPhoto™ LCD (230K dots)
Brightness Control
5 (Bright) / 4 / 3 / 2 / 1 (Dark)
Histogram
Yes (On/Off)
Grid Display
Yes (On/Off)
Focus Control
AF Modes
Multi Point AF /Center Weighted AF / Spot AF / Tracking Focus / Face Tracking
Focus
AF Illuminator
Auto / Off
Exposure System
Metering Modes
Multi Pattern / Center Weighted / Spot
Exposure Compensation
Plus / Minus 2.0EV, 1 / 3EV step
Scene Mode(s)
High Sensitivity / Soft snap / Soft Skin / Landscape / Night Portrait / Night Scene /
Handheld Twilight / Gourmet / Beach / Snow / Fireworks / Pet mode / Anti-motion
blur / Backlight Correction HDR
ISO
Auto / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400*4 / 12800*4
White Balance Mode
Auto / Daylight / Cloudy / Fluorescent 1 (White Fluorescent Lighting) / Fluorescent
2 (Natural White Fluorescent Lighting) / Fluorescent 3 (Day White Fluorescent
Lighting) / Incandescent / Flash / One Push, One Push Set
Drive System
Self-timer
Off / 10sec. / 2sec. / portrait1 / portrait2
Shutter Speeds
iAuto (4" - 1/1600) / Program Auto (1" - 1/1600)
Burst Mode
Approx. 10 fps at 16.2MP (for up to 10 shots)
Flash
Flash Modes
Auto / Flash On / Slow Synchro / Flash Off / Advanced Flash
Flash Coverage
ISO Auto: Approx. 0.2m to 4.2m (7 7/8 inches to 13feet 9 3/8 inches)(W) / Approx.
1.5m to 2.2 m (4feet 11 1/8 inches to 7feet 2 5/8 inches)(T), ISO3200: up to Approx.
5.9m (19feet 4 3/8 inches)(W) / Approx. 3.1m (10feet 2 1/8 inches)(T)
Convenience Features
Red-Eye Reduction
Auto / On / Off
Erase/Protect
Erase: Single / Select / Date / Folder / AVCHD Protect: Single / Select / Date /
Folder / AVCHD
Power Save Mode
Standard / Max / Off
Advanced Features
Sweep Panorama
Intelligent Sweep Panorama, Intelligent Sweep Panorama (360)
Face Detection
8 faces
Image Stabilization
Optical SteadyShot™ Image Stabilization with Active Mode
In-Camera Editing
Trimming / Unsharp Masking / Date view
Intelligent Auto
Yes
Shooting Tips
Yes
Wi-Fi
Yes
Background Defocus
Yes
Superior Auto
Yes
Tracking Focus
Off / Auto
Blink Detection
Yes
Priority Setting (for Face Detection)
Auto / Off / Child Priority / Adult Priority
Interface
Memory Card Slot
MS Duo and SD/SDHC/SDXC compatible
HD Output
Micro HDMI
USB Port(s)
Hi-Speed USB(USB2.0)
Weights and Measurements
Dimensions (Approx.)
W x H x D: 3 3/4" x 2 1/8" x 29/32" (92.3mm x 52.5mm x 22.5mm)
Weight (Approx.)
4.4oz. (124g)
Weight(Approx) (Main unit only)
3.8oz. (108g)
Power
Battery Type
LITHIUM ION NP-BN 3.6V
Battery Capacity
typical: 2.3Wh (630mAh), minimum: 2.2Wh (600mAh)
Power Consumption (in Operation)
Approx. 1.0W
Power Requirements
AC 100V to 240V, 50/60 Hz, 70mA
Accessories
Supplied Accessories
Battery (NP-BN)
AC Adaptor (ACUP10C)
Micro USB Cable
Wrist Strap
Instruction Manual
1. Records in 29 minute segments
2. Requires HDTV and HDMI cable sold separately
3. Combined with electronic stabilization
4. Achieved by using "By Pixel Super Resolution" technology and overlay burst shooting.
© 2013 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Cyber-shot, SteadyShot, Smile Shutter, Sweep Panorama, Super HAD and the Sony make.believe logo are trademarks of Sony. Microsoft, Windows, and
Windows Vista are trademarks of Microsoft Corporation. Mac is a trademark of Apple, Inc. All other trademarks are trademarks of their respective owners. Features and specifications subject to change without notice. / UPC:027242862432 / Updated: February 18, 2014
