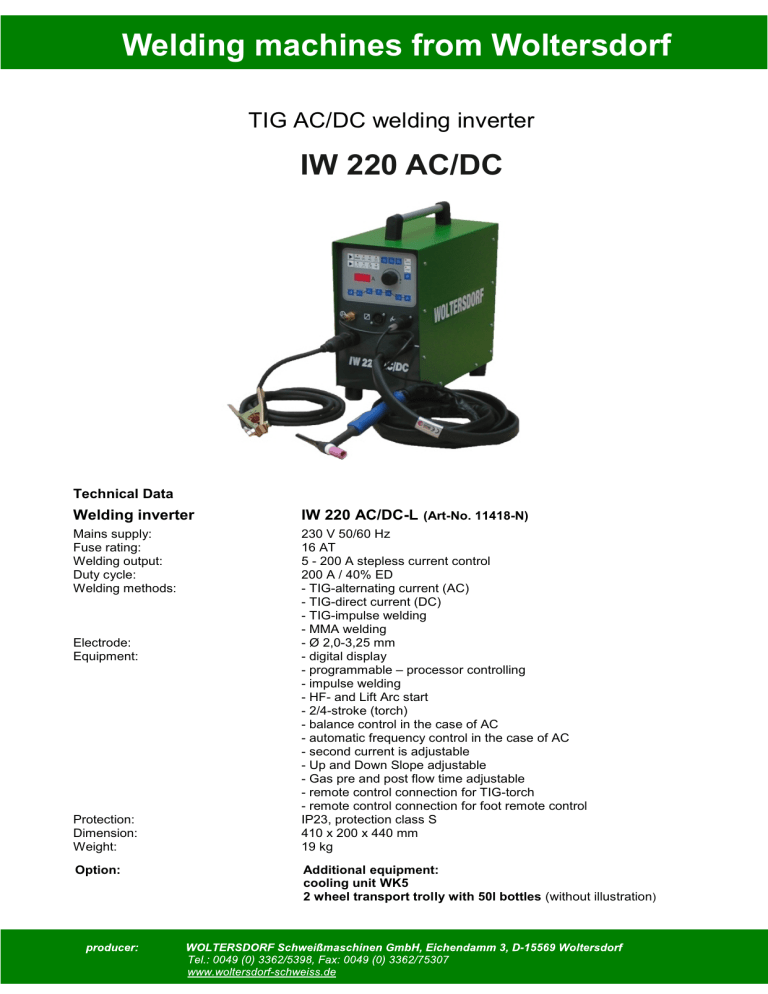

Welding machines from Woltersdorf
TIG AC/DC welding inverter
IW 220 AC/DC
Technical Data
Welding inverter
IW 220 AC/DC-L (Art-No. 11418-N)
Mains supply:
Fuse rating:
Welding output:
Duty cycle:
Welding methods:
230 V 50/60 Hz
16 AT
5 - 200 A stepless current control
200 A / 40% ED
- TIG-alternating current (AC)
- TIG-direct current (DC)
- TIG-impulse welding
- MMA welding
- Ø 2,0-3,25 mm
- digital display
- programmable – processor controlling
- impulse welding
- HF- and Lift Arc start
- 2/4-stroke (torch)
- balance control in the case of AC
- automatic frequency control in the case of AC
- second current is adjustable
- Up and Down Slope adjustable
- Gas pre and post flow time adjustable
- remote control connection for TIG-torch
- remote control connection for foot remote control
IP23, protection class S
410 x 200 x 440 mm
19 kg
Additional equipment:
cooling unit WK5
2 wheel transport trolly with 50l bottles (without illustration)
