Media overview
R
Media overview

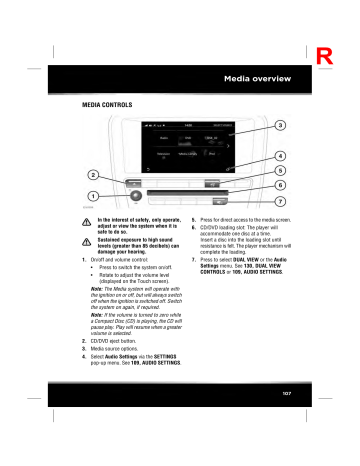

MEDIA CONTROLS
In the interest of safety, only operate,
adjust or view the system when it is
safe to do so.
Sustained exposure to high sound
levels (greater than 85 decibels) can
damage your hearing.
1. On/off and volume control:
•
Press to switch the system on/off.
•
Rotate to adjust the volume level
(displayed on the Touch screen).
5. Press for direct access to the media screen.
6. CD/DVD loading slot: The player will
accommodate one disc at a time.
Insert a disc into the loading slot until
resistance is felt. The player mechanism will
complete the loading.
7. Press to select DUAL VIEW or the Audio
Settings menu. See 130, DUAL VIEW
CONTROLS or 109, AUDIO SETTINGS.
Note: The Media system will operate with
the ignition on or off, but will always switch
off when the ignition is switched off. Switch
the system on again, if required.
Note: If the volume is turned to zero while
a Compact Disc (CD) is playing, the CD will
pause play. Play will resume when a greater
volume is selected.
2. CD/DVD eject button.
3. Media source options.
4. Select Audio Settings via the SETTINGS
pop-up menu. See 109, AUDIO SETTINGS.
107
L
Media overview
REAR MEDIA CONTROL FROM THE TOUCH SCREEN
Touch Rear Media on the media screen, to
select the REAR MEDIA control screen.
AUDIO STEERING WHEEL CONTROLS
1. Touch to select the rear media source.
2. Touch to switch the left-side rear screen
on/off.
3. Touch to switch the right-side rear screen
on/off.
4. Touch to access the Rear Media Settings
via the SETTINGS pop-up menu.
5. Touch to lock or unlock the remote control.
6. Touch to listen to the selected media via the
cabin's audio.
7. Forward/Skip for the selected screen.
8. Play/Pause for the selected screen (if
applicable to the source selected).
9. Rewind/Skip for the selected screen.
Note: When the main REAR MEDIA control
screen is displayed on the Touch screen, the
remote control will be locked out.
108
1. MODE: Short press to scroll through all of
the media sources.
2. Press to increase the volume for any
source.
3. Press to decrease the volume for any
source.
4. Seek up:
Short press:
R
Media overview
•
To select the next radio favourite.
•
To select the next track on the chosen
media source - CD, MP3, etc.
•
When the phone is in use, press to
scroll up lists of calls or contact entries.
•
Touch + or - to adjust the Bass, Treble or
Subwoofer levels. Alternatively, touch the
slider bar and drag or touch anywhere on
the bar and release.
To adjust balance and fade:
•
To select the next TV channel on the
channel list or the next video/DVD
chapter.
Long press:
•
To auto-seek up the frequency to the
next radio station.
•
To fast forward the current playing
track, video or chapter.
5. Seek down:
Short press:
•
To select the previous radio favourite.
•
To select the previous track or start of
the current track on the chosen media
source - CD, MP3, etc.
•
When the phone is in use, press to
scroll down lists of calls or contact
entries.
•
To select the previous TV channel on
the channel list or the previous
video/DVD chapter.
Long press:
•
To auto-seek down the frequency to the
next radio station.
•
To rewind the current playing track,
video or chapter.
Touch the arrows to move the sound focal point
to the desired area of the vehicle. Alternatively,
touch the sound focal point and drag it to the
required position or touch anywhere on the
vehicle graphic and release.
To adjust surround sound settings:
•
If Meridian Surround or Meridian
Reference is available, touch Meridian,
Dolby Pro Logic IIx or DTS Neo:6 to select
Surround sound. Select Stereo to switch
Surround sound off.
Note: Surround sound options are not available
for certain sources where the surround sound
mode is set automatically.
LOADING DISCS
AUDIO SETTINGS
To view, touch the Settings icon from any
screen and then Audio Settings via the
SETTINGS pop-up menu.
To adjust the sound settings:
To prevent CD mechanism damage, do
not insert any object other than a
CD/DVD into the disc slot. Objects, such
as coins, tickets and cards, will cause a
mechanism error and permanent
damage to the device.
Do not force the disc into the slot.
109
L
Media overview
Do not use irregular shaped CDs or
DVDs, and those with a scratch
protection film or self-adhesive label
attached.
Do not use mini-sized CDs, even with an
adaptor.
Recordable (CD-R) discs and re-writable
(CD-RW) discs may not function
correctly.
Recordable (DVD-R or DVD+R) discs
may not function correctly.
Dual-format and dual-sided discs (DVD
Plus, CD-DVD format) are thicker than
normal CDs and so playback cannot be
guaranteed and jamming may occur.
Only use an approved CD cleaning kit.
Only use high quality 12 cm circular discs.
The player will accommodate one CD or DVD
disc at a time.
When a CD is loaded, the ripping media option
is available. Select Media Settings, via the
SETTINGS pop-up menu.
CONVERSATION ASSIST
Conversation assist uses the vehicle's audio
system and the front and rear microphones to
enhance the conversation over the vehicle's
interior noise.
The Conversation assist controls are located in
the VOLUME SETTINGS screen.
Select All Settings via the SETTINGS pop-up
menu, and then Features. Next select Media,
followed by Volume Settings. See 106, SYSTEM
SETTINGS.
Conversation assist offers 3 options:
•
Off: Touch to switch the system off.
•
Normal: Touch to select normal volume.
•
High: Touch to select high volume.
110
When active, front passenger voices are
reproduced through the rear speakers and rear
passengers voices are reproduced through the
front speakers. The system is disabled when at
a standstill and progressively increases with
vehicle speed and background noise.
Note: The system is disabled when at a
standstill, during phone calls, or at higher
volumes, for example, when loud music is
playing.
GRACENOTE® END USER LICENSING
AGREEMENT
Gracenote Terms of Use
This application or device contains software
from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote
(the “Gracenote Software”) enables this
application to do disc or file identification and
obtain music-related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
embedded databases (collectively, “Gracenote
Servers”) and to perform other functions. You
may use Gracenote Data only by means of the
intended End-User functions of this application
or device.
This application or device may contain content
belonging to Gracenote’s providers. If so, all of
the restrictions set forth herein with respect to
Gracenote Data shall also apply to such content
and such content providers shall be entitled to
all of the benefits and protections set forth
herein that are available to Gracenote.
R
Media overview
You agree that you will use Gracenote Data, the
Gracenote Software, and Gracenote Servers for
your own personal non-commercial use only.
You agree not to assign, copy, transfer or
transmit the Gracenote Software or any
Gracenote Data to any third party. YOU AGREE
NOT TO USE OR EXPLOIT GRACENOTE DATA,
THE GRACENOTE SOFTWARE, OR GRACENOTE
SERVERS, EXCEPT AS EXPRESSLY PERMITTED
HEREIN.
You agree that your non-exclusive licence to
use the Gracenote Data, the Gracenote Software,
and Gracenote Servers will terminate if you
violate these restrictions. If your licence
terminates, you agree to cease any and all use
of the Gracenote Data, the Gracenote Software,
and Gracenote Servers. Gracenote reserves all
rights in Gracenote Data, the Gracenote
Software, and the Gracenote Servers, including
all ownership rights. Under no circumstances
will Gracenote become liable for any payment
to you for any information that you provide. You
agree that Gracenote may enforce its rights
under this Agreement against you directly in its
own name.
The Gracenote service uses a unique identifier
to track queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier is to allow the Gracenote service to
count queries without knowing anything about
who you are. For more information, see the web
page for the Gracenote Privacy Policy for the
Gracenote service.
The Gracenote Software and each item of
Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or
warranties, express or implied, regarding the
accuracy of any Gracenote Data from the
Gracenote Servers. Gracenote reserves the right
to delete data from the Gracenote Servers or to
change data categories for any cause that
Gracenote deems sufficient. No warranty is
made that the Gracenote Software or Gracenote
Servers are error-free or that functioning of
Gracenote Software or Gracenote Servers will
be uninterrupted. Gracenote is not obligated to
provide you with new enhanced or additional
data types or categories that Gracenote may
provide in the future and is free to discontinue
its services at any time.
GRACENOTE DISCLAIMS ALL WARRANTIES
EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE DOES NOT
WARRANT THE RESULTS THAT WILL BE
OBTAINED BY YOUR USE OF THE GRACENOTE
SOFTWARE OR ANY GRACENOTE SERVER. IN
NO CASE WILL GRACENOTE BE LIABLE FOR
ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS OR
LOST REVENUES.
© 2013. Gracenote, Inc. All Rights Reserved.
111
L
Media overview
LICENSING
Manufactured under licence, under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks, & DTS
2.0+ Digital Out and the DTS logos are
trademarks of DTS, Inc. Product includes
software. © DTS, Inc. All Rights Reserved.
Manufactured under licence from Dolby
Laboratories.
Dolby, Pro Logic, and the double-D symbol are
registered trademarks of Dolby Laboratories.
Manufactured under licence, under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535; 7,003,467 & other U.S.
and worldwide patents issued & pending. DTS,
the Symbol, and Neo:6 are registered
trademarks, & DTS Digital Surround and the
DTS logos are trademarks of DTS, Inc. Product
includes software. © DTS, Inc. All Rights
Reserved.
112
Music and video recognition technology and
related data are provided by Gracenote®.
Gracenote is the industry standard in music
recognition technology and related content
delivery. For more information, please visit
www.gracenote.com.
R
Media overview
CD, DVD, Blu-ray Disc, and music and
video-related data from Gracenote, Inc.,
copyright © 2000 to present Gracenote.
Gracenote Software, copyright © 2000 to
present Gracenote. One or more patents owned
by Gracenote apply to this product and service.
See the Gracenote website for a non-exhaustive
list of applicable Gracenote patents. Gracenote,
CDDB, MusicID, MediaVOCS, the Gracenote
logo and logotype, and the "Powered by
Gracenote" logo are either registered trademarks
or trademarks of Gracenote in the United States
and/or other countries.
113
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
