QuickSpecs

QuickSpecs

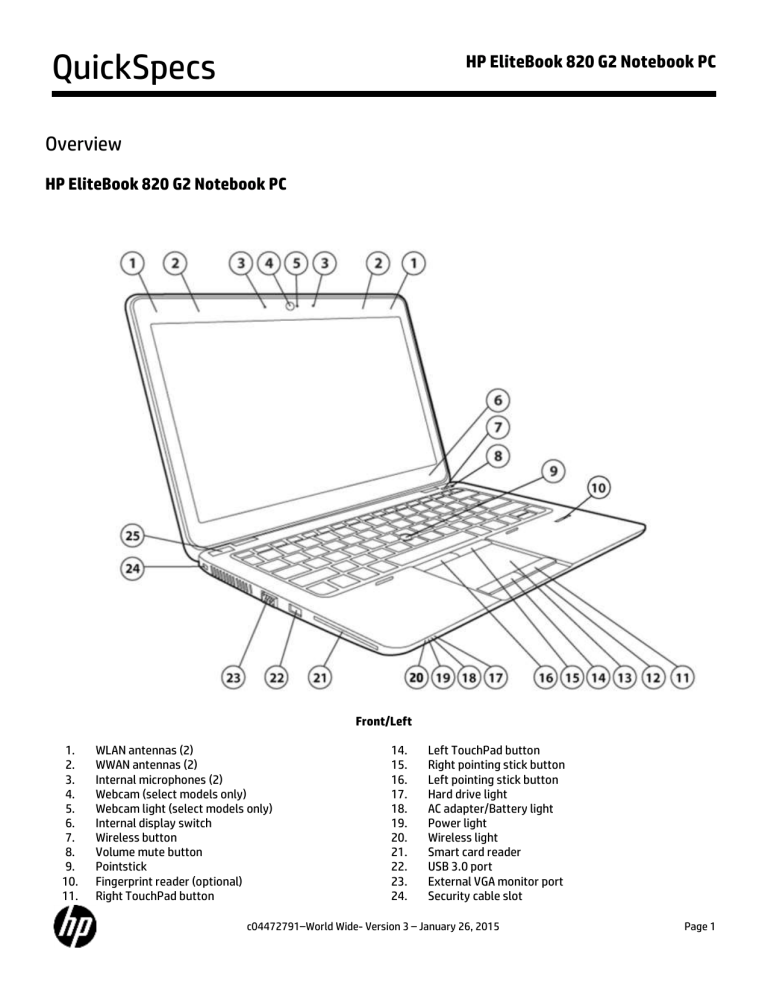

Overview

HP EliteBook 820 G2 Notebook PC

HP EliteBook 820 G2 Notebook PC

1. WLAN antennas (2)

2. WWAN antennas (2)

3. Internal microphones (2)

4. Webcam (select models only)

5. Webcam light (select models only)

6. Internal display switch

7. Wireless button

8. Volume mute button

9. Pointstick

10. Fingerprint reader (optional)

11. Right TouchPad button

Front/Left

14. Left TouchPad button

15. Right pointing stick button

16. Left pointing stick button

17. Hard drive light

18. AC adapter/Battery light

19. Power light

20. Wireless light

21. Smart card reader

22. USB 3.0 port

23. External VGA monitor port

24. Security cable slot c04472791–World Wide- Version 3 – January 26, 2015 Page 1

QuickSpecs

12 NFC sensor (optional)

13. TouchPad zone

HP EliteBook 820 G2 Notebook PC

25. Power button

Right

1. Audio-out (headphone) jack/Audio-in(microphone) jack 5. Drop-jaw Ethernet port (RJ-45)

2. DisplayPort

3. USB 3.0 ports (2)

6.

7.

Docking port

Power connector

4. Memory card reader c04472791–World Wide- Version 3 – January 26, 2015 Page 2

QuickSpecs

HP EliteBook 820 G2 Notebook PC

1. EasyAccess panel

2. EasyAccess panel release latch

3. Security screw

Bottom

4. Vents (2)

5. SIM slot (inside the panel)* c04472791–World Wide- Version 3 – January 26, 2015 Page 3

QuickSpecs

A

T A

G

LANCE

HP EliteBook 820 G2 Notebook PC

Windows 8.1 , Windows 7 , Ubuntu Linux or FreeDOS 2.0

Magnesium chassis, HP DuraFinish, HP DisplaySafe frame, HP duraKeys, precision aluminum drop hinge, aluminum palm rest

4-step Soft-touch paint process

Patent-pending Drop-jaw Ethernet port

EasyAccess door to quickly access most components for easy serviceability

Full-sized spill-resistant keyboard; optional back-lit keyboard keeps you productive in low-light settings

Choice of 5 th

Generation Intel

®

Core™ i7, i5 and i3 processors

Memory options up to 16 GB

Weight starting at 2.94 lbs/1.33 kg

Storage options up to 1 TB Hard Drives, 512 GB Solid State Drives, or 256GB PCIe Solid State Drive

M.2 32GB Flash Cache for Intel Smart Response Technology installed in the factory

M.2 120GB Solid State Drive & 256GB PCIe Solid State Drive can be configured as primary storage or combined with a SATA drive for dual storage performance

Choice of Touch or Non Touch 12.5” diagonal displays

Easily hot dock with the 2013 UltraSlim Docking Station

DisplayPort for high resolution support

Touchpad with scroll zone, on/off button with LED indicator

Enhanced security features including HP Sure Start self-healing BIOS, HP Client Security and optional HP Fingerprint

Reader

Optional HD webcam with dual-microphone array for video conferencing

HD Audio with DTS Studio Sound™ optimized for high fidelity audio

Wireless and speaker mute buttons

Supports a broad range of wireless LAN and wireless WAN options, including 4G LTE, for connectivity on the go

UEFI BIOS Compliant with 2.3.1 UEFI Specification

NOTE: See important legal disclosures for all listed specs in their respective features sections.

c04472791–World Wide- Version 3 – January 26, 2015 Page 4

QuickSpecs

HP EliteBook 820 G2 Notebook PC

PRODUCT NAME

HP E

LITE

B

OOK

820 G2 N

OTEBOOK

PC

OPERATING SYSTEM

Preinstalled

Web only support

Windows 8.1 Pro 64*

Windows 8.1 64*

Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)**

Windows 7 Professional 32 (available through downgrade rights from Windows 8.1 Pro 64)**

Windows 7 Professional 32*

Windows 7 Professional 64*

Ubuntu Linux

FreeDOS 2.0

Windows 8 Chinese Market 64*

Windows 8 Emerging Markets 64*

Windows 8 Multi-Language 64*

Windows 8 Professional 64*

Windows 8.1 Enterprise 64*

Windows 7 Enterprise 32*

Windows 7 Enterprise 64*

* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See http://www.microsoft.com

for details.

** This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 8 Pro software.

You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

PROCESSOR

5 th Generation Intel® Core™ i3-5010U 2.1 GHz 3-MB L3 Cache, 15W

5 th

Generation Intel® Core™ i5-5200U 2.2 GHz (max turbo frequency 2.7-GHz), 3 MB L3 cache, 15W

5 th Generation Intel® Core™ i5-5300U 2.3 GHz (max turbo frequency 2.9-GHz), 3 MB L3 Cache, 15W

5 th

Generation Intel® Core™ i7-5500U 2.4 GHz (max turbo frequency 3.0-GHz), 4 MB L3 Cache, 15W

5 th Generation Intel® Core™ i7-5600U 2.6 GHz (max turbo frequency 3.2-GHz), 4 MB L3 Cache, 15W

* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel ® architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel ® 64 architecture.

Processors will not operate (including 32-bit operation) without an Intel ® 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. Intel's numbering is not a measurement of higher performance.

** Not available with Intel iAMT (*Not available with vPro)

NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode. c04472791–World Wide- Version 3 – January 26, 2015 Page 5

QuickSpecs

HP EliteBook 820 G2 Notebook PC

I

NTEL

T

URBO

B

OOST

T

ECHNOLOGY

*

Intel Turbo Boost is a feature that speeds up the CPU for a short time. It is similar to overclocking the processor, except within a framework provided by Intel. This feature provides additional performance and allows the computer to perform certain tasks more quickly. It also draws additional power and generates additional heat. Therefore, if Turbo Boost is used while powered from battery, it causes additional stress on the battery.

Using Turbo Boost while powered from battery might impact battery cycle life. Cycle life describes how long the battery will last before it needs to be replaced. A cycle refers to one complete charge/discharge cycle of the battery. Because Turbo

Boost causes extra stress on the battery, it often shortens the lifetime of the battery.

HP decided not to enable Turbo Boost when powered from battery. This decision was based on the desire to give customers the greatest battery cycle life possible. Turbo Boost is enabled when powered from AC adapter.

Based on customer requests, HP will provide an option to enable Turbo Boost while powered from battery. For the 2013 platform, it will be an F10 option. Turbo Boost will be available for devices powered from battery by the end of the year. The additional performance might cause a slight reduction in battery cycle life, but will not void the battery warranty.

*Implementing Turbo Boost in F10 option is only allowed for batteries over 40WHr. Intel® Turbo Boost technology requires a

PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending on hardware, software and overall system configuration. See www.intel.com/technology/turboboost for more information.

CHIPSET

Chipset integrated with processor

I

NTEL

C

ORE I

5

WITH V

P

RO

/C

ORE I

7

WITH V

P

RO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, an Intel Centrino® Advanced-N or Ultimate-N WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity.

Intel Active Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked notebook PCs, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update PCs regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-

VPN) corporate network connection which is either cable or wireless LAN.

NOTE: Some functionality of this technology, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for

Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

GRAPHICS

Integrated:

Intel® HD* Graphics 5500

*HD content required to view HD images.

DISPLAY

HP EliteBook 820 G2 Notebook PC

Internal

Non Touch c04472791–World Wide- Version 3 – January 26, 2015 Page 6

QuickSpecs

HP EliteBook 820 G2 Notebook PC

12.5" diagonal LED-backlit HD* anti-glare SVA flat (1366x768)

12.5" diagonal LED-backlit HD* anti-glare SVA flat (1366x768) with camera

12.5" diagonal LED-backlit FHD anti-glare UWVA ultra slim (1920 x 1080)

12.5" diagonal LED-backlit FHD anti-glare UWVA ultra slim (1920 x 1080) with camera

*HD content required to view HD images.

Touch

12.5" diagonal LED-backlit FHD UWVA ultra slim (1920 x 1080) with camera

Touch panel has chemically-strengthened Corning® Gorilla® Glass 3 top cover

External

Up to 32-bit per pixel color depth

VGA

Port supports resolutions up to 1920 x 1200 external resolution @75 Hz

DisplayPort

Supports resolutions up to 3840 x 2160 @ 60Hz. Supports Multi-Stream Transport (MST) where three displays can be daisy chained with digital displays through DisplayPort Only. The full resolution of each display will be limited as you reach 3 displays due to the bandwidth limitations with a maximum resolution of:

[email protected] for 2 displays

[email protected] for 3 displays

Number of Displays supported

3 With Optional* 2013 UltraSlim Docking Station -

*Sold separately.

STORAGE AND DRIVES

Primary Storage Bay

Hard Drives*

320 GB 7200rpm SATA Hard Drive

500 GB 7200rpm SATA Hard Drive

500 GB 7200rpm Self-Encrypting Drive

500 GB 5400 rpm Self Encrypting Drive (FIPS-140-2)

1TB 5400rpm SATA Hard Drive

Solid State Drive*

120 GB M.2 Solid State Drive

128 GB SATA-3 Solid State Drive

180 GB SATA-3 Solid State Drive

180 GB SATA-3 Self-Encrypting Drive

240 GB SATA-3 Solid State Drive256 GB SATA-3 Solid State Drive

256 GB SATA-3 Self-Encrypting Drive

256GB M.2 PCIe Solid State Drive

512 GB SATA-3 Solid State Drive

HP 3D DriveGuard (Windows only)

HP 3D DriveGuard mitigates the risk of hard drive failures, safeguarding your data when you are on the go by sensing sudden movement and protecting the hard drive. The hard drive is mounted directly to the notebook frame, reducing the c04472791–World Wide- Version 3 – January 26, 2015 Page 7

QuickSpecs

HP EliteBook 820 G2 Notebook PC

transmission of shock to the hard drive.

*For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16

GB (for Windows 7) and 30 GB (for Windows 8) of system disk is reserved for the system recovery software.

FLASH CACHE

32 GB M.2 (NGFF)

Optional 32 GB M.2 flash cache module support for Intel Smart Response Technology.

Available only with standard non-SED hard drive.)

MEMORY

Standard

DDR3L SDRAM (1600 MHz)

Two SODIMM slots supporting dual-channel memory

4 GB Total System Memory (4 GB x 1)

8 GB Total System Memory (4 GB x 2)

8 GB Total System Memory (8 GB x 1)

16 GB Total System Memory (8 GB x 2)

Maximum

Upgradeable to 16 GB with optional 8 GB SODIMMs in slots 1 and 2*

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

* Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.

NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

NETWORKING/COMMUNICATIONS

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

Broadband Wireless (WWAN)*

HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Module

HP lt4211 LTE/EV-DO/HSPA+ Qualcomm® Gobi™ 4G Module**

HP hs3110 HSPA+ Mobile Broadband Module

Wireless LAN (WLAN)*

Intel® Dual Band Wireless-AC 7265 802.11 ac (2X2) Wi-Fi + Bluetooth®

Intel® Dual Band Wireless-7265AN 802.11 a/b/g/n (2X2) Wi-Fi + Bluetooth®

Intel® Dual Band Wireless-AC 3160 802.11 ac (1x1) Wi-Fi + Bluetooth® c04472791–World Wide- Version 3 – January 26, 2015 Page 8

QuickSpecs

HP EliteBook 820 G2 Notebook PC

*Wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.

**4G LTE WWAN is an optional feature, not available on all products, in all regions and requires separately purchased service contract. Check with service provider for coverage and availability. Connection speeds will vary due to location, environment, network conditions, and other factors.

Communications

Intel® I218LM Gigabit* Network Connection (10/100/1000 NIC)

* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

Optional Near Field Communication (NFC)

AUDIO/MULTIMEDIA

Audio

HD Audio with DTS Studio Sound™

2 Integrated stereo speakers

Integrated dual-microphone array; located in the display

Function keys for microphone mute, volume up, volume down

Stereo headphone/line out

Stereo microphone/line in

Webcam

Optional* 720p HD** webcam

HD format (widescreen)

Supports videoconferencing (non-HD) and still image capture

High quality fixed focus lens

Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

M-JPEG compression supports higher frame rates for video capture and videoconferencing

Improved low light sensitivity

Improved dynamic range

Skype-ready ***

* Sold separately.

** HD content required to view HD images.

***Internet access required.

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and includes an all-metal keyboard deck for greater rigidity, as well as HP DuraKeys. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, and function keys. US and

International key layouts are available. Backlit keyboard available as an option.

Pointing Devices

Touchpad with scroll zone, on/off button with LED indicator, two-way scroll, two pick buttons c04472791–World Wide- Version 3 – January 26, 2015 Page 9

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Buttons and Function Keys

Separate discrete buttons provide easy access to WLAN on/off and speaker mute. Function keys provide control of features including: standby mode, display brightness, external display, microphone mute, volume down, and volume up.

SOFTWARE AND SECURITY U

PDAT

Preinstalled Software with Windows Operating System

BIOS

HP BIOSphere 1

HP Sure Start

HP DriveLock | HP Automatic Drive Lock

HP BIOS Protection

2

HP Disk Sanitizer

HP SpareKey 4

3

BIOS Update via Network

Master Boot Record Security

Power On Authentication

Pre-Boot Security

Secure Erase 5

Hybrid Boot

Measured Boot

Secure Boot

Absolute Persistence Module

6

1. Available only on business PCs with HP BIOS.

2. May require a manual recovery step if all copies of BIOS are compromised or deleted.

3. For the use cases outlined in the DOD 5220.22-M Supplement.Does not support solid state drives.

4. Requires initial user set up.

5. For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.

6. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription.

Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from

Absolute Software.

MultiMedia

CyberLink PowerDVD

CyberLink YouCam BE

Communication

HP Connection Manager with support for HP Mobile Connect (Windows 7 only)

2

HP GPS and Location 1

HP Mobile Connect (Windows 8 only) 2

HP Wireless Hotspot

3

(Windows 8 only)

Intel WiDi Software 4

HP Roaming Alert

Intel My WiFi and Wireless Drivers

HP Value Add Software

c04472791–World Wide- Version 3 – January 26, 2015 Page 10

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Getting Started with Windows 8

HP 3D DriveGuard (Windows required)

HP ePrint Driver (HP Exclusive)

HP Hotkey Support

5

HP PageLift

HP Recovery Manager (Windows 7 only)

HP Support Assistant

HP Recovery Disc Creator (Windows 7 only)

UEFI System Diagnostics W8

3rd Party

Adobe® Flash Player (Commercial)

Foxit PhantomPDF Express for HP

Bing Search

Skype

6

Buy Office

NOTE: HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 16 GB (for Windows 7) and 36 GB (for Windows 8) of system disk is reserved for the system recovery software.

1. GPS access requires an unobstructed path to multiple satellites. Performance may be affected if/when used inside of buildings, bridges or heavily congested metropolitan areas. Requires separately purchased GPS navigation software available from multiple GPS applications.

2. HP Mobile Connect is only available on selective devices with wwan. For geographical availability refer to www.hp.com/go/mobileconnect

3. The wireless hotspot application requires an active internet connection that is shared with the connecting devices.

Wireless hotspot data usage may incur additional charges. Check with your service provider for plan details.

4. Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or computer monitor via a standard HDMI cable, also sold separately.

5. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/businessmobileprinting .

6. Skype is not offered in China.

Manageability

HP Driver Packs 1

HP SoftPaq Download Manager (SDM)

HP System Software Manager (SSM) 1

HP BIOS Config Utility (BCU)

1

HP Client Catalog / HP CIK for Microsoft SCCM

1

LANDESK Management 1

1. Not preinstalled

For more information on HP Client Management Solutions refer to: http://www.hp.com/go/clientmanagement.

Standard Security Features

HP Client Security Manager (Windows only)

HP Device Access Manager

HP Drive Encryption

HP File Sanitizer

2

1

Microsoft Security Essentials (Windows 7 only) 3 c04472791–World Wide- Version 3 – January 26, 2015 Page 11

QuickSpecs

HP EliteBook 820 G2 Notebook PC

For more information on HP Client Security Software Suite, refer to http://www.hp.com/go/clientsecurity.

Security Hardware

TPM Embedded Security Chip 2.0

Security lock slot

Fingerprint Reader

Integrated Smart Card Reader

1. Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive

Encryption and prevents data access.

2. For the use cases outlined in the DOD 5220.22-M Supplement. Supports standard Hard Drives. Initial setup required.

3. Opt in and internet connection required for updates.

POWER

Power Supply

HP 45W Smart AC Adapter

45W 2-prong 7.4mm DC jack AC Adapter (Only for Japan)

HP 65W Smart EM AC Adapter (China and India only)

Power cord is configurable; either 3.2 feet or 6 feet (1.0 or 1.8 meter)

Total length including external AC adapter is 9.2 feet or 12 feet (2.86 or 3.66 meter).

Primary Battery

3-cell HP Long Life Polymer 26 WHr

3-cell HP Long Life Polymer 46 WHr

Battery Life*

Hardware details Battery UMA Graphics

HDD

SSD

SSD

3-cell (46 WHr)

3-cell (46 WHr)

3-cell (26 WHr)

Up to 12 hrs

Up to 15 hrs 15 mins

Up to 9 hrs 15 mins

**Windows 7 MM07 battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See www.bapco.com for additional details.

System Standby Time**

Up to 223 hrs

**Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum capacity of the battery will naturally decrease with time and usage.

Power Conservation

Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode)

AMD PowerPlay technology (discrete models) c04472791–World Wide- Version 3 – January 26, 2015 Page 12

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Hibernation

Standby

ACPI compliance

WEIGHTS & DIMENSIONS

Weight

Non Touch

Starting at 2.94 lbs/1.36 kg

Weight will vary by configuration.

3-cell (26 Whr) battery, FHD, no FPR, 1 SODIMM, WLAN, lightest M.2 SSD primary storage module, no camera, no WWAN

Touch

Starting at 3.35 lbs/1.52 kg

Weight will vary by configuration.

3-cell (26 Whr) battery, FHD Touch, no FPR, 1 SODIMM, WLAN, lightest M.2 SSD primary storage module, no camera, no WWAN.

Dimensions (w x d x h)

Non Touch

12.2 x 8.48 x 0.83 in

31 x 21.53 x 2.1 cm

Touch

12.2 x 8.48 x 0.97 in

31 x 21.53 x 2.46 cm

PORTS/SLOTS

Ports

(1) DisplayPort 1.2

(1) USB 3.0 Charging Port

(2) USB 3.0 Port

(1) RJ-45 / Ethernet

(1) Side Docking connector

(1) Headphone/Microphone Combo

(1) AC Port

Expansion Slots

Media Card Reader

Supports SD, SDHC, SDXC

SERVICE AND SUPPORT

HP Services offers 3-year, 1-year and 90 day limited warranty options depending on country. Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform. On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond the standard limited warranties.* To choose the right level of service for your HP product, use the HP Care Pack Services

Lookup Tool at: http://www.hp.com/go/cpc .

NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details. http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp c04472791–World Wide- Version 3 – January 26, 2015 Page 13

QuickSpecs

HP EliteBook 820 G2 Notebook PC

*HP Care Packs are sold separately. Service levels and response times for HP Care Services may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. Consult the HP

Customer Support Center for details. http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp c04472791–World Wide- Version 3 – January 26, 2015 Page 14

QuickSpecs

HP EliteBook 820 G2 Notebook PC

S

YSTEM

U

NIT

Stand-Alone Power

Requirements (AC Power)

Nominal Operating Voltage

Average Operating Power

Integrated graphics

Max Operating Power

19.5 V

Windows 7 (64-bit)

4.75 W

Windows 8.1 (64-bit)

4.26 W

Temperature

Relative Humidity

Shock

Random Vibration

Altitude (unpressurized)

Planned Industry Standard

Certifications

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

UL

CSA

FCC Compliance

ENERGY STAR

EPEAT®

ICES

Australia /

NZ A-Tick Compliance

CCC

Japan VCCI Compliance

KC

BSMI

CE Marking Compliance

BNCI or BELUS

CIT

GOST

Saudi Arabian Compliance

(ICCP)

SABS

®

UKRSERTCOMPUTER

Discrete < 90W

UMA < 65W

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

-4° to 140° F (-20° to 60° C)

10% to 90%, non-condensing

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

40 G, 2 ms, half-sine

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

-50 to 10,000 ft (-15.24 to 3,048 m)

-50 to 40,000 ft (-15.24 to 12,192 m)

Yes

Yes

Yes

Select models*

Registered Gold in United States**

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

For accessibility information on HP products, please visit: http://www.hp.com/accessibility. c04472791–World Wide- Version 3 – January 26, 2015 Page 15

QuickSpecs

D

ISPLAYS

12.5” diagonal LEDbacklit HD anti-glare

SVA flat (1366 x 768)

Outline Dimensions

(W x H x D)

Active Area

Weight

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Interface

LCD Mode

PPI

Viewing Angle

12.5” diagonal LEDbacklit FHD Premium anti-glare UWVA slim

(1920 x 1080)

Outline Dimensions

(W x H x D)

Active Area

Weight

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Interface

LCD Mode

PPI

Viewing Angle

12.5” diagonal LEDbacklit HD Premium antiglare UWVA slim (1920 x

1080)+Touch

Outline Dimensions

(W x H x D)

Active Area

Weight

Diagonal Size

Touch enabled

TSP Type

HP EliteBook 820 G2 Notebook PC

11.46 x 7.14 x 0.14 in (29.1 x18.14 x 0.36 cm)

10.89 x 6.12 in (27.6615 x 15.552 cm)

0.6 lb (270g) (max)

12.5 in (35.75 cm)

Anti-glare

300:1 (min)

60 Hz

200 nit (typical)

Format

Configuration

1366 x 768 (HD)

RGB Stripe eDP 1.2 (1 lane)

TN

125 ppi

SVA 30/30/20/10 (min) (Left/Right/Down/Up)

291.0mm x 181.4mm (max) x 2.85mm (max)

276.48mm typ. (W) x 155.52mm typ. (H)

0.50 lb (230g) (max)

12.5 in (35.75 cm)

Anti-glare

600:1 (typ) - AG)

60 Hz

300 nit (typical)

Format

Configuration

eDP 1.3 (2 lane)

1920 x 1080 (FHD)

RGB Stripe

IPS/FFS/VA

176 ppi

UWVA 85/85/85/85 (Left/Right/Down/Up)

291.0mm x 181.4mm (max) x 2.85mm (max)

276.48mm typ. (W) x 155.52mm typ. (H)

0.50 lb (230g) (max)

12.5 in (35.75 cm)

Yes

Capacitive c04472791–World Wide- Version 3 – January 26, 2015 Page 16

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Touch point supported

Min 5-point & Max 10-point for Win8

Surface Treatment

Anti-glare

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

600:1 (typ) - AG)

60 Hz

300 nit (typical)

Format

Configuration

eDP 1.3 (2 lane)

1920 x 1080 (FHD)

RGB Stripe

Interface

LCD Mode

PPI

Viewing Angle

IPS/FFS/VA

176 ppi

UWVA 85/85/85/85 (Left/Right/Down/Up)

S

TORAGE AND

D

RIVES

320 GB* 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

0.21 lbs (95 g)

320 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s (Drive Capability)

Seek Time

(typical reads, including settling)

Single Track

Average

1.5 ms-2ms

12 ms-13ms

Cache

Rotational Speed

Features

Maximum

Up to 32 MB

7200 rpm

18ms-22 ms

Logical Blocks

625,142,448

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security; S.M.A.R.T.IV, NCQ, Ultra DMA

500 GB* 7200 rpm

SATA Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Rotational Speed

0.20lbs(92g- 0.21 lbs (95g)

500 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s (Drive Capability)

Single Track

Average

Maximum

7200 rpm

1.5 ms-2ms

12 ms-13ms

18ms-22 ms c04472791–World Wide- Version 3 – January 26, 2015 Page 17

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Logical Blocks

Operating Temperature

Features

976,773,168

32° to 140° F (0° to 60° C) [case temp]

ATA Security; S.M.A.R.T.IV, NCQ, Ultra DMA

500 GB* 7200 rpm

SMART SATA II Self

Encrypting Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

0.21 lbs (95g)

500 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous (maximum) 300 MB/s (Drive Capability)

Single Track

2 ms

Average

Maximum

16 MB

13 ms

18 ms

Cache

Rotational Speed

Logical Blocks

7200 rpm

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

500 GB* 5400 rpm

SMART SATA II FIPS

Self Encrypting Drive

Drive Weight

Capacity

Height

Width

ATA Security; TCG OPAL v1.00

0.21 lbs (95g)

500 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

Cache

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s (Drive Capability)

Single Track

Average

Maximum

16 MB

1.5 ms

12 ms

22 ms

Rotational Speed

Logical Blocks

5400 rpm

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security; TCG Opal 2.x, FIPS

1TB* 5400 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

0.21 lbs (95g)

1 TB

0.28 in (7 mm)

2.75 in (69.85 mm) c04472791–World Wide- Version 3 – January 26, 2015 Page 18

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

ATA-8, SATA 3.0

Synchronous (maximum) 600 MB/s (Drive Capability)

Single Track

Average

Maximum

2 ms

12ms-13 ms

18 ms-24ms

Cache

Rotational Speed

Logical Blocks

16MB-32MB

5400 rpm

Operating Temperature

1,953,525,168

32° to 140° F (0° to 60° C) [case temp]

SATA 3 Gb/s 32 GB*, M.2

2242 Solid State Drive

Features

Drive Weight

Capacity

Height

Width

ATA Security; S.M.A.R.T.IV, NCQ, Ultra DMA

10 Grams

32 GB

0.09 in (3.7 mm)

0.87 in (22 mm)

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential

Read

Up to 380 MB/s

Maximum Sequential Write

Features

Up to 110 MB/s

Logical Blocks

62,533,296

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

ATA Security; DIPM; TRIM; DEVSLP

SATA 3 Gb/s 120 GB*, M.2

2242 Solid State Drive

Drive Weight

Capacity

Height

Width

10 Grams

120 GB

0.09 in (3.7 mm)

0.87 in (22 mm)

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential Read Maximum Sequential Write

Up to 540 MB/s Up to 480 MB/s

Logical Blocks

234,441,648

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

Drive Weight

Capacity

78 Grams

128 GB c04472791–World Wide- Version 3 – January 26, 2015 Page 19

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Height

Width

0.28 in (7 mm)

2.75 in (69.85 mm)

SATA 3 Gb/s 128 GB*, 2.5inch MLC Solid State

Drive

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential Read Maximum Sequential Write

Up to 550 MB/s Up to 350 MB/s

Logical Blocks

250,069,680

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

SATA 3 Gb/s 128 GB*, 2.5inch TLC Solid State Drive

Drive Weight

ATA Security; DIPM; TRIM; DEVSLP

78 Grams

Capacity

Height

Width

Interface

128 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

SATA 3 Gb/s 180 GB*, 2.5inch SATA Solid State

Drive

Performance Maximum Sequential Read Maximum Sequential Write

Drive Weight

Up to 520 MB/s

ATA Security; DIPM; TRIM; DEVSLP

78 Grams

Up to 140 MB/s

Logical Blocks

250,069,680

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

Capacity

Height

180 GB

0.28 in (7 mm)

Width

Capacity

2.75 in (69.85 mm)

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential

Read

Up to 540 MB/s

Maximum Sequential Write

Features

SATA 3 Gb/s 180 GB*, 2.5inch SATA SED Solid State

Drive

Drive Weight

Up to 78 Grams

Up to 490 MB/s

Logical Blocks

351,651,888

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

ATA Security; DIPM; TRIM; DEVSLP

180 GB

Height

Width

0.28 in (7 mm)

Interface

2.75 in (69.85 mm)

ATA-8, SATA 3.0 c04472791–World Wide- Version 3 – January 26, 2015 Page 20

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Performance Maximum Sequential

Read

Maximum Sequential Write

Up to 540 MB/s

351,651,888

Up to 490 MB/s

Logical Blocks

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP; TCG Opal 1x

SATA 3 Gb/s 240 GB*, 2.5inch Solid State Drive

Drive Weight

Capacity

78 Grams

240 GB

Height

Width

0.28 in (7 mm)

2.75 in (69.85 mm)

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential

Read

Up to 540 MB/s

Maximum Sequential Write

Up to 490 MB/s

Logical Blocks

468,862,128

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

SATA 3 Gb/s 256 GB*, 2.5inch Solid State Drive

Drive Weight

Capacity

Height

Width

78 Grams

256 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

Interface

Performance

Features

SATA 3 Gb/s 256 GB*, 2.5inch Self Encrypting Solid

State Drive

Drive Weight

Capacity

Height

ATA8, SATA 3.0

Maximum Sequential

Read

Up to 520 MB/s

78 Grams

256 GB

0.28 in (7 mm)

Maximum Sequential Write

Up to 280 MB/s

Logical Blocks

500,118,192

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

ATA Security; TCG Opal 2.x; DIPM; TRIM; DEVSLP

Width

Interface

Performance

2.75 in (69.85 mm)

ATA8, SATA 3.0

Maximum Sequential

Read

Up to 550 MB/s

Maximum Sequential Write

Up to 500 MB/s

Logical Blocks

500,118,192

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; TCG Opal 2.x; DIPM; TRIM; DEVSLP c04472791–World Wide- Version 3 – January 26, 2015 Page 21

QuickSpecs

HP EliteBook 820 G2 Notebook PC

SATA 3 Gb/s 256 GB*, 2.5inch M2 PCIe Solid State

Drive

Drive Weight

Capacity

10 Grams

256 GB

Height

Width

0.24 in (60 mm)

0.87 in (22 mm)

Interface

Performance

ATA-8, PCIe 2.0

Maximum Sequential

Read

Up to 730 MB/s

Maximum Sequential Write

620 MB/s

Logical Blocks

500,118,192

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

SATA 3 Gb/s 512 GB*, 2.5inch Solid State Drive

Drive Weight

Capacity

78 Grams

32 GB

Height

Width

0.28 in (7 mm)

2.75 in (69.85 mm)

Interface

Performance

ATA-8, SATA 3.0

Maximum Sequential

Read

Up to 550 MB/s

Maximum Sequential Write

Up to 550 MB/s

Logical Blocks

1,000,215,216

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

N

ETWORKING

/C

OMMUNICATIONS

*For storage drives, GB = 1 billion bytes. TN = 1 trillion bytes. Actual formatted capacity is less. Upt o 16Gb (for Windows 7) and up to 30GB (for Windows 8) of system disk is reserved for system recovery software.

W

IRELESS

WAN (WWAN)

HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Module *

Technology/Operating bands

LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 2600 (Band 7), 900 (Band 8), 800 MHz

(Band 20, DD800) MHz

HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

Wireless protocol standards

3GPP Release 8 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9 c04472791–World Wide- Version 3 – January 26, 2015 Page 22

QuickSpecs

HP EliteBook 820 G2 Notebook PC

GPS

GPS bands

Standalone

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

Maximum data rates LTE: 100 Mbps (Download), 50 Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Maximum output power

LTE: 23 dBm

HSPA+: 23.5 dBm

E-GPRS 1900/1800: 26.5 dBM

E-GPRS 900/850: 27.5 dBM

GPRS 1900/1800: 29.5 dBm

GPRS 900/850: 32.5 dBm

Maximum power consumption

LTE: 1,200 mA (peak); 900 mA (average)

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 700 mA (average)

Form Factor

Weight

Dimensions

(Length x Width x

Thickness)

M.2, 3042-S3 Key B

6 g

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.

HP lt4211 LTE/EV-DO/HSPA+ Qualcomm® Gobi™ 4G Module*

Technology/Operating bands

LTE: 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 700 (Band 13), 700 (Band 17), 1900 (Band 25) MHz

HSPA+: 2100 (Band 1), 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 800 (Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

EV-DO: 800 (BC0), 1900 (BC1) MHz

Wireless protocol standards

GPS

GPS bands

3GPP Release 9 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9

EVDO Release 0 and Release A

Standalone

1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz

Maximum data rates

LTE: 100 Mbps (Download), 50Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

WCDMA PS: 384 kbs (Download), 384 kbs (Upload)

WCDMA CS: 64 kbs (Download), 64 kbs (Upload)

E-GPRS: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Maximum output power LTE: 23 dBm

HSPA+: 24 dBm c04472791–World Wide- Version 3 – January 26, 2015 Page 23

QuickSpecs

HP EliteBook 820 G2 Notebook PC

E-GPRS 1900/1800: 25 dBM

E-GPRS 900/850: 26 dBM

GPRS 1900/1800 : 30 dBm

GPRS 900/850: 32 dBm

CDMA: 24 dBM

Maximum power consumption

LTE: 1,200 mA (peak); 900 mA (average)

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 500 mA (average)

EV-DO: 1000 mA (peak); 700 mA (average)

Form Factor

M.2, 3042-S3 Key B

Weight

Dimensions

(Length x Width x

Thickness)

6 g

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.

HP hs3110HSPA+ Mobile Broadband Module*

Technology/Operating bands

HSPA+: 2100 (Band1), 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 900 (Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 MHz (Band 5), 900 (Band 8) MHz

Wireless protocol standards

GPS

GPS bands

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9.

UMTS/WCDMA: Release 99 and Release 7

Standalone, A-GPS

Maximum data rates HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

HSPA: 7.2 Mbps (Download), 5.76 Mbps (Upload)

WCDMA PS: 384 kbps (Download), 384 kbps (Upload)

WCDMA CS: 64 kbps (Download), 64 kbps (Upload)

E-GPRS: 296 kbps (Download), 236.8 kbps (Upload)

GPRS: 107 kbps (Download), 85.6 kbps (Upload)

Maximum output power

Maximum power consumption

Form Factor

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

HSPA+: 24 dBm

E-GPRS 1800/1900: 26 dBm

E-GPRS 850/900: 27 dBm

GPRS 1800/1900: 30 dBm

GPRS 850/900: 33 dBm

2500 mA (peak); 600 mA (average)

M.2, 3042-S3 Key B

Weight

Dimensions

(Length x Width x

Thickness)

6 g

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors.

W

IRELESS

LAN (WLAN)

Intel® Dual Band Wireless-AC 7265 802.11 ac (2X2) Wi-Fi + Bluetooth®*

c04472791–World Wide- Version 3 – January 26, 2015 Page 24

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

Interoperability

Frequency Band

IEEE 802.11n

IEEE 802.11ac

Wi-Fi certified

802.11b/g/n

2.402 – 2.482 GHz

Data Rates

Modulation

Security 1

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or

802.11a otherwise disable those channels.

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

802.11b: 1, 2, 5.5, 11 Mbps

 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

 AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

Network Architecture

Models

Roaming

Output Power

2

WAPI

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

802.11b : +16dBm minimum

802.11g : +14dBm minimum

802.11a : +14dBm minimum

802.11n HT20(2.4GHz) : +13dBm minimum c04472791–World Wide- Version 3 – January 26, 2015 Page 25

QuickSpecs

HP EliteBook 820 G2 Notebook PC

802.11n HT40(2.4GHz) : +13dBm minimum

802.11n HT20(5GHz) : +12dBm minimum

802.11n HT40(5GHz) : +12dBm minimum

802.11ac 80MHz(5GHz) : +11dBm minimum

Power Consumption

Power Management

Receiver Sensitivity 3

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

Antenna type

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

Dimensions

Weight

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Operating Voltage

Temperature

Or

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

14° to 158° F (–10° to 70° C)

–40° to 176° F (–40° to 80° C)

Humidity

Altitude

Operating

Non-operating

Operating

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

Non-operating 0 to 50,000 ft (15,240 m)

LED Amber – Radio OFF; LED White – Radio ON LED Activity

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

Frequency Band

Number of Available Channels

4.0+EDR Compliant

2402 to 2480 MHz

79 (1 MHz) available channels c04472791–World Wide- Version 3 – January 26, 2015 Page 26

QuickSpecs

Data Rates and Throughput

HP EliteBook 820 G2 Notebook PC

Transmit Power

Receiver Sensitivity

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Power Management

Certifications

Certifications

Bluetooth Profiles Supported

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

8DPSK

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

0.01% BER

-80 dBm

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

-70 dBm

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP) 1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

2

1,2

Advanced Audio Distribution Profile (A2DP) c04472791–World Wide- Version 3 – January 26, 2015 Page 27

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Intel® Dual Band Wireless-7265AN 802.11 a/b/g/n (2X2) Wi-Fi + Bluetooth®

Wireless LAN

Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

Wi-Fi certified

802.11b/g/n

2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11a

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

Antenna Structure

Data Rates

Modulation

Security 1

Sub-channels

Network Architecture

Models

Roaming

Output Power

2

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

 802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

WAPI

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between band Access Points

802.11b : +16dBm minimum

802.11g : +14dBm minimum c04472791–World Wide- Version 3 – January 26, 2015 Page 28

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Power Consumption

Power Management

802.11a : +14dBm minimum

802.11n HT20(2.4GHz) : +13dBm minimum

802.11n HT40(2.4GHz) : +13dBm minimum

802.11n HT20(5GHz) : +12dBm minimum

802.11n HT40(5GHz) : +12dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

Antenna type

4 802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO and Bluetooth communications

Form Factor

Dimensions

Weight

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Or

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

Operating Voltage

Temperature

Humidity

Altitude

LED Activity

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Operating

Non-operating

10% to 90% (noncondensing)

5% to 95% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Amber - Radio OFF; LED White - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with

Microsoft Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista. c04472791–World Wide- Version 3 – January 26, 2015 Page 29

QuickSpecs

HP EliteBook 820 G2 Notebook PC

*Wireless is an optional feature. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

4.0+EDR Compliant

Frequency Band

Number of Available Channels

Data Rates and Throughput

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Receiver Sensitivity

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

8DPSK

0.01% BER

-80 dBm

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

-70 dBm

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management

Certifications

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP) 1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)

1,2

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

Human Interface Device Profile (HID)

1,2

1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

2 c04472791–World Wide- Version 3 – January 26, 2015 Page 30

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Data Rates

Modulation

Security 1

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

Intel® 802.11 ac (2x2) WiFi + Bluetooth® 4.0 combo (Indonesia only)*

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

IEEE 802.11ac

Wi-Fi certified

802.11b/g/n

2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or

802.11a otherwise disable those channels.

4.9 – 4.95 GHz (Japan)

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

 IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

 WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

WAPI c04472791–World Wide- Version 3 – January 26, 2015 Page 31

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Network Architecture

Models

Roaming

Output Power

2

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

802.11b : +16dBm minimum

802.11g : +14dBm minimum

802.11a : +14dBm minimum

802.11n HT20(2.4GHz) : +13dBm minimum

802.11n HT40(2.4GHz) : +13dBm minimum

802.11n HT20(5GHz) : +12dBm minimum

802.11n HT40(5GHz) : +12dBm minimum

802.11ac 80MHz(5GHz) : +11dBm minimum

Power Consumption

Power Management

Receiver Sensitivity 3

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

Antenna type

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

Dimensions

Weight

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g

Operating Voltage

Temperature

Humidity

Altitude

Or

Type 1630 : 2g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

Operating

14° to 158° F (–10° to 70° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

LED Activity

Non-operating 0 to 50,000 ft (15,240 m)

LED Amber – Radio OFF; LED White – Radio ON

4. Check latest software/driver release for updates on supported security features.

5. Maximum output power may vary by country according to local regulations. c04472791–World Wide- Version 3 – January 26, 2015 Page 32

QuickSpecs

HP EliteBook 820 G2 Notebook PC

6. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

* Wireless is an optional feature. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. The specifications for the 802.11n

WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology*

Bluetooth Specification

4.0+EDR Compliant

Frequency Band

2402 to 2480 MHz

Number of Available Channels

Data Rates and Throughput

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

Transmit Power

Receiver Sensitivity

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation 0.01% BER 0.001% BER

GFSK

π/4-DQPSK

8DPSK

-80 dBm

-80 dBm

-80 dBm

-70 dBm

-70 dBm

-70 dBm

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

Power Management

Certifications

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN) 1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP) 1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN) 1,2 c04472791–World Wide- Version 3 – January 26, 2015 Page 33

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Human Interface Device Profile (HID) 1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

2

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

*Wireless is an optional feature. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.

Intel® Dual Band Wireless-AC 3160 802.11 ac (1x1) Wi-Fi + Bluetooth®*

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

IEEE 802.11ac

Wi-Fi certified

802.11b/g/n

2.402 – 2.482 GHz

Note:

The FCC has declared as of January 1, 2015 products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 or otherwise disable those channels.

802.11a/n

4.9 – 4.95 GHz (Japan)

Data Rates

Modulation

5.15 – 5.25 GHz

5.25 – 5.35 GHz

5.47 – 5.725 GHz

5.825 – 5.850 GHz

Note:

Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

802.11ac : MCS0 ~ MCS7, (1SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM c04472791–World Wide- Version 3 – January 26, 2015 Page 34

QuickSpecs

Security

1

HP EliteBook 820 G2 Notebook PC

Network Architecture

Models

Roaming

Output Power

2

Power Consumption

Power Management

Receiver Sensitivity

Antenna type

Form Factor

Dimensions

Weight

3

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

WAPI

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

802.11b : +16dBm minimum

802.11g : +14dBm minimum

802.11a : +14dBm minimum

802.11n HT20(2.4GHz) : +13dBm minimum

802.11n HT40(2.4GHz) : +13dBm minimum

802.11n HT20(5GHz) : +12dBm minimum

 802.11n HT40(5GHz) : +12dBm minimum

802.11ac 80MHz(5GHz) : +11dBm minimum

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 180 mW (WLAN Associated)

Idle mode: 60 mW (WLAN unassociated)

Radio disabled: 30 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -86dBm maximum

802.11a, 54Mbps : -72dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

PCI-Express M.2 MiniCard

Type 2230 : 2.3 x 22.0 x 30.0 mm

Or

Type 1630 : 2.3 x 16.0 x 30.0 mm

Type 2230 : 2.8g c04472791–World Wide- Version 3 – January 26, 2015 Page 35

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Operating Voltage

Temperature

Or

Type 1630 : 2g

3.3v +/- 9%

Operating 14° to 158° F (–10° to 70° C)

Humidity

Non-operating

Operating

Non-operating

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

LED Activity

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Amber – Radio OFF; LED White – Radio ON

7. Check latest software/driver release for updates on supported security features.

8. Maximum output power may vary by country according to local regulations.

9. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

* Wireless is an optional feature. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. The specifications for the 802.11n

WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11n WLAN devices.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification

4.0+EDR Compliant

Frequency Band

Number of Available Channels

Data Rates and Throughput

2402 to 2480 MHz

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

Transmit Power

Receiver Sensitivity

The Bluetooth component shall operate as a Class II Bluetooth device with a maximum transmit power of +4 dBm for BR and EDR.

Modulation

GFSK

π/4-DQPSK

8DPSK

0.01% BER

-80 dBm

-80 dBm

-80 dBm

0.001% BER

-70 dBm

-70 dBm

-70 dBm

Power Consumption

Range

Electrical Interface

Bluetooth Software Supported

Link Topology

Electrical Interface

Bluetooth Software Supported

Security

Power Management

Power Management

Certifications

Security

Certifications

Bluetooth Profiles Supported

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Selective Suspend 17 mW

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249 c04472791–World Wide- Version 3 – January 26, 2015 Page 36

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Power Management

Certifications

Certifications

Bluetooth Profiles Supported

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN) 1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP) 1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN) 1,2

Human Interface Device Profile (HID)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

1,2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

A

UDIO

/M

ULTIMEDIA

DTS S

TUDIO

S

OUND

Hardware

Audio Output Quality

Integrated Stereo

Speakers

Implementation

Function Key Volume

Controls

ALC3228

Volume up, volume down, and mute

Full Duplex

Microphone In

Headphone/Line Out

Yes

Stereo

Stereo

Integrated Microphone

Yes, dual digital microphone array

Frequency Response

Signal to Noise Ratio

Total Harmonic

Distortion

Noise Floor

Play/Record Sampling

Rate(s)

DAC

ADC

Power Rating

Impedance

20 Hz – 20 kHz

>85 dB

0.01%

–110 dB

8 kHz – 48kHz

16, 20 or 24-bit

16 or 20-bit

2 Watts

4 Ohms

S

ECURITY

c04472791–World Wide- Version 3 – January 26, 2015 Page 37

QuickSpecs

HP Fingerprint Reader

(optional)

HP EliteBook 820 G2 Notebook PC

Mobile Voltage Operation 3.0V-3.6V

Operating Temperature 14° – 167°F (-10° – 75°C)

36 mA peak

Current Consumption


Low Latency Wait for

Finger

950 uA

Capture Rate

ESD Resistance

Detection Matrix

6000 lines/sec

IEC 61000-4-2 4B (±15KV)

200*1 (plus another secondary line)

508 dpi

12*3 mm sensor area

Smart Card Reader Smart card standard

Dimensions (L x W x H)

Smart Card support

Smart Card Interface

Operating systems

Power

Features

PC/SC 2.0 for Windows smart card standard

0.41x 0.08 x 0.32 in (10.5 x 2 x 8.2 mm)

ISO 7816 Class A and AB smart cards

Smart Card Interface with T = 0 and T = 1 support

Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436,

SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM

No driver is required for this device. Native support is provided by the operating system.

Normal Mode

With card present, before being suspended: 40.9 mA

Without card present, before being suspended:

33.16 mA

After being suspended with smart card present: 380

μA

After being suspended without smart card present:

380 μA

Power Saving

Mode

With card present, before being suspended: 40.6 mA

Without card present: 380 μA

After being suspended with smart card present: 380

μA

Support single slot

 Support T0, T1 protocol

Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442,

SLE4436,

SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM

Support ISO7816 Class A, B and C (5V/3V/1.8V) card

Implemented as an USB full speed device with bulk transfer endpoint, Mass

Storage endpoint

Built-in PLL for USB and Smart Card clocks requirement

Support EEPROM for USB descriptors customization (PID/VID/ iManufacturer/iProduct/Serial Number), Direct Web Page Link, and accessing memory card module.

EEPROM programmable via USB interface c04472791–World Wide- Version 3 – January 26, 2015 Page 38

QuickSpecs

HP EliteBook 820 G2 Notebook PC

P

OWER

HP 45W Smart AC Adapter

Non-Slim & Non-Slim 2

Prong

Dimensions

Input

Output

95.0 x 40.0 x 26.5mm

90 to 265 VAC

Input Efficiency

88% min at 115 VAC / 89% min at 230VAC

Input frequency range

47 to 63 Hz

Input AC current

Output power

DC output

Hold-up time

Output current limit

1.4 A at 90 VAC and maximum load

45W

19.5V

5 msec at 115 VAC input

<8A, Over voltage protection- 29V max automatic shutdown

Connector

Environmental Design

3 pin/grounded, mates with interchangeable cords

Operating temperature

32° to 95° F (0° to 35° C)

Non-operating (storage) temperature

-4° to 121° F (-20° to 85° C)

EMI and Safety

Certifications

Altitude

Humidity

0 to 16,405 ft (0 to 5,000 m)

0% to 95%

Storage Humidity

0% to 95%

CE Mark - full compliance with LVD and EMC directives; Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals

- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,

CCC, NOM-1 NYCE; Reliability - failure rate of less than 0.1% annually within the first three years of operation.

HP 65W EM AC Adapter

(China and India only)

Dimensions

Weight

Input

Support software update for memory card module

Support Direct Web Page Link via configuration in external EEPROM

Support short APDU and extended APDU

Compatible with Microsoft USB-CCID driver

 Support remote wake up through inserting card/removing card

Support USB selective suspend

Support Power Saving Mode (Using one pin to select between

Normal/PWR Saving Mode)

Support card power over current protection mechanism

Built in resonator.

Support USB LPM (Link Power Management) features.

Embedded clock source.

4.98 x 1.97 x 1.18 in (12.65 x 5.0 x 3.0 cm)

0.62 lb (300 g) max

90 to 265 VAC

Input Efficiency

87% min at 115 VAC/230VAC

Input frequency range

47 to 63 Hz c04472791–World Wide- Version 3 – January 26, 2015 Page 39

QuickSpecs

3-cell HP Long Life

(26WHr) Lithium-Ion

Polymer

HP EliteBook 820 G2 Notebook PC

Output

Input AC current

Output power

DC output

Hold-up time

Output current limit

1.7 A at 90 VAC

65W

19.5V

5 msec at 115 VAC input

<11A, Over voltage protection- 29V max automatic shutdown

Connector

Environmental Design

3 pin/grounded, mates with 4.5mm barrel type Smart ID DC connector

Operating temperature

32° to 95° F (0° to 35° C)

Non-operating (storage) temperature

Altitude

-4° to 185° F (-20° to 85° C)

0 to 16,405 ft (0 to 5,000 m)

EMI and Safety

Certifications

Humidity

Storage Humidity

20% to 95%

10% to 95%

CE Mark - full compliance with LVD and EMC directives; Worldwide safety standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals

- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,

CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.

Dimensions (H x W x L)

0.85 x 1.76 x 10.59 in (2.16 x 4.46 x 26.9 cm)

Weight

168.5 g

Cells/Type

Energy

3-cell Lithium-Ion Polymer

Voltage 11.1

Amp-hour capacity

Watt-hour capacity

4.4Ah

26.3Wh

Temperature

Battery

Re-Charge Time

Fuel Gauge LED

Warranty

Optional Travel Battery

Available

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 122° F(-10° to 50° C)

Non-operating

System in OFF or

Standby Mode

-4° to 122° F (-20° to 50° C)

2.5 hours

No

1 year or 3 years*

*Battery warranty depends on the platform warranty.

No

3-cell HP Long Life

(46WHr) Lithium-Ion

Polymer

Dimensions (H x W x L) 7.47x3.85x0.51in (18.97x9.78x1.29cm)

Weight

255 g

Cells/Type

3-cell Lithium-Ion Polymer

Energy

Voltage

Amp-hour capacity

11.1

4.15Ah c04472791–World Wide- Version 3 – January 26, 2015 Page 40

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Temperature

Battery

Re-Charge Time

Fuel Gauge LED

Warranty

Optional Travel Battery

Available

Watt-hour capacity

Operating (Charging)

46Wh

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F(-10° to 60° C)

Non-operating

System in OFF or

Standby Mode

-4° to 140° F (-20° to 60° C)

3 hours

No

1 year or 3 years*

*Battery warranty depends on the platform warranty.

No

ENVIRONMENTAL

Eco-Label Certifications & declarations

System Configuration

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

IT ECO declaration

US ENERGY STAR®

EPEAT <Gold> registered in the United States. See http://www.epeat.net for registration status in your country.

The configuration used for the Energy Consumption and Declared Noise

Emissions data for the Notebook model is based on a “Typically Configured Notebook”.

Energy Consumption

(in accordance with US ENERGY STAR® test method)

Normal Operation (Short idle)

Normal Operation (Long idle)

Sleep

Off

Heat Dissipation*

Normal Operation (Short idle)

Normal Operation (Long idle)

Sleep

Off

115VAC, 60Hz

9.28 W

4.43 W

0.63 W

0.26 W

Note:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA)

ENERGY STAR® specifications for computers. If a model family does not offer ENERGY

STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a

Microsoft Windows® operating system.

115VAC, 60Hz

32 BTU/hr

15 BTU/hr

2 BTU/hr

1 BTU/hr c04472791–World Wide- Version 3 – January 26, 2015 Page 41

230VAC, 50Hz

9.92 W

4.35 W

0.66 W

0.28 W

230VAC, 50Hz

34 BTU/hr

15 BTU/hr

2 BTU/hr

1 BTU/hr

100VAC, 60Hz

9.88 W

6.64 W

0.63 W

0.26 W

100VAC, 60Hz

34 BTU/hr

23 BTU/hr

2 BTU/hr

1 BTU/hr

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(L

WAd

, bels)

Typically Configured – Idle

Fixed Disk – Random writes

Batteries

Additional Information

2.9

3.1

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the1ppm by weight

Cadmium greater than 20ppm by weight

Battery size: CR2320 (coin cell)

Battery type: Lithium

Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)

Battery type:

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2011/65/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment

(WEEE) Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking

Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the < gold> level, see www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.

This product contains 0% post-consumer recycled plastic (by wt.)

This product is 96.6% recycle-able when properly disposed of at end of life.

Packaging Materials

Material Usage

1.

2.

3.

4.

External:

Internal:

The plastic packaging material contains at least 50% recycled content.

5. The corrugated paper packaging materials contains at least 70% recycled content.

This product does not contain any of the following substances in excess of regulatory limits

(refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

 Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates c04472791–World Wide- Version 3 – January 26, 2015 Page 42

Sound Pressure

(L pAm

, decibels)

24

26

PAPER/Corrugated

PLASTIC/EPE (Expanded Polyethylene)

PLASTIC/Polyethylene low density

372 g

43.7 g

26 g

QuickSpecs

HP EliteBook 820 G2 Notebook PC

6.

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

 Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

End-of-life Management and Recycling

Hewlett-Packard Corporate

Environmental Information

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

 Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

 Plastic packaging materials are marked according to ISO 11469 and DIN

6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information

(product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP’s commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_

Product_Design_ISO_14K_Certificate.pdf and c04472791–World Wide- Version 3 – January 26, 2015 Page 43

QuickSpecs

HP EliteBook 820 G2 Notebook PC

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

C

OUNTRY OF

O

RIGIN

China c04472791–World Wide- Version 3 – January 26, 2015 Page 44

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Options and Accessories (sold separately and availability may vary by country)

Type

Cases

Docking

Input/Output – Mice

Input/Output – Keyboards

Input/Output – Adapters

Power

Batteries

Security

Storage - External Storage

Displays

Description

HP Slim Ultrabook Messenger (up to 15.6" x .88"/22/5mm)

HP Slim Ultrabook Top Load (up to 15.6" x .88"/22/5mm)

HP Slim Ultrabook Backpack (up to 15.6" x .88"/22/5mm)

HP Ultrabook Sleeve (up to 14.0/35.6cm x 1"/25.4mm)

HP Ultrabook Sleeve (up to 15.6"/39.8cm x 1"/25.4mm)

HP 2013 UltraSlim Docking Station

HP USB 3.0 Port Replicator

Universal Port Replicator

HP USB Travel Mouse

HP Comfort Grip Wireless Mouse

HP 3-Button USB Laser Mouse

HP Ultra Mobile Wireless Mouse

HP USB Essential Keyboard and Mouse

HP 2.4 GHz Keyboard and Mouse

HP Slim BT Keyboard

HP DP to HDMI 1.4 Adapter

HP DisplayPort to DVI Adapter

HP Wireless Display Adapter

HP Dual Output USB Graphics Adaptor

HP 65W Slim AC Adapter

HP 90W Slim AC Adapter

HP 90W Slim Combo AC Adapter w/ USB

HP 45W Smart AC Adapter

HP 65W Smart AC Adapter

HP 90W Smart AC Adapter

HP SB03XL Notebook Battery

HP UltraSlim Keyed Cable Lock

HP Docking Station Cable Lock

HP 12.5 NB Privacy Filter

HP USB External DVDRW Drive

HP EliteDisplay S231d 23-in IPS LED BLU Notebook Docking

Monitor

HP EliteDisplay S240ml 23.8-in IPS LED Backlit MHL Monitor

HP EliteDisplay E241i 24-in IPS LED Backlit Monitor

Part #

F3W14AA

F3W15AA

F3W16AA

F7Z99AA

F8A00AA

D9Y32AA#xxx

H1L08AA#xxx

E6D70AA#xxx

G1K28AA

H2L63AA

H4B81AA

H6F25AA#xxx

H6L29AA

G1K29AA#xxx

H4Q44AA#xxx

F3W43AA

F7W96AA

J1V25AA#xxx

C5U89AA

H6Y82AA#xxx

H6Y83AA#xxx

H6Y84AA#xxx

H6Y88AA#xxx

H6Y89AA#xxx

H6Y90AA#xxx

E7U25AA

H4D73AA

AU656AA#XXX

J6E64AA

F2B56AA

F0W81AA

F4M47AA

F0W81AA c04472791–World Wide- Version 3 – January 26, 2015 Page 45

QuickSpecs

HP EliteBook 820 G2 Notebook PC

Copyright © 2015 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The warranties for HP products are set forth in the express limited warranty statements accompanying such products.

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel, Core, vPro and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries.

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Microsoft and Windows are

U.S. registered trademarks of the Microsoft group of companies. Adobe is a trademark of Adobe Systems Incorporated. ENERGY

STAR is a registered trademark owned by the U.S. Environmental Protection Agency.. For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. c04472791–World Wide- Version 3 – January 26, 2015 Page 46

QuickSpecs

Summary of Changes

Date of change: Version

History:

January 20, 2015 V1 to V2

January 26, 2015 V2 to V3

Added

Added

HP EliteBook 820 G2 Notebook PC

Description of change:

The words ‘up to’ to all battery life specs

Environmental information and stand by time c04472791–World Wide- Version 3 – January 26, 2015 Page 47

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
