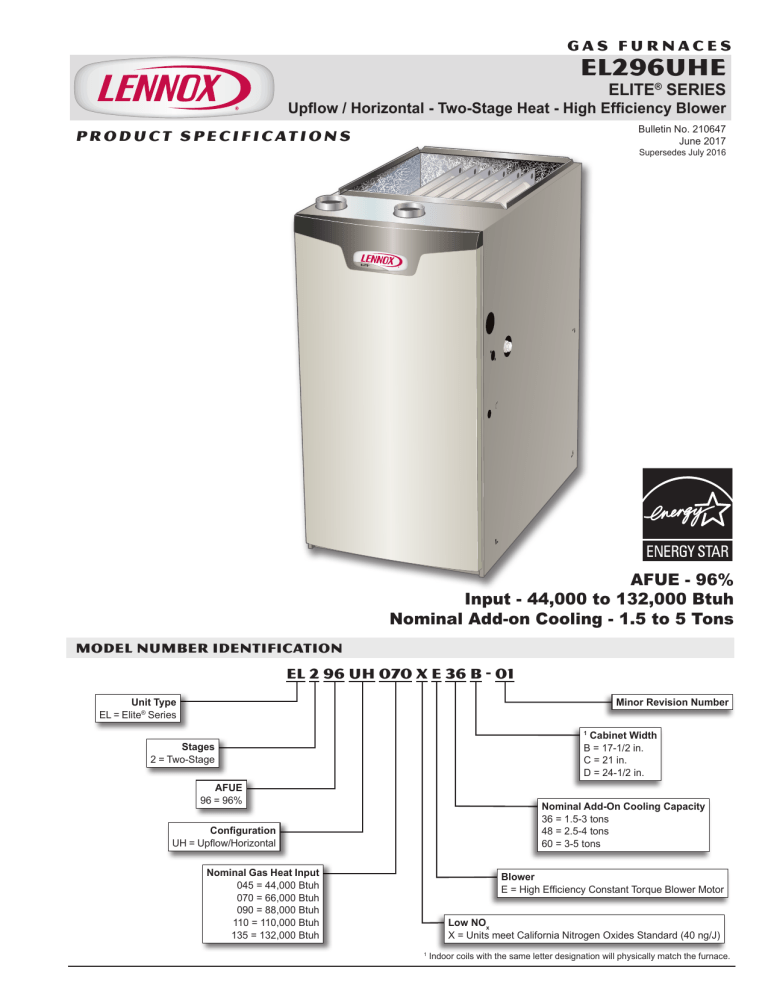

EL296UHE UPFLOW/HORIZONTAL GAS FURNACES

G A S F U R N A C E S

EL296UHE

ELITE

®

SERIES

Upflow / Horizontal - Two-Stage Heat - High Efficiency Blower

P R O D U C T S P E C I F I C AT I O N S

Bulletin No. 210647

June 2017

Supersedes July 2016

AFUE - 96%

Input - 44,000 to 132,000 Btuh

Nominal Add-on Cooling - 1.5 to 5 Tons

MODEL NUMBER IDENTIFICATION

EL 2 96 UH 070 X E 36 B - 01

Unit Type

EL = Elite

®

Series

Minor Revision Number

Stages

2 = Two-Stage

1

Cabinet Width

B = 17-1/2 in.

C = 21 in.

D = 24-1/2 in.

AFUE

96 = 96%

Configuration

UH = Upflow/Horizontal

Nominal Add-On Cooling Capacity

36 = 1.5-3 tons

48 = 2.5-4 tons

60 = 3-5 tons

Nominal Gas Heat Input

045 = 44,000 Btuh

070 = 66,000 Btuh

090 = 88,000 Btuh

110 = 110,000 Btuh

135 = 132,000 Btuh

Blower

E = High Efficiency Constant Torque Blower Motor

Low NO x

X = Units meet California Nitrogen Oxides Standard (40 ng/J)

1

Indoor coils with the same letter designation will physically match the furnace.

FEATURES

CONTENTS

Blower Data ............................................................... 21

Dimensions - Horizontal Position ............................... 15

Dimensions - Upflow Position .................................... 14

Features....................................................................... 2

Gas Heat Accessories ............................................... 10

High Altitude Derate ................................................... 10

Installation Clearances .............................................. 13

Model Number Identification ........................................ 1

Optional Accessories ................................................... 9

Optional Accessory Dimensions ................................ 16

Specifications............................................................... 8

Vent Lengths .............................................................. 12

L

H

K

F

E

C

I I

C

HI

LO

B

D

G

M

C

I

J

A

WARRANTY

Duralok Plus™ Aluminized Steel Heat Exchanger -

Limited Lifetime warranty in residential applications

(twenty year transferable), ten years in non-residential applications.

All other covered components - Limited Five Year warranty in residential applications, one year in nonresidential applications.

Refer to Lennox Equipment Limited Warranty certificate included with equipment for details.

APPROVALS

Units are Certified by AHRI.

Units are Certified by CSA International.

Units tested and rated according to US DOE test procedures and FTC labeling regulations.

Approved by the California Energy Commission and meets California Nitrogen Oxides Standard (NOx) limits of 40 ng/J.

Energy Star

®

certified units are designed to use less energy, help save money on utility bills, and help protect the environment.

ISO 9001 Registered Manufacturing Quality System.

Blower data from unit tests conducted in Lennox

Laboratory air test chamber.

APPLICATIONS

Input capacities of 44,000, 66,000, 88,000, 110,000 and

132,000 Btuh.

Energy efficiency (AFUE) 96%.

Compact cabinet for upflow, horizontal-left or horizontalright applications without any modifications.

Removable bottom seal panel shipped in place for side return air is easily removed for bottom/end return air applications.

Utility room, alcove, closet, crawl space, basement or attic installation.

Lennox add-on indoor coils, high-efficiency air cleaners and humidifiers can easily be added to furnace.

Shipped factory assembled with all controls installed and wired.

Each unit factory test operated to ensure proper operation.

NOTE - FURNACES CANNOT BE TWINNED!

EL296UHE / Page 2

FEATURES

HEATING SYSTEM

B

C

Lennox Duralok Plus™ Heat Exchanger Assembly

Lennox developed heat exchanger assembly consists of primary heat exchanger and secondary condenser coil assembly.

Main multi-pass crimped seam design clamshell type heat exchanger.

Constructed of heavygauge, aluminized steel.

Designed for normal expansion and contraction with maximum efficiency and minimum resistance to air flow.

Secondary heat exchanger condenser coil constructed of aluminum fins fitted to stainless steel tubes.

Complete heat exchanger assembly is pressure tested at the factory for leaks.

Condensate drain header box assembly located on front of coil.

Compact size of complete heat exchanger assembly permits low overall design of furnace cabinet.

Heat exchanger assembly has been laboratory life cycle tested in excess of industry standards.

Lennox Designed Header Box

Header box on end of condenser coil collects flue condensate for disposal through condensate drains.

The drains are located on each side of the cabinet for easy field installation of condensate drain trap.

Only one drain is used, the other drain is sealed.

Condensate drain trap is included with the unit for field installation.

Lennox Designed Flue Condensate Trap Assembly

Condensate trap assembly is mounted outside the conditioned air stream.

Assembly can be mounted on either side of cabinet in upflow applications. Assembly is mounted below the cabinet in horizontal applications. Can also be mounted remotely (up to 5 ft. away) from unit. See Installation

Instructions.

90° street elbow furnished for ease of drain trap installation.

Drain connection can be made with field provided PVC pipe, PVC coupling, or vinyl tubing with hose clamp.

Drain cap on trap allows easy cleaning and winterizing.

D

Inshot Burners

Aluminized steel inshot burners provide efficient, trouble-free operation.

Burner venturi mixes air and gas in correct proportion for proper combustion.

Burner assembly is removable from the unit as a single component for ease of service.

E

SureLight

®

Hot Surface Ignitor

Tough, reliable, long-life, trouble-free performance.

Silicon nitride ignitor.

Cemented to steatite block for protection against current leakage.

Ignition leads are constructed of nickel plated copper and are enclosed in high temperature Teflon

®

insulation for dependable operation.

F

Two-Stage Gas Control Valve

24 volt redundant combination two-stage gas control valve combines manual shut off switch (On-Off), automatic electric valve (dual) and gas pressure regulation into a compact combination control.

G

Two-Speed Combustion Air Inducer

Permanent split capacitor (PSC), heavy duty blower prepurges heat exchanger and safely vents flue products.

Dual pressure switches (low fire/high fire) prove blower operation before allowing gas valve to open.

Operates only during heating cycle.

H

Flame Rollout Switches (2)

Manual reset switches are factory installed on burner box.

Switch provides protection from abnormal operating conditions.

Limit Control

Automatic reset, primary limit is accurately located on vestibule panel on all units.

Optional Accessories

High Altitude Orifice Kits

Required on all units for proper unit operation at altitudes from 7501 to 10,000 ft.

Kits are available for natural gas and LPG/propane.

High Altitude Pressure Switch Kit

Required for proper unit operation on installations above

4500 ft.

Natural Gas to LPG/Propane Conversion Kit

Required for field changeover from natural gas to LPG/

Propane.

LPG/Propane to Natural Gas Conversion Kit

Required for field changeover from LPG/Propane to natural gas.

EL296UHE / Page 3

FEATURES

DIRECT VENT / NON-DIRECT VENT SEALED

COMBUSTION SYSTEM

Furnace features a “sealed combustion” system and can be installed in either Direct Vent or Non-Direct applications.

In Direct Vent applications, combustion air is supplied from outdoors and flue gases are discharged outdoors.

In Non-Direct Vent applications, combustion air is supplied from indoors and flue gases are discharged outdoors.

NOTE - Lennox has approved the use of DuraVent

®

PolyPro

®

and Centrotherm InnoFlue

®

manufactured vent pipe and terminations as an alternative to PVC vent pipe. Must be ordered separately.

Tested and listed to the ULC S636 standard in Canada.

The polypropylene venting system must follow the uninsulated and unconditioned space vent lengths listed in the table on .

Refer to the Installation Instructions for additional details.

Optional Accessories

Close Couple WTK (Canada Only) - Direct Vent

Applications

2 or 3 inch kit contains one insulated faceplate, one insulated exhaust pipe, elbow and fittings. Certified to

ULC S636 standard.

Wall Ring - Direct Vent or Non-Direct Vent

Applications

2 inch kit contains 2 stainless steel outside seal caps,

2 galvanized steel inside seal caps, 4 seal rings for the caps and 18 inch insulation sleeve for sealing and isolating intake and exhaust piping penetration of wall.

Maintain a maximum of 6 inches between the inlet and outlet openings in the installation of the pipes.

Roof Termination Flashing Kit

3 inch kit contains two neoprene rubber roof flashings for vertical venting through a roof.

Vent pipe and insulation not furnished.

Flashing Kit can also be used with 2 inch Concentric

Vent Termination Kits used in vertical venting rooftop applications..

I

CONTROLS

Termination Kits

Facilitates installation of combustion air intake pipe and flue exhaust pipe.

Refer to venting table in this bulletin to determine pipe size needed and proper termination kit required.

Certain Termination Kits are certified to ULC S636 standard for use in Canada only.

See Optional Accessories table and dimension drawings.

Termination Kit - Concentric - Direct Vent

Applications

2 or 3 inch kit contains concentric termination assembly, reducer bushing and 45 degree elbow.

2 inch kit for -045-070 models contains an outdoor exhaust accelerator.

Kit requires single hole penetration of roof or wall for installation.

Roof Termination Flashing Kit is available for use with

2 inch Kits.

CSA certified.

Termination Kit - Flush-Mount

Kit contains flush-mount termination, accelerator, mounting template and hardware.

Kit may be used with 2, 2-1/2 or 3 in. pipe.

Termination Kits - Wall Assembly

Close Couple (US Only) - Direct Vent Applications

2 or 3 inch kit consists of close-couple, side-by-side

PVC piping with galvanized steel wall cover plate for sealing and isolating piping penetration of the wall.

Piping spacing and length is sized for proper wall installations.

CSA certified.

SureLight

furnace.

®

Integrated Furnace Control

Contains all necessary controls and relays to operate

Combustion air inducer is operated by the integrated furnace control. Prior to ignition, a pre-purge cycle for 15 seconds is initiated. After the main burners are turned off, a post-purge cycle for 5 seconds is run.

Safety Controls - Flame sensor utilizes flame rectification for safe and reliable operation.

Should loss of flame occur, the integrated furnace control will initiate 4 re-attempts at ignition before locking out unit operation for 60 minutes.

Watchguard type circuit automatically resets ignition controls after one hour of continuous thermostat demand after unit lockout, eliminating nuisance calls for service.

Thermostat Control - For optimal performance, the use of a high-quality, digital two-stage thermostat with adjustable settings for first stage/second stage, on/off differentials and adjustable stage timers is recommended.

Furnace Input Staging Options

Thermostat Type Input Staging Available

Two-Stage

(Conventional)

Determined by thermostat demand

Single-Stage

(Conventional)

2nd-stage heat ON delay

(DIP switch setting)

OFF - 7 minutes (factory)

ON - 12 minutes

EL296UHE / Page 4

FEATURES

CONTROLS (continued)

Display LED - Seven segment LED displays alphanumeric information related to diagnostics as well as system operation and status. Diagnostic codes are held in non-volatile memory, immune from power interruptions. Holds up to ten diagnostic codes in order of occurrence for recall on demand. Port on blower door allows for easy viewing.

DIP Switch Settings

Select Thermostat used - Single-Stage or Two-Stage.

Two selectable second stage recognition times (7 and

12 minutes) are available on the control when the furnace is used with a single-stage thermostat. When used with a two-stage thermostat, furnace will only initiate second stage operation with a second stage thermostat demand.

Second Stage Delay - Used with single-stage thermostat only. See Furnace Input Staging Options table for details.

Blower On/Off Time (Heating) - Blower on time is fixed at 30 seconds, blower off time is adjustable from 60, 90,

120 and 180 seconds (factory setting - 90 seconds).

Blower On/Off Time (Cooling) - For air-conditioning applications, blower on time is 2 seconds following thermostat demand for cooling. Blower off time in cooling mode is adjustable from 2 or 45 seconds

(factory setting - 45 sec).

For air-conditioning applications, blower is automatically energized on thermostat demand for cooling.

Heating Speeds - Low Heat or High Heat.

Cooling Speeds - Low Cool or High Cool.

Continuous Speed - Low Heat (factory setting) - adjustable.

Dehumidification - A jumper on the control must be clipped to enable dehumidification. A humidity controlling thermostat or device is also required. During a call for cooling, air volume is automatically reduced, forcing humidity removal by the air conditioner or heat pump system (single stage units or two-stage units running at 2nd stage). After the humidity has reached the desired set-point the cooling air volume returns to its designed rate.

Dual-Fuel Operation - A jumper on the control must be clipped to enable operation with a single or two-stage heat pump. The indoor blower is started without delay when a call for heat is received.

Two Stage Compressor Operation - A jumper on the control must be clipped to enable operation with a twostage compressor.

Accessory Terminal - One accessory terminal furnished for additional power supply requirements for

120 volt (less than 1 amp) powered air cleaners.

One unpowered pair of contacts are provided for humidifier connections and may be connected to 24V or 120V.

Control is factory installed in the unit control box.

24 Volt Transformer

Furnished and factory installed in control box. 40VA transformer has circuit breaker wired in series.

Field Wiring Make-up Box

Furnished for line voltage wiring.

Factory installed internally on left side of furnace.

Box may be installed internally or externally on either side of furnace.

Optional Accessories

Thermostat

Thermostat (programmable/non-programmable) is not furnished with unit.

See Thermostat bulletins in Controls Section and

Lennox Price Book for selection.

Night Service Kit

Contains most commonly used service parts:

• Furnace control

• Igniter

• Flame sensor

• Gas valve

• Transformer

• Service Manual

Universal Service Kit - Switches

Kit contains:

• Primary limits (for each model)

• Pressure switches (for each model)

• Flame rollout switches (for each model)

EL296UHE / Page 5

FEATURES

J

BLOWER

Direct drive blower.

Statically and dynamically balanced.

Resiliently mounted.

Blower assembly easily removed for servicing.

Power Saver™ Constant Torque Blower Motor

DC Brushless Motor

High Efficiency Constant Torque.

ECM (Electronically Commutated Motor).

Motor is programmed to provide constant torque at each of the selectable speeds.

Motor is controlled by the SureLight

®

Integrated Furnace

Control.

Blower speeds are easily changed on the integrated furnace control. See Blower Data tables.

K

CABINET

Low-profile, narrow width cabinet allows easy installation in upflow or horizontal applications.

Heavy-gauge, cold rolled steel construction.

Pre-painted cabinet finish.

Flanges provided on supply air opening for ease of plenum connection or alignment with indoor coil.

Fully insulated cabinet with foil faced insulation on sides and back of heating compartment and mat faced insulation in blower compartment.

L

M

Sealed blower compartment.

Inner blower compartment access panel seals blower compartment from air leakage.

Cabinet door can be removed without any tools..

Complete service access.

Safety interlock switch automatically shuts off power to unit when blower compartment access door is removed.

Gas piping and electrical inlets are provided in both sides of cabinet.

Return Air Entry:

For bottom/end return-air entry for upflow/horizontal applications, remove furnished bottom seal panel from cabinet.

For side return-air entry (upflow applications only), corners are marked on either side of cabinet for return air cut-outs.

See Dimension Drawing.

NOTE - 60C and 60D size units that require air volumes over 1800 cfm must have one of the following:

1. Single side return air with transition, to accommodate 20 x 25 x 1 in. cleanable air filter.

Required to maintain proper air velocity.

2. Single side return air with Optional Return Air

Base

3. Bottom return air.

4. Return air from both sides.

5. Bottom and one side return air.

See Blower Data Tables for additional information.

Coil Match-Up

All furnaces exactly match C33, C35, CX34 and CX35 cased upflow indoor coils and CH33 and CH35 horizontal indoor coils with same letter designation in model number. No adaptor required. Engaging holes furnished on cabinet for alignment.

C33 uncased coils match furnaces without any overhang but require an optional adaptor base or field fabricated transition to match furnace opening. See C33 coil bulletin for additional information.

Low Leakage Cabinet

All models have less than 2% air leakage and meet

ANSI/ASHRAE Standard 193-2010 “Method of Test for

Determining the Air Tightness of HVAC Equipment”.

EL296UHE / Page 6

FEATURES

CABINET (continued)

Optional Accessories

Condensate Drain Heat Cable Kits

Self-limiting wattage heat cable prevents condensate drain from freezing in unconditioned areas.

Available in 6 or 24 ft. lengths.

Horizontal Suspension Kit

Provides suspension of unit and indoor coil in horizontal applications.

Allows complete service access.

Consists of corner mounted hanging brackets with vibration isolators, return air end support rail and hardware for assembly.

Metal hanging straps must be field provided.

Crawl Space Vent Drain Kit

Allows venting through a crawl space for upflow and horizontal applications.

Includes 2 or 3 in. sanitary tee, 2 in. PVC assembly,

PVC boot and clamp.

Kit for Canada is certified to ULC S636.

Return Air Base

On furnaces with side return air and condensate trap on the same side of the cabinet, a field fabricated transition or Return Air Base is required when using an IAQ product higher than 14-3/16 in. installed next to the unit and serviced from the front. IAQ products higher than

20 in. require a field fabricated transition.

Must be used for 60C and 60D models with air volumes over 1800 cfm in upflow applications when only one side return is required.

Cabinet is shipped flat for easy field assembly and is pre-painted steel to match the furnace.

See Dimension Drawing.

High Performance Economizer

(Commercial Applications Only)

Designed for applications requiring outdoor air to be utilized in a commercial HVAC system. Allows the entry of fresh outdoor air for free cooling, reducing the requirement for mechanical cooling.

Heavy gauge galvanized steel cabinet lined with thick fiberglass insulation. Mixed air sensor, outdoor air sensor and 24VAC transformer furnished.

Approved for California Title 24 building standards.

ASHRAE 90.1-2010 compliant.

See separate Product Specifications bulletin for additional information and available control and sensor options.

FILTER (not furnished)

Filter and provisions for external mounting must be field provided.

Optional Accessories

Air Filter and Rack Kit for Horizontal Return Air

(End) Applications

Washable or vacuum cleanable polyurethane frame type filter and external end return air rack available for field installation.

Rack has filter door for easy filter servicing.

Flanges on rack allow easy duct connection.

See Dimension Drawing.

Air Filter and Rack Kit for Upflow Side Return Air

Applications - Not for use with Return Air Base

Washable or vacuum cleanable polyurethane frame type filter and external side return air rack available for field installation.

Available in single and ten pack kits.

Rack has filter door for easy filter servicing.

Flanges on rack allow easy duct connection.

Field installs on either side of unit cabinet. See

Dimension Drawing.

EL296UHE / Page 7

SPECIFICATIONS

Gas

Heating

Performance

High static - in. w.g.

Connections in.

Indoor

Blower

High

Fire

Low

Fire

Model No. EL296UH045XE36B EL296UH070XE36B EL296UH090XE48C

1

AFUE

Input - Btuh

Output - Btuh

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

Input - Btuh

Output - Btuh

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

96%

44,000

43,000

30-60

3.5 / 10.0

29,000

28,000

20 - 50

1.7 / 4.9

Intake / Exhaust Pipe (PVC)

Gas pipe size IPS

Condensate Drain Trap (PVC pipe) - i.d.

0.5

2 / 2

1/2

3/4 with furnished 90° street elbow 3/4 slip x 3/4 Mipt with field supplied (PVC coupling) - o.d.

3/4 slip x 3/4 MPT

Wheel nominal diameter x width - in.

Motor Type

Motor output - hp

Tons of add-on cooling

10 x 8

DC Brushless

1/2

1.5 - 3

96%

66,000

64,000

35-65

3.5 / 10.0

43,000

42,000

25 - 55

1.7 / 4.9

0.5

2 / 2

1/2

3/4

3/4 slip x 3/4 Mipt

3/4 slip x 3/4 MPT

10 x 8

DC Brushless

1/2

1.5 - 3

96%

88,000

84,000

40-70

3.5 / 10.0

57,000

55,000

30 - 60

1.7 / 4.9

0.5

2 / 2

1/2

3/4

3/4 slip x 3/4 Mipt

3/4 slip x 3/4 MPT

10 x 10

DC Brushless

3/4

2.5 - 4

Electrical Data

Shipping Data

Air Volume Range - cfm

Voltage

Blower motor full load amps

Maximum overcurrent protection lbs. - 1 package

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

520 - 1345

6.8

15

129

550 - 1380

120 volts - 60 hertz - 1 phase

6.8

15

133

760 - 1740

8.4

15

159

1

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

SPECIFICATIONS

Gas

Heating

Performance

High

Fire

Model No.

1

AFUE

Input - Btuh

Output - Btuh

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

Low

Fire

Input - Btuh

Output - Btuh

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

High static - in. w.g.

Connections in.

Intake / Exhaust Pipe (PVC)

Gas pipe size IPS

Condensate Drain Trap (PVC pipe) - i.d.

with furnished 90° street elbow with field supplied (PVC coupling) - o.d.

Indoor

Blower

Wheel nominal diameter x width - in.

Motor Type

Motor output - hp

Tons of add-on cooling

Electrical Data

Shipping Data

Air Volume Range - cfm

Voltage

Blower motor full load amps

Maximum overcurrent protection lbs. - 1 package

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

EL296UH110XE60C

96%

110,000

106,000

40-70

3.5 / 10.0

72,000

70,000

30-60

1.7 / 4.9

0.5

2 / 2

1/2

3/4

3/4 slip x 3/4 Mipt

3/4 slip x 3/4 MPT

11-1/2 x 10

DC Brushless

1

3 - 5

1055 - 2220

10.9

15

174

EL296UH135XE60D

132,000

127,000

3.5 / 10.0

1.7 / 4.9

120 volts - 60 hertz - 1 phase

96%

45-75

86,000

84,000

35-65

0.5

2 / 2

1/2

3/4

3/4 slip x 3/4 Mipt

3/4 slip x 3/4 MPT

11-1/2 x 10

DC Brushless

1

3.5 - 5

1260 - 2405

10.9

15

189

1

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

EL296UHE / Page 8

OPTIONAL ACCESSORIES - ORDER SEPARATELY

NOTE - FURNACES CANNOT BE TWINNED!

“B” Width

Models

CABINET ACCESSORIES

Horizontal Suspension Kit - Horizontal only

Return Air Base - Upflow only

High Performance Economizer (Commercial Only)

CONDENSATE DRAIN KITS

Condensate Drain Heat Cable

Crawl Space Vent Drain Kit

6 ft.

24 ft.

US

Canada

51W10

50W98

10U53

26K68

26K69

51W18

15Z70

FILTER KITS

1

Air Filter and

Rack Kit

Horizontal (end)

Side Return

“C” Width

Models

51W10

50W99

10U53

26K68

26K69

51W18

15Z70

“D” Width

Models

51W10

51W00

10U53

26K68

26K69

51W18

15Z70

Size of filter - in.

87L96 - 18 x 25 x 1 87L97 - 20 x 25 x 1 87L98 - 25 x 25 x 1

Single

44J22 44J22 44J22

Ten Pack

Size of filter - in.

66K63

16 x 25 x 1

66K63

16 x 25 x 1

66K63

16 x 25 x 1

SERVICE KITS

Night Service Kit

Universal Service Kit - Switches

TERMINATION KITS

See Installation Instructions for specific venting information.

10B39

89W20

10B39

89W20

10B39

89W20

Termination Kits -

Direct Vent

Applications Only

Concentric

Flush-Mount

Couple

US - 2 in.

3 in.

Canada - 2 in.

3 in.

US - 2, 2-1/2 or 3 in.

Canada - 2, 2-1/2 or 3 in.

Wall - Close

Wall - Close

Couple WTK

US - 2 in.

3 in.

Canada - 2 in.

3 in.

2 in.

2 in.

71M80

- - -

44W92

- - -

51W11

51W12

22G44

44J40

30G28

81J20

15F75

15F74

69M29

60L46

44W92

44W93

51W11

51W12

- - -

44J40

- - -

81J20

15F75

3

15F74

Termination Kits -

Direct or Non-

Direct Vent

Roof

Wall Ring Kit

2

Roof Termination Flashing Kit - Direct or

Non-Direct Vent (2 flashings)

3 in.

44J41 44J41 44J41

1

Cleanable polyurethane, frame-type filter.

5

Kits contain enough parts for two, non-direct vent installations.

3

Non-direct vent only.

NOTE - Termination Kits ( 44W92, 44W93, 30G28, 51W12, 51W19, 81J20) and Crawl Space Vent Drain Kit (15Z70) are certified to ULC S636 standard for use in

Canada only.

- - -

60L46

- - -

44W93

51W11

51W12

- - -

44J40

- - -

81J20

- - -

- - -

EL296UHE / Page 9

GAS HEAT ACCESSORIES

Input

045

070

090

110

135

High Altitude

Pressure Switch Kit

4501 - 7500 ft.

7501 - 10,000 ft.

14A47 14A50

14A54

14A57

14A46

14A49

14A53

14A54

14A51

14A51

Natural Gas to

LPG/Propane Kit

0 - 7500 ft.

11K51

11K51

11K51

11K51

11K51

LPG/Propane to Natural Gas Kit

0 - 7500 ft.

77W09

77W09

77W09

77W09

77W09

Natural Gas

High Altitude

Orifice Kit

LPG/Propane

High Altitude

Orifice Kit

7501 - 10,000 ft. 7501 - 10,000 ft.

73W37

73W37

11K46

11K46

73W37

73W37

73W37

11K46

11K46

11K46

HIGH ALTITUDE DERATE

NOTE - Units may be installed at altitudes up to 10,000 ft.

At altitudes above 4501 ft. the unit must be derated to match the manifold pressure information shown below.

Units installed at altitudes of 4501 to 10,000 ft. require a pressure switch change.

Units installed at altitudes of 7501 to 10,000 ft. require an orifice change.

See the Gas Heat Accessories table for ordering information.

NOTE - This is the only permissible derate for these units.

NOTE - In Canada, certification for installations at elevations over 4500 feet is the jurisdiction of local authorities.

Manifold Pressure in. w.g.

Input

All Sizes

Gas

Natural

LPG/Propane

0 - 4500 ft.

4501 - 5500 ft. 5501 - 6500 ft. 6501 - 7500 ft. 7501 - 10,000 ft.

Low

Fire

1.7

4.9

High

Fire

3.5

10.0

Low

Fire

1.6

4.6

High

Fire

3.3

9.4

Low

Fire

1.5

4.4

High

Fire

3.2

9.1

Low

Fire

1.5

4.3

High

Fire

3.1

8.9

Low

Fire

1.7

4.9

High

Fire

3.5

10.0

Supply Line

Pressure in. w.g.

0 - 10,000 ft.

Min.

Max.

4.5

11.0

13.0

13.0

EL296UHE / Page 10

OUTDOOR TERMINATION KIT USAGE

Input

Size

045

Vent

Pipe

Diameter

(in.)

Flush

Mount

Kit

4

51W11 (US)

51W12 (CA)

2

2-1/2

3

3

YES

YES

Standard Terminations

4

2 inch

Wall Kit

22G44 (US)

30G28 (CA)

4

3 inch

44J40 (US)

Wall Ring

Kit

2 inch

81J20 (CA) 15F74

Field

Fabricated

Exhaust

Accelerator

Size

Required

YES

1

YES YES 1-1/2 in.

3

2

3

3

YES

YES

YES

YES

YES

1

YES

1

YES

1

YES

YES

YES

YES

1-1/2 in.

1-1/2 in.

1-1/2 in.

4

2

YES

2

YES

2

YES

2

YES

Concentric Terminations

1-1/2 inch

71M80 (US)

44W92 (CA)

Concentric Kit

4

2 inch

69M29 (US)

44W92 (CA)

- - -

- - -

- - -

- - -

4

3 inch

60L46 (US)

44W93 (CA)

- - -

- - -

- - -

- - -

070

090

110

2-1/2

3

2

2-1/2

3

2

2-1/2

3

3

3

3

3

YES

YES

YES

YES

3

YES

YES

YES

YES

YES

YES

- - -

- - -

- - -

- - -

- - -

- - -

1

1

YES

YES

YES

YES

YES

YES

YES

YES

1

1

1

YES

YES

YES

YES

YES

YES

- - -

- - -

1-1/2 in.

1-1/2 in.

2 in.

2 in.

2 in.

2 in.

2 in.

2 in.

2

2

YES

YES

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

YES

YES

YES

YES

YES

YES

- - -

- - -

YES

YES

YES

YES

YES

YES

135

3 YES - - YES - - 2 in.

- - - - YES

NOTE - Standard Terminations do not include any vent pipe or elbows external to the structure.

Any vent pipe or elbows external to the structure must be included in total vent length calculations. See Vent Length Tables.

1

Requires field provided 1-1/2 in. outdoor exhaust accelerator.

2

Concentric Kits 71M80 and 44W92 include 1-1/2 in. outdoor exhaust accelerator, required when used with 045 and 070 input models. Accelerator is not used with 090,

110, 135 input models.

3

Flush Mount Kit

51W11 and 51W12 includes 1-1/2 in. outdoor exhaust accelerator, required when used with 045, 070 and 090 input models. Accelerator is not used with

110 or 135 input models.

4

Termination Kits 30G28, 44W92, 44W93, 51W12 and 81J20 are certified to ULC S636 standard for use in Canada only.

VENT LENGTHS - UNINSULATED EXHAUST PIPE IN UNCONDITIONED SPACE

1

Winter Design

Temperatures

32 to 21°F

20 to 1°F

0 to –20°F

Vent Pipe

Diameter

2 in.

2-1/2 in.

3 in.

2 in.

2-1/2 in.

3 in.

2 in.

2-1/2 in.

3 in.

PVC

7

N/A

6

N/A

N/A

21

16

12

11

045

PolyPro

InnoFlue

18

N/A

12

9

N/A

N/A

4

N/A

N/A

070

Unit Input Size

090 110

Maximum Un-Insulated Exhaust Vent Length (ft.)

PVC

33

PolyPro

InnoFlue

30

PVC

46

PolyPro

InnoFlue

42

PVC

30

PolyPro

InnoFlue

30

26

21

19

14

9

N/A

21

17

N/A

9

37

30

28

21

16

N/A

30

25

N/A

16

36

29

27

20

14

N/A

29

24

N/A

14

12

7

N/A

10

N/A

N/A

19

13

8

16

N/A

8

18

12

7

15

N/A

7

PVC

N/A

23

N/A

N/A

13

N/A

N/A

42

N/A

NOTE - Concentric terminations are equivalent to 5 ft. of straight pipe and should be included when measuring total pipe length.

1

Refer to 99% Minimum Design Temperature table provided in the current edition of ASHRAE Handbook-Fundamentals.

PolyPro

®

poly-propylene vent pipe is a registered trademark of DuraVent

®

.

Innoflue

®

is a registered trademark of Centrotherm Eco Systems.

135

PolyPro

InnoFlue

N/A

N/A

42

N/A

N/A

23

N/A

N/A

13

EL296UHE / Page 11

VENT LENGTHS - FEET

STANDARD TERMINATION AT ELEVATION 0 - 4500 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 81 66

2 in.

44 24 N/A 115 115

2-1/2 in.

93 58

3 in.

N/A 138 137 118 118 114

2

3

76

71

61

56

39

34

19

14

N/A 110 110

N/A 105 105

88

83

53

48

N/A 133 132 113 113 109

N/A 128 127 108 108 104

No. of

90 ELL

6

7

4

5

8

9

10

66

61

56

51

46

41

36

51

46

41

36

31

26

21

29

24

19

14

N/A

N/A

N/A

N/A N/A 100 100

N/A N/A

N/A N/A

N/A N/A

N/A

N/A

N/A

N/A

N/A

N/A

95

90

85

80

75

70

95

90

85

80

75

70

78

73

68

63

58

53

48

43

38

33

28

23

18

13

N/A 123 122 103 103

N/A 118 117

N/A 113 112

N/A 108 107

N/A

N/A

N/A

103

98

93

102

97

92

98

93

88

83

78

73

98

93

88

83

78

73

79

74

69

99

94

89

84

STANDARD TERMINATION ELEVATION 4501 - 10,000 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 81 66

2 in.

44 N/A N/A 115 115

2-1/2 in.

93 58

3 in.

N/A 138 137 118 118 114

2

3

76

71

61

56

39

34

N/A N/A 110 110

N/A N/A 105 105

88

83

53

48

N/A 133 132 113 113 109

N/A 128 127 108 108 104

No. of

90 ELL

6

7

4

5

8

9

10

66

61

56

51

46

41

36

51

46

41

36

31

26

21

29

24

19

14

N/A

N/A

N/A

N/A N/A 100 100

N/A N/A

N/A N/A

N/A N/A

N/A

N/A

N/A

N/A

N/A

N/A

95

90

85

80

75

70

95

90

85

80

75

70

78

73

68

63

58

53

48

43

38

33

28

23

18

13

N/A 123 122 103 103

N/A 118 117

N/A 113 112

N/A 108 107

N/A

N/A

N/A

103

98

93

102

97

92

98

93

88

83

78

73

98

93

88

83

78

73

79

74

69

99

94

89

84

CONCENTRIC TERMINATION AT ELEVATION 0 - 4500 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 73 58

2 in.

42 22 N/A 105 105

2-1/2 in.

89 54

3 in.

N/A 121 121 114 114 105

2

3

4

68

63

58

53

48

43

37

32

27

17

12

N/A

N/A

N/A N/A

100

95

90

100

95

90

84

79

74

49

44

39

N/A

N/A

N/A

116

111

106

116

111

106

109

104

99

109

104

99

100

95

90

No. of

90 ELL

7

8

5

6

9

10

53

48

43

38

33

28

38

33

28

23

18

13

22

17

N/A N/A

N/A N/A

12 N/A N/A

N/A N/A N/A

N/A N/A N/A

N/A N/A N/A

85

80

75

70

65

60

85

80

75

70

65

60

69

64

59

54

49

44

34

29

24

19

N/A

N/A

N/A

N/A

14 N/A

N/A N/A

101

96

91

86

81

76

101

96

91

86

81

76

94

89

84

79

74

69

94

89

84

79

74

69

85

80

75

70

65

60

CONCENTRIC TERMINATION ELEVATION 4501 - 10,000 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 73 58

2 in.

42 N/A N/A 105 105

2-1/2 in.

89 54

3 in.

N/A 121 121 114 114 105

No. of

90 ELL

2

3

4

5

6

7

68

63

58

53

48

43

53

48

43

38

33

28

37

32

27

22

17

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

100

95

90

85

80

75

100

95

90

85

80

75

84

79

74

69

64

59

49

44

39

34

29

24

N/A

N/A

N/A

N/A

N/A

N/A

116

111

106

101

96

91

116

111

106

101

96

91

109

104

99

94

89

84

109

104

99

94

89

84

100

95

90

85

80

75

8

9

10

38

33

28

23

18

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

70

65

60

70

65

60

54

49

44

19

14

N/A

N/A

N/A N/A

86

81

76

86

81

76

79

74

69

79

74

69

70

65

60

EL296UHE / Page 12

VENT LENGTHS (EXHAUST) - VENTILATED ATTIC OR CRAWLSPACE INTAKE AIR - FEET

STANDARD TERMINATION AT ELEVATION 0 - 4500 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1

2 in.

2-1/2 in.

3 in.

71 56 34 14 N/A 100 100 78 43 N/A 118 117 98 98 94

2

3

66 51 29 9 N/A 95 95 73 38 N/A 113 112 93 93 89

61 46 24 4 N/A 90 90 68 33 N/A 108 107 88 88 84

No. of

90 ELL

6

7

4

5

8

9

10

56

51

46

41

36

31

26

41

36

31

26

19 N/A

14 N/A

9

4

21 N/A

16 N/A

11 N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

85

80

85

70

65

60

55

85

80

75

70

65

60

55

63

58

63

48

43

38

28 N/A

23 N/A

18 N/A

13 N/A

8

3

33 N/A

N/A

N/A

N/A

103 102 83

98

93

88

83

78

73

97

92

87

82

77

72

78

73

68

63

58

53

83

78

73

68

63

58

53

79

74

69

64

59

54

49

STANDARD TERMINATION ELEVATION 4501 - 10,000 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1

2 in.

2-1/2 in.

3 in.

71 56 34 N/A N/A 100 100 78 43 N/A 118 117 98 98 94

2

3

66 51 29 N/A N/A 95 95 73 38 N/A 113 112 93 93 89

61 46 24 N/A N/A 90 90 68 33 N/A 118 107 88 88 84

No. of

90 ELL

6

7

4

5

8

9

10

56

51

46

41

36

31

26

41

36

31

26

19 N/A

14 N/A

9

4

21 N/A

16 N/A

11 N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

85

80

85

70

65

60

55

85

80

85

70

65

60

55

63

58

53

48

43

38

28 N/A

23 N/A

18 N/A

13 N/A

8

3

33 N/A

N/A

N/A

N/A

113 102 83

98

93

98

93

78

73

97

92

87

82

77

72

78

73

68

63

58

53

83

78

73

68

63

58

53

79

74

69

64

59

54

49

INSTALLATION CLEARANCES - INCHES (MM)

Sides

1

0 inches (0 mm)

Rear

Top/Plenum

Front

Front (service/alcove)

Floor

0 inches (0 mm)

1 inch (25 mm)

0 inches (0 mm)

24 inches (610 mm)

2

Combustible

NOTE − Air for combustion must conform to the methods outlined in the National Fuel Gas Code (NFPA 54/ANSI−Z223.1) or the National Standard of Canada CAN/CSA−B149.1 Natural Gas and Propane Installation Code”.

NOTE − In the U.S. flue sizing must conform to the methods outlined in the current National Fuel Gas Code (NFPA 54/

ANSI−Z223.1) or applicable provisions of local building codes. In Canada flue sizing must conform to the methods outlined in National Standard of Canada CAN/CSA−B149.1.

1

Allow proper clearances to accommodate condensate trap and vent pipe installation.

2

Do not install the furnace directly on carpeting, tile, or other combustible materials other than wood flooring.

EL296UHE / Page 13

DIMENSIONS - INCHES (MM) - UPFLOW POSITION

1

NOTE - 60C and 60D size units that require second stage air volumes over 1800 cfm must have one of the following:

1. Single side return air with transition, to accommodate

20 x 25 x 1 in. cleanable air filter.

Required to maintain proper air velocity.

2. Single side return air with Optional Return Air Base

3. Bottom return air.

2

4. Return air from both sides.

5. Bottom and one side return air.

See Blower Performance Tables for additional information.

Optional Side Return Air Filter Kit is not for use with the Optional Return Air Base.

1-7/8 (48)

D

3-1/4

(83)

EXHAUST AIR

OUTLET

Flue Condensate Trap Assembly

Furnished for external field installation on either side of unit.

(See installation instructions for additional information.)

3/4

(19)

A

B

7

(178)

COMBUSTION

AIR INTAKE

9/16 (14)

2

OPTIONAL

SIDE RETURN

AIR FILTER KIT

(Either Side)

1-1/2 (38)

Front Panel

2

OPTIONAL

SIDE RETURN

AIR FILTER KIT

(Either Side)

33

(838)

6-9/16 (167)

Left

9 (229)

Right

12-5/8 (321)

(Either Side)

ELECTRICAL

INLET

(Either Side)

14-3/4

(375)

16

(406)

AIR FLOW

C

1

Bottom Return

Air Opening

FRONT VIEW

3/4

(19)

5/8

(16)

Model No.

in.

EL296UH045XE36B

EL296UH070XE36B

EL296UH090XE48C

EL296UH110XE60C

17-1/2

21

EL296UH135XE60D 24-1/2

A mm

446

533

622

in.

16-3/8

19-7/8

23-3/8

B

3-1/4

(83)

mm

416

505

594

23-3/4

(603)

25

(635)

TOP VIEW

27-3/4

(705)

19-7/16

(494)

2 (51)

(Either Side)

GAS PIPING INLET

(Either Side)

CONDENSATE

TRAP CONNECTION

(Either Side)

6-1/2 (165)

(Either Side)

23

(584)

1 Side Return

(Either Side)

14

(356)

in.

16

1-15/16 (49)

C mm

406

23-1/2

(597)

1

Bottom Return

Air Opening

SIDE VIEW in.

7-5/8

D mm

194

19-1/2

23

495

584

9-3/8

11-1/8

238

283

9/16

(14)

1-1/2

(38)

EL296UHE / Page 14

DIMENSIONS - INCHES (MM) - HORIZONTAL POSITION

LEFT-HAND AIR DISCHARGE

9/16

(14)

12-5/8 (321)

Bottom

6-9/16 (167) Top

9 (229) Bottom

CONDENSATE

TRAP CONNECTION

(Bottom)

AIR

FLOW

ELECTRICAL INLET

(Top or Bottom)

19-7/16

(494)

SUPPLY

OPENING

27-3/4

(705)

9/16

(14)

B

6-1/2 (165)

Bottom

2 (51)

Top or Bottom

COMBUSTION

AIR INTAKE

D

A

TOP VIEW

33

(838)

GAS PIPING INLET

(Top or Bottom)

1-1/2 (38)

Front Panel

EXHAUST AIR

OUTLET

END VIEW

3-1/4 (83)

1-7/8 (48)

FRONT VIEW

RIGHT-HAND AIR DISCHARGE

AIR

FLOW

A

3-1/4

(95)

3/4

(19)

C

27-3/4

(705)

23-1/2

(597)

RETURN

AIR

OPENING

END VIEW

27-3/4

(705)

23-1/2

(597)

RETURN

OPENING

C

END VIEW

3/4

(19)

CONDENSATE

TRAP CONNECTION

(Bottom)

AIR

FLOW

6-1/2 (165)

Bottom

ELECTRICAL INLET

(Top or Bottom)

1-1/2 (38)

Front Panel

3-1/4

(95)

A

AIR

FLOW

Model No.

in.

EL296UH045XE36B

EL296UH070XE36B

EL296UH090XE48C

EL296UH110XE60C

17-1/2

21

EL296UH135XE60D 24-1/2

A mm

446

533

622

FRONT VIEW in.

TOP VIEW

33

(838)

16-3/8

19-7/8

23-3/8

B mm

416

505

594

12-5/8 (321)

Bottom

9 (229) Top

6-9/16 (167) Bottom

2 (51)

Top or Bottom

GAS PIPING INLET

(Top or Bottom)

EXHAUST AIR

OUTLET

1-7/8

(48)

A

D

3-1/4

(83)

27-3/4

(705)

19-7/16

(494)

SUPPLY

AIR

OPENING

B

9/16

(14)

9/16

(14)

in.

16

COMBUSTION

AIR INTAKE

C mm

406

END VIEW in.

7-5/8

D mm

194

19-1/2

23

495

584

9-3/8

11-1/8

238

283

EL296UHE / Page 15

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

HORIZONTAL (END) FILTER KIT

5/8

(16)

24−3/4

(629)

5/8

(16)

AIR FLOW

A

5/8

(16)

B

RETURN

AIR

OPENING

23−1/2

(597)

5/8

(16)

SIDE VIEW

1-1/4

(32)

AIR FILTER

(Furnished)

FRONT VIEW

Furnace

Cabinet

Width

B

C

D

Catalog

Number

87L96

87L97

87L98 in.

18

21

25

A mm

457

533

635

in.

16-3/4

18-3/4

23-3/4

B mm

425

476

603

CONDENSATE

TRAP

Optional Return Air Base

(Upflow Applications Only - For use with B, C and D cabinets)

FURNACE

FRONT

INDOOR AIR

QUALITY

CABINET

(PCO, Filter

Cabinet, etc.)

IF BASE

IS USED

WITHOUT

IAQ CABINET,

A SINGLE

RETURN AIR

PLENUM

MUST

COVER BOTH

UNIT AND

RETURN

AIR BASE

OPENINGS

3-1/4

(83)

1

Overall

(Maximum)

1

Unit side return air

Opening

1

2

11 (279)

Maximum

14 (356)

1

22-7/16

(570)

Overall

(Maximum)

17-1/2 (446) B Width (50W98)

21 (533) C Width (50W99)

24-1/2 (622) D Width (51W00)

OPTIONAL

AIR BASE

5-5/8

(143)

SIDE RETURN

AIR OPENINGS

(Either Side)

23

(584)

26-7/8

(683)

SIDE VIEW

3/4

(19)

NOTE- Optional Side Return Air Filter Kits are not for use with Optional Return Air Base.

Both the unit return air opening and the base return air opening must be covered by a single plenum or IAQ cabinet.

Minimum unit side return air opening dimensions for units requiring 1800 cfm or more of air (W x H): 23 x 11 in. (584 x 279 mm).

The opening can be cut as needed to accommodate plenum or IAQ cabinet while maintaining dimensions shown.

2

Side return air openings must be cut in the field. There are cutting guides stenciled on the cabinet for the side return air opening. The size of the opening must not extend beyond the markings on the furnace cabinet.

To minimize pressure drop, the largest opening height possible, up to 14 in. (356 mm), is preferred.

EL296UHE / Page 16

DIMENSIONS - INCHES (MM) - FURNACE/COIL COMBINED DIMENSIONS

UPFLOW POSITION

CX34

- - -

CX34-19A-6F

- - -

Model No

C35/CX35

- - -

- - -

- - -

C33

A

Cased

B A

Uncased

(C33 only)

B in. mm in. mm in. mm in. mm

C33-18A 12-1/2 318 45-1/2 1156 9-3/4 248 42-3/4 1086

C33-19A 16-1/2 419 49-1/2 1257 9-3/4 248 42-3/4 1086

C33-24A 16-1/2 419 49-1/2 1257 14 356 47 1194

CX34-18/24A-6F

CX34-18/24B-6F

CX34-18/24C-6F

C35/CX35-18/24A-6F

C35/CX35-18/24B-6F C33-24B

C33-24C

16-1/2 419 49-1/2 1257 13-7/8 352 46-7/8 1191

CX34-25A-6F C35/CX35-24A-6F C33-25A 18-1/2 470 51-1/2 1308 16-1/4 413 49-1/4 1251

CX34-25B-6F C35/CX35-24B-6F C33-25B 18-1/2 470 51-1/2 1308 15-7/8 403 48-7/8 1241

CX34-30B-6F

CX34-30C-6F

- - -

C33-30B

C33-30C 20-1/2 521 53-1/2 1359 17-3/4 451 50-3/4 1289

CX34-30A-6F - - C33-30A 20-1/2 521 53-1/2 1359 18 457 51 1295

CX34-31A-6F C35/CX35-30A-6F C33-31A 22-1/2 572 55-1/2 1410 21-1/4 540 54-1/4 1378

CX34-31B-6F C35/CX35-30B-6F C33-31B 22-1/2 572 55-1/2 1410 20-1/4 514 53-1/4 1353

CX34-36A-6F C35/CX35-30/36A-6F C33-36A 24-1/2 622 57-1/2 1461 22-1/8 562 55-1/8 1400

CX34-36B-6F C35/CX35-30/36B-6F C33-36B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394

CX34-36C-6F C35/CX35-30/36C-6F C33-36C 24-1/2 622 57-1/2 1461 21-1/4 540 54-1/4 1378

CX34-38A-6F C35/CX35-36A-6F C33-38A 24-1/2 622 57-1/2 1461 22-1/4 565 55-1/4 1403

CX34-38B-6F C35/CX35-36B-6F C33-38B 24-1/2 622 57-1/2 1461 22 559 55 1397

CX34-42B-6F - - C33-42B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394

CX34-43B-6F C35/CX35-48B-6F C33-43B 27-1/2 699 60-1/2 1537 26-1/4 667 59-1/4 1505

CX34-43C-6F C35/CX35-48C-6F C33-43C 27-1/2 699 60-1/2 1537 25-3/4 654 58-3/4 1492

- - -

CX34-44/48B-6F

- - -

- - -

C33-44C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384

C33-48B 24-1/2 622 57-1/2 1461 22-1/8 562 55-1/8 1400

CX34-44/48C-6F - - C33-48C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384

CX34-49C-6F C35/CX35-49C-6F C33-49C 29-1/2 749 62-1/2 1588 28-1/2 724 61-1/2 1562

CX34-50/60C-6FC35/CX35-50/60C-6F C33-50/60C27-1/2 699 60-1/2 1537 24-3/4 629 57-3/4 1467

CX34-60D-6F - - C33-60D 25-1/2 648 58-1/2 1486 24-3/4 629 57-3/4 1467

CX34-62C-6F CX35-60C-6F

CX34-62D-6F CX35-60D-6F

C33-62C 31-1/2 800 64-1/2 1638 30-5/8 778 63-5/8 1616

C33-62D 29-1/2 749 62-1/2 1588 28-3/4 730 61-3/4 1568

A

B

33

(838)

HORIZONTAL POSITION

Model

Number

CH33-18A-2F

CH33-24/30A-2F,

CH33-36A-2F,

CH33-36B-2F,

CH33-36C-2F,

CH33-44/48B-2F,

CH33-50/60C-2F,

CH33-42B-2F,

CH33-48C-2F,

CH33-60D-2F

CH33-62D-2F

CH35-18A-2F,

CH35-24A-2F,

CH35-24B-2F,

CH35-30B-2F,

CH35-30A-2F,

CH35-42B-2F,

CH35-48B-2F,

CH33 in.

21-1/2

26-1/2

31-1/2

CH35-36A-2F,

CH35-36B-2F,

CH35-36C-2F,

CH35-42C-2F,

CH35-48C-2F

CH35-51C-2F,

CH35-60D-2F

CH35

26-1/2

31-1/2

A mm

546

673

800

673

880

in.

B

A

33

(838)

mm

54-1/2 1384

59-1/2 1511

64-1/2 1638

59-1/2 1511

64-1/2 1638

EL296UHE / Page 17

B

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

FLUSH-MOUNT VENT TERMINATION KIT 51W11 (US) or 51W12 (CANADA)

2-3/8 (60)

With 2 or 2-1/2 in. (51 or 64 mm) PVC pipe

Exhaust Intake

(Behind Plate)

Seal all openings

(typical)

With 3 in. (76 mm) PVC pipe

Exhaust Intake

(Behind Plate)

12 (305) minimum

(recommended)

2 (51) PVC pipe

3 (76) PVC pipe

When required Use

Field Provided

2-1/2 to 2 in. (64 to 51 mm)

Coupling

NOTE - PVC pipe and fittings are not furnished and must be field furnished.

2-1/2 (64) PVC pipe

EL296UHE / Page 18

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

CONCENTRIC WALL

TERMINATION APPLICATIONS

CONCENTRIC ROOF

TERMINATION APPLICATIONS

FLASHING

(Not Furnished)

EXHAUST

AIR

INTAKE

AIR

OUTSIDE

WALL

CLAMP

(Not Furnished)

INTAKE

AIR

EXHAUST

AIR

INTAKE

AIR

12 (305)

Minimum

Above Grade or Average Snow

Accumulation

GRADE

12 (305)

Minimum

Above Average

Snow

Accumulation

CLAMP

SHEET METAL STRAP

(Clamp and sheet metal strap must be field installed to support the weight of the termination kit.)

71M80 / 69M29 / 44W92 − 2 inch kits

60L46 / 44W93 − 3 inch kits

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

A

B

EXHAUST

AIR

Cat. No.

71M80

69M29

44W92

(Canada)

60L46

44W93

(Canada)

ELBOW

(Field Supplied)

INTAKE AIR

TERMINATION

ASSEMBLY

(Furnished)

Outdoor Exhaust Accelerator included with 71M80/44W92

A B in.

mm in.

mm

33−3/8 848 16−3/4 425

29 737 15−1/2 394

38−7/8 987 21−3/16 538

36−1/8 918 19−1/2 495

NOTE − Typical illustration for dimensions only. Design may vary depending on kit ordered.

WALL ASSEMBLY TERMINATION KIT − RING KIT 15F74 − 2 inch (51 mm)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

DIRECT VENT APPLICATION

NON-DIRECT VENT APPLICATION

NOTE - EXHAUST PIPE SHOWN

Kit Contains Enough Parts For Two Installations

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

8 in. (203 mm) minimum

6 in. (152 mm) maximum

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

EL296UHE / Page 19

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 22G44 (US)

3 inch (76 mm) 44J40 (US)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

8 (203) MIN. Between Ends of Exhaust and Intake Pipe

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

EXHAUST

AIR

INTAKE

AIR

INTAKE

AIR

8 (203) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

5

(127)

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 30G28 (WTK Canada)

3 inch (76 mm) 81J20 (WTK Canada)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

INTAKE

AIR

EXHAUST

AIR

6 (152)

MIN.

INTAKE

AIR

6 (152) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5

(127)

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

EL296UHE / Page 20

BLOWER DATA

EL296UH045XE36B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

cfm

High

Watts

Air Volume / Watts at Various Blower Speeds

Medium-High cfm Watts cfm

Medium

Watts

Medium-Low cfm Watts

0.00

1345 340 1255 245 1150 185 895 105

0.10

0.20

1305

1290

345

360

1225

1190

250

260

1105

1080

200

205

855

825

110

120

0.30

0.40

0.50

1275

1220

1215

370

385

390

1150

1120

1090

270

280

290

1045

1015

980

215

220

230

785

735

705

125

135

140

0.60

0.70

0.80

1190

N/A

N/A

395

N/A

N/A

1060

1015

1000

300

300

310

950

900

870

240

250

260

650

620

580

150

155

160

cfm

845

810

780

720

690

635

600

555

520

Low

Watts

95

95

105

110

120

125

135

140

145

EL296UH070XE36B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

cfm

High

Watts

Air Volume / Watts at Various Blower Speeds

Medium-High cfm Watts cfm

Medium

Watts

Medium-Low cfm Watts

0.00

1380 315 1305 250 1190 200 965 105

0.10

0.20

1360

1310

325

335

1270

1250

255

265

1180

1130

205

215

915

880

115

120

0.30

0.40

0.50

0.60

0.70

0.80

1275

1250

1215

1200

1145

N/A

340

355

370

380

380

N/A

1205

1175

1145

1100

1070

1035

275

280

295

310

310

320

1100

1065

1045

995

960

925

225

230

240

245

255

265

835

795

745

705

670

610

125

135

145

150

160

165

cfm

730

670

640

585

550

920

865

815

775

Low

Watts

125

130

140

145

155

100

100

110

115

EL296UH090XE48C PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

cfm

High

Watts

Air Volume / Watts at Various Blower Speeds

Medium-High cfm Watts cfm

Medium

Watts

Medium-Low cfm Watts

0.00

0.10

1740

1695

370

390

1505

1470

250

265

1370

1325

195

205

1285

1240

160

170

0.20

0.30

1660

1615

405

415

1435

1390

280

295

1290

1240

220

235

1195

1140

185

200

0.40

0.50

0.60

0.70

0.80

1590

1560

1525

1475

N/A

425

440

455

470

N/A

1350

1310

1255

1220

1170

305

320

335

340

355

1200

1155

1105

1065

1010

245

260

270

285

295

1110

1055

1005

960

920

210

225

230

245

255

cfm

1135

1090

1045

995

945

895

855

805

760

Low

Watts

165

175

190

200

210

125

135

145

160

EL296UHE / Page 21

BLOWER DATA

EL296UH110XE60C PERFORMANCE (Less Filter)

Air Volume / Watts at Different Blower Speeds

External

Static

Pressure in. w.g.

Bottom Return Air, Side Return Air with Optional Return

Air Base, Return Air from Both Sides or Return Air from

Bottom and One Side.

High Med-High Medium Med-Low Low

Single Side Return Air − Air volumes in bold require field fabricated transition to accommodate 20 x 25 x 1 in. air filter in order to maintain proper air velocity.

High Med-High Medium Med-Low Low cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts

0.00

2220 645 1940 435 1765 335 1635 280 1435 200 2185 655 1915 440 1745 340 1620 275 1430 195

0.10

2170 660 1920 460 1715 350 1595 290 1380 205

2160 660 1880 460 1705 345 1570 285 1380 205

0.20

2130 680 1865 475 1670 370 1560 305 1345 220 2115 680 1835 470 1670 365 1535 305 1325 220

0.30

2095 700 1835 490 1640 390 1525 325 1285 230 2060 705 1795 495 1630 380 1505 320 1285 230

0.40

2065 720 1785 510 1600 405 1465 335 1250 245 2050 720 1760 510 1570 400 1455 330 1235 245

0.50

2030 740 1755 525 1560 415 1425 355 1215 260 2000 740 1720 530 1535 415 1410 345 1195 260

0.60

1995 760 1705 550 1525 435 1380 370 1150 270 1955 760 1685 550 1505 435 1380 365 1145 275

0.70

1955 770 1660 560 1475 450 1350 375 1100 290

1935 775 1650 555 1455 450 1325 375 1100 285

0.80

1930 790 1635 575 1445 460 1300 395 1050 305 1890 790 1610 575 1425 460 1285 390 1055 295

EL296UH135XE60D PERFORMANCE (Less Filter)

Air Volume / Watts at Different Blower Speeds

External

Static

Pressure in. w.g.

Bottom Return Air, Side Return Air with Optional Return

Air Base, Return Air from Both Sides or Return Air from

Bottom and One Side.

High Med-High Medium Med-Low Low

Single Side Return Air − Air volumes in bold require field fabricated transition to accommodate 20 x 25 x 1 in. air filter in order to maintain proper air velocity.

High Med-High Medium Med-Low Low cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts

0.00

2405 940 2235 735 2070 545 1830 390 1620 280 2395 925 2235 710 2020 550 1800 380 1610 275

0.10

2365 960 2210 745 2020 565 1770 400 1585 295 2360 935 2175 735 2005 555 1760 395 1550 295

0.20

2330 975 2180 770 1950 580 1745 420 1535 315

2350 955 2160 760 1955 565 1725 415 1510 300

0.30

2295 1000 2120 785 1925 595 1690 435 1480 325 2290 990 2095 775 1890 590 1700 435 1420 325

0.40

2275 1015 2075 805 1885 615 1640 460 1445 340 2255 995 2060 795 1850 615 1635 445 1390 340

0.50

2225 1025 2035 815 1845 630 1605 475 1395 360 2230 1010 2040 815 1845 625 1590 470 1375 360

0.60

2185 1010 2020 835 1815 645 1565 485 1330 365 2170 1025 2000 820 1795 640 1580 485 1335 370

0.70

0.80

N/A N/A 1940 850 1735 665 1520 500 1310 385 N/A N/A 1935 845 1725 660 1520 500 1295 385

N/A N/A 1890 860 1715 680 1465 510 1285 400 N/A N/A

1880 855 1705 680 1470 510 1260 405

EL296UHE / Page 22

REVISIONS

REVISIONS

Sections

Optional Accessories

Description of Change

Added Crawl Space Vent Drain Kit for Canada (ULC S636 Certified).

Visit us at www.lennox.com

For the latest technical information, www.LennoxPROs.com

Contact us at 1-800-4-LENNOX

NOTE - Due to Lennox’ ongoing commitment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability.

Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.

Installation and service must be performed by a qualified installer and servicing agency. ©2017 Lennox Industries, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
